Page 1

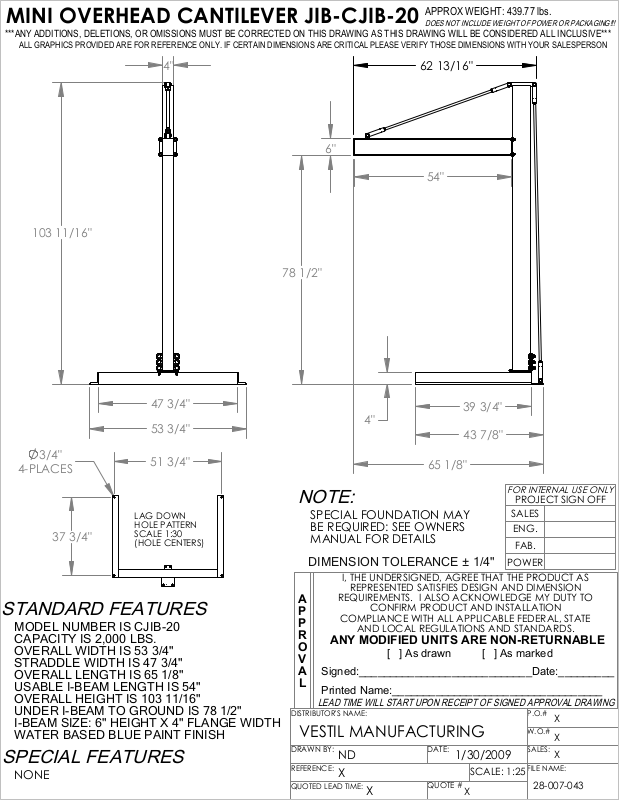

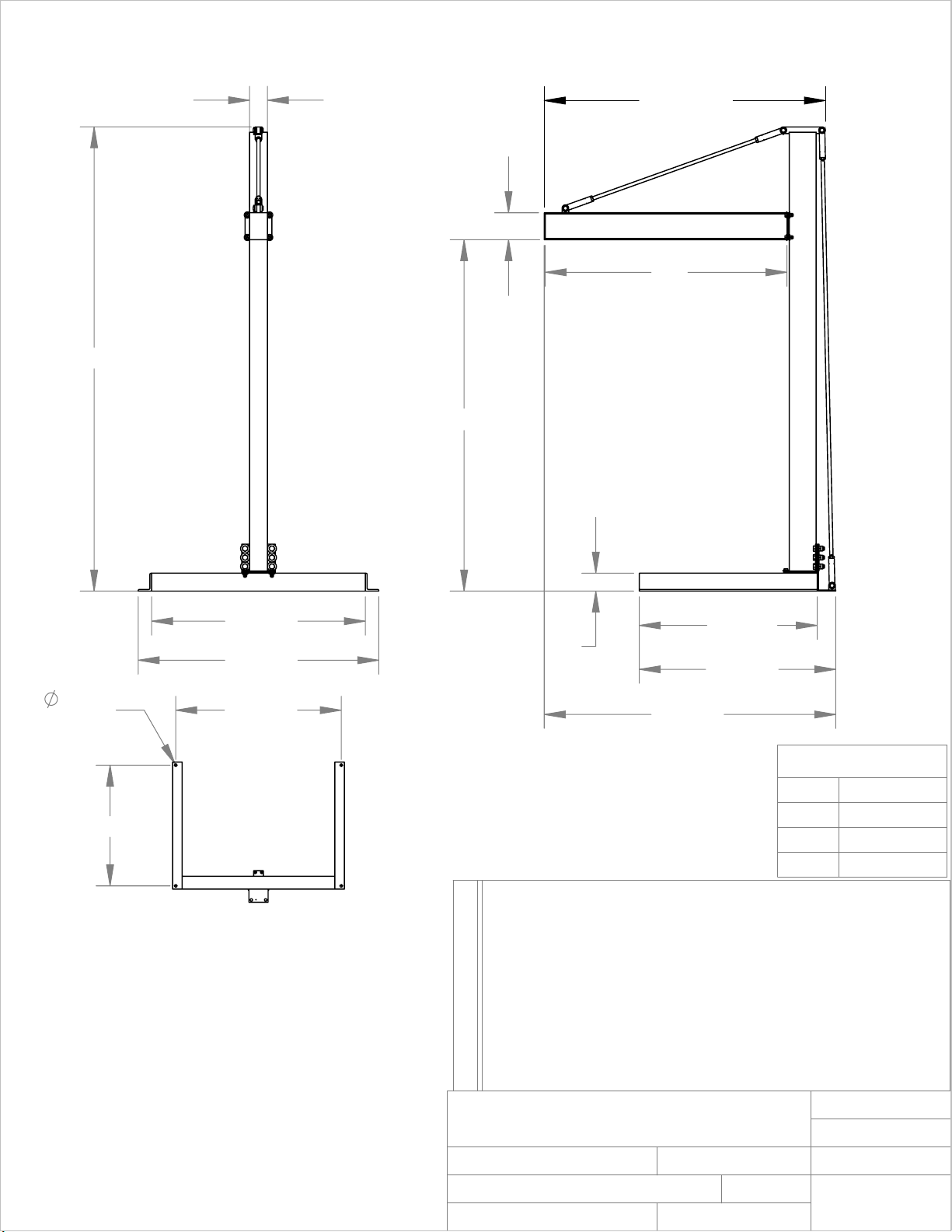

MINI OVERHEAD CANTILEVER JIB-CJIB-20
***ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
APPROX WEIGHT: 439.77 lbs.
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
103 11/16"
4"
62 13/16"
6"
54"
78 1/2"
47 3/4"
53 3/4"
3/4"
4-PLACES
37 3/4"
51 3/4"
LAG DOWN
HOLE PATTERN
SCALE 1:30
(HOLE CENTERS)
STANDARD FEATURES
MODEL NUMBER IS CJIB-20
CAPACITY IS 2,000 LBS.
OVERALL WIDTH IS 53 3/4"
STRADDLE WIDTH IS 47 3/4"
OVERALL LENGTH IS 65 1/8"
USABLE I-BEAM LENGTH IS 54"
OVERALL HEIGHT IS 103 11/16"
UNDER I-BEAM TO GROUND IS 78 1/2"
I-BEAM SIZE: 6" HEIGHT X 4" FLANGE WIDTH
WATER BASED BLUE PAINT FINISH
SPECIAL FEATURES
NONE
39 3/4"
4"
43 7/8"
65 1/8"
FOR INTERNAL USE ONLY
NOTE:
SPECIAL FOUNDATION MAY
BE REQUIRED: SEE OWNERS
MANUAL FOR DETAILS
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
DATE:
QUOTE #
1/30/2009
SCALE: 1:25
X
ND
X
:
X
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
P.O.#
X
W.O.#
X
SALES:
X
FILE NAME:
28-007-043
