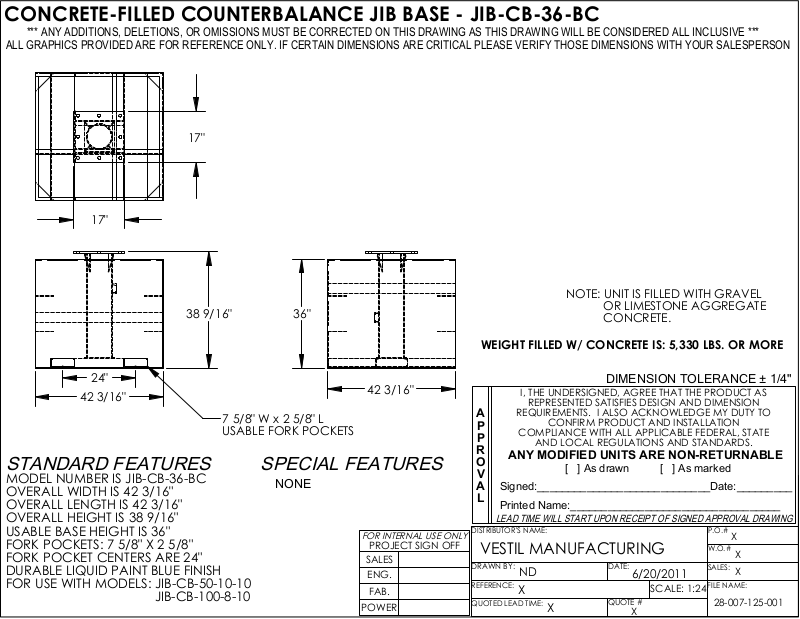

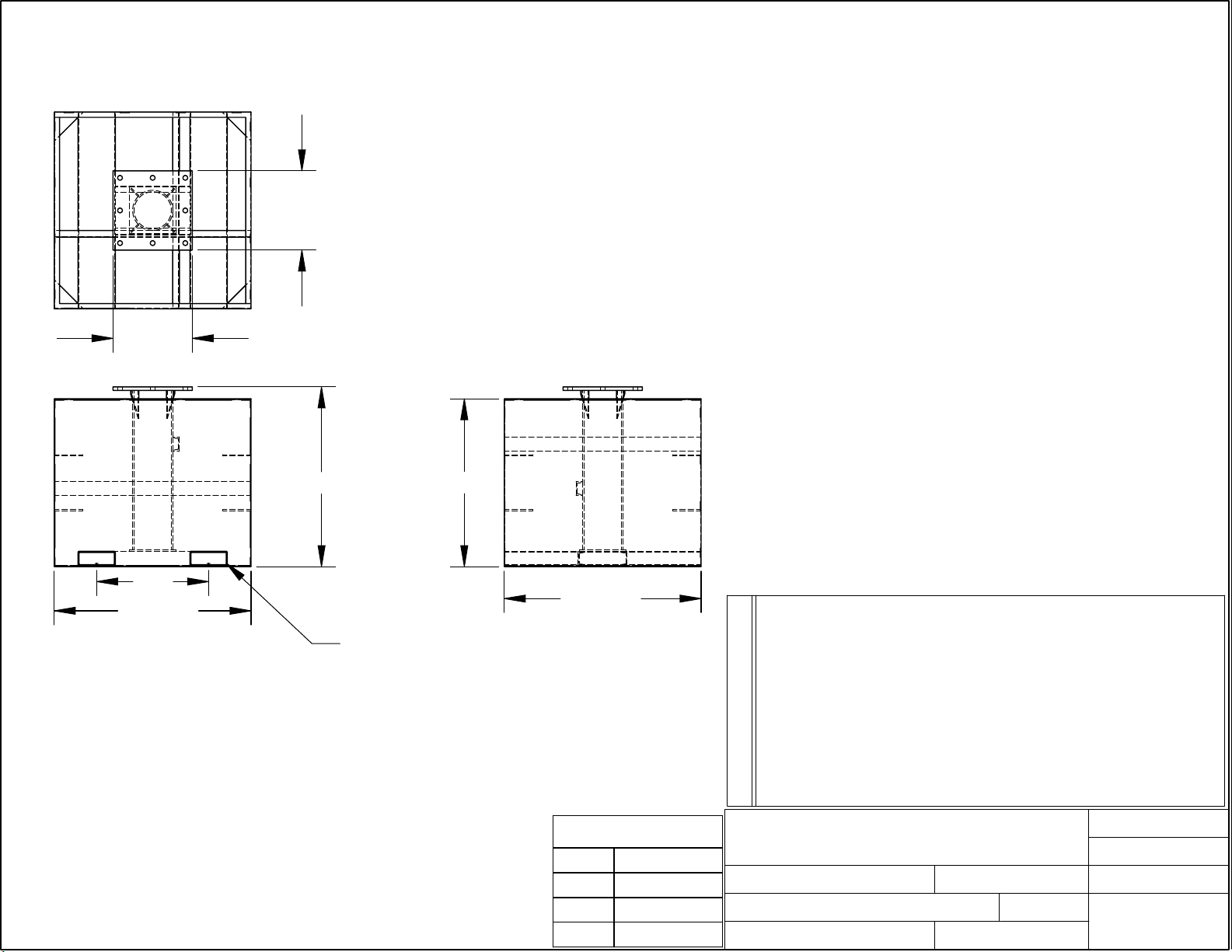

CONCRETE-FILLED COUNTERBALANCE JIB BASE - JIB-CB-36-BC
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
17"
17"
NOTE: UNIT IS FILLED WITH GRAVEL
38 9/16"
36"
OR LIMESTONE AGGREGATE
CONCRETE.
24"
42 3/16"
7 5/8" W x 2 5/8" L
USABLE FORK POCKETS
STANDARD FEATURES
MODEL NUMBER IS JIB-CB-36-BC
OVERALL WIDTH IS 42 3/16"
OVERALL LENGTH IS 42 3/16"
OVERALL HEIGHT IS 38 9/16"
USABLE BASE HEIGHT IS 36"
FORK POCKETS: 7 5/8" X 2 5/8"
FORK POCKET CENTERS ARE 24"
DURABLE LIQUID PAINT BLUE FINISH
FOR USE WITH MODELS: JIB-CB-50-10-10
JIB-CB-100-8-10
42 3/16"
SPECIAL FEATURES
NONE
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
WEIGHT FILLED W/ CONCRETE IS: 5,330 LBS. OR MORE
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
ND
X
DATE:
6/20/2011
SCALE: 1:24
:
X
QUOTE #
X
SALES:
X
FILE NAME:
28-007-125-001
