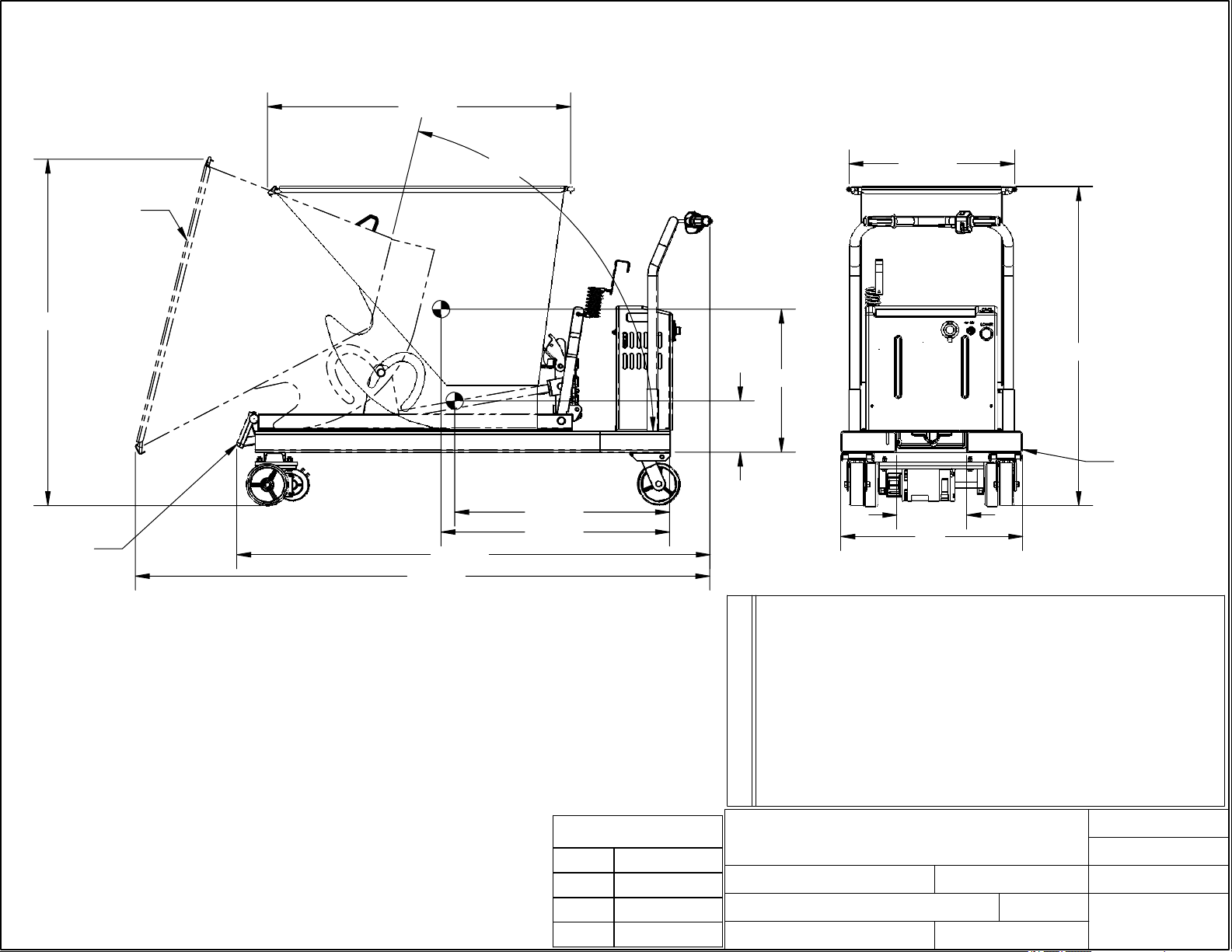

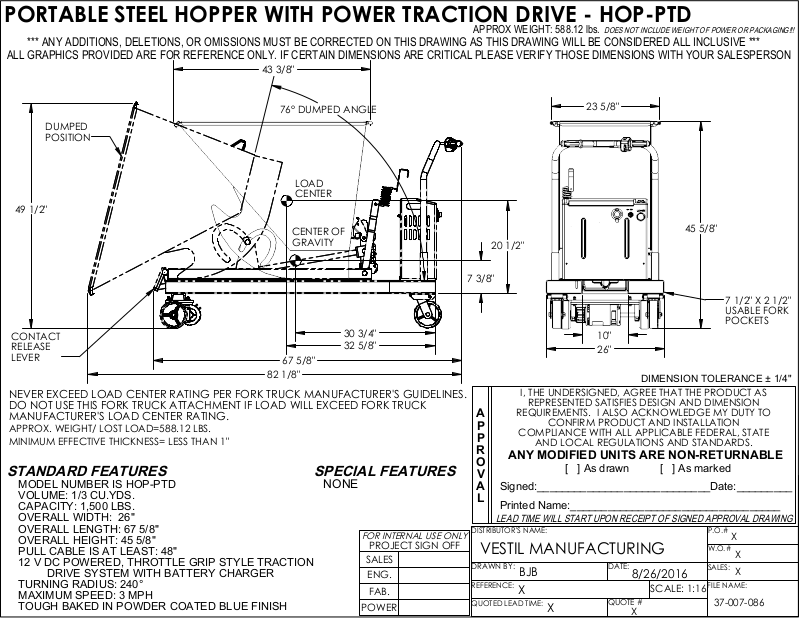

PORTABLE STEEL HOPPER WITH POWER TRACTION DRIVE - HOP-PTD
APPROX WEIGHT: 588.12 lbs.
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
43 3/8"
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
76° DUMPED ANGLE
DUMPED
POSITION
LOAD
CENTER
49 1/2"
CENTER OF
GRAVITY
CONTACT
RELEASE
LEVER
67 5/8"
82 1/8"
30 3/4"
32 5/8"
NEVER EXCEED LOAD CENTER RATING PER FORK TRUCK MANUFACTURER'S GUIDELINES.
DO NOT USE THIS FORK TRUCK ATTACHMENT IF LOAD WILL EXCEED FORK TRUCK
MANUFACTURER'S LOAD CENTER RATING.
APPROX. WEIGHT/ LOST LOAD=588.12 LBS.
MINIMUM EFFECTIVE THICKNESS= LESS THAN 1"
STANDARD FEATURES
MODEL NUMBER IS HOP-PTD
SPECIAL FEATURES
NONE
VOLUME: 1/3 CU.YDS.
CAPACITY: 1,500 LBS.
OVERALL WIDTH: 26"
OVERALL LENGTH: 67 5/8"
OVERALL HEIGHT: 45 5/8"
PULL CABLE IS AT LEAST: 48"
12 V DC POWERED, THROTTLE GRIP STYLE TRACTION
DRIVE SYSTEM WITH BATTERY CHARGER
TURNING RADIUS: 240°
MAXIMUM SPEED: 3 MPH
TOUGH BAKED IN POWDER COATED BLUE FINISH
