APPROX WEIGHT: 4 lbs.

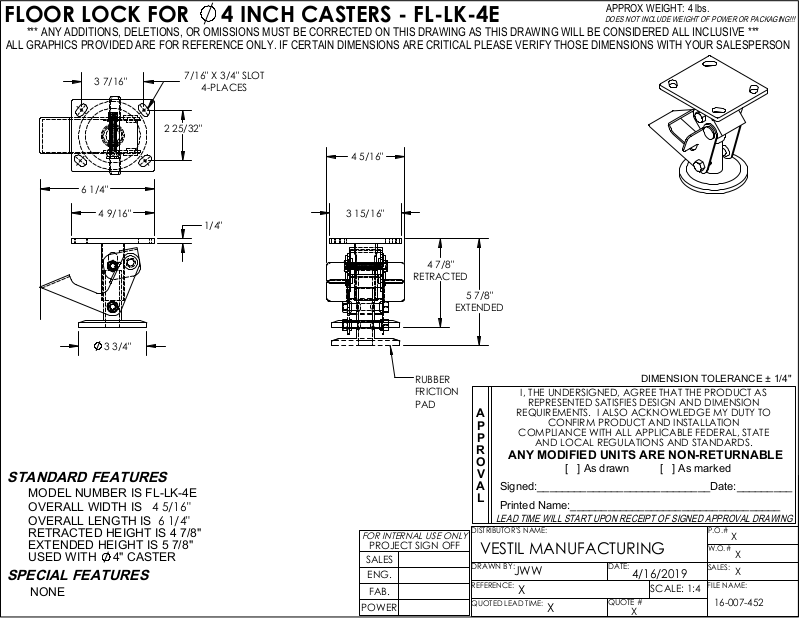

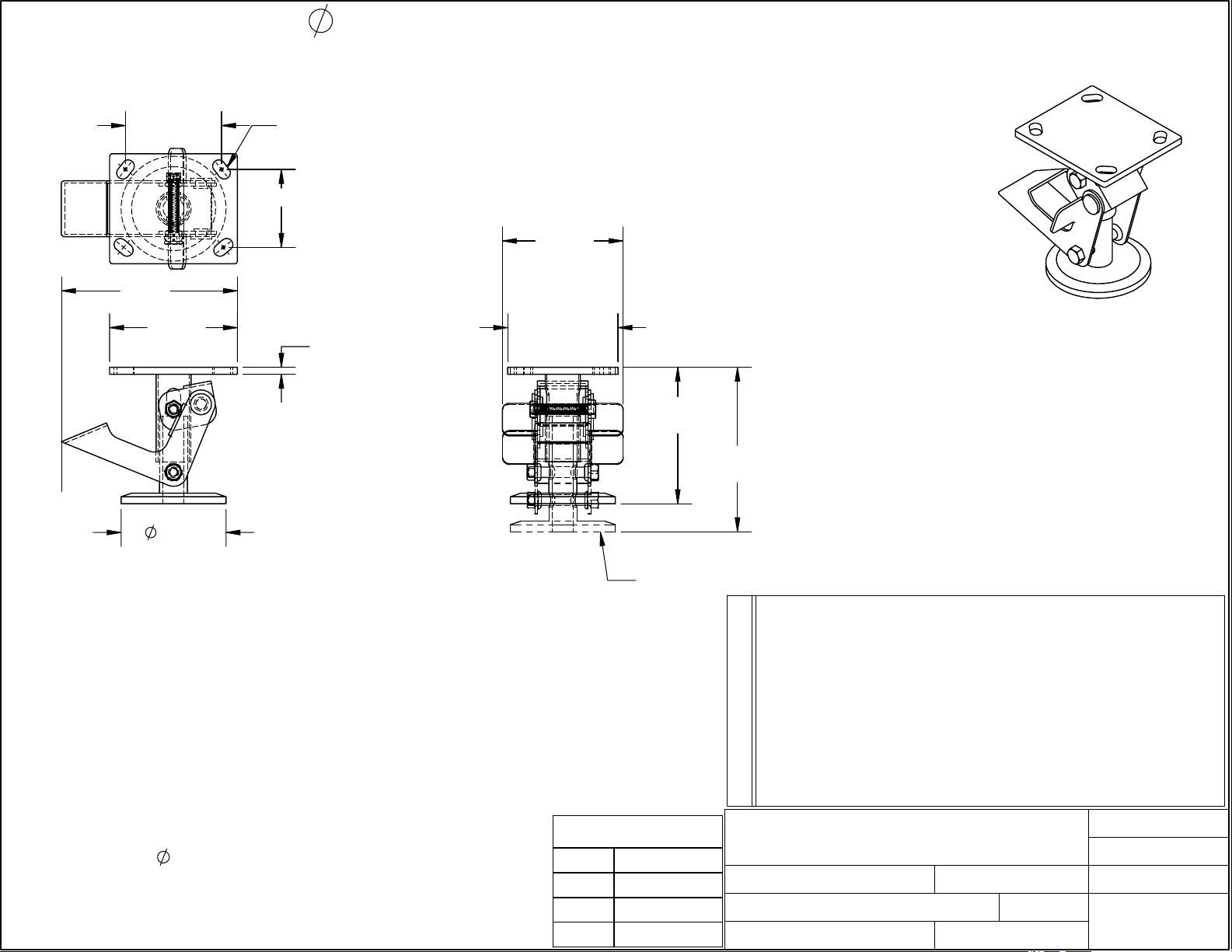

FLOOR LOCK FOR
4 INCH CASTERS - FL-LK-4E
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
3 7/16"
6 1/4"
4 9/16"
7/16" X 3/4" SLOT
4-PLACES
2 25/32"
4 5/16"
3 15/16"
1/4"
4 7/8"
RETRACTED
5 7/8"
EXTENDED
3 3/4"
STANDARD FEATURES
MODEL NUMBER IS FL-LK-4E
OVERALL WIDTH IS
OVERALL LENGTH IS
4 5/16"
6 1/4"
RETRACTED HEIGHT IS 4 7/8"
EXTENDED HEIGHT IS 5 7/8"
USED WITH
4" CASTER
SPECIAL FEATURES
NONE
RUBBER
FRICTION
PAD
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
JWW
X
DATE:
4/16/2019
SCALE: 1:4
:
X
QUOTE #
X
SALES:
X
FILE NAME:
16-007-452
