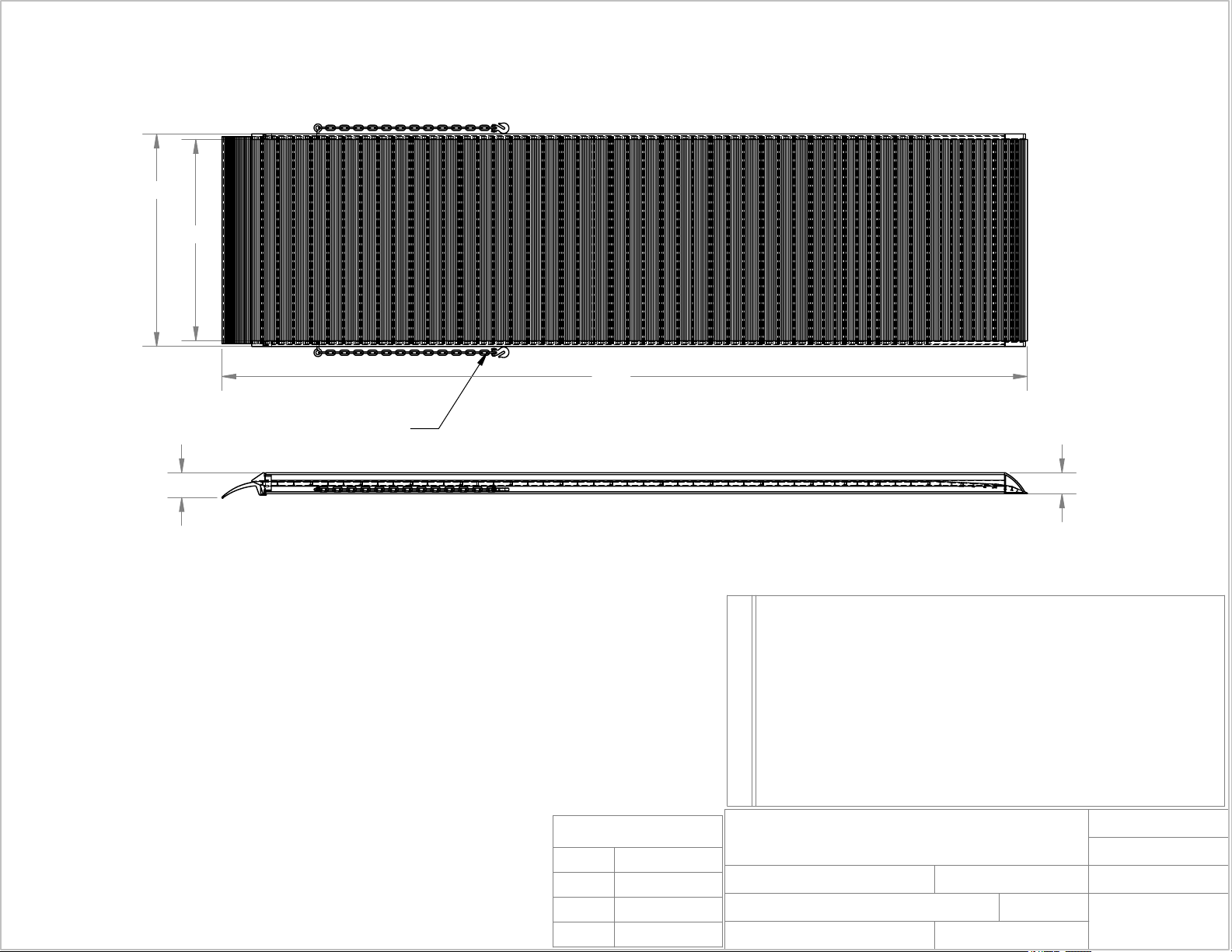

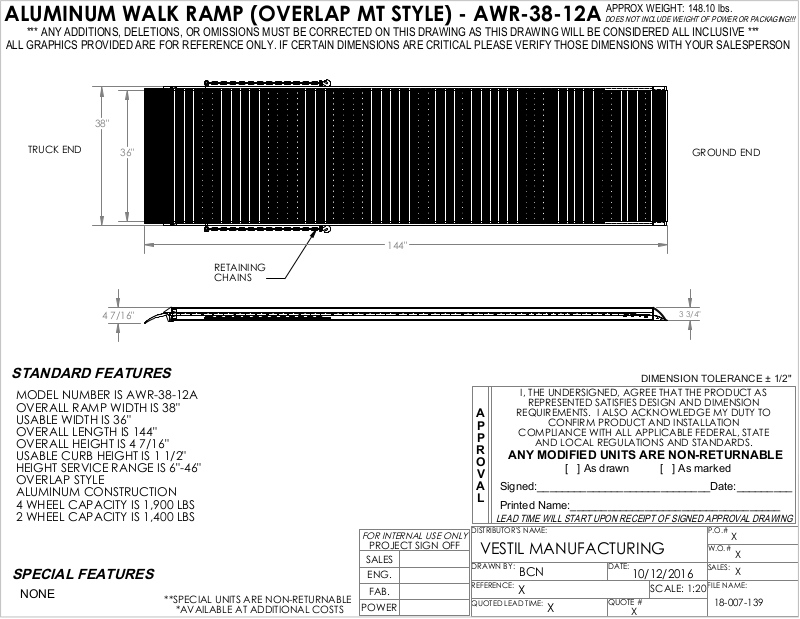

ALUMINUM WALK RAMP (OVERLAP MT STYLE) - AWR-38-12A
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
38"
APPROX WEIGHT: 148.10 lbs.
TRUCK END
36"
4 7/16"
STANDARD FEATURES
MODEL NUMBER IS AWR-38-12A
OVERALL RAMP WIDTH IS 38"
USABLE WIDTH IS 36"
OVERALL LENGTH IS 144"
OVERALL HEIGHT IS 4 7/16"
USABLE CURB HEIGHT IS 1 1/2"
HEIGHT SERVICE RANGE IS 6"-46"
OVERLAP STYLE
ALUMINUM CONSTRUCTION
4 WHEEL CAPACITY IS 1,900 LBS
2 WHEEL CAPACITY IS 1,400 LBS
SPECIAL FEATURES
NONE
**SPECIAL UNITS ARE NON-RETURNABLE
*AVAILABLE AT ADDITIONAL COSTS
RETAINING
CHAINS
144"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
GROUND END
3 3/4"
DIMENSION TOLERANCE ± 1/2"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
BCN
X
DATE:
10/12/2016
SCALE: 1:20
:
X
QUOTE #
X
SALES:
X
FILE NAME:
18-007-139
