APPROX WEIGHT: 57.72 lbs.

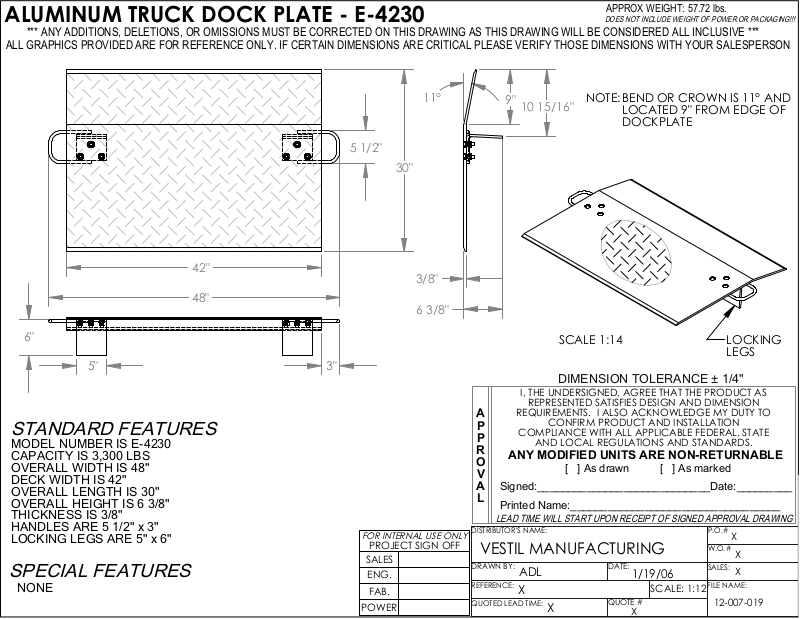

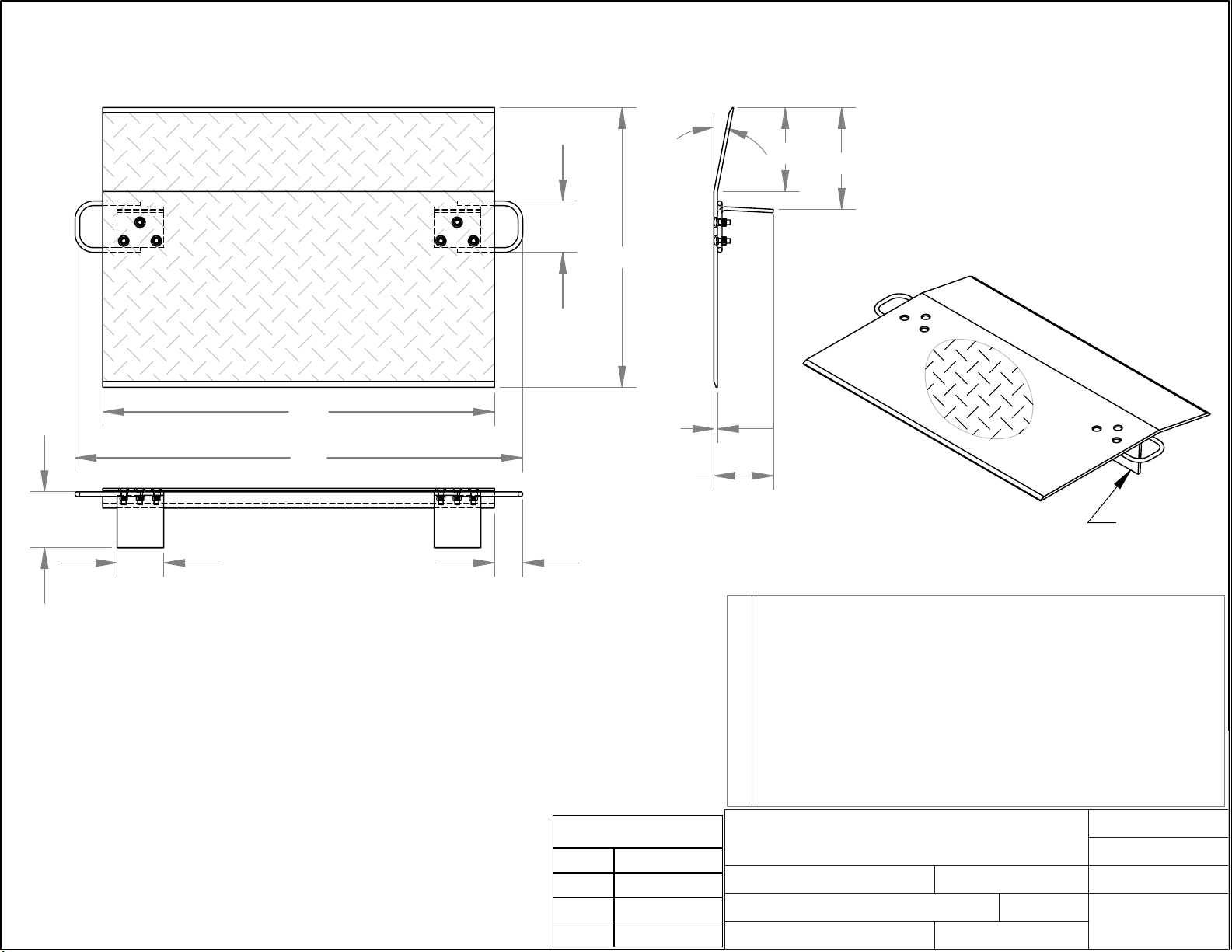

ALUMINUM TRUCK DOCK PLATE - E-4230
DOES NOT INCLUDE WEIGHT OF POWER OR PACKAGING!!!
*** ANY ADDITIONS, DELETIONS, OR OMISSIONS MUST BE CORRECTED ON THIS DRAWING AS THIS DRAWING WILL BE CONSIDERED ALL INCLUSIVE ***
ALL GRAPHICS PROVIDED ARE FOR REFERENCE ONLY. IF CERTAIN DIMENSIONS ARE CRITICAL PLEASE VERIFY THOSE DIMENSIONS WITH YOUR SALESPERSON
42"
48"
6"
5" 3"
STANDARD FEATURES
MODEL NUMBER IS E-4230
CAPACITY IS 3,300 LBS
OVERALL WIDTH IS 48"
DECK WIDTH IS 42"
OVERALL LENGTH IS 30"
OVERALL HEIGHT IS 6 3/8"
THICKNESS IS 3/8"
HANDLES ARE 5 1/2" x 3"
LOCKING LEGS ARE 5" x 6"
SPECIAL FEATURES
NONE
11°
5 1/2"
30"
3/8"
6 3/8"
FOR INTERNAL USE ONLY
PROJECT SIGN OFF
SALES
ENG.
FAB.
POWER
9"
10 15/16"
NOTE:
BEND OR CROWN IS 11° AND
LOCATED 9" FROM EDGE OF
DOCKPLATE
SCALE 1:14
LOCKING
LEGS
DIMENSION TOLERANCE ± 1/4"
I, THE UNDERSIGNED, AGREE THAT THE PRODUCT AS
REPRESENTED SATISFIES DESIGN AND DIMENSION
A
P
P
R
O
V
A
L
DISTRIBUTOR'S NAME:
VESTIL MANUFACTURING
DRAWN BY:
REFERENCE:
QUOTED LEAD TIME
REQUIREMENTS. I ALSO ACKNOWLEDGE MY DUTY TO
CONFIRM PRODUCT AND INSTALLATION
COMPLIANCE WITH ALL APPLICABLE FEDERAL, STATE
AND LOCAL REGULATIONS AND STANDARDS.
ANY MODIFIED UNITS ARE NON-RETURNABLE
[ ] As drawn [ ] As marked
Signed:____________________________Date:_________
Printed Name:__________________________________
LEAD TIME WILL START UPON RECEIPT OF SIGNED APPROVAL DRAWING
P.O.#
X
W.O.#
X
ADL
X
DATE:
1/19/06
SCALE: 1:12
:
X
QUOTE #
X
SALES:
X
FILE NAME:
12-007-019
