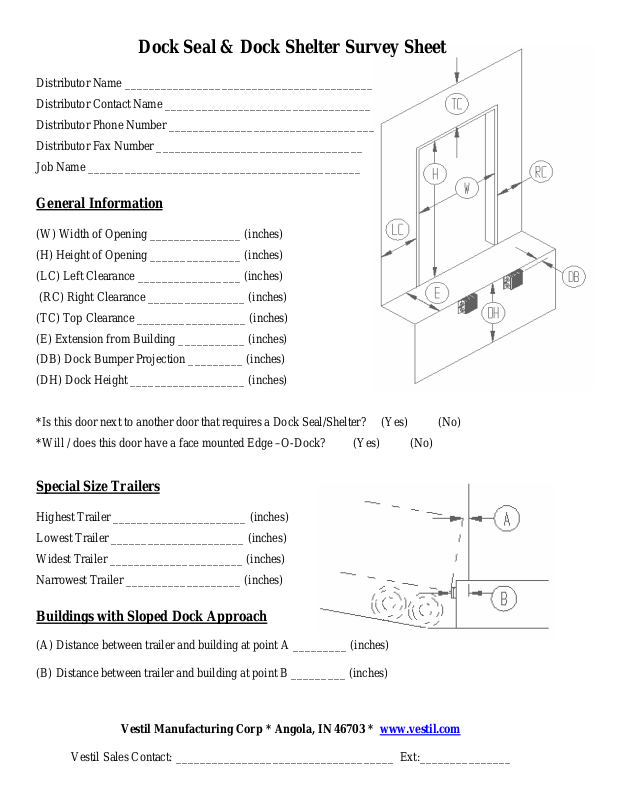

Dock Seal & Dock Shelter Survey Sheet

Distributor Name _________________________________________
Distributor Contact Name __________________________________
Distributor Phone Number __________________________________
Distributor Fax Number __________________________________
Job Name _____________________________________________

General Information

(W) Width of Opening _______________ (inches)
(H) Height of Opening _______________ (inches)
(LC) Left Clearance _________________ (inches)
(RC) Right Clearance ________________ (inches)
(TC) Top Clearance __________________ (inches)
(E) Extension from Building ___________ (inches)
(DB) Dock Bumper Projection _________ (inches)
(DH) Dock Height ___________________ (inches)

*Is this door next to another door that requires a Dock Seal/Shelter? (Yes) (No)
*Will / does this door have a face mounted Edge –O-Dock? (Yes) (No)

Special Size Trailers

Highest Trailer ______________________ (inches)
Lowest Trailer ______________________ (inches)
Widest Trailer ______________________ (inches)
Narrowest Trailer ___________________ (inches)

Buildings with Sloped Dock Approach

(A) Distance between trailer and building at point A _________ (inches)

(B) Distance between trailer and building at point B _________ (inches)

Vestil Manufacturing Corp * Angola, IN 46703 * www.vestil.com

Vestil Sales Contact: ____________________________________ Ext:_______________
