vestel 17MB18, 17MB18-5 20 Schematic

20” TFT

SERVICE MANUAL

(17MB18)

TABLE OF CONTENTS

1. SOFTWARE UPDATE DESCRIPTION .................................................................................................1

2. INTRODUCTION ...................................................................................................................................4

2.1. Scope .................................................................................................................................................4

2.2. General Features ...............................................................................................................................4

3. SYSTEM BUILDING BLOCKS ..............................................................................................................5

3.1. Analog Front End ...............................................................................................................................5

3.1.1. Tuner...........................................................................................................................................5

3.1.2. SAW Filters .................................................................................................................................6

3.2. Back End ............................................................................................................................................6

3.3. Side Board(s) .....................................................................................................................................9

3.3.1. Keypads......................................................................................................................................9

3.3.2. IR&Led Board .............................................................................................................................9

3.4. Power ...............................................................................................................................................10

4. IC AND COMPONENT DESCRIPTIONS ............................................................................................12

4.1. Basic IC List .....................................................................................................................................12

4.2. UOCIII ..............................................................................................................................................12

4.2.1. Pinout........................................................................................................................................13

4.3. PW1306 ...........................................................................................................................................17

4.3.1. Pinout........................................................................................................................................17

4.4. M29W800AT ....................................................................................................................................26

4.5. DS90C385........................................................................................................................................26

4.6. P15V330 ..........................................................................................................................................26

4.7. 74HC4052 ........................................................................................................................................26

4.8. TA1366FG........................................................................................................................................27

4.9. TDA7056A........................................................................................................................................27

4.10. TDA1308 ......................................................................................................................................27

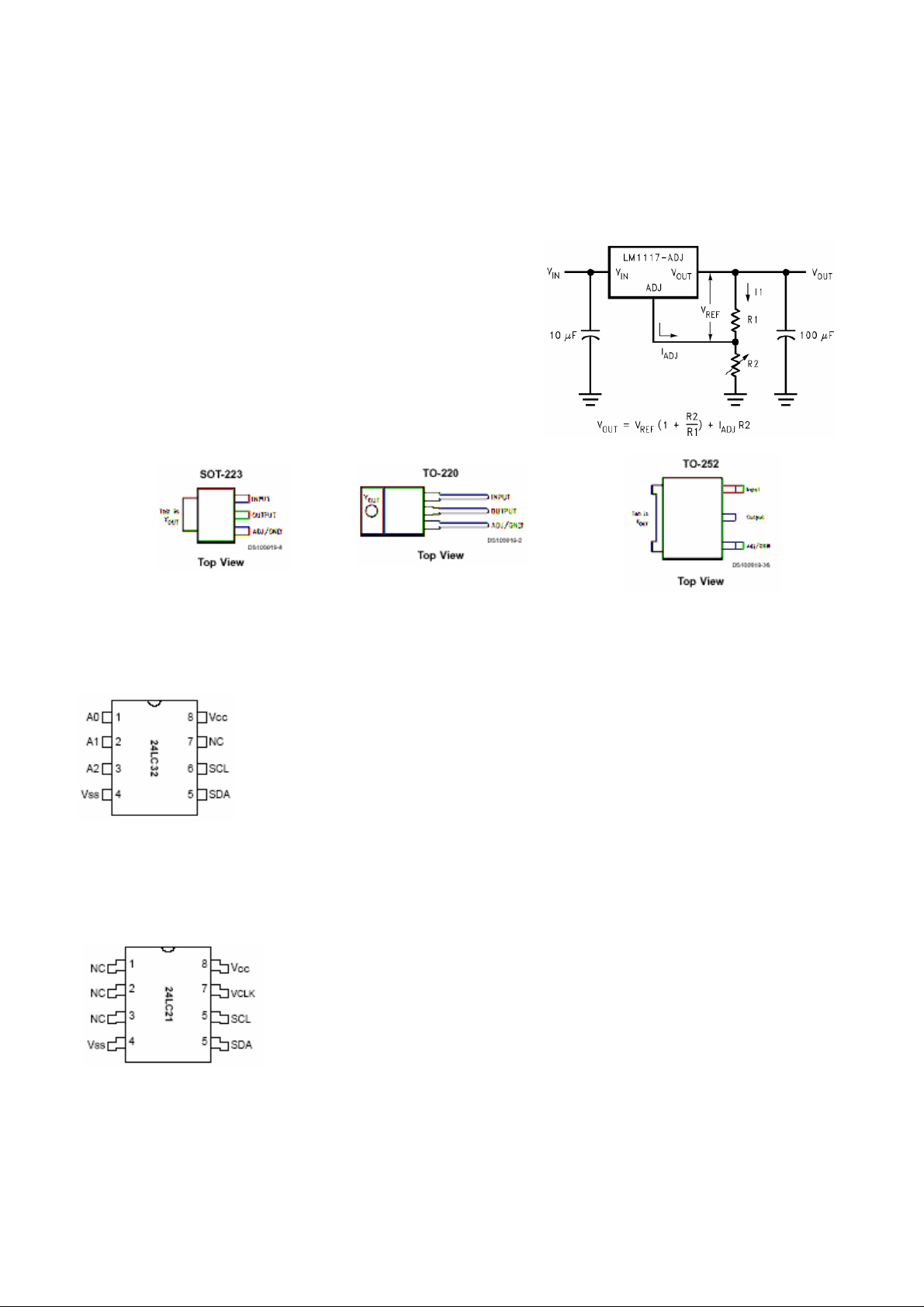

4.11. LM1117.........................................................................................................................................28

4.12. 24LC32.........................................................................................................................................28

4.13. 24LC21.........................................................................................................................................28

4.14. 74LVC541.....................................................................................................................................29

4.15. SAA3010T ....................................................................................................................................29

4.16. MC34167 ......................................................................................................................................30

4.17. TFMS5360....................................................................................................................................30

4.18. Board Connectors, Headers & Jumpers.......................................................................................30

4.18.1. Analog PC Connector (PL400)..............................................................................................30

4.18.2. Scart Connector (PL401) ......................................................................................................31

4.18.3. S-Video Connector (JK403) ..................................................................................................31

4.18.4. LVDS Panel Connector(1x20 PL179) ...................................................................................31

4.18.5. TTL Panel Connector -Even (2x17 PL177)...........................................................................32

4.18.6. TTL Panel Connector -Odd (2x17 PL178) ............................................................................32

4.18.7. Panel Inverter Connector (1x11 PL176) ...............................................................................32

4.18.8. Keypad Card Connector (1x5 PL175)...................................................................................33

4.18.9. Optional Keypad Connector to UOC (1x2 PL 202) ...............................................................33

4.18.10. LED & IR Receiver Connector (1x6 PL202)..........................................................................33

4.18.11. Optional Rocker Sw. Connector (1x4 PL500) .......................................................................33

4.18.12. PROMJet Connector (2x25 PL101) ......................................................................................33

4.18.13. Side HP Connector for Side-card Option (PL405) ................................................................33

4.18.14. Side AV Connector for Side-card Option (PL406) ................................................................34

4.18.15. Side SVHS Connector for Side-card Option (PL407) ...........................................................34

5. DIGITAL MODULE IC and CONNECTOR DESCRIPTIONS ..............................................................35

5.1. STI5518............................................................................................................................................35

5.1.1. General Description................................................................................................................35

5.2. MAX232_SMD .................................................................................................................................35

5.2.1. General Description................................................................................................................35

5.2.2. Features ...................................................................................................................................35

5.3. 74HCU04 .........................................................................................................................................36

5.3.1. General Description................................................................................................................36

i

i

17” TFT TV Service Manual 19/11/2003

5.3.2. Pin Description........................................................................................................................36

5.4. TSH22 ..............................................................................................................................................37

5.4.1. General Description................................................................................................................37

5.4.2. Pin Connections......................................................................................................................37

5.5. CS4334 ............................................................................................................................................37

5.5.1. General Description................................................................................................................37

5.5.2. Features ...................................................................................................................................37

5.6. AMIC A43L2616...............................................................................................................................38

5.6.1. General Description................................................................................................................38

5.6.2. Features ...................................................................................................................................38

5.6.3. Pin Description........................................................................................................................38

5.7. MX29LV160T ...................................................................................................................................40

5.7.1. General Description................................................................................................................40

5.7.2. Features ...................................................................................................................................40

5.7.3. Pin Description........................................................................................................................40

5.8. 24C32...............................................................................................................................................41

5.8.1. General Description................................................................................................................41

5.8.2. Features ...................................................................................................................................41

5.8.3. Pin Description........................................................................................................................41

5.9. STV0360 ..........................................................................................................................................42

5.9.1. General Description................................................................................................................42

5.9.2. Features ...................................................................................................................................42

5.9.3. Pin Description........................................................................................................................42

5.10. MAX809........................................................................................................................................45

5.10.1. General Description ............................................................................................................45

5.10.2. Features ...............................................................................................................................45

5.10.3. Pin Description....................................................................................................................45

5.11. TDCC2345TV39A.........................................................................................................................46

5.11.1. General Description ............................................................................................................46

5.11.2. Pin Description....................................................................................................................46

5.12. STV0700.......................................................................................................................................46

5.12.1. General description ............................................................................................................46

5.12.2. Features ...............................................................................................................................47

5.12.3. Pin Description....................................................................................................................47

5.13. 74HC373 ......................................................................................................................................52

5.13.1. General Description ............................................................................................................52

5.13.2. Pin Connections ..................................................................................................................52

5.14. 74HC245 ......................................................................................................................................52

5.14.1. General Description ............................................................................................................52

5.14.2. Features ...............................................................................................................................52

6. SERVICE MENU SETTINGS ..............................................................................................................53

6.1. UOCIII Service Menu .......................................................................................................................53

6.1.1. UOCIII Service Menu Settings ...............................................................................................53

6.1.2. Tuner AGC Alignment...............................................................................................................57

6.1.3. DCXO Alignment.......................................................................................................................57

6.2. PW1306 Service Menu ....................................................................................................................57

6.2.1. UOC Horizontal Position...........................................................................................................58

6.2.2. UOC Calibration........................................................................................................................58

6.2.3. PW1306 PC Input ADC Calibration ..........................................................................................58

6.2.4. Init NVM ....................................................................................................................................59

6.2.5. Initial APS .................................................................................................................................59

6.2.6. Hotel Mode Activate..................................................................................................................59

6.2.7. Burn-In Mode ............................................................................................................................59

6.2.8. Country .....................................................................................................................................59

6.2.9. Language ..................................................................................................................................59

6.2.10. Menu Background .................................................................................................................60

6.2.11. Remote Control .....................................................................................................................60

6.3. Panel Type Change Shortcut...........................................................................................................60

7. PRODUCTION SETTINGS AND FACTORY DEFAULTS...................................................................61

7.1. Production Schedule........................................................................................................................61

ii

ii

17” TFT TV Service Manual 19/11/2003

7.2. EEPROM Settings............................................................................................................................61

7.2.1. Creating Master EEPROM........................................................................................................61

7.2.2. Creating Mass Production EEPROM ........................................................................................61

7.3. TV Menu...........................................................................................................................................61

7.3.1. Picture Menu.............................................................................................................................61

7.3.2. Audio Menu .............................................................................................................................61

7.3.3. Window Menu ...........................................................................................................................62

7.3.4. Options Menu............................................................................................................................62

7.3.5. Settings Menu ...........................................................................................................................62

7.4. PC Mode Menu ................................................................................................................................62

7.4.1. Picture Menu.............................................................................................................................62

7.4.2. Audio Menü...............................................................................................................................63

7.4.3. Window Menu ...........................................................................................................................63

7.4.4. Options Menü............................................................................................................................63

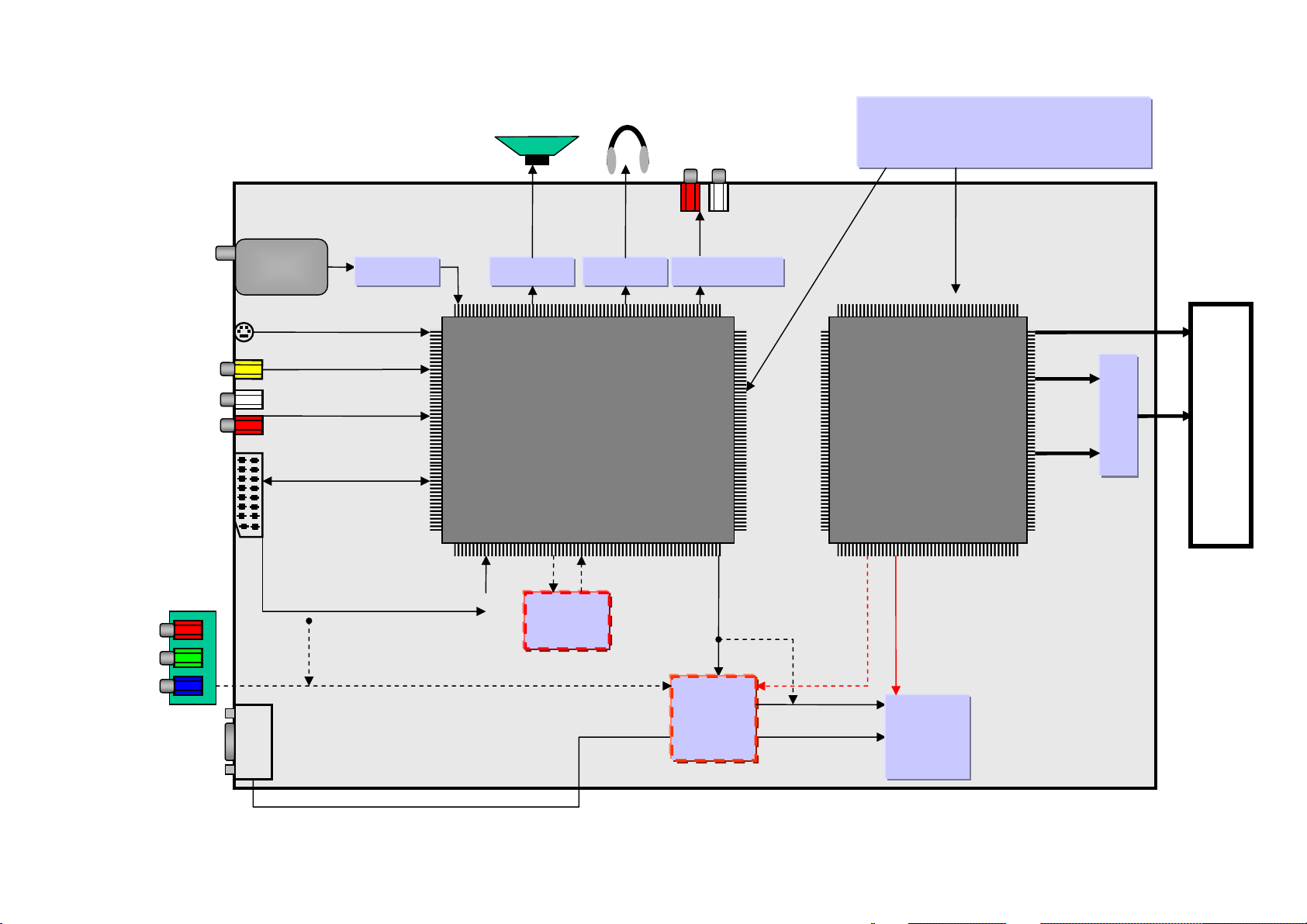

8. BLOCK DIAGRAM...............................................................................................................................65

9. CIRCUIT DIAGRAMS ..........................................................................................................................67

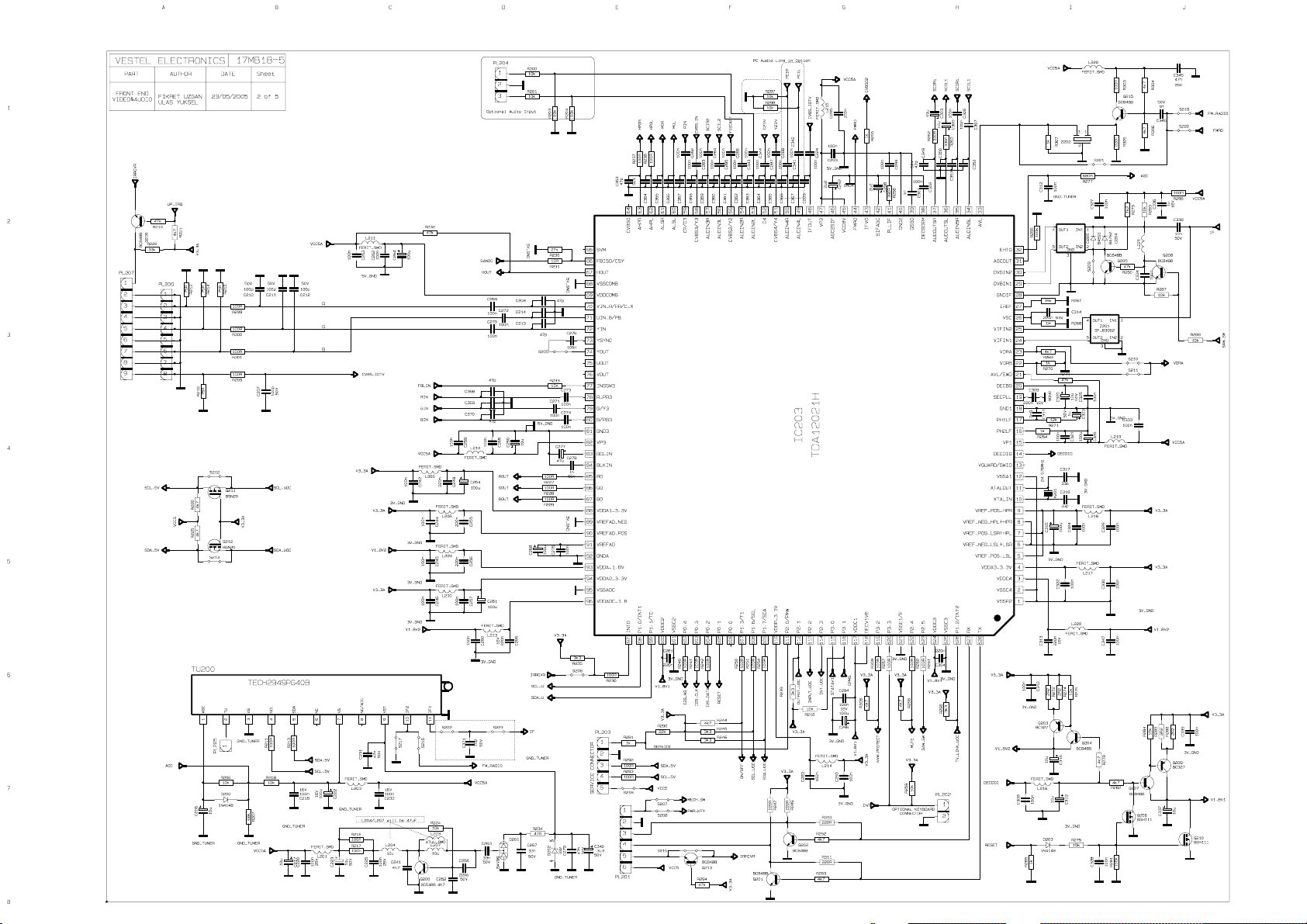

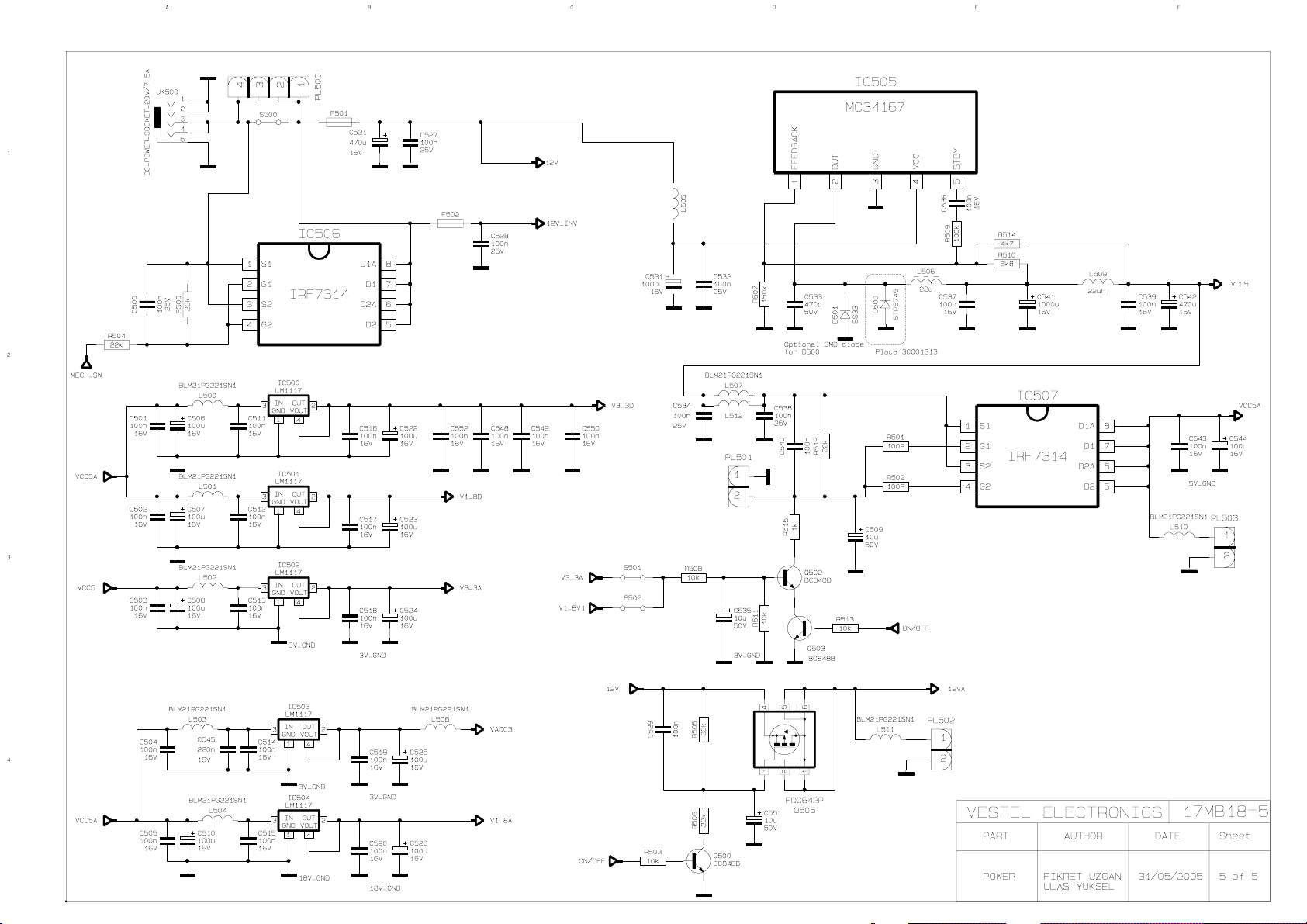

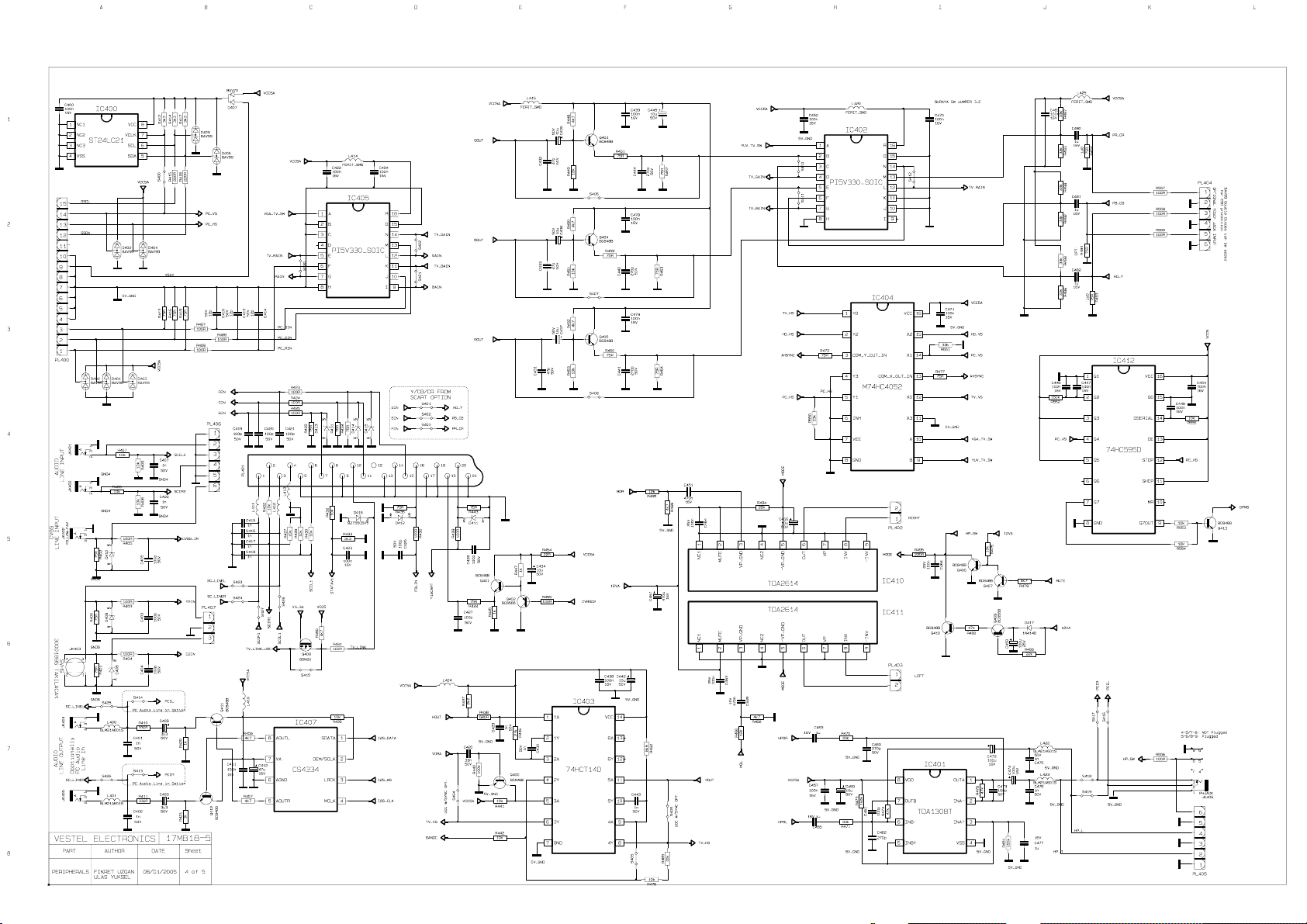

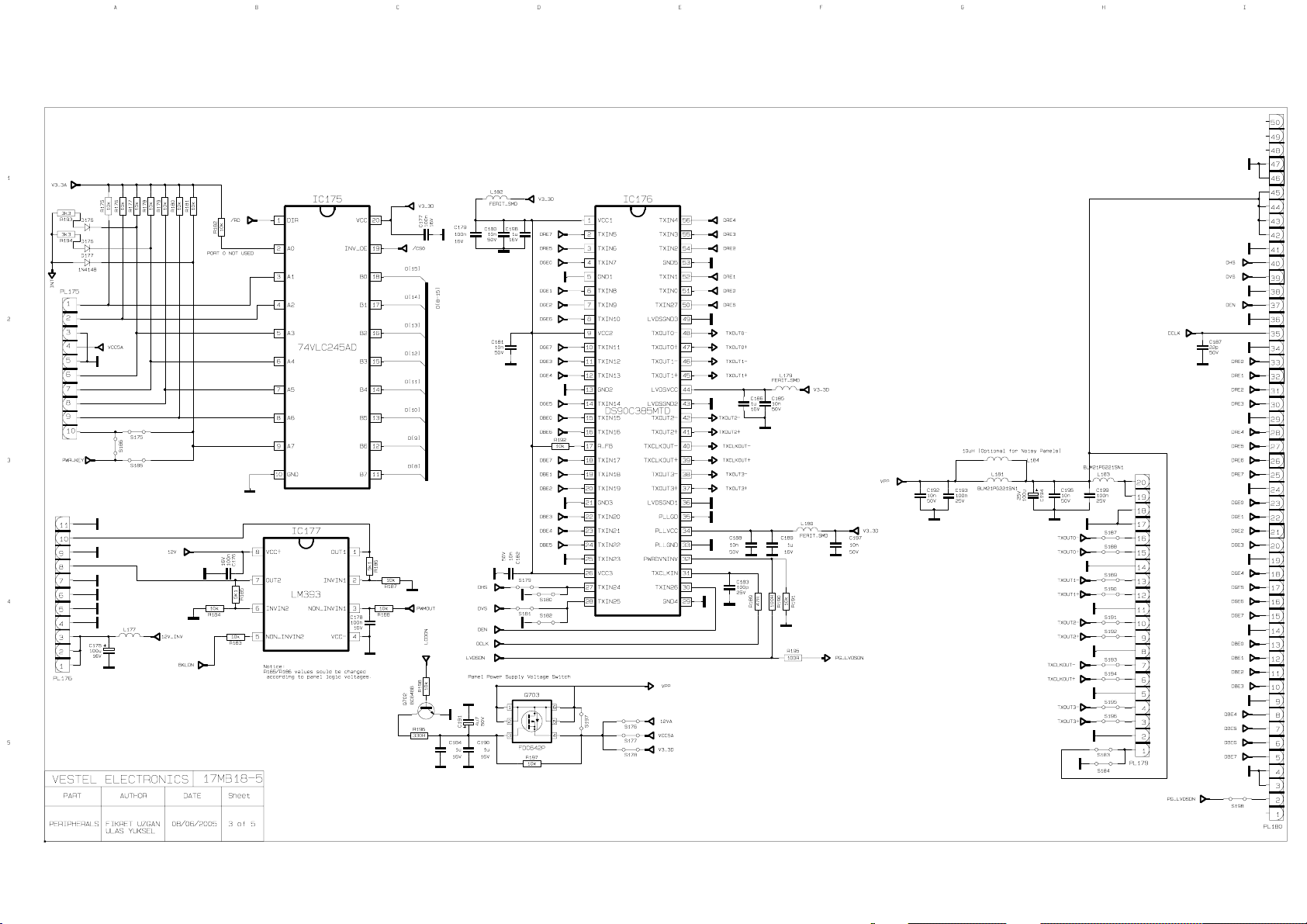

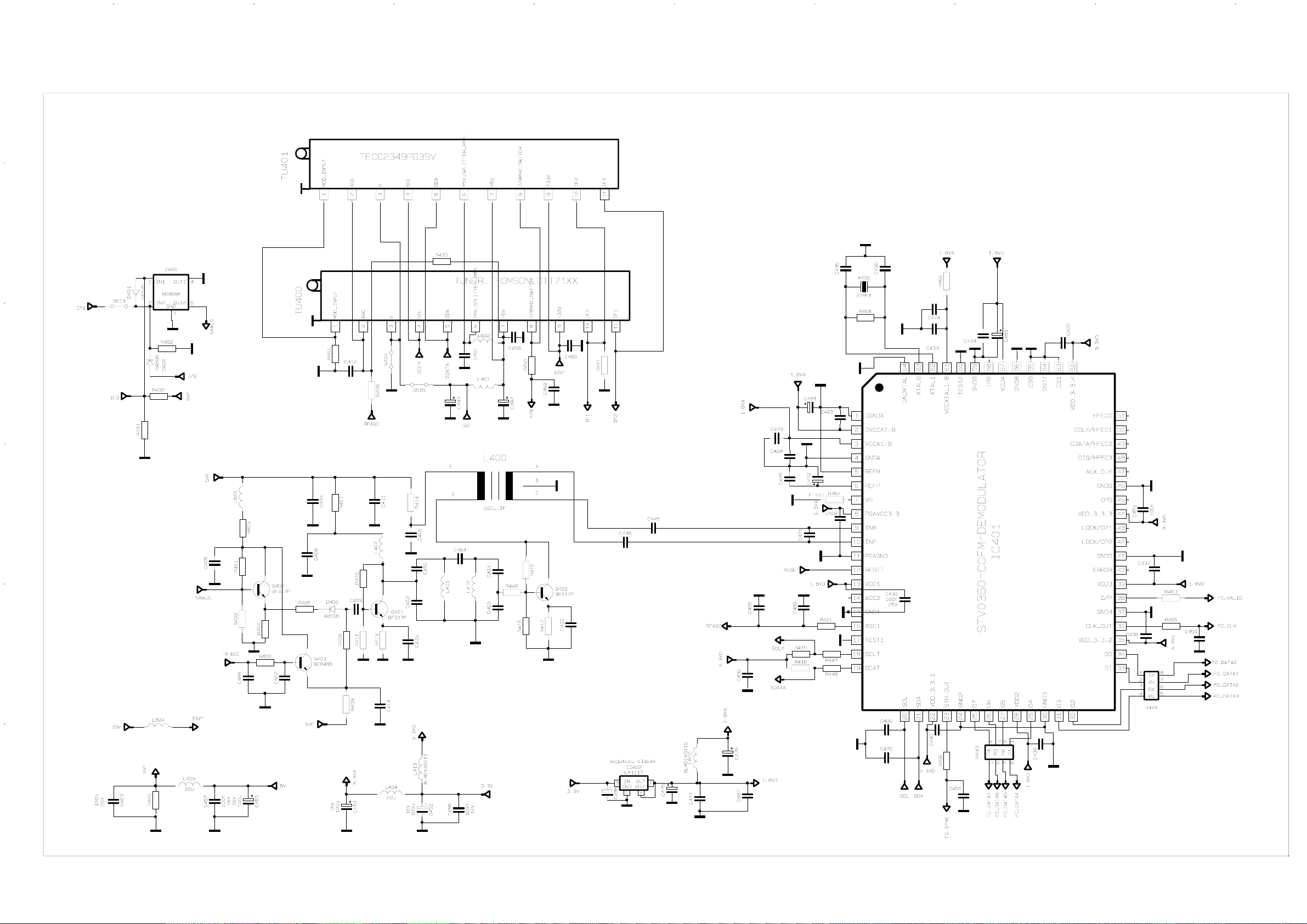

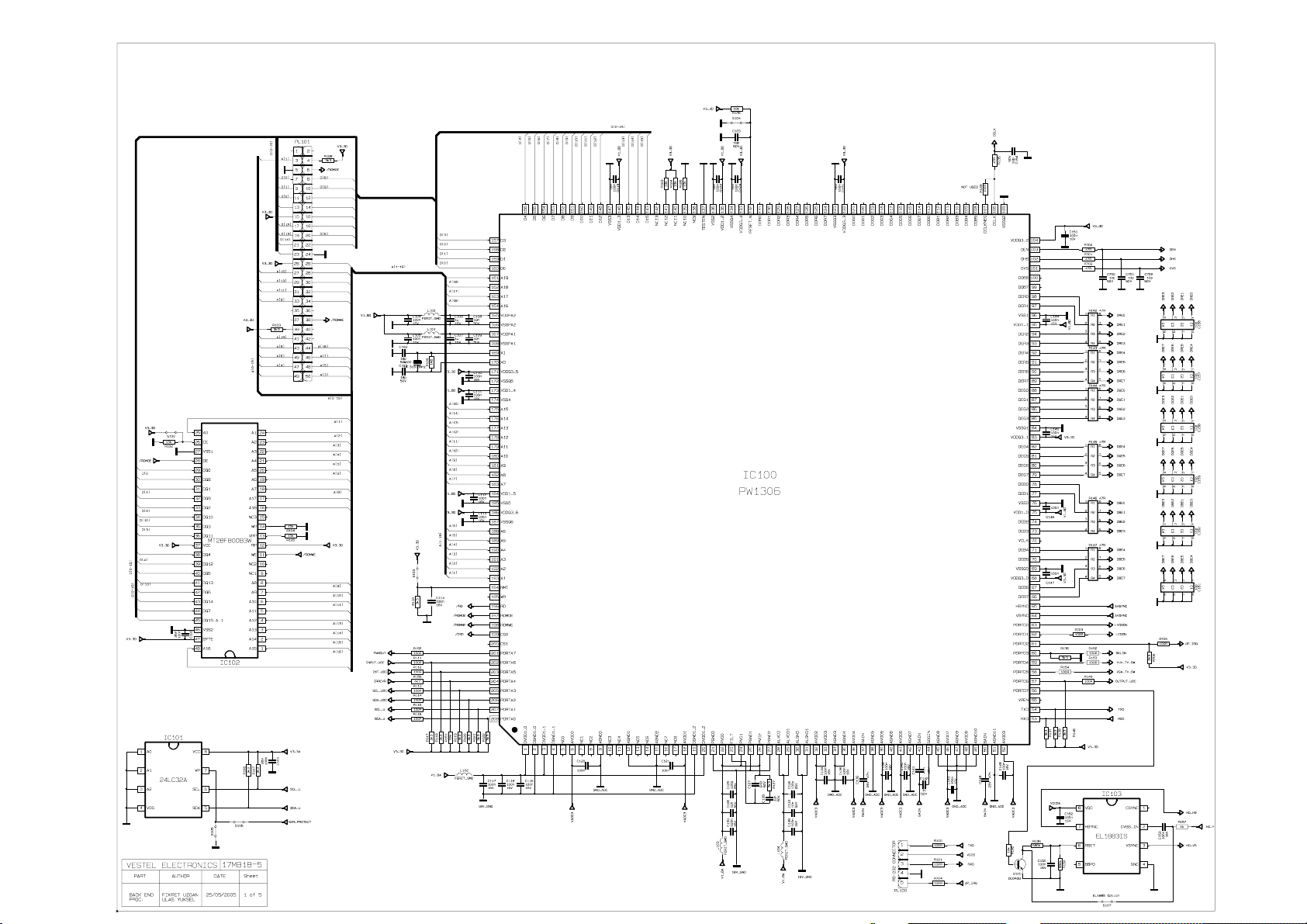

9.1. 17MB18-5 Main Board Schematics .................................................................................................67

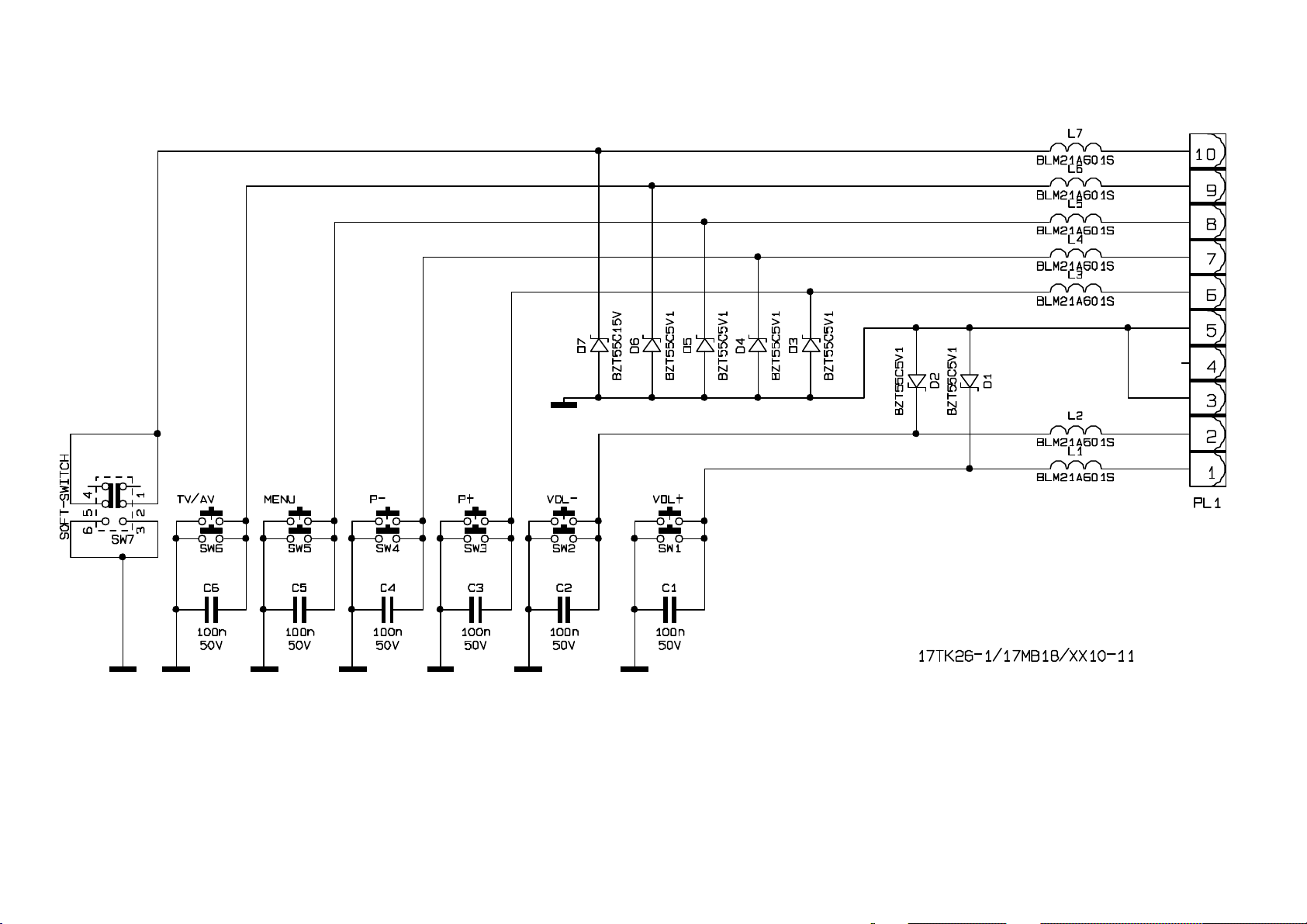

9.2. Keypad Schematics .........................................................................................................................72

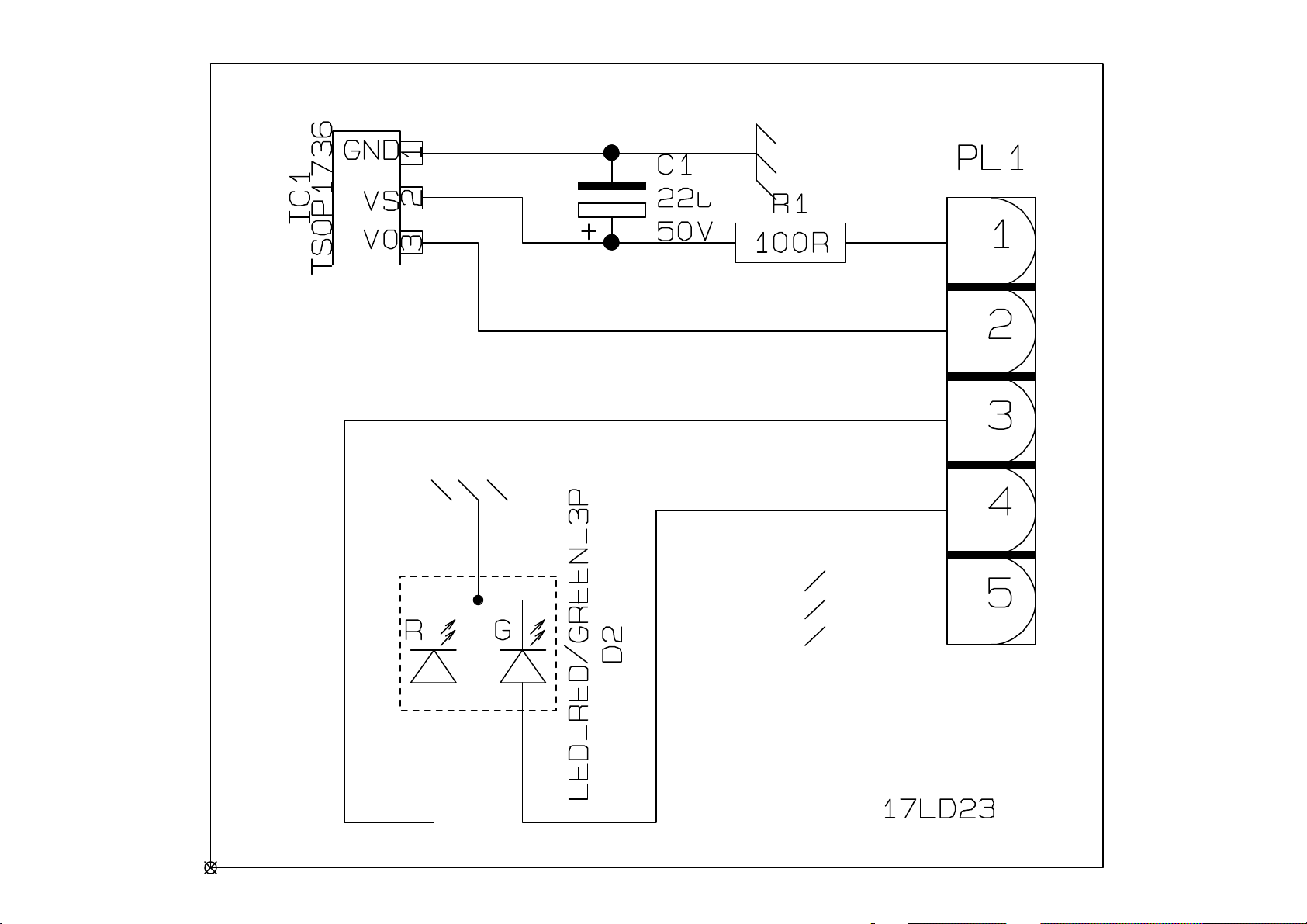

9.3. IR&LED Board Schematics ..............................................................................................................73

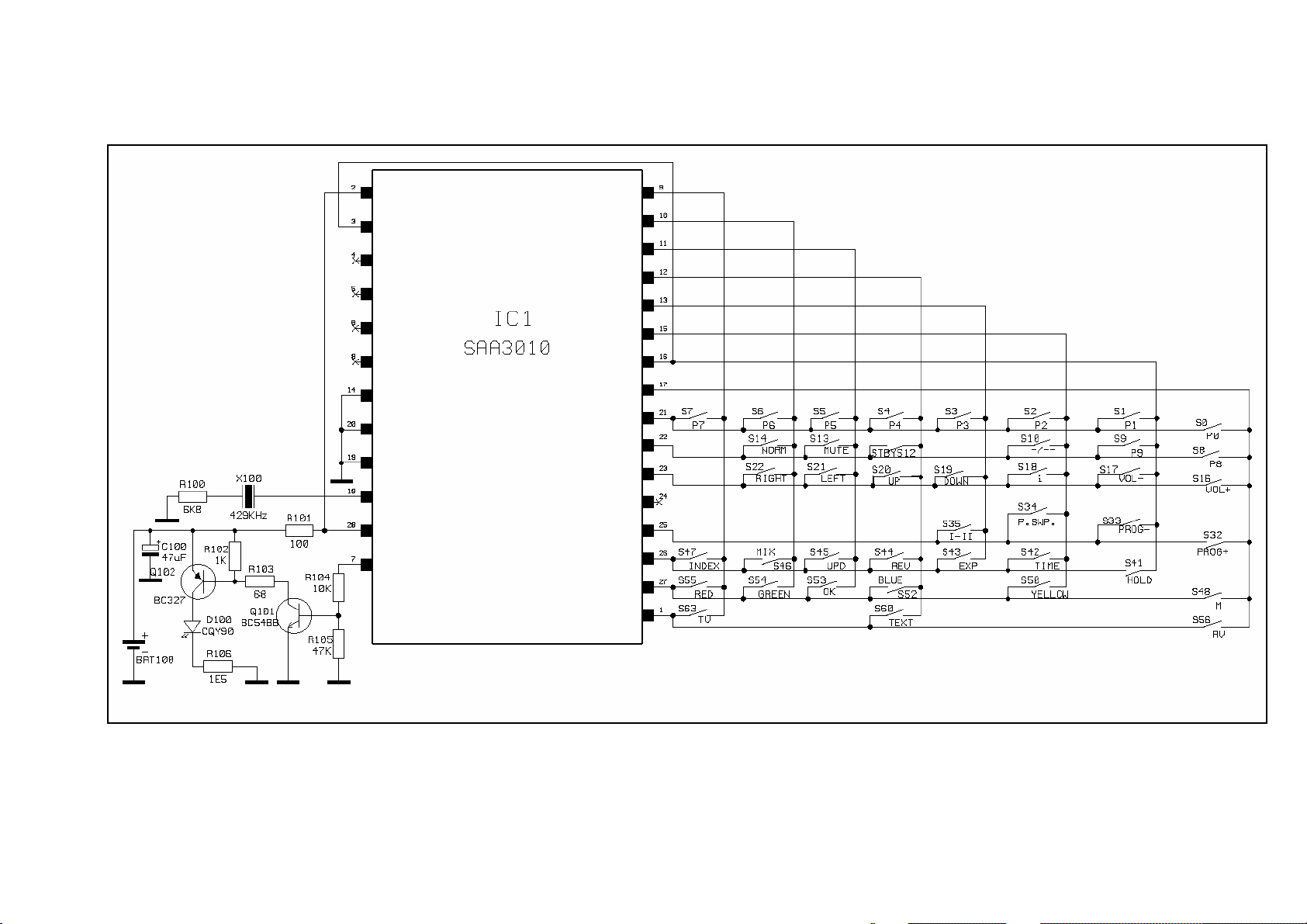

9.4. Remote Controller Schematics ........................................................................................................74

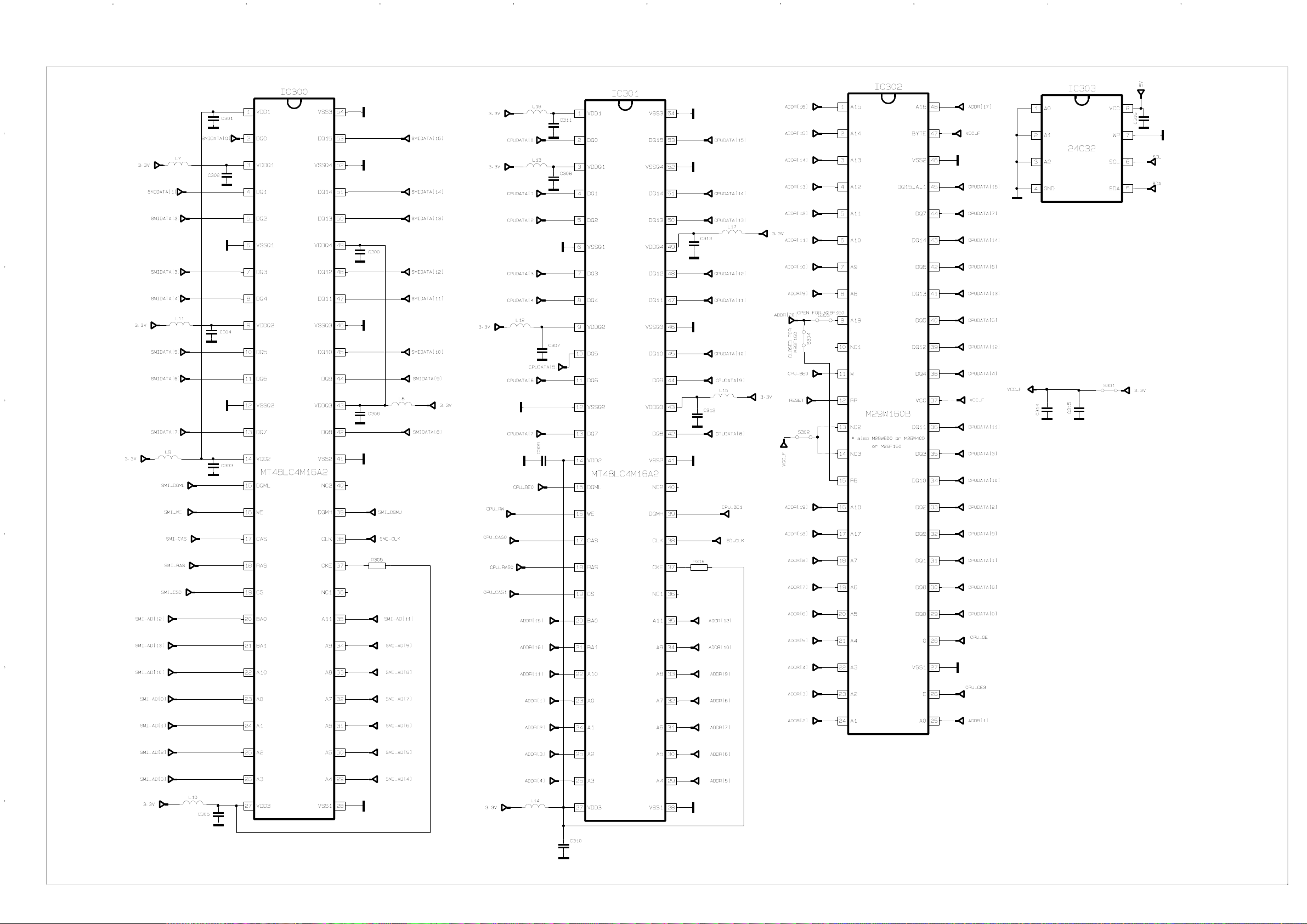

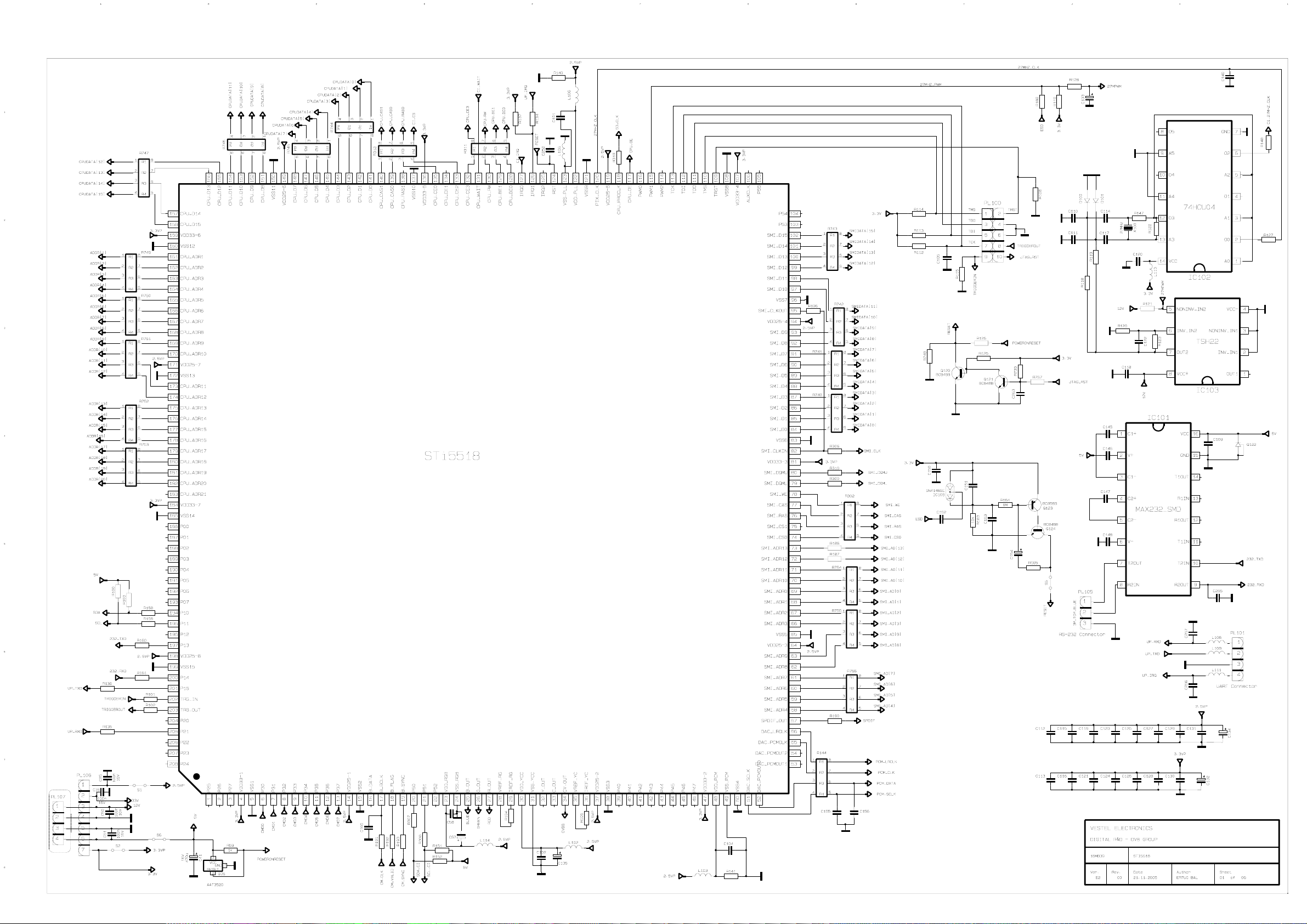

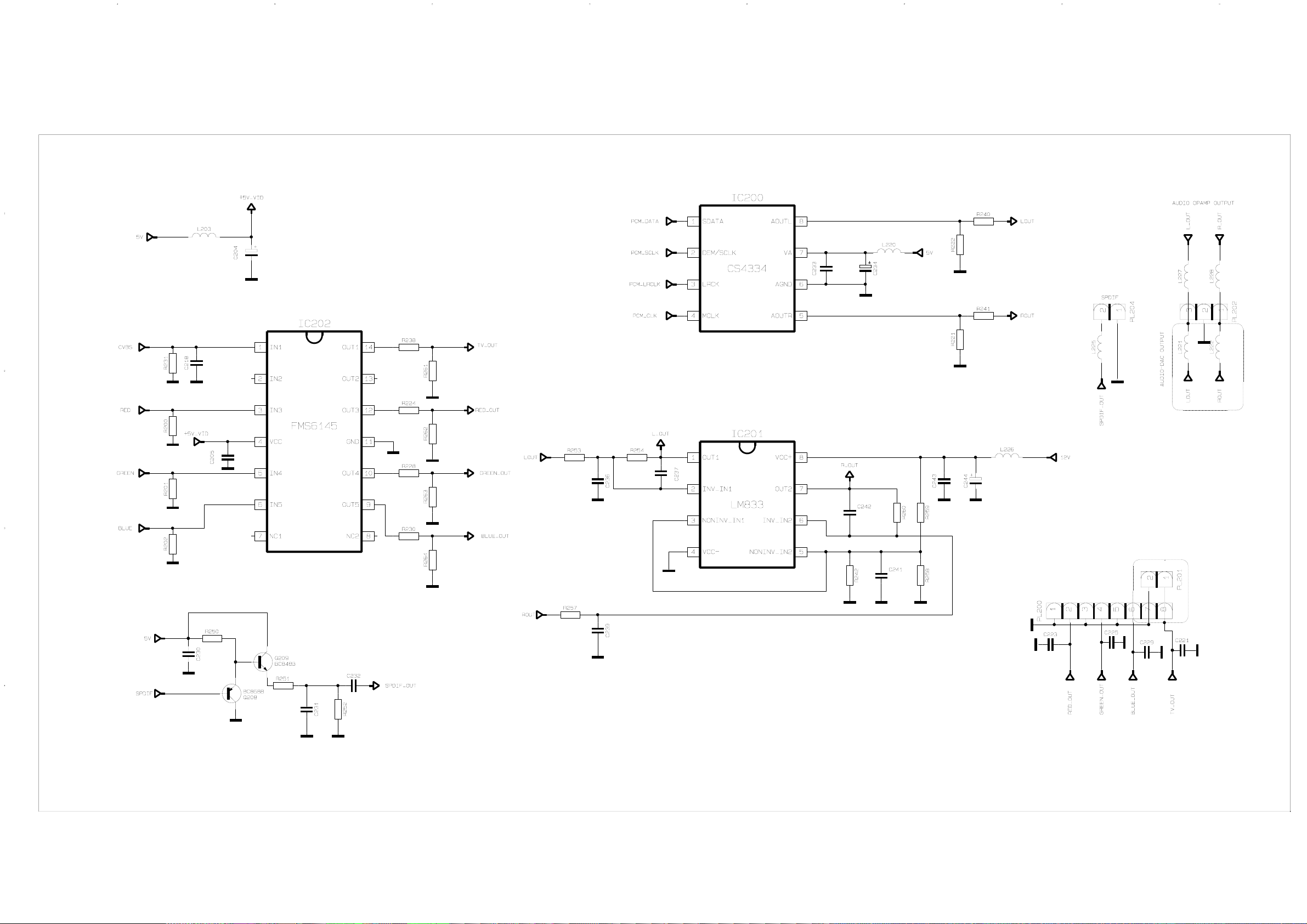

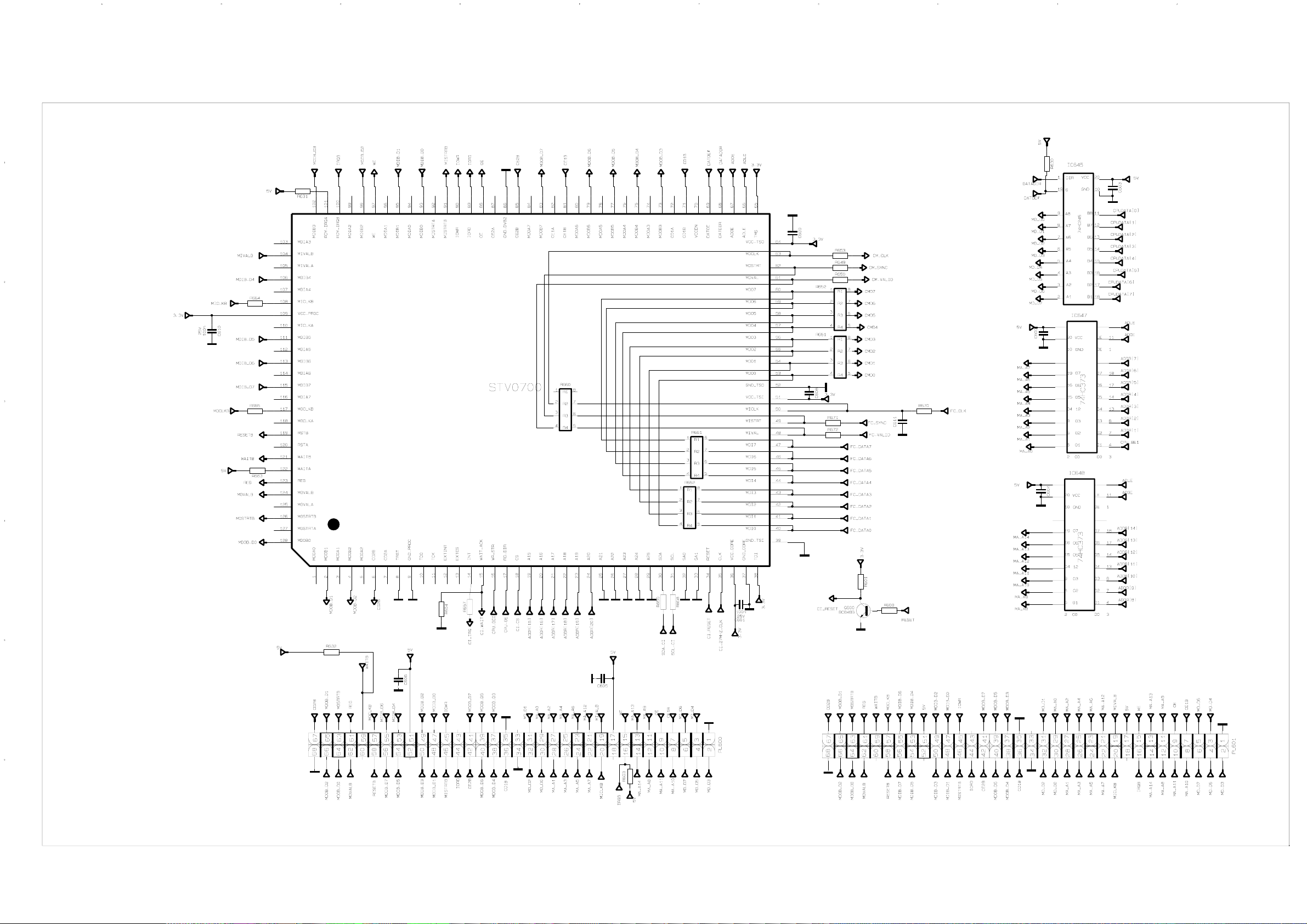

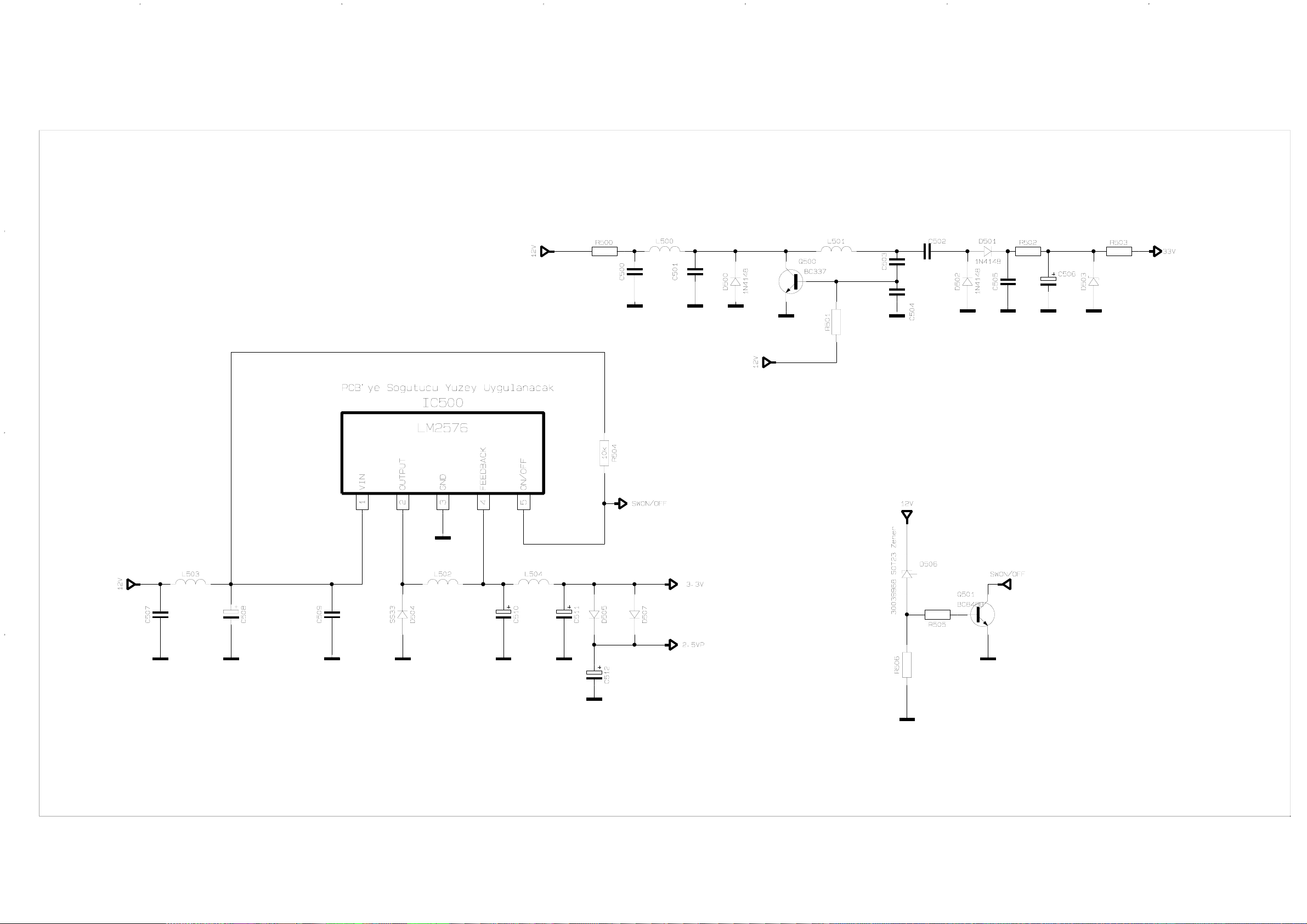

9.5. Digital Module Schematics...............................................................................................................75

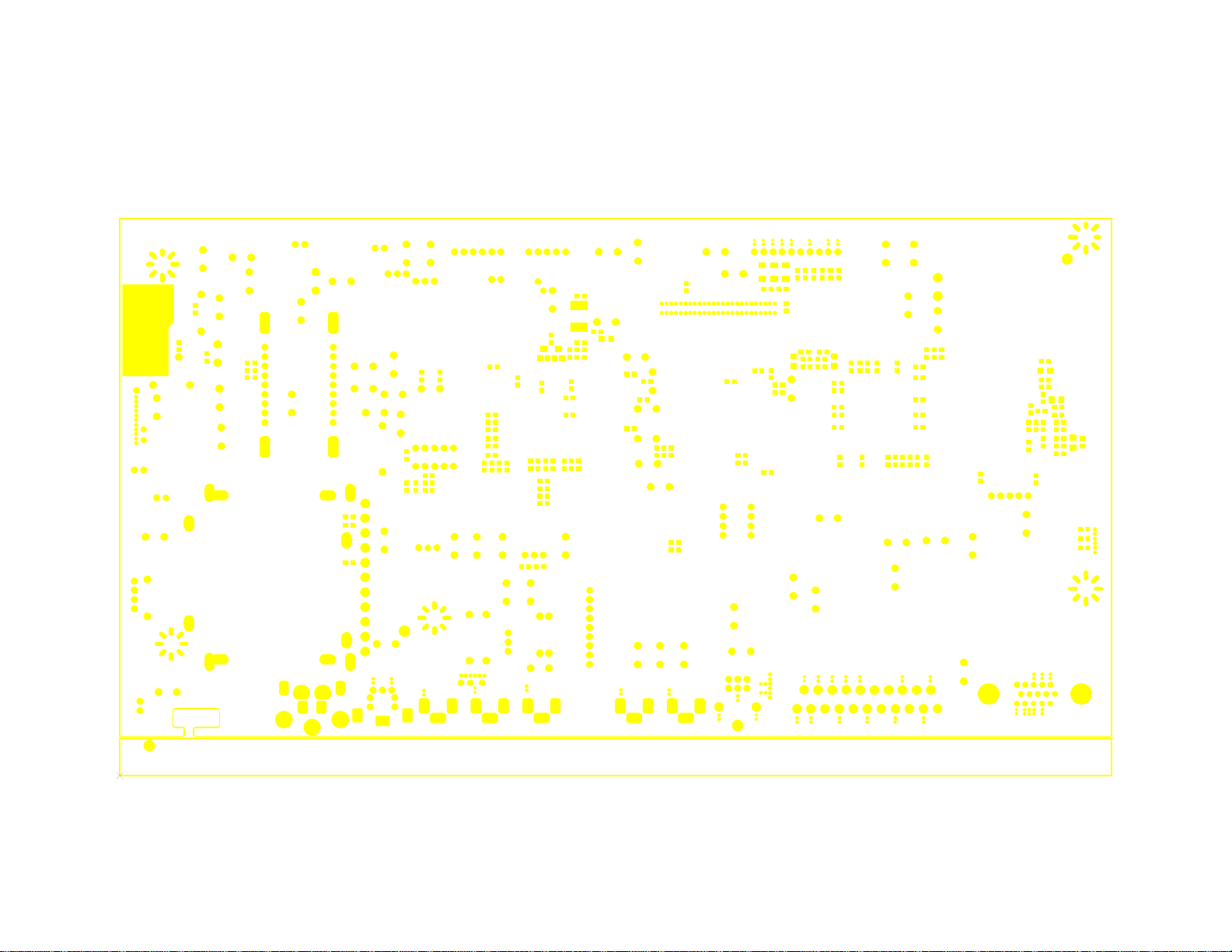

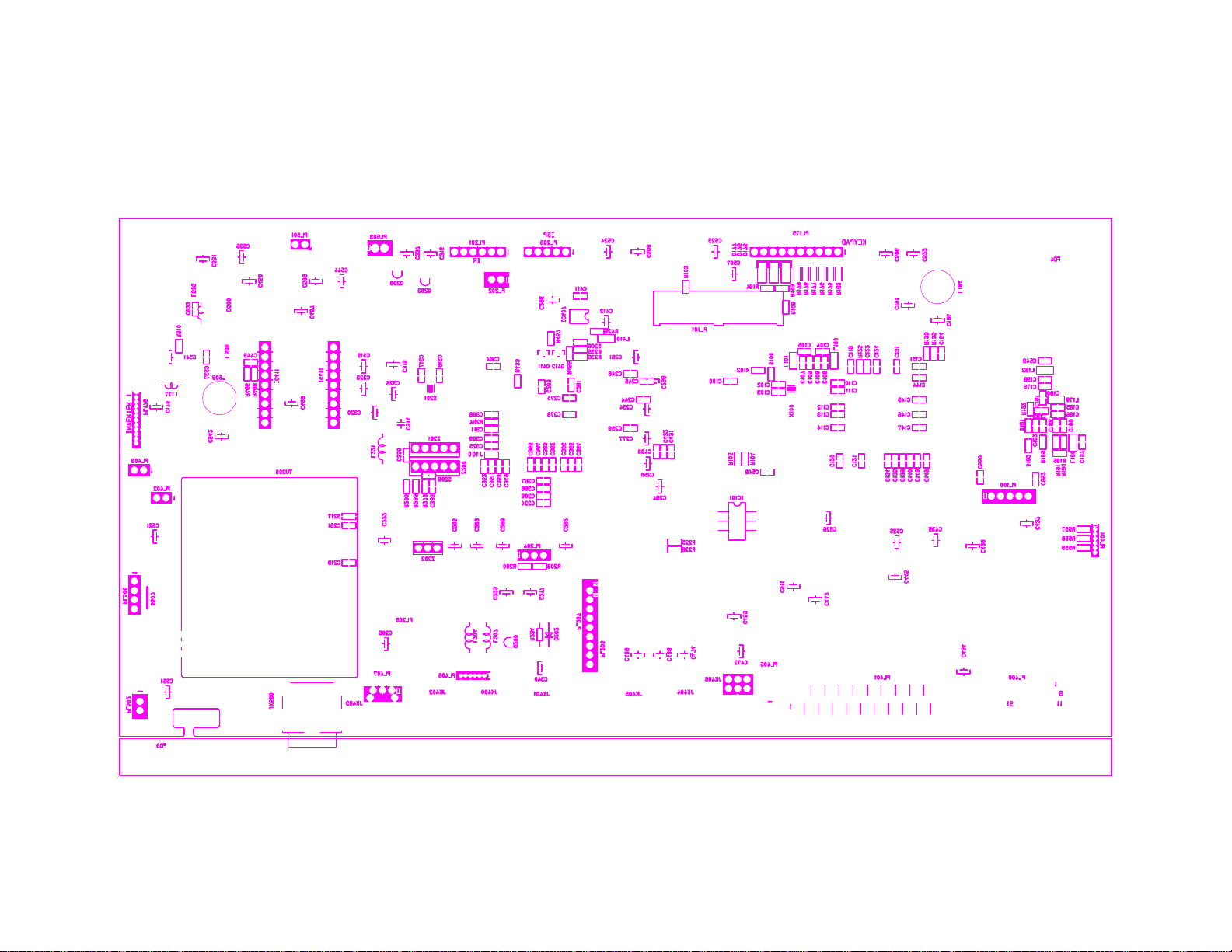

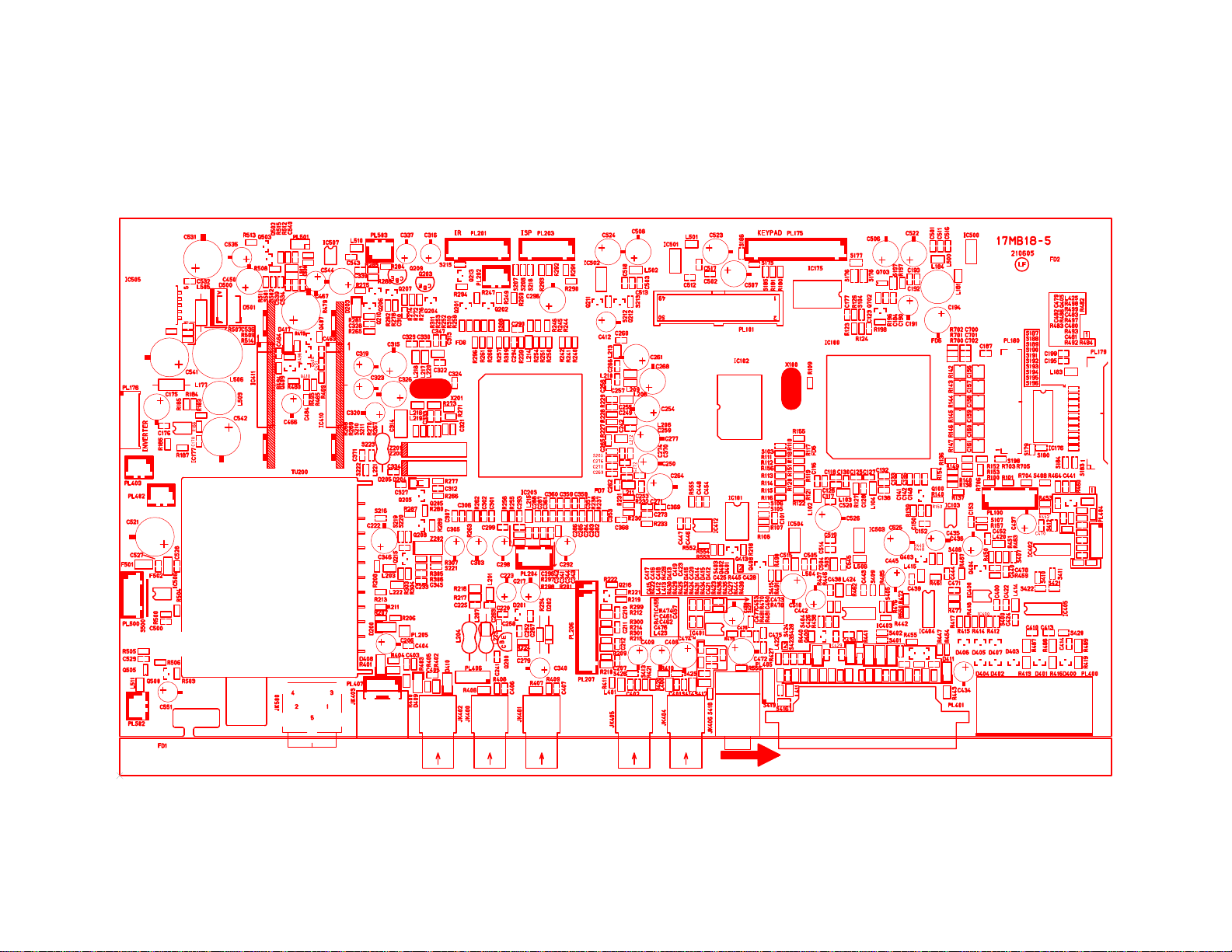

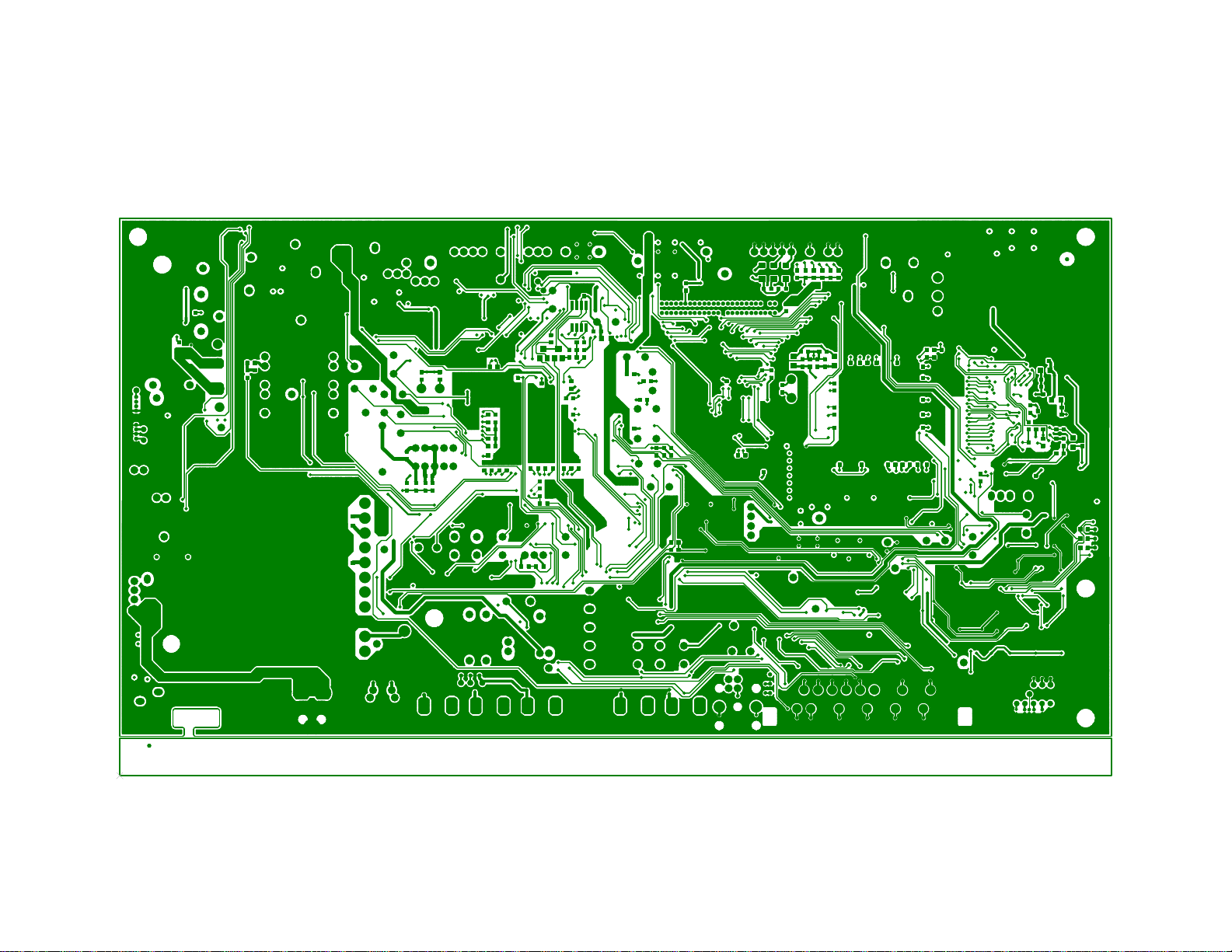

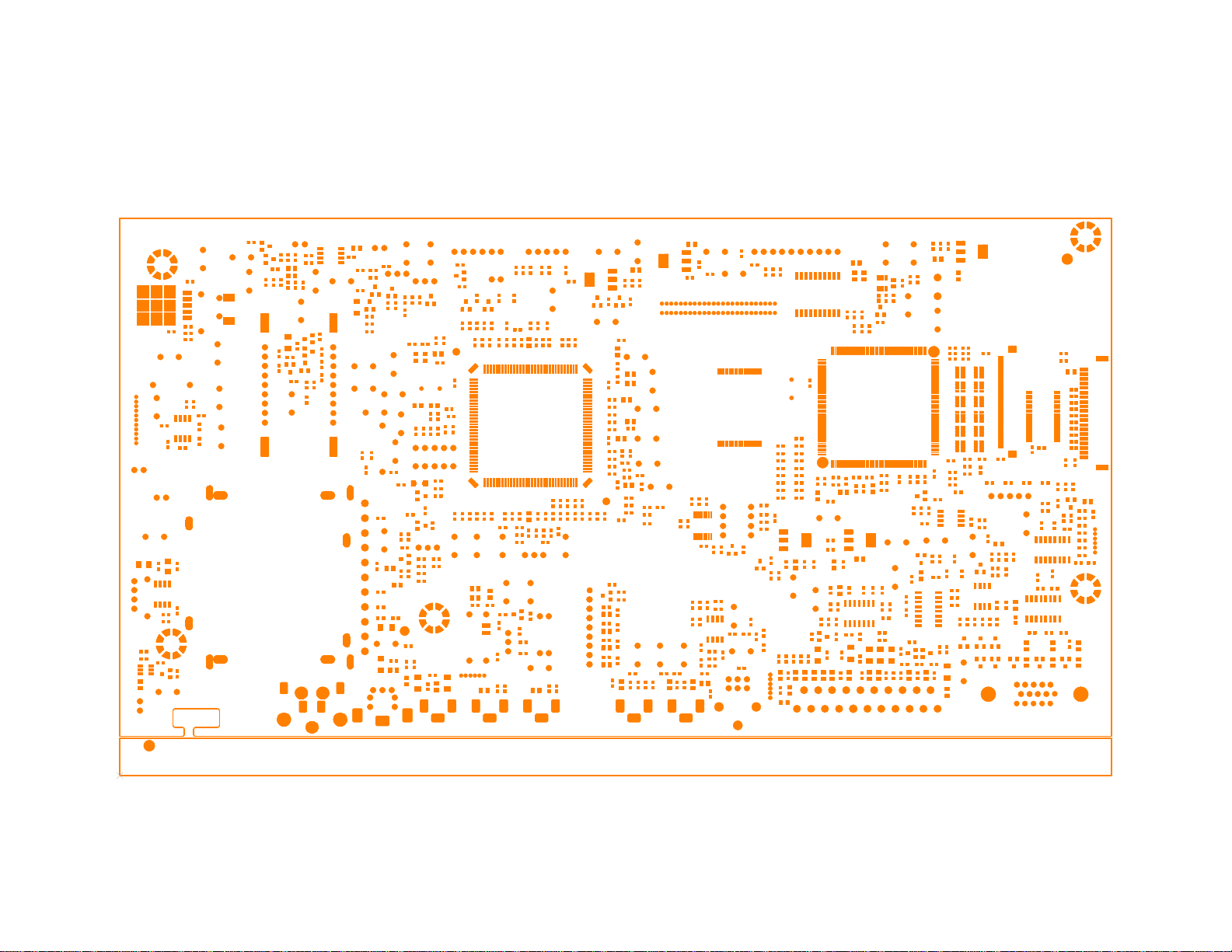

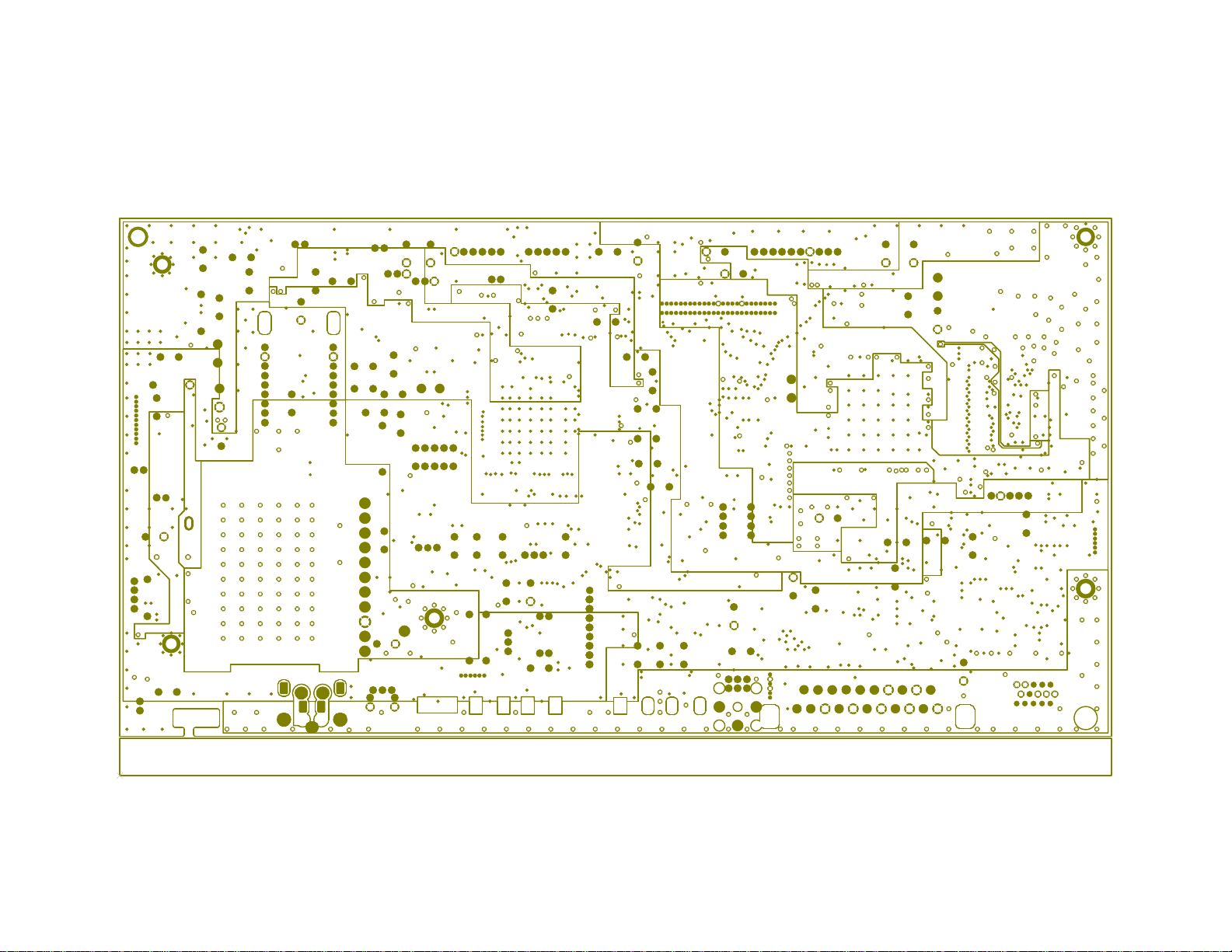

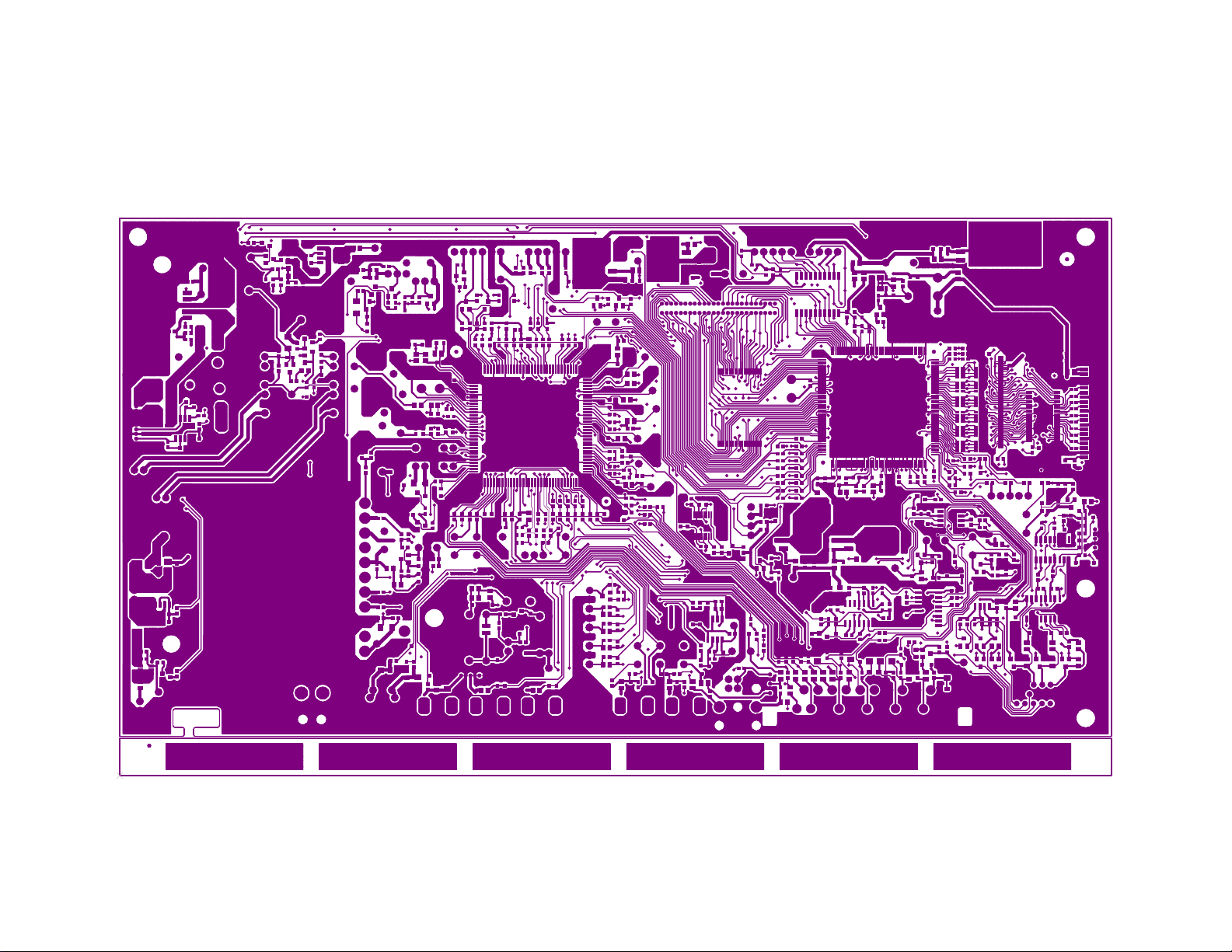

9.6 Print Lay-outs(Analog Board)...........................................................................................................80

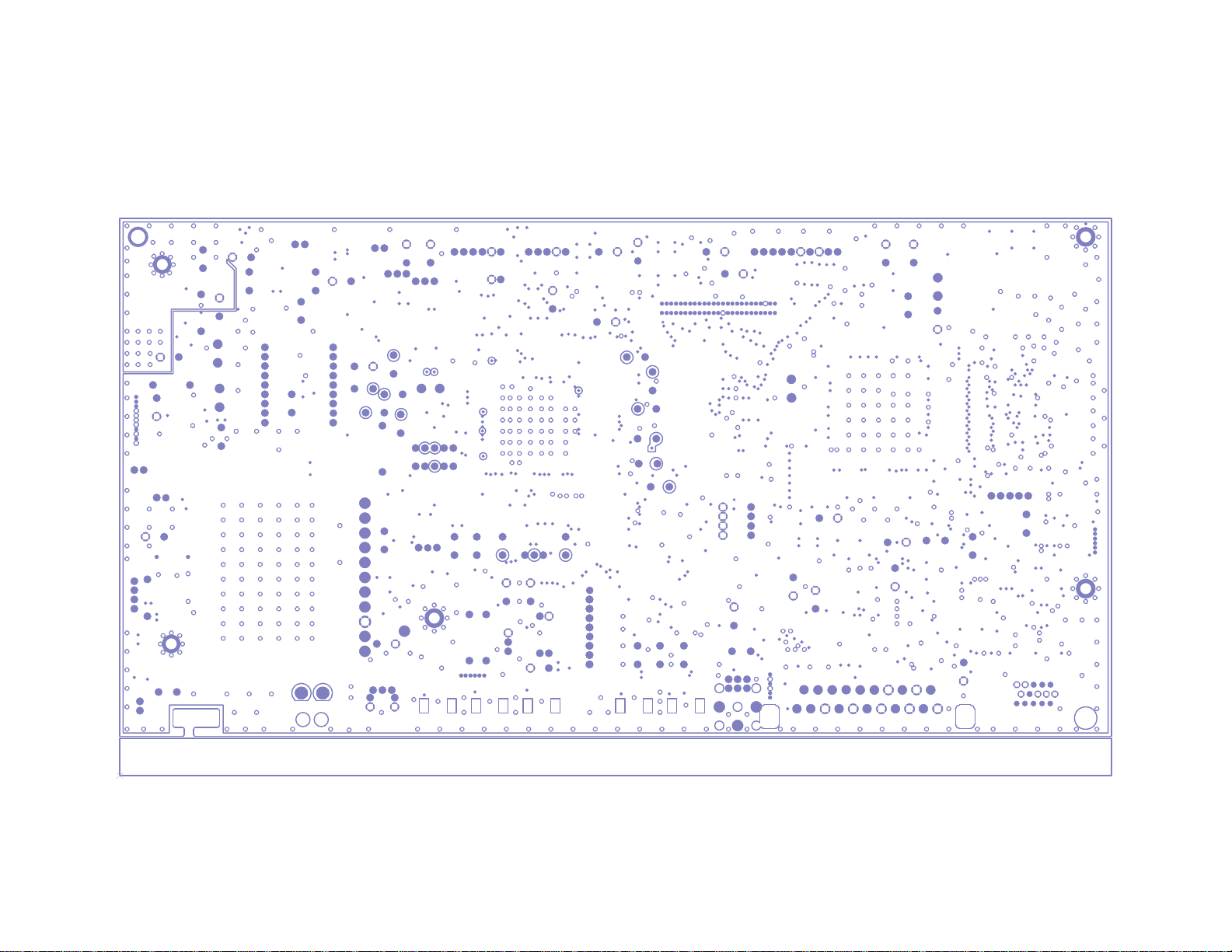

9.7 Print Lay-outs(Digital Board)............................................................................................................89

10. SPARE PART LIST .............................................................................................................................94

10.1 Analog Side Spare List......................................................................................................................94

10.2 Digital Side Spare List.....................................................................................................................108

11. Panel&Component Change List......................................................................................................109

iii

iii

17” TFT TV Service Manual 19/11/2003

1. SOFTWARE UPDATE DESCRIPTION

1

1. IC Programming

17MB18 has two programmable ICs, UOCIII (IC203) and 29XX800 (IC102, having the
PW1306 (IC100) codes).
29XX800 (IC102) will be programmed before the TV production and will be mounted as
programmed. On the other hand, software update can be needed after production so the
programming instructions is given also for this IC in related chapter.

1.1. UOC III Programming

Step 1: Entering to ISP Mode

1. Press Power On and turn on the TV.

2. Press Remote Controls (RC) “Menu” (M) and “4””7””2””5” buttons respe ctively.

3. The following menu will displayed on the screen.

4. Press RCs “0” ”0” ”2” buttons respectively.(“ISP Mode 0” line will be displayed on the
screen.)

5. Press RCs “Volume +” button and set UOC to ISP mode. .(“ISP Mode 1” line will be
displayed on the screen.)

GTV 3.2.1

000 EurAsia TVSub 05.01
00000000 00111100

01000000 01100100
11000101 01100100
00000000 01100100

Step 2: Loading the Code

1- Connect the 5 pin cable of the “programming board” to PL203 of the 17MB18 mainboard.

Connect the programming board to the computer in which “WISP” program is loaded via
“Paralel Port”.

2- Run WISP program. As it is seen in figure1 change “Delay time” value to “5” ms.
3- Under “Settings Menu”, set the I2C configurations as it is seen in figure2; press

“Confirm” and close this window.

(Note: Once the above settings are done, there is no need to do them again each time
loading the UOC code.)

4- Click “Enter ISP Mode” button and then click “Send” button. In the white display area

with “ISP status” heading, “ISP mode... Ready” will be displayed. (Unless you do not see
this warning, check the cable connections and the settings described above.)

Figure1: WISP Main Menu

2

Figure2: I2C Configuration

5- Click “Erase Flash” button and then click “Send” button. If ereasing is done without any

problem, “three green OK” will be displayed on the main menu window. This indicates
that the memory inside the IC is erased succesfully.

6- Click “Write Flash” button and then click “Browse” button. Select the “gtv.hex” UOC code

file by browsing the explorer to the folder where this “gtv.hex” file is stored. Wait for a
few seconds untill the program reads the code. You will see the blue bar indicating the
“reading operation” on the bottom of the Wisp main menu window.

7- Click “Send” button. You will see the blue bar indicating the “Loading Code to UOC IC”

on the bottom of the window. When the loading operation is over without any error
“three green OK” will be displayed on the window. This indicates the loading operation is
performed succesfully.

Step3: Initializing the TV

8- Turn off and on the TV. Press RCs “Menu” (M) and “4””7””2””5” buttons respectively.
9- Press RCs “0” ”0” ”1” buttons respectively. (“Init TV 0” will be displayed on the screen)
10- Press RCs “Volume +” and set “Init TV 1” and wait the TV to automatically turn off.

3

1.2. 29XX800 Programming for PW1306

The following instructions are only needed for software upgrades. For the TV production,
pre-programmed 29XX800 will be mounted on the board.
1- Copy flasher.hex and romcode.hex to “X:\XXX \ QTV_TVK2_V_021\Project\PW13XX_QTV”

directory.

2- Connect programmer board 4-pin cable to PL100 on 17MB18.
3- Connect programmer board serial port cable to PC COM Port1.
4- Close jumper PL501.
5- Execute “FlashUpgrader.exe” in “C:\XXX\ QTV_TVK2_V_021\bin\” directory.
6- Press “Choose” and select romcode.inf from

“C:\XXX\ QTV_TVK2_V_021\Project\PW13XX_QTV” directory.

7- Press “Flash”
8- Power on the board. Observe the sliding bar on the main menu showing that flasher.hex

and then romcode.hex are being downloaded to the IC on 17MB18 main board.

9- Power off the board when the download operation is over.
10- Open jumper PL501.

11- Power On the board. Press Remote Controls (RC) “Menu” (M) and “4””7””2””6” buttons

respectively.

12- By using RIGHT and LEFT buttons of the RC, select “Service Submenu 2”
13- By using DOWN button of the RC highlight Init NVM. Press RIGHT button of the RC and

initialize the PixelWorks side.

14- Turn Off and On the TV.
15- Depanding the size of the Panel(15”, 17”, 20”) the screen may be full white and no

picture is observed.

If screen is full white:
For 15” TV, Press Remote Controls (RC) “Menu” (M) and “4” “7” “2” “6” buttons and then “0”
respectively.
For 17” TV, Press Remote Controls (RC) “Menu” (M) and “4” “7” “2” “6” buttons and then “2”
respectively.
For 20” TV, Press Remote Controls (RC) “Menu” (M) and “4” “7” “2” “6” buttons and then “1”
respectively.

2. INTRODUCTION

2.1. Scope

The document covers 20” integrated digital TV(IDTV) 17MB18 chassis building blocks, basic features, service menu
settings, and the other information needed by service personal.

2.2. General Features

The system is a 14” to 23” TFT LCD TV solution with UOCIII Versatile Signal Processor and PW1306 Video Image
Processor chip-set on 4-layer PCB. The TV will support PAL/SECAM B/G/D/K/I/L/L’.

The other general default features of the TV are as listed below:

 1 Full Scart input (with SVHS support)
 1 SVHS input through standard S-Video interface.
 1 CVBS input through standard RCA jack
 75 ohms antenna input

 D-Sub 15 PC Input
 GERMAN + NICAM STEREO
 <3W S/B Power Consumption from mains supply
 2x3W Speaker Output Power @16 Ohm spks; HP Output, Stereo Audio line out
 Stereo Audio line in

 Equalizer
 IR Control (RC5)

 OSD;Menu Languages ENG, FRA, GER, ITA, SPA, POR, TUR, SWE, DEN, FIN, CRO, SLO, SLOVEN, NOR,

POL, CZE, HUN,ROM,BUL, RUS (subject to change and be grouped)

 Teletext
 2H/4H Comb Filter
 White balance settings (warm/normal/cool) for TV&PC
 Full AIR&CABLE band coverage

 Auto Shut down

4

4

17” TFT TV Service Manual 19/11/2003

3. SYSTEM BUILDING BLOCKS

17MB18 chassis main blocks are as follows:

 Analog Front End : UOCIII (Microcontroller + Video Proccessor + Sound Proccessor + IF), CTI, Tuner, SAW

filters, Audio Amp., DAC

 Back End : PW1306(Microcontroller, Scaler, OSD, Keyboard/IR Interface)

 Side Board(s) : Keyboards, IR/LED Boards, TTL Panel Interface Cards, VCbCr Input Board (Optional)

3.1. Analog Front End

17MB18 Main Board consists of two major blocks. The first block is analog front-end and this block is handled by
UOCIII chip that is highly multifunctional. This IC does demodulation of Video & Audio from Tuner IF, CVBS, Audio,

RGB, SVHS input selection and processing. It has an audio processor that supports equalizer or tone control, volume
control, AVL, surround effect etc and supplies amplifier, headphone and CVBS & audio line outputs. It handles video

processing such as colour standard detection and demodulation, picture alignment (brightness, contrast, colour etc.). The
IC also does teletext decoding with 10 pages text memory. After video processing, the processed video is applied to

PW1306 chip in RGB format.
The TV Tuner is an asymmetrical IF output type and is PLL controlled. For multistandard reception, a switchable SAW

filter is used as the sound filter and it is controlled by SAW_SW output from UOC. After the SAW filter block, IF signal
is applied to UOC IF inputs (VIFIN[1,2] and SIF[1,2]).

As UOCIII can handle all the audio processing, there is no need for additional audio processor solution on the board.
UOC supports three Audio outputs. These outputs are assigned to Headphone, Speaker and Scart Audio line outputs. The

board employs TDA7056A and TDA1308 to drive speaker and headphone outputs respectively. As another dedicated
output for Audio Line out from jack is not possible in UOC, this line out signal is obtained by using I2S input DAC

CS4335. UOCIII I2S output is converted to anolog signal by DAC CS4335.

3.1.1.Tuner

As the thickness of the TV set has a limit, a horizontal mounted tuner with longer connector is used in the
product. The tuning is available through the digitally controlled I2C bus (PLL). Below you will find info on the

Asymmetrical Tuner in use.

General description:

The tuner meets a wide range of applications. It is a combined VHF, UHF tuner suitable for CCIR systems
B/G, H, L, L’, I and I’. The low IF output impedance drives a wide variety of SAW filters with sufficient

suppression of triple transient.

Features:

Small sized UHF/VHF tuners
Systems CCIR: B/G, H, L, L’, I and I’; OIRT: D/K

Digitally controlled (PLL) tuning via I2C-bus
Off-air channels, S-cable channels and Hyper band
ZS(AE) Aerial source impedance (unbalanced) 75 Ohm

PIN SYMBOL DESCRIPTION

1
2

3
4
5
6
7

8
9

AGC

Automatic Gain Control Voltage 4 0.1
TU Tuning voltage monitor (output)
AS
SCL
SDA

I 2C-Bus Address Select

I 2C-Bus Serial Clock

I 2C-Bus Serial Data
n.c. Not Connected
Vs
ADC

VST

Supply Voltage +5V 0.125

ADC Input

Fixed tuning Supply Voltage +33V 0.5

10
11

M1,M2,M3,
M4

3.1.2. SAW Filters

K3953M is an IF Filter for Video Applications. The package is SIP5K. Supported standards are B/G, D/K, I,
L/L’.

K9656M is an IF Filter for Audio Applications. The package is SIP5K. Supported standards are B/G, D/K, I,
L/L’.

3.2. Back End

The Back End section is handled by PW1306 chip. This IC has built in ADC’s for RGB and SOY support. The RGB input
can handle standard interlaced RGB output from UOC, PC VGA RGB input. As only 1 set of ADC is present in PW1306

these sources should be multiplexed.
All the multiplexing operations are controlled by PW1306 via YUV_TV_SW (58) and VGA_TV_SW (57) signals.

The video output from PW1306 is a 48-bit digital RGB bus format and made available on two separate connectors with
TTL control signals (i.e. HS, VS, CLK, etc.). This digital output is intended to interface to TTL compatible display

devices. As PW1306 does not have integrated LVDS transmitter, 24 bit (even part of RGB) video output and TTL control
signals from PW1306 are also inputted to DS90C385 LVDS IC to produce single pixel LVDS output for LVDS

compatible LCDs.
Backlight control is also possible via PW1306 Porta7 pin (PWMOUT, PL176-10), that is a variable duty-cycle pulse

generator output.

I.F out 2 Symmetrical I.F output 2 / Do not connect for asymmetrical
I.F out 1 Asymmetrical I.F Output / Symmetrical I.F output 1

GND Mounting Tags (Ground)

A: VGA _TV_SW
B: YUV _TV_SW

A B SYNC SOURCE

0 0 UOC
0 1 VGA
1 0 YcbCr
1 1 NOT USED

Table 2: H/V Sync Multiplexing Table

6

6

17” TFT TV Service Manual 19/11/2003

MUX BLOCK

V[R,G,B]IN

YCbCr

[R,G,B]OUT

RGB

TV_[HS,VS]

PC_[HS,VS]

HD_[HS,VS]

MUX

74HC4052D

VIDEO

SWITCH

P15V330

Figure 1: MUX Block.

AHSYNC
AVSYNC

Control Signals:
VGA_TV_SW

YUV_TV_SW

TV_[R,G,B]AIN

VIDEO

SWITCH
P15V330

7

7

17” TFT TV Service Manual 19/11/2003

SAW

RF in

MACROVISION

S-Video in

CVBS in

Scart

TV_HS
TV_VS

VFIN (24,25)

UOCIII

Y4(51)
C4(52)
CVBS3/Y3(58) IDTV RGB(70,71,72)
AUDIOIN5L(34) IDTV R/L(54,55)

AUDIOIN5R(35)
C2(59)
CVBS2/Y2(55)

IFVO(43)

AUDIOUTSL(36)
AUDIOUTSR(37)

AUDIOIN3L(56)
AUDIOIN3R(57)

VDRA,HOUT(23,67)

16MB39

IDTV Module

Audio in

[R,G,B]IN

PC in

Y HD_[HS,VS]

SYNC

SEPARATOR

EL1883

PC_[HS,VS]

CTI/

LTI

MUX

BLOCK

[YUV,VGA]_SW

A[H,V]SYNC

FBLIN

AUDOUTHP[L,R](62,63)

R,G,B(78,79,80)

[Y,U,V]OUT(74,75,76)

AUDOUTLS[L,R](60,61)

YUV(72,71,70)

I2SDO2(104)

I2SCLK(103)

I2SWS(102)

[R,G,B]OUT(85,86,87)

Comunication
Signals:
I2C and Handhake

PORTD[5,6](58,57)

SDA_U, SCL_U

PW1306

[H,V]SYNC(65,64)

[R,G,B]AIN(37,43,50)

PORTD7(56)

Communication Interface UART: Rx,Tx, Up-IRQ

D[R,G,B]E[0-7], PORTA7(201)

DHS,DVS,DEN,DCLK D[R,G,B]O[0-7]

HP DRIVER

TDA1308

AUDIO

AMPLIFIER

2xTDA7056

DAC

Audio
line out

EEPROM

16MB39 IDTV

LVDS

DS90C385

Figure 2: TV system block diagram.

8

8

17” TFT TV Service Manual 19/11/2003

3.3. Side Board(s)

3.3.1. Keypads

The keypads (17TK15, 16, 17, 20, 21, 26) for 17MB18 main board are listed in the Table below. (They have the same
connector pinning though):

20”
Key Name Type Function 21
Power Soft sw. Power shut-down and turn on X
Stand-by Tact sw. Switch between stand-by and turn on modes. ­TV/AV Tact sw. Input source select button. X
Menu Tact sw. Display main menu on the screen. If any menu is

active, display the upper menu. If main menu is
active, turn menu off.

Program- Tact sw. Go to the lower program at any time in TV mode.

In menu mode, go to down menu item.

Program+ Tact sw. Go to the upper program at any time in TV mode.

In menu mode, go to up menu item.

Volume- Tact sw. Decrease the volume level in the volume. In menu

mode, go to left menu item.

Volume+ Tact sw. Increase the volume level in the volume. In menu

mode, go to right menu item.

Connector PL1 on keypads (connected to the connector PL175 on the main board):

X

X

X

X

X

Pin No: Name Pin No: Name:

1 Volume+ 6 Program+
2 Volume- 7 Program­3 Ground 8 Menu
4 Not Connected* 9 TV/AV
5 Ground 10 Stand-by/Shut-down

*Reserved: It can be +5V in the future designs if needed.

3.3.2. IR&Led Board

IR&LED board contains LED indicator(s) to show TV’s status (Red for stand-by, green for normal operation) and one IR
receiver to get remote control instructions. All the IR&LED boards have the same circuit and connector pinning but the

different mechanical structure to fit different cabinets (see the related section for schematics and connector pinning).

17” TFT TV Service Manual

9

3.4. Power

Several linear regulators and switches are used to generate several separate analog and digital voltage supplies such as +5, +3.3,
+1.8, etc. (Please check the Figure 3, and Table 3 for power management details.)

17” TFT TV Service Manual

Table 3: Power management table.

10

17” TFT TV Service Manual

11

4. IC AND COMPONENT DESCRIPTIONS

4.1. Basic IC List

No Title Description
IC203 UOCIII Versatile Signal Processor
IC100 PW1306 Video Image Processor with Analog Interface
IC102 MT28F800B3W Flash Memory
IC176 DS90C385 Programmable LVDS Transmitter
IC103 EL1883 Sync Separator

IC405, IC402 P15V330 Wide Bandwidth 2-channel Multiplexer/Demultiplexer

IC404 74HC4052 Dual 4-channel Analog Multiplexer
IC200 TA1366FG LTI/CTI IC

IC410, IC411 TDA7056A Class AB Mono 3W Power Amplifier

IC401 TDA1308 Class AB Stereo Headphone Driver

IC500/1/2/3/4,

LM1117 Linear Regulator
IC201
IC400 24LC21
IC101 24LC32

Serial Electrically Erasable PROM

4.2. UOCIII

The UOCIII series combines the functions of a Video Signal Processor (VSP) together with a FLASH embedded
TEXT/Control/Graphics m-Controller (TCG m-Controller) and US Closed Caption decoder. In addition the following functions

can be added:

 Adaptive digital (4H/2H) PAL/NTSC combfilter
 Teletext decoder with 10 page text memory

 Multi-standard stereo decoder
 BTSC stereo decoder
 Digital sound processing circuit
 Digital video processing circuit

The UOC III series consists of the following 3 basic concepts:
 Stereo versions. These versions contain the TV processor with a stereo audio selector, the TCG m-Controller, the multi-

standard stereo or BTSC decoder, the digital sound processing circuit and the digital video processing circuit. Options are
the adaptive digital PAL/NTSC comb filter and a teletext decoder with 10 page text memory.

 AV stereo versions. These versions contain the TV processor with stereo audio selector and the TCG m-Controller. Options

are the digital sound processing circuit, the digital video processing circuit, the adaptive digital PAL/NTSC comb filter and
a teletext decoder with a 10 page text memory.

 Mono sound versions. These versions contain the TV processor with a selector for mono audio signals and the TCG m-

Controller. Options are the adaptive digital PAL/NTSC combfilter and a teletext decoder with 10 page text memory.

17” TFT TV Service Manual

12

4.2.1. Pinout

Figure 6: UOCIII Pin configuration “stereo” and “AV-stereo” versions with Audio DSP

SYMBOL

VSSP2 1 1 1 ground

VSSC4 2 2 2 ground

VDDC4 3 3 3 digital supply to SDACs (1.8V)
VDDA3(3.3V) 4 4 4 supply (3.3 V)

VREF_POS_LSL 5

VREF_NEG_LSL+HPL 6

VREF_POS_LSR+HPR 7

STEREO +AV

STEREO

AV STEREO

NO AUDIO

DSP

- -

- -

- -

MONO DESCRIPTION

positive reference voltage SDAC (3.3 V)

negative reference voltage SDAC (0 V)

positive reference voltage SDAC (3.3 V)

13

17” TFT TV Service Manual

SYMBOL

STEREO +AV

STEREO

VREF_NEG_HPL+HPR 8

VREF_POS_HPR 9

AV STEREO

NO AUDIO

DSP

- -

- -

MONO DESCRIPTION

negative reference voltage SDAC (0 V)

positive reference voltage SDAC (3.3 V)

XTALIN 10 10 10 crystal oscillator input

XTALOUT 11 11 11 crystal oscillator output

VSSA1 12 12 12 ground
VGUARD/SWIO 13 13 13

V-guard input / I/O switch (e.g. 4 mA current
sinking capability for direct drive of LEDs)

DECDIG 14 14 14 decoupling digital supply

VP1 15 15 15

1stsupply voltage TV-processor (+5 V)

PH2LF 16 16 16 phase-2 filter

PH1LF 17 17 17 phase-1 filter

GND1 18 18 18 ground 1 for TV-processor
SECPLL 19 19 19 SECAM PLL decoupling

DECBG 20 20 20 bandgap decoupling
EWD/AVL (1)

21 21 21 East-West drive output or AVL capacitor

VDRB 22 22 22 vertical drive B output

VDRA 23 23 23 vertical drive A output

VIFIN1 24 24 24 IF input 1
VIFIN2 25 25 25 IF input 2

VSC 26 26 26 vertical sawtooth capacitor

IREF 27 27 27 reference current input

GNDIF 28 28 28 ground connection for IF amplifier
SIFIN1/DVBIN1 (2)

SIFIN2/DVBIN2 (2)

29 29 29 SIF input 1 / DVB input 1

30 30 30 SIF input 2 / DVB input 2

AGCOUT 31 31 31 tuner AGC output

EHTO 32 32 32 EHT/overvoltage protection input
AVL/SWO/SSIF/

REFO/REFIN (2)(3)

33 33 33 Automatic Volume Levelling / switch output /

sound IF input / subcarrier reference output /
external reference signal input for I signal mixer for
DVB operation

AUDIOIN5

AUDIOIN5L 34 34

- -

34 audio 5 input

-

audio-5 input (left signal)

AUDIOIN5R 35 35 - audio-5 input (right signal)

AUDOUTSL 36 36

-

audio output for SCART/CINCH (left signal)

AUDOUTSR 37 37 - audio output for SCART/CINCH (right signal)

DECSDEM 38 38 38 decoupling sound demodulator
QSSO/AMOUT/AUDEEM

(2)

39 39 39

QSS intercarrier output / AM output / deemphasis
(front-end audio out)

GND2 40 40 40 ground 2 for TV processor

PLLIF 41 41 41 IF-PLL loop filter

14

17” TFT TV Service Manual

SYMBOL

SIFAGC/DVBAGC (2)

DVBO/IFVO/FMRO (2)

DVBO/FMRO (2) 44 44 - Digital Video Broadcast output / FM radio output

VCC8V 45 45 45 8 Volt supply for audio switches

AGC2SIF 46

VP2 47 47 47
IFVO/SVO/CVBSI (2)

AUDIOIN4

AUDIOIN4L 49 49
AUDIOIN4R 50 50 - audio-4 input (right signal)

CVBS4/Y4 51 51 51 CVBS4/Y4 input
C4 52 52 52 chroma-4 input

AUDIOIN2
AUDIOIN2L/SSIF (3)

AUDIOIN2R 54 54 - audio 2 input (right signal)

STEREO +AV

STEREO

42 42 42

43 43 43

48 48 48

- -

- -

53 53

AV STEREO

NO AUDIO

DSP

- -

MONO DESCRIPTION

AGC sound IF / internal-external AGC for DVB
applications
Digital Video Broadcast output / IF video output /
FM radio output

AGC capacitor second sound IF
2ndsupply voltage TV processor (+5 V)

IF video output / selected CVBS output / CVBS
input

49 audio 4 input

-

audio-4 input (left signal)

53 audio 2 input

-

audio 2 input (left signal) / sound IF input

CVBS2/Y2 55 55 55 CVBS2/Y2 input
AUDIOIN3 - - 56 audio 3 input

AUDIOIN3L 56 56
AUDIOIN3R 57 57 - audio 3 input (right signal)

CVBS3/Y3 58 58 58 CVBS3/Y3 input

C2/C3 59 59 59 chroma-2/3 input

AUDOUTLSL 60 62

AUDOUTLSR 61 63

AUDOUT/AMOUT/FMOU
T
AUDOUTHPL 62 - - audio output for headphone channel (left signal)

AUDOUTHPR 63

CVBSO/PIP 64 64 64 CVBS / PIP output

SVM 65 65 65 scan velocity modulation output

FBISO/CSY 66 66 66

HOUT 67 67 67 horizontal output

VSScomb 68 68 68 ground connection for comb filter
VDDcomb 69 69 69 supply voltage for comb filter (5 V)

- -

- -

-

audio 3 input (left signal)

-

audio output for audio power amplifier (left signal)

- audio output for audio power amplifier (right
signal)

62

audio output / AM output / FM output, volume
controlled

audio output for headphone channel (right signal)

flyback input/sandcastle output or composite H/V
timing output

VIN (R/PRIN2/CX) 70 70 70

UIN (B/PBIN2) 71 71 71

YIN (G/YIN2/CVBS-YX) 72 72 72

YSYNC 73 73 73 Y-input for sync separator

V-input for YUV interface (2ndR input / PRinput or
CXinput)
U-input for YUV interface (2ndB input / PB input)

Y-input for YUV interface (2nd G input / Y input or
CVBS/YXinput))

15

17” TFT TV Service Manual

SYMBOL

YOUT 74 74 74 Y-output (for YUV interface)

UOUT (INSSW2) 75 75 75

VOUT (SWO1) 76 76 76 V-output for YUV interface (general purpose

INSSW3 77 77 77

R/PRIN3 78 78 78

G/YIN3 79 79 79

B/PBIN3 80 80 80

GND3 81 81 81 ground 3 for TV-processor

VP3 82 82 82

BCLIN 83 83 83 beam current limiter input
BLKIN 84 84 84 black current input

RO 85 85 85 Red output
GO 86 86 86 Green output

BO 87 87 87 Blue output
VDDA1 88 88 88 analog supply for TCG m-Controller and digital

STEREO +AV

STEREO

AV STEREO

NO AUDIO

DSP

MONO DESCRIPTION

U-output for YUV interface (2ndRGB / YPBPR
insertion input)

switch output)
3rdRGB / YPBPR insertion input

3rdR input / PRinput

3rdG input / Y input

3rdB input / PBinput

3rdsupply for TV processor

supply for TV-processor (+3.3 V)

VREFAD_NEG 89 89 89 negative reference voltage (0 V)

VREFAD_POS 90 90 90 positive reference voltage (3.3 V)

VREFAD 91
GNDA 92 92 92 ground

VDDA(1.8V) 93 93 93 analogue supply for audio ADCs (1.8 V)
VDDA2(3.3) 94 94 94 supply voltage SDAC (3.3 V)

VSSadc 95 95 95 ground for video ADC and PLL
VDDadc(1.8) 96 96 96 supply voltage video ADC and PLL

INT0/P0.5 97 97 97

P1.0/INT1 98 98 98 port 1.0 or external interrupt 1
P1.1/T0 99 99 99 port 1.1 or Counter/Timer 0 input

VDDC2 100 100 100 digital supply to core (1.8 V)

VSSC2 101 101 101 ground

P0.4/I2SWS 102

P0.4

P0.3/I2SCLK 103
P0.3 - 103 103 port 0.3

P0.2/I2SDO2 104
P0.2 - 104 104 port 0.2

P0.1/I2SDO1 105

P0.1

-

-

- -

- - port 0.4 or I2S word select

102 102 port 0.4

- - port 0.3 or I2S clock

- - port 0.2 or I2S digital output 2

- - port 0.1 or I2S digital output 1

105 105 port 0.1

reference voltage for audio ADCs (3.3/2 V)

external interrupt 0 or port 0.5 (4 mA current
sinking capability for direct drive of LEDs)

17” TFT TV Service Manual

16

SYMBOL

P0.0/I2SDI1/O 106

P0.0
P1.3/T1 107 107 107 port 1.3 or Counter/Timer 1 input

STEREO +AV

STEREO

-

AV STEREO

NO AUDIO

DSP

- - port 0.0 or I2S digital input 1 or I2S digital output

106 106 port 0.0

MONO DESCRIPTION

P1.6/SCL 108 108 108

P1.7/SDA 109 109 109

VDDP(3.3V) 110 110 110

P2.0/TPWM 111 111 111 port 2.0 or Tuning PWM output
P2.1/PWM0 112 112 112 port 2.1 or PWM0 output

P2.2/PWM1 113 113 113 port 2.2 or PWM1 output

P2.3/PWM2 114 114 114 port 2.3 or PWM2 output

P3.0/ADC0 115 115 115 port 3.0 or ADC0 input

P3.1/ADC1 116 116 116 port 3.1 or ADC1 input

VDDC1 117 117 117 digital supply to core (+1.8 V)

DECV1V8 118 118 118 decoupling 1.8 V supply

P3.2/ADC2 119 119 119 port 3.2 or ADC2 input

P3.3/ADC3 120 120 120 port 3.3 or ADC3 input

VSSC/P 121 121 121 digital ground for m-Controller core and periphery
P2.4/PWM3 122 122 122 port 2.4 or PWM3 output

P2.5/PWM4 123 123 123 port 2.5 or PWM4 output

VDDC3 124 124 124 digital supply to core (1.8V)

VSSC3 125 125 125 ground

port 1.6 or I2C-bus clock line

port 1.7 or I2C-bus data line

supply to periphery and on-chip voltage regulator
(3.3 V)

P1.2/INT2 126 126 126 port 1.2 or external interrupt 2

P1.4/RX 127 127 127 port 1.4 or UART bus

P1.5/TX 128 128 128 port 1.5 or UART bus

4.3. PW1306

The PW1306 Video Image Processor is a “system-on-a-chip ” that oversamples and processes RGB or YPbPr video from
analog video decoders. The PW1306 integrates video processing, including deinterlacer and video enhancement filters with a

triple ADC. Analog RGB or YPbPr in PC graphics, standard, or high-definition video can be displayed in either 4:3 or 16:9
formats.

 Supports analog video decoders with triple 8-bit Analog-to-Digital Converters (ADCs) up to 140 MSPS conversion rate
 Supports Sync-on-Green (SOG), Sync-on-Luma (SOY),and Composite sync inputs

 1080i/720p/480p HDTV; 480i and 576i NTSC/PAL SDTV; PC graphics (up to SXGA)
 YPbPr/YCbCr/YUV-to-RGB Color Space Converter with programmable coefficients
 On-chip, bitmap-based, OSD controller with on-chip memory

 24/30/48-bit RGB output with 135 MPixels/second maximum output rate

4.3.1. Pinout

This section lists the pin functions for the PW1306 208-pin PQFP package. Pin types include:
 I/O SR5 (I/O slew rate-controlled,5V input tolerant)

17

17” TFT TV Service Manual

 I/O D5 (bidirectional, 5-volt tolerant with pull-down)
 I/O U5 (bidirectional, 5-volt tolerant with pull-up)

 ID 5 (input, 5-volt tolerant with pull-down)
 OS (output with fixed slew-rate control)
 AI (analog input, 5-volt tolerant)
 DI (digital input, 5-volt tolerant)

 DIS (digital input, 5-volt tolerant, Schmitt trigger)
 I (XTALIN)
 (XTALOUT)
 P (power)
 NC (no connect)

 BOD (bidirectional open drain)
 OSR (output with slew rate)

Figure 8: PW1306 Pin configuration.

Signal Pin Type Function

RAIN 37 AI

GAIN 43 AI

BAIN 50 AI

17” TFT TV Service Manual

Red/Green/Blue Analog Inputs. These pins receive the Red, Green and Blue, or
YPbPr/YCbCr/YUV analog signals from the analog video source. For proper

operation of the clamp feature, these inputs must be AC-coupled.

18

Signal Pin Type Function

Analog Sync-On-Green or Sync-On-Luma input. Allows recovery of the HSYNC

SOGIN 44 AI

signal when this pin is AC-coupling to the Green (Red or Blue) analog signal source.
If not used, this pin should be left unconnected.

FILT 23 AI

HSYNC 65 DIS

VSYNC 64 DIS

DCLK 106 OSR

DCLKNEG 107 OSR DPort Pixel Clock.

DVS 101 OS

DHS 102 OS

External PLL Loop Filter. When using the on-chip PLL, this pin must be connected to
an external filter network.

Horizontal Synchronization Input. This digital input signal controls the horizontal scan
frequency by synchronizing the start of the horizontal scan. The logic polarity of this

signal is controlled by the HSPOL bit.

Vertical Synchronization Input. This digital signal controls the vertical scan
frequency.

DPort Pixel Clock. Output clock for the display port pixel data. DCLK is enabled by
the DCLKEN bit and can be inverted by the DCPOL bit. DCLK can be set to run at ½

pixel rate, for dual pixel output mode, by setting the DCK2EN bit. The internal DCLK
clock domain can be disabled by the DCLKOFF bit to reduce power consumption.

DPort Vertical Sync. DVS can be either active-high or active-low depending on the
VSPOL bit. Width and timing is controlled by the VPLSE and VDLY registers.

DPort Vertical Sync. DHS can be either active-high or active-low depending on the
HSPOL bit. Sync width can be controlled by the HPLSE register.

DEN 103 OS

DER0 98 OSR

DER1 97 OSR

DER2 94 OSR

DER3 93 OSR

DER4 92 OSR

DER5 91 OSR

DER6 90 OSR

DER7 89 OSR

DPort Pixel Enable. This signal is active whenever valid data is present. The polarity
is specified by the DENPOL bit.

DEPort Red Pixel Data. In dual pixel output mode these pins are the EVEN red
outputs.

17” TFT TV Service Manual

19

Signal Pin Type Function

DEG0 88 OSR

DEG1 87 OSR

DEG2 86 OSR

DEG3 85 OSR

DEPort Green Pixel Data. In dual pixel output mode these pins are the EVEN green
outputs.

DEG4 82 OSR

DEG5 81 OSR

DEG6 80 OSR

DEG7 79 OSR

DEB0 78 OSR

DEB1 77 OSR

DEB2 74 OSR

DEB3 73 OSR

DEB4 71 OSR

DEB5 70 OSR

DEB6 67 OSR

DEB7 66 OSR

VCLK 72 I/O D5

DEPort Blue Pixel Data. In dual pixel output mode these pins are the EVEN blue
outputs.

DVPort Pixel Clock. The VCLK pin is used for DV port image capture. The polarity
can be selected by the VCLKPOL bit.

VPEN 55 I/O D5

17” TFT TV Service Manual

DVPort Pixel Enable. Used when external flow control capture mode is enabled by
the EXTFCE bit. When VPEN is active, the input data is valid. The polarity can be

selected by the PENPOL bit. Use of this pin allows non-contiguous input data.

20

Signal Pin Type Function

PORTD(7:0) can be used as GPO (Output Only).

PORTD[0-7]

DOR0 131

DOR1 130

DOR2 129

DOR3 128

DOR4 127

DOR5 126

DOR6 125

DOR7 124

[56-

63]

I/O

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

DOPort Red Pixel Data. In dual pixel output mode these pins are the ODD red
outputs. In single pixel output mode these pins are not used.

DOG0 121

DOG1 120

DOG2 119

DOG3 118

DOG4 117

DOG5 116

DOG6 115

DOG7 114

DOB0 113

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

DOPort Green Pixel Data. In dual pixel output mode these pins are the ODD green
outputs. In single pixel output mode these pins are not used.

DOPort Blue Pixel Data. In dual pixel output mode these pins are the ODD blue
outputs. In single pixel output mode these pins are not used.

DOB1 112

17” TFT TV Service Manual

I/O

SR5

21

Signal Pin Type Function

DOB2 111

DOB3 110

DOB4 109

DOB5 108

DOB6 100

DOB7 99

WR 195 I/O D5 Write Enable. Low indicates a write to external RAM or other devices.

RD 196 I/O D5 Read Enable. Low indicates a read to external RAM or other devices.

ROMOE 197 OS ROM Output Enable. Low output indicates a read from external ROM.

ROMWE 198 OS ROM Write Enable. Low indicates a write to external ROM.

CS0 199 I/O D5 Miscellaneous Chip Select 0. Low selects external devices.

CS1 200 I/O D5

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

I/O

SR5

Miscellaneous Chip Select 1. When EXTRAMEN=0, low selects external devices.
Chip select for external RAM. When EXTRAMEN=1, low selects external RAM.

(RAMCS)

NMI 194 ID 5

A1 193

A2 192

A3 191

A4 190

A5 189

A6 188

A7 183

A8 182

A9 181

A10 180

A11 179

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

Non-Maskable Interrupt. A high input triggers a non-maskable interrupt to the on-chip
microprocessor.

Microprocessor address bus output bits (19:1).

17” TFT TV Service Manual

22

Signal Pin Type Function

A12 178

A13 177

A14 176

A15 175

A16 164

A17 163

A18 162

A19 161

D0 160

D1 159

D2 158

D3 157

D4 156

D5 155

D6 154

D7 153

D8 152

D9 151

D10 150

D11 149

D12 148

D13 145

D14 144

D15 143

PORTA0 208

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

D5

I/O

U5

Microprocessor 16-bit bidirectional data bus.

General-purpose I/O port bit controlled by PADAT0 and PAEN0. This pin has one
other possible function when EXTRAMEN=1. When EXTRAMEN=1 and PAEN0=0,

PORTA1 is microprocessor address bit 0 (A0).

17” TFT TV Service Manual

23
