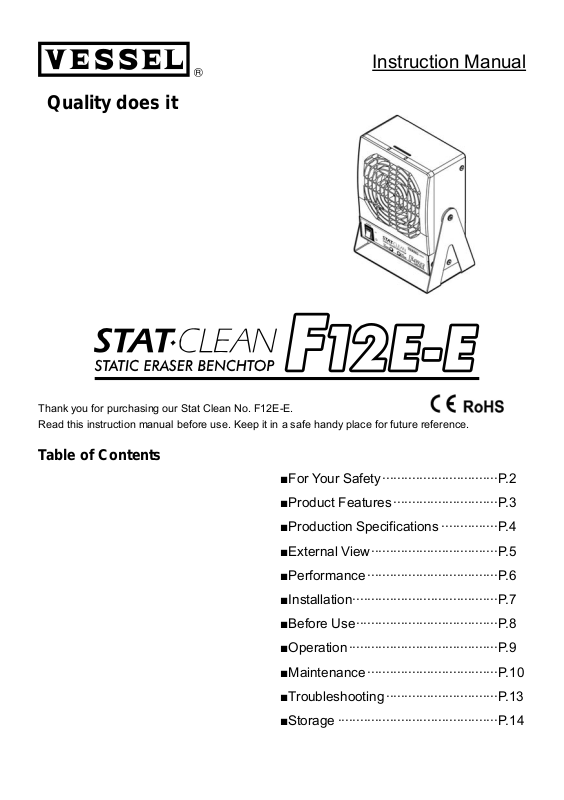

Vessel STAT-CLEAN F12E-E Instruction Manual
Instruction Manual
Quality does it
Thank you for purchasing our Stat Clean No. F12E-E.
Read this instruction manual before use. Keep it in a safe handy place for future reference.
Table of Contents
■For Your Safety·······························P.2
■Product Features ····························P.3
■Production Specifications ···············P.4
■External View··································P.5
■Performance ···································P.6
■Installation·······································P.7
■Before Use······································P.8
■Operation········································P.9
■Maintenance ···································P.10
■Troubleshooting······························P.13
■Storage ···········································P.14
For Your Safety
Safety Precautions
●Carefully read these Safety Precautions before use. Observe the precautions indicated herein to
ensure safety.
●Safety precautions in this instruction manual are categorized into two types by the degree of danger
associated with each of the followings. Based on danger analyses performed by Vessel, all
recautions in this instruction manual are of the CAUTION level.
●If the equipment is used in a manner not specified by the manufacturer, the protection provided by
the equipment may be impaired.
WARNING
Indicates that improper handling can lead to serious injury or even death.
.
CAUTION
PROHIBITED
PROHIBITED
PROHIBITED
DO NOT WET
PROHIBITED
PROHIBITED
PROHIBITED
REMEMBER
CAUTION
Indicates that improper handling can lead to minor injury and property damage.
This symbol indicates a WARNING or CAUTION.
This symbol indicates a prohibited action.
This symbol indicates a mandatory required action
CAUTIONS
Do not use F12E-E in environments that require explosion-proofing.
F12E-E is not of explosion-proof construction, therefore explosion or fire
may occur.
Do not use F12E-E in flammable atmospheres. The corona discharge
can act as an ignition source and cause an explosion or fire.
Do not use F12E-E in environments subjected to sharp temperature
fluctuations or dewing. This kind of environment can lead to breakdown.
Do not use F12E-E in highly damp places or anywhere it may be wet by
water, oil, solvent or other liquid. Contact with moisture can result in electric
shock or breakdown.
Do not use F12E-E for anything other than static erasure or dust removal.
Do not use F12E-E with power supplies of ratings not specified in the
specifications. Inappropriate power supplies can result in fire and electric
shock.
Do not install, use or service F12E-E until having understood the information
in this instruction manual.
Keep this instruction manual in a safe handy place for future reference.
VESSEL assumes no responsibility whatsoever for consequences arising
from the use of this product.
2
Product Features
■AC-TYPE CORONA DISCHARGE
This static eraser works by AC corona discharge, therefore ion balance is not disturbed by
accumulating dust on the electrode wire.
Use a new 8-electrode design to efficiently generate ions with minimal loss due to rebonding.
■FAN-TYPE STATIC ELECTRICITY ERASER
120 mmSQ high power DC fan is built in to blow drafts long distances.
The fan speed is adjusted using the step-less adjustment dial on the bottom of the body.
The stand screw can be adjusted to change the vertical blowing direction of the fan.
The components are compactly assembled in the body to make the unit smaller.
The input power is DC 24V. Use AC adaptor included.
A filter that can be removed and cleaned is provided as standard equipment.
■ION BALANCE
Capacity coupling is used to charge electrode wires with high voltage in order to maintain good ion
balance.
No adjustment required. High precision ion balancing within +/-5V.
■DESIGNED FOR SAFETY
To prevent electrical shock, the circuit is cut off and the power turned off when the front guard is
opened.
Less Ozone : Due to Dischange Design of efficient Ion output, extremely less Ozon is generated.
Monitor function is installed for Fan motor suspension and High Voltage output suspension.
(LED Lamp Function)
Piezo ElectricTransformer has the function of reducing out put in case of short circuit and overloaded power.
■EASY MAINTENANCE
The front Cover opens and closes with one touch. Internal parts can be easily accessed.
“Needle electrodes” that need to be cleaned or replaced can be easily removed without using a tool.
■EMI COUNTERMEASURES
Low noise emission, avoids affect on other electronic devices.
Uses
Use to prevent trouble and dust adhesion caused by static electricity.
3
Product Specifications
Eraser
Model : No.F12E-E
Ion generation method : High voltage AC corona discharge
Output voltage : AC2.4kＶ
Input voltage : DC24Ｖ±5％ 375ｍＡ（typ.）
Dimensions : H180×W142×D87（H200×W151.5×D95 including stand）ｍｍ
Weight : 1.4 kg
Fan speed : 3.25m
Noise emission : 58.1ｄB(A) Max. fan speed（Measured at 1m）
Ozone generation : 0.05ppm or less (Measured at 50mm）
Warning output : High voltage alarm (Red LED), stop due to fan lock（Red LED）
Protective function
Working ambient
temperature / humidity
Distance from
target area
Static electricity
removal time
Ion balance : Within ±5V (At 300mm)
Air filter : Pre-filter
Material
Accessories
・Adapter No.AD24-IT
Rated input voltage ：AC100V-240V(50/60Hz) 0.4A
Rated output voltage ：DC24V 0.75A
Working
temperature /humidity
Cable length ：DC input cable:1.8 m , AC output cable:1.8m
Weight ：135g
Consumables
Wire plate ：F-12EH Filter ：F-12EF
*The measurement values were obtained using the VESSEL measurement environment, so error could
be induced depending on the operation environment.
3
/min（Max. fan speed）
: Fan motor rotation monitoring function (Detecting rotation lock)
: High-voltage output shut down function（overload detection）
: Front cover safety device (circuit cut off when open)
: 5～40℃ / 35～65%ＲＨ(No dewing)
: 150～900mm （Installation location: Non-dangerous indoor location）

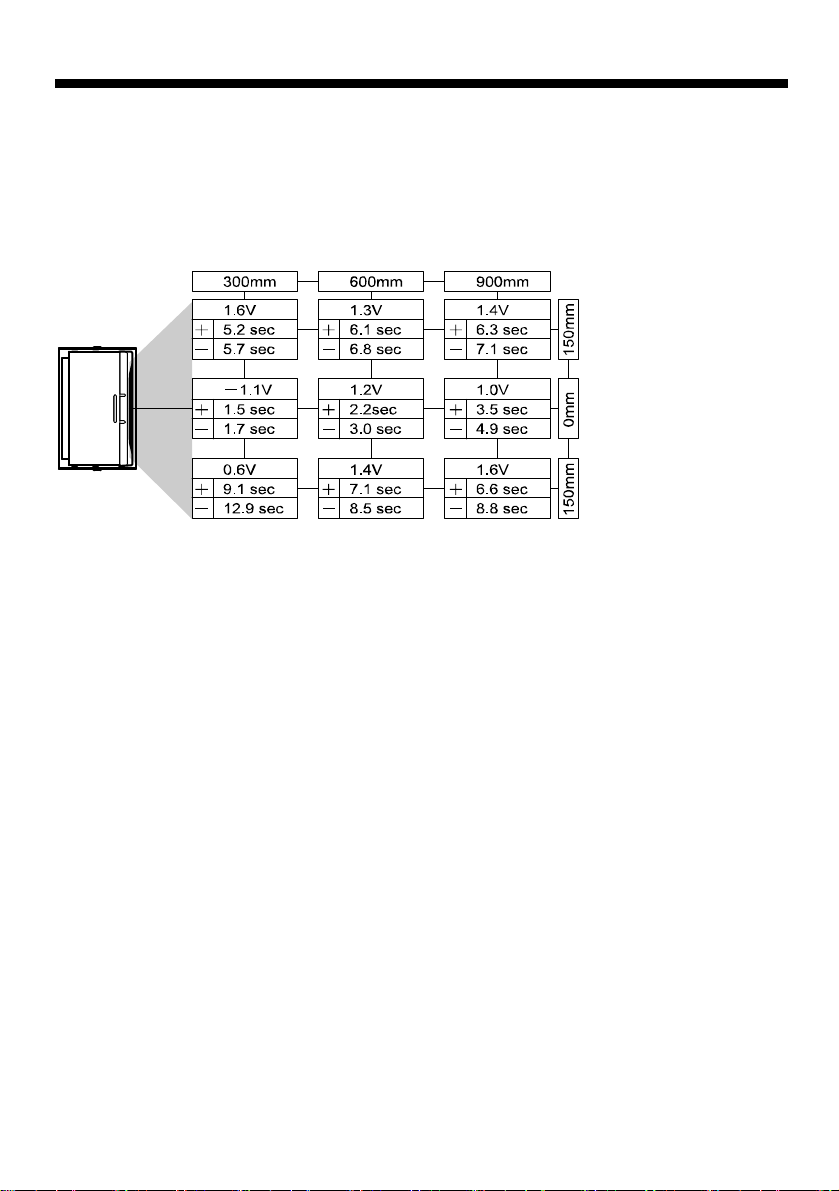

: Refer to the items in the capabilities chart.
: Casing ... Steel with coated finish, :Stand ... Stainless
: Front Cover... ABS, :Electrode ... Inconel
：0~40℃ 10~85%RH（No dewing or freezing）
4
No.F12E-E
No.AD-24-IT
External View
5
