Verv ABCB03 Quick Start Manual

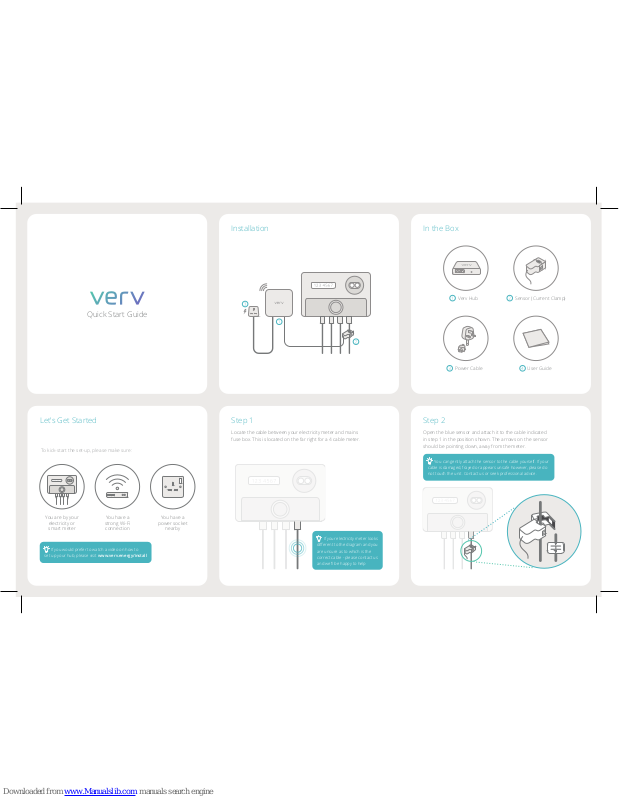

Quick Start Guide

Installation In the Box

Power Cable User Guide

Sensor (Current Clamp)

Verv Hub

Step 1

Locate the cable between your electricity meter and mains
fuse box. This is located on the far right for a 4 cable meter.

If your electricity meter looks

different to the diagram and you

are unsure as to which is the
correct cable - please contact us
and we’ll be happy to help

Let’s Get Started

To kick-start the set-up, please make sure:

You are by your

electricity or
smart meter

You have a

strong Wi-Fi

connection

You have a

power socket

nearby

If you would prefer to watch a video on how to
set up your hub, please visit www.verv.energy/install

Step 2

Open the blue sensor and attach it to the cable indicated
in step 1 in the position shown. The arrows on the sensor
should be pointing down, away from the meter.

You can gently attach the sensor to the cable yourself. If your
cable is damaged, frayed or appears unsafe however, please do
not touch the unit. Contact us or seek professional advice.

Step 3

Plug the blue sensor cable into your Verv hub.

Please ensure the cable is
securely plugged into the port

Step 4

Plug the power cable into the clover leaf socket on your
Verv hub. Connect your Verv hub to the mains power.

Only use the power cable provided
in the box and ensure it's securely
plugged in to your Verv hub

Step 5

When your hub lights start flashing green, Verv is

ready! For any issues, please visit the troubleshooting
page or feel free to contact us

Turn on the power switch on your Verv hub.
It can take a few minutes for your Verv to start up.

Step 6

Feedback

Troubleshooting & Support

Download the app at www.verv.energy/install

If you’re having trouble setting up your Verv hub,
you can get support here:

Our troubleshooting page on our website: www.verv.energy/help
Start a live chat on www.verv.energy
Send an email to [e-mail]
Call free on 0800 772 0160

Verv, St Magnus House, 3 Lower Thames Street, London EC3R 6HD

If you're satisfied with your setup process, please write a review about
your experience.

If there are things we could do better, please contact us and we'll be
happy to solve any issues you may be having.

Technical Specifications

Technical specifications

In accordance with EN 61326-1:2013

This equipment is for indoor use only
Protection against electric shock: Independently Mounted Class I Equipment
Rated voltage: 216-264 V AC, 50-60 Hz
Rated power: 1 A max
Method of earthing: Functional ground terminal
Surge immunity category: Installation Class 2 or Residential
Pollution degree: 2
Rated impulse voltage: 2500 V
Operating temperature: 5 °C to 40 °C
Relative humidity: 80% to 31 °C, 50% at 40 °C
Max altitude: 2000 metres
Approved accessories: supplied sensor (current clamp) & mains power cable
Size: 121 mm (w) x 116 mm (d) x 41 mm (h)
Weight: 350g

Part Number: ABCB03
Model: Verv Home Energy Assistant

Dispose in accordance with applicable legislation. The WEEE symbol means
that your Verv must be disposed of separately from general household
waste. When Verv reaches its end of life, take it to a designated waste
collection point in your area for safe disposal or recycling. By doing this, you’ll
conserve natural resources, protect human health and help the environment.

Green Running Limited hereby declares this Verv Home Energy Assistant is in
compliance with the essential requirements and other relevant provisions of EMC
Directives 2014/53/EU and 2011/65/EU. A copy of the EU Declaration of Conformity
is available by request. This equipment may be operated in: GB, IE, FR, NL, BE, IT.
Operation is intended to be wireless using its internal WiFi antenna. Operation using

ethernet cable may affect the RF conformance of the Radio Equipment Directive.

EU declaration of conformity

Version 1.2

Safety Information

In accordance with EN 61010-1:2010

Safety Symbols

Warning: Read instructions to understand possible hazard

Danger: Electrical shock hazard

We assume no liability for any injury caused whatsoever in connection with the
installation. Verv installation is based on a safety compliant electricity meter.

If you are unsure, please consult a qualified electrician.

Use only as specified by the operating instructions or the equipment’s intrinsic

protection may be impaired.

Safety Warnings

• Always observe the following safety precautions

• Only connect to an earthed supply socket.
THIS UNIT IS CLASS 1 CONSTRUCTION AND MUST BE EARTHED!

• Connect only to a power source with a voltage corresponding to that on the rating plate.

• Always use the mains lead supplied. Your sales outlet can provide a lead
suitable for your country.

• Ensure that the mains switch is easily accessible to allow the unit to be switched off.

• Do not install Verv such that it is only supported by its interconnection cables.

Installation

• Ensure that Verv is placed on a solid, level surface which is able to support its weight.

• Ensure all cables are routed safely to avoid tripping: also to avoid sharp bends and pinches.

• Ensure that only specified cables are used for interconnection of equipment

Maintenance

• This equipment contains no user-serviceable parts. Refer all repairs to
qualified service personnel. Opening the product voids the warranty.

• Clean only with a dry soft cloth. Do not wetten or allow moisture to penetrate
the unit. Do not use solvents.
