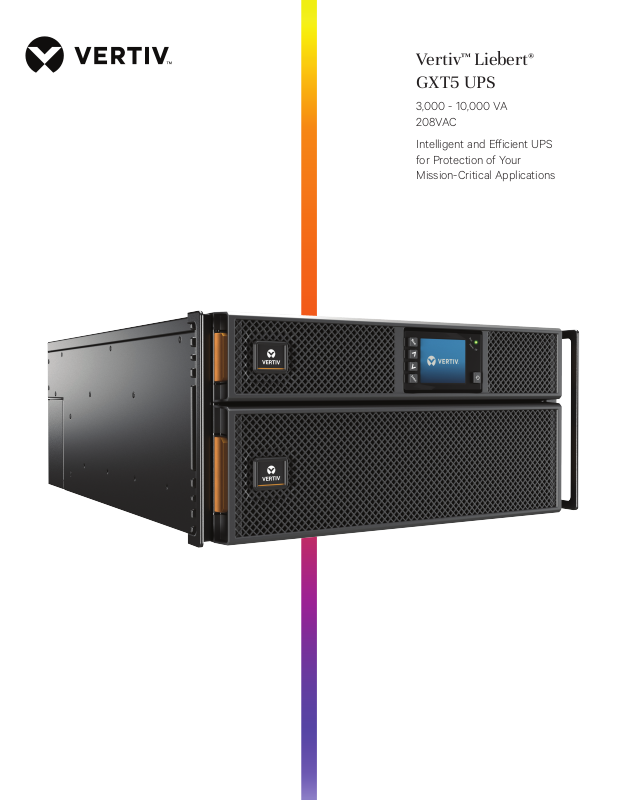

Vertiv™ Liebert

®

GXT5 UPS

3,000 - 10,000 VA
208VAC

Intelligent and Eicient UPS
for Protection of Your
Mission-Critical Applications

Vertiv™ Liebert® GXT5 | 3,000 - 10,000 VA UPS




The Vertiv™ Liebert® GXT5 UPS is
an online double conversion UPS
solution which oers premium
power outage protection and
continuous power conditioning
in a compact and flexible
rack/tower form factor.

The Liebert GXT5 single-phase UPS
operates with high power eiciency,
making it ideally suited to protect critical
infrastructure in both centralized and

edge network applications.

Scalable runtime options with matching
external battery cabinets oer additional
flexibility when extended uninterrupted
power is required. Plus, the Liebert GXT5
provides battery health status and
replacement date prediction for intelligent
battery health management.

The UPS system is easy to deploy and
maintain due to its user-friendly LCD
interface and remote management
capabilities supported by the Vertiv
RDU101 communications card which
makes the Liebert GXT5 compatible with
Vertiv infrastructure management
solutions such as LIFE™ Services,
environmental sensors, Trellis™ Power
Insight, and more.

With high online eiciency and unity
power factor operation, the Liebert GXT5
will meet your critical application needs.
And you can rest assured that your
business is protected with this Vertiv
solution that includes a standard,
three-year advanced exchange
product warranty.

What's in the box

y UPS

y Pre-installed Vertiv™ RDU101

communications card (NIC) on
5,000-10,000 VA models

y Tower stand

y 4-Post Rack Mounting Kit

y USB Cable

y Quick Start Guide

y Safety Manual

y Factory Test Report

y Free Trellis™ Power Insight

management software
(downloadable from Vertiv.com)

Liebert GXT5 Features

Leading UPS Technology

y High output power factor (up to 1.0)

y Integrated Maintenance Bypass

standard on all 5kVA and
larger systems

y Full-color graphic LCD

with gravity sensing orientation

y Automatic internal bypass

y External battery cabinets with

auto-detection

y Output Distribution Options w/

interchangable POD's

y Battery health status and

replacement date prediction

y Remote management, update,

and configuration capabilities

y Optimized thermal management

and variable speed fan

Eicient and Green Product

y High eiciency in online mode

y Energy Star® 2.0 certified

y Even higher eiciency (up to 98%) in

Active ECO mode

y Programmable outlets for power

cycling hung equipment and optimum
battery usage

y Compliance with Restriction of

Hazardous Substances (RoHS)
directive and the Registration,
Evaluation, Authorization and
Restriction of Chemicals
(REACH) regulation

Solutions Wide

y 3 year warranty

y Compact Rack/Tower design

y Broad range of services and

extended warranty

y Easy to install, configure and operate

y Vertiv™ RDU101 network

communications card with
advanced features

y Compatibility with environmental

sensors

y Integrated dry-contacts with

selectable definition

y Free Trellis™ Power Insight

management software

y Serial port for out-of-band

management with Avocent®
serial consoles

2

Vertiv™ Liebert® GXT5 Features

LCD

COLOR

LCD

COLOR

B

LCD

COLOR

B

LCD

COLOR

ECO

A

B

LCD

COLOR

B

LCD

COLOR

Unity Power Factor

1.0

Compact rack/
tower design

Space-saving UPS
provides rack space
optimization and
flexible installation.

More usable power enables more

PF

connected loads saving space
and costs.

Energy Star 2.0 Certified

Eiciency up to 98% in

ECO mode and up to 95%

in online mode.

Integrated
Maintenance Bypass
(5kVA to 10kVA models)

Enables UPS replacement
without downtime.

Product warranty

Comprehensive coverage

B

through a standard three-year
advanced exchange warranty.

Colored graphic

LCD with gravity

sensitive orientation

User-friendly interface

provides insight to

UPS status for easy

installation, configuration

and operation.

Integrated Battery

With self-test and

detection capability

Battery Cabinets

with auto-detection

Be confident the UPS is set

up correctly to report

available runtime when used

with external battery cabinets.

COLOR

LCD

3

Vertiv™ Liebert® GXT5 | 3,000 - 10,000 VA UPS

Family Overview

208V in / 208V out

Corded input

Note: Liebert GXT5-3KL620RT2UXL model shown.

Model Input Output

GXT5-3KL620RT2UXL L6-20P (2) L6-15R and (2) L6-20R

GXT5-3KL630RT2UXL L6-30P (2) L6-15R and (2) L6-30R

GXT5-6KL630RT5UXLN L6-30P Plug

(on PD5-L630 POD)

(2) L6-20R and (2) L6-30R
on 12-in. (300-mm) cords
(on PD5-L630POD)

208V in / 208V out

Hard-wired input, 3-wire system L-L-G

208V in / 208 and 120V out

4-wire system L-L-N-G

Model Input Output

GXT5-5000MVRT4UXLN Hard-wired terminal block

3W + G (L-L-N-G)

GXT5-6000MVRT4UXLN Hard-wired terminal block

3W + G (L-L-N-G)

Hard-wired
3W + G (L-L-N-G)

Hard-wired
3W + G (L-L-N-G)

208V in / 208 and 120V out

4-wire system L-L-N-G

Note: Liebert GXT5-5000HVRT5UXLN model shown.

Model Input Output

GXT5-5000HVRT5UXLN Hard-wired terminal block

2W + G (L-L-G)

GXT5-8000HVRT5UXLN Hard-wired terminal block

2W + G (L-L-G)

GXT5-10KHVRT5UXLN Hard-wired terminal block

2W + G (L-L-G)

4

Hard-wired 2W + G (L-L-G)
and (2) x L6-20R and
(2) x L6-30R

Hard-wired 2W + G (L-L-G)
and (2) x L6-20R and
(2) x L6-30R

Hard-wired 2W + G (L-L-G)
and (2) x L6-20R and
(2) x L6-30R

Note: Optional POD shown, standard unit will ship with blanking panel.
Optional POD's shown on pg 11.

Model Input Output

GXT5-8000MVRT6UXLN Hard-wired terminal block

3W + G (L-L-N-G)

GXT5-10KMVRT6UXLN Hard-wired terminal block

3W + G (L-L-N-G)

Hard-wired
3W + G (L-L-N-G)

Hard-wired
3W + G (L-L-N-G)

Technical Specifications 208V in / 208 and 120V out

Liebert GXT5-5000MVRT4UXLN Liebert GXT5-6000MVRT4UXLN Liebert GXT5-8000MVRT6UXLN Liebert GXT5-10KMVRT6UXLN

Ratings (VA/ W) 5,000 VA/5,000 W 6,000 VA/6,000 W 8,000 VA/8,000 W 10,000 VA/10,000 W

Dimensions, inches (mm)

Unit W x D X H

16.9 x 25.6 x 6.8

(430 x 650 x 173)

Weight, pounds (kg)

Unit 125.6 (57) 125.6 (57) 224.8 (102) 224.8 (102)

Input AC Parameters

Operating Frequency, Nominal

Voltage Range 176 - 280 VAC 176 - 280 VAC 176 - 280 VAC 176 - 280 VAC

Input Wiring

40 - 70 Hz

(Factory D efault is 60 Hz)

Hard-wired terminal block

3W + G (L-L-N-G)

Output AC Parameters

Output Receptacles Hard-wire, Optional POD's Hard-wire, Optional POD's Hard-wire, Optional POD's Hard-wire, Optional POD's

User sele ctable output 208/120VAC 208/120VAC 208/120VAC 208/120VAC

Waveform (On Battery) Sinewave Sinewave Sinewave Sinewave

Utility (AC) Mode Overload

105% to 125% for 5 minutes

125% to 150% for 60 seconds

>150% (impact load) minimum 200 ms

>150% (impact load) minimum 200 ms

Battery

16.9 x 25.6 x 6.8

(430 x 650 x 173)

40 - 70 Hz

(Factory D efault is 60 Hz)

Hard-wired terminal block

3W + G (L-L-N-G)

105% to 125% for 5 minutes

125% to 150% for 60 seconds

16.9 x 25.6 x 10.2

(430 x 650 x 261)

40 - 70 Hz

(Factory D efault is 60 Hz)

Hard-wired terminal block

3W + G (L-L-N-G)

105% to 125% for 5 minutes

125% to 150% for 60 seconds

>150% (impact load) minimum 200 ms

16.9 x 25.6 x 10.2

(430 x 650 x 261)

40 - 70 Hz

(Factory D efault is 60 Hz)

Hard-wired terminal block

3W + G (L-L-N-G)

105% to 125% for 5 minutes

125% to 150% for 60 seconds

>150% (impact load) minimum 200 ms

Typ e Valve-regulated, non-spillable, lead acid Valve-regulated, non-spillable, lead acid Valve-regulated, non-spillable, lead acid Valve-regulated, non-spillable, lead acid

Backup Time
(100% Load)

Backup Time
(50% Load)

+1 External Battery Cabinet
(100% Load)

+1 External Battery Cabinet
(50% Load)

4.5 Minutes 3.5 Minutes 6.5 Minutes 4.5 Minutes

12.5 Minutes 9.5 Minutes 17 Minutes 12 .5 Minutes

12.5 Minutes 9.5 Minutes 17.5 Minutes 13 Minutes

33 Minutes 25.5 Minutes 45 Minutes 33.5 Minutes

Environmental Requirements

Operating Temperature, °F (°C) +32 to +104 (0 to 40) (no derating) +32 to +104 (0 to 40) (no derating) +32 to +104 (0 to 40) (no derating) +32 to +104 (0 to 40) (no derating)

Storage Temperature,
°F (°C )

Relative Humidity

Operating Elevation

Audible Noise

+5 to +104 (-15 to 40) +5 to +104 (-15 to 40) +5 to +104 (-15 to 40) +5 to +104 (-15 to 40)

0% to 95%,

non-condensing

Up to 10,000 ft (3,000 m)

at 77°F (25°C) without derating

<50 dBA,at 3.2 ft (1 m)

from the front and sides,

<55 dBA, at 3.2 ft (1 m) from rear

0% to 95%,

non-condensing

Up to 10,000 ft (3,000 m)

at 77°F (25°C) without derating

<50 dBA,at 3.2 ft (1 m)

from the front and sides,

<55 dBA, at 3.2 ft (1 m) from rear

0% to 95%,

non-condensing

Up to 10,000 ft (3,000 m)

at 77°F (25°C) without derating

<50 dBA,at 3.2 ft (1 m)

from the front and sides,

<55 dBA, at 3.2 ft (1 m) from rear

0% to 95%,

non-condensing

Up to 10,000 ft (3,000 m)

at 77°F (25°C) without derating

<50 dBA,at 3.2 ft (1 m)

from the front and sides,

<55 dBA, at 3.2 ft (1 m) from rear

Agency

Surge Immunity

Transportation ISTA Procedure 1E ISTA Procedure 1E ISTA Procedure 1E ISTA Procedure 1E

Safety

Emissions FCC Part 15 (Class A) FCC Part 15 (Class A) FCC Part 15 (Class A) FCC Part 15 (Class A)

IEEE/ANSI C62.41 Category A & B IEEE/ANSI C62.41 Category A & B IEEE/ANSI C62.41 Category A & B IEEE/ANSI C62.41 Category A & B

UL1778, c-UL listed

CSA 22.2 No 107.3

UL1778, c-UL listed

CSA 22.2 No 107.3

UL1778, c-UL listed

CSA 22.2 No 107.3

UL1778, c-UL listed

CSA 22.2 No 107.3

Warranty

Protection Plan

Equipment Protection Plan

Std. 3 year; Opt. 2 year extension Std. 3 year; Opt. 2 year extension Std. 3 year; Opt. 2 year extension Std. 3 year; Opt. 2 year extension

$500,000

5

Vertiv™ Liebert® GXT5 | 3,000 - 10,000 VA UPS

Technical Specifications 208V in / 208V out

Liebert GXT5-3KL620RT2UXL Liebert GXT5-3KL630RT2UXL Liebert GXT5-6KL630RT5UXLN Liebert GXT5-5000HVRT5UXLN Liebert GXT5-8000HVRT5UXLN Liebert GXT5-10KHVRT5UXLN

Ratings ( VA/W) 3,000 VA/3,000 W 3,000 VA/3,000 W 4,900 VA/4,600 W 5,000 VA/5,000 W 8,000 VA/8,000 W 10,000 VA/10,000 W

Dimensions, inches (mm)

Unit W x D X H

16.9 x 21.3 x 3.4

(430 x 540 x 85)

Weight, pounds (kg)

Unit 65.1 (29.6) 65.1 (29.6) 149.1 (68) 156.7 (71.1) 164.2 (74.5) 166.4 (75.5)

Input AC Parameters

Operating Frequency, Nominal

Voltage Range

Input Power L6-20P L6-30P L6-30P

40 Hz ~ 70 Hz;

Auto Sensing

208 VAC nominal; variable

based on output load

Output AC Parameters

Output Receptacles (2) L6-15R and (2) L6-20R (2) L6-15R and (2) L6-30R

Output Voltage

Waveform (on bat tery) Sinewave Sinewave Sinewave Sinewave Sinewave Sinewave

Utility (AC)
Mode Overload

208 VAC Nominal

(Adjustable to

200/220/230/240 VAC)

>200% for 250ms;

150-200% for 2 seconds;

125-150% for 10 seconds;

105-125% for 15 seconds

Battery

Typ e

Backup Ti me
(100% Loa d)

Backup Ti me
(50% Load)

+1 External B attery Cabinet
(100% Loa d)

+1 External B attery Cabinet
(50% Load)

Valve-regulated,

non-spillable, lead acid

3 Minutes 3 Minutes 3.5 Minutes 7.0 Minutes 3.5 Minutes 2 Minutes

9 Minutes 9 Minutes 9.5 Minutes 18.5 Minutes 9.5 Minutes 7 Minutes

17 Minutes 17 Minutes 9.5 Minutes 19.0 Minutes 9.5 Minutes 7 Minutes

43.5 Minutes 43.5 Minutes 25.5 Minutes 48.0 Minutes 26 Minutes 19 Minutes

Environmental Requirements

Operating Temperature,
°F (°C)

Storage Temperature,
°F (°C )

Relative Humidity

Operating Elevation

Audible Noise

+32 to +104 (0 to 40)

(no derating)

-4 to +140 (-2 to 60) -4 to +140 (-2 to 60) +5 to +104 (-15 to 40) +5 to +104 (-15 to 40) +5 to +104 (-15 to 40) +5 to +104 (-15 to 40)

0% to 95%,

non-condensing

Up to 10,000 ft (3,000 m) at
77°F (25°C) without derating

<48 dBA,at 3.2 ft (1 m)

from the front and sides,

<48 dBA, at 3.2 ft (1 m)

from rear

Agency

Surge Immunity

Transportation ISTA Procedure 1A ISTA Procedure 1A ISTA Procedure 1E ISTA Procedure 1E ISTA Procedure 1E ISTA Procedure 1E

Safety

Emissions FCC Part 15 (Class A) FCC Part 15 (Class A) FCC Part 15 (Class A) FCC Part 15 (Class A) FCC Part 15 (Class A) FCC Part 15 (Class A)

IEEE/ANSI C62.41

Category A & B

UL1778, c-UL listed

CSA 22.2 No 107.3

Warranty

Std. 3 year;

Opt. 2 year extension

Protection Plan

Equipment Protection Plan

16.9 x 21.3 x 3.4

(430 x 540 x 85)

40 Hz ~ 70 Hz;

Auto Sensing

208 VAC nominal; variable

based on output load

208 VAC Nominal

(Adjustable to

200/220/230/240 VAC)

>200% for 250ms;
150-200% for 2 seconds;
125-150% for 10 seconds;
105-125% for 15 seconds

Valve-regulated,

non-spillable, lead acid

+32 to +104 (0 to 40)

(no derating)

0% to 95%,

non-condensing

Up to 10,000 ft (3,000 m) at
77°F (25°C) without derating

<48 dBA,at 3.2 ft (1 m)

from the front and sides,

<48 dBA, at 3.2 ft (1 m)

from rear

IEEE/ANSI C62.41

Category A & B

UL1778, c-UL listed

CSA 22.2 No 107.3

Std. 3 year;

Opt. 2 year extension

16.9 x 23.6 x 8.5

(430 x 600 x 217)

50 or 60 Hz

(factor y-default is 6 0 Hz)

175 - 280 VAC

(2) L6-20R and (2) L6-30R

on 12-in. (300-mm) cords

(on PD5-L630POD)

208 VAC Nominal

(Adjustable to

200/220/230/240 VAC)

105% to 125% for 5 minutes

125% to 150% for 60 seconds

>150% (impact load)

minimum 200 ms

Valve-regulated,

non-spillable, lead acid

+32 to +104 (0 to 40)

(no derating)

0% to 95%,

non-c ondensing

Up to 10,000 ft (3,000 m) at 77°F

(25°C) without derating

<50 dBA,at 3.2 ft (1 m)

from the front and sides,

<55 dBA, at 3.2 ft (1 m)

from rear

IEEE/ANSI C62.41

Category A & B

UL1778, c-UL listed

CSA 22.2 No 107.3

Std. 3 year;

Opt. 2 year extension

16.9×24.8×8.5

(430×630×217)

50 or 60 Hz

(factor y-default is 5 0 Hz)

176 – 288 VAC (100 – 176 VAC

with power derating)

Hard-wire terminals,

L-L-G wiring

(2) L6-20R, (2) L6-30R,

hard-wire terminals

208 VAC Nominal

(Adjustable to

200/220/230/240 VAC)

> 150% minimum 200 mS,

125 – 150% for 60 seconds;

105 – 125% for for 5 minutes;

≤ 105% continuous

Valve-regulated,

non-spillable, lead acid

+32 to +104 (0 to 40)

(no derating)

0% to 95%,

non-condensing

Up to 10,000 ft (3,000 m) at
77°F (25°C) without derating

<55 dBA,at 1 meter from the front,

<50 dBA, at 1 meter from rear

or sides

IEEE/ANSI C62.41

Category A & B

UL1778, c-UL listed

CSA 22.2 No 107.3

Std. 3 year;

Opt. 2 year extension

$500,000

16.9×24.8×8.5

(430×630×217)

50 or 60 Hz

(factor y-default is 5 0 Hz)

176 – 288 VAC (100 – 176 VAC

with power derating)

Hard-wire terminals,

L-L-G wiring

(2) L6-20R, (2) L6-30R,

hard-wire terminals

208 VAC Nominal

(Adjustable to

200/220/230/240 VAC)

> 150% minimum 200 mS,

125 – 150% for 60 seconds;

105 – 125% for for 5 minutes;

≤ 105% continuous

Valve-regulated,

non-spillable, lead acid

+32 to +104 (0 to 40)

(no derating)

0% to 95%,

non-condensing

Up to 10,000 ft (3,000 m) at 77°F

(25°C) without derating

<55 dBA,at 1 meter from the front,

<50 dBA, at 1 meter from rear

or sides

IEEE/ANSI C62.41

Category A & B

UL1778, c-UL listed

CSA 22.2 No 107.3

Std. 3 year;

Opt. 2 year extension

16.9×24.8×8.5

(430×630×217)

50 or 60 Hz

(factor y-default is 5 0 Hz)

176 – 288 VAC (100 – 176 VAC

with power derating)

Hard-wire terminals,

L-L-G wiring

(2) L6-20R, (2) L6-30R,

hard-wire terminals

208 VAC Nominal

(Adjustable to

200/220/230/240 VAC)

> 150% minimum 200 mS,

125 – 150% for 60 seconds;

105 – 125% for for 5 minutes;

≤ 105% continuous

Valve-regulated,

non-spillable, lead acid

+32 to +104 (0 to 40)

(no derating)

0% to 95%,

non-condensing

Up to 10,000 ft (3,000 m) at

77°F (25°C) without derating

<55 dBA,at 1 meter from the

front, <50 dBA, at 1 meter from

rear

or sides

IEEE/ANSI C62.41

Category A & B

UL1778, c-UL listed

CSA 22.2 No 107.3

Std. 3 year;

Opt. 2 year extension

6

Power Assurance Package:
Comprehensive Service Support for Critical Systems

y Five-year protection plan with 100% parts coverage and 24x7 emergency service

y On-site installation and startup of UPS and internal batteries

(excludes hard-wired applications); configuration of new UPS and accessories;
and if purchased, safe removal and disposal of legacy UPS and batteries

y On-site service support available 24x7 (within 150 miles of regional service center)

and includes 100% labor and travel coverage

y 100% parts coverage for UPS and includes internal batteries,

POD (power output distribution), and web card

y 24x7 access to customer resolution center and online access to

Customer Services Network

Key benefits:

y Hassle-free management

of multi-site rollouts

y Frees up time-strapped IT sta by

managing and tracking UPS health,
maintenance and service

y Reduces the worry of critical

equipment downtime

y Ensures rapid recovery in the event

of failure (within 24-48 hours)

y Frees you from the responsibility

of handling and documenting the
disposal of legacy UPS and batteries

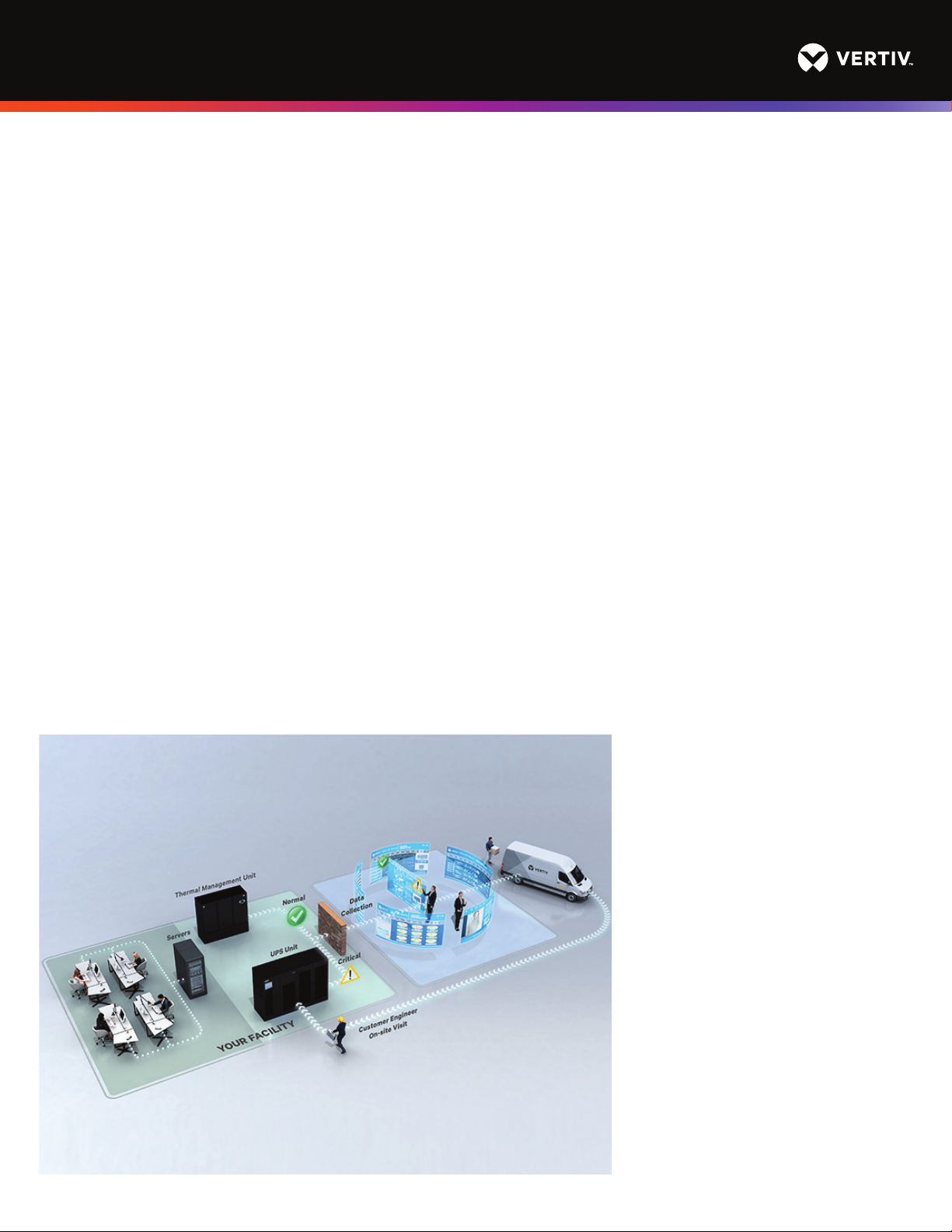

Remote Diagnostic Services for Rapid Response

Uptime assurance

y Continuous monitoring for early

detection of trends and operating
anomalies

y Analysis and interpretation of alarm

and status messages

Rapid incident response

y Automatic transmission of data for

analysis

y Concurrent diagnosis and dispatch of

engineer to site

y Shipment of parts for corrective

maintenance

Increased insight and ease of
management

y Notification of operating conditions

that may impact system health

y Periodic trend and analysis reports

y Integration of remote and on-site

services to ensure business continuity

7

Vertiv™ Liebert® GXT5 | 3,000 - 10,000 VA UPS

Liebert® GXT5 UPS - Power Assurance Services

Power Assurance Package

Bundled Start-up Service AND
5-Year On-site Emergency Response

Equipment Model / Type Part Number Part Number Part Number Part Number

Liebert GXT5 UP TO 3 KVA PAPGXT-1K3K PAPGXT-1K3KLF PAPGXT-1K3KRMV PAPGXT-1K3KRLF

Liebert GXT5 5.0 to 6.0 kVA PAPGXT-5K6K PAPGXT-5K6KLF PAPGXT-5K6KRMV PAPGXT-5K6KRLF

Liebert GXT5 8.0 to 10.0 kVA PAPGXT-8-10K PAPGXT-8-10KLF PAPGXT-8-10KRMV PAPGXT-8-10KRLF

External Battery Cabinet (144V or 288V) PAPGXT-BATT PAPGXT-BATTRMV N/A N /A

Power Startup Services

Startup Service Only Standard With Removal

Equipment Model / Type Part Number Part Number

Liebert GXT5 UP TO 3 KVA SUGXT-1K3K SUGXT-1K3KRMV

Liebert GXT5 5.0 to 6.0 kVA SUGXT-5-6U7 SUGXT-5-6U7RMV

Liebert GXT5 8.0 to 10.0 kVA SUGXT-8-10U7 SUGXT-8-10U7RMV

External Battery Cabinet (144V or 288V) SUGXT-EXTBTCB SUGXT-EXTBTCBRMV

Standard With LIFE™ Services With Removal With LIFE™ and Removal

Power Emergency Services

5-Year On-site Emergency Coverage - Only Standard With LIFE Services

Equipment Model / Type Part Number Part Number

Liebert GXT5 3.0 kVA PEPGXT-30005YR PEPGXT-3000LF

Liebert GXT5 5.0 to 6.0 kVA PEPGXT-5K6K5YR PEPGXT-5K6KLF

Liebert GXT5 8.0 to 10.0 kVA PEPGXT-8-10K5YR PEPGXT-8K10KLF

External Battery Cabinet 144V PEPGXT-144BAT5YR N/A

External Battery Cabinet 288V PEPGXT-288BAT5YR N/A

Power Assurance Package - Summary

y Includes all below "Power Start-up Services" and "Power Emergency Services" support
y One Preventative Maintenance visit after 3rd year (5-10kVA UPS only)

Power Startup Services - Summary

y Installation includes mounting and start-up of new UPS or EBC (excludes hard-wired applications)
y Services performed by Vertiv factory trained technician
y Services performed 7 X 24, excluding national holidays within the 48 contiguous states and Hawaii
y Removal and disposal of existing UPS or EBC equipment, if selected

Power Emergency Services - Summary

y On Site Service Support
y Full-service five (5) year contract term commencing upon the start-up date
y 100% parts coverage, including internal batteries, POD and web card
y 100% labor and travel coverage 7 days/week, 24 hours/day
y 24-Hour Customer Resolution Center via 1-800-LIEBERT
y Access to Customer Services Network portal

LIFE™ Services includes above plus:

y Continuous Monitoring, Expert Analysis, and Proactive Response

Note: LIFE Services requires an RDU101 card, which is included on all 5000VA to 10000VA models.

Please refer to the Scopes of Work for full and additional details

8

Liebert® GXT5 Extended Warranty (3000 - 10000 VA; 208VAC)

UPS Model Number Additional 2 Years / Warranty Part Number

GXT5-3KL620RT2UXL 2WEGXT-3KL620

GXT5-3KL630RT2UXL 2WEGXT-3KL630

GXT5-5000MVRT4UXLN 2WEGXT-5KMV

GXT5-5000HVRT5UXLN 2WEGXT-5KHV

GXT5-6000MVRT4UXLN 2WEGXT-6KMV

GXT5-6KL630RT5UXLN 2WEGXT-6KL630

GXT5-8000MVRT6UXLN 2WEGXT-8KMV

GXT5-8000HVRT5UXLN 2WEGXT-8KHV

GXT5-10KMVRT6UXLN 2WEGXT-10KMV

GXT5-10KHVRT5UXLN 2WEGXT-10KHV

Available Accessories for the Vertiv™ Liebert® GXT5 UPS

External battery cabinets and replacement battery kits

UPS External battery cabinets Replacement battery kits

GXT5-3KL620RT2UXL GXT5-EBC72VRT2U GXT5-72VBATKIT

GXT5-3KL630RT2UXL GXT5-EBC72VRT2U GXT5-72VBATKIT

GXT5-5000MVRT4UXLN GXT5-EBC144VRT2U GXT5-144VBATKIT

GXT5-5000HVRT5UXLN GXT5-EBC192VRT3U GXT5-192VBATKIT

GXT5-6000MVRT4UXLN GXT5-EBC144VRT2U GXT5-144VBATKIT

GXT5-6KL630RT5UXLN GXT5-EBC192VRT3U GXT5-192VBATKIT

GXT5-8000MVRT6UXLN GXT5-EBC288VRT4U GXT5-288VBATKIT

GXT5-8000HVRT5UXLN GXT5-EBC192VRT3U GXT5-192VBATKIT

GXT5-10KMVRT6UXLN GXT5-EBC288VRT4U GXT5-288VBATKIT

GXT5-10KHVRT5UXLN GXT5-EBC192VRT3U GXT5-192VBATKIT

The batteries in the External Battery Cabinets used with the 5-10kVA UPSs are user-replaceable. To replace them, order the replacement battery kit shown in the 3rd column.
For the External Battery Cabinets used with the 3kVA UPS models, order a new External Battery Cabinet (2nd column).

External Battery Cabinet Cables*

External Battery Cabinet Supported Part Number (6' Cable)

GXT5-EBC72VRT2U 4114282

GXT5-EBC144VRT2U 4114284

GXT5-EBC288VRT4U 25060660

GXT5-EBC192VRT3U 25060591

*1' cable is bundled and comes standard with every External Battery Cabinet. The 6' cables in this table are optional

Network communications and environmental sensors

Network Communications

Environmental Sensors SN-Z01 Integrated cable with single temperature sensor

UPS manageability options Trellis™ Power Insight Software Management

RDU101

IS-RELAY Intellislot Interface kit for relay contacts

SN-Z02 Integrated cable with three temperature sensors

SN-Z03 Integrated cable with three temperature and one humidity sensors

SN-T Modular with single temperature sensor

SN-TH Modular with single temperature and single humidity sensor

SN-2D Modular with two door contact inputs

SN-3C Modular with three dry contact inputs

SN-L20 Modular leak zone sensor with 20 foot cable (Liebert RDU-S only)

Intellislot web card for SNMP and web management.
Supports environmental sensors. The RDU101 comes factory
installed on 5kVA and larger GXT5 UPS.

Trellis™ Power Insight is a complimentary web-based software
designed to monitor up to 100 Vertiv™ UPSs and rPDUs

9

Vertiv™ Liebert® GXT5 | 3,000 - 10,000 VA UPS

Standard Kit included

inside the UPS box

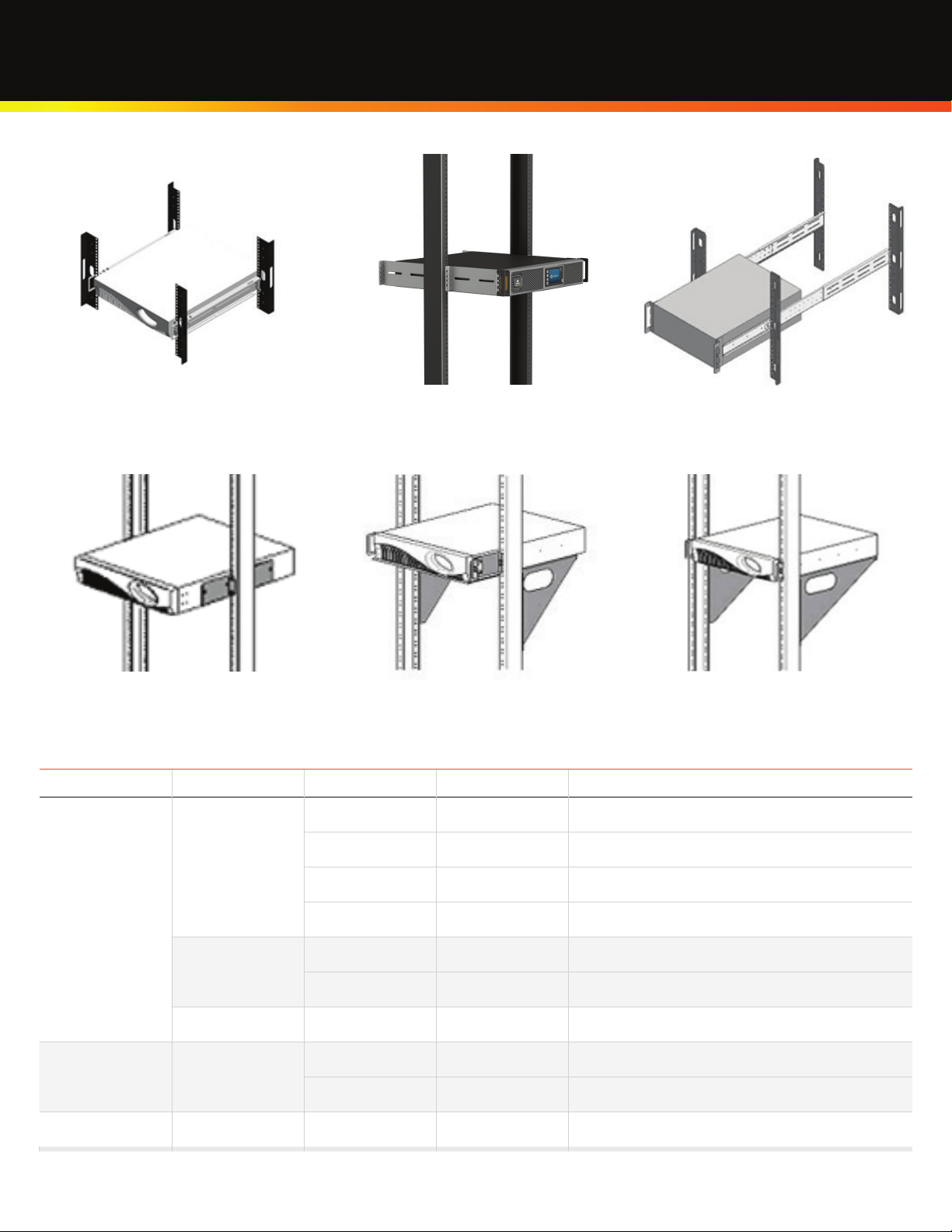

for 2U GXT5 (500 - 3000VA)

2POSTRMKIT

201193G1L

2UTELECOMRKIT for

2U GXT5 (500 - 3000VA)

2U GXT5 (500VA – 3000VA)

Rack Shelves for

Mounting Kit Options

Application Model Supported Style Model Description

Shelf RS500 Flush-mount shelf for 19" rack wide

Entire Liebert GXT5 UPS
family (500VA to 10kVA)

Shelf RS600 Center-mount shelf for 19" rack wide

Shelf RS700 Flush-mount shelf for 23" rack wide

Rack Slide Kits for all Liebert® GXT5

Rack Tower Models (RMKIT 18-32)

Flush Mounting

(RS500 and RS700)

2 Post- Telecom rack

Liebert Only GXT5
up to 3kVA

5/6kVA and 8/10 kVA
(MV & HV models)

Wall Mount Liebert GXT5 up to 3kVA

4 Post rack

Entire Liebert GXT5 UPS
family (500VA to 10kVA)

Shelf RS800 Center-mount shelf for 23" rack wide

Bracket 2UTELECOMRKIT Only center-mount bracket for 19" rack wide

Bracket 2POSTRMKIT Front flush / center-mount bracket - 4-piece design

Bracket 4UTELECOMRKIT Only center-mount bracket for 19" rack wide

Bracket WMBKT2U

Bracket WMBKT2USS

Bracket RMKIT18-32 Cabinet/racks with 18" - 32" deep support rails - Telescopic rail

Wall mount bracket holds (1) GXT5 2U or (1) PSI5 2U product,
steel painted black

Wall mount bracket holds (1) GXT5 2U or (1) PSI5 2U product,
stainless steel

Note: RS600 and RS800 kits include adapter brackets for installation of up to (2) Liebert GXT5 2U model

10

Power Output Distribution, MicroPOD and Transformer Distribution Units

Maintenance Bypass and Output Distribution - Liebert GXT5 UPS

POD Model Number Input Connection Output Connection UPS

PD5-001 L14-30P 1 x L14-30R, 1 x L6-30R, 4 x 5-15/20R T Slot 5-6kVA, MV

PD5-002 L14-30P 2 x L6-20R, 2 x 5-15/20R T Slot 5-6kVA, MV

PD5-003 L14-30P 2 x L6-30R, 4 x 5-15/20R T Slot 5-6kVA, MV

PD5-004 L14-30P 4 x L5-20R, 2 x L5-30R 5-6kVA, MV

PD5-005 L14-30P 4 x L5-20R, 2 x L6-30R 5-6kVA, MV

PD5-006 L14-30P 4 x L6-20R 5-6kVA, MV

PD5-201 Hardwired 2 x C19, 6 x C13 5-6kVA, HV

PD5-202 Hardwired 2 x C19, 4 x C13 8-10kVA, HV

Power Output Distribution for models Liebert GXT5-8000MVRT6UXLN, Liebert GXT5-10KMVRT6UXLN

POD Model Number Input Connection Output Connections

PD2-101 N /A (8) 5-15/20R T-slot, (2) L6-30R

PD2-102 N/A (4) 5-15/20R T-slot, (4) L6-20R

PD2-103 N/A (4) 5-15/20R T-slot, (4) L6-30R

PD2-104 N/A (4) 5-15/20R T-slot, (2) L6-30R, (2) L6-20R

PD2-105 N/A (4) 5-15/20R T-slot, (2) L5-30R, (2) L5-20R

PD2-106 N/A (4) L5-20R, (4) L6-20R

PD2-107 N /A (4) L5-20R, (4) 5-15/20R T-slot

PD2-108 N/A (2) L6-30R, (2) L6-20R

PD2-109 N/A (2) L14-30R

1

PD2-200

1

PD2-201

1

PD2-202

1

PD2-203

1.

These IEC output sockets will have 200-240 volts.

N/A (4) IEC320-C19, (4) IEC320-C13

N/A (2) IEC320-C19, (8) IEC320-C13

N/A (12) IEC320-C13

N/A (2) IEC309-32A, (4) IEC320-C13

MicroPOD - Maintenance Bypass and Output Distribution

The Liebert® MicroPOD (Power Output Distribution) is a maintenance bypass option for UPS products, 3 kVA and below. It allows removal of the UPS without powering
down the connected equipment. The POD’s can be installed on the floor or mounted to a Liebert GXT5 UPS using the included mounting brackets.

UPS Model POD model number Plug to Utility Output Receptacles

L6-20R, (2) L6-15R, (2) L6-20R or

GXT5-3KL620RT2UXL MP2-220N L6-20P or Hard-wired with removable plug

Hard-wired with removable
receptacle plates.

Step-Down Transformer Distribution Units

• 2U Rack/Tower

• Compatible with GXT4, GXT5, PSI5 208V UPS

• 208-240VAC Input, 120VAC output

• Manually configurable output voltage (100-125VAC)

UPS Model TDU Model VA / W TDU Input Output

GXT5-3KL620RT2UXL TDU-3500RTL620 3,440 VA / 3,440 W L6-20P (8) 5-15/20R, (2) L5-20R

GXT5-3KL630RT2UXL

GXT5-6KL630RT5UXLN*

GXT5-6KL630RT5UXLN,
GXT5-5000HVRT5UXLN,
GXT5-8000HVRT5UXLN,
GXT5-10KHVRT5UXLN

*Compatibility depends on downstream power requirement of equipment connected to the TDU.

TDU-4000RTL630 4,000 VA / 4,000 W L6-30P (8) 5-15/20R, (2) L5-20R

TDU-6000RTL630 5,050 VA / 5,050 W L6-30P (8) 5-15/20R, (2) L5-30R

11

Vertiv.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA

© 2021 Vertiv G roup Corp. All right s reserved. Verti v™ and the Vertiv logo are tr ademarks or regis tered trademarks o f Vertiv Group Corp. Al l other names and log os referred to are trad e names, tradema rks or registered tr ademarks of their res pective owners . While every
precauti on has been taken to en sure accuracy and c ompleteness he re, Vertiv Group Cor p. assumes no resp onsibility, and dis claims all liabili ty, for damages resu lting from use of this inf ormation or for any erro rs or omissions . Specificatio ns, rebates and oth er promotional
oers are su bject to change at Ver tiv’s sole discret ion upon notice.

SL-70505 (R04/21)
