Safety
Safety precautions must always be
taken. The layout of these precautions
must be designed with the final
location in mind. Requirements may
vary and are to be discussed before
installation.
Printer + Pump
A special concrete mix is pumped and
deposited by an industrial robot with
millimeter accuracy. The pump
produces between 1-6 litres per
minute at variable speed.
Plug and play
No on-site installation is required. The
machine can be used straight out of
the box.
Compact
The entire setup can be
installed on a floor space
of 2m x 2m. This makes it
very compact.
Also: it can be moved by a
simple pallet jack.
Electricity
This model is available with 230V!
Which means it can run on a standard
plug. It is also available with 380V.
Software + Material
License free software provided for
translating geometry to robot code.
The basic material recipe is also
provided for free! This means you can
make it yourself.

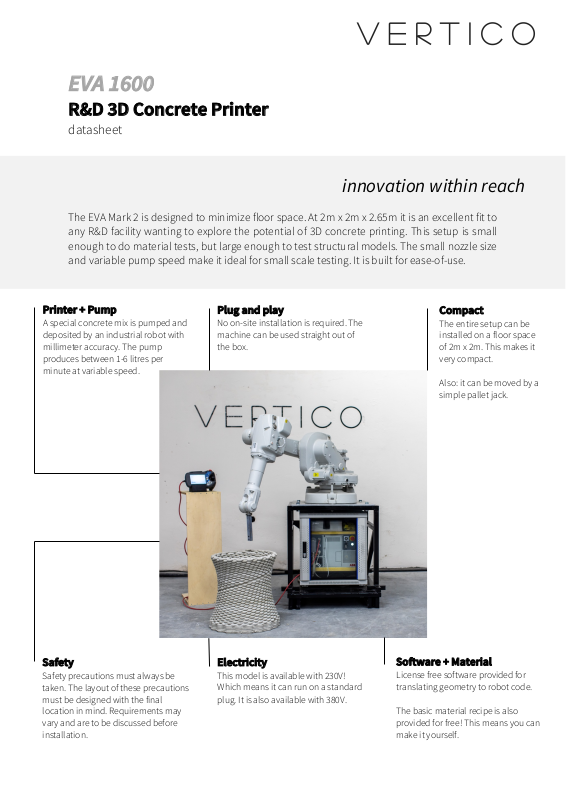

innovation within reach
EVA 1600
R&D 3D Concrete Printer
datasheet
The EVA Mark 2 is designed to minimize floor space. At 2m x 2m x 2.65m it is an excellent fit to
any R&D facility wanting to explore the potential of 3D concrete printing. This setup is small
enough to do material tests, but large enough to test structural models. The small nozzle size
and variable pump speed make it ideal for small scale testing. It is built for ease-of-use.
Page 2
Specifications
Installation
Height
265cm
Length
200cm
Width
200cm
Weight
650kg
Kanaaldijk-Zuid 1-01
5643TZ, Eindhoven
Netherlands
www.vertico.xyz
The information contained in this document is for general information purposed
only. We assume no responsibility for errors or omissions. Vertico reserves the
right to change the information contained in this document at any time.
© Vertico 2021
Technical Information
V Hz
kW
Robot
200-600 V
50-60 Hz
0,58 kW
Pump
220-240 V
50-60 Hz
1,1 kW
Mixer
230 V
50-60 Hz
0,2 kW
General
- Reach of 1.45m
- 1.65m reach available upon request
- Payload: 10kg
- 1-6 litre per minute
- Variable pump speed
- 3-18mm layer height
REV1.2101ENG - EVA M-2
