Welcome

Congratulations on your purchase of a Vizualogic A-1250 System that will provide your family with many years of enjoyment. This sophisticated product provides video entertainment to rear seat passengers without altering the appearance of your vehicle’s original interior.

Reviewing this owner’s manual thoroughly prior to operation will provide you with the best performance and help explain the simple requirements for proper care.

Important Safety Information:

This video product is designed and intended for positioning in back seating areas of a vehicle where it cannot be viewed directly or indirectly by the driver and possibly cause him/her to be distracted from the task of operating the vehicle. Driver distraction is a major cause of accidents and for this reason many states specifically prohibit the viewing of motion video within view of the driver while the vehicle is in motion.

For safety reasons, when changing discs it is recommended that the vehicle be stationary, and that you do not allow children to unfasten seat belts to change discs or make any adjustments to the system. System adjustments can be safely accomplished using the remote control unit. Enjoy your Vizualogic A-1250 system but remember the safety of all passengers is the number one priority.

Purchase Information

Please fill out this section for your reference and retain the original bill of sale to validate your Limited Warranty should service become necessary:

Date of Purchase:

Place of Purchase:

Unit Serial Number:

Table of Contents

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Purchase Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Monitor Control Button Layout. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Monitor On-Screen Basic Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Soft Button Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Monitor Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

DVD Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Adjusting the Picture Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Connecting External Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using the Auxiliary Input Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using the Wired Headphone Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Using the A/V Control Module Auxiliary Input . . . . . . . . . . . . . . . . . . . . 8

Remote Control Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Playing Audio CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Playing MP3 CDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Audio Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

FM Modulator Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

IR Headphones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Care & Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Warranty Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Features

• 7-inch Color TFT-LCD Panel with 16:9 aspect ratio

• Built-in Top-loading Slot-in DVD player.

• Integrated Infrared Transmitters for wireless Headphones

(1) Channel A

Audio-R: 2.3 MHz Audio-L: 2.8 MHz

• RCA axillary input

• Two sets of RCA slave outputs

• Two sets of DIN-cable monitor outputs

• Monitor-mounted auxiliary input and headphone jack on each headrest.

• DVD and monitor control via buttons on front panel

• OSD (On-Screen Display) Control

(2) Channel B

Audio-R: 3.2 MHz Audio-L: 3.8 MHz

Monitor Control Button Layout

3 4 5 6 7

9 10 11

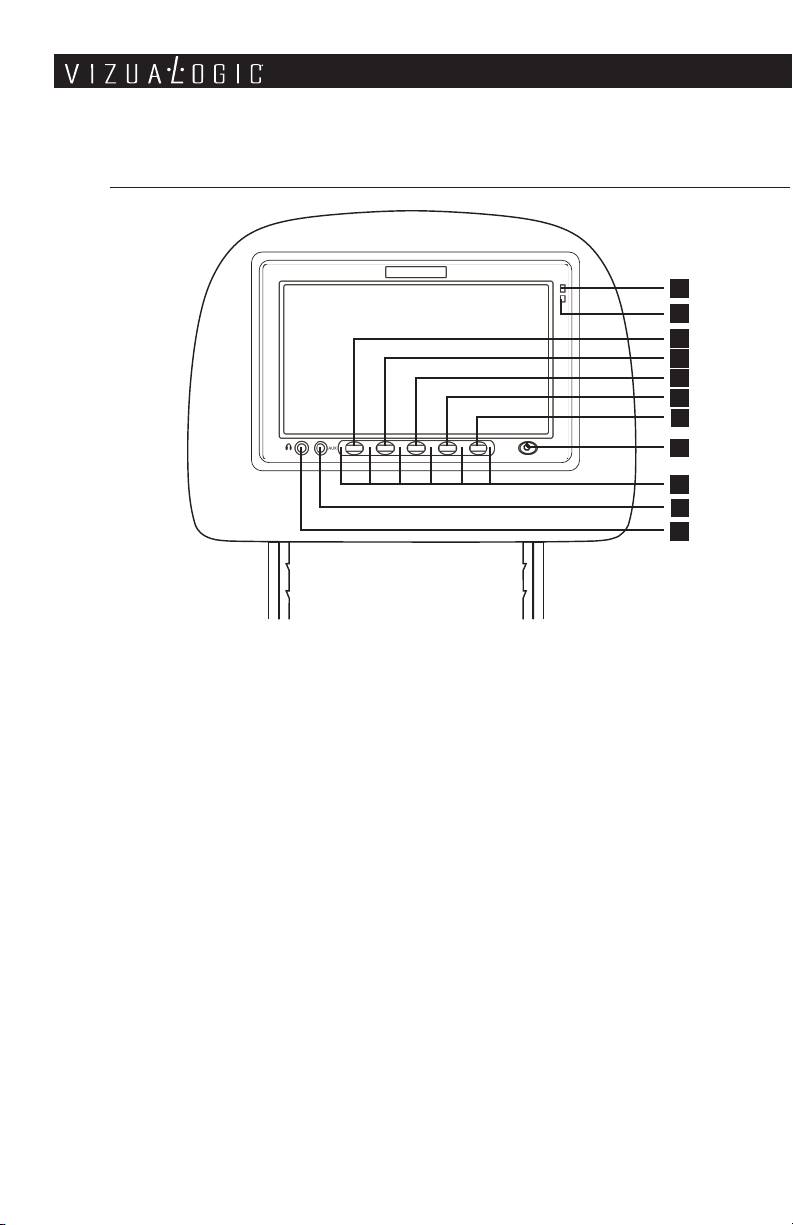

1. IR Sensor – Allows the remote to navigate the OSD (On Screen Display) on this unit and to control other functions and accessories.

2. Light Sensor – Detects ambient light levels and dims the screen accordingly.

3. MONITOR / DVD CONTROL BUTTON #1 - When set to Monitor Control mode, operates as the UP button. When set to DVD Control mode, operates as the PLAY button.

MONITOR / DVD CONTROL BUTTON #2 – When set to Monitor Control

4. mode, operates as the DOWN button. When set to DVD Control mode, operates as the PAUSE button.

5. MONITOR / DVD CONTROL BUTTON #3 – When set to Monitor Control mode, operates as the MENU button. When set to DVD Control mode, operates as the STOP button

6. MONITOR / DVD CONTROL BUTTON #4 – When set to Monitor Control mode, operates as the SOURCE button. When set to DVD Control mode, operates as the PREVIOUS button.

7. MONITOR / DVD CONTROL BUTTON #5 – When set to Monitor Control mode, operates as the ZOOM button. When set to DVD Control mode, operates as the NEXT button.

8. POWER / TOGGLE – Press momentarily to toggle between on-screen DVD and Monitor Control functions. Press and hold to turn the monitor off.

9. INFRARED TRANSMITTERS – Transmits audio information from the source displayed on-screen to the wireless headphones.

10. AUXILIARY INPUT JACK – Allows an external A/V source to be connected

and viewed. The external source can only be viewed on the monitor that it is physically connected to.

11. HEADPHONE JACK – Allows the use of wired headphones (not included) to be connected to the monitor.

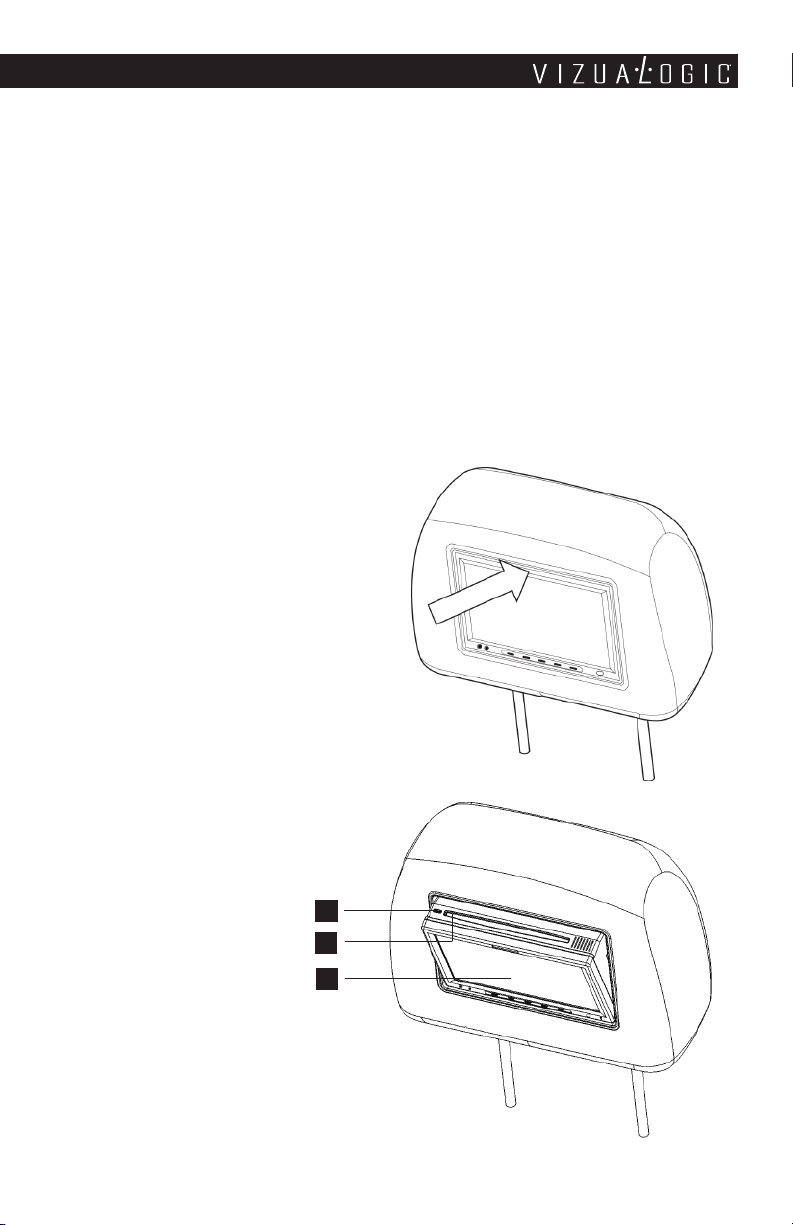

To open/reveal the DVD loading slot, PRESS on the top-center of the monitor frame (indicated by the Vizualogic logo).

NOTE: Do not put pressure directly on the screen. Latch the monitor in the fully closed position when DVD loading slot is not in use.

12. EJECT – Press this button to eject the disc.

13. Disc Slot

14. LCD Panel

Monitor On-Screen Basic Functions

SOFT BUTTON CONTROLS

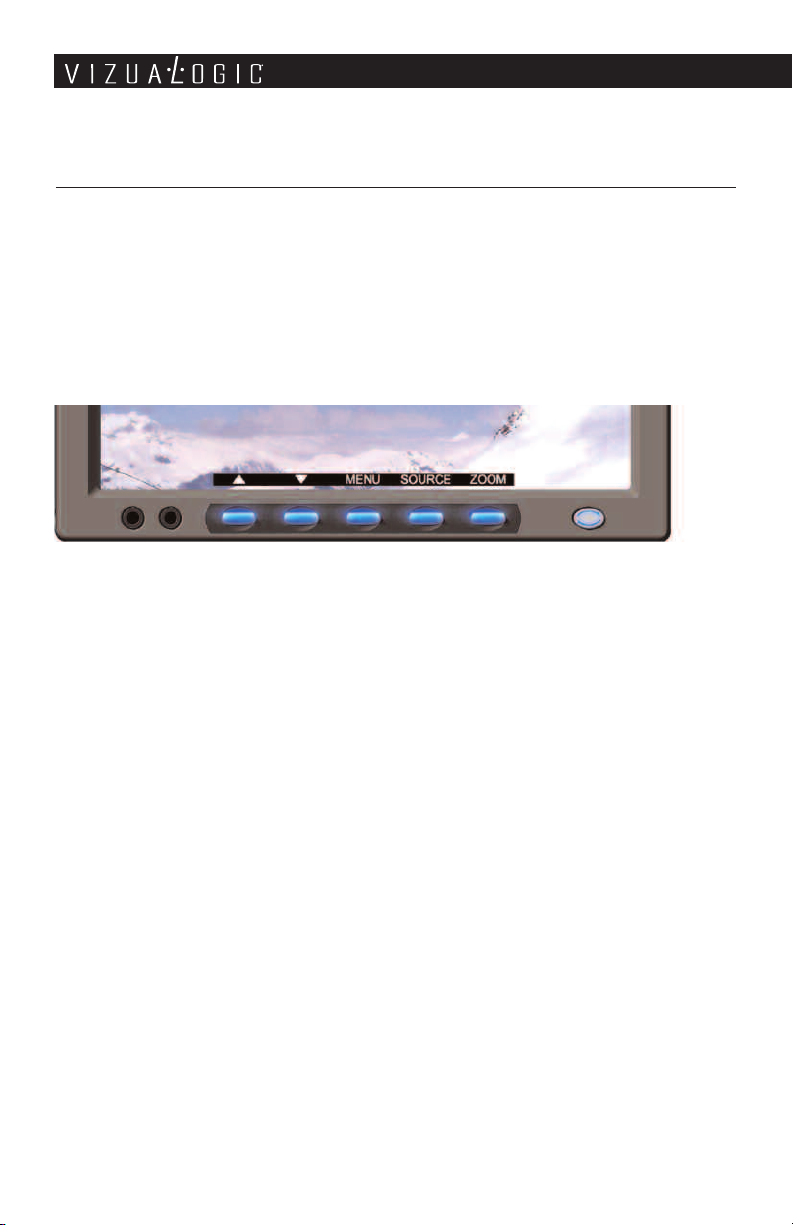

When any of the DVD / Monitor Control buttons are pressed, a row of icons will appear directly above the buttons. To alternate between DVD and Monitor Control functions, momentarily press the POWER / TOGGLE button. To perform a desired function, press the button directly underneath the desired icon.

MONITOR CONTROLS

5 (UP) – Increases volume output of wired headphone jack. When in MENU mode also increases the value of the desired function.

6 (DOWN) – Decreases volume output of wired headphone jack. When in MENU mode also decreases the value of the desired function.

MENU – Accesses monitor picture adjustment settings. Each press of the MENU button advances through the functions as follows:

CONTRAST 4 BRIGHTNESS 4 COLOR 4 TINT 4 SHARPNESS 4 DIMMER 4 RESET DEFAULT

Once the desired selection has been made, use the 5 or 6 buttons to change the function setting.

SOURCE – Changes the source displayed on the monitor. Each press of the SOURCE button changes the source in the following sequence:

Dual DVD system: DRIVER DVD 4 PASSENGER DVD 4 EXT AUX 4 AUX

Single DVD system: DRIVER DVD 4 EXT AUX 4 AUX

ZOOM – Changes the size of the image displayed on-screen from wide, normal, or zoom

DVD CONTROLS

4 (Play) – Plays a disc that is loaded into the integrated DVD player.

< (Stop) – Stops playing a disc that is loaded into the integrated DVD player.

; (Pause) – Pauses a disc that is loaded into the integrated DVD player.

9 (Previous) – Accesses the previous chapter or track.

: (Next) – Accesses the next chapter or track.

Adjusting the Picture Settings

The A-1250 features multiple picture adjustment settings that allow the user to tailor the picture to their preferences. To access the picture adjustment settings, press the MENU button. Each press of the MENU button will advance through the settings shown below. Once the desired selection has been made, use the to change the setting level.

5 or 6buttons

CONTRAST - Adjust to increase or decrease picture contrast. BRIGHTNESS - Adjust to brighten or darken the picture. COLOR - Adjust to increase or decrease the color intensity. TINT - Adjust to increase or decrease the color hue. SHARPNESS - Adjust to sharpen or soften the picture. DIMMER - Adjust to brighten or darken the monitor backlight. Select from:

DIMMER HI (100% backlight), DIMMER MED (85% backlight) and DIMMER LOW (65% backlight)

RESET DEFAULT - Resets the above picture settings to the default values.

Connecting External Devices

USING THE AUXILIARY INPUT JACK

Each A-1250 monitor has a 3.5mm auxiliary input jack labeled AUX located on the bottom left of the screen. To connect an external source (video game system, camcorder, etc.) to the monitor, use the available 3.5mm to RCA auxiliary input adapter cable (to connect an iPod

3.5mm to iPod interface cable). Using either the remote or the monitorcontrol buttons, press the SOURCE button until AUX has been selected. The auxiliary device can now be viewed.

NOTE: Any source connected via the screen-mounted AUX jack can only be viewed on the screen that the auxiliary source is physically connected to.

USING THE WIRED HEADPHONE JACK

Each A-1250 monitor has a 3.5mm wired headphone jack labeled . To use, simply connect a pair of wired headphones (not included) to the wired headphone jack and use the ‘5’ or ‘6’ monitor control buttons to adjust the headphone volume output.

use the available

NOTE: Using the monitor control buttons to change the wired headphone volume output will not affect the volume output of the wireless IR headphones.

USING THE A/V CONTROL MODULE AUXILIARY INPUT

The A-1250 system features auxiliary component RCA input jacks on the A/V Control Module. Devices connected to this input can be viewed on either screen (independently or simultaneously), as well as output through the vehicle stereo via the A-1250’s FM Transmitter. To view this input press the SOURCE button until EXT. AUX is displayed.

NOTE: Consult your installer to determine how to access this input.

Remote Control Operations

MONITOR

SOURCE


ZOOM

FREQ

NTER

SETUP

PLAY

PAUSE

STOP

SLOW

TITLE

SUB

A-B

PBC

ZOOM

ETURN

MUTE

AUDIO

DISP.

REPEAT

SOURCE

NOTE: The remote control will control all Monitor and integrated DVD functions. The remote is not a fully universal remote control and is only guaranteed to work with Vizualogic products.

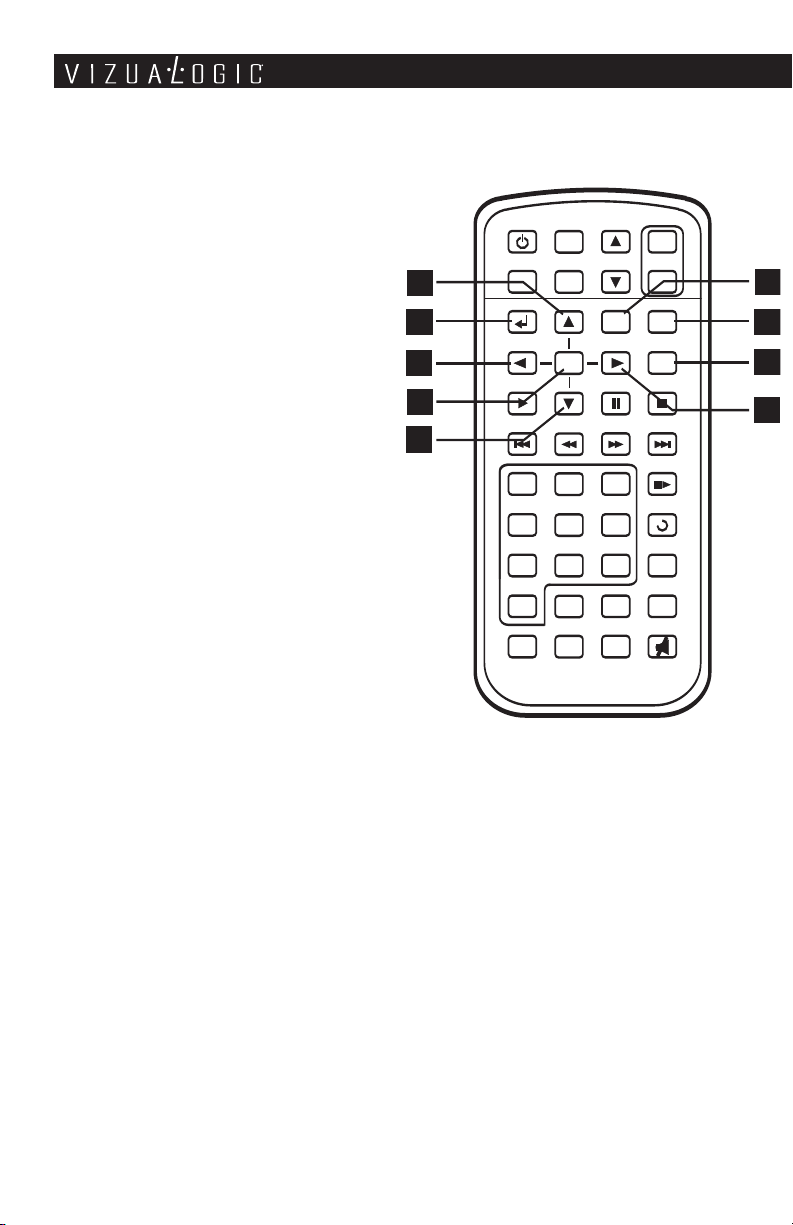

MONITOR FUNCTIONS

1. MONITOR POWER – Press this button to turn the monitor ON. The current video source will be displayed on-screen, and within a few seconds the picture will appear. Press the button again to turn the monitor OFF.

SOURCE SELECT – All video sources connected to the AV inputs can be viewed on the monitor by pressing this button. Each time the button is pressed, the AV source will change in the following sequence: DRIVER DVD, PASSENGER DVD (if equipped) EXT AUX, AUX.

UP – Shifts right or up OSD

3. menu. Increases the value of CONTRAST, BRIGHTNESS, COLOR, TINT, SHARPNESS or DIMMER.

. DOWN – Shifts left or down OSD menu. Decreases the value of

CONTRAST, BRIGHTNESS, COLOR, TINT, SHARPNESS, or DIMMER.

PICTURE Press this button to adjust the value of CONTRAST, BRIGHTNESS, COLOR, TINT, SHARPNESS, or DIMMER.

6. ZOOM – Selects the screen among wide/normal/zoom. FM SOURCE SELECT – While aiming the remote at the Driver Side Monitor,

7. press this button to turn on the Frequency Modulator. Press this button repeatedly to change the Frequency Modulator’s audio source between DRIVER DVD, PASSENGER DVD, EXT AUX, and FM OFF.

FREQUENCY SELECT – While aiming the remote at the Driver Side Monitor,

8. press this button to select the desired Frequency Modulator channel.

MONITOR

SOURCE


ZOOM

FREQ

ENTER

SETUP

PLAY

PAUSE

STOP

SLOW

TITLE

SUB

-BGO

PBC

ZOOM

RETURN

MUTE

AUDIO

DISP.

REPEAT

OURCE

DVD FUNCTIONS

9. UP – Moves up within the DVD SETUP menu.

DOWN – Moves down

10. within the DVD SETUP menu.

11.

RIGHT – Moves right within the DVD SETUP menu.

12. LEFT – Moves left within the DVD SETUP menu.

13. ENTER – Confirms a selection.

14.

RETURN – Return to previous menu screen or playing point.

15. SETUP – Navigates SETUP MENU. There are 4 pages to configure System

(1) General Setup

(2) Audio Setup

(3) Video Setup

(4) Password Setup.

16. MENU – Goes to the Root Menu on the disc.

7. TITLE – Navigates the Title Menu on the disc.

Remote Control Operations (continued)

MONITOR

SOURCE


ZOOM

FREQ

NTER

SETUP

PLAY

PAUSE

STOP

SLOW

TITLE

SUB

A-B

PBC

ZOOM

ETURN

MUTE

AUDIO

DISP.

REPEAT

SOURCE

18. PLAY – Press this button to play a disc that is loaded into the integrated DVD player.

PAUSE – Press this button to

19. pause a disc that is loaded into the integrated DVD player. For more information, consult the DVD Basics section.

STOP – Press this button to stop

20. playing the movie or song.

4PLAY: Resumes play from

STOP where disc was stopped.

4STOP4PLAY: Restarts

STOP play from the beginning of the disc.

PREV – Plays the previous

21. chapter or track.

NEXT – Plays the next chapter

22. or track.

FR (Fast Rewind) – Press this button to search disc backward continuously.

23. There are 5 speed options to choose from: 2X, 4X, 8X, 16X, and 32X.

FF (Fast Forward) – Press this button to search disc forward continuously.

24. There are 5 speed options to choose from: 2X, 4X, 8X, 16X, and 32X

SLOW – Press this button to slow playback. There are 4 speed options to

25. choose from: 1/2, 1/4, 1/8, 1/16.

REPEAT – (Except VCD with PBC on) Repeats all or a part of a chapter, title,

26. track, or an entire disc.

27. DISPLAY – Shows information on the top of the screen including title,

MONITOR

SOURCE


ZOOM

FREQ

ENTER

ETUP

PLAY

PAUSE

STOP

SLOW

TITLE

SUB

A-B

PBC

ZOOM

RETURN

MUTE

AUDIO

DISP.

REPEAT

SOURCE

chapter/track, time elapsed, and time remaining, or turns off the display.

28.

SUBTITLE – Changes the subtitle language to other available languages or turns the subtitles off (only applicable if the disc contains multiple subtitle languages).

29.

GOTO – Navigates the Go To Menu and allows the selection of the desired title, chapter, track or song on the disc.

30. A-B (Except MP3) – Repeats disc from user selected point A to point B.

PBC (Video CD only)

31. Turns the PBC (Play Back Control) on or off

ZOOM – Enlarges the

32. picture in the movie by 2x, 3x or 4x. Shrinks the picture in the movie by 1/2x, 1/3x, or 1/4x.

33.

AUDIO – Changes the audio track to another available language (only applicable if the disc contains multiple audio tracks).

MUTE – Press this button to mute the audio to the wireless headphones.

34. The screen will display ‘MUTE’ in the lower left corner when using this feature. Press the button again to restore audio to the previously set level.

NUMBERS 0 to 9 – Use these these buttons to access a specific chapter

35. or track.

Playing Audio CDs

When playing an audio CD, the DISPLAY banner appears automatically. It displays the current track and the amount of the time for that track playing, the total amount of time on the disc and the current time running on the disc. Press the

DISPLAY button on the remote to display the DISPLAY banner. The options

below show you what happens when you press the DISPLAY button.

Press DISPLAY (1x) – ”Single Elapsed” appears along with the current track

number playing and the time of that track .

Press DISPLAY (2x) – ”Total Remain” appears along with the current track

number playing and the amount of time remaining on the entire CD.

Press DISPLAY (3x) – ”Single Remain” appears along with the current track

number playing and the amount of time remaining.

Press DISPLAY (4x) – ”Total Elapsed” appears along with the current track

number playing and the total time playing on CD.

Using the REPEAT Feature The default mode for the REPEAT feature is OFF. Pressing multiple times changes the REPEAT options as follows:

Track - repeats the current track that is playing. All - repeats the entire disc that is currently playing.

REPEAT button

Playing MP3 CDs

MP3 is a format for storing digital audio. An audio CD quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less disc space. CD-R/RW discs that have been encoded in MP3 format can be played on the integrated DVD player.

SELECTING FOLDERS AND SONGS When an MP3 disc is inserted in the player, the navigation screen appears automatically. You can change folders and songs by navigating through the file system. The DVD player plays the songs in order they were burned onto the disc.

1. If a disc is playing, press

STOP. Press the UP or DOWN arrow button to go

through the folder list on the left side of the navigation screen.

2. Once the folder you want is highlighted, press ENTER.

3. Press the

UP or DOWN arrow button going through the song list and highlight

the song you want. Press ENTER to begin the playback of the highlighted song.

SKIPPING SONGS Use

NEXT (:) button on the remote control to move to the next song. Use the PREV (9) button to move to the beginning of the song currently playing. Press the button twice to move to the previous song.

SELECTING A PLAY MODE You can temporarily choose what order the songs will play on a disc. The FOLDER play mode is the default playback mode. To access the play mode options, press REPEAT button.

The play mode options are as follows:

Single: Plays a selected song.

Folder: Plays the folder in the order the songs were recorded.

Random: Plays the songs in the random order.

Shuffle: Plays the songs in random order (from within the selected folder).

USING THE REPEAT FEATURE The default mode for the repeat feature is OFF. Pressing REPEAT multiple times changes the repeat option:

REPEAT One – repeats the song that is playing.

REPEAT Folder – repeats the folder that is playing.

Audio Playback

The Vizualogic A-1250 System features multiple ways to enjoy the audio portion of a desired source. The audio can be experienced through the use of Infrared Headphones or with the integrated wireless FM Modulator

FM Modulator Playback

To listen to the audio portion of the viewed source though the vehicle’s stereo system aim the remote at the driver’s side monitor and simply press the FM SOURCE button to turn the FM modulator on. The screen will now display FM SOURCE: DRIVER DVD. The Audio portion of the source originating from the Driver's side headrest will now be audible through the vehicle's stereo. If a different audible source is desired, press the from PASSENGER DVD, EXT AUX, and OFF. Once the desired audible source has been selected, the transmitting frequency the FM modulator transmits on can be changed by pressing the cle’s radio to the corresponding station to listen to the source that is displayed on the driver’s side monitor.

To change the transmitting frequency, aim the remote at the driver’s side monitor and press the frequency as follows:

FM FREQ button. Each press of the button advances the

FM FREQ button on the remote. Tune the vehi-

FM SOURCE button again to select

FM CH1 88.5MHz

89.1MHz4FM CH5 89.3MHz4FM CH6 89.54FM CH7 89.74FM8 89.9

To turn the FM Modulator Off aim the remote at the driver’s side monitor and press the FM SOURCE button repeatedly until FM OFF is displayed.

NOTE: All of the FM Modulator control functions can also be controlled in a similar fashion using the buttons on the front of the monitor.

4FM CH2 88.7MHz4FM CH3 88.9MHz4FM CH4

IR Headphones

The Vizualogic A-1250 System features integrated Infrared (IR) transmitters on the front of each monitor. The driver’s side monitor transmits on channel ‘A’ and the passenger side transmits on channel ‘B’. To listen to the source displayed on monitor, turn on the headphones and select the corresponding audio channel for the monitor being viewed.

headphones to the lowest setting before turning them on.

NOTE: Always adjust volume control on the

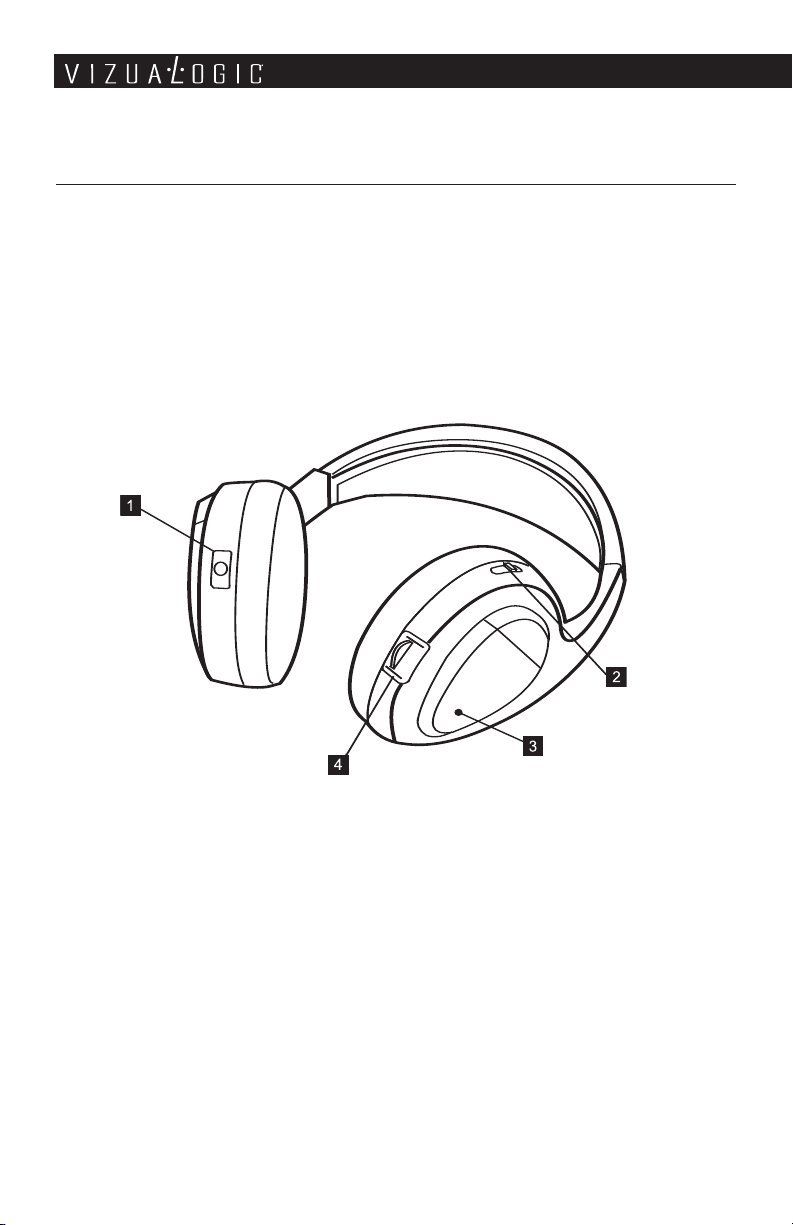

1. POWER OFF-ON – Manually turns the headphones on or off. POWER LED

will illuminate while the headphones are on.

IR CHANNEL SELECTOR – Switches audio reception between IR Channel A

and IR Channel B.

3. POWER LED – Illuminates in red to indicate that headphones are on.

VOLUME – Increases or decreases the volume output of the wireless

headphones.

Optional Accessories

To increase the enjoyment and utility of your Vizualogic System, several accessories are available from your local authorized distributor/retailer:

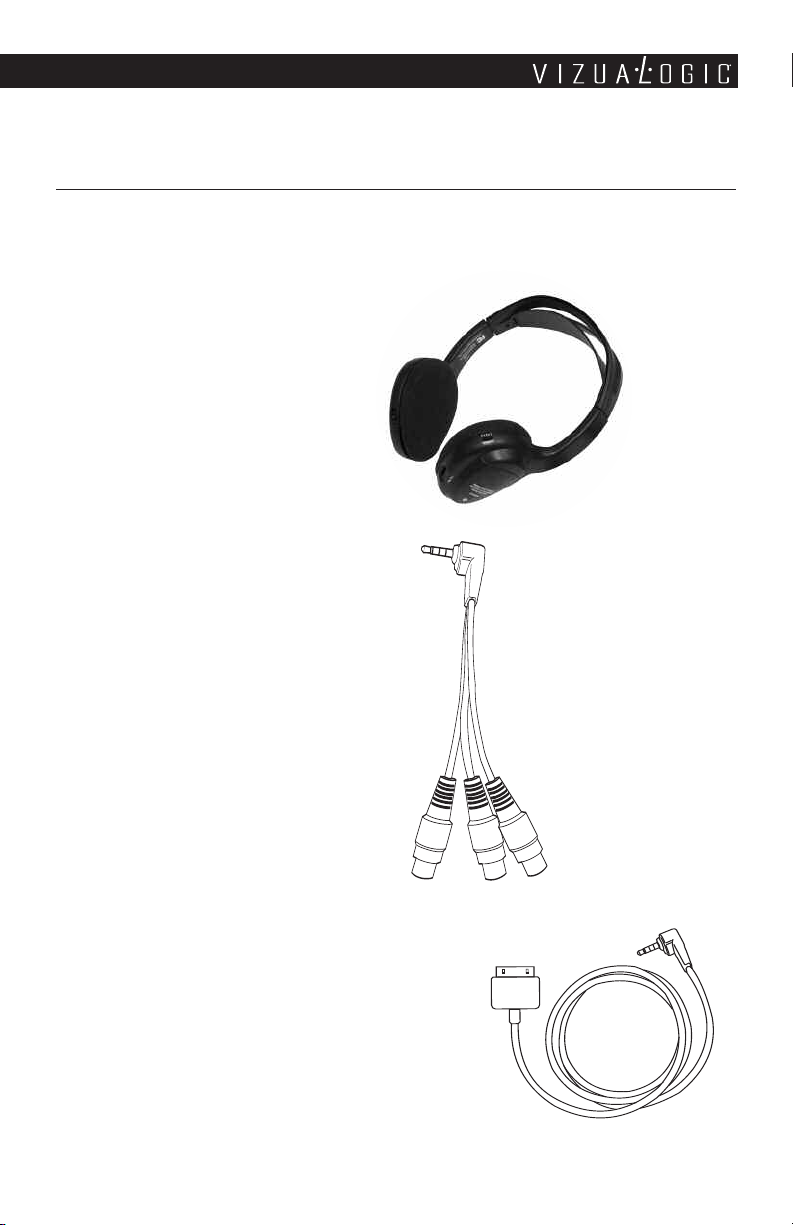

WIRELESS STEREO HEADPHONES

• 2-channel

• IR headphones

(90-3018)

AUXILIARY INPUT ADAPTER CABLE

• 3.5mm to RCA

(90-6015)

AUXILIARY INPUT iPOD®INTERFACE CABLE

• 3.5mm to iPod dock connector

(90-6014)

Care and Maintenance

Your Vizualogic System is a product of superior design and craftsmanship and should be treated with care. The suggestions below will help to fulfill any warranty obligations and provide many years of enjoyment.

• Cleaning the Monitor Screen and Housing: The components may be cleaned

by occasionally wiping with a soft, lint-free, cotton cloth that has been slightly dampened with water.

CAUTION: Do not use liquids, abrasives, aerosol cleaners, or paper cleaning products because they will result in permanent damage to the finish of your components! The LCD screen is made of a specially coated glass and can be scratched or damaged by abrasive or ammonia-based window cleaners.

• Use and Storage:

- These units contain precision electronics that must be protected from dust, dirt, and moisture.

- Never spill liquids on any of the components. Liquids, humidity, and precipitation contain minerals that will corrode electronic circuits.

• Take care to avoid the following:

- Rough handling can break internal circuit boards. Do not drop, knock, or shake the components.

- Do not attempt to paint or refinish the components. Paint can clog moving parts and prevent proper operation.

- The components can be damaged by non-expert handling. Attempting to open any of the components may void the limited warranty.

Troubleshooting

No Picture

(1) Verify that the correct video input mode is used on the monitor. (2) Verify that the video cables are securely connected.

No Sound

(1) Verify that the correct audio output mode is used on the monitor. (2) Verify that the audio cables are securely connected. (3) Ensure that the FM Transmitter has been turned on.

IR Sensor Inoperative

(1) Verify that the batteries in the remote are installed correctly and in good

condition.

(2) Verify that the remote sensor eye is not obstructed.

Specifications

Display Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .LCD

Screen Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7.0˝ (Diagonal)

Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .480(w) x 234(h)

Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .500 nits (typ.)

Video Display System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .NTSC/PAL

Horizontal View Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120°

Vertical View Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100°

Operating Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-30° to 80° C

Expected Backlight Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15,000 hours (typ.)

Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 to 16V DC

Limited Warranty

Terms of Warranty

TMI Products, Inc (Company) warrants to the original retail purchaser that the automotive video product(s) purchased from a Company authorized installer, within the first ninety (90) days after new vehicle delivery, are free from defects in materials or workmanship under normal use and conditions for a period of at least three (3) years from date of purchase or the first 36,000 miles as registered on the vehicle’s odometer at time of installation, whichever occurs first, with exception of remote control(s), and / or headphones which is warranted for a period of sixty (60) days from date of purchase. Products purchased or installed more than ninety (90) after new vehicle delivery are warranted for a period of one (1) year from date of purchase. A sales receipt is required to provide proof of date of purchase.

Should the product(s) be determined defective during the applicable warranty period, the defect(s) will be repaired or replaced with a new or reconditioned part(s), at the Company’s option.

EXCEPT AS EXPRESSLY SET FORTH IN THIS WARRANTY, THE COMPANY MAKES NO OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED

RANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

WAR PURPOSE. THE COMPANY EXPRESSLY DISCLAIMS ALL WARRANTIES NOT STATED IN THIS LIMITED WARRANTY. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS OF THIS EXPRESSED LIMITED WARRANTY.

How to Obtain Warranty Service

To obtain warranty service, the product(s) must be returned to a Company authorized installer accompanied by proof of warranty coverage.

How State Law Relates to the Warranty

Some states do not allow limitation on how long an implied warranty lasts. In such states, the limitations or exclusions of this Limited Warranty may not apply. Some states do not allow the exclusion or limitation of incidental or consequential damages. In such states, the exclusion or limitation of this Limited Warranty may not apply to you. This Limited Warranty gives you specific legal rights and you may have other rights which vary from state to state.

What is Excluded from this Limited Warranty

This limited warranty excludes:

• Elimination of externally generated static or noise, or the correction of antenna problems or weak television reception.

• Costs incurred for installation, removal or reinstallation of the product(s).

• Damage to tapes, video games, software, camcorders, discs, speakers, accessories or vehicle electrical systems.

• Cosmetic damage or damage due to negligence, misuse, abuse, failure to follow operating instructions, accidental spills or customer applied cleaners.

• Damage due to environmental causes such as floods, airborne fallout, chemicals, salt, hail, windstorms, lightning or extreme temperatures.

• Damage due to accidents, road hazards, fire, theft or vandalism.

• Damage due to improper installation or connection, including connection to equipment of another manufacturer, modification of existing equipment, use of a faulty cassette tape or VCP head cleaning.

• Product(s) which have been opened or tampered with for any reason or which have been damaged due to alteration or service performed by anyone other than the Company or a Company authorized installer.

Notes

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Notes

Vertex Precision Electronics A1250BOXBZD01 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
