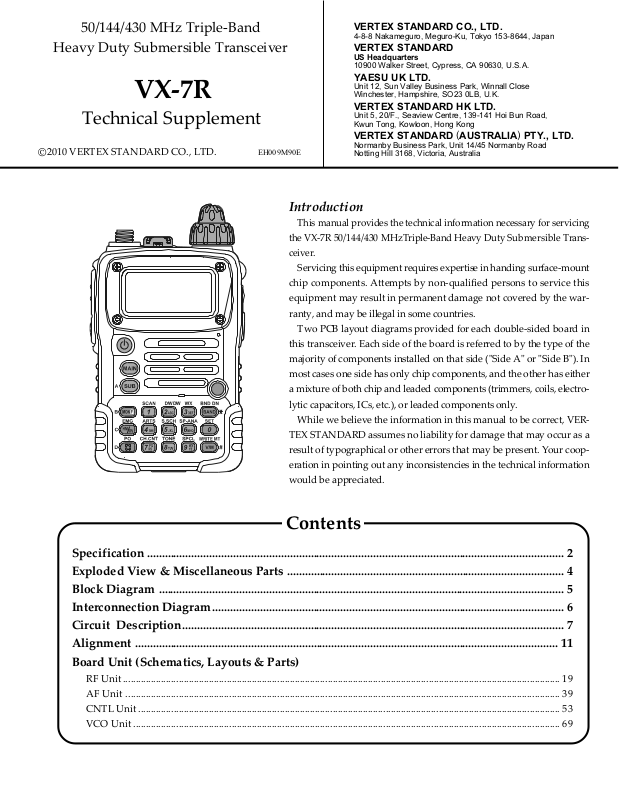

Vertex VX-7R Technical Supplement

Download

Page 1

50/144/430 MHz Triple-Band

Heavy Duty Submersible Transceiver

VX-7R

Technical Supplement

2010 VERTEX STANDARD CO., LTD. EH009M90E

VERTEX STANDARD CO., LTD.

4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan

VERTEX STANDARD

US Headquarters

10900 Walker Street, Cypress, CA 90630, U.S.A.

YAESU UK LTD.

Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K.

VERTEX STANDARD HK LTD.

Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong

VERTEX STANDARD (AUSTRALIA) PTY., LTD.

Normanby Business Park, Unit 14/45 Normanby Road Notting Hill 3168, Victoria, Australia

Introduction

This manual provides the technical information necessary for servicing

the VX-7R 50/144/430 MHzTriple-Band Heavy Duty Submersible Trans-

ceiver.

Servicing this equipment requires expertise in handing surface-mount

chip components. Attempts by non-qualified persons to service this

equipment may result in permanent damage not covered by the war-

ranty, and may be illegal in some countries.

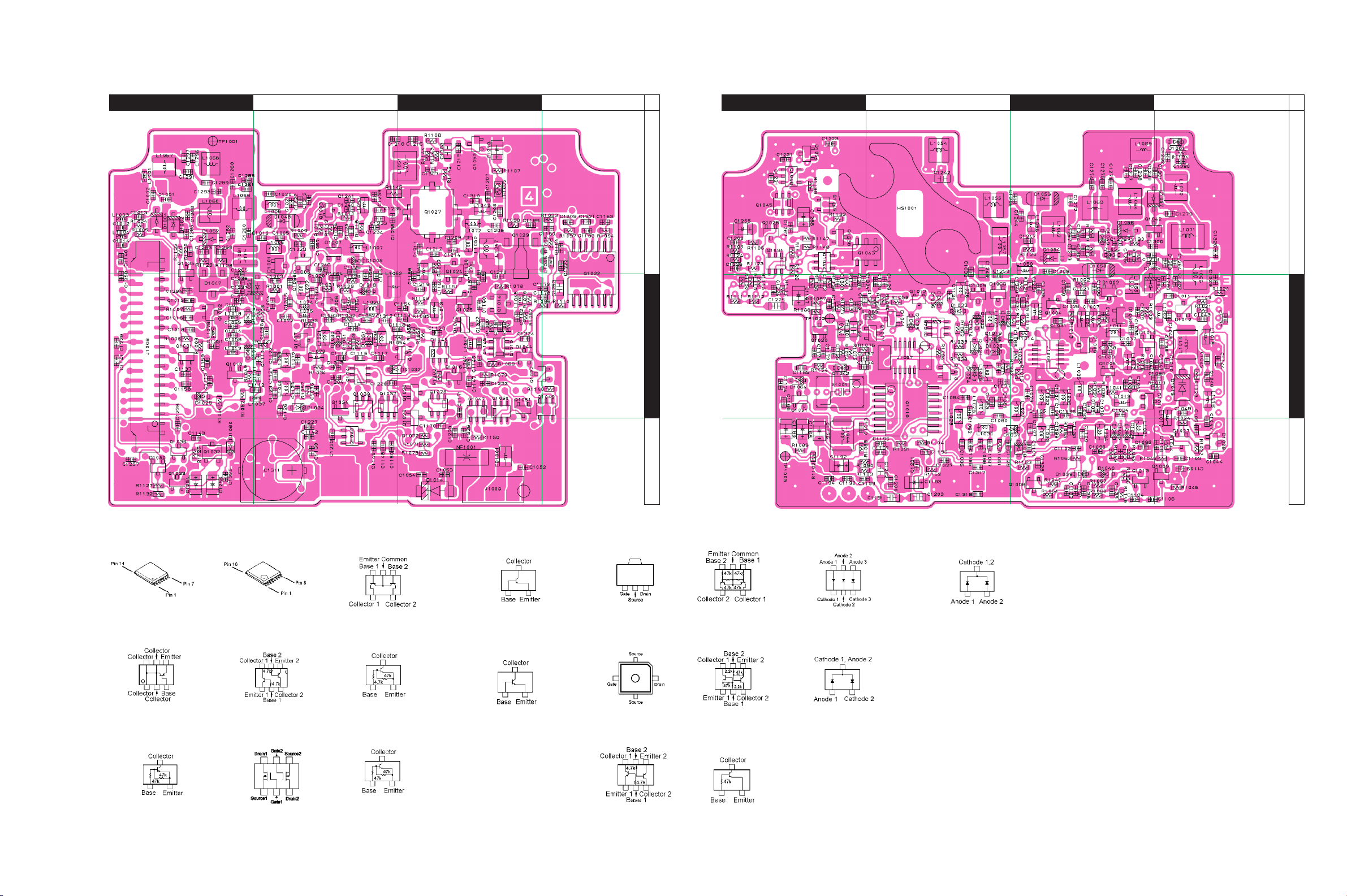

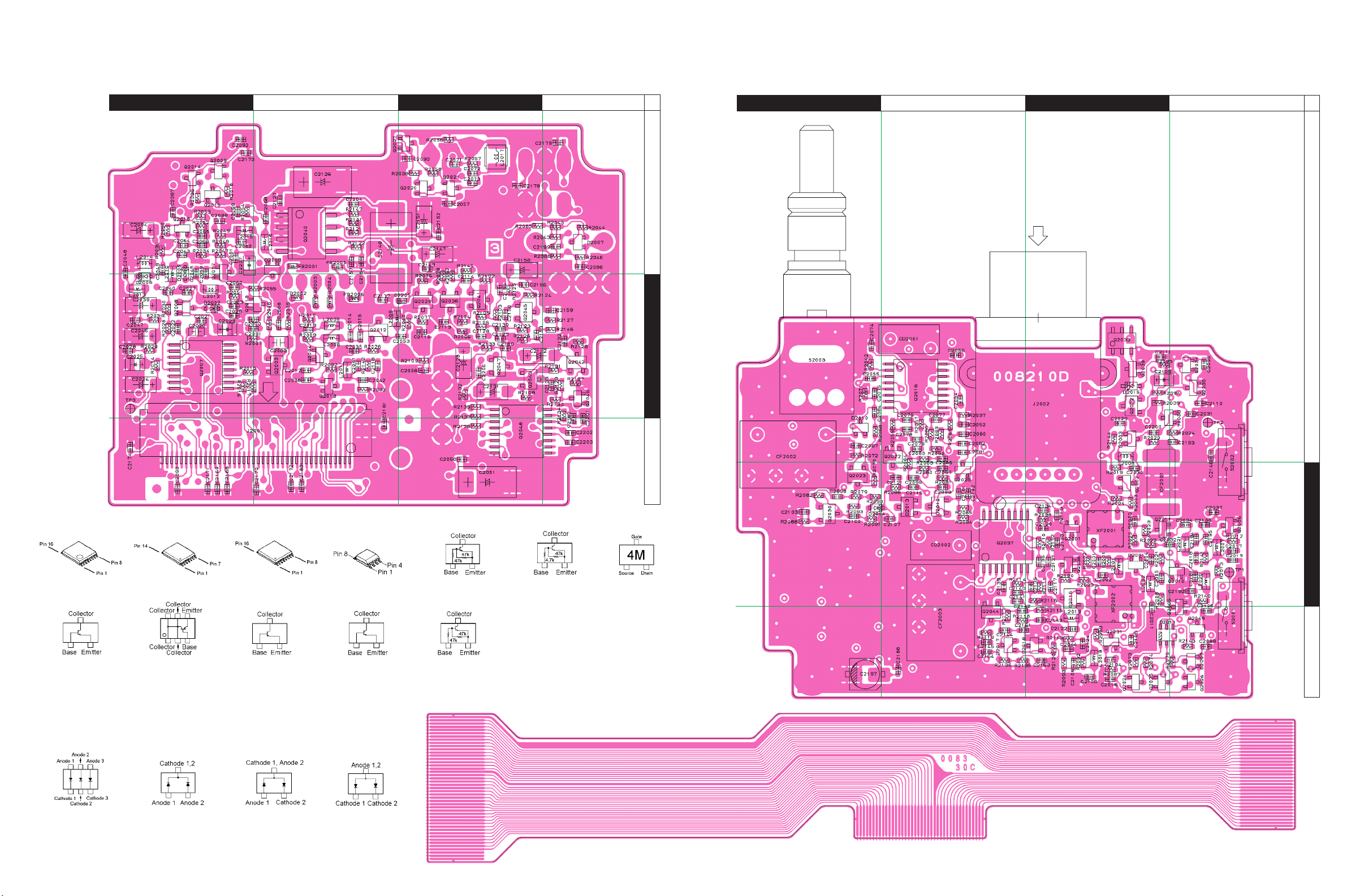

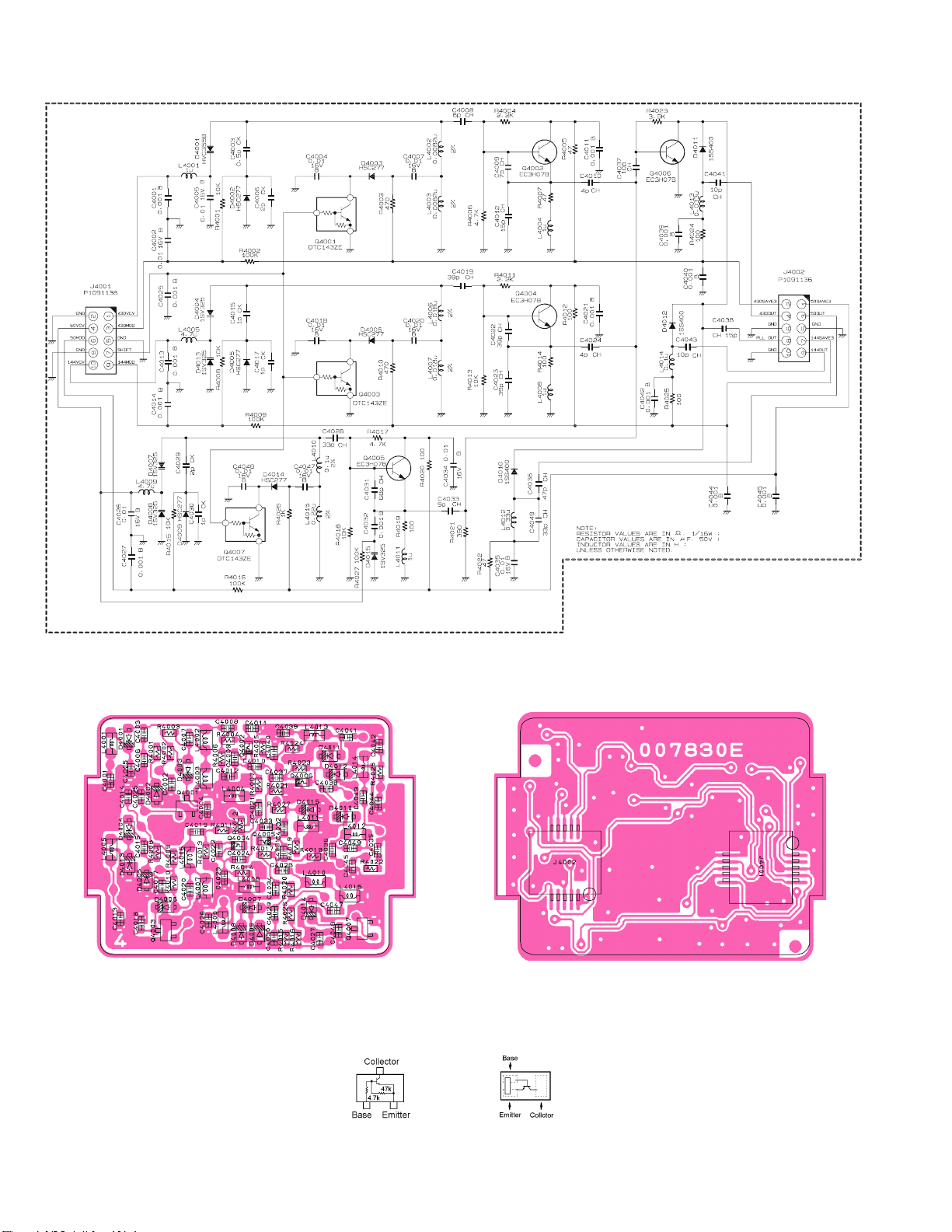

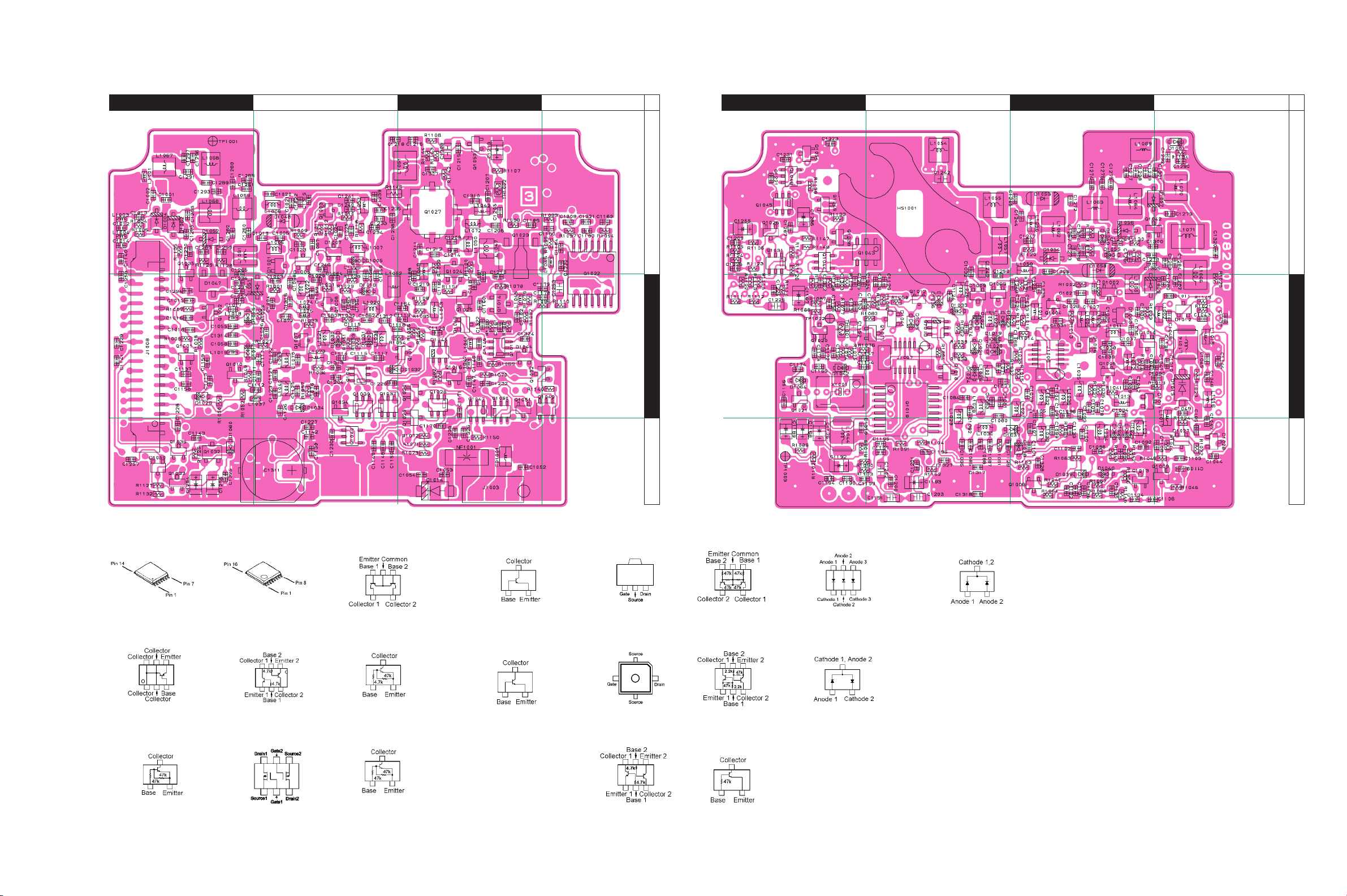

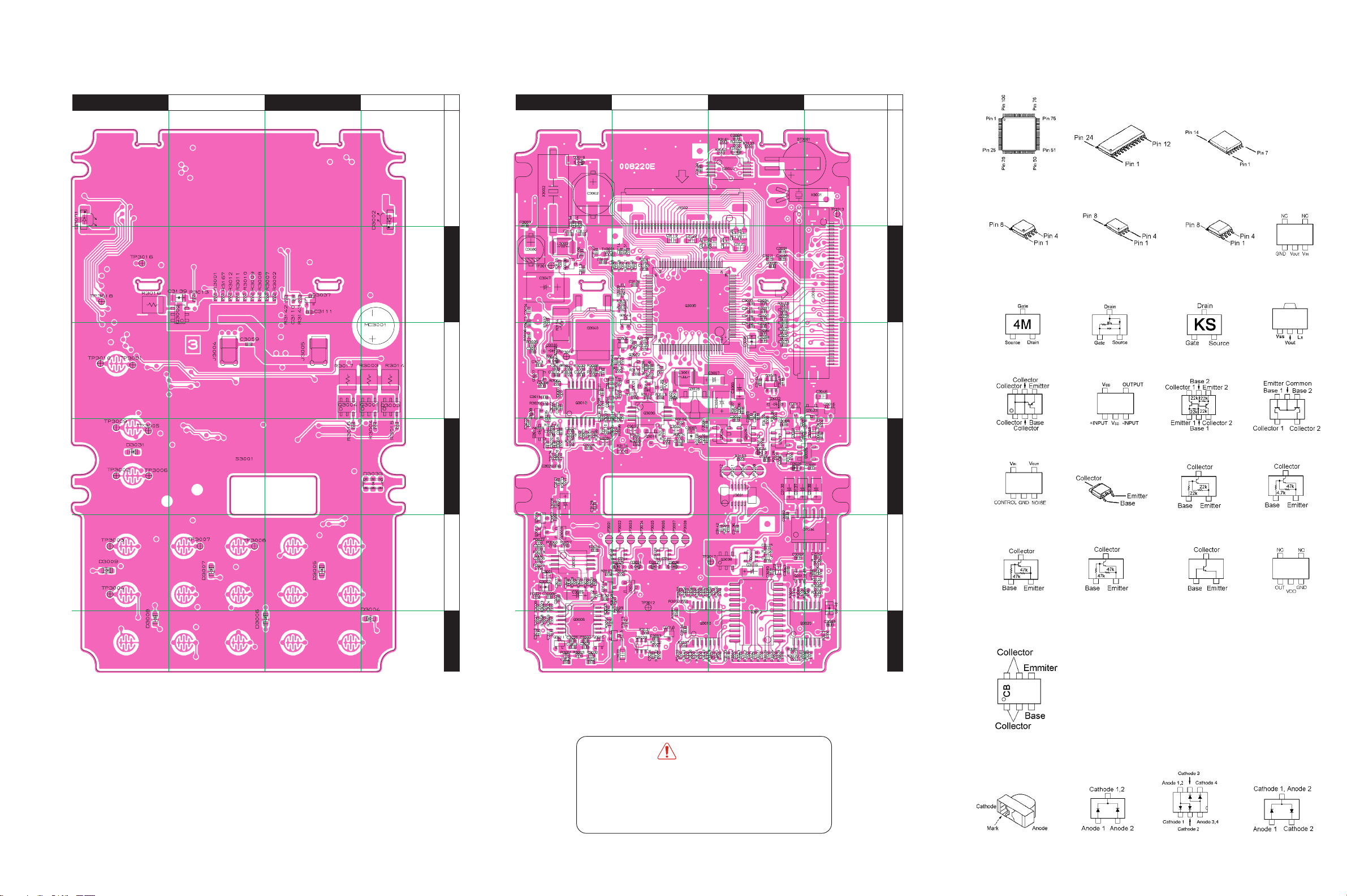

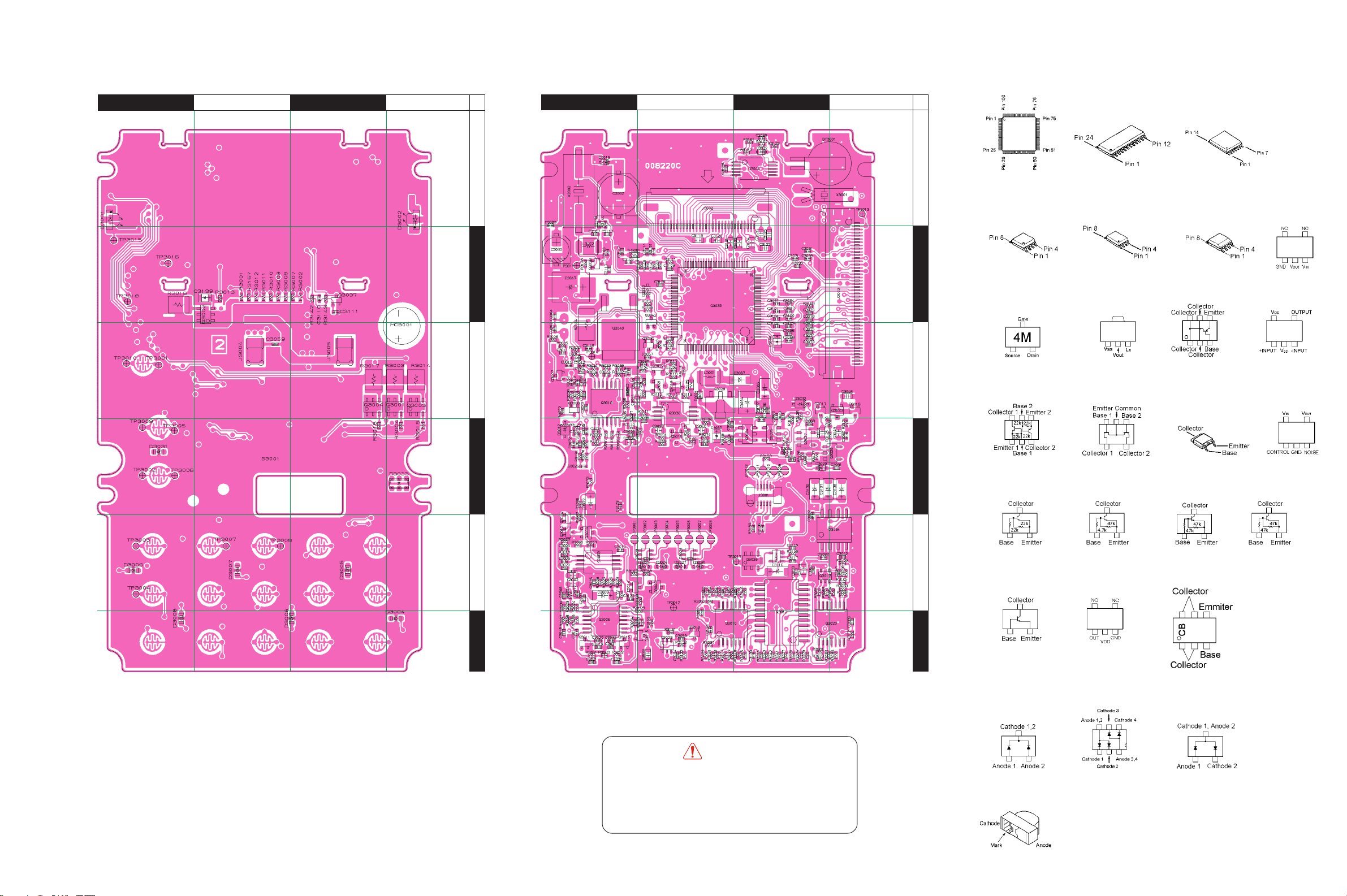

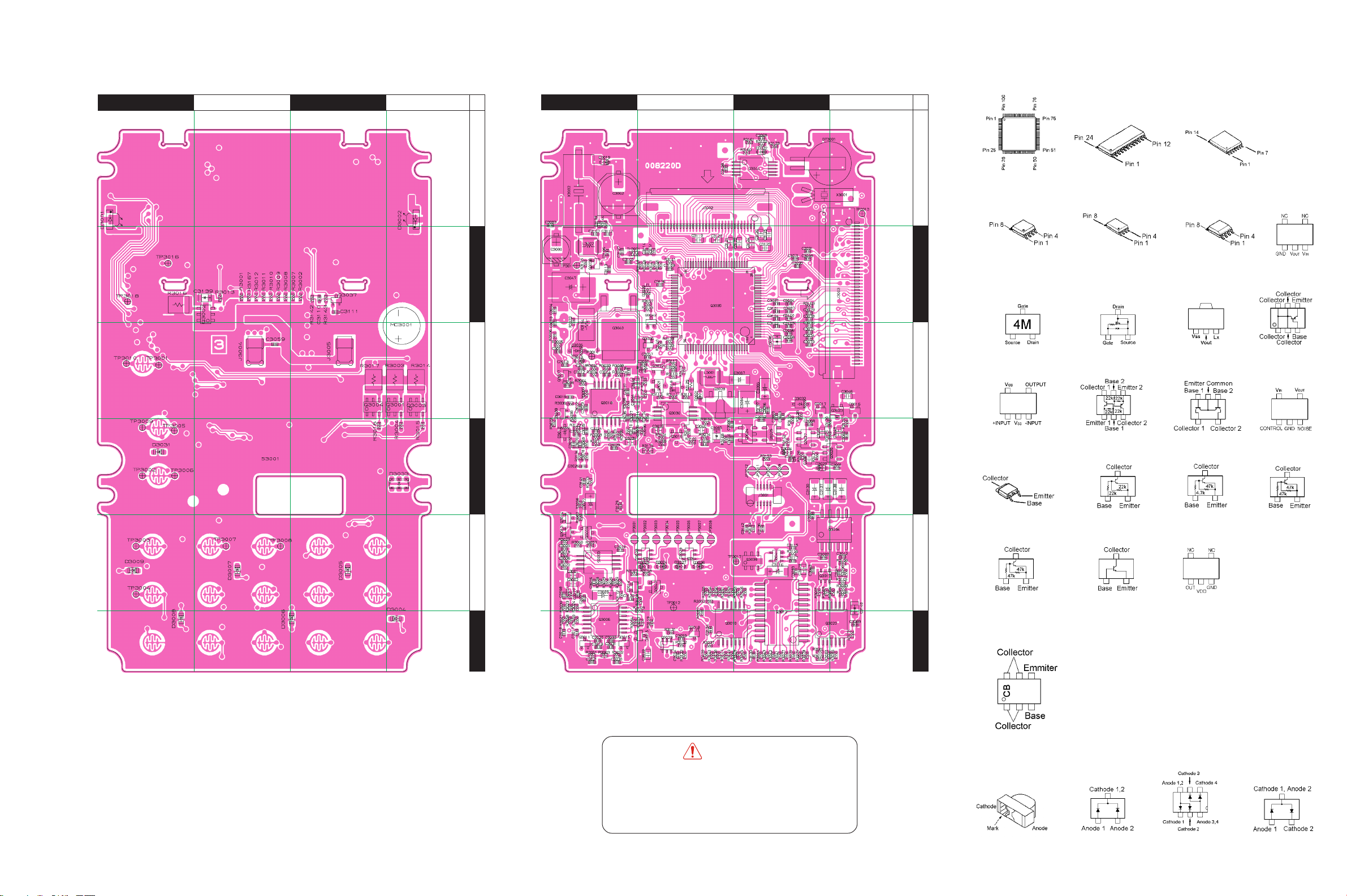

Two PCB layout diagrams provided for each double-sided board in

this transceiver. Each side of the board is referred to by the type of the

majority of components installed on that side ("Side A" or "Side B"). In

most cases one side has only chip components, and the other has either

a mixture of both chip and leaded components (trimmers, coils, electro-

lytic capacitors, ICs, etc.), or leaded components only.

While we believe the information in this manual to be correct, VER-

TEX STANDARD assumes no liability for damage that may occur as a

result of typographical or other errors that may be present. Your coop-

eration in pointing out any inconsistencies in the technical information

would be appreciated.

Specification ............................................................................................................................................ 2

Exploded View & Miscellaneous Parts .............................................................................................4

Block Diagram ........................................................................................................................................ 5

Interconnection Diagram ...................................................................................................................... 6

Circuit Description................................................................................................................................ 7

Alignment .............................................................................................................................................. 11

Board Unit (Schematics, Layouts & Parts)

RF Unit ............................................................................................................................................................................. 19

AF Unit ............................................................................................................................................................................ 39

CNTL Unit ....................................................................................................................................................................... 53

VCO Unit ......................................................................................................................................................................... 69

Page 2

Specifications

General

Frequency Ranges:

Channel Steps: Frequency Stability: Emission Type: Antenna Impedance: Supply Voltage:

Current Consumption:

Operating Temperature: Case Size: Weight:

Rx (MAIN):

0.5 - 1.8 MHz (BC Band)

1.8 - 30 MHz (SW Band) 30-59 MHz (50 MHz HAM: USA version) 30-76 MHz (50 MHz HAM: EXP version) 59-108 MHz (FM: USA version) 76-108 MHz (FM: EXP version) 108-137 MHz (Air Band) 137-174 MHz (144 MHz HAM) 174-222 MHz (VHF-TV) 222-225 MHz (220 MHz HAM: USA version) 225-420 MHz (ACT1: Action Band 1: USA version) 222-420 MHz (ACT1: Action Band 1: EXP version) 420-470 MHz (430 MHz HAM) 470-729 MHz (UHF-TV: USA version) 470-800 MHz (UHF-TV: EXP version) 800-999 MHz (ACT2: Action Band 2, cellular Blocked)

Rx (SUB):

50 - 54 MHz 137 - 174 MHz 420 - 470 MHz

Tx: 50 - 54 MHz (MAIN & SUB)

144 - 146 MHz or 144 - 148 MHz (MAIN & SUB) 222-225 MHz (MAIN, USA version)

430 - 440 MHz or 430 - 450 MHz (MAIN & SUB) 5/9/10/12.5/15/20/25/50/100 kHz ±5 ppm (+14°F to +122°F, –10°C to +50°C) F2, F3, A3 50-ohm Nominal: 7.4 V DC, Negative Ground Operating: 10 - 16 V DC, Negative Ground (EXT DC jack) 150 mA (Mono Band Receive) 200 mA (Dual Band Receive) 55 mA (Mono Band Receive, Standby, Saver Off) 100 mA (Dual Band Receive, Standby, Saver Off) 25 mA (Mono Band Receive, Standby, Saver On "Save Ratio 1:5") 50 mA (Dual Band Receive, Standby, Saver On "Save Ratio 1:5") 400 μA (Auto Power Off)

1.6/1.3/1.0/0.7 A (50 MHz, Tx HI/L3/L2/L1)

1.71.4/1.1/0.8 A (144 MHz, Tx HI/L3/L2/L1)

0.6 A (220 MHz, Tx)

1.8/1.5/1.2/0.9/ A (430 MHz, Tx HI/L3/L2/L1) –4°F to +140°F (–20°C to +60°C) 60 (W) x 90 (H) x 28 (D) mm (w/o knob & antenna) 250 g

Page 3

Transmitter

RF Power Output:

Modulation Type:

Maximum Deviation: Spurious Emission: Microphone Impedance:

Receiver

Circuit Type:

Intermediate Frequencies:

Sensitivity:

Selectivity: AF Output:

Specifications

5/2.5/1.0/0.5 W (50/144/430 MHz, FM)

0.3 W (220 MHz, FM)

1.0 W (50 MHz, FM) FM: Variable Reactance AM: Early Stage (Low Level) ±5/±2.5 kHz At least 60 dB below (@ Tx 1W) 2 k-ohm

N-FM, AM: Double-Conversion Superheterodyne W-FM: Triple-Conversion Superheterodyne 1st: 47.25 MHz (N-FM, AM)

45.8 MHz (W-FM)

2nd: 450 kHz (N-FM, AM)

10.7 MHz (W-FM)

3rd: 1 MHz (W-FM)

3.0 μV for 10 dB SINAD (0.5 - 30 MHz, AM)

0.5 μV for 12 dB SINAD (30 - 50 MHz, N-FM)

0.16 μV for 12 dB SINAD (50 - 54 MHz, N-FM) 15 kHz/35 kHz (-6 dB/-60 dB: N-FM, AM) 200 kHz/300 kHz (-6 dB/-20 dB: W-FM) 200 mW @ 8 ohm for 10 % THD (@ 7.4V DC) 400 mW @ 8 ohm for 10 % THD (@ 13.8V DC)

Specifications are subject to change without notice, and are guaranteed within amateur bands only.

Page 4

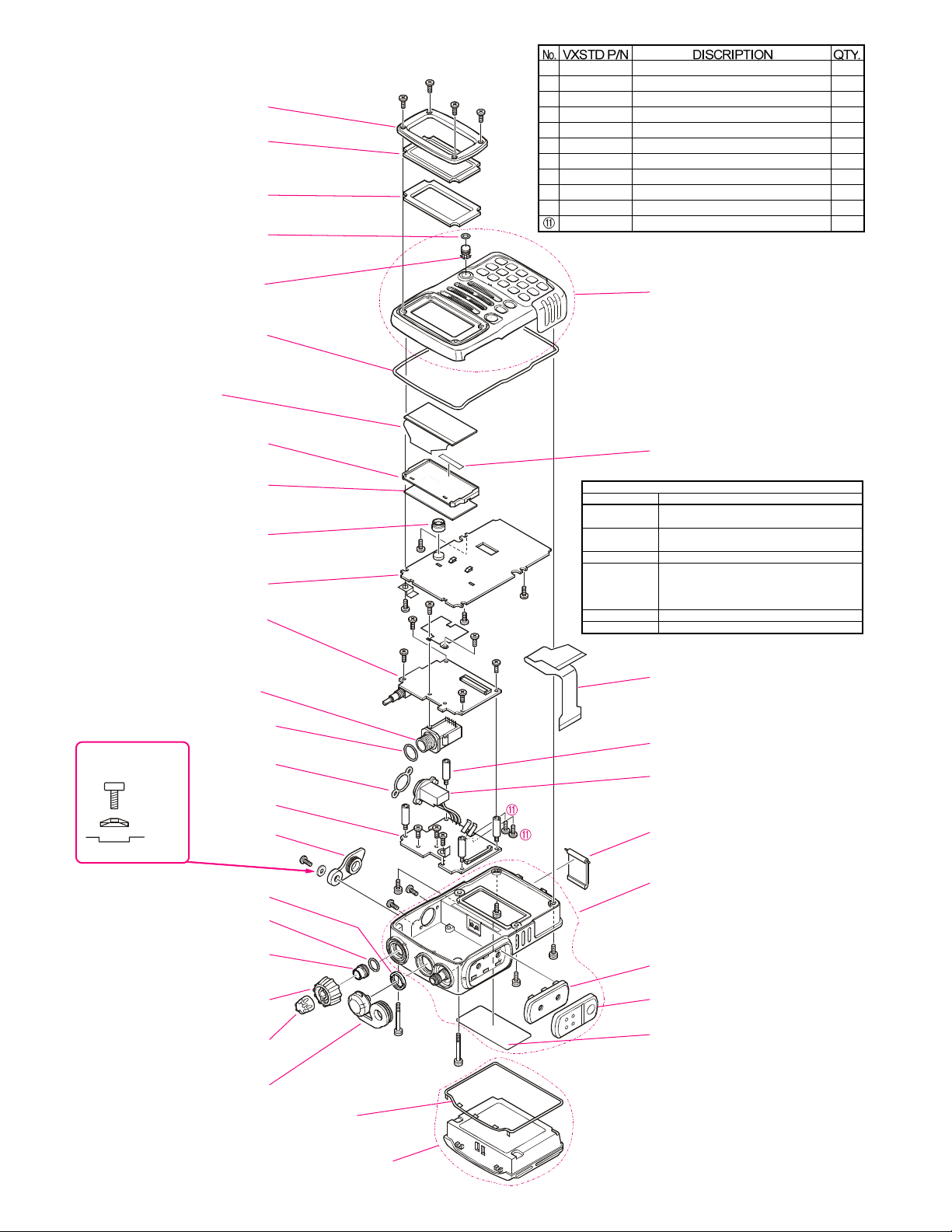

Exploded View & Miscellaneous Parts



RA0417100 PANEL FRAME

RA0399500 WINDOW

RA0399400 DOUBLE FACE TAPE

RA0401600 O RING

RA0399800 (Lot. 1 ~ 111) RA039980A (Lot. 112 ~) LIGHT GUIDE (LED)

RA0400000 RUBBER PACKING

Q7000426 (Lot. 1 ~ 46) Q7000510 (Lot. 47 ~) LCD MODULE

RA0399100 LIGHT GUIDE (LED)

RA0399900 REFLECTOR SHEET

RA0405600 MIC HOLDER RUBBER

CNTL-Unit

AF-Unit

P1091150 (Lot. 1 ~ 15) P1091150A (Lot. 16 ~ 41) P1091150B (Lot. 42 ~) CONNECTOR (MIC/SP)















 U9900137  U9900138  U07225120  U9900136  RA0304300  U00103002  U00104002  U9900140  U44104002  U9900141

U07125102

VXSTD P/N DISCRIPTION Q3000183 YHA-64 Q3000185 YHA-65 Q8101014 YHA-63 50MHZ ADAPTER L Q8101015 YHA-63 440MHZ ADAPTER S Q9000786 LI-ION BATTERY FNB-80LI Q9500087 NC-72A Q9500088 NC-72B



Q9500089 NC-72C Q9500090 NC-72U RA029630A BELT CLIP S6000335 HAND STRAP

BINDING HEAD SCREW M2X21.7 (W/ O RING) BINDING HEAD SCREW M2X5 (W/ O RING) PAN HEAD SCREW M2X2.5SUS#1 SPECIAL SCREW M2X2.35 WASHER PAN HEAD SCREW M2X3NI PAN HEAD SCREW M2X4NI TAPTITE SCREW M2X6SUS#3 TAPTITE SCREW M2X4NI TAPTITE SCREW M1.7X5NI#3 TAPTITE SCREW M1.7X2.5SUS#1

CP7346002 (USA, SILVER) CP7346003 (EXPORT, SILVER) CP7346004 (GERMANY, SILVER) CP7346006 (USA, BLACK) CP7346007 (EXPORT, BLACK) CP7346008 (GERMANY, BLACK) CP7346009 (KOREA, SILVER) CP7346010 (KOREA, BLACK) PANEL ASS’Y with RUBBER KNOB, MIC SHEET, SP SHEET, SP, PROTECTOR L, PROTECTOR R

RA014250A DOUBLE FACE TAPE (LCD)

SUPPLIED ACCESSORIES

(depending on transceiver version)

FR008330C FPC CABLE

2 4 4 1 1 1 6 2 4 2 2

There is a direction in

WASHER.

SCREW

WASHER

EXP CAP

RA0401200 ENCODER KNOB

RA0426800 O RING

RA0400900 O RING

RF-Unit

RA0400500 EXT CAP

RA0292200 SPECIAL NUT

RA0426900 O RING

RA0087900 SPECIAL NUT

RA0401900 VOLUME KNOB

RA0400600 CAP(SP/MIC)







RA0141600 RUBBER PACKING

FNB-80LI

RA0400200 STUD (X4 pcs)

P0091335 CONNECTOR (EXT DC)













RA01403A LATCH NAIL

CP7342003 (SILVER) CP7342005 (BLACK) REAR CASE ASS’Y with SMA CONNECTOR ASS’Y, TERMINAL BOARD ASS’Y, RUBBER HOLDER (PTT), RUBBER KNOB (PTT)

RA0399700 HOLDER (PTT)

RA0400100 RUBBER KNOB (PTT)

RA0140100 MASK SHEET



Page 5

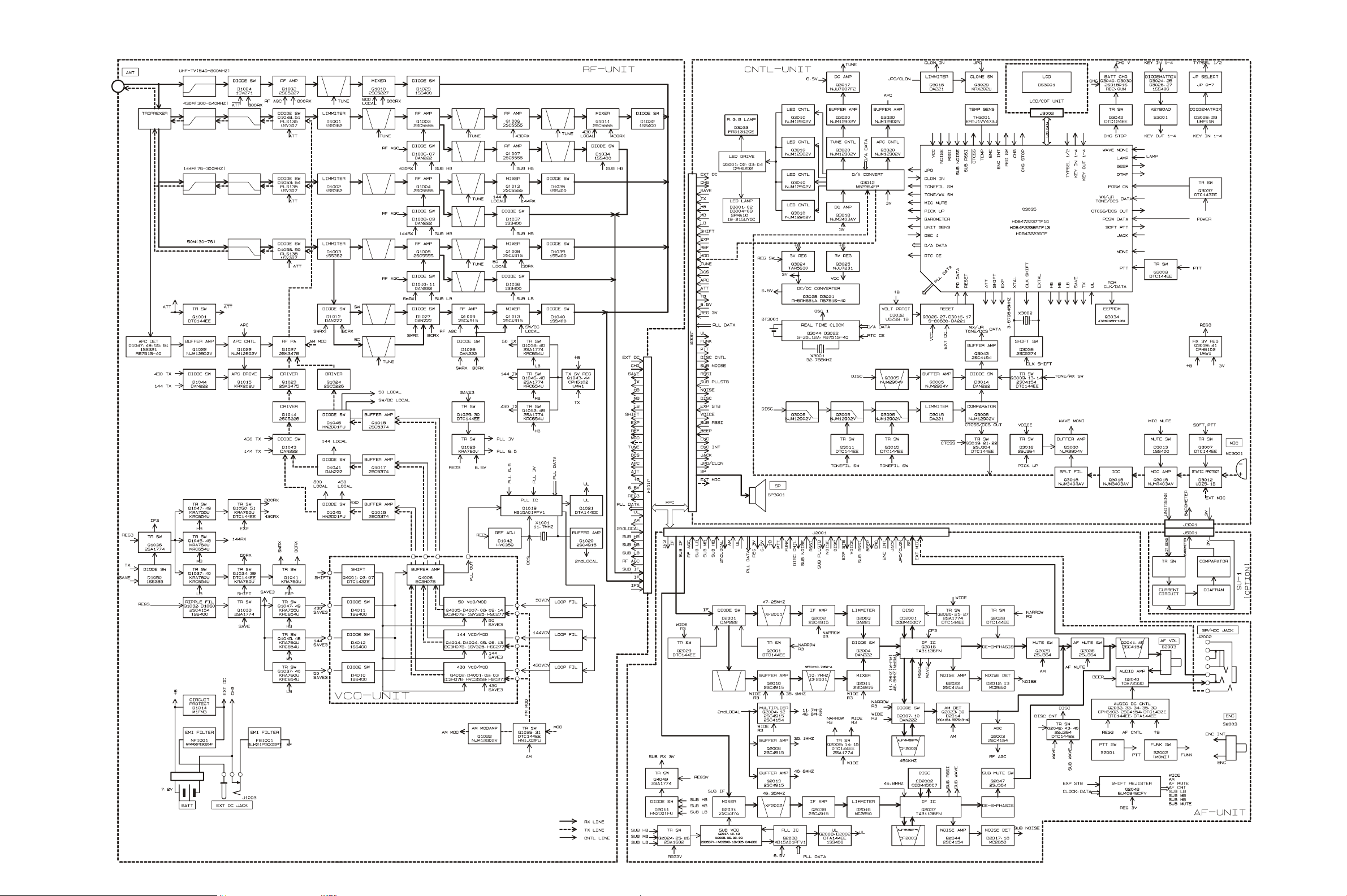

Block Diagram

Page 6

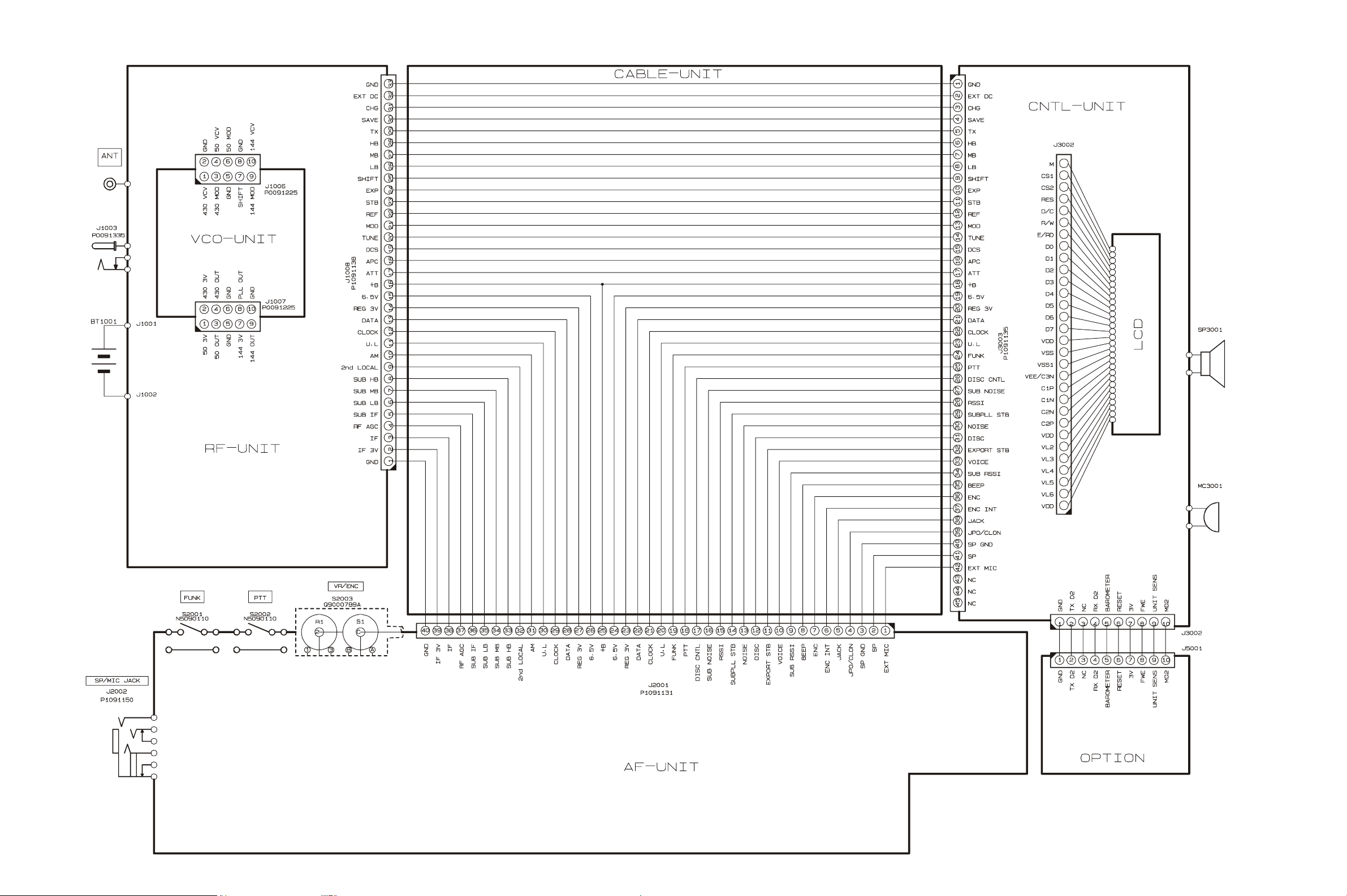

Interconnection Diagram

Page 7

Circuit Description

The VX-7R consists of a RF-UNIT, a CNTL-UNIT and

an AF-UNIT. The RF-UNIT contains the receiver front end,

PLL IC, power and switching circuits, and the VCO-UNIT

for transmit and receive local signal oscillation. The CNTL-

UNIT contains the CPU, and audio ICs, and the power

circuitry for the LCD. The AF-UNIT contains the IF, and

audio ICs.

Receiver Signal Flow

The VX-7R includes five receiver front ends, each op-

timized for a particular frequency range and mode com-

bination.

(1) Triplexer

Signals between 0.5 and 540 MHz received at the an-

tenna terminal pass through a first low-pass filter com-

posed of C1266, C1269, C1289, C1291, C1296, C1297,

L1059, L1060, L1067 and L1068.

Received 430-MHz signals, after passing through the

low-pass filter, are fed to the UHF T/R switch circuit com-

posed of diode switch D1048 (RLS135), D1051 (1SV307).

Received 145-MHz signals, after passing through the

low-pass filter, are fed to the VHF T/R switch circuit com-

posed of diode switch D1053 (RLS135), D1054 (1SV307).

Received 50-MHz signals, after passing through the low-

pass filter, are fed to the 50MHz T/R switch circuit com-

posed of diode switch D1058 (RLS135), D1059 (1SV307).

(2) 145-MHz Band and 76-300MHz Reception

Received signals between 76 and 300 MHz pass through

the Triplexer circuit, low-pass filter/high-pass filter cir-

cuit, VHF T/R switch circuit and protector diode D1002

(1SS362) before additional filtering by a band-pass filter prior to application to RF amplifier Q1004 (2SC5555). The

amplified RF signal is passed through a band-pass filter

to first mixer Q1012 (2SC5555). Meanwhile, VHF output from the VCO-UNIT is amplified by Q1017 (2SC5374) and applied through diode T/R switch D1041 (DAN222)

to mixer Q1012 as the first local signal.

The 47.25-MHz intermediate frequency product of the

mixer is delivered to the AF-UNIT.

The TUNE voltage from the CPU on the CNTL-UNIT is

amplified by DC amplifier Q3017 (NJU7007F2) and applied to varactors D1020 and D1022 (HVC369B), D1019, D1021, D1023, D1024, D1033 and D1036 (1SV325) in the

variable frequency band-pass filters. By changing the elec-

trostatic capacitance of the varactors, optimum filter char-

acteristics are provided for each specific operating fre-

quency.

(3) 435-MHz Band and 222-540MHz Reception

Received signals between 222 and 540 MHz pass

through the Triplexer circuit, low-pass filter/high-pass

filter circuit, UHF T/R switch circuit and protector diode

D1001 (1SS362) before additional filtering by a band-pass

filter prior to application to RF amplifier Q1003

(2SC5555). The amplified RF signal is passed through a band-pass filter, RF amplifier Q1006 (2SC5555) and bandpass filter to first mixer Q1011 (2SC5555). Meanwhile,

UHF output from the VCO-UNIT is amplified by Q1016

(2SC5374) and applied through diode T/R switch D1045 (HN2D01FU) to mixer Q1011 as the first local signal.

The 47.25-MHz intermediate frequency product of the

mixer is delivered to the AF-UNIT.

The TUNE voltage from the CPU on the CNTL-UNIT is

amplified by DC amplifier Q3017 and applied to varac-

tors D1005, D1018, D1030 and D1031 (HVC358B) in the

variable frequency band-pass filters. By changing the elec-

trostatic capacitance of the varactors, optimum filter char-

acteristics are provided for each specific operating fre-

quency.

(4) 50-MHz-Band and 30-76 MHz Reception

Received signals between 30 and 76 MHz pass through

the Triplexer circuit, low-pass filter circuit, 50 MHz T/R

switch circuit and protector diode D1003 (1SS362) be-

fore additional filtering by a band-pass filter prior to ap-

plication to RF amplifier Q1005 (2SC5555). The ampli-

fied RF signal is passed through a band-pass filter to first

mixer Q1008 (2SC5555). Meanwhile, 50 MHz output from the VCO-UNIT is amplified by Q1018 (2SC5374) and applied through diode T/R switch D1046 (HN2D01FU) to

mixer Q1008 as the first local signal.

The 47.25-MHz intermediate frequency product of the

mixer is delivered to the AF-UNIT.

The TUNE voltage from the CPU on the CNTL-UNIT is

amplified by DC amplifier Q3017 and applied to varac-

tors D1025 and D1026 (1SV325) in the variable frequen-

cy band-pass filters. By changing the electrostatic capaci-

tance of the varactors, optimum filter characteristics are

provided for each specific operating frequency.

(5) 0.5 - 30 MHz Reception

Received signals between 0.5 and 30 MHz pass through

the Triplexer circuit, low-pass filter circuit, HF T/R switch

circuit and protector diode D1003 before additional fil-

tering by a band-pass filter prior to application to RF

amplifier Q1009 (2SC4915-0). The amplified RF signal is

Page 8

Circuit Description

passed through a band-pass filter to first mixer Q1013

(2SC4915-0). Meanwhile, HF output from the VCO-UNIT

is amplified by Q1018 and applied through diode T/R

switch D1046 to mixer Q1013 as the first local signal.

The 47.25-MHz intermediate frequency product of the

mixer is delivered to the AF-UNIT.

The TUNE voltage from the CPU on the CNTL-UNIT is

amplified by DC amplifier Q3017 and applied to varac-

tors D1013 (HVR100) in the variable frequency band-pass

filters. By changing the electrostatic capacitance of the

varactors, optimum filter characteristics are provided for

each specific operating frequency.

(6) 540 - 999 MHz Reception

Received signals between 540 and 999 MHz pass

through the high-pass filter circuit, T/R switch D1004

(1SV271) prior to application to RF amplifier Q1002 (2SC5277). The amplified RF signal is passed through a band-pass filter to first mixer Q1010 (2SC5277). Mean-

while, UHF output from the VCO-UNIT is amplified by

Q1016 and applied through diode T/R switch D1045 to

mixer Q1010 as the first local signal.

The 47.25-MHz intermediate frequency product of the

mixer is delivered to the AF-UNIT.

The TUNE voltage from the CPU on the CNTL-UNIT is

amplified by DC amplifier Q3017 and applied to varac-

tors D1015 and D1017 (HVC355B) in the variable frequen-

cy band-pass filters. By changing the electrostatic capaci-

tance of the varactors, optimum filter characteristics are

provided for each specific operating frequency.

(7) 47.25-MHz First Intermediate Frequency

The 47.25-MHz first intermediate frequency from the

first mixers is delivered from the RF-UNIT to the AF-UNIT

through jacks J1008 and J2001. On the AF-UNIT, the IF

for AM and FM-narrow signals is passed through NAR/

WIDE switch D2001 (DAP222) and the 47.25-MHz mono-

lithic crystal filter (MCF) XF2001 to narrow IF amplifier

Q2002 (2SC4915-0) for input to pin 16 of the Narrow IF IC Q2016 (TA31136FN), after amplitude limiting by D2003 (DA221).

Meanwhile, a portion of the output of 11.7-MHz crystal

X1001 on the RF-UNIT is multiplied fourfold by Q2004

(2SC4915-0) and Q2012 (2SC4154E) to provide the 46.8-

MHz second local signal, applied to the Narrow IF IC.

Within the IC, this signal is mixed with the 47.25-MHz

first intermediate frequency signal to produce the 450 kHz

second intermediate frequency.

This second IF is filtered by ceramic filter CF2002

(ALFYM450F=k) and amplified by the limiting amplifier

within the Narrow IF IC before quadrature detection by

ceramic discriminator CD2001 (CDBM450C7).

Demodulated audio is passed from pin 9 of the Narrow

IF IC through the "Mute" analog switch Q2029 (2SJ364) and squelch gate Q2036 (2SJ364) before de-emphasis at Q2028 (DTC144EE).

The resulting audio is amplified by AF amplifier Q2040

(TDA7233D) and fed through the MIC/EAR jack J2002 to

internal speaker SP1001 or an external earphone.

(8) Squelch Control

Signal components in the neighborhood of 15 kHz con-

tained in the discriminator output pass through an active

band-pass filter composed of R2059, R2060, R2062, C2076,

C2078 and the operational amplifier between pins 7 and

8 within Narrow IF IC Q2016. They are then rectified by

D2012 and D2013 (MC2850) to obtain a DC voltage cor-

responding to the level of noise. This voltage is fed to pin

49 of CPU Q3035 (HD6472237TF10), which compares the

input voltage with a previously set threshold. When the

input voltage drops below the threshold, normally due to

the presence of a carrier, the CPU turns on squelch gate

Q2036 and allows any demodulated audio to pass. At the

same time, Q3001 and/or Q3003 and/or Q3004 goes on,

causing the BUSY/TX lamp D3033 (FRGB1312CE-10-TF)

to light.

Transmitter Signal Flow (1) 145-MHz-Band Transmit/Receive Switching

Closing PTT switch S2002 on the AF-UNIT pulls the base

of Q3008 (DTA144EE) low, causing the collector to go

high. This signal is fed to pin 33 (PTT) of CPU Q3035,

allowing the CPU to recognize that the PTT switch has

been pushed. When the CPU detects closure of the PTT

switch, pin 10 (TX) goes high. This control signal is deliv-

ered to the RF-UNIT, where it switches Q1044 (UMW1) and Q1043 (CPH6102) to produce the TX control signal that activates Q1046 (2SA1774). At the same time, PLL division data is fed to PLL IC Q1019 (MB15A01PFV1)

from the CPU, to disable the receiver power saver. Also,

it switches Q1048 (KRC654U) to disable the receiver cir-

cuits. This causes the "red" mode of BUSY/TX lamp D3033

to light.

Page 9

Circuit Description

(2) Modulation

Voice signal input from either built-in microphone

MC3001 (EM-140) on the CNTL-UNIT or external jack

J2002 on the AF-UNIT is pre-emphasized by C3012 and

R3031, and processed by microphone amplifier Q3018

(NJM3403AV), IDC (instantaneous deviation control) cir-

cuit Q1014 to prevent overmodulation, and fed through

active low-pass filter Q1014.

During CTCSS operation, the voice signal is mixed with

the TONE ENC subaudible tone signal from pin 43 of the

CPU and delivered to the RF-UNIT through jacks J3003

and J1008. During DTMF operation, the DTMF tones from

pin 44 of the CPU are fed to the IDC stage.

(3) 145-MHz-Band Transmission

Modulating audio from the CNTL-UNIT passes through

deviation setting D/A converter Q3012 to the VHF modu-

lator portion of the VCO-UNIT mounted on the RF-UNIT.

This signal is applied to varactor D4005 (HSC277) in the tank circuit of VHF VCO Q4004 (EC3H07B), which oscil-

lates at the desired VHF transmitting frequency. The

modulated VCO signal is buffered by amplifier Q4006

(EC3H07B) and Q1017 and delivered through VHF T/R

diode switch D1041 to the RF-UNIT. The modulated low-

level VHF transmit signal from the VCO is passed through

diode switch D1043 (DAN222) to amplifier Q1014 (2SC5226-5). The modulated VHF transmit signal from the VCO is amplified by Q1023 (2SK3475) and RF power amplifier Q1027 (2SK3476) up to 0.05, 1.0, 2.5 or 5 Watts

(depending on the power source). The RF output passes

through TX diode switch D1053. RF output is passed by

the T/R switch and low-pass filter to suppress harmonics

and spurious products before output gets to the antenna

at the antenna terminal.

(4) 435-MHz-Band Transmission

Modulating audio from the CNTL-UNIT passes through

deviation setting D/A converter Q3012 to the UHF mod-

ulator portion of the VCO-UNIT mounted on the RF-

UNIT. This signal is applied to varactor D4002 (HSC277) in the tank circuit of UHF VCO Q4002 (EC3H07B), which

oscillates at the desired UHF transmitting frequency. The

modulated VCO signal is buffered by amplifier Q4006 and

Q1016 and delivered through UHF T/R diode switch

D1045 to the RF-UNIT. The modulated low-level UHF

transmit signal from the VCO is passed through diode

switch D1045 (HN2D01FU) to amplifier Q1014. The mod-

ulated UHF transmit signal from the VCO is amplified

by Q1023 and RF power amplifier Q1027 up to 0.05, 1.0,

2.5 or 5 Watts (depending on the power source). The RF

output passes through TX diode switch D1048. RF out-

put is passed through the T/R switch and low-pass filter

to suppress harmonics and spurious products before out-

put gets to the antenna at the antenna terminal.

(5) 50-MHz-Band Transmission

Modulating audio from the CNTL-UNIT passes through

deviation setting D/A converter Q3012 to the 50 MHz

modulator portion of the VCO-UNIT mounted on the RF-

UNIT. This signal is applied to varactor D4009 (HSC277) in the tank circuit of 50 MHz VCO Q4005 (EC3H07B),

which oscillates at the desired 50 MHz transmitting fre-

quency. The modulated VCO signal is buffered by ampli-

fier Q4006 and Q1018 and delivered through 50 MHz T/R

diode switch D1046 to the RF-UNIT. The modulated low-

level 50 MHz transmit signal from the VCO is passed

through diode switch D1046 (HN2D01FU) to amplifier

Q1014. The modulated 50 MHz transmit signal from the

VCO is amplified by Q1023 and RF power amplifier Q1027

up to 0.05, 1.0, 2.5 or 5 Watts (depending on the power

source). The RF output passes through TX diode switch

D1058. RF output is passed through the T/R switch and

low-pass filter to suppress harmonics and spurious prod-

ucts before output gets to the antenna at the antenna ter-

minal.

Page 10

Circuit Description

PLL Frequency Synthesizer

PLL IC Q1019 on the RF-UNIT consists of a data shift

charge pump, "intermittent operation" circuit, and band

selector switch. Serial PLL data from the CPU is convert-

ed into parallel data by the shift register in the PLL IC

and is latched into the comparative frequency divider and

reference frequency divider to set a frequency dividing

ratio for each. An 11.7-MHz reference signal produced

by X1001 is fed to "REF" pin 1 of the PLL IC. The internal

reference frequency divider divides the 11.7-MHz refer-

ence by 2,050 (or 1,640) to obtain a reference frequency of

5 kHz (or 6.25 kHz), which is applied to the phase com-

parator. Meanwhile, a sample of the output of VHF VCO

Q4004 or UHF VCO Q4002 or 50 MHz VCO Q4005 on the

VCO-UNIT, buffered by Q4006, is fed to the PLL IC, where

it is divided by the internal comparative frequency divid-

er to produce a comparative frequency which also is ap-

plied to the phase comparator. The phase comparator com-

pares the phase between the reference frequency and com-

parative frequency to output a pulse corresponding to the

phase difference between them. This pulse is fed to the

charge pump, and the output from the charge pump pass-

es through a loop filter composed of L1044, R1089, C1175,

and either R1090, C1192, R1103 and C1195 for VHF, or

R1086, C1189, R1102 and C1194 for UHF, or R1091, C1193,

R1104 and C1196 for 50 MHz, which convert the pulse

into a corresponding smoothed varactor control voltage

(VCV). The VCV is applied to varactors D4004 and D4013

(1SV325) in the VHF VCO tank circuit, or to varactor D4001 (HVC355B) in the UHF VCO tank circuit, or to varactors D4007 and D4008 (1SV325) in the 50 MHz VCO,

to eliminate any phase difference between the reference

frequency and comparative frequency, thus locking the

VCO oscillation frequency to the reference crystal. The

VCO frequency is determined by the frequency-dividing

ratio sent from the CPU to the PLL IC. During receiver

power save operation, the PLL circuit operates intermit-

tently to reduce current consumption, for which the "in-

termittent operation" control circuit reduces the lock-up

time.

Page 11

Alignment

Introduction and Precautions

The VX-7R has been carefully aligned at the factory for

the specified performance across the specified amateur

bands. Realignment should therefore not be necessary

except in the event of a component failure. All compo-

nent replacement and service should be performed only

by an authorized VERTEX STANDARD representative,

or the warranty policy may be voided.

The following procedures cover the sometimes critical

and tedious adjustments that are not normally required

once the transceiver has left the factory. However, if dam-

age occurs and some parts are replaced, realignment may

be required. If a sudden problem occurs during normal

operation, it is likely due to component failure; realign-

ment should not be done until after the faulty component

has been replaced.

We recommend that servicing be performed only by

authorized VERTEX STANDARD service technicians,

who are experienced with the circuitry and fully equipped

for repair and alignment. Therefore, if a fault is suspect-

ed, contact the dealer from whom the transceiver was

purchased for instructions regarding repair. Authorized

VERTEX STANDARD service technicians realign all cir-

cuits and make complete performance checks to ensure

compliance with factory specifications after replacing any

faulty components.

Those who do undertake any of the following align-

ments are cautioned to proceed at their own risk. Prob-

lems caused by unauthorized attempts at realignment are

not covered by the warranty policy. Also, VERTEX STAN-

DARD must reserve the right to change circuits and align-

ment procedures in the interest of improved performance,

without notifying owners.

Under no circumstances should any alignment be at-

tempted unless the normal function and operation of the

transceiver are clearly understood, the cause of the mal-

function has been clearly pinpointed and any faulty com-

ponents replaced, and the need for realignment deter-

mined to be absolutely necessary.

Required Test Equipment

P RF Signal Generator with calibrated output level at 500 MHz

P Deviation Meter (linear detector)

P In-line Wattmeter with 5% accuracy at 500 MHz

P 50-ohm, 10-W RF Dummy Load

P 8-ohm AF Dummy Load

P Regulated DC Power Supply adjustable from 3 to 15 V DC, 3A

P Frequency Counter: 0.2-ppm accuracy at 500 MHz

P AF Signal Generator

P AC Voltmeter

P DC Voltmeter: high impedance

P UHF Sampling Coupler

P SINAD Meter

Alignment Preparation & Precautions

A 10-W RF dummy load and in-line wattmeter must be

connected to the main antenna jack in all procedures that

call for transmission, alignment is not possible with an

antenna. After completing one step, read the next step to

see if the same test equipment is required. If not, remove

the test equipment (except dummy load and wattmeter,

if connected) before proceeding.

Correct alignment requires that the ambient tempera-

ture be the same as that of the transceiver and test equip-

ment, and that this temperature be held constant between

68~86°F (20~30°C). When the transceiver is brought into

the shop from hot or cold air, it should be allowed some

time to come to room temperature before alignment.

Whenever possible, alignments should be made with os-

cillator shields and circuit boards firmly affixed in place.

Also, the test equipment must be thoroughly warmed up

before beginning.

Note: Signal levels in dB referred to in the alignment procedure

are based on 0 dBμ=0.5 μV (closed circuit).

RF Signal

50-ohm

RF Load

Generator

In-Line

Wattmeter

Deviation

Meter

Sampling

Coupler

8-ohm

AF Load

SINAD

Meter

Frequency

Counter

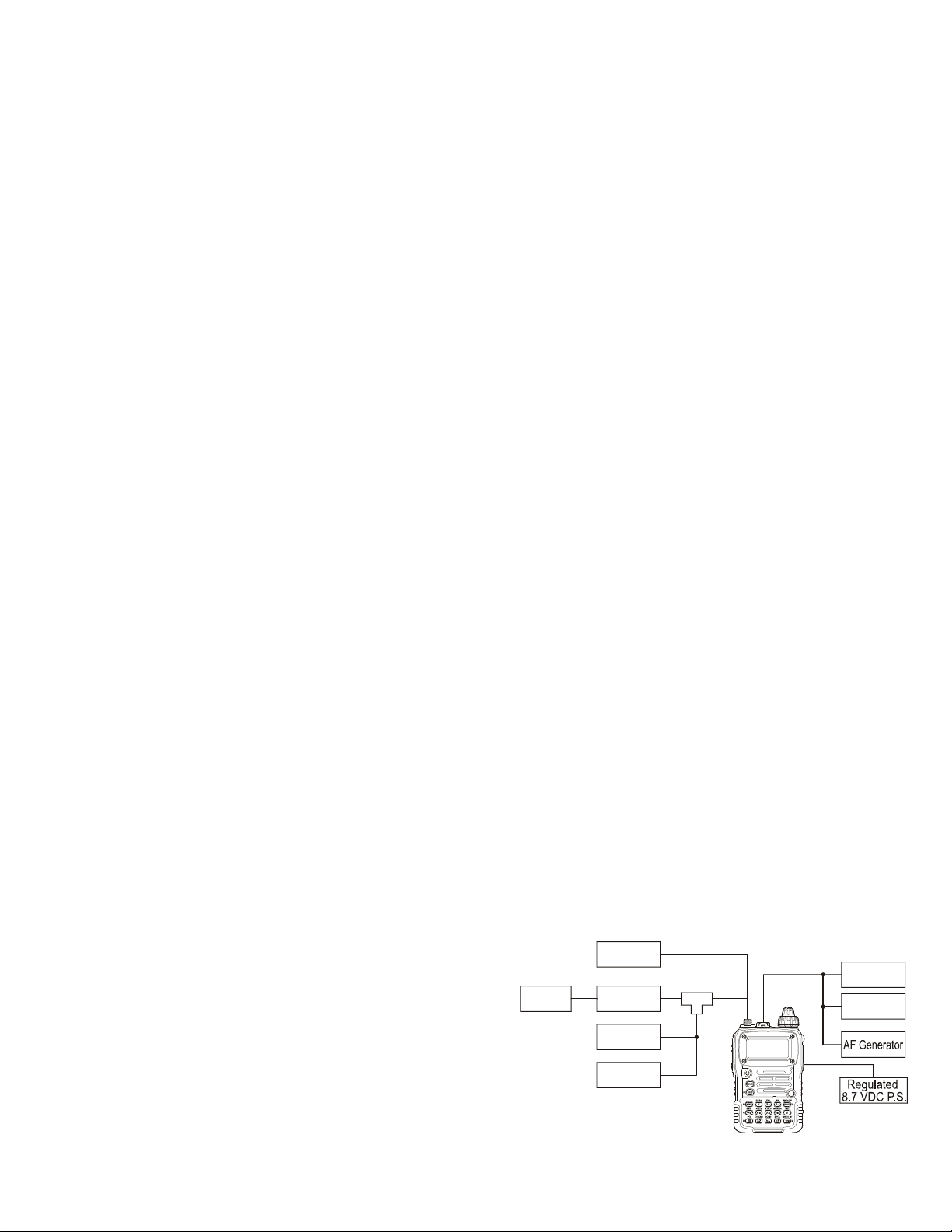

Alignment Setup

Page 12

Alignment

Test Setup

Set up the test equipment as shown below for transceiv-

er alignment, and apply 8.7 V DC power to the transceiver.

Refer to the drawings for Alignment Points.

Internal System Alignment Routine

This uses a programmed routine in the transceiver

which simplifies many previously complex discrete com-

ponent settings and adjustments with digitally-controlled

settings via front panel buttons and LCD indications.

To begin, set the transceiver to the center of the 50 MHz,

144 MHz, 222 MHz and 430 MHz bands. Next, select the

430 MHz band, then turn the transceiver off.

Now, press and hold in the MON/F, and 0 buttons (at

the same time) while powering the radio on again. The

display will show the first setting. Thereafter, the frequen-

cies used during alignment will automatically be set with-

out action by the technician.

In the alignment process, each adjustment is selected

by rotating the DIAL. Alignment is performed by:

P Pressing the V/M button;

P Injecting a signal of the required frequency and lev-

el; then

P Pressing the V/M button after a level setting or ad-

justment is made. This second pressing of the MON/ F button stores the entry.

To exit the alignment routine, press the HM/RV button.

After performing the system alignment in its entirety, in-

dividual settings can be returned to and adjusted should

the need arise.

As each transceiver is individually optimized at the fac-

tory, the precise settings for the transceiver on your bench

may be slightly different.

Main Band Alignment

PLL Reference Frequency (PLL REF)

Press the V/M button, then transmit and adjust the counter frequency to 440.000 (±300 Hz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next

setting.

430 MHz band Alignment

Squelch Hysteresis Adjustment (HIS SQL)

P Rotate the DIAL for minimum squelch hysteresis. Press

the V/M button, then rotate the DIAL to select the next

setting.

Squelch Preset Threshold (THLD SQL) [86]

P Inject a –15.0 dBμ RF signal (1 kHz tone @ ±3.5 kHz

deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

Squelch Preset Tight (TIGH SQL)

P Adjust the generator level to –5.0 dBμ, then press the V/

M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next set-

ting.

S-Meter S-1 Adjustment (S1 LEVEL)

P Adjust the generator level to –7.0 dBμ (1 kHz tone @

±3.5 kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

S-Meter Full-Scale Adjustment (S9 LEVEL)

P Adjust the generator level to +19 dBμ (1 kHz tone @

±3.5 kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

Wide-FM S-Meter S-1 Adjustment (S1 LEVEL)

P Adjust the generator level to 0 dBμ (1 kHz tone @ ±20

kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

Wide-FM S-Meter Full-Scale Adjustment (S9 LEVEL)

P Adjust the generator level to +20 dBμ (1 kHz tone @ ±20

kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

The alignment frequency will now be automatically set

to 430.000 MHz.

High TX Power Adjustment (HI POWER)

P Transmit, and adjust the output power level for 5.0 W

(±0.3 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

L3 Tx Power Adjustment (L3 POWER)

P Transmit, and adjust the output power level for 2.5 W

(±0.2 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

L2 Tx Power Adjustment (L2 POWER)

P Transmit, and adjust the output power level for 1.0 W

(±0.1 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

Page 13

Alignment

L1 Tx Power Adjustment (L1 POWER)

P Transmit, and adjust the output power level for 50 mW

(+50/-30 mW) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

TX Deviation Adjustment (MAX DEV)

P Inject a 1 kHz audio tone at a level of 50 mV (rms) to the

MIC jack. Press the V/M button, then transmit and ad-

just the deviation for 4.5 kHz (±0.2 kHz) (USA Version:

4.2 kHz (±0.2 kHz)) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

CTCSS Tx Deviation Adjustment (TN 67.0)

P Press the V/M button, then transmit and adjust the de-

viation for 0.5 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 183.5)

P Press the V/M button, then transmit and adjust the de-

viation for 0.5 kHz (±0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next

setting.

CTCSS Tx Deviation Adjustment (TN 254.1)

P Press the V/M button, then transmit and adjust the de-

viation for 0.5 kHz (±0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next

setting.

DCS Tx Deviation Adjustment (DCS DEV)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (±0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next

setting.

Press the MON/F to activate the TX Power and Devia-

tion alignment routine.

The alignment frequency will automatically be set to

440.000 MHz (USA Version: 450.000 MHz).

High TX Power Adjustment (L2 POWER)

P Transmit, and adjust the output power level for 1.0 W

(±0.1 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

High TX Power Adjustment (L1 POWER)

P Transmit, and adjust the output power level for 50 mW

(+50/-30 mW) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

TX Deviation Adjustment (MAX DEV)

P Inject a 1 kHz audio tone at a level of 50mV (rms) to the

MIC jack. Press the V/M button, then transmit and adjust

the deviation for 4.5 kHz (±0.2 kHz) (USA Version: 4.2

kHz (±0.1 kHz)) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

CTCSS Tx Deviation Adjustment (TN 67.0)

P Press the V/M button, then transmit and adjust the de-

viation for 0.5 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 183.5)

P Press the V/M button, then transmit and adjust the de-

viation for 0.5 kHz (±0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next

setting.

CTCSS Tx Deviation Adjustment (TN 254.1)

P Press the V/M button, then transmit and adjust the de-

viation for 0.5 kHz (±0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next

setting.

DCS Tx Deviation Adjustment (DCS DEV)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (±0.1 kHz) (USA Version: 0.9 kHz

(±0.1 kHz)) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

High TX Power Adjustment (HI POWER)

P Transmit, and adjust the output power level for 5.0 W

(±0.3 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

High TX Power Adjustment (L3 POWER)

P Transmit, and adjust the output power level for 2.5 W

(±0.2 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

Press the BAND button to activate the 50 MHz band

internal alignment routine.

The alignment frequency will automatically be set to

52.100 MHz.

50 MHz Band Alignment

Squelch Hysteresis Adjustment (HIS SQL)

P Rotate the DIAL for minimum squelch hysteresis. Press

the V/M button, then rotate the DIAL to select the next

setting.

Page 14

Alignment

Squelch Preset Threshold (THLD SQL)

P Inject a –15.0 dBμ RF signal (1 kHz tone @ ±3.5 kHz

deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

Squelch Preset Tight (TIGH SQL)

P Adjust the generator level to –4.0 dBμ, then press the V/M

button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

S-Meter S-1 Adjustment (S1 LEVEL)

P Adjust the generator level to –7.0 dBμ (1 kHz tone @

±3.5 kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

S-Meter Full-Scale Adjustment (S9 LEVEL)

P Adjust the generator level to +19 dBμ (1 kHz tone @

±3.5 kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

Wide-FM S-Meter S-1 Adjustment (S1 LEVEL)

P Adjust the generator level to 0 dBμ (1 kHz tone @ ±20

kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

Wide-FM S-Meter Full-Scale Adjustment (S9 LEVEL)

P Adjust the generator level to +20 dBμ (1 kHz tone @ ±20

kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

The alignment frequency will now be automatically set

to 50.000 MHz.

L1 Tx Power Adjustment (L1 POWER)

P Transmit, and adjust the output power level for 50 mW

(+50/-30 mW) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

TX Deviation Adjustment (MAX DEV)

P Inject a 1 kHz audio tone at a level of 50mV (rms) to the

MIC jack. Press the V/M button, then transmit and adjust

the deviation for4.5 kHz (±0.2 kHz) (USA Version: (4.2

±0.2 kHz)) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

AM Modulation (AM MOD)

P Inject a 1 kHz audio tone at a level of 100 mV (rms) to

the MIC jack. Press the V/M button, then transmit and

adjust the modulation for 60% (±10%) by rotating the

DIAL, then press and hold in the MON/F button for one

second.

CTCSS Tx Deviation Adjustment (TN 67.0)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 167.9)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 254.1)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

High TX Power Adjustment (HI POWER)

P Transmit, and adjust the output power level for 5.0 W

(±0.3 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

L3 Tx Power Adjustment (L3 POWER)

P Transmit, and adjust the output power level for 2.5 W

(±0.2 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

L2 Tx Power Adjustment (L2 POWER)

P Transmit, and adjust the output power level for 1.0 W

(±0.1 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

DCS Tx Deviation Adjustment (DCS DEV)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (±0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next

setting.

Press the MON/F button to activate the TX Power and

Deviation alignment routine.

The alignment frequency will automatically be set to

54.000 MHz.

High TX Power Adjustment (HI POWER)

P Transmit, and adjust the output power level for 5.0 W

(±0.3 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

Page 15

Alignment

High TX Power Adjustment (L3 POWER)

P Transmit, and adjust the output power level for 2.5 W

(±0.2 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

High TX Power Adjustment (L2 POWER)

P Transmit, and adjust the output power level for 1.0 W

(±0.1 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

High TX Power Adjustment (L1 POWER)

P Transmit, and adjust the output power level for 50 mW

(+50/-30 mW) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

TX Deviation Adjustment (MAX DEV)

P Inject a 1 kHz audio tone at a level of 50mV (rms) to the

MIC jack. Press the V/M button, then transmit and ad-

just the deviation for 4.5 kHz (±0.2 kHz) (USA Version:

4.2 kHz (±0.2 kHz)) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

AM Modulation (AM MOD)

P Inject a 1 kHz audio tone at a level of 100mV (rms) to

the MIC jack. Press the V/M button, then transmit and

adjust the modulation for 60% (±10%) by rotating the

DIAL.

CTCSS Tx Deviation Adjustment (TN 67.0)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 167.9)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 254.1)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

DCS Tx Deviation Adjustment (DCS DEV)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (±0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next

setting.

Press the BAND button to activate the 145 MHz band

internal alignment routine.

The alignment frequency will automatically be set to

145.100 MHz (USA Version: 146.100 MHz).

144 MHz Band Alignment

Squelch Hysteresis Adjustment (HIS SQL)

P Rotate the DIAL for minimum squelch hysteresis. Press

the V/M button, then rotate the DIAL to select the next

setting.

Squelch Preset Threshold (THLD SQL)

P Inject a –15.0 dBμ RF signal (1 kHz tone @ ±3.5 kHz

deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

Squelch Preset Tight (TIGH SQL)

P Adjust the generator level to –4.0 dBμ, then press the V/

M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next set-

ting.

S-Meter S-1 Adjustment (S1 LEVEL)

P Adjust the generator level to –7.0 dBμ (1 kHz tone @

±3.5 kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

S-Meter Full-Scale Adjustment (S9 LEVEL)

P Adjust the generator level to +19 dBμ (1 kHz tone @

±3.5 kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

Wide-FM S-Meter S-1 Adjustment (S1 LEVEL)

P Adjust the generator level to 0 dBμ (1 kHz tone @ ±20

kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

Wide-FM S-Meter Full-Scale Adjustment (S9 LEVEL)

P Adjust the generator level to +20 dBμ (1 kHz tone @ ±20

kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

The alignment frequency will now be automatically set

to 144.000 MHz.

Page 16

Alignment

High TX Power Adjustment (HI POWER)

P Transmit, and adjust the output power level for 5.0 W

(±0.3 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

L3 Tx Power Adjustment (L3 POWER)

P Transmit, and adjust the output power level for 2.5 W

(±0.2 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

L2 Tx Power Adjustment (L2 POWER)

P Transmit, and adjust the output power level for 1.0 W

(±0.1 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

L1 Tx Power Adjustment (L1 POWER)

P Transmit, and adjust the output power level for 50 mW

(+50/-30 mW) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

TX Deviation Adjustment (MAX DEV)

P Inject a 1 kHz audio tone at a level of 50mV (rms) to the

MIC jack. Press the V/M button, then transmit and ad-

just the deviation for 4.5 kHz (±0.2 kHz) (USA Version:

4.2 kHz (±0.2 kHz)) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

CTCSS Tx Deviation Adjustment (TN 67.0)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 151.4)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 254.1)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

DCS Tx Deviation Adjustment (DCS DEV)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (±0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next

setting.

Press the MON/F to activate the TX Power and Devia-

tion alignment routine.

The alignment frequency will automatically be set to

146.000 MHz (USA Version: 148.000 MHz).

High TX Power Adjustment (HI POWER)

P Transmit, and adjust the output power level for 5.0 W

(±0.3 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

High TX Power Adjustment (L3 POWER)

P Transmit, and adjust the output power level for 2.5 W

(±0.2 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

High TX Power Adjustment (L2 POWER)

P Transmit, and adjust the output power level for 1.0 W

(±0.1 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

High TX Power Adjustment (L1 POWER)

P Transmit, and adjust the output power level for 50 mW

(+50/-30 mW) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

TX Deviation Adjustment (MAX DEV)

P Inject a 1 kHz audio tone at a level of 50mV (rms) to the

MIC jack. Press the V/M button, then transmit and ad-

just the deviation for 4.5 kHz (±0.2 kHz) (USA Version:

4.2 kHz (±0.2 kHz)) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

CTCSS Tx Deviation Adjustment (TN 67.0)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 151.4)

P Press the V/M button, then transmit and adjust the de-

viation for for 0.6 kHz (+0.05/-0.1 kHz) by rotating the

DIAL, then press the V/M button. Rotate the DIAL to

select the next setting.

CTCSS Tx Deviation Adjustment (TN 254.1)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

Page 17

Alignment

DCS Tx Deviation Adjustment (DCS DEV)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (±0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next

setting.

NOTE: The next step depends on the geographical "version" of

the transceiver being aligned:

EXP Version: Alignment of the "SUB Band " follows (see

page 18.)

USA Version: Press the BAND button to activate the

222 MHz band internal alignment routine. In this case,

the alignment frequency will automatically be set to

222.000 MHz.

222 MHz Band Alignment

L2 Tx Power Adjustment (L2 POWER)

P Transmit, and adjust the output power level for 0.3 W

(±0.1 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

L1 Tx Power Adjustment (L1 POWER)

P Transmit, and adjust the output power level for 50 mW

(+50/-30 mW) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

DCS Tx Deviation Adjustment (DCS DEV)

P Press the V/M button, then transmit and adjust the de-

viation for 0.9 kHz (±0.1 kHz) by rotating DIAL, then press the V/M button. Rotate the DIAL to select the next

setting.

Press the to activate the TX Power and Devia-

tion alignment routine.

The alignment frequency will automatically be set to

224.995 MHz.

High Tx Power Adjustment (L2 POWER)

P Transmit, and adjust the output power level for 0.3 W

(+0.2/-0.1 W) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

High Tx Power Adjustment (L1 POWER)

P Transmit, and adjust the output power level for 50 mW

(+50/-30 mW) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

TX Deviation Adjustment (MAX DEV)

P Inject a 1 kHz audio tone at a level of 50mV (rms) to the

MIC jack. Press the V/M button, then transmit and ad-

just the deviation for 4.5 kHz (±0.2 kHz) (USA Version:

4.2 kHz (±0.2 kHz) by rotating DIAL, then press the V/ M button. Rotate the DIAL to select the next setting.

TX Deviation Adjustment (MAX DEV)

P Inject a 1 kHz audio tone at a level of 50mV (rms) to the

MIC jack. Press the V/M button, then transmit and ad-

just the deviation for 4.5 kHz (±0.2 kHz) (USA Version:

4.2 kHz (±0.2 kHz)) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next setting.

CTCSS Tx Deviation Adjustment (TN 67.0)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 151.4)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 254.1)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 67.0)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

CTCSS Tx Deviation Adjustment (TN 151.4)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the

DIAL, then press the V/M button. Rotate the DIAL to

select the next setting.

CTCSS Tx Deviation Adjustment (TN 254.1)

P Press the V/M button, then transmit and adjust the de-

viation for 0.6 kHz (+0.05/-0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the

next setting.

DCS Tx Deviation Adjustment (DCS DEV)

P Press the V/M button, then transmit and adjust the de-

viation for 0.9 kHz (±0.1 kHz) by rotating the DIAL, then press the V/M button. Rotate the DIAL to select the next

setting.

Page 18

Alignment

Press the SUB button to activate the SUB band internal

alignment routine.

The alignment frequency will automatically be set to

435.100 MHz (USA Version: 440.100 MHz) on the SUB

band.

SUB Band Alignment 430 MHz Band Alignment

Squelch Hysteresis Adjustment (HIS SQL)

P Rotate the DIAL for minimum squelch hysteresis. Press

the V/M button, then rotate the DIAL to select the next

setting.

Squelch Preset Threshold (THLD SQL)

P Inject a –13.0 dBμ RF signal (1 kHz tone @ ±3.5 kHz

deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

Squelch Preset Tight (TIGH SQL)

P Adjust the generator level to –6.0 dBμ, then press the V/M

button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

S-Meter S-1 Adjustment (S1 LEVEL)

P Adjust the generator level to –7.0 dBμ (1 kHz tone @

±3.5 kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

S-Meter Full-Scale Adjustment (S9 LEVEL)

P Adjust the generator level to +20 dBμ (1 kHz tone @

±3.5 kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button.

Press the BAND button to activate the 50 MHz SUB band

internal alignment routine.

The alignment frequency will automatically be set to

52.100 MHz.

50 MHz SUB Band Alignment

Squelch Hysteresis Adjustment (HIS SQL)

P Rotate the DIAL for minimum squelch hysteresis. Press

the V/M button, then rotate the DIAL to select the next

setting.

Squelch Preset Threshold (THLD SQL)

P Inject a –13.0 dBμ RF signal (1 kHz tone @ ±3.5 kHz

deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

Squelch Preset Tight (TIGH SQL)

P Adjust the generator level to –4.0 dBμ, then press the V/

M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next set-

ting.

S-Meter S-1 Adjustment (S1 LEVEL)

P Adjust the generator level to –7.0 dBμ (1 kHz tone @

±3.5 kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

S-Meter Full-Scale Adjustment (S9 LEVEL)

P Adjust the generator level to +19 dBμ (1 kHz tone @

±3.5 kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button.

Press the BAND button to activate the 144 MHz SUB band

internal alignment routine.

The alignment frequency will automatically be set to

145.100 MHz (USA Version: 146.100 MHz).

144 MHz SUB Band Alignment

Squelch Hysteresis Adjustment (HIS SQL)

P Rotate the DIAL for minimum squelch hysteresis. Press the

V/M button, then rotate the DIAL to select the next setting.

Squelch Preset Threshold (THLD SQL)

P Inject a –15.0 dBμ RF signal (1 kHz tone @ ±3.5 kHz

deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

Squelch Preset Tight (TIGH SQL)

P Adjust the generator level to –6.0 dBμ, then press the V/M

button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

S-Meter S-1 Adjustment (S1 LEVEL)

P Adjust the generator level to –7.0 dBμ (1 kHz tone @

±3.5 kHz deviation), then press the V/M button, then press the MON/F button twice. Press the V/M button, then rotate the DIAL to select the next setting.

S-Meter Full-Scale Adjustment (S9 LEVEL)

P Adjust the generator level to +19 dBμ (1 kHz tone @

±3.5 kHz deviation), then press the V/M button, then presses the MON/F button twice. Press the V/M button.

This completes the internal alignment routine for all bands.

To save all settings and exit, press the HM/RV button.

Page 19

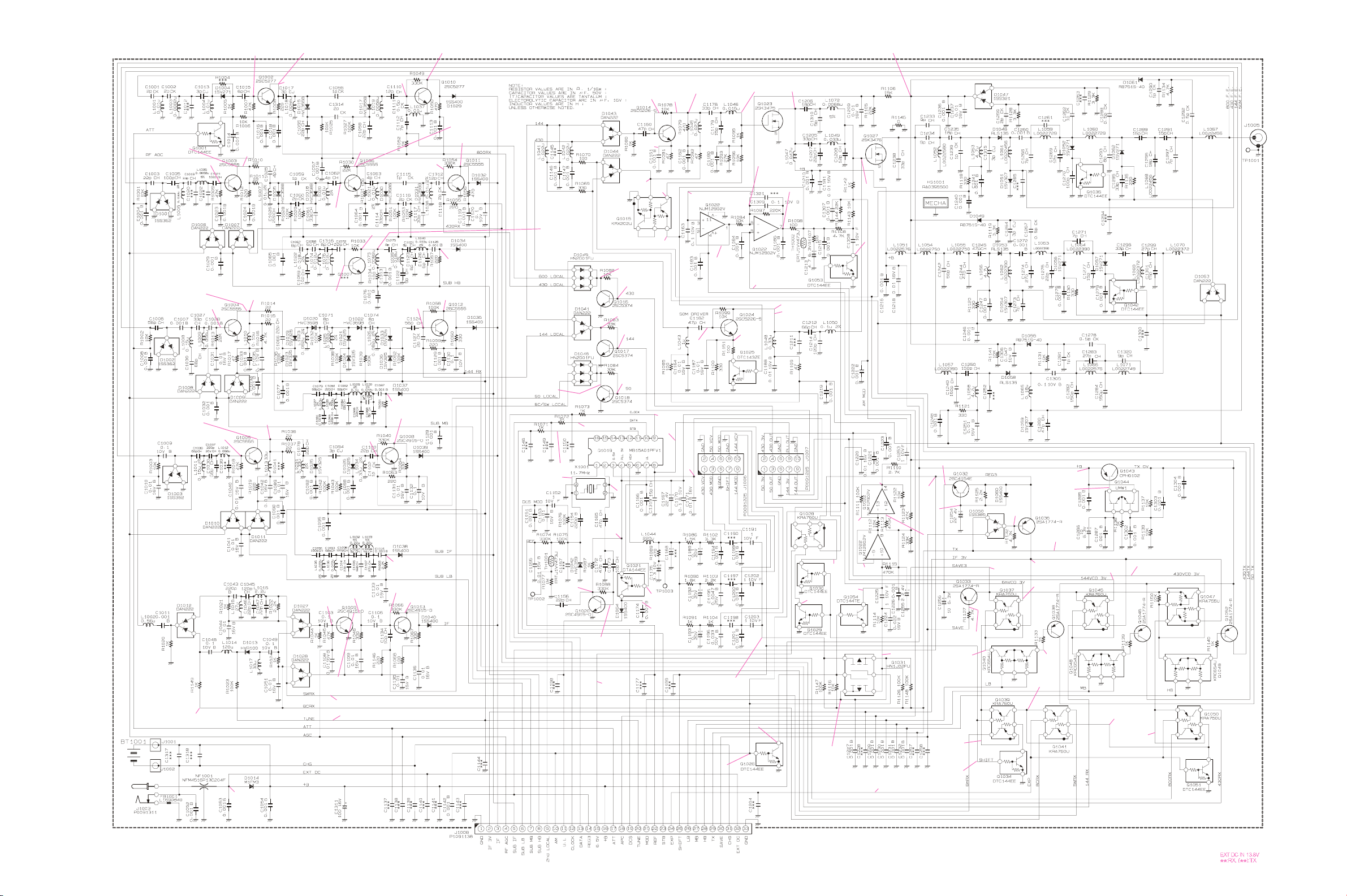

Circuit Diagram

800M RX:0.8V

MAIN NFM RX:+14.7dBµ

435.000MHz, @12dB SINAD 1000pF Coupling Capacitor.

800M RX:1.87V

0V (50M TX:1.84V) (144M TX:1.85V) (430M TX:2.85V)

RF Unit (Lot. 1 ~ 2)

MAIN NFM RX:+2.0dBµ

435.000MHz 1000pF Coupling Capacitor.

430M RX:0.79V (0V)

MAIN NFM RX:+11.5dBµ SUB NFM RX:+7.1dBµ

145.000MHz 1000pF Coupling Capacitor.

MAIN NFM RX:+4.3dBµ SUB NFM RX:+3.5dBµ

52.000MHz 1000pF Coupling Capacitor.

0.8V (0V)

0.7V (0V) 50M RX:0.8V

430M RX:1.05V (0V)

76~222M RX:1.81V (0V)

50M RX:1.13V (0V)

800M RX:1.61V

430M RX:

0.81V (0V)

SUB430M RX:0.83V (0V)

800M RX:0.73V

430M RX:1.89V (0V)

SUB430M RX:1.57V (0V)

50M RX:0.67V (0V)

430M RX:0.66V (0V)

76~222M RX:1.83V (0V)

76~222M RX:

0.73V (0V)

SUB144M RX:2.4V (0V)

50M RX:2.0V (0V)

MAIN NFM RX:+7.3dBµ

435.000MHz 1000pF Coupling Capacitor.

430M RX:1.77V (0V)

SUB430M RX:

2.14V (0V)

SUB NFM RX:+5.7dBµ

435.000MHz 1000pF Coupling Capacitor.

BC SW RX:0.79V 50M RX:1.31V 50M TX:3.9V

0V (0V)

0V (1.98V)

0V (1.24V)

(5.22V)

(2.27V)

0V (2.28V)

1.0V (2.4V)

0.7V (0.7V)

76~222M RX:1.37V 76~222M TX:1.08V

76~222M RX:0.6V 76~222M TX:0.2V

50M RX:0.35V 50M TX:0.45V

145M TX:+5.1dBm 430M TX:+6.9dBm

1000pF Coupling Capacitor.

0V (3.97V)

0V (0V)

1.88V (1.92V)

0V (50M:0.8V) (144M:0.82V) (430M:1.29V)

0V (50M:1.12V)

0V (50M:0.84V) (144M:0.82V) (430M:1.29V)

0V (1.86V)

0V (50M:0.88V) (144M:0.88V) (430M:1.32V)

0V (50M:0.86V) (144M:0.86V) (430M:1.32V)

0V (50M:2.44V)

13.5V (13.3V)

0V (50M:1.75V) (144M:2.37V) (430M:2.52V)

0V (50M TX:4.51V)

50M TX:+15.7dBm

1000pF Coupling Capacitor.

0V (1.42V)

0V (50M:1.5V) (144M:2.2V) (430M:1.7V)

0V (0V) AM RX:2.61V

13.8V (13.6V)

BC SW RX:0.78V

BC SW RX:0.75V

AM RX:+12dBµ

10dB SN

0.1μF Coupling Capacitor.

0V (0V) SW RX:2.95V

0V~6.43V (0V)

SUB50M RX:1.27V (0V)

BC SW RX:0.59V

BC SW RX:1.5V

0V (0V)

1.3V (1.3V)

2.3V (2.3V)

0.66V (0.66V)

2.9V (2.9V)

6.47V (6.47V)

1.32V (1.32V)

2.9V (2.9V) UL:0V

0V (0V) UL:2.9V

6.4V (6.4V)

0V (2.9V) (AMTX:2.38V)

0V (0V) AM:2.5V (AM:2.5V)

0V (2.5V) (AMTX:0V)

0V (0V)

0V (2.9V) AMRX:1.84V (AMTX:2.9V)

0V (0V)

0V (0.48V)

0V (0V)

0V (4.85V)

0V (0V)

0V (2.9V)

2.25V (2.3V)

2.98V (3.03V)

2.93V (2.98V)

0V (2.4V)

50M: 2.77V

SHIFT ON:2.86V SHIFT OFF:0V

1.55V (1.6V) SAVE:2.94V

2.25V (1.6V)

(0.48V)

2.12V SAVE:0V

2.26V (2.81V)

0V (2.95V)

2.78V (0V)

50M: 1.99V

(2.07V)

0V (5.5V) 50M RX:0V

0V (0V) 50M RX:0.45V

13.4V (13.3V)

12.8V (12.7V)

76~222M RX:1.98V 76~222M TX:2.05V

430M: 1.99V

0.2V (0V) 430M RX:2.13V

0.66V (0V) 430M RX:2.7V

(2.01V)

Page 20

RF Unit (Lot. 1 ~ 2)

Parts Layout

acb

NJM12902V (Q1022)

CPH6102 (AB) (Q1043)

D TA144EE (16) (Q1021)

MB15A01PFV1 (Q1019)

UMD6N (D6) (Q1015)

HN1J02FU (KS) (Q1031)

UMW1 (W1) (Q1044)

DTC143ZE (E23) (Q1025)

DTC144EE (26) (Q1001, 1026, 1029,

1030, 1034, 1035, 1042, 1051, 1053)

2SA1774 (FR) (Q1033, 1036, 1038,

1046, 1052)

2SC4154E (LE) (Q1032) 2SC5226 (LN) (Q1014, 1024) 2SC5277 (D2) (Q1002, 1010) 2SC5374 (NA) (Q1016, 1017, 1018) 2SC4915 (QY) (Q1008, 1009, 1013,

1020) 2SC5555ZD (ZD-) (Q1003, 1004, 1005,

1006, 1007, 1011 ,

1012)

Side A

2SK3475 (Q1023)

2SK3476 (Q1027)

KRA760U-RTK (Q1028, 1037, 1039,

1041, 1045, 1050)

KRC654U-RTK (Q1040, 1048, 1049)

KRA755U-RTK (Q1047)

DTC144TE-TL (Q1054)

HN2D01FU (A1) (D1045, 1046)

1SS362 (C3) (D1001, 1002, 1003)

1SS321 (F9) (D1047) DAN222 (N) (D1006, 1007, 1008,

1009, 1010, 1011 , 1012, 1027, 1028, 1041, 1043, 1044,

1063) 1SS385 (09) (D1050)

Side B

Page 21

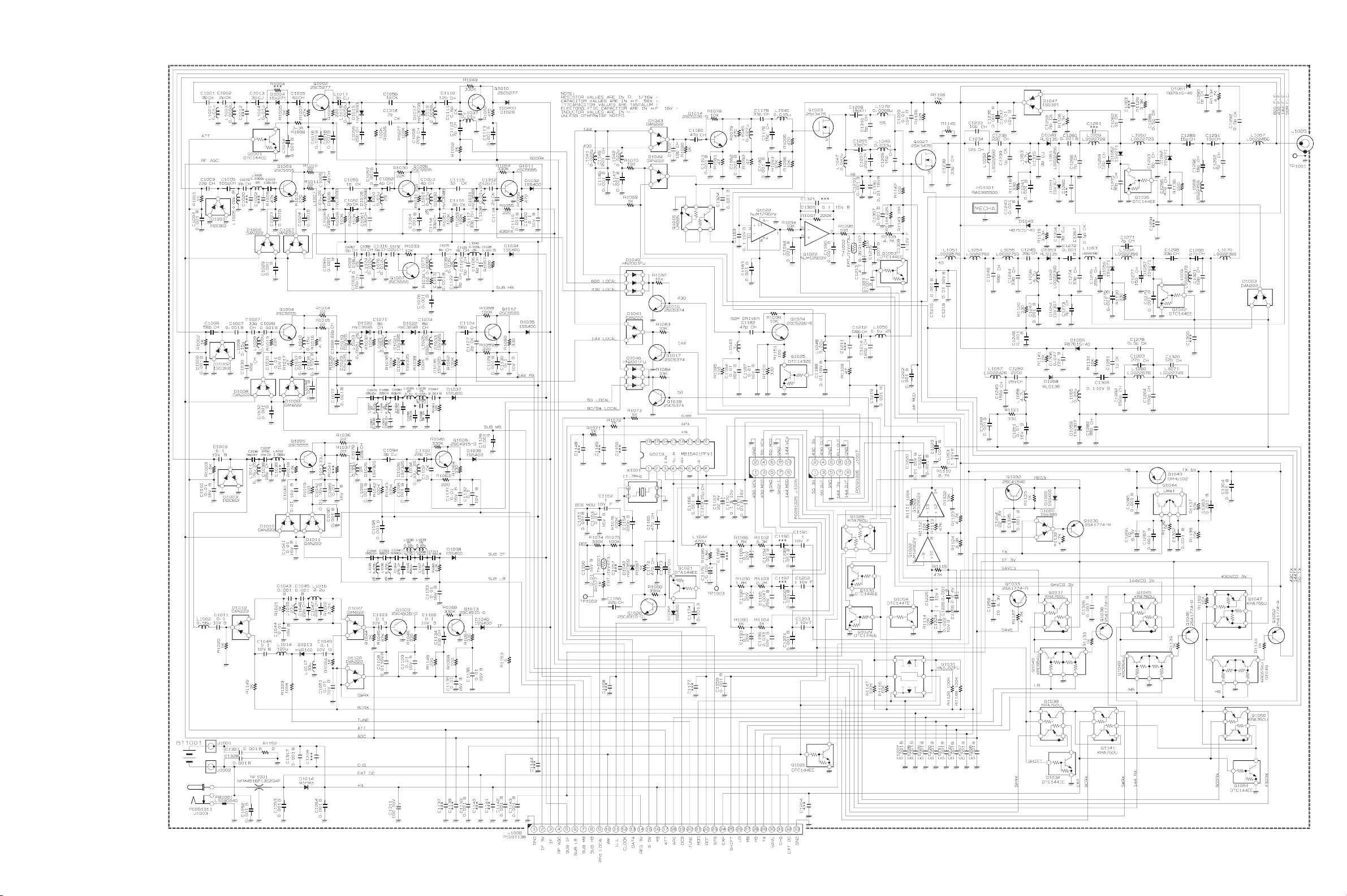

Circuit Diagram

RF Unit (Lot. 3)

Page 22

RF Unit (Lot. 3)

Parts Layout

acb

NJM12902V (Q1022)

CPH6102 (AB) (Q1043)

D TA144EE (16) (Q1021)

MB15A01PFV1 (Q1019)

UMD6N (D6) (Q1015)

HN1J02FU (KS) (Q1031)

UMW1 (W1) (Q1044)

DTC143ZE (E23) (Q1025)

DTC144EE (26) (Q1001, 1026, 1029,

1030, 1034, 1035, 1042, 1051, 1053)

2SA1774 (FR) (Q1033, 1036, 1038,

1046, 1052)

2SC4154E (LE) (Q1032) 2SC5226 (LN) (Q1014, 1024) 2SC5277 (D2) (Q1002, 1010) 2SC5374 (NA) (Q1016, 1017, 1018) 2SC4915 (QY) (Q1008, 1009, 1013,

1020) 2SC5555ZD (ZD-) (Q1003, 1004, 1005,

1006, 1007, 1011 ,

1012)

Side A

2SK3475 (Q1023)

2SK3476 (Q1027)

KRA760U-RTK (Q1028, 1037, 1039,

1041, 1045, 1050)

KRC654U-RTK (Q1040, 1048, 1049)

KRA755U-RTK (Q1047)

DTC144TE-TL (Q1054)

HN2D01FU (A1) (D1045, 1046)

1SS362 (C3) (D1001, 1002, 1003)

1SS321 (F9) (D1047) DAN222 (N) (D1006, 1007, 1008,

1009, 1010, 1011 , 1012, 1027, 1028, 1041, 1043, 1044,

1063) 1SS385 (09) (D1050)

Side B

Page 23

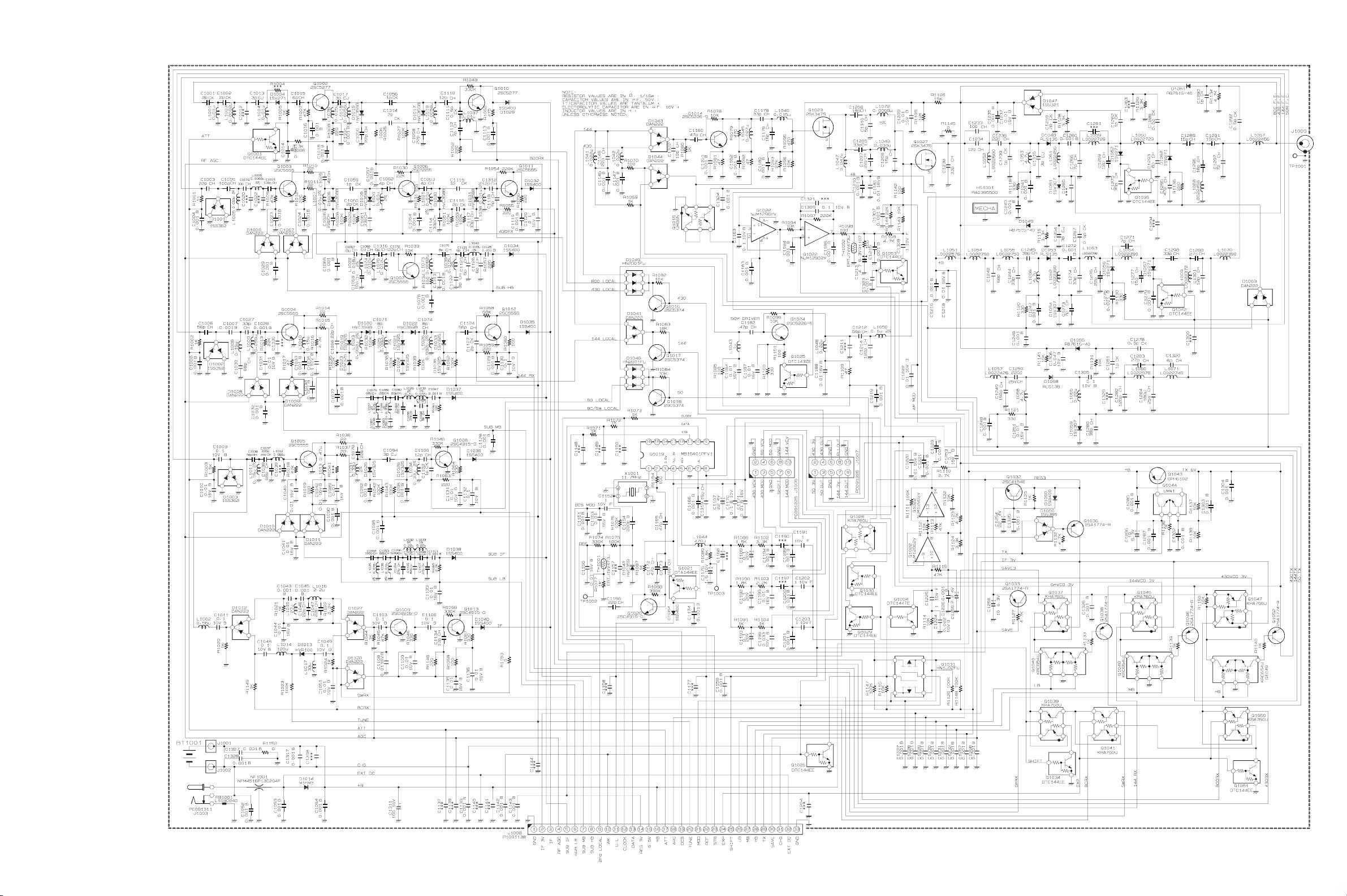

Circuit Diagram

RF Unit (Lot. 4 ~)

Page 24

RF Unit (Lot. 4 ~)

Parts Layout

acb

NJM12902V (Q1022)

CPH6102 (AB) (Q1043)

D TA144EE (16) (Q1021)

MB15A01PFV1 (Q1019)

UMD6N (D6) (Q1015)

HN1J02FU (KS) (Q1031)

UMW1 (W1) (Q1044)

DTC143ZE (E23) (Q1025)

DTC144EE (26) (Q1001, 1026, 1029,

1030, 1034, 1035, 1042, 1051, 1053)

2SA1774 (FR) (Q1033, 1036, 1038,

1046, 1052)

2SC4154E (LE) (Q1032) 2SC5226 (LN) (Q1014, 1024) 2SC5277 (D2) (Q1002, 1010) 2SC5374 (NA) (Q1016, 1017, 1018) 2SC4915 (QY) (Q1008, 1009, 1013,

1020) 2SC5555ZD (ZD-) (Q1003, 1004, 1005,

1006, 1007, 1011 ,

1012)

Side A

2SK3475 (Q1023)

2SK3476 (Q1027)

KRA760U-RTK (Q1028, 1037, 1039,

1041, 1045, 1050)

KRC654U-RTK (Q1040, 1048, 1049)

KRA755U-RTK (Q1047)

DTC144TE-TL (Q1054)

HN2D01FU (A1) (D1045, 1046)

1SS362 (C3) (D1001, 1002, 1003)

1SS321 (F9) (D1047) DAN222 (N) (D1006, 1007, 1008,

1009, 1010, 1011 , 1012, 1027, 1028, 1041, 1043, 1044,

1063) 1SS385 (09) (D1050)

Side B

Page 25

RF Unit

Parts List

REF.

C 1001 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- A A1 C 1002 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- A A1 C 1003 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- A B2 C 1004 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B2 C 1005 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- A B1 C 1006 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- B c2 C 1007 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c2 C 1008 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c1 C 1009 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c2 C 1010 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d2 C 1010 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B d2 C 1011 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B d2 C 1013 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1- A A1 C 1014 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 1015 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 1- A A2 C 1016 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 1017 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1- A A2 C 1018 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 1019 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- A B1 C 1021 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- A B1 C 1023 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1 C 1024 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1 C 1025 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 1- A B1 C 1026 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- A B1 C 1027 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- B c2 C 1028 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c2 C 1029 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B2 C 1030 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- B c2 C 1031 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c2 C 1031 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c2 C 1032 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b1 C 1033 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c2 C 1034 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c2 C 1035 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c2 C 1036 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- B c2 C 1037 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- B c2 C 1037 CHIP CAP. 220pF 50V CH GRM1552C1H221JA01D K22179713 100- B c2 C 1038 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- B c2 C 1040 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c2 C 1040 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c2 C 1041 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d2 C 1041 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B d2 C 1042 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c2 C 1042 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c2 C 1043 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B d2 C 1044 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d3 C 1044 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B d3 C 1045 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B d2 C 1046 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B d2 C 1047 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B d3 C 1048 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B d2 C 1049 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B d2 C 1051 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d3 C 1051 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B d3

DESCRIPTION

PCB with Components (with VCO Unit) CP7372008 USA

Printed Circuit Board FR008200C 1-

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

CP7372009 EXP VERSION: A1 (CE OFF) CP7372010 EXP VERSION: A2 (CE OFF) CP7372011 EXP VERSION: A3 (CE OFF) CP7372012 EXP VERSION: B1 (CE ON) CP7372013 EXP VERSION: B2 (CE ON) CP7372014 EXP VERSION: B3 (CE OFF) CP7372015 EXP VERSION: C1 (CE ON) CP7372016 EXP VERSION: C2 (CE ON) CP7372017 EXP VERSION: B3 (CE OFF) CP7372018 EXP VERSION: D1 (CE OFF) CP7372019 EXP VERSION: D2 (CE OFF) CP7372020 VERSION: B1 GERMANY (CE ON) CP7372021 VERSION: B2 GERMANY (CE ON) CP7372022 KOREA (CE ON)

FR008200D 3 FR008200E 4-

LOT.

SIDE

LAY ADR.

Page 26

RF Unit

REF.

C 1052 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C3 C 1053 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C3 C 1054 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C3 C 1055 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- A A2 C 1056 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- A B2 C 1057 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 1058 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- A A2 C 1059 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- A B2 C 1060 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- A B2 C 1061 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- A B2 C 1061 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 114- A B2 C 1062 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 1- A B2 C 1062 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 114- A B2 C 1063 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 1- A B2 C 1064 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B2 C 1065 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B2 C 1066 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B b2 C 1067 CHIP CAP. 8pF 50V CH UMK105CH080DV-F K22178256 1- A B1 C 1068 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 1- A B2 C 1069 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- A B2 C 1071 CHIP CAP. 8pF 50V CH UMK105CH080DV-F K22178256 1- B b2 C 1072 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- A B2 C 1074 CHIP CAP. 8pF 50V CH UMK105CH080DV-F K22178256 1- B b2 C 1075 CHIP CAP. 8pF 50V CH UMK105CH080DV-F K22178256 1- A B2 C 1076 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B2 C 1077 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b2 C 1078 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B c2 C 1079 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- B c2 C 1080 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B b2 C 1081 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b2 C 1082 CHIP CAP. 82pF 50V CH UMK105CH820JV-F K22178280 1- B b2 C 1083 CHIP CAP. 120pF 50V CH UMK105CH121JV-F K22178284 1- B b2 C 1084 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 1- B b2 C 1085 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1- B b3 C 1086 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B b3 C 1087 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3 C 1088 CHIP CAP. 8pF 50V CH UMK105CH080DV-F K22178256 1- B b3 C 1089 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c2 C 1089 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c2 C 1090 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B d2 C 1091 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B c2 C 1092 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c3 C 1093 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- B c2 C 1094 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1- B c2 C 1094 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 4- B c2 C 1095 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c3 C 1096 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B c2 C 1097 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- B c2 C 1098 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c3 C 1099 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- B c3 C 1100 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1 B c3 C 1100 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 2- B c3 C 1101 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c3 C 1102 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1 B c3 C 1102 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 2- B c3 C 1103 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B d3 C 1104 CHIP CAP. 27pF 50V CH UMK105CH270JV-F K22178268 1- B c2 C 1105 CHIP CAP. 82pF 50V CH UMK105CH820JV-F K22178280 1- B c2 C 1106 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c3 C 1107 CHIP CAP. 27pF 50V CH UMK105CH270JV-F K22178268 1- B c3 C 1108 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d3 C 1108 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B d3 C 1109 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d3 C 1109 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B d3 C 1110 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 1- A B2 C 1111 CHIP CAP. 0.5pF 50V CK UMK105CK0R5CV-F K22178247 1- A B2 C 1112 CHIP CAP. 7pF 50V CH UMK105CH070DV-F K22178255 1-2 A B2 C 1112 CHIP CAP. 9pF 50V CH UMK105CH090DV-F K22178257 W/ CE LABEL 3- A B2 C 1112 CHIP CAP. 7pF 50V CH UMK105CH070DV-F K22178255 W/O CE LABEL3- A B2 C 1113 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 1114 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- A B2 C 1114 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 114- A B2

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 27

RF Unit

REF.

C 1115 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- A B2 C 1116 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- A B2 C 1117 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- A B2 C 1117 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 114- A B2 C 1118 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1 A B2 C 1118 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 2- A B2 C 1119 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2 C 1120 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C2 C 1121 CHIP CAP. 8pF 50V CH UMK105CH080DV-F K22178256 1- A B2 C 1122 CHIP CAP. 9pF 50V CH UMK105CH090DV-F K22178257 1- A B2 C 1123 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 1- A B2 C 1124 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- B b2 C 1125 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B2 C 1126 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 1- A B2 C 1127 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- B a2 C 1127 CHIP CAP. 1pF 50V CK GRM1554C1H1R0BZ01D K22178287 92- B a2 C 1128 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3 C 1129 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b2 C 1130 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b2 C 1131 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3 C 1131 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c3 C 1132 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c3 C 1133 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3 C 1133 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c3 C 1134 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- B c3 C 1135 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3 C 1135 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c3 C 1136 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3 C 1136 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c3 C 1139 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B3 C 1142 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B3 C 1143 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A3 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1-67 A C2 C 1145 CHIP CAP. 8pF 50V CH UMK105CH080DV-F K22178256 79-98 A C2 C 1145 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 EXPORT 99-107 A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 EXPORT 110- A C2 C 1145 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 GERMANY 99-107 A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 GERMANY 110- A C2 C 1145 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 K1 VERSION 108-109 A C2 C 1145 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 KOREA 99-107 A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 KOREA 110- A C2 C 1145 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 TYP:B1 GERMANY 108-109 A C2 C 1145 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 TYP:B2 GERMANY 108-109 A C2 C 1145 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 USA 99- A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 USA 107-107 A C2 C 1145 CHIP CAP. 18pF 50V CH UMK105CH180JV-F K22178264 USA 110- A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 VERSION A1 108-109 A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 VERSION A2 108-109 A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 VERSION A3 108-109 A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 VERSION B1 108-109 A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 VERSION B2 108-109 A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 VERSION B3 108-109 A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 VERSION C1 108-109 A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 VERSION C2 108-109 A C2 C 1145 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 VERSION C3 108-109 A C2 C 1145 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 VERSION D1 108-109 A C2 C 1145 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 VERSION D2 108-109 A C2 C 1146 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2 C 1147 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2 C 1151 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a2 C 1151 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 18-37 B a2 C 1152 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B a2 C 1153 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a2 C 1153 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a2 C 1154 CHIP CAP. 220pF 50V B UMK105B221KW-F K22178821 1- B a2 C 1155 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a2 C 1155 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a2 C 1156 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B a2 C 1159 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 1160 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 1-102 A C2 C 1160 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 EXPORT 103-104 A C2 C 1160 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 GERMANY 103-104 A C2

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 28

RF Unit

REF.

C 1160 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 K1 VERSION 105- A C2 C 1160 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 KOREA 103-104 A C2 C 1160 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 C 1160 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 C 1160 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 USA 103-104 A C2 C 1160 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 VERSION A1 105- A C2 C 1160 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 VERSION A2 105- A C2 C 1160 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 VERSION A3 105- A C2 C 1160 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 VERSION B1 105- A C2 C 1160 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 VERSION B2 105- A C2 C 1160 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 VERSION B3 105- A C2 C 1160 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 VERSION C1 105- A C2 C 1160 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 VERSION C2 105- A C2 C 1160 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 VERSION C3 105- A C2 C 1160 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 VERSION D1 105- A C2 C 1160 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 VERSION D2 105- A C2 C 1161 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2 C 1162 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2 C 1163 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A D1 C 1164 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C2 C 1164 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A C2 C 1165 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 1- B a2 C 1166 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a2 C 1167 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- B a2 C 1170 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C3 C 1171 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C2 C 1171 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A C2 C 1172 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 1- B a2 C 1173 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- B a2 C 1174 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a2 C 1175 CHIP TA.CAP. 1.5uF 10V TEESVP1A155M8R K78100050 1- B a3 C 1178 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- A D2 C 1178 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 4-46 A D2 C 1178 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 EXPORT 47- A D2 C 1178 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 GERMANY 47- A D2 C 1178 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 GERMANY 99- A D2 C 1178 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 KOREA 47- A D2 C 1178 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 USA 47- A D2 C 1179 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A D2 C 1179 CHIP CAP. 18pF 50V CH UMK105CH180JV-F K22178264 4- A D2 C 1179 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 47-98 A D2 C 1179 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 EXPORT 99- A D2 C 1179 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 GERMANY 99- A D2 C 1179 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 KOREA 99- A D2 C 1179 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 USA 99- A D2 C 1180 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A D1 C 1181 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C2 C 1181 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A C2 C 1182 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 1- A C2 C 1183 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A D1 C 1184 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A D1 C 1186 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C1 C 1187 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C2 C 1187 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A C2 C 1188 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C2 C 1188 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A C2 C 1189 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- B a3 C 1190 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 EXPORT 2- B a3 C 1190 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 GERMANY 99- B a3 C 1190 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 KOREA 16- B a3 C 1190 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 USA 1- B a3 C 1191 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B b3 C 1192 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- B a3 C 1193 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- B b3 C 1194 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a3 C 1195 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b3 C 1195 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B b3 C 1196 CHIP CAP. 0.033uF 10V B GRM155B11A333KA01D K22108803 1- B b3 C 1199 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a3 C 1200 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3 C 1201 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3 C 1202 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B b3

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

TYP:B1 GERMANY TYP:B2 GERMANY

SIDE

LOT.

105- A C2 105- A C2

LAY ADR.

Page 29

RF Unit

REF.

C 1203 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B b3 C 1205 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 EXPORT 1 A C1 C 1205 CHIP CAP. 27pF 50V CH UMK105CH270JV-F K22178268 EXPORT 2- A C1 C 1205 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 GERMANY 1- A C1 C 1205 CHIP CAP. 27pF 50V CH UMK105CH270JV-F K22178268 GERMANY 99- A C1 C 1205 CHIP CAP. 27pF 50V CH UMK105CH270JV-F K22178268 KOREA 16- A C1 C 1205 CHIP CAP. 27pF 50V CH UMK105CH270JV-F K22178268 USA 1- A C1 C 1206 CHIP CAP. 18pF 50V CH UMK105CH180JV-F K22178264 1- A C1 C 1207 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 EXPORT 1 A C1 C 1207 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 EXPORT 2- A C1 C 1207 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 GERMANY 1- A C1 C 1207 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 GERMANY 99- A C1 C 1207 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 KOREA 16- A C1 C 1207 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 USA 1- A C1 C 1208 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 EXPORT 1 A C1 C 1208 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 GERMANY 1-98 A C1 C 1209 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1 C 1209 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a1 C 1210 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2 C 1212 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- A C1 C 1213 CHIP TA.CAP. 4.7uF 6.3V TEESVP0J475M8R K78080053 1- A C1 C 1214 CHIP CAP. 120pF 50V CH UMK105CH121JV-F K22178284 1-67 A C1 C 1214 CHIP CAP. 180pF 25V CH GRM36CH181J25PT K22148201 EXPORT 68- A C1 C 1214 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 EXPORT 100- A C1 C 1214 CHIP CAP. 120pF 50V CH UMK105CH121JV-F K22178284 GERMANY 68- A C1 C 1214 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 GERMANY 99- A C1 C 1214 CHIP CAP. 180pF 25V CH GRM36CH181J25PT K22148201 KOREA 68- A C1 C 1214 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 KOREA 100- A C1 C 1214 CHIP CAP. 180pF 25V CH GRM36CH181J25PT K22148201 USA 68- A C1 C 1214 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 USA 100- A C1 C 1215 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C1 C 1216 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C1 C 1218 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B1 C 1218 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A B1 C 1219 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2 C 1220 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B2 C 1220 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A B2 C 1221 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a1 C 1222 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1 A D1 C 1222 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 2- A D1 C 1222 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A D1 C 1223 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C3 C 1224 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- B a2 C 1225 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B a2 C 1226 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a1 C 1227 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B3 C 1228 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A3 C 1229 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 1230 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B3 C 1231 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a1 C 1232 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2 C 1233 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1-100 A B1 C 1233 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 EXPORT 101- A B1 C 1233 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 GERMANY 101- A B1 C 1233 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 KOREA 101- A B1 C 1233 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 USA 101- A B1 C 1234 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 1- A B1 C 1235 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- A B1 C 1235 CHIP CAP. 27pF 50V CH UMK105CH270JV-F K22178268 39- A B1 C 1236 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 1237 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A2 C 1237 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A A2 C 1238 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- A B1 C 1238 CHIP CAP. 36pF 50V CH UMK105CH360JV-F K22178271 47- A B1 C 1239 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1-46 A B1 C 1240 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1 C 1241 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1 C 1242 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- B b1 C 1242 CHIP CAP. 62pF 50V CH GRM1882C1H620JZ01D K22174230 67- B b1 C 1242 CHIP CAP. 62pF 50V CH GRM1882C1H620GA01D K22174284 130- B b1 C 1244 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1-140 B c1 C 1244 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 EXPORT 141- B c1

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 30

RF Unit

REF.

C 1244 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 GERMANY 141- B c1 C 1244 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 KOREA 141- B c1 C 1244 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 USA 141- B c1 C 1245 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 1- B c1 C 1245 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 4- B c1 C 1246 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1 C 1247 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c1 C 1248 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c2 C 1249 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- B b1 C 1249 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 64- B b1 C 1250 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- B b1 C 1250 CHIP CAP. 180pF 25V CH TMK105CH181JV-F K22148244 67- B b1 C 1251 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c2 C 1251 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c2 C 1253 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1 A D2 C 1253 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 2- A D2 C 1254 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- A A3 C 1255 CHIP TA.CAP. 2.2uF 4V TEESVP0G225M8R K78060025 1- B a1 C 1256 CHIP TA.CAP. 10uF 6.3V TEESVP0J106M8R K78080055 1- A A3 C 1257 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A3 C 1258 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 1259 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- A A1 C 1260 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 1262 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- A A1 C 1264 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1- B c1 C 1264 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 64- B c1 C 1266 CHIP CAP. 7pF 50V CH UMK105CH070DV-F K22178255 1- A A1 C 1267 CHIP CAP. 0.5pF 50V CK GRM1554C1HR50BZ01D K22178285 1- B c1 C 1269 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 1- A A1 C 1270 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 1- A A1 C 1271 CHIP CAP. 7pF 50V CH UMK105CH070DV-F K22178255 1-103 B c1 C 1271 CHIP CAP. 7pF 50V CH UMK105CH070DV-F K22178255 EXPORT 104- B c1 C 1271 CHIP CAP. 7pF 50V CH UMK105CH070DV-F K22178255 GERMANY 104- B c1 C 1271 CHIP CAP. 7pF 50V CH UMK105CH070DV-F K22178255 KOREA 104- B c1 C 1271 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 USA 104- B c1 C 1272 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c1 C 1273 CHIP CAP. 7pF 50V CH UMK105CH070DV-F K22178255 1-46 B c1 C 1273 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 EXPORT 47- B c1 C 1273 CHIP CAP. 7pF 50V CH UMK105CH070DV-F K22178255 GERMANY 47- B c1 C 1273 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 GERMANY 99- B c1 C 1273 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 KOREA 47- B c1 C 1273 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 USA 47- B c1 C 1274 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1-140 B c1 C 1274 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 EXPORT 141- B c1 C 1274 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 GERMANY 141- B c1 C 1274 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 KOREA 141- B c1 C 1274 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 USA 141- B c1 C 1275 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B c1 C 1276 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c1 C 1277 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1-46 B c1 C 1277 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 EXPORT 47- B c1 C 1277 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 GERMANY 47- B c1 C 1277 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 GERMANY 99- B c1 C 1277 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 KOREA 47- B c1 C 1277 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 USA 47- B c1 C 1278 CHIP CAP. 0.5pF 50V CK GRM1554C1HR50BZ01D K22178285 1- B c1 C 1279 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B d1 C 1280 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 1- B d2 C 1280 CHIP CAP. 27pF 50V CH UMK105CH270JV-F K22178268 3- B d2 C 1281 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- B c1 C 1282 CHIP CAP. 150pF 50V CH GRM1552C1H151JA01D K22178240 1- B d2 C 1282 CHIP CAP. 150pF 50V CH GRM1552C1H151JA01D K22178240 3- B d2 C 1283 CHIP CAP. 27pF 50V CH UMK105CH270JV-F K22178268 1- B d1 C 1284 CHIP CAP. 150pF 50V CH GRM1552C1H151JA01D K22178240 1- B d1 C 1284 CHIP CAP. 180pF 25V CH GRM36CH181J25PT K22148201 3 B d1 C 1284 CHIP CAP. 180pF 25V CH GRM36CH181J25PT K22148201 W/ CE LABEL 4- B d1 C 1284 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 W/ CE LABEL 100- B d1 C 1284 CHIP CAP. 150pF 50V CH GRM1552C1H151JA01D K22178240 C 1285 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a2 C 1286 CHIP TA.CAP. 10uF 6.3V TEESVP0J106M8R K78080055 1- B a1 C 1287 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a1 C 1288 CHIP CAP. 0.5pF 50V CK GRM1554C1HR50BZ01D K22178285 1- A A1

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

W/O CE LABEL

SIDE

LOT.

4- B d1

LAY ADR.

Page 31

RF Unit

REF.

C 1289 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A A1 C 1290 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- B d1 C 1291 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A A1 C 1292 CHIP CAP. 0.5pF 50V CK GRM1554C1HR50BZ01D K22178285 1- B d1 C 1293 CHIP CAP. 8pF 50V CH UMK105CH080DV-F K22178256 1- A A1 C 1295 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 1- A A1 C 1296 CHIP CAP. 18pF 50V CH UMK105CH180JV-F K22178264 1- A A1 C 1297 CHIP CAP. 7pF 50V CH UMK105CH070DV-F K22178255 1- A A1 C 1298 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- B c1 C 1299 CHIP CAP. 27pF 50V CH UMK105CH270JV-F K22178268 1- B c1 C 1301 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 1- B c1 C 1302 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a2 C 1303 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a2 C 1304 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a2 C 1305 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c1 C 1306 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B c1 C 1307 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C1 C 1308 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- A C1 C 1309 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A D1 C 1310 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 EXPORT 1 A C1 C 1310 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 EXPORT 2- A C1 C 1310 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 EXPORT 64- A C1 C 1310 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 GERMANY 1- A C1 C 1310 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 KOREA 16- A C1 C 1310 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 KOREA 64- A C1 C 1310 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 USA 1- A C1 C 1310 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 USA 64- A C1 C 1311 AL.ELECTRO.CAP. 100uF 16V EEE1CA101WP K48120012 1- A B3 C 1312 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 1- A B2 C 1313 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B2 C 1314 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- A A2 C 1315 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1- A B1 C 1315 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 47- A B1 C 1315 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 64- A B1 C 1315 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 76- A B1 C 1316 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 1- A B2 C 1317 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3 C 1319 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- B a3 C 1320 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 1- B d1 C 1320 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 3 B d1 C 1320 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 W/ CE LABEL 4- B d1 C 1320 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 C 1321 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 47- A D1 C 1322 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1-63 A C2 C 1322 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 79-98 A C2 C 1323 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a1 C 1324 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 3- A C2 C 1325 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 3- A A3 C 1326 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 3- A C3 C 1327 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 3- B b3 C 1328 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 3- B c3 C 1330 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 W/ CE LABEL 3- B c2 C 1331 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 4- A A2 C 1332 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 VERSION A1 39-63 C 1332 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 VERSION A2 39-63 C 1332 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 VERSION A3 39-63 C 1332 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 VERSION B3 39-63 C 1332 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 VERSION C3 39-63 C 1333 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 68 C 1333 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 EXPORT 69C 1333 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 GERMANY 99C 1333 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 KOREA 69C 1333 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 USA 69D 1001 DIODE 1SS362(TE85R.F) G2070268 1- A B1 D 1002 DIODE 1SS362(TE85R.F) G2070268 1- B c2 D 1003 DIODE 1SS362(TE85R.F) G2070268 1- B c2 D 1004 DIODE 1SV271(TPH3.F) G2070476 1- A A1 D 1005 DIODE HVC358B TRF-E G2070590 1- A B1 D 1006 DIODE DAN222 TL G2070174 1- A B1 D 1007 DIODE DAN222 TL G2070174 1- A B1 D 1008 DIODE DAN222 TL G2070174 1- B c2 D 1008 DIODE 1SS385(TE85L.F) G2070880 116- B c2

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

W/O CE LABEL

SIDE

LOT.

4- B d1

LAY ADR.

Page 32

RF Unit

REF.

D 1009 DIODE DAN222 TL G2070174 1- B b2 D 1009 DIODE 1SS385(TE85L.F) G2070880 116- B b2 D 1010 DIODE DAN222 TL G2070174 1- B c2 D 1011 DIODE DAN222 TL G2070174 1- B c2 D 1012 DIODE DAN222 TL G2070174 1- B d2 D 1013 DIODE HVR100-8TRU-E G2070540 1- B d2 D 1014 DIODE M1FM3-5063 G2070804 1- A C3 D 1014 DIODE M1FM3-6063 G2071090 121- A C3 D 1015 DIODE HVC355B TRF-E G2070588 1- A A2 D 1017 DIODE HVC355B TRF-E G2070588 1- A A2 D 1018 DIODE HVC358B TRF-E G2070590 1- A B2 D 1019 DIODE 1SV325(TPH3.F) G2070848 1- B b2 D 1020 DIODE HVC369B TRF-E G2070872 1- B b2 D 1021 DIODE 1SV325(TPH3.F) G2070848 1- B b2 D 1022 DIODE HVC369B TRF-E G2070872 1- B b2 D 1023 DIODE 1SV325(TPH3.F) G2070848 1- B b2 D 1024 DIODE 1SV325(TPH3.F) G2070848 1- B b2 D 1025 DIODE 1SV325(TPH3.F) G2070848 1- B c3 D 1026 DIODE 1SV325(TPH3.F) G2070848 1- B c3 D 1027 DIODE DAN222 TL G2070174 1- B d3 D 1028 DIODE DAN222 TL G2070174 1- B d3 D 1029 DIODE 1SS400 TE61 G2070634 1- A A2 D 1030 DIODE HVC358B TRF-E G2070590 1- A B2 D 1031 DIODE HVC358B TRF-E G2070590 1- A B2 D 1032 DIODE 1SS400 TE61 G2070634 1- A B2 D 1033 DIODE 1SV325(TPH3.F) G2070848 1- B b2 D 1034 DIODE 1SS400 TE61 G2070634 1- A B2 D 1035 DIODE 1SS400 TE61 G2070634 1- B b2 D 1036 DIODE 1SV325(TPH3.F) G2070848 1- B b2 D 1037 DIODE 1SS400 TE61 G2070634 1- B c3 D 1038 DIODE 1SS400 TE61 G2070634 1- B c3 D 1039 DIODE 1SS400 TE61 G2070634 1- B c3 D 1040 DIODE 1SS400 TE61 G2070634 1- B c3 D 1041 DIODE DAN222 TL G2070174 1- B b2 D 1042 DIODE HVC359 TRF-E G2070708 1- B a2 D 1043 DIODE DAN222 TL G2070174 1- A C2 D 1044 DIODE DAN222 TL G2070174 1- A C2 D 1045 DIODE HN2D01FU(TE85R.F) G2070348 1- A C2 D 1046 DIODE HN2D01FU(TE85R.F) G2070348 1- B b2 D 1047 DIODE 1SS321(TE85R.F) G2070076 1- A A2 D 1048 DIODE RLS135 TE-11 G2070128 1- A B1 D 1049 DIODE RB751S-40TE61 G2070850 1- B c1 D 1050 DIODE 1SS385(TE85L.F) G2070880 1- A A3 D 1051 DIODE 1SV307(TPH3.F) G2070638 1- A B2 D 1052 DIODE 1SV271(TPH3.F) G2070476 1- A A1 D 1053 DIODE RLS135 TE-11 G2070128 1- B c1 D 1054 DIODE 1SV307(TPH3.F) G2070638 1- B c1 D 1055 DIODE RB751S-40TE61 G2070850 1- B c1 D 1056 DIODE 1SV271(TPH3.F) G2070476 1- B c1 D 1057 DIODE 1SV271(TPH3.F) G2070476 1- B c1 D 1058 DIODE RLS135 TE-11 G2070128 1- B c1 D 1059 DIODE 1SV307(TPH3.F) G2070638 1- B c2 D 1060 DIODE 1SS400 TE61 G2070634 1- A A3 D 1061 DIODE RB751S-40TE61 G2070850 1- B d1 D 1062 DIODE 1SV271(TPH3.F) G2070476 1- A A1 D 1063 DIODE DAN222 TL G2070174 1- B b2 D 1064 DIODE 1SS400 TE61 G2070634 1- B a2 FB1001 CHIP COIL BLM21PG300SN1D L1690840 1- A C3 HS1001 HEATSINK PLATE RA0395500 1- B b1 J 1006 CONNECTOR AXK6F10335YP P0091225 1- B c2 J 1007 CONNECTOR AXK6F10335YP P0091225 1- B b2 J 1008 CONNECTOR IL-FPR-33S-VFN1-R1500 P1091138 1- A A2 L 1001 M.RFC 0.01uH ELJRF10NJFB L1690831 1- A A1 L 1002 M.RFC 0.56uH LK1608 R56K-T L1690415 1- B d2 L 1003 M.RFC 0.0082uH TFL0510-8N2 L1690810 1- A A1 L 1004 M.RFC 0.01uH ELJRF10NJFB L1690831 1- A A1 L 1005 M.RFC 0.033uH 2% C1608CB-33NG-RF L1691038 1- A B1 L 1006 M.RFC 0.0068uH 5% C1608CB-6N8J-RF L1691093 1- A B1 L 1007 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- A B1 L 1008 M.RFC 0.15uH LK1608 R15K-T L1690409 1- B c2 L 1009 M.RFC 0.056uH HK1608 56NJ-T L1690525 1- B c2 L 1010 M.RFC 0.15uH LK1608 R15K-T L1690409 1- B c2

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 33

RF Unit

REF.

L 1011 M.RFC 0.15uH 2% C1608CB-R15G-RF L1691101 1- B c2 L 1012 M.RFC 0.068uH LK1608 68NM-T L1690406 1- B c2 L 1013 M.RFC 33uH LK1608 330M-T L1690690 1 B c2 L 1013 M.RFC 0.47uH LK1608 R47K-T L1690414 2- B c2 L 1014 M.RFC 120uH FLC32T-121J L1690228 1- B d2 L 1015 M.RFC 27uH LK1608 270M-T L1691031 1- B d2 L 1016 M.RFC 2.2uH LK1608 2R2K-T L1690634 1- B d2 L 1017 M.RFC 33uH LK1608 330M-T L1690690 1- B d2 L 1018 M.RFC 0.0056uH TFL0510-5N6 L1690808 1- A A2 L 1019 M.RFC 0.0056uH TFL0510-5N6 L1690808 1- A A2 L 1020 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- A B2 L 1021 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- A B2 L 1022 M.RFC 0.018uH 2% C1608CB-18NG-RF L1691035 1- A B2 L 1023 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 1- B b2 L 1023 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 116- B b2 L 1025 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 1- B b2 L 1025 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 116- B b2 L 1026 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 1- B b2 L 1026 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 116- B b2 L 1027 M.RFC 0.015uH 2% C1608CB-15NG-RF L1691034 1- B c2 L 1028 M.RFC 0.039uH 2% C1608CB-39NG-RF L1691039 1- B b2 L 1029 M.RFC 0.1uH 2% C1608CB-R10G-RF L1691045 1- B b2 L 1030 M.RFC 0.072uH 2% C1608CB-72NG-RF L1691043 1- B b3 L 1031 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 1- B c3 L 1032 M.RFC 0.22uH 5% C1608CB-R22J-RF L1691068 1- B c2 L 1032 M.RFC 0.22uH 2% C1608CB-R22G-RF L1691103 36- B c2 L 1033 M.RFC 0.22uH 5% C1608CB-R22J-RF L1691068 1- B c3 L 1033 M.RFC 0.22uH 2% C1608CB-R22G-RF L1691103 36- B c3 L 1034 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 1- B c3 L 1035 M.RFC 0.072uH 2% C1608CB-72NG-RF L1691043 1- B c2 L 1036 M.RFC 0.072uH 2% C1608CB-72NG-RF L1691043 1- B c2 L 1037 M.RFC 0.01uH ELJRF10NJFB L1690831 1- A B2 L 1038 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- A B2 L 1039 M.RFC 0.018uH 2% C1608CB-18NG-RF L1691035 1- A B2 L 1040 M.RFC 0.033uH 2% C1608CB-33NG-RF L1691038 1- A B2 L 1041 M.RFC 0.022uH TFL0510-22N L1690815 1- A C2 L 1042 M.RFC 0.022uH TFL0510-22N L1690815 1- A C2 L 1043 M.RFC 1uH LK1608 1R0K-T L1690687 1- A C2 L 1044 M.RFC 470uH FLC32T-471J L1690235 1- B a3 L 1045 M.RFC 0.027uH TFL0510-27N L1690816 1- A C2 L 1045 M.RFC 0.039uH TFL0510-39N L1690818 93- A C2 L 1046 M.RFC 0.015uH TFL0510-15N L1690813 1- A D1 L 1046 M.RFC 0.012uH TFL0510-12N L1690812 4- A D1 L 1047 CHIP COIL 0.047uH LQW2BHN47NJ03L L1690617 1-2 A C1 L 1047 CHIP COIL 0.047uH LQW2BHN47NJ03L L1690617 K1 VERSION 99- A C1 L 1047 CHIP COIL 0.039uH LQW2BHN39NJ03L L1690616 L 1047 CHIP COIL 0.039uH LQW2BHN39NJ03L L1690616 L 1047 CHIP COIL 0.047uH LQW2BHN47NJ03L L1690617 VERSION A1 99- A C1 L 1047 COIL E2 0.3-1.4-6T-L L0022455 VERSION A1 105- A C1 L 1047 COIL E2 0.3-1.4-6T-L L0022455 VERSION A2 99- A C1 L 1047 CHIP COIL 0.047uH LQW2BHN47NJ03L L1690617 VERSION A3 99- A C1 L 1047 COIL E2 0.3-1.4-6T-L L0022455 VERSION A3 105- A C1 L 1047 CHIP COIL 0.039uH LQW2BHN39NJ03L L1690616 VERSION B1 99- A C1 L 1047 COIL E2 0.3-1.4-6T-L L0022455 VERSION B1 105- A C1 L 1047 CHIP COIL 0.039uH LQW2BHN39NJ03L L1690616 VERSION B2 99- A C1 L 1047 COIL E2 0.3-1.4-6T-L L0022455 VERSION B2 105- A C1 L 1047 CHIP COIL 0.047uH LQW2BHN47NJ03L L1690617 VERSION B3 99- A C1 L 1047 COIL E2 0.3-1.4-6T-L L0022455 VERSION B3 105- A C1 L 1047 CHIP COIL 0.039uH LQW2BHN39NJ03L L1690616 VERSION C1 99- A C1 L 1047 COIL E2 0.3-1.4-6T-L L0022455 VERSION C1 105- A C1 L 1047 CHIP COIL 0.039uH LQW2BHN39NJ03L L1690616 VERSION C2 99- A C1 L 1047 COIL E2 0.3-1.4-6T-L L0022455 VERSION C2 105- A C1 L 1047 CHIP COIL 0.047uH LQW2BHN47NJ03L L1690617 VERSION C3 99- A C1 L 1047 COIL E2 0.3-1.4-6T-L L0022455 VERSION C3 105- A C1 L 1047 CHIP COIL 0.047uH LQW2BHN47NJ03L L1690617 VERSION D1 99- A C1 L 1047 CHIP COIL 0.047uH LQW2BHN47NJ03L L1690617 VERSION D2 99- A C1 L 1047 CHIP COIL 0.039uH LQW2BHN39NJ03L L1690616 W/ CE LABEL 3-98 A C1 L 1047 CHIP COIL 0.047uH LQW2BHN47NJ03L L1690617 L 1048 M.RFC 0.22uH LK1608 R22K-T L1690410 1- A C1 L 1049 M.RFC 0.033uH ELJ-RE33NJF2 L1690720 EXPORT 1 A C1 L 1049 M.RFC 0.022uH ELJ-RE22NJF2 L1690718 EXPORT 2- A C1 L 1049 M.RFC 0.033uH ELJ-RE33NJF2 L1690720 GERMANY 1- A C1

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

TYP:B1 GERMANY TYP:B2 GERMANY

W/O CE LABEL

SIDE

LOT.

99- A C1 99- A C1

3-98 A C1

LAY ADR.

Page 34

RF Unit

REF.

L 1049 M.RFC 0.022uH ELJ-RE22NJF2 L1690718 GERMANY 99- A C1 L 1049 M.RFC 0.022uH ELJ-RE22NJF2 L1690718 KOREA 16- A C1 L 1049 M.RFC 0.022uH ELJ-RE22NJF2 L1690718 USA 1- A C1 L 1050 M.RFC 0.1uH 2% C1608CB-R10G-RF L1691045 1- A C1 L 1051 COIL E2 0.25-1.85-8.5T-L L0022576 1- A C1 L 1052 COIL E2 0.4-1.3-2T-L L0022580 1- A B2 L 1053 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- A B1 L 1054 COIL E2 0.5-1.4-2.5T-L L0022750 1- B b1 L 1055 COIL E2 0.5-1.4-2.5T-L L0022750 1- B b1 L 1056 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- B c1 L 1057 COIL E2 0.28-1.0-11TR L0022426 1- B b1 L 1058 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- B c1 L 1059 COIL E2 0.35-1.4-3.5T-L-B L0022729 1- A A1 L 1060 COIL E2 0.35-1.4-3.5T-L-B L0022729 1- A A1 L 1061 COIL E2 0.35-1.6-4T-L L0022456 1- A A1 L 1062 COIL E2 0.35-1.6-7T-L L0022390 1- B c1 L 1063 COIL E2 0.35-1.6-7T-L L0022390 1- B c1 L 1064 COIL E2 0.35-1.6-7T-L L0022390 1- B c1 L 1065 CHIP COIL 0.22uH LQW2BHNR22J03L L1690600 1- B c2 L 1066 COIL E2 0.25-1.85-8.5T-L L0022576 1- B d1 L 1067 COIL E2 0.35-1.6-4T-L L0022456 1- A A1 L 1068 COIL E2 0.35-1.6-4T-L L0022456 1- A A1 L 1069 COIL E2 0.3-1.7-7T-R L0022372 1- B c1 L 1070 COIL E2 0.35-1.6-7T-L L0022390 1- B d1 L 1071 COIL E2 0.25-1.9-10.5T-L L0022749 1- B d1 L 1072 M.RFC 0.0068uH 5% C1608CB-6N8J-RF L1691093 1- A C1 L 1073 M.RFC 0.0082uH HK1608 8N2J-T L1690515 1- A B2 L 1074 M.RFC 0.012uH TFL0510-12N L1690812 1- A B2 L 1075 M.RFC 0.012uH TFL0510-12N L1690812 1- A B2 L 1076 M.RFC 0.015uH TFL0510-15N L1690813 4- A A2 NF1001 EMI FILTER NFM4516P13C204FT1 Q9000759 1- A C3 Q 1001 TRANSISTOR DTC144EE TL G3070075 1- A A2 Q 1001 TRANSISTOR KRC404E-RTK/P G3070355 75- A A2 Q 1002 TRANSISTOR 2SC5277-D2-TL G3352778B 1- A A2 Q 1003 TRANSISTOR 2SC5555ZD-TR G3355557 1- A B1 Q 1004 TRANSISTOR 2SC5555ZD-TR G3355557 1- B c2 Q 1005 TRANSISTOR 2SC5555ZD-TR G3355557 1- B c2 Q 1006 TRANSISTOR 2SC5555ZD-TR G3355557 1- A B2 Q 1007 TRANSISTOR 2SC5555ZD-TR G3355557 1- A B2 Q 1008 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B c3 Q 1009 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B d3 Q 1010 TRANSISTOR 2SC5277-D2-TL G3352778B 1- A A2 Q 1011 TRANSISTOR 2SC5555ZD-TR G3355557 1- A C2 Q 1012 TRANSISTOR 2SC5555ZD-TR G3355557 1- B b2 Q 1013 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B c3 Q 1014 TRANSISTOR 2SC5226-5-TL G3352268E 1- A C2 Q 1015 TRANSISTOR UMD6N TR G3070215 1- A C2 Q 1016 TRANSISTOR 2SC5374-TL G3353748 1- A C2 Q 1017 TRANSISTOR 2SC5374-TL G3353748 1- B b2 Q 1018 TRANSISTOR 2SC5374-TL G3353748 1- B b2 Q 1019 IC Q 1020 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B a2 Q 1021 TRANSISTOR DTA144EE TL G3070074 1- B a2 Q 1021 TRANSISTOR KRA304E-RTK/P G3070354 75- B a2 Q 1022 IC NJM12902V-TE1 G1093592 1- A D1 Q 1023 FET 2SK3475(TE12L) G3834758 1- A C1 Q 1023 FET 2SK3475(T2LVX.F) G3070318 19- A C1 Q 1024 TRANSISTOR 2SC5226-5-TL G3352268E 1- A C1 Q 1025 TRANSISTOR DTC143ZE TL G3070102 1- A C2 Q 1026 TRANSISTOR DTC144EE TL G3070075 1- B a1 Q 1026 TRANSISTOR KRC404E-RTK/P G3070355 75- B a1 Q 1027 FET 2SK3476(TE12L.Q) G3834768 1- A C1 Q 1028 TRANSISTOR KRA760U-RTK G3070278 1- A C2 Q 1028 TRANSISTOR UMB3N TN G3070158 117- A C2 Q 1029 TRANSISTOR DTC144EE TL G3070075 1- A C2 Q 1029 TRANSISTOR KRC404E-RTK/P G3070355 75- A C2 Q 1030 TRANSISTOR DTC144EE TL G3070075 1- A C2 Q 1030 TRANSISTOR KRC404E-RTK/P G3070355 75- A C2 Q 1031 FET HN1J02FU(TE85L.F) G3070221 1- B a1 Q 1032 TRANSISTOR 2SC4154-T111-1E G3341548E 1- A A3 Q 1033 TRANSISTOR 2SA1774 TL R G3117748R 1- A A3 Q 1033 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- A A3

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

MB15A01PFV1-G-BND-EFE1

G1092545 1- B b2

LOT.

SIDE

LAY ADR.

Page 35

RF Unit

REF.

Q 1034 TRANSISTOR DTC144EE TL G3070075 1- A B2 Q 1034 TRANSISTOR KRC404E-RTK/P G3070355 75- A B2 Q 1035 TRANSISTOR DTC144EE TL G3070075 1- A A1 Q 1035 TRANSISTOR KRC404E-RTK/P G3070355 75- A A1 Q 1036 TRANSISTOR 2SA1774 TL R G3117748R 1- A A3 Q 1036 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- A A3 Q 1037 TRANSISTOR KRA760U-RTK G3070278 1- A B2 Q 1037 TRANSISTOR UMB3N TN G3070158 117- A B2 Q 1038 TRANSISTOR 2SA1774 TL R G3117748R 1- B a1 Q 1038 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- B a1 Q 1039 TRANSISTOR KRA760U-RTK G3070278 1- A B2 Q 1039 TRANSISTOR UMB3N TN G3070158 117- A B2 Q 1040 TRANSISTOR KRC654U-RTK G3070290 1- A B3 Q 1040 TRANSISTOR UMG2N TR G3070088 117- A B3 Q 1041 TRANSISTOR KRA760U-RTK G3070278 1- A B2 Q 1041 TRANSISTOR UMB3N TN G3070158 117- A B2 Q 1042 TRANSISTOR DTC144EE TL G3070075 1- B c1 Q 1042 TRANSISTOR KRC404E-RTK/P G3070355 75- B c1 Q 1043 TRANSISTOR CPH6102-TL G3070223 1- B a1 Q 1044 TRANSISTOR UMW1 TR G3070078 1- B a1 Q 1045 TRANSISTOR KRA760U-RTK G3070278 1- B a1 Q 1045 TRANSISTOR UMB3N TN G3070158 117- B a1 Q 1046 TRANSISTOR 2SA1774 TL R G3117748R 1- B a1 Q 1046 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- B a1 Q 1047 TRANSISTOR KRA755U-RTK G3070292 1- A C2 Q 1047 TRANSISTOR UMB10N TN G3070108 117- A C2 Q 1048 TRANSISTOR KRC654U-RTK G3070290 1- B a1 Q 1048 TRANSISTOR UMG2N TR G3070088 117- B a1 Q 1049 TRANSISTOR KRC654U-RTK G3070290 1- A D2 Q 1049 TRANSISTOR UMG2N TR G3070088 117- A D2 Q 1050 TRANSISTOR KRA760U-RTK G3070278 1- A C2 Q 1050 TRANSISTOR UMB3N TN G3070158 117- A C2 Q 1051 TRANSISTOR DTC144EE TL G3070075 1- A C2 Q 1051 TRANSISTOR KRC404E-RTK/P G3070355 75- A C2 Q 1052 TRANSISTOR 2SA1774 TL R G3117748R 1- A C2 Q 1052 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- A C2 Q 1053 TRANSISTOR DTC144EE TL G3070075 1- A C1 Q 1053 TRANSISTOR KRC404E-RTK/P G3070355 75- A C1 Q 1054 TRANSISTOR DTC144TE-TL G3070280 1- B a1 R 1001 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B2 R 1002 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c2 R 1003 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- B c2 R 1005 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A1 R 1006 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A A2 R 1007 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A A2 R 1008 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A A2 R 1009 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B1 R 1010 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- A B1 R 1011 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- A B1 R 1012 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A B1 R 1013 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c2 R 1014 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B c2 R 1015 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B c2 R 1016 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B c2 R 1017 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B c2 R 1018 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B c2 R 1019 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B d2 R 1020 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2 R 1021 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2 R 1022 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B d3 R 1023 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d2 R 1024 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d3 R 1025 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2 R 1027 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2 R 1028 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2 R 1029 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2 R 1030 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A B2 R 1031 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B2 R 1032 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2 R 1033 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B2 R 1034 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B2 R 1035 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c2

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 36

RF Unit

REF.

R 1036 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B c2 R 1037 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B c2 R 1038 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2 R 1039 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2 R 1040 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1 B c3 R 1040 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 2- B c3 R 1042 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c3 R 1043 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c3 R 1044 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d3 R 1045 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B d3 R 1046 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B d3 R 1049 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A A2 R 1049 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 3- A A2 R 1050 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A A2 R 1051 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2 R 1052 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1 A A2 R 1052 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 2 A A2 R 1052 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 W/ CE LABEL 3- A A2 R 1052 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 R 1053 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2 R 1054 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1 A C2 R 1054 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 2- A C2 R 1055 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A C2 R 1056 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1 A C2 R 1056 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 2- A C2 R 1057 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A B2 R 1058 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1 B b2 R 1058 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 2- B b2 R 1059 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B b2 R 1060 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1 B b2 R 1060 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 2- B b2 R 1061 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B b3 R 1062 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2 R 1063 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B c3 R 1064 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c3 R 1065 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B c3 R 1066 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B c3 R 1067 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c3 R 1068 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c3 R 1069 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 EXPORT 1 A C2 R 1069 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 EXPORT 2-3 A C2 R 1069 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 GERMANY 1-3 A C2 R 1069 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 USA 1-3 A C2 R 1069 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 4-140 A C2 R 1069 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 EXPORT 141- A C2 R 1069 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 GERMANY 141- A C2 R 1069 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 KOREA 141- A C2 R 1069 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 USA 141- A C2 R 1070 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C2 R 1071 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C3 R 1072 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C3 R 1073 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C3 R 1074 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B a2 R 1075 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a2 R 1076 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a2 R 1077 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B a2 R 1078 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C2 R 1079 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1-100 A C2 R 1079 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 EXPORT 101- A C2 R 1079 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 GERMANY 101- A C2 R 1079 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 KOREA 101- A C2 R 1079 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 USA 101- A C2 R 1080 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C2 R 1081 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A C2 R 1082 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C2 R 1083 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1 B b2 R 1083 CHIP RES. 18k 1/16W 5% RMC1/16S 183JTH J24189040 2- B b2 R 1084 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B b2 R 1085 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C2 R 1086 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- B a3 R 1087 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a2 R 1088 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B a2

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

W/O CE LABEL

SIDE

LOT.

3- A A2

LAY ADR.

Page 37

RF Unit

REF.

R 1089 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 1- B a3 R 1090 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 EXPORT 1 B a3 R 1090 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 EXPORT 2- B a3 R 1090 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 GERMANY 1- B a3 R 1090 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 GERMANY 99- B a3 R 1090 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 KOREA 16- B a3 R 1090 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 USA 1- B a3 R 1091 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b3 R 1092 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A C2 R 1093 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- A D1 R 1093 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 4- A D1 R 1093 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 68- A D1 R 1093 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 79-95 A D1 R 1093 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 EXPORT 96- A D1 R 1093 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 EXPORT 99- A D1 R 1093 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 GERMANY 96- A D1 R 1093 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 GERMANY 99- A D1 R 1093 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 KOREA 96- A D1 R 1093 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 KOREA 99- A D1 R 1093 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 USA 96- A D1 R 1093 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 USA 99- A D1 R 1094 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D1 R 1095 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A D1 R 1096 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D2 R 1097 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A D1 R 1098 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C1 R 1099 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C1 R 1100 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- A C1 R 1102 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B a3 R 1103 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 EXPORT 1 B a3 R 1103 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 EXPORT 2- B a3 R 1103 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 GERMANY 1- B a3 R 1103 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 GERMANY 99- B a3 R 1103 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 KOREA 16- B a3 R 1103 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 USA 1- B a3 R 1104 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b3 R 1105 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B a1 R 1106 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B a1 R 1107 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C1 R 1108 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A C1 R 1109 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A C2 R 1110 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1- A D2 R 1111 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a2 R 1112 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a2 R 1113 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a2 R 1114 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a2 R 1115 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a2 R 1116 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a1 R 1118 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- A B1 R 1119 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B c1 R 1120 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c1 R 1121 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c2 R 1122 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a2 R 1123 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B a1 R 1124 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B a1 R 1125 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A3 R 1126 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a1 R 1127 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A3 R 1128 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A A1 R 1129 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A A1 R 1130 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c1 R 1131 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c1 R 1132 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A3 R 1133 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a1 R 1134 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B d1 R 1135 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A A1 R 1136 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a2 R 1137 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a2 R 1138 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a2 R 1139 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a1 R 1140 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A D2 R 1141 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c1

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 38

RF Unit

REF.

R 1142 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C1 R 1142 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 67- A C1 R 1143 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C1 R 1143 CHIP RES. 18k 1/16W 5% RMC1/16S 183JTH J24189040 64- A C1 R 1144 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A C1 R 1144 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 4-38 A C1 R 1144 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 EXPORT 39-46 A C1 R 1144 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 GERMANY 39-46 A C1 R 1144 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 KOREA 39-46 A C1 R 1144 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 USA 39-46 A C1 R 1144 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 47- A C1 R 1144 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 78- A C1 R 1145 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B1 R 1146 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B c3 R 1147 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a1 R 1148 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a1 R 1149 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2 R 1150 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C3 R 1151 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C2 R 1152 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 3- B b3 R 1153 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 3- B c3 R 1154 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 4- B a2 R 1156 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 38R 1157 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 71TH1001 THERMISTOR ERTJ1VV473J G9090122 1- B a2 TH1002 THERMISTOR ERTJ1VV473J G9090122 1- A C1 X 1001 XTAL TSS-6 11.7MHz TSS-5032A 11.7MHZ H0103264 1- B a2

DESCRIPTION

TERMINAL PLATE RA0287100 1INSULATOR SHEET RA0408300 1-

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 39

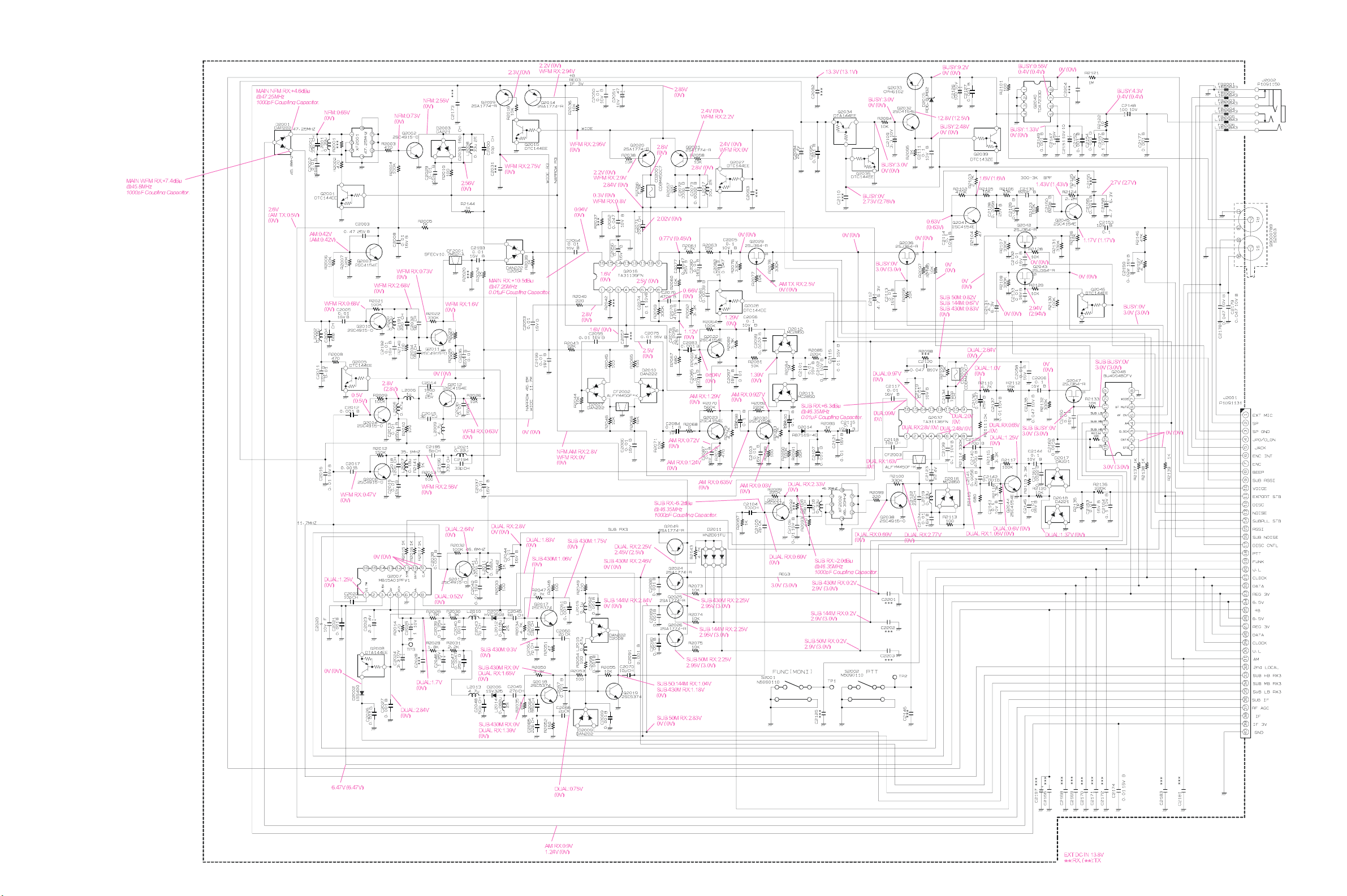

Circuit Diagram

AF Unit (Lot. 1 ~ 2)

Page 40

AF Unit (Lot. 1 ~ 2)

Parts Layout

dacb

MB15A01PFV1 (Q2007)

2SC4154E (LE) (Q2003, 2012, 2022,

2023, 2030, 2032,

2041, 2044, 2045) 2SC4915 (QY) (Q2002, 2004, 2006,

2010, 2011, 2013,

2038)

BU4094BCFV-E2 (Q2048)

CPH6102 (AB) (Q2033)

TA31136FN (Q2016, 2037)

2SA1774 (FR) (Q2009, 2014, 2020,

2021, 2024, 2025, 2026, 2049)

TDA7233D (Q2040)

2SC5374 (NA) (Q2017, 2018, 2019,

2031)

D TA144EE (16) (Q2008, 2034)

DTC144EE (26) (Q2001, 2005, 2015,

2027, 2028, 2035,

2046)

DTC143ZE (E23) (Q2039)

Side A

2SJ364-R(4M) (Q2029, 2036, 2042,

2043, 2047)

Side B

HN2D01FU (A1) (D2011)

DAN222 (N) (D2004, 2007, 2008,

2009, 2010)

DA221 (K) (D2003, 2017, 2018)

MC2850 (A7) (D2012, 2013, 2016)

DAP222 (P) (D2001)

Page 41

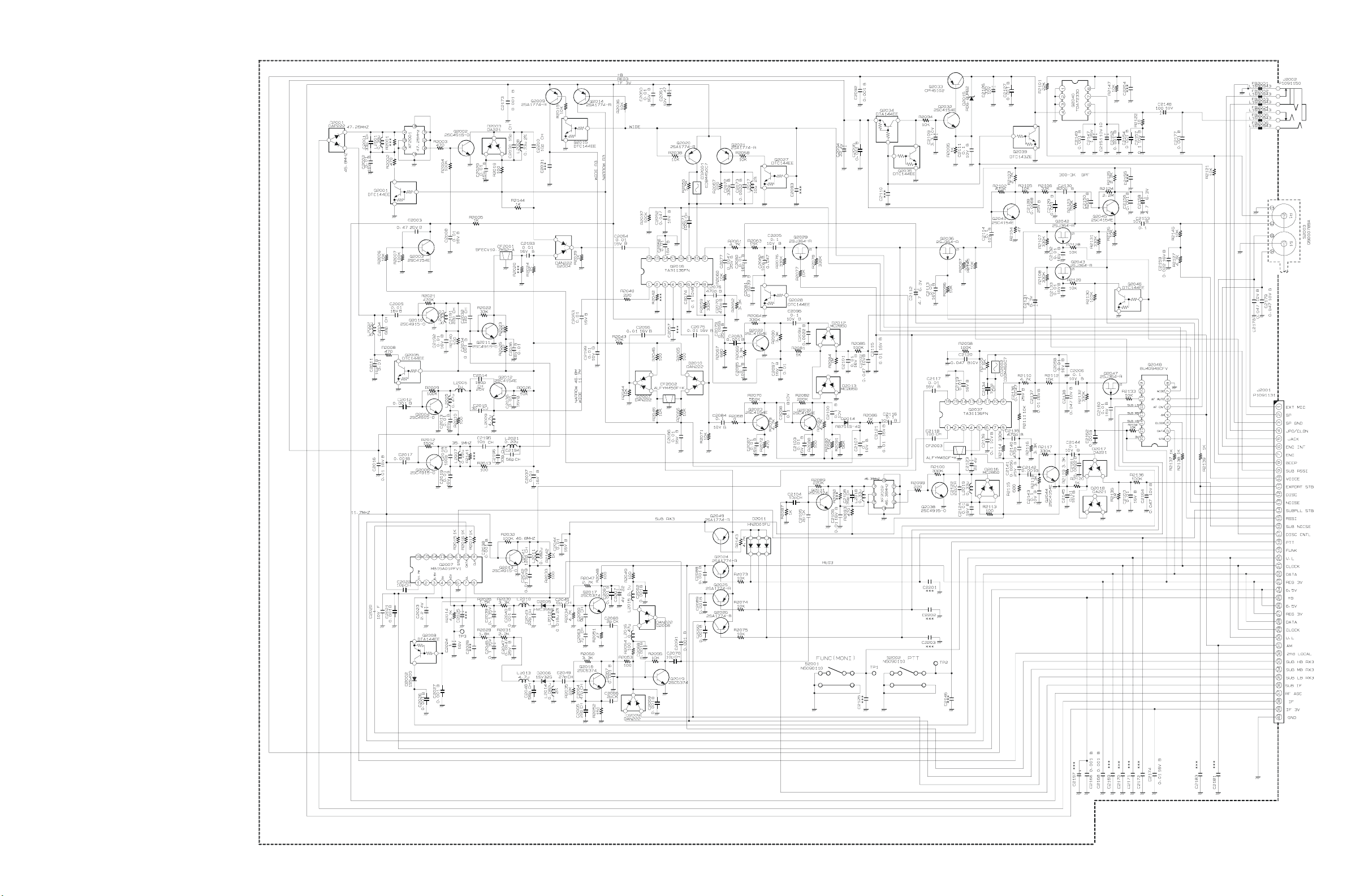

Circuit Diagram

AF Unit (Lot. 3)

Page 42

AF Unit (Lot. 3)

Parts Layout

dacb

MB15A01PFV1

(Q2007)

2SC4154E (LE) (Q2003, 2012, 2022,

2023, 2030, 2032,

2041, 2044, 2045) 2SC4915 (QY) (Q2002, 2004, 2006,

2010, 2011, 2013,

2038)

BU4094BCFV-E2 (Q2048)

CPH6102 (AB) (Q2033)

TA31136FN (Q2016, 2037)

2SA1774 (FR) (Q2009, 2014, 2020,

2021, 2024, 2025, 2026, 2049)

TDA7233D (Q2040)

2SC5374 (NA) (Q2017, 2018, 2019,

2031)

D TA144EE (16) (Q2008, 2034)

DTC144EE (26) (Q2001, 2005, 2015,

2027, 2028, 2035,

2046)

DTC143ZE (E23) (Q2039)

Side A

2SJ364-R(4M) (Q2029, 2036, 2042,

2043, 2047)

Side B

HN2D01FU (A1) (D2011)

DAN222 (N) (D2004, 2007, 2008,

2009, 2010)

DA221 (K) (D2003, 2017, 2018)

MC2850 (A7) (D2012, 2013, 2016)

DAP222 (P) (D2001)

Page 43

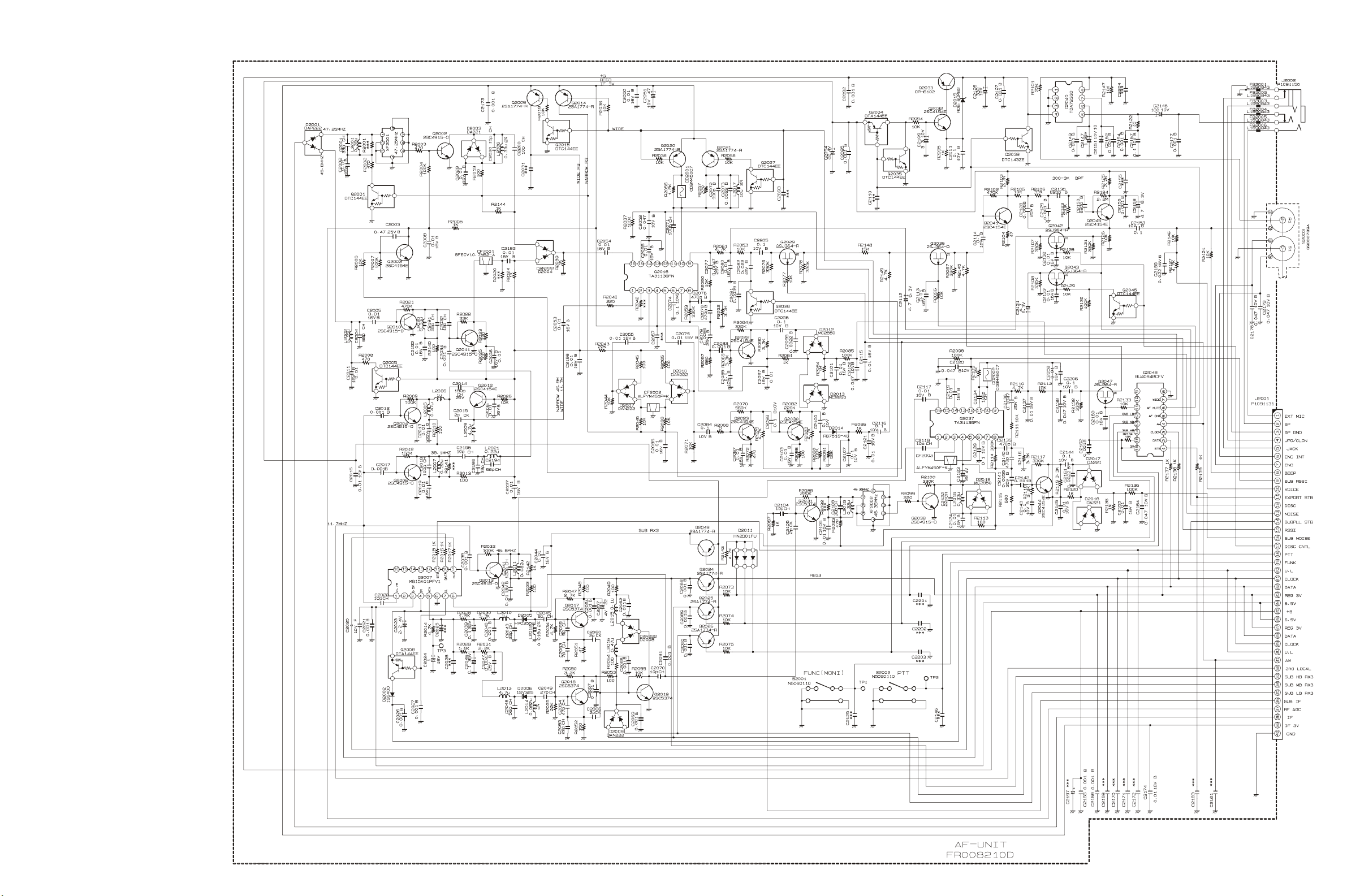

Circuit Diagram

AF Unit (Lot. 4 ~)

Page 44

AF Unit (Lot. 4 ~)

Parts Layout

dacb

MB15A01PFV1

(Q2007)

2SC4154E (LE) (Q2003, 2012, 2022,

2023, 2030, 2032,

2041, 2044, 2045) 2SC4915 (QY) (Q2002, 2004, 2006,

2010, 2011, 2013,

2038)

BU4094BCFV-E2 (Q2048)

CPH6102 (AB) (Q2033)

TA31136FN (Q2016, 2037)

2SA1774 (FR) (Q2009, 2014, 2020,

2021, 2024, 2025, 2026, 2049)

TDA7233D (Q2040)

2SC5374 (NA) (Q2017, 2018, 2019,

2031)

D TA144EE (16) (Q2008, 2034)

DTC144EE (26) (Q2001, 2005, 2015,

2027, 2028, 2035,

2046)

DTC143ZE (E23) (Q2039)

Side A

2SJ364-R(4M) (Q2029, 2036, 2042,

2043, 2047)

Side B

HN2D01FU (A1) (D2011)

DAN222 (N) (D2004, 2007, 2008,

2009, 2010)

DA221 (K) (D2003, 2017, 2018)

MC2850 (A7) (D2012, 2013, 2016)

DAP222 (P) (D2001)

Page 45

AF Unit

Parts List

REF.

C 2001 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- B c2 C 2002 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c2 C 2002 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c2 C 2003 CHIP CAP. 0.47uF 25V B GRM21BB11E474KC01L K22140824 1- A B2 C 2004 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- B c2 C 2005 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c2 C 2005 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c2 C 2008 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B2 C 2008 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A B2 C 2011 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3 C 2011 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c3 C 2012 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B2 C 2013 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B2 C 2013 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A B2 C 2014 CHIP CAP. 180pF 25V CH GRM36CH181J25PT K22148201 1- A B2 C 2014 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 100- A B2 C 2015 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1 A B2 C 2015 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 2- A B2 C 2015 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 39- A B2 C 2016 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3 C 2016 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c3 C 2017 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B d2 C 2018 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B d2 C 2019 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d2 C 2019 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B d2 C 2020 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- A A2 C 2021 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 2022 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- A A2 C 2023 CHIP TA.CAP. 2.2uF 4V TEESVP0G225M8R K78060025 1- A A2 C 2024 CHIP TA.CAP. 1uF 16V TMCSA1C105MTR K78120023 1- A A2 C 2026 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 2027 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 2029 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c1 C 2029 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c1 C 2030 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- B c2 C 2032 CHIP CAP. 12pF 50V CH UMK105CH120JV-F K22178260 1- B c2 C 2034 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B d2 C 2035 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B2 C 2035 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A B2 C 2036 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c2 C 2036 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c2 C 2037 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d2 C 2037 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B d2 C 2038 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B2 C 2039 CHIP TA.CAP. 0.1uF 35V TEESVA1V104M8R K78160025 1- A A2 C 2040 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 2041 CHIP CAP. 120pF 50V CH UMK105CH121JV-F K22178284 1- A B2 C 2042 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B2 C 2042 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A B2 C 2043 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- A A1 C 2044 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3 C 2044 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c3 C 2045 CHIP CAP. 6pF 50V CH GRM1552C1H6R0BZ01D K22178293 1- A A2 C 2046 CHIP TA.CAP. 0.1uF 35V TEESVA1V104M8R K78160025 1- A A2 C 2047 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- A A2 C 2047 CHIP CAP. 0.0047uF 50V B GRM155B11H472KA01D K22178838 100- A A2 C 2048 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- A A2 C 2049 CHIP CAP. 27pF 50V CH UMK105CH270JV-F K22178268 1- A A2 C 2049 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 28- A A2 C 2050 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C3 C 2050 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A C3 C 2051 CHIP TA.CAP. 47uF 10V TEESVC1A476M12R K78100024 1- A C3 C 2052 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B b1 C 2053 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C2 C 2053 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A C2 C 2054 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b1 C 2054 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B b1 C 2055 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1

DESCRIPTION

PCB with Components CB1870001 Printed Circuit Board FR008210C 1-2

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

FR008210D 3 FR008210E 4-

LOT.

SIDE

LAY ADR.

Page 46

AF Unit

REF.

C 2055 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a1 C 2056 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b1 C 2056 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B b1 C 2058 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C2 C 2058 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A C2 C 2059 CHIP CAP. 9pF 50V CH GRM1552C1H9R0BZ01D K22178296 1- A A2 C 2060 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- A A2 C 2061 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 2062 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 2063 CHIP CAP. 7pF 50V CH GRM1552C1H7R0BZ01D K22178294 1- A A2 C 2064 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 1- A A1 C 2065 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- A A1 C 2066 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- A A1 C 2067 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 2068 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1 C 2069 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 2070 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- A B2 C 2071 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- A C1 C 2072 CHIP CAP. 330pF 50V B UMK105B331KW-F K22178823 1- A C1 C 2073 CHIP CAP. 0.0022uF 50V B GRM155B11H222KA01D K22178813 1- A C1 C 2074 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a1 C 2075 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1 C 2075 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a1 C 2076 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 1- B b1 C 2077 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B b1 C 2077 CHIP CAP. 0.0047uF 50V B GRM155B11H472KA01D K22178838 100- B b1 C 2078 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 1- B b1 C 2079 CHIP CAP. 0.0056uF 25V B GRM155B11E562KA01D K22148802 1- B b1 C 2080 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b1 C 2080 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B b1 C 2081 CHIP CAP. 0.0039uF 50V B UMK105B392KW-F K22178836 1- B b1 C 2082 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B b1 C 2082 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 6- B b1 C 2083 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b1 C 2084 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a1 C 2085 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b1 C 2086 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D1 C 2086 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A D1 C 2087 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1 C 2087 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a1 C 2088 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 2089 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B d3 C 2090 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A3 C 2091 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B2 C 2092 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 2094 CHIP TA.CAP. 22uF 4V TEESVA0G226M8R K78060023 1- A A1 C 2095 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B d1 C 2096 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b2 C 2097 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b2 C 2097 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B b2 C 2098 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a2 C 2099 CHIP CAP. 0.0022uF 50V B UMK105B222KW-F K22178833 1- B b2 C 2100 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a2 C 2101 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b2 C 2101 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B b2 C 2102 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B b2 C 2103 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a2 C 2103 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a2 C 2104 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- B c3 C 2105 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- B c3 C 2106 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3 C 2106 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c3 C 2107 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b2 C 2108 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 1- B c3 C 2109 CHIP TA.CAP. 3.3uF 10V SKF-1A335M-RP K78100051 1- B c1 C 2111 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c1 C 2112 CHIP TA.CAP. 4.7uF 6.3V TEESVA20J475M8R K78080031 1- A C2 C 2113 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C2 C 2113 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A C2 C 2114 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C2 C 2115 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C2 C 2115 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A C2

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 47

AF Unit

REF.

C 2116 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b2 C 2117 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c2 C 2117 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c2 C 2118 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- A B2 C 2119 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c2 C 2119 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c2 C 2120 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B c2 C 2121 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b2 C 2121 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B b2 C 2122 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B c3 C 2123 CHIP TA.CAP. 22uF 4V TEESVA0G226M8R K78060023 1- A C2 C 2124 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3 C 2124 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c3 C 2126 CHIP TA.CAP. 220uF 10V TMCRE1A227MTR K78100064 1 A B1 C 2126 CHIP TA.CAP. 330uF 10V F931A337MNC K78100066 2 A B1 C 2126 CHIP TA.CAP. 330uF 10V F931A337MNC K78100066 3- A B1 C 2126 CHIP TA.CAP. 330uF 10V TAJD337M010R K78100067 6- A B1 C 2127 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1 C 2128 CHIP CAP. 0.0068uF 25V B GRM155B11E682KA01D K22148803 1- A C2 C 2129 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2 C 2130 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 1- A C2 C 2131 CHIP TA.CAP. 4.7uF 6.3V TEESVA20J475M8R K78080031 1- A C2 C 2132 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D2 C 2132 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A D2 C 2133 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D2 C 2133 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A D2 C 2134 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B c2 C 2135 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 1- B c2 C 2136 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B c2 C 2136 CHIP CAP. 0.0047uF 50V B GRM155B11H472KA01D K22178838 100- B c2 C 2137 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c2 C 2137 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c2 C 2138 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B c2 C 2139 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b2 C 2140 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 1- B b2 C 2141 CHIP CAP. 0.0056uF 25V B GRM155B11E562KA01D K22148802 1- B b2 C 2142 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3 C 2143 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c3 C 2144 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b3 C 2145 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b3 C 2145 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B b3 C 2147 CHIP TA.CAP. 1uF 25V TEESVA1E105M8R K78140013 1- A C1 C 2148 CHIP TA.CAP. 100uF 10V TEESVD1A107M12R K78100031 1- A B1 C 2149 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C1 C 2150 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 1- A C2 C 2151 CHIP TA.CAP. 10uF 10V TEESVA1A106M8R K78100028 1- A C1 C 2152 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C1 C 2153 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C2 C 2154 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1 C 2156 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2 C 2157 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B1 C 2158 CHIP TA.CAP. 4.7uF 6.3V TMCMA0J475MTR K78080026 1- A C2 C 2159 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- A D2 C 2160 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C2 C 2160 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A C2 C 2161 CHIP CAP. 0.0022uF 50V B UMK105B222KW-F K22178833 1- B b3 C 2162 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A D3 C 2163 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3 C 2163 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c3 C 2164 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B b3 C 2166 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3 C 2168 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A3 C 2172 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 4- A B3 C 2173 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 2174 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A3 C 2174 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A A3 C 2177 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B2 C 2178 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- A C1 C 2179 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- A D1 C 2191 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B d2 C 2192 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d2 C 2192 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B d2

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 48

AF Unit

REF.

C 2193 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d1 C 2193 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B d1 C 2194 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- B d2 C 2195 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- B d2 C 2196 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- B d2 C 2199 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D1 C 2199 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A D1 C 2200 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- B c1 C 2205 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C2 C 2206 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C2 C 2207 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- A A1 C 2208 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 4C 2209 CHIP CAP. 220pF 50V B GRM188B11H221KA01D K22174801 116CD2001 CERAMIC DISC CDBLB450KCAY07-B0 H7900930 1- B b1 CD2002 CERAMIC DISC CDBLB450KCAY07-B0 H7900930 1- B b2 CF2001 CERAMIC FILTER SFECP10M7GA00-R0 H3900514 1- B c2 CF2002 CERAMIC FILTER ALFYM450F=K H3900531 1- B a1 CF2003 CERAMIC FILTER ALFYM450F=K H3900531 1- B b3 D 2001 DIODE DAP222-TL G2070432 1- B c2 D 2002 DIODE 1SS400 TE61 G2070634 1- A A2 D 2003 DIODE DA221 TL G2070178 1- B c1 D 2004 DIODE DAN222 TL G2070174 1- B c1 D 2005 DIODE HVC355B TRF-E G2070588 1- A A2 D 2006 DIODE 1SV325(TPH3.F) G2070848 1- A A2 D 2007 DIODE DAN222 TL G2070174 1- A D1 D 2008 DIODE DAN222 TL G2070174 1- A B2 D 2009 DIODE DAN222 TL G2070174 1- B d3 D 2010 DIODE DAN222 TL G2070174 1- B a1 D 2011 DIODE HN2D01FU(TE85R.F) G2070348 1- B c3 D 2012 DIODE MC2850-T111-1 G2070704 1- B b2 D 2013 DIODE MC2850-T111-1 G2070704 1- B b2 D 2014 DIODE RB751S-40TE61 G2070850 1- B a2 D 2015 DIODE RD6.8UMB2-T1B G2070438 1- B c1 D 2016 DIODE MC2850-T111-1 G2070704 1- B c2 D 2017 DIODE DA221 TL G2070178 1- B b3 D 2018 DIODE DA221 TL G2070178 1- B c3 FB2001 FERRITE BEADS BLM15AG121SN1D L1690843 1- A B1 FB2002 FERRITE BEADS BLM15AG121SN1D L1690843 1- A B2 FB2003 FERRITE BEADS BLM15AG121SN1D L1690843 1- A B2 FB2004 FERRITE BEADS BLM15AG121SN1D L1690843 1- A B2 FB2005 FERRITE BEADS BLM15AG121SN1D L1690843 1- A B1 FB2006 FERRITE BEADS BLM15AG121SN1D L1690843 1- A B2 J 2001 CONNECTOR IL-FHR-F40S-HF-E3000 P1091131 1- A B3 J 2001 CONNECTOR 9637S-40-Y905 P1091170 22- A B3 J 2002 CONNECTOR KP-269 P1091150 1- B c1 J 2002 CONNECTOR KP-269-A1 P1091150A 16- B c1 J 2002 CONNECTOR KP-269-B2 P1091150B 42- B c1 L 2001 M.RFC 0.39uH LK1608 R39K-T L1690413 1- B c2 L 2002 M.RFC 0.15uH LK1608 R15K-T L1690409 1- B c2 L 2005 M.RFC 0.47uH LK1608 R47K-T L1690414 1- A B2 L 2006 M.RFC 1uH LK1608 1R0K-T L1690687 1- A B2 L 2007 M.RFC 0.22uH LK1608 R22K-T L1690410 1- B d2 L 2008 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 1- B c1 L 2009 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- A B2 L 2010 M.RFC 1uH LK1608 1R0K-T L1690687 1- A A2 L 2011 M.RFC 0.082uH HK1608 82NJ-T L1690527 1- A B2 L 2012 M.RFC 0.018uH 2% C1608CB-18NG-RF L1691035 1- A A2 L 2013 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- A A2 L 2014 M.RFC 0.082uH 2% C1608CB-82NG-RF L1691044 1- A A1 L 2015 M.RFC 0.1uH LK1608 R10K-T L1690407 1- A A1 L 2016 M.RFC 0.47uH LK1608 R47K-T L1690414 1- A B1 L 2017 M.RFC 10uH 2% KQ1008TE100G L1691216 1- A C1 L 2018 M.RFC 0.33uH LK1608 R33K-T L1690412 1- B c3 L 2019 M.RFC 0.33uH LK1608 R33K-T L1690412 1- B c3 L 2020 M.RFC 0.33uH LK1608 R33K-T L1690412 1- B d2 L 2021 M.RFC 0.22uH LK1608 R22K-T L1690410 1- B d2 Q 2001 TRANSISTOR DTC144EE TL G3070075 1- B c2 Q 2001 TRANSISTOR KRC404E-RTK/P G3070355 75- B c2 Q 2002 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B c2 Q 2003 TRANSISTOR 2SC4154-T111-1E G3341548E 1- A B2 Q 2004 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- A B2 Q 2005 TRANSISTOR DTC144EE TL G3070075 1- B d3

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 49

AF Unit

REF.

Q 2005 TRANSISTOR KRC404E-RTK/P G3070355 75- B d3 Q 2006 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B d2 Q 2007 IC MB15A01PFV1-G-BND-EFE1 G1092545 1- A A2 Q 2008 TRANSISTOR DTA144EE TL G3070074 1- A A2 Q 2008 TRANSISTOR KRA304E-RTK/P G3070354 75- A A2 Q 2009 TRANSISTOR 2SA1774 TL R G3117748R 1- A A1 Q 2009 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- A A1 Q 2010 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B d2 Q 2011 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B c2 Q 2012 TRANSISTOR 2SC4154-T111-1E G3341548E 1- A B2 Q 2012 TRANSISTOR 2SC4400-4-TL G3344008D 39- A B2 Q 2013 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- A B2 Q 2014 TRANSISTOR 2SA1774 TL R G3117748R 1- A A1 Q 2014 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- A A1 Q 2015 TRANSISTOR DTC144EE TL G3070075 1- A A1 Q 2015 TRANSISTOR KRC404E-RTK/P G3070355 75- A A1 Q 2016 IC TA31136FNG(EL) G1091605 1- B b1 Q 2017 TRANSISTOR 2SC5374-TL G3353748 1- A A2 Q 2018 TRANSISTOR 2SC5374-TL G3353748 1- A A1 Q 2019 TRANSISTOR 2SC5374-TL G3353748 1- A B2 Q 2020 TRANSISTOR 2SA1774 TL R G3117748R 1- A C1 Q 2020 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- A C1 Q 2021 TRANSISTOR 2SA1774 TL R G3117748R 1- A C1 Q 2021 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- A C1 Q 2022 TRANSISTOR 2SC4154-T111-1E G3341548E 1- B b1 Q 2023 TRANSISTOR 2SC4154-T111-1E G3341548E 1- B a2 Q 2024 TRANSISTOR 2SA1774 TL R G3117748R 1- B c3 Q 2024 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- B c3 Q 2025 TRANSISTOR 2SA1774 TL R G3117748R 1- B c3 Q 2025 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- B c3 Q 2026 TRANSISTOR 2SA1774 TL R G3117748R 1- B d3 Q 2026 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- B d3 Q 2027 TRANSISTOR DTC144EE TL G3070075 1- A C1 Q 2027 TRANSISTOR KRC404E-RTK/P G3070355 75- A C1 Q 2028 TRANSISTOR DTC144EE TL G3070075 1- B b2 Q 2028 TRANSISTOR KRC404E-RTK/P G3070355 75- B b2 Q 2029 FET 2SJ364-R(TX) G3703648R 1- A C2 Q 2029 FET 2SJ364-Q(TX) G3703648Q 61- A C2 Q 2029 FET 2SJ364-P(TX) G3703648P 75- A C2 Q 2030 TRANSISTOR 2SC4154-T111-1E G3341548E 1- B a2 Q 2031 TRANSISTOR 2SC5374-TL G3353748 1- B c3 Q 2032 TRANSISTOR 2SC4154-T111-1E G3341548E 1- B c1 Q 2033 TRANSISTOR CPH6102-TL G3070223 1- B c1 Q 2034 TRANSISTOR DTA144EE TL G3070074 1- B d1 Q 2034 TRANSISTOR KRA304E-RTK/P G3070354 75- B d1 Q 2035 TRANSISTOR DTC144EE TL G3070075 1- B d1 Q 2035 TRANSISTOR KRC404E-RTK/P G3070355 75- B d1 Q 2036 FET 2SJ364-R(TX) G3703648R 1- A C2 Q 2036 FET 2SJ364-Q(TX) G3703648Q 61- A C2 Q 2036 FET 2SJ364-P(TX) G3703648P 75- A C2 Q 2037 IC TA31136FNG(EL) G1091605 1- B b2 Q 2038 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B c2 Q 2039 TRANSISTOR DTC143ZE TL G3070102 1- B c1 Q 2040 IC TDA7233D-TR G1091112 1- A B1 Q 2041 TRANSISTOR 2SC4154-T111-1E G3341548E 1- A C2 Q 2042 FET 2SJ364-R(TX) G3703648R 1- A D2 Q 2042 FET 2SJ364-Q(TX) G3703648Q 61- A D2 Q 2042 FET 2SJ364-P(TX) G3703648P 75- A D2 Q 2043 FET 2SJ364-R(TX) G3703648R 1- A C2 Q 2043 FET 2SJ364-Q(TX) G3703648Q 61- A C2 Q 2043 FET 2SJ364-P(TX) G3703648P 75- A C2 Q 2044 TRANSISTOR 2SC4154-T111-1E G3341548E 1- B b3 Q 2045 TRANSISTOR 2SC4154-T111-1E G3341548E 1- A C2 Q 2046 TRANSISTOR DTC144EE TL G3070075 1- A D2 Q 2046 TRANSISTOR KRC404E-RTK/P G3070355 75- A D2 Q 2047 FET 2SJ364-R(TX) G3703648R 1- A C2 Q 2047 FET 2SJ364-Q(TX) G3703648Q 61- A C2 Q 2047 FET 2SJ364-P(TX) G3703648P 75- A C2 Q 2048 IC BU4094BCFV-E2 G1093527 1- A C3 Q 2049 TRANSISTOR 2SA1774 TL R G3117748R 1- B d3 Q 2049 TRANSISTOR KTA2014E-GR-RTK/P G3070353 75- B d3 R 2002 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B c2

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 50

AF Unit

REF.

R 2003 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B c2 R 2004 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c2 R 2005 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B2 R 2006 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B2 R 2007 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A2 R 2008 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B c2 R 2009 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2 R 2010 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B2 R 2012 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B d2 R 2013 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B d2 R 2014 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A2 R 2015 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A2 R 2016 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A2 R 2017 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B2 R 2018 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A1 R 2019 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c2 R 2021 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B c2 R 2022 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B c2 R 2023 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c2 R 2024 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d1 R 2025 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c2 R 2026 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B2 R 2028 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- A A2 R 2029 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 1- A A2 R 2030 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A A2 R 2031 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A A2 R 2032 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2 R 2033 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B2 R 2034 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A1 R 2035 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A A1 R 2036 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A1 R 2037 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b1 R 2038 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C1 R 2039 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c1 R 2040 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A C2 R 2043 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A D1 R 2044 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D1 R 2045 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A D1 R 2046 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D1 R 2047 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1- A A1 R 2048 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A1 R 2049 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A1 R 2050 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A A1 R 2051 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A A2 R 2052 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- A A1 R 2053 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A1 R 2054 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A1 R 2055 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B2 R 2056 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- A C1 R 2056 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 6- A C1 R 2057 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A C1 R 2058 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C1 R 2059 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b1 R 2060 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b1 R 2061 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b1 R 2062 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B b1 R 2063 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B b1 R 2063 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 6- B b1 R 2064 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b2 R 2065 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C1 R 2066 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D1 R 2067 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- B b1 R 2068 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B a1 R 2069 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B b1 R 2070 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 1- B a2 R 2071 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a1 R 2072 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B a1 R 2073 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c3 R 2074 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c3 R 2075 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B d3 R 2076 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A C2 R 2077 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C2

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 51

AF Unit

REF.

R 2078 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A C2 R 2079 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B a2 R 2080 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B b2 R 2081 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b2 R 2082 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B a2 R 2083 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B a2 R 2084 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B b2 R 2085 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2 R 2086 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b2 R 2086 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 6- B b2 R 2087 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c3 R 2088 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B a2 R 2089 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B c3 R 2090 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a2 R 2091 CHIP RES. 56k 1/16W 5% RMC1/16S 563JTH J24189046 1- B a2 R 2093 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B c3 R 2094 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c1 R 2095 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c1 R 2096 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C2 R 2097 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A C1 R 2098 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c2 R 2099 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B c2 R 2100 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B c2 R 2101 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A B1 R 2102 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- A C2 R 2103 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1- A C2 R 2104 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A C2 R 2105 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C2 R 2106 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A C2 R 2107 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A D2 R 2108 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A C2 R 2109 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- A C2 R 2109 CHIP RES. 1.2k 1/16W 5% RMC1/16S 122JTH J24189026 6- A C2 R 2110 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B c2 R 2111 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c2 R 2112 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B c2 R 2113 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c3 R 2114 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b2 R 2115 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- B c3 R 2116 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B c2 R 2117 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b3 R 2118 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B b3 R 2119 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B b3 R 2120 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c3 R 2121 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D1 R 2122 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A B1 R 2123 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A C2 R 2124 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- A C2 R 2125 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A C2 R 2126 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C2 R 2127 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A D2 R 2128 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D2 R 2129 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D2 R 2130 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A D2 R 2131 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A D2 R 2132 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A C2 R 2133 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C2 R 2134 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D3 R 2135 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B b3 R 2136 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b3 R 2137 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C3 R 2138 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C3 R 2139 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C2 R 2140 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B d2 R 2142 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B2 R 2143 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B d3 R 2144 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c1 R 2145 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C2 R 2146 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D2 R 2147 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B1 R 2148 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 4- A C2 R 2149 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 4- B b2

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 52

AF Unit

REF.

S 2001 TACT SWITCH SKQTLA N5090110 1- B d3 S 2002 TACT SWITCH SKQTLA N5090110 1- B d2 S 2003 ROTARY ENCODER TP70D270E20 20F A203 Q9000789A 1- B a1 XF2001 XTAL FILTER MF47R2 47.25MHZ H1102347 1- B c2 XF2002 XTAL FILTER MF46R5 46.35MHZ H1102348 1- B c2

DESCRIPTION

SHIELD PLATE (AF) RA0406800 1SHIELD PLATE (AF) RA040680A 4-

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 53

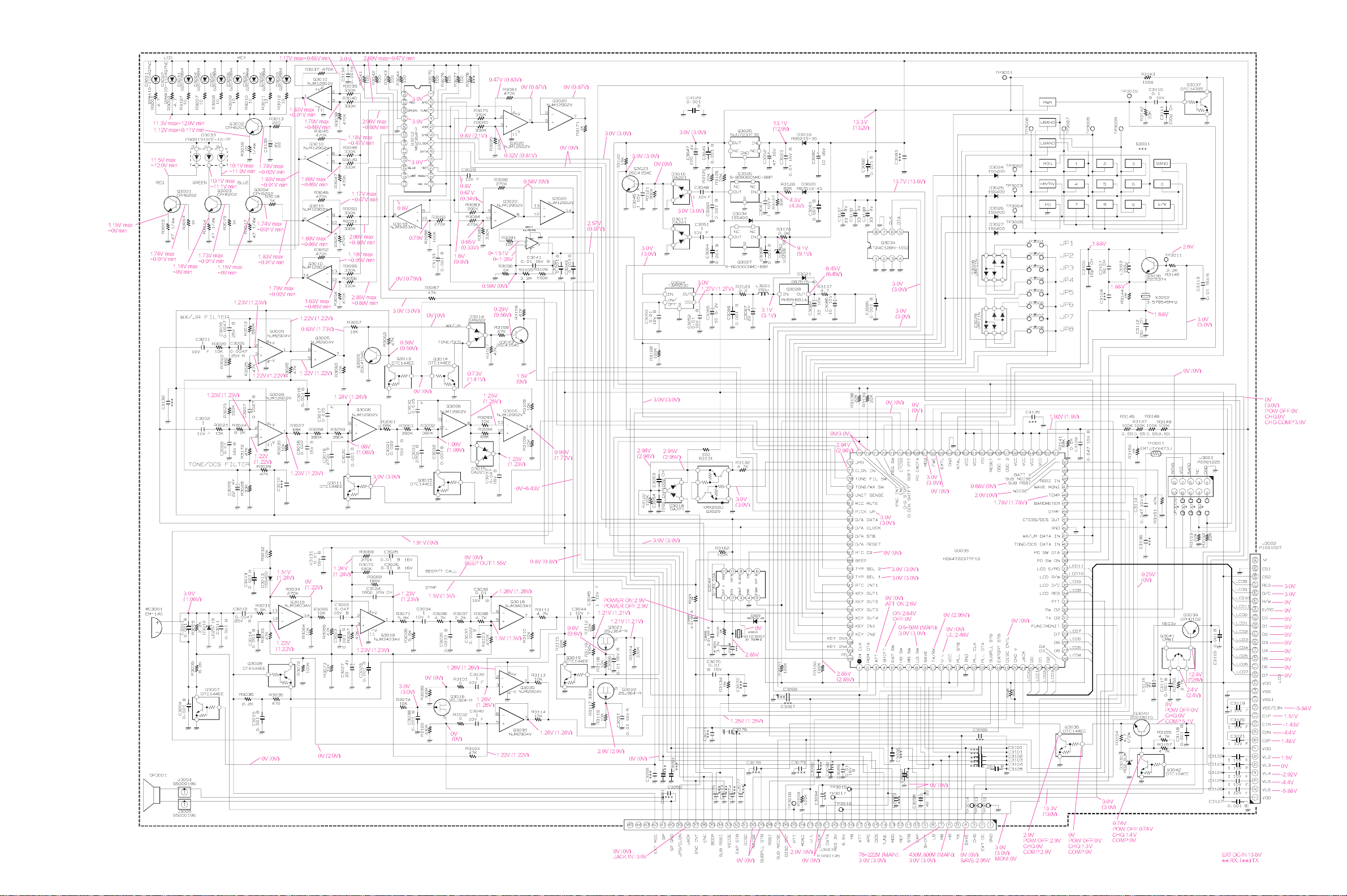

Circuit Diagram

CNTL Unit (Lot. 1 ~ 2)

Page 54

CNTL Unit (Lot. 1 ~ 2)

Parts Layout

DAC

HD6472237TF10 (USA) HD64F2238RTF13 (EXP) (Q3035)

AT24C128N-10SI-2.7 (Q3034)

2SJ364-R (Q3016, 3021, 3022)

M62364FP (Q3012)

NJM2904V (Q3005, 3030) S-35L12AEFS-TB (Q3044)

RH5RH651A (Q3028)

NJM12902V (Q3006, 3010, 3020)

NJM3403AV (Q3018)

CPH6102 (AB) (Q3039)

NJU7231F30 (Q3025)

NJU7007F2-TE1 (Q3017)

Side A

Side B

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

Danger of explosion if battery BT3001Danger of explosion if battery BT3001

Danger of explosion if battery BT3001

Danger of explosion if battery BT3001Danger of explosion if battery BT3001 is incorrectly replaced. Replace onlyis incorrectly replaced. Replace only

is incorrectly replaced. Replace only

is incorrectly replaced. Replace onlyis incorrectly replaced. Replace only

KRX202U-RTK (Q3029)

DTC124EE (25) (Q3042)

2SC5374 (NA) (Q3038) 2SC4154E (LE) (Q3009, 3023, 3043)

DAN222 (N) (D3014)

UMW1 (W1) (Q3041)

DTC143ZE (E23) (Q3037)

S-80830CNMC (Q3026, 3027)

UMP11N (P1 1) (D3028, 3029)

2SD1801S (Q3040)

D TA144EE (16) (Q3008)

CPH6202 (CB) (Q3001, 3002, 3003,

3004)

DA221 (K) (D3015, 3016, 3017,

3018, )

DTC144EE (26) (Q3007, 3011, 3013,

TAR5S30 (Q3024)

3014, 3015, 3019,

3036)

with the same or equivalent type.with the same or equivalent type.

with the same or equivalent type.

with the same or equivalent type.with the same or equivalent type.

SPMA10-1104Q7NC (D3001, 3002)

Page 55

Circuit Diagram

CNTL Unit (Lot. 3)

Page 56

CNTL Unit (Lot. 3)

Parts Layout

DAC

HD6472237TF10 (USA) HD64F2238RTF13 (EXP) (Q3035)

AT24C128N-10SI-2.7 (Q3034)

2SJ364-R (Q3016, 3021)

M62364FP (Q3012)

NJM2904V (Q3005, 3030) S-35L12AEFS-TB (Q3044)

2SJ305 (KN) (Lot. 3-) (Q3022)

NJM12902V (Q3006, 3010, 3020)

NJM3403AV (Q3018)

RH5RH651A (Q3028)

NJU7231F30 (Q3025)

CPH6102 (AB) (Q3039)

Side A

NJU7007F2-TE1 (Q3017)

2SD1801S (Q3040)

DTC144EE (26) (Q3007, 3011, 3013,

3014, 3015, 3019,

3036)

KRX202U-RTK (Q3029)

DTC124EE (25) (Q3042)

2SC5374 (NA) (Q3038) 2SC4154E (LE) (Q3009, 3023, 3043)

UMW1 (W1) (Q3041)

DTC143ZE (E23) (Q3037)

S-80830CNMC (Q3026, 3027)

TAR5S30 (Q3024)

D TA144EE (16) (Q3008)

Side B

CPH6202 (CB) (Q3001, 3002, 3003,

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

3004)

Danger of explosion if battery BT3001Danger of explosion if battery BT3001

Danger of explosion if battery BT3001

Danger of explosion if battery BT3001Danger of explosion if battery BT3001 is incorrectly replaced. Replace onlyis incorrectly replaced. Replace only

is incorrectly replaced. Replace only

is incorrectly replaced. Replace onlyis incorrectly replaced. Replace only with the same or equivalent type.with the same or equivalent type.

with the same or equivalent type.

with the same or equivalent type.with the same or equivalent type.

SPMA10-1104Q7NC (D3001, 3002)

DAN222 (N) (D3014)

UMP11N (P1 1) (D3028, 3029)

DA221 (K) (D3015, 3016, 3017,

3018, )

Page 57

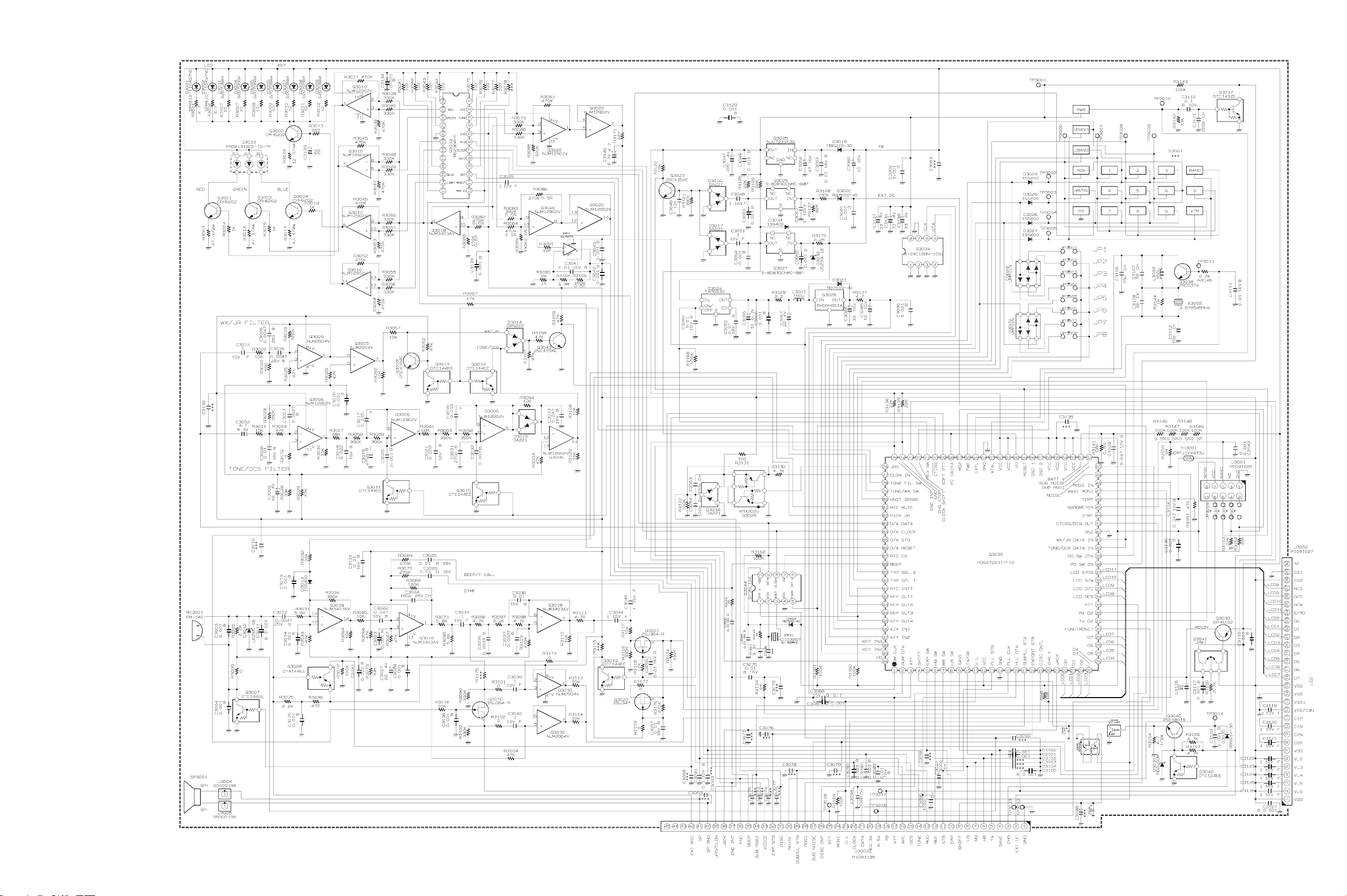

Circuit Diagram

CNTL Unit (Lot. 4 ~ 37)

Page 58

CNTL Unit (Lot. 4 ~ 37)

Parts Layout

DAC

HD6472237TF10 (USA) HD6432235R01TF (USA:Lot.4-) HD64F2238RTF13 (EXP) (Q3035)

AT24C128N-10SI-2.7 (Q3034)

2SJ364-R (Q3016, 3021)

2SJ305 (KN) (Lot. 3-) (Q3022)

M62364FP (Q3012)

NJM2904V (Q3005, 3030) S-35L12AEFS-TB (Q3044)

NJM12902V (Q3006, 3010, 3020)

NJM3403AV (Q3018)

2SJ347 (KS) (Lot. 4-) (Q3022)

NJU7231F30 (Q3025)

RH5RH651A (Q3028)

Side A

CPH6102 (AB) (Q3039)

TAR5S30 (Q3024)

D TA144EE (16) (Q3008)

NJU7007F2-TE1 (Q3017)

2SD1801S (Q3040)

DTC144EE (26) (Q3007, 3011, 3013,

3014, 3015, 3019,

3036)

KRX202U-RTK (Q3029, 3045)

DTC124EE (25) (Q3042)

2SC5374 (NA) (Q3038) 2SC4154E (LE) (Q3009, 3023, 3043)

UMW1 (W1) (Q3041)

DTC143ZE (E23) (Q3037)

S-80830CNMC (Q3026, 3027)

Side B

CPH6202 (CB) (Q3001, 3002, 3003,

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

3004)

Danger of explosion if battery BT3001Danger of explosion if battery BT3001

Danger of explosion if battery BT3001

Danger of explosion if battery BT3001Danger of explosion if battery BT3001 is incorrectly replaced. Replace onlyis incorrectly replaced. Replace only

is incorrectly replaced. Replace only

is incorrectly replaced. Replace onlyis incorrectly replaced. Replace only with the same or equivalent type.with the same or equivalent type.

with the same or equivalent type.

with the same or equivalent type.with the same or equivalent type.

SPMA10-1104Q7NC (D3001, 3002)

DAN222 (N) (D3014)

UMP11N (P1 1) (D3028, 3029)

DA221 (K) (D3015, 3016, 3017,

3018, )

Page 59

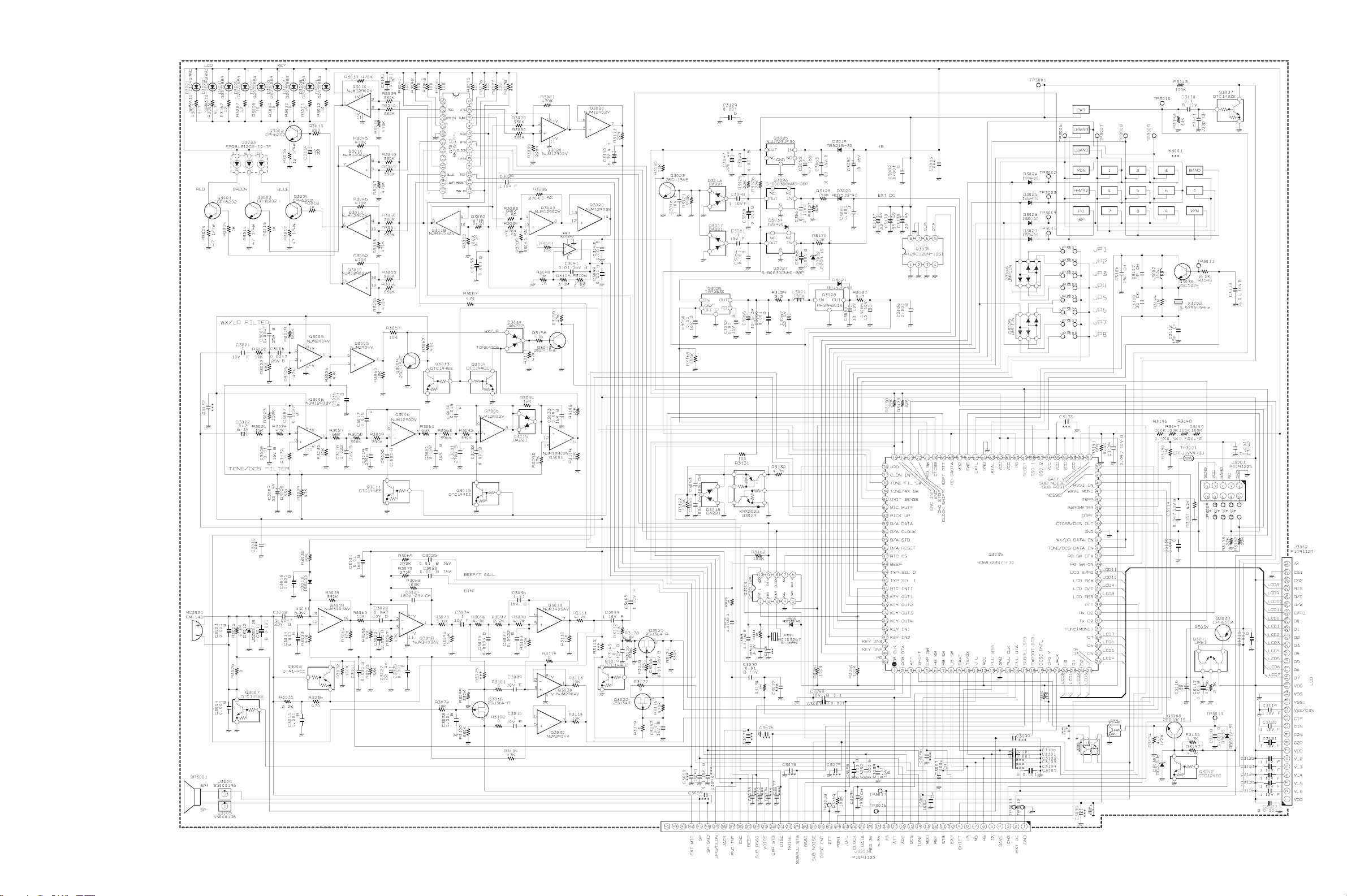

Circuit Diagram

CNTL Unit (Lot. 38 ~)

Page 60

CNTL Unit (Lot. 38 ~)

Parts Layout

DAC

HD6472237TF10 (USA) HD6432235R01TF (USA:Lot.4-) HD64F2238RTF13 (EXP) (Q3035)

AT24C128N-10SI-2.7 (Q3034)

2SJ364-R (Q3016, 3021)

2SJ305 (KN) (Lot. 3-) (Q3022)

M62364FP (Q3012)

NJM2904V (Q3005, 3030) S-35L12AEFS-TB (Q3044)

NJM12902V (Q3006, 3010, 3020)

NJM3403AV (Q3018)

2SJ347 (KS) (Lot. 4-) (Q3022)

NJU7231F30 (Q3025)

RH5RH651A (Q3028)

Side A

CPH6102 (AB) (Q3039)

TAR5S30 (Q3024)

D TA144EE (16) (Q3008)

NJU7007F2-TE1 (Q3017)

2SD1801S (Q3040)

DTC144EE (26) (Q3007, 3011, 3013,

3014, 3015, 3019,

3036)

KRX202U-RTK (Q3029, 3045)

DTC124EE (25) (Q3042)

2SC5374 (NA) (Q3038) 2SC4154E (LE) (Q3009, 3023, 3043)

UMW1 (W1) (Q3041)

DTC143ZE (E23) (Q3037)

S-80830CNMC (Q3026, 3027)

Side B

CPH6202 (CB) (Q3001, 3002, 3003,

CAUTIONCAUTION

CAUTION

CAUTIONCAUTION

3004)

Danger of explosion if battery BT3001Danger of explosion if battery BT3001

Danger of explosion if battery BT3001

Danger of explosion if battery BT3001Danger of explosion if battery BT3001 is incorrectly replaced. Replace onlyis incorrectly replaced. Replace only

is incorrectly replaced. Replace only

is incorrectly replaced. Replace onlyis incorrectly replaced. Replace only with the same or equivalent type.with the same or equivalent type.

with the same or equivalent type.

with the same or equivalent type.with the same or equivalent type.

SPMA10-1104Q7NC (D3001, 3002)

DAN222 (N) (D3014)

UMP11N (P1 1) (D3028, 3029)

DA221 (K) (D3015, 3016, 3017,

3018, )

Page 61

CNTL Unit

Parts List

REF.

BT3001 LI-ION BATTERY MS614-FL28E Q9000783 1- B c1 BT3001 LI-ION BATTERY ML614-TZ14 Q9000872 89- B c1 BT3001 LI-ION BATTERY MS614SE FL28E Q9000884 99- B c1 C 3001 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B a5 C 3002 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B a5 C 3002 CHIP TA.CAP. 4.7uF 6.3V TEESVP0J475M8R K78080053 4- B a5 C 3003 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a3 C 3004 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a2 C 3005 CHIP CAP. 0.0047uF 25V B TMK105B472KW-F K22148831 1- B a5 C 3006 CHIP CAP. 0.0047uF 25V B TMK105B472KW-F K22148831 1- B a5 C 3007 CHIP CAP. 0.0027uF 50V B UMK105B272KW-F K22178834 1- B a5 C 3008 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a5 C 3008 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a5 C 3009 CHIP TA.CAP. 22uF 4V TEESVA0G226M8R K78060023 1- B a5 C 3011 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a3 C 3012 CHIP CAP. 0.0047uF 25V B TMK105B472KW-F K22148831 1- B a3 C 3013 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a3 C 3014 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a3 C 3015 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a3 C 3016 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a5 C 3017 CHIP CAP. 0.015uF 50V F UMK105F153ZW-F K22179018 1- B a6 C 3017 CHIP CAP. 0.015uF 16V B EMK105B153KW-F K22128811 71- B a6 C 3018 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- B a6 C 3019 CHIP CAP. 270pF 50V B UMK105B271KW-F K22178822 1- B a6 C 3020 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a6 C 3020 CHIP CAP. 560pF 50V B UMK105B561KW-F K22178826 71- B a6 C 3021 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- B a6 C 3022 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B a3 C 3023 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a3 C 3024 CHIP CAP. 180pF 25V CH TMK105CH181JV-F K22148244 1- B a4 C 3025 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a4 C 3025 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a4 C 3026 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a4 C 3026 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a4 C 3027 CHIP TA.CAP. 22uF 4V TEESVA0G226M8R K78060023 1- B a4 C 3028 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a4 C 3029 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B c5 C 3030 CHIP CAP. 0.015uF 50V F UMK105F153ZW-F K22179018 1- B a6 C 3030 CHIP CAP. 0.015uF 16V B EMK105B153KW-F K22128811 71- B a6 C 3031 CHIP CAP. 270pF 50V B UMK105B271KW-F K22178822 1- B a6 C 3032 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a6 C 3032 CHIP CAP. 560pF 50V B UMK105B561KW-F K22178826 71- B a6 C 3033 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- B b6 C 3033 CHIP CAP. 0.047uF 25V B GRM188B11E473KA01D K22144811 100- B b6 C 3034 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B a4 C 3035 CHIP CAP. 0.0033uF 50V B GRM155B11H332KA01D K22178815 1- B a4 C 3036 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a4 C 3036 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a4 C 3037 CHIP CAP. 0.0022uF 50V B UMK105B222KW-F K22178833 1- B a4 C 3038 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b4 C 3039 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B b4 C 3040 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B b4 C 3041 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d5

DESCRIPTION

PCB with Components CB1871002 USA

Printed Circuit Board FR008220C 1-2

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

CB1871003 VERSION: A1 CB1871004 VERSION: A2 CB1871005 VERSION: A3 CB1871006 VERSION: B1 CB1871007 VERSION: B2 CB1871008 VERSION: B3 CB1871009 VERSION: C1 CB1871010 VERSION: C2 CB1871011 VERSION: C3 CB1871012 VERSION: D1 CB1871013 VERSION: D2 CB1871014 VERSION: B1 GERMANY CB1871015 VERSION: B2 GERMANY CB1871016 KOREA

FR008220D 3 FR008220E 4-37 FR008220F 38-

LOT.

SIDE

LAY ADR.

Page 62

CNTL Unit

REF.

C 3041 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B d5 C 3042 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B d5 C 3043 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c5 C 3044 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B a3 C 3045 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B a3 C 3046 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B d3 C 3046 CHIP CAP. 0.1uF 25V F GRM188F11E104ZA01D K22145001 38- B d3 C 3047 CHIP TA.CAP. 220uF 4V SK4-0G227M-RD K78060014 1- B a2 C 3047 CHIP TA.CAP. 220uF 4V TEESVC0G227M12R K78060053 99- B a2 C 3048 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B d4 C 3049 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c3 C 3050 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b4 C 3050 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B b4 C 3051 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B c4 C 3052 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c4 C 3052 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c4 C 3053 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- B b6 C 3054 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- B b6 C 3055 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a4 C 3055 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a4 C 3056 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b3 C 3056 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B b3 C 3057 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a3 C 3057 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a3 C 3060 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B d4 C 3061 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B c4 C 3062 AL.ELECTRO.CAP. 47uF 16V RV4-16V470MF46-RR2 K48120019 1- B a1 C 3063 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3 C 3063 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c3 C 3064 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c4 C 3065 CHIP TA.CAP. 10uF 6.3V TEESVP0J106M8R K78080055 1- B b4 C 3066 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b4 C 3067 CHIP TA.CAP. 22uF 4V TEESVA0G226M8R K78060023 1- B b3 C 3068 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c4 C 3069 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c1 C 3069 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B c1 C 3070 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a4 C 3070 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a4 C 3080 AL.ELECTRO.CAP. 10uF 16V RV4-16V100MD46-RR2 K48120018 1- B a2 C 3081 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B d4 C 3082 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c5 C 3084 CHIP TA.CAP. 33uF 10V TEESVB21A336M8R K78100047 1- B c3 C 3085 CHIP TA.CAP. 10uF 10V TEESVA1A106M8R K78100028 1- B c3 C 3086 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c3 C 3087 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c2 C 3088 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 2- B c3 C 3089 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d6 C 3089 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B d6 C 3090 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3 C 3091 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c2 C 3092 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c5 C 3094 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B c2 C 3095 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B c2 C 3097 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B c2 C 3098 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1-3 B c3 C 3100 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c2 C 3101 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c2 C 3105 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a2 C 3106 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 1- B a2 C 3107 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1-3 B a2 C 3107 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 EXPORT 4- B a2 C 3107 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 EXPORT 35 B a2 C 3107 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 EXPORT 36- B a2 C 3107 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 KOREA 16- B a2 C 3107 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 KOREA 36- B a2 C 3107 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 USA 4- B a2 C 3107 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 USA 36- B a2 C 3108 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1-3 B a1 C 3108 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 EXPORT 4- B a1 C 3108 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 EXPORT 35 B a1 C 3108 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 EXPORT 36- B a1 C 3108 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 KOREA 16- B a1

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 63

CNTL Unit

REF.

C 3108 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 KOREA 36- B a1 C 3108 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 USA 4- B a1 C 3108 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 USA 17- B a1 C 3108 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 USA 36- B a1 C 3109 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B b2 C 3110 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C2 C 3111 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A C2 C 3112 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 1- B a2 C 3113 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a2 C 3113 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a2 C 3114 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B b2 C 3115 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c5 C 3116 CHIP TA.CAP. 22uF 4V TEESVA0G226M8R K78060023 1- B c5 C 3117 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c5 C 3118 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a3 C 3119 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B b2 C 3120 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B b2 C 3121 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B b2 C 3122 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B b2 C 3123 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B c2 C 3124 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B c2 C 3125 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B c2 C 3126 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B c2 C 3127 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a2 C 3129 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a4 C 3130 CHIP TA.CAP. 33uF 4V TEESVA0G336M8R K78060036 1- B c4 C 3131 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a3 C 3131 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- B a3 C 3133 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c6 C 3134 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b6 C 3136 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c5 C 3137 CHIP TA.CAP. 33uF 4V TEESVA0G336M8R K78060036 1- B c4 C 3138 CHIP TA.CAP. 33uF 4V TEESVA0G336M8R K78060036 1- B d4 C 3139 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- A B2 C 3140 CHIP TA.CAP. 4.7uF 6.3V TEESVP0J475M8R K78080053 1- B d5 C 3141 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a4 C 3142 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c5 C 3143 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 4- B c3 C 3144 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 4- B c3 C 3145 CERAMIC CAP. 0.1uF 50V F UP050F104Z-A-B K28179003 36- B b3 C 3145 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 38- B b3 D 3001 LED MA10-1104Q7NC-WK G2070878 1- A A1 D 3002 LED MA10-1104Q7NC-WK G2070878 1- A D1 D 3004 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A D6 D 3004 LED 19-213/S2C-AN1P2B/3T G2071096 60- A D6 D 3005 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A C5 D 3005 LED 19-213/S2C-AN1P2B/3T G2071096 60- A C5 D 3006 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A C6 D 3006 LED 19-213/S2C-AN1P2B/3T G2071096 60- A C6 D 3007 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A B5 D 3007 LED 19-213/S2C-AN1P2B/3T G2071096 60- A B5 D 3008 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A A6 D 3008 LED 19-213/S2C-AN1P2B/3T G2071096 60- A A6 D 3009 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A A5 D 3009 LED 19-213/S2C-AN1P2B/3T G2071096 60- A A5 D 3012 DIODE UDZ TE-17 5.1B G2070448 1- B a4 D 3012 DIODE UDZS TE-17 5.1B G2070908 5- B a4 D 3013 DIODE 1SS400 TE61 G2070634 1- B a3 D 3014 DIODE DAN222 TL G2070174 1- B a5 D 3015 DIODE DA221 TL G2070178 1- B a6 D 3016 DIODE DA221 TL G2070178 1- B d3 D 3017 DIODE DA221 TL G2070178 1- B c3 D 3018 DIODE DA221 TL G2070178 1- B b6 D 3019 DIODE RB521S-30 TE61 G2070642 1- B a1 D 3020 DIODE RB751S-40TE61 G2070850 1- B c4 D 3021 DIODE RB751S-40TE61 G2070850 1- B b3 D 3022 DIODE RB751S-40TE61 G2070850 1- B c1 D 3024 DIODE 1SS400 TE61 G2070634 1- B b5 D 3025 DIODE 1SS400 TE61 G2070634 1- B b5 D 3026 DIODE 1SS400 TE61 G2070634 1- B b5 D 3027 DIODE 1SS400 TE61 G2070634 1- B b5 D 3028 DIODE UMP11N TN G2070646 1- B b5

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 64

CNTL Unit

REF.

D 3029 DIODE UMP11N TN G2070646 1- B b5 D 3030 DIODE RD2.0UM-T2 G2070190 1- B b2 D 3031 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A A4 D 3031 LED 19-213/S2C-AN1P2B/3T G2071096 60- A A4 D 3032 DIODE UDZS TE-17 9.1B G2070868 1- B c3 D 3033 LED FRGB1312CE-10-TF G2070870 1- A D4 D 3034 DIODE 1SS400 TE61 G2070634 1- B c4 D 3035 DIODE RB551V-30 TE-17 G2070892 1- B a3 DS3001 LCD MODULE LM7910FWTU Q7000426 1DS3001 LCD MODULE UMNH-7401JN-8F Q7000510 47DS3001 LCD MODULE UMNH-7401JN-9F Q7000510A 55DS3001 LCD MODULE UMNH-7401JN-10F Q7000510B 91J 3001 CONNECTOR AXK6F10335YP P0091225 1- B c4 J 3002 CONNECTOR IL-FHR-F30S-HF-E3000 P1091027 1- B b1 J 3002 CONNECTOR 9637S-30-Y905 P1091169 18- B b1 J 3003 CONNECTOR IL-FHR-F45S-HF-E3000 P1091135 1- B d2 J 3003 CONNECTOR 9637S-45-Y905 P1091171 22- B d2 J 3004 SHIELD FINGER 2026 3100012 S5000196 1- A B3 J 3004 SHIELD FINGER 1674954-1 S5000255 55- A B3 J 3005 SHIELD FINGER 2026 3100012 S5000196 1- A C3 J 3005 SHIELD FINGER 1674954-1 S5000255 55- A C3 L 3001 M.RFC 150uH FLC32P-T-151K L1690661 1- B b3 L 3002 M.RFC 150uH FLC32T-151J L1690229 1- B a2 MC3001 MIC. ELEMENT EM-140 M3290032 1- A D3 Q 3001 TRANSISTOR CPH6202-TL G3070265 1- A D3 Q 3002 TRANSISTOR CPH6202-TL G3070265 1- A B2 Q 3003 TRANSISTOR CPH6202-TL G3070265 1- A D3 Q 3004 TRANSISTOR CPH6202-TL G3070265 1- A C3 Q 3005 IC NJM2904V-TE1 G1091677 1- B a5 Q 3006 IC NJM12902V-TE1 G1093592 1- B a6 Q 3007 TRANSISTOR DTC144EE TL G3070075 1- B a3 Q 3007 TRANSISTOR KRC404E-RTK/P G3070355 75- B a3 Q 3008 TRANSISTOR DTA144EE TL G3070074 1- B a3 Q 3008 TRANSISTOR KRA304E-RTK/P G3070354 75- B a3 Q 3009 TRANSISTOR 2SC4154-T111-1E G3341548E 1- B a5 Q 3010 IC NJM12902V-TE1 G1093592 1- B b6 Q 3011 TRANSISTOR DTC144EE TL G3070075 1- B a6 Q 3011 TRANSISTOR KRC404E-RTK/P G3070355 75- B a6 Q 3012 IC M62364FP 600D G1093033 1- B c6 Q 3013 TRANSISTOR DTC144EE TL G3070075 1- B a5 Q 3013 TRANSISTOR KRC404E-RTK/P G3070355 75- B a5 Q 3014 TRANSISTOR DTC144EE TL G3070075 1- B a5 Q 3014 TRANSISTOR KRC404E-RTK/P G3070355 75- B a5 Q 3015 TRANSISTOR DTC144EE TL G3070075 1- B a6 Q 3015 TRANSISTOR KRC404E-RTK/P G3070355 75- B a6 Q 3016 FET 2SJ364-R(TX) G3703648R 1- B b4 Q 3016 FET 2SJ364-Q(TX) G3703648Q 61- B b4 Q 3016 FET 2SJ364-P(TX) G3703648P 75- B b4 Q 3017 IC NJU7007F3-TE1 G1093617 1- B c5 Q 3018 IC NJM3403AV-TE1 G1092215 1- B a3 Q 3019 TRANSISTOR DTC144EE TL G3070075 1- B b3 Q 3019 TRANSISTOR KRC404E-RTK/P G3070355 75- B b3 Q 3020 IC NJM12902V-TE1 G1093592 1- B c6 Q 3021 FET 2SJ364-R(TX) G3703648R 1- B b3 Q 3021 TRANSISTOR 2SA1602A-T111-1F G3116028F 37- B b3 Q 3021 TRANSISTOR ISA1602AM1-T111-1F G3070380 95- B b3 Q 3022 FET 2SJ364-R(TX) G3703648R 1- B b3 Q 3022 FET 2SJ305 TE85R G3703057 3 B b3 Q 3022 FET 2SJ347(TE85L.F) G3703477 4- B b3 Q 3023 TRANSISTOR 2SC4154-T111-1E G3341548E 1- B d3 Q 3024 IC TAR5S30(TE85L.F) G1093570 1- B c4 Q 3025 IC NJU7231F30-TE1 G1093512 1- B c4 Q 3026 IC S-80830CNMC-B8P-T2G G1093618 1- B c4 Q 3027 IC S-80830CNMC-B8P-T2G G1093618 1- B c4 Q 3028 IC RH5RH651A-T1 G1092598 1- B b3 Q 3028 IC XC6371A650PR G1094017 35- B b3 Q 3029 TRANSISTOR KRX202U-RTK G3070277 1- B b6 Q 3029 TRANSISTOR UMD2N TR G3070076 117- B b6 Q 3030 IC NJM2904V-TE1 G1091677 1- B b3 Q 3034 IC AT24C128N-10SU-2.7 G1093516 1- B c5 Q 3034 IC AT24C128BN-SH-T G1094607 110- B c5 Q 3035 IC HD64F2238RTF13 EXPORT 1- B b2

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 65

CNTL Unit

REF.

Q 3035 IC HD6432236RR07TF EXPORT 35 B b2 Q 3035 IC HD6432236RR07TF EXPORT 36- B b2 Q 3035 IC HD64F2238RTF13 KOREA 16- B b2 Q 3035 IC HD64F2238RTF13 KOREA 36- B b2 Q 3035 IC HD6472237TF10 USA 1- B b2 Q 3035 IC HD6472237TF10 R0678 USA 3 B b2 Q 3035 IC HD6432235R01TF USA 4- B b2 Q 3035 IC HD6432235R01TF USA 36- B b2 Q 3036 TRANSISTOR DTC144EE TL G3070075 1- B b3 Q 3036 TRANSISTOR KRC404E-RTK/P G3070355 75- B b3 Q 3037 TRANSISTOR DTC143ZE TL G3070102 1- A C2 Q 3038 TRANSISTOR 2SC5374-TL G3353748 1- B a2 Q 3039 TRANSISTOR CPH6102-TL G3070223 1- B c5 Q 3040 TRANSISTOR 2SD1801S-TL G3418018S 1- B a3 Q 3041 TRANSISTOR UMW1 TR G3070078 1- B c5 Q 3042 TRANSISTOR DTC124EE TL G3070109 1- B b3 Q 3043 TRANSISTOR 2SC4154-T111-1E G3341548E 1- B b5 Q 3044 IC S-35L12AEFS-TB-G G1093558 1- B c1 Q 3045 TRANSISTOR KRX202U-RTK G3070277 4- B c3 Q 3045 TRANSISTOR UMD2N TR G3070076 117- B c3 R 3001 CHIP RES. 4.7 1/16W 5% RMC1/16S 4R7JTH J24189066 1- A B2 R 3002 CHIP RES. 4.7 1/16W 5% RMC1/16S 4R7JTH J24189066 1- A C2 R 3003 CHIP RES. 47 1/4W 5% RMC1/4 470JATP J24245470 1- A D3 R 3004 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A D4 R 3005 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B a3 R 3006 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B a3 R 3007 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A C2 R 3008 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A B2 R 3009 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A B2 R 3010 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A B2 R 3011 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A B2 R 3012 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A B2 R 3013 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A B2 R 3014 CHIP RES. 47 1/4W 5% RMC1/4 470JATP J24245470 1- A D3 R 3015 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A D4 R 3016 CHIP RES. 12 1/4W 5% RMC1/4 120JATP J24245120 1- A A2 R 3017 CHIP RES. 47 1/4W 5% RMC1/4 470JATP J24245470 1- A C3 R 3018 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C4 R 3019 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 1- B a5 R 3020 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a5 R 3021 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B a5 R 3022 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- B a5 R 3023 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B a5 R 3024 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 1- B a5 R 3024 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 4- B a5 R 3025 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a5 R 3026 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a5 R 3027 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B a6 R 3028 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B a5 R 3029 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a5 R 3030 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a5 R 3031 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 1- B a3 R 3032 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B a2 R 3033 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a3 R 3034 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1 B a3 R 3034 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 EXPORT 2- B a3 R 3034 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 EXPORT 36- B a3 R 3034 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 KOREA 16- B a3 R 3034 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 KOREA 36- B a3 R 3034 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 USA 2- B a3 R 3034 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 USA 36- B a3 R 3035 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B a4 R 3036 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B a3 R 3037 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B b6 R 3038 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B b6 R 3039 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b6 R 3040 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b6 R 3041 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c6 R 3042 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c6 R 3043 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c6 R 3044 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c6 R 3045 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B c6

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 66

CNTL Unit

REF.

R 3046 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B c5 R 3047 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B b6 R 3048 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b6 R 3049 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b6 R 3050 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b5 R 3051 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b5 R 3052 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B b5 R 3053 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B b5 R 3054 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B b5 R 3055 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b5 R 3056 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b5 R 3057 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a5 R 3058 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B a6 R 3059 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B a6 R 3060 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a5 R 3061 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B a6 R 3062 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a5 R 3063 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B a6 R 3064 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a3 R 3065 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a3 R 3066 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a4 R 3067 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a4 R 3068 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 1- B a4 R 3069 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 1- B a4 R 3070 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 1- B a4 R 3070 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 36- B a4 R 3071 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 1- B a4 R 3072 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a4 R 3073 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B a4 R 3074 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b4 R 3075 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c6 R 3076 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c6 R 3077 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c6 R 3079 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B c6 R 3080 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B c6 R 3081 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B c6 R 3082 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 1 B a3 R 3082 CHIP RES. 270k 1/16W 0.5% MCR01MZPD2703 J24189329 2- B a3 R 3083 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1 B d5 R 3083 CHIP RES. 390k 1/16W 0.5% MCR01MZPD3903 J24189331 2- B d5 R 3084 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1 B c5 R 3084 CHIP RES. 470k 1/16W 0.5% MCR01MZPD4703 J24189332 2- B c5 R 3085 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B c6 R 3086 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 1 B d5 R 3086 CHIP RES. 270k 1/16W 0.5% MCR01MZPD2703 J24189329 2- B d5 R 3087 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b6 R 3088 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1 B a3 R 3088 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 2- B a3 R 3089 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1 B c5 R 3089 CHIP RES. 330k 1/16W 0.5% MCR01MZPD3303 J24189330 2- B c5 R 3090 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1 B d5 R 3090 CHIP RES. 1M 1/16W 1% MCR01MZSF1004 J24189333 2- B d5 R 3091 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c5 R 3092 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B a6 R 3093 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a5 R 3093 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 4- B a5 R 3094 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 1- B a6 R 3094 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 4- B a6 R 3095 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 1- B a4 R 3096 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B a4 R 3097 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B a4 R 3098 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B a3 R 3099 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b4 R 3100 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b4 R 3101 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B b4 R 3102 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B b4 R 3103 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B a4 R 3104 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b4 R 3105 CHIP RES. 3.3M 1/16W 5% RMC1/16S 335JTH J24189324 1- B d5 R 3106 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1 B d5 R 3106 CHIP RES. 150k 1/16W 0.5% MCR01MZPD1503 J24189328 2- B d5 R 3107 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a5

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 67

CNTL Unit

REF.

R 3108 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a5 R 3109 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a6 R 3110 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a4 R 3111 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B a4 R 3112 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a3 R 3112 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 11- B a3 R 3112 CARBON FILM RES. 6.8k 1/6W 5% RD16TPJ682 6.8K J07225682 36- B a3 R 3112 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 38- B a3 R 3113 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b3 R 3114 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b3 R 3115 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1-2 B b3 R 3116 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B a3 R 3118 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b3 R 3119 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b3 R 3119 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 3- B b3 R 3120 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B c4 R 3121 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B d4 R 3122 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b6 R 3123 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B a4 R 3123 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 36- B a4 R 3124 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b3 R 3125 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c4 R 3126 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c3 R 3127 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- B c4 R 3128 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B c4 R 3129 CHIP RES. 2.2 1/16W 5% RMC1/16 2R2JATP J24185229 1- B b3 R 3131 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B b6 R 3132 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b6 R 3133 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c1 R 3134 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B a4 R 3134 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 36- B a4 R 3137 CHIP RES. 4.7 1/16W 5% RMC1/16S 4R7JTH J24189066 1- B c3 R 3138 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B b3 R 3139 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B b3 R 3140 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b3 R 3141 CHIP RES. 68k 1/16W 0.5% RR0510R-683-D J24189163 1- B b2 R 3142 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A C2 R 3143 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C2 R 3144 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B a1 R 3145 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1-16 B a2 R 3145 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 EXPORT 17- B a2 R 3145 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 EXPORT 35 B a2 R 3145 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 EXPORT 36- B a2 R 3145 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 KOREA 17- B a2 R 3145 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 KOREA 36- B a2 R 3145 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 USA 17- B a2 R 3145 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 USA 36- B a2 R 3146 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B b2 R 3147 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B b2 R 3148 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B b2 R 3149 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B a2 R 3150 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B c5 R 3151 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b2 R 3152 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c4 R 3153 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c4 R 3154 CHIP RES. 4.7 1/2W 5% RMC1/2 4R7JCTP J24275479 1- B a3 R 3155 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b2 R 3156 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1- B c5 R 3157 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b2 R 3158 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b5 R 3159 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b6 R 3160 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c1 R 3161 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c1 R 3162 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c1 R 3167 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A B2 R 3168 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b4 R 3169 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c2 R 3170 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B c4 R 3171 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B d6 R 3172 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a5 R 3172 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 4- B a5 R 3174 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 3- B b4

DESCRIPTION

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 68

CNTL Unit

REF.

R 3176 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 3 B b3 R 3176 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 4- B b3 R 3177 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 4- B b3 R 3177 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 18- B b3 R 3177 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 38- B b3 R 3178 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 4- B a3 R 3179 CARBON FILM RES. 6.8k 1/6W 5% RD16TPJ682 6.8K J07225682 36R 3179 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 38R 3180 CHIP RES. 3.3M 1/16W 5% RMC1/16S 335JTH J24189324 116TH3001 THERMISTOR ERTJ1VV473J G9090122 1- B a2 X 3001 XTAL VT-200 32.768KHZ 20PPM/6PF H0103267 1- B c1 X 3002 XTAL SX-1319 X 3002 XTAL HC-49/U

DESCRIPTION

MIC HOLDER RUBBER REFLECTOR SHEET RA0399900 1DOUBLE FACE (LCD) RA014250A 1LIGHT GUIDE (LCD) RA0399100 1-

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

3.579545MHz

3.579545MHZ H0103229 1- B a1 SMD(3.2H)3.579545MHZ H0103364 98- B a1

RA0405600 1-

LOT.

SIDE

LAY ADR.

Page 69

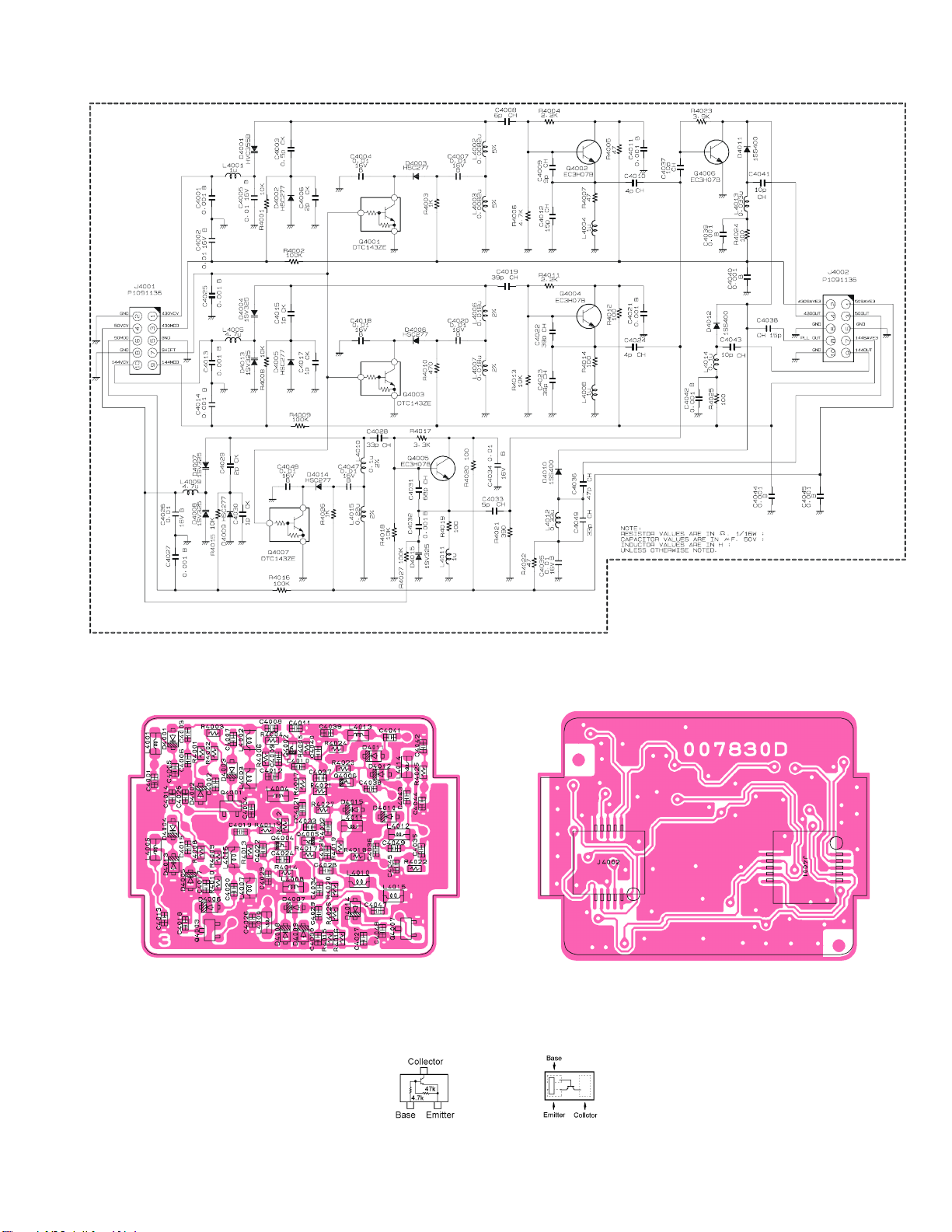

Circuit Diagram

VCO Unit (Lot. 1 ~ 19)

Parts Layout

Side A Side B

DTC143ZE (E23) (Q4001, 4003, 4007)

EC3H07B (G) (Q4002, 4004, 4005,

4006)

Page 70

VCO Unit (Lot. 20 ~ 78)

Circuit Diagram

Parts Layout

Side A Side B

DTC143ZE (E23) (Q4001, 4003, 4007)

EC3H07B (G) (Q4002, 4004, 4005,

4006)

Page 71

Circuit Diagram

VCO Unit (Lot. 79 ~)

Parts Layout

Side A Side B

DTC143ZE (E23) (Q4001, 4003, 4007)

EC3H07B (G) (Q4002, 4004, 4005,

4006)

Page 72

VCO Unit

Parts List

REF.

C 4001 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 4002 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A1 C 4002 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A A1 C 4003 CHIP CAP. 0.5pF 50V CK UMK105CK0R5CV-F K22178247 1- A A1 C 4004 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A1 C 4004 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A A1 C 4005 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A1 C 4005 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A A1 C 4006 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- A A1 C 4007 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A1 C 4007 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A A1 C 4008 CHIP CAP. 6pF 50V CH GRM1552C1H6R0BZ01D K22178293 1- A A1 C 4009 CHIP CAP. 7pF 50V CH GRM1552C1H7R0BZ01D K22178294 1- A A1 C 4009 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 99- A A1 C 4010 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 1- A A1 C 4011 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 4012 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A A1 C 4013 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2 C 4014 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 4015 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- A A1 C 4017 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- A A1 C 4018 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A2 C 4018 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A A2 C 4019 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 1- A A1 C 4019 CHIP CAP. 39pF 50V CH GRM1552C1H390GZ01D K22179703 69- A A1 C 4020 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A1 C 4020 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A A1 C 4021 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 4022 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 1- A A1 C 4022 CHIP CAP. 39pF 50V CH GRM1552C1H390GZ01D K22179703 69- A A1 C 4023 CHIP CAP. 39pF 50V CH UMK105CH390JV-F K22178272 1- A A1 C 4023 CHIP CAP. 39pF 50V CH GRM1552C1H390GZ01D K22179703 69- A A1 C 4024 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 1- A A1 C 4025 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 4026 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A2 C 4026 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A A2 C 4027 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B2 C 4028 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- A A1 C 4029 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- A A1 C 4030 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- A A2 C 4031 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- A A1 C 4032 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 4033 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- A A1 C 4034 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A1 C 4034 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A A1 C 4035 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B1 C 4035 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A B1 C 4036 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 1- A B1 C 4037 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- A A1 C 4038 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A B1 C 4039 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 4040 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1 C 4041 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- A B1 C 4042 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1 C 4043 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- A B1 C 4044 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1 C 4045 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1 C 4047 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B1 C 4047 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A B1 C 4048 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B2 C 4048 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 100- A B2 C 4049 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1-106 A B1 D 4001 DIODE HVC355B TRF-E G2070588 1- A A1 D 4002 DIODE HSC277TRF-E G2070584 1- A A1 D 4003 DIODE HSC277TRF-E G2070584 1- A A1 D 4004 DIODE 1SV325(TPH3.F) G2070848 1- A A1 D 4005 DIODE HSC277TRF-E G2070584 1- A A1 D 4006 DIODE HSC277TRF-E G2070584 1- A A1

DESCRIPTION

PCB with Components CB1872001 Printed Circuit Board FR007830D 1-

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

FR007830E 20-78 FR007830G 79-

LOT.

SIDE

LAY ADR.

Page 73

VCO Unit

REF.

D 4007 DIODE 1SV325(TPH3.F) G2070848 1- A A1 D 4008 DIODE 1SV325(TPH3.F) G2070848 1- A A2 D 4009 DIODE HSC277TRF-E G2070584 1- A A2 D 4010 DIODE 1SS400 TE61 G2070634 1- A B1 D 4011 DIODE 1SS400 TE61 G2070634 1- A B1 D 4012 DIODE 1SS400 TE61 G2070634 1- A B1 D 4013 DIODE 1SV325(TPH3.F) G2070848 1- A A1 D 4014 DIODE HSC277TRF-E G2070584 1- A B1 D 4015 DIODE 1SV325(TPH3.F) G2070848 1- A B1 J 4001 CONNECTOR AXK5F10335YP P1091136 1- B b1 J 4002 CONNECTOR AXK5F10335YP P1091136 1- B a1 L 4001 M.RFC 1uH LK1608 1R0K-T L1690687 1- A A1 L 4002 M.RFC 0.0082uH 5% C1608CB-8N2J-RF L1691095 1- A A1 L 4002 M.RFC 0.0082uH 2% C1608CB-8N2G-RF L1691226 4- A A1 L 4002 M.RFC 0.0068uH 5% C1608CB-6N8J-RF L1691093 99- A A1 L 4003 M.RFC 0.0082uH 5% C1608CB-8N2J-RF L1691095 1- A A1 L 4003 M.RFC 0.0082uH 2% C1608CB-8N2G-RF L1691226 4- A A1 L 4004 M.RFC 1uH LK1608 1R0K-T L1690687 1- A A1 L 4005 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- A A1 L 4006 M.RFC 0.018uH 2% C1608CB-18NG-RF L1691035 1- A A1 L 4007 M.RFC 0.018uH 2% C1608CB-18NG-RF L1691035 1- A A1 L 4008 M.RFC 1uH LK1608 1R0K-T L1690687 1- A A1 L 4009 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- A A2 L 4010 M.RFC 0.1uH 2% C1608CB-R10G-RF L1691045 1- A B1 L 4011 M.RFC 1uH LK1608 1R0K-T L1690687 1- A B1 L 4012 M.RFC 0.33uH LK1608 R33K-T L1690412 1- A B1 L 4013 M.RFC 0.033uH HK1608 33NJ-T L1690522 1- A B1 L 4014 M.RFC 0.1uH LK1608 R10K-T L1690407 1- A B1 L 4015 M.RFC 0.22uH 2% C1608CB-R22G-RF L1691103 1- A B1 Q 4001 TRANSISTOR DTC143ZE TL G3070102 1- A A1 Q 4002 TRANSISTOR EC3H07B-TL G3070286 1- A A1 Q 4002 TRANSISTOR MT3S36FS(TE85L.F) G3070377 92- A A1 Q 4003 TRANSISTOR DTC143ZE TL G3070102 1- A A2 Q 4004 TRANSISTOR EC3H07B-TL G3070286 1- A A1 Q 4004 TRANSISTOR MT3S36FS(TE85L.F) G3070377 92- A A1 Q 4005 TRANSISTOR EC3H07B-TL G3070286 1- A A1 Q 4005 TRANSISTOR MT3S36FS(TE85L.F) G3070377 92- A A1 Q 4006 TRANSISTOR EC3H07B-TL G3070286 1- A B1 Q 4006 TRANSISTOR MT3S36FS(TE85L.F) G3070377 92- A B1 Q 4007 TRANSISTOR DTC143ZE TL G3070102 1- A B2 R 4001 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A1 R 4002 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A1 R 4003 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A A1 R 4004 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A A1 R 4005 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A A1 R 4006 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A1 R 4007 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A A1 R 4008 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A1 R 4009 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A1 R 4010 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A A1 R 4011 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A A1 R 4012 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A1 R 4013 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A1 R 4014 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A1 R 4015 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A2 R 4016 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B2 R 4017 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A A1 R 4017 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 3- A A1 R 4018 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B1 R 4019 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A1 R 4019 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 30- A A1 R 4020 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A1 R 4021 CHIP RES. 390 1/16W 5% RMC1/16S 391JTH J24189020 1- A A1 R 4022 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A B1 R 4023 CHIP RES. 3.9k 1/16W 5% RMC1/16S 392JTH J24189032 1- A B1 R 4024 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A1 R 4025 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B1 R 4026 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A1 R 4027 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A1

DESCRIPTION

SHIELD CASE VCO RA0400300 1-

VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

LOT.

SIDE

LAY ADR.

Page 74

No portion of this manual may be reproduced without the permission of VERTEX STANDARD CO., LTD.

Vertex VX-7R Technical Supplement

Introduction

Contents

Specifications

Exploded View & Miscellaneous Parts

Block Diagram

Interconnection Diagram

Circuit Description

Receiver Signal Flow

(1) Triplexer

(2) 145-MHz Band and 76-300MHz Reception

(3) 435-MHz Band and 222-540MHz Reception

(4) 50-MHz-Band and 30-76 MHz Reception

(5) 0.5 - 30 MHz Reception

(6) 540 - 999 MHz Reception

(7) 47.25-MHz First Intermediate Frequency

(8) Squelch Control

(2) Modulation

(3) 145-MHz-Band Transmission

(4) 435-MHz-Band Transmission

(5) 50-MHz-Band Transmission

PLL Frequency Synthesizer

Alignment

Introduction and Precautions

Required Test Equipment

Alignment Preparation & Precautions

Test Setup

Internal System Alignment Routine

Main Band Alignment

PLL Reference Frequency (PLL REF)

430 MHz band Alignment

Squelch Hysteresis Adjustment (HIS SQL)

Squelch Preset Threshold (THLD SQL) [86]

Squelch Preset Tight (TIGH SQL)

S-Meter S-1 Adjustment (S1 LEVEL)

S-Meter Full-Scale Adjustment (S9 LEVEL)

Wide-FM S-Meter S-1 Adjustment (S1 LEVEL)

Wide-FM S-Meter Full-Scale Adjustment (S9 LEVEL)

High TX Power Adjustment (HI POWER)

L3 Tx Power Adjustment (L3 POWER)

L2 Tx Power Adjustment (L2 POWER)

L1 Tx Power Adjustment (L1 POWER)

TX Deviation Adjustment (MAX DEV)

CTCSS Tx Deviation Adjustment (TN 67.0)

CTCSS Tx Deviation Adjustment (TN 183.5)

CTCSS Tx Deviation Adjustment (TN 254.1)

DCS Tx Deviation Adjustment (DCS DEV)

High TX Power Adjustment (L2 POWER)

High TX Power Adjustment (L1 POWER)

TX Deviation Adjustment (MAX DEV)

CTCSS Tx Deviation Adjustment (TN 67.0)

CTCSS Tx Deviation Adjustment (TN 183.5)

CTCSS Tx Deviation Adjustment (TN 254.1)

DCS Tx Deviation Adjustment (DCS DEV)

High TX Power Adjustment (HI POWER)

High TX Power Adjustment (L3 POWER)

50 MHz Band Alignment

Squelch Hysteresis Adjustment (HIS SQL)

Squelch Preset Threshold (THLD SQL)

Squelch Preset Tight (TIGH SQL)

S-Meter S-1 Adjustment (S1 LEVEL)

S-Meter Full-Scale Adjustment (S9 LEVEL)

Wide-FM S-Meter S-1 Adjustment (S1 LEVEL)

Wide-FM S-Meter Full-Scale Adjustment (S9 LEVEL)

L1 Tx Power Adjustment (L1 POWER)

TX Deviation Adjustment (MAX DEV)

AM Modulation (AM MOD)

CTCSS Tx Deviation Adjustment (TN 67.0)

CTCSS Tx Deviation Adjustment (TN 167.9)

CTCSS Tx Deviation Adjustment (TN 254.1)

High TX Power Adjustment (HI POWER)

L3 Tx Power Adjustment (L3 POWER)

L2 Tx Power Adjustment (L2 POWER)

DCS Tx Deviation Adjustment (DCS DEV)

High TX Power Adjustment (HI POWER)

High TX Power Adjustment (L3 POWER)

High TX Power Adjustment (L2 POWER)

High TX Power Adjustment (L1 POWER)

TX Deviation Adjustment (MAX DEV)

AM Modulation (AM MOD)
