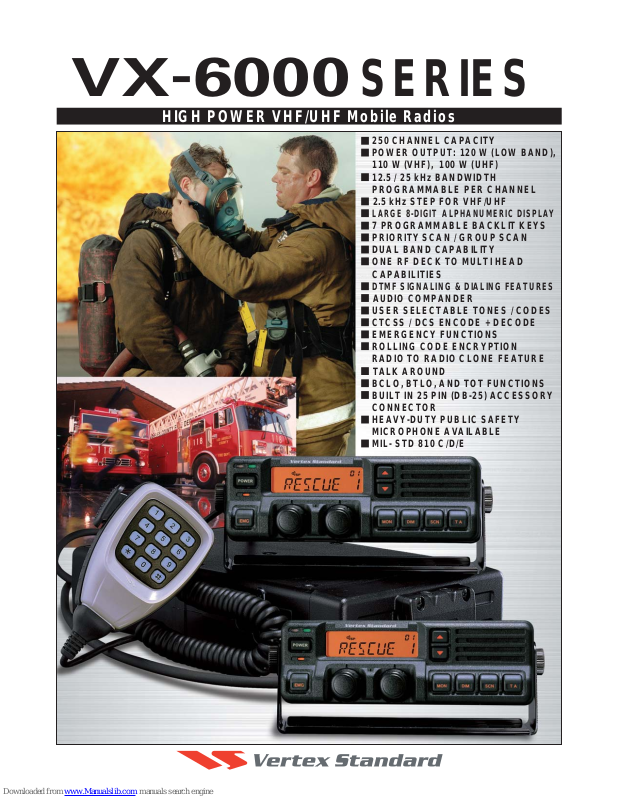

Page 1
VX
-
6000
SERIES
HIGH POWER VHF/UHF Mobile Radios
250 CHANNEL CAPACITY
POWER OUTPUT: 120 W (LOW BAND),
110 W (VHF), 100 W (UHF)
12.5 / 25 kHz BANDWIDTH
PROGRAMMABLE PER CHANNEL
2.5 kHz STEP FOR VHF/UHF
LARGE 8-DIGIT ALPHANUMERIC DISPLAY
7 PROGRAMMABLE BACKLIT KEYS
PRIORITY SCAN / GROUP SCAN
DUAL BAND CAPABILITY
ONE RF DECK TO MULTI HEAD
CAPABILITIES
DTMF SIGNALING & DIALING FEATURES
AUDIO COMPANDER
USER SELECTABLE TONES / CODES
CTCSS / DCS ENCODE + DECODE
EMERGENCY FUNCTIONS
ROLLING CODE ENCRYPTION
RADIO TO RADIO CLONE FEATURE
TALK AROUND
BCLO, BTLO, AND TOT FUNCTIONS
BUILT IN 25 PIN (DB-25) ACCESSORY
CONNECTOR
HEAVY-DUTY PUBLIC SAFETY
MICROPHONE AVAILABLE
MIL- STD 810 C/D/E
Page 2
VX
High Power, High Spec, Reliability, Ruggedness and Versatility: these
are the
Standard VX-6000 provides the features, performance, and toughness to
get your message through under the most demanding public safety operating
conditions. It’s a perfect blend of rugged design, flexible signaling
options, superb ergonomics, and expandability, making the VX-6000
series an outstanding choice for your future communications needs.
-
6000
SERIES
essential elements in a successful communications system. Vertex
Page 3

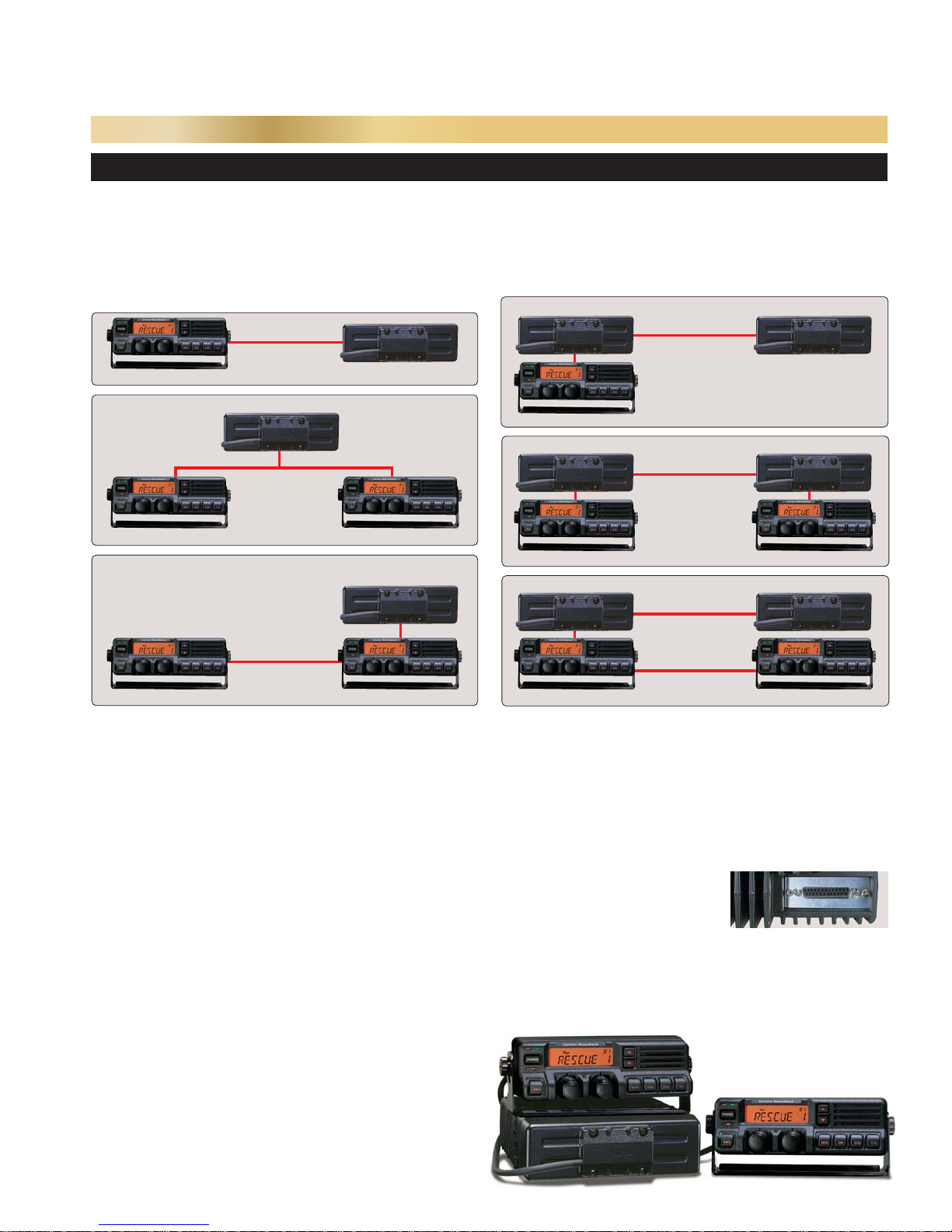

VERSATILITY
MULTI CONFIGURATION SYSTEM
ONE RF DECK TO MULTIPLE HEAD CAPABILITIES
A single VX-6000 RF Deck may be controlled by two
different Control Heads, allowing control of the radio from
more than one location. Depending on the installation
requirements, both Control Heads may be connected
directly to the RF Deck, or the two Control Heads may be
connected in a series "Daisy Chain" configuration.
CT-81, CT-82, CT-83 or CT-93
CONTROL HEAD
CNT-6000
CONTROL HEAD
CNT-6000
Single Head Remote
RMK-4000SH
RF DECK (VHF or UHF)
CT-81, CT-82, CT-83 or CT-93
Dual Head Remote
RMK-4000DH
RMK-4000DH
CT-81, CT-82, CT-83 or CT-93
RF DECK (VHF or UHF)
CONTROL HEAD
RF DECK (VHF or UHF)
DUAL BAND CAPABILITY
Two VX-6000 Control Heads and RF Decks, on different
bands, may be networked to allow multi-band operation.
VHF, UHF, or VHF Low Band radios may be combined to
meet
complicated communications requirements involving
federal, state, and local government and/or forestry operations.
RF DECK (VHF) RF DECK (UHF)
CT-81, CT-82, CT-83 or CT-93
Dual Band,
Single Head Remote
RMK-4000DB
CONTROL HEAD
RF DECK (VHF) RF DECK (UHF)
CT-81, CT-82, CT-83 or CT-93
RMK-4000DBH
CONTROL HEAD
RF DECK (VHF) RF DECK (UHF)
CT-81, CT-82, CT-83 or CT-93
RMK-4000DBH
CONTROL HEAD
CONTROL HEAD
CONTROL HEAD
250 CHANNEL CAPACITY
Huge 250-channel capacity may be partitioned into as many
as 20 Memory Groups, with no limit on the number of
channels in each Group. A single radio may therefore be
programmed with channel sets for a number of different
jurisdictions or organizations.
PRIORITY SCAN
The VX-6000’s versatile scanning system includes a Priority
Scan function, which provides scanning of all channels (or
channels within a Memory Group) while maintaining a priority
watch on a particularly important channel. Scanning will halt
immediately, and operation will revert to the Priority Channel if
activity is detected on the Priority Channel.
GROUP SCAN
The versatile scanning options allow simple scanning of selected
channels, and scanning with a priority channel. The group scan
feature allows scanning of multiple groups at the same time.
This is critical for those mutual aid and disaster preparedness
situations where communications among many agencies is a must.
USER SELECTABLE TONES / CODES
High-performance Encoder/Decoder circuits for both CTCSS and
Digital Code Squelch are provided for access to tone/code
controlled systems.
BUILT IN 25 PIN (DB-25) ACCESSORY CONNECTOR
The VX-6000 includes a built-in standard DB-25 connector, for
ease of integration of the radio into your communications system.
The DB-25 connector includes a number of logic status lines,
Squelch state and level indicators, and
Data I/O connections. Horn
other accessories also can be connected
through the DB-25 connector.
INTERNAL ACCESSORY INTERFACING
The VX-6000 Series is easily interfaced to 3rd-party accessories.
The optional CN-6 Interface Unit provides a quick interconnection
platform for signaling, control, and other accessory boards used
in public safety environments.
DTMF SIGNALING & DIALING FEATURES
When used with the optional MH-53B7A DTMF Microphone,
VX-6000 may be configured for both manual and Speed Dial
DTMF calling. All versions provide programmable PTT ANI for
business or fleet applications.
the
CTCSS / DCS ENCODE + DECODE
Field programming of the CTCSS tones or DCS codes is available,
allowing access to multiple systems or quick configuration for multijurisdictional operations.
CONTROL HEAD
Dual Band, Dual Head
Remote
Alert and
CONTROL HEAD
Page 4

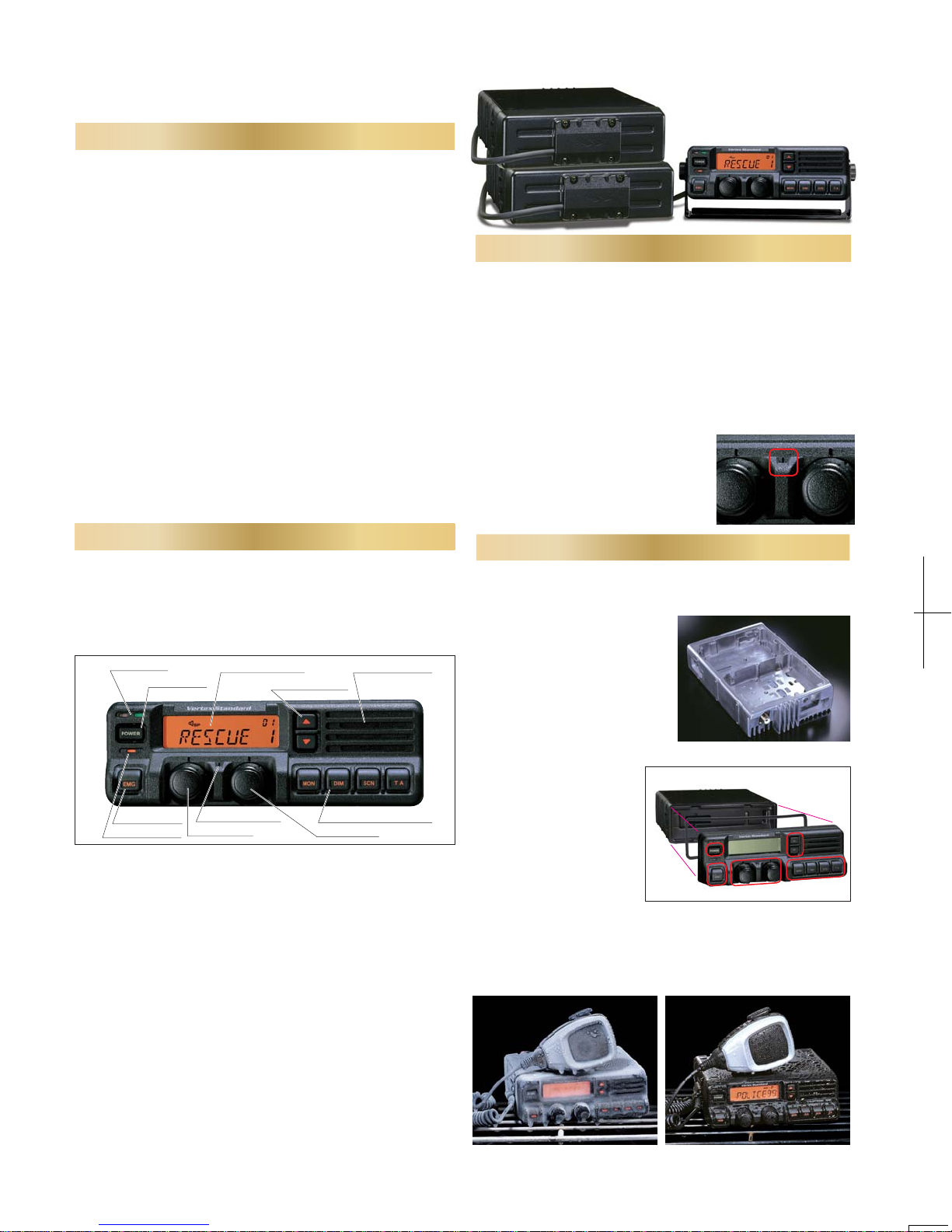

HIGH PERFORMANCE
POWER OUTPUT: 120 W (LOW BAND), 110 W (VHF), 100 W (UHF)
The VX-6000’s construction includes a massive, die-cast
outer case which doubles as the heatsink. And the Automatic
Power Control (APC) circuit ensures stable power output
over a very wide range of ambient temperatures.
WIDE-BAND COVERAGE
Coverage beyond typical frequency limits allows programming
in "guard band" channel allocations, and ensures compatibility
for programming in a wide variety of locations.
12.5/25 kHz BANDWIDTH PROGRAMMABLE PER CHANNEL
The VX-6000 may be programmed with Wide or Narrow operating
bandwidths, channel by channel, to conform to your local channel
environment. Ideal for multi-jurisdiction operations.
2.5 kHz STEP FOR VHF/UHF
Ensuring full compatibility with all channel loading requirements,
the VX-6000’s synthesizer provides 2.5 kHz resolution. Channel
programming therefore is straightforward in all configuration situations.
COMPANDER INCLUDED
For narrow-band channel applications, the built-in Audio
Companding system compresses the voice waveform during
transmission, and expands it during reception, allowing fullsounding audio despite the restricted transmission bandwidth.
SECURITY
EMERGENCY FUNCTIONS
The VX-6000 may be programmed to transmit an Emergency
DTMF ANI burst, with or without a live microphone engaged,
to alert the dispatcher to an emergency situation requiring
assistance to the user.
ENCRYPTION
The FVP-25 Encryption Unit or FVP-35 Rolling code encryption
Unit provides security for your important
private security communications, and it also includes a DTMF
Paging function(FVP-25) for selective calling.
INTERNAL EMERGENCY MICROPHONE
In an emergency situation, the VX-6000
can transmit using an internal microphone
should the regular microphone
damaged or otherwise unusable.
public safety and
become
EASY USER INTERFACE
LARGE 8-DIGIT ALPHANUMERIC DISPLAY
Providing indication of either the channel number or an
Alphanumeric Channel Label of up to 8 characters, the LCD
display utilizes large, bold characters on its high-intensity
backlit amber LED display to provide excellent visibility over
a wide range of viewing angles and in difficult lighting situations.
BUSY/TX LEDs
POWER Switch
Home Channel Key
Home Channel LED
Alpha-Numeric Display
Emergency Microphone
Volume Control
Front-Facing Speaker
Channel Group Keys
Programmable Function Keys
Channel Selector
7 PROGRAMMABLE BACKLIT KEYS
The front panel keys may be programmed by the dealer for a
variety of operating functions, allowing customization of the
front panel functions to your unique requirements. The keys
are illuminated from behind, as well, for easy viewing at night.
LOUD 5W/10W AUDIO OUTPUT
The VX-6000’s high-powered audio (5 Watts standard, 10 Watts
optional) is coupled to a large, front-facing speaker, producing
high-quality, crisp audio that will punch through even in the
noisy environments experienced by public safety officers.
STATUS QUICK-CHECK (SQC) FEATURE
The VX-6000 can be programmed to include the Status Quick
Check (SQC) feature, which allows the user to check the
configuration of all controls, keys, and knobs on the radio. This
enables the operator to avoid missing important communications
in the event that a control or switch is set to the wrong position.
RADIO TO RADIO CLONE FEATURE
For quick programming of VX-6000 radios for an emergency
task force, the Clone feature allows copying of all channel
and other configuration data from one VX-6000 to another,
using the optional CT-72 Cloning Cable.
DIE-CAST CONSTRUCTION ALUMINUM CHASSIS/ENCLOSURE
The one-piece die-cast enclosure for the VX-6000 doubles
as its chassis, yielding extreme strength for resistance against
shock and vibration. This uniquely
rugged construction
specifications and functionality
will be maintained for many years,
despite the shock, vibration, and
other abuse typically experienced
by radios in public safety use.
HIGH-RELIABILITY CONSTRUCTION
The ABS front panel is
sealed by a robust O-ring,
and all switches are covered
by U-shaped silicone rubber
gaskets to protect the internal
circuitry from dust, humidity,
salt fog, and driving rain.
WATER-SHIELD MICROPHONE CONNECTION
The multi-pin microphone connector on the side of the VX-6000,
sealed for protection against weather, provides a convenient
connection point for the available microphones. Its gold-plated
contacts ensure many years of reliable service.
OTHER FEATURES:
•
DURABLE CONSTRUCTION
ensures that
TALK AROUND •BCLO, BTLO, AND TOT FUNCTIONS
Page 5

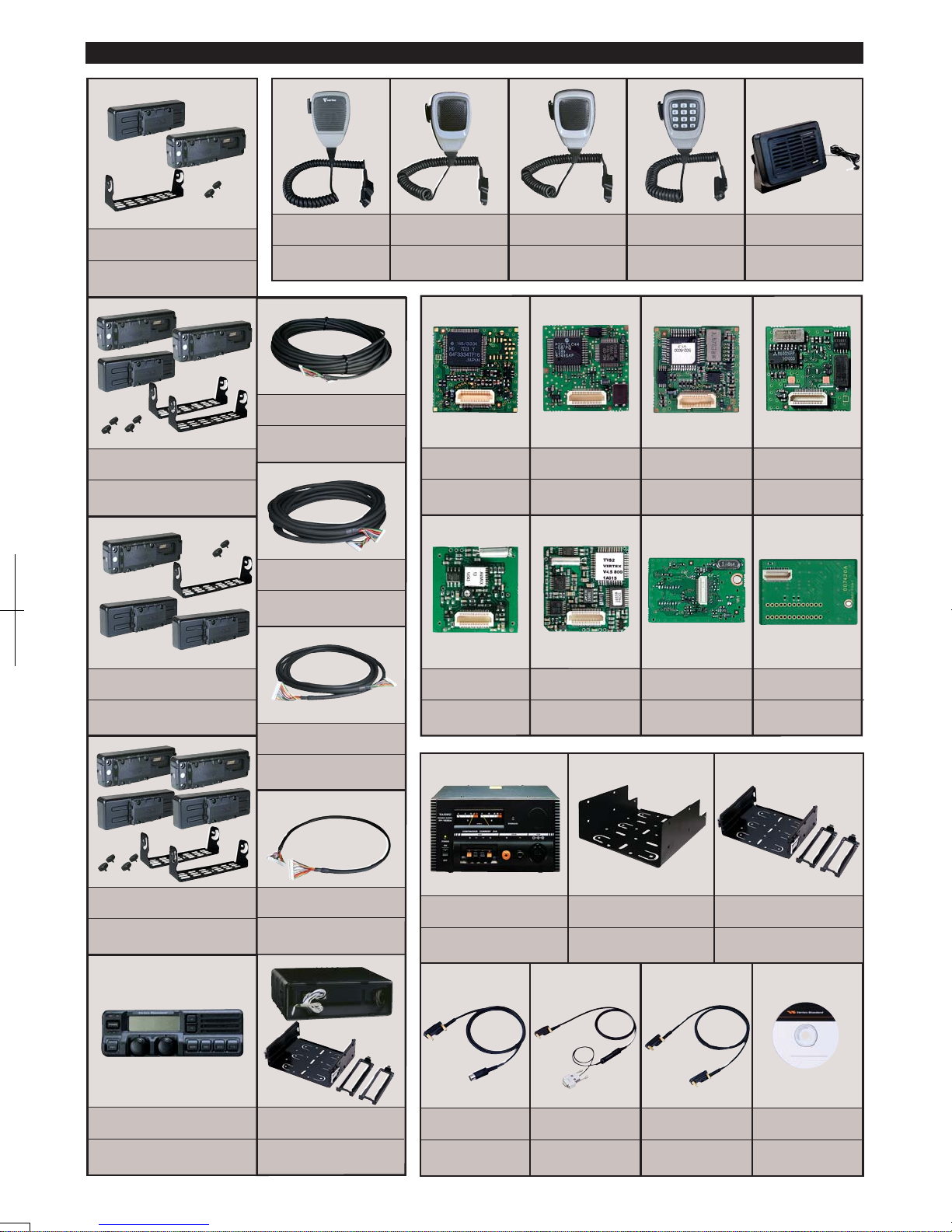

Accessories & Options
RMK-4000SH
Remote Kit for
Single Transceiver
RMK-4000DH
Remote Kit for
Dual-Head Installations
MH-25B7A
Standard
Microphone
CT-93
Cable for RMK-4000
33 ft (10 m)
CT-81
Cable for RMK-4000
20 ft (6 m)
MH-53C7A
Heavy Duty
Microphone
F2D-8
2-Tone Decode Unit
(Requires FIF-7)
Heavy Duty
Noise Canceling
Microphone
F5D-14
5-Tone ENC/DEC Unit
(Requires FIF-7)
MH-53B7A MH-53A7A
Heavy Duty
Noise Canceling
DTMF Microphone
VTP-50
VX-Trunk Unit
(Requires FIF-7)
MLS-100
Mobile Loud Speaker
(12 W Peak Power)
FVP-25
Encryption/DTMF Pager
Unit (Requires FIF-7)
RMK-4000DB
Remote Kit for
Dual Band Installations
RMK-4000DBH
Remote Kit for Dual Band
plus Dual Head Installations
CNT-6000
Control Head
CT-82
Cable for RMK-4000
8 ft (2.5 m)
CT-83
Cable for RMK-4000
2 ft (0.6 m)
RF DECK w/ MMB-77
RF Deck for Multi Band
Operation
MDC1200 FVP-35
Digital ANI Encoder
Unit
(Requires FIF-7)
FP-1030A
External Power Supply
Rolling Code Encryption
Unit (Requires FIF-7)
(13.8 V, 30 A)
CT-70
Radio Programming
Cable (Requires VPL-1)
Radio to PC
Programming Cable
Various accessories listed may not be available in some countries.
MMB-79
Mobile Mounting
Bracket
CT-71
FIF-7
Interface Board for
F2D-8,F5D-14,VTP-50,FVP-25
CN-6
Interface Board for
Accessories
MMB-77
Locking Mobile
Mounting
CT-72
Radio to Radio
Programming Cable
Bracket
CE49
Programming
Software
Page 6
Specifications
VX-6000L VX-6000V VX-6000U
General Specifications
Frequency Range 29.7-37 MHz (A) 148-174 MHz (C) 450-480 MHz (D)
37-50 MHz (B)
Number of Channels 250 Channels
Channel Spacing 20 kHz 12.5/25 kHz
PLL Steps 5/6.25 kHz 2.5/5/6.25 kHz
Power Supply Voltage 13.4 V DC
Current Consumption LOW VHF UHF
TX 22 A 25 A 28 A
RX 2.2 A 2.2 A 2.2 A
STBY 0.6 A 0.6 A 0.6 A
Operating Temperature Range
–22° F to +140° F (—30° C to +60° C)
Frequency Stability Better than ±5.0 ppm Better than ±2.0 ppm
RF Input-Output Impedance 50 Ohms
Audio Output Impedance 4 Ohms
Dimensions (WHD) 7" x 2.4" x 11.9" (178 x 60 x 301 mm)
Weight 15.4 lb. (6.9 kg)
Receiver Specifications
Measurements made per EIA standard TIA/EIA-603
Circuit Type Double-conversion Super-heterodyne
Sensitivity(EIA 12 dB SINAD)
Adjacent Channel Selectivity
0.25 µV
85 dB
Intermodulation 80 dB 80 / 75 dB 80 / 75 dB
Spurious and Image Rejection
90 dB 90 dB 90 dB
Audio Output 5 W @ 4 Ohms 3 % THD (10 W @ 4 Ohms 3 % / Optional MLS-100)
Transmitter Specifications
Measurements made per EIA standard TIA/EIA-603
Power Output 120 W/50 W 110 W/50 W 100 W/ 50 W
Modulation 16K0F3E 16K0F3E ,11K0F3E
Maximum Deviation 5 kHz 5.0 / 2.5 kHz
Conducted Spurious Emissions
Audio Distortion (@1 kHz)
80 dB Below Carrier
< 2 % @1kHz
Microphone type Dynamic
Microphone impedance 600 ohms
Measurements per EIA standards unless noted above. Specifications subject to change without notice or obligation.
±15 %
85 / 80 dB 85 / 77 dB
Applicable MIL-STD
Standard
Low Pressure
High Temperature 501.1/Procedure 1, 2
Low Temperature 502.1/Procedure 1
Temperature Shock 503.1/Procedure 1
Solar Radiation 505.1/Procedure 1
Rain*
Humidity 507.1/Procedure 2
Salt Fog
Dust
Vibration 514.2/Procedure 8, 10
Shock 516.2/Procedure 1, 5
*Control Head Only
MIL 810C Methods/Procedures
Vertex Standard
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
Phone 714/827-7600; Fax 714/827-8100
http://www.vxstdusa.com
MIL 810D Methods/Procedures
500.2/Procedure 2
501.2/Procedure 1, 2
502.2/Procedure 1, 2
503.2/Procedure 1
505.2/Procedure 1
506.2/Procedure 1, 2
507.2/Procedure 2
509.2/Procedure 1
510.2/Procedure 1
514.3/Procedure 1 Cat. 10
516.3/Procedure 1, 4
MIL 810E Methods/Procedures
500.3/Procedure 2
501.3/Procedure 1, 2
502.3/Procedure 1, 2
503.3/Procedure 1
505.3/Procedure 1
506.3/Procedure 1, 2
507.3/Procedure 2
509.3/Procedure 1
510.3/Procedure 1
514.4/Procedure 1 Cat. 10
516.4/Procedure 1, 4
Sukagawa Division
Trondule Co., Ltd.
ISO9001 certification
2003.0310NA(U)
Sukagawa Division
Trondule Co., Ltd.
ISO14001 certification
B9200392 Printed in Japan
Loading...
