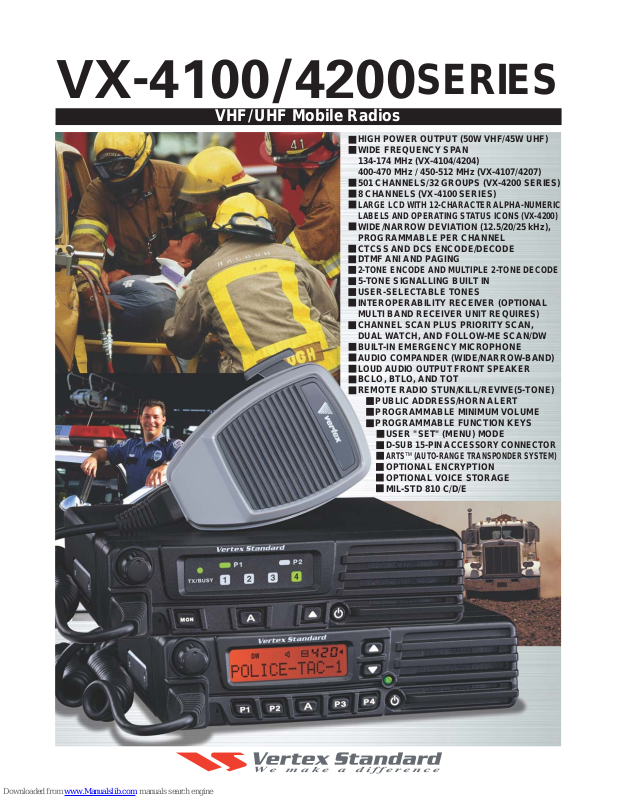

Vertex Standard VX-4100 Series, VX-4200 Series, VX-4104, VX-4204, VX-4107 Brochure & Specs

VX

-

4100/4200

VHF/UHF Mobile Radios

HIGH POWER OUTPUT (50W VHF/45W UHF)
WIDE FREQUENCY SPAN
134-174 MHz (VX-4104/4204)
400-470 MHz / 450-512 MHz (VX-4107/4207)
501 CHANNELS/32 GROUPS (VX-4200 SERIES)
8 CHANNELS (VX-4100 SERIES)
LARGE LCD WITH 12-CHARACTER ALPHA-NUMERIC
LABELS AND OPERATING STATUS ICONS (VX-4200)
WIDE/NARROW DEVIATION (12.5/20/25 kHz),
PROGRAMMABLE PER CHANNEL
CTCSS AND DCS ENCODE/DECODE
DTMF ANI AND PAGING
2-TONE ENCODE AND MULTIPLE 2-TONE DECODE
5-TONE SIGNALLING BUILT IN
USER-SELECTABLE TONES
INTEROPERABILITY RECEIVER (OPTIONAL
MULTI BAND RECEIVER UNIT REQUIRES)
CHANNEL SCAN PLUS PRIORITY SCAN,
DUAL WATCH, AND FOLLOW-ME SCAN/DW
BUILT-IN EMERGENCY MICROPHONE
AUDIO COMPANDER (WIDE/NARROW-BAND)
LOUD AUDIO OUTPUT FRONT SPEAKER
BCLO, BTLO, AND TOT
REMOTE RADIO STUN/KILL/REVIVE(5-TONE)
PUBLIC ADDRESS/HORN ALERT
PROGRAMMABLE MINIMUM VOLUME
PROGRAMMABLE FUNCTION KEYS
USER "SET" (MENU) MODE

OPTIONAL ENCRYPTION
OPTIONAL VOICE STORAGE
MIL-STD 810 C/D/E

SERIES

D-SUB 15-PIN ACCESSORY CONNECTOR
ARTS™ (AUTO-RANGE TRANSPONDER SYSTEM)

VX

Public Safety applications require three essential elements: reliability,
ruggedness, and performance versatility. These three elements are found
in the VX-4100 (8-Channel) and VX-4200 (501-Channel) series of
from Vertex Standard. New interoperability Receiver (Option), wide programmable
frequency coverage, high power output (50 Watts VHF/45 Watts UHF), leading­edge signaling
a few of the many reasons why the VX-4100 and VX-4200 are the best
choice for the most demanding Public Safety environments.

-

4100/VX-4200

SERIES

FM Mobiles

capability, and a 12-character alpha-numeric display are just

VX-4100 Series

VX-4200 Series

Actual Size

VX-4100

Series

8 Channels VHF/UHF Mobile Radios

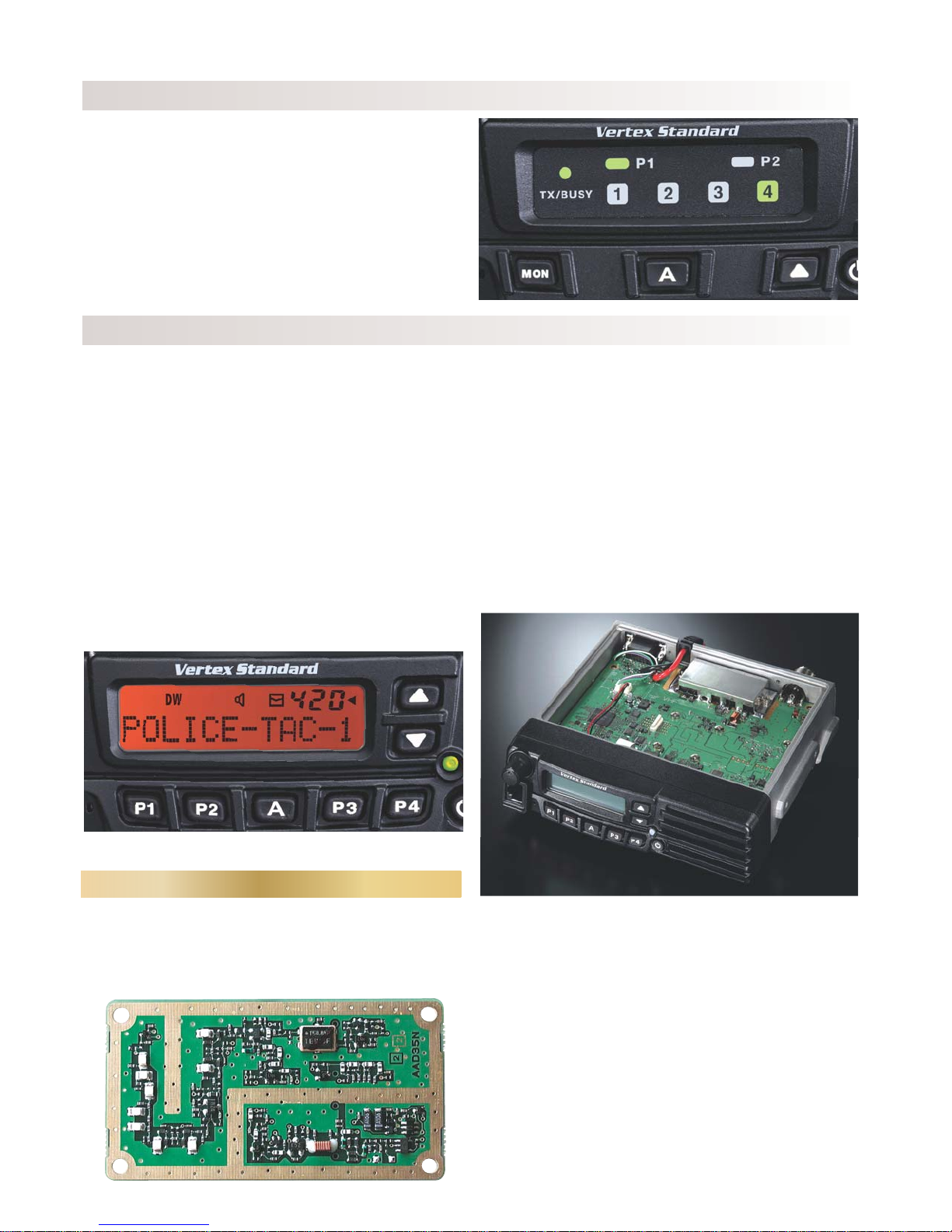

3 PROGRAMMABLE FRONT PANEL KEYS

The programmable keys allow for customizing the radio
to match your operating requirements. Programmable
keys include (but are not limited to): Monitor, Home
Channel, Direct Access (channel #), External Accessory
Control, Scan, and many more. Configure the radio for
your needs, and enjoy the operating efficiency without
the complication of functions you don’t need.

VX-4200

Series

5 PROGRAMMABLE FRONT PANEL KEYS

The [P1] - [P4] and [A] keys of the VX-4200 allow even
more operating flexibility. The available functions include
(but are not limited to): Monitor, Squelch, Dimmer,
Home Channel, Direct Access (channel #), External
Accessory control, and a host of others. Program in
features you need, and leave out the ones you don’t.

HIGH CONTRAST LCD DISPLAY

The high contrast LCD allows for 12-character
alphanumeric channel tags, enough characters to
name the channel while still providing large character
size. Besides the Channel and Group name, the
display tells you Scan status, Power level, Priority Scan
status, Voice Message (received) status, plus Channel
and Group numbers in a sub display.

501 Channels VHF/UHF Mobile Radios

GENEROUS CHANNEL CAPACITY

If you need a lot of channels, we have you covered,
with 501 channels assignable into as many as 32
groups. With no restrictions on how channels may be
assigned into groups, you have complete flexibility,

the

whether you need 15, 50, or 501 channels.

DIRECT CHANNEL ACCESS

Despite the 501-channel capacity of the VX-4200, we
know you always have one or two channels that are
your primary operating slots. So we provide for
assignment of the programmable keys as (up to) four
Direct Channel Access keys, so you can jump to an
often-used channel instantly, even if it’s in a different
memory group.

VERSATILITY

INTEROPERABIlLITY RECEIVER (OPTION)

VX-4100/4200 allows you to receive vital communications
on multi bands for interoperability with multiple agencies.
Improves the coordination of communications
responders in emergency or day to day operations.

Multi Band Receiver Unit: SRX-1 for UHF, SRX-2 for VHF

for first

POPULAR 2-TONE ENCODE AND DECODE FUNCTIONS

2-Tone encode and decode gives you the selective calling
used nationwide. Encode and decode functions for the 2-tone
format include multiple decode pairs as well as multiple
encode tones. DTMF paging and identification is also
built-in to allow selective paging and to see who is calling you.

BUILT-IN 5-TONE SIGNALLING

The 5-Tone signaling feature gives you many features
found on much higher priced competitors. Features such
as remote Stun, Kill, Revive. Remote listen (remote TX), 100
unique status messages, ANI Tag display, and many more.

REMOTE STUN/KILL/REVIVE

Need to disable a radio in the field? No problem. The
VX-4100/4200 gives you the ability to Stun, Kill, and
Revive over the air in the 5-Tone signalling. Another built-in
feature you can use to your system’s advantage.

OPTIONAL VOICE STORAGE

With the optional DVS-5 Voice Storage unit installed,
you can hear page transmissions while away from the
vehicle. When activated (programmable softkey), the
voice storage unit waits for a page, then begins
recording. Upon return, you will see the "Message Icon"
alerting you of the page and message.

PROGRAMMABLE MINIMUM VOLUME

Another feature to ensure all calls are heard. The radio can
be programmed for a minim volume level. If the radio is
on, the minimum volume level will ensure the audio of a
call will be heard.

VERSITILE SCANNING FEATURES

The VX-4100 provide scan of all or some of the eight channels
programmed. Also, if a channel is flagged as Priority, that
channel is monitored even during non-priority calls. Besides
the normal Scan and Priority Scan modes, the VX-4200 adds
Group Scan. You can scan all Groups or selected Groups.

ARTS™

The Auto-Range Transponder System, a Vertex Standard
exclusive, alerts the operator when another ARTS™
equipped station (for example, a hand-held unit)
moves out of communication range. You can then
advise the other user to move to a better location.

(AUTO RANGE TRANSPONDER SYSTEM)

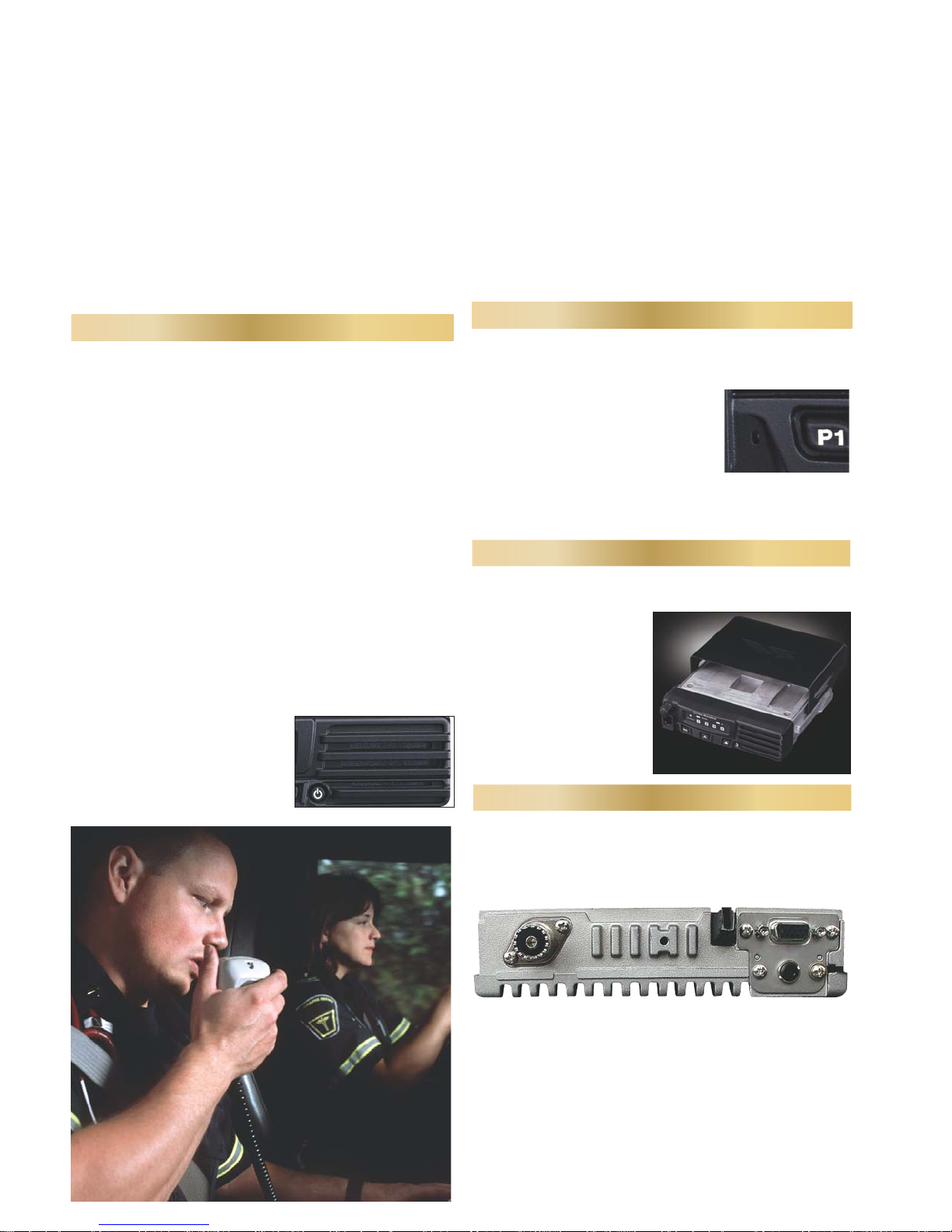

HIGH PERFORMANCE

WIDE BANDWIDTH

For communicating with other agencies, companies, or
even within your own communications system, the wide
bandwidth of this radio will let you operate anywhere
within the 40 MHz (VHF) or 70 / 62 MHz (UHF) band.

WIDE / NARROW (12.5 / 20 / 25 kHz PER CHANNEL)

The VX-4100/VX-4200 may be programmed with Wide or
Narrow operating bandwidths, channel by channel, to
conform to your local channel
jurisdiction operations.

environment. Ideal for multi-

EMERGENCY MODE

When the Emergency feature is activated, the radio
will switch to an emergency channel and transmit with
live mic audio through a front panel
mounted microphone. Among the
many programmable features of the
emergency mode are: Live TX time,
RX Live time, RX dead time, and more.

OPTIONAL VOICE ENCRYPTION MODULES

With options for simple inversion or rolling code, we have
the right encryption level to fit your requirements and budget.

AUDIO COMPANDING

For narrow-band channel applications, the built-in Audio
Companding system compresses the voice waveform
during transmission, and expands it during reception,
allowing full-sounding audio despite the restricted
transmission bandwidth.

LOUD AUDIO OUTPUT FRONT SPEAKER

The VX-4100/VX-4200’s high-powered audio (2 Watts
is coupled to a large, front­high-quality, crisp audio that
will punch through even in the
noisy environments experienced
by public safety officers.

facing speaker, producing

BUILT TOUGH, BUILT TO LAST

Rugged design to meet MIL-STD 810 C/D/E will allow
this radio to last. The
Ultra-rugged design enables
this mobile to pass a torrent
of MIL-STD tests listed in this
brochure. The extraordinary

)

design and construction
ensures many years of
reliable service, even in high
vibration, dusty or extreme
temperature environments.

SECURITY

DURABLE CONSTRUCTION

OTHER FEATURES

D-SUB 15 PIN ACCESSORY CONNECTOR

The included D-Sub 15 pin connector on the rear panel
allows for access to Audio In, Audio Out, Ext PTT, RSSI,
and many more functions making this radio perfect for
third party interfaces.

TOT, BCLO, BTLO FEATURES

Among the most useful protection features of the VX-4100/4200
are the transmitter Time-Out Timer (TOT), Busy Channel
Lock-Out (BCLO), and Busy Tone Lock-Out (BTLO), to
ensure

efficient network performance at all times.

RADIO TO RADIO CLONE FEATURE

For quick programming of VX-4100/4200 radios for an
emergency task force, the Clone feature allows copying
of all channel and other configuration data from one VX-4100/
4200 to another, using the optional CT-4 Cloning Cable.

TALK AROUND •PUBLIC ADDRESS/HORN ALERT

•

MH-700D

DTMF Dial Microphone

MH-64

A8J

Remote Control

16 Keypad Microphone

MD-11A8J

Desktop Microphone

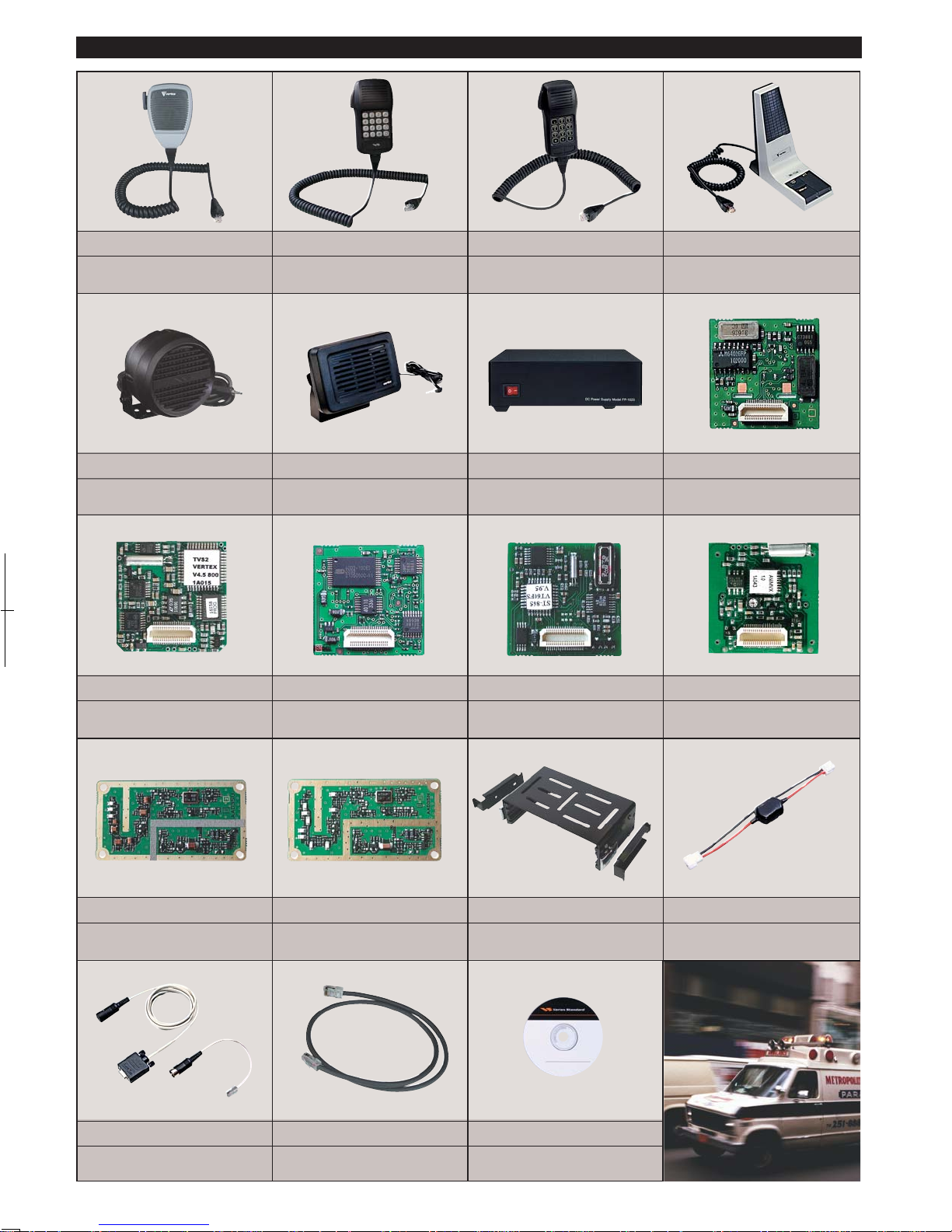

Accessories & Options

DVS-5

Voice Storage Unit

LF-1

Line Filter

MMB-85

Quick Release

Mobile Mounting Bracket

MLS-100

Mobile Loud Speaker

(12 Watts Peak Power)

MLS-200

Mobile Loud Speaker

(15 Watts Peak Power)

FP-1023

External Power Supply

(13.6 VDC 23 A)

FVP-25

DTMF Paging +

Encryption unit

FVP-35

High Level Encryption Unit

VPL-1

Programming Kit

(Computer to Radio)

CT-4

(T9101411)

Cloning Cable

CE59

Programming Software

MDC1200

ANI Signaling Unit

SRX-1

Multi Band Receive Unit

(450-512 MHz)

SRX-2

Multi Band Receive Unit

(134-174 MHz)

VT60F / VT60FS

VX-Trunk™ Unit

(FS : w/Encryption)

MH-25

A8J

Standard Microphone

Specifications

VX-4104 (VHF) VX-4204 (VHF) VX-4107 (UHF) VX-4207 (UHF)

General Specifications

Frequency range 134-174 MHz 400-470 MHz / 450-512 MHz
Number of Groups 1 32 1 32
Number of Channels
Power Supply Voltage 13.6 VDC ±15 %
Channel Spacing  12.5 / 20 / 25.0 kHz
Current Consumption TX:11.0 A RX:2.5 A STBY:0.3 A
Operating Temperature range
Frequency Stability Better than ±2.5 ppm
RF Input-Output Impedance
Dimensions (WxHxD) 6.5 " x 1.7 " x 6.1 " (165 mm x 43 mm x 155 mm)
Weight 3.1 lbs. (1.4 kg)

Receiver Specifications

Circuit type Double conversion Super-heterodyne
Sensitivity (12 dB SINAD)  0.25 µV 0.25 µV
Adjacent Channel Selectivity
Intermodulation 80/75 dB
Spurious and Image Rejection
Audio Output int. 2 W @ 32 Ohms 5% THD / ext. 12 W @ 4 Ohms 5% THD
Audio Distortion <3 % @1 kHz

8 channels 501 channels 8 channels 501 channels

 –22° F to 140° F (–30° C to +60° C)

 50 Ohms

Measurements made per TIA/EIA-603

 85/75 dB   78/70 dB

 90 dB 80 dB

Transmitter Specifications

Measurements made per TIA/EIA-603

Power Output 50/25/10 W 45/25/10 W
Modulation 16K0F3E, 11K0F3E
Max Deviation 5.0/2.5 kHz
Conducted Spurious Emission

 75 dB below carrier
Audio Distortion <3 % @ 1 kHz
Microphone impedance 600 Ohms

Measurements per EIA standards unless noted above. Specifications subject to change without notice or obligation.

Applicable MIL-STD

MIL 810E

MIL 810C

Standard

High Temperature
Low Temperature 502.1/Procedure I
Blowing Sand & Dust
Vibration 514.2/Procedure VIII, X
Shock 516.2/Procedure I,V

501.1/Procedure II

Methods/Procedures

MIL 810D

Methods/Procedures

514.3/Procedure I,Cat.10

516.3/Procedure I,IV

Methods/Procedures

510.3/Procedure I

514.4/Procedure I,Cat.10

516.4/Procedure I,IV

MIL 810F

Methods/Procedures

514.5/Procedure I,Cat.20,24

516.5/Procedure I,IV,VI

Vertex Standard

US Headquarters

10900 Walker Street, Cypress, CA 90630, U.S.A.

Phone [phone]; Fax [phone]
http://www.vertexstandard.com

2004.0405NA(U)

B9200439 Printed in Japan
