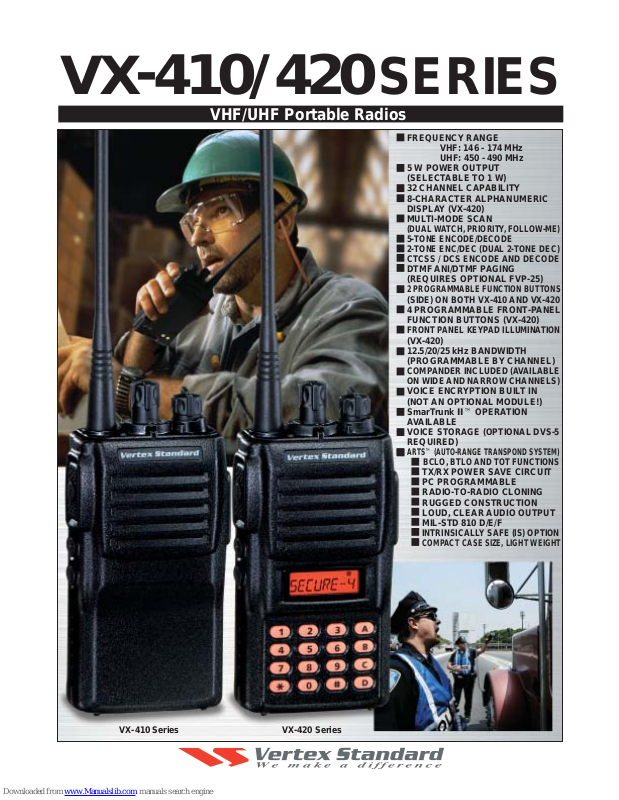

Page 1
VX
-
410/420
VHF/UHF Portable Radios
SERIES
FREQUENCY RANGE
VHF: 146 - 174 MHz
UHF: 450 - 490 MHz
5 W POWER OUTPUT
(SELECTABLE TO 1 W)
32 CHANNEL CAPABILITY
8-CHARACTER ALPHANUMERIC
DISPLAY (VX-420)
MULTI-MODE SCAN
(DUAL WATCH, PRIORITY, FOLLOW-ME)
5-TONE ENCODE/DECODE
2-TONE ENC/DEC (DUAL 2-TONE DEC)
CTCSS / DCS ENCODE AND DECODE
DTMF ANI/DTMF PAGING
(REQUIRES OPTIONAL FVP-25)
2 PROGRAMMABLE FUNCTION BUTTONS
(SIDE) ON BOTH VX-410 AND VX-420
4 PROGRAMMABLE FRONT-PANEL
FUNCTION BUTTONS (VX-420)
FRONT PANEL KEYPAD ILLUMINATION
(VX-420)
12.5/20/25 kHz BANDWIDTH
(PROGRAMMABLE BY CHANNEL)
COMPANDER INCLUDED (AVAILABLE
ON WIDE AND NARROW CHANNELS)
VOICE ENCRYPTION BUILT IN
(NOT AN OPTIONAL MODULE!)
SmarTrunk II™ OPERATION
AVAILABLE
VOICE STORAGE (OPTIONAL DVS-5
REQUIRED)
ARTS™ (AUTO-RANGE TRANSPOND SYSTEM)
BCLO, BTLO AND TOT FUNCTIONS
TX/RX POWER SAVE CIRCUIT
PC PROGRAMMABLE
RADIO-TO-RADIO CLONING
RUGGED CONSTRUCTION
LOUD, CLEAR AUDIO OUTPUT
MIL-STD 810 D/E/F
INTRINSICALLY SAFE (IS) OPTION
COMPACT CASE SIZE, LIGHT WEIGHT

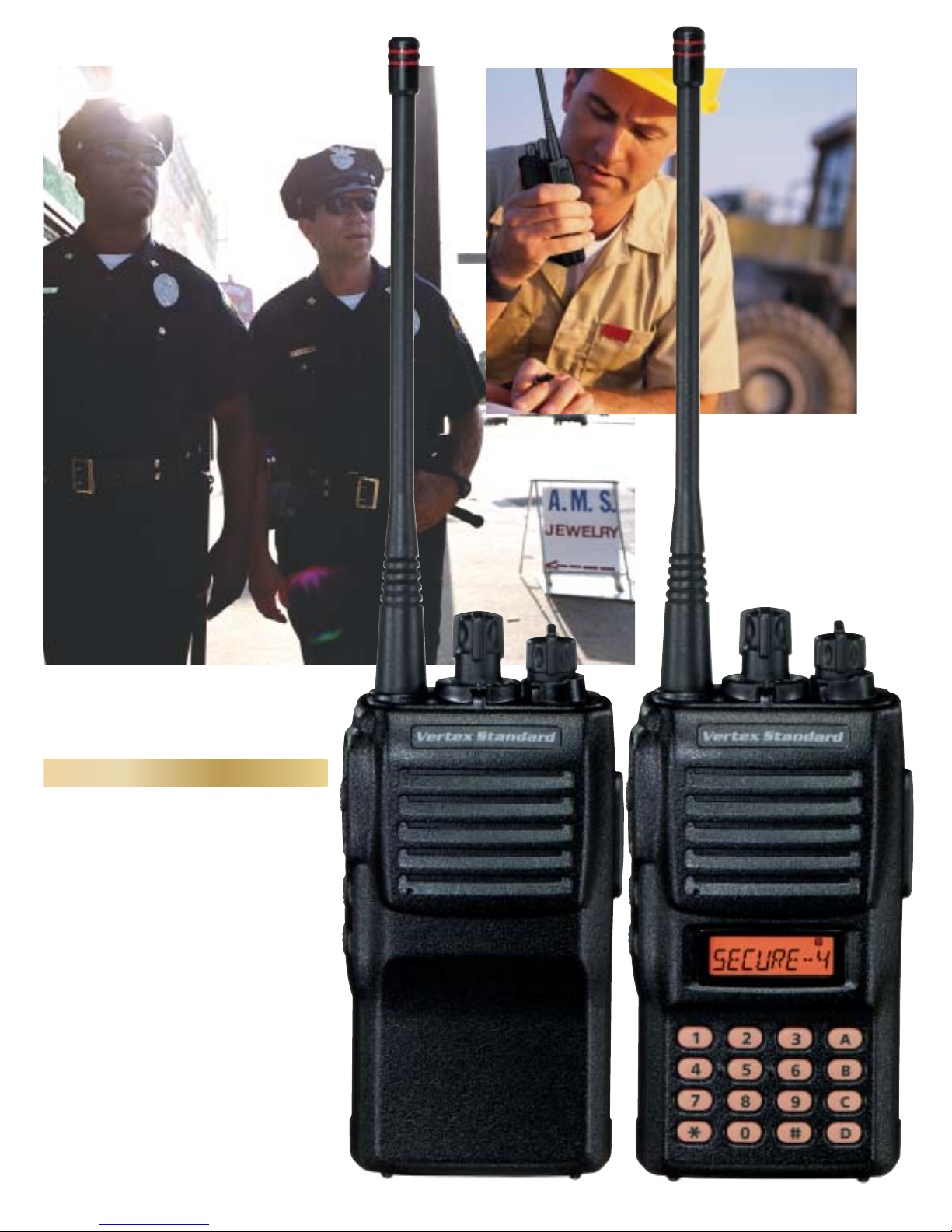

VX-410 Series
VX-420 Series
Page 2
VX-410/420
SERIES
VHF/UHF Portable Radios
The VX-410/420 Series of 32-Channel VHF/UHF Portables features 5 W of Power Output and a host of
leading-edge built-in features for demanding business/industry and public safety applications. Included as
standard features are Dual 2-Tone Decode, 2-Tone Encode/Decode, 5-Tone Encode/Decode, Encryption,
Voice Compander, and Multi-mode Scanning. The VX-410/420 may be programmed, by channel, for
12.5/20/25 kHz channel spacing, and for simplex or split operation.
The deluxe VX-420 version features an eight-character alphanumeric display, 4 additional programmable
keys and illuminated keypad. Both the VX-410 and VX-420 are available in Intrinsically Safe versions, and
all are built with legendary Vertex ruggedness and unmatched cost-performance.
HIGH PERFORMANCE
5 W POWER OUTPUT
The VX-410/420 Portables produce a full 5 W of power output,
with an additional selection of 1 W available for increased battery
life when higher power is not required.
12.5/20/25 kHz BANDWIDTH (PROGRAMMABLE BY CHANNEL)
When programming radios for use in different jurisdictions or
geographical regions, the VX-410/420 Portables may be
programmed, channel by channel, for 12.5, 20, or 25 kHz channel
spacing environments, with both bandwidth and deviation
automatically set according to each channel’s requirements.
LEADING-EDGE DESIGN
Crafted with care for use in areas of severe RF pollution, the
VX-410/420 Portables include excellent adjacent-channel
selectivity and immunity from Intermodulation, along with TIA-
compliant ±2.5 ppm frequency stability.
LOUD 500 mW AUDIO OUTPUT
Ideal for reception in noisy environments, the VX-410/420
Portables’ high-powered audio is coupled to a large internal
speaker, assuring solid copy throughout difficult crowd control,
fire, or sporting-event operations.
LONG-LIFE LITHIUM-ION BATTERY (1600 mAh)
The VX-410/420 Portables may be equipped with advanced
FNB-V67 Lithium-Ion Battery Packs with 1600 mAh of capacity,
for operating times of up to ten hours or more, even when using
5 W (5-5-90 duty cycle).
VERSATILITY
32 CHANNEL CAPACITY
The 32-channel capacity of the VX-410/420 Portables includes
quick access, and the channelspecific information loaded during
programming minimizes the extra
keystrokes required on competing
models. Two banks of 16 channels
each are provided for convenient
channel access.
PROGRAMMABLE "SOFT" KEYS
Two buttons on the side panel of the VX-410 may
be custom-programmed for specific functions
needed in your application. The VX-420 additionally
provides four front-panel programmable keys, for
a total of six available custom buttons.
TRUNKING OPERATION AVAILABLE
Installation of the SmarTrunk II™ module enables
use of the VX-410/420 on systems equipped
for Trunking operation.
DUAL 2-TONE AND 5/6-TONE SYSTEMS BUILT IN
For smooth integration into advanced radio systems, the VX-410/420
Portables are equipped with 2-Tone Encode/Decode, Dual 2-Tone
Decode, as well as 5/6-Tone Encode/Decode circuitry. In addition,
DTMF ANI and DTMF Paging capability is also available through
installation of the optional FVP-25 DTMF Pager Unit.
EASY USER INTERFACE
ADVANCED 8-CHARACTER ALPHANUMERIC DISPLAY
Providing an Alphanumeric Channel Label of up to 8
characters, the LCD display also provides convenient operating
function icons to provide instant recognition of radio status.
ERGONOMIC CONSTRUCTION
The carefully-engineered case construction features a gently
rounded shape for a solid grip, whether the radio is wet or dry.
Its over-sized keys are easy to activate, and the operating
firmware has been carefully shaped by years of feedback from
public safety, business, industry, and government users.
KEY LOCK
A Soft key may be programmed as a Key Lock control, to
prevent inadvertent channel change or unwanted activation/deactivation of functions. This is especially valuable in surveillance
operations, where the radio may be concealed and subject to
accidental pressure on its keys.
RADIO TO RADIO CLONE FEATURE
For quick programming of the VX-410/420 radios for an
emergency task force, the Clone feature allows copying of all
channel and configuration data from one VX-410/420 to
another, using the optional CT-27 Cloning Cable.
SECURITY
BUILT-IN ENCRYPTION
The built-in Encryption circuit provides security for your important
public safety and private security communications, and it may
be enabled at the time of radio programming by the dealer.
OPTIONAL VOICE RECORDER
The optional DVS-5 Voice Storage Unit allows you to record
and store up to 120 seconds of incoming receiver audio, ideal
for keeping an audible record of an important message. Audio may
be saved either as a one-time 2-minute recording, or a constantly
refreshing "last 120 seconds" recording may be made.
SECURITY PASSWORD FEATURE (VX-420 Series)
The VX-420 Series provides a security password feature which
can minimize the chance that your transceiver could be used by
an unauthorized party. When the password feature is activated,
the radio will ask for the four digit password to be entered when
the radio is first tur ned on. You must enter the password from
the keypad.
Page 3
DURABLE CONSTRUCTION
ULTRA COMPACT
The VX-410/420 Series Portables features
and performance are housed in an ultrarugged, compact case measuring only
(W) x 4.3" (H) x 1.2" (D), and weighing less than
a pound with the standard FNB-V57 Battery.
MIL-STD RATED
Designed for use under the most demanding
conditions, the VX-410/420 Portables are
built in compliance with MIL-STD 810 D/E/F
specifications for reliable operation in environments
including shock, vibration, high and low
temperature, low pressure, rain, humidity, salt
fog, and dust.
INTRINSICALLY SAFE (IS) VERSIONS
AVAILABLE
The VX-410/420 Portables are also available
in Intrinsically Safe (IS) versions, for leadingedge communications capability in hazardous
operating situations. Included in the IS
certification for the VX-410/420 is approval
for use in dangerous hydrogen and acetylene
environments.
2.3"
VX-410 Series VX-420 Series
ACTUAL SIZE
Page 4

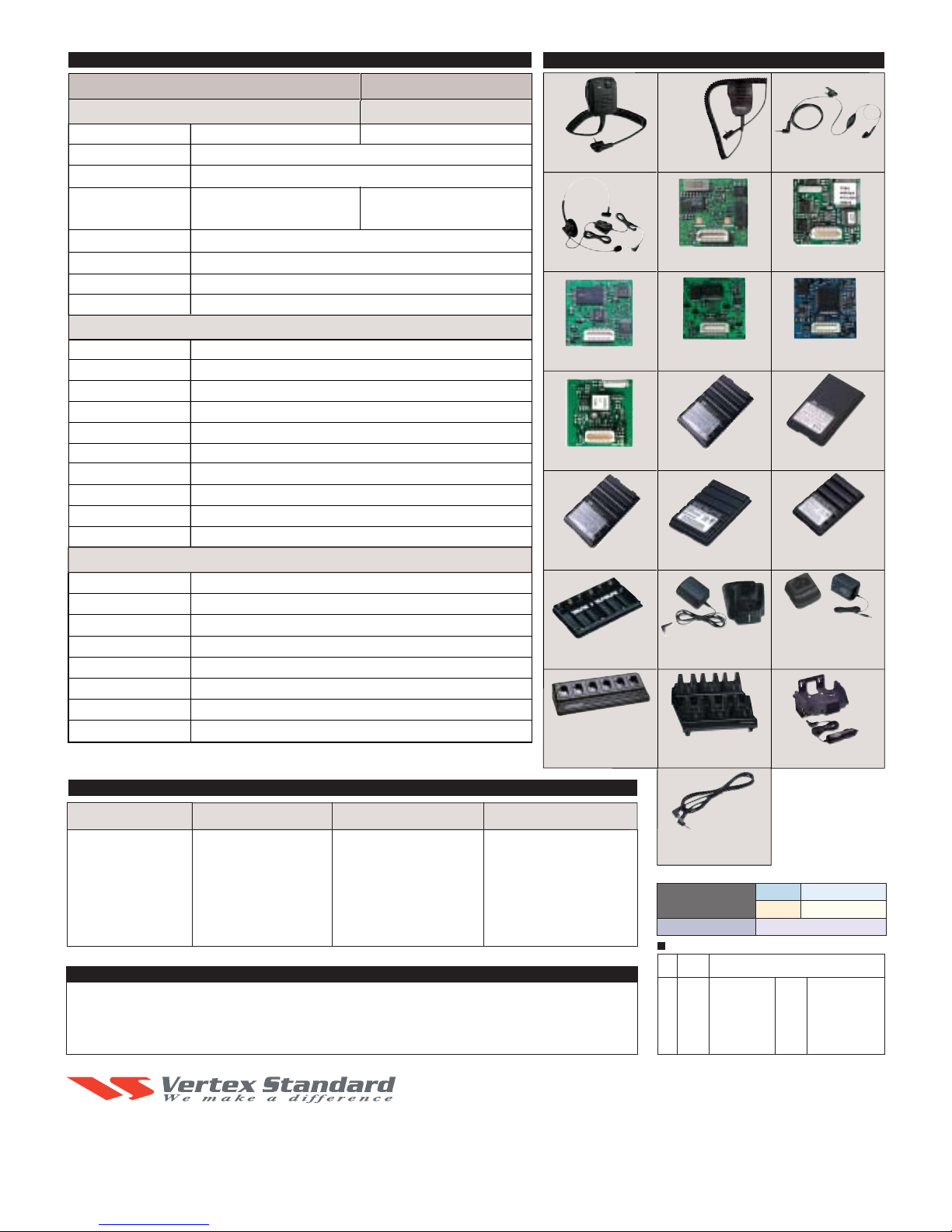

Specifications
Accessories & Options
VX-414/424 VHF VX-417/427 UHF
General
Frequency Range 146-174 MHz 450-490 MHz
Number of Channels
32 channel (16 channel x 2 Groups)
Channel Spacing 25/20/12.5 kHz
Battery LIfe
W/FNB-V67LI(1600mAh):10hrs. (13hrs. w/saver)
W/FNB-V57(1100mAh): 7hrs. (8.8hrs. w/saver)
W/FNB-V67LI(1600mAh): 9.5hrs. (12hrs. w/saver)
W/FNB-V57(1100mAh): 6.5hrs. (8hrs. w/saver)
Battery voltage 7.5 VDC ±20 %
Temperature Range
Case size (W x H x D)
–22° F to +140° F (–30° C to +60° C)
2.3 x 4.3 x 1.2 inches with FNB-V57 (58 x 108.5 x 30 mm with FNB-V57)
Weight (approx.) 10.6 oz (300 g) with FNB-V67LI, Antenna and Belt clip
Receiver
Measurements made per EIA standard TIA/EIA-603
Circuit Type Double-conversion Super-heterodyne
IFs 50.85 MHz & 450 kHz
12-dB SINAD Sensitivity
< 0.25 µV
Squelch Sensitivity < 0.20 µV
Adjacent Selectivity > 70 dB (25/20 kHz) / > 65 dB (12.5 kHz)
Intermodulation > 70 dB
Spurious Rejection > 70 dB
Image Rejection > 70 dB
FM Hum and Noise > 45 dB
AF Output 0.5 W @ 4 Ohms, 5 % THD
Transmitter
Measurements made per EIA standard TIA/EIA-603
Power Output 5.0/1.0 W (Selectable)
Frequency Stability better than ±2.5 ppm
Modulation System 16K0F3E / 11K0F3E
Maximum Deviation ±5.0 kHz (25 kHz) / ±2.5 kHz (12.5 kHz)
FM Noise > 45 dB
Spurious Emission 70 dB below carrier
AF Distortion (@ 1 kHz) < 3 %
Microphone Type 2-k Ohms condenser
Measurements per EIA standards unless noted above. Specifications are subject to change without notice or obligation.
Applicable MIL-STD
Standard
Low Pressure
High Temperature
Low Temperature
Temperature Shock
Rain
Humidity
Salt Fog
Dust
Vibration
Shock
MIL 810D
Methods/Procedures
500.2/Procedure I, II
501.2/Procedure I, II
502.2/Procedure I, II
503.2/Procedure I
506.2/Procedure II
507.2/Procedure II, III
509.2
510.2/Procedure I
514.3/Procedure Cat. 10
516.3/Procedure I
MIL 810E
Methods/Procedures
500.2/Procedure I, II
501.3/Procedure I, II
502.3/Procedure I, II
503.3/Procedure I
506.3/Procedure II
507.3/Procedure II, III
509.3
510.3/Procedure I
514.4/Procedure Cat. 10
516.4/Procedure I
Intrinsically Safe Information
The VX-410/420 Intrinsically Version, equipped with any of optional units, meets the
requirements
of ANSI/UL913 6th Edition for Class I, Division 1, Groups A-D; Class II,
Groups E-G; and Class III for hazardous locations.
MH-45B4B
Speaker/Microphone
VC-25
VOX Headset
DVS-5
Digital Voice Storage Unit
MDC1200
MDC-1200¤ ANI Encoder Unit
FNB-83
7.2V 1400 mAh Ni-MH Battery Pack
FBA-25A
Alkaline Battery Case (6 x AA size)
VAC-6800
6-Unit Multi Charger
(for FNB-V57/-V57IS)
VAC-6810
6-Unit Multi Charger
(for FNB-V67LI)
MIL 810F
Methods/Procedures
500.3/Procedure I, II
501.4/Procedure I, II
502.4/Procedure I, II
503.4/Procedure I, II
506.4/Procedure I, III
507.4
509.4
510.4/Procedure III
514.5/Procedure Cat. 24
516.5/Procedure I
Speaker/
Microphone
MH-360S
Miniature type
MH-450S
Small type
FVP-25
DTMF Pager Unit
VME-100
MDC1200®/GE-STAR
ANI Encoder Unit
FNB-V94
7.2V 1800 mAh Ni-MH Battery Pack
FNB-V57
7.2V 1100 mAh Ni-Cd Battery Pack
VAC-10B/C*
Desktop Charger
(for FNB-V57/-V57IS/-V94/83)
VAC-6010
6-Unit Multi Charger
(for FNB-V57/V57IS/83/V94)
CT-27A
Cloning Cable
(Set-to-Set Cloning)
*
B for 120 VAC / C for 220-240 VAC
Programming Cable USB
RS-232C CT-29 + CT-28
Programming Software
®
CE64
A4B
MH-37
Speaker/Microphone
FVP-35
Rolling Code Encryption Unit
VMDE-200
MDC1200®/GE-STAR
ANI Encoder/Decoder Unit
FNB-V67LI
7.4V 1600 mAh Lithium-Ion Battery
FNB-V57IS
7.2V 1100 mAh Ni-Cd
Intrinsically Safe (IS) Battery
VAC-800B/C*
Desktop Rapid Charger
(for FNB-V57/-V57IS)
VAC-810B/C*
Desktop Rapid Charger
(for FNB-V67LI)
VCM-1
Mobile Mounting Bracket
for VAC-800/810
VH-115S
Lightweight headset w/ Boom
VH-215S
Lightweight Padded headset,
Single Speaker
VH-225S
Lightweight Padded Headset,
Dual Speaker
CLIP-17C
Swivel Belt Clip
FIF-10/A + CT-106
®
ANTENNA LIST
UHF ATU-6D
VHF ATV-6A
ATV-6B
ATV-6C
ATV-6XL
ATV-8A
ATV-8B
ATV-8C
ATU-6DS
450-485 MHz
450-485 MHz/3.5"
134-151 MHz/3.5"
ATV-10A
150-163 MHz/3.5"
ATV-10B
161-174 MHz/3.5"
ATV-10C
VHF UNTUNED
ATV-10E
134-151 MHz
150-163 MHz
161-174 MHz
145-155 MHz HIGH GAIN
150-160 MHz HIGH GAIN
155-165 MHz HIGH GAIN
165-175 MHz HIGH GAIN
Vertex Standard
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
Phone 714/827-7600; Fax 714/827-8100
http://www.vertexstandard.com
2006.1003NA(U)
B9200452C Printed in Japan
Loading...
