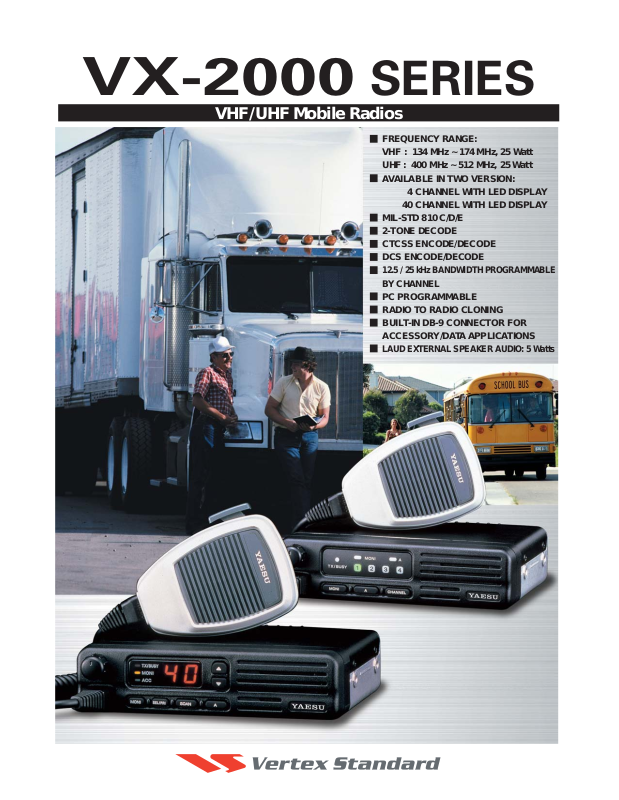

VX-2000
VHF/UHF Mobile Radios
SERIES
FREQUENCY RANGE:
VHF : 134 MHz ~ 174 MHz, 25 Watt
UHF : 400 MHz ~ 512 MHz, 25 Watt
AVAILABLE IN TWO VERSION:
4 CHANNEL WITH LED DISPLAY
40 CHANNEL WITH LED DISPLAY
MIL-STD 810 C/D/E
2-TONE DECODE
CTCSS ENCODE/DECODE
DCS ENCODE/DECODE
12.5 / 25 kHz BANDWIDTH PROGRAMMABLE
BY CHANNEL
PC PROGRAMMABLE
RADIO TO RADIO CLONING
BUILT-IN DB-9 CONNECTOR FOR
ACCESSORY/DATA APPLICATIONS
LAUD EXTERNAL SPEAKER AUDIO: 5 Watts
VX-2000 SERIES
4 / 40 Channel 25 W VHF/UHF Mobile Radios
The multi-purpose VX-2000 series mobiles, with rugged MIL-STD 810 C/D/E ratings, meet the demanding requirements of public
safety and commercial communications for today and the future.Available in 25 W VHF and 25 W UHF, each model provides
programming flexibility on a per channel basis for narrowband (12.5 kHz) and wideband (25 kHz) requirements.
Both the 4 and 40 channel versions include CTCSS and DCS Encode/ Decode and are easily programmed via PC. All models offer
a built-in DB-9 connector for accessory/data application. State-of-the-art surface mount design and a rugged, die-cast aluminum
chassis assure high reliability and unparalleled performance.
The VX-2000 mobiles are designed to permit maximum flexbility for today,s installation requirements.
SPECIFICATIONS
General Specification
Number of Channels
Frequency Range
Channels Spacing
Power Supply Voltage
Current Consumption
Standby
Receive
Transmit
Ambient Temperature Rnage
Frequency Stability
RF Input-Output Impedance
Audio Output Impedance
Dimensions(WxHxD)
Weight
Receiver Specification
Circuit Type
Sensitivity
EIA 12 dB SINAD
20 dB Quieting
ETS(20 dB SINAD)
Adjacent Channel Selectivity
Intermodulation
Spurious and Image Rejection
Audio Output
VX-2000V (VHF Highband ) VX-2000U (UHF band )
134 ~ 160 MHz (A)
148 ~ 174 MHz (C)
–30° C to + 60° C(–22 F to + 140 F)
EIA: ±2.5 ppm ETS: ±1.5 kHz
4/40
12.5/25 kHz
10.8 to 15.6 VDC
250 mA
500 mA
6.5 A
50 ohms
4 ohms
160 x 40 x 105 mm
(6.25" x 1.5" x 4.25")
0.85 kg (1.9 Ibs)
400 ~ 430 MHz (A)
450 ~ 480 MHz (D)
480 ~ 512 MHz (F)
Measurements made per EIA/ETS standard
Double Conversion Superheteroyne
0.20 µ V
0.30 µ V
0.50 µ V (emf)
EIA: 70 dB (25 kHz), 60 dB (12.5 kHz) ETS: 70 dB (25 kHz), 60 dB (12.5 kHz)
EIA: 65 dB ETS: 60 dB
EIA: 65 dB ETS: 65 dB
5 W 4 ohms w/ < 10% THD
0.25 µ V
0.35 µ V
0.50 µ V (emf)
ACCESSORIES & OPTIONS
F2D-4/4B
FP-1023A
FTE-18
MLS-100
LF-1
MD-11A8J
MH-700D
VTM-20
VPL-1
CE-20
T9101411
FP-1023A
2-Tone Decoder Unit
External Power Supply 23 A DC
ANI Unit
External Speaker (12 Watt)
Plug-in DC Line Filter
Desktop Microphone
DTMF Back-lit Microphone
VX-Trunk ll Trunking Mobile Logic
Board
Radio to Computer Programming
Cable
Programming Software
Radio to Radio Cloning Cable
MD-11A8J
Transmitter Specification
Power Output
Modulation
Maximum Deviation
Conducted Spurious Emisions
FM Hum and Noise
Audio Distortion (@1 kHz)
Measurements per EIA / ETS standards unless noted above. Specification subject to change without notice or obligation.
EIA:Dired FM 16K0F03, 11K0F3E ETS: 16K0G3E, 8K50G3E
Measurements made per EIA/ETS standard
25/5 W
±5 kHz (25 kHz), ±2.5 kHz (12.5 kHz)
EIA: 65 dBc
45 dB (25 kHz), 40 dB (12.5 kHz)
ETS: -36 dBm † 1 GHz, -30 dBm >1 GHz
<5%
MH-700D MLS-100
APPLICABLE MIL-STD
Military Standards 810 C/D/E
Method 500.2, Procedure 1
Method 500.3, Procedure 1
Method 501.1, Procedure 1,2
Method 501.2, Procedure 1,2
Method 501.3, Procedure 1,2
Method 502.2, Procedure 1
Method 502.2, Procedure 2
Method 502.3, Procedure 1
Method 502.3, Procedure 2
Method 503.2, Procedure 1
About this brochure: We have made this brochure as comprehensive and factual as possible. We reserve the right, however, to make changes at any time in equipment, optional accessories,
specifications, model numbers, and availability. Precise frequency range may be different in some countries. Some accessories shown herein may not be available in some countries. Some
information may have been updated since the time of printing; please check with your Authorized Vertex Standard Dealer for complete details.
Method 503.3, Procedure 1
Method 505.2, Procedure 1
Method 505.3, Procedure 1
Method 506.1, Procedure 2
Method 506.2, Procedure 2
Method 506.3, Procedure 2
Method 507.1, Procedure 2
Method 507.2, Procedure 2
Method 507.3, Procedure 2
Method 509.2, Procedure 1
Method 509.3, Procedure 1
Method 510.2, Procedure 1
Method 510.3, Procedure 1
Method 514.2, Procedure 1,8
Method 514.3, Procedure 1,8
Method 514.4, Procedure 1,8
Method 516.2, Procedure 1,4
Method 516.3, Procedure 1,4
Method 516.4, Procedure 1,4
FTE-18
Vertex Standard
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
Phone 714/827-7600; Fax 714/827-8100
http://www.vxstdusa.com
2002.0910NIA(U)
B9200224E Printed in Japan
