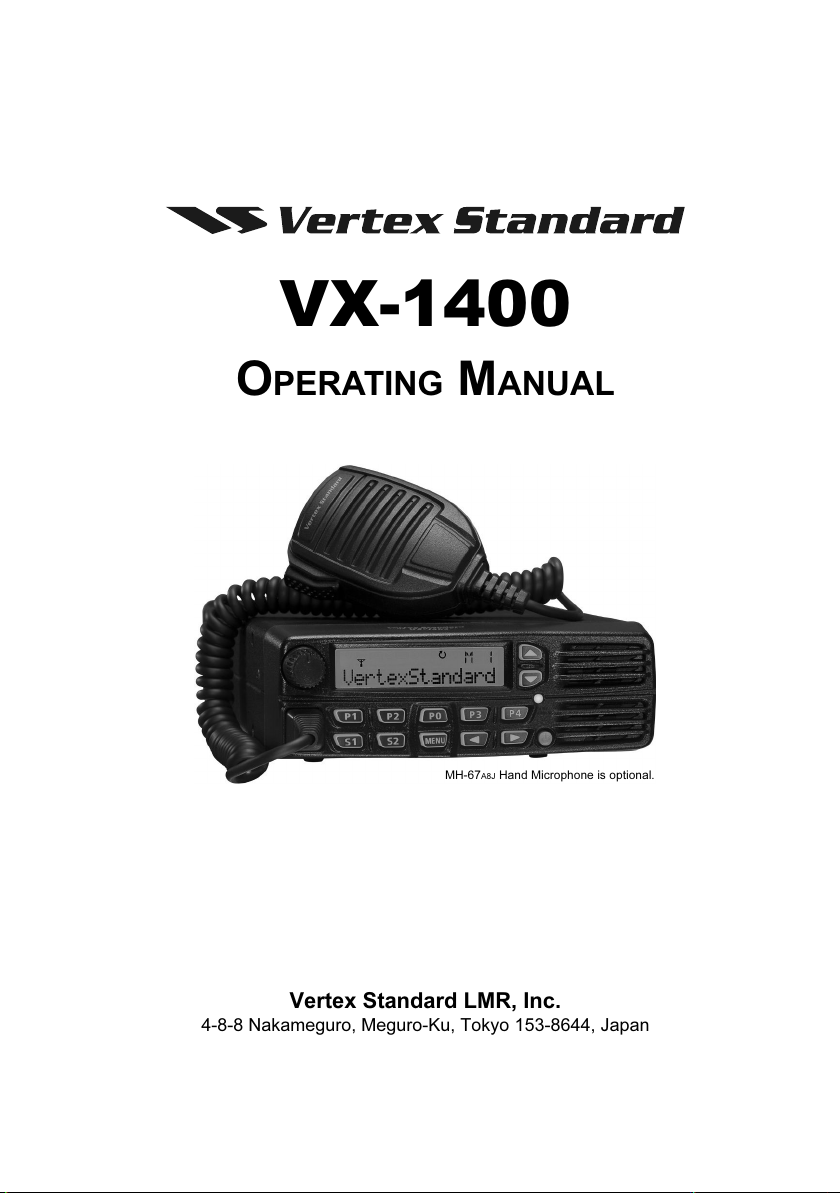

Page 1
VX-1400
OPERATING MANUAL
Vertex Standard LMR, Inc.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
MH-67A8J Hand Microphone is optional.
Page 2
VX-1400 Quick Reference Guide ..................................................................................................1
Button Overview / Reset Procedure.............................................................................................. 2
General ............................................................................................................................................ 3
Front Panel Control & Switches ................................................................................................... 4
Rear Panel Connections .................................................................................................................6
Installation ...................................................................................................................................... 7
Safety Precautions ......................................................................................................................7
Power Connections .............................................................................................................. 7
Grounding for Electrical Safety ........................................................................................... 7
Electrical Shock Prevention ................................................................................................. 7
Antenna Precautions ............................................................................................................ 8
Heat and Ventilation ............................................................................................................. 8
Electromagnetic Compatibility and RF Exposure ............................................................... 9
Preliminary Inspection .........................................................................................................9

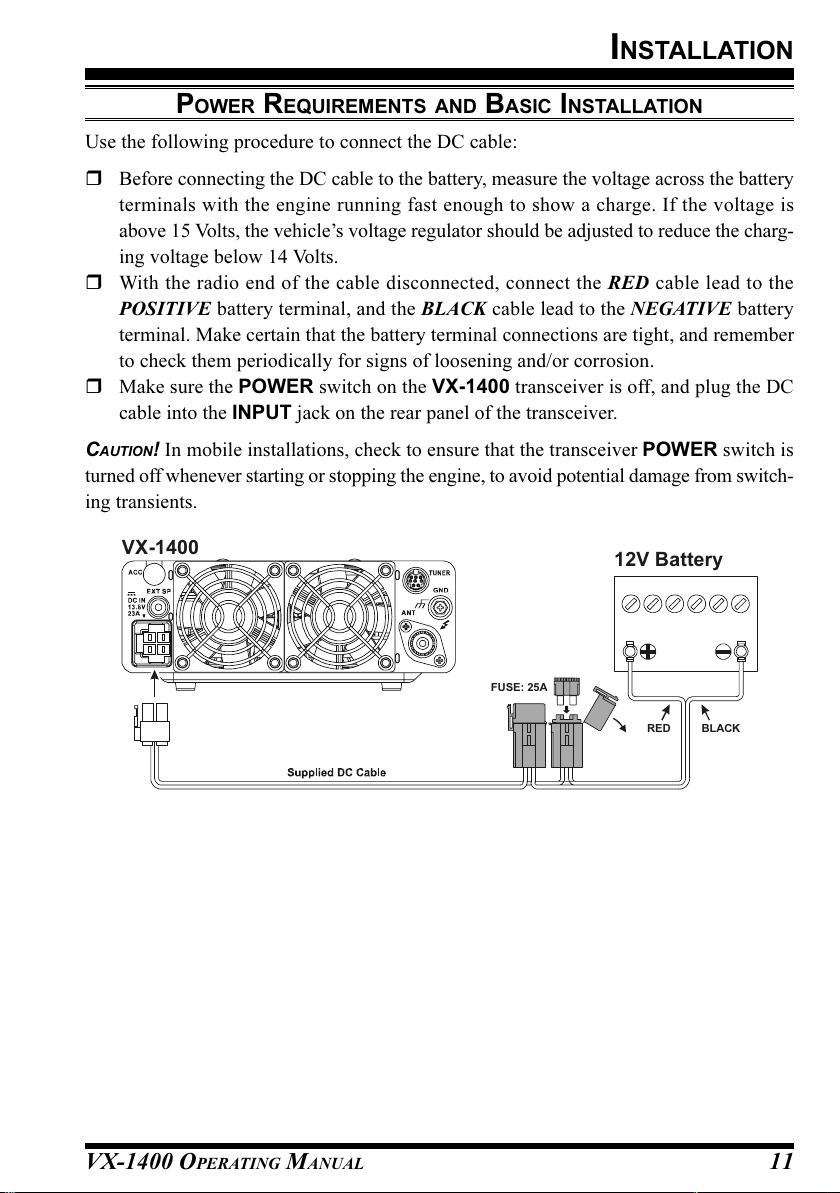

Power Requirements and Basic Installation ............................................................................. 10

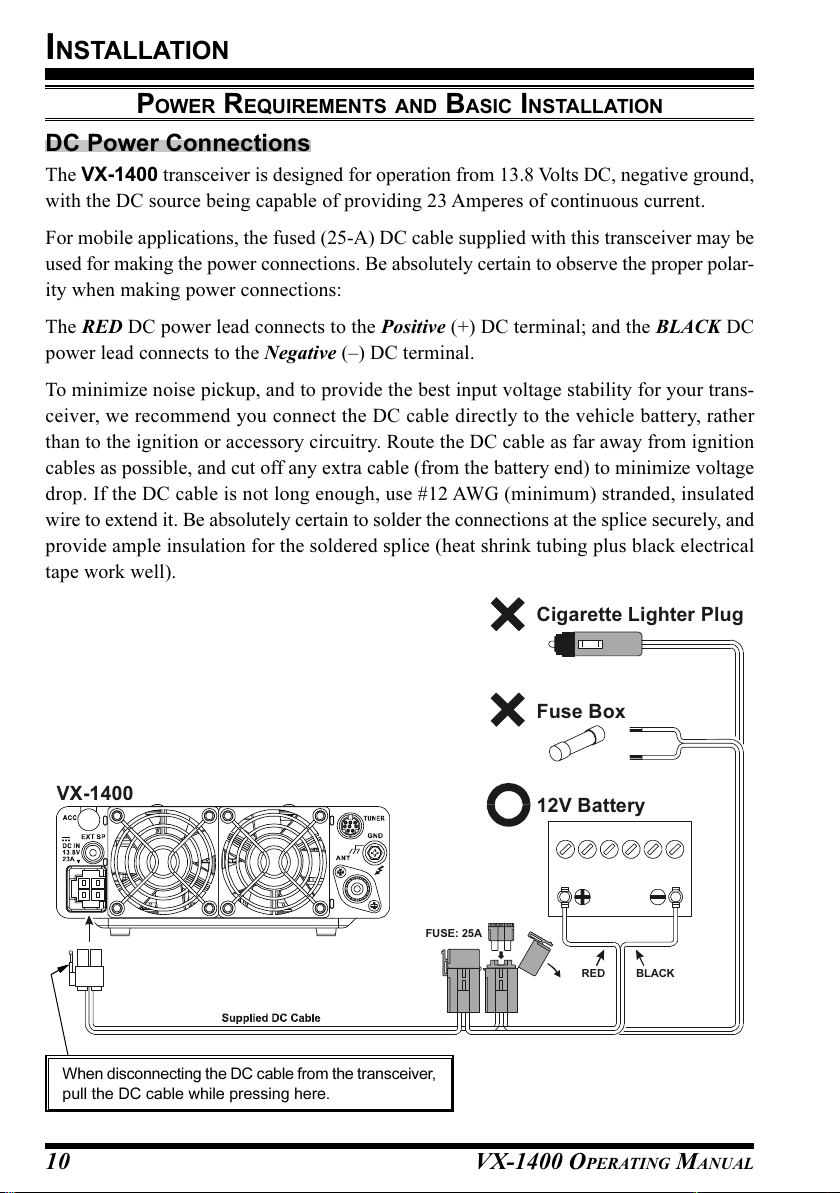

DC Power Connections ...................................................................................................... 10

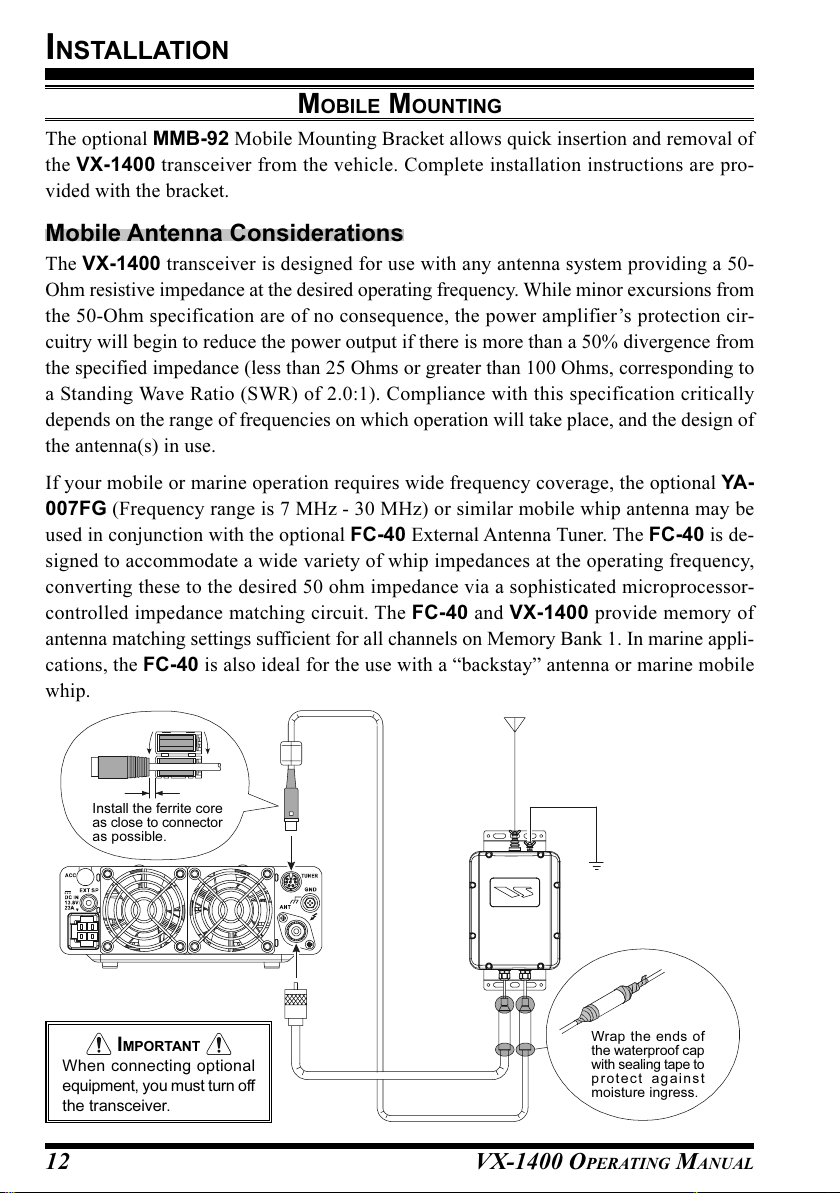

Mobile Mounting .....................................................................................................................12
Mobile Antenna Considerations .........................................................................................12
Mobile Station Grounding ................................................................................................. 14
Base Station Installation ........................................................................................................... 15
DC Power Connections ...................................................................................................... 15
Base Station Antenna Considerations ................................................................................ 16
Base Station Grounding .....................................................................................................18
Operation ...................................................................................................................................... 20
Turning the Transceiver “On” and “Off” ................................................................................. 20
Reception .................................................................................................................................. 20
Frequency and Channel Selection ............................................................................................ 22
VFO Mode ......................................................................................................................... 23
Memory Channel Mode .....................................................................................................24
ITU Marine Channel ..........................................................................................................24
Transmission ............................................................................................................................ 25
Antenna Tuning Procedures ............................................................................................... 26
Dual Watch ............................................................................................................................... 27
Encrypted Transmission/Reception..........................................................................................28
2.182 MHz Emergency Channel Mode .................................................................................... 29
Selcall/Telcall Operation .............................................................................................................. 30
General ..................................................................................................................................... 30
SelCall ......................................................................................................................................31
Message Call ............................................................................................................................ 32
Position Request Call ...............................................................................................................33
Position Send Call ....................................................................................................................34
Beacon Request Call ................................................................................................................ 35
Telcall ....................................................................................................................................... 36
ALE Operation ............................................................................................................................. 38
Sending an ALE Call................................................................................................................38
Sending an ALE Call with an Imbedded Message...................................................................39
Receiving an ALE Call ............................................................................................................ 39
Memory Channel Storage ............................................................................................................ 40
Programmable Function (PF) Buttons .......................................................................................42
Installation of the Option ............................................................................................................. 49
ALE-2 Automatic Link Establishment Unit.............................................................................49
CT-139 Accessory Cable ..........................................................................................................50
Accessories and Options .............................................................................................................. 52
Supplied Accessories ................................................................................................................52
Available Options ..................................................................................................................... 52
Table of Contents
Page 3
1VX-1400 OPERATING MANUAL
VX-1400 QUICK REFERENCE GUIDE
VOL KNOB
Adjusts the audio
volume level.
POWER SWITCH
Press and hold until
the LCD display is
illuminated.
PTT SWITCH
Speak into the microphone
in a normal voice level
while pressing this switch.
⊳ / BUTTON
Selects the frequency
control method
among “VFO mode”,
“Memory mode”, and
“ITU mode”.
MICROPHONE
/ BUTTON
Selects the operating frequency
or memory channel.
PROGRAMMABLE BUTTON
Activates the function which
corresponds with that button.
You can do the basic operation of the VX-1400 according to the number
order of the illustration below.
Page 4
VX-1400 OPERATING MANUAL2
RESET PROCEDURES
When you lose the operation procedure, or if radio operation becomes erratic, you
may reset all settings to the factory default by the following procedure:
Press and hold the [POWER
( )]
switch to turn the radio off.
Press and hold the [MENU] button while turning the
radio on. The confirmation message appears.
Press the [] button to reset all settings to dealer default (press the [⊳] button
to cancel the reset procedure).
BUTTON OVERVIEW/RESET PROCEDURE
/ BUTTON
Selects the operating frequency or
memory channel.
S1 S2 P0 ~ P4 BUTTON
Activates the dealer programmed function
which corresponds with that button.
MENU BUTTON
Activates the Menu mode.
VOL KNOB
Adjusts the audio volume level.
⊳ / BUTTON
Selects the frequency control method
among “VFO mode”, “Memory mode”,
and “ITU mode”.
POWER SWITCH
Toggle the transceiver’s
power “on” and “off” by
pressing and holding for
2 seconds.
Page 5
3VX-1400 OPERATING MANUAL
GENERAL
The Vertex Standard VX-1400 is a low-cost, rugged, small size, integrated HF communi-
cations transceiver designed for the worldwide Land Mobile, Government, and Marine
markets. The VX-1400 conforms with MIL-810 C, D, E, & F. The front panel is water
resistance to IP54 specifications when in remote control operation using the optional RMK-
1400 Remote Mounting Kit with the MH-77A8J/B8J Water Resistance Hand Microphone.
The Vertex Standard VX-1400 provides continuous receiver coverage from 30 kHz to 30
MHz, and transmitter coverage is specified as 1.6MHz to 30MHz, depending upon the
external antenna(s) and antenna tuner/coupler equipment utilized. Operating modes pro-
vided include J2B (USB or LSB), J3E (USB or LSB), A1A, A3E, and H3E (only on 2182
kHz Emergency Channel Mode), making the VX-1400 ideal for a wide variety of voice,
telegraphy, and many data communication applications.
Advanced features of the Vertex Standard VX-1400 include 512 memory channels (ar-
ranged in five banks), keyboard frequency entry with frequency resolution to 10 Hz, and
Alpha-Numeric labeling of Memory channels. Ease in programming fleet systems is pro-
vided. Also the Selcall feature allows paging of a single transceiver or groups of trans-
ceivers by a dispatch center.
Available options include the FP-1030A AC Power Supply, FC-30 Automatic External
Antenna Tuner (for 50 Ohm unbalanced antenna feedlines), FC-40 Automatic External
Antenna Tuner (for an end-fed random-length wire or long whip antenna), YA-30 Broad-
band Dipole Antenna, YA-31 Broadband Antenna, YA-007FG Mobile Antenna, MD-
12A8J Desk Microphone, MLS-100/-200 External Speaker, and the ALE-2 Automatic
Link Establishment Unit which automatically selects the channel with the best LQA (Link
Quality Analysis) score from the programmed channels.
This manual includes installation, configuration, interfacing and operating instructions
for the Vertex Standard VX-1400. We encourage you to read this manual thoroughly
before installing or operating this transceiver.
Page 6
VX-1400 OPERATING MANUAL4
MIC Jack
This modular jack accepts microphone voice input, as well as scanning and PTT (Push
To Talk) control from the microphone. Specified microphone impedance is 500 - 600
Ohms.
[S1], [S2], [P0]
- [P4] Button
(
PROGRAMMABLE FUNCTION BUTTONS
)
These seven buttons functions can be customized via programming by your Vertex
Standard dealer. The factory defaults are shown below.
[S1]
button: Press this button to toggle the Display Brightness Level between “High”
and “Low”.
[S2]
button: Press this button to toggle the Noise Blanker “on” and “off.”.
[P0]
button: Press this button to change the synthesizer step in the VFO mode.
[P1]
button: Press this button to activate the Antenna Tuning Process.
[P2]
button: Press this button to activate the “Squelch Adjusting” mode (for quieting
random noise).
[P3]
button: Press this button to activates the Clarifier function (allows tuning the
receiver frequency without changing the transmit frequency).
[P4]
button: Press this button to select the operating mode.
[
MENU] Button
Pressing this button activates the Menu mode which changes the configuration of the
transceiver’s parameter.
[⊳]/[]
Button
Pressing these buttons selects the frequency control method among “VFO mode”,
“Memory mode”, and “ITU mode”.
FRONT PANEL CONTOL & SWITCHES
Page 7
5VX-1400 OPERATING MANUAL
[
POWER
( )]
Switch
This is the main on/off switch for the VX-1400. Press and hold this switch for 2
seconds to toggle the transceiver’s power on and off.
Speaker
The internal speaker is located here.
TX/BUSY LED
This indicator glows green when a signal is being received and red when transmitting.
[]/[]
Button
Pressing these buttons selects the operating frequency (while in the VFO mode) or
memory channel (while in the Memory mode and ITU mode).
LCD Display
This multi function LCD (Liquid Crystal Display) includes frequency readout or Al-
pha/Numeric “Tag” labeling of the channel in use, plus a Signal Strength/Power Out-
put meter, and icons which provide visual confirmation of transceiver status.
VOL Knob
This control adjusts the receiver audio volume from the speaker. Clockwise rotation
of this control increases the volume level.
FRONT PANEL CONTOL & SWITCHES
Dual Watch feature is activated
Key Lock active
Noise Blanker is activated
Encryption is enabled
VOX feature is activated
: This channel is in the Scan list
: Priority Scan is activated
Selcall Message or ALE Message is received
MENU mode is activeSelcall feature is activated
Channel Group
ACC signal is being received
Selcall / ALE function
Status
ALE feature is activated
Antenna Tuner / Power Amplifier Status
14 character alpha-numeric display
Medium Power Transmit mode
Low Power Transmit mode S/PO meter Shift direction of the Clarifier
Page 8
VX-1400 OPERATING MANUAL6
DC IN 13.8V
This is the main DC power input jack for the VX-1400.
ANT Jack
This PL-259 (“M” Type) connector is used for connection of the coaxial feedline
from the antenna. When the optional FC-30 or FC-40 External Antenna Tuner is
used, the RF interconnection cable from the FC-30 or FC-40 connects here, while
the antenna wire or whip connects to the FC-30 or FC-40.
GND Terminal Post
Use this terminal to connect the transceiver to a good earth ground bus, for safety and
optimum performance. Use a large diameter, short braided cable.
TUNER Jack
This 8-pin mini-DIN jack is for interconnection to the optional FC-30 or FC-40
External Antenna Tuner.
EXT SP Jack
This 3.5-mm miniature phone jack provides receiver audio output for an external
speaker. Available audio output is 10 Watts, and the permitted impedance is 4 to 16
Ohms. Inserting a plug into this jack automatically disables the internal speaker.
Caution: Do not connect this line to ground, and be certain that the speaker has
adequate capability to handle the audio output from the VX-1400.
ACC Out
This hole which is blocked by the rubber cap is a hole to draw the optional CT-139
Accessory Cable.
REAR PANEL CONNECTIONS
Page 9
7VX-1400 OPERATING MANUAL
SAFETY PRECAUTIONS
Before proceeding with installation of the VX-1400 transceiver, please read and observe
all safety and operating instructions. Consult with qualified installation or service person-
nel should any questions arise regarding these important safety tips.
Power Connections
The power connector for the VX-1400 must only be connected to a DC source providing
13.8 Volts DC (±15 %), and capable of at least 23 Amperes of current. Do not connect this
apparatus to any other DC voltage, and never connect the DC power cable to an AC
source of any kind. Always observe proper polarity when making DC connections. Our
Limited Warranty does not cover damage caused by improper power connections.
Note that other manufacturers may use the same type of DC power connector as does your
VX-1400 transceiver, but the wiring configuration of the other manufacturer’s plug may
be different from that specified for your transceiver. Serious damage can be caused if
improper DC connections are made; consult with a qualified service technician when in
doubt.
Grounding for Electrical Safety
Connect the rear panel ground lug to a good earth ground. For best performance, such a
ground should consist of one or more ground rods 2.6 m (8 feet) long, connected to the
transceiver via a low-inductance cable such as a heavy braided wire (the shield from sur-
plus/discarded RG-213 type cable is ideal). The lead-in cable should be as short as pos-
sible.
Do not use gas lines as a ground connection!
Electrical Shock Prevention
Be certain that all station wiring is properly insulated so as to prevent short-circuits which
could damage this transceiver and/or accessories connected to it. Be sure to protect power
cables from damage due to abrasion by ensuring that they cannot be walked upon nor
crushed under rolling chairs, etc. Never route power cables near sharp metallic edges
which might cut through protective insulation.
Never spill liquids into this transceiver, and do not drop metallic objects into the trans-
ceiver enclosure. Electrical shock may result when you attempt to remove the object.
Unsupervised children should be kept away from any electrical apparatus such as the VX-
1400 Transceiver and its accessories.
INSTALLATION
Page 10
VX-1400 OPERATING MANUAL8
Antenna Precautions
Always locate antennas such that they can never come in contact with outdoor power lines
in the event of a catastrophic antenna support or power line support structure failure.
Ground the support structure adequately, so as to dissipate energy absorbed during a light-
ning strike. Install appropriate lightning arrestors in the antenna lead-in and rotator cable
(if used) according to the arrestor’s instructions.
In the event of an approaching electrical storm, disconnect all antenna lead-in, rotator
cables, and power cables completely from your station if the storm is not immediately in
your area. Do not allow disconnected cables to touch the case of your VX-1400 trans-
ceiver or accessories, as lightning can easily jump from the cable to the circuitry of your
transceiver via the case, causing irreparable damage. If a lightning storm is in progress in
your immediate area, do not attempt to disconnect the cables, as you could be killed in-
stantly if lightning should strike your antenna structure or a nearby power line.
If a vertical antenna is utilized, be certain that humans and/or pets and farm animals are
kept away both from the radiating element (to prevent electrical shock and RF exposure
danger) and the ground system, in the event of an electrical storm. The buried radials of a
ground-mounted vertical antenna can carry lethal voltages outward from the center of the
antenna in the event of a direct lightning strike.
Heat and Ventilation
To ensure long life of the components, be certain to provide adequate ventilation around
the cabinet of the VX-1400. The cooling system of the transceiver must be free to draw
cool air in from the bottom of the transceiver and expel warm air from the rear of the
transceiver.
Do not install the transceiver on top of another heat-generating device (such as a linear
amplifier), and do not place equipment, books, or papers on top of the transceiver. Place
the transceiver on a hard, flat, stable surface. Avoid heating vents and window locations
that could expose the transceiver to excessive direct sunlight, especially in hot climates.
INSTALLATION
SAFETY PRECAUTIONS
Page 11
9VX-1400 OPERATING MANUAL
Electromagnetic Compatibility and RF Exposure
If this transceiver is used with or in the vicinity of a computer or computer-driven acces-
sories, you may need to experiment with grounding and/or radio frequency interference
(RFI) suppression devices (such as ferrite cores) to minimize interference to your commu-
nications caused by energy leakage from the computer.
Although there is negligible radio frequency (RF) leakage from the VX-1400 transceiver
itself, its antenna system should be located as far away from humans and animals as prac-
ticable, so as to avoid the possibility of shock due to accidental contact with the antenna or
excessive long-term exposure to RF energy.
Preliminary Inspection
Inspect the transceiver visually immediately upon opening the packing carton. Confirm
that all controls and switches work freely, and inspect the cabinet for any damage. Gently
shake the transceiver to verify that no internal components have been shaken loose due to
rough handling during shipping.
If any evidence of damage is discovered, document it thoroughly and contact the shipping
company (or your local dealer, if the unit was purchased over-the-counter) so as to get
instructions regarding the prompt resolution of the damage situation. Be certain to save
the shipping carton, especially if there are any punctures or other evidence of damage
incurred during shipping; if it is necessary to return the unit for service or replacement,
use the original packing materials but put the entire package inside another packing car-
ton, so as to preserve the evidence of shipping damage for insurance purposes.
INSTALLATION
SAFETY PRECAUTIONS
Page 12
VX-1400 OPERATING MANUAL10
POWER REQUIREMENTS AND BASIC INSTALLATION
DC Power Connections
The VX-1400 transceiver is designed for operation from 13.8 Volts DC, negative ground,
with the DC source being capable of providing 23 Amperes of continuous current.
For mobile applications, the fused (25-A) DC cable supplied with this transceiver may be
used for making the power connections. Be absolutely certain to observe the proper polar-
ity when making power connections:
The RED DC power lead connects to the Positive (+) DC terminal; and the BLACK DC
power lead connects to the Negative (–) DC terminal.
To minimize noise pickup, and to provide the best input voltage stability for your trans-
ceiver, we recommend you connect the DC cable directly to the vehicle battery, rather
than to the ignition or accessory circuitry. Route the DC cable as far away from ignition
cables as possible, and cut off any extra cable (from the battery end) to minimize voltage
drop. If the DC cable is not long enough, use #12 AWG (minimum) stranded, insulated
wire to extend it. Be absolutely certain to solder the connections at the splice securely, and
provide ample insulation for the soldered splice (heat shrink tubing plus black electrical
tape work well).
INSTALLATION
12V Batter
y
Cigarette Lighter Plug
Fuse Box
RED
BLACK
VX-1400
FUSE: 25A
When disconnecting the DC cable from the transceiver,
pull the DC cable while pressing here.
Page 13
11VX-1400 OPERATING MANUAL
Use the following procedure to connect the DC cable:
Before connecting the DC cable to the battery, measure the voltage across the battery
terminals with the engine running fast enough to show a charge. If the voltage is
above 15 Volts, the vehicle’s voltage regulator should be adjusted to reduce the charg-
ing voltage below 14 Volts.
With the radio end of the cable disconnected, connect the RED cable lead to the
POSITIVE battery terminal, and the BLACK cable lead to the NEGATIVE battery
terminal. Make certain that the battery terminal connections are tight, and remember
to check them periodically for signs of loosening and/or corrosion.
Make sure the POWER switch on the VX-1400 transceiver is off, and plug the DC
cable into the INPUT jack on the rear panel of the transceiver.
CAUTION! In mobile installations, check to ensure that the transceiver POWER switch is
turned off whenever starting or stopping the engine, to avoid potential damage from switch-
ing transients.
INSTALLATION
POWER REQUIREMENTS AND BASIC INSTALLATION
12V Batter
y
RED BLACK
VX-1400
FUSE: 25A
Page 14
VX-1400 OPERATING MANUAL12
MOBILE MOUNTING
The optional MMB-92 Mobile Mounting Bracket allows quick insertion and removal of
the VX-1400 transceiver from the vehicle. Complete installation instructions are pro-
vided with the bracket.
Mobile Antenna Considerations
The VX-1400 transceiver is designed for use with any antenna system providing a 50-
Ohm resistive impedance at the desired operating frequency. While minor excursions from
the 50-Ohm specification are of no consequence, the power amplifier’s protection cir-
cuitry will begin to reduce the power output if there is more than a 50% divergence from
the specified impedance (less than 25 Ohms or greater than 100 Ohms, corresponding to
a Standing Wave Ratio (SWR) of 2.0:1). Compliance with this specification critically
depends on the range of frequencies on which operation will take place, and the design of
the antenna(s) in use.
If your mobile or marine operation requires wide frequency coverage, the optional YA-
007FG (Frequency range is 7 MHz - 30 MHz) or similar mobile whip antenna may be
used in conjunction with the optional FC-40 External Antenna Tuner. The FC-40 is de-
signed to accommodate a wide variety of whip impedances at the operating frequency,
converting these to the desired 50 ohm impedance via a sophisticated microprocessor-
controlled impedance matching circuit. The FC-40 and VX-1400 provide memory of
antenna matching settings sufficient for all channels on Memory Bank 1. In marine appli-
cations, the FC-40 is also ideal for the use with a “backstay” antenna or marine mobile
whip.
INSTALLATION
Install the ferrite core
as close to connector
as possible.
Wrap the ends of
the waterproof cap
with sealing tape to
protect against
moisture ingress.
IMPORTANT
When connecting optional
equipment, you must turn off
the transceiver.
Page 15
13VX-1400 OPERATING MANUAL
The FC-40 should be located at or near the base of the antenna, so as to minimize losses
and stray radiation. The short lead-in wire from the whip must be securely bonded both to
the FC-40 and the antenna (whip or wire), and the FC-40 must be securely bonded to the
vehicle or vessel ground system, which will act as a counterpoise for the FC-40 and
antenna radiating element. Be sure to weatherproof all outdoor connections thoroughly,
especially in maritime environments.
Complete the installation by connecting the RF coaxial cable and FC-40 control cable as
shown in the pictorial below. Complete installation instructions are found in the FC-40
Instruction Manual; follow the manufacturer’s installation instructions when using a whip
antenna other than the YA-007FG.
For extending the operating frequency range of an antenna fed with coaxial cable, the
optional FC-30 Antenna Tuner may also be used. The impedance matching range of the
FC-30 is from 17 Ohms to 150 Ohms. Interconnection guidelines may be found in the
Operating Manual for the FC-30.
MOBILE MOUNTING
INSTALLATION
IMPORTANT
When connecting optional
equipment, you must turn off
the transceiver.
Note: The Mounting Bracket
attached to the FC-30 is not
used with the VX-1400.
Page 16
VX-1400 OPERATING MANUAL14
Mobile Station Grounding
Although satisfactory grounding in most installations will be achieved via the DC cable’s
negative lead and the antenna system’s coaxial cable shield, it may be necessary, in some
installations, to provide a direct ground connection at the mounting location of the trans-
ceiver. Due to unexpected resonances which may naturally occur in any location, im-
proper communication system performance may result from insufficient grounding. These
symptoms may include: RF feedback (resulting in distortion of your transmitted signal),
unintended scanning, blinking or blanking of the frequency display, or loss of memory.
Note that these conditions may occur in any communications installation. The VX-1400
includes extensive filtering designed to minimize the chance of such problems; however,
random currents set up by insufficient RF grounding can nullify such filtering. Bonding
the rear panel GND terminal of the VX-1400 transceiver to the vehicle or vessel’s ground
system should clear up any such difficulties.
Vertex Standard does not recommend the use of “on glass” mobile antennas unless the
shield of the coaxial cable is securely grounded near the feedpoint of the antenna. Such
antennas frequently are responsible for the ground-related difficulties described above.
INSTALLATION
MOBILE MOUNTING
Page 17
15VX-1400 OPERATING MANUAL
BASE STATION INSTALLATION
DC Power Connections
For base station installations, Vertex Standard recommends the use of the optional FP-
1030A AC Power Supply. The FP-1030A provides a regulated 13.8 V DC supply at up to
25-Ampere.
Other models of DC power supplies may be used with the VX-1400, but the 13.8 V DC
input voltage, 23-Ampere current capability, and DC cable polarity guidelines described
previously must be strictly followed.
If you are connecting the FP-1030A with the VX-1400 for the first time, before
connecting power check the label in the rear of the FP-1030A which indicates the
AC mains voltage for which the supply is currently set.
CAUTION! Permanent damage can result if improper supply voltage is applied to this trans-
ceiver. Your warranty does not cover damage caused by application of AC, reversed polar-
ity DC, or DC outside of the specified range of 13.8 V ±15%. If using a power supply
other than the FP-1030A, ensure that the DC supply connector to the transceiver matches
the VX-1400 wiring configuration. Other manufacturers may utilize power supplies with
a physically matched connector that is wired differently; this will cause serious damage to
the VX-1400 transceiver!
INSTALLATION
Supplied DC Cable
VA
005510 2015 3020 40
CONTINUOUS CURRENT 25A
OVERLOAD
POWER
ON
OFF
FP-1030A
VX-1400
RED BLACK
FUSE: 25A
Page 18
VX-1400 OPERATING MANUAL16
Base Station Antenna Considerations
As with mobile or maritime installations, antenna performance is critical to base station
communications system effectiveness. Every effort must be made to ensure that the im-
pedance of the antenna system utilized with the VX-1400 is as close as practicable to the
specified 50-Ohm impedance value, and that mechanical and electrical component integ-
rity are maintained at all times.
For wide frequency range applications, Vertex Standard’s Model YA-30 Broadband Di-
pole Antenna may be ideal for your communication requirements. Covering an operating
frequency range of 1.6-30 MHz, the YA-30 eliminates the need for multiple antennas
which might otherwise be required for equivalent frequency coverage.
The type of antenna required for a particular communications distance will vary. A com-
plete discussion of this topic is beyond the range of this manual; however, a few general
guidelines will be offered herewith.
Any antenna to be installed should be free of nearby obstructions which might interfere
with its radiation pattern. The antenna, its support structure, and its cables must never be
installed in such a manner that would allow them to contact with power or telephone lines
in the event of a catastrophic windstorm or other cause of major failure. An adequate
safety is usually provided by keeping the antenna and its support structure 1.5 times the
height of the support plus the length of any antenna or guy wires attached to the support.
When installing a balanced antenna such as a dipole, remember that the VX-1400 trans-
ceiver is designed for use with an (unbalanced) coaxial feedline. Always use a balun or
other balancing device so as to ensure proper antenna system performance.
Vertical antennas usually provide excellent coverage beyond about 1000 km (600 miles),
but very poor coverage at closer distances. Horizontal antennas are frequently better for
shorter distances, but they may require a stout sup-
port structure such as a tower. The height of the hori-
zontal antenna, and the nature of the ground below it,
have a profound impact on the favored launch angle
for the main radiation lobe from the antenna at a par-
ticular frequency. For example, at 6 MHz a horizon-
tal dipole 10 meters high (33 feet) will provide excel-
lent local coverage out to about 500 km (300 miles);
however, at the same frequency the dipole would have
to be much higher (perhaps 50 meters or 165 feet) for
satisfactory communication over a range of 3000 km
(1800 miles). On the other hand, at 26 MHz the same
INSTALLATION
BASE STATION INSTALLATION
h=10m
90° 80°80° 60°60°
40°40°
30°30°
20°20°
10°10°
1.0 1.002.0 2.0
50°50° 70°70°
h=50m
90° 80°80° 60°60°
40°40°
30°30°
20°20°
10°10°
1.0 1.002.0 2.0
50°50° 70°70°
Page 19
17VX-1400 OPERATING MANUAL
dipole at a height of 10 meters could, ionospheric propagation conditions permitting, be
expected to provide outstanding performance over the same 3000 km distance.
Excellent reference texts and computer software are available for the design and optimi-
zation of HF antennas. Your dealer or installer should be able to assist you with all aspects
of your antenna installation.
Use high-quality coaxial cable for the lead-in to your VX-1400 transceiver. All efforts at
providing an efficient antenna system will be wasted if poor quality, lossy coaxial cable is
used. Losses in coaxial lines increase as the frequency increases, so a coaxial line with 0.5
dB of loss at 6 MHz may have 2 dB of loss at 26 MHz (1 dB is a just-perceptible decrease
in signal strength). As a general rule, smaller-diameter coaxial cables tend to have higher
losses than larger-diameter cables, although the precise differences depend critically on
the cable construction, materials, and the quality of the connectors used on the cable. See
the cable manufacturers’ specifications for details.
For reference, the chart below shows approximate loss figures for typically-available co-
axial cables frequently used in HF installations.
INSTALLATION
BASE STATION INSTALLATION
Loss in dB per 30 m (100 ft) for Selected 50 Ohms Coaxial Cables
(
ASSUMES 50 OHMS INPUT/OUTPUT TERMINATIONS
)
Loss figures are approximate; consult cable manufactures’
catalog for complete specifications.
Loss figures can increase significantly if high SWR is present
on the transmission line.
CABLE TYPE
RG-58A
RG-58 Form
RG-8X
RG-8A, RG-213
RG-8 Form
Belden® 9923
RG-17A
2 MHz
0.55
0.54
0.39
0.27
0.22
0.18
0.08
15 MHz
1.75
1.50
1.07
0.85
0.65
0.50
0.30
28 MHz
2.60
2.00
1.85
1.25
0.88
0.69
0.46
LOSS
Page 20
VX-1400 OPERATING MANUAL18
Base Station Grounding
The VX-1400 HF transceiver, like any other HF communications apparatus, requires an
effective ground system for maximum electrical safety and best communications effec-
tiveness. A good ground system can contribute to station efficiency in a number of ways.
It can minimize the possibility of electrical shock to the operator.
It can minimize RF currents flowing on the shield of the coaxial cable and the chassis
of the transceiver which may cause interference to nearby home entertainment de-
vices or laboratory test equipment.
It can minimize the possibility of erratic transceiver operation caused by RF feedback
or improper current flow through logic devices.
An effective earth ground system may take several forms; for a more complete discussion,
see an appropriate RF engineering text. The information presented below is intended only
as a guideline.
INSTALLATION
BASE STATION INSTALLATION
Page 21
19VX-1400 OPERATING MANUAL
Typically, the ground connection consists of one or more 2.4 m (8’) copper-clad steel
rods, driven into the ground. If multiple ground rods are used, they should be configured
in a “V” configuration, and bonded together at the apex of the V which is nearest the
station location. Use a heavy, braided cable (such as the discarded shield from type RG-
213 coaxial cable) and strong cable clamps to secure the braided cables to the ground
rods. Be sure to weatherproof the connections to ensure many years of reliable service.
Use the same type of heavy, braided cable for the connections to the station ground bus
(described below).
Inside the station, a common ground bus consisting of a solid copper pipe of at least 25mm
(1”) diameter should be used. Another ideal ground bus may consist of a wide copper plate
(single-sided circuit board material is ideal) secured to the bottom of the operating desk.
Grounding connections from individual devices such as transceivers, power supplies, and
data communications devices should be made directly to the ground bus using a heavy,
braided cable.
Do not make ground connections from one electrical device to another, and thence to the
ground bus. This so-called “Daisy Chain” grounding technique may nullify any attempt at
effective radio frequency grounding. See the drawings below for examples of proper and
improper ground connections.
Inspect the ground system - inside the station as well as outside - on a regular basis so as
to ensure maximum performance and safety.
INSTALLATION
BASE STATION INSTALLATION
PROPER GROUND CONNECTION
Linear
Amplifier
Power
Supply
Transceiver
Transceiver Linear
Amplifier
Power
Supply
"Daisy Chain"
IMPROPER GROUND CONNECTION
Page 22
VX-1400 OPERATING MANUAL20
TURNING THE TRANSCEIVER “ON” AND “OFF”
Be certain that all power supply, antenna, ground, microphone, and other accessory
connections have been properly accomplished.
Rotate the VOL knob fully counter-clockwise.
Press and holding in the [POWER
( )]
switch until the LCD display is illuminated.
To turn the radio off, press and holding in the [POWER
( )]
switch until the LCD
display is disappeared.
RECEPTION
Rotate the VOL knob for a comfortable listening level on the incoming signals or
noise present on the speaker.
When no signal is present on the channel, press the [SQL] button (the [PROGRAM-
MABLE
]
button which assigns the “Squelch” func-
tion: the factory default is [P2] button) to acti-
vate the “Squelch Adjusting” mode, then press
the []/[] button to the point where the background noise is just silenced; finally
press the [P2] button again.
Unless you are responsible for listening for very weak signals (very near the back-
ground noise), silencing the receiver using the circuitry is usually preferable in most
applications.
When a signal strong enough to override the squelch threshold is received, the incom-
ing signal will be heard in the speaker, and the TX/BUSY indicator glows green.
When the incoming signal is disappeared, the green TX/BUSY indicator will disap-
peared.
When a signal is being received, the S/PO meter will become illuminated according
to the incoming signal strength. You may use this S/PO meter reading to compare
communications path effectiveness on different
channels, or to assist with optimum antenna ro-
tation, if a directional antenna is being used.
When receiving an impulse noise, such as that from a power line or a vehicle, press
the [NB] button (the [PROGRAMMABLE] button which assigns the “Noise Blanker”
function: the factory default is [S2] button) to reduce the noise level. When the noise
blanker is activated, the “ ” icon will be illu-
minated. Press the [NB] button again to disable
the noise blanker.
If the station you are listening to should drift or otherwise be unclear (the voice may
sound too high-pitched or too low-pitched), press the [CLAR] button (the [PROGRAM-
MABLE
]
button which assigns the “Clarifier”
function: the factory default is the [P3] button)
to activate the “Clarifier” function. The offset
OPERATION
Page 23
21VX-1400 OPERATING MANUAL
frequency (receive frequency vs transmission frequency) will appear on the display.
Press the [⊳]/[] (move the digit) and []/[] (select the number) button to im-
prove the sound of the incoming signal. These
buttons functions does not affect your transmis-
sion frequency; only the receive frequency is
being adjusted (up to ±1.000 kHz). Press and hold in both [] and [] buttons for
one second to reset the offset.
Important Note: The transceiver can not transmit while adjusting the clarifier offset.
If you wish to transmit, press the [CLAR] button again to return to normal display.
Press the [CLAR] button again to return to normal display. When the receiving fre-
quency is higher than displayed frequency, the
“” icon will appear in the upper side of the
frequency display. Similarly, when the receiv-
ing frequency is lower than displayed frequency, the “” icon will appear in the
upper side of the frequency display.
Important Note: Keep offset frequency until you change the operating frequency or
reset the offset by pressing and holding both [] and [] buttons for one second.
If the LCD display is too bright, press the [DIM] button (the [PROGRAMMABLE] button
which assigns the “Dimmer” function: the factory default is [S1] button) to reduce
the display brightness. Press the [DIM] button again return to the LCD display to
nominal brightness level.
Press the Programmable Function ([P0] ~ [P4
], [S1]
& [S2]) buttons to activate the
function which is corresponding with that button. Refer to page 42 for the details of
the Programmable Function button.
RECEPTION
OPERATION
Page 24
VX-1400 OPERATING MANUAL22
OPERATION
FREQUENCY AND CHANNEL SELECTION
The VX-1400 includes the following frequency selection capabilities:
A VFO (Variable Frequency Oscillator) System
Memory Channel
ITU Marine Channel
In the VFO mode, the frequency is displayed
on the right side, with the operating mode on
the left side of the display.
In the Memory Channel Mode, the frequency is displayed on the right side, and the
memory channel number is displayed on the left side of the display with the memory
bank number at the upper right corner of the
display. Therefore, in the example at the right,
the display is indicating Channel #5 on Memory
Bank #1.
In the ITU mode, the frequency and memory channel number are displayed as they
are during Memory Channel Mode; however,
the upper right corner of the display indicates
the “ITU” which indicate ITU Marine Channel
designator.
Frequency and channel selection are very simple on the VX-1400:
Select the desired channel grouping (VFO, Memory Channel, and ITU) by pressing
the [⊳]/[] button. The circulation of channel groups is “VFO” “Memory Bank
1” “Memory Bank 2” “Memory Bank 3” “Memory Bank 4” “Memory
Bank 5 ” “ITU” “VFO
…..
Page 25
23VX-1400 OPERATING MANUAL
VFO Mode
Press the []/[] button to select the operat-
ing frequency.
If the tuning rate is too slow or too fast, the fre-
quency synthesizer steps may be changed by the following procedures:
1) Press the [STEP] button (the [PROGRAMMABLE] button which assigns the “Step”
function: the factory default is [P0] button) briefly to enable changing the fre-
quency digit of the synthesizer step.
2) Press the [⊳]/[] button to select the frequency digit which enable selecting the
operating frequency.
3) Press the [STEP] button briefly again to save the new setting and exit to normal
operation.
If you need to change the operating mode, press the [MODE] button (the [PROGRAM-
MABLE
]
button which assigns the “Mode” function: the factory default is [P4] button).
Available operating modes are J3EU (USB), J3EL (LSB), J2BU (USB), A1A (CW),
and A3E (AM).
If you use the optional MH-77 Hand Microphone, the microphone’s [UP] or [DWN
]
key may also be used to select the operating frequency. Pressing the [UP] or [DWN
]
button briefly will cause the operating frequency to increment or decrement one step,
respectively. Pressing and holding the [UP] or [DWN] key in for 1/2 second will
initiate upward or downward scanning, respectively. Releasing the [UP] or [DWN
]
key halts the scan.
The optional MH-77 Hand Microphone may be entered the VFO frequency directly.
Press the Microphone’s [ENT] key (the keypad’s key which assigned “Entry Com-
mand” function) briefly, then enter seven digits (from 10 MHz digit to 10 Hz
digit) of the desired receiving frequency. If you make a mistake during frequency
entry, Press the [⊳]/[] button so as to cause the erroneous digit of the frequency
to blink; now, press the correct number on the keypad, and continue with the
remainder of the frequency entry process.
Press the [ENT] key briefly, then enter seven digits (from 10 MHz digit to 10 Hz
digit) of the desired transmit frequency by a same procedures as entering the
receiving frequency if you wish to store independent transmit and receive fre-
quencies on the same channel. Otherwise, skip to the next step.
Press the [ENT] key again to finalize the entry of the VFO frequency (frequen-
cies).
FREQUENCY AND CHANNEL SELECTION
OPERATION
Page 26
VX-1400 OPERATING MANUAL24
OPERATION
Memory Channel Mode
Press the []/[] button to select the desired
Memory Channel within the selected Memory
Bank. Remember that there are a total of five
Memory Banks, so if you do not find a particu-
lar channel, it may have been stored in a different Memory Bank.
If you use the optional MH-77 Hand Microphone, the microphone’s [UP] and [DWN
]
keys may also be used to select the Memory Channel. Pressing the [UP] or [DWN
]
key briefly will cause the Memory Channel to increment or decrement one step, re-
spectively. Pressing and holding the [UP] or [DWN] key in for 1/2 second will ini-
tiate upward or downward scanning on the Memory Channels, respectively. Releas-
ing the [UP] or [DWN] key halts the scan.
ITU Marine Channel
Press the []/[] button to select the desired
ITU Memory Channel within the standard ITU
Marine Channel Bank provided. The operating
mode is automatically selected, and can not be
changed.
If you use the optional MH-77 Hand Microphone, the microphone’s [UP] and [DWN
]
keys may also be used to select the ITU Memory Channel. Pressing the [UP] or [DWN
]
key briefly will cause the ITU Memory Channel to increment or decrement one step,
respectively. Pressing and holding the [UP] or [DWN] key in for 1/2 second will
initiate upward or downward scanning on the ITU Memory Channels, respectively.
Releasing the [UP] or [DWN] key halts the scan.
FREQUENCY AND CHANNEL SELECTION
Page 27
25VX-1400 OPERATING MANUAL
OPERATION
TRANSMISSION
For Voice transmission, close the PTT (Push To Talk) switch on the microphone; the
transmitter will now be activated and the TX/BUSY indicator glows red. Hold the
microphone about 1 inch (25 mm) from your mouth, and speak into the front of the
microphone in a normal voice level. Release the PTT switch to return to the receive
mode (the red TX/BUSY indicator will disappeared).
For CW (Morse Code telegraphy) in the A1A mode, begin sending using your tele-
graph key or electronic keyer. The VX-1400 will automatically be placed in the trans-
mit mode when you start to send, and will revert to the receive mode when you stop
sending. As you send, a “Sidetone” audio generator allows you to monitor your send-
ing.
For Data transmission (including Morse Code telegraphy using a TNC (Terminal Node
Controller) and keyboard, or similar computer-driven data transmission devices), trans-
mit/receive control is exercised by the software which accompanies the data trans-
mission equipment in use. See the User’s Manual for your terminal equipment for
operating instructions. Remember to follow the maximum power output guidelines
during continuous-duty operation such as RTTY (Radio Teletype) in the J2B mode.
Adjust the TX Audio level from the TNC for a maximum of 50 Watts of power output
(4 segments illuminated on the Power Output Bar Graph) if long periods of continu-
ous transmission are anticipated.
Note: The CW and Data transmission requires optional CT-139 Accessory Cable.
Speech Processor
The VX-1400 radio has a built-in speech processor. This speech processor is used in the
SSB mode.
The speech processor increases SSB average transmit power output. This will produce a
louder signal on the receiving radio and provide better readability of the receive signal.
This also expands the communication range in the SSB mode.
When programming with CE111 software, in the Mic Gain setting, the following optional
settings are available:
LOW: Speech Processor is OFF
Normal: Speech Processor is ON (Default)
High: Speech Processor is ON
When the Speech Processor setting is required; please select “Normal” or “High” in the
CE111 Mic Gain setting.
If you need wider service coverage and better readability of the signal, the “High” selec-
tion would be recommended.
Page 28
VX-1400 OPERATING MANUAL26
Antenna Tuning Procedures
When the optional FC-30 or FC-40 External Antenna Tuner is installed, it is activated on
each channel automatically.
Be certain that all connections to the FC-30/-40 have been properly made.
Select the appropriate channel with the []/[] button.
Press the [TUNER] button (the [PROGRAMMABLE] button which assigned “TUNER”
function: the factory default is the [P1] button). The two arrows of “ ” icon on the
LCD display will blink, and the VX-1400 will transmit for a short time. Thereafter,
the transceiver will return to the receive mode, and the “ ” icon will now be illumi-
nated constantly.
The FC-30/-40’s microprocessor-based circuitry includes memory sufficient to re-
tain 100 (for FC-30, 200 for FC-40) antenna tuning settings in memory. This will
greatly reduce frequency change time. If you utilize more than 100 or 200 operating
channels that are widely removed in frequency, the new tuning settings will be over-
written on a first-in, first-out basis.
IMPORTANT NOTE
If the impedance encountered by the FC-30/-40 exceeds 2:1, the “ ” icon will
blink, and the microprocessor will not retain the tuning data for that frequency, as
the FC-30/-40 presumes that you will want to adjust or repair your antenna sys-
tem so as to correct the high SWR condition. Similarly, when the temperature of
the inside of the transceiver’s case becomes higher, the “ ” icon will also blink.
Stop the transmission and cool down the transceiver for few minutes.
TRANSMISSION
STATUS
Normal Condition
Hi SWR or Hi Temperature
Antenna Tuner is activated
Antenna Tuner is progressing
ICON
(w/Blink)
(w/ Blink)
OPERATION
Page 29
27VX-1400 OPERATING MANUAL
OPERATION
DUAL WATCH
The Dual Watch feature allows the user or dispatcher to operate on one channel while
periodically making a brief check of Memory Channel “1-001” (Memory Bank #1, Chan-
nel #1). The Dual Watch feature can be engaged so long as there is frequency and mode
data written into memory channel “1-001”.
Every four seconds, the transceiver will automatically switch over to memory channel “1-
001”. If a station is transmitting on memory channel “1-001”, the transceiver will hold on
memory channel “1-001” for five seconds, then Dual watch operation will resume (irre-
spective of the transmit/receive status of any stations on memory channel “1-001”).
Dual Watch operation is simple to use. Follow these steps:
Adjust the squelch circuit so that the green TX/BUSY indicator disappears and the
receiver is silenced.
Press the [DW] button (the [PROGRAMMABLE] button which assigned “Dual Watch”
function) to activate Dual Watch. After four seconds, the transceiver will switch over
to memory channel “1-001,” and will stay there for 1/2 seconds, thereafter returning
to your original channel. The “ ” icon will become illuminated while the Dual
Watch feature is activated.
If a call is received on memory channel “1-001” during Dual Watch operation, the
transceiver will hold on memory channel “1-001” for five seconds, then Dual watch
operation will resume (irrespective of the transmit/receive status of any stations on
memory channel “1-001”). The “ ” icon will blinks while receiving the memory
channel “1-001”.
Press the [DW] button again to disable the Dual Watch feature. The “ ” icon disap-
pears and operation will revert to your original operating frequency.
Note that your main operating channel can be changed during Dual Watch operation,
but you cannot change channels while memory channel “1-001” is being checked for
activity.
Page 30
VX-1400 OPERATING MANUAL28
ENCRYPTED TRANSMISSION / RECEPTION
(
REQUIRES OPTIONAL ENCRYPTION UNIT
)
If the transceivers you (and others in your communication group) are using are equipped
with the optional Encryption Unit, the Encryption mode may be activated by pressing
the [ENCRP] button
(the [
PROGRAMMABLE] button which assigned “Encryption” func-
tion). The “ ” icon will become illuminated.
To de-activate encryption, press the [ENCRP] button.
If the signals of all the other stations in your communications group have a severely
distorted or “scrambled” sound, you may have accidentally de-activated your
transceiver’s encryption mode. Pressing the [ENCRP] button may allow recovery.
However, if only one station in your communications group sounds distorted or
“scrambled,” it is possible that the encryption mode of that transceiver may have been
accidentally turned off. Either the dispatcher or you may advise the other station by
switching your encryption off and calling the other station in the non-encrypted mode.
Remember that your transmissions will be sent in a non-encrypted format, and will
thus not be secure; limit your discussion to a brief advisory regarding the [ENCRP
]
button on the other station’s transceiver, then revert to encrypted operation immedi-
ately by pressing the [ENCRP] button on your transceiver.
OPERATION
Page 31
29VX-1400 OPERATING MANUAL
OPERATION
2.182 MHZ EMERGENCY CHANNEL MODE
If the [S1] and [S2] buttons was assigned to “ALARM” and “2182” functions by your
VERTEX STANDARD dealer, the VX-1400 is specialized to marine version which pro-
vides several important operational benefits for the marine owner.
Pressing the [2182] ([S2]) button automatically switches the transceiver to the Ma-
rine Distress Channel, 2182 kHz (2.182 MHz), and also places the transceiver in the
H3E (Single-Sideband AM) mode. On the display, the frequency “2.182.00” will be
displayed, and the upper right corner of the dis-
play indicates the “EMG” which indicate Emer-
gency Channel operation.
If desired, the operating mode may be changed to J3EU (USB) by pressing the [P4
]
button.
The [ALARM] ([S1]) button may be used for sending a distress signal. To test the
alarm, just press the [ALARM] ([S1]) button briefly. After one second, an audible
alarm will be heard, although no transmission occurs. Press the [ALARM] ([S1
])
button again to stop the test alarm.
In an Emergency, press the [2182] ([S2]) button while pressing and holding in the
[
ALARM] ([S1]) button. This VX-1400 will transmit the international marine dis-
tress signal (alternating 1300 Hz and 2200 Hz tones) for 35 seconds. Press the
[
ALARM] ([S1]) button (not the [2182] ([S2]) button) to cancel the transmitted
distress signal.
Press the [2182] ([S2]) button again to exit the 2.182 MHz Emergency Channel
Mode.
Be certain your operators and crew understand the function of the 2182 Alarm fea-
ture, and make sure they understand that it is only to be used in case of a true emer-
gency situation.
Page 32
VX-1400 OPERATING MANUAL30
SELCALL/TELCALL OPERATION
GENERAL
The VX-1400’s Selcall feature provides six calling modes:
Selcall
The Selcall mode allows you to make an individual/group call using the indi-
vidual ID (Identification) number assigned for each transceiver.
Message Call
The Message Call mode allows you to send a text message (up to 64 characters of
text) to another station.
Position Request Call
The Position Request Call mode allows you to request the position information of
another station.
Position Send Call
The Position Send Call mode allows you to send your own position information
to another station.
Beacon Request Call
The Beacon Request Call mode allows you to inquire as to the signal quality
between your transceiver and another specific transceiver (before making an in-
dividual/group call).
TelCall
The TelCall mode allows you to make a telephone call through a telephone inter-
connect service provider.
Page 33
31VX-1400 OPERATING MANUAL
SELCALL
The Selcall mode allows you to make an individual/group call using an individual ID
(Identification) assigned to each transceiver in your group or fleet.
Preparation
Press the []/[] button to select the channel to be used for Selcall.
Disable the VOX and Clarifier features, if necessary.
Press the [SELCALL] button (the [PROGRAMMABLE] button which assigned “Selcall”
function) briefly to activate the Selcall system. The “ ” icon will be illuminated
on the LCD display.
Sending a Selcall
Press the [CALL] button (the [PROGRAMMABLE] button which assigned “Call” func-
tion), then press the []/[] button to select the ID number of the station to be called
using Selcall. Available IDs are: the last-received ID, ten pre-programmed IDs, and
“Auxiliary,” whereby you enter the desired ID using the Allow ([]/[]/[⊳]/[
])
buttons. To enter the desired ID, press the []/[] button to select “AUX ID”, press
the [] button, then enter the 4-digit ID number by the [⊳]/[] (move the cursor)
and the []/[] (select number) buttons; finally press the [CALL] button again.
Press the [CALL] button briefly to enter the Call Menu.
Press the []/[] button to select “SELCALL”.
Press the [CALL] key again to transmit the Selcall.
Receiving a Selcall
When the VX-1400 receives a Selcall matching your individual ID, a bell alarm will
be heard, and the LCD will display the received (calling station’s) ID number.
Press the PTT switch momentarily to cancel the Selcall, then press and hold in the
PTT switch and speak into the microphone in the usual fashion to reply to the Selcall.
Press the [SELCALL] key again to re-activate the Selcall system.
SELCALL/TELCALL OPERATION
Page 34
VX-1400 OPERATING MANUAL32
SELCALL/TELCALL OPERATION
MESSAGE CALL
The Message Call mode allows you to send a text message (up to 64 characters of text) to
a specific station.
Preparation
Press the []/[] button to select the channel to be used for Message Call.
Disable the VOX and Clarifier features, if necessary.
Press the [SELCALL] button (the [PROGRAMMABLE] button which assigned “Selcall”
function) briefly to activate the Selcall system. The “ ” icon will be illuminated
on the LCD display.
Sending a Message Call
Press the [CALL] button (the [PROGRAMMABLE] button which assigned “Call” func-
tion), then press the []/[] button to select the ID number of the station to be called
using Selcall. Available IDs are: the last-received ID, ten pre-programmed IDs, and
“Auxiliary,” whereby you enter the desired ID using the Allow ([]/[]/[⊳]/[
])
buttons. To enter the desired ID, press the []/[] button to select “AUX ID”, press
the [] button, then enter the 4-digit ID number by the [⊳]/[] (move the cursor)
and the []/[] (select number) buttons; finally press the [CALL] button again.
Press the [CALL] button briefly to enter the Call Menu.
Press the []/[] button to select “MESSAGE.”
Press the [CALL] button again to display the last transmitted message. Press the []/
[]
button to select the message which you want to transmit. Available messages are
three pre-programmed messages and “Auxiliary”, whereby you enter the desired
message using the Allow ([]/[]/[⊳]/[]) buttons. To enter the desired message,
press the []/[] button to select “AUX”, press the [] button, then enter the mes-
sage by the [⊳]/[] (move the cursor) and the []/[] (select number) buttons. A
total of 64 characters may be used in the message.
Press the [CALL] button again to transmit the Message Call.
Receiving a Message Call
When the VX-1400 receives a Message Call matching your individual ID, a bell
alarm will be heard, and the “ ” icon will appear at the top center on the LCD, and
the received (called station’s) ID number and the message will scroll across the dis-
play.
Press the PTT switch momentarily to cancel the Message Call mode, then press and
hold in the PTT switch and speak into the microphone in the usual fashion to reply to
the Message Call.
Press the [SELCALL] key again to re-activate the Selcall system.
Page 35
33VX-1400 OPERATING MANUAL
POSITION REQUEST CALL
The Position Request Call mode allows you to request position information from a spe-
cific station.
Preparation
Press the []/[] button to select the channel to be used for the Position Request
Call.
Disable the VOX and Clarifier features, if necessary.
Press the [SELCALL] button (the [PROGRAMMABLE] button which assigned “Selcall”
function) briefly to activate the Selcall system. The “ ” icon will be illuminated
on the LCD display.
Sending a Position Request Call
Press the [CALL] button (the [PROGRAMMABLE] button which assigned “Call” func-
tion), then press the []/[] button to select the ID number of the station to be called
using Selcall. Available IDs are: the last-received ID, ten pre-programmed IDs, and
“Auxiliary,” whereby you enter the desired ID using the Allow ([]/[]/[⊳]/[
])
buttons. To enter the desired ID, press the []/[] button to select “AUX ID”, press
the [] button, then enter the 4-digit ID number by the [⊳]/[] (move the cursor)
and the []/[] (select number) buttons; finally press the [CALL] button again.
Press the [CALL] button briefly to enter the Call Menu.
Press the []/[] button to select “POS REQ”.
Press the [CALL] button again to transmit the Position Request Call.
Receiving a Position Request Call
When the VX-1400 receives a Position Request Call matching your individual ID,
the LCD will display the received (calling station’s) ID number; your radio will trans-
mit your current position (Latitude/Longitude) automatically.
Press the PTT switch momentarily to cancel the Position Request Call, if desired.
Press the [SELCALL] button again to activate the Selcall system.
Note: A suitable GPS receiver capable of supplying NMEA-0183 data must be connected
to the GPS port of the optional CT-139 Accessory Cable in order to transmit your current
position. When the transceiver receives the GPS data, the “ ” icon will be illuminated
on the LCD display.
SELCALL/TELCALL OPERATION
Page 36
VX-1400 OPERATING MANUAL34
SELCALL/TELCALL OPERATION
POSITION SEND CALL
The Position Send Call mode allows you to send your own position information to the
intended ID station.
Note: A suitable GPS receiver capable of supplying NMEA-0183 data must be connected
to the GPS port of the optional CT-139 Accessory Cable in order to transmit your current
position. When the transceiver receives the GPS data, the “ ” icon will be illuminated
on the LCD display.
Preparation
Press the []/[] button to select the channel to be used for the Position Send Call.
Disable the VOX and Clarifier features, if necessary.
Press the [SELCALL] button (the [PROGRAMMABLE] button which assigned “Selcall”
function) briefly to activate the Selcall system. The “ ” icon will be illuminated
on the LCD display.
Sending a Position Send Call
Press the [CALL] button (the [PROGRAMMABLE] button which assigned “Call” func-
tion), then press the []/[] button to select the ID number of the station to be called
using Selcall. Available IDs are: the last-received ID, ten pre-programmed IDs, and
“Auxiliary,” whereby you enter the desired ID using the Allow ([]/[]/[⊳]/[
])
buttons. To enter the desired ID, press the []/[] button to select “AUX ID”, press
the [] button, then enter the 4-digit ID number by the [⊳]/[] (move the cursor)
and the []/[] (select number) buttons; finally press the [CALL] button again.
Press the [CALL] button briefly to enter the Call Menu.
Press the []/[] button to select “POS SND”.
Press the [CALL] button again to transmit the Position Send Call.
Receiving a Position Send Call
When the VX-1400 receives a Position Send Call matching your individual ID, a bell
alarm will be heard, and the received (calling station’s) ID number, position (Lati-
tude/Longitude), and time will scroll across the LCD.
Press the PTT switch momentarily to cancel the Position Send Call, then press and
hold in the PTT switch and speak into the microphone in the usual fashion to reply to
the Position Send Call.
Press the [SELCALL] button again to activate the Selcall system.
Page 37
35VX-1400 OPERATING MANUAL
BEACON REQUEST CALL
The Beacon Request Call mode allows you to inquire as to the signal quality between your
transceiver and another specific transceiver (before placing an individual/group call).
Preparation
Press the []/[] button to select the channel to be used for the Beacon Request
Call.
Disable the VOX and Clarifier features, if necessary.
Press the [SELCALL] button (the [PROGRAMMABLE] button which assigned “Selcall”
function) briefly to activate the Selcall system. The “ ” icon will be illuminated
on the LCD display.
Sending a Beacon Request Call
Press the [CALL] button (the [PROGRAMMABLE] button which assigned “Call” func-
tion), then press the []/[] button to select the ID number of the station to be called
using Selcall. Available IDs are: the last-received ID, ten pre-programmed IDs, and
“Auxiliary,” whereby you enter the desired ID using the Allow ([]/[]/[⊳]/[
])
buttons. To enter the desired ID, press the []/[] button to select “AUX ID”, press
the [] button, then enter the 4-digit ID number by the [⊳]/[] (move the cursor)
and the []/[] (select number) buttons; finally press the [CALL] button again.
Press the [CALL] button briefly to enter the Call Menu.
Press the []/[] button to select “BCN REQ”.
Press the [CALL] button again to transmit the Beacon Request Call.
If the Beacon Request call is successful, the “Answer” signal from the called station
will be heard.
SELCALL/TELCALL OPERATION
Page 38
VX-1400 OPERATING MANUAL36
TELCALL
The Telcall mode allows you to make a telephone call through a telephone interconnect
service provider.
Preparation
Press the []/[] button to select the channel for Tel Call.
Disable the VOX and Clarifier features, if necessary.
Press the [SELCALL] button (the [PROGRAMMABLE] button which assigned “Selcall”
function) briefly to activate the Selcall system. The “ ” icon will be illuminated
on the LCD display.
Sending a TelCall
Press the [TELCALL] button (the [PROGRAMMABLE] button which assigned “TelCall”
function), then press the []/[] button to select the ID number of the station to be
called using Telcall. Available IDs are: the last-received ID, ten pre-programmed IDs,
and “Auxiliary,” whereby you enter the desired ID using the Allow ([]/[]/[⊳]/
[])
buttons. To enter the desired ID, press the []/[] button to select “AUX ID”,
press the [] button, then enter the 4-digit ID number by the [⊳]/[] (move the
cursor) and the []/[] (select number) buttons; finally press the [TELCALL] but-
ton again.
Press the [TELCALL] button again to display the last used telephone number, then
press the []/[] button to select the telephone number which you want to transmit.
Available telephone numbers are ten pre-programmed IDs and “Auxiliary”, whereby
you enter the desired telephone number using the Allow ([]/[]/[⊳]/[]) buttons.
To enter the desired telephone number, press the []/[] button to select “AUX”,
press the [] button, then enter the telephone number by the [⊳]/[] (move the
cursor) and the []/[] (select number) buttons; finally press the [TELCALL] but-
ton again.
Press the [TELCALL] button again to transmit the TelCall.
When the communication is finished, press the [TELCALL] button while holding in
the PTT switch to send the “Hang-up” signal.
SELCALL/TELCALL OPERATION
Page 39
37VX-1400 OPERATING MANUAL
SELCALL/TELCALL OPERATION
NOTE
Page 40
VX-1400 OPERATING MANUAL38
The VX-1400’s ALE (Automatic Link Establishment) feature allows you to select the
channel with the best LQA (Link Quality Analysis) score from the programmed channels
automatically.
Sending an ALE Call
Press the [⊳]/[] button, as needed, to select the Memory Channel mode.
Press the [ALE] button (the [PROGRAMMABLE] button which assigned “ALE” func-
tion) to activate the ALE feature. The VX-1400 will display the last-activated net-
work and the “ ” icon will be illuminated on the LCD display. After five seconds
from the initial pressing of the [ALE] button, the VX-1400 will initiate the ALE
scanner.
If you wish to change the current ALE network, press the []/[] button to select the
desired network.
Press the [CALL] button (the [PROGRAMMABLE] button which assigned “Call” func-
tion) to open the station list.
Press the []/[] button to select the station name to which you wish to direct an
ALE Call. Available stations are: the last-received station, 100 pre-programmed sta-
tions, and ALL CALL, which is a broadcast message which your radio uses to estab-
lish a connection with all other stations simultaneously.
Press and hold the [CALL] button again to transmit the ALE Call.
The “ ” icon will blink on the LCD display when the ALE feature is progressing.
Thereafter, the “ ” icon will be illuminated continuously.
ALE OPERATION
(
REQUIRES OPTIONAL ALE-2 UNIT
)
Page 41
39VX-1400 OPERATING MANUAL
ALE OPERATION
(
REQUIRES OPTIONAL ALE-2 UNIT
)
Sending an ALE Call with an Imbedded Message
Press the [⊳]/[] button, as needed, to select the Memory Channel mode.
Press the [ALE] button (the [PROGRAMMABLE] button which assigned “ALE” func-
tion) to activate the ALE feature. The VX-1400 will display the last-activated net-
work and the “ ” icon will be illuminated on the LCD display. After five seconds
from the initial pressing of the [ALE] button, the VX-1400 will initiate the ALE
scanner.
If you wish to change the current ALE network, press the []/[] button to select the
desired network.
Press the [CALL] button (the [PROGRAMMABLE] button which assigned “Call” func-
tion) to open the station list.
Press the []/[] button to select the station name to which you wish to direct the
ALE Call. Available stations are: the last-received station, 100 pre-programmed sta-
tions, and ALL CALL, which is a broadcast message which your radio uses to estab-
lish a connection with all other stations simultaneously.
Press the [CALL] button, then press the []/[] button to select the desired message
from the ten pre-programmed messages. If you wish to edit the message:
Press the Microphone’s [ENT] key (the keypad’s key which assigned “Entry
Command” function), then enter the desired message (up to 90 characters) by
pressing the [⊳]/[] (move the cursor) and the []/[] (select character/num-
ber) buttons.
Press the [ENT] key again to terminate the message.
If you select the “None” option, you may send just the ALE Call instead of the ALE
Call with the imbedded message.
Press and hold the [CALL] button to transmit the ALE Call with the imbedded mes-
sage.
Receiving a ALE Call
When the VX-1400 receives a ALE Call matching your individual ID, a bell alarm
will be heard, and the “ ” icon will appear at the top center on the LCD, and the
received (called station’s) ID number and the message (if the message is attached to
the ALEC Call) will scroll across the display.
Press the [ALE] button to disappear the ID number and the message.
Page 42
VX-1400 OPERATING MANUAL40
The VX-1400 allows the user or dispatcher to store the frequency and operating mode
into the desired Memory Bank.
Press the [⊳]/[] button to recall the Memory
Bank which wants to store the data.
Press the [MW] button
(the [
PROGRAMMABLE
]
button which assigned “Memory Write” function); on the LCD you will see a blink-
ing memory channel number.
Press the []/[] button to select the Memory channel onto which you wish to store
new frequency information. If you select a chan-
nel on which data is already stored, entering new
data will cause you to overwrite the data previ-
ously stored.
Press the [MW] button, then enter seven digits (from 10 MHz digit to 10 Hz digit) of
the desired receiving frequency by pressing the
[⊳]/[]
(move the cursor) and the []/[] (se-
lect number) buttons.
Press the [MW] button, then press the []/[] button to select the desired operating
mode. Available operating modes are “J3E-
USB”, “J3E-LSB”, “J2B-USB”, “A1A”, and
“A3E”.
Press the [MW] button. If your radio assign the CLAR function to the Programmable
Function (P0 ~ P4) buttons, set the clarifier off-
set frequency (up to ±1.000 kHz) by pressing
the[⊳]/[] (move the cursor) and the []/[
]
(select number) buttons. Otherwise, skip to the next step.
Press the [MW] button, then enter seven digits (from 10 MHz digit to 10 Hz digit) of
the desired transmit frequency by a same procedures as entering the receiving fre-
quency (only if you wish to store independent
transmit and receive frequencies on the same
channel). Otherwise, skip to the next step.
If you wish to append an Alpha/numeric “Tag” to this channel, press the [MW] but-
ton, then enter the desired name “Tag” (up 14 digits) by pressing the [⊳]/[] (move
the cursor) and the []/[] (select character/
number) buttons. Otherwise, skip to the next
step.
Press the [MW] button, then press the []/[
]
button to select the desired TX output power.
Available selections are “HIGH”, “MID”, and
“LOW”.
MEMORY CHANNEL STORAGE
Page 43
41VX-1400 OPERATING MANUAL
MEMORY CHANNEL STORAGE
Press the [MW] button, then press the []/[
]
button to select the desired ATT or RF AMP fea-
ture. Available selections are “THRU”, “ATT”,
and “AMP”.
If you wish to append this channel to the “Scan”
list, press the [MW] button, and then press the
[]/[]
button to select “SCAN ADD” selec-
tion. Otherwise, select “SCAN SKIP” selection.
If you wish to append a Encryption feature to this channel (requires the optional unit),
press the [MW] button, then press the []/[
]
button to select the desired Encryption code
(“01” ~ “16”). Otherwise, skip to the next step.
If you wish to control the accessory port of the optional CT-139 Accessory Cable on
this channel, press the [MW] button, then press
the []/[] button to select the desired logic
(“HIGH” or “LOW”). Otherwise, skip to the
next step.
Press the [MW] button to store the frequency
and other data into the selected memory chan-
nel.
Page 44
VX-1400 OPERATING MANUAL42
The VX-1400 includes seven Programmable Function ([S1], [S2] & [P0] ~ [P4]) but-
tons. The Programmable Function button functions can be customized via programming
by your VERTEX STANDARD dealer, to meet your communications/network require-
ments. Some features may require the purchase and installation of optional internal acces-
sories. The possible Programmable Function button programming features are illustrated
below, and these functions are explained follow.
For further details, contact your VERTEX STANDARD dealer. For future reference, check
the box next to the function that has been assigned to each Programmable Function button
on your particular radio, and keep it handy.
PROGRAMMABLE FUNCTION BUTTON
Page 45
43VX-1400 OPERATING MANUAL
PROGRAMMABLE FUNCTION BUTTON
FUNCTION
UP
DOWN
LEFT
RIGHT
1 MHz UP
1 MHz DOWN
A. NOTCH
ALE
ATT/P.AMP
CALL
CALL1
CALL2
CALL3
CALL4
CALL5
CH1
CH2
CH3
CH4
CH5
CLAR
DIM
DNR
DW
EMERGENCY
ENCRP
ENT
ESC
FILTER
LOCK
MODE
MW
N/A
NB
P.BACK
PRI
RCV MSG
RF PWR
SCAN
SCAN SET
SELCALL
SQL
STEP
TAG
TELCALL
TUNE
TUNE ALL
VOICE ENHANCER
VOX
AUX MOMENTALY
AUX TOGGLE
ALARM
2182
PROGRAMMABLE FUNCTION BUTTON
S1
—
S2
—
P1
—
—
P2
—
—
P0
—
—
P3
—
—
P4
—
—
Page 46
VX-1400 OPERATING MANUAL44
UP
Press the assigned programmable button to increase the operating frequency (while in the
VFO mode) or memory channel (while in the Memory mode and ITU mode). This func-
tion is same as the [] button.
DOWN
Press the assigned programmable button to decrease the operating frequency (while in the
VFO mode) or memory channel (while in the Memory mode and ITU mode). This func-
tion is same as the [] button.
LEFT
Press the assigned programmable button to select the frequency control method among
“VFO mode”, “Memory mode”, and “ITU mode”. This function is same as the [⊳] button.
RIGHT
Press the assigned programmable button to select the frequency control method among
“VFO mode”, “ITU mode”, and “Memory mode”. This function is same as the [] button.
1 MHz UP
Press the assigned programmable button to tune the VFO frequency upward in 1 MHz
steps while operating in the VFO mode.
1 MHz DOWN
Press the assigned programmable button to tune the VFO frequency downward in 1 MHz
steps while operating in the VFO mode.
A.NOTCH
Press the assigned programmable button to toggle the Auto Notch filter “on” and “off”.
The Auto Notch filter reduces the interfering beat notes inside the receiving signal.
ALE
Press the assigned programmable button to toggle the ALE (Automatic Link Establish-
ment) feature “on” and “off.”
ATT/P.AMP
Press the assigned programmable button to select the ATT or RF AMP feature. Press this
button repeatedly to toggle among the available feature: “ATT ON (PRE AMP OFF)”
“PRE AMP ON (ATT OFF)” “ATT & AMP OFF” “ATT ON (PRE AMP OFF)”
......
.
CALL
Press the assigned programmable button to transmit a Selcall (or ALE) while operating in
the Selcall (or ALE) mode.
PROGRAMMABLE FUNCTION BUTTON
Page 47
45VX-1400 OPERATING MANUAL
CALL1 ~ CALL5
Press the assigned programmable button to instantly send the Selcall to the dealer pre-
programmed station.
CH1 ~ CH5
Press the assigned programmable button to recall the dealer pre-programmed channel
directly while operating in the Memory Channel mode.
CLAR
Press the assigned programmable button to toggle the Clarifier function “on” and “off”.
The Clarifier function allows the user or dispatcher to tune the receiver frequency without
changing the transmit frequency.
DIM
Press the assigned programmable button to toggle the LCD brightness level “HIGH” and
“LOW”.
DNR
Press the assigned programmable button to toggle the Digital Noise Reduction system
“on” and “off”. The Digital Noise Reduction system reduces the level of random noise
found on the operating band.
DW
Press the assigned programmable button to toggle the Dual Watch feature “on” and “off”.
The Dual Watch feature allows the user or dispatcher to operate on one channel while
periodically making a brief check of Memory Channel “1-001” (Memory Bank #1, Chan-
nel #1).
EMERGENCY
Press (or press and hold in: determined from the dealer programming) the assigned pro-
grammable button to activate the Emergency mode in acordance with the dealer program-
ming.
Important Note: The Emergency feature does not work with this combination with the
optional MD-12A8J Desktop Microphone.
ENCRP
Press the assigned programmable button to toggle the Encryption feature “on” and “off”.
When the Encryption feature is activated, the “ ” icon will appear in the LCD.
ENT
Press the assigned programmable button to send an “Entry” command.
ESC
Press the assigned programmable button to send an “Escape (Cancel)” command.
PROGRAMMABLE FUNCTION BUTTON
Page 48
VX-1400 OPERATING MANUAL46
FILTER
Press the assigned programmable button to enable selecting the receiver bandwidth. To
select the receiver bandwidth, press this button briefly, then press the []/[] button to
select the desired receiver bandwidth (“Wide”, “Normal”, “Narrow”, and “Super Narrow:
except the A3E mode”); finally press this button again.
LOCK
Press the assigned programmable button to toggle the Key Lockout feature “on” and “off”.
The “ ” icon will appear in the LCD when the Key Lockout feature is activated. The
lockout combinations are dependent upon the dealer programming.
MODE
Press the assigned programmable button to select the operating mode. Press this button
repeatedly to toggle among the available operating mode: “J3EU” “J3EL” “J2BU”
“A1A” “A3E” “J3EU”
......
.
MW
Press the assigned programmable button to activate the “Memory Write” mode.
N/A
This is the No Action command.
NB
Press the assigned programmable button to toggle the Noise Blanker “on” and “off”. The
Noise Blanker reduces the noise caused by automotive ignition system.
P.BACK
Press the assigned programmable button to play back the receiver audio for the most-
recent 20 seconds of reception before you press this button.
PRI
Press the assigned programmable button to activate the Priority Scan.
RCV MSG
Press the assigned programmable button to recall the last-received Selcall or ALE Mes-
sage.
RF PWR SEL
Press the assigned programmable button to select the transmit power output level (“Low”,
“Medium”, and “High”). The “L” icon will appear at the left of the display while operat-
ing on the “Low Power” setting, and the “M” icon will appear at the left of the display
while operating on “Medium Power” setting.
PROGRAMMABLE FUNCTION BUTTON
Page 49
47VX-1400 OPERATING MANUAL
PROGRAMMABLE FUNCTION BUTTON
SCAN
Press the assigned programmable button to activate the upward scan. When the scanner is
activated, press the []/[] button to change the direction of the scanner to downward or
upward, respectively. In the memory mode, the VX-1400 scan only the memory channel
which the “ ” icon appears.
SCAN SET
Press the assigned programmable button to toggle the current memory channel shall be
“addition” or “deletion” from scan list. When the current memory channel is in the scan
list, the “ ” icon will appear in the LCD.
SELCALL
Press the assigned programmable button to toggle the SELCALL feature “on” and “off.”
SQL
Press the assigned programmable button to enable silencing the receiver noise when no
signals are being received (Adjusting the Squelch threshold level). To silencing the re-
ceiver noise, press this button briefly, then press the []/[] button to the point where the
background noise is just silenced; finally press this button again.
STEP
Press the assigned programmable button to enable changing the frequency digit of the
synthesizer step. Press this button briefly to enable changing the frequency digit of the
synthesizer step, select the frequency digit which enable selecting the operating frequency
by the [⊳]/[] button, then press the []/[] button to the desired value; finally press
this button again to terminate the frequency entry.
TAG
Press the assigned programmable button to select the memory channel display format
(“Memory Channel with Frequency”, “Alpha/numeric Tag”, and “Memory Channel with
Frequency and Alpha/numeric Tag alternately”).
TELCALL
Press the assigned programmable button to transmit a Telcall while operating in the Selcall.
TUNE
Press the assigned programmable button to activate the antenna tuning process.
TUNE ALL
Press the assigned programmable button to activate the antenna tuning process to the all
memory channels in the current memory bank.
VOICE ENHANCER
Press the assigned programmable button to toggle the Voice Enhancer feature “on” and
“off”.
Page 50
VX-1400 OPERATING MANUAL48
VOX
Press the assigned programmable button to toggle the VOX feature “on” and “off”.
The VOX feature provides automatic transmit/receive switching based on voice input to
the microphone. With the VOX system enabled, user or dispatcher do not need to press the
PTT switch in order to transmit.
The “ ” icon will appear on the display when the VOX feature is activated.
Important Note: The VOX feature does not work with this combination when using the
optional MD-12A8J Desktop Microphone.
AUX MOMENTALY
Press the assigned programmable button to turn the accessory port of the optional CT-139
Accessory Cable “high”.
AUX TOGGLE
Press the assigned programmable button to toggle the accessory port of the optional CT-
139 Accessory Cable “on” and “off”.
ALARM
Press the assigned programmable button to activate the alarm generator. Pressing both
this button and the [2182] button transmits the International Marine Distress Signal.
Important Note: This function is assigned to only [S1] button.
2182
Press the assigned programmable button to instantly set the transceiver to 2182 kHz in the
H3E mode. Pressing both this button and the [ALARM] button transmits the International
Marine Distress Signal.
Important Note: This function is assigned to only [S2] button.
PROGRAMMABLE FUNCTION BUTTON
Page 51
49VX-1400 OPERATING MANUAL
INSTALLATION OF THE OPTION
ALE-2 AUTOMATIC LINK ESTABLISHMENT UNIT
Make sure that the transceiver is off. Remove the
DC Power Cable, Microphone, and Antenna from
the transceiver.
Referring to illustration at the right, remove the
eight screws affixing the Top Cover, and remove
the Top Cover.
Referring to illustration below, mount the ALE-2
Unit to the transceiver by the supplied two screws,
then connect the supplied connection cable be-
tween the ALE-2 Unit and the J4006 on the Main
Unit of the transceiver.
Replace the Top Cover with its eight screws while
being careful that any wires are not pinched.
Reconnect the DC Power Cable, Microphone, and Antenna to the transceiver. This
completes installation of the ALE-2 Automatic Link Establishment Unit.
MAIN Unit
J4006
Page 52
VX-1400 OPERATING MANUAL50
INSTALLATION OF THE OPTION
CT-139 ACCESSORY CABLE
The CT-139 allows connecting the external accessories such as CW Keyer, Data Trans-
mission/Reception Modem, and External Channel Control Input etc.
Ensure that the transceiver is off. Remove the DC Power Cable, Microphone, and
Antenna from the transceiver.
Referring to illustration at the right, remove the
eight screws affixing the Top Cover, and remove
the Top Cover and then remove the Rubber Gas-
ket from the transceiver.
Referring to illustration below, mount the CT-139
Accessory Cable to the transceiver, then connect
the 12-pin connector of the CT-139 to the J4013
on the Main Unit and connect the 13-pin connec-
tor of the CT-139 to the J4012 on the Main Unit
of the transceiver. Connect the Ground Cable of
the CT-139 to the transceiver’s chassis with the
screw fixing the Main Unit while being careful
not to break any electrical parts on the Main Unit.
Fix the wire of the CT-139 so that the wire is not pinched between a part on the Main
unit and the top case.
Replace the Top Cover with its eight screws while being careful so that any wires are
not pinched.
Reconnect the DC Power Cable, Microphone, and Antenna to the transceiver. This
completes installation of the CT-139 Accessory Cable.
Ground Cable
MAIN Unit
J4013
J4012
13-pin Connector
12-pin Connector
Rubber Gasket
Flat
PIN ASSIGNMENT
Page 53
51VX-1400 OPERATING MANUAL
INSTALLATION OF THE OPTION
CT-139 ACCESSORY CABLE
PIN ASSIGNMENT
PIN #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
FUNCTION
AUX I/O-1
EXT ALC
TX GND
TX INH
KEY
FSK
GND
Reserved
Reserved
Reserved
DATA PTT
TX REQ
DATA IN
13.8V DC
IGNITION
N.C.
DATA OUT
N.C.
AUX I/O-2
AUX I/O-3
CAT/GPS
CAT/GPS
SQL OUT
AUX I/O-4
GND
DESCRIPTION
This pin feature can be programmed via the CE111 programmer.
The accessible voltage is CMOS Logic Level (H = 5 V).
This pin accepts ALC (Automatic Level Control) voltage from a linear amplifier, to prevent
over-excitation by the transceiver.
This pin is closed to ground while the transceiver’s transmitter is engaged.
The capable of switching voltage is 60 V DC, 1 A.
Do not connect any equipment when the FC-30/-40 antenna tuner is connected to
the transceiver.
When this pin accepts 5 V, the transceiver stops the TX output while maintaining the
transmission status.
Do not connect any equipment when the FC-30/-40 antenna tuner is connected to
the transceiver.
This pin accepts a CW key or keyer.
Key up voltage is +5 V, and key down current is 1 mA.
This pin accepts a TX/RX switching line of the FSK/RTTY modem.
Key up voltage is +5 V, and key down current is 1 mA.
This pin is connected to the transceiver’s chassis.
This pin is for future expansion of the transceiver’s capability.
Do not connect any equipment to this pin.
This pin is for future expansion of the transceiver’s capability.
Do not connect any equipment to this pin.
This pin is for future expansion of the transceiver’s capability.
Do not connect any equipment to this pin.
This pin accepts a keying line of the FSK/RTTY modem.
Key up voltage is +5 V, and key down current is 1 mA.
When this pin is connected to ground, the transceiver into the transmit mode, and sends
out a steady CW carrier, for linear amplifier adjustment.
This pin accepts the AFSK input from the AFSK modem.
The optimum input level is 60 mVp-p @1 kΩ.
This pin provides 13.8V DC at up to 100 mA, to power an external device.
The transceiver may be automatically be switched to on when the vehicle’s ignition key
turned on. Maximum voltage is 13.8 V.
No Connection
This pin outputs the receiver audio (100 mVp-p @1 kΩ) for use with the AFSK modem.
No Connection
This pin feature can be programmed via the CE111 programmer.
The accessible voltage is CMOS Logic Level (H = 5 V).
This pin feature can be programmed via the CE111 programmer.
The accessible voltage is CMOS Logic Level (H = 5 V).
This pin accepts the NMEA data from the GPS receiver (or CAT data for programming
the transceiver).
The accessible voltage is RS-232 Level.
This pin outputs the NMEA data for the GPS receiver (or CAT data for programming the
transceiver).
The accessible voltage is RS-232 Level.
This pin is closed to ground while the transceiver’s squelch is closed.
This pin feature can be programmed via the CE111 programmer.
The accessible voltage is CMOS Logic Level (H = 5 V).
This pin is connected to the transceiver’s chassis.
Page 54
VX-1400 OPERATING MANUAL52
SUPPLIED ACCESSORIES
DC Power Cord T9025225
Spare Fuse (25 A Blade Type) Q0000074
Operation Manual
Warranty Card
AVAILABLE OPTIONS
FP-1030A AC Power Supply
MD-12A8J Desktop Microphone
1
MH-31A8J Hand Microphone (Dynamic)
2
MH-67A8J Hand Microphone
MH-77A8J Hand Microphone (Water Resistant w/Keypad)
MH-77B8J Hand Microphone (Water Resistant)
FC-30 Antenna Tuner (Coaxial Lines; 1.8 - 30 MHz)
FC-40 Antenna Tuner (Wire/Whip Antennas)
ALE-2 Automatic Link Establishment Unit
MLS-100 External Speaker
MLS-200 External Speaker
YA-30 Broadband HF Antenna (Dipole Type)
YA-31 Broadband HF Antenna (Dipole or Wire (end fed) Type)
YA-007FG HF Multi-Band Mobile Antenna (requires FC-40; 7 - 30 MHz)
RMK-1400 Remote Mounting Kit
CT-93 Control Cable (33 ft, 10 m)
CT-81 Control Cable (20 ft, 6 m)
CT-82 Control Cable (8 ft, 2.5 m)
CT-83 Control Cable (2 ft, 0.6 m)
CT-139 Accessory Cable
MMB-92 Mobile Bracket
CE111 PC Programming Software
FIF-12 USB Programming Interface (requires CT-171)
CT-171 PC Programming Cable
VPL-1 PC Programming Cable
ACCESSORIES & OPTIONS
1: The VOX and Emergency feature of the transceiver does not work with MD-12A8J.
2: The [UP]/[DWN] key does not work in this transceiver.
Page 55
Page 56
Copyright 2012
Vertex Standard LMR, Inc.
All rights reserved.
No portion of this manual
may be reproduced
without the permission of
Vertex Standard LMR, Inc.
Printed in China
EC091H102
Loading...
