Page 1
COMMUNICATIONS
RECEIVER
VR-160
Technical Supplement
©2010 VERTEX STANDARD CO., LTD.
Introduction
This manual provides the technical information necessary for servicing the VR-160
Communications Receiver.
Servicing this equipment requires expertise in handing surface-mount chip components.
Attempts by non-qualified persons to service this equipment may result in permanent
damage not covered by the warranty, and may be illegal in some countries.

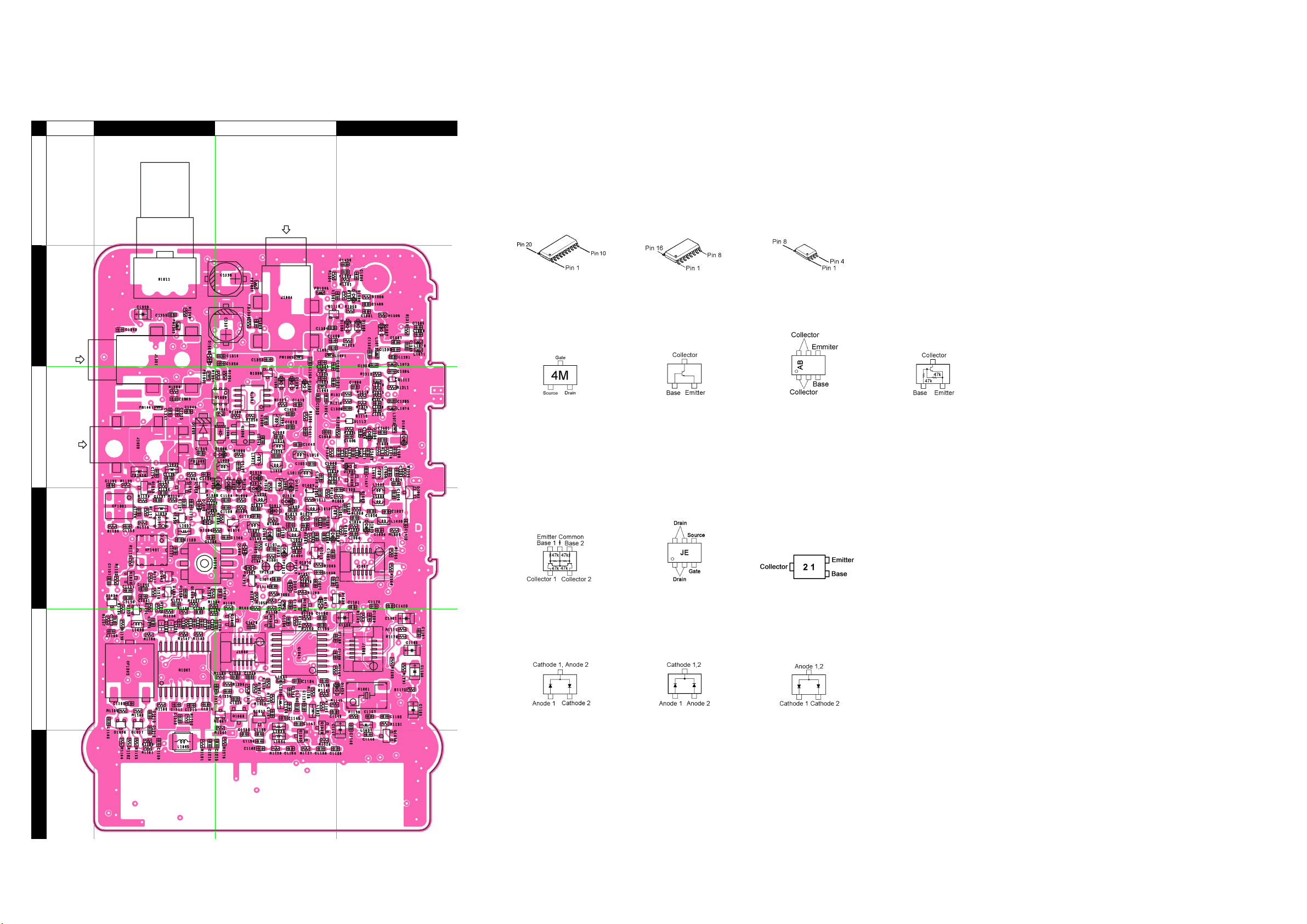

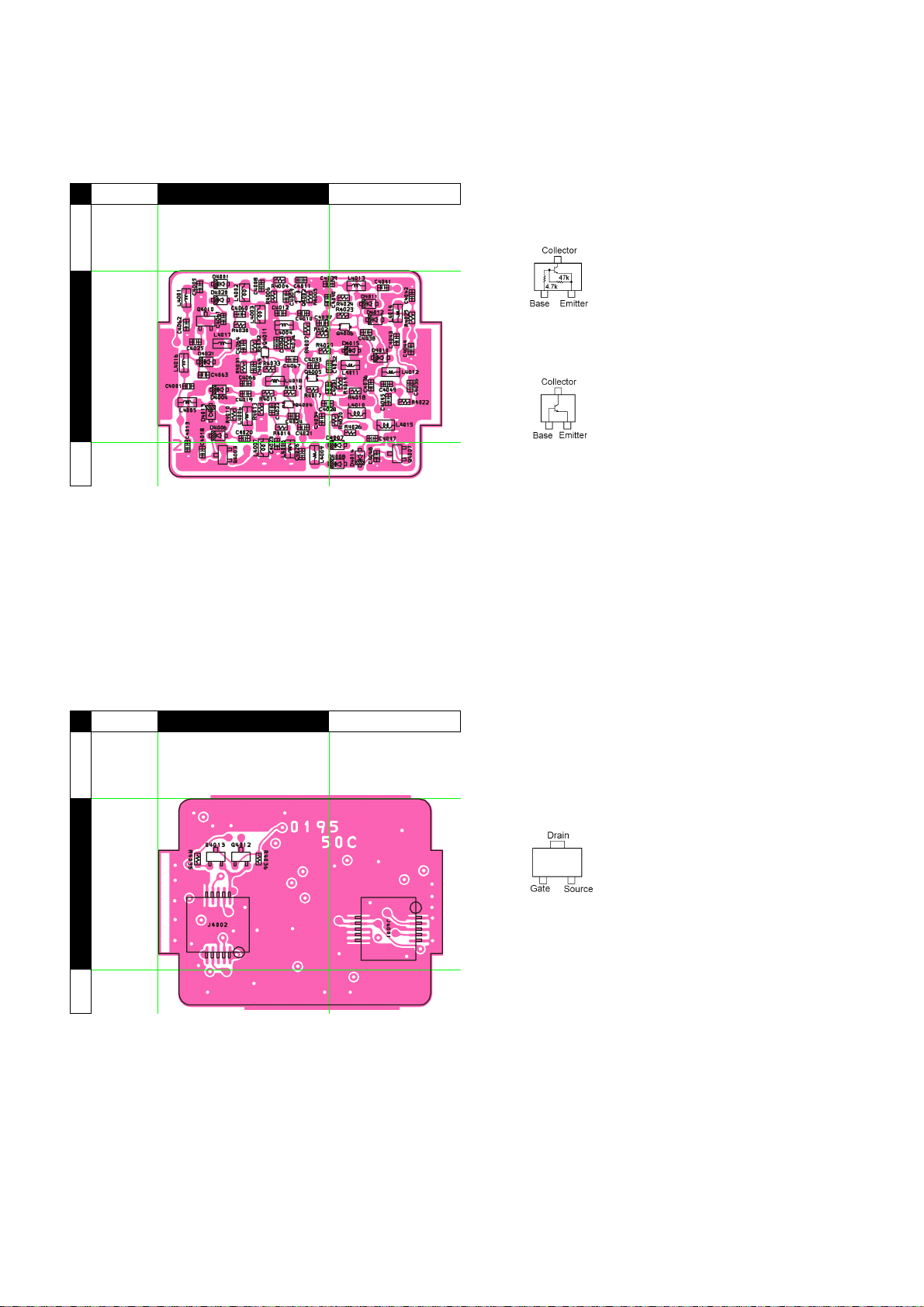

Two PCB layout diagrams provided for each double-sided board in this transceiver.
Each side of the board is referred to by the type of the majority of components installed
on that side (“Side A” or “Side B”). In most cases one side has only chip components,
and the other has either a mixture of both chip and leaded components (trimmers, coils,
electrolytic capacitors, ICs, etc.), or leaded components only.
EH037M91A
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
VERTEX STANDARD (AUSTRALIA) PTY., LTD.
Normanby Business Park, Unit 14/45 Normanby Road
Notting Hill 3168, Victoria, Australia
While we believe the information in this manual to be correct, VERTEX STANDARD
assumes no liability for damage that may occur as a result of typographical or other
errors that may be present. Your cooperation in pointing out any inconsistencies in the
technical information would be appreciated.
Important Note
This receiver was assembled using Pb (lead) free solder, based on the RoHS specification.
Only lead-free solder (Alloy Composition: Sn-3.0Ag-0.5Cu) should be used for
repairs performed on this apparatus. The solder stated above utilizes the alloy
composition required for compliance with the lead-free specification, and any
solder with the above alloy composition may be used.
Contents
Introduction ..........................................................................................................................................................1
Specifications .......................................................................................................................................................2
Exploded View & Miscellaneous Parts............................................................................................................4
Block Diagram ......................................................................................................................................................5
Circuit Description ..............................................................................................................................................7

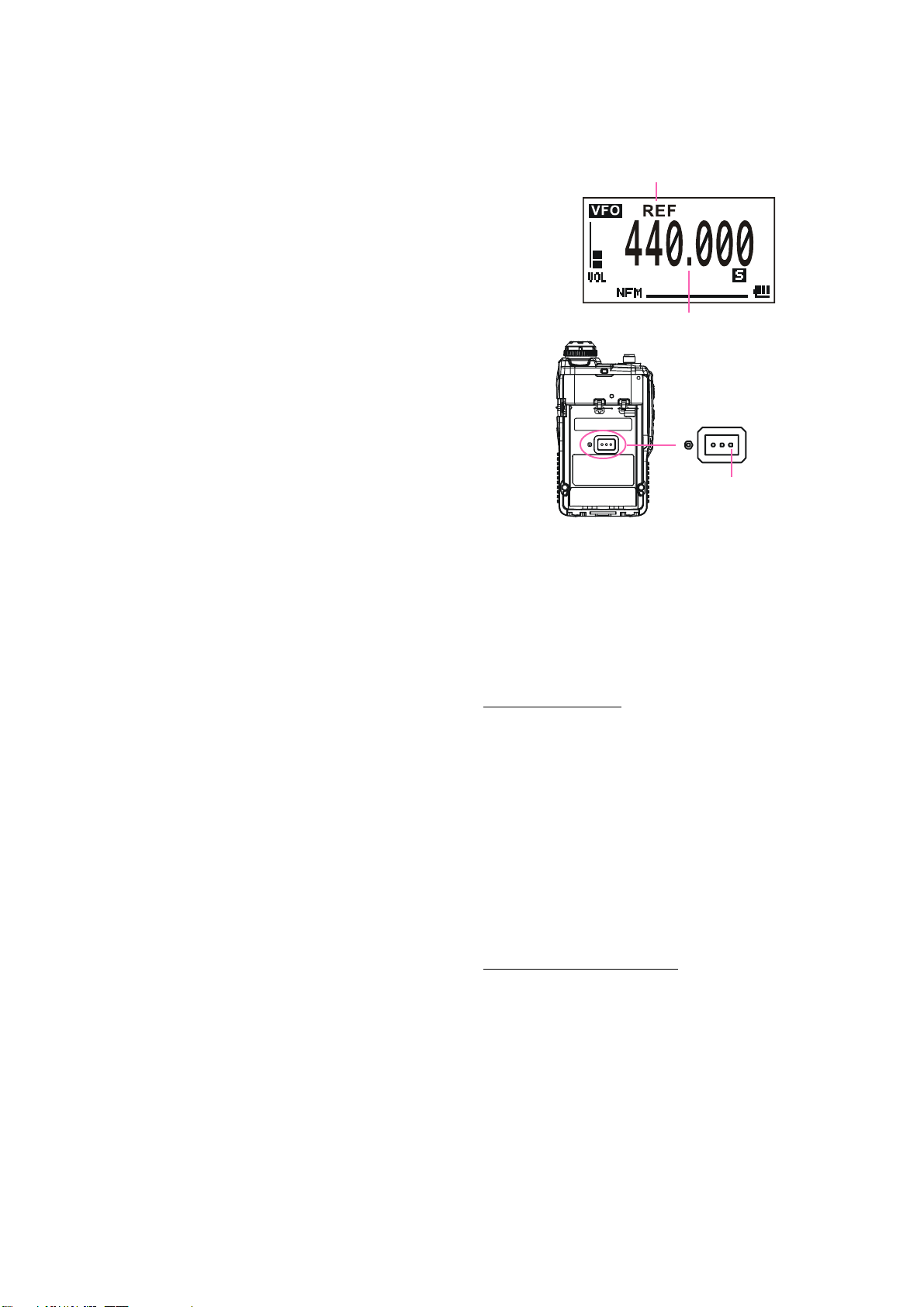

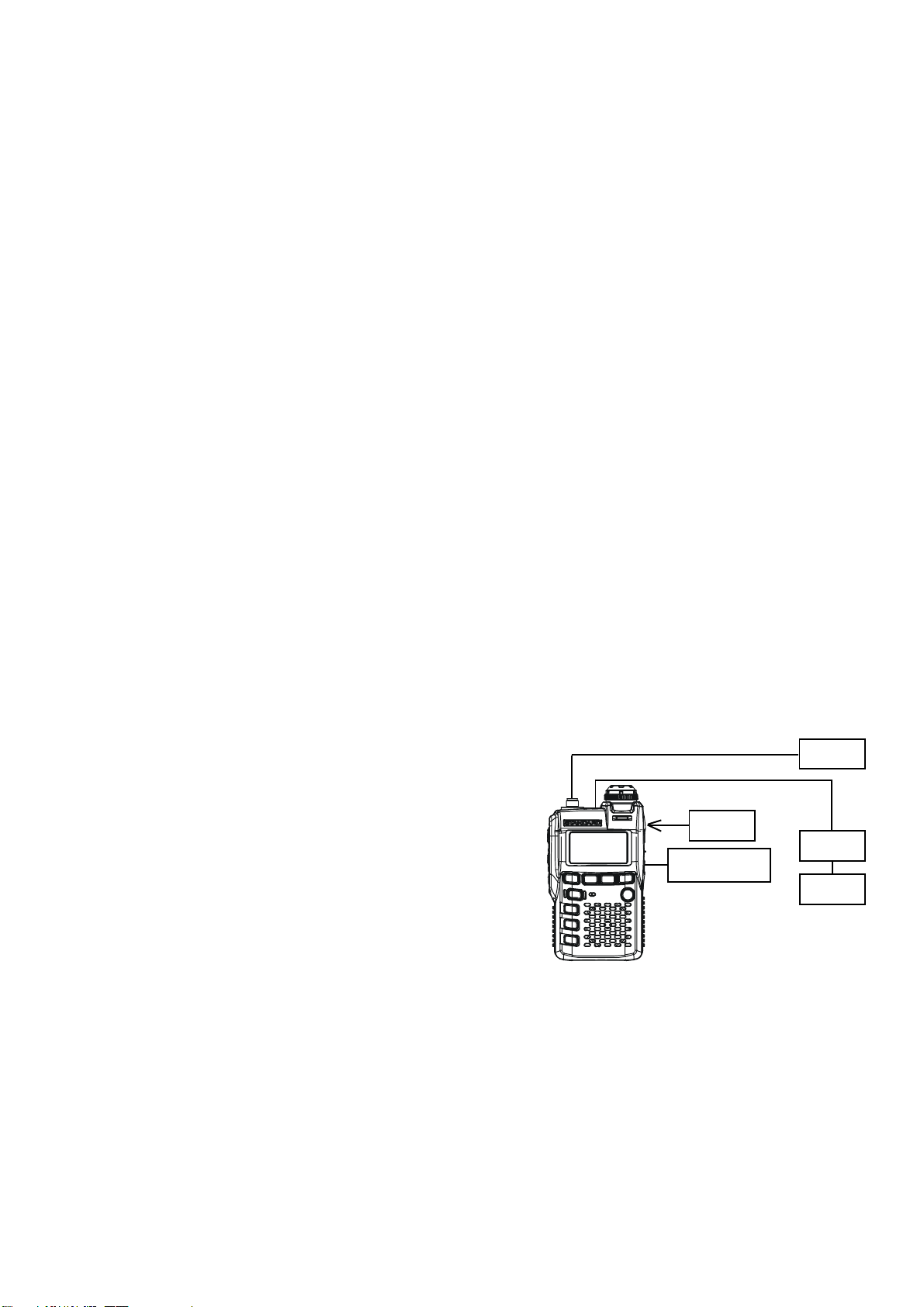

Alignment .............................................................................................................................................................9

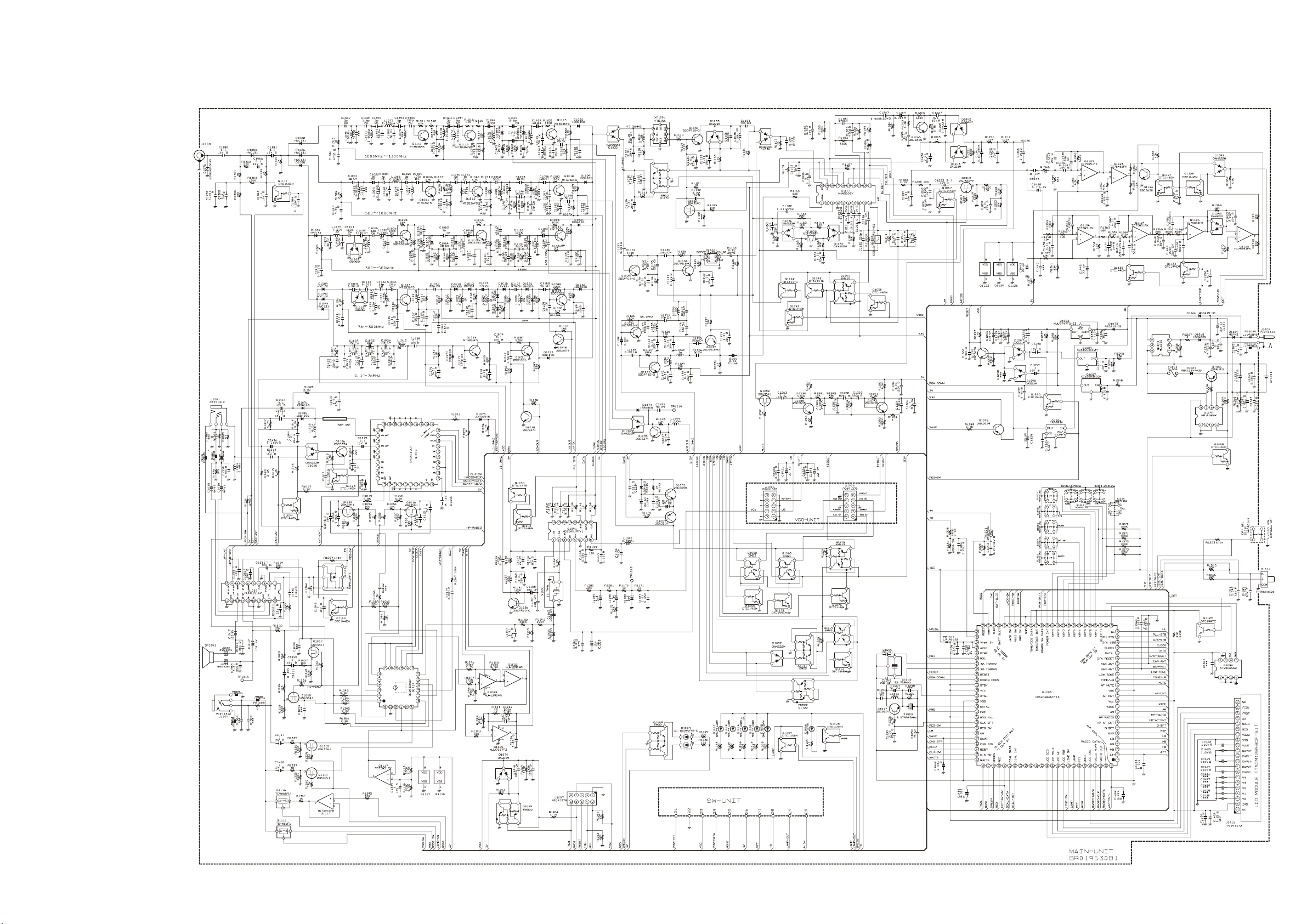

Board Unit (Schematics, Layouts & Parts)
MAIN Unit ........................................................................................................................................................... 13

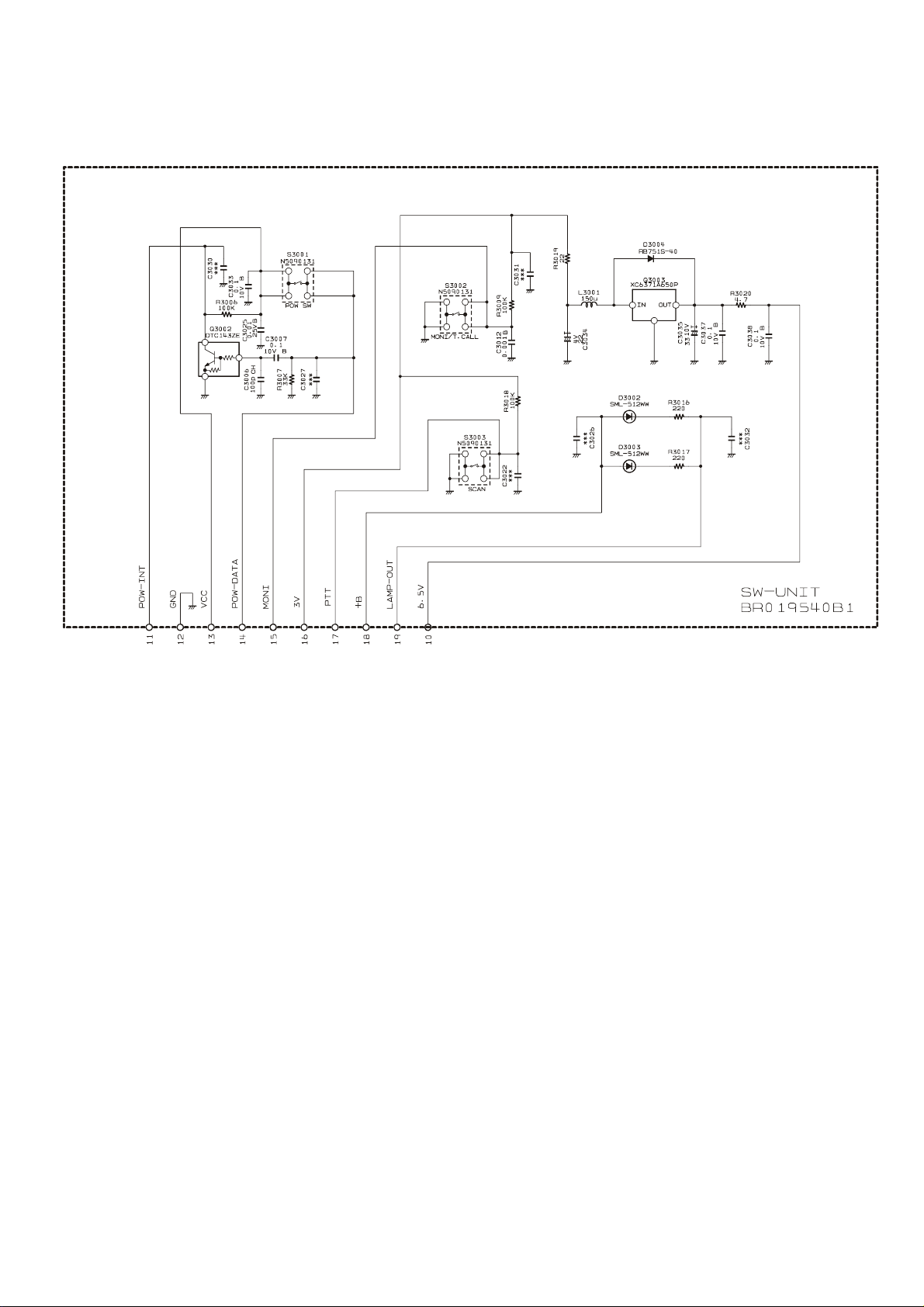

SW Unit ................................................................................................................................................................ 29

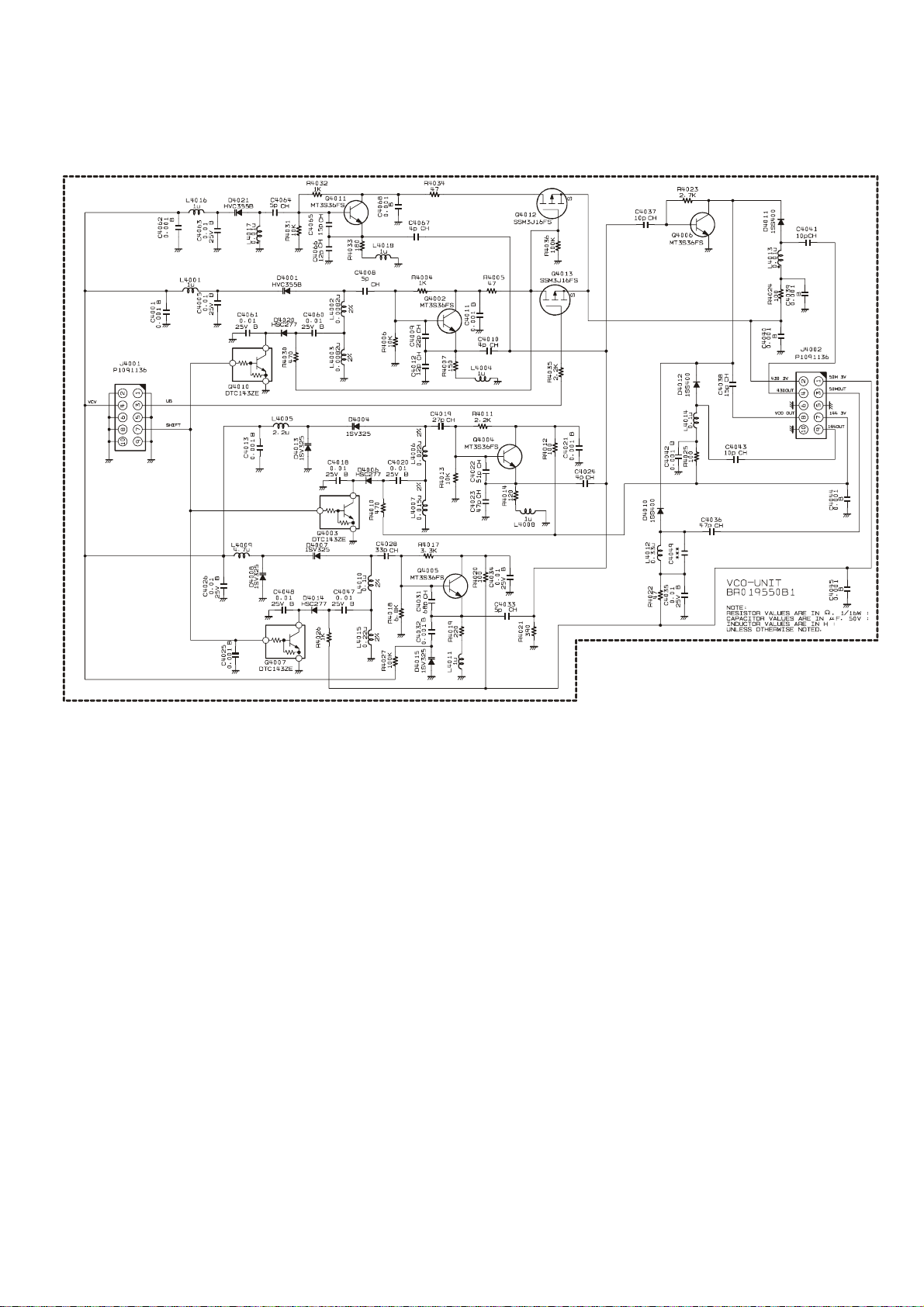

VCO Unit .............................................................................................................................................................33
1
Page 2
Specifications
General
Frequency Ranges Normal Band 0.1 - 1.8 MHz (BC Band)
1.8 - 30 MHz (SW Band)
30 - 76 MHz (50 MHz HAM)
76 - 108 MHz (FM Radio Band)
108 - 137 MHz (Air Band)
137 - 174 MHz (144 MHz HAM)
174 - 222 MHz (VHF TV)
222 - 420 MHz (GEN1)
420 - 470 MHz (430 MHz HAM)
470 - 770 MHz (UHF TV)
770 - 1000 MHz (GEN2)
1000 - 1300MHz (1.2GHz HAM)
Frequency Ranges Radio Band 0.504 - 1.795 MHz (AM Broadcast)
76 - 89.9 MHz (FM Broadcast)
Channel Steps: 5 / 8.33 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
Frequency Stability: ±5 ppm ( –10 °C to +60 °C)
Antenna Impedance: 50-ohm
Supply Voltage: Nominal: 3.7 V DC, FNB-82LI Battery Operation
6.0 V DC, PA-46C/U AC Adapter Operation
Operating: 3.5 ~ 7.0 V, Negative Ground (EXT DC Jack)
Current Consumption: 140mA (Receive, Normal Band, VOL level: 20)
100mA (Receive, Radio Band, VOL level: 20)
58mA (Standby, Saver Off)
20mA (Standby, Saver On)
300uA (Auto Power Off)
Operating Temperature: –20 °C to +60 °C
Battery Charging Temp. Range: –5 °C to +35 °C
Case Size: 47 (W) 81 (H) 23 (D) mm (FNB-82LI W/O knob & antenna)
47 (W) 81 (H) 31 (D) mm (FBA-37 W/O knob & antenna)
Weight: 130 g With FNB-82LI & antenna
185 g With FBA-37 & antenna
2
Page 3
Specifications
Receiver
Circuit Type: AM, NFM: Double-Conversion Superheterodyne
WFM: Triple-Conversion Superheterodyne
AM Radio/FM Radio: Single-Conversion Superheterodyne
Intermediate Frequencies: 1st: 47.25MHz (AM, NFM)
1st: 45.8MHz (WFM)
2nd: 450 kHz (AM, NFM)
2nd: 10.7MHz (WFM)
3rd: 1MHz (WFM)
1st: 130 kHz (AM / FM Radio)
Sensitivity: 1µV for 12 dB SINAD (0.1 - 0.5 MHz, NFM)
1µV for 10 dB SN (0.5 - 1.8 MHz, AM Radio)
1µV for 10 dB SN (1.8 - 30 MHz, AM)
0.35µV TYP for 12 dB SINAD (30 - 54 MHz, NFM)
0.5µV TYP for 12 dB SINAD (54 - 76 MHz, NFM)
1µV TYP for 12 dB SINAD (76 - 108 MHz, FM Radio)
0.5µV TYP for 10 dB SN (108 - 137 MHz, AM)
0.2µV for 12 dB SINAD (137 - 140 MHz, NFM)
0.16µV for 12 dB SINAD (140 - 150 MHz, NFM)
0.2µV for 12 dB SINAD (150 - 174 MHz, NFM)
1µV for 12 dB SINAD (174 - 222 MHz, WFM)
0.5µV for 12 dB SINAD (300 - 350 MHz, NFM)
0.2µV for 12 dB SINAD (350 - 400 MHz, NFM)
0.18µV for 12 dB SINAD (400 - 470 MHz, NFM)
1µV for 12 dB SINAD (470 - 540 MHz, WFM)
1.5µV TYP for 12 dB SINAD (540 - 800 MHz, WFM)
0.5µV TYP for 12 dB SINAD (800 - 1000 MHz, NFM)
0.7µV TYP for 12dB SINAD (1000 - 1300 MHz, NFM)
Selectivity: NFM, AM 12 kHz / 35 kHz (–6 dB / –60 dB) Without AM Radio Band
WFM 200 kHz / 300 kHz (–6 dB / –20 dB) Without FM Radio Band
AF Output: 50mW @ 8 for 10 % THD (@ 4.5 V)
100mW @8 for 10 % THD (@ 6 V)
3
Page 4

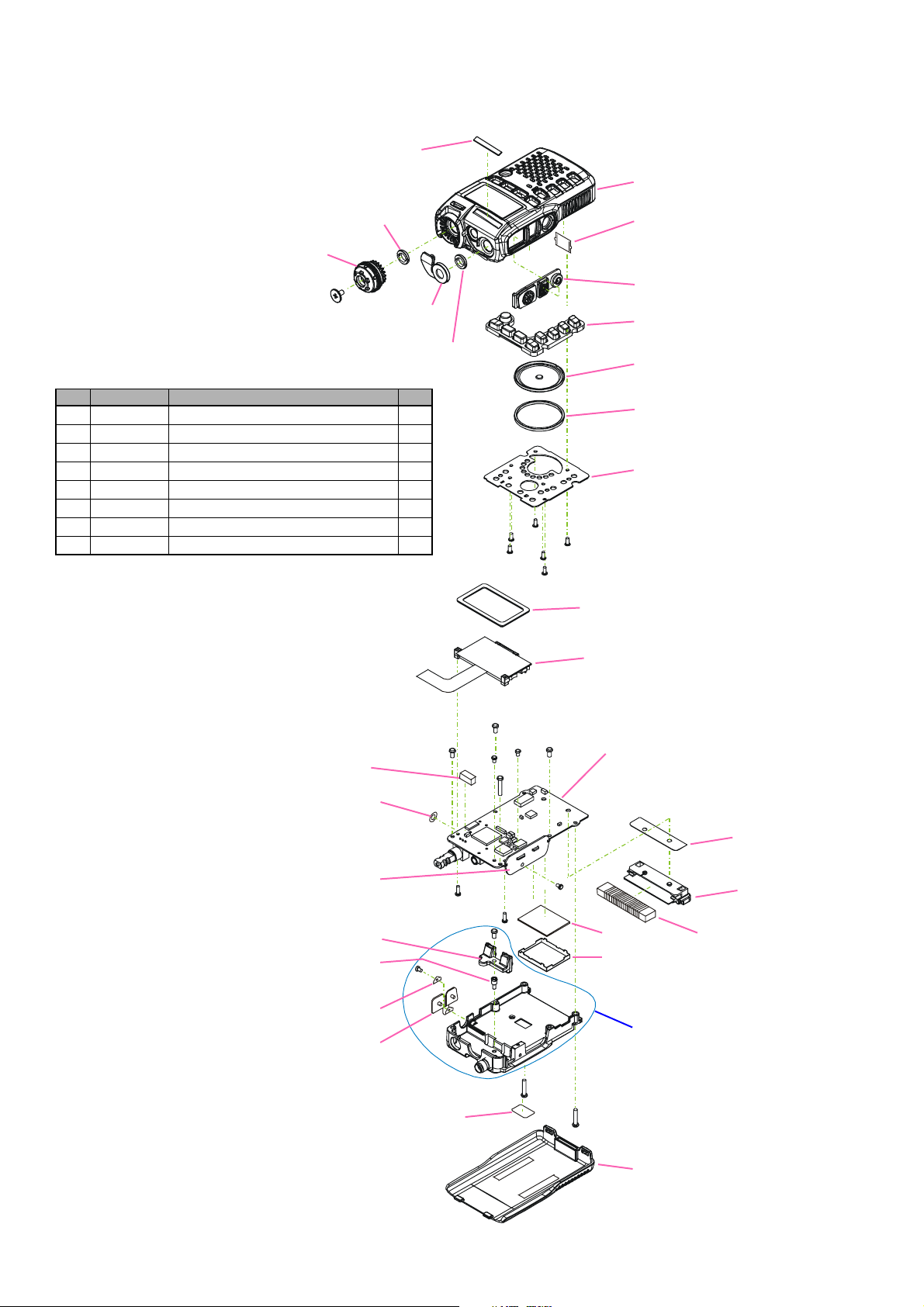

Exploded View & Miscellaneous Parts
RA0951900
NAME PLATE
(YAESU)
RA0111400
RING NUT
RA0947300
ENCODER KNOB ASSY
No.
VXSTD P/N
U9900220
U9900068
U07125302
U9900156
U9900044
U44110002
RA0918600
U07240302
FLAT HEAD TAPTITE-B 1.7X4NI #1
PAN HEAD TAPTITE-B M2X4NI#3
PAN HEAD SCREW M1.7X2.5NI#3
PAN HEAD SCREW M2X11NI#3
PAN HEAD TAPTITE-P 1.7X5NI#3 GUIDE
PAN HEAD TAPTITE-B M2X10NI
SPECIAL SCREW (2.6X5X8)
PAN HEAD SCREW M2X4NI#3
Description
Non-designated parts are available only as part of a
designated assembly.
RA1171400
CAP (ACC)
RA0023500
RING NUT(SMA)
Qty.
6
3
4
1
2
2
1
1
RA0954400
SHIELD SHEET
RA1180100
SP CASE ASSY
RA0503600
LATCH NAIL
RA1171500
RUBBER KNOB (SCAN)
RA1110000
KEY PAD
M4090159
SPEAKER 0.5W/8-OHM
RA0948400
RUBBER RING
RA094830A
HOLDER PLATE
RA0955400
MASK SHEET (EXT)
SW Unit
RA0966900
CONTACT HOLDER ASSY
RA0532100
STUD
RA0955500
SUPPORT
RA094690D
EXT CAP
RA1212400
MASK SHEET (CHA)
Q7000625
LCD MODULE UNIT
MAIN Unit
Q9000881
VCO Unit
RA0400300
SHIELD CASE VCO
CP9574001
CHASSIS ASSY
BAR ANTENNA
RA0950500
DOUBLE FACE (ANT)
RA0924200
HOLDER (ANT)
RA0963700
BATTERY COVER ASSY
4
Page 5

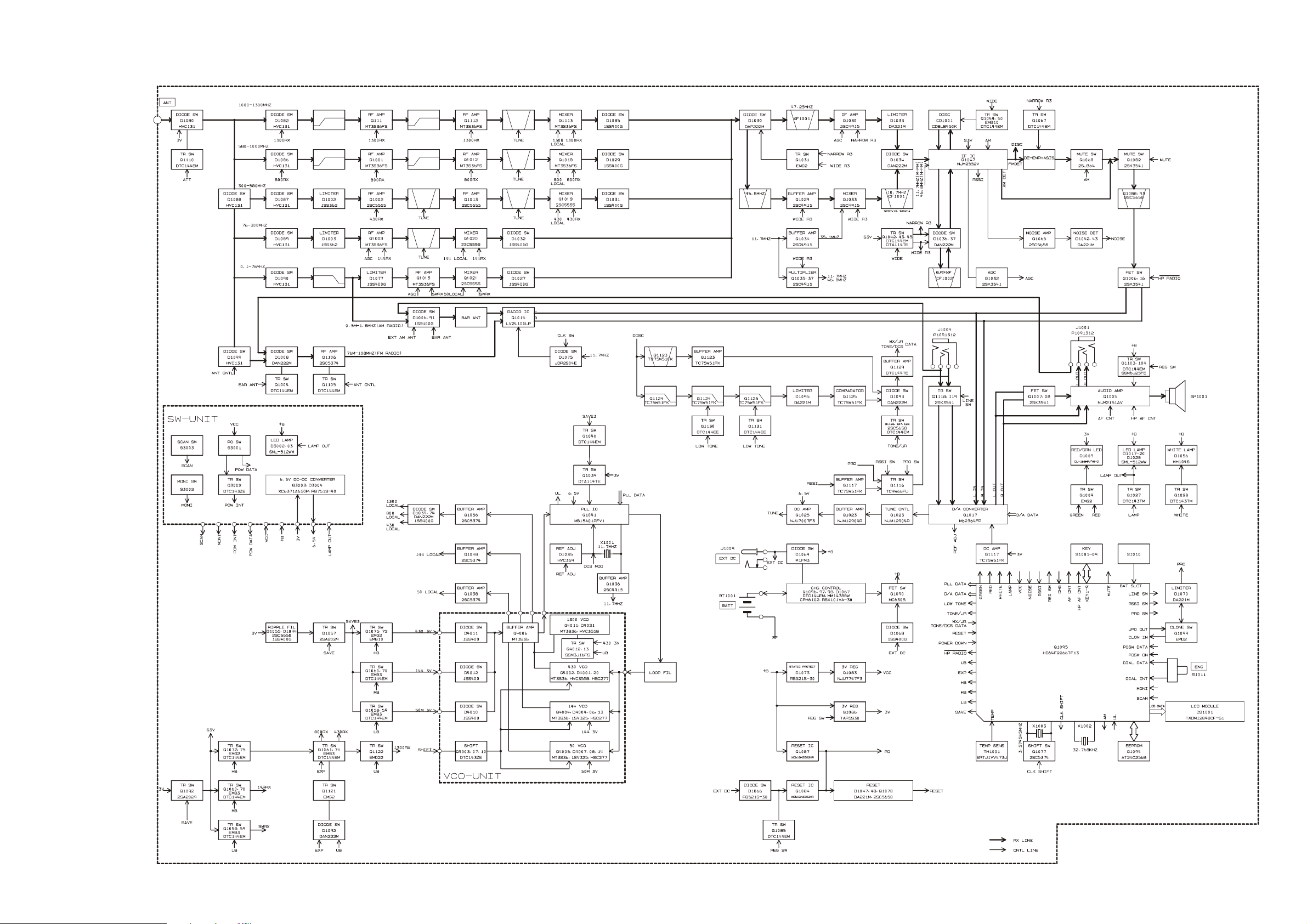

Block Diagram
5
Page 6
Block Diagram
Note
6
Page 7
Circuit Description
The VR-160 consists of a MAIN-UNIT, a SW-UNIT, and a
VCO-UNIT. The MAIN-UNIT contains the receiver front
end, PLL IC, switching circuits, the CPU, audio ICs, and
the power circuitry for the LCD, the IF, and audio ICs and
the VCO-UNIT for receive local signal oscillation.
Receiver Signal Flow
The VX-160E includes four receiver front ends, each optimized for a particular frequency range and mode combination.
(1) HF Bands Reception (MW ~ 76 MHz)
Received signals between MW and 76 MHz pass through
the ANT SW circuit, ANT switch circuit and protector diode D1090 (HVC131) before additional filtering by a bandpass filter prior to application to RF amplifier Q1015
(MT3S36FS). The amplified RF signal is pass through the
band-pass filter to first mixer Q1021 (2SC5555). Mean-
while, HF and VHF output from the VCO-UNIT is amplified by Q1032 (2SC5374) and applied through diode ANT
switch D1027 (1SS400G) to mixer Q1021 (2SC5555) as the
first local signal.
The 47.25 MHz intermediate frequency product of the mixer
is delivered to the IF circuit.
The TUNE voltage from the CPU is amplified by DC amplifier Q1025 (NJU7007F3).
(2) VHF Bands Reception (76 MHz ~ 300 MHz)
Received signals between 76 and 300 MHz pass through
the ANT SW circuit, VHF ANT switch circuit and protector diode D1089 (HVC131) before additional filtering by a
band-pass filter prior to application to RF amplifier Q1003
(MT3S36FS). The amplified RF signal is pass through the
band-pass filter to first mixer Q1020 (2SC5555). Mean-
while, VHF output from the VCO-UNIT is amplified by
Q1048 (2SC5374) and applied through diode T/R switch
D1032 (1SS400G) to mixer Q1020 (2SC5555) as the first
local signal.
The 47.25 MHz intermediate frequency product of the mixer
is delivered to the IF circuit.
The TUNE voltage from the CPU is amplified by DC amplifier Q1025 (NJU7007F3) and applied to varactors D1011
(1SV325), D1012 (1SV325), D1013 (1SV331), D1014
(1SV325), D1015 (1SV325), D1016 (1SV331), D1025
(1SV325), and D1026 (1SV325) in the variable frequency
band-pass filters. By changing the electrostatic capacitance
of the varactors, optimum filter characteristics are provided for each specific operating frequency.
(3) UHF Bands Reception (300 MHz ~ 580 MHz)
Received signals between 300 and 580 MHz pass through
the Triplexer circuit, low-pass filter/high-pass filter circuit,
UHF ANT switch circuit and protector diode D1087 and
D1088 (HVC131) before additional filtering by a band-pass
filter prior to application to RF amplifier Q1002 (2SC5555).
The amplified RF signal is pass through the band-pass filter, RF amplifier Q1013 (2SC5555) and band-pass filter to
first mixer Q1019 (2SC5555). Meanwhile, UHF output from
the VCO-UNIT is amplified by Q1056 (2SC5374) and applied through diode ANT switch D1039 (DAM222M) to
mixer Q1019 (2SC5555) as the first local signal.
The 47.25 MHz intermediate frequency product of the mixer
is delivered to the IF circuit.
The TUNE voltage from the CPU is amplified by DC amplifier Q1025 (NJU7007F3) and applied to varactors D1005,
D1010, D1023, and D1024 (all HVC358B) in the variable
frequency band-pass filters. By changing the electrostatic
capacitance of the varactors, optimum filter characteristics
are provided for each specific operating frequency.
(4) UHF Bands Reception (580 MHz ~ 1000 MHz)
Received signals between 580 and 1000 MHz pass through
the Triplexer circuit, low-pass filter/high-pass filter circuit,
UHF ANT switch circuit and protector diode D1086
(HVC131) before additional filtering by a band-pass filter
prior to application to RF amplifier Q1001 (MT3S36FS).
The amplified RF signal is pass through the band-pass filter, RF amplifier Q1012 (MT3S36FS) and band-pass filter
to first mixer Q1018 (MT3S36FS). Meanwhile, UHF out-
put from the VCO-UNIT is amplified by Q1056 (2SC5374)
and applied through diode ANT switch D1039 (DAM222M)
to mixer Q1018 (MT3S36FS) as the first local signal.
The 47.25 MHz intermediate frequency product of the mixer
is delivered to the IF circuit.
The TUNE voltage from the CPU is amplified by DC amplifier Q1025 (NJU7007F3) and applied to varactors D1021
and D1022 (all 1SV331) in the variable frequency bandpass filters. By changing the electrostatic capacitance of the
varactors, optimum filter characteristics are provided for
each specific operating frequency.
7
Page 8
Circuit Description
(5) UHF Bands Reception (1000 MHz ~ 1300 MHz)
Received signals between 1000 and 1300 MHz pass through
the Triplexer circuit, low-pass filter/high-pass filter circuit,
UHF ANT switch circuit and protector diode D1082
(HVC131) before additional filtering by a band-pass filter
prior to application to RF amplifier Q1111 (MT3S36FS).
The amplified RF signal is pass through the band-pass filter, RF amplifier Q1112 (MT3S36FS) and band-pass filter
to first mixer Q1113 (MT3S36FS). Meanwhile, UHF out-
put from the VCO-UNIT is amplified by Q1056 (2SC5374)
and applied through diode ANT switch D1074 (1SS400G)
to mixer Q1113 (MT3S36FS) as the first local signal.
The 47.25 MHz intermediate frequency product of the mixer
is delivered to the IF circuit.
The TUNE voltage from the CPU is amplified by DC amplifier Q1025 (NJU7007F3) and applied to varactors D1083
and D1084 (all HVC3558) in the variable frequency bandpass filters. By changing the electrostatic capacitance of the
varactors, optimum filter characteristics are provided for
each specific operating frequency.
(6) 47.25-MHz First Intermediate Frequency
The 47.25 MHz first intermediate frequency from first mixers is delivered from the first mixer to IF circuit. On the
MAIN-UNIT, the IF for AM and FM-narrow signals is
passed through diode switch D1030 (DAP222M) and 47.25
MHz monolithic crystal filter (MCF) XF1001 to narrow IF
amplifier Q1030 (2SC4915) for input to IF IC Q1047
(NJM2552V) after amplitude limiting by D1033 (DA221M).
Meanwhile, a portion of the output of 11.7 MHz crystal
X1001 is multiplied fourfold by Q1035 and Q1037 (both
2SC4915) to provide the 46.8 MHz second local signal, applied to the Narrow IF IC. Within the IC, this signal is mixed
with the 47.25 MHz first intermediate frequency signal to
produce the 450 kHz second intermediate frequency.
This second IF is filtered by ceramic filter CF1002 and amplified by the limiting amplifier within the Narrow IF IC
before quadrate detection by ceramic discriminator
CD1001.
Demodulated audio is output from pin 11 of the Narrow
IF IC through narrow mute analog switch Q1068 (2SJ364).
PLL Frequency Synthesizer
PLL IC Q1041 (MB15A01PFV1) on the MAIN-UNIT con-
sists of a data shift register, reference frequency divider,
phase comparator, charge pump, intermittent operation
circuit, and band selector switch. Serial PLL data from the
CPU is converted into parallel data by the shift register in
the PLL IC and is latched into the comparative frequency
divider and reference frequency divider to set a frequency
dividing ratio for each. An 11.7 MHz reference signal produced by X1001 is input to REF pin 1 of the PLL IC. The
internal reference frequency divider divides the 11.7 MHz
reference by 2,050 (or 1,640) to obtain a reference frequency of 5 kHz (or 6.25 kHz), which is applied to the phase
comparator. Meanwhile, a sample of the output of VHF
VCO Q4004 or UHF VCO Q4002 on the VCO-UNIT, buffered by Q4006, is input to the PLL IC, where it is frequency-divided by the internal comparative frequency divider
to produce a comparative frequency also applied to the
phase comparator. The phase comparator compares the
phase between the reference frequency and comparative
frequency to output a pulse corresponding to the phase
difference between them. This pulse is input to the charge
pump, and the output from the charge pump passes
through a loop filter composed of R1280, R1281, R1170 and
either C1185, C1187 and R1170, C1186, C1188 and C1189,
which convert the pulse into a corresponding smoothed
varactor control voltage (VCV). The VCV is applied to varactor D4007 (1SV325) in the MW ~ 76 MHz VCO tank
circuit, or to varactor D4001 (HVC355B) in the UHF VCO
tank circuit, to varactor D4004 and D4013 (both 1SV325)
in the VHF VCO tank circuit, or to varactor D4001
(HVC355B) in the UHF VCO tank circuit, or to varactor
D4021 (HVC355B) in the 1200MHz VCO tank circuit, to
eliminate phase difference between the reference frequency and comparative frequency, and so locking the VCO oscillation frequency to the reference crystal. The VCO frequency is determined by the frequency-dividing ratio sent
from the CPU to the PLL IC. During receiver power save
operation, the PLL circuit operates intermittently to reduce
current consumption, for which the intermittent operation
control circuit reduces the lock-up time.
The resulting audio is amplified by AF amplifier Q1005
(NJM2151AV), and output through EAR jack J1001 to internal speaker SP1001 or an external earphone.
8
Page 9
Alignment
Introduction
The VR-160 is carefully aligned at the factory for the
specified performance across the amateur band. Realign-
ment should therefore not be necessary except in the event
of a component failure. Only an authorized VERTEX STAN-
DARD representative should perform all component re-
placement and service, or the warranty policy may be void.
The following procedures cover adjustments that are not
normally required once the transceiver has left the factory.
However, if damage occurs and some parts are subsequent-
ly replaced, realignment may be required. If a sudden prob-
lem occurs during normal operation, it is likely due to com-
ponent failure; realignment should not be done until after
the faulty component has been replaced. We recommend
that servicing be performed only by authorized VERTEX
STANDARD service technicians who are experienced with
the circuitry and fully equipped for repair and alignment.
If a fault is suspected, contact the dealer from whom the
transceiver was purchased for instructions regarding re-
pair. Authorized VERTEX STANDARD service technicians
realign all circuits and make complete performance checks
to ensure compliance with factory specifications after re-
placing any faulty components. Those who do undertake
any of the following alignments are cautioned to proceed
at their own risk. Problems caused by unauthorized at-
tempts at realignment are not covered by the warranty
policy. In addition, VERTEX STANDARD reserves the right
to change circuits and alignment procedures in the interest
of improved performance, without notifying owners.
Under no circumstances should any alignment be at-
tempted unless the normal function and operation of the
transceiver is clearly understood, the cause of the malfunc-
tion has been clearly pinpointed, any faulty components
are replaced, and realignment is determined to be abso-
lutely necessary.
The following test equipment (and familiarity with its
use) is necessary for complete realignment. Correction of
problems caused by misalignment resulting from use of
improper test equipment is not covered under the warran-
ty policy. While most steps do not require all of the equip-
ment listed, the interactions of some adjustments may re-
quire that additional adjustments be performed. Do not
attempt to perform only a single step unless it is clearly
isolated electrically from all other steps. Have all test equip-
ment ready before beginning and, follow all of the steps in
a section in the order presented.
Required Test Equipment
H RF Signal Generator with calibrated output level at 1300 MHz
H SINAD Meter
H Frequency Counter: 0.2-ppm accuracy at 1300 MHz
H DC Voltmeter: high impedance
H 8-ohm AF Dummy Load
H Regulated DC Power Supply adjustable from 3.7 to 6 V DC, 2A
Alignment Preparation & Precautions
Correct alignment requires that the ambient tempera-
ture of the transceiver be the same as that of the test equip-
ment, and that the temperature be held constant between
68 ~ 86 °F (20 ~ 30 °C). When the transceiver is brought into
the shop from hot or cold air, it should be allowed some
time to come to room temperature before alignment. When-
ever possible, alignments should be made with oscillator
shields and circuit boards firmly affixed in place. The test
equipment must be thoroughly warmed up before begin-
ning.
Note: Signal levels in dB referred to in the alignment procedure
are based on 0 dBµ=0.5 µV (closed circuit).
Test Setup
Set up the test equipment as shown below for transceiver
alignment, and apply 4.4 V DC power to the transceiver.
Refer to the drawings for Alignment Points.
RF Signal
Generator
Frequency
Counter
Regulated DC
Power Supply
SINAD
Meter
AF Dummy
Load
9
Page 10
Alignment
Internal System Alignment Routine
This uses a programmed routine in the transceiver, which
simplifies many previously complex discrete component
settings and adjustments with digitally controlled settings
via front panel buttons and LCD indications.
To enter the alignment mode:
Ì Program the alignment password "AH037M" into the
CW ID memory via the Set Mode Item 37: OPEN
MESSAGE. (See the box below for programming the
alignment password.)
Ì Turn off the transceiver.
Ì Press and hold in the [BANK] button while powering
the radio on to enter the alignment mode.
Ì In the alignment mode, each adjustment item is shown
on the LCD in the Memory Channel Number display
slot, and is selected by rotating the DIAL knob.
Warning!: Do not change the alignment items which are
not described in the adjustment procedures.
Programming the Alignment Password
1. Press and hold in the [BANK] key for one second to en-
ter the Set mode.
2. Rotate the DIAL knob to select Set Mode Item 37: OPEN
MESSAGE.
Note: Do not forget to pull the DIAL knob to rotate the
DIAL knob.
3. Press the [BANK] key momentarily to enable adjustment
of this Set Mode Item.
4. Rotate the DIAL knob to set this Item to "MESSAGE".
5. Press the [V/M] key momentarily to display any previ-
ously stored Password.
Note the previously stored Password, so you can re-
enter it later.
7. Rotate the DIAL knob to select the "A", then press the
[V/M] key momentarily to save the "A" and move on to
the next character.
8. Repeat the previous step to complete the alignment pass-
word "AH037M".
9. Press and hold in the [BANK] button while powering
the radio on to enter the alignment mode.
PLL Reference Frequency Adjustment (REF)
Adjustment item
Adjustment Frequency
Connect the
Frequency Counte
H Rotate the DIAL knob to select the alignment item "rEF".
H Press the [V/M] key.
H Press the PTT switch, then rotate the DIAL knob so that
the Frequency Counter reading is 392.750 MHz ±200 Hz.
H Press the [V/M] key again.
430 MHz band
RX Tune Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to -10 dBµV at the 435.100 MHz
(with 1 kHz tone @ ±3.5 kHz deviation).
H Connect the SINAD meter to the MIC/SP jack
H Rotate the DIAL knob one click counter-clockwise to se-
lect the alignment item "TUN".
H Press the [V/M] key.
H Rotate the DIAL knob for minimum defection of the SI-
NAD meter.
H Press the [V/M] key again.
Squelch Threshold Adjustment
H Connect the RF Signal Generator to the ANT jack, and then set
the output level to -12 dBµV at the 435.100 MHz (with 1 kHz
tone @ ±3.5 kHz deviation).
H Rotate the DIAL knob three clicks clockwise to select the align-
ment item "THL".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key again.
10
Page 11
Alignment
Squelch Tight Adjustment
H Connect the RF Signal Generator to the ANT jack, and then set
the output level to -5 dBµ at the 435.100 MHz (with 1 kHz
tone @ ±3.5 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the align-
ment item "TIG".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key again.
NFM S-Meter S-1 Adjustment
H Connect the RF Signal Generator to the ANT jack, and then set
the output level to -7 dBµV at the 435.100 MHz (with 1 kHz
tone @ ±3.5 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the align-
ment item "S1".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key again.
NFM S-Meter Full Scale Adjustment
H Connect the RF Signal Generator to the ANT jack, and then set
the output level to +20 dBµV at the 435.100 MHz (with 1 kHz
tone @ ±3.5 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the align-
ment item "S9".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key again.
WFM S-Meter S-1 Adjustment
H Connect the RF Signal Generator to the ANT jack, and then set
the output level to 0 dBµV at the 435.100 MHz (with 1 kHz
tone @ ±20 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the align-
ment item "S1".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key again.
WFM S-Meter Full Scale Adjustment
H Connect the RF Signal Generator to the ANT jack, and then set
the output level to +20 dBµV at the 435.100 MHz (with 1 kHz
tone @ ±20 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the align-
ment item "S9".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key again.
50 MHz band
Press the [BAND] button to switch the alignment band to
50 MHz Band.
Squelch Threshold Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to -4 dBµV at the 52.100 MHz
(with 1 kHz tone @ ±3.5 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the
alignment item "THL".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key
again.
Squelch Tight Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to +3 dBµV at the 52.100 MHz
(with 1 kHz tone @ ±3.5 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the
alignment item "TIG".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key
again.
NFM S-Meter S-1 Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to 0 dBµV at the 52.100 MHz
(with 1 kHz tone @ ±3.5 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the
alignment item "S1".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key
again.
NFM S-Meter Full Scale Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to +20 dBµV at the 52.100 MHz
(with 1 kHz tone @ ±3.5 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the
alignment item "S9".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key
again.
11
Page 12
Alignment
WFM S-Meter S-1 Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to +8 dBµV at the 52.100 MHz
(with 1 kHz tone @ ±20 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the
alignment item "S1".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key
again.
WFM S-Meter Full Scale Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to +25 dBµV at the 52.100 MHz
(with 1 kHz tone @ ±20 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the
alignment item "S9".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key
again.
144 MHz Band
Press the [BAND] button to switch the alignment band to
144 MHz Band.
RX Tune Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to -10 dBµV at the 145.100 MHz
(with 1 kHz tone @ ±3.5 kHz deviation).
H Connect the SINAD meter to the MIC/SP jack
H Rotate the DIAL knob clockwise until the alignment item
"TUN" appears.
H Press the [V/M] key.
H Rotate the DIAL knob for minimum defection of the SI-
NAD meter.
H Press the [V/M] key again.
Squelch Threshold Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to -12 dBµV at the 145.100 MHz
(with 1 kHz tone @ ±3.5 kHz deviation).
H Rotate the DIAL knob counter-clockwise until the align-
ment item "THL" appears
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key
again.
Squelch Tight Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to -5 dBµV at the 145.100 MHz
(with 1 kHz tone @ ±3.5 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the
alignment item "TIG".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key
again.
NFM S-Meter S-1 Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to -7 dBµV at the 145.100 MHz
(with 1 kHz tone @ ±3.5 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the
alignment item "S1".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key
again.
NFM S-Meter Full Scale Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to +20 dBµV at the 145.100 MHz
(with 1 kHz tone @ ±3.5 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the
alignment item "S9".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key
again.
WFM S-Meter S-1 Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to 0 dBµV at the 145.100 MHz
(with 1 kHz tone @ ±20 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the
alignment item "S1".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key
again.
WFM S-Meter Full Scale Adjustment
H Connect the RF Signal Generator to the ANT jack, and
then set the output level to +20 dBµV at the 145.100 MHz
(with 1 kHz tone @ ±20 kHz deviation).
H Rotate the DIAL knob one click clockwise to select the
alignment item "S9".
H Press the [V/M] key.
H Press the [F/W] key twice, and then press the [V/M] key
again.
This completes the internal alignment routine for all bands.
To save all settings and exit, press the [S.BNK] button.
12
Page 13
MAIN Unit
Circuit Diagram
13
Page 14
MAIN Unit
Note
14
Page 15
BA C
MAIN Unit
Parts Layout (Side A)
HD64F2266TF13V
(Q1095)
BU2502MUV
(Q1017)
LV24100LP
(Q1014)
1
AT24C256
(Q1094)
NJM12904R
(Q1023)
TC4W66FU
(Q1116)
TC75W51FK
(Q1117, 1123,1124,
1125)
NJM2151AV
(Q1005)
2
2SK3541
(Q1006, 1007, 1008,
1016, 1032, 1082,
1118, 1119)
2SA2029 (F*)
(Q1057, 1092)
2SC5374 (NA)
(Q1077, 1106)
2SC5658 (B*)
(Q1055, 1078, 1088, 1093,
1126)
DTA114TE (94)
(Q1039, 1042, 1043)
DTC144TE (96)
(Q1129)
3
DTC143TM (03)
(Q1027, 1028)
DTC144EM (26)
(Q1004, 1040, 1045, 1050,
1059, 1061, 1075, 1085,
1104, 1105, 1127, 1128,
1130, 1131, 1170)
EMB10 (B10)
(Q1044, 1072)
EMB3 (B3)
(Q1058, 1060, 1074)
EMD2 (D2)
(Q1099,1122)
4
EMG2 (G2)
(Q1009, 1121)
SSM6J25FE (PH)
5
(Q1103)
MT3S36FS (21)
(Q1001, 1012, 1018)
TAR5S30
(Q1086)
NJU7007F3 (B3)
(Q1025)
XC61GN3002HR
(Q1084, 1087)
NJU7747F4
(Q1083)
DAN222M (N)
(D1008, 1092, 1093)
DA221M (K)
(D1047, 1048, 1070, 1095)
15
Page 16
MAIN Unit
Parts Layout (Side B)
ba c
NJM2552V
(Q1047)
MB15A02PFV1
(Q1041)
MM1438BWLE
(Q1097)
1
2SJ364 (4M)
(Q1068)
2
2SC4915-O (QY)
(Q1029, 1030, 1033, 1034,
1035, 1036, 1037)
2SC5374 (NA)
(Q1038, 1048, 1056)
2SC5555ZD (ZD-)
(Q1002, 1013, 1019, 1020,
1021)
2SC5658 (B*)
(Q1065)
CPH6102 (AB)
(Q1096)
DTC144EM (26)
(Q1067, 1098,1110)
3
EMG2 (G2)
(Q1031)
MCH6305 (JE)
(Q1090)
MT3S36FS (21)
Q1003, 1015, 1111,
1112, 1113)
4
5
16
1SS362 (C3)
(D1002, 1003)
DA221M (K)
(D1033, 1042, 1043)
DAN222M (N)
(D1034, 1036, 1037, 1039)
DAP222M (P)
(D1030)
Page 17
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
P.C.B. with Components (W/ SW Unit, VCO Unit) CS2051403 TYP B1
CS2051404 TYP B2
Printed Circuit Board FR019530C 1Printed Circuit Board FR019530D 5-
C 1001 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 1- B b1
C 1003 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B c2
C 1004 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B c2
C 1006 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- B c3
C 1008 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b2
C 1009 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- B b2
C 1010 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b2
C 1011 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B5
C 1012 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- B b2
C 1014 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A A5
C 1015 CHIP TA.CAP. 47uF 4V TEESVP0G476M8R K78060050 1- A A2
C 1016 CHIP TA.CAP. 47uF 4V TEESVP0G476M8R K78060050 1- A A2
C 1017 CHIP TA.CAP. 100uF 4V TEESVA0G107M8R K78060051 1- A C5
C 1020 CHIP CAP. 2pF 50V CK GRM1554C1H2R0CZ01D K22178204 1- B b2
C 1021 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- B b2
C 1022 CHIP CAP. 8pF 50V CH UMK105CH080DV-F K22178256 1- B b2
C 1023 CHIP CAP. 8pF 50V CH UMK105CH080DV-F K22178256 1- B b2
C 1024 CHIP CAP. 8pF 50V CH UMK105CH080DV-F K22178256 1- B b2
C 1025 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- A B3
C 1026 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B c3
C 1028 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c3
C 1029 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 1- B c3
C 1030 CHIP CAP. 220pF 50V CH GRM1552C1H221JA01D K22179713 1- B c3
C 1031 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- B b2
C 1032 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- B b2
C 1034 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B b3
C 1035 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b2
C 1036 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B b2
C 1037 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3
C 1038 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b3
C 1039 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b3
C 1040 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B b3
C 1041 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3
C 1042 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 1- B b2
C 1043 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- B b2
C 1044 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A5
C 1045 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A B5
C 1046 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B5
C 1047 CHIP TA.CAP. 100uF 4V TEESVA0G107M8R K78060051 1- A A2
C 1051 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A B4
C 1052 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A B4
C 1059 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B3
C 1060 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 1- A B3
C 1061 CHIP CAP. 8pF 50V CH GRM1552C1H8R0DZ01D K22178210 1- A B3
C 1062 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1- A B3
C 1063 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- B c3
C 1064 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- B c3
C 1065 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- B b3
C 1066 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 1- B b3
C 1067 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3
C 1068 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B3
C 1069 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3
C 1070 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 1- B b3
C 1072 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b3
C 1073 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 1- B b3
C 1074 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b3
C 1076 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b3
C 1077 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B b3
C 1077 CHIP CAP. 120pF 50V CH UMK105CH121JV-F K22178284 3- B b3
C 1078 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 1079 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A A5
C 1080 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A A2
C 1092 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A B4
C 1093 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- A B3
C 1094 CHIP CAP. 2pF 50V CK GRM1554C1H2R0CZ01D K22178204 1- A B3
C 1095 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A B4
C 1096 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 1- A C3
C 1097 CHIP CAP. 2pF 50V CK GRM1554C1H2R0CZ01D K22178204 1- A B3
C 1098 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1- A B3
LOT
SIDE
LAY ADR
17
Page 18
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
C 1099 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- B b3
C 1100 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- B b3
C 1101 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- B b3
C 1102 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- B b3
C 1103 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1- B b3
C 1104 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1- B b3
C 1105 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- A B3
C 1106 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a3
C 1107 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 1- B b2
C 1108 CHIP CAP. 9pF 50V CH UMK105CH090DV-F K22178257 1- B b3
C 1109 CHIP CAP. 1pF 50V CK GRM1554C1H1R0BZ01D K22178287 1- B b3
C 1110 CHIP CAP. 1.5pF 50V CK GRM1554C1H1R5BZ01D K22178288 1- B b3
C 1111 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B5
C 1112 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A B5
C 1113 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A C5
C 1114 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C5
C 1120 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- B a3
C 1121 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a3
C 1122 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a3
C 1123 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B3
C 1124 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a3
C 1125 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- B a3
C 1126 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a2
C 1127 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a3
C 1128 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b5
C 1131 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a3
C 1132 CHIP CAP. 0.22uF 10V B GRM155B31A224KE18D K22108808 1- A C4
C 1133 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a4
C 1134 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a2
C 1135 CHIP CAP. 22pF 50V CH UMK105CH220JV-F K22178266 1- B a2
C 1136 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B a3
C 1137 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a3
C 1138 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b5
C 1139 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B b4
C 1140 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 1141 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- B b4
C 1142 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b5
C 1143 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 1144 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- B b4
C 1145 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- B b4
C 1146 CHIP CAP. 470pF 25V B TMK105B471K-F K22148816 1- B c5
C 1147 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- B c4
C 1148 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c4
C 1149 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 1150 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- B a3
C 1151 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- B a3
C 1152 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a2
C 1153 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a3
C 1154 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b5
C 1155 CHIP CAP. 180pF 50V CH GRM1552C1H181JA01D K22179711 1- B b5
C 1156 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- B b5
C 1157 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 1158 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b5
C 1159 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a5
C 1160 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a4
C 1161 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c3
C 1162 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b4
C 1163 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b4
C 1164 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b4
C 1165 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- B c4
C 1166 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b4
C 1167 CHIP CAP. 18pF 50V CH UMK105CH180JV-F K22178264 1- B c4
C 1168 CHIP CAP. 220pF 50V CH GRM1552C1H221JA01D K22179713 1- B b4
C 1169 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b4
C 1170 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c3
C 1173 CHIP TA.CAP. 100uF 4V TEESVA0G107M8R K78060051 1- A C3
C 1179 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a4
C 1180 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B a4
C 1181 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 1- B a4
C 1182 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a4
C 1183 CHIP CAP. 4.7uF 6.3V B JMK107BJ475MA-T K22084803 1- B a4
C 1184 CHIP CAP. 7pF 50V CH UMK105CH070DV-F K22178255 1- B b4
C 1185 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- B c4
LOT
SIDE
LAY ADR
18
Page 19
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
C 1186 CHIP TA.CAP. 1uF 6.3V TEESVP0J105M8R K78080028 1- B c4
C 1187 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B c4
C 1188 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- B c4
C 1204 CHIP CAP. 4.7uF 6.3V B JMK107BJ475MA-T K22084803 1- B a4
C 1205 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 1- B a4
C 1206 CHIP CAP. 0.0047uF 50V B GRM155B11H472KA01D K22178838 1- B b4
C 1207 CHIP CAP. 0.0056uF 25V B GRM155B11E562KA01D K22148802 1- B a4
C 1209 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a4
C 1210 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a4
C 1211 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a4
C 1212 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a4
C 1213 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a4
C 1214 CHIP CAP. 56pF 50V CH UMK105CH560JV-F K22178276 1- B a4
C 1215 CHIP CAP. 470pF 50V B UMK105B471KW-F K22178825 1- B b5
C 1216 CHIP CAP. 0.0018uF 50V B UMK105B182KW-F K22178832 1- B a5
C 1217 CHIP CAP. 7pF 50V CH UMK105CH070DV-F K22178255 1- B b3
C 1218 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- A A4
C 1219 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A4
C 1220 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c4
C 1226 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b3
C 1227 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a3
C 1228 CHIP CAP. 0.0022uF 50V B UMK105B222KW-F K22178833 1- B a3
C 1229 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 1230 CHIP CAP. 0.022uF 16V B EMK105B223KW-F K22128813 1- B b4
C 1231 CHIP CAP. 0.0039uF 50V B UMK105B392KW-F K22178836 1- B b4
C 1232 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a4
C 1233 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b4
C 1234 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C5
C 1235 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- A A4
C 1240 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B b4
C 1241 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- B a3
C 1242 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- B a3
C 1243 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- A C2
C 1244 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 1- A B2
C 1245 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 1- A B2
C 1246 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 1- A C2
C 1247 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- A C2
C 1249 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A C2
C 1250 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 1- A C1
C 1250 CHIP CAP. 10pF 50V CH GRM1552C1H100JZ01D K22178212 5- A C1
C 1253 CHIP TA.CAP. 100uF 4V TEESVA0G107M8R K78060051 1- A B2
C 1254 CHIP TA.CAP. 100uF 4V TEESVA0G107M8R K78060051 1- A B2
C 1255 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1
C 1256 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A C2
C 1257 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A C2
C 1259 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2
C 1261 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2
C 1263 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B4
C 1275 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A C2
C 1276 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C2
C 1277 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A C1
C 1280 CHIP CAP. 0.0068uF 25V B GRM155B11E682KA01D K22148803 1- A B4
C 1281 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B5
C 1282 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 1- A B5
C 1296 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1
C 1298 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B4
C 1300 CHIP TA.CAP. 10uF 10V TEESVP1A106M8R K78100074 1- B c4
C 1303 CHIP CAP. 820pF 50V B GRM155B11H821KA01D K22178808 1- A B4
C 1304 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B5
C 1306 CHIP CAP. 4.7uF 6.3V B JMK107BJ475MA-T K22084803 1- A B5
C 1316 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b1
C 1318 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A A4
C 1319 CHIP CAP. 0.047uF 16V F GRM155F11C473ZA01D K22129004 1- A B1
C 1323 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b1
C 1324 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B b1
C 1325 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a2
C 1326 CHIP CAP. 100pF 50V CH GRM1552C1H101JD01D K22178236 1- A A4
C 1327 CHIP CAP. 0.047uF 16V F GRM155F11C473ZA01D K22129004 1- A B1
C 1329 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- B a1
C 1330 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A A2
C 1331 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A A2
C 1332 CHIP CAP. 220pF 50V B UMK105B221KW-F K22178821 1- B a4
C 1333 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A A2
LOT
SIDE
LAY ADR
19
Page 20
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
C 1335 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A B5
C 1336 AL.ELECTRO.CAP. 47uF 10V RV5-10V470M K48100011 1- B b1
C 1337 AL.ELECTRO.CAP. 47uF 10V RV5-10V470M K48100011 1- B b1
C 1339 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A B4
C 1341 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- A A4
C 1342 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A C1
C 1344 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a2
C 1345 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B a2
C 1346 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C3
C 1347 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a2
C 1356 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A A2
C 1357 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C5
C 1358 CHIP CAP. 4.7uF 4V BJ AMK105BJ475MV-F K22068801 1- A B1
C 1359 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B a1
C 1360 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C3
C 1365 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 3- A B5
C 1370 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A A5
C 1371 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A5
C 1380 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c1
C 1381 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c1
C 1382 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c1
C 1383 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c1
C 1384 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b1
C 1386 CHIP CAP. 470pF 50V B GRM155B11H471KA01D K22178805 1- B c1
C 1387 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- B c1
C 1389 CHIP CAP. 1.5pF 50V CK UMK105CK1R5CV-F K22178249 1- B c1
C 1390 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- B c1
C 1391 CHIP CAP. 6pF 50V CH UMK105CH060DV-F K22178254 1- B c1
C 1392 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1- B c1
C 1393 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- B c1
C 1394 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- B c2
C 1395 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c2
C 1396 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- B c2
C 1397 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- B c2
C 1398 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c2
C 1399 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- B c2
C 1400 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- B c2
C 1401 CHIP CAP. 0.5pF 50V CK UMK105CK0R5CV-F K22178247 1- B c2
C 1402 CHIP CAP. 1pF 50V CK UMK105CK010CV-F K22178248 1- B c2
C 1403 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- B c2
C 1404 CHIP CAP. 8pF 50V CH UMK105CH080DV-F K22178256 1- B c2
C 1405 CHIP CAP. 1.5pF 50V CK UMK105CK1R5CV-F K22178249 1- B c2
C 1406 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- B c2
C 1407 CHIP CAP. 2pF 50V CK UMK105CK020CV-F K22178250 1- B c2
C 1408 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b2
C 1409 CHIP CAP. 470pF 50V B GRM155B11H471KA01D K22178805 1- B b1
C 1410 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c3
C 1411 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b2
C 1412 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B b2
C 1412 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 3- B b2
C 1413 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- B b2
C 1414 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B5
C 1415 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B5
C 1416 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A A5
C 1417 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A C5
C 1418 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A C4
C 1419 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C4
C 1420 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- B c3
C 1421 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- B c4
C 1422 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A C2
C 1423 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A C1
C 1424 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A C1
C 1425 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A C1
C 1431 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C1
C 1432 CHIP CAP. 0.22uF 10V B GRM155B31A224KE18D K22108808 1- A C1
C 1433 CHIP CAP. 1uF 10V B GRM155B31A105KE15D K22108809 1- A A3
C 1434 CHIP CAP. 0.0047uF 25V B TMK105B472KW-F K22148831 1- A A3
C 1435 CHIP CAP. 0.0047uF 25V B TMK105B472KW-F K22148831 1- A A3
C 1436 CHIP CAP. 33pF 50V CH GRM1552C1H330JZ01D K22178224 1- A A3
C 1437 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A4
C 1438 CHIP TA.CAP. 4.7uF 6.3V TEESVP0J475M8R K78080053 1- A A4
C 1439 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A4
C 1441 CHIP CAP. 0.0027uF 50V B UMK105B272KW-F K22178834 1- A B4
LOT
SIDE
LAY ADR
20
Page 21
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
C 1442 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- A B4
C 1443 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- A C4
C 1444 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- A B4
C 1445 CHIP CAP. 220pF 25V CH TMK105CH221JV-F K22148246 1- A B4
C 1446 CHIP CAP. 560pF 50V B UMK105B561KW-F K22178826 1- A B4
C 1447 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B4
C 1448 CHIP CAP. 0.022uF 16V B GRM155B11C223KA01D K22128806 1- A B4
C 1449 CHIP CAP. 220pF 25V CH TMK105CH221JV-F K22148246 1- A B4
C 1450 CHIP CAP. 560pF 50V B UMK105B561KW-F K22178826 1- A B4
C 1451 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B4
C 1452 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A C4
C 1453 CHIP CAP. 0.047uF 10V B GRM155B11A473KA01D K22108801 1- A C4
C 1454 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B3
C 1455 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- B b3
C 1456 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1
C 1457 CHIP CAP. 3pF 50V CJ UMK105CJ030CV-F K22178251 1- B c2
C 1458 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- B c2
C 1459 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- B c1
C 1460 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A C1
C 1461 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B1
C 1462 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B1
C 1463 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A1
C 1464 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A B2
C 1465 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 1- A A2
C 1466 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B c1
C 1467 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A5
CD1001 CERAMIC DISC CDBLB450KCAY07-B0 H7900930 1CF1001 CERAMIC FILTER SFECF10M7GA00-R0 H3900577 1- B a3
CF1002 CERAMIC FILTER ELFC450F H3900552 1- B a4
D 1002 DIODE 1SS362(TE85R.F) G2070268 1- B c3
D 1003 DIODE 1SS362(TE85R.F) G2070268 1- B c2
D 1005 DIODE HVC358B TRF-E G2070590 1- B c3
D 1006 DIODE 1SS400G T2R G2070934 1- A B5
D 1008 DIODE DAN222M T2L G2070936 1- A A5
D 1009 LED CL-165HR/YG-D-T G2070860 1- A C1
D 1010 DIODE HVC358B TRF-E G2070590 1- B b3
D 1011 DIODE 1SV325(TPH3.F) G2070848 1- B b2
D 1012 DIODE 1SV325(TPH3.F) G2070848 1- B b3
D 1013 DIODE 1SV331(TPH3.F) G2071044 1- B b3
D 1014 DIODE 1SV325(TPH3.F) G2070848 1- B b3
D 1015 DIODE 1SV325(TPH3.F) G2070848 1- B b2
D 1016 DIODE 1SV331(TPH3.F) G2071044 1- B b2
D 1017 LED SML-512WWT86 G2071104 1- A A4
D 1018 LED SML-512WWT86 G2071104 1- A A3
D 1019 LED SML-512WWT86 G2071104 1- A C3
D 1020 LED SML-512WWT86 G2071104 1- A C3
D 1021 DIODE 1SV331(TPH3.F) G2071044 1- A B3
D 1022 DIODE 1SV331(TPH3.F) G2071044 1- A C4
D 1023 DIODE HVC358B TRF-E G2070590 1- B b3
D 1024 DIODE HVC358B TRF-E G2070590 1- B b3
D 1025 DIODE 1SV325(TPH3.F) G2070848 1- B b2
D 1026 DIODE 1SV325(TPH3.F) G2070848 1- B b2
D 1027 DIODE 1SS400G T2R G2070934 1- B b3
D 1028 LED SML-512WWT86 G2071104 1- A A5
D 1029 DIODE 1SS400G T2R G2070934 1- A B3
D 1030 DIODE DAP222M T2L G2070938 1- B a3
D 1031 DIODE 1SS400G T2R G2070934 1- B a3
D 1032 DIODE 1SS400G T2R G2070934 1- B a3
D 1033 DIODE DA221M T2L G2070940 1- B a4
D 1034 DIODE DAN222M T2L G2070936 1- B a3
D 1035 DIODE HVC359 TRF-E G2070708 1- B c4
D 1036 DIODE DAN222M T2L G2070936 1- B a4
D 1037 DIODE DAN222M T2L G2070936 1- B a4
D 1039 DIODE DAN222M T2L G2070936 1- B b3
D 1042 DIODE DA221M T2L G2070940 1- B a3
D 1043 DIODE DA221M T2L G2070940 1- B a3
D 1044 DIODE 1SS400G T2R G2070934 1- A A4
D 1047 DIODE DA221M T2L G2070940 1- A C2
D 1048 DIODE DA221M T2L G2070940 1- A C2
D 1056 LED WH104S(TAPE) G2071174 1- A C1
D 1066 DIODE RB521S-30 TE61 G2070642 1- B b2
D 1067 DIODE RSX101VA-30TR G2070984 1- B b2
D 1068 DIODE 1SS400G T2R G2070934 1- B a1
LOT
SIDE
LAY ADR
21
Page 22
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
D 1069 DIODE M1FM3-6063 G2071090 1- B a2
D 1070 DIODE DA221M T2L G2070940 1- A A4
D 1073 DIODE RB521S-30 TE61 G2070642 1- A B1
D 1074 DIODE 1SS400G T2R G2070934 1- B b3
D 1075 DIODE JDP2S04E(TAPE) G2071180 1- A A4
D 1076 SURGE ABSORBER EZAEG2A50AX Q9000868 1- A A1
D 1077 DIODE 1SS400G T2R G2070934 1- B b3
D 1080 DIODE HVC131TRF-E G2070676 1- B c1
D 1082 DIODE HVC131TRF-E G2070676 1- B c1
D 1083 DIODE HVC355B TRF-E G2070588 1- B c2
D 1084 DIODE HVC355B TRF-E G2070588 1- B c2
D 1085 DIODE 1SS400G T2R G2070934 1- B b3
D 1086 DIODE HVC131TRF-E G2070676 1- B c1
D 1087 DIODE HVC131TRF-E G2070676 1- B c2
D 1088 DIODE HVC131TRF-E G2070676 1- B c1
D 1089 DIODE HVC131TRF-E G2070676 1- B b2
D 1090 DIODE HVC131TRF-E G2070676 1- B b2
D 1091 DIODE 1SS400G T2R G2070934 1- A B5
D 1092 DIODE DAN222M T2L G2070936 1- A A4
D 1093 DIODE DAN222M T2L G2070936 1- A B4
D 1094 DIODE HVC131TRF-E G2070676 1- B b2
D 1095 DIODE DA221M T2L G2070940 1- A B4
DS1001 LCD MODULE TXDM12848CF-S1 Q7000625 1F 1001 CHIP FUSE 0.63A FCC10 631ABPA Q0000114 1- B b2
FB1001 FERRITE BEADS BLM15BD102SN1D L9190133 1- B a2
FB1002 FERRITE BEADS BLM15BD102SN1D L9190133 1- B a2
FB1003 FERRITE BEADS BLM15BD102SN1D L9190133 1- B a1
FB1004 FERRITE BEADS BLM15BD102SN1D L9190133 1- B b1
FB1005 FERRITE BEADS BLM15BD102SN1D L9190133 1- B b1
FB1007 FERRITE BEADS BLM15BD102SN1D L9190133 1- B b1
FB1008 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B b1
FB1009 CHIP COIL BLM21PG300SN1D L1690840 1- B a2
FB1010 CHIP COIL BLM21PG300SN1D L1690840 1- B a2
FB1011 FERRITE BEADS BLM15BD102SN1D L9190133 1- A B1
J 1001 CONNECTOR MJC-041-B1Z-3.5T P1091312 1- B a1
J 1002 SHIELD FINGER 1674954-1 S5000255 1- A C5
J 1003 SHIELD FINGER 1674954-1 S5000255 1- A B5
J 1004 CONNECTOR MJC-041-B1Z-3.5T P1091312 1- B b1
J 1005 CONNECTOR AXK6F10345YP P0091378 1- B c4
J 1006 CONNECTOR AXK6F10345YP P0091378 1- B b4
J 1007 CONNECTOR AXK6F10345YP P0091378 1- B c3
J 1009 CONNECTOR MJC-051-A1-1-T P1091311 1- B a2
J 1015 CONNECTOR FH26-21S-0.3SHW(05) P1091372 1- A C2
L 1001 M.RFC 0.0082uH TFL0510-8N2 L1690810 1- B b1
L 1002 M.RFC 0.033uH 2% C1608CB-33NG-RF L1691038 1- B c3
L 1003 M.RFC 0.12uH 2% C1608CB-R12G-RF L1691100 1- B b2
L 1004 M.RFC 0.68uH LK1608 R68K-T L1690416 1- A A5
L 1005 M.RFC 0.0082uH TFL0510-8N2 L1690810 1- B b2
L 1006 M.RFC 0.0047uH TFL0510-4N7 L1690807 1- B b2
L 1008 M.RFC 0.018uH 2% C1608CB-18NG-RF L1691035 1- B c3
L 1009 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- B c3
L 1010 M.RFC 0.15uH 2% C1608CB-R15G-RF L1691101 1- B b2
L 1011 M.RFC 0.056uH 2% C1608CB-56NG-RF L1691041 1- B b2
L 1012 M.RFC 0.1uH 2% C1608CB-R10G-RF L1691045 1- B b2
L 1013 M.RFC 0.15uH 2% C1608CB-R15G-RF L1691101 1- B b3
L 1014 M.RFC 0.18uH 2% C1608CB-R18G-RF L1691102 1- B b2
L 1015 M.RFC 0.1uH 2% C1608CB-R10G-RF L1691045 1- B b2
L 1016 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- A A5
L 1018 M.RFC 0.01uH TFL0510-10N L1690811 1- A B3
L 1019 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A B3
L 1020 M.RFC 0.0027uH 5% C1005C-2N7J-RF L1691338 1- A B3
L 1021 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- B b3
L 1022 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- B b3
L 1023 M.RFC 0.047uH 2% C1608CB-47NG-RF L1691040 1- B b2
L 1024 M.RFC 0.047uH 2% C1608CB-47NG-RF L1691040 1- B b3
L 1026 M.RFC 0.0027uH 5% C1005C-2N7J-RF L1691338 1- A C4
L 1027 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- B b3
L 1028 M.RFC 0.0047uH TFL0510-4N7 L1690807 1- A B3
L 1029 M.RFC 0.047uH 2% C1608CB-47NG-RF L1691040 1- B b2
L 1030 M.RFC 0.15uH LK1608 R15K-T L1690409 1- B a3
L 1031 M.RFC 0.39uH LK1608 R39K-T L1690413 1- B a3
L 1032 M.RFC 0.33uH LK1608 R33K-T L1690412 1- B a2
L 1033 M.RFC 0.22uH LK1608 R22K-T L1690410 1- B b4
LOT
SIDE
LAY ADR
22
Page 23
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
L 1034 M.RFC 0.47uH LK1608 R47K-T L1690414 1- B b5
L 1035 M.RFC 1uH LK1608 1R0K-T L1690687 1- B b4
L 1036 M.RFC 0.22uH LK1608 R22K-T L1690410 1- B b4
L 1037 M.RFC 33uH LK1608 330M-T L1690690 1- B c4
L 1038 M.RFC 0.33uH 2% C1608CB-R33G-RF L1691106 1- B a4
L 1041 M.RFC 0.022uH TFL0510-22N L1690815 1- B b4
L 1044 M.RFC 0.015uH TFL0510-15N L1690813 1- B b3
L 1045 M.RFC 10uH 2% KQ1008TE100G L1691216 1- B a5
L 1046 M.RFC 150uH FLC32T-151J L1690229 1- A C2
L 1070 M.RFC 0.0068uH TFL0510-6N8 L1690809 1- B c1
L 1071 M.RFC 0.0068uH TFL0510-6N8 L1690809 1- B c1
L 1072 M.RFC 0.0056uH TFL0510-5N6 L1690808 1- B c1
L 1074 M.RFC 0.0056uH TFL0510-5N6 L1690808 1- B c2
L 1075 M.RFC 0.0022uH TFL0510-2N2 L1690803 1- B c2
L 1076 M.RFC 0.0039uH TFL0510-3N9 L1690806 1- B c2
L 1077 M.RFC 0.0022uH TFL0510-2N2 L1690803 1- B c2
L 1078 M.RFC 0.0056uH TFL0510-5N6 L1690808 1- B c2
L 1079 M.RFC 0.01uH 2% C1608CB-10NG-RF L1691032 1- B c2
Q 1001 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- A B3
Q 1002 TRANSISTOR 2SC5555ZD-TR G3355557 1- B c3
Q 1003 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- B b3
Q 1004 TRANSISTOR DTC144EM T2L G3070309 1- A A5
Q 1005 IC NJM2151AV(TAPE) G1094420 1- A A2
Q 1006 FET 2SK3541 T2L G3835417 1- A B5
Q 1007 FET 2SK3541 T2L G3835417 1- A B5
Q 1008 FET 2SK3541 T2L G3835417 1- A B4
Q 1009 TRANSISTOR EMG2 T2R G3070304 1- A C1
Q 1012 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- A B3
Q 1013 TRANSISTOR 2SC5555ZD-TR G3355557 1- B b3
Q 1014 IC LV24100LP-TLM-E G1094371 1- A A5
Q 1015 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- B b3
Q 1016 FET 2SK3541 T2L G3835417 1- A B5
Q 1017 IC BU2502MUV G1094586 1- A C4
Q 1018 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- A C3
Q 1019 TRANSISTOR 2SC5555ZD-TR G3355557 1- B b3
Q 1020 TRANSISTOR 2SC5555ZD-TR G3355557 1- B a3
Q 1021 TRANSISTOR 2SC5555ZD-TR G3355557 1- B b3
Q 1023 IC NJM12904R-TE1 G1093337 1- A C5
Q 1025 IC NJU7007F3-TE1 G1093617 1- A C5
Q 1027 TRANSISTOR DTC143TM-T2L G3070372 1- A A3
Q 1028 TRANSISTOR DTC143TM-T2L G3070372 1- A C1
Q 1029 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B a2
Q 1030 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B a3
Q 1031 TRANSISTOR EMG2 T2R G3070304 1- B a3
Q 1032 FET 2SK3541 T2L G3835417 1- A C3
Q 1033 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B a3
Q 1034 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B b4
Q 1035 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B b5
Q 1036 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B c5
Q 1037 TRANSISTOR 2SC4915-O(TE85L.F) G3349158O 1- B b4
Q 1038 TRANSISTOR 2SC5374-TL G3353748 1- B b4
Q 1039 TRANSISTOR DTA114TE TL G3070264 1- A A4
Q 1040 TRANSISTOR DTC144EM T2L G3070309 1- A A4
Q 1041 IC MB15A01PFV1-G-BND-EFE1 G1092545 1- B b4
Q 1042 TRANSISTOR DTA114TE TL G3070264 1- A C4
Q 1043 TRANSISTOR DTA114TE TL G3070264 1- A C3
Q 1044 TRANSISTOR EMB10 T2R G3070302 1- A C4
Q 1045 TRANSISTOR DTC144EM T2L G3070309 1- A C4
Q 1047 IC NJM2552V-TE1 G1094382 1- B a4
Q 1048 TRANSISTOR 2SC5374-TL G3353748 1- B b4
Q 1050 TRANSISTOR DTC144EM T2L G3070309 1- A C4
Q 1055 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- A A4
Q 1056 TRANSISTOR 2SC5374-TL G3353748 1- B b3
Q 1057 TRANSISTOR 2SA2029 T2L Q/R G3120298 1- A A4
Q 1058 TRANSISTOR EMB3 T2R G3070303 1- A A4
Q 1059 TRANSISTOR DTC144EM T2L G3070309 1- A B4
Q 1060 TRANSISTOR EMB3 T2R G3070303 1- A B4
Q 1061 TRANSISTOR DTC144EM T2L G3070309 1- A B4
Q 1065 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- B a3
Q 1067 TRANSISTOR DTC144EM T2L G3070309 1- B b4
Q 1068 FET 2SJ364-P(TX) G3703648P 1- B b4
Q 1072 TRANSISTOR EMB10 T2R G3070302 1- A B4
Q 1074 TRANSISTOR EMB3 T2R G3070303 1- A B4
LOT
SIDE
LAY ADR
23
Page 24
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
Q 1075 TRANSISTOR DTC144EM T2L G3070309 1- A A4
Q 1077 TRANSISTOR 2SC5374-TL G3353748 1- A C2
Q 1078 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- A C2
Q 1082 FET 2SK3541 T2L G3835417 1- A B4
Q 1083 IC NJU7747F4-03-TE1 G1094425 1- A B1
Q 1084 IC XC61GN3002HR G1094470 1- A C2
Q 1085 TRANSISTOR DTC144EM T2L G3070309 1- A C2
Q 1086 IC TAR5S30(TE85L.F) G1093570 1- A C1
Q 1087 IC XC61GN3002HR G1094470 1- A C2
Q 1088 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- A B4
Q 1090 FET MCH6305-TL G3070301 1- B b2
Q 1092 TRANSISTOR 2SA2029 T2L Q/R G3120298 1- A C3
Q 1093 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- A B5
Q 1094 IC AT24C256B-TH-T G1094384 1- A A1
Q 1095 IC HD64F2266TF13V(FLASH) G1093813 1- A B1
Q 1096 TRANSISTOR CPH6102-TL G3070223 1- B b2
Q 1097 IC MM1438BWLE G1093814 1- B b2
Q 1098 TRANSISTOR DTC144EM T2L G3070309 1- B b2
Q 1099 TRANSISTOR EMD22 T2R G3070402 1- A A4
Q 1103 FET SSM6J25FE(TAPE) G3070379 1- A C1
Q 1104 TRANSISTOR DTC144EM T2L G3070309 1- A C1
Q 1105 TRANSISTOR DTC144EM T2L G3070309 1- A A5
Q 1106 TRANSISTOR 2SC5374-TL G3353748 1- A A5
Q 1110 TRANSISTOR DTC144EM T2L G3070309 1- B b1
Q 1111 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- B c2
Q 1112 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- B c2
Q 1113 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- B c2
Q 1116 IC TC4W66FU(TE12L.F) G1091676 1- A A1
Q 1117 IC TC75W51FK G1094676 1- A C4
Q 1118 FET 2SK3541 T2L G3835417 1- A C5
Q 1119 FET 2SK3541 T2L G3835417 1- A C4
Q 1121 TRANSISTOR EMG2 T2R G3070304 1- A A4
Q 1122 TRANSISTOR EMD22 T2R G3070402 1- A A4
Q 1123 IC TC75W51FK G1094676 1- A B3
Q 1124 IC TC75W51FK G1094676 1- A B4
Q 1125 IC TC75W51FK G1094676 1- A B4
Q 1126 TRANSISTOR 2SC5658 T2L Q/R G3356588 1- A B3
Q 1127 TRANSISTOR DTC144EM T2L G3070309 1- A B3
Q 1128 TRANSISTOR DTC144EM T2L G3070309 1- A B4
Q 1129 TRANSISTOR DTC144TE-TL G3070280 1- A B2
Q 1130 TRANSISTOR DTC144EM T2L G3070309 1- A B4
Q 1131 TRANSISTOR DTC144EM T2L G3070309 1- A C4
Q 1170 TRANSISTOR DTC144EM T2L G3070309 1- A A4
R 1004 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- A C2
R 1006 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B3
R 1007 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A B3
R 1008 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B c3
R 1009 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B c3
R 1010 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b3
R 1011 CHIP RES. 270 1/16W 5% RMC1/16S 271JTH J24189018 1- B b3
R 1012 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B b3
R 1013 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b3
R 1014 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A A5
R 1015 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A A5
R 1016 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A5
R 1017 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A A5
R 1018 CHIP RES. 1.8k 1/16W 5% RMC1/16S 182JTH J24189028 1- A A5
R 1019 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A A2
R 1020 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A A2
R 1021 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B5
R 1022 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- A A2
R 1023 CHIP RES. 560 1/16W 5% RMC1/16S 561JTH J24189022 1- A A2
R 1024 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1025 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A B4
R 1026 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1027 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1028 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A B4
R 1029 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A C1
R 1030 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B1
R 1039 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A B3
R 1040 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B3
R 1041 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A B3
R 1042 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B3
LOT
SIDE
LAY ADR
24
Page 25
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
R 1043 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c3
R 1044 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c3
R 1045 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b3
R 1046 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A B3
R 1047 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B b3
R 1048 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b3
R 1049 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2
R 1051 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b3
R 1052 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B b3
R 1053 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B5
R 1054 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B5
R 1055 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A B5
R 1056 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B5
R 1057 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A B5
R 1058 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B5
R 1059 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C5
R 1060 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C5
R 1061 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B5
R 1062 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1063 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A A4
R 1064 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A A3
R 1066 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A C3
R 1067 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A C3
R 1078 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B4
R 1079 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B4
R 1080 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C3
R 1081 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b3
R 1082 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b3
R 1083 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b3
R 1084 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b3
R 1085 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B a3
R 1086 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2
R 1087 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 1- B b3
R 1088 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b3
R 1089 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B a3
R 1090 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B b3
R 1091 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B a2
R 1092 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B b3
R 1092 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 3- B b3
R 1093 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B b3
R 1094 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A4
R 1095 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A A4
R 1096 CHIP RES. 390k 1/16W 0.5% MCR01MZPD3903 J24189331 1- A C5
R 1097 CHIP RES. 470k 1/16W 0.5% MCR01MZPD4703 J24189332 1- A C5
R 1098 CHIP RES. 330k 1/16W 0.5% MCR01MZPD3303 J24189330 1- A C5
R 1099 CHIP RES. 560k 1/16W 0.5% MCR01MZPD5603 J24189335 1- A C5
R 1100 CHIP RES. 270k 1/16W 0.5% MCR01MZPD2703 J24189329 1- A C5
R 1101 CHIP RES. 1M 1/16W 1% MCR01MZSF1004 J24189333 1- A C5
R 1102 CHIP RES. 820k 1/16W 0.5% MCR01MZPD8203 J24189336 1- A C5
R 1103 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C5
R 1104 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A C1
R 1109 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A C3
R 1110 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B3
R 1111 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B a3
R 1112 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B a3
R 1113 CHIP RES. 270k 1/16W 0.5% MCR01MZPD2703 J24189329 1- A C4
R 1114 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A B4
R 1118 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B a3
R 1119 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B a3
R 1120 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a3
R 1121 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C4
R 1123 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C4
R 1124 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B a2
R 1125 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B a3
R 1126 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B b5
R 1127 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b5
R 1128 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B b4
R 1129 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B b5
R 1130 CHIP RES. 560 1/16W 5% RMC1/16S 561JTH J24189022 1- B c4
R 1131 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 1- B c4
R 1132 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b4
R 1133 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B a4
R 1134 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a4
LOT
SIDE
LAY ADR
25
Page 26
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
R 1135 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B a2
R 1136 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a3
R 1137 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b4
R 1138 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B b3
R 1139 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b4
R 1140 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b4
R 1141 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b4
R 1142 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B b4
R 1142 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 3- B b4
R 1143 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c4
R 1145 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B b4
R 1157 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a4
R 1158 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a4
R 1159 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B a4
R 1160 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B a4
R 1161 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B a5
R 1162 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B a5
R 1163 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B a5
R 1164 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a5
R 1165 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a4
R 1166 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a4
R 1167 CHIP RES. 18k 1/16W 5% RMC1/16S 183JTH J24189040 1- B b3
R 1168 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b4
R 1170 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c4
R 1171 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c4
R 1172 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- B c4
R 1183 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B a4
R 1184 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B a3
R 1185 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a4
R 1186 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- B a4
R 1187 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B a4
R 1188 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b4
R 1189 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a5
R 1190 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a4
R 1191 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B a5
R 1192 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A4
R 1193 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b3
R 1194 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A4
R 1202 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B a3
R 1203 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B a3
R 1204 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B a4
R 1205 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a3
R 1206 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b4
R 1207 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b4
R 1209 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1216 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a3
R 1217 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a3
R 1219 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B b4
R 1220 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B b4
R 1221 CHIP RES. 180k 1/16W 5% RMC1/16S 184JTH J24189052 1- B a3
R 1222 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b4
R 1223 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b4
R 1224 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A C3
R 1225 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A C2
R 1226 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A C2
R 1227 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A C2
R 1228 CHIP RES. 330k 1/16W 0.5% MCR01MZPD3303 J24189330 1- A C2
R 1230 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A C2
R 1231 CHIP RES. 68k 1/16W 0.5% RR0510R-683-D J24189163 1- A C2
R 1232 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1234 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- A B4
R 1237 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A C2
R 1238 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A C2
R 1239 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1- A B4
R 1240 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- A B5
R 1241 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1242 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A B5
R 1243 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A B4
R 1244 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- A C2
R 1245 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A C2
R 1248 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A C2
R 1249 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A C3
R 1250 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- A B5
LOT
SIDE
LAY ADR
26
Page 27
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
R 1251 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- A B5
R 1252 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B5
R 1253 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- A B3
R 1256 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2
R 1257 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B b2
R 1258 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- B b2
R 1259 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2
R 1261 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A4
R 1262 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c3
R 1263 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c3
R 1264 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B c3
R 1265 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A B1
R 1266 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A B1
R 1268 CHIP RES. 0.18 1/2W 1% RLC32-R180FTP J24279034 1- A B2
R 1269 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A4
R 1270 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B3
R 1271 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B3
R 1272 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C3
R 1273 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C3
R 1275 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A A5
R 1276 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b5
R 1277 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C1
R 1278 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- A B5
R 1279 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- A B5
R 1280 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- B c4
R 1281 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B c4
R 1284 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A B5
R 1285 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A B5
R 1286 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A B5
R 1288 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B a2
R 1289 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B a1
R 1290 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A A5
R 1291 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A A4
R 1300 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B c1
R 1300 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 3- B c1
R 1301 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c1
R 1302 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c1
R 1303 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c1
R 1304 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B b1
R 1305 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c1
R 1310 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c1
R 1311 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B c2
R 1312 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B c2
R 1314 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B c2
R 1315 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B c2
R 1316 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B c2
R 1317 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c2
R 1318 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B c2
R 1319 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c2
R 1320 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c2
R 1321 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c2
R 1322 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B c2
R 1323 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B b2
R 1324 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B c1
R 1325 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c2
R 1326 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B b2
R 1327 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B b2
R 1328 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A B5
R 1331 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A A5
R 1335 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C4
R 1336 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A C5
R 1337 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C4
R 1338 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A C5
R 1339 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C5
R 1340 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C5
R 1341 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C4
R 1342 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C4
R 1343 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A C4
R 1344 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A C4
R 1345 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A C4
R 1346 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A C4
R 1347 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C4
R 1348 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A3
LOT
SIDE
LAY ADR
27
Page 28
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
R 1349 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- A A3
R 1350 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 1- A A3
R 1351 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B3
R 1352 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B3
R 1353 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B3
R 1354 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B3
R 1355 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B3
R 1356 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B2
R 1357 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B4
R 1358 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- A A4
R 1359 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A A4
R 1360 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A A4
R 1361 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A B4
R 1362 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1363 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- A B4
R 1364 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A B4
R 1365 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A B4
R 1366 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- A B4
R 1367 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A B4
R 1368 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A B4
R 1369 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- A B4
R 1370 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B4
R 1371 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1372 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1373 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B3
R 1374 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A4
R 1375 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- A B4
R 1376 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A2
R 1377 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A5
R 1378 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1-4
S 1001 TACT SWITCH SKRWAEE030 N5090156 1- A A3
S 1002 TACT SWITCH SKRWAEE030 N5090156 1- A A3
S 1003 TACT SWITCH SKRWAEE030 N5090156 1- A A4
S 1004 TACT SWITCH SKRWAEE030 N5090156 1- A A4
S 1005 TACT SWITCH SKRWAEE030 N5090156 1- A A5
S 1006 TACT SWITCH SKRWAEE030 N5090156 1- A B3
S 1007 TACT SWITCH SKRWAEE030 N5090156 1- A B3
S 1008 TACT SWITCH SKRWAEE030 N5090156 1- A C3
S 1009 TACT SWITCH SKRWAEE030 N5090156 1- A C3
S 1010 DETECTION SWITCH SPPW811203 N4090160 1- B a3
S 1011 ROTARY ENCODER TP70N00E20 RY-8401 Q9000880 1- B a1
TH1001 THERMISTOR ERTJ1VV473J G9090122 1- A C2
X 1001 XTAL XV00117 11.7MHz 11.7MHZ H0103330A 1- B c4
X 1002 XTAL SSP-T7-F 32.768kHz 32.768KHZ H0103327 1- A B2
X 1003 XTAL AT-38 3.579545MHz 3.579545MHZH0103403 1XF1001 XTAL FILTER 47S15A 47.25MHZ H1102411 1- B a3
LIGHT GUIDE ASSY RA1218800 1LIGHT GUIDE ASSY RA121880A 3-
LOT
SIDE
LAY ADR
28
Page 29
SW Unit
Circuit Diagram
29
Page 30
SW Unit
Parts Layout (Side A)
1
BA C
DTC143ZE (23)
(Q3002)
Parts Layout (Side B)
a c
1
b
XC6371A650PR (A65)
(Q3003)
30
Page 31
SW Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
P.C.B. with Components CS2052101
Printed Circuit Board FR019540C 1-
C 3006 CHIP CAP. 100pF 50V CH UMK105CH101JV-F K22178282 1- A A1
C 3007 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A A1
C 3012 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1
C 3025 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A1
C 3033 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- A B1
C 3034 CHIP TA.CAP. 22uF 4V TEESVP0G226M8R K78060047 1- B a1
C 3035 CHIP TA.CAP. 33uF 10V TEESVB21A336M8R K78100047 1- B b1
C 3037 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b1
C 3038 CHIP CAP. 0.1uF 10V B GRM155B11A104KA01D K22108802 1- B b1
D 3002 LED SML-512WWT86 G2071104 1- B b1
D 3003 LED SML-512WWT86 G2071104 1- B b1
D 3004 DIODE RB751S-40TE61 G2070850 1- B a1
L 3001 M.RFC 150uH FLC32P-T-151K L1690661 1- B a1
Q 3002 TRANSISTOR DTC143ZE TL G3070102 1- A A1
Q 3003 IC XC6371A650PR G1094017 1- B a1
R 3006 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A1
R 3007 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A A1
R 3009 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B1
R 3016 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B b1
R 3017 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B b1
R 3018 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a1
R 3019 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B a1
R 3020 CHIP RES. 4.7 1/16W 5% RMC1/16S 4R7JTH J24189066 1- B a1
S 3001 TACT SWITCH SOT-152HST N5090131 1- A B1
S 3002 TACT SWITCH SOT-152HST N5090131 1- A B1
S 3003 TACT SWITCH SOT-152HST N5090131 1- A A1
LOT
SIDE
LAY ADR
31
Page 32
SW Unit
Note
32
Page 33
VCO Unit
Circuit Diagram
33
Page 34
VCO Unit
Parts Layout (Side A)
1
2
BA
DTC143ZE (E23)
(Q4003, 4007, 4010)
MT3S36FS (21)
(Q4002, 4004, 4005,
4006, 4011)
Parts Layout (Side B)
a
1
2
b
SSM3J16FS (DT)
(Q 4012, 4013)
34
Page 35
VCO Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
P.C.B. with Components CB4782001
Printed Circuit Board FR019550C 1-
C 4001 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1
C 4005 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A1
C 4008 CHIP CAP. 5pF 50V CH GRM1552C1H5R0BZ01D K22178292 1- A A1
C 4009 CHIP CAP. 22pF 50V CH GRM1552C1H220GZ01D K22179707 1- A A1
C 4010 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 1- A A1
C 4011 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1
C 4012 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 1- A A1
C 4013 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A2
C 4018 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A2
C 4019 CHIP CAP. 27pF 50V CH GRM1552C1H270JZ01D K22178222 1- A A1
C 4020 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A1
C 4021 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1
C 4022 CHIP CAP. 51pF 50V CH GRM1552C1H510GZ01D K22179710 1- A A1
C 4023 CHIP CAP. 47pF 50V CH GRM1552C1H470GZ01D K22179709 1- A A2
C 4024 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 1- A A1
C 4025 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1
C 4026 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A2
C 4028 CHIP CAP. 33pF 50V CH UMK105CH330JV-F K22178270 1- A A1
C 4031 CHIP CAP. 68pF 50V CH UMK105CH680JV-F K22178278 1- A A1
C 4032 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1
C 4033 CHIP CAP. 5pF 50V CH UMK105CH050CV-F K22178253 1- A A1
C 4034 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A1
C 4035 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B1
C 4036 CHIP CAP. 47pF 50V CH UMK105CH470JV-F K22178274 1- A B1
C 4037 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- A A1
C 4038 CHIP CAP. 15pF 50V CH UMK105CH150JV-F K22178262 1- A B1
C 4039 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1
C 4040 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1
C 4041 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- A B1
C 4042 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1
C 4043 CHIP CAP. 10pF 50V CH UMK105CH100DV-F K22178258 1- A B1
C 4044 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1
C 4045 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A B1
C 4047 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B1
C 4048 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A B2
C 4060 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A1
C 4061 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A1
C 4062 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1
C 4063 CHIP CAP. 0.01uF 25V B GRM155B11E103KA01D K22148834 1- A A1
C 4064 CHIP CAP. 5pF 50V CH GRM1552C1H5R0BZ01D K22178292 1- A A1
C 4065 CHIP CAP. 15pF 50V CH GRM1552C1H150JZ01D K22178216 1- A A1
C 4066 CHIP CAP. 12pF 50V CH GRM1552C1H120JZ01D K22178214 1- A A1
C 4067 CHIP CAP. 4pF 50V CH UMK105CH040CV-F K22178252 1- A A1
C 4068 CHIP CAP. 0.001uF 50V B UMK105B102KW-F K22178829 1- A A1
D 4001 DIODE HVC355B TRF-E G2070588 1- A A1
D 4004 DIODE 1SV325(TPH3.F) G2070848 1- A A1
D 4006 DIODE HSC277TRF-E G2070584 1- A A1
D 4007 DIODE 1SV325(TPH3.F) G2070848 1- A A2
D 4008 DIODE 1SV325(TPH3.F) G2070848 1- A A2
D 4010 DIODE 1SS400 TE61 G2070634 1- A B1
D 4011 DIODE 1SS400 TE61 G2070634 1- A B1
D 4012 DIODE 1SS400 TE61 G2070634 1- A B1
D 4013 DIODE 1SV325(TPH3.F) G2070848 1- A A1
D 4014 DIODE HSC277TRF-E G2070584 1- A B2
D 4015 DIODE 1SV325(TPH3.F) G2070848 1- A B1
D 4020 DIODE HSC277TRF-E G2070584 1- A A1
D 4021 DIODE HVC355B TRF-E G2070588 1- A A1
J 4001 CONNECTOR AXK5F10335YP P1091136 1- B b1
J 4002 CONNECTOR AXK5F10335YP P1091136 1- B a1
L 4001 M.RFC 1uH LK1608 1R0K-T L1690687 1- A A1
L 4002 M.RFC 0.0082uH 2% C1608CB-8N2G-RF L1691226 1- A A1
L 4003 M.RFC 0.0082uH 2% C1608CB-8N2G-RF L1691226 1- A A1
L 4004 M.RFC 1uH LK1608 1R0K-T L1690687 1- A A1
L 4005 M.RFC 2.2uH LK1608 2R2K-T L1690634 1- A A1
L 4006 CHIP COIL 0.022uH 2% LQW18AN22NG00D L1690884 1- A A1
L 4007 M.RFC 0.015uH 2% C1608CB-15NG-RF L1691034 1- A A2
L 4008 M.RFC 1uH LK1608 1R0K-T L1690687 1- A A2
L 4009 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- A A2
L 4010 M.RFC 0.1uH 2% C1608CB-R10G-RF L1691045 1- A B1
L 4011 M.RFC 1uH LK1608 1R0K-T L1690687 1- A B1
L 4012 M.RFC 0.33uH LK1608 R33K-T L1690412 1- A B1
LOT
SIDE
LAY ADR
35
Page 36
VCO Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.
L 4013 M.RFC 0.01uH HK1608 10NJ-T L1690516 1- A B1
L 4014 M.RFC 0.1uH LK1608 R10K-T L1690407 1- A B1
L 4015 M.RFC 0.22uH 2% C1608CB-R22G-RF L1691103 1- A B1
L 4016 M.RFC 1uH LK1608 1R0K-T L1690687 1- A A1
L 4017 M.RFC 0.0082uH 2% C1608CB-8N2G-RF L1691226 1- A A1
L 4018 M.RFC 1uH LK1608 1R0K-T L1690687 1- A A1
Q 4002 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- A A1
Q 4003 TRANSISTOR DTC143ZE TL G3070102 1- A A2
Q 4004 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- A A1
Q 4005 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- A A1
Q 4006 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- A B1
Q 4007 TRANSISTOR DTC143ZE TL G3070102 1- A B2
Q 4010 TRANSISTOR DTC143ZE TL G3070102 1- A A1
Q 4011 TRANSISTOR MT3S36FS(TE85L.F) G3070377 1- A A1
Q 4012 FET SSM3J16FS G3070429 1- B a1
Q 4013 FET SSM3J16FS G3070429 1- B a1
R 4004 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A1
R 4005 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A A1
R 4006 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A1
R 4007 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- A A1
R 4010 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A A1
R 4011 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A A1
R 4012 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A1
R 4013 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A1
R 4014 CHIP RES. 120 1/16W 5% RMC1/16S 121JTH J24189014 1- A A1
R 4017 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A A1
R 4018 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- A B1
R 4019 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A A1
R 4020 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A1
R 4021 CHIP RES. 390 1/16W 5% RMC1/16S 391JTH J24189020 1- A A1
R 4022 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A B1
R 4023 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1- A B1
R 4024 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B1
R 4025 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B1
R 4026 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B1
R 4027 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A1
R 4030 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A A1
R 4031 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A1
R 4032 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A1
R 4033 CHIP RES. 180 1/16W 5% RMC1/16S 181JTH J24189016 1- A A1
R 4034 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A A1
R 4035 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B a1
R 4036 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a1
SHIELD CASE VCO RA0400300 1-
LOT
SIDE
LAY ADR
36
Page 37
37
Page 38
38
Loading...
