+ VOLUME EXP
PRODUCT
MANUAL
The Vertex Boost is expertly crafted to be a clean
boost, buffer, and volume pedal in one. The Boost
is designed to leave your tone unchanged, while
boosting the level of your signal. The Boost also
features an ultra-linear buffer to condition your line
with ZERO tonal coloration, even with dozens of
pedals in your chain. Additionally, you have total
volume control by connecting the Boost with
any EXP pedal or Volume Pedal (with insert cable
adapter shown below) and adjusting your volume
as you would with a volume pedal. When the
Boost is OFF, the EXP will function as a typical
volume pedal (sweeping from silent to unity
gain). When the Boost is ON, the EXP will control
the boosted volume (sweeping from silent to
wherever the level knob is set). Since your guitar
signal is completely isolated from the EXP pedal,
your tone remains open and full-range, and most
importantly, it feels like your plugged straight into
your amp.
VERTEX BOOST OVERVIEW
HOW THE VERTEX BOOST WORKS
SPECIFICATIONS
Controls
Connections
Dimensions
Power Connector
Input Impendance
DC Voltage
Current Consumption
Output Impendance
EXP Function
Level (unity gain to +16dB)
Input, Output, EXP, DC Input
4.6” x 3.2” x 1.8”
2.1mm barrel (center negative)
1M ohms
8.0-9.6V
16mA
100 ohms
An expression pedal of any
impendance with a 1/4”
TRS (stereo) cable can be
used with the Vertex Boost
[*9.8V MAX]
www.vertexeffects.com
VERTEX BOOST SET UP OPTIONS
Example 1–Vertex Boost as gain booster w/EXP
When the Boost is positioned after the guitar,
before any other distortion or overdrive
pedals the Boost will function as a gain
booster. This means that if you stack the boost
in combination with other overdrive or
distortion pedals following it, it will not
increase the output level of your signal, but
rather add more gain/distortion to your signal.
AMPLIFIER
Example 2 – Vertex Boost as level booster w/EXP
When the Boost is positioned after distortion or
overdrive devices, but before any time-based
pedals (delay and/or reverb), the Boost will
function as a level booster. This means that if
you stack the boost in combination with other
overdrive or distortion pedals before it, it will
only add more volume level to your signal,
and not change the tone of the pedals
coming before it.
AMPLIFIER
Example 3 – Vertex Boost as a gain booster (no EXP)
DELAY VOLUME
DELAY CHORUS OVERDRIVE/
CHORUS OVERDRIVE/
DISTORTION
VOLUME
PEDAL/EXP
(Optional)
PEDAL/EXP
(Optional)
DISTORTION
When the Boost is positioned after the guitar,
before any other distortion or overdrive pedals
the Boost will function as a gain booster. This
means that if you stack the boost in
combination with other overdrive or distortion
pedals following it, it will not increase the
output level of your signal, but rather add
more gain/distortion to your signal.
AMPLIFIER
Example 4 – Vertex Boost as level booster (no EXP)
When the Boost is positioned after distortion or
overdrive devices, but before any time-based
pedals (delay and/or reverb), the Boost will
function as a level booster. This means that if
you stack the boost in combination with other
overdrive or distortion pedals before it, it will
only add more volume level to your signal,
and not change-the tone of the pedals
coming before it.
AMPLIFIER
Example 5 – Vertex Boost in effects loop (no EXP)
When the Boost is positioned an amplifier FX Loop it can be used as
a master volume. This means that you can boost your signal without
the risk of overdriving the preamp section of your amplifier
DELAY CHORUS OVERDRIVE/
DELAY CHORUS
REVERB DELAY
FX LOOP
RETURN
DISTORTION
OVERDRIVE/
DISTORTION
FX LOOP
SEND
TO AMP
INPUT
www.vertexeffects.com
AMPLIFIER
CHORUS OVERDRIVE/
DISTORTION

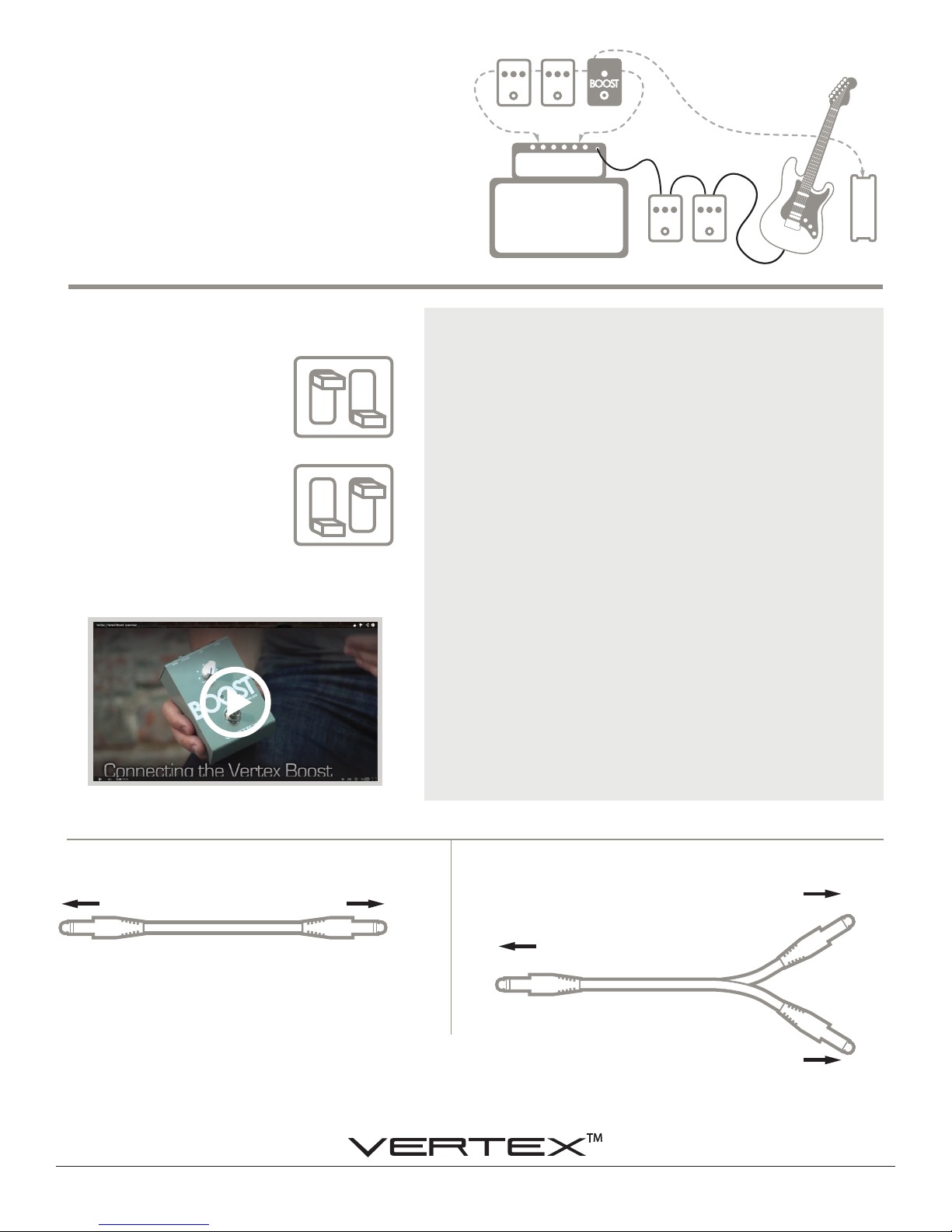

Example 6 – Vertex Boost in effects loop w/EXP
When the Boost is positioned in an amplifier FX
Loop it can be used as a master volume. This
means that you can boost your signal without
the risk of overdriving the preamp section of
your amplifier.
FX LOOP
RETURN
REVERB
DELAY
FX LOOP
SEND
TO AMP
INPUT
EXAMPLE DIP SETTINGS
Example 1
Volume Pedal or EXP will only
be active when the Boost is
switched "ON"
1 2
Example 2
Volume Pedal or EXP will always
be active whether the Boost is
switch "ON" or "OFF"
1
CONNECTING THE VERTEX BOOST
CHORUS OVERDRIVE/
AMPLIFIER
DISTORTION
Compatible Volume/EXP Pedals with Vertex Boost
Boss FV-30H (accepts “Y” insert cable)
Boss FV-30L (accepts “Y” insert cable)
Boss FV-50L (accepts “Y” insert cable)
Boss FV-50H (accepts “Y” insert cable)
Boss FV-500H (accepts insert “Y” cable or TRS cable)
Boss FV-500L (accepts insert “Y” cable or TRS cable)
Dunlop Volume X (accepts insert “Y” cable or TRS cable)
Dunlop Volume Pedal DVP1 (accepts “Y” insert cable)
Dunlop DVP1XL Volume Pedal (accepts “Y” insert cable)
Ernie Ball 25K Stereo Volume Pedal (accepts “Y” insert cable)
Ernie Ball 250K Mono Volume Pedal (accepts “Y” insert cable)
2
Ernie Ball VP JR 25K (accepts “Y” insert cable)
Ernie Ball VP JR 250K (accepts “Y” insert cable)
Korg XVP10 Stereo Volume/Expression Pedal (accepts TRS cable)
M-Audio EX-P Expression Pedal (hardwired TRS cable included)
Moog EP-3 Universal Expression Pedal (accepts TRS cable)
Morley M2 Passive Volume Guitar Effects Pedal (accepts “Y” insert cable)
Morley M2 Passive Expression Guitar Effects Pedal (accepts TRS cable)
Roland EV-5 (hardwired TRS cable included)
Source Audio Dual Expression Pedal (accepts TRS cable)
Visual Sound Visual Volume Pedal *in passive mode only* (accepts insert “Y” cable)
Vertex Mono Volume Pedal (accepts insert “Y” cable or TRS cable)
Vertex Stereo Volume Pedal (accepts insert “Y” cable or TRS cable)
Vertex Scott Henderson Volume Pedal (accepts insert “Y” cable or TRS cable)
VOLUME
PEDAL/EXP
(Optional)
Connecting to Expression Pedal (EXP)
TO EXP TO BOOST
TRS CABLE (STEREO)
Connecting to a Volume Pedal (EXP)
TRS (STEREO)
www.vertexeffects.com
TO BOOST
TRS TO TRS INSERT CABLE
VOLUME
PEDAL INPUT
TS (MONO)
TS (MONO)
VOLUME
PEDAL OUTPUT
