Vertek 2330 User Manual

ScorpionScorpion

Digital Jukebox System

OPERATOR MANUAL

1.0.10

2330 Digital Media Player

Digital Jukebox Application

This manual covers operation of the Vertek 2330 Digital Media Player hardware

used in conjunction with the Vertek Scorpion Digital Jukebox Software

Please Note

This product is undergoing continual change for improvement based

on feedback from operators. Therefore, this manual may not describe

all the latest features available on your player. To download a copy of the most recent version of this manual, or to check for updates to the

software, please visit.

www.vertek.com.au

Record Your Administration Codes Here

Master Administration Code

General Administration Code

N14288

No part of this manual may be reproduced without the written permission of Vertek Systems Pty. Ltd.

2330 - SCORPION OPERATOR MANUAL

PRECAUTIONS

Important - Please Read

& Never block the front and/or rear vents as they allow air to flow correctly through the

player preventing overheating. For optimal performance please ensure sufficient ventilation if installed in an enclosed cabinet as heat must be allowed to disperse from the unit.

& Never use or store the unit in places that are subject to temperature extremes (e.g.

direct sunlight, in an enclosed vehicle, near a heating duct, on top of heat-generating equipment);

& Never use or store the unit in damp areas (e.g. baths, washrooms, on wet floors) or

in high humidity or areas that may be exposed to rain.

& Do not expose the player to high levels of vibration. & Do not put strain on any of the plugs. & Do not overload power outlets (maximum output 1000 Watts). & Do not overload the speaker outputs.

Speaker Outputs Minimum Load Impedance: 1 Pair of Speakers 4 Ohms (minimum)

2 Pairs of Speakers 8 Ohms (minimum) 3 Pairs of Speakers 16 Ohms (minimum)

& Do not open (or modify in any way) the unit. & Do not attempt to repair the unit, or replace parts within it. Refer all servicing to the

nearest authorised Vertek service centre.

& Do not allow any objects (e.g., flammable material, coins, pins); or liquids of any kind

(water, soft drinks, etc.) to penetrate the unit.

& The unit must be powered off via the supplied remote control or software shutdown.

Simply removing power from the unit by pulling the plug does not allow time for the hard drive to position it's heads safely and risks hard drive damage or software corruption.

& Wait at least 10 seconds after switching the unit off before switching it back on to

allow time for the internal capacitors to discharge.

& Make sure the unit is switched off when connecting or disconnecting all peripherals

except a USB flash drive. USB flash drives must not be connected until the unit is fully running.

& Some lighting sources such as electronic fluorescent lamps can generate

interference to the infrared receiver which may cause poor remote control range.

2330 - SCORPION OPERATOR MANUAL

Main Features . . . . . . . . . . 6

2330 Hardware Specifications . . . . . . . . . . 7

2330 Infra Red Remote Control . . . . . . . . . . 8

Scorpion Jukebox Software . . . . . . . . . . 9

Party Mode Operation . . . . . . . . . . 9

Coin Mode Operation . . . . . . . . .14

Administration Section . . . . . . . . . .18

Retrieving Logs and Statistics . . . . . . . . . .28

Updating Music & Software . . . . . . . . . .28

Creating and Using Sessions . . . . . . . . . .29

Customising Scorpion . . . . . . . . . .32

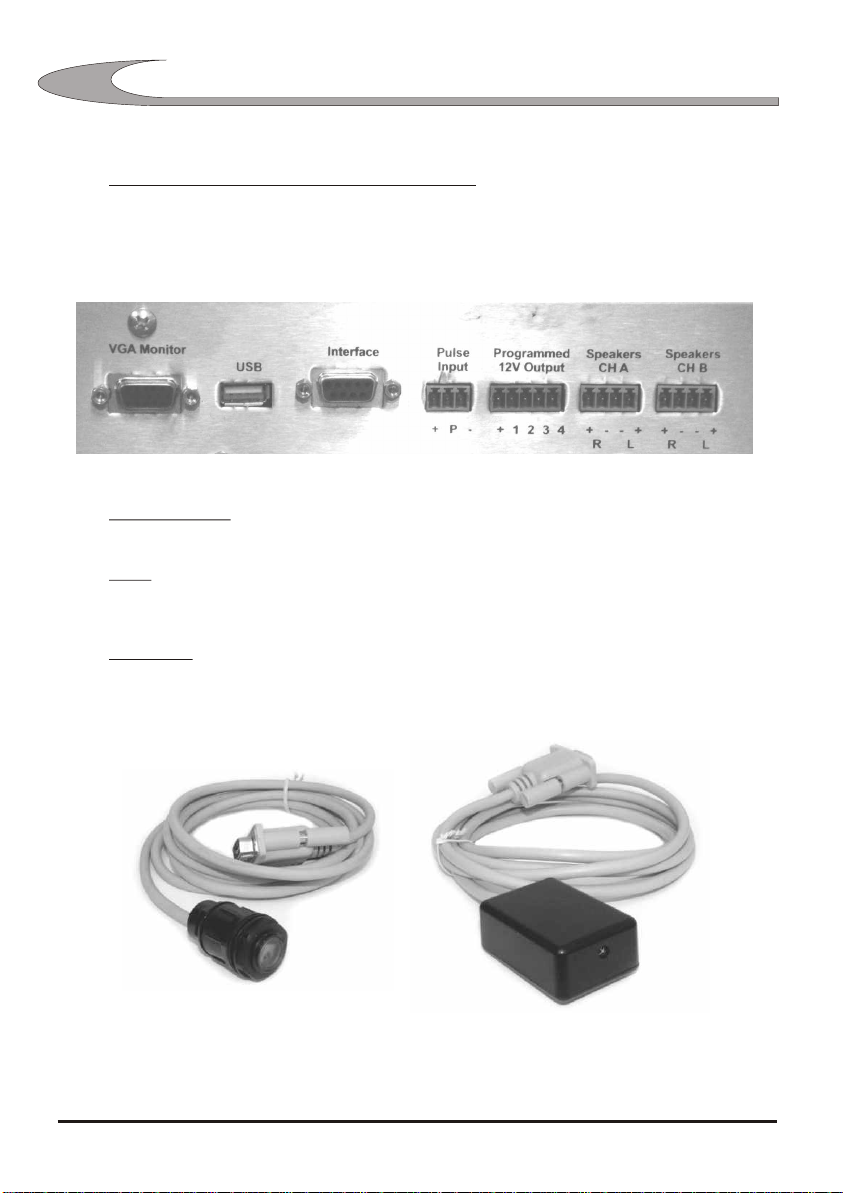

Making Connections to the 2330 . . . . . . . . . .34

System Recovery . . . . . . . . . .39

2330 - SCORPION OPERATOR MANUAL

MAIN FEATURES

The 2330 Digital Media Player is a professional digital audio visual playback device which incorporates the Scorpion digital jukebox software.

Equally at home in a party hire environment or coin operated, Scorpion is easy to operate with only 4 user screens and a handful of buttons on each screen.

Minimal connection to external equipment is required to get the 2330 up and running. The amplifiers are built in which means goodbye to the incompatibilities which plague other digital jukeboxes.

The 2330 hard drive is mounted using silicon shock absorbers to increase reliability in a commercial environment.

The software is highly customisable through the powerful but intuitive administration section. The administration section has been designed to be easy to use by operators, not computer buffs, with plain English descriptions and multiple choice settings.

The Scorpion administration section includes memory slots which allow saving commonly used settings and recalling them with just a couple of selections

User interface is through a simple 8 button touch pad controller or you may use a touch screen.

An infrared remote control is supplied which allows full control of all settings. Scorpion incorporates extensive logging with automatic summary generation to

allow you to profile the daily use and operation of the system. Logs are easily retrieved by connecting a standard USB flash drive to one of the front USB ports. This process only takes a few seconds and can be done while servicing the system.

Three video outputs allow direct connection of up to 3 televisions. By connecting an optional RF modulator, an unlimited number of TVs may be connected.

Still picture advertisements can be shown to promote your own business or you can sell advertising space as an extra revenue generator.

The user interface is highly customisable with various themes, including adding your own logo and message to the player screens.

2330 - SCORPION OPERATOR MANUAL

HARDWARE SPECIFICATIONS

2330 Digital Media Player Specifications

Operating Voltage: Power consumption:

Power Outlets Maximum Load:

Amplifier Power Output

CAUTION: No more than 2 channels may be

used if 4 ohm speakers are connected.

8 ohm speakers - 2 Channels Driven:

Power per channel:

4 ohm speakers - 2 Channels Driven

Power per channel:

8 ohm speakers - 4 Channels Driven

Power per channel:

12V Programmed Output Maximum Current

Each Channel:

Total For All Channels:

Pulse Control

Input - High Level:

Input - Low Level:

Minimum Pulse Time:

Minimum Time Between Pulses:

Maximum Pulses Per Second:

12V Switched Output Maximum Current:

240V 50Hz Approx 650W 1000W

94W RMS 187W Peak 748W Peak Music Power

152W RMS 306W Peak 1225W Peak Music Power

87W RMS 176W Peak 703W Peak Music Power

1.8A

2.4A

3V to 13V 0V to 1V 1mS 1mS 200

1.2A

2330 - SCORPION OPERATOR MANUAL

REMOTE CONTROL

2330 Remote Control

Every function of the 2330 and Scorpion can be controlled by the 2330 infrared remote control.

The remote control requires 2 x AAA alkaline batteries. The reset button must be briefly pressed with a pointed object such as a pen whenever the batteries are replaced.

lights when the remote

LED Indicator

is transmitting a signal

Number buttons

for direct entry of

codes etc.

Volume control

Opens the

options menu

Reset

button

Tip:

Switches the system on and off

Pause or resume playback

Navigation buttons control movement around the screen

Select the currently highlighted control

Go back to the previous screen

Skip the currently playing song

In addition to using the remote control, the system can be switched on by pressing PAGE UP and SELECT touch pads simultaneously.

The system can also be switched off by pressing the SELECT touch pad twice in quick succession while holding your finger on the PAGE UP touch pad.

Note: Each of these functions can be disabled by setting administration items 711 and 712 to Disabled.

2330 - SCORPION OPERATOR MANUAL

PARTY MODE OPERATION

Scorpion Jukebox Software

Main Screen - Party Mode

This chapter explains operation of the user interface to Scorpion in party mode. See page 14 for coin mode operation.

Navigation around the program is carried out using the LEFT, RIGHT, UP, DOWN,

PAGE UP and PAGE DOWN touch pads to highlight a control and then using the SELECT touch pad to activate the selected control. If the system includes a touch

screen, it is controlled by simply touching the required control with your finger. On start-up, users are presented with the screen shown here. Users can choose their

songs from the jukebox categories or karaoke categories (if enabled). Some of these controls are able to be switched off in the administration section. The text at the bottom of the screen alternates between an operator configurable

screen message and the currently playing song and artist.

See page 32 to find out how to replace this logo with your own one.

Select this control to choose from the jukebox categories

2330 - SCORPION OPERATOR MANUAL

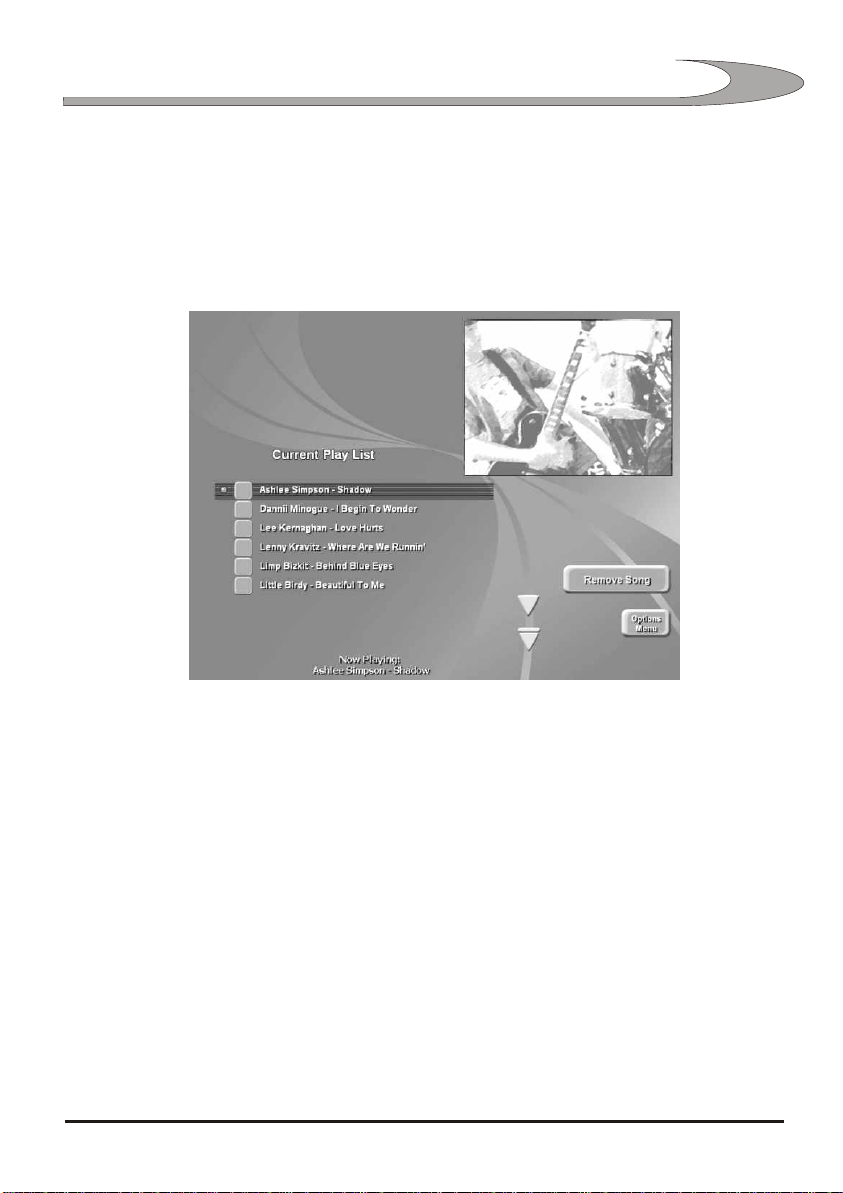

Takes you to the play list screen

Select this control to choose from the karaoke categories

Video preview window shows the currently playing video clip

If enabled, the options button allows access to some other options without using the remote control

1010

PARTY MODE OPERATION

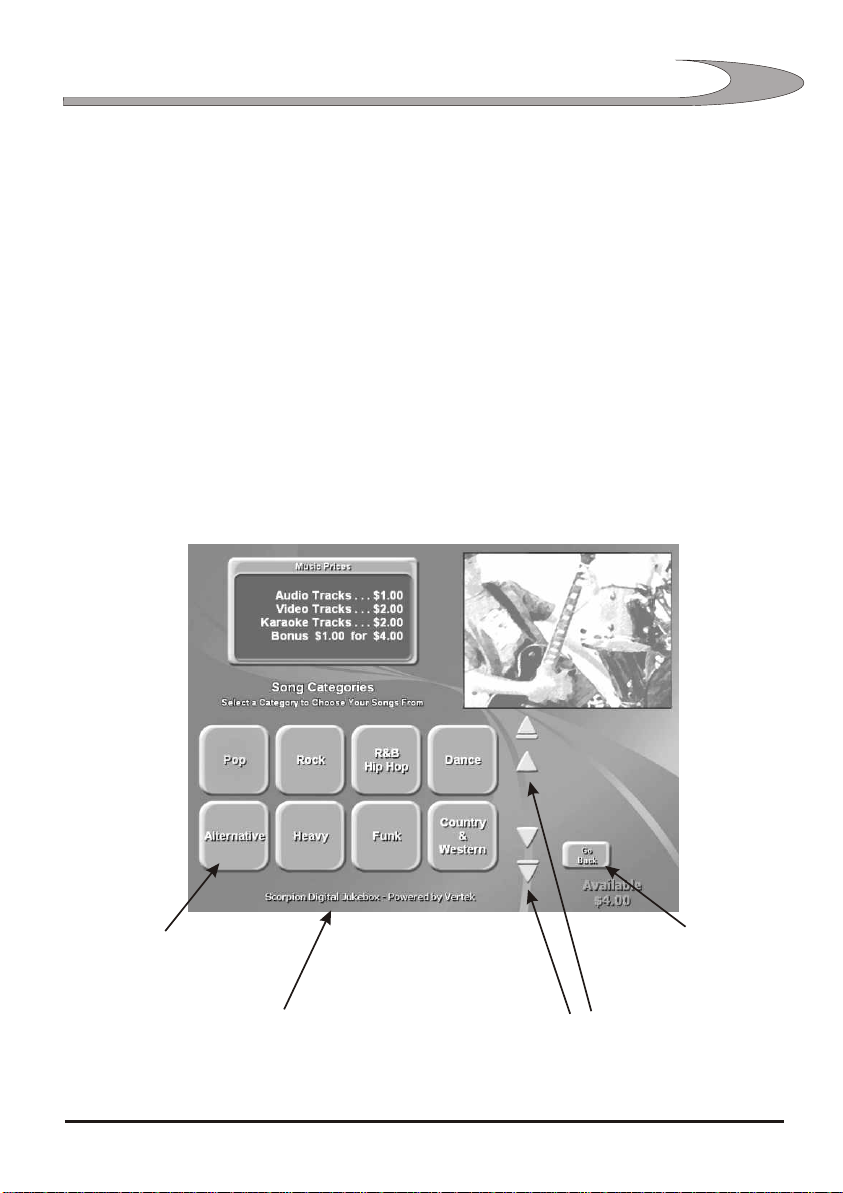

Category Screen - Party Mode

The category screen allows users to choose songs based on a category or decade eg. Pop, Rock, 80s, 90s etc.

The All Songs category is a master list of every song available. Most Popular is an automatically created category that shows the 40 most popular

songs on the jukebox. Latest Updates is a list of the songs most recently installed on the jukebox. Songs may appear in multiple categories. Categories can be switched on or off and the categories songs appear in can be

changed from Scorpions administration section.

This message can be changed in the administration area

Category selection controls

The Go Back control is only visible when using a touch screen

Page Up, Up, Down, Page Down controls for touch screen use

2330 - SCORPION OPERATOR MANUAL

PARTY MODE OPERATION

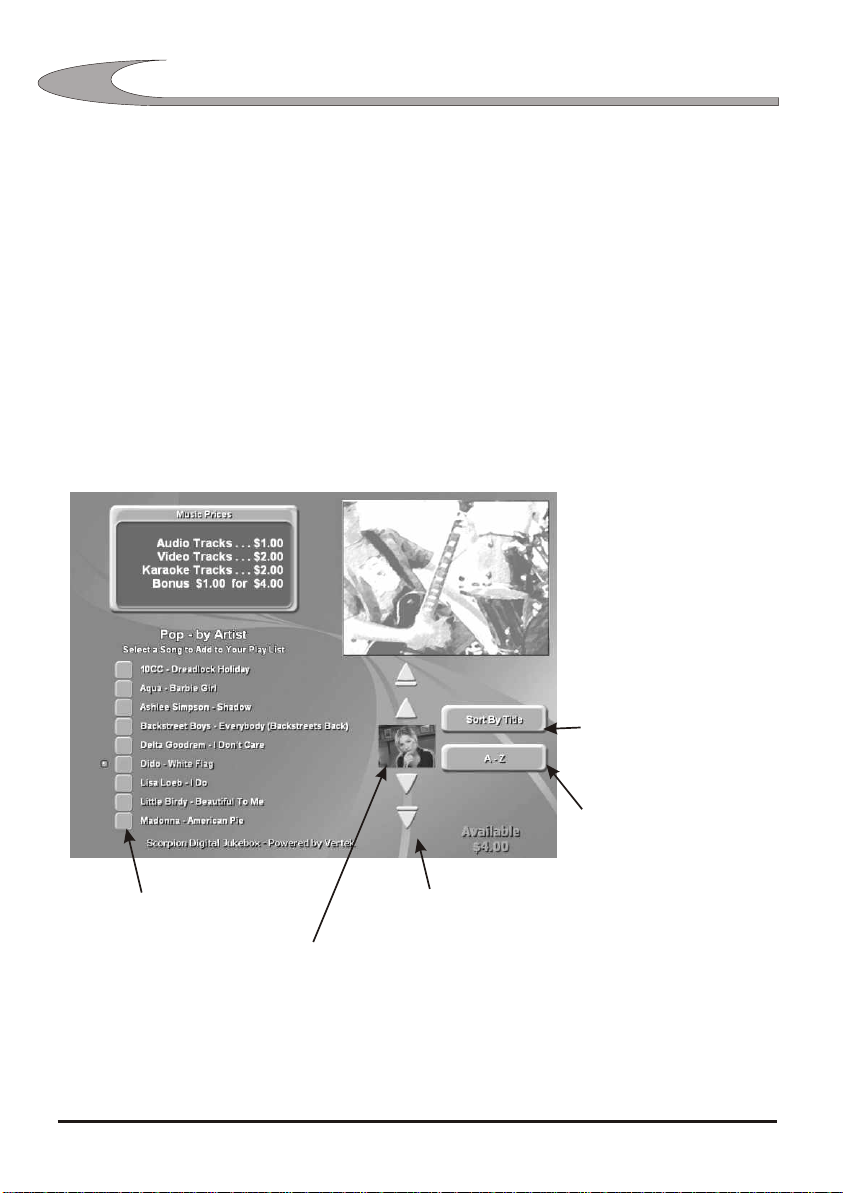

Song List Screen - Party Mode

The song list screen shows all the songs available in the currently selected category. This list can be sorted by artist or song title.

Songs are chosen by highlighting them and pressing SELECT or, if using a touch screen, by touching the song name or song graphic.

The user will be asked to confirm their selection if administration item 304-Require Confirmation Before Adding To Play List is set.

The Set Random control will prepare the random playback system for the category currently being viewed. If no songs are cued in the users play list, random playback will start immediately. If songs are cued, random playback will commence when the play list is empty.

Shows the last 7 songs added to the play list

1111

Select a song to add it to the play list

Sets the random playback system to this category

Change the method of song sorting between artist and title

Go to songs starting with a particular letter

Page Up, Up, Down, Page Down buttons for touch screen use

Song graphic for the highlighted song

2330 - SCORPION OPERATOR MANUAL

1212

PARTY MODE OPERATION

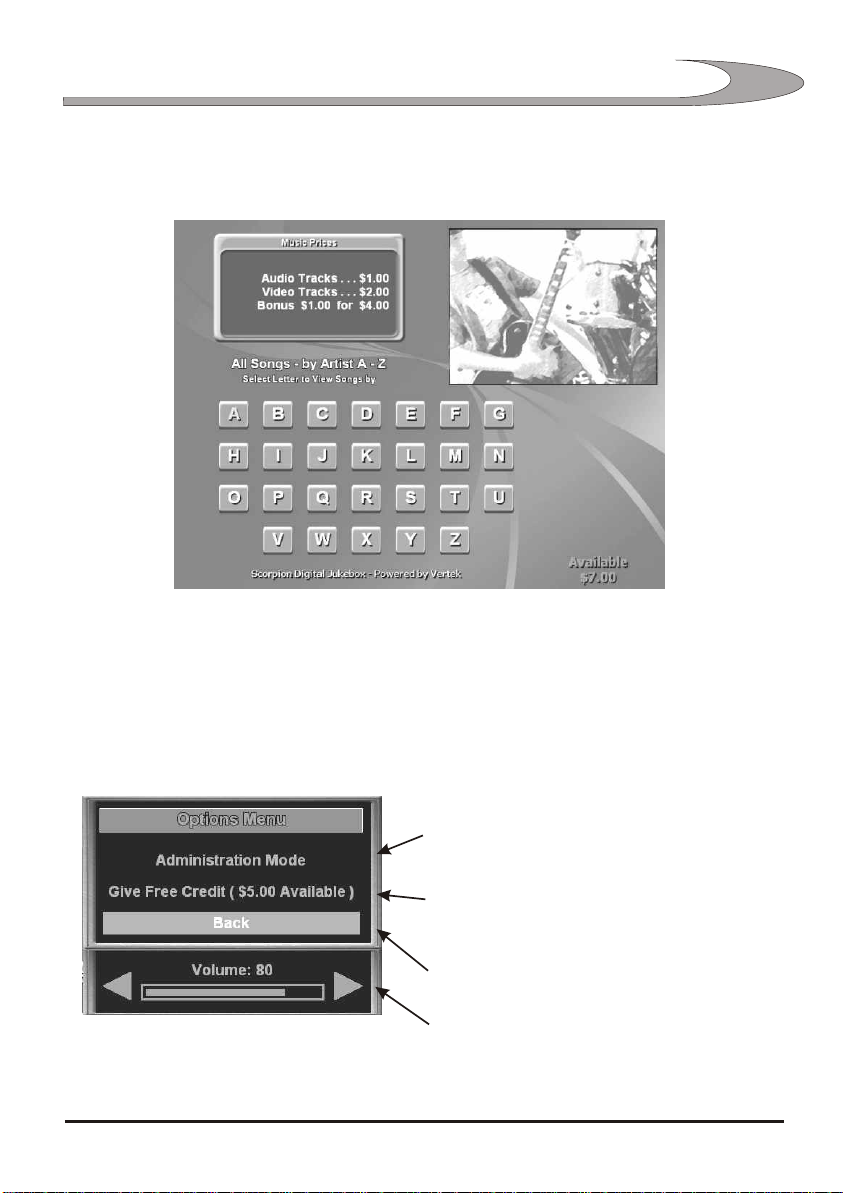

A to Z Screen - Party Mode

Options Menu - Party Mode

The options menu is opened by pressing the Menu button on the remote control. It can also be opened by selecting the Options Menu control if it is available.

Select this option to enter administration mode The user will then be asked for the administration access code

Selecting this option cancels random play mode

Clears all cued songs

Close the Options Menu

Adjust volume

2330 - SCORPION OPERATOR MANUAL
