Page 1
UUsseerr’’ss M
Maannuuaall
vv22..0
0
© October 2016
VERSITRON, Inc.
83 Albe Drive / Suite C
Newark, DE 19702
www.versitron.com
SG09108
9-Port 10/100/1000Base Switch
with (8) 1000Base SFP Slots
Page 2
2
PROPRIETARY DATA
All data in this manual is proprietary and may not be disclosed,
used or duplicated, for procurement or manufacturing purposes,
without prior written permission by VERSITRON.
VERSITRON LIFETIME WARRANTY
All VERSITRON products are covered by a Lifetime Warranty against defects in materials
and workmanship. This coverage is applicable to the original purchaser and is not
transferable.
We repair, or at our option, replace parts/products that, during normal usage and operation,
are proven to be defective during the time you own the products, provided that said
products and parts are still manufactured and/or available. Such repair/replacement is
subsequent to receipt of your product at our facility and our diagnostic evaluation and
review of the unit. Advance replacements are not provided as part of the warranty
coverage.
This warranty does not cover damage to products caused by misuse, mishandling, power
surges, accident, improper installation, neglect, alteration, improper maintenance, or other
causes which are not normal and customary applications of the products and for which they
were not intended. No other warranty is expressed or implied, and VERSITRON is not liable
for direct, indirect, incidental or consequential damages or losses.
In the unlikely event a warranty issue should arise, simply contact us at 302-894-0699 or 1800-537-2296 or via email at [email protected] to obtain a Return Material
Authorization (RMA) number, along with instructions for returning your product.
www.versitron.com SG09108
Page 3
3

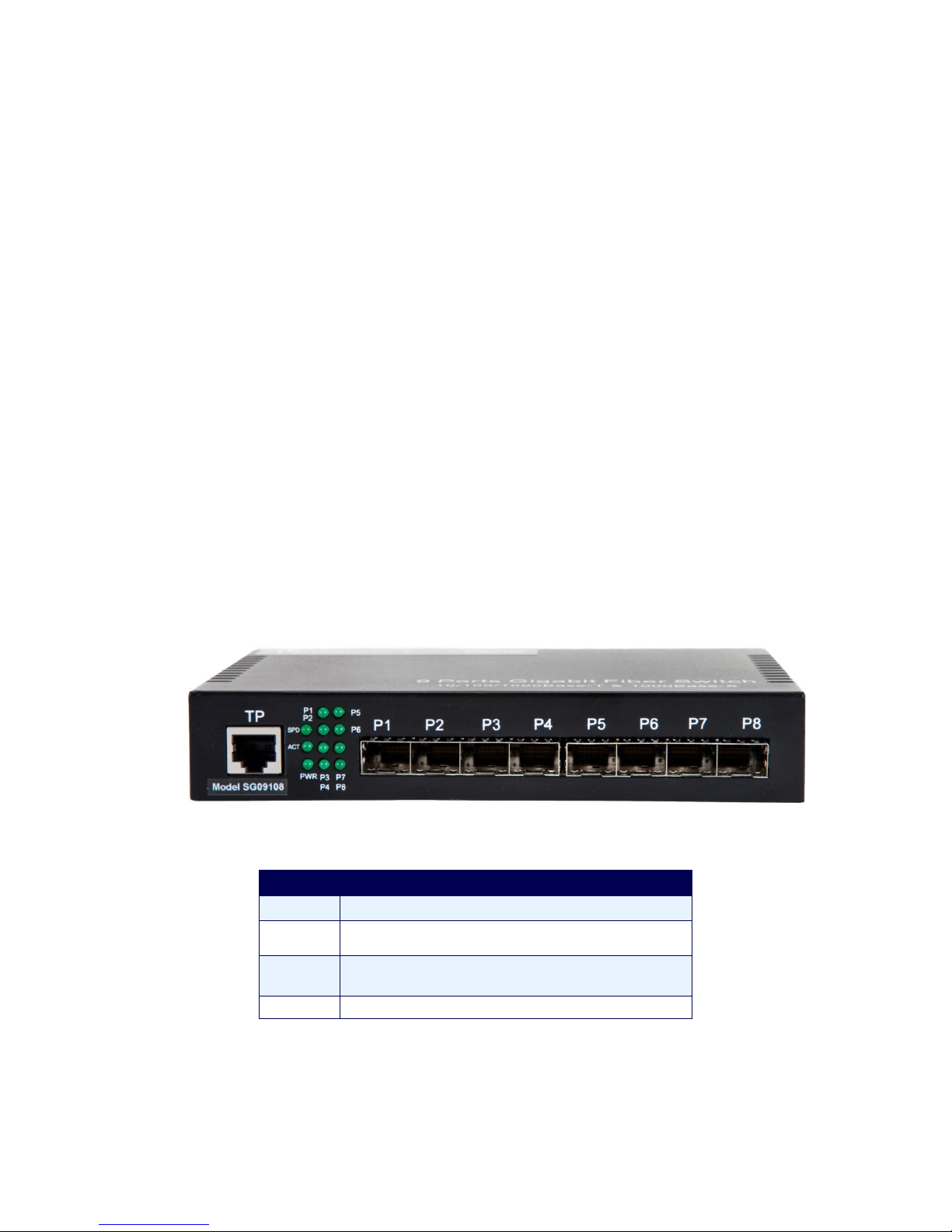

LED
Description
SPD
Lit when TP speed is 1000Mbps
ACT
Lit when TP connection is good
Blinks when TP data is transmitting
P1-8
Lit when SFP1-8 connection is good OR
when SFP1-8 data is transmitting
PWR
Lit when +5V power is applied
1．Overview
The SG09108 9-Port 10/100/1000Base Switch supports one 10/100/1000Base copper port
and eight 1000Base fiber optic SFP slots. The switch is designed with a switch controller and
buffer memory that allows the two media types to operate smoothly. The RJ-45 copper port
supports 10/100/1000Mbps and Half-Duplex or Full-Duplex modes, while the eight fiber
optic SFP slots support 1000Mbps and Full-Duplex only. With an external power unit, the
SG09108 provides excellent stability and reliability.
2. Checklist
Before installing the SG09108, verify that the package contains the following:
1. (1) SG09108 9-Port Switch.
2. (1) AC-DC Power Adapter.
3. This User’s Manual.
Please notify VERSITRON immediately if any of the aforementioned items are missing or
damaged.
3. LED Descriptions
www.versitron.com SG09108
Page 4
4
4. Installing the SG09108 Switch
1. Install a fiber optic SFP module into one of the SFP Slots.
2. Connect the fiber optic cable from the SFP module on the SG09108 to the fiber network.
NOTE: Confirm that the fibers are connected Transmitter to Receiver.
3. Connect a UTP cable from the TP network device to the RJ-45 port on the SG09108.
4. Connect the power adapter to the SG09108 and check that the Power LED lights up.
The TP Act and SFP LEDs will light when all cable connections are correct.
5. Technical Specifications
Standards: IEEE 802.3z/AB 10/1001000Base-T
1000Base-SX/LX/ZX
UTP Cable: Cat.5e or Cat.6 cable up to 100m
Fiber Cable: 1000SX: 50/125, 62.5/125µm multi-mode
1000LX/ZX: 8/125, 9/125µm single-mode
Data Transfer Rate: RJ-45 port: 10M, 100M, 1000Mbps
SFP: 1000Mbps
LED Indicators: P1, P2, P3, P4, P5, P6, P7, P8, SPD, ACT, PWR
Duplex Modes: RJ-45 port: Half/Full-Duplex auto-negotiation
SFP: Full-Duplex mode
Power Requirements: Input: 100 ~ 240VAC, 50/60Hz, Output: 5VDC, 2A
Ambient Temperature: 0 ~ 50℃
Humidity: 5% ~ 90%
Dimensions: 1.18 x 6.77 x 4.33 inches （H×W×D）
www.versitron.com SG09108
Page 5
5
6. Available Fiber Optic SFP Modules
Model
Speed
(Mbps)
Wavelength
Media
Distance
Connector
TX Power
RX Sens
Temp
GBMM
1000
850nm
MMF
62.5µ: 220m
50µ: 550m
LC
-9.5 ~ -4
< -18
0 to 70° C
GB2MM
1000
1310nm
MMF
2km
LC
-9 ~ -1
< -19
0 to 70° C
GB10SM
1000
1310nm
MMF / SMF
MM 62.5µ: 220m
MM 50µ: 550m
SM 9µ: 10km
LC
-9.5 ~ -3
< -20
0 to 70° C
GB20SM
1000
1310nm
SMF
20km
LC
-4 ~ +1
< -24
0 to 70° C
GB40SM
1000
1550nm
SMF
40km
LC
-4 ~ +1
< -24
0 to 70° C
GB70SM
1000
1550nm
SMF
70km
LC
0 ~ +5
< -24
0 to 70° C
GB100SM
1000
1550nm
SMF
100km
LC
0 ~ +5
< -30
0 to 70° C
GB10SFA
1000
Tx: 1310nm
Rx: 1550nm
SMF
10km
LC
-3 ~ -9
< -21
0 to 70° C
GB10SFB
1000
Tx: 1550nm
Rx: 1310nm
SMF
10km
LC
-3 ~ -9
< -21
0 to 70° C
GB20SFA
1000
Tx: 1310nm
Rx: 1550nm
SMF
20km
LC
-3 ~ -8
< -23
0 to 70° C
GB20SFB
1000
Tx: 1550nm
Rx: 1310nm
SMF
20km
LC
-3 ~ -8
< -23
0 to 70° C
GB40SFA
1000
Tx: 1310nm
Rx: 1550nm
SMF
40km
LC
-3 ~ +2
< -23
0 to 70° C
GB40SFB
1000
Tx: 1550nm
Rx: 1310nm
SMF
40km
LC
-3 ~ +2
< -23
0 to 70° C
GB60SFA
1000
Tx: 1310nm
Rx: 1550nm
SMF
60km
LC
0 ~ +5
< -24
0 to 70° C
GB60SFB
1000
Tx: 1550nm
Rx: 1310nm
SMF
60km
LC
-2 ~ +4
< -25
0 to 70° C
GB80SFA
1000
Tx: 1310nm
Rx: 1550nm
SMF
80km
LC
-2 ~ +3
< -26
0 to 70° C
GB80SFB
1000
Tx: 1550nm
Rx: 1310nm
SMF
80km
LC
-2 ~ +3
< -26
0 to 70° C
www.versitron.com SG09108
