VERSATEK vx-ap1npro User Manual

11n Wireless

Access Point

User's Guide

TABLE OF CONTENTS

CHAPTER 1 INTRODUCTION.............................................................................................. 1

Features of your Wireless Access Point ........................................................................... 1

Package Contents .............................................................................................................. 3

Physical Details..................................................................................................................4

CHAPTER 2 INSTALLATION............................................................................................... 6

Requirements..................................................................................................................... 6

Procedure ........................................................................................................................... 6

CHAPTER 3 ACCESS POINT SETUP ..................................................................................8

Overview ............................................................................................................................ 8

Setup using the Windows Utility ...................................................................................... 8

Setup using a Web Browser............................................................................................11

System Basic Settings Screen.......................................................................................... 13

System Advanced Settings Screen.................................................................................. 15

Wireless Screens .............................................................................................................. 17

Basic Screen ..................................................................................................................... 17

Virtual AP Settings..........................................................................................................20

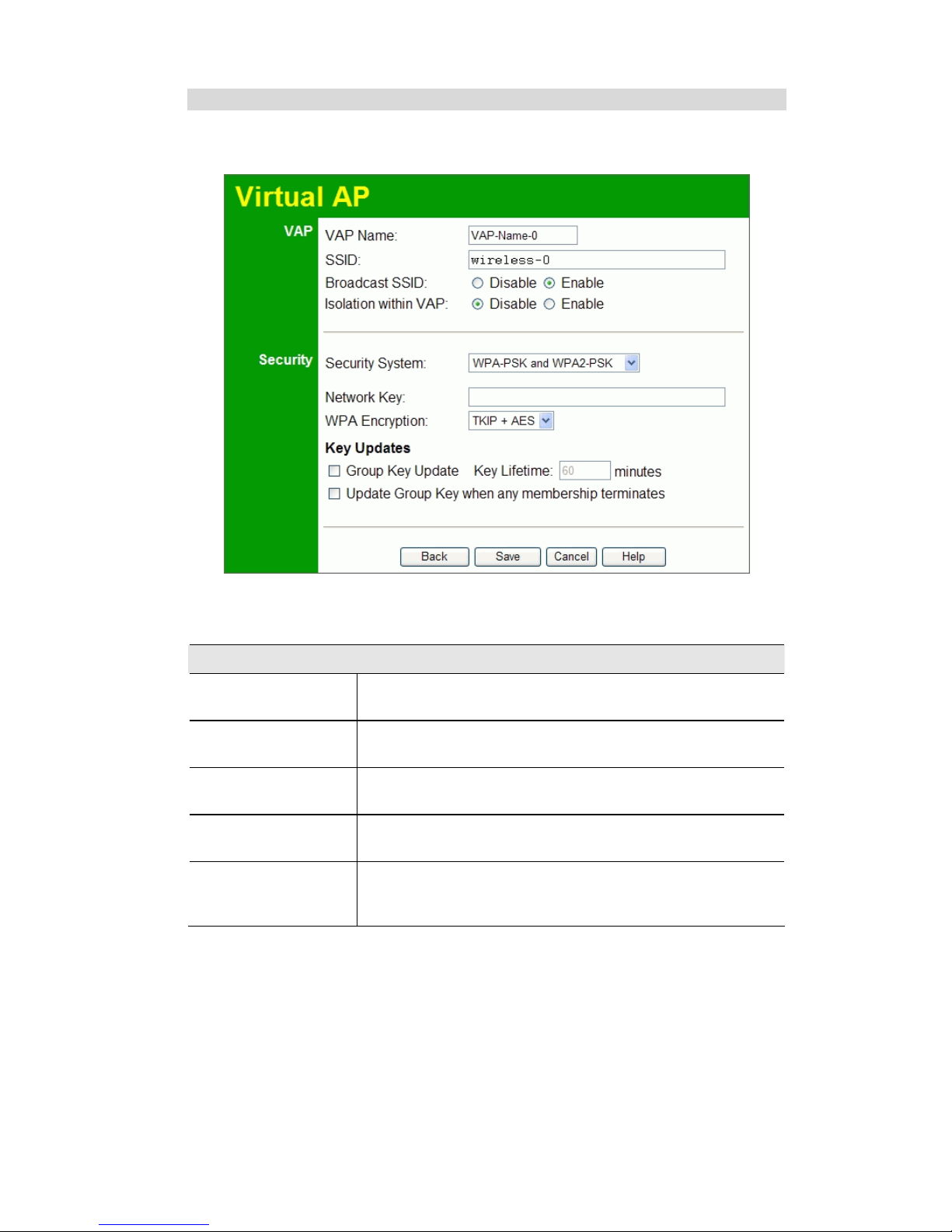

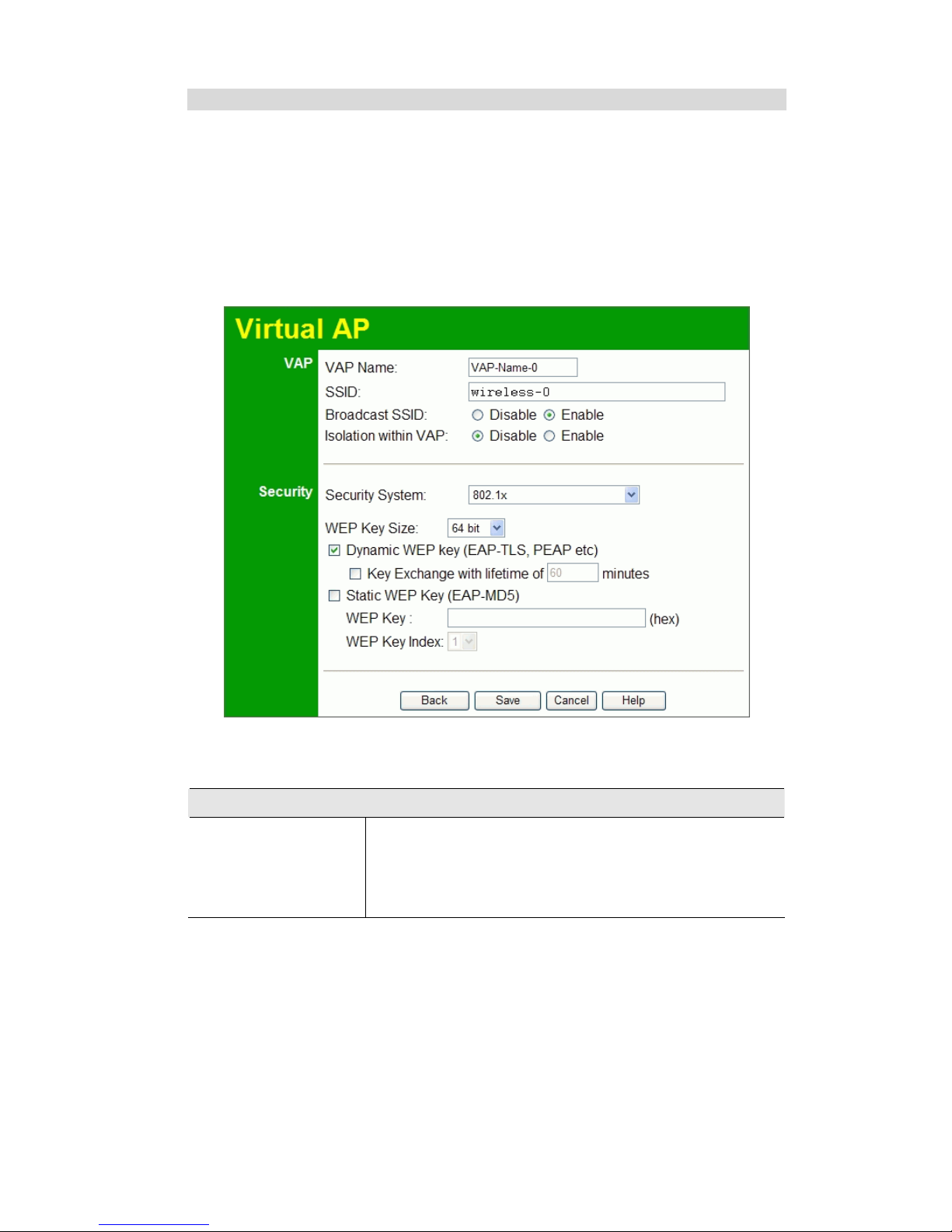

Virtual AP Screen............................................................................................................21

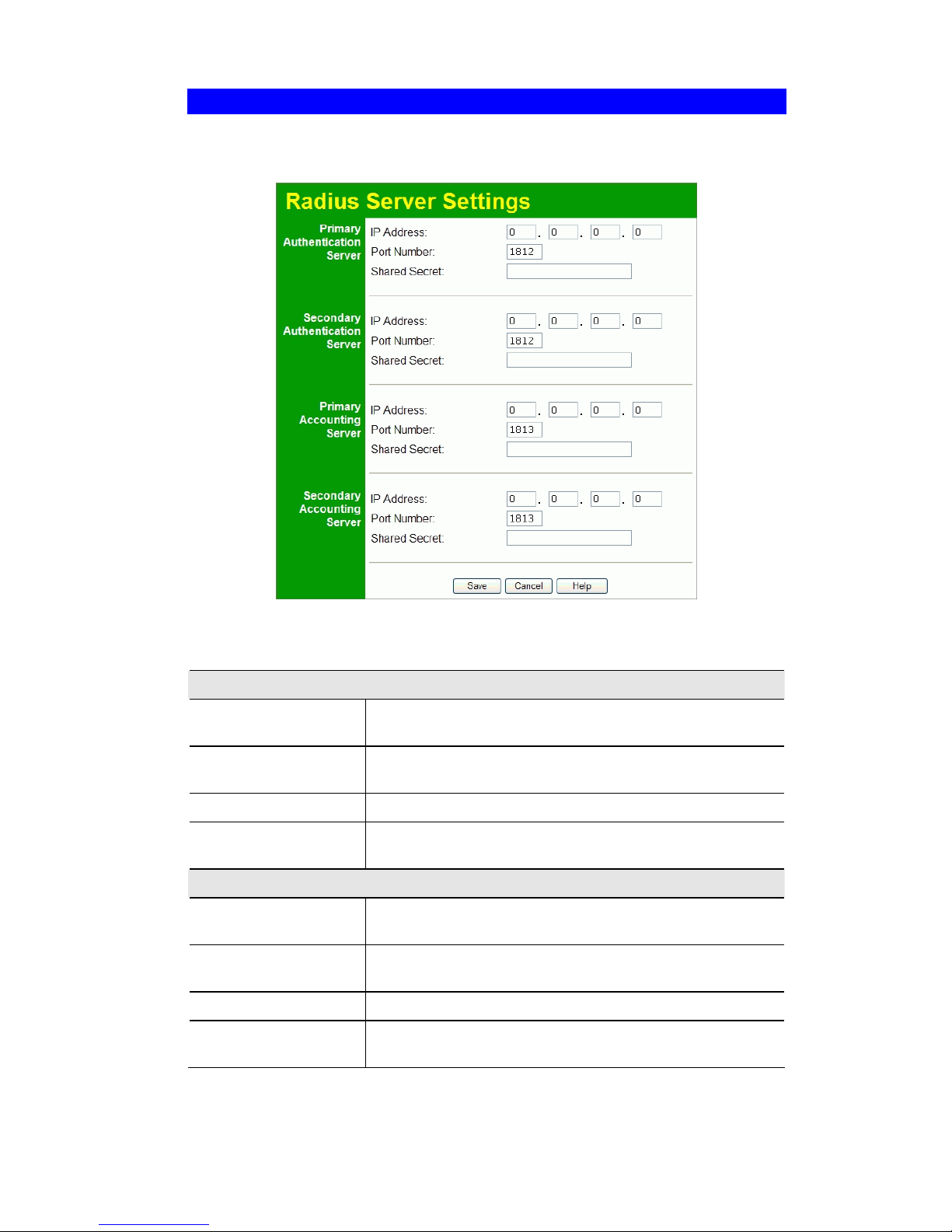

Radius Server Settings .................................................................................................... 33

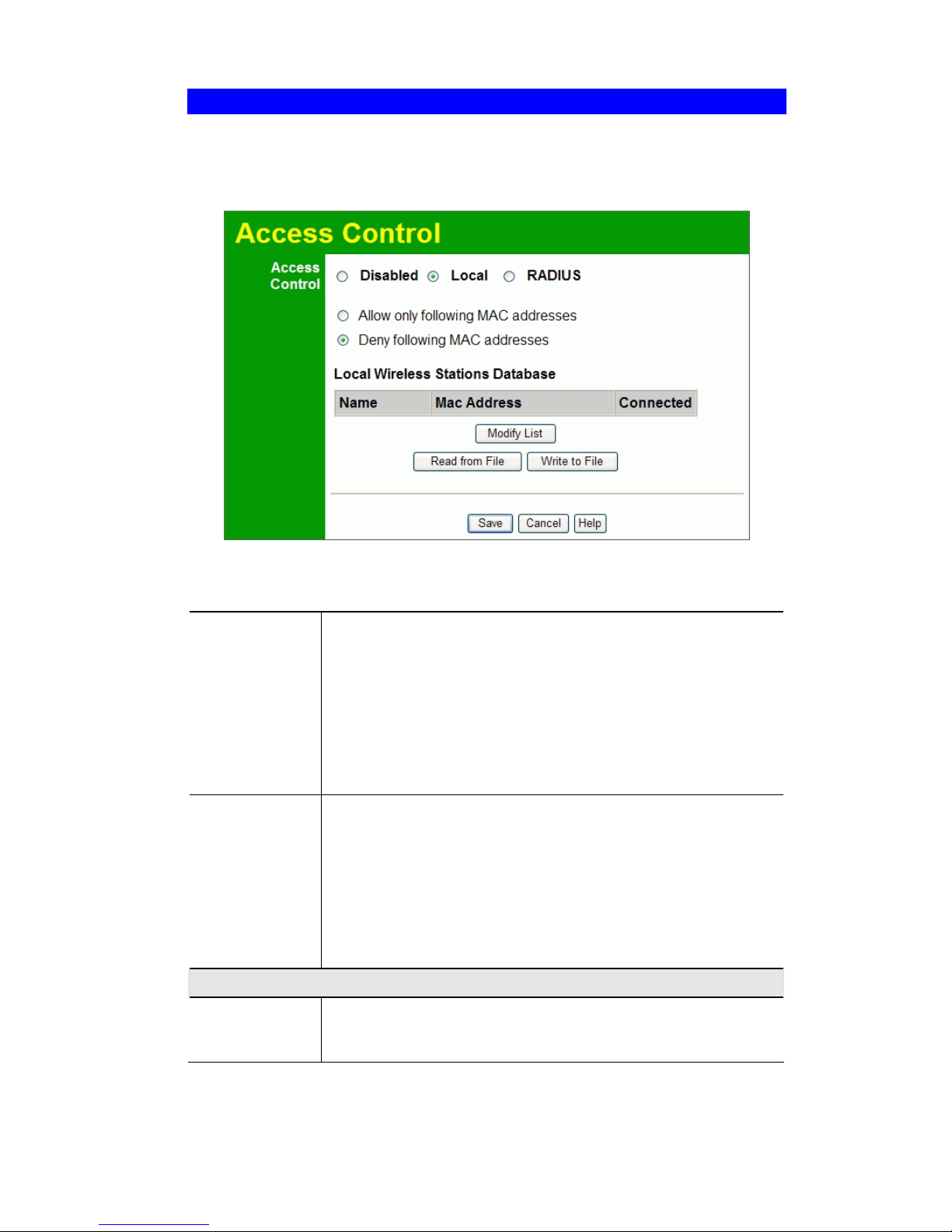

Access Control .................................................................................................................34

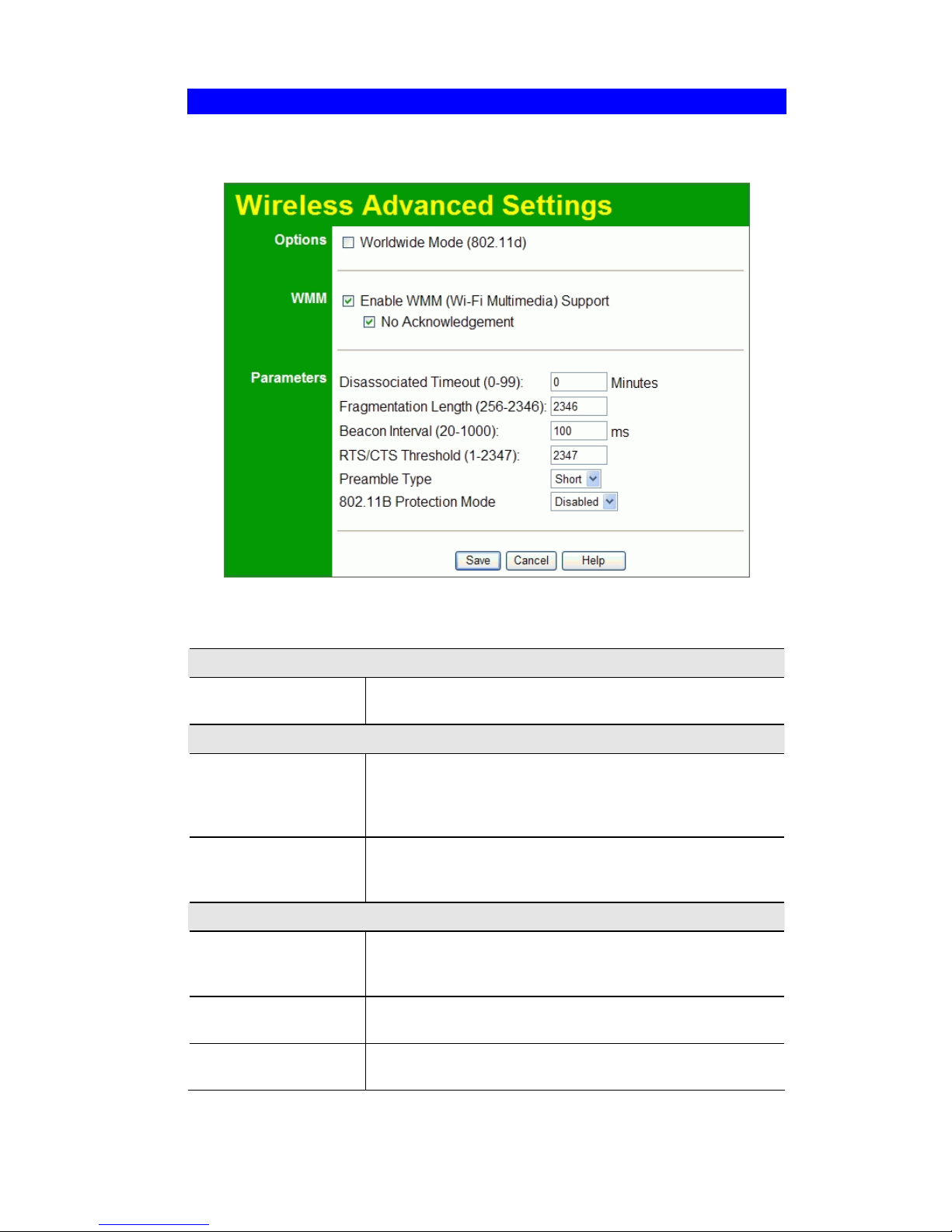

Advanced Settings ...........................................................................................................37

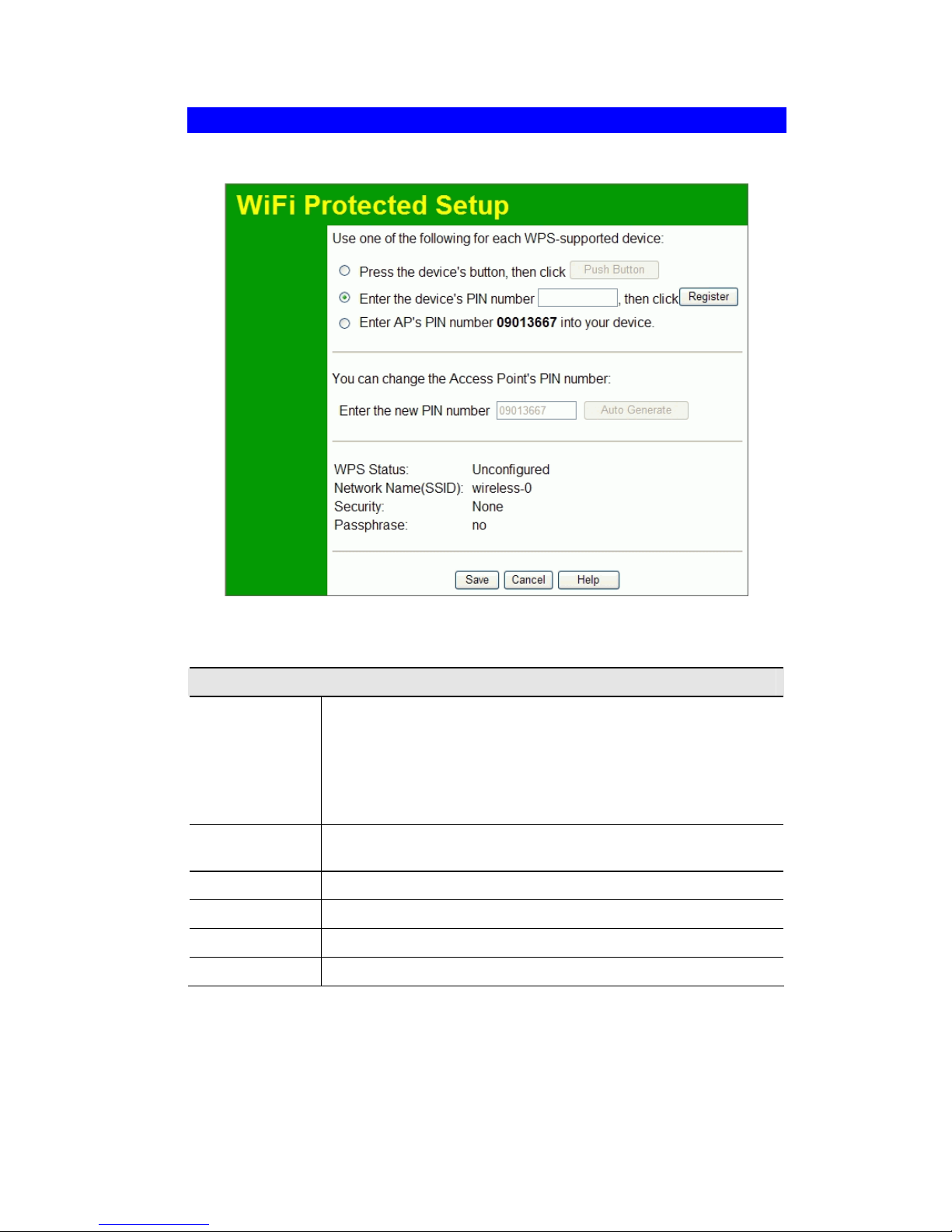

Wi-Fi Protected Setup..................................................................................................... 39

CHAPTER 4 PC AND SERVER CONFIGURATION........................................................ 40

Overview .......................................................................................................................... 40

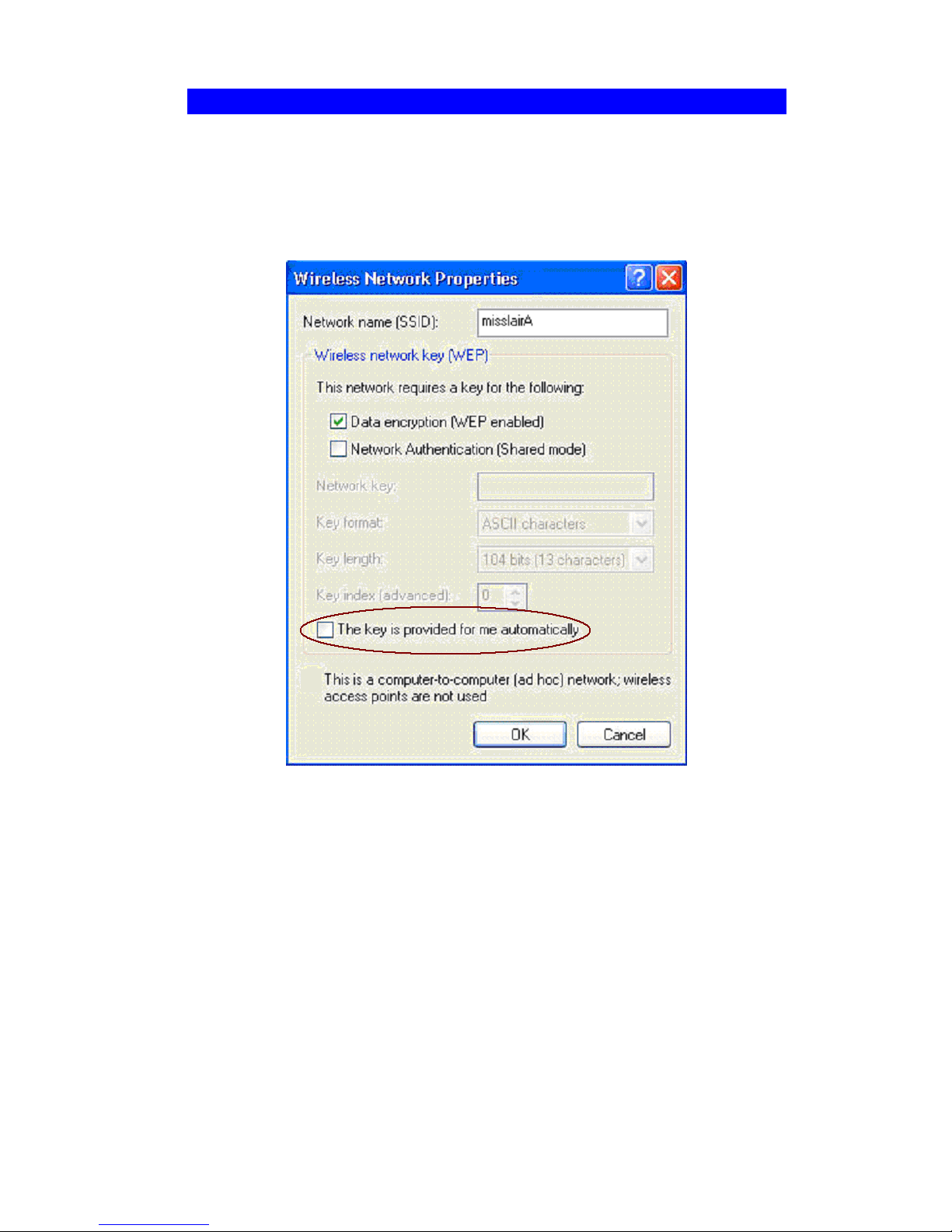

Using WEP....................................................................................................................... 40

Using WPA-PSK/WPA2-PSK ........................................................................................ 41

Using WPA-Enterprise.................................................................................................... 42

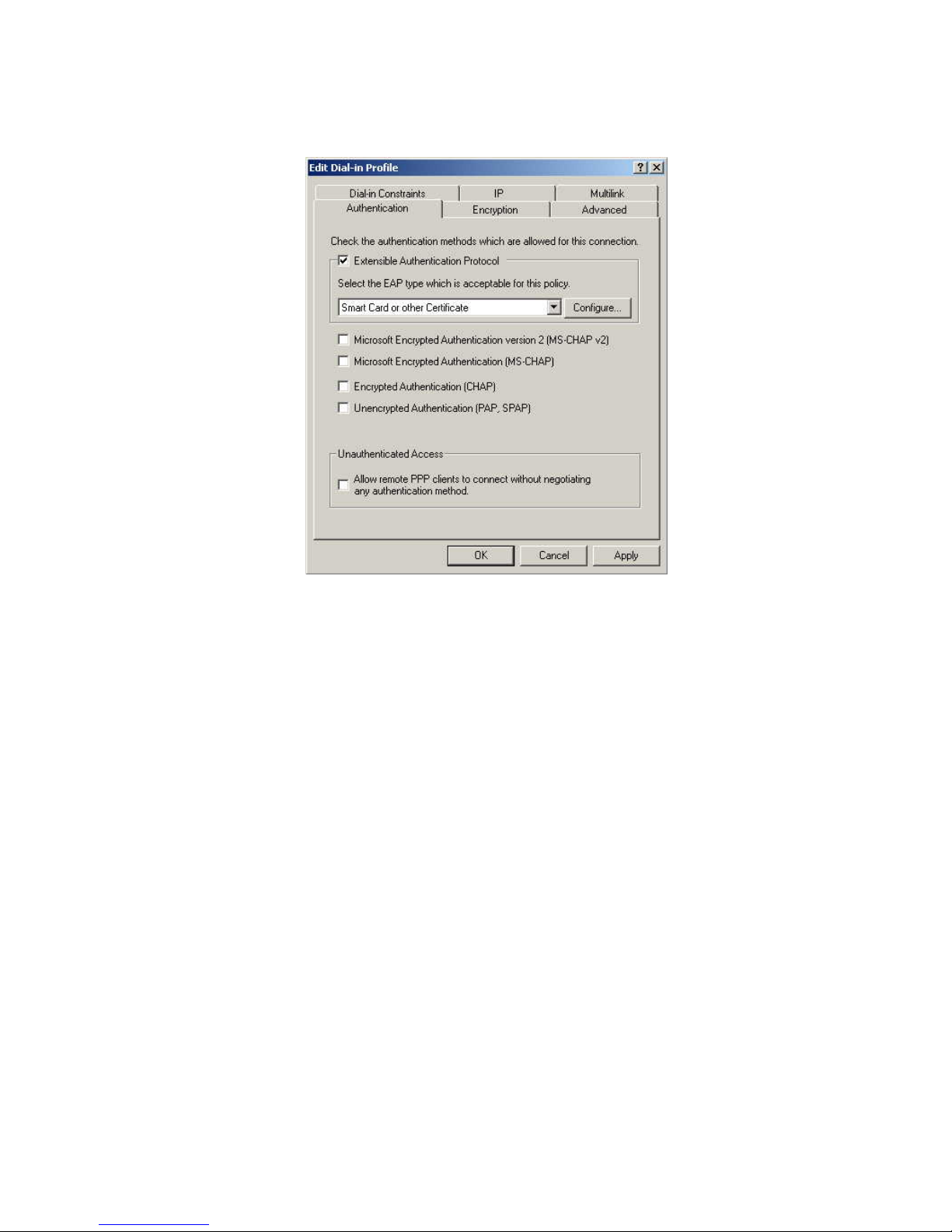

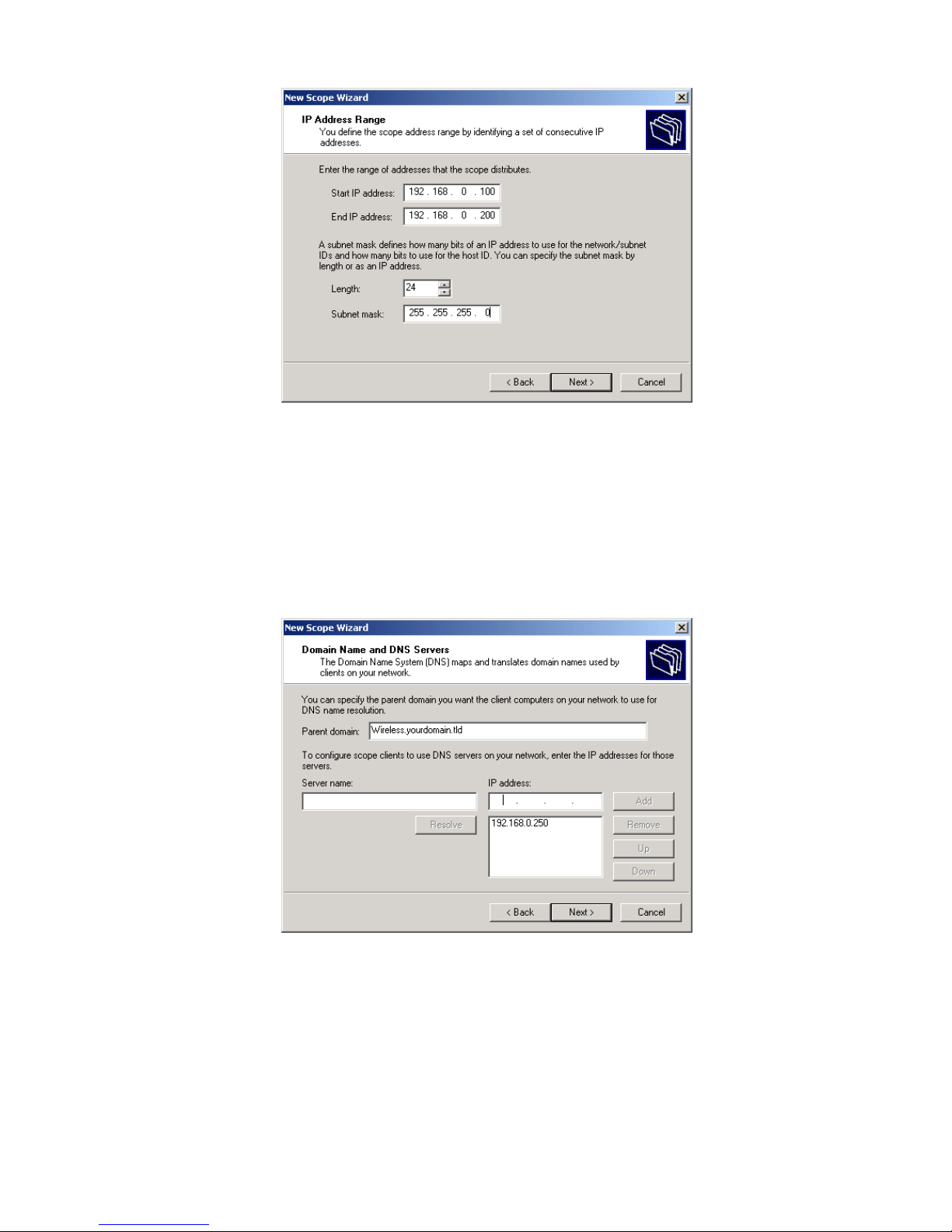

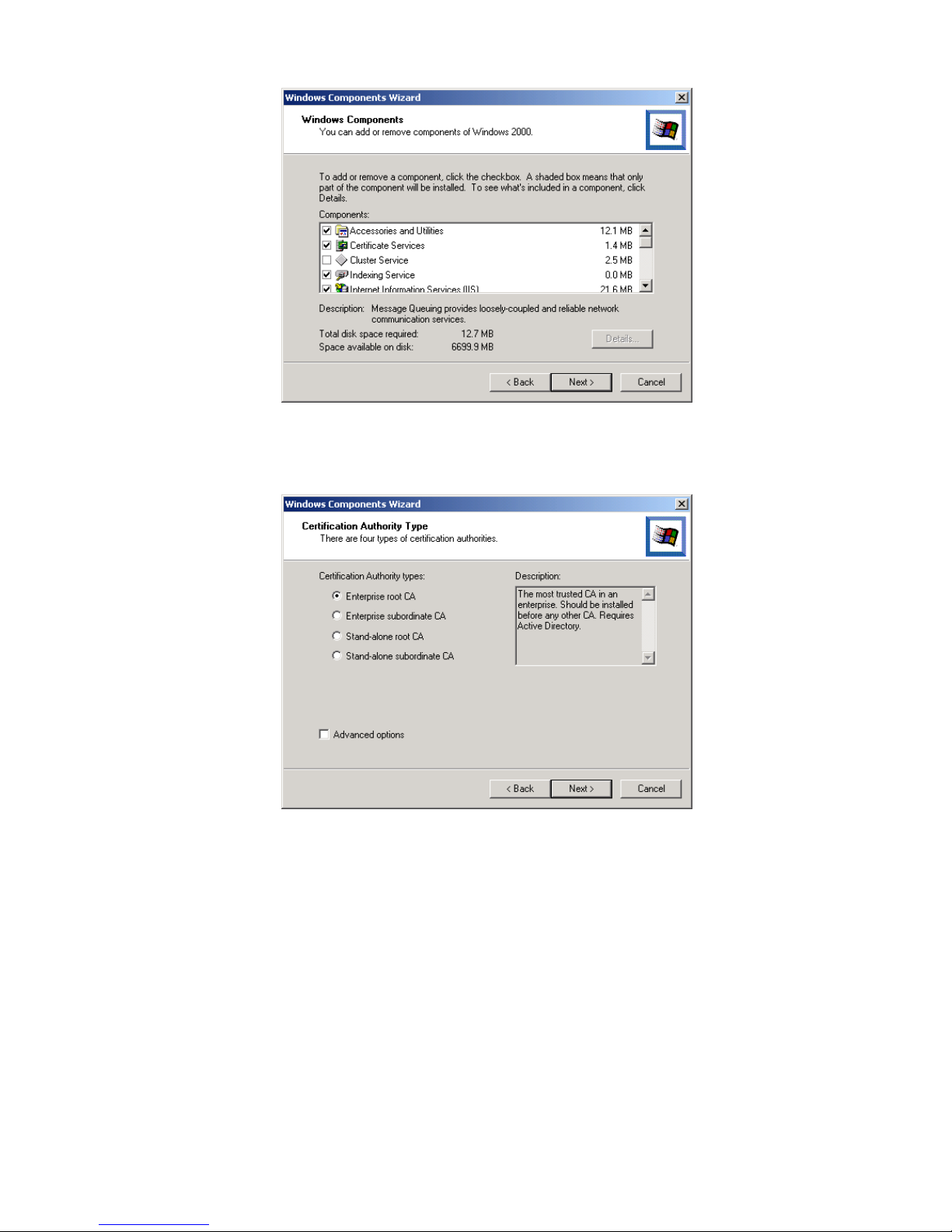

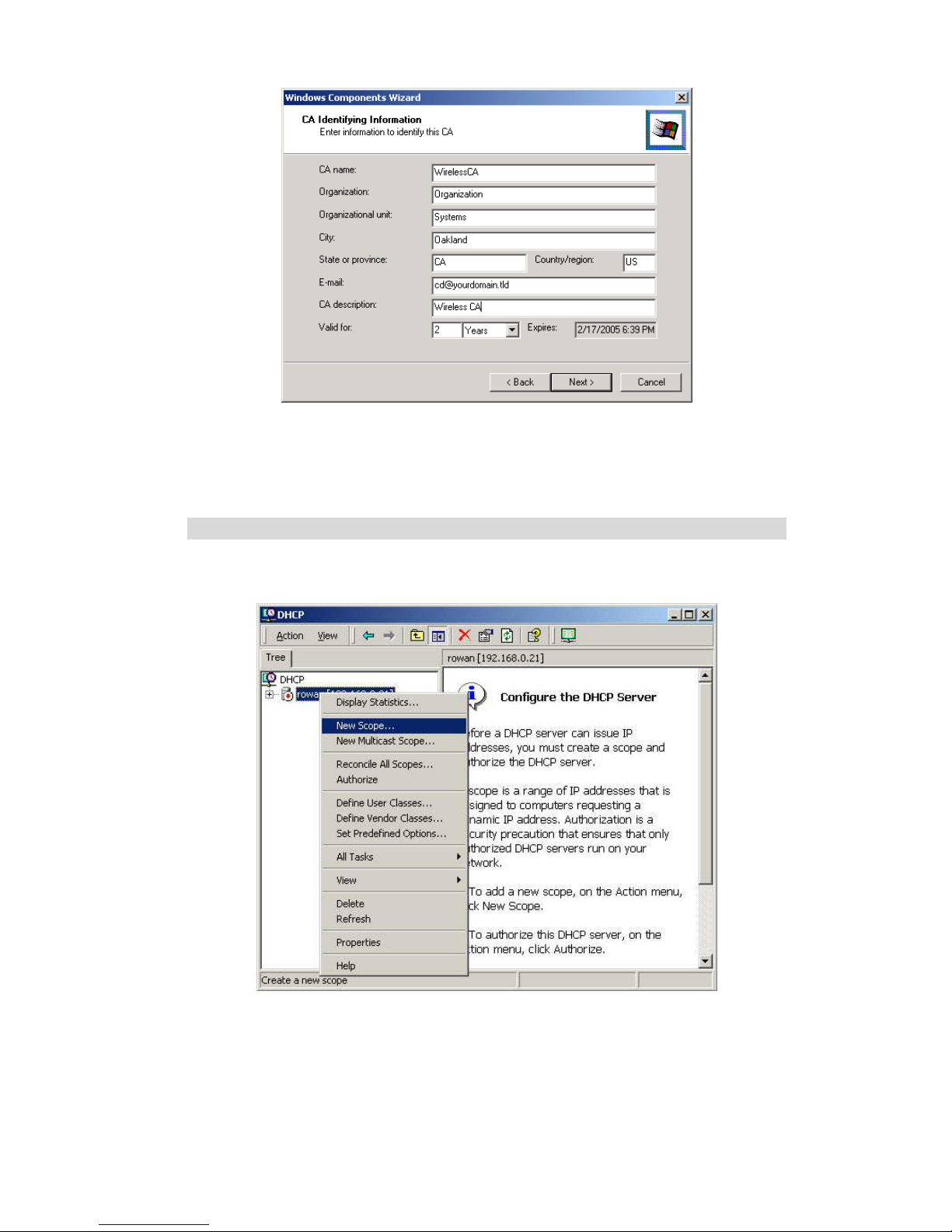

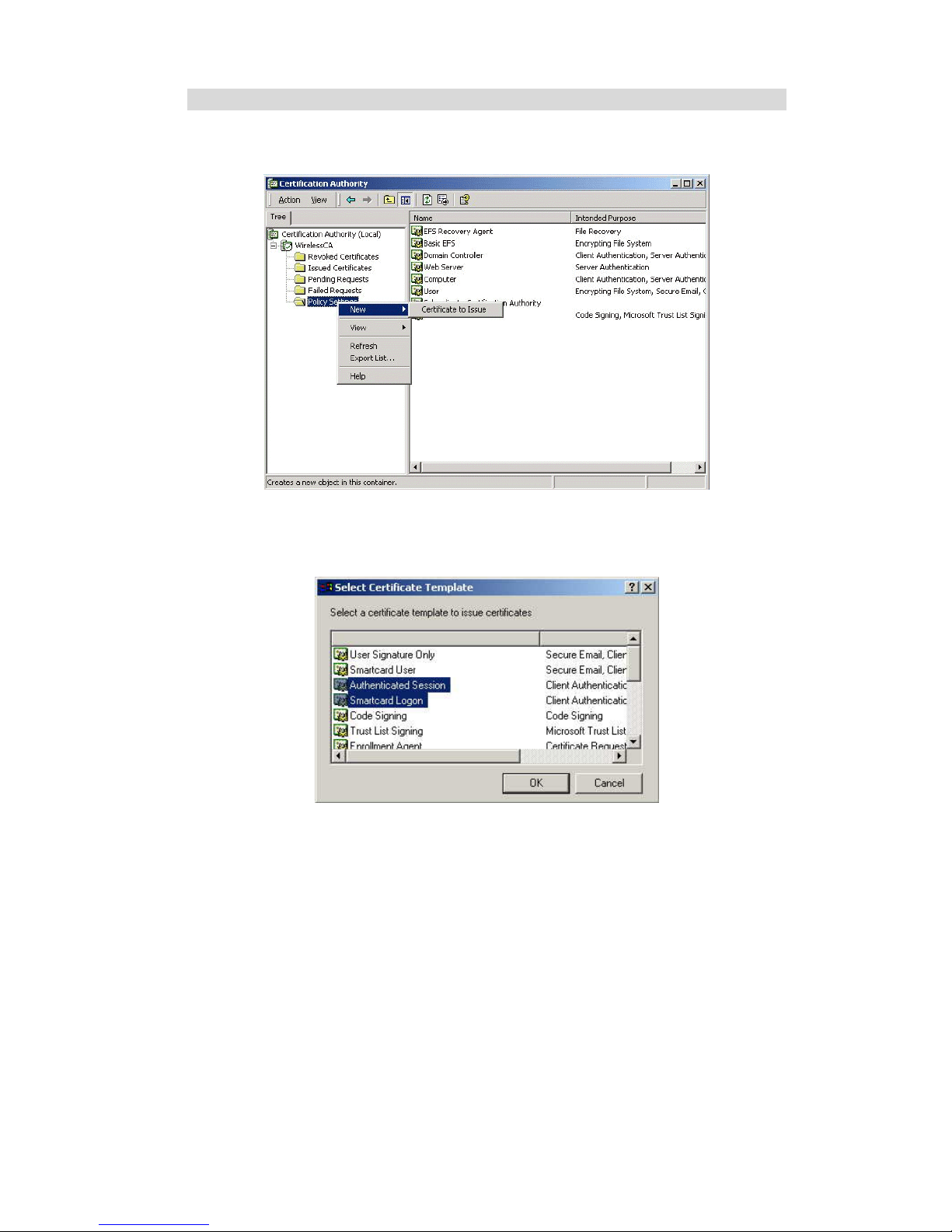

802.1x Server Setup (Windows 2000 Server) ................................................................ 43

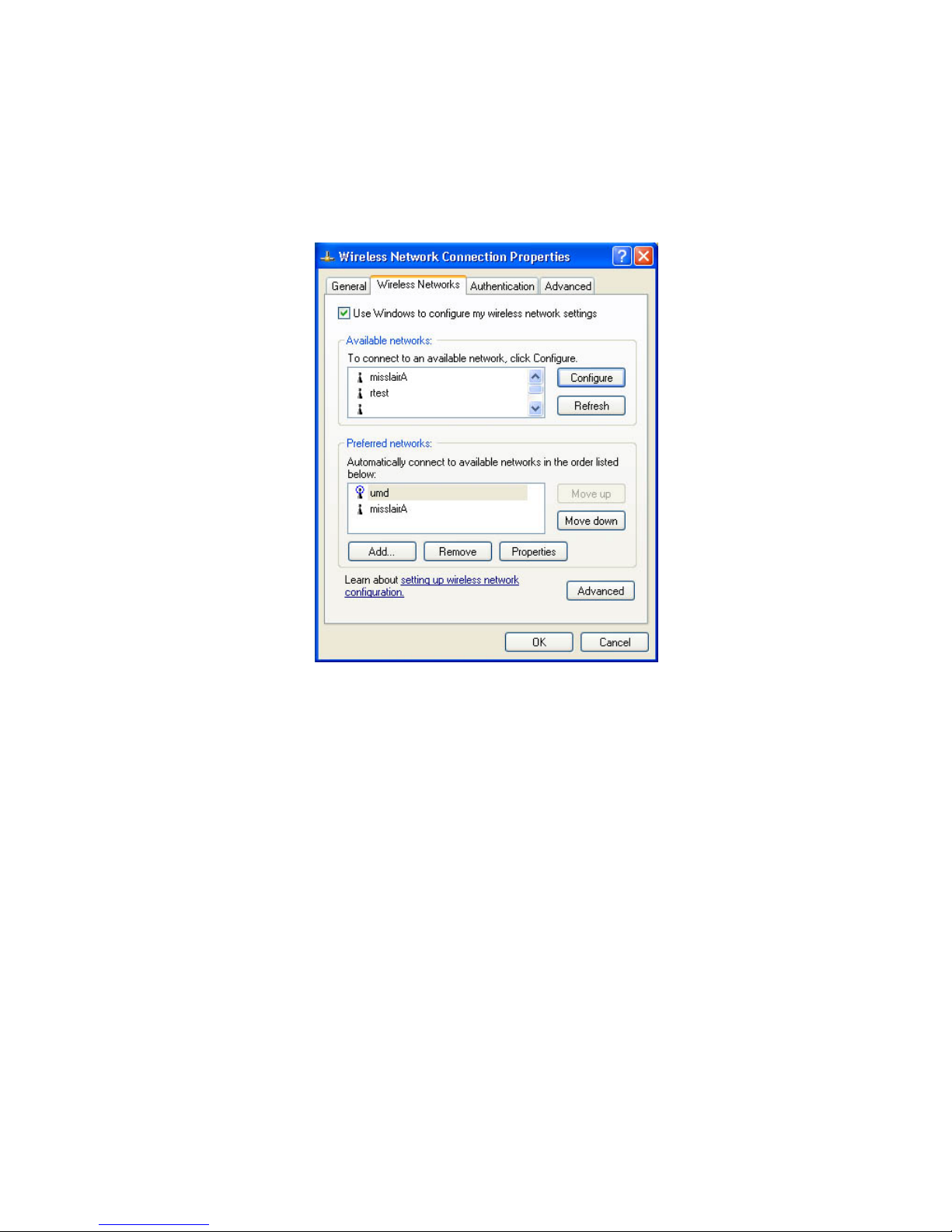

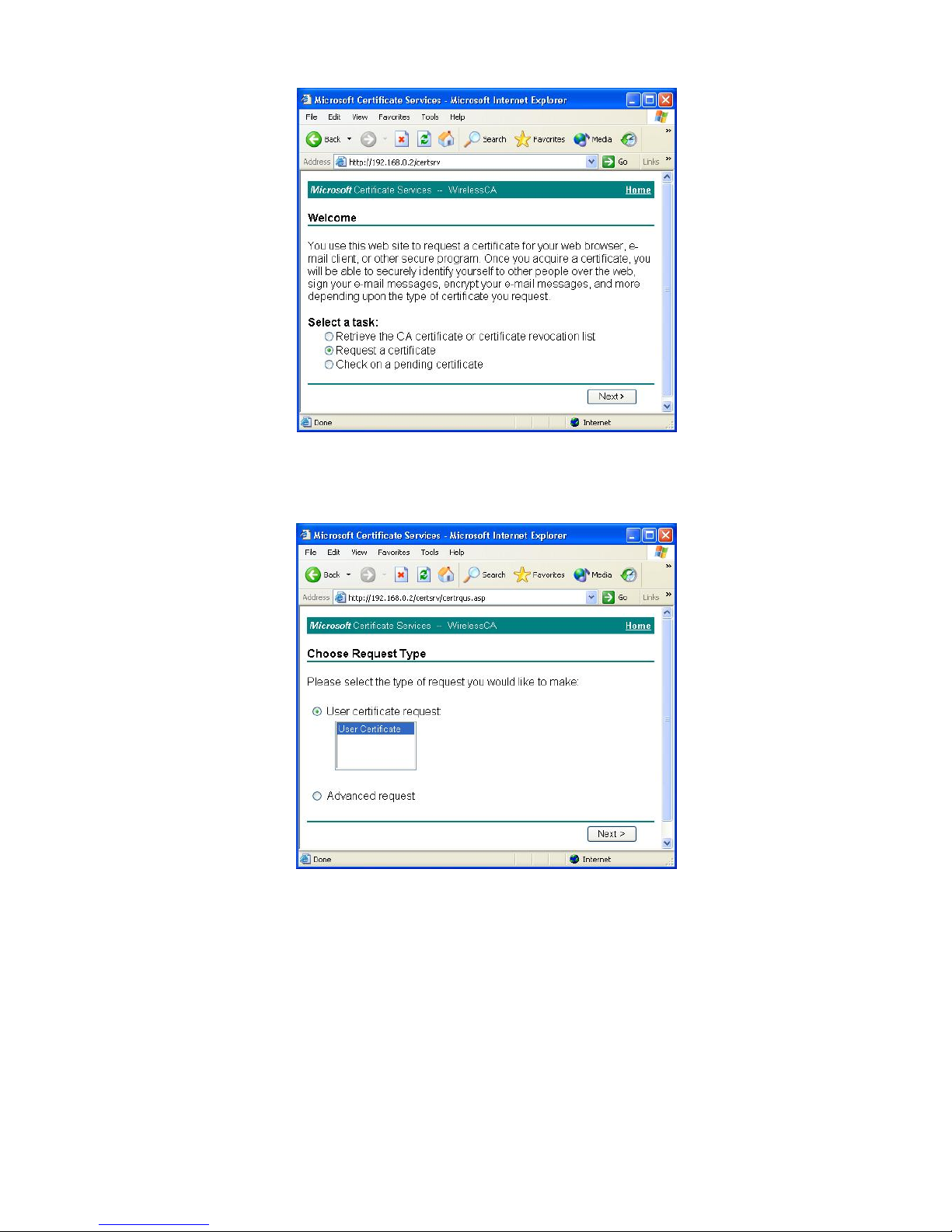

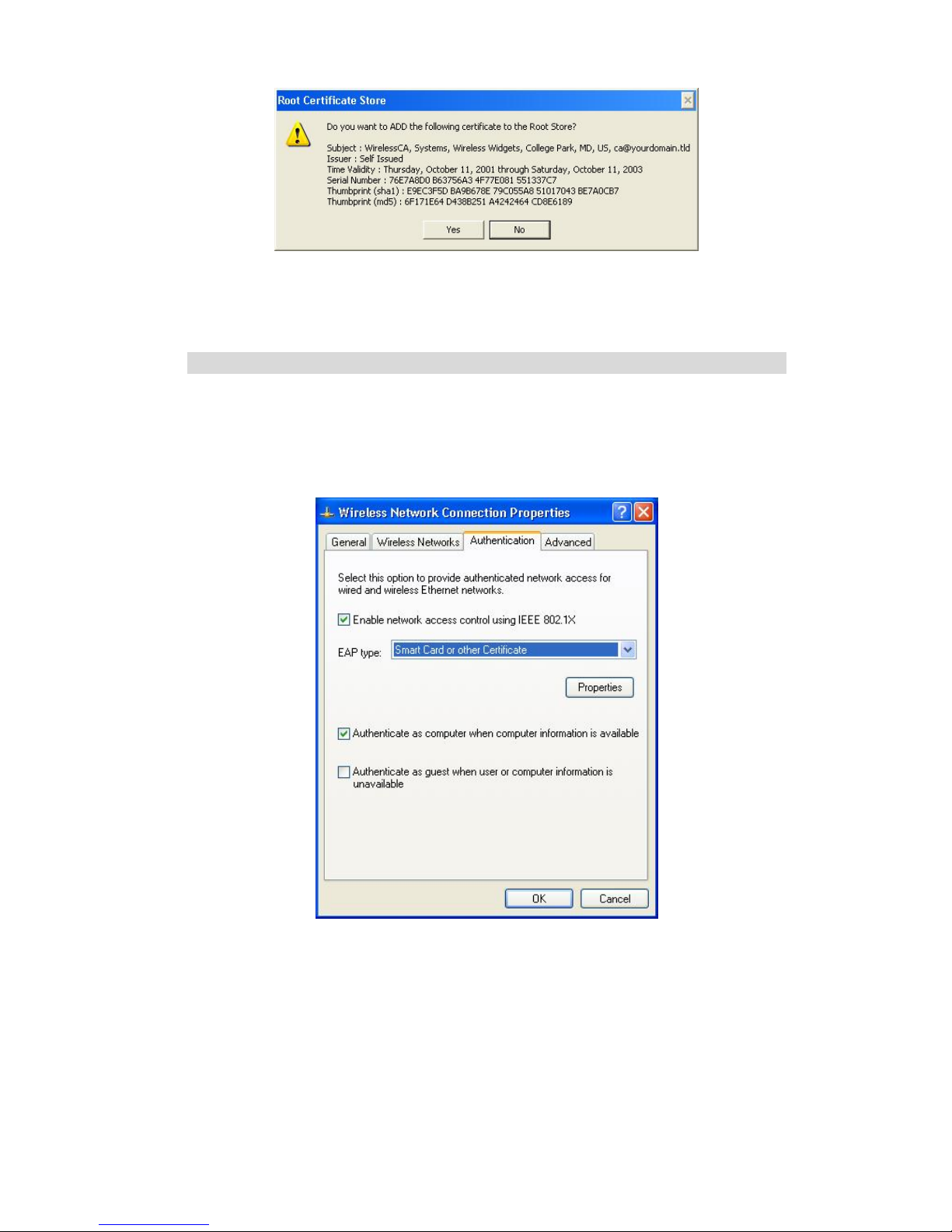

802.1x Client Setup on Windows XP ............................................................................. 53

Using 802.1x Mode (without WPA) ............................................................................... 59

CHAPTER 5 OPERATION AND STATUS ......................................................................... 60

Operation ......................................................................................................................... 60

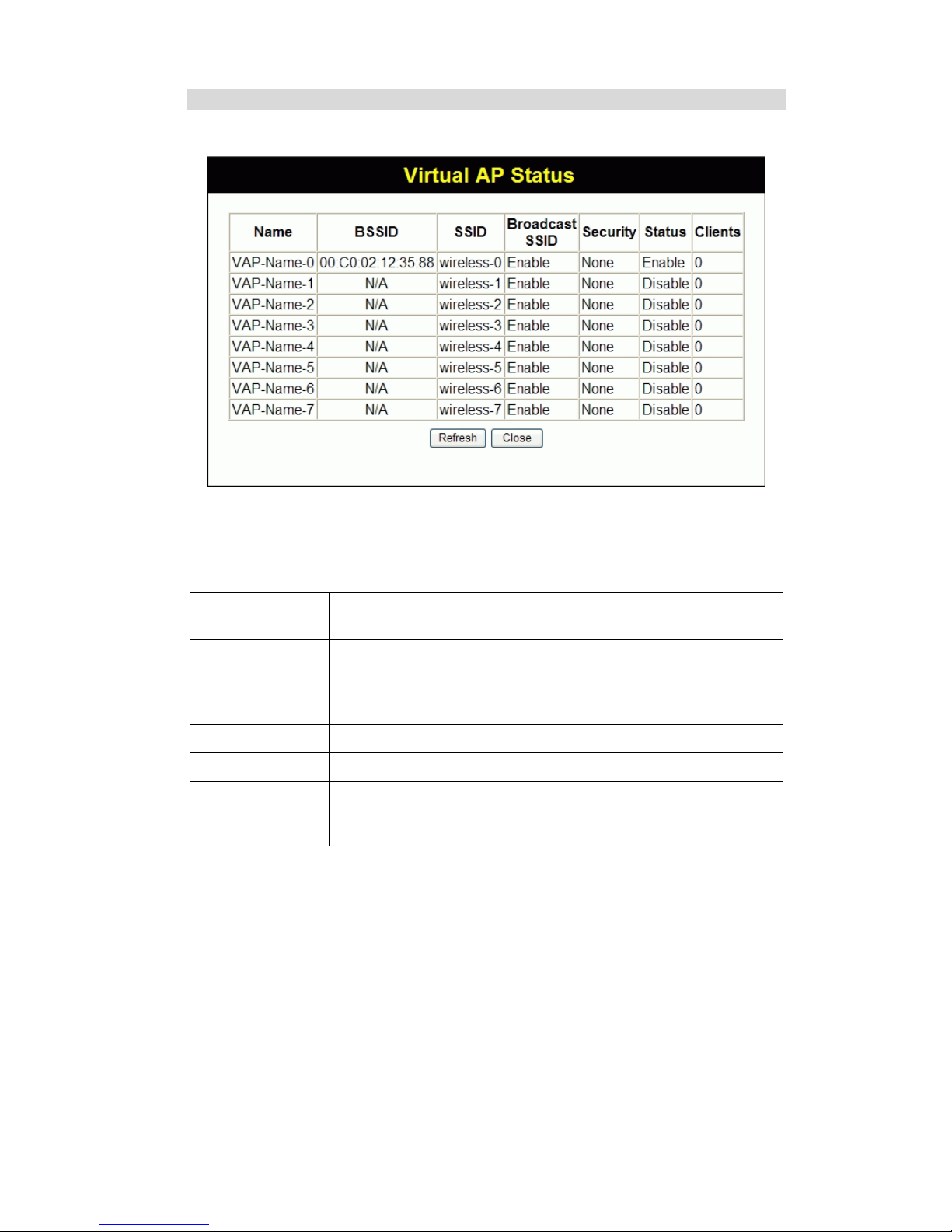

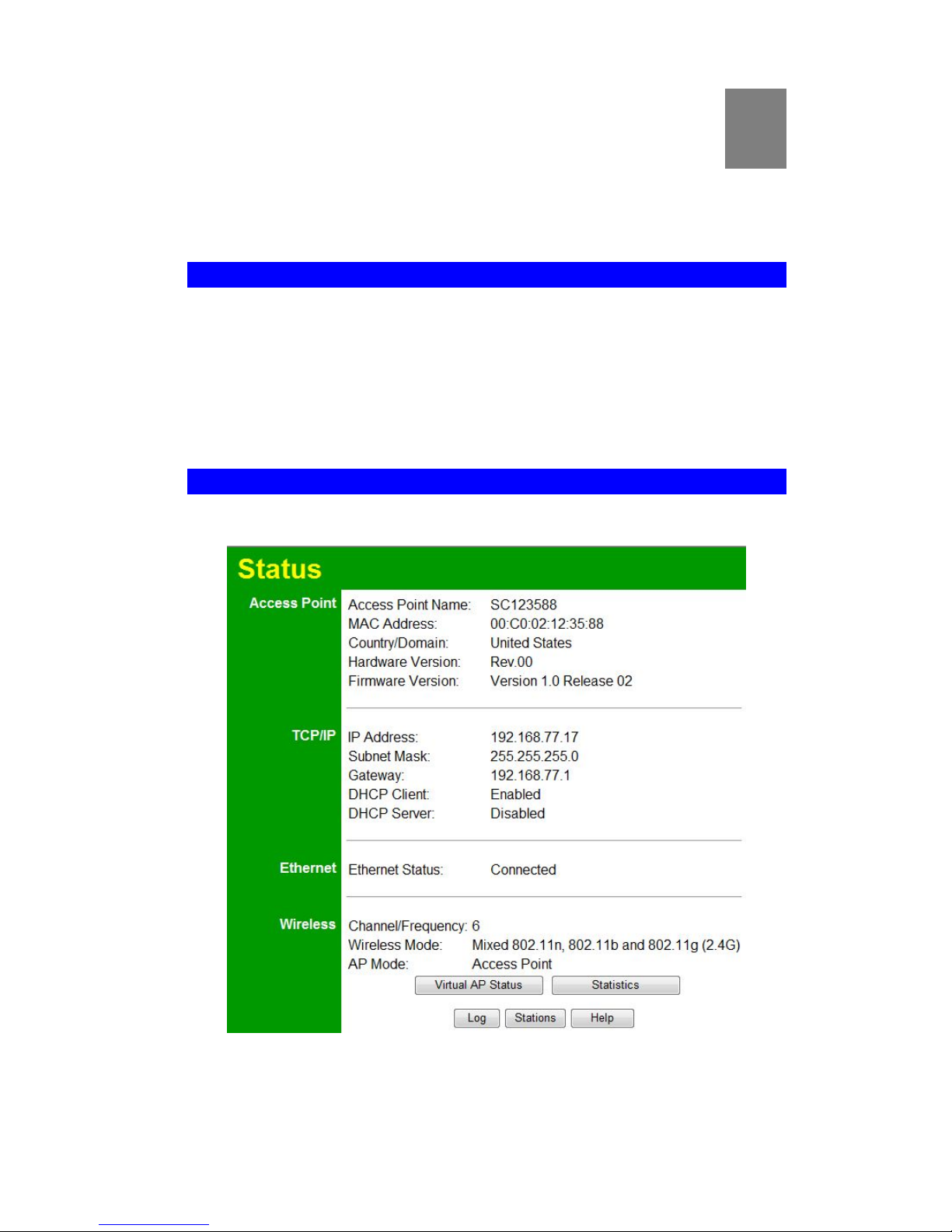

Status Screen.................................................................................................................... 60

CHAPTER 6 ACCESS POINT MANAGEMENT ............................................................... 67

Overview .......................................................................................................................... 67

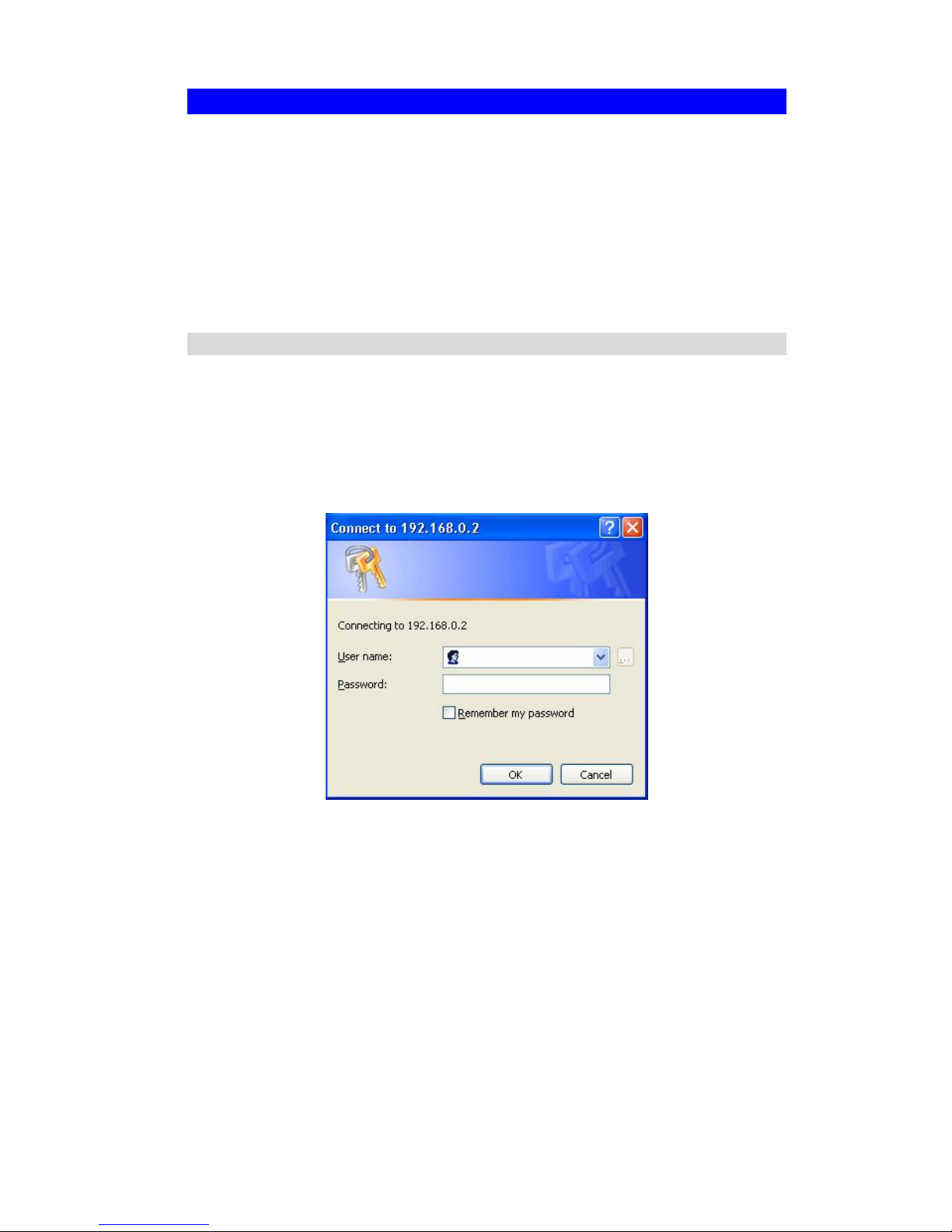

Admin Login Screen........................................................................................................67

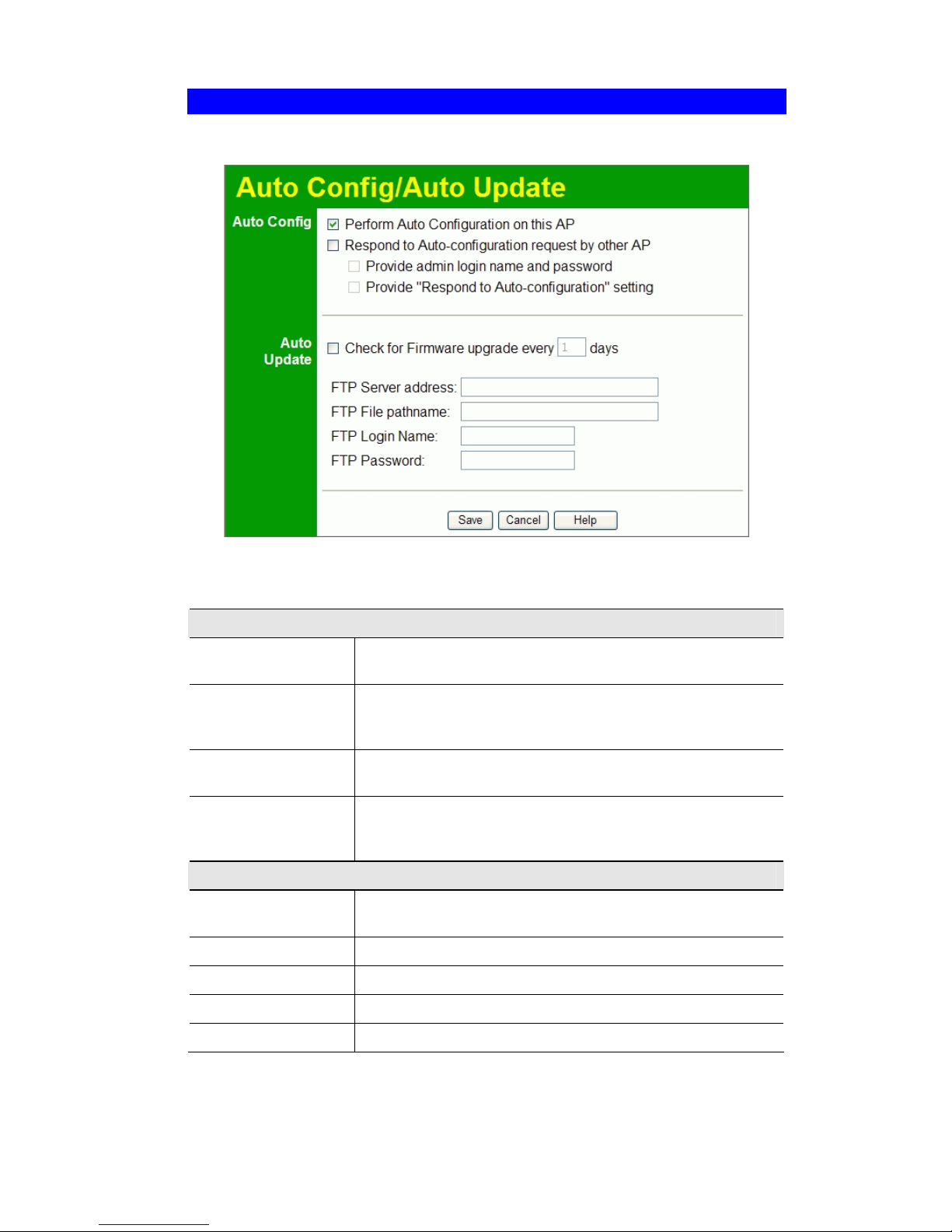

Auto Config/Update ........................................................................................................ 69

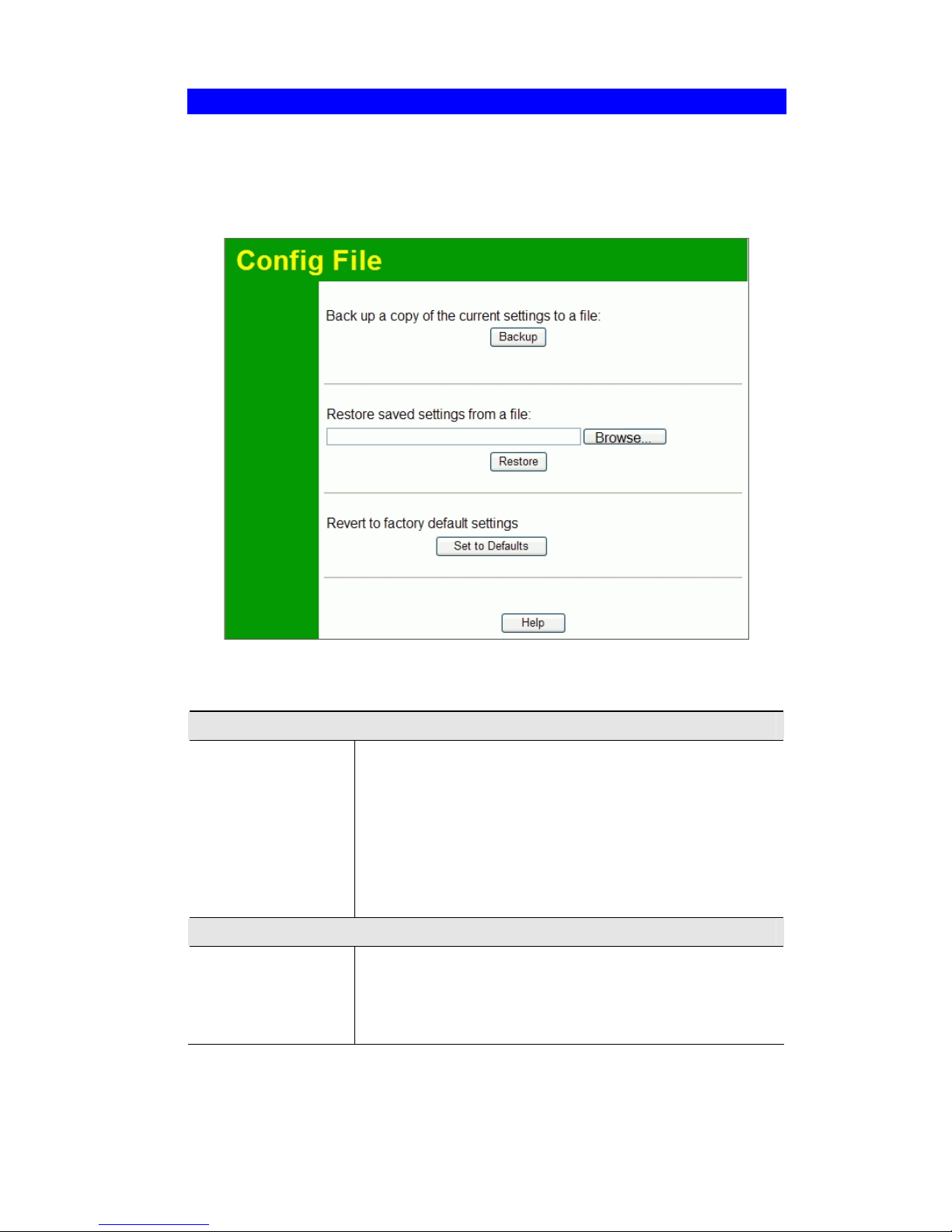

Config File........................................................................................................................ 70

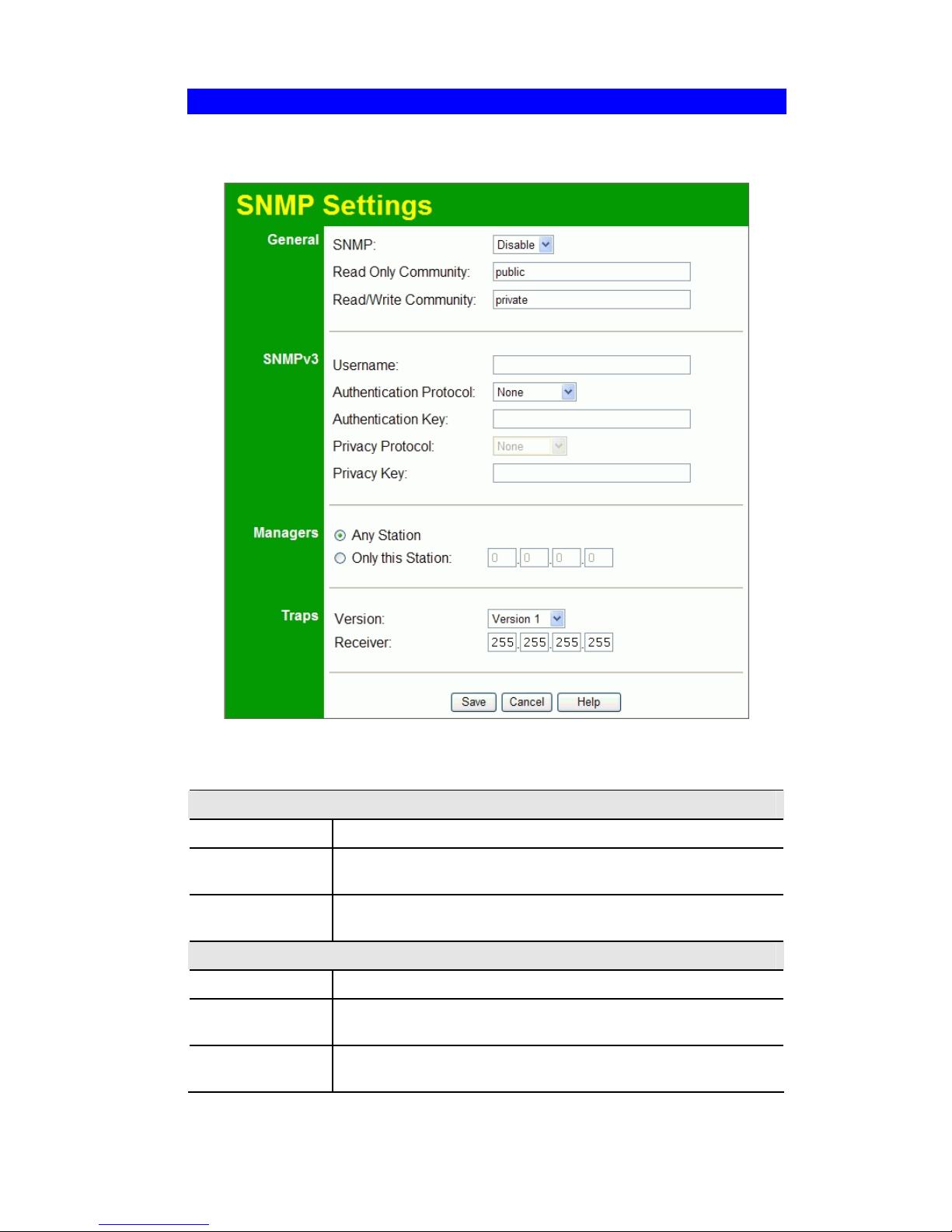

SNMP ...............................................................................................................................72

Log Settings...................................................................................................................... 74

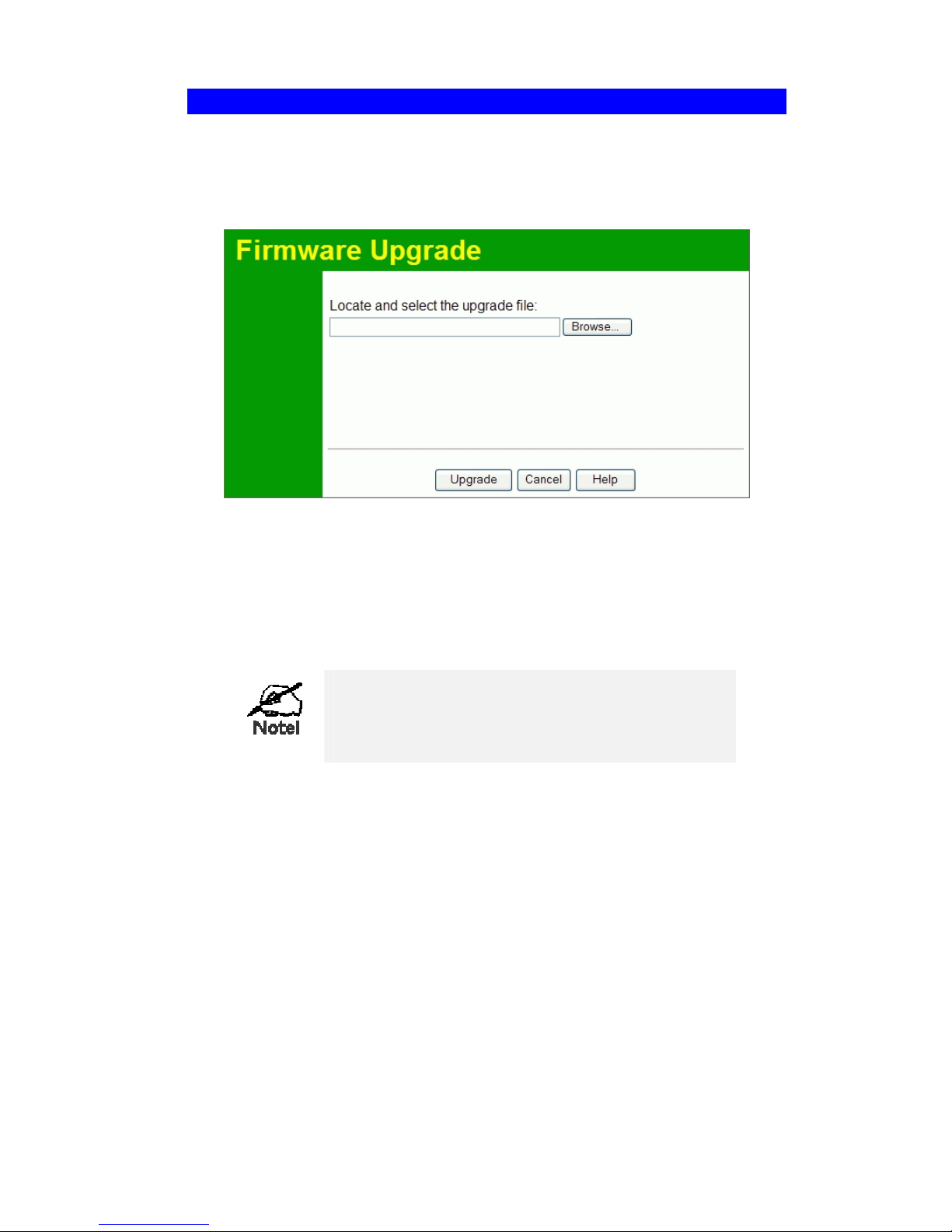

Firmware Upgrade..........................................................................................................76

APPENDIX A SPECIFICATIONS........................................................................................ 77

Wireless Access Point...................................................................................................... 77

APPENDIX B TROUBLESHOOTING................................................................................. 80

Overview .......................................................................................................................... 80

General Problems............................................................................................................ 80

APPENDIX C WINDOWS TCP/IP....................................................................................... 82

Overview .......................................................................................................................... 82

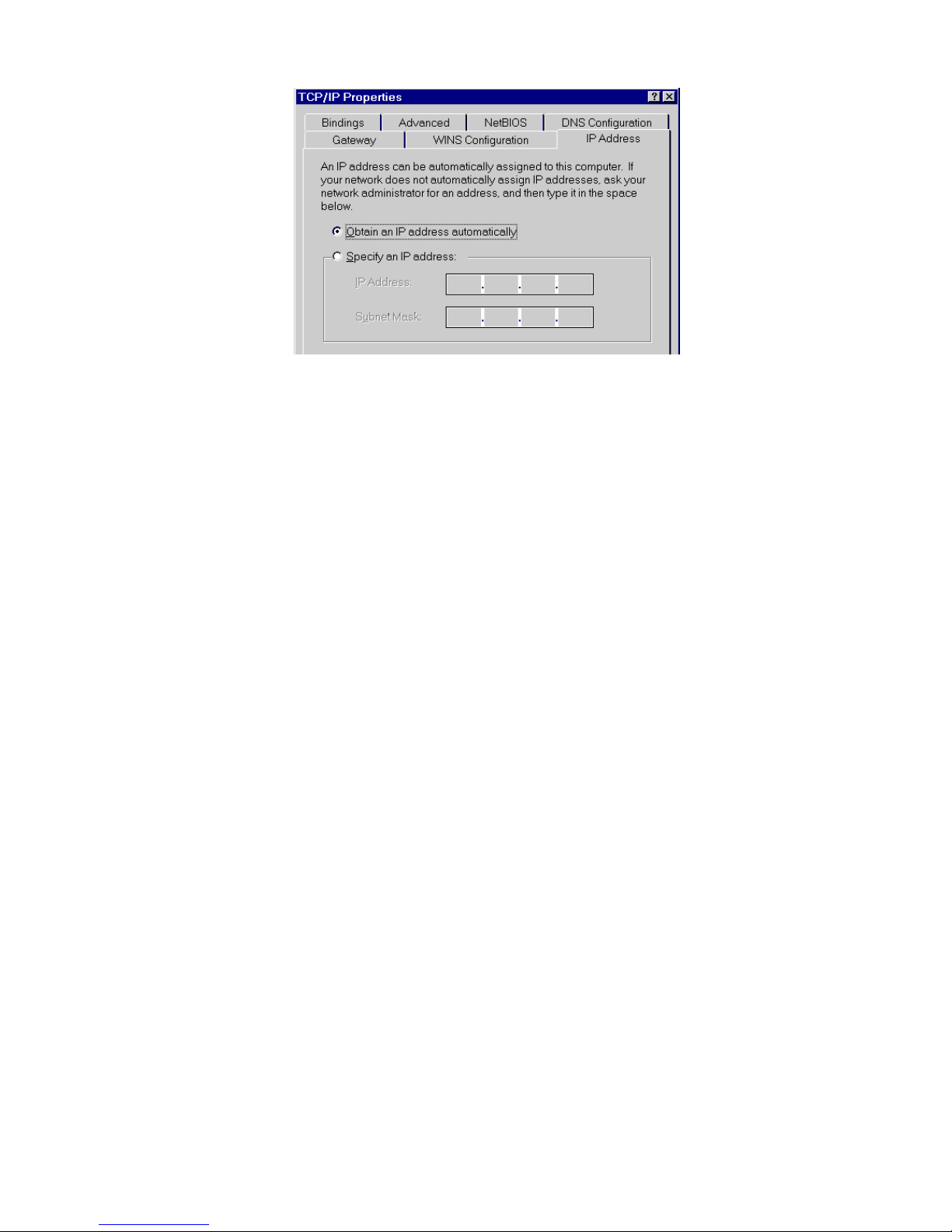

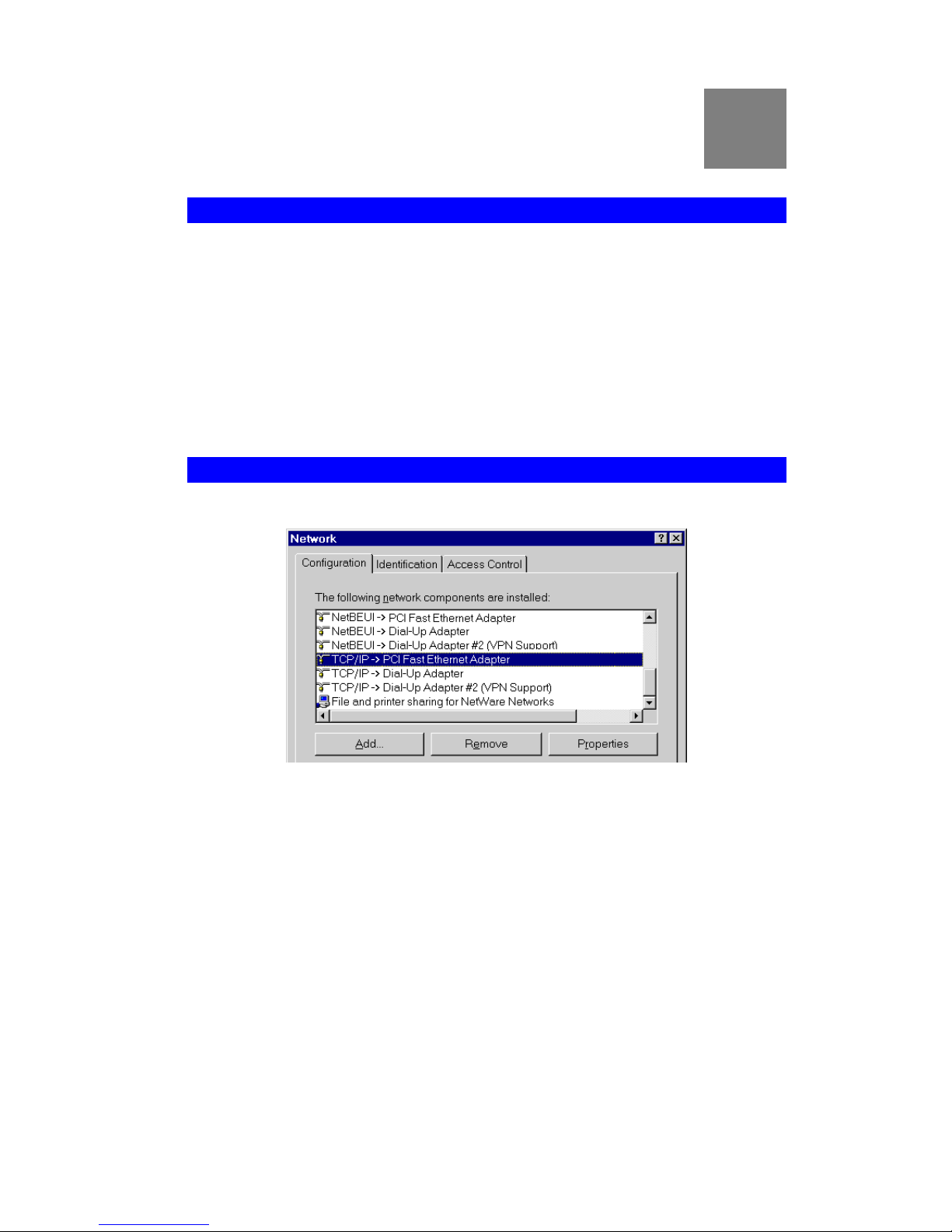

Checking TCP/IP Settings - Windows 9x/ME: ............................................................. 82

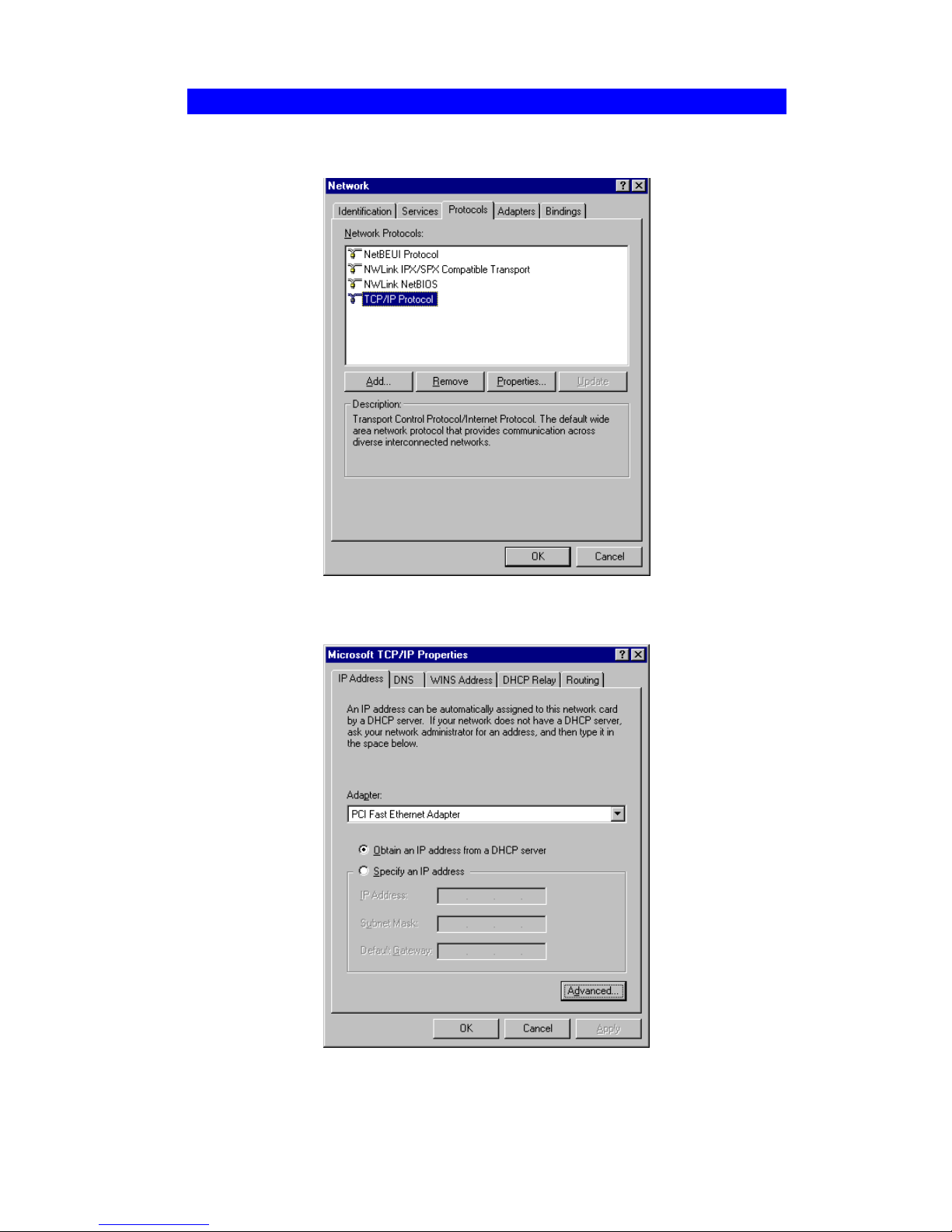

Checking TCP/IP Settings - Windows NT4.0................................................................ 84

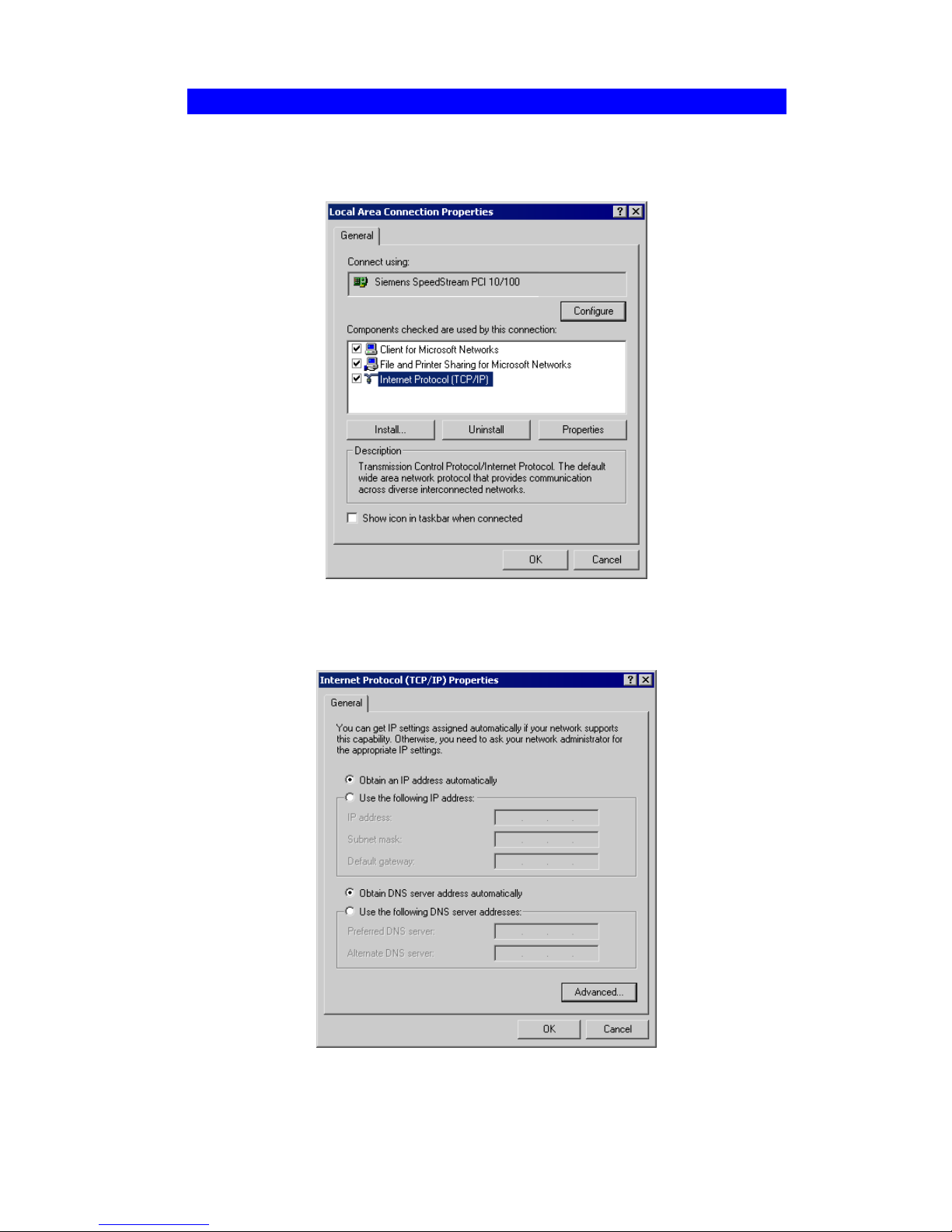

Checking TCP/IP Settings - Windows 2000 ..................................................................86

i

Wireless Access Point User Guide

Checking TCP/IP Settings - Windows XP..................................................................... 88

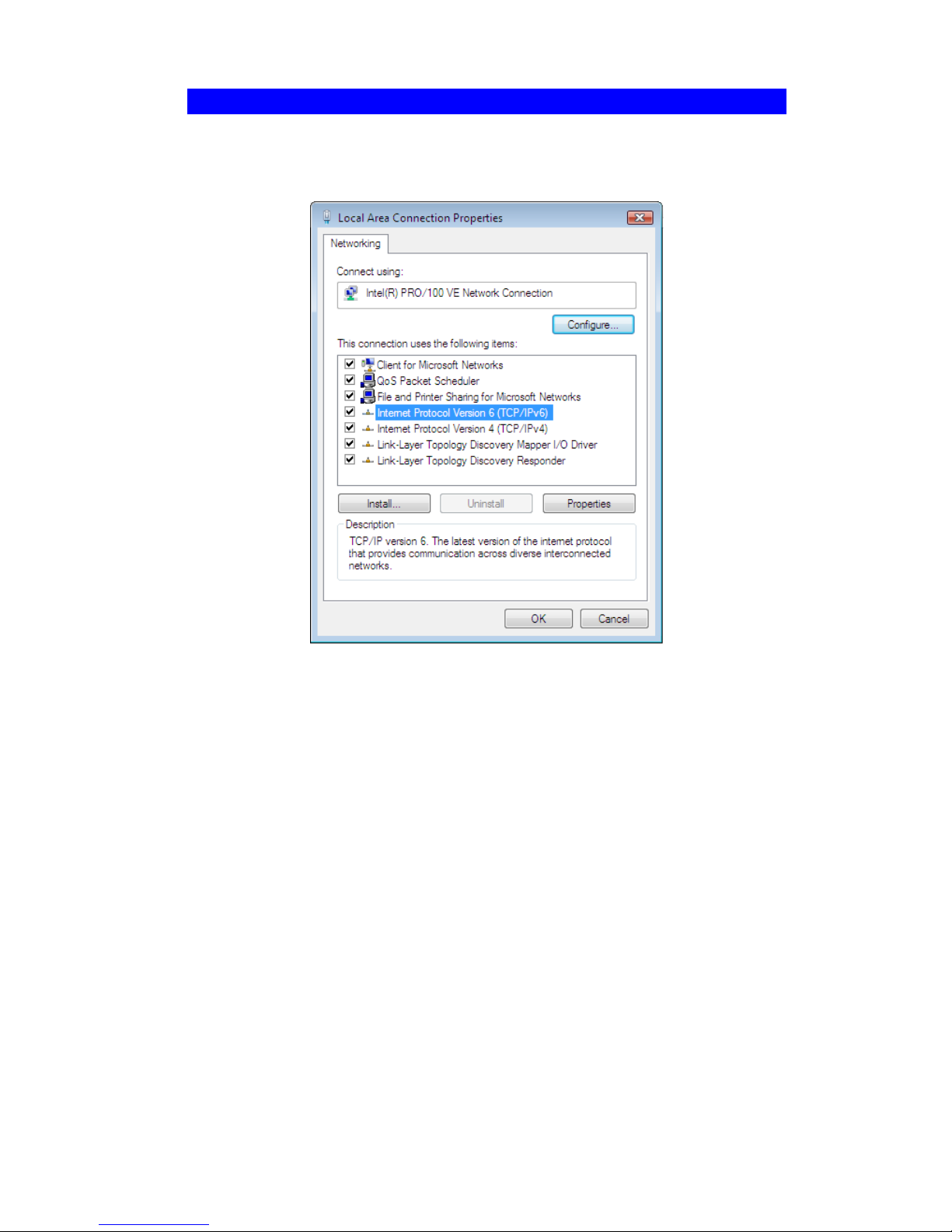

Checking TCP/IP Settings - Windows Vista ................................................................. 90

APPENDIX D ABOUT WIRELESS LANS.......................................................................... 92

Overview .......................................................................................................................... 92

Wireless LAN Terminology ............................................................................................ 92

APPENDIX E COMMAND LINE INTERFACE.................................................................95

Overview .......................................................................................................................... 95

Command Reference....................................................................................................... 95

ii

Chapter 1

1

Introduction

This Chapter provides an overview of the Wireless Access Point's features and
capabilities.

Congratulations on the purchase of your new Wireless Access Point. The Wireless Access
Point links your Wireless Stations to your wired LAN. The Wireless stations and devices on the
wired LAN are then on the same network, and can communicate with each other without regard
for whether they are connected to the network via a Wireless or wired connection.

Figure 1: Wireless Access Point

Features of your Wireless Access Point

The Wireless Access Point incorporates many advanced features, carefully designed to provide
sophisticated functions while being easy to use.

 Standards Compliant. The Wireless Access Point complies with the IEEE802.11g and

IEEE802.11n draft 2.0 specifications for Wireless LANs.

 Supports 11n Wireless Stations. The 802.11n Draft standard provides for backward

compatibility with the 802.11b standard, so 802.11n, 802.11b and 802.11g Wireless sta­tions can be used simultaneously.

 Bridge Mode Support. The Wireless Access Point can operate in Bridge Mode, con-

necting to another Access Point. Both PTP (Point to Point) and PTMP (Point to Multi­Point) Bridge modes are supported.

And you can even use both Bridge Mode and Access Point Mode simultaneously!

 WPS Support. WPS (Wi-Fi Protected Setup) can simplify the process of connecting any

device to the wireless network by using the push button configuration (PBC) on the Wire­less Access Point, or entering a 8-digit PIN code if there's no button.

1

Wireless Access Point User Guide

 DHCP Client Support. Dynamic Host Configuration Protocol provides a dynamic IP

address to PCs and other devices upon request. The Wireless Access Point can act as a
DHCP Client, and obtain an IP address and related information from your existing DHPC
Server.

 Upgradeable Firmware. Firmware is stored in a flash memory and can be upgraded

easily, using only your Web Browser.

 PoE Support. You can use PoE (Power over Ethernet) to provide power to the Wireless

Access Point, so only a single cable connection is required.

Security Features

 Virtual APs. For maximum flexibility, wireless security settings are stored in Virtual AP.

Up to 4 Virtual APs can be defined and used as any time.

 Multiple BSSIDs. Because each Virtual AP has it own SSID and beacon, and up to 4

Virtual APs can be active simultaneously, multiple SSIDs are supported. Different clients
can connect to the Wireless Access Point using different SSIDs, with different security set­tings.

 Virtual APs Isolation. If desired, PCs and devices connecting to different Virtual APs

can be isolated from each other.

 VLAN Support. The 802.1Q VLAN standard is supported, allowing traffic from differ-

ent sources to be segmented. Combined with the multiple SSID feature, this provides a
powerful tool to control access to your LAN.

 WEP support. Support for WEP (Wired Equivalent Privacy) is included. Both 64 Bit

128 Bit, and 152 Bit keys are supported.

 WPA support. Support for WPA is included. WPA is more secure than WEP, and should

be used if possible. Both TKIP and AES encryption methods are supported.

 802.1x Support. Support for 802.1x mode is included, providing for the industrial-

strength wireless security of 802.1x authentication and authorization.

 Radius Client Support. The Wireless Access Point can login to your existing Radius

Server (as a Radius client).

 Radius MAC Authentication. You can centralize the checking of Wireless Station

MAC addresses by using a Radius Server.

 Rogue AP Detection. The Wireless Access Point can detect unauthorized (Rouge)

Access Points on your LAN.

 Access Control. The Access Control feature can check the MAC address of Wireless

clients to ensure that only trusted Wireless Stations can use the Wireless Access Point to
gain access to your LAN.

 Password - protected Configuration. Optional password protection is provided to

prevent unauthorized users from modifying the configuration data and settings.

Advanced Features

 Command Line Interface. If desired, the command line interface (CLI) can be used for

configuration. This provides the possibility of creating scripts to perform common configu­ration changes.

 Auto Configuration. The Wireless Access Point can perform self-configuration by

copying the configuration data from another Access Point. This feature is enabled by de­fault.

 Auto Update. The Wireless Access Point can automatically update its firmware, by

downloading and installing new firmware from your FTP server.

2

Introduction

 Radius Accounting Support. If you have a Radius Server, you can use it to provide

accounting data on Wireless clients.

 Syslog Support. If you have a Syslog Server, the Wireless Access Point can send its log

data to your Syslog Server.

 SNMP Support. SNMP (Simple Network Management Protocol) is supported, allowing

you to use a SNMP program to manage the Wireless Access Point.

Package Contents

The following items should be included:

 Wireless Access Point
 Power Adapter
 3Pcs Antenna

If any of the above items are damaged or missing, please contact your dealer immediately.

3

Wireless Access Point User Guide

Physical Details

Front Panel LEDs

Figure 2: Front Panel

Power On

WLAN On - Idle

Status On - Error condition.

Ethernet On - The LAN (Ethernet) port is active.

- Normal operation.

Off - No power

Off - Wireless connection is not available.
Flashing - Data is being transmitted or received via the Wireless access

point. Data includes "network traffic" as well as user data.

Off - Normal operation.
Blinking - During start up, and when the Firmware is being upgraded.

Off - No active connection on the LAN (Ethernet) port.
Flashing - Data is being transmitted or received via the corresponding

LAN (Ethernet) port.

4

Rear Panel

Introduction

Figure 3: Rear Panel

Reset Button

ETHERNET

Power port
CONSOLE

This button has two (2) functions:
 Reboot. When pressed and released, the Wireless Access Point

will reboot (restart).

 Reset to Factory Defaults. This button can also be used to clear

ALL data and restore ALL settings to the factory default values.

To Clear All Data and restore the factory default values:

1. Hold the Reset Button until the Status (Red) LED blinks TWICE,
usually more than 5 seconds.

2. Release the Reset Button.
The factory default configuration has now been restored, and the
Access Point is ready for use.

Use a standard LAN cable (RJ45 connectors) to connect this port to a
10/100/1000BaseT hub/switch on your LAN.

Connect the supplied power adapter (12V@1A) here.
DB9 female RS232 port.

5

Chapter 2

Installation

This Chapter covers the physical installation of the Wireless Access Point.

Requirements

Requirements:

 TCP/IP network
 Ethernet cable with RJ-45 connectors
 Installed Wireless network adapter for each PC that will be wirelessly connected to the

network

Procedure

1. Select a suitable location for the installation of your Wireless Access Point. To maximize
reliability and performance, follow these guidelines:

 Use an elevated location, such as wall mounted or on the top of a cubicle.
 Place the Wireless Access Point near the center of your wireless coverage area.
 If possible, ensure there are no thick walls or metal shielding between the Wireless

Access Point and Wireless stations. Under ideal conditions, the Wireless Access Point
has a range of around 150 meters (450 feet). The range is reduced, and transmission
speed is lower, if there are any obstructions between Wireless devices.

Figure 4: Installation Diagram

6

Installation

2. Use a standard LAN cable to connect the "LAN" port on the Wireless Access Point to a
10/100/1000BaseT hub/switch on your LAN.

3. Connect the supplied power adapter to the Wireless Access Point and a convenient power
outlet, and power up.

4. Check the LEDs:

 The Status LED should flash, then turn OFF.
 The Power, Ethernet and WLAN LEDs should be ON.

For more information, refer to

Front Panel LEDs in Chapter 1.

Using PoE (Power over Ethernet)

The Wireless Access Point supports PoE (Power over Ethernet). To use PoE:

1. Do not connect the supplied power adapter to the Wireless Access Point.

2. Connect one end of a standard (category 5) LAN cable to the Ethernet port on the Wireless
Access Point.

3. Connect the other end of the LAN cable to the powered Ethernet port on a suitable PoE
Adapter. (12V DC, 1A)

4. Connect the unpowered Ethernet port on the PoE adapter to your Hub or switch.

5. Connect the power supply to the PoE adapter and power up.

6. Check the LEDs on the Wireless Access Point to see it is drawing power via the Ethernet
connection.

Figure 5: Using PoE (Power over Ethernet)

7

Chapter 3

Access Point Setup

This Chapter provides details of the Setup process for Basic Operation of
your Wireless Access Point.

Overview

This chapter describes the setup procedure to make the Wireless Access Point a valid device on
your LAN, and to function as an Access Point for your Wireless Stations.

Wireless Stations may also require configuration. For details, see

Configuration

The Wireless Access Point can be configured using either the supplied Windows utility or your
Web Browser

.

Chapter 4 - PC and Server

Setup using the Windows Utility

A simple Windows setup utility is supplied on the CD-ROM. This utility can be used to assign
a suitable IP address to the Wireless Access Point. Using this utility is recommended, because it
can locate the Wireless Access Point even if it has an invalid IP address.

Installation

1. Insert the supplied CD-ROM in your drive.

2. If the utility does not start automatically, run the SETUP program in the root folder.

3. Follow the prompts to complete the installation.

Main Screen

 Start the program by using the icon created by the setup program.
 When run, the program searches the network for all active Wireless Access Points, then

lists them on screen, as shown by the example below.

8

Access Point Setup

Figure 6: Management utility Screen

Wireless Access Points

The main panel displays a list of all Wireless Access Points found on the network. For each
Access Point, the following data is shown:

Name
IP address
MAC Address
IEEE Standard

The Name is shown on a sticker on the base of the device.
The IP address for the Wireless Access Point.
The hardware or physical address of the Wireless Access Point.
The wireless standard or standards used by the Wireless Access Point

(e.g. 802.11b, 802.11g)

FW Version
Description

The current Firmware version installed in the Wireless Access Point.
Any extra information for the Wireless Access Point, entered by the

administrator.

Note: If the desired Wireless Access Point is not listed, check that the device is installed and
ON, then update the list by clicking the

Refresh button.

Buttons

Refresh

Detail Info

Web Management

Set IP Address

Click this button to update the Wireless Access Point device listing
after changing the name or IP Address.

When clicked, additional information about the selected Access
Point will be displayed.

Use this button to connect to the Wireless Access Point's Web­based management interface.

Click this button if you want to change the IP Address of the Wire­less Access Point.

Exit

Exit the Management utility program by clicking this button.

9

Wireless Access Point User Guide

Setup Procedure

1. Select the desired Wireless Access Point.

2. Click the

3. If prompted, enter the user name and password. The default values are

Name

4. Ensure the IP address, Network Mask, and Gateway are correct for your LAN. Save any
changes.

5. Click the
your Web Browser. If prompted, enter the

6. Check the following screens, and configure as necessary for your environment. Use the on­line help if necessary.
The later sections in this Chapter also provides more details about each of these screens.

7. You may also wish to set the admin password and administration connection options.
These are on the
6 for details of the screens and features available on the

Set IP Address button.

admin for the User

, and password for the Password.

Web Management button to connect to the selected Wireless Access Point using

User Name and Password again.

Admin Login screen accessed from the Management menu. See Chapter

Management menu.

8. Use the

Apply and Reboot buttons on the menu to apply your changes and restart the

Wireless Access Point.

Setup is now complete.
Wireless stations must now be set to match the Wireless Access Point. See Chapter 4 for details.

10

Access Point Setup

Setup using a Web Browser

Your Browser must support JavaScript. The configuration program has been tested on the
following browsers:

 Netscape V4.08 or later
 Internet Explorer V4 or later

Setup Procedure

Before commencing, install the Wireless Access Point in your LAN, as described previously.

1. Check the Wireless Access Point to determine its
on the base or rear, and is in the following format:

SCxxxxxx

xxxxxx is a set of 6 Hex characters (0 ~ 9, and A ~ F).

Where

2. Use a PC that is already connected to your LAN, either by a wired connection or another
Access Point.

 Until the Wireless Access Point is configured, establishing a Wireless connection to it

may be not possible.

 If your LAN contains a Router or Routers, ensure the PC used for configuration is on

the same LAN segment as the Wireless Access Point.

3. Start your Web browser.

4. In the

5. You should then see a login prompt, which will ask for a User Name and Password.

Address box, enter "HTTP://" and the IP Address of the 11N Wireless Access Point,

as in this example, which uses the Wireless Access Point's default IP Address:

HTTP://192.168.0.228

Enter

admin for the User Name, and password for the Password.

These are the default values. The password can and should be changed. Always enter the
current user name and password, as set on the

Default Name. This is shown on a label

Admin Login screen.

6. You will then see the Status screen, which displays the current settings and status. No data
input is possible on this screen. See Chapter 5 for details of the

Figure 7: Password Dialog

Status screen.

11

Wireless Access Point User Guide

7. From the menu, check the following screens, and configure as necessary for your environ­ment. Details of these screens and settings are described in the following sections of this
chapter.

 System - Basic and Advanced settings
 Wireless - Basic, Advanced, Access Control, Radius Server, Virtual APs & WIFI Pro-

tected Setup.

8. You may also wish to set the admin password and administration connection options.
These are on the
6 for details of the screens and features available on the

Admin Login screen accessed from the Management menu. See Chapter

Management menu.

9. Use the

Apply and Reboot buttons on the menu to apply your changes and restart the

Wireless Access Point.

Setup is now complete.
Wireless stations must now be set to match the Wireless Access Point. See Chapter 4 for details.

If you can't connect:

It is likely that your PC’s IP address is incompatible with the Wireless Access
Point’s IP address. This can happen if your LAN does not have a DHCP Server.
The default IP address of the Wireless Access Point is 192.168.0.228, with a
Network Mask of 255.255.255.0.

If your PC’s IP address is not compatible with this, you must change your PC’s IP
address to an unused value in the range 192.168.0.1 ~ 192.168.0.254, with a Net­work Mask of 255.255.255.0. See Appendix C - Windows TCP/IP for details for
this procedure.

12

System Basic Settings Screen

Click Basic Settings on the System menu to view a screen like the following.

Access Point Setup

Data - System Basic Settings Screen

Identification

Access Point
Name

Description
Country Domain
MAC Address

IP Settings

DHCP Client

Figure 8: System Basic Settings Screen

Enter a suitable name for this Access Point.

If desired, you can enter a description for the Access Point.
The country or domain which is matching your current location.
The MAC address is displayed.

Select this option if you have a DHCP Server on your LAN, and you
wish the Access Point to obtain an IP address automatically.

13

Wireless Access Point User Guide

Fixed IP Address

DHCP Server

Wins Server
Name/IP Address

TimeZone

TimeZone

If selected, the following data must be entered.
 IP Address - The IP Address of this device. Enter an unused IP

address from the address range on your LAN.

 Subnet Mask - The Network Mask associated with the IP Address

above. Enter the value used by other devices on your LAN.

 Gateway - The IP Address of your Gateway or Router. Enter the

value used by other devices on your LAN.

 DNS - Enter the DNS (Domain Name Server) used by PCs on your

LAN.

 If Enabled, the Access Point will allocate IP Addresses to PCs

(DHCP clients) on your LAN when they start up. The default (and
recommended) value is Enabled.

 The Start IP Address and Finish IP Address fields set the values

used by the DHCP server when allocating IP Addresses to DHCP
clients. This range also determines the number of DHCP clients
supported.

Enter the server name or IP address of the Wins Server.

Choose the Time Zone for your location from the drop-down list. If
your location is currently using Daylight Saving, enable the

Adjust for

Daylight Saving Time checkbox.

NTP Server
Name/IP Address

You must UNCHECK this checkbox when Daylight Saving Time
finishes

.

Enter the server name or IP address of the NTP.

14

Access Point Setup

System Advanced Settings Screen

Click Advanced Settings on the System menu to view a screen like the following.

Figure 9: System Advanced Settings Screen

15

Wireless Access Point User Guide

Data - System Advanced Settings Screen

VLAN

Enable 802.1Q
VLAN

Native VLAN
AP Management

This option is only useful if the hubs/switches on your LAN support the
VLAN standard.

Enter the desired value for the Native VLAN. Default value is 1.
Define the VLAN ID used for management.

VLAN
VLAN List

Define the unique ID value (1 - 4094) for each VAP.

Network Integrality Check

Enable Network
Integrality Check

If enabled, the AP will disable the wireless connection if the wired
connect of AP is invalid.

Enable Bonjour

Enable Bonjour

If checked, the Bonjour will enable applications to discover the devices
and the services on IP networks. Now, this AP only publish http and https
service.

LLTD

Enable Link
Layer Topology

Enable this if you want to use Link Layer Topology Discovery protocol
(LLTD) feature.

Discovery

STP

Enable Spanning

Enable this if you want to use this feature.

tree Protocol

802.1x Supplicant

Enable 802.1x
Supplicant

Authentication

Enable this if your network requires this AP to use 802.X authentication
in order to operate.

 Authentication via MAC Address

Select this if you want to Use MAC Address for Authentication.

 Authentication via Name and Password

Select this if you want to Use name and password for Authentication.

16

Wireless Screens

There are 6 configuration screens available:

 Basic
 Virtual APs
 Radius Server Settings
 Access Control
 Advanced Settings
 WIFI Protected Setup

Basic Screen

The settings on this screen must match the settings used by Wireless Stations.
Click

Basic Settings on the Wireless menu to view a screen like the following.

Access Point Setup

Data - Wireless Basic Settings Screen

Operation

Turn Radio On
Wireless Mode

Figure 10:Wireless Basic Screen

Enable this to use the wireless feature.
Select the desired option:

 Disable - select this if for some reason you do not this AP to

transmit or receive at all.

 802.11b - if selected, only 802.11b connections are allowed.

802.11g wireless stations will only be able to connect if they are
fully backward-compatible with the 802.11b standard.

 802.11g - only 802.11g connections are allowed. If you only have

17

Wireless Access Point User Guide

802.11g, selecting this option may provide a performance im­provement over using the default setting.

 802.11n - only 802.11n connections are allowed. If you only have

802.11n, selecting this option may provide a performance im­provement over using the default setting.

 802.11b and 802.11g - this will allow connections by both

802.11b and 802.11g wireless stations.

 802.11n and 802.11g - this will allow connections by both

802.11n and 802.11g wireless stations.

 Mixed 802.11n/802.11g/802.11b - this is the default, and will

allow connections by 802.11n, 802.11b and 802.11g wireless sta­tions.

Auto Channel
Scan

Channel
/Frequency

Channel Band­width

Extension
Sub-Channel

Operation Mode

If "Enable" is selected, the Access Point will select the best available
Channel.

If you experience interference (shown by lost connections and/or slow
data transfers) you may need to experiment with manually setting
different channels to see which is the best.

Select the desired bandwidth from the list.

Select Above or Below Primary Channel from the list.

Select the desired mode:

 Access Point - operate as a normal Access Point
 Bridge (Point-to-Point) - Bridge to a single AP. You must pro-

vide the MAC address of the other AP in the PTP Bridge AP MAC
Address field.

 Bridge (Multi-Point) - Select this only if this AP is the "Master"

for a group of Bridge-mode APs. The other Bridge-mode APs must
be set to Point-to-Point Bridge mode, using this AP's MAC ad­dress. They then send all traffic to this "Master".

 Wireless Client/Repeater - Act as a client or repeater for another

Access Point. If selected, you must provide
address (MAC address) of the other AP in the

Address

field. In this mode, all traffic is sent to the specified AP.

Remote SSID and the

Remote AP MAC

 Wireless Detection - This mode will turn the access point into a

wireless Monitor. A "Rouge AP" is an Access Point which should
not be in use, and so can be considered to be providing unauthor­ized access to your LAN.

 No Security - If checked, then any AP operating with security

disabled is considered to be a Rogue AP.

 Not in Legal AP List - If checked, then any AP not listed in

the "Legal AP List" is considered to be a Rogue AP. If
checked, you must maintain the Legal AP List.

 Define Legal AP - Click this to open a sub-screen where you

can modify the "Legal AP List". This list must contain all
known APs, so must be kept up to date.

Remote MAC
Address

You must enter the MAC address(es) of other AP(s) in the fields.

18

Access Point Setup

Select Remote
AP

If the other AP is on-line, you can click the "Select Remote AP" button
and select from a list of available APs.

19

Wireless Access Point User Guide

Virtual AP Settings

Clicking the Virtual APs link on the Wireless menu will result in a screen like the following.

Figure 11: Virtual AP Settings

Data - Virtual AP Settings Screen

VAPs

VAP List

Enable Button
Configure Button
Disable Button

Isolation

Isolate all Virtual APs
from each other

All available VAPs are listed. For each VAP, the following data
is displayed:

 *

If displayed before the name of the VAP, this indicates
the VAP is currently enabled. If not displayed, the VAP
is currently disabled.

 VAP Name

The current VAP name is displayed.

 [SSID]

The current SSID associated with this VAP.

 Security System

The current security system (e.g. WPA-PSK) is dis-

played.
Enable the selected VAP.
Change the settings for the selected VAP.
Disable the selected VAP.

If this option is enabled, wireless clients using different VAPs
(different SSIDs) are isolated from each other, so they will NOT
be able to communicate with each other. They will still be able
to communicate with other clients using the same profile, unless
the "Wireless Separation" setting on the "Advanced" screen has
been enabled.

20

Access Point Setup

Virtual AP Screen

This screen is displayed when you select a VAP on the Virtual AP Settings screen, and click the
Configure button.

Figure 12: Virtual AP Screen

VAP Data

Enter the desired settings for each of the following:

VAP Name
SSID
Broadcast SSID

Isolation within
VAP

Enter a suitable name for this VAP.
Enter the desired SSID. Each VAP must have a unique SSID.
If Disabled, no SSID is broadcast.
If enabled, the SSID will then be broadcast to all Wireless Stations.

Stations which have no SSID (or a "null" value) can then adopt the
correct SSID for connections to this Access Point.

If enabled, then each Wireless station using the Access Point is
invisible to other Wireless stations. In most business stations, this
setting should be Disabled.

Security Settings

Select the desired option, and then enter the settings for the selected method.
The available options are:

 None - No security is used. Anyone using the correct SSID can connect to your network.
 WEP - The 802.11b standard. Data is encrypted before transmission, but the encryption

system is not very strong.

 WPA-PSK - Like WEP, data is encrypted before transmission. WPA is more secure than

WEP, and should be used if possible. The PSK (Pre-shared Key) must be entered on each
Wireless station. The 256Bit encryption key is derived from the PSK, and changes fre­quently.

21

Wireless Access Point User Guide

 WPA2-PSK - This is a further development of WPA-PSK, and offers even greater security,

using the AES (Advanced Encryption Standard) method of encryption.

 WPA-PSK and WPA2-PSK - This method, sometimes called "Mixed Mode", allows

clients to use EITHER WPA-PSK (with TKIP) OR WPA2-PSK (with AES).

 WPA with Radius - This version of WPA requires a Radius Server on your LAN to

provide the client authentication according to the 802.1x standard. Data transmissions are
encrypted using the WPA standard.

If this option is selected:

 This Access Point must have a "client login" on the Radius Server.
 Each user must have a "user login" on the Radius Server.
 Each user's wireless client must support 802.1x and provide the login data when re-

quired.

 All data transmission is encrypted using the WPA standard. Keys are automatically

generated, so no key input is required.

 WPA2 with Radius - This version of WPA2 requires a Radius Server on your LAN to

provide the client authentication according to the 802.1x standard. Data transmissions are
encrypted using the WPA2 standard.

If this option is selected:

 This Access Point must have a "client login" on the Radius Server.
 Each user must authenticate on the Radius Server. This is usually done using digital

certificates.

 Each user's wireless client must support 802.1x and provide the Radius authentication

data when required.

 All data transmission is encrypted using the WPA2 standard. Keys are automatically

generated, so no key input is required.

 WPA and WPA2 with Radius - EITHER WPA or WPA2 require a Radius Server on

your LAN to provide the client authentication according to the 802.1x standard. Data
transmissions are encrypted using EITHER WPA or WPA2 standard.

If this option is selected:

 This Access Point must have a "client login" on the Radius Server.
 Each user must authenticate on the Radius Server. This is usually done using digital

certificates.

 Each user's wireless client must support 802.1x and provide the Radius authentication

data when required.

 All data transmission is encrypted using EITHER WPA or WPA2 standard. Keys are

automatically generated, so no key input is required.

 802.1x - This uses the 802.1x standard for client authentication, and WEP for data encryp-

tion.
If this option is selected:

 This Access Point must have a "client login" on the Radius Server.
 Each user must have a "user login" on the Radius Server.
 Each user's wireless client must support 802.1x and provide the login data when re-

quired.

 All data transmission is encrypted using the WEP standard. You only have to select

the WEP key size; the WEP key is automatically generated.

22

Access Point Setup

Security Settings - None

Figure 13: Wireless Security - None

No security is used. Anyone using the correct SSID can connect to your network.

Security Settings - WEP

This is the 802.11b standard. Data is encrypted before transmission, but the encryption system
is not very strong.

Figure 14: WEP Wireless Security Screen

23

Wireless Access Point User Guide

Data - WEP Screen

WEP

Data
Encryption

Authentication

Key Input

Key Value

Passphrase

Select the desired option, and ensure your Wireless stations have the
same setting:

 64 Bit Encryption - Keys are 10 Hex (5 ASCII) characters.
 128 Bit Encryption - Keys are 26 Hex (13 ASCII) characters.
 152 Bit Encryption - Keys are 32 Hex (16 ASCII) characters.

Normally, you can leave this at “Automatic”, so that Wireless Stations
can use either method ("Open System" or "Shared Key".).

If you wish to use a particular method, select the appropriate value ­"Open System" or "Shared Key". All Wireless stations must then be set
to use the same method.

Select "Hex" or "ASCII" depending on your input method. (All keys
are converted to Hex, ASCII input is only for convenience.)

Enter the key values you wish to use. The default key, selected by the
radio button, is required. The other keys are optional. Other stations
must have matching key values.

Use this to generate a key or keys, instead of entering them directly.
Enter a word or group of printable characters in the Passphrase box and
click the "Generate Key" button to automatically configure the WEP
Key(s).

24

Access Point Setup

Security Settings - WPA-PSK

Like WEP, data is encrypted before transmission. WPA is more secure than WEP, and should
be used if possible. The PSK (Pre-shared Key) must be entered on each Wireless station. The
256Bit encryption key is derived from the PSK, and changes frequently.

Figure 15: WPA-PSK Wireless Security Screen

Data - WPA-PSK Screen

WPA-PSK

Network Key

WPA Encryption

Group Key Update

Key Lifetime

Update Group key
when any membership
terminates

Enter the key value. Data is encrypted using a 256Bit key derived
from this key. Other Wireless Stations must use the same key.

The encryption method is TKIP. Wireless Stations must also use
TKIP.

This refers to the key used for broadcast transmissions. Enable
this if you want the keys to be updated regularly.

This field determines how often the Group key is dynamically
updated. Enter the desired value.

If enabled, the Group key will be updated whenever any member
leaves the group or disassociates from the Access Point.

25

Wireless Access Point User Guide

Security Settings - WPA2-PSK

This is a further development of WPA-PSK, and offers even greater security, using the AES
(Advanced Encryption Standard) method of encryption.

Figure 16: WPA2-PSK Wireless Security Screen

Data - WPA2-PSK Screen

WPA2-PSK

Network Key

WPA Encryption

Group Key Update

Key Lifetime

Update Group key
when any membership
terminates

Enter the key value. Data is encrypted using a 256Bit key derived
from this key. Other Wireless Stations must use the same key.

The encryption method is AES. Wireless Stations must also use
AES.

This refers to the key used for broadcast transmissions. Enable
this if you want the keys to be updated regularly.

This field determines how often the Group key is dynamically
updated. Enter the desired value.

If enabled, the Group key will be updated whenever any member
leaves the group or disassociates from the Access Point.

26

Access Point Setup

Security Settings - WPA-PSK and WPA2-PSK

This method, sometimes called "Mixed Mode", allows clients to use EITHER WPA-PSK (with
TKIP) OR WPA2-PSK (with AES).

Figure 17: WPA-PSK and WPA2-PSK Wireless Security Screen

Data - WPA-PSK and WPA2-PSK Screen

WPA-PSK and WPA2-PSK

Network Key

WPA Encryption

Group Key Update

Key Lifetime

Update Group key
when any membership
terminates

Enter the key value. Data is encrypted using this key. Other
Wireless Stations must use the same key.

The encryption method is TKIP for WPA-PSK, and AES for
WPA2-PSK.

This refers to the key used for broadcast transmissions. Enable
this if you want the keys to be updated regularly.

This field determines how often the Group key is dynamically
updated. Enter the desired value.

If enabled, the Group key will be updated whenever any member
leaves the group or disassociates from the Access Point.

27

Wireless Access Point User Guide

Security Settings - WPA with Radius

This version of WPA requires a Radius Server on your LAN to provide the client authentica­tion according to the 802.1x standard. Data transmissions are encrypted using the WPA
standard.

Figure 18: WPA with Radius Wireless Security Screen

Data - WPA with Radius Screen

WPA with Radius

WPA Encryption

Group Key Update

Key Lifetime

Update Group key
when any membership
terminates

The encryption method is TKIP. Wireless Stations must also use
TKIP.

This refers to the key used for broadcast transmissions. Enable
this if you want the keys to be updated regularly.

This field determines how often the Group key is dynamically
updated. Enter the desired value.

If enabled, the Group key will be updated whenever any member
leaves the group or disassociates from the Access Point.

28

Access Point Setup

Security Settings - WPA2 with Radius

This version of WPA2 requires a Radius Server on your LAN to provide the client authentica­tion according to the 802.1x standard. Data transmissions are encrypted using the WPA2
standard.

Figure 19: WPA2 with Radius Wireless Security Screen

Data - WPA2 with Radius Screen

WPA2 with Radius

WPA Encryption

Group Key Update

Key Lifetime

Update Group key
when any membership
terminates

The encryption method is AES. Wireless Stations must also use
AES.

This refers to the key used for broadcast transmissions. Enable
this if you want the keys to be updated regularly.

This field determines how often the Group key is dynamically
updated. Enter the desired value.

If enabled, the Group key will be updated whenever any member
leaves the group or disassociates from the Access Point.

29

Wireless Access Point User Guide

Security Settings - WPA and WPA2 with Radius

EITHER WPA or WPA2 require a Radius Server on your LAN to provide the client authentica­tion according to the 802.1x standard. Data transmissions are encrypted using EITHER WPA
or WPA2 standard.

Figure 20: WPA and WPA2 with Radius Wireless Security Screen

Data - WPA and WPA2 with Radius Screen

WPA and WPA2 with Radius

WPA Encryption
Group Key Update

Key Lifetime

Update Group key
when any membership
terminates

The encryption method is TKIP for WPA, and AES for WPA2.
This refers to the key used for broadcast transmissions. Enable

this if you want the keys to be updated regularly.
This field determines how often the Group key is dynamically

updated. Enter the desired value.
If enabled, the Group key will be updated whenever any member

leaves the group or disassociates from the Access Point.

30

Access Point Setup

Security Settings - 802.1x

This uses the 802.1x standard for client authentication, and WEP for data encryption. If this
option is selected:

 This Access Point must have a "client login" on the Radius Server.
 Each user must have a "user login" on the Radius Server. Normally, a Certificate is used to

authenticate each user. See Chapter4 for details of user configuration.

 Each user's wireless client must support 802.1x.
 All data transmission is encrypted using the WEP standard. You only have to select the

WEP key size; the WEP key is automatically generated.

Figure 21: 802.1x Wireless Security Screen

Data - 802.1x Screen

802.1x

WEP Key Size

Select the desired option:

 64 Bit - Keys are 10 Hex (5 ASCII) characters.
 128 Bit - Keys are 26 Hex (13 ASCII) characters.
 152 Bit - Keys are 32 Hex (16 ASCII) characters.

31

Wireless Access Point User Guide

Dynamic WEP Key

Click this if you want the WEP keys to be automatically gener­ated.

 The key exchange will be negotiated. The most widely

supported protocol is EAP-TLS.

 The following Key Exchange setting determines how often

the keys are changed.

 Both Dynamic and Static keys can be used simultaneously,

allowing clients using either method to use the Access
Point.

Key Exchange

This setting if only available if using Dynamic WEP Keys. If
you want the Dynamic WEP keys to be updated regularly,

lifetime (in minutes).

Static WEP Key
(EAP-MD5)

enable this and enter the desired
Enable this if some wireless clients use a fixed (static) WEP key,

using EAP-MD5.
Note that both Dynamic and Static keys can be used simultane­ously, allowing clients using either method to use the Access
Point.

WEP Key Enter the WEP key according to the WEP Key Size setting

above. Wireless stations must use the same key.

WEP Key Index

Select the desired index value. Wireless stations must use the
same key index.

32

Access Point Setup

Radius Server Settings

Clicking the Radius Server Settings link on the Wireless menu will result in a screen like the
following.

Figure 22: Advanced Settings

Data - Radius Server Settings Screen

Authentication Server

Primary Authentication
Server

Port Number

Shared Secret
Secondary Authentica-

tion Server

Accounting Server

Primary Accounting
Server

Port Number

Shared Secret
Secondary Accounting

Server

Enter the name or IP address of the Radius Server on your
network.

Enter the port number used for connections to the Radius Serv­er.

Enter the key value to match the Radius Server.
The Secondary Authentication Server will be used when the

Primary Authentication Server is not available.

Enter the IP address in the following fields if you want this
Access Point to send accounting data to the Radius Server.

The port used by your Radius Server must be entered in the
field.

Enter the key value to match the Radius Server.
The Secondary Accounting Server will be used when the Pri-

mary Accounting Server is not available.

33

Wireless Access Point User Guide

Access Control

This feature can be used to block access to your LAN by unknown or untrusted wireless sta­tions.

Access Control on the Wireless menu to view a screen like the following.

Click

Figure 23: Access Control Screen

Data - Access Control Screen

Access Control

Local Trusted
Stations

Buttons

Select the desired option, as required

 Disabled - The Access Control feature is disabled.
 Local - Select Allow only following MAC addresses or Deny

following MAC addresses

 Radius - The Access Point will use the MAC address table located

on the external Radius server on the LAN for Access Control.

Warning! Ensure your own PC is in the "Trusted Wireless Stations"
list before enabling this feature.

This table lists any Wireless Stations you have designated as "Trusted".
If you have not added any stations, this table will be empty. For each
Wireless station, the following data is displayed:

 Name - the name of the Wireless station.
 MAC Address - the MAC or physical address of each Wireless

station.

 Connected - this indicates whether or not the Wireless station is

currently associates with this Access Point.

.

Modify List

To change the list of Trusted Stations (Add, Edit, or Delete a Wireless
Station or Stations), click this button. You will then see the

Wireless Stations

screen, described below.

Trusted

34

Access Point Setup

Read from File

To upload a list of Trusted Stations from a file on your PC, click this
button.

Write to File

To download the current list of Trusted Stations from the Access Point
to a file on your PC, click this button.

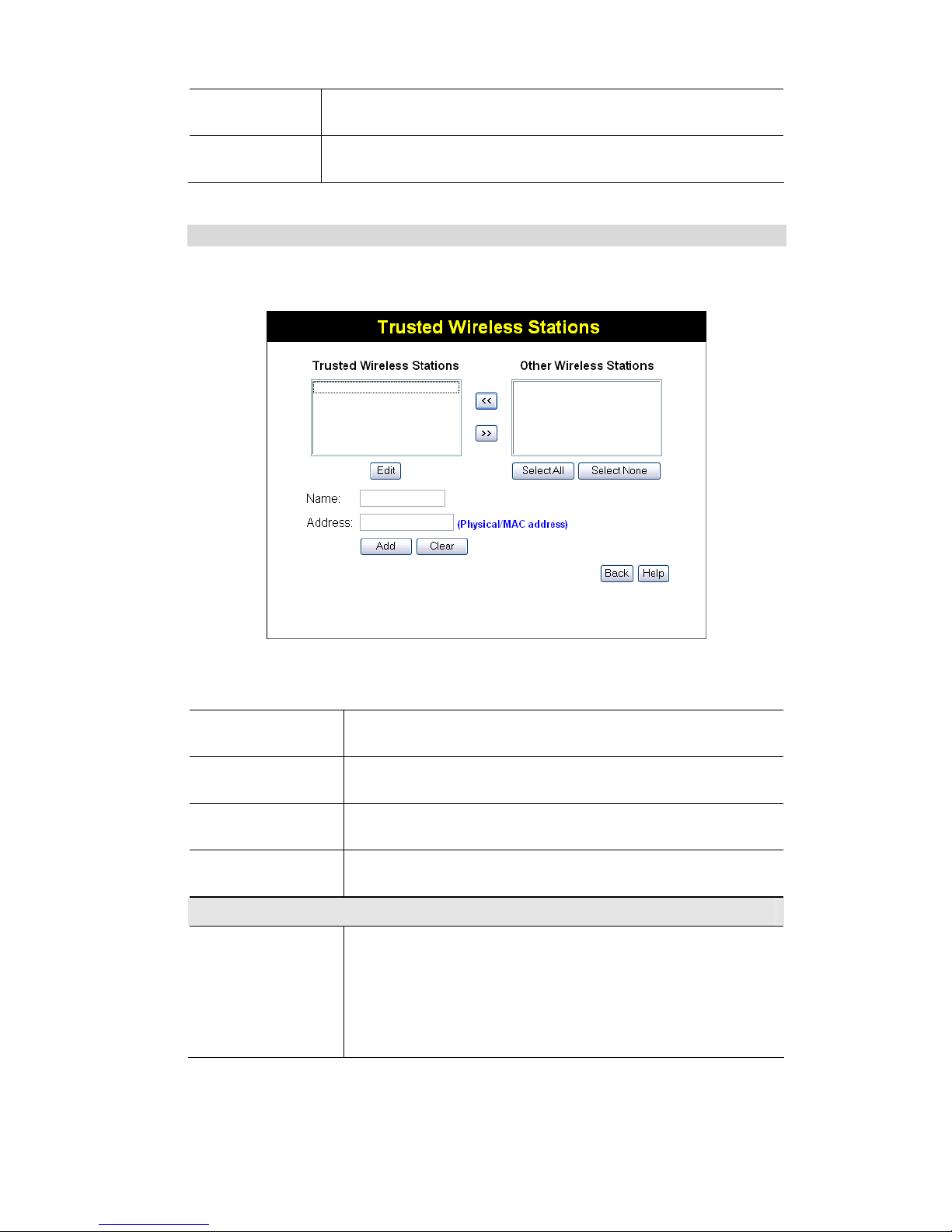

Trusted Wireless Stations

To change the list of trusted wireless stations, use the Modify List button on the Access Control
screen. You will see a screen like the sample below.

Figure 24: Trusted Wireless Stations

Data - Trusted Wireless Stations

Trusted Wireless
Stations

Other Wireless
Stations

Name

Address

Buttons

<<

This lists any Wireless Stations which you have designated as
“Trusted”.

This list any Wireless Stations detected by the Access Point, which
you have not designated as "Trusted".

The name assigned to the Trusted Wireless Station. Use this when
adding or editing a Trusted Station.

The MAC (physical) address of the Trusted Wireless Station. Use
this when adding or editing a Trusted Station.

Add a Trusted Wireless Station to the list (move from the "Other
Stations" list).

 Select an entry (or entries) in the "Other Stations" list, and click

the " << " button.

 Enter the Address (MAC or physical address) of the wireless

station, and click the "Add " button.

35

Wireless Access Point User Guide

>>

Select All
Select None
Edit

Add

Clear

Delete a Trusted Wireless Station from the list (move to the "Other
Stations" list).

 Select an entry (or entries) in the "Trusted Stations" list.
 Click the " >> " button.

Select all of the Stations listed in the "Other Stations" list.
De-select any Stations currently selected in the "Other Stations" list.

To change an existing entry in the "Trusted Stations" list, select it
and click this button.

1. Select the Station in the "Trusted Station" list.

2. Click the "Edit" button. The address will be copied to the
"Address" field, and the "Add" button will change to "Update".

3. Edit the address (MAC or physical address) as required.

4. Click "Update" to save your changes.

To add a Trusted Station which is not in the "Other Wireless Sta­tions" list, enter the required data and click this button.

Clear the Name and Address fields.

36

Access Point Setup

Advanced Settings

Clicking the Advanced Settings link on the Wireless menu will result in a screen like the fol­lowing.

Figure 25: Advanced Settings

Data - Advanced Settings Screen

Options

Worldwide Mode
(802.11d)

WMM

Enable WMM Support

No Acknowledgement

Parameters

Disassociated Timeout

Fragmentation Length

Enable this setting if you wish to use this mode, and your Wire­less stations support this mode.

Check this to enable WMM (Wi-Fi Multimedia) support in the
Access Point. If WMM is also supported by your wireless
clients, voice and multimedia traffic will be given a higher
priority than other traffic.

If enabled, then WMM acknowledgement is disabled. Depend­ing on the environment, disabling acknowledgement may
increase throughput slightly.

This determines how quickly a Wireless Station will be consid­ered "Disassociated" with this AP, when no traffic is received.
Enter the desired time period.

Enter the preferred setting between 256 and 2346. Normally,
this can be left at the default value.

Beacon Interval

Enter the preferred setting between 20 and 1000. Normally, this
can be left at the default value.

37

Wireless Access Point User Guide

RTS/CTS Threshold

Preamble Type

802.11b Protection
Mode

Enter the preferred setting between 1 and 2347. Normally, this
can be left at the default value.

Select the desired option. The default is "Long". The "Short"
setting takes less time when used in a good environment.

The Protection system is intended to prevent older 802.11b
devices from interfering with 802.11g transmissions. (Older

802.11b devices may not be able to detect that a 802.11g trans­mission is in progress.) Normally, this should be left at "Auto".

38

Access Point Setup

Wi-Fi Protected Setup

Click WiFi Protected Setup on the Wireless menu to view a screen like the following:.

Data - WPS Screen

WPS

Use one of the
following..

Change AP
Settings

WPS Status
Network Name
Security
Passphrase

Figure 26: WPS Screen

 If the first option is selected, press the WPS button on the client

device, then click the

 If the second option is selected, enter the PIN code from the client

device in this field and click

 If the third option is selected, enter the displayed PIN code to the

client device.

Enter the desired pin value manually or click the Auto generate button
to have the new pin code displayed in the field.

It displays the current WPS status.
It displays the network name in use.
The current security method is displayed.
The current status of Passphrase is displayed.

Push button.

Register button.

39

Chapter 4

4

PC and Server Configuration

This Chapter details the PC Configuration required for each PC on the local
LAN.

Overview

All Wireless Stations need to have settings which match the Wireless Access Point. These
settings depend on the mode in which the Access Point is being used.

 If using WEP or WPA-PSK, it is only necessary to ensure that each Wireless station's

settings match those of the Wireless Access Point, as described below.

 For 802.1x modes, configuration is much more complex. The Radius Server must be

configured correctly, and setup of each Wireless station is also more complex.

Using WEP

For each of the following items, each Wireless Station must have the same settings as the
Wireless Access Point.

Mode On each PC, the mode must be set to Infrastructure.
SSID (ESSID)

Wireless
Security

This must match the value used on the Wireless Access Point.
The default value is

Note! The SSID is case sensitive.

 Each Wireless station must be set to use WEP data encryption.
 The Key size (64 bit, 128 bit, 152 bit) must be set to match the

Access Point.

 The keys values on the PC must match the key values on the Access

Point.

Note:
On some systems, the key sizes may be shown as 40bit, 104bit, and

128bit instead of 64 bit, 128 bit and 152bit. This difference arises be­cause the key input by the user is 24 bits less than the key size used for
encryption.

wireless

40

PC and Server Configuration

Using WPA-PSK/WPA2-PSK

For each of the following items, each Wireless Station must have the same settings as the
Wireless Access Point.

Mode On each PC, the mode must be set to Infrastructure.
SSID (ESSID)

Wireless
Security

This must match the value used on the Wireless Access Point.
The default value is

Note! The SSID is case sensitive.

On each client, Wireless security must be set to WPA-PSK.
 The Pre-shared Key entered on the Access Point must also be

entered on each Wireless client.

 The Encryption method (e.g. TKIP, AES) must be set to match the

Access Point.

wireless

41

Wireless Access Point User Guide

Using WPA-Enterprise

This is the most secure and most complex system.
WPA-Enterprise mode provides greater security and centralized management, but it is more

complex to configure.

Wireless Station Configuration

For each of the following items, each Wireless Station must have the same settings as the
Wireless Access Point.

Mode On each PC, the mode must be set to Infrastructure.
SSID (ESSID)

802.1x
Authentication

802.1x
Encryption

This must match the value used on the Wireless Access Point.
The default value is

Note! The SSID is case sensitive.

Each client must obtain a Certificate which is used for authentication for
the Radius Server.

Typically, EAP-TLS is used. This is a dynamic key system, so keys do
NOT have to be entered on each Wireless station.

However, you can also use a static WEP key (EAP-MD5); the Wireless
Access Point supports both methods simultaneously.

wireless

Radius Server Configuration

If using WPA-Enterprise mode, the Radius Server on your network must be configured as
follow:

 It must provide and accept Certificates for user authentication.
 There must be a Client Login for the Wireless Access Point itself.

 The Wireless Access Point will use its Default Name as its Client Login name. (How-

ever, your Radius server may ignore this and use the IP address instead.)

 The Shared Key, set on the Security Screen of the Access Point, must match the

Shared Secret value on the Radius Server.

 Encryption settings must be correct.

42

PC and Server Configuration

802.1x Server Setup (Windows 2000 Server)

This section describes using Microsoft Internet Authentication Server as the Radius Server,
since it is the most common Radius Server available that supports the EAP-TLS authentication
method.

The following services on the Windows 2000 Domain Controller (PDC) are also required:

 dhcpd
 dns
 rras
 webserver (IIS)
 Radius Server (Internet Authentication Service)
 Certificate Authority

Windows 2000 Domain Controller Setup

1. Run dcpromo.exe from the command prompt.

2. Follow all of the default prompts, ensure that DNS is installed and enabled during installa­tion.

Services Installation

1. Select the Control Panel - Add/Remove Programs.

2. Click

3. Ensure that the following components are activated (selected):

Add/Remove Windows Components from the left side.

 Certificate Services. After enabling this, you will see a warning that the computer

cannot be renamed and joined after installing certificate services. Select
certificate services and continue

 World Wide Web Server. Select World Wide Web Server on the Internet Information

Services

 From the Networking Services category, select Dynamic Host Configuration Protocol

(DHCP), and Internet Authentication Service (DNS should already be selected and in­stalled).

(IIS) component.

Yes to select

43

Wireless Access Point User Guide

4. Click Next.

5. Select the

Enterprise root CA, and click Next.

Figure 27: Components Screen

6. Enter the information for the Certificate Authority, and click Next.

Figure 28: Certification Screen

44

PC and Server Configuration

Figure 29: CA Screen

7. Click Next if you don't want to change the CA's configuration data.

8. Installation will warn you that Internet Information Services are running, and must be
stopped before continuing. Click

Ok, then Finish.

DHCP server configuration

1. Click on the Start - Programs - Administrative Tools - DHCP

2. Right-click on the server entry as shown, and select New Scope.

3. Click Next when the New Scope Wizard Begins.

4. Enter the name and description for the scope, click

5. Define the IP address range. Change the subnet mask if necessary. Click

Figure 30: DHCP Screen

Next.

Next.

45

Wireless Access Point User Guide

Figure 31:IP Address Screen

6. Add exclusions in the address fields if required. If no exclusions are required, leave it
blank. Click

7. Change the

8. Select

Next.

Lease Duration time if preferred. Click Next.

Yes, I want to configure these options now, and click Next.

9. Enter the router address for the current subnet. The router address may be left blank if
there is no router. Click

Next.

10. For the Parent domain, enter the domain you specified for the domain controller setup, and
enter the server's address for the IP address. Click

Next.

11. If you don't want a WINS server, just click Next.

12. Select

Yes, I want to activate this scope now. Click Next, then Finish.

13. Right-click on the server, and select

Figure 32: DNS Screen

Authorize. It may take a few minutes to complete.

46

PC and Server Configuration

Certificate Authority Setup

1. Select Start - Programs - Administrative Tools - Certification Authority.

2. Right-click

Policy Settings, and select New - Certificate to Issue.

Figure 33: Certificate Authority Screen

3. Select Authenticated Session and Smartcard Logon (select more than one by holding down
the Ctrl key). Click

OK.

Figure 34: Template Screen

4. Select Start - Programs - Administrative Tools - Active Directory Users and Computers.

5. Right-click on your active directory domain, and select

Properties.

47

Wireless Access Point User Guide

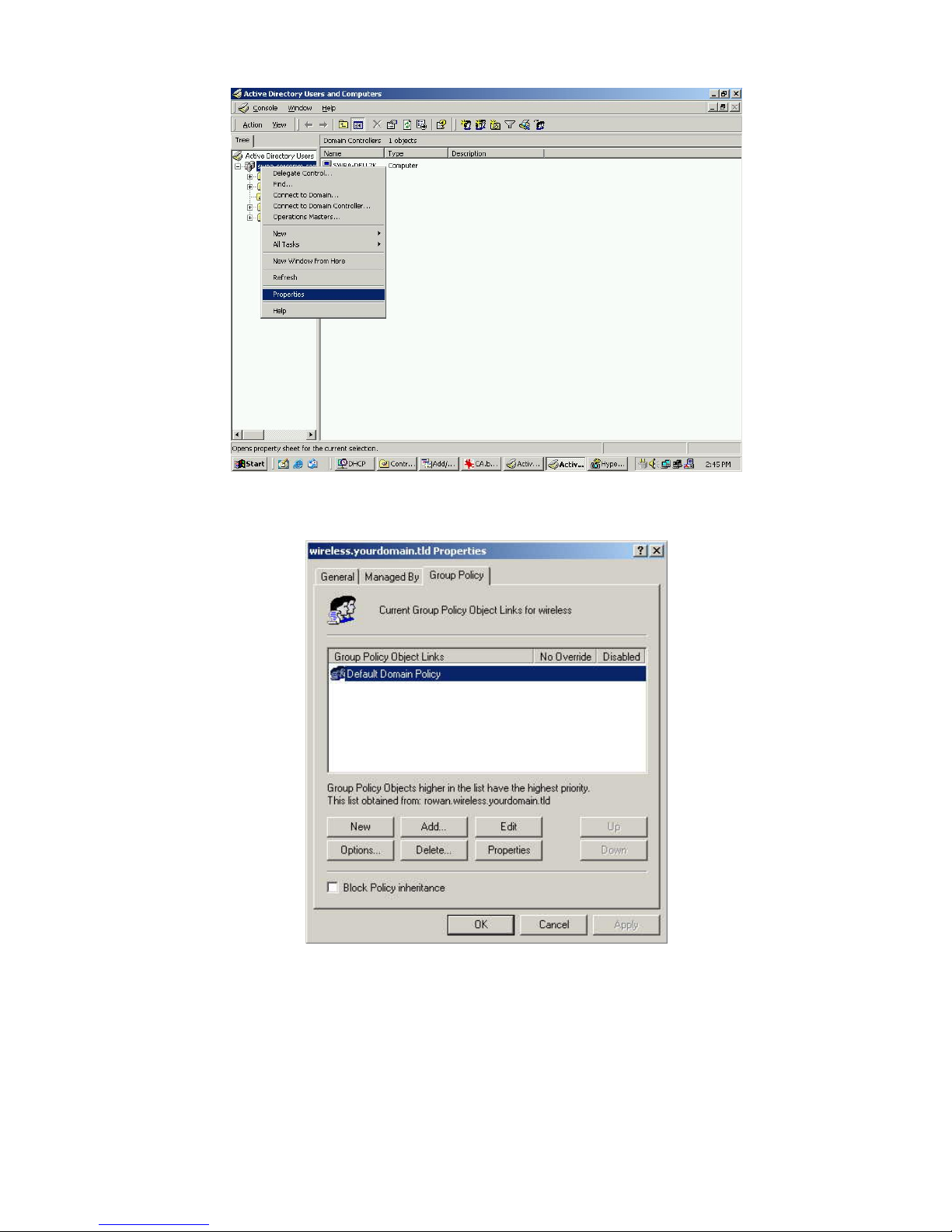

Figure 35: Active Directory Screen

6. Select the Group Policy tab, choose Default Domain Policy then click Edit.

Figure 36: Group Policy Tab

7. Select Computer Configuration - Windows Settings - Security Settings - Public Key Poli­cies

, right-click Automatic Certificate Request Settings - New - Automatic Certificate

Request

.

48

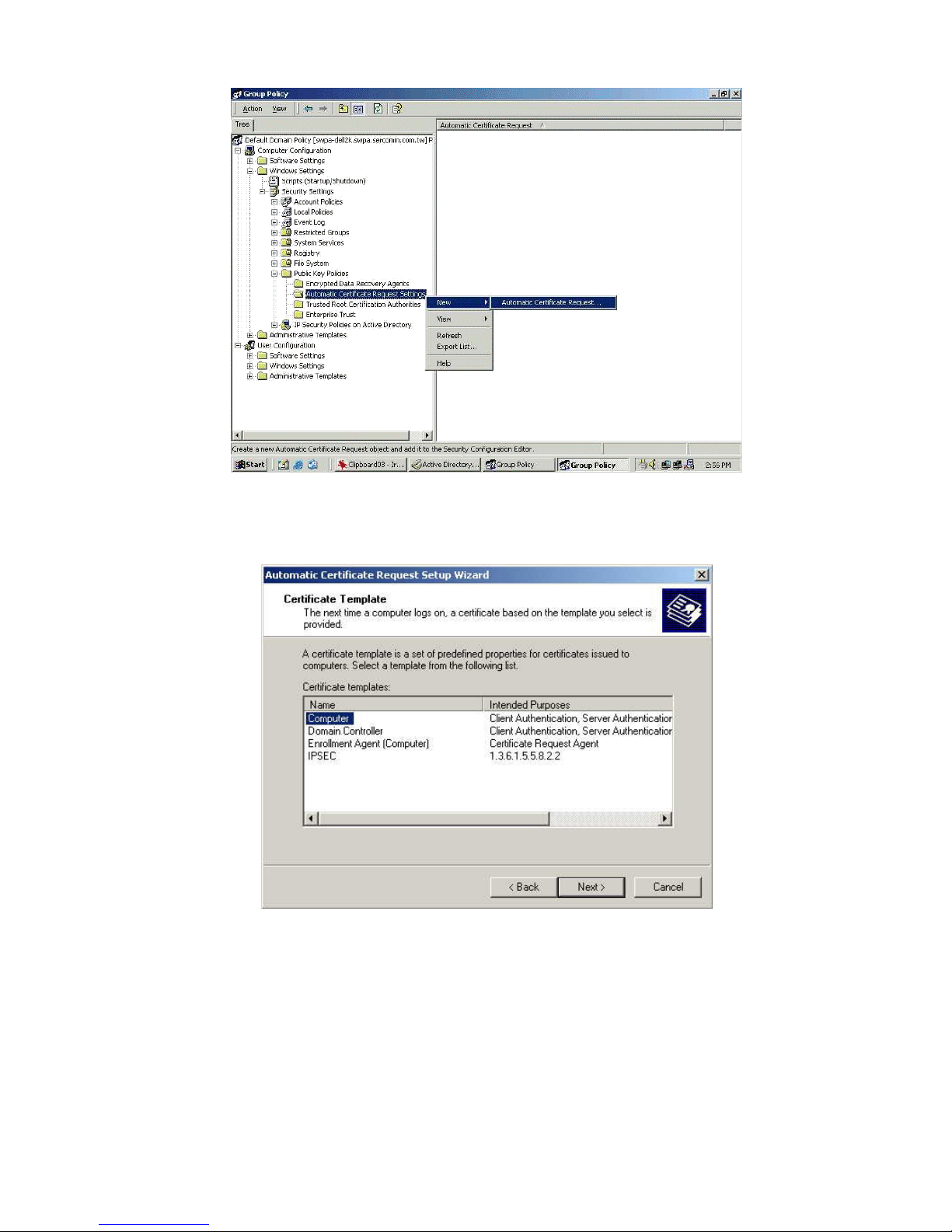

Figure 37: Group Policy Screen

PC and Server Configuration

8. When the Certificate Request Wizard appears, click Next.

9. Select

Computer, then click Next.

Figure 38: Certificate Template Screen

10. Ensure that your certificate authority is checked, then click Next.

11. Review the policy change information and click

12. Click

Start - Run, type cmd and press enter.

Enter

secedit /refreshpolicy machine_policy

Finish.

This command may take a few minutes to take effect.

49

Wireless Access Point User Guide

Internet Authentication Service (Radius) Setup

1. Select Start - Programs - Administrative Tools - Internet Authentication Service

2. Right-click on Clients, and select New Client.

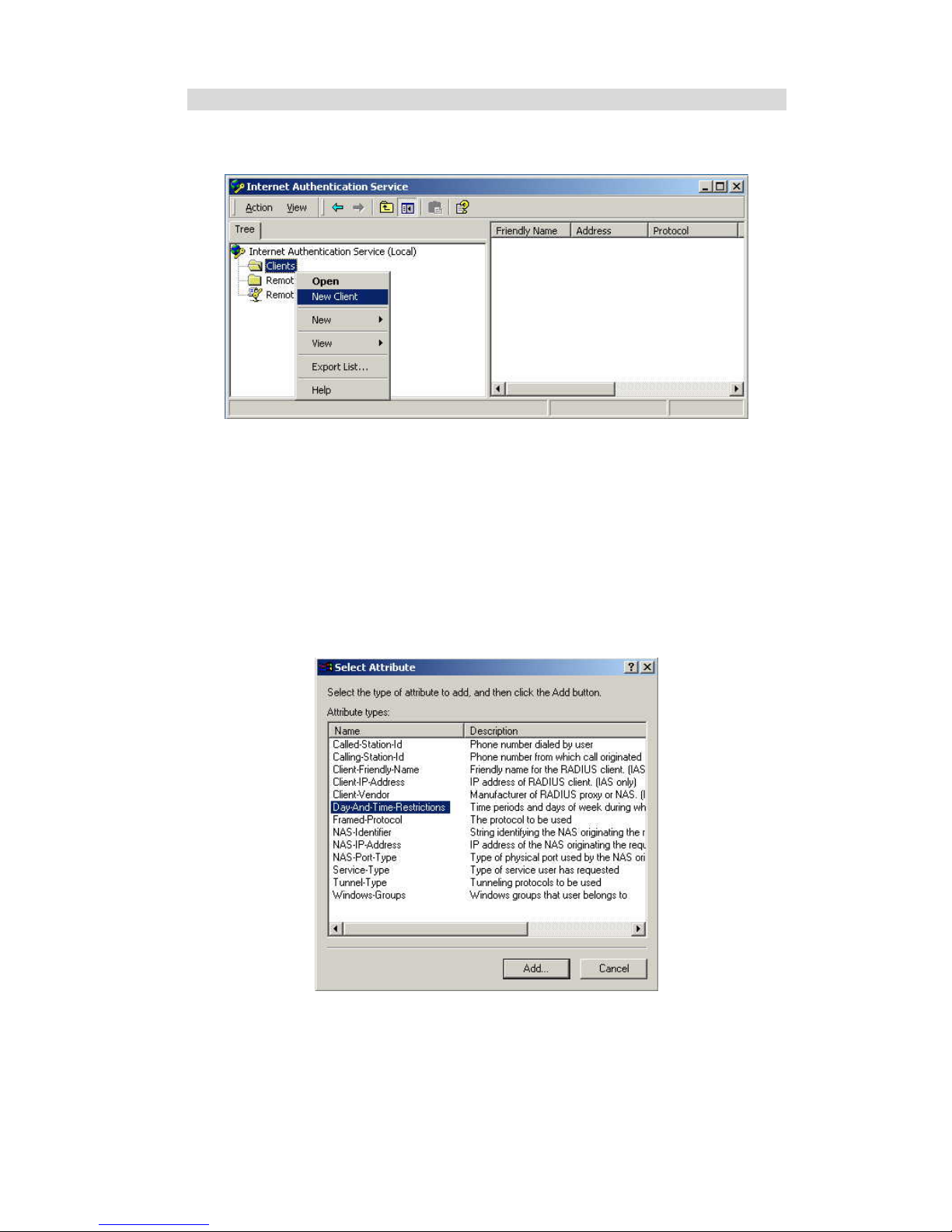

Figure 39: Service Screen

3. Enter a name for the access point, click Next.

4. Enter the address or name of the Wireless Access Point, and set the shared secret, as
entered on the

5. Click

Finish.

6. Right-click on

7. Assuming you are using EAP-TLS, name the policy

8. Click

Add...
If you don't want to set any restrictions and a condition is required, select Day-And-Time­Restrictions

Security Settings of the Wireless Access Point.

Remote Access Policies, select New Remote Access Policy.

eap-tls, and click Next.

, and click Add...

9. Click Permitted, then OK. Select Next.

10. Select

Grant remote access permission. Click Next.

Figure 40: Attribute Screen

50

PC and Server Configuration

11. Click

Protocol

ods listed. Click

Edit Profile... and select the Authentication tab. Enable Extensible Authentication

, and select Smart Card or other Certificate. Deselect other authentication meth-

OK.

Figure 41: Authentication Screen

12. Select No if you don't want to view the help for EAP. Click Finish.

51

Wireless Access Point User Guide

Remote Access Login for Users

1. Select Start - Programs - Administrative Tools- Active Directory Users and Computers.

2. Double click on the user who you want to enable.

3. Select the

Dial-in tab, and enable Allow access. Click OK.

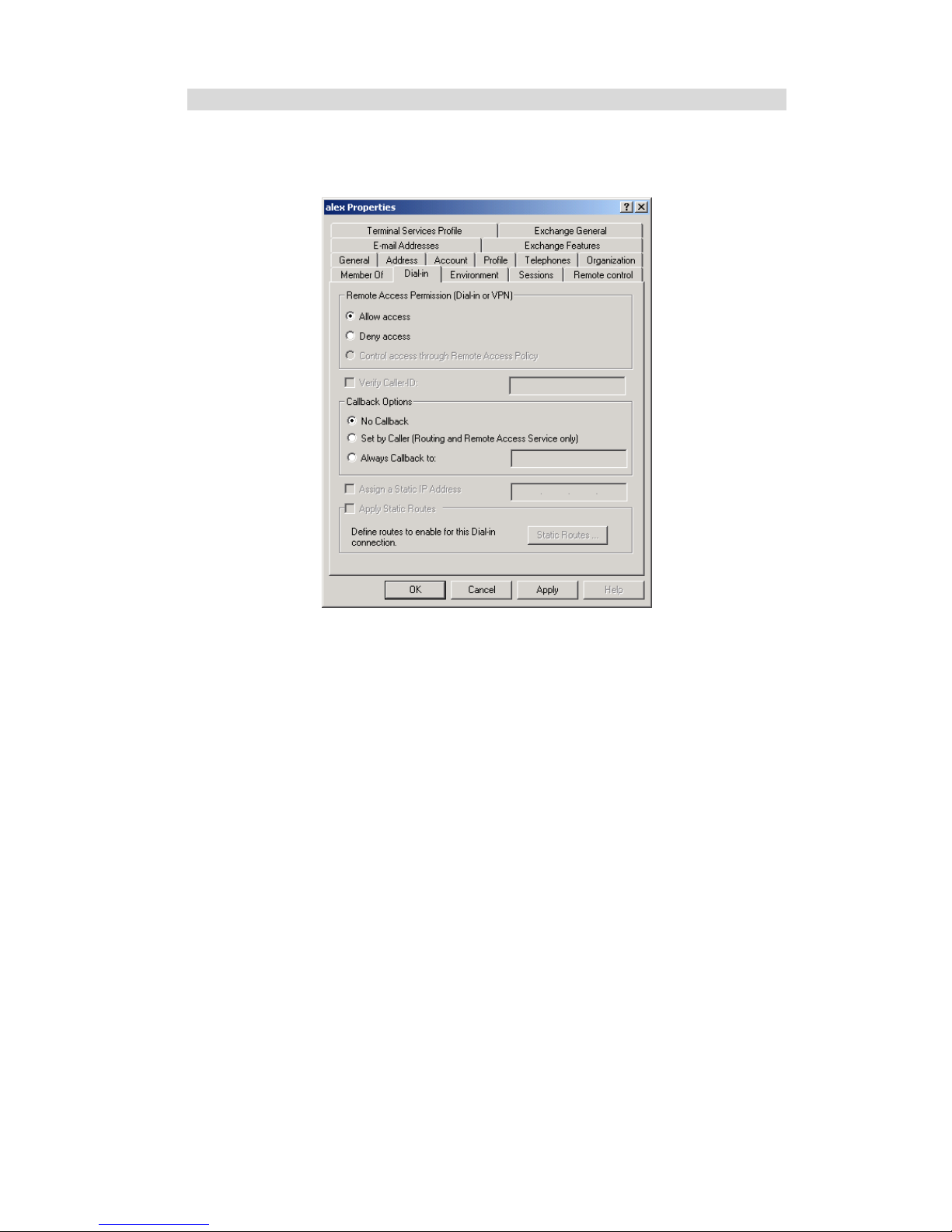

Figure 42: Dial-in Screen

52

PC and Server Configuration

802.1x Client Setup on Windows XP

Windows XP ships with a complete 802.1x client implementation. If using Windows 2000, you
can install SP3 (Service Pack 3) to gain the same functionality.

If you don't have either of these systems, you must use the 802.1x client software provided with
your wireless adapter. Refer to your vendor's documentation for setup instructions.

The following instructions assume that:

 You are using Windows XP
 You are connecting to a Windows 2000 server for authentication.
 You already have a login (User name and password) on the Windows 2000 server.

Client Certificate Setup

1. Connect to a network which doesn't require port authentication.

2. Start your Web Browser. In the Address box, enter the IP address of the Windows 2000

Server, followed by /
e.g

http://192.168.0.2/certsrv

3. You will be prompted for a user name and password. Enter the User name and Password
assigned to you by your network administrator, and click OK.

certsrv

4. On the first screen (below), select Request a certificate, click Next.

Figure 43: Connect Screen

53

Wireless Access Point User Guide

Figure 44: Wireless CA Screen

5. Select User certificate request and select User Certificate, the click Next.

6. Click Submit.

Figure 45: Request Type Screen

54

PC and Server Configuration

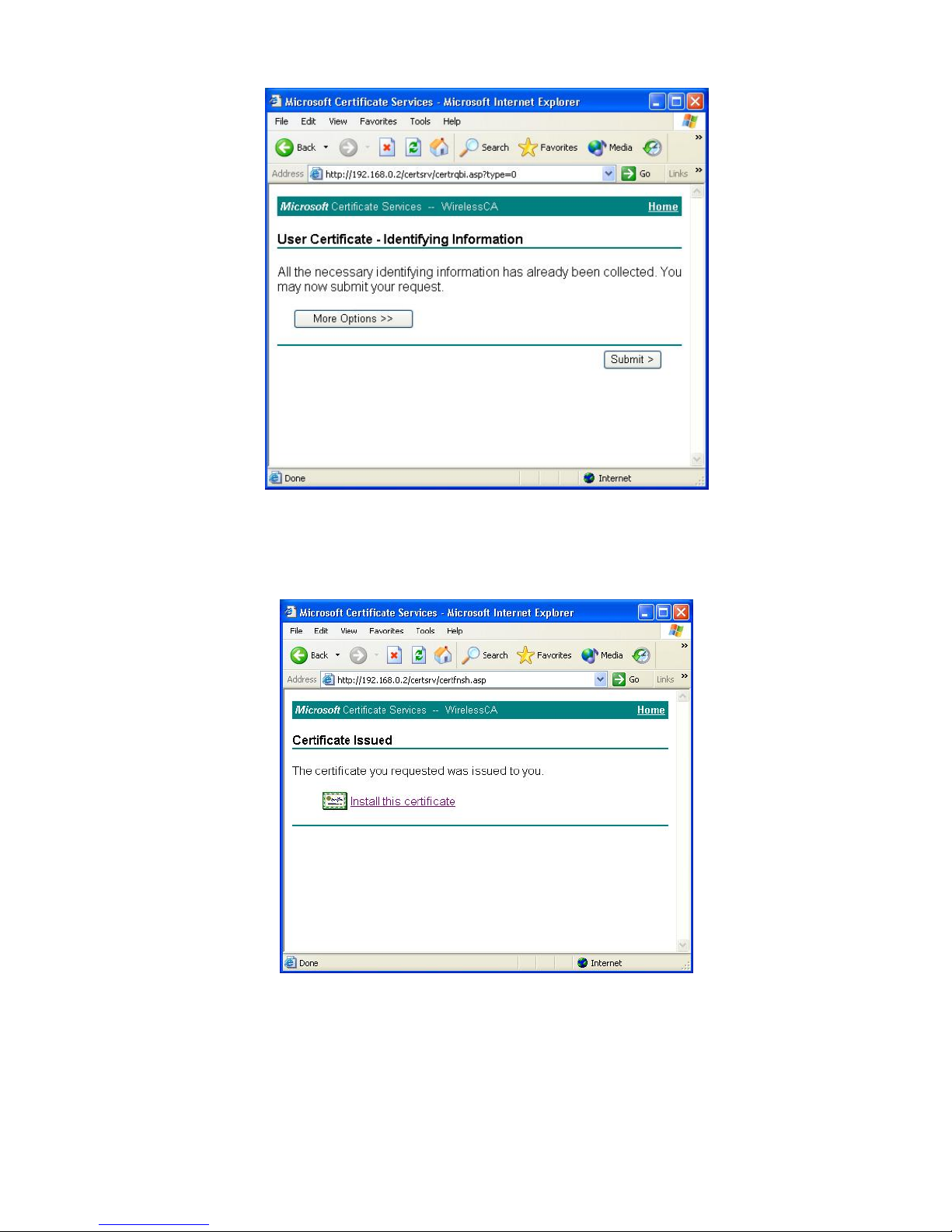

Figure 46: Identifying Information Screen

7. A message will be displayed, then the certificate will be returned to you.
Click

Install this certificate.

8. . You will receive a confirmation message. Click Yes.

Figure 47:Certificate Issued Screen

55

Wireless Access Point User Guide

Figure 48: Root Certificate Screen

9. Certificate setup is now complete.

802.1x Authentication Setup

1. Open the properties for the wireless connection, by selecting Start - Control Panel ­Network Connections.

2. Right Click on the Wireless Network Connection, and select Properties.

3. Select the

802.1X

Authentication Tab, and ensure that Enable network access control using IEEE

is selected, and Smart Card or other Certificate is selected from the EAP type.

Encryption Settings

The Encryption settings must match the APs (Access Points) on the Wireless network you wish
to join.

 Windows XP will detect any available Wireless networks, and allow you to configure each

network independently.

Figure 49: Authentication Tab

56

PC and Server Configuration

 Your network administrator can advise you of the correct settings for each network. 802.1x

networks typically use EAP-TLS. This is a dynamic key system, so there is no need to en­ter key values.

Enabling Encryption

To enable encryption for a wireless network, follow this procedure:

1. Click on the

Wireless Networks tab.

Figure 50: Wireless Networks Screen

2. Select the wireless network from the Available Networks list, and click Configure.

3. Select and enter the correct values, as advised by your Network Administrator.
For example, to use EAP-TLS, you would enable
for the setting

The key is provided for me automatically, as shown below.

Data encryption, and click the checkbox

57

Wireless Access Point User Guide

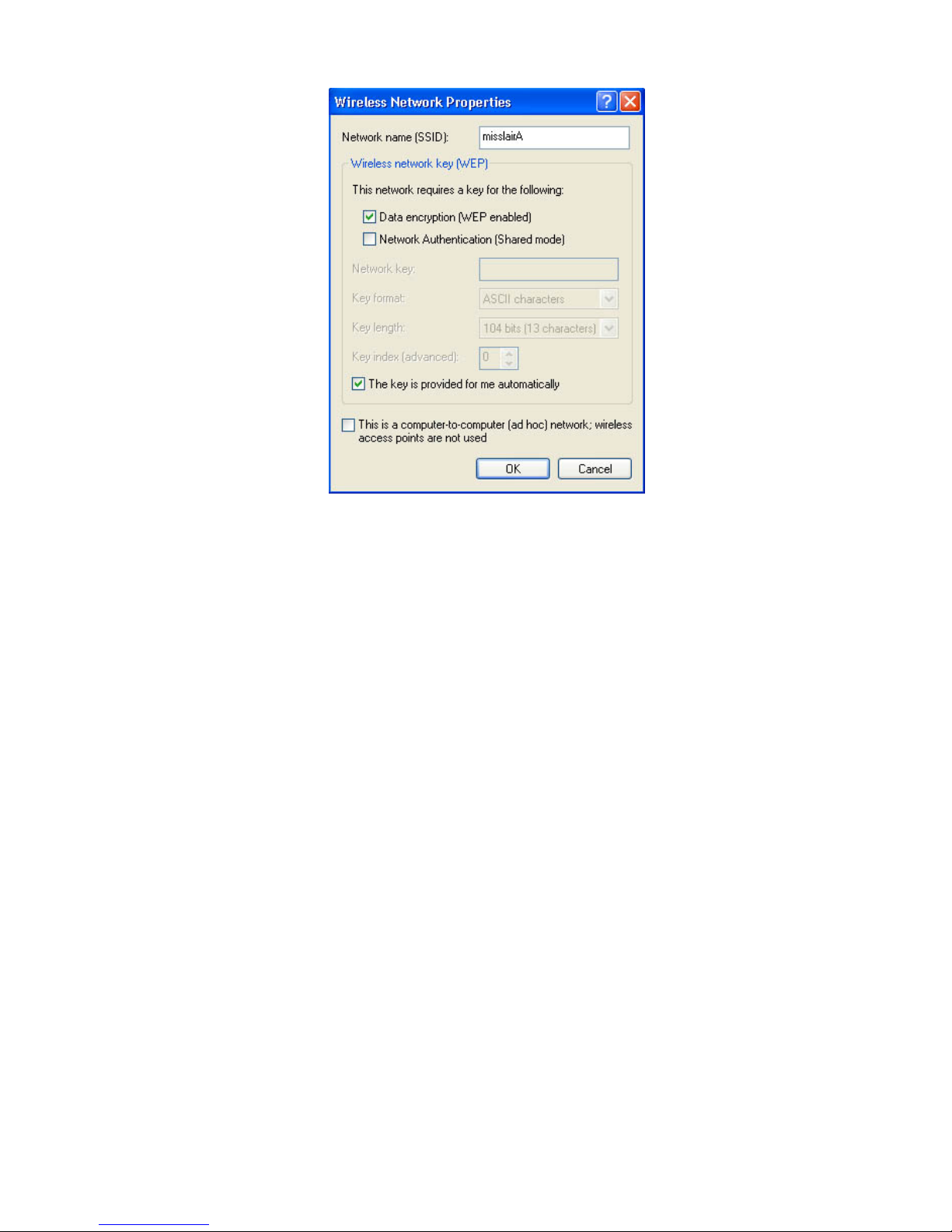

Figure 51: Properties Screen

Setup for Windows XP and 802.1x client is now complete.

58

Using 802.1x Mode (without WPA)

This is very similar to using WPA-Enterprise.

PC and Server Configuration

The only difference is that on your client, you must NOT enable the setting

for me automatically

Instead, you must enter the WEP key manually, ensuring it matches the WEP key used on the
Access Point.

.

The key is provided

Note

:

On some systems, the "64 bit" WEP key is shown as "40 bit" and the "128 bit" WEP key is
shown as "104 bit". This difference arises because the key input by the user is 24 bits less than
the key size used for encryption.

Figure 52: Properties Screen

59

Chapter 5

5

Operation and Status

This Chapter details the operation of the Wireless Access Point and the status
screens.

Operation

Once both the Wireless Access Point and the PCs are configured, operation is automatic.

However, you may need to perform the following operations on a regular basis.

 If using the Access Control feature, update the Trusted PC database as required. (See

Access Control in Chapter 3 for details.)

 If using 802.1x mode, update the User Login data on the Windows 2000 Server, and

configure the client PCs, as required.

Status Screen

Use the Status link on the main menu to view this screen.

Figure 53: Status Screen

60

Data - Status Screen

Access Point

Operation and Status

Access Point Name
MAC Address
Country/Domain
Hardware Version
Firmware Version

TCP/IP

IP Address
Subnet Mask
Gateway

DHCP Client

DHCP Server
Ethernet Status

Wireless

The current name will be displayed.
The MAC (physical) address of the Wireless Access Point.
The region or domain, as selected on the System screen.
The version of the hardware currently used.
The version of the firmware currently installed.

The IP Address of the Wireless Access Point.
The Network Mask (Subnet Mask) for the IP Address above.
Enter the Gateway for the LAN segment to which the Wireless

Access Point is attached (the same value as the PCs on that LAN
segment).

This indicates whether the current IP address was obtained from a
DHCP Server on your network.

It will display "Enabled" or "Disabled".
"Enabled" or "Disabled" is displayed for the DHCP server status.
The current Ethernet status is displayed.

Channel/Frequency
Wireless Mode
AP Mode

Buttons

Virtual AP Status

Statistics

Log

Stations

The Channel currently in use is displayed.
The current mode (e.g. 802.11g) is displayed.
The current Access Point mode is displayed.

Click this to open a sub-window displaying Virtual AP Status
about the information of Name, SSID, Broadcast SSID, Security,
Status and Clients.

Click this to open a sub-window where you can view Statistics on
data transmitted or received by the Access Point.

Click this to open a sub-window where you can view the activity
log.

Click this to open a sub-window where you can view the list of all
current Wireless Stations using the Access Point.

61

Wireless Access Point User Guide

Statistics Screen

This screen is displayed when the Statistics button on the Status screen is clicked. It shows
details of the traffic flowing through the Wireless Access Point.

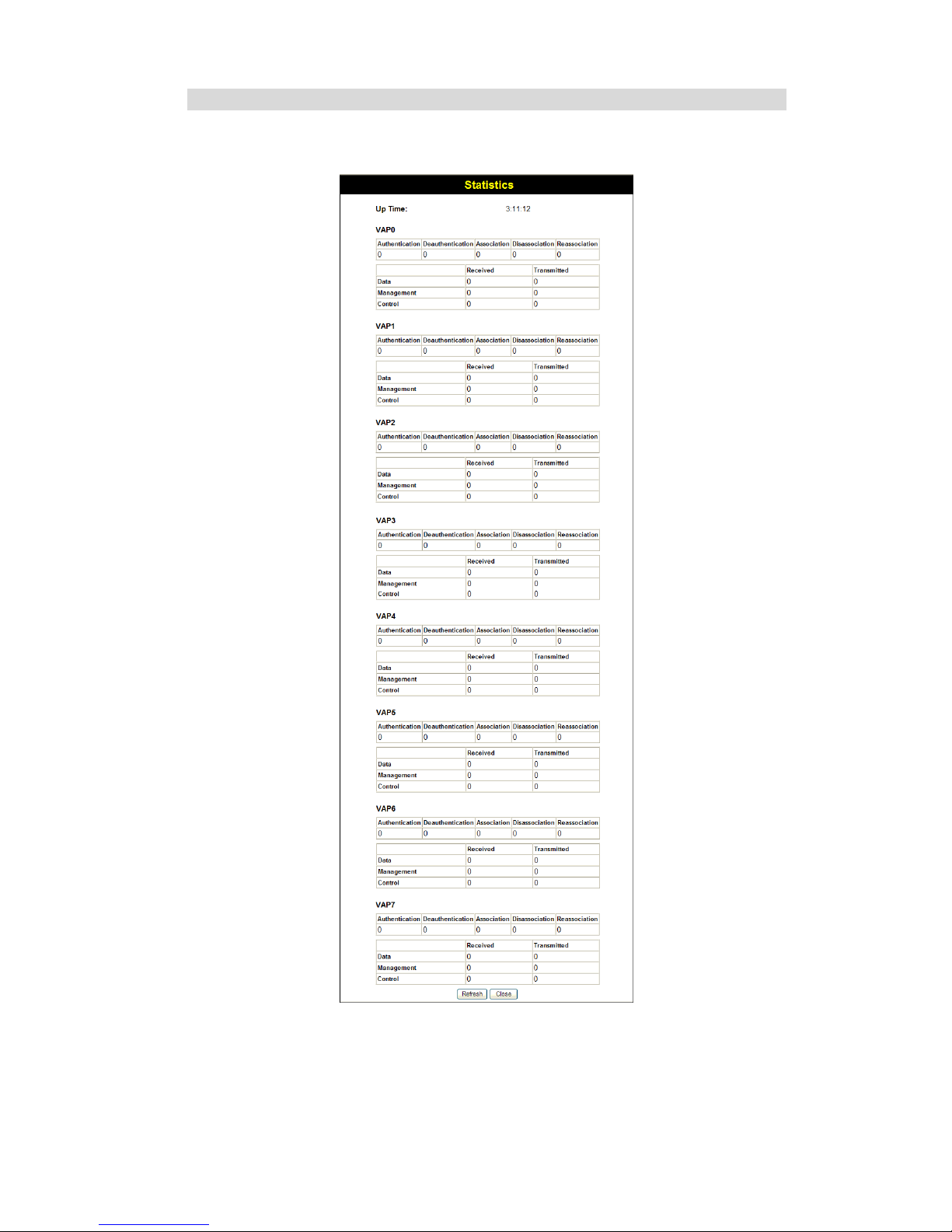

Figure 54: Statistics Screen

62

Data - Statistics Screen

System Up Time

Operation and Status

Up Time

VAP

Authentication

Deauthentication

Association

Disassociation

Reassociation

Wireless

Data

Management

This indicates how long the system has been running since the last
restart or reboot.

The number of "Authentication" packets received. Authentication is
the process of identification between the AP and the client.

The number of "Deauthentication" packets received. Deauthentica­tion is the process of ending an existing authentication relationship.

The number of "Association" packets received. Association creates
a connection between the AP and the client. Usually, clients associ­ate with only one (1) AP at any time.

The number of "Disassociation" packets received. Disassociation
breaks the existing connection between the AP and the client.

The number of "Reassociation" packets received. Reassociation is
the service that enables an established association (between AP and
client) to be transferred from one AP to another (or the same) AP.

Number of valid Data packets transmitted to or received from
Wireless Stations, at driver level.

Number of Management packets transmitted to or received from
Wireless Stations.

Control

Number of Control packets transmitted to or received from Wireless
Stations.

63

Wireless Access Point User Guide

Virtual AP Status

This screen is displayed when the Virtual AP Status button on the Status screen is clicked.

Figure 55: Virtual AP Status Screen

For each VAP, the following data is displayed:

Name

The name you gave to this VAP; if you didn't change the name, the
default name is used.

BSSIS
SSID
Broadcast SSID
Security
Status
Clients

The MAC address of the VAP.
The SSID assigned to this VAP.
Indicates whether or not the SSID is broadcast.
The security method used by this VAP.
Indicates whether or not this VAP is enabled or currently used.
The number of wireless stations currently using accessing this Access

Point using this VAP.
If the VAP is disabled, this will always be zero.

64

Activity Log

This screen is displayed when the Log button on the Status screen is clicked.

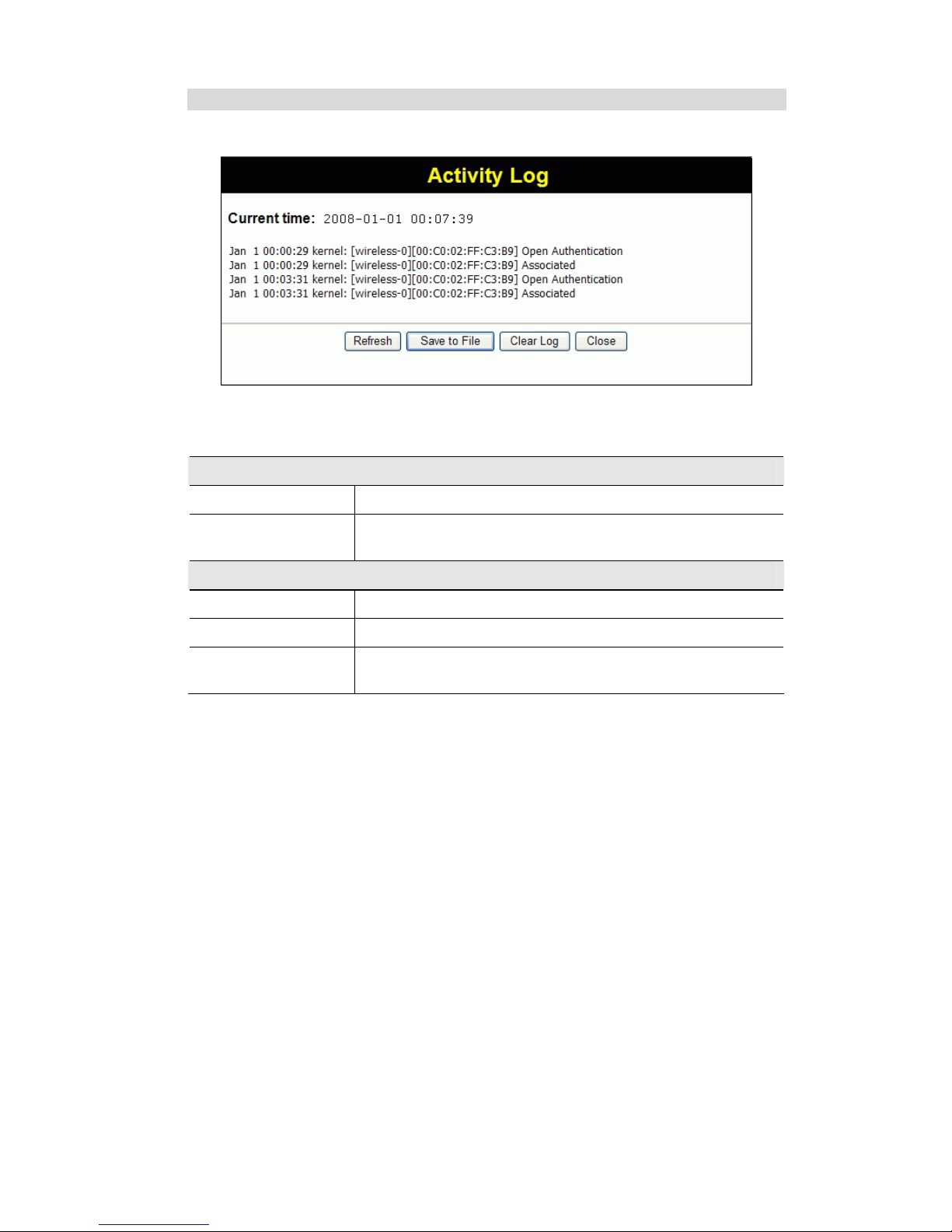

Figure 56: Activity Log Screen

Data - Activity Log

Data

Operation and Status

Current Time
Log

Buttons

Refresh
Save to File
Clear Log

The system date and time is displayed.
The Log shows details of the connections to the Wireless Access

Point.

Update the data on screen.
Save the log to a file on your pc.
This will delete all data currently in the Log. This will make it

easier to read new messages.

65

Wireless Access Point User Guide

Station List

This screen is displayed when the Stations button on the Status screen is clicked.

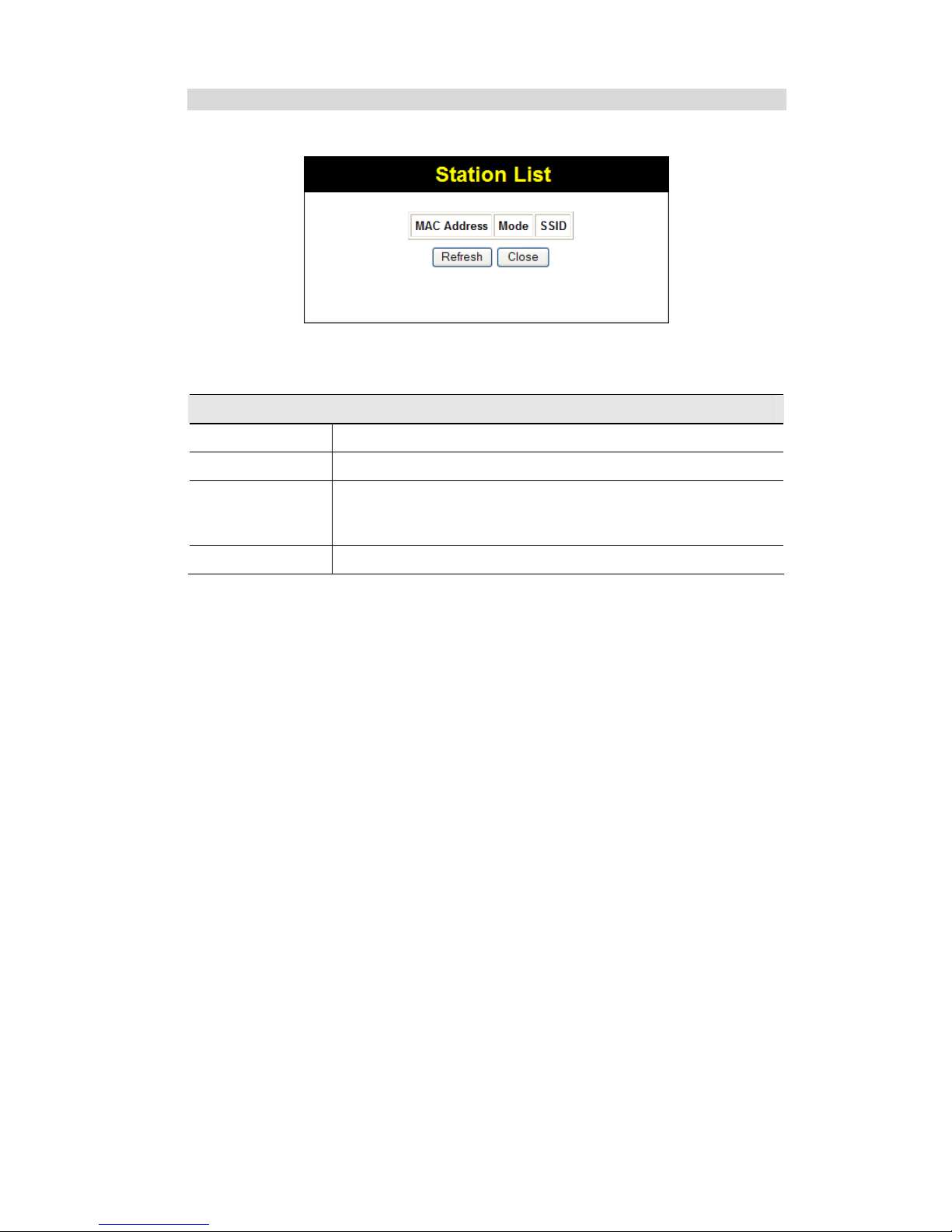

Figure 57 Station List Screen

Data - Station List Screen

Station List

MAC Address
Mode
SSID

Refresh Button

The MAC (physical) address of each Wireless Station is displayed.
The mode of each Wireless Station.
This displays the SSID used the Wireless station. Because the Wire-

less Access Point supports multiple SSIDs, different PCs could
connect using different SSIDs.

Update the data on screen.

66

Chapter 6

6

Access Point Management

This Chapter explains when and how to use the Wireless Access Point's
"Management" Features.

Overview

This Chapter covers the following features, available on the Wireless Access Point’s Manage-

menu.

ment

 Admin Login
 Auto Config/Update
 Config File
 SNMP Settings
 Log Settings
 Upgrade Firmware

Admin Login Screen

The Admin Login screen allows you to assign a password to the Wireless Access Point. This
password limits access to the configuration interface. The default password is
recommended that this be changed, using this screen.

password. It is

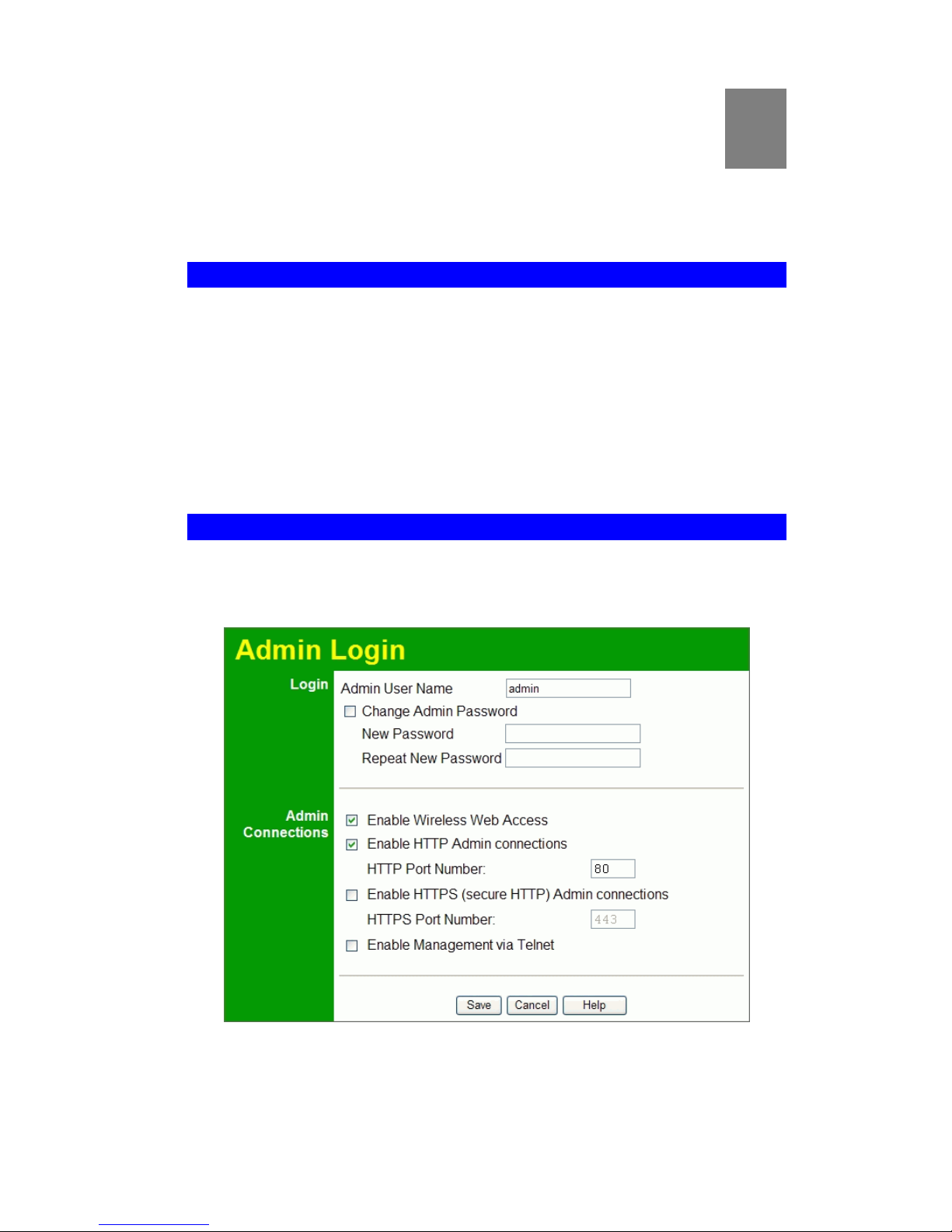

Figure 58: Admin Login Screen

67

Wireless Access Point User Guide

Data - Admin Login Screen

Login

Admin User Name
Change Admin Password

New Password
Repeat New Password

Admin Connections

Enable Wireless Web
Access

Enable HTTP

HTTP Port Number

Enable HTTPS

HTTPS Port Number

Enable Management via
Telnet

Enter the login name for the Administrator.
If you wish to change the Admin password, check this field

and enter the new login password in the fields below.
Enter the desired login password.
Re-enter the desired login password.

Enable this to allow wireless client access the device.

Enable this to allow admin connections via HTTP. If enabled,
you must provide a port number in the field below. Either
HTTP or HTTPS must be enabled.

Enter the port number to be used for HTTP connections to this
device. The default value is 80.

Enable this to allow admin connections via HTTPS (secure
HTTP). If enabled, you must provide a port number in the
field below. Either HTTP or HTTPS must be enabled.

Enter the port number to be used for HTTPS connections to
this device. The default value is 443.

If desired, you can enable this option. If enabled, you will able
to connect to this AP using a Telnet client. You will have to
provide the same login data (user name, password) as for a
HTTP (Web) connection.

68

Access Point Management

Auto Config/Update

To reach this screen, select Auto Config/Update in the Management section of the menu.

Figure 59: Auto Config/Auto Update Screen

Data - Auto Config/Auto Update Screen

Auto Config

Perform Auto Con­figuration on this AP

Respond to Auto­configuration request
by other AP

Provide admin login
name and password

Provide Respond to
Auto-Configuration
setting

Auto Update

Check for Firmware
Upgrade..

FTP Server address
FTP File pathname

If checked, this AP will perform Auto Configuration.

If checked, this AP will respond to other AP’s "Auto Configura­tion" requests. Otherwise, "Auto Configuration" requests from
other AP will be ignored.

If enabled, the login name and password need to be provided.

If enabled, the "Respond to Auto-configuration" setting needs to
be provided.

If enabled, the device will check the firmware upgrade in the time
interval. Enter the desired day value in the following field.

Enter the address for the FTP server.
Enter the full path of the firmware in the FTP server.

FTP Login Name
FTP Password

Enter the login name for the FTP server.
Enter the login password for the FTP server.

69

Wireless Access Point User Guide

Config File

This screen allows you to Backup (download) the configuration file, and to restore (upload) a
previously-saved configuration file.

You can also set the Wireless Access Point back to its factory default settings.
To reach this screen, select

Config File in the Management section of the menu.

Figure 60: Config File Screen

Data - Config File Screen

Backup

Save a copy of cur­rent settings to a file

Restore

Restore saved settings
from a file

Once you have the Access Point working properly, you should
back up the settings to a file on your computer. You can later
restore the Access Point's settings from this file, if necessary.

To create a backup file of the current settings:

 Click Backup.
 If you don't have your browser set up to save downloaded

To restore settings from a backup file:

1. Click

2. Locate and select the previously saved backup file.

3. Click

files automatically, locate where you want to save the file, re­name it if you like, and click

Browse.

Restore

Save.

70

Defaults

Access Point Management

Revert to factory
default settings

To erase the current settings and restore the original factory
default settings, click

Set to Defaults button.

Note!

 This will terminate the current connection. The Access Point

will be unavailable until it has restarted.

 By default, the Access Point will act as a DHCP client, and

automatically obtain an IP address. You will need to deter­mine its new IP address in order to re-connect.

71

Wireless Access Point User Guide

SNMP

SNMP (Simple Network Management Protocol) is only useful if you have a SNMP program on
your PC. To reach this screen, select

SNMP in the Management section of the menu.

Data - SNMP Screen

General

SNMP
Read Only com-

munity
Read/Write Com-

munity

SNMPv3

User Name
Authentication

Protocol
Authentication

Key

Use this to enable or disable SNMP as required
Data can be read, but not changed.

Data can be read, and setting changed.

Enter the user name for SNMPv3.
Select the authentication protocol used by SNMPv3.

Enter the authentication key required by SNMPv3.

Figure 61: SNMP Screen

72

Access Point Management

Private Protocol
Private Key

Managers

Any Station
Only this station

Traps

Version

Receiver

Select the private protocol as required.
Enter the private key here.

The IP address of the manager station is not checked.
The IP address is checked, and must match the address you enter in

the IP address field provided.
If selected, you must enter the IP address of the required station.

Select the desired option, as supported by your SNMP Management
program.

Select this to have Trap messages sent to the specified PC only. You
must enter the IP Address of the desired PC.

73

Wireless Access Point User Guide

Log Settings

If you have a Syslog Server on your LAN, this screen allows you to configure the Access Point
to send log data to your Syslog Server.

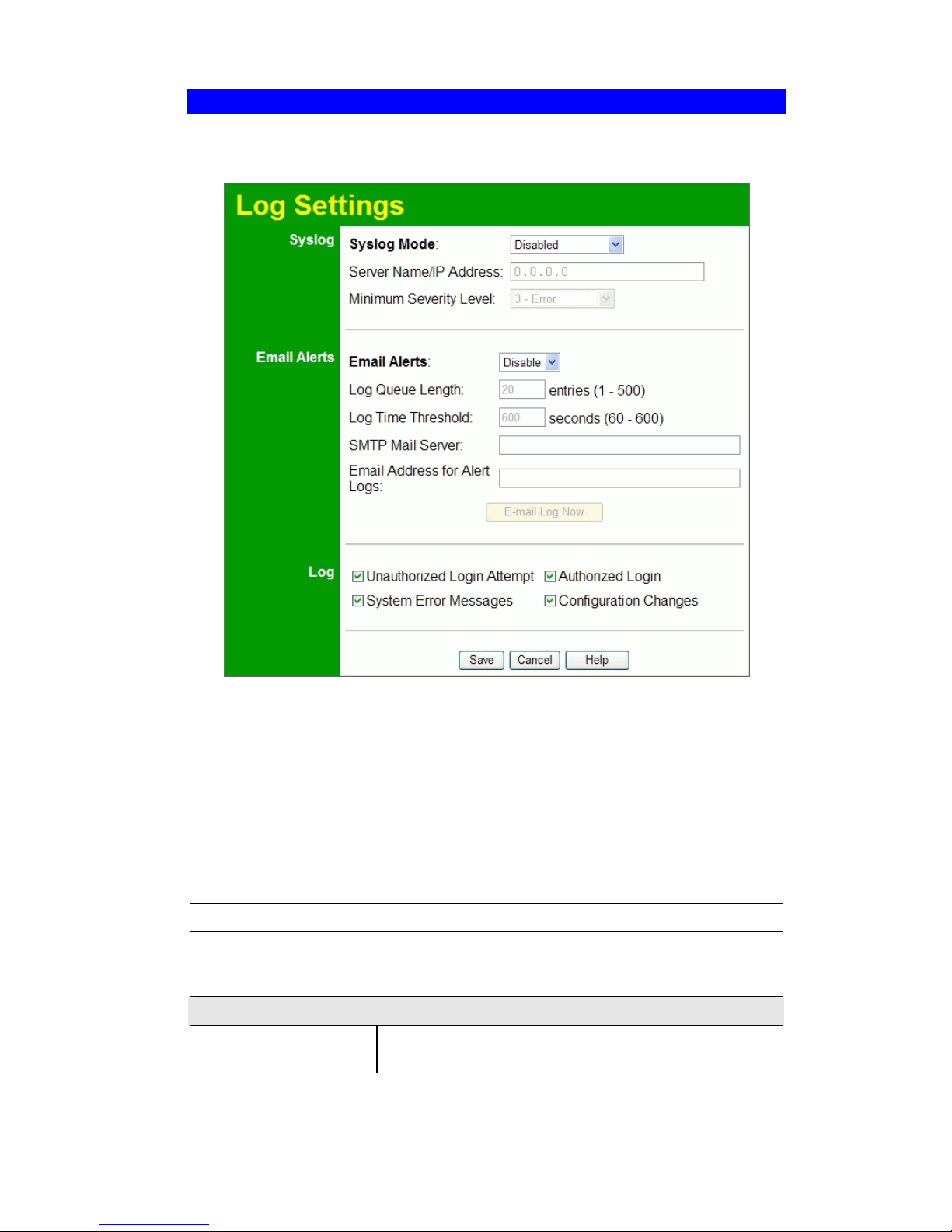

Figure 62: Syslog Settings Screen

Data - Syslog Settings Screen

Syslog Server

Server Name/IP Address
Minimum Severity Level

Email Alerts

Email Alerts

Select the desired Option:

 Disable - Syslog server is not used.
 Broadcast - Syslog data is broadcast. Use this option if

different PCs act as the Syslog server at different times.

 Unicast - Select this if the same PC is always used as the

Syslog server. If selected, you must enter the server ad-

dress in the field provided.
Enter the name or IP address of your Syslog Server.
Select the desired severity level. Events with a severtiy level

equal to or higher (i.e. lower number) than the selected level
will be logged.

If enabled, an E-mail will be sent. If enabled, the e-mail
address information (below) must be provided.

74

Access Point Management

Log Queue Length

Log Time Threshold

SMTP Mail Server

Email Address for Alert
Logs

E-mail Log Now

Log

Email Alerts

Enter the desired length of the log queue. The default is 20
entries.

Enter the preferred value between 60 and 600, which deter­mine how often the log will be emailed to you. Normally, this
can be left at the default value. The default is 600 seconds.

Enter the domain name or IP address of the SMTP (Simple
Mail Transport Protocol) server you use for sending e-mails.

Enter the e-mail address the log is to be sent to.

Press this button to let the log to be e-mailed immediately.

Use these checkboxes to determine which events are included
in the log. Checking all options will increase the size of the
log, so it is good practice to disable any events which are not
really required.

 Unauthorized Login Attempt - If checked, the unauthor-

ized users who attempted to login to the Access Point are
logged.

 Authorized Login - If checked, this will log the author-

ized login TO this Access Point.

 System Error Message - If checked, the system error

message will be logged.

 Configuration Changes - If checked, the changes of

configuration will be logged.

75

Wireless Access Point User Guide

Firmware Upgrade

The firmware (software) in the Wireless Access Point can be upgraded using your Web Brows­er.

You must first download the upgrade file, and then select

section of the menu. You will see a screen like the following.

ment

Figure 63: Firmware Upgrade Screen

Upgrade Firmware in the Manage-

To perform the Firmware Upgrade:

1. Click the Browse button and navigate to the location of the upgrade file.

2. Select the upgrade file. Its name will appear in the

3. Click the

Upgrade button to commence the firmware upgrade.

Upgrade File field.

The Wireless Access Point is unavailable during the
upgrade process, and must restart when the upgrade
is completed. Any connections to or through the
Wireless Access Point will be lost.

76

Appendix A

A

Specifications

Wireless Access Point

Hardware Specifications

CPU Atheros AR9132
Radio-on-Chip Atheros AR9103
DRAM 32 Mbytes
Flash ROM 8 Mbytes

LAN port

11b

11n

Antennae 3 x 2dbi detachable antenna
Operating temperature
Storage temperature
Power Adapter 12VDC 1A External

1 x Auto-MDIX RJ 45 for 10/100/1000Mbps PoE port
IEEE 802.3af compliance

Embedded Atheros solution
Network Standard IEEE 802.11b (Wi-Fi™) and IEEE

802.11g compliance
OFDM; 802.11b: CCK (11 Mbps, 5.5 Mbps), DQPSK (2

Mbps), DBPSK (1 Mbps)
Operating Frequencies 2.412.2.497 GHz
Operating Channels 802.11g: 11 for North America, 13

for Europe (ETSI), 14 for Japan

802.11b: 11 for North America, 14 for Japan, 13 for
Europe (ETSI)

IEEE802.11n draft 2.0 compliant
Rx Sensitivity: 11.n: 300Mbps@ -69dBm, 11.g:

54Mbps@ -73dBm, 11.b: 11Mbps@ -88dBm

0

 C to 40 C

-20

 C to 70 C

Dimensions 175mm(W) * 135mm(D) * 33mm(H)

77

Wireless Access Point User Guide

Software Specifications

Feature Details

Wireless

Operation Mode

Security

Management

 Access point support
 Roaming supported
 IEEE 802.11n/11g/11b compliance
 Auto Sensing Open System / Share Key authentication
 Wireless Channels Support
 Automatic Wireless Channel Selection
 Country Selection
 Preamble Type: long or short support
 RTS Threshold Adjustment
 Fragmentation Threshold Adjustment
 Beacon Interval Adjustment
 8x Multi-BSSID assignment
 802.11i pre-authentication
 Short Slot time support
 IEEE 802.11d
 CTS-only & CTS/RTS protect mechanism support
 WMM support
 WPS support
 Wireless isolations
 Common AP+PTMP/PTP
 Universal Repeater
 Universal Client
 Rogue AP Detection
 Open, shared, WPA, WPA-PSK, and WPA2-PSK authentication
 64bit/128bit WEP, TKIP, AES-CCMP support
 802.1x support
 EAP-MD5, EAP-TLS, EAP-TTLS, PEAP
 RADIUS based MAC authentication
 Block inter-wireless station communication (wireless separation)
 Block SSID broadcast
 Web based configuration
 Configurable Web port
 RADIUS Accounting
 RADIUS-On feature
 RADIUS Accounting update
 Telnet/CLI
 Syslog/internal Log
 Access Control list
 Editable Configuration file backup/Restore

78

Other Features

Firmware Upgrade

Appendix A - Specifications

 Statistics support
 SNMP v1 & v2c & v3
 LLTD
 Only wired users to be able to control
 Auto configuration
 DHCP client
 WINS client
 Radius client
 Enable/Disable wireless
 Network Integrality Check
 FTP client
 HTTP/FTP network protocol download

79

Appendix B

B

Troubleshooting

Overview

This chapter covers some common problems that may be encountered while using the Wireless
Access Point and some possible solutions to them. If you follow the suggested steps and the
Wireless Access Point still does not function properly, contact your dealer for further advice.

General Problems

Problem 1: Can't connect to the Wireless Access Point to configure it.
Solution 1:

Check the following:
 The Wireless Access Point is properly installed, LAN connections are

OK, and it is powered ON. Check the LEDs for port status.

 Ensure that your PC and the Wireless Access Point are on the same

network segment. (If you don't have a router, this must be the case.)

 If your PC is set to "Obtain an IP Address automatically" (DHCP

client), restart it.

 You can use the following method to determine the IP address of the

Wireless Access Point, and then try to connect using the IP address, in­stead of the name.

To Find the Access Point's IP Address

1. Open a MS-DOS Prompt or Command Prompt Window.

2. Use the Ping command to “ping” the Wireless Access Point. Enter

ping followed by the Default Name of the Wireless Access Point.
e.g.

ping SC003318

3. Check the output of the ping command to determine the IP address of
the Wireless Access Point, as shown below.

If your PC uses a Fixed (Static) IP address, ensure that it is using an IP
Address which is compatible with the Wireless Access Point. (If no DHCP
Server is found, the Wireless Access Point will default to an IP Address and
Mask of 192.168.0.228 and 255.255.255.0.) On Windows PCs, you can use
Control Panel-Network to check the Properties for the TCP/IP protocol.

Problem 2: My PC can't connect to the LAN via the Wireless Access Point.

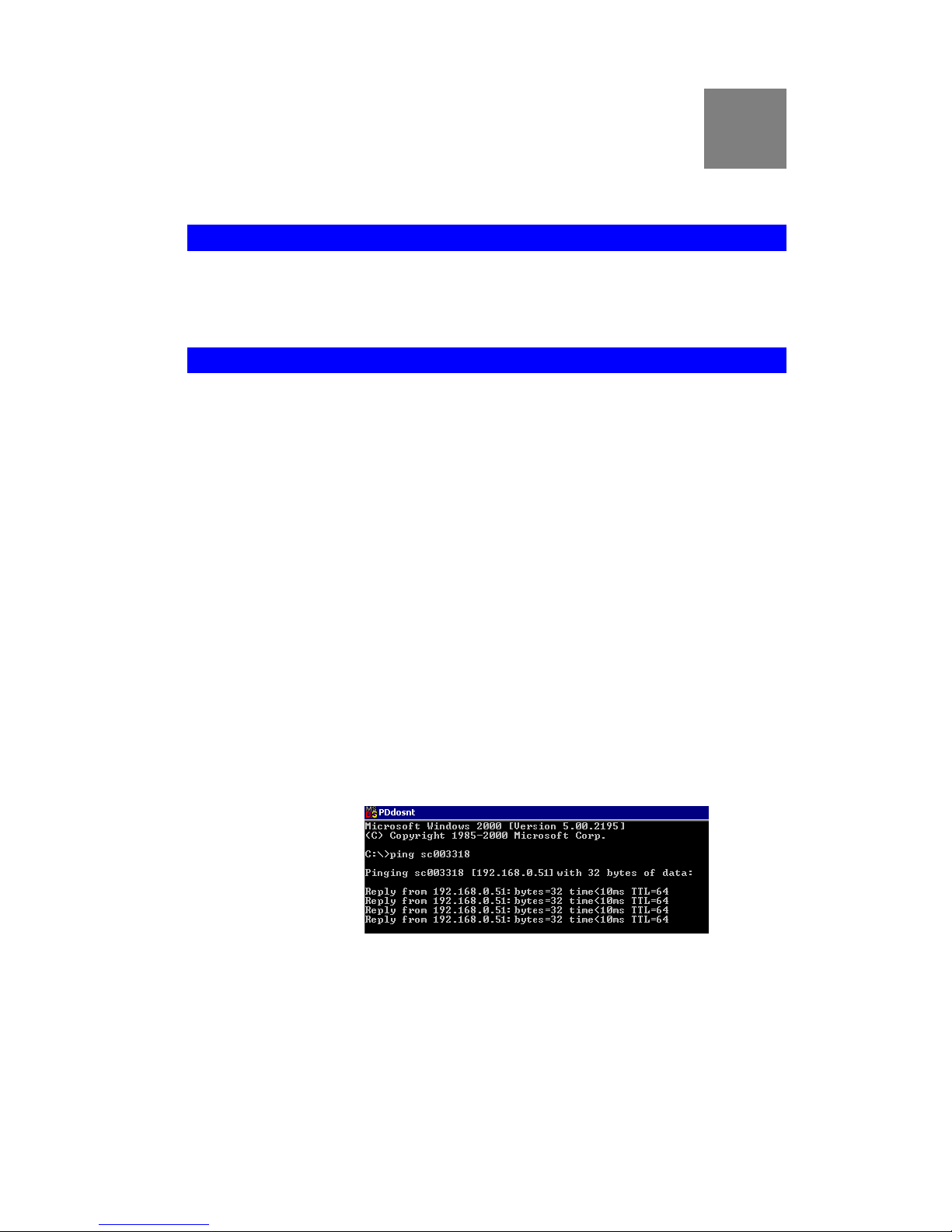

Figure 64: Ping

80

Appendix B - Troubleshooting

Solution 2

Check the following:
 The SSID and WEP settings on the PC match the settings on the Wire-

less Access Point.

 On the PC, the wireless mode is set to "Infrastructure"
 If using the Access Control feature, the PC's name and address is in the

Trusted Stations list.

 If using 802.1x mode, ensure the PC's 802.1x software is configured

correctly. See Chapter 4 for details of setup for the Windows XP 802.1x
client. If using a different client, refer to the vendor's documentation.

81

Appendix C

C

Windows TCP/IP

Overview

Normally, no changes need to be made.

 By default, the Wireless Access Point will act as a DHCP client, automatically obtaining a

suitable IP Address (and related information) from your DHCP Server.

 If using Fixed (specified) IP addresses on your LAN (instead of a DHCP Server), there is

no need to change the TCP/IP of each PC. Just configure the Wireless Access Point to
match your existing LAN.

The following sections provide details about checking the TCP/IP settings for various types of
Windows, should that be necessary.

Checking TCP/IP Settings - Windows 9x/ME:

1. Select Control Panel - Network. You should see a screen like the following:

2. Select the TCP/IP protocol for your network card.

3. Click on the

Properties button. You should then see a screen like the following.

Figure 65: Network Configuration

82

Appendix C - Windows TCP/IP

Figure 66: IP Address (Win 95)

Ensure your TCP/IP settings are correct, as follows:

Using DHCP

To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows settings. To work correctly, you need a DHCP server on your LAN.

Using "Specify an IP Address"

If your PC is already configured for a fixed (specified) IP address, no changes are required.
(The Administrator should configure the Wireless Access Point with a fixed IP address from

the same address range used on the PCs.)

83

Wireless Access Point User Guide

Checking TCP/IP Settings - Windows NT4.0

1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as

shown below.

Figure 67: Windows NT4.0 - TCP/IP

2. Click the Properties button to see a screen like the one below.

Figure 68: Windows NT4.0 - IP Address

84

Appendix C - Windows TCP/IP

3. Select the network card for your LAN.

4. Select the appropriate radio button -

an IP Address

, as explained below.

Obtain an IP address from a DHCP Server or Specify

Obtain an IP address from a DHCP Server

This is the default Windows setting. This is the default Windows settings. To work correctly,
you need a DHCP server on your LAN.

Using "Specify an IP Address"

If your PC is already configured for a fixed (specified) IP address, no changes are required.
(The Administrator should configure the Wireless Access Point with a fixed IP address from

the same address range used on the PCs.)

85

Wireless Access Point User Guide

Checking TCP/IP Settings - Windows 2000

1. Select Control Panel - Network and Dial-up Connection.

2. Right click the
like the following:

Local Area Connection icon and select Properties. You should see a screen

Figure 69: Network Configuration (Win 2000)

3. Select the TCP/IP protocol for your network card.

4. Click on the

Properties button. You should then see a screen like the following.

Figure 70: TCP/IP Properties (Win 2000)

86

Appendix C - Windows TCP/IP

5. Ensure your TCP/IP settings are correct:

Using DHCP

To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. This is the default Windows settings. To work correctly, you need a DHCP
server on your LAN.

Using a fixed IP Address ("Use the following IP Address")

If your PC is already configured for a fixed (specified) IP address, no changes are required.
(The Administrator should configure the Wireless Access Point with a fixed IP address from

the same address range used on the PCs.)

87

Wireless Access Point User Guide

Checking TCP/IP Settings - Windows XP

1. Select Control Panel - Network Connection.

2. Right click the
like the following:

Local Area Connection and choose Properties. You should see a screen

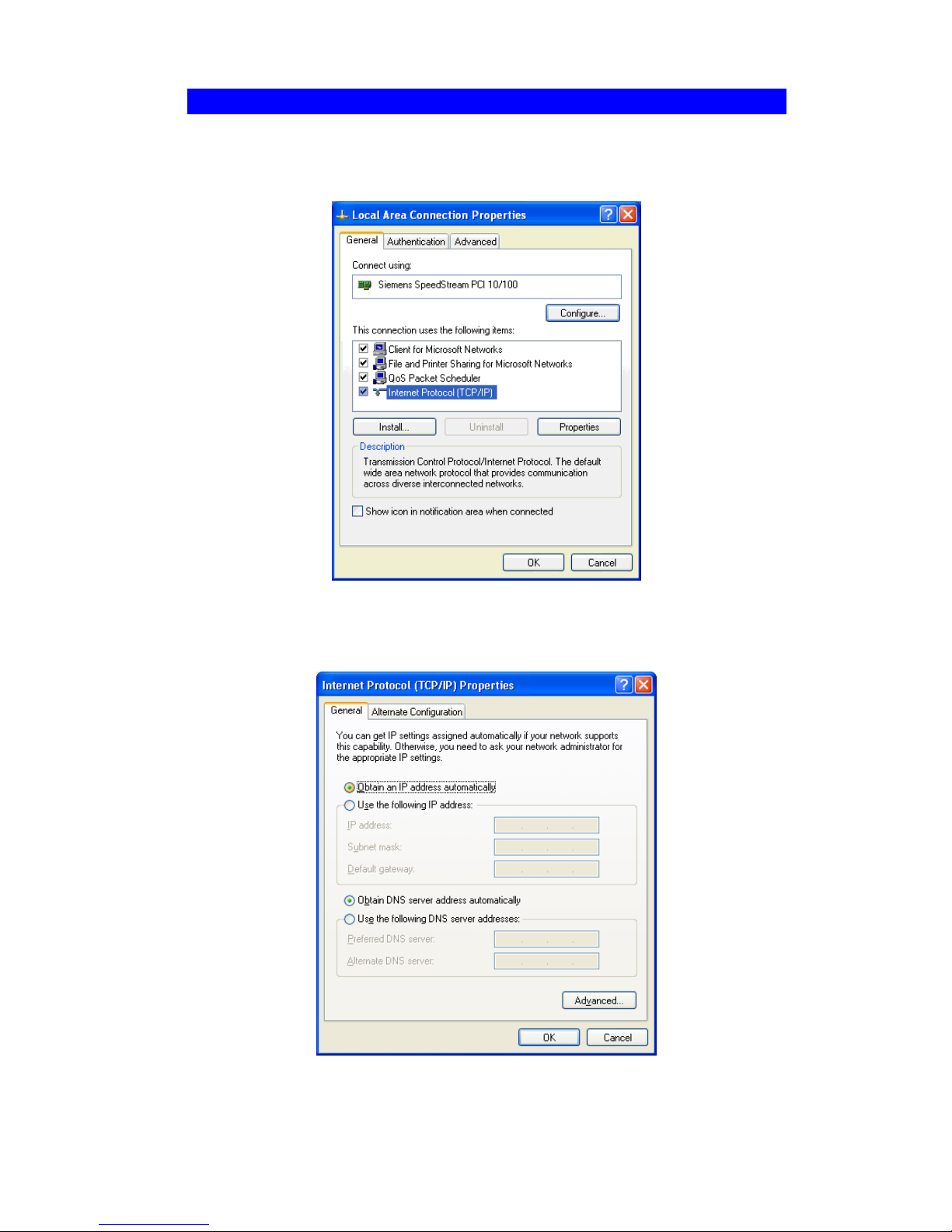

Figure 71: Network Configuration (Windows XP)

3. Select the TCP/IP protocol for your network card.

4. Click on the

Properties button. You should then see a screen like the following.

Figure 72: TCP/IP Properties (Windows XP)

88

Appendix C - Windows TCP/IP

5. Ensure your TCP/IP settings are correct.

Using DHCP

To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. To work correctly, you need a DHCP server on your LAN.

Using a fixed IP Address ("Use the following IP Address")

If your PC is already configured for a fixed (specified) IP address, no changes are required.
(The Administrator should configure the Wireless Access Point with a fixed IP address from

the same address range used on the PCs.)

89

Wireless Access Point User Guide

Checking TCP/IP Settings - Windows Vista

1. Select Control Panel - Network Connections.

2. Right click the

User Account Control dialog box, then you should see a screen like the following:

Local Area Connection Status and choose Properties. Click Continue to the

Figure 73: Network Configuration (Windows Vista)

3. Select the TCP/IP protocol for your network card.

4. Click on the

Properties button. You should then see a screen like the following.

90

Appendix C - Windows TCP/IP

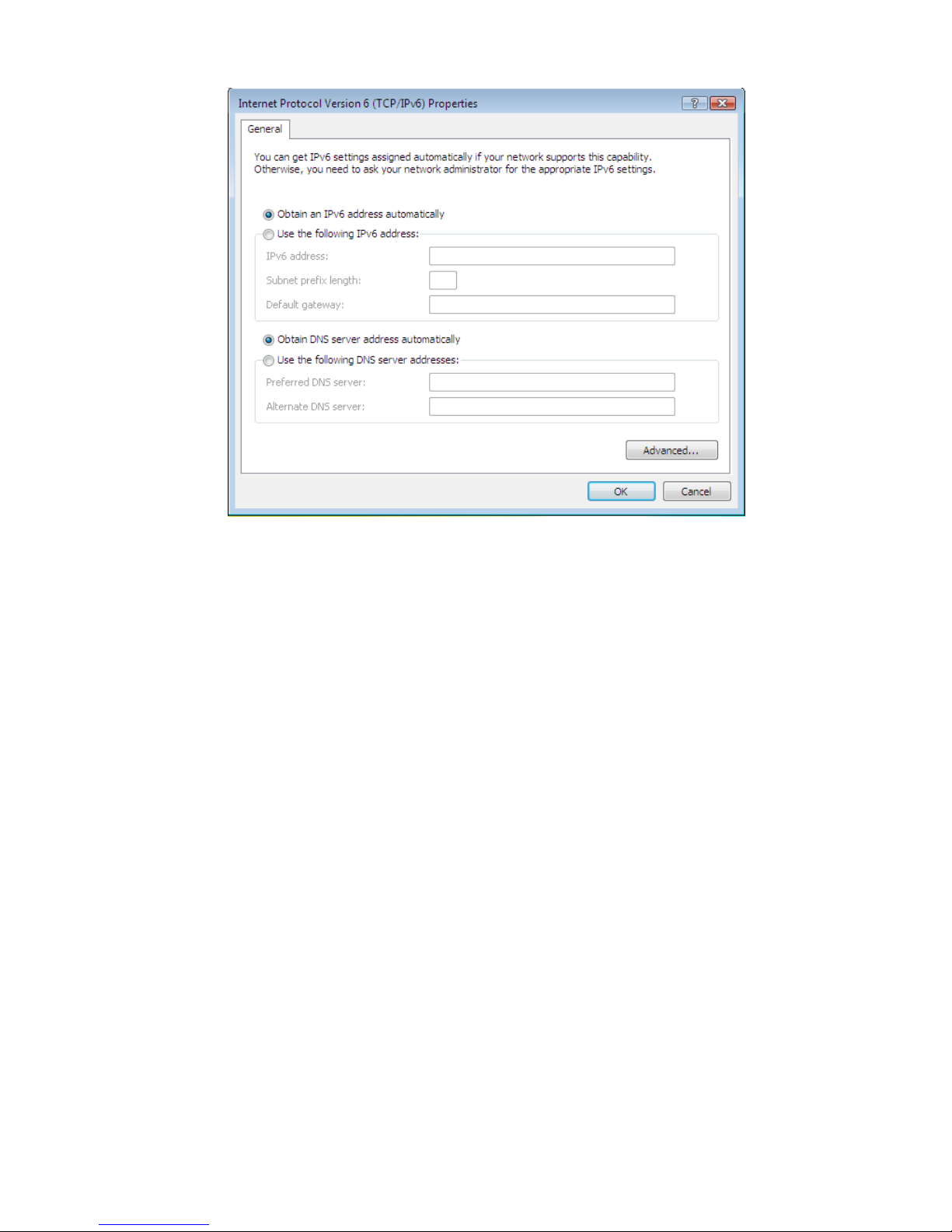

Figure 74: TCP/IP Properties (Windows Vista)

5. Ensure your TCP/IP settings are correct.

Using DHCP

To use DHCP, select the radio button Obtain an IP Address automatically. This is the default
Windows setting. To work correctly, you need a DHCP server on your LAN.

Using a fixed IP Address ("Use the following IP Address")

If your PC is already configured for a fixed (specified) IP address, no changes are required.
(The Administrator should configure the Wireless Access Point with a fixed IP address from

the same address range used on the PCs.)

91

Appendix D

D

About Wireless LANs

Overview

Wireless networks have their own terms and jargon. It is necessary to understand many of these
terms in order to configure and operate a Wireless LAN.

Wireless LAN Terminology

Modes

Wireless LANs can work in either of two (2) modes:

 Ad-hoc
 Infrastructure

Ad-hoc Mode

Ad-hoc mode does not require an Access Point or a wired (Ethernet) LAN. Wireless Sta­tions (e.g. notebook PCs with wireless cards) communicate directly with each other.

Infrastructure Mode

In Infrastructure Mode, one or more Access Points are used to connect Wireless Stations
(e.g. Notebook PCs with wireless cards) to a wired (Ethernet) LAN. The Wireless Stations
can then access all LAN resources.

Access Points can only function in "Infrastructure" mode,
and can communicate only with Wireless Stations which are
set to "Infrastructure" mode.

SSID/ESSID

BSS/SSID

A group of Wireless Stations and a single Access Point, all using the same ID (SSID), form
a Basic Service Set (BSS).

Using the same SSID is essential. Devices with different SSIDs are unable to communi­cate with each other. However, some Access Points allow connections from Wireless
Stations which have their SSID set to “any” or whose SSID is blank (null).

ESS/ESSID

A group of Wireless Stations, and multiple Access Points, all using the same ID (ESSID),
form an Extended Service Set (ESS).

Different Access Points within an ESS can use different Channels. To reduce interference,
it is recommended that adjacent Access Points SHOULD use different channels.

92

Appendix D - About Wireless LANs

As Wireless Stations are physically moved through the area covered by an ESS, they will
automatically change to the Access Point which has the least interference or best perform­ance. This capability is called
capabilities.)

Roaming. (Access Points do not have or require Roaming

Channels

The Wireless Channel sets the radio frequency used for communication.
 Access Points use a fixed Channel. You can select the Channel used. This allows you to

choose a Channel which provides the least interference and best performance. For 802.11g,
13 channels are available in the USA and Canada, but 11channels are available in North
America if using 802.11b.

 If using multiple Access Points, it is better if adjacent Access Points use different Channels

to reduce interference. The recommended Channel spacing between adjacent Access Points
is 5 Channels (e.g. use Channels 1 and 6, or 6 and 11).

 In "Infrastructure" mode, Wireless Stations normally scan all Channels, looking for an

Access Point. If more than one Access Point can be used, the one with the strongest signal
is used. (This can only happen within an ESS.)

 If using "Ad-hoc" mode (no Access Point), all Wireless stations should be set to use the

same Channel. However, most Wireless stations will still scan all Channels to see if there is
an existing "Ad-hoc" group they can join.

WEP

WEP (Wired Equivalent Privacy) is a standard for encrypting data before it is transmitted. This
is desirable because it is impossible to prevent snoopers from receiving any data which is
transmitted by your Wireless Stations. But if the data is encrypted, then it is meaningless unless
the receiver can decrypt it.

If WEP is used, the Wireless Stations and the Wireless Access Point must have the same
settings.

WPA-PSK

Like WEP, data is encrypted before transmission. WPA is more secure than WEP, and should
be used if possible. The PSK (Pre-shared Key) must be entered on each Wireless station. The
256Bit encryption key is derived from the PSK, and changes frequently.

WPA2-PSK

This is a further development of WPA-PSK, and offers even greater security, using the AES
(Advanced Encryption Standard) method of encryption.

WPA-Enterprise

This version of WPA requires a Radius Server on your LAN to provide the client authentica­tion according to the 802.1x standard. Data transmissions are encrypted using the WPA
standard.

If this option is used:
 The Access Point must have a "client login" on the Radius Server.

93

Wireless Access Point User Guide

 Each user must have a "user login" on the Radius Server.
 Each user's wireless client must support 802.1x and provide the login data when required.

All data transmission is encrypted using the WPA standard. Keys are automatically generated,
so no key input is required.

802.1x

This uses the 802.1x standard for client authentication, and WEP for data encryption. If possi­ble, you should use WPA-Enterprise instead, because WPA encryption is much stronger than
WEP encryption.

If this option is used:

 The Access Point must have a "client login" on the Radius Server.
 Each user must have a "user login" on the Radius Server.
 Each user's wireless client must support 802.1x and provide the login data when required.
 All data transmission is encrypted using the WEP standard. You only have to select the

WEP key size; the WEP key is automatically generated.

94

Appendix E

get 11nampdu

get 11namsdu

get 11nguardinterval

get 11nsubchannel

get 11nradioband

get acctsecret

get authentication

get beaconinterval

E

Command Line Interface

Overview

If desired, the Command Line Interface (CLI) can be used for configuration. This creates the
possibility of creating scripts to perform common configuration changes. The CLI requires a
Telnet connection to the Wireless Access Point.

Using the CLI - Telnet

1. Start your Telnet client, and establish a connection to the Access Point.
e.g.

Telnet 192.168.0.228

2. You will be prompted for the user name and password. Enter the same login name and
password as used for the HTTP (Web) interface.
The default values are

3. Once connected, you can use any of the commands listed in the following

Reference

.

Command Reference

admin for the User Name, and password for the Password.

Command

The following commands are available.

config vap Config Virtual AP X
? Display CLI Command List

help Display CLI Command List

Set 11n A-MPDU Aggregation Mode
Set 11n A-MSDU Aggregation Mode
Set 11n Guard Interval Mode
Set 11n Extension Sub-Channel

Set 11n Radio Band
get 802.11d Display 802.11d Mode
get acctserver
get acctport Display Accounting Port

get acl Display Access Control Status
get active
get aging Display Idle Timeout Interval

Display Accounting Server

Display Accounting Secret

Display VAP Active (up) Mode

Display Authentication Type of WEP

Display Beacon Interval

95

Wireless Access Point User Guide

get country

get defaultkey

get description

get dhcpserverendip

get dhcpserverstartip

get dot1xkeytype

get fragthreshold

get gateway

get gtkupdate

get gtkupdateinterval

get httpport

get https

get httpsport

get ipmask

get isolation

get key

get keylength

get md5supplicant

get md5suppname

get md5supppassword

get md5supptype

get nativevlanid

operationmode

get password

get channel

Display Radio Channel

Display Country/Domain

Display Default Key Index

Display Access Point Description
get dhcp

Display DHCP Mode

Display DHCP Server End IP Address

Display DHCP Server start IP Address
get dnsserver Display IP Address of DNS Server
get dot1xdynkeyupdate Display 802.1x Dynamic Key Update Mode
get dot1xdynkeylife Display 802.1x Dynamic Key Life Time (in Minutes)

Display 802.1x Distribute Key Method

Display Fragment Threshold

Display Gateway IP Address

Display Group Key Update Mode

Display Group Key Update Interval (in Seconds)
get http

Display HTTP Mode

Display HTTP Port Number

Display HTTPS Mode

Display HTTPS Port Number
get ipaddr

Display IP Address

Display IP Subnet Mask

Display Isolate All Virtual APs State

Display WEP Key Value

Display WEP Key Length
get lltd Display LLTD Mode

Display 802.1x MD5 Supplicant Mode

Display 802.1x Supplicant MD5 Name

Display 802.1x Supplicant MD5 Password

Display 802.1x MD5 Supplicant Type

Display Native VLAN ID
get ntp Display NTP Server IP Address
get

Display Operation Mode

get psk Display Pre-shared Key
get radiusserver Display RADIUS Server IP Address

Display Login Password

96
