Versa Technology VX-VER170S User Manual

FOUR-PORT ADSL ROUTER
VX-VER170S ADSL Router
User Manual
ADSL ROUTER USER MANUAL
NOTICE
This document contains proprietary information protected by copyright. This manual and all the accompanying hardware, software and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced mechanically, electronically, or by other means.
The manufacturer does not warrant that the hardware will work properly in all environments and applications, and makes no warranty or representation, either expressed or implied, with respect to the quality, performance, merchantability, or fitness for a particular purpose of the software or documentation. The manufacturer reserves the right to make changes to the hardware, software and documentation without notification of any individual or organization of the revision or change.
All brand and product names are the trademarks of their respective owners.
© Copyright 2013
All rights reserved.
ADSL ROUTER USER MANUAL
Content
1 OVERVIEW ................................................................................................................................................ 3
1.1 FEATURES ....................................................................................................................................... 3
1.2 PACKET CONTENTS ......................................................................................................................... 5
1.3 SYSTEM REQUIREMENTS ................................................................................................................. 5
1.4 FACTORY DEFAULTS ....................................................................................................................... 5
1.5 WARNINGS AND CAUTIONS .............................................................................................................. 5
2 HARDWARE DESCRIPTION ................................................................................................................... 7
3 HARDWARE INSTALLATION ............................................................ ERROR! BOOKMARK NOT DEFINED.
4 PC CONFIGURATION GUIDE ............................................................ ERROR! BOOKMARK NOT DEFINED.
4.1 LOCAL PC CONFIGURATION ................................................................ ERROR! BOOKMARK NOT DEFINED.
4.2 ACCESS THE PROGRAM ....................................................................... ERROR! BOOKMARK NOT DEFINED.
4.3 QUICK SETUP ...................................................................................... ERROR! BOOKMARK NOT DEFINED.
4.4 ADSL Mode Setup ................................................................................ Error! Bookmark not defined.
4.5 Remote Access .................................................................................... Error! Bookmark not defined.
APPENDIX FREQUENTLY ASKED QUESTIONS………………………………………………… 16
ADSL ROUTER USER MANUAL
1 OVERVIEW
Thank you for using this Asymmetric Digital Subscriber Line (ADSL) router. With the asymmetric technology, this device runs over standard copper phone lines. In addition, ADSL allows you to have both voice and data services in use simultaneously over a single phone line. It is an ideal solution for the small and medium size business environment.
This ADSL router provides a 10/100BaseT interface for Ethernet connection. Computers can connect to the router through its Ethernet port to share high-speed Internet access. Connection to the port is simple, regardless of the operating system in use. This router receives adaptive rates up to 24Mbps and transmits 1Mbps upstream.
1.1 Features
1.1.1 ADSL Compliance
ANSI T1.413 issue 2 VLAN tagging Downstream: Up to 24Mbps. Max upstream speed: 1Mbps. Rate Adaptive at 32 Kbps steps Interoperable with all major DSLAM equipment TR-069 compliant with ACS
1.1.2 Standards & Protocols Conformance
ITU G.994.1 G.992.1(G.DMT) G.992.2(G.LITE) ITU G.992.3(G.DMT.BIS) ITU G.992.5 T1.413 PPPoE PPPoA
IPoA
ADSL ROUTER USER MANUAL
1.1.3 Operating System Support
WINDOWS 98 WINDOWS 98 SE WINDOWS ME WINDOWS 2000 WINDOWS XP Macintosh LINUX
1.1.4 ATM Capabilities
ATM Connection VPI Range: 0-255 VCI Range: 32-65535 AESA (E.164, DCC, ICD) PVC Support UNI 3.0 & 3.1 Signaling Support AAL 5
1.1.5 Management Support
Web Based GUI Upgrade or update via FTP/HTTP Command Line Interface via Telnet Diagnostic Test Firmware upgrade-able for future feature enhancement
1.1.6 Environmental
Operating humidity: 10%-90% non-condensing Non-operating storage humidity: 5%-95% non-condensing
ADSL ROUTER USER MANUAL
1.2 Packet Contents
The packet contents are as follows:
ADSL Router x 1 External Splitter x 1 Power Adapter x 1 Telephone Line x 1 Ethernet Cable x 1
1.3 System Requirements
Before utilizing this ADSL router, verify that the following requirements are met:
Subscription for ADSL service. Your ADSL service provider should provide you
with at least one valid IP address (static assignment or dynamic assignment via dial-up connection).
One or more computers, each containing an Ethernet 10/100M Base-T
network interface card (NIC).
A hub or switch, if you are connecting the device to more than four computers. For system configuration using the supplied web-based program: A web
browser such as Internet Explorer v5.0 or later, or Netscape v4.7 or later.
1.4 Factory Defaults
The device is configured with the following factory defaults:
IP Address: 192.168.1.1 Subnet Mask: 255.255.255.0 Encapsulation: RFC 2516 LLC VPI/VCI: According to local information
1.5 Warnings and Cautions
Never install telephone wiring during a storm. Avoid using a telephone during
an electrical storm. There may be a risk of electric shock from lightening.
Do not install telephone jacks in wet locations and never use the product near
water.
To prevent dangerous overloading of the power circuit, be careful about the
designed maximum power load ratings. Not following the rating guideline could result in a dangerous situation.
Please note that the telephone line on the ADSL router must adopt the primary
line that directly outputs from the junction box. Do not connect the ADSL router to an extension phone. In addition, if your house developer divides a telephone line to multiple sockets inside the wall of your home, please only use the telephone that is connected with the splitter of the ADSL router when you access the Internet. Under the above condition, if you also install a telephone
ADSL ROUTER USER MANUAL
with an anti-cheat-dial device, please remove this type of telephone, otherwise the ADSL router may frequently go off-line.
ADSL ROUTER USER MANUAL
Port
Function
DSL
Connects the device to an ADSL telephone jack or splitter using a RJ-11 telephone cable
LAN
Connects the device to your PC's Ethernet port, or to the uplink port on your hub/switch, using a RJ-45 cable
Reset
System reset or reset to factory defaults.
POWER
Connects to the supplied power adapter
Switches the unit on and off
LED
Color
Function
PWR
Green
On: Power on Off: No power or system boot failed
LAN
Green
On: LAN link established and active Blinking: Data activity occurs Off: No LAN link.
DSL
Green
On: ADSL link established and active Blinking: ADSL is trying to establish a connection Off: No ADSL link
INET
Green
On: IP connected Blinking: IP connected and IP traffic is passing thru the device Off: Modem power off or ADSL connection not
present

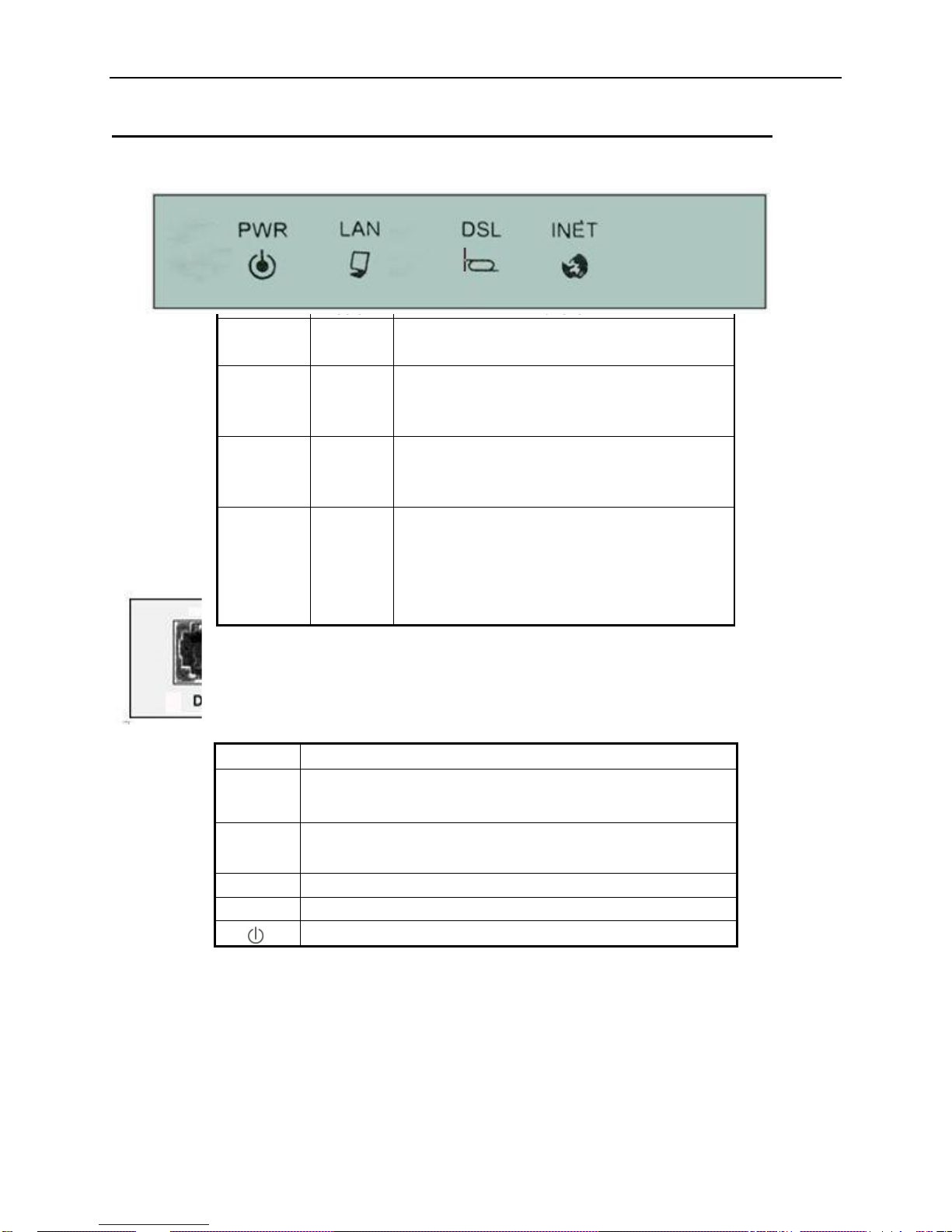

2 Hardware Description
Front Panel
Rear Panel
