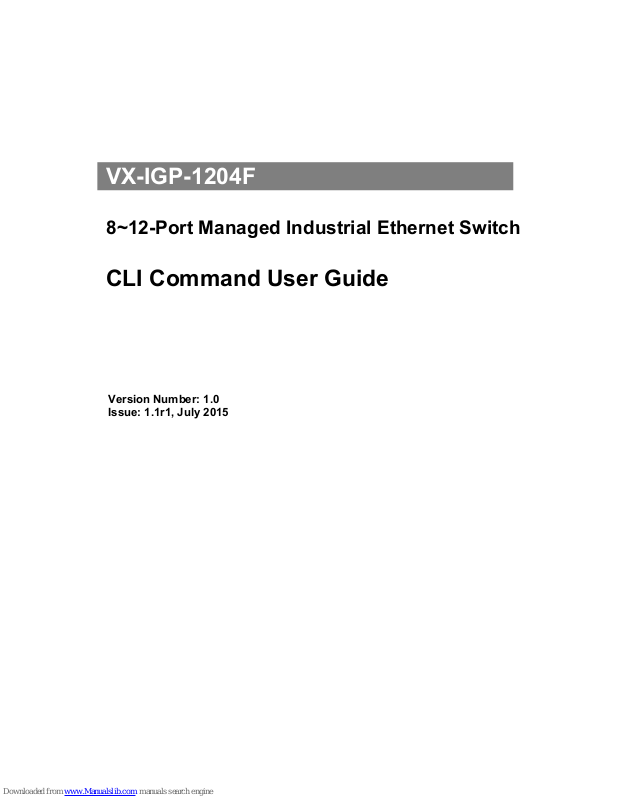

VX-IGP-1204F
8~12-Port Managed Industrial Ethernet Switch
CLI Command User Guide
Version Number: 1.0
Issue: 1.1r1, July 2015
Contents
i
CONTENTS
1! SCOPE ..................................................................................................................................................................... 3!
1.1! SCOPE!...................................................................................................................................................................!3!
1.2! AUDIENCE!..............................................................................................................................................................!3!
1.3! PRE-REQUIRED!KNOWLEDGE!.....................................................................................................................................!3!
1.4! ACCESS!TO!HARDWARE!INTERFACE!.............................................................................................................................!3!
1.5! RELATED!DOCUMENTS!.............................................................................................................................................!3!
2! OPERATOR INTERFACE ................................................................................................................................... 7!
2.1! INTRODUCTION!.......................................................................................................................................................!7!
2.2! CONNECT!INTERFACE!...............................................................................................................................................!7!
2.3! SCREEN!DESCRIPTION!...............................................................................................................................................!7!
2.4! EXECUTION!MODES!.................................................................................................................................................!8!
2.5! GETTING!HELP!........................................................................................................................................................!8!
2.6! TERMINAL!KEY!FUNCTION!.........................................................................................................................................!9!
2.7! NOTATION!CONVENTIONS!.........................................................................................................................................!9!
3! COMMANDS DESCRIPTIONS ......................................................................................................................... 12!
3.1! INITIALIZE!MODE!COMMANDS!.................................................................................................................................!12!
3.1.1! exit .............................................................................................................................................................. 12!
3.1.2! configure terminal ...................................................................................................................................... 12!
3.1.3! enable ......................................................................................................................................................... 12!
3.1.4! Show terminal ............................................................................................................................................. 12!
3.1.5! Show history ............................................................................................................................................... 12!
3.1.6! Show clock .................................................................................................................................................. 12!
3.1.7! Show clock detail ........................................................................................................................................ 12!
3.2! ENABLE!MODE!COMMANDS!....................................................................................................................................!13!
3.2.1! configure terminal ...................................................................................................................................... 13!
3.2.2! disable ........................................................................................................................................................ 13!
3.2.3! show aaa ..................................................................................................................................................... 13!
3.2.4! show access management ........................................................................................................................... 13!
3.2.5! show access-list .......................................................................................................................................... 13!
3.2.6! show aggregation ....................................................................................................................................... 14!
3.2.7! show alarm ................................................................................................................................................. 14!
3.2.8! show cpu-load ............................................................................................................................................. 14!
3.2.9! show green-ethernet ................................................................................................................................... 14!
3.2.10! show ip ........................................................................................................................................................ 14!
3.2.11! show ipmc ................................................................................................................................................... 15!
3.2.12! show ipv6 .................................................................................................................................................... 15!
3.2.13! show lacp .................................................................................................................................................... 15!
3.2.14! show line ..................................................................................................................................................... 15!
3.2.15! show logging ............................................................................................................................................... 16!
3.2.16! show loop-protec ........................................................................................................................................ 16!
3.2.17! show ntp status ........................................................................................................................................... 16!
3.2.18! show users .................................................................................................................................................. 16!
3.2.19! show running-cfg ........................................................................................................................................ 16!
3.2.20! show running-config interface Gigabit ...................................................................................................... 16!
3.2.21! show running-config interface vlan ............................................................................................................ 16!
3.2.22! show running-config all-defautls ................................................................................................................ 16!
3.2.23! show running-config feature ...................................................................................................................... 17!
3.2.24! show running-config line ............................................................................................................................ 17!
3.2.25! show running-config vlan ........................................................................................................................... 17!
3.2.26! show version ............................................................................................................................................... 17!
3.2.27! show clock .................................................................................................................................................. 17!
3.2.28! show ddmi ................................................................................................................................................... 17!
Contents
ii
3.2.29! show version ............................................................................................................................................... 18!
3.2.30! show system inventory ................................................................................................................................ 18!
3.2.31! show mac address table aging-time ........................................................................................................... 18!
3.2.32! show mac address table .............................................................................................................................. 18!
3.2.33! show mac address table conf ...................................................................................................................... 18!
3.2.34! show mac address table count .................................................................................................................... 18!
3.2.35! show mac address table learning ............................................................................................................... 18!
3.2.36! show mac address table static .................................................................................................................... 19!
3.2.37! show mac address table interface .............................................................................................................. 19!
3.2.38! show mac address vlan <vlanid> .............................................................................................................. 19!
3.2.39! show mvr ..................................................................................................................................................... 19!
3.2.40! show fdb static table ................................................................................................................................... 19!
3.2.41! show fdbstatic interface gigabit <portNo> ................................................................................................ 19!
3.2.42! show fdbstatic vlan <vlanid> ..................................................................................................................... 20!
3.2.43! show interface port < port_type_list > ...................................................................................................... 20!
3.2.44! show interface port <portNo> statistics .................................................................................................... 21!
3.2.45! show platform phy ...................................................................................................................................... 21!
3.2.46! show poe ..................................................................................................................................................... 21!
3.2.47! show port-security ...................................................................................................................................... 21!
3.2.48! show profile alarm ...................................................................................................................................... 22!
3.2.49! show sflow .................................................................................................................................................. 22!
3.2.50! show snmp .................................................................................................................................................. 22!
3.2.51! show spanning-tree ..................................................................................................................................... 23!
3.2.52! show switchport forbidden ......................................................................................................................... 23!
3.2.53! show tacacs-server ..................................................................................................................................... 23!
3.2.54! show vlan .................................................................................................................................................... 23!
3.2.55! show vlan id ................................................................................................................................................ 24!
3.2.56! show vlan name .......................................................................................................................................... 24!
3.2.57! show vlan brief ........................................................................................................................................... 24!
3.2.58! show vlan ip-subnet .................................................................................................................................... 24!
3.2.59! show vlan mac ............................................................................................................................................ 24!
3.2.60! show vlan protocol ..................................................................................................................................... 24!
3.2.61! show vlan status .......................................................................................................................................... 25!
3.2.62! show qos-queue-mapping ........................................................................................................................... 25!
3.2.63! show interface ports <portNo> priority .................................................................................................... 25!
3.2.64! show qos ..................................................................................................................................................... 25!
3.2.65! show queue-shaper ..................................................................................................................................... 26!
3.2.66! show port-shaper ........................................................................................................................................ 26!
3.2.67! show pvlan [ <pvlan_list> ] ....................................................................................................................... 26!
3.2.68! show pvlan isolation [ interface <port_type> [ <port_type_list> ] ] ....................................................... 26!
3.2.69! show interface gigabit <portNo> port-isolation ........................................................................................ 26!
3.2.70! show interface gigabit <portNo> storm-control ........................................................................................ 26!
3.2.71! show interface gigabit <portNo> transceiver ............................................................................................ 26!
3.2.72! show qos interface ...................................................................................................................................... 27!
3.2.73! show qos maps ............................................................................................................................................ 27!
3.2.74! show qos qce ............................................................................................................................................... 27!
3.2.75! show qos storm {unknown-uc|unknown-mc|broadcast} ............................................................................. 27!
3.2.76! show port-mirror ........................................................................................................................................ 27!
3.2.77! show ringv2 ................................................................................................................................................ 27!
3.2.78! show rmon .................................................................................................................................................. 28!
3.2.79! show interface gigabit <portNo> ............................................................................................................... 28!
3.2.80! show ext-tpid ............................................................................................................................................... 28!
3.2.81! show interface vlan ..................................................................................................................................... 28!
3.2.82! show interface vlan <vlanid> .................................................................................................................... 28!
3.2.83! show protocol-vlan ..................................................................................................................................... 28!
3.2.84! show interface gigabit <portNo> vlan ....................................................................................................... 28!
3.2.85! show vlan-trans .......................................................................................................................................... 29!
3.2.86! show multicast-fdb ...................................................................................................................................... 29!
3.2.87! show dot1x .................................................................................................................................................. 29!
Contents
iii
3.2.88! show dot1x status ........................................................................................................................................ 29!
3.2.89! show dot1x statistics ................................................................................................................................... 29!
3.2.90! show radius-server [ statistics ] ................................................................................................................. 29!
3.2.91! show rfc2544 profile [ <word32> ] ........................................................................................................... 29!
3.2.92! show voice .................................................................................................................................................. 30!
3.2.93! show web .................................................................................................................................................... 30!
3.3! CONFIGURE!MODE!COMMANDS!..............................................................................................................................!31!
3.3.1! interface gigabit <portNo> ........................................................................................................................ 31!
3.3.2! interface vlan <vlanid> .............................................................................................................................. 31!
3.3.3! aaa .............................................................................................................................................................. 31!
3.3.4! access .......................................................................................................................................................... 31!
3.3.5! access-list ................................................................................................................................................... 31!
3.3.6! aggregation mode ....................................................................................................................................... 31!
3.3.7! alarm history clear ..................................................................................................................................... 32!
3.3.8! banner ......................................................................................................................................................... 32!
3.3.9! ddmi ............................................................................................................................................................ 32!
3.3.10! default access-list rate-limiter .................................................................................................................... 32!
3.3.11! profile sch ................................................................................................................................................... 32!
3.3.12! ntp server <1-5> ip-address <ip> ............................................................................................................. 32!
3.3.13! clock timezone ............................................................................................................................................ 32!
3.3.14! clock summer-time set [start-time] [end-time] .......................................................................................... 33!
3.3.15! account add <username> .......................................................................................................................... 33!
3.3.16! account delete <username> ....................................................................................................................... 33!
3.3.17! syslog {enable|disable} ............................................................................................................................... 33!
3.3.18! configuration save and replace .................................................................................................................. 34!
3.3.19! clear ip igmp snooping statistics ................................................................................................................ 34!
3.3.20! clear logging ............................................................................................................................................... 34!
3.3.21! clear mac address-table ............................................................................................................................. 34!
3.3.22! debug .......................................................................................................................................................... 34!
3.3.23! delete .......................................................................................................................................................... 34!
3.3.24! dir ............................................................................................................................................................... 34!
3.3.25! do ................................................................................................................................................................ 35!
3.3.26! duplex ......................................................................................................................................................... 35!
3.3.27! editing ......................................................................................................................................................... 35!
3.3.28! firmware ..................................................................................................................................................... 35!
3.3.29! flowcontrol .................................................................................................................................................. 35!
3.3.30! frame-sizes .................................................................................................................................................. 35!
3.3.31! green-etherneteee ....................................................................................................................................... 36!
3.3.32! green-etherneteee optimize-for-power ....................................................................................................... 36!
3.3.33! green-etherneteee urgent-queues ............................................................................................................... 36!
3.3.34! help ............................................................................................................................................................. 36!
3.3.35! iparp inspection .......................................................................................................................................... 36!
3.3.36! ip arp inspection translate .......................................................................................................................... 36!
3.3.37! ip arp inspection entry ................................................................................................................................ 36!
3.3.38! ip arp inspection vlan ................................................................................................................................. 37!
3.3.39! ip dns proxy ................................................................................................................................................ 37!
3.3.40! ip http secure-redirect ................................................................................................................................ 37!
3.3.41! ip http secure-server ................................................................................................................................... 37!
3.3.42! ip source binding interface ......................................................................................................................... 37!
3.3.43! ip ssh ........................................................................................................................................................... 37!
3.3.44! ip name-server ............................................................................................................................................ 37!
3.3.45! ip route ....................................................................................................................................................... 38!
3.3.46! ip routing .................................................................................................................................................... 38!
3.3.47! ip verify ....................................................................................................................................................... 38!
3.3.48! ipmc profile ................................................................................................................................................. 38!
3.3.49! ipmc range .................................................................................................................................................. 38!
3.3.50! lacp ............................................................................................................................................................. 38!
3.3.51! line .............................................................................................................................................................. 38!
3.3.52! login host .................................................................................................................................................... 39!
Contents
iv
3.3.53! login level ................................................................................................................................................... 39!
3.3.54! login on ....................................................................................................................................................... 39!
3.3.55! logout .......................................................................................................................................................... 39!
3.3.56! mac address-table aging-time .................................................................................................................... 39!
3.3.57! mac address-table static ............................................................................................................................. 39!
3.3.58! more ............................................................................................................................................................ 39!
3.3.59! no ................................................................................................................................................................ 40!
3.3.60! ping ............................................................................................................................................................. 40!
3.3.61! port-security ............................................................................................................................................... 40!
3.3.62! privilege ...................................................................................................................................................... 40!
3.3.63! reload .......................................................................................................................................................... 40!
3.3.64! rmon ............................................................................................................................................................ 41!
3.3.65! rmon alarm ................................................................................................................................................. 41!
3.3.66! rmon alarm ................................................................................................................................................. 42!
3.3.67! terminal ...................................................................................................................................................... 42!
3.3.68! vlan <vlanid> ............................................................................................................................................. 42!
3.3.69! vlan <vlanid> <name> .............................................................................................................................. 42!
3.3.70! vlan disable <vlanid> ................................................................................................................................ 43!
3.3.71! mac address-table aging-time <time> ....................................................................................................... 43!
3.3.72! mtu <value> ............................................................................................................................................... 43!
3.3.73! media-type .................................................................................................................................................. 43!
3.3.74! monitor destination interface ..................................................................................................................... 43!
3.3.75! monitor source interface ............................................................................................................................ 43!
3.3.76! monitor source cpu ..................................................................................................................................... 44!
3.3.77! speed ........................................................................................................................................................... 44!
3.3.78! tacacs-server host ....................................................................................................................................... 44!
3.3.79! tacacs-server key ........................................................................................................................................ 44!
3.3.80! tacacs-server timeout ................................................................................................................................. 44!
3.3.81! traps ............................................................................................................................................................ 45!
3.3.82! upnp ............................................................................................................................................................ 45!
3.3.83! upnp advertising-duration .......................................................................................................................... 45!
3.3.84! upnp ttl ........................................................................................................................................................ 45!
3.3.85! username .................................................................................................................................................... 45!
3.3.86! web .............................................................................................................................................................. 45!
3.3.87! flow-control {enable|disble} ....................................................................................................................... 46!
3.3.88! speed ........................................................................................................................................................... 46!
3.3.89! port {enable/disable} .................................................................................................................................. 46!
3.3.90! Date/Time ................................................................................................................................................... 47!
3.4! VLAN!MODE!COMMANDS!.....................................................................................................................................!47!
3.4.1! vlan ............................................................................................................................................................. 47!
3.4.2! vlan ethertype s-custom-port ...................................................................................................................... 47!
3.4.3! vlan protocol ............................................................................................................................................... 47!
3.4.4! vlan-trunking .............................................................................................................................................. 47!
3.4.5! switchport access vlan ................................................................................................................................ 48!
3.4.6! switchport forbidden vlan ........................................................................................................................... 48!
3.4.7! switchport hybrid acceptable-frame-type ................................................................................................... 48!
3.4.8! switchport hybrid allowed vlan .................................................................................................................. 48!
3.4.9! switchport hybrid egress-tag ...................................................................................................................... 48!
3.4.10! switchport hybrid ingress-filtering ............................................................................................................. 49!
3.4.11! switchport mode ......................................................................................................................................... 49!
3.4.12! switchport trunk allowed vlan .................................................................................................................... 49!
3.4.13! switchport vlan protocol group .................................................................................................................. 49!
3.5! INTERFACE!VLAN!MODE!COMMANDS!......................................................................................................................!50!
3.5.1! interface ...................................................................................................................................................... 50!
3.5.2! interface vlan .............................................................................................................................................. 50!
3.5.3! ip address ................................................................................................................................................... 50!
3.5.4! ip name-server ............................................................................................................................................ 50!
3.5.5! ip dhcp excluded-address ........................................................................................................................... 50!
3.5.6! ip dhcp pool ................................................................................................................................................ 50!
Contents
v
3.5.7! ip dhcp server ............................................................................................................................................. 51!
3.5.8! ip dhcp relay ............................................................................................................................................... 51!
3.5.9! ip dhcp relay information option ................................................................................................................ 51!
3.5.10! ip dhcp retry interface vlan ........................................................................................................................ 51!
3.5.11! ip dhcp snooping ........................................................................................................................................ 51!
3.5.12! ip helper-address ........................................................................................................................................ 51!
3.5.13! ipv6 address ................................................................................................................................................ 51!
3.5.14! ipv6mtu ....................................................................................................................................................... 51!
3.6! RINGV2!GROUP!MODE!COMMANDS!........................................................................................................................!52!
3.6.1! ringv2 protect ............................................................................................................................................. 52!
3.6.2! guard-time .................................................................................................................................................. 52!
3.6.3! mode ........................................................................................................................................................... 52!
3.6.4! node1 interface GigabitEthernet <portNo>} ............................................................................................. 52!
3.6.5! node2 interface GigabitEthernet <portNo>} ............................................................................................. 52!
3.6.6! role .............................................................................................................................................................. 52!
3.7! SPANNING!TREE!....................................................................................................................................................!53!
3.7.1! spanning-tree .............................................................................................................................................. 53!
3.7.2! spanning-tree aggregation ......................................................................................................................... 53!
3.7.3! spanning-tree auto-edge ............................................................................................................................. 53!
3.7.4! spanning-tree auto-edge ............................................................................................................................. 53!
3.7.5! spanning-tree bpdu-guard .......................................................................................................................... 53!
3.7.6! spanning-tree edge ..................................................................................................................................... 53!
3.7.7! spanning-tree edge bpdu-filter ................................................................................................................... 53!
3.7.8! spanning-tree mode .................................................................................................................................... 54!
3.7.9! spanning-tree mst cost ................................................................................................................................ 54!
3.7.10! spanning-tree mst port-priority .................................................................................................................. 54!
3.7.11! spanning-tree mst priority .......................................................................................................................... 54!
3.7.12! spanning-tree mst vlan ............................................................................................................................... 54!
3.7.13! spanning-tree mst forward-time ................................................................................................................. 55!
3.7.14! spanning-tree mst max-age ........................................................................................................................ 55!
3.7.15! spanning-tree mst max-hops ....................................................................................................................... 55!
3.7.16! spanning-tree mst name .............................................................................................................................. 55!
3.7.17! spanning-tree mst <instance> .................................................................................................................... 55!
3.7.18! spanning-tree recovery ............................................................................................................................... 56!
3.7.19! spanning-tree transmit ............................................................................................................................... 56!
3.8! SFLOW!CONFIGURE!COMMAND!...............................................................................................................................!56!
3.8.1! sflow ............................................................................................................................................................ 56!
3.8.2! sflow agent-ip ............................................................................................................................................. 56!
3.8.3! sflow collector-address ............................................................................................................................... 56!
sflow collector-address [ receiver <range_list> ] [ <word> ] ............................................................................... 56!
3.8.4! sflow max-datagram-size ............................................................................................................................ 56!
3.8.5! sflow max-sampling-size ............................................................................................................................. 56!
3.8.6! sflow collector-port .................................................................................................................................... 57!
3.8.7! sflow sampling-rate .................................................................................................................................... 57!
3.8.8! sflow timeout ............................................................................................................................................... 57!
3.9! SNMP!CONFIGURE!COMMAND!...............................................................................................................................!57!
3.9.1! snmp-server ................................................................................................................................................ 57!
3.9.2! snmp-server access ..................................................................................................................................... 57!
3.9.3! snmp-server community v2c ....................................................................................................................... 58!
3.9.4! snmp-server community v3 ......................................................................................................................... 58!
3.9.5! snmp-server host ......................................................................................................................................... 58!
3.9.6! snmp-server host traps ............................................................................................................................... 58!
3.9.7! snmp-server trap ......................................................................................................................................... 58!
3.9.8! snmp-server user ........................................................................................................................................ 58!
3.9.9! snmp-server version ................................................................................................................................... 59!
3.9.10! snmp-server view ........................................................................................................................................ 59!
3.9.11! SNMP trap receive ipv6 host ...................................................................................................................... 59!
3.9.12! snmp-server contact ................................................................................................................................... 59!
3.9.13! snmp-server engine-id ................................................................................................................................ 59!
Contents
vi
3.9.14! snmp-server location .................................................................................................................................. 59!
3.9.15! snmp-server security-to-group ................................................................................................................... 60!
3.9.16! SNMP trap receive ipv4 host ...................................................................................................................... 60!
3.10! QOS!FUNCTION!COMMAND!....................................................................................................................................!60!
3.10.1! qos qce ........................................................................................................................................................ 60!
3.10.2! qos storm .................................................................................................................................................... 60!
3.10.3! qos cos ........................................................................................................................................................ 60!
3.10.4! qos dscp-classify ......................................................................................................................................... 61!
3.10.5! qos dscp-remark ......................................................................................................................................... 61!
3.10.6! qos dscp-translate ....................................................................................................................................... 61!
3.10.7! qos map cos-dscp ........................................................................................................................................ 61!
3.10.8! qos map cos-dscp ........................................................................................................................................ 61!
3.10.9! qos map dscp-egress-translation ................................................................................................................ 62!
3.10.10! qos map dscp-ingress-translation .............................................................................................................. 62!
3.10.11! qos policer .................................................................................................................................................. 63!
3.10.12! qos wrr ........................................................................................................................................................ 63!
3.10.13! qos queue-shaper ........................................................................................................................................ 63!
3.10.14! qos queue-policer ....................................................................................................................................... 63!
3.10.15! qos shaper <unit> ...................................................................................................................................... 63!
3.11! IGMP!FUNCTIONAL!COMMANDS!.............................................................................................................................!63!
3.11.1! ip igmp host-proxy [ leave-proxy ] ............................................................................................................. 63!
3.11.2! ip igmp snooping ........................................................................................................................................ 64!
3.11.3! ip igmp snooping immediate-leave ............................................................................................................. 64!
3.11.4! ip igmp snooping last-member-query-interval ........................................................................................... 64!
3.11.5! ip igmp snooping max-groups .................................................................................................................... 64!
3.11.6! ip igmp snooping mrouter .......................................................................................................................... 64!
3.11.7! ip igmp snooping querier ........................................................................................................................... 64!
3.11.8! ip igmp snooping query-interval ................................................................................................................ 64!
3.11.9! ip igmp snooping vlan ................................................................................................................................ 64!
3.11.10! ip igmp ssm-range ...................................................................................................................................... 65!
3.11.11! ip igmp unknown-flooding .......................................................................................................................... 65!
3.11.12! clear ip igmp snooping statistics ................................................................................................................ 65!
3.12! MVR!FUNCTIONAL!COMMANDS!..............................................................................................................................!65!
3.12.1! mvr .............................................................................................................................................................. 65!
3.12.2! mvr immediate-leave .................................................................................................................................. 65!
3.12.3! mvr name channel ...................................................................................................................................... 65!
3.12.4! mvr frame priority ...................................................................................................................................... 65!
3.12.5! mvr name <word16> frame tagged ........................................................................................................... 65!
3.12.6! mvr name <word16> igmp-address <ipv4_ucast> ................................................................................... 66!
3.12.7! mvr name <word16> last-member-query-interval <0-31744> ................................................................. 66!
3.12.8! mvr name <word16> mode ........................................................................................................................ 66!
3.12.9! mvr name <word16> type .......................................................................................................................... 66!
3.12.10! mvr vlan ...................................................................................................................................................... 66!
3.12.11! mvr vlan <vlan_list> channel .................................................................................................................... 66!
3.12.12! mvr vlan <vlan_list> frame priority .......................................................................................................... 66!
3.12.13! mvr vlan <vlan_list> frame tagged ............................................................................................................ 66!
3.12.14! mvr vlan <vlan_list> igmp-address ........................................................................................................... 67!
3.12.15! mvr vlan <vlan_list> mode ........................................................................................................................ 67!
3.12.16! mvr vlan <vlan_list> type .......................................................................................................................... 67!
3.13! MLD!FUNCTIONAL!COMMANDS!..............................................................................................................................!67!
3.13.1! ipv6 mld host-proxy .................................................................................................................................... 67!
3.13.2! ipv6 mld snooping ...................................................................................................................................... 67!
3.13.3! ipv6 mld snooping compatibility ................................................................................................................ 67!
3.13.4! ipv6 mld snooping immediate-leave ........................................................................................................... 67!
3.13.5! ipv6 mld snooping last-member-query-interval ......................................................................................... 68!
3.13.6! ipv6 mld snooping max-groups .................................................................................................................. 68!
3.13.7! ipv6 mld snooping mrouter ......................................................................................................................... 68!
3.13.8! ipv6 mld snooping query-interval ............................................................................................................... 68!
3.13.9! ipv6 mld snooping query-max-response-time ............................................................................................. 68!
Contents
vii
3.13.10! ipv6 mld snooping vlan ............................................................................................................................... 68!
3.13.11! ipv6 mld ssm-range .................................................................................................................................... 68!
3.13.12! ipv6 mld unknown-flooding ........................................................................................................................ 68!
3.13.13! ipv6 route .................................................................................................................................................... 69!
3.14! AUTHENTICATE!MODE!COMMANDS!..........................................................................................................................!69!
3.14.1! radius-server attribute 32 ........................................................................................................................... 69!
3.14.2! radius-server attribute 4 ............................................................................................................................. 69!
3.14.3! radius-server attribute 95 ........................................................................................................................... 69!
3.14.4! radius-server deadtime ............................................................................................................................... 69!
3.14.5! radius-server host [ auth-port] [ acct-port ] [ timeout ] [ retransmit ] [ key] ....................................... 69!
3.14.6! radius -server key ....................................................................................................................................... 70!
3.14.7! radius-server retransmit ............................................................................................................................. 70!
3.14.8! radius-server timeout ................................................................................................................................. 70!
3.14.9! tacacs-server deadtime <1-1440> ............................................................................................................. 70!
3.14.10! tacacs-server host [ auth-port] [ timeout ] [ key] ...................................................................................... 70!
3.14.11! tacacs-server deadtime <1-1440> ............................................................................................................. 70!
3.14.12! tacacs-server deadtime <1-1440> ............................................................................................................. 70!
3.14.13! dot1x feature ............................................................................................................................................... 71!
3.14.14! dot1x authentication timer .......................................................................................................................... 71!
3.14.15! dot1x max-reauth-req ................................................................................................................................. 71!
3.14.16! dot1x re-authentication .............................................................................................................................. 71!
3.14.17! dot1x system-auth-controln ........................................................................................................................ 71!
3.14.18! dot1x timeout .............................................................................................................................................. 71!
3.14.19! dot1x guest-vlan ......................................................................................................................................... 72!
3.14.20! dot1x initialize ............................................................................................................................................ 72!
3.14.21! dot1x port-control ....................................................................................................................................... 72!
3.14.22! dot1x radius-vlan ........................................................................................................................................ 72!
3.14.23! show radius-server [ statistics ] ................................................................................................................. 72!
3.14.24! enable ......................................................................................................................................................... 72!
3.14.25! end .............................................................................................................................................................. 73!
3.14.26! exit .............................................................................................................................................................. 73!
3.14.27! hostname ..................................................................................................................................................... 73!
3.15! LOOP-PROTECTION!CONFIGURE!COMMANDS!..............................................................................................................!73!
3.15.1! loop-protect ................................................................................................................................................ 73!
3.15.2! loop-protect action ..................................................................................................................................... 73!
3.15.3! loop-protect shutdown-time ........................................................................................................................ 73!
3.15.4! loop-protect transmit-time .......................................................................................................................... 73!
3.15.5! loop-protect tx-mode .................................................................................................................................. 73!
3.16! LLDP!CONFIGURE!COMMANDS!................................................................................................................................!74!
3.16.1! lldp holdtime ............................................................................................................................................... 74!
3.16.2! lldp med ...................................................................................................................................................... 74!
3.16.3! lldp receive ................................................................................................................................................. 74!
3.16.4! lldp reinit <1-10> ...................................................................................................................................... 74!
3.16.5! lldp timer <5-32768> ................................................................................................................................. 75!
3.16.6! lldp tlv-select .............................................................................................................................................. 75!
3.16.7! lldp transmission-delay .............................................................................................................................. 75!
3.16.8! lldp transmit ............................................................................................................................................... 75!
3.17! RFC2544!TESTING!CONFIGURE!COMMANDS!.............................................................................................................!75!
3.17.1! rfc2544 profile <word32> ......................................................................................................................... 75!
3.17.2! rfc2544 rename profile ............................................................................................................................... 76!
3.17.3! rfc2544 save <word32> <word> .............................................................................................................. 76!
3.17.4! rfc2544 start <word32> profile <word32> [ desc <line128> ] ............................................................... 76!
3.17.5! rfc2544 stop <word32> ............................................................................................................................. 76!
3.17.6! show rfc2544 profile [ <word32> ] ........................................................................................................... 76!
3.18! GVRP!CONFIGURE!COMMANDS!..............................................................................................................................!76!
3.18.1! gvrp ............................................................................................................................................................. 76!
3.18.2! gvrpjoin request vlan .................................................................................................................................. 76!
3.18.3! gvrpleave request vlan ................................................................................................................................ 77!
3.18.4! gvrp max-vlans ........................................................................................................................................... 77!
Contents
viii
3.18.5! gvrp time { [ join-time <1-20> ] [ leave-time <60-300> ] [ leave-all-time <1000-50>] ........................ 77!
3.19! VOICE!VLAN!CONFIGURE!COMMANDS!......................................................................................................................!77!
3.19.1! voice vlan .................................................................................................................................................... 77!
3.19.2! voice vlan aging-time ................................................................................................................................. 77!
3.19.3! voice vlan class ........................................................................................................................................... 77!
3.19.4! voice vlan oui .............................................................................................................................................. 78!
3.19.5! voice vlan vid .............................................................................................................................................. 78!
3.20! PROFILE!ALARM!COMMANDS!...................................................................................................................................!78!
3.20.1! profile alarm ............................................................................................................................................... 78!
3.20.2! alarm .......................................................................................................................................................... 78!
3.21! POE!COMMANDS!..................................................................................................................................................!78!
3.21.1! poe management mode ............................................................................................................................... 78!
3.21.2! poe supply ................................................................................................................................................... 79!
3.21.3! poe 4pairs ................................................................................................................................................... 79!
3.21.4! poe mode ..................................................................................................................................................... 79!
3.21.5! poe operation .............................................................................................................................................. 79!
3.21.6! poe power ................................................................................................................................................... 79!
3.21.7! poe priority ................................................................................................................................................. 80!
3.21.8! poe reset ..................................................................................................................................................... 80!
3.21.9! poe schedule ............................................................................................................................................... 80!
[LIST OF TABLES]
Table 2-1 List of Execution Modes ................................................................................................................. 8
Table 2-2 List of Terminal Keys ...................................................................................................................... 9
[LIST OF FIGURES]
Figure 2-1 Screen Description ........................................................................................................................ 8
Contents
ix
1
1. Scope
1.1 Scope
1.2 Audience
1.3 Pre-required Knowledge
1.4 Access to Hardware Interface
1.5 Related Documents
2
Scope
3
1 Scope
1.1 Scope
This user guide describes the commands and parameters of the Command Line Interface
(CLI) as implemented in the current version of the VX-IGP-1204F software. These
commands are used to set-up, administer and maintain the system.
1.2 Audience
The guide is intended for Operating personnel (sometimes called craft persons).
1.3 Pre-required Knowledge
The reader must be familiar with the:
! Basic operations of VX-IGP-1204F (see the Installation Guide).
! Security and activity monitoring constraints that limit how a command is implemented.
1.4 Access to Hardware Interface
Access to the hardware interface is by a terminal (or computer with terminal emulation
software). Requirements for the terminal are:
! RS-232 ASCII port
! Selectable transmission baud rate
! Full alphanumeric capability
! Selectable odd/even or no parity check
1.5 Related Documents
You may want to refer to the following related documents:
! Quick Installation Guide
Scope
4
5
2. Operator Interface
2.1 Introduction
2.2 Connect Interface
2.3 Authorization Level
2.4 Screen Description
2.5 Execution Modes
2.6 Getting Help
2.7 Terminal Key Function
2.8 Notation Conventions
6
Operator Interface
7
2 Operator Interface
2.1 Introduction
Access to the Switch is protected by a logon security system. You can log on to the switch
with the user name and password. After three failed logon attempts, the system refuses
further attempts.
After you log on, the system monitors the interface for periods of inactivity. If the interface is
inactive for too long, you are automatically logged off.
The CLI initial user name is (admin) and none password (). You should change the
password as soon as possible, because the initial password is known to anyone who reads
this manual. You can also change the user name or add additional user names. Use the
“account add” command to enter a new user identification, password and authorization level.
2.2 Connect Interface
Interface
Parameter
Console
Baud rate: 115200bps,
Data bit: 8,
Parity: None,
Stop bit: 1
Telnet
Port 23
SSH
Port 22 (In Windows, you can run terminal emulator such as PuTTY)
2.3 Screen Description
1. Connecting to the Ethernet port (RJ45 Ethernet port)
2. Key-in the command under Telnet: telnet 192.0.2.1
3. Login with default account and password.
Username: admin
Password: (none)
8
Figure 2-1 Screen Description
2.4 Execution Modes
The CLI contains several execution modes. Users will see different set of commands under
different execution modes. Table 2-1 lists all the execution modes and their purposes. When
users enter a certain execution mode, the corresponding mode prompt will be displayed
automatically on the screen. The mode prompts of all the execution modes are also listed in
Table 2-1.
Table 2-1 List of Execution Modes
Mode
Access Level
Prompt
Init Mode
Guest
>
Enable Mode
Guest
#
Config Mode
Guest
(conf)#
Alarm Profile Config Mode
Engineer
(alarm-profile-conf)#
Gigabit Interface Config Mode
Engineer
(gigabit-intf-conf)#
ACL Profile Config Mode
Engineer
(acl-profile-conf)#
scheduler Profile Config Mode
Engineer
(sch-profile-conf)#
Vlan Interface Config Mode
Engineer
(vlan-intf-conf)#
IGMP MVR Profile Config Mode
Engineer
(igmp-mvr-profile-conf)#
IGMP ACL Profile Config Mode
Engineer
(igmp-acl-profile-conf)#
RingV2 Group Config Mode
Engineer
(ring)#
Trunk Group Config Mode
Engineer
(trunk-group-conf)#
2.5 Getting help
The user can get help by entering a question mark ‘?’ at each position in the command. The
displayed result depends on the execution mode and previous input.
192.0.2.1&
Operator Interface
9
2.6 Terminal Key Function
Following is the list of all the terminal keys and their function.
Table 2-2 List of Terminal Keys
ENTER
Run a CLI config script
CTRL-M
TAB
Tab completion.
If tab is pressed after a non-whitespace character, complete the word
before the Tab.
If tab is pressed after a whitespace character, complete the next word.
CTRL-I
?
Display available commands
If ? is pressed after a non-whitespace character, show possible
choices for this word.
If ? is pressed after a whitespace character, show possible choices for
the next word.
<Up Arrow>
Up history
CTRL-P
<Down Arrow>
Down history
CTRL-N
Home
Move the cursor to the beginning of the input line
CTRL-A
End
Move the cursor to the end of the input line
CTRL-E
<Left Arrow>
Move the cursor backward
CTRL-B
<Right Arrow>
Move the cursor forward
CTRL-F
BACKSPACE
Erase the character before the cursor
CTRL-H
2.7 Notation Conventions
The notation conventions for the parameter syntax of each CLI command are as follows:
! Parameters enclosed in [ ] are optional.
! Parameter values are separated by a vertical bar “|” only when one of the specified
values can be used.
! Parameter values are enclosed in { } when you must use one of the values specified.
10
11
3. Commands Descriptions
3.1 Initialize Mode Commands
3.2 Enable Mode Commands
3.3 Configure Mode Commands
3.4 VLAN Mode Commands
3.5 Interface VLAN Mode Commands
3.6 Ring Group Mode Commands
3.7 Spanning Tree Configure Commands
3.8 sFlow Configure Command
3.9 SNMP Configure Command
3.10 Qos Function Command
3.11 IGMP Functional Commands
3.12 MVR Functional Commands
3.13 MLD Functional Commands
3.14 Authenticate Mode Commands
3.15 Loop-Protection Configure commands
3.16 LLDP Configure commands
3.17 RFC2544 Testing Configure Commands
3.18 GVRP Configure Commands
3.19 Voice VLAN Configure Commands
12
3 Commands Descriptions
3.1 Initialize Mode Commands
The commands in this section (except ‘enable’ command) can be executed under all
command modes. These commands are global commands.
3.1.1 exit
Description
Exit current mode and quit CLI.
Syntax
exit
Parameter
None
3.1.2 configure terminal
Description
Enter configuration mode.
Syntax
configure terminal
Parameter
None
3.1.3 enable
Description
Enter enable mode.
Syntax
enable
Parameter
None
3.1.4 Show terminal
Description
Show CLI environment variables
Syntax
show terminal
Parameter
None
3.1.5 Show history
Description
Show command history (Note: commands issued in one execution
mode only appear in history of that execution mode)
Syntax
show history
Parameter
None
3.1.6 Show clock
Description
Show current time
Syntax
show clock [detail]
Parameter
None
3.1.7 Show clock detail
Description
Show detailed information
Syntax
show clock detail
Parameter
None
13
3.2 Enable Mode Commands
All the “show - -” commands in this section can also be executed under any other command
mode except Initialize Mode.
3.2.1 configure terminal
Description
Enter configuration mode.
Syntax
configure
Parameter
None
3.2.2 disable
Description
Enter init mode.
Syntax
disable
Parameter
None
3.2.3 show aaa
Description
Show AAA
Syntax
show aaa
Parameter
None
3.2.4 show access management
Description
Access management configuration
Syntax
show access management [ statistics | <access_id_list> ]
Parameter
Name
Description
statistics
Statistics data
access_id_list
ID of access management entry
3.2.5 show access-list
Description
Access list
Syntax
show access-list [ interface [ ( <port_type> [ <v_port_type_list> ] ) ] ]
[ rate-limiter [ <rate_limiter_list> ] ] [ ace statistics [ <ace_list> ] ]
show access-list ace-status [ static ] [ link-oam ] [ loop-protect ] [ dhcp ]
[ ptp ] [ upnp ] [ arp-inspection ] [ mep ] [ ipmc ] [ ip-source-guard ]
[ ip-mgmt ] [ conflicts ] [ switch <switch_list> ]
Parameter
Name
Description
interface
Select an interface to configure
ace-status
The local ACEs status
port_type
GigabitEthernet,1 Gigabit Ethernet Port
v_port_type_list
PORT_LIST, Port list in 1/1-14
rate-limiter
Rate limiter
rate_limiter_list
<RateLimiterList : 1~16> Rate limiter ID
ace
Access list entry
statistics
Traffic statistics
ace_list
<AceId : 1~256> ACE ID
static
The ACEs that are configured by users manually
loop-protect
The ACEs that are configured by Loop Protect
module
ipmc
The ACEs that are configured by IPMC module
ip-source-guard
The ACEs that are configured by IP Source Guard
module
14
dhcp
The ACEs that are configured by DHCP module
conflicts
The ACEs that did not get applied to the hardware
due to hardware limitations
arp-inspection
The ACEs that are configured by ARP Inspection
module
3.2.6 show aggregation
Description
Aggregation
Syntax
show aggregation [ mode ]
Parameter
Name
Description
mode
Traffic distribution mode
3.2.7 show alarm
Description
Alarm information
Syntax
show alarm { history | current }
Parameter
Name
Description
current
Show alarm current infomation
history
Show alarm history infomation
3.2.8 show cpu-load
Description
CPU LOAD
Syntax
show cpu-load
Parameter
3.2.9 show green-ethernet
Description
Green Ethernet
Syntax
show green-ethernet [ interface ( <port_type> [ <port_list> ] ) ]
show green-ethernet eee [ interface ( <port_type> [ <port_list> ] ) ]
show green-ethernet energy-detect [ interface ( <port_type>
[ <port_list> ] ) ]
show green-ethernet short-reach [ interface ( <port_type>
[ <port_list> ] ) ]
Parameter
Name
Description
eee
Shows green ethernet EEE status for a specific port or
ports
energy-detect
Shows green ethernet energy-detect status for a
specific port or ports
short-reach
Shows green ethernet short-reach status for a specific
port or ports
interface
Shows green ethernet status for a specific port or ports
port_type
GigabitEthernet, 1 Gigabit Ethernet Port
port_list
<port_type_list> Port list in 1/1-14
3.2.10 show ip
Description
IP information
Syntax
show ip
Parameter
Name
Description
15
arp
Address Resolution Protocol
dhcp
Dynamic Host Configuration Protocol
http
Hypertext Transfer Protocol
igmp
Internet Group Management Protocol
interface
IP interface status and configuration
name-server
Domain Name System
route
Display the current ip routing table
source
source command
ssh
Secure Shell
statistics
Traffic statistics
verify
verify command
3.2.11 show ipmc
Description
IPMC information
Syntax
show ipmc profile [ <profile_name> ] [ detail ]
show ipmc range [ <entry_name> ]
Parameter
Name
Description
profile
IPMC profile configuration
range
A range of IPv4/IPv6 multicast addresses for the profile
profile_name
<ProfileName : word16> Profile name in 16 char's
detail
Detail information of a profile
entry_name
<EntryName : word16> Range entry name in 16
char's
3.2.12 show ipv6
Description
IPv6 information
Syntax
show ipv6
Parameter
Name
Description
interface
Select an interface to configure
mld
Multicasat Listener Discovery
neighbor
IPv6 neighbors
route
IPv6 routes
statistics
Traffic statistics
3.2.13 show lacp
Description
LACP information
Syntax
show lacp { internal | statistics | system-id | neighbour }
Parameter
Name
Description
internal
Internal LACP configuration
neighbour
Neighbour LACP status
statistics
Internal LACP statistics
system-id
LACP system id
3.2.14 show line
Description
Alive line information
Syntax
show line [ alive ]
Parameter
Name
Description
alive
Display information about alive lines
16
3.2.15 show logging
Description
Logging information
Syntax
show logging <log_id> [ switch <switch_list> ]
show logging [ info ] [ warning ] [ error ] [ switch <switch_list> ]
Parameter
Name
Description
log_id
<logging_id: 1-4294967295> Logging ID
error
Error
info
Infomation
warning
Warning
3.2.16 show loop-protec
Description
Loop protect information
Syntax
show loop-protect [ interface ( <port_type> [ <plist> ] ) ]
Parameter
Name
Description
interface
Interface status and configuration
port_type
GigabitEthernet, 1 Gigabit Ethernet Port
plist
<port_type_list> Port list in 1/1-14
3.2.17 show ntp status
Description
Show SNTP information.
Syntax
show sntp
Parameter
None
3.2.18 show users
Description
Show account list.
Syntax
show account
Parameter
None
3.2.19 show running-cfg
Description
Show running configuration.
Syntax
show running-cfg
Parameter
None
3.2.20 show running-config interface Gigabit
Description
Show port config
Syntax
show running-config interface ( <port_type> [ <list> ] ) [ all-defaults ]
Parameter
Name
Description
list
<port_type_list> Port list in 1/1-14
all-defaults
Include most/all default values
3.2.21 show running-config interface vlan
Description
Show default running configuration.
Syntax
show running-config interface vlan <vlan_list> [ all-defaults]
Parameter
None
3.2.22 show running-config all-defautls
Description
Show all default setting
Syntax
show running-config [ all-defaults ]
Parameter
None
17
3.2.23 show running-config feature
Description
Show running config feature
Syntax
show running-config feature <feature_name> [ all-defaults ]
Parameter
Name
Description
feature_name
CWORD
Valid words are 'GVRP' 'access' 'access-list'
'aggregation' 'alm_profile' 'arp-inspection' 'auth' 'clock'
'dhcp' 'dhcp-snooping' 'dhcp_server' 'dns' 'dot1x'
'green-ethernet' 'http' 'icli' 'ip-igmp-snooping'
'ip-igmp-snooping-port' 'ip-igmp-snooping-vlan'
'ipmc-profile' 'ipmc-profile-range' 'ipv4' 'ipv6'
'ipv6-mld-snooping' 'ipv6-mld-snooping-port'
'ipv6-mld-snooping-vlan' 'lacp' 'lldp' 'logging'
'loop-protect' 'mac' 'monitor' 'mstp' 'mvr' 'mvr-port'
'ntp' 'phy' 'port' 'port-security' 'pvlan' 'qos' 'rmon' 'snmp'
'source-guard' 'ssh' 'tring_g1' 'tring_g2' 'tring_g3' 'user'
'vlan' 'voice-vlan' 'web-privilege-group-level'
all-defaults
Include most/all default values
3.2.24 show running-config line
Description
Line information
Syntax
show running-config line { console | vty } <list> [ all-defaults ]
Parameter
Name
Description
console
Console
vty
VTY
list
<range_list> List of console/VTYs
all-defaults
Include most/all default values
3.2.25 show running-config vlan
Description
VLAN information
Syntax
show running-config vlan <list> [ all-defaults ]
Parameter
Name
Description
list
<vlan_list> List of VLAN numbers
all-defaults
Include most/all default values
3.2.26 show version
Description
Show firmware hardware and software status update status.
Syntax
show version
Parameter
None
3.2.27 show clock
Description
Show current time.
Syntax
Show clock
Parameter
None
3.2.28 show ddmi
Description
Show DDMI configuration
Syntax
show ddmi
Parameter
None
18
3.2.29 show version
Description
Show version information.
Syntax
show version
Parameter
None
3.2.30 show system inventory
Description
Show system inventory.
Syntax
show system inventory
Parameter
None
3.2.31 show mac address table aging-time
Description
Show aging time for MAC learning table (system-wide).
Syntax
show aging time
Parameter
None
3.2.32 show mac address table
Description
Show MAC learning table.
Syntax
show mac address-table [ conf | static | aging-time | { { learning | count }
[ interface <port_type> [ <port_type_list> ] ] } | { address <mac_addr>
[ vlan <vlan_id> ] } | vlan <vlan_id> | interface <port_type>
[ <port_type_list> ] ]
Parameter
None
3.2.33 show mac address table conf
Description
User added static mac addresses
Syntax
show mac address-table [ conf | static | aging-time | { { learning | count }
[ interface ( <port_type> [ <v_port_type_list> ] ) ] } | { address
<v_mac_addr> [ vlan <v_vlan_id> ] } | vlan <v_vlan_id_1> | interface
( <port_type> [ <v_port_type_list_1> ] ) ]
Parameter
Name
Description
3.2.34 show mac address table count
Description
Total number of mac addresse
Syntax
show mac address-table [ conf | static | aging-time | { { learning | count }
[ interface ( <port_type> [ <v_port_type_list> ] ) ] } | { address
<v_mac_addr> [ vlan <v_vlan_id> ] } | vlan <v_vlan_id_1> | interface
( <port_type> [ <v_port_type_list_1> ] ) ]
Parameter
Name
Description
3.2.35 show mac address table learning
Description
Learn/disable/secure stat
Syntax
show mac address-table [ conf | static | aging-time | { { learning | count }
[ interface ( <port_type> [ <v_port_type_list> ] ) ] } | { address
<v_mac_addr> [ vlan <v_vlan_id> ] } | vlan <v_vlan_id_1> | interface
( <port_type> [ <v_port_type_list_1> ] ) ]
Parameter
Name
Description
19
3.2.36 show mac address table static
Description
All static mac addresses
Syntax
show mac address-table [ conf | static | aging-time | { { learning | count }
[ interface ( <port_type> [ <v_port_type_list> ] ) ] } | { address
<v_mac_addr> [ vlan <v_vlan_id> ] } | vlan <v_vlan_id_1> | interface
( <port_type> [ <v_port_type_list_1> ] ) ]
Parameter
Name
Description
3.2.37 show mac address table interface
Description
Show MAC learning table per port.
Syntax
show mac address-table [ interface <port_type> [ <port_type_list> ] ]
Parameter
Name
Description
<portNo>
Valid values: 1 ~10
Type: Mandatory
3.2.38 show mac address vlan <vlanid>
Description
Show MAC learning table per VLAN index.
Syntax
show mac address-table { learning | count } vlan <vlan_id>
Parameter
Name
Description
<vlanid>
Valid values: 1~4094
Type: Mandatory
3.2.39 show mvr
Description
MVR information
Syntax
show mvr [ vlan <v_vlan_list> | name <mvr_name> ] [ group-database
[ interface ( <port_type> [ <v_port_type_list> ] ) ] [ sfm-information ] ]
[ detail ]
Parameter
Name
Description
vlan
Search by VLAN
v_vlan_list
<vlan_list> MVR multicast VLAN list
name
Search by MVR name
mvr_name
<MvrName : word16> MVR multicast VLAN name
group-database
Multicast group database from MVR
interface
Search by port
port_type
GigabitEthernet, 1 Gigabit Ethernet Port
v_port_type_list
PORT_LIST, Port list in 1/1-14
sfm-information
Including source filter multicast information from MVR
detail
Detail information/statistics of MVR group database
3.2.40 show fdb static table
Description
Show static MAC forwarding table.
Syntax
show mac address-table static
Parameter
None
3.2.41 show fdbstatic interface gigabit <portNo>
Description
Show static MAC forwarding table per gigabit port.
Syntax
Show mac address-table { learning | count } [ interface <port_type>
[ <port_type_list> ] ]
20
Parameter
Name
Description
<port_type>
Port type in Fast, Giga or Tengiga ethernet
<portNo>
Valid values: 1 ~ 10
Type: Mandatory
3.2.42 show fdbstatic vlan <vlanid>
Description
Show static MAC forwarding table per VLAN index.
Syntax
show mac address-table { learning | count } vlan <vlanid>
Parameter
Name
Description
<vlanid>
Valid values: 1~4094
Type: Mandatory
3.2.43 show interface port < port_type_list >
Description
Show interface information per \port.
Syntax
show interface <port_type> [ <port_type_list> ] status
Parameter
Name
Description
<port_type>
Port type in Fast, Giga or Tengiga ethernet
<portNo>
Valid values: 1 ~ 10
Type: Mandatory
21
3.2.44 show interface port <portNo> statistics
Description
Show Ethernet counter per gigabit port.
Syntax
show interface <port_type> [ <port_type_list> ] statistics
Parameter
Name
Description
<port_type>
Port type in Fast, Giga or Tengiga ethernet
<portNo>
Valid values: 1 ~ 10
Type: Mandatory
counter
Show Gigabit Ethernet counter.
3.2.45 show platform phy
Description
PHYs' information
Syntax
show platform phy [ interface ( <port_type> [ <v_port_type_list> ] ) ]
show platform phy id [ interface ( <port_type> [ <v_port_type_list> ] ) ]
show platform phy instance
show platform phy status [ interface ( <port_type>
[ <v_port_type_list> ] ) ]
Parameter
Name
Description
id
ID instance
PHY Instance Information
status
Status
interface
Interface
port_type
GigabitEthernet, 1 Gigabit Ethernet Port
v_port_type_list
PORT_LIST, Port list in 1/1-14
3.2.46 show poe
Description
Show PoE status and information for each port
Syntax
show poe
show poe [ interface ( <port_type> [ <v_port_type_list> ] ) ]
Parameter
Name
Description
poe
Power over Ethernet
port_type
GigabitEthernet, 1 Gigabit Ethernet Port
v_port_type_list
PORT_LIST, Port list in 1/1-14
3.2.47 show port-security
Description
Port security
Syntax
show port-security
Parameter
Name
Description
port
Show MAC Addresses learned by Port Security
switch
Show Port Security status
interface
Interface
port_type
GigabitEthernet, 1 Gigabit Ethernet Port
v_port_type_list
PORT_LIST, Port list in 1/1-14
22
3.2.48 show profile alarm
Description
Profile alarm
Syntax
show profile alarm
Parameter
None
3.2.49 show sflow
Description
Sflow information
Syntax
show sflow
show sflow statistics { receiver [ <rcvr_idx_list> ] | samplers [ interface
[ <samplers_list> ] ( <port_type> [ <v_port_type_list> ] ) ] }
Parameter
Name
Description
receiver
Show statistics for receiver
samplers
Show statistics for samplers
interface
Interface
port_type
GigabitEthernet, 1 Gigabit Ethernet Port
v_port_type_list
<port_type_list> Port list in 1/1-14
3.2.50 show snmp
Description
SNMP information
Syntax
show snmp
show snmp access [ <group_name> { v1 | v2c | v3 | any } { auth | noauth
| priv } ]
show snmp community v3 [ <community> ]
show snmp host [ <conf_name> ] [ system ] [ switch ] [ interface ] [ aaa ]
show snmp mib context
show snmp mib ifmib ifIndex
show snmp security-to-group [ { v1 | v2c | v3 } <security_name> ]
show snmp user [ <username> <engineID> ]
show snmp view [ <view_name> <oid_subtree> ]
Parameter
Name
Description
access
access configuration
group_name
<GroupName : word32> group name
any
any security model
v1
v1 security model
v2c
v2c security model
v3
v3 security model
auth
authNoPriv Security Level
noauth
noAuthNoPriv Security Level
priv
authPriv Security Level
community
Community
community
<Community : word127> Specify community name
host
Set SNMP host's configurations
conf_name
<ConfName : word32> Name of the host
23
configuration
aaa
AAA event group
interface
Interface event group
switch
Switch event group
system
System event group
mib
MIB(Management Information Base)
context
MIB context
ifmib
IF-MIB
ifIndex
The IfIndex that is defined in IF-MIB
security-to-group
security-to-group configuration
security_name
<SecurityName : word32> security group name
user
User
username
<Username : word32> Security user name
engineID
<Engiedid : word10-32> Security Engine ID
view
MIB view configuration
view_name
<ViewName : word32> MIB view name
oid_subtree
<OidSubtree : word255> MIB view OID
3.2.51 show spanning-tree
Description
System Wide Spanning Tree Setting/Status.
Syntax
show spanning-tree [ summary | active | { interface ( <port_type>
[ <v_port_type_list> ] ) } | { detailed [ interface ( <port_type>
[ <v_port_type_list_1> ] ) ] } | { mst [ configuration | { <instance>
[ interface ( <port_type> [ <v_port_type_list_2> ] ) ] } ] } ]
Parameter
Name
Description
active
STP active interfaces
detailed
STP statistics
interface
Choose port
mst
Configuration
summary
STP summary
3.2.52 show switchport forbidden
Description
Lookup VLAN Forbidden port entry
Syntax
show switchport forbidden [ { vlan <vid> } | { name <name> } ]
Parameter
Name
Description
vlan
Show forbidden access for specific VLAN id
vid
VLAN id
name
Show forbidden access for specific VLAN name
name
VLAN name
3.2.53 show tacacs-server
Description
TACACS+ configuration
Syntax
show tacacs-server
Parameter
3.2.54 show vlan
Description
Show bridge port memberset/status.
Syntax
show vlan
Parameter
None
24
3.2.55 show vlan id
Description
Show bridge port member set/status per VLAN index (1~4094).
Syntax
show vlan id <vlanid>
Parameter
Name
Description
<vlanid>
Valid values: 1~4094
Type: Mandatory.
3.2.56 show vlan name
Description
Show bridge port member set/status per VLAN name ( 32 words ).
Syntax
show vlan name <vword32>
Parameter
Name
Description
< vword32>
Valid values: 32 words
Type: Mandatory.
3.2.57 show vlan brief
Description
VLAN summary information
Syntax
show vlan [ id <vlan_list> | name <name> | brief ]
Parameter
Name
Description
id
VLAN status by VLAN id
vlan_list
<vlan_list> VLAN IDs 1-4095
name
VLAN status by VLAN name
name
<vword32> A VLAN name
brief
VLAN summary information
3.2.58 show vlan ip-subnet
Description
Show VLAN ip-subnet entries
Syntax
show vlan ip-subnet [ id <subnet_id> ]
Parameter
Name
Description
id
Show a specific ip-subnet entry
subnet_id
<1-128> The specific ip-subnet to show
3.2.59 show vlan mac
Description
Show VLAN MAC entries
Syntax
show vlan mac [ address <mac_addr> ]
Parameter
Name
Description
address
Show a specific MAC entry
mac_addr
<mac_ucast> The specific MAC entry to show
3.2.60 show vlan protocol
Description
Protocol-based VLAN status
Syntax
show vlan protocol [ eth2 { <etype> | arp | ip | ipx | at } ] [ snap { <oui> |
rfc-1042 | snap-8021h } <pid> ] [ llc <dsap> <ssap> ]
Parameter
Name
Description
eth2
Ethernet protocol based VLAN status
etype
0x600-0xffff> Ether Type(Range: 0x600 - 0xFFFF)
arp
Ether Type is ARP
ip
Ether Type is IP
25
ipx
Ether Type is IPX
at
Ether Type is AppleTalk
llc
LLC-based VLAN status
dsap
<0x0-0xff> DSAP (Range: 0x00 - 0xFF)
ssap
<0x0-0xff> SSAP (Range: 0x00 - 0xFF)
snap
SNAP-based VLAN status
oui
<0x0-0xffffff> SNAP OUI (Range 0x000000 0XFFFFFF)
rfc-1042
SNAP OUI is rfc-1042
snap-8021h
SNAP OUI is 8021h
3.2.61 show vlan status
Description
Show the VLANs configured for each interface
Syntax
show vlan status [ interface ( <port_type> [ <plist> ] ) ] [ combined |
admin | nas | mvr | voice-vlan | mstp | erps | vcl | evc | gvrp | all |
conflicts ]
Parameter
Name
Description
admin
Show the VLANs configured by administrator
all
Show all VLANs configured
combined
Show the VLANs configured by a combination
conflicts
Show VLANs configurations that has conflicts
gvrp
Show the VLANs configured by GVRP
interface
Show the VLANs configured for a specific interface(s)
mstp
Show the VLANs configured by MSTP.
mvr
Show the VLANs configured by MVR
nas
Show the VLANs configured by NAS
vcl
Show the VLANs configured by VCL
voice-vlan
Show the VLANs configured by Voice VLAN
3.2.62 show qos-queue-mapping
Description
Show CoS queue mapping table.
Syntax
show qos maps
Parameter
None
3.2.63 show interface ports <portNo> priority
Description
Show QoS per gigabit port.
Syntax
show interface <port_type> [ <port_type_list> ] statistics { priority
[ <0~7> ] }
Parameter
Name
Description
priority
[ <0~7> ]
Valid values:0 ~7
Type: Mandatory
<port_type>
Port type in Fast, Giga or Tengiga ethernet
<portNo>
Valid values:0 ~ 10
Type: Mandatory
3.2.64 show qos
Description
Show scheduler profile table.
Syntax
show queue-scheduler profile
Parameter
None
26
3.2.65 show queue-shaper
Description
Show queue shaper information.
Syntax
show queue-shaper
Parameter
None
3.2.66 show port-shaper
Description
Show port shaper information.
Syntax
show port-shaper
Parameter
None
3.2.67 show pvlan [ <pvlan_list> ]
Description
PVLAN ID
Syntax
show pvlan [ <pvlan_list> ]
Parameter
Name
Description
pvlan_list
PVLAN ID to show configuration for
3.2.68 show pvlan isolation [ interface <port_type> [ <port_type_list> ] ]
Description
Show all port isolation information.
Syntax
show pvlan isolation [ interface <port_type> [ <port_type_list> ] ]
Parameter
None
Name
Description
<port_type>
Port type in Fast, Giga or Tengiga ethernet
<portNo>
Valid values: 1 ~ 10
Type: Mandatory
3.2.69 show interface gigabit <portNo> port-isolation
Description
Show isolation information per gigabit port.
Syntax
show pvlan isolation [ interface <port_type> [ <port_type_list> ] ]
Parameter
Name
Description
<portNo>
Valid values: 1 ~ 10
Type: Mandatory
3.2.70 show interface gigabit <portNo> storm-control
Description
Show storm control information per gigabit port.
Syntax
show interface gigabit <portNo> storm-control
Parameter
Name
Description
<port_type>
Port type in Fast, Giga or Tengiga ethernet
<portNo>
Valid values: 1~10
Type: Mandatory
3.2.71 show interface gigabit <portNo> transceiver
Description
Show interface transceiver
Syntax
show interface GigabitEthernet interface <port_type_list> transceiver
Parameter
Name
Description
<portNo>
Valid values: 11 ~ 14 (for 14 port model)
Type: Mandatory
27
3.2.72 show qos interface
Description
QoS interface information
Syntax
show qos [ { interface [ ( <port_type> [ <port> ] ) ] }
Parameter
Name
Description
interface
Interface
port_type
GigabitEthernet, 1 Gigabit Ethernet Port
port
PORT_LIST, Port list in 1/1-14
3.2.73 show qos maps
Description
MAPS
Syntax
show qos maps { maps [ dscp-cos ] [ dscp-ingress-translation ]
[ dscp-classify ] [ cos-dscp ] [ dscp-egress-translation ] }
Parameter
Name
Description
cos-dscp
Map for cos to dscp
dscp-classify
Map for dscp classify enable
dscp-cos
Map for dscp to cos
dscp-egress-translation
Map for dscp egress translation
dscp-ingress-translation
Map for dscp ingress translation
3.2.74 show qos qce
Description
QCE
Syntax
show qos { qce [ <qce> ] }
Parameter
Name
Description
qce
<Id : 1-256> QCE ID
3.2.75 show qos storm {unknown-uc|unknown-mc|broadcast}
Description
Show storm control information by VLAN.
Syntax
show vlan unknown-uc
show vlan unknown-mc
show vlan broadcast
Parameter
Name
Description
unknown-uc
Show unknown unicast storm control information by
VLAN.
Type: Mandatory
unknown-mc
Show unknown multicast storm control information by
VLAN.
Type: Mandatory
broadcast
Show broadcast storm control information by VLAN.
Type: Mandatory
3.2.76 show port-mirror
Description
Show port mirror information.
Syntax
show port-mirror
Parameter
None
3.2.77 show ringv2
Description
Show ring protect information
Syntax
show ring
28
Parameter
None
3.2.78 show rmon
Description
Syntax
show rmon alarm [ <id_list> ]
show rmon event [ <id_list> ]
show rmon history [ <id_list> ]
show rmon statistics [ <id_list> ]
Parameter
Name
Description
alarm
Display the RMON alarm table
event
Display the RMON event table
history
Display the RMON history table
statistics
Display the RMON statistics table
id_list
<1~65535>, Statistics entry list
3.2.79 show interface gigabit <portNo>
Description
Show interface gigaport information
Syntax
show interface gigabit <portNo>
Parameter
Name
Description
<portNo>
Gigabit port.
Valid values: 1 ~ 10
Type: Mandatory
3.2.80 show ext-tpid
Description
Show TPID for the VLAN Tag
Syntax
show ext-tpid
Parameter
None
3.2.81 show interface vlan
Description
Show VLAN interface information of all VLANs.
Syntax
show interface vlan
Parameter
None
3.2.82 show interface vlan <vlanid>
Description
Show VLAN interface information of specify VLAN.
Syntax
show interface vlan <vlanid>
Parameter
Name
Description
<vlanid>
VLAN ID.
Valid values: 1 ~ 4094
Type: Mandatory
3.2.83 show protocol-vlan
Description
Show protocol based VLAN information for all entries.
Syntax
show protocol-vlan
Parameter
None
3.2.84 show interface gigabit <portNo> vlan
Description
Show vlan information per port
Syntax
show interface gigabit <portNo> vlan
29
Parameter
Name
Description
<portNo>
Gigabit port.
Valid values: 1 ~ 10
Type: Mandatory
3.2.85 show vlan-trans
Description
Show VLAN translation table for all
Syntax
show vlan-trans
Parameter
None
3.2.86 show multicast-fdb
Description
Show IGMP group membership table
Syntax
show multicast-fdb
Parameter
None
3.2.87 show dot1x
Description
Show dot1x information.
Syntax
show dot1x
Parameter
None
3.2.88 show dot1x status
Description
Show dot1x stats.
Syntax
show dot1x status [ interface <port_type> [ <port_type_list> ] ]
[ brief ]
Parameter
None
3.2.89 show dot1x statistics
Description
Show dot1x statistics
Syntax
show dot1x statistics { eapol | radius | all } [ interface ( <port_type>
[ <v_port_type_list> ] ) ]
Parameter
Name
Description
all
Show all dot1x statistics
eapol
Show EAPOL statistics
radius
Show Backend Server statistics
interface
Interface
port_type
GigabitEthernet, 1 Gigabit Ethernet Port
v_port_type_list
PORT_LIST, Port list in 1/1-14
3.2.90 show radius-server [ statistics ]
Description
show radius-server statistics
Syntax
show radius-server [ statistics ]
Parameter
Name
Description
[ statistics ]
Count radius packet statistics
3.2.91 show rfc2544 profile [ <word32> ]
Description
show rfc2544 profile name
Syntax
show rfc2544 profile [ <word32> ]
Parameter
30
Name
Description
<word32>
rfc2544 profile name
3.2.92 show voice
Description
Vlan for voice traffic
Syntax
show voice vlan [ oui <oui> | interface ( <port_type> [ <port_list> ] ) ]
Parameter
Name
Description
vlan
Vlan for voice traffic
oui
OUI configuration
oui
OUI value
interface
Select an interface to configure
port_type
GigabitEthernet, 1 Gigabit Ethernet Port
port_list
<port_type_list> Port list in 1/1-14
3.2.93 show web
Description
Web privilege
Syntax
show web privilege group [ <group_name> ] level
Parameter
Name
Description
privilege
Web privilege
group
Web privilege grou
group_name
CWORD
Valid words are 'Aggregation' 'DHCP' 'Debug'
'Dhcp_Client' 'Diagnostics' 'EEE' 'Green_Ethernet'
'IP2' 'IPMC_Snooping' 'LACP' 'LLDP'
'Loop_Protect' 'MAC_Table' 'MVR' 'Maintenance'
'Mirroring' 'NTP' 'Ports' 'Private_VLANs' 'QoS'
'RPC' 'Security' 'Spanning_Tree' 'System' 'Timer'
'VCL' 'VLANs' 'Voice_VLAN' 'XXRP' 'sFlow'
level
Web privilege group level
31
3.3 Configure Mode Commands
Commands that can be executed under Configure Mode
3.3.1 interface gigabit <portNo>
Description
Gigabit Ethernet interface. (enter gigabit interface mode)
Syntax
interface gigabit <portNo>
Parameter
Name
Description
<portNo>
Valid values: 1 ~ 10
Type: Mandatory
3.3.2 interface vlan <vlanid>
Description
Vlan Ethernet interface (enter mode of interface vlan)
Syntax
interface vlan <vlanid>
Parameter
Name
Description
<vlanid>
Valid values: 1 ~ 4094
Type: Mandatory
3.3.3 aaa
Description
Authentication
Syntax
aaa authentication
Parameter
Name
Description
authentication
Authentication
3.3.4 access
Description
Management configuration
Syntax
access management
Parameter
Name
Description
management
Access management configuration
3.3.5 access-list
Description
Enter Acl Profile Config Mode
Syntax
profile acl
Parameter
Name
Description
<vlanid>
Valid values: 1 ~ 4094
Type: Mandatory
Parameter
None
3.3.6 aggregation mode
Description
Traffic distribution mode
Syntax
aggregation mode { dmac | ip | port | smac }
Parameter
Name
Description
dmac
Destination MAC affects the distribution
ip
IP address affects the distribution
port
IP port affects the distribution
smac
Source MAC affects the distribution
32
3.3.7 alarm history clear
Description
Clear alarm history
Syntax
alarm history clear
Parameter
Name
Description
3.3.8 banner
Description
Banner control
Syntax
banner { LINE | exec | login | motd }
Parameter
Name
Description
LINE
c banner-text c, where 'c' is a delimiting character
exec
Set EXEC process creation banner
login
Set login banner
motd
Set Message of the Day banner
3.3.9 ddmi
Description
Enable DDMI function
Syntax
ddmi
Parameter
None
3.3.10 default access-list rate-limiter
Description
Rate limiter
Syntax
default access-list rate-limiter [ <rate_limiter_list> ]
Parameter
Name
Description
RateLimiterId :
1-16
Rate limiter ID
3.3.11 profile sch
Description
Enter Scheduling Profile Config Mode
Syntax
profile sch
Parameter
None
3.3.12 ntp server <1-5> ip-address <ip>
Description
Set NTP server address.
Syntax
ntp server <1-5> ip-address { <ipv4_ucast> | <ipv6_ucast> |
<hostname> }
Parameter
Name
Description
<1-5>
index number
<ipv4>
<ipv6 >
Type: Mandatory
<hostname>
Server name
3.3.13 clock timezone
Description
Set time zone.
Syntax
clock timezone <word16> <-23-23> [ <0-59> ]
Parameter
33
Name
Description
< word16>
Valid values: please see 'list timezone'
Type: Mandatory
default
Set time zone to default (GMT/UTC).
Type: Mandatory
3.3.14 clock summer-time set [start-time] [end-time]
Description
Set date/time.
Syntax
clock summer-time <word16> date [ <1-12> <1-31> <2000-2097>
<hhmm> <1-12> <1-31> <2000-2097> <hhmm> [ <1-1440> ] ]
Parameter
Name
Description
< word16>
Valid values: please see 'list timezone'
Type: Mandatory
<day>
Valid values: 1 ~ 31
Type: Mandatory
<month>
Valid values: 1 ~ 12
Type: Mandatory
<year>
Valid values: 2000-2097
Type: Mandatory
<minute>
Valid values: 0 ~ 59
Type: Mandatory
<second>
Valid values: 0 ~ 59
Type: Optional
3.3.15 account add <username>
Description
Add an account.
Syntax
username <word31> privilege <0-15> password encrypted <word4-44>
Parameter
Name
Description
< word31>
Valid values: 1 ~ 31 characters
Type: Mandatory
<0-15>
Valid values: 0 ~ 15
Type: Mandatory
< word4-44>
Valid values: 4-44 characters
Type: Mandatory
3.3.16 account delete <username>
Description
Delete an account.
Syntax
no username <word31>
Parameter
Name
Description
< word31>
Valid values: 1 ~ 31 characters
Type: Mandatory
3.3.17 syslog {enable|disable}
Description
Disable or enable syslog service.
Syntax
logging on
no logging on
Parameter
None
34
3.3.18 configuration save and replace
Description
Save and install configuration
Syntax
copy { startup-config | running-config | <Filename> } { startup-config |
running-config | < Filename > } [ syntax-check ]
Parameter
Name
Description
running-config
Currently running configuration
startup-config
Startup configuration
syntax-check
Perform syntax check on source configuration
Filename
File in FLASH or on TFTP server
3.3.19 clear ip igmp snooping statistics
Description
clear ipigmpsnoopingstatisti
Syntax
clear ip igmp snooping [ vlan<vlan_list> ] statistics
Parameter
Name
Description
vlan_list
VLAN list.
3.3.20 clear logging
Description
clear logging
Syntax
clear logging [ info ] [ warning ] [ error ] [ switch <switch_list> ]
Parameter
Name
Description
info
Information
warning
Warning
error
Error
Switch list
List of switch ID, ex, 1,3-5,6
3.3.21 clear mac address-table
Description
clear mac address-table
Syntax
clear mac address-table
Parameter
3.3.22 debug
Description
Set prompt for testing
Syntax
debug prompt
Parameter
Name
Description
<word>
Word for prompt in 32 char's
3.3.23 delete
Description
Delete one file in flash: file system
Syntax
delete <word>
Parameter
Name
Description
<word>
Name of file to delete
3.3.24 dir
Description
Directory of all files in flash: file system
Syntax
dir
Parameter
35
3.3.25 do
Description
To run exec commands in config mode
Syntax
do <line>
Parameter
Name
Description
<line>
Exec Command
3.3.26 duplex
Description
Set duplex mode
Syntax
duplex { half | full | auto [ half | full ] }
Parameter
Name
Description
half
Forced half duplex.
full
Forced full duplex.
auto
Auto negotiation of duplex mode.
[ half | full ]
Advertise half /full duplex.
3.3.27 editing
Description
Enable command line editing
Syntax
editing
Parameter
3.3.28 firmware
Description
Firmware swap and upgrade
Syntax
firmware { swap | upgrade }
Parameter
Name
Description
swap
Swap between Active and Alternate firmware
upgrade
Firmware upgrade
3.3.29 flowcontrol
Description
Enable/Disable flow control.
Syntax
flowcontrol { on | off }
Parameter
Name
Description
on
Enable flow control.
off
Disable flow control.
3.3.30 frame-sizes
Description
Select the frame sizes that the enabled tests will loop through
Syntax
frame-sizes { [ 64 ] [ 128 ] [ 256 ] [ 512 ] [ 1024 ] [ 1280 ] [ 1518 ] [ 2000 ]
[ 9600 ] }
Parameter
Name
Description
64
Enable testing with 64-byte TST PDUs
128
Enable testing with 128-byte TST PDUs
256
Enable testing with 256-byte TST PDUs
512
Enable testing with 512-byte TST PDUs
1024
Enable testing with 1024-byte TST PDUs
1280
Enable testing with 1280-byte TST PDUs
1518
Enable testing with 1518-byte TST PDUs
2000
Enable testing with 2000-byte TST PDUs
36
9600
Enable testing with 9600-byte TST PDUs
3.3.31 green-etherneteee
Description
Powering down of PHYs when there is no traffic.
Syntax
green-etherneteee
Parameter
3.3.32 green-etherneteee optimize-for-power
Description
Set if EEE shall be optimized for least power consumption (else
optimized for least traffic latency).
Syntax
green-etherneteee optimize-for-power
Parameter
3.3.33 green-etherneteee urgent-queues
Description
Enables EEE urgent queue. An urgent queue means that latency is kept
to a minimum for traffic goin to that queue. Note: EEE power savings will
be reduced.
Syntax
green-etherneteee urgent-queues [ <range_list> ]
Parameter
Name
Description
range_list
EEE Interface.
3.3.34 help
Description
Description of the interactive help system
Syntax
help
Parameter
3.3.35 iparp inspection
Description
iparp inspection
Syntax
iparp inspection
Parameter
3.3.36 ip arp inspection translate
Description
IP ARP inspection entry interface configuration
Syntax
ip arp inspection translate [ interface
<port_type><port_type_id><vlan_id><mac_ucast><ipv4_ucast> ]
Parameter
Name
Description
port_type
Port type in Fast, Giga or Tengigaethernet
port_type_id
Port ID in the format of switch-no/port-no
vlan_id
Select a VLAN id to configure
mac_ucast
Select a MAC address to configure
ipv4_ucast
Select an IP Address to configure
3.3.37 ip arp inspection entry
Description
arp inspection entry interface config
Syntax
ip arp inspection entry interface <port_type> <in_port_type_id>
<vlan_var> <mac_var> <ipv4_var>
Parameter
Name
Description
port_type
Port type in Fast, Giga or Tengigaethernet
in_port_type_id
Port ID in the format of switch-no/port-no
37
vlan_var
Select a VLAN id to configure
mac_var
Select a MAC address to configure
ipv4_var
Select an IP Address to configure
3.3.38 ip arp inspection vlan
Description
IP ARP inspection vlan setting
Syntax
ip arp inspection vlan<vlan_list>
Parameter
Name
Description
vlan_list
arp inspection vlan list
3.3.39 ip dns proxy
Description
IP DNS proxy service
Syntax
ipdns proxy
Parameter
3.3.40 ip http secure-redirect
Description
IP http secure-redirect
Syntax
ip http secure-redirect
Parameter
3.3.41 ip http secure-server
Description
IP Secure HTTP web server
Syntax
ip http secure-server
Parameter
3.3.42 ip source binding interface
Description
IP source binding entry interface configuration
Syntax
Ip source binding interface <port_type> <port_type_id> <vlan_id>
<ipv4_ucast> <mac_ucast>
Parameter
Name
Description
port_type
Port type in Fast, Giga or Tengigaethernet
port_type_id
Port ID in the format of switch-no/port-no
vlan_id
Select a VLAN id to configure
ipv4_ucast
Select an IP Address to configure
mac_ucast
Select a MAC address to configure
3.3.43 ip ssh
Description
IP Secure Shell
Syntax
ipssh
Parameter
3.3.44 ip name-server
Description
IP name server
Syntax
ip name-server { <v_ipv4_ucast> | dhcp [ interface vlan <v_vlan_id> ] }
Parameter
Name
Description
v_ipv4_ucast
A valid IPv4 unicast address
dhcp
Dynamic Host Configuration Protocol
v_vlan_id
VLAN identifier(s): VID
38
3.3.45 ip route
Description
IP Route
Syntax
ip route <v_ipv4_addr> <v_ipv4_netmask> <v_ipv4_gw>
Parameter
Name
Description
v_ipv4_addr
Network
v_ipv4_netmask
Netmask
v_ipv4_gw
Gateway
3.3.46 ip routing
Description
IP routing
Syntax
ip routing
Parameter
3.3.47 ip verify
Description
IP verify
Syntax
ip verify [source] [translate]
Parameter
Name
Description
source
verify source
translate
ip verify source translate all entries
3.3.48 ipmc profile
Description
IPMC profile configuration
Syntax
ipmc profile
Parameter
3.3.49 ipmc range
Description
A range of IPv4/IPv6 multicast addresses for the profile
Syntax
ipmc range <word16> { <ipv4_mcast> [ <ipv4_mcast> ] | <ipv6_mcast>
[ <ipv6_mcast> ] }
Parameter
Name
Description
word16
Range entry name in 16 char's
ipv4_mcast
Valid IPv4 multicast address
ipv4_mcast
Valid IPv4 multicast address that is not less than
start address
ipv6_mcast
Valid IPv6 multicast address
ipv6_mcast
Valid IPv6 multicast address that is not less than
start address
3.3.50 lacp
Description
LACP system priority
Syntax
lacp system-priority <v_1_to_65535>
Parameter
Name
Description
system-priority
System priority
<v_1_to_65535>
Priority value, lower means higher priority
3.3.51 line
Description
Console terminal control
Syntax
line { <0~16> | console 0 | vty <0~15> }
Parameter
39
Name
Description
<0~16>
List of line numbers
console
Console terminal line
vty
Virtual terminal
3.3.52 login host
Description
Domain name and IP address
Syntax
logging host { <v_ipv4_ucast> | <v_word45> }
Parameter
Name
Description
hostname
Donain name of the log server
ipv4_ucast
IP address of the log server
3.3.53 login level
Description
Log level
Syntax
logging level { info | warning | error }
Parameter
Name
Description
error
Error
info
Information
warning
Warning
3.3.54 login on
Description
Log on
Syntax
logging on
Parameter
3.3.55 logout
Description
System logout
Syntax
logout
Parameter
3.3.56 mac address-table aging-time
Description
MAC table entries/configuration
Syntax
mac address-table aging-time <v_0_10_to_1000000>
Parameter
Name
Description
<v_0_10_to_1000000>
Aging time in seconds, 0 disables aging
3.3.57 mac address-table static
Description
MAC table entries/configuration
Syntax
mac address-table static <v_mac_addr> vlan <v_vlan_id> interface
( <port_type> [ <v_port_type_list> ] )
Parameter
Name
Description
<v_mac_addr
48 bit MAC address
v_vlan_id
VLAN IDs 1-4095
port_type
Select an interface to configure
v_port_type_list
Port list
3.3.58 more
Description
File in FLASH or on TFTP server
Syntax
more <Path>
40
Parameter
3.3.59 no
Description
Function disable
Syntax
no { debug | port-securit | terminal }
Parameter
Name
Description
debug
Debugging functions
port-securit
Port security (psec limit)
terminal
Set terminal line parameters
3.3.60 ping
Description
The ping function
Syntax
ping { ip | ipv6 }
Parameter
Name
Description
ip
IP (ICMP) echo
ipv6
IPv6 (ICMPv6) echo
3.3.61 port-security
Description
Port security
Syntax
port-security [aging] [time <v_10_to_10000000>]
Parameter
Name
Description
aging
Enable/disable port security aging
time
Time in seconds between check for activity on
learned MAC addresses
v_10_to_10000000
<10-10000000> seconds
3.3.62 privilege
Description
Syntax
privilege { exec | configure | config-vlan | line | interface | if-vlan |
ipmc-profile | snmps-host | stp-aggr | dhcp-pool | rfc2544-profile } level
<privilege> <cmd>
Parameter
Name
Description
config-vlan
VLAN Configuration Mode
configure
Global configuration mod
dhcp-pool
DHCP Pool Configuration Mode
exec
Exec mode
if-vlan
VLAN Interface Mode
interface
Port List Interface Mode
ipmc-profile
IPMC Profile Mode
line
Line configuration mode
rfc2544-profile
RFC2544 Profile Mode
snmps-host
SNMP Server Host Mode
stp-aggr
STP Aggregation Mode
3.3.63 reload
Description
System or configuration reset
Syntax
reload { cold | default }
Parameter
Name
Description
41
cold
Reload cold
defaults
Reload defaults without rebooting
3.3.64 rmon
Description
RMON
Syntax
rmon {alarm | event}
Parameter
Name
Description
alarm
Configure an RMON alarm
event
Configure an RMON event
3.3.65 rmon alarm
Description
RMON Alarm
Syntax
rmon alarm <id> <oid_str> <interval> { absolute | delta } rising-threshold
<rising_threshold> [ <rising_event_id> ] falling-threshold
<falling_threshold> [ <falling_event_id> ] { [ rising | falling | both ] }
Parameter
Name
Description
id
Alarm entry ID
ifInDiscards
The number of inbound packets that are discarded
even the packets are normal
fInErrors
The number of inbound packets that contained
errors preventing them from being deliverable to a
higher-layer protocol
ifInNUcastPkts
The number of broad-cast and multi-cast packets
delivered to a higher-layer protocol
ifInOctets
The total number of octets received on the
interface, including framing characters
ifInUcastPkts
The number of uni-cast packets delivered to a
higher-layer protocol
ifInUnknownProtos
The number of the inbound packets that were
discarded because of the unknown or un-support
protocol
ifOutDiscards
The number of outbound packets that are
discarded event the packets is normal
ifOutErrors
The The number of outbound packets that could
not be transmitted because of errors
ifOutNUcastPkts
The number of broad-cast and multi-cast packets
that request to transmit
ifOutOctets
The number of octets transmitted out of the
interface, including framing characters
ifOutUcastPkts
The number of uni-cast packets that request to
transmi
interval
Sample interval
absolute
Test each sample directly
delta
Test delta between samples
rising_threshold
<-2147483648-2147483647> rising threshold
value
rising_event_id
<0-65535> Event to fire on rising threshold
crossing
falling_threshold
<-2147483648-2147483647> falling threshold
value
falling_event_id
<0-65535> Event to fire on falling threshold
crossing
42
both
Trigger alarm when the first value is larger than the
rising threshold or less than the falling threshold
(default)
falling
rigger alarm when the first value is less than the
falling threshold
rising
Trigger alarm when the first value is larger than the
rising threshold
3.3.66 rmon alarm
Description
RMON Event
Syntax
rmon event <id> [ log ] [ trap <community> ] { [ description
<description> ] }
Parameter
Name
Description
description
Specify a description of the event
log
Generate RMON log when the event fires
trap
Generate SNMP trap when the event fires
3.3.67 terminal
Description
Terminal control
Syntax
terminal { editing | exec-timeout | help | history | length | width }
Parameter
Name
Description
editing
Enable command line editing
exec-timeout
Set the EXEC timeout
help
Description of the interactive help system
history
Control the command history function
length
Set number of lines on a screen
width
Set width of the display terminal
3.3.68 vlan <vlanid>
Description
Configure VLAN.
Syntax
vlan <vlanid>
Parameter
Name
Description
<vlanid>
Create an empty VLAN index.
Valid values: 1 ~ 4094
Type: Mandatory
3.3.69 vlan <vlanid> <name>
Description
Configure VLAN’s name.
Syntax
vlan <vlanid> <name>
Parameter
Name
Description
<vlanid>
Create an empty VLAN index.
Valid values: 1 ~ 4094
Type: Mandatory
<name>
VLAN Name (0~31)
String Size:0~31
Type: Mandatory
43
3.3.70 vlan disable <vlanid>
Description
Delete VLAN memberset/setting.
Syntax
vlan disable <vlanid>
Parameter
Name
Description
<vlanid>
Valid values: 1 ~ 4094
Type: Mandatory
3.3.71 mac address-table aging-time <time>
Description
Configure aging time for a bridge port.
Syntax
mac address-table aging-time <time>
Parameter
Name
Description
<time>
Valid values: 10 ~ 1000000 (seconds), 0: disable aging
Type: Mandatory
3.3.72 mtu <value>
Description
MTU size.
Syntax
mtu <value>
Parameter
Name
Description
<value>
Range.
Valid values: 1536~9000 (bytes)
Type: Mandatory
3.3.73 media-type
Description
Configure media-type
Syntax
media-type { rj45 | sfp | dual }
Parameter
Name
Description
rj45
rj45 interface (copper interface).
sfp
sfp interface (fiber interface).
dual
Dual media interface (cu & fiber interface).
3.3.74 monitor destination interface
Description
The destination port. That is the port that trafficed should be mirrored to.
Syntax
monitor destination interface <port_type> <port_type_id>
Parameter
Name
Description
<port_type
Port type
<port_type_id>
Port Number
3.3.75 monitor source interface
Description
Mirror Interface traffic
Syntax
monitor source { { interface ( <port_type> [ <v_port_type_list> ] ) }
Parameter
Name
Description
port_type
1 Gigabit Ethernet Port
v_port_type_lis
Port list
44
3.3.76 monitor source cpu
Description
Mirror Interface traffic
Syntax
monitor source { cpu [ <cpu_switch_range> ] } } { both | rx | tx }
Parameter
Name
Description
both
Setting source port to both will mirror both ingress and egress
traffic
rx
Setting source port to rx will mirror ingress traffic
tx
Setting source port to tx will mirror egress traffic
3.3.77 speed
Description
Configures interface speed. If you use 10, 100, or 1000 keywords with
the auto keyword the port will only advertise the specified speeds.
Syntax
speed { 10g | 2500 | 1000 | 100 | 10 | auto { [ 10 ] [ 100 ] [ 1000 ] } }
Parameter
Name
Description
1000
1Gbps
100
100Mbps
10
10Mbps
auto
Auto negotiation
[ 10 ]
10Mbps
[ 10 0]
100Mbps
[ 1000 ]
1Gbps
3.3.78 tacacs-server host
Description
Configure TACACS+ server
Syntax
tacacs-server host <word1-255> [ port <0-65535> ] [ timeout <1-1000> ]
[ key <line1-63> ]
Parameter
Name
Description
word1-255
Hostname or IP address
0-65535
TCP port number
1-1000
Wait time in seconds
line1-63
The shared key
3.3.79 tacacs-server key
Description
Configure TACACS+ encryption key
Syntax
tacacs-server key <line1-63>
Parameter
Name
Description
line1-63
3.3.80 tacacs-server timeout
Description
Time to wait for a TACACS+ server to reply
Syntax
tacacs-server timeout <1-1000>
Parameter
Name
Description
1-1000
Wait time in seconds
45
3.3.81 traps
Description
trap event configuration
Syntax
traps [ aaa authentication ] [ system [ coldstart ] [ warmstart ] ] [ switch
[ stp ] [ rmon ] ]
Parameter
Name
Description
aaa authentication
AAA authentication fail event
coldstart
Cold start event
warmstart
Warm start event
stp
STP event
rmon
RMON event
3.3.82 upnp
Description
Set UPnP's configurations
Syntax
upnp
Parameter
3.3.83 upnp advertising-duration
Description
Set UPnP's advertising duration
Syntax
upnp advertising-duration <100-86400>
Parameter
Name
Description
100-86400
advertising duration
3.3.84 upnp ttl
Description
Set UPnP's TTL value
Syntax
upnp ttl <1-255>
Parameter
Name
Description
1-255
TTL value
3.3.85 username
Description
User account
Syntax
username <username> privilege <priv> password encrypted
<encry_password>
username <username> privilege <priv> password none
username <username> privilege <priv> password unencrypted
<password>
Parameter
Name
Description
username
<Username : word31> User name allows letters, numbers
and underscores
privilege
Set user privilege level
priv
User privilege level
password
Specify the password for the user
encrypted
Specifies an ENCRYPTED password will follow
none
NULL password
unencrypted
Specifies an UNENCRYPTED password will follow
3.3.86 web
Description
Syntax
web privilege group <group_name> level { [ cro <cro> ] [ crw <crw> ]
[ sro <sro> ] [ srw <srw> ] }*1
46
Parameter
Name
Description
privilege
Web privilege
group
Web privilege group
group_name
Valid words are 'Aggregation' 'DHCP' 'Debug'
'Dhcp_Client' 'Diagnostics' 'EEE' 'Green_Ethernet' 'IP2'
'IPMC_Snooping' 'LACP' 'LLDP' 'Loop_Protect'
'MAC_Table' 'MVR' 'Maintenance' 'Mirroring' 'NTP' 'Ports'
'Private_VLANs' 'QoS' 'RPC' 'Security' 'Spanning_Tree'
'System' 'Timer' 'VCL' 'VLANs' 'Voice_VLAN' 'XXRP'
'sFlow'
level
Web privilege group level
cro
Configuration Read-only level
crw
Configuration Read-write level
sro
Status/Statistics Read-only level
srw
Status/Statistics Read-write level
cro
<Cro : 0-15>
crw
<Crw : 0-15>
sro
<Sro : 0-15>
srw
<Srw : 0-15>
3.3.87 flow-control {enable|disble}
Description
Enable/Disable flow-control.
Syntax
flow-control {enable|disble}
Parameter
Name
Description
enable
Enable flow-control.
disable
Disable flow-control.
3.3.88 speed
Description
Configure gigabit Ethernet speed and Copper/SFP for gigabit port 7~8.
(port1~6 Only support copper, no SFP)
(port 9, 10 only support auto)
Syntax
speed
{auto|full-l000mbps|full-100mbps|full-10mbps|half-100mbps|half-10m
bps}
Parameter
Name
Description
auto
Auto negotiation.
full-l000mbps
Set 1000Mbps full duplexing.
full-100mbps
Set 100Mbps full duplexing.
full-10mbps
Set 10Mbps full duplexing.
half-100mbps
Set 100Mbps half duplexing.
half-10mbps
Set 10Mbps half duplexing.
3.3.89 port {enable/disable}
Description
Set interface gigabit port enable or disable.
Syntax
port {enable/disable}
Parameter
Name
Description
disable
Turn off gigabit port.
enable
Turn off gigabit port.
47
3.3.90 Date/Time
Description
Set device date and time
Syntax
clock datetime <2000-2037> <1-12> <1-31> <0-23> <0-59> <0-59>
Parameter
Name
Description
<2000-2037>
year
<1-12>
month
<1-31>
Date
<0-23>
Hour
<0-59>
minute
<0-59>
Second
3.4 VLAN Mode Commands
3.4.1 vlan
Description
VLAN commands
Syntax
vlan <vlan_list>
Parameter
Name
Description
vlan_lis
ISL VLAN IDs 1~4095
3.4.2 vlan ethertype s-custom-port
Description
Vlan Ether type for custom S-ports configuration
Syntax
vlan ethertype s-custom-port <0x0600-0xffff>
Parameter
Name
Description
0x0600-0xffff
Ethertype (Range: 0x0600-0xffff)
3.4.3 vlan protocol
Description
Syntax
vlan protocol { { eth2 { <0x600-0xffff> | arp | ip | ipx | at } } | { snap
{ <0x0-0xffffff> | rfc_1042 | snap_8021h } <0x0-0xffff> } | { llc
<0x0-0xff> <0x0-0xff> } } group <word16>
Parameter
Name
Description
0x600-0xffff
Ether Type(Range: 0x600 - 0xFFFF)
arp
Ether Type is ARP
ip
Ether Type is IP
ipx
Ether Type is IPX
at
Ether Type is AppleTalk
0x0-0xffffff
SNAP OUI (Range 0x000000 - 0XFFFFFF)
rfc_1042
SNAP OUI is rfc_1042
snap_8021h
SNAP OUI is 8021h
0x0-0xffff
PID (Range: 0x0 - 0xFFFF)
0x0-0xff
DSAP (Range: 0x00 - 0xFF)
0x0-0xff
SSAP (Range: 0x00 - 0xFF)
word16
Group Name (Range: 1 - 16 characters)
3.4.4 vlan-trunking
Description
Change whether trunking of unknown VLANs is enabled
Syntax
vlan-trunking
48
Parameter
3.4.5 switchport access vlan
Description
Set switch access mode of the interface
Syntax
switchport access vlan <vlan_id>
Parameter
Name
Description
vlan_id
VLAN ID of the VLAN when this port is in access
mode
3.4.6 switchport forbidden vlan
Description
Adds or removes forbidden VLANs from the current list of forbidden
VLANs
Syntax
switchport forbidden vlan { add | remove } <vlan_list>
Parameter
Name
Description
add
Add to existing list.
remove
Remove from existing list.
vlan_list
VLAN IDs
3.4.7 switchport hybrid acceptable-frame-type
Description
Set acceptable frame type on a port
Syntax
switchport hybrid acceptable-frame-type { all | tagged | untagged }
Parameter
Name
Description
all
Allow all frames
tagged
Allow only tagged frames
untagged
Allow only untagged frames
3.4.8 switchport hybrid allowed vlan
Description
Set allowed VLAN characteristics when interface is in hybrid mode
Syntax
switchport hybrid allowed vlan { all | none | [ add | remove | except ]
<vlan_list> }
Parameter
Name
Description
all
All VLANs
none
No VLANs
add
Add VLANs to the current list
remove
Remove VLANs from the current list
except
All VLANs except the following
vlan_list
VLAN IDs of the allowed VLANs when this port is in
hybrid mode
3.4.9 switchport hybrid egress-tag
Description
Egress VLAN tagging configuration
Syntax
switchport hybrid egress-tag { none | all [ except-native ] }
Parameter
Name
Description
none
No egress tagging
all
Tag all frames
except-native
Tag all frames except frames classified to native
VLAN of the hybrid port
49
3.4.10 switchport hybrid ingress-filtering
Description
VLAN Ingress filter configuration
Syntax
switchport hybrid ingress-filtering
Parameter
3.4.11 switchport mode
Description
Set switching mode
Syntax
switchport mode { access | trunk | hybrid }
Parameter
Name
Description
access
Set mode to ACCESS unconditionally
trunk
Set mode to TRUNK unconditionally
hybrid
Set mode to HYBRID unconditionall
3.4.12 switchport trunk allowed vlan
Description
Set allowed VLAN characteristics when interface is in trunk mode
Syntax
switchport trunk allowed vlan { all | none | [ add | remove | except ]
<vlan_list> }
Parameter
Name
Description
all
All VLANs
none
No VLANs
add
Add VLANs to the current list
remove
Remove VLANs from the current list
except
All VLANs except the following
vlan_list
VLAN IDs of the allowed VLANs when this port is in
trunk mode
3.4.13 switchport vlan protocol group
Description
Protocol-based VLAN group commands
Syntax
switchport vlan protocol group <word16> vlan <vlan_id>
Parameter
Name
Description
word16
Group Name (Range: 1 - 16 characters)
vlan_id
VLAN ID required for the group to VLAN mapping
(Range: 1-4095)
50
3.5 Interface VLAN Mode Commands
3.5.1 interface
Description
Interface configuration
Syntax
interface <port_type> [ <port_type_list> ]
Parameter
Name
Description
port_type
Port type in Fast, Giga or Tengigaethernet
port_type_list
List of Port ID, ex, 1/1,3-5;2/2-4,6
3.5.2 interface vlan
Description
VLAN interface configurations
Syntax
interface vlan<vlan_list>
Parameter
Name
Description
vlan_list
List of VLAN interface numbers, 1~4095
3.5.3 ip address
Description
IPv4 address configurations
Syntax
ip address { { <ipv4_addr><ipv4_netmask> } | { dhcp [ fallback
<ipv4_addr><ipv4_netmask> [ timeout <uint> ] ] } }
Parameter
Name
Description
ipv4_addr
IP address
ipv4_netmask
IP netmask
dhcp
Enable DHCP
fallback
DHCP fallback settings
ipv4_addr
DHCP fallback address
ipv4_netmask
DHCP fallback netmask
timeout
DHCP fallback timeout
uint
DHCP fallback timeout in seconds
3.5.4 ip name-server
Description
Interface Internet Protocol config commands Domain Name System
Syntax
ip name-server { <ipv4_ucast> | dhcp [ interface vlan<vlan_id> ] }
Parameter
Name
Description
ipv4_ucast
A valid IPv4 unicast address
vlan_id
VLAN identifier(s): VID
3.5.5 ip dhcp excluded-address
Description
Prevent DHCP from assigning certain addresses
Syntax
ip dhcp excluded-address <low_ip> [ <high_ip> ]
Parameter
Name
Description
low_ip
Low IP address
high_ip
High IP addres
3.5.6 ip dhcp pool
Description
Pool name in 32 characters
Syntax
ip dhcp pool <pool_name>
Parameter
51
3.5.7 ip dhcp server
Description
DHCP Server
Syntax
ip dhcp server
Parameter
3.5.8 ip dhcp relay
Description
DHCP relay agent configuration
Syntax
ipdhcp relay
Parameter
3.5.9 ip dhcp relay information option
Description
IP DHCP relay information option(Option 82)
Syntax
ipdhcp relay information option
Parameter
3.5.10 ip dhcp retry interface vlan
Description
Restart the DHCP query process
Syntax
ipdhcp retry interface vlan<vlan_id>
Parameter
Name
Description
vlan_id
Vlan ID
3.5.11 ip dhcp snooping
Description
IP DHCP snooping
Syntax
ipdhcp snooping
Parameter
3.5.12 ip helper-address
Description
DHCP relay server
Syntax
ip helper-address <v_ipv4_ucast>
Parameter
Name
Description
Ip : ipv4_ucast
IP address of the DHCP relay server
3.5.13 ipv6 address
Description
Configure the IPv6 address of an interface
Syntax
ipv6 address <ipv6_subnet>
Parameter
Name
Description
ipv6_subnet
IPv6 prefix x:x::y/z
3.5.14 ipv6mtu
Description
IPv6 Maximum transmission unit
Syntax
ipv6 mtu<1280-1500>
Parameter
Name
Description
1280-1500
MTU value in bytes
52
3.6 RingV2 Group Mode Commands
3.6.1 ringv2 protect
Description
To configure ring protection.
Syntax
ring protect
Parameter
Name
Description
group1
Configure ring protection v2 group1 (Ring)
group2
Configure ring protection v2 group2 (Ring)
group3
Configure ring protection v2 group3 (Chain)
3.6.2 guard-time
Description
Set guard time
Syntax
guard-time { <ringGuardTimerDef> }
Parameter
Name
Description
ringGuardTimerDef
<10-3600>, unit: secound. Default is 10 secounds
3.6.3 mode
Description
Enable/Disable ring group
Syntax
mode { disable | enable }
Parameter
Name
Description
disable
Set the specified Ring group to Disabled
enable
Set the specified Ring group to Enabled
3.6.4 node1 interface GigabitEthernet <portNo>}
Description
Set interface of ring protection node
Syntax
node1 interface GigabitEthernet <portNo>
Parameter
Name
Description
<portNo>
Valid values: 1~max port index.
3.6.5 node2 interface GigabitEthernet <portNo>}
Description
Set interface of ring protection node
Syntax
Node2 interface GigabitEthernet <portNo>
Parameter
Name
Description
<portNo>
Valid values: 1~max port index.
3.6.6 role
Description
Set role for group
Syntax
role { ring-master | ring-slave | coupling-primary | coupling-backup |
dual-homing | chain-head | chain-tail | chain-member |
b-chain-terminal-1 | b-chain-terminal-2 | b-chain-central-block |
b-chain-member}
Parameter
Name
Description
ring-master
Set role to ring master
ring-slave
Set role to ring slave
coupling-primary
Set role to coupling primary
coupling-backup
Set role to coupling backup
53
dual-homing
Set role to dual homing
chain-head
Set role to chain head
chain-member
Set role to chain member
chain-tail
Set role to chain tail
b-chain-central-block
Set role to balancing chain central block
b-chain-member
Set role to balancing chain member
b-chain-terminal-1
Set role to balancing chain terminal 1
b-chain-terminal-2
Set role to balancing chain terminal 2
3.7 Spanning Tree
3.7.1 spanning-tree
Description
Enable/disable STP on this interface
Syntax
spanning-tree
Parameter
Name
Description
3.7.2 spanning-tree aggregation
Description
Spanning Tree protocol
Syntax
spanning-tree aggregation
Parameter
Name
Description
3.7.3 spanning-tree auto-edge
Description
Auto detect edge status
Syntax
3.7.4 spanning-tree auto-edge
Parameter
Name
Description
3.7.5 spanning-tree bpdu-guard
Description
Enable/disable BPDU guard
Syntax
spanning-tree bpdu-guard
Parameter
Name
Description
3.7.6 spanning-tree edge
Description
Edge port
spanning-tree
STP Bridge
Syntax
spanning-tree edge
Parameter
Name
Description
3.7.7 spanning-tree edge bpdu-filter
Description
Enable BPDU filter (stop BPDU tx/rx)
Syntax
spanning-tree edge bpdu-filter
Parameter
Name
Description
54
3.7.8 spanning-tree mode
Description
mode
STP protocol mode
stp
802.1D Spanning Tree
rstp
Rabid Spanning Tree (802.1w)
mstp
Multiple Spanning Tree (802.1s)
Syntax
spanning-tree mode { stp | rstp | mstp }
Parameter
Name
Description
stp
802.1D Spanning Tree
rstp
Rabid Spanning Tree (802.1w)
mstp
Multiple Spanning Tree (802.1s)
3.7.9 spanning-tree mst cost
Description
STP bridge instance
STP Cost of this port
Syntax
spanning-tree mst <0-7> cost { <1-200000000> | auto }
Parameter
Name
Description
<0-7>
instance 0-7 (CIST=0, MST2=1...)
<1-200000000>
STP Cost of this port
3.7.10 spanning-tree mst port-priority
Description
port-priority
Syntax
spanning-tree mst <0-7> port-priority <0-240>
Parameter
Name
Description
<0-7>
instance 0-7 (CIST=0, MST2=1...)
<0-240>
STP priority of this port
3.7.11 spanning-tree mst priority
Description
Priority of the instance
Range in seconds
Syntax
spanning-tree mst <0-7> priority <0-61440>
Parameter
Name
Description
<0-7>
instance 0-7 (CIST=0, MST2=1...)
<0-61440>
Priority of the instance
3.7.12 spanning-tree mst vlan
Description
VLAN keyword
Syntax
spanning-tree mst <0-7> vlan <vlan_list>
Parameter
55
Name
Description
<0-7>
instance 0-7 (CIST=0, MST2=1...)
<vlan_list>
Range of VLANs
3.7.13 spanning-tree mst forward-time
Description
forward-time
Delay between port states
Syntax
spanning-tree mst forward-time <4-30>
Parameter
Name
Description
<4-30>
Delay between port states
3.7.14 spanning-tree mst max-age
Description
Max bridge age before timeout.
Syntax
spanning-tree mst max-age <6-40> [ forward-time <4-30> ]
Parameter
Name
Description
<6-40>
Max bridge age before timeout
<4-30>
forward-time
3.7.15 spanning-tree mst max-hops
Description
MSTP bridge max hop count
Syntax
spanning-tree mst max-hops <6-40>
Parameter
Name
Description
<6-40>
MSTP bridge max hop count
3.7.16 spanning-tree mst name
Description
Name of the bridge
Revision
Revision keyword
Syntax
spanning-tree mst name <word32> revision <0-65535>
Parameter
Name
Description
<word32>
Name of the bridge
<0-65535>
Revision keyword
3.7.17 spanning-tree mst <instance>
Description
instance 0-7 (CIST=0, MST2=1...)
Syntax
spanning-tree mst <instance> priority <prio>
spanning-tree mst <instance> vlan <v_vlan_list>
Parameter
Name
Description
instance
<Instance : 0-7> instance 0-7 (CIST=0,
MST2=1...)
priority
Priority of the instance
vlan
VLAN keyword
prio
<Prio : 0-61440> Range in seconds
v_vlan_list
<vlan_list> Range of VLANs
56
3.7.18 spanning-tree recovery
Description
Recovery
Syntax
spanning-tree recovery interval <interval>
Parameter
Name
Description
interval
The interval
interva
Interval : 30-86400> Range in seconds
3.7.19 spanning-tree transmit
Description
Transmit
Syntax
spanning-tree transmit hold-count <holdcount>
Parameter
Name
Description
hold-count
Max number of transmit BPDUs per sec
holdcount
<Holdcount : 1-10> 1-10 per sec, 6 is
default
3.8 sFlow Configure Command
3.8.1 sflow
Description
Enables/disables flow sampling on this port.
Syntax
sflow [ <range_list> ]
Parameter
Name
Description
< range_list >
Sampler instance
3.8.2 sflow agent-ip
Description
The agent IP address used as agent-address in UDP datagrams. Defaults
to IPv4 loopback address.
Syntax
sflow agent-ip { ipv4 <ipv4_addr> | ipv6 <ipv6_addr> }
Parameter
Name
Description
< ipv4_addr >
Ipv4 address
< ipv6_addr>
ipv6 address
3.8.3 sflow collector-address
Description
Sflow runtime, see sflow_icli_functions
Syntax
sflow collector-address [ receiver <range_list> ] [ <word> ]
Parameter
Name
Description
< range_list >
Sampler instance
3.8.4 sflow max-datagram-size
Description
Statistics flow Maximum datagram size.
Syntax
sflow max-datagram-size [ receiver <range_list> ] <200-1468>
Parameter
Name
Description
<range_list>
receiver list
<200-1468>
packet byte
3.8.5 sflow max-sampling-size
Description
Specifies the maximum number of bytes to transmit per flow sample.
Syntax
sflow max-sampling-size [ sampler <range_list> ] [ <14-200> ]
57
Parameter
Name
Description
< range_list >
Sampler instance
<200-1468>
packet byte
3.8.6 sflow collector-port
Description
Collector UDP port
Syntax
sflow collector-port [ receiver <rcvr_idx_list> ] <collector_port>
Parameter
Name
Description
collector_port
<Collector Port : 1-65535> Port number
3.8.7 sflow sampling-rate
Description
Specifies the statistical sampling rate. The sample rate is specified as N
to sample 1/Nth of the packets n the monitored flows. There are no
restrictions on the value, but the switch will adjust it to the closest
possible sampling rate.
Syntax
sflow sampling-rate [ sampler <range_list> ] [ <1-4294967295> ]
Parameter
Name
Description
< range_list >
Sampler instance
<1-4294967295>
Sampling rate
3.8.8 sflow timeout
Description
Receiver timeout measured in seconds. The switch decrements the
timeout once per second, and as long as it is non-zero, the receiver
receives samples. Once the timeout reaches 0, the receiver and all its
configuration is reset to defaults.
Syntax
sflow timeout [ receiver <range_list> ] <0-2147483647>
Parameter
Name
Description
< range_list >
Sampler instance
<0-2147483647>
Number of seconds.
3.9 SNMP Configure Command
3.9.1 snmp-server
Description
Enable SNMP server
Syntax
snmp-server
Parameter
Name
Description
3.9.2 snmp-server access
Description
snmp-server access configuration
Syntax
snmp-server access < group name > model { v1 | v2c | v3 | any } level
{ auth | noauth | priv } [ read <word255> ] [ write <word255> ]
Parameter
Name
Description
< group name >
32 words
< v1 | v2c | v3 | any >
V1~v3 security model
< level >
security level
{ auth | noauth | priv }
authNoPriv Security Level
58
noAuthNoPriv Security Level
authPriv Security Level
read
specify a read view for the group
<word255>
read view name
3.9.3 snmp-server community v2c
Description
Set the SNMP v2c community
Syntax
snmp-server community v2c <word127> [ ro | rw ]
Parameter
Name
Description
< word127 >
Community word
< ro >
Read only
<rw>
Read write
3.9.4 snmp-server community v3
Description
S Set the SNMP v3 community
Syntax
snmp-server community v3 <word127> [ <ipv4_addr> <ipv4_netmask> ]
Parameter
Name
Description
< word127 >
Community word
< ipv4_addr >
IPv4 address
<ipv4_netmask>
IPv4 netmask
3.9.5 snmp-server host
Description
Set SNMP server's configurations
Syntax
snmp-server host <word32>
Parameter
Name
Description
< word32 >
Name of the host configuration
3.9.6 snmp-server host traps
Description
Set SNMP host's configurations
Syntax
snmp-server host < Name of the host configuration > traps [ linkup ]
[ linkdown ] [ lldp ]
Parameter
Name
Description
< Name of the host
configuration >
Name of the host configuration
<200-1468>
packet byte
[ linkup ]
Link up event
[ linkdown ]
Link down event
[ lldp ]
LLDP event
3.9.7 snmp-server trap
Description
Set SNMP server's configurations
Syntax
snmp-server trap
Parameter
Name
Description
3.9.8 snmp-server user
Description
Set the SNMPv3 user's configurations
Syntax
snmp-server user <Username> engine-id <Engine ID octet string>
[ { md5 <word8-32> | sha <word8-40> } [ priv { des | aes }
<word8-32> ] ]
Parameter
Name
Description
<Username >
32 words
<Engine ID octet string>
word10-32
59
MD5
Set MD5 protocol
sha
Set SHA protocol
<word8-40>
SHA password
priv
Set Privacy
{ des | aes }
Set DES/AES protocol
<word8-32>
Set privacy password
3.9.9 snmp-server version
Description
Set the SNMP server's version
Syntax
snmp-server version { v1 | v2c | v3 }
Parameter
Name
Description
{ v1 | v2c | v3 }
SNMP v1,v2c,v3
3.9.10 snmp-server view
Description
Snmp MIB view configuration
Syntax
snmp-server view <word32> <word255> { include | exclude }
Parameter
Name
Description
< word32 >
MIB view name
< word255>
MIB view OID
{ include | exclude }
Included/Excluded type from the view
3.9.11 SNMP trap receive ipv6 host
Description
host configuration
Syntax
host <ipv6_ucast> [ <1-65535> ] [ traps | informs ]
Parameter
Name
Description
ipv6_ucast
IP address of SNMP trap host
1-65535
UDP port of the trap messges
traps
Send Trap messages to this host
informs
Send Inform messages to this host
3.9.12 snmp-server contact
Description
SNMP server contact
Syntax
snmp-server contact <v_line255>
Parameter
Name
Description
v_line255
<line255> contact string
3.9.13 snmp-server engine-id
Description
SNMP server engine ID
Syntax
snmp-server engine-id local <engineID>
Parameter
Name
Description
local
Set SNMP local engine ID
engineID
<Engineid : word10-32> local engine ID
3.9.14 snmp-server location
Description
SNMP server loation
Syntax
snmp-server location <v_line255>
Parameter
Name
Description
v_line255
<line255> location string
60
3.9.15 snmp-server security-to-group
Description
SNMP server security
Syntax
snmp-server security-to-group model { v1 | v2c | v3 } name
<security_name> group <group_name>
Parameter
Name
Description
model
security model
v1
v1 security model
v2c
v2c security model
v3
v3 security model
name
security user
security_name
<SecurityName : word32> security user name
group
security group
group_name
<GroupName : word32> security group name
3.9.16 SNMP trap receive ipv4 host
Description
host configuration
Syntax
host { <ipv4_ucast> | <hostname> } [ <1-65535> ] [ traps | informs ]
Parameter
Name
Description
Ipv4_ucast
IP address of SNMP trap host
hostname
hostname of SNMP trap host
1-65535
UDP port of the trap messges
traps
Send Trap messages to this host
informs
Send Inform messages to this host
3.10 Qos Function Command
3.10.1 qos qce
Description
QCE setting
Syntax
qos qce { <Id : 1-256> | refresh | update }
Parameter
Name
Description
<Id : 1-256>
QCE ID
refresh
Refresh QCE tables in hardware
update
Update an existing QCE
3.10.2 qos storm
Description
QoS storm
Syntax
qos storm { unicast | multicast | broadcast } { { <rate> [ kfps ] } | { 1024
kfps } }
Parameter
Name
Description
broadcast
Police broadcast frames
multicast
Police multicast frames
unicast
Police unicast frames
<rate>
1024, Rate is 1024 kfps
<Rate : 1,2,4,8,16,32,64,128,256,512> Policer rate (default
fps)
3.10.3 qos cos
Description
Class of service configuration
61
Syntax
qos cos <0-7>
Parameter
Name
Description
<0-7>
Specific class of service
3.10.4 qos dscp-classify
Description
Set qos dscp-classify.
Syntax
qos dscp-classify { zero | selected | any }
Parameter
Name
Description
3.10.5 qos dscp-remark
Description
Set qos dscp-remark
Syntax
qos dscp-remark { rewrite | remap | remap-dp }
Parameter
Name
Description
3.10.6 qos dscp-translate
Description
Enable qos dscp-translate mode
Syntax
qos dscp-translate
3.10.7 qos map cos-dscp
Description
Configure cos mapping to dscptable
Syntax
qos map cos-dscp <0~7> dpl <0~1> dscp { <0-63> | { be | af11 | af12 |
af13 | af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2
| cs3 | cs4 | cs5 | cs6 | cs7 | ef | va } }
Parameter
Name
Description
<0~7>
Cos level
<0~1>
Specific drop precedence level
<0-63>
Dscp level
be
Default PHB(DSCP 0) for best effort traffic
af11~13
Assured Forwarding PHB 11~13(DSCP
10,12,14)
af22~23
Assured Forwarding PHB 22~23(DSCP
20,22)
af31~33
Assured Forwarding PHB 31~33(DSCP
26,28,30)
Af41~43
Assured Forwarding PHB 41~43(DSCP
34,36,38)
cs1~7
Class Selector PHB CS1~7 precedence
1~7(DSCP 8*(cs value))
ef
Expedited Forwarding PHB(DSCP 46)
va
Voice Admit PHB(DSCP 44)
3.10.8 qos map cos-dscp
Description
Configure dscp mapping to cos table
Syntax
qos map dscp-cos { <0~63> | { be | af11 | af12 | af13 | af21 | af22 | af23 |
af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4 | cs5 | cs6 |
cs7 | ef | va } } cos <0-7> dpl <dpl>
Parameter
Name
Description
<0~7>
Cos level
<0-63>
Dscp level
be
Default PHB(DSCP 0) for best effort traffic
af11~13
Assured Forwarding PHB 11~13(DSCP
10,12,14)
af22~23
Assured Forwarding PHB 22~23(DSCP
62
20,22)
af31~33
Assured Forwarding PHB 31~33(DSCP
26,28,30)
Af41~43
Assured Forwarding PHB 41~43(DSCP
34,36,38)
cs1~7
Class Selector PHB CS1~7 precedence
1~7(DSCP 8*(cs value))
ef
Expedited Forwarding PHB(DSCP 46)
va
Voice Admit PHB(DSCP 44)
<0~1>
Specific drop precedence level
3.10.9 qos map dscp-egress-translation
Description
Configure dscp egress-translation
Syntax
qos map dscp-egress-translation { <0~63> | { be | af11 | af12 | af13 | af21
| af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 | cs4
| cs5 | cs6 | cs7 | ef | va } } <0~1> to { <0-63> | { be | af11 | af12 | af13 |
af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 |
cs4 | cs5 | cs6 | cs7 | ef | va } }
Parameter
Name
Description
<0~7>
Cos level
<0-63>
Dscp level
be
Default PHB(DSCP 0) for best effort traffic
af11~13
Assured Forwarding PHB 11~13(DSCP
10,12,14)
af22~23
Assured Forwarding PHB 22~23(DSCP
20,22)
af31~33
Assured Forwarding PHB 31~33(DSCP
26,28,30)
Af41~43
Assured Forwarding PHB 41~43(DSCP
34,36,38)
cs1~7
Class Selector PHB CS1~7 precedence
1~7(DSCP 8*(cs value))
ef
Expedited Forwarding PHB(DSCP 46)
va
Voice Admit PHB(DSCP 44)
<0~1>
Specific drop precedence level
3.10.10 qos map dscp-ingress-translation
Description
Configure dscp ingress-translation
Syntax
qos map dscp-ingress-translation { <0~63> | { be | af11 | af12 | af13 |
af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 |
cs4 | cs5 | cs6 | cs7 | ef | va } } to { <0-63> | { be | af11 | af12 | af13 |
af21 | af22 | af23 | af31 | af32 | af33 | af41 | af42 | af43 | cs1 | cs2 | cs3 |
cs4 | cs5 | cs6 | cs7 | ef | va } }
Parameter
Name
Description
<0~7>
Cos level
<0-63>
Dscp level
be
Default PHB(DSCP 0) for best effort traffic
af11~13
Assured Forwarding PHB 11~13(DSCP
10,12,14)
af22~23
Assured Forwarding PHB 22~23(DSCP
20,22)
af31~33
Assured Forwarding PHB 31~33(DSCP
63
26,28,30)
Af41~43
Assured Forwarding PHB 41~43(DSCP
34,36,38)
cs1~7
Class Selector PHB CS1~7 precedence
1~7(DSCP 8*(cs value))
ef
Expedited Forwarding PHB(DSCP 46)
va
Voice Admit PHB(DSCP 44)
<0~1>
Specific drop precedence level
3.10.11 qos policer
Description
Configure qos policer
Syntax
qos policer <unit> [ fps ] [ flowcontrol ]
Parameter
Name
Description
< unit >
Traffic meter
< fps >
Frame rate
[ flowcontrol ]
Enable flowcontrol mode
3.10.12 qos wrr
Description
Specifies qos wrr mode
Syntax
qos wrr <1-100> <1-100> <1-100> <1-100> <1-100> <1-100>
Parameter
Name
Description
<1-100>
every level proportion
3.10.13 qos queue-shaper
Description
Configure queue-shaper command
Syntax
qos queue-shaper queue <0~7> <uint> [ excess ]
Parameter
Name
Description
<1-100>
every level proportion
<unit>
Traffic meter
[ excess ]
Agree the shaper could be excess or not
3.10.14 qos queue-policer
Description
Configure queue-policer command
Syntax
qos queue-policer queue <0~7> <uint>
Parameter
Name
Description
<0~7>
Queue number
<uint>
Traffic meter
3.10.15 qos shaper <unit>
Description
Configure qos shaper command
Syntax
qos shaper <uint>
Parameter
Name
Description
<1-100>
every level proportion
<unit>
Traffic meter
3.11 IGMP Functional Commands
3.11.1 ip igmp host-proxy [ leave-proxy ]
Description
IGMP proxy for leave configuration
Syntax
ip igmp host-proxy [ leave-proxy ]
Parameter
Name
Description
leave-proxy
IGMP proxy for leave
64
3.11.2 ip igmp snooping
Description
Snooping igmp
Syntax
ip igmp snooping
Parameter
3.11.3 ip igmp snooping immediate-leave
Description
IP IGMP snooping immediate leave configuration
Syntax
Ip igmp snooping immediate-leave
Parameter
3.11.4 ip igmp snooping last-member-query-interval
Description
IP IGMP snooping Last Member Query Interval in tenths of seconds
Syntax
ip igmp snooping last-member-query-interval <0-31744>
Parameter
Name
Description
0-31744
0 - 31744 tenths of seconds
3.11.5 ip igmp snooping max-groups
Description
IGMP group throttling configuration
Syntax
ip igmp snooping max-groups <1-10>
Parameter
Name
Description
1-10
Maximun number of IGMP group registration
3.11.6 ip igmp snooping mrouter
Description
IP IGMP snooping Multicast router port configuration
Syntax
Ip igmp snooping mrouter
Parameter
3.11.7 ip igmp snooping querier
Description
IP IGMP querier configuration
Syntax
ip igmp snooping querier { election | address <ipv4_ucast> }
Parameter
Name
Description
election
Act as an IGMP Querier to join Querier-Election
address
IGMP Querier address configuration
ipv4_ucast
A valid IPv4 unicast address
3.11.8 ip igmp snooping query-interval
Description
IP IGMP snooping Query-Intervalin seconds
Syntax
ip igmp snooping query-interval <1-31744>
Parameter
Name
Description
1-317
1 - 31744 seconds
3.11.9 ip igmp snooping vlan
Description
ipigmp snooping vlan IDs
Syntax
ip igmp snooping vlan<vlan_list>
Parameter
Name
Description
vlan_list
VLAN identifier(s): VID
65
3.11.10 ip igmp ssm-range
Description
SSM range
Syntax
ip igmp ssm-range <v_ipv4_mcast> <ipv4_prefix_length>
Parameter
Name
Description
v_ipv4_mcast
Valid IPv4 multicast address
ipv4_prefix_length
Length
3.11.11 ip igmp unknown-flooding
Description
IP IGMP flooding unregistered IPv4 multicast traffic
Syntax
ip igmp unknown-flooding
Parameter
3.11.12 clear ip igmp snooping statistics
Description
clear ip igmp snooping statisti
Syntax
clear ip igmp snooping [ vlan<vlan_list> ] statistics
Parameter
Name
Description
vlan_list
VLAN list.
3.12 MVR Functional Commands
3.12.1 mvr
Description
Multicast VLAN Registration configuration
Syntax
mvr
Parameter
Name
Description
3.12.2 mvr immediate-leave
Description
mvr immediate leave configuration
Syntax
mvr immediate-leave
Parameter
Name
Description
3.12.3 mvr name channel
Description
Multicast VLAN name and channel configuration
Syntax
mvr name <word16> channel <word16>
Parameter
Name
Description
name <word16>
MVR multicast VLAN name
channel <word16>
Profile name in 16 char's
3.12.4 mvr frame priority
Description
Multicast VLAN interface CoS priority
Syntax
mvr name <word16> frame priority <0-7>
Parameter
Name
Description
name <word16>
MVR multicast VLAN name
priority <0-7>
CoS priority ranges from 0 to 7
3.12.5 mvr name <word16> frame tagged
Description
MVR control frame in TX, Tagged IGMP/MLD frames will be sent
Syntax
mvr name <word16> frame tagged
Parameter
Name
Description
name <word16>
MVR multicast VLAN name
66
3.12.6 mvr name <word16> igmp-address <ipv4_ucast>
Description
MVR address configuration used in IGMP
Syntax
mvr name <word16> igmp-address <ipv4_ucast>
Parameter
Name
Description
name <word16>
MVR multicast VLAN name
<ipv4_ucast>
A valid IPv4 unicast address
3.12.7 mvr name <word16> last-member-query-interval <0-31744>
Description
Configure last Member Query Interval in tenths of seconds
Syntax
mvr name <word16> last-member-query-interval <0-31744>
Parameter
Name
Description
name <word16>
MVR multicast VLAN name
<0-31744>
0 - 31744 tenths of seconds
3.12.8 mvr name <word16> mode
Description
Dynamic MVR operation mode
Syntax
mvr name <word16> mode { dynamic | compatible }
Parameter
Name
Description
dynamic
Dynamic MVR operation mode
compatible
Compatible MVR operation mode
3.12.9 mvr name <word16> type
Description
MVR port role configuration
Syntax
mvr name <word16> type { source | receiver }
Parameter
Name
Description
source
MVR source port
receiver
MVR receiver port
3.12.10 mvr vlan
Description
Multicast VLAN Registration configuration
Syntax
mvr vlan <vlan_list> [ name <word16> ]
Parameter
Name
Description
< vlan_list >
MVR multicast VLAN list
name <word16>
MVR multicast VLAN name in 16 char's
3.12.11 mvr vlan <vlan_list> channel
Description
MVR channel configuration
Syntax
mvr vlan <vlan_list> channel <word16>
Parameter
Name
Description
< vlan_list >
MVR multicast VLAN list
channel <word16>
MVR multicast channel name in 16 char's
3.12.12 mvr vlan <vlan_list> frame priority
Description
Interface CoS priority
Syntax
mvr vlan <vlan_list> frame priority <0-7>
Parameter
Name
Description
< vlan_list >
MVR multicast VLAN list
<0-7>
CoS priority ranges from 0 to 7
3.12.13 mvr vlan <vlan_list> frame tagged
Description
Set tagged IGMP/MLD frames will be sent
Syntax
mvr vlan <vlan_list> frame tagged
67
Parameter
Name
Description
< vlan_list >
MVR multicast VLAN list
3.12.14 mvr vlan <vlan_list> igmp-address
Description
Set tagged IGMP/MLD frames will be sent
Syntax
mvr vlan <vlan_list> igmp-address <ipv4_ucast>
Parameter
Name
Description
< vlan_list >
MVR multicast VLAN list
<ipv4_ucast>
A valid IPv4 unicast address for IGMP
3.12.15 mvr vlan <vlan_list> mode
Description
Dynamic MVR vlan operation mode
Syntax
mvr vlan <vlan_list> mode { dynamic | compatible }
Parameter
Name
Description
< vlan_list >
MVR multicast VLAN list
dynamic
Dynamic MVR operation mode
compatible
Compatible MVR operation mode
3.12.16 mvr vlan <vlan_list> type
Description
MVR vlan role configuration
Syntax
mvr vlan <vlan_list> type { source | receiver }
Parameter
Name
Description
< vlan_list >
MVR multicast VLAN list
source
MVR source port
receiver
MVR receiver port
3.13 MLD Functional Commands
3.13.1 ipv6 mld host-proxy
Description
IPv6 MLD proxy configuration
Syntax
ipv6 mld host-proxy [ leave-proxy ]
Parameter
Name
Description
leave-proxy
MLD proxy for leave configuration
3.13.2 ipv6 mld snooping
Description
ipv6 mld snooping
Syntax
ipv6 mld snooping
Parameter
3.13.3 ipv6 mld snooping compatibility
Description
IPv6 MLD snooping compatibility configuration
Syntax
ipv6 mld snooping compatibility { auto | v1 | v2 }
Parameter
Name
Description
auto
Compatible with MLDv1/MLDv2
v1
Forced MLDv1
v2
Forced MLDv2
3.13.4 ipv6 mld snooping immediate-leave
Description
IPv6 MLD snooping immediate-leave configuration
Syntax
ipv6 mld snooping immediate-leave
68
Parameter
3.13.5 ipv6 mld snooping last-member-query-interval
Description
ipv6 mld snooping last member query interval in tenths of seconds
Syntax
ipv6 mld snooping last-member-query-interval <0-31744>
Parameter
Name
Description
0-31744
0 - 31744 tenths of seconds
3.13.6 ipv6 mld snooping max-groups
Description
IPv6 MLD group throttling configuration
Syntax
ipv6 mld snooping max-groups <1-10>
Parameter
Name
Description
1-10
Maximun number of MLD group registration
3.13.7 ipv6 mld snooping mrouter
Description
ipv6 mld snooping multicast router port configuration
Syntax
ipv6 mld snooping mrouter
Parameter
3.13.8 ipv6 mld snooping query-interval
Description
IPv6 MLD snooping query interval in seconds
Syntax
ipv6 mld snooping query-interval <1-31744>
Parameter
Name
Description
1-31744
1 - 31744 seconds
3.13.9 ipv6 mld snooping query-max-response-time
Description
IPv6 MLD snooping querymaxresponse interval in tenths of seconds
Syntax
ipv6 mld snooping query-max-response-time <0-31744>
Parameter
Name
Description
0-31744
0 - 31744 tenths of seconds
3.13.10 ipv6 mld snooping vlan
Description
ipv6 mld snooping vlan
Syntax
ipv6 mld snooping vlan<vlan_list>
Parameter
Name
Description
vlan_list
VLAN identifier(s): VID
3.13.11 ipv6 mld ssm-range
Description
SSM range
Syntax
ipv6 mld ssm-range <v_ipv6_mcast> <ipv6_prefix_length>
Parameter
Name
Description
v_ipv6_mcast
Valid IPv6 multicast address
ipv6_prefix_length
length
3.13.12 ipv6 mld unknown-flooding
Description
Flooding unregistered IPv6 multicast traffic
Syntax
ipv6 mld unknown-flooding
69
Parameter
3.13.13 ipv6 route
Description
IPv6 Route
Syntax
ipv6 route <v_ipv6_subnet> { <v_ipv6_ucast> | interface vlan
<v_vlan_id> <v_ipv6_addr> }
Parameter
Name
Description
v_ipv6_subnet
IPv6 prefix x:x::y/z
v_ipv6_ucast
IP address of the DHCP relay server
v_vlan_id
VLAN ID
v_ipv6_addr
IP address
3.14 Authenticate Mode Commands
3.14.1 radius-server attribute 32
Description
Configure radius-server attribute
Syntax
radius-server attribute 32 <id>
Parameter
Name
Description
id
Id : line1-253
3.14.2 radius-server attribute 4
Description
Configure radius-server attribute
Syntax
radius-server attribute 4 <ipv4_ucast>
Parameter
Name
Description
<ipv4_ucast>
ipv4_ucast address
3.14.3 radius-server attribute 95
Description
Configure radius-server attribute
Syntax
radius-server attribute 95 <ipv6_ucast>
Parameter
Name
Description
<ipv6_ucast>
Ipv6_ucast address
3.14.4 radius-server deadtime
Description
Configure adius-server deadtime
Syntax
radius-server deadtime <1-1440>
Parameter
Name
Description
<1-1440>
Time in minutes
3.14.5 radius-server host [ auth-port] [ acct-port ] [ timeout ] [ retransmit ] [ key]
Description
Configure adius-server host behavior
Syntax
radius-server host <word1-255> [ auth-port <0-65535> ] [ acct-port
<0-65535> ] [ timeout <1-1000> ] [ retransmit <1-1000> ] [ key
<line1-63> ]
Parameter
Name
Description
<word1-255>
Hostname or IP address
auth-port <0-65535>
UDP port number for RADIUS
authentication server
70
acct-port <0-65535>
UDP port number for RADIUS accounting
server
timeout <1-1000>
Wait time in seconds for this RADIUS
server to reply (overrides default)
retransmit <1-1000>
3.14.6 radius -server key
Description
radius-server key
Syntax
radius-server key <key>
Parameter
Name
Description
key
<Key : line1-63> The shared key
3.14.7 radius-server retransmit
Description
radius-server retransmit
Syntax
radius-server retransmit <retries>
Parameter
Name
Description
retries
<Retries : 1-1000> Number of retries for a
transaction
3.14.8 radius-server timeout
Description
radius-server timeout
Syntax
radius-server timeout <seconds>
Parameter
Name
Description
seconds
<Seconds : 1-1000> Wait time in second
3.14.9 tacacs-server deadtime <1-1440>
Description
Time to stop using a TACACS+ server that doesn't respond
Syntax
tacacs-server deadtime <1-1440>
Parameter
Name
Description
< <1-1440>
Time in minutes
3.14.10 tacacs-server host [ auth-port] [ timeout ] [ key]
Description
Configure tacacs-server host behavior
Syntax
tacacs-server host <word1-255> [ port <0-65535> ] [ timeout <1-1000> ]
[ key <line1-63> ]
Parameter
Name
Description
< <1-1440>
TCP port number
3.14.11 tacacs-server deadtime <1-1440>
Description
Time to stop using a TACACS+ server that doesn't respond
Syntax
tacacs-server deadtime <1-1440>
Parameter
Name
Description
< <1-1440>
Time in minutes
3.14.12 tacacs-server deadtime <1-1440>
Description
Time to stop using a TACACS+ server that doesn't respond
71
Syntax
tacacs-server deadtime <1-1440>
Parameter
Name
Description
< <1-1440>
Time in minutes
3.14.13 dot1x feature
Description
Globally enables/disables a dot1x feature functionality
Syntax
dot1x feature { [ guest-vlan ] [ radius-qos ] [ radius-vlan ] }
Parameter
Name
Description
guest-vlan
Globally enables/disables state of guest-vlan
radius-qos
Globally enables/disables state of
RADIUS-assigned QoS.
radius-vlan
Globally enables/disables state of
RADIUS-assigned VLAN.
3.14.14 dot1x authentication timer
Description
dot1x authentication timer
Syntax
dot1x authentication timer { inactivity <v_10_to_100000> } |
{ re-authenticate <v_1_to_3600>}
Parameter
Name
Description
inactivity
Time in seconds between check for activity on
successfully authenticated MAC addresses
re-authenticate
The period between re-authentication attempts in
seconds
3.14.15 dot1x max-reauth-req
Description
Max value of authentication request
Syntax
dot1x max-reauth-req <1-255>
Parameter
Name
Description
<1-255>
number of times
3.14.16 dot1x re-authentication
Description
re-authentication
Syntax
dot1x re-authentication
Parameter
3.14.17 dot1x system-auth-controln
Description
System authentication control
Syntax
dot1x system-auth-control
Parameter
3.14.18 dot1x timeout
Description
Timeout control
Syntax
dot1x timeout { quiet-period <v_10_to_1000000>} | { tx-period
<v_1_to_65535}
Parameter
Name
Description
quiet-period
Time in seconds before a MAC-address that failed
authentication gets a new authentication chance
72
tx-period
the time between EAPOL retransmissions
3.14.19 dot1x guest-vlan
Description
G Enables/disables Guest VLAN globally or on one or more ports
Syntax
dot1x guest-vlan
dot1x guest-vlan<1-4095>
Parameter
Name
Description
<1-4095>
Guest VLAN ID used when entering the Guest
VLAN.
3.14.20 dot1x initialize
Description
Forces a reinitialization of the clients on the port and thereby a
reauthentication immediately.
Syntax
dot1x initialize [ interface <port_type> [ <port_type_list> ] ]
Parameter
Name
Description
<port_type>
Port type in Fast, Giga or Tengigaethernet
<port_type_list>
List of Port ID, ex, 1/1,3-5;2/2-4,6
3.14.21 dot1x port-control
Description
Sets the port security state.
Syntax
dot1x port-control { force-authorized | force-unauthorized | auto | single |
multi | mac-based }
Parameter
Name
Description
force-authorized
Port access is allowed
force-unauthorized
Port access is not allowed
auto
Port-based 802.1X Authentication
single
Single Host 802.1X Authentication
multi
Multiple Host 802.1X Authentication
mac-based
Switch authenticates on behalf of the client
3.14.22 dot1x radius-vlan
Description
Enables/disables per-port state of RADIUS-assigned VLAN.
Syntax
dot1x radius-vlan
Parameter
3.14.23 show radius-server [ statistics ]
Description
show radius-server statistics
Syntax
show radius-server [ statistics ]
Parameter
Name
Description
[ statistics ]
Count radius packet statistics
3.14.24 enable
Description
Privilege level control
Syntax
Enable { password [ level <priv> ] <password>} | { secret { 0 | 5 } [ level
<priv> ] <password>}
Parameter
Name
Description
password
Assign the privileged level clear password
73
secret
Assign the privileged level secret
3.14.25 end
Description
Level exit
Syntax
end
Parameter
3.14.26 exit
Description
Level exit
Syntax
end
Parameter
3.14.27 hostname
Description
This system's network name
Syntax
hostname <hostname>
Parameter
3.15 Loop-Protection Configure commands
3.15.1 loop-protect
Description
Loop protection configuration on port
Syntax
loop-protect
Parameter
3.15.2 loop-protect action
Description
Loop protection configuration on port
Syntax
loop-protect action { [ shutdown ] [ log ]
Parameter
Name
Description
shutdown
Shutdown port
log
Generate log
3.15.3 loop-protect shutdown-time
Description
Loop protection shutdown time interval
Syntax
loop-protect shutdown-time <0-604800>
Parameter
Name
Description
0-604800
Shutdown time in second
3.15.4 loop-protect transmit-time
Description
Loop protection transmit time interval
Syntax
loop-protect transmit-time <1-10>
Parameter
Name
Description
1-10
Transmit time in second
3.15.5 loop-protect tx-mode
Description
Loop protection actively generate PDUs
Syntax
loop-protect tx-mode
Parameter
74
3.16 LLDP Configure commands
3.16.1 lldp holdtime
Description
Sets LLDP hold time (The neighbor switch will discarded the LLDP
information after \"hold time\" multiplied with \"timer\" seconds ).
Syntax
lldp holdtime <2-10>
Parameter
Name
Description
<2-10>
Holdtime 2-10 seconds
3.16.2 lldp med
Description
LLDP MED
Syntax
See Description
Parameter
Name
Description
datum
Datum (geodetic system) type
nad83-mllw
Mean lower low water datum
1983
nad83-navd88
North American vertical datum
1983
wgs84
World Geodetic System 1984
fast
Number of times to repeat LLDP frame
transmission at fast start
<v_1_to_10> : <1-10>
location-tlv
LLDP-MED Location Type Length Value parameter
altitude
Altitude parameter
civic-addr
Civic address information and postal
information
elin-addr
Emergency Location Identification
Number, (e.g. E911 and others),
such as defined by TIA or NENA.
latitude
Latitude parameter
longitude
Longitude parameter
media-vlan-policy
Use the media-vlan-policy to create a policy, which
can be assigned to an interface
<Index : 0-31> : Policy id for the policy which is
created
3.16.3 lldp receive
Description
Enable/Disable decoding of received LLDP frames.
Syntax
lldp receive
3.16.4 lldp reinit <1-10>
Description
LLDP tx reinitialization delay in seconds.
75
Syntax
lldp reinit <1-10>
Parameter
Name
Description
<1-10>
Reinitialization delay time
3.16.5 lldp timer <5-32768>
Description
Sets LLDP TX interval (The time between each LLDP frame transmitted
in seconds).
Syntax
lldp timer <5-32768>
Parameter
Name
Description
<5-32768>
5-32768 seconds.
3.16.6 lldp tlv-select
Description
Which optional TLVs to transmit.
Syntax
lldp tlv-select { management-address | port-description |
system-capabilities | system-description | system-name }
Parameter
Name
Description
management-address
Enable/Disable transmission of management
address
port-description
Enable/Disable transmission of port description
system-capabilities
Enable/Disable transmission of system
capabilities
system-description
Enable/Disable transmission of system
description
system-name
Enable/Disable transmission of system name.
3.16.7 lldp transmission-delay
Description
Sets LLDP transmision-delay. LLDP transmission delay (the amount of
time that the transmission of LLDP frames will delayed after LLDP
configuration has changed) in seconds.)
Syntax
lldp transmission-delay <1-8192>
Parameter
Name
Description
<1-8192>
transmission-delay seconds
3.16.8 lldp transmit
Description
Enable/Disabled transmision of LLDP frames.
Syntax
lldp transmit
Parameter
3.17 RFC2544 Testing Configure Commands
3.17.1 rfc2544 profile <word32>
Description
RFC2544 profile configuration
Syntax
rfc2544 profile <word32>
Parameter
Name
Description
76
<word32>
Profile name up to 32 characters long
3.17.2 rfc2544 rename profile
Description
Rename an existing profile
Syntax
rfc2544 rename profile <word32> <word32>
Parameter
Name
Description
profile <word32>
Old profile name
<word32>
New profile name
3.17.3 rfc2544 save <word32> <word>
Description
Save a report to a file on a TFTP server
Syntax
rfc2544 save <word32> <word>
Parameter
Name
Description
<word32>
Name of existing report to save
<word>
TFTP server URL on the form
tftp://server[:port]/path-to-file
3.17.4 rfc2544 start <word32> profile <word32> [ desc <line128> ]
Description
Start execution of a pre-configured profile
Syntax
rfc2544 start <word32> profile <word32> [ desc <line128> ]
Parameter
Name
Description
start <word32>
Unique name of resulting report
profile <word32>
Name of existing profile to execute
desc <line128>
Description that will appear in the report
3.17.5 rfc2544 stop <word32>
Description
Stop execution of an ongoing test
Syntax
rfc2544 stop <word32>
Parameter
Name
Description
<word32>
Report name to stop execution of
3.17.6 show rfc2544 profile [ <word32> ]
Description
show rfc2544 profile name
Syntax
show rfc2544 profile [ <word32> ]
Parameter
Name
Description
<word32>
rfc2544 profile name
3.18 GVRP Configure Commands
3.18.1 gvrp
Description
Enable GVRP on port(s)
Syntax
gvrp
Parameter
3.18.2 gvrpjoin request vlan
Description
Emit a Join-Request for test purpose
77
Syntax
gvrp join-request vlan<vlan_list>
Parameter
Name
Description
vlan_list
List of VLANs
3.18.3 gvrpleave request vlan
Description
Emit a leave-Request for test purpose
Syntax
gvrp leave-request vlan<vlan_list>
Parameter
Name
Description
vlan_list
List of VLANs
3.18.4 gvrp max-vlans
Description
gvrpmaximum number of VLANs
Syntax
gvrp max-vlans<1-4095>
Parameter
Name
Description
<1-4095>
A valid range is from 1-4095.
3.18.5 gvrp time { [ join-time <1-20> ] [ leave-time <60-300> ] [ leave-all-time
<1000-50>]
Description
Set gvrp time
Syntax
gvrp time { [ join-time <1-20> ] [ leave-time <60-300> ] [ leave-all-time
<1000-5000> ] }
Parameter
Name
Description
1-20
join timer, available from 1 to 20
60-300
leave timer, available from 60 to 300
1000-5000
leaveall timer, available from 1000 to 5000
3.19 Voice VLAN Configure Commands
3.19.1 voice vlan
Description
Vlan for Voice appliance attributes
Syntax
voice vlan
Parameter
3.19.2 voice vlan aging-time
Description
Set secure learning aging time for voice traffic
Syntax
voice vlan aging-time <10-10000000>
Parameter
Name
Description
10-10000000
Aging time, 10-10000000 seconds
3.19.3 voice vlan class
Description
Set voice traffic class
Syntax
voice vlan class { <0-7> | low | normal | medium | high }
Parameter
Name
Description
0-7
Traffic class value
low
Traffic class low (0)
normal
Traffic class normal (1)
medium
Traffic class medium (2)
78
high
Traffic class high (3)
3.19.4 voice vlan oui
Description
Set voice traffic OUI configuration
Syntax
voice vlan oui <oui> [ description <line32> ]
Parameter
Name
Description
oui
OUI value
description
Set description for the OUI
line32
Description line
3.19.5 voice vlan vid
Description
Set voice VLAN ID
Syntax
voice vlan vid <vlan_id>
Parameter
Name
Description
<vlan_id>
VLAN ID, 1-4095
3.20 Profile alarm Commands
3.20.1 profile alarm
Description
Profile alarm
Syntax
profile alarm
Parameter
3.20.2 alarm
Description
Set alarm content
Syntax
alarm <alarmId> { mask | unmask | major | minor }
Parameter
101~114: GE-1~14 Port link down (for 14 port model)
Name
Description
alarmId
151: set Power alarm
mask
Set alarm as mask, it means event will not be send notify
unmask
Set alarm as un-mask, it means event will be send notify
major
Set alarm level as major
minor
Set alarm level as minor
3.21 PoE Commands
3.21.1 poe management mode
Description
Use management mode to configure PoE power management method.
Syntax
poe management mode <mode>
Parameter
Name
Description
allocation-consumption
Max. port power determined by allocated,
and power is managed according to power
consumption.
allocation-reserved-power
Max. port power determined by allocated,
and power is managed according to reserved
power.
class-consumption
Max. port power determined by class, and
power is managed according to power
79
consumption.
class-reserved-power
Max. port power determined by class, and
power is managed according to reserved
power.
lldp-consumption
Max. port power determined by LLDP
Media protocol, and power is managed
according to power consumption.
lldp-reserved-power
Max. port power determined by LLDP
Media protocol, and power is managed
according to reserved power.
3.21.2 poe supply
Description
Use poe supply to specify the maximum power the power supply
can deliver.
Syntax
poe supply <power>
Parameter
Name
Description
<power>
Value: 1-240
Maximum power the power supply can deliver.
3.21.3 poe 4pairs
Description
Enable 4pairs mode.
Syntax
poe 4pairs
Parameter
3.21.4 poe mode
Description
Set PoE mode.
Syntax
poe mode <mode>
Parameter
Name
Description
disable
Set poe to disable
enable
Set poe to enable always
schedule
Set poe to enable by scheduling
3.21.5 poe operation
Description
Set PoE operation mode.
Syntax
poe operation <af/at>
Parameter
Name
Description
af
Set operation mode to 802.3af(Maximum
power 15.4W)
at
Set operation mode to 802.3at(Maximum
power 30.0 W)
3.21.6 poe power
Description
Set maximum power for port in allocation mode.
Syntax
poe power limit <power>
Parameter
Name
Description
<power>
Maximum power for the interface (0-15.4
Watt for PoE standard mode, 0-30.0 Watt for
PoE plus mode)
80
3.21.7 poe priority
Description
Set PoE port priority
Syntax
poe priority <priority>
Parameter
Name
Description
critical
Set priority to critical.
high
Set priority to high.
low
Set priority to low.
3.21.8 poe reset
Description
Set PoE power reset time.
Syntax
poe reset <Hour> <Minute> <range_list>
Parameter
Name
Description
<0-23>
Hour
<0-59>
Minute
<range_list>
Day(s).(1:Sunday, 2:Monday, 3:Tuesday,
4:Wednesday, 5:Thuesday, 6:Friday,
7:Saturday)
3.21.9 poe schedule
Description
Set PoE power scheduling during the week.
Syntax
poe schedule <Day> <range_list>
Parameter
Name
Description
fri mon sat sun thu
tue wed
Day
<range_list>
There are 48 time interval one day. Each
interval has 30 minutes.
( [1]<00:00-00:29>
[2]<00:30-00:59>[3]<01:00-01:29> ...
[47]<23:00-23:29> [48]<23:30-23:59>).
