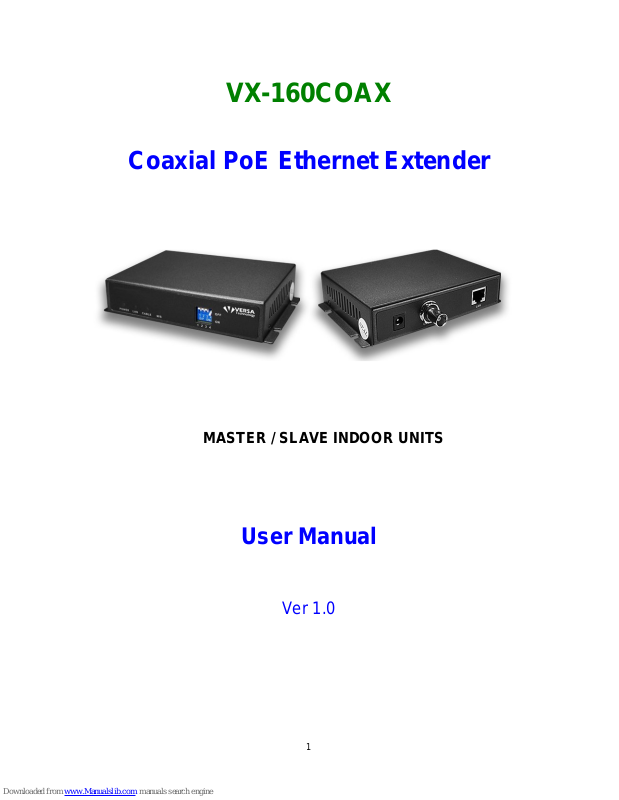

Page 1
VX-160COAX
Coaxial PoE Ethernet Extender
MASTER / SLAVE INDOOR UNITS
User Manual
Ver 1.0
1
Page 2
1. Introduction
The VX-160COAX system, one master plus one slave units, provide a long-reach Ethernet
extension with remote Power-over-Ethernet (PoE) capability over a 2-wire line. The VX-160COAX
master unit is powered by the local high power PoE Injector, and transmits both the data and power
to the remote slave unit via coaxial cable. The remote unit regenerates the power and provides the
PoE capability to power up the furthest remote PD device. Up to 15.4 watts can be supplied to the
PD device with 100m Etherent cable when powered by a 48V Power adaptor. The VX-160COAX
system supports wall-mount feature.
With BNC connector and connection with 5C2V cable, the VX-160COAX master unit connects with
the slave unit up to 3000ft distance for coaxial cable when using a 48V high power adaptor. Users
may select different data rates from dip switches on the front panels for different line gauges and
distance. The maximum data rate can be up to 60 Mbps in full duplex mode depending on the cable
gauges.
With the PoE feature, it conforms to the Safety Extra Low Voltage (SELV) requirement. A
VX-160COAX system offers a cost effective solution for remote power applications such as
LAN-to-LAN connectivity, Video Streaming, FTTB, and MDU/MTU over single twisted line.
2. Application Notes
1) Ethernet & Power Extension over coaxial cable
Local Power
LAN Switch
Ethernet
VX-160COAX Master
Up to 1000ft for 24 AWG
Line Power
Up to 3000ft for 5C2V cable
VX-160COAX Slave
LAN
PSE Power
2
Page 3
3. Features
Coaxial PoE Ethernet Extender for 10/100M Fast Ethernet interfaces
Built-in BNC Connectors
Maximum 3000ft distance for 5C2V Coaxial cable
Line rate up to 60 Mbps full duplex
Dip Switches for line rate settings with Slave following Master
Max. 15.4 watts for remote PD device
IEEE 802.3af PoE Compliant
Auto MDIX for 10/100 BaseT Ethernet LAN Ports
Easy installation with wall-mount feature
Low-Latency for Video/Voice/Data applications
4. Technical Specifications:
Master Unit:
LAN Interface:
Auto-Detection for 10/100 BaseT and Half/Full duplex
Fully compatible with IEEE802.3/IEEE802.3u
Automatic MDIX Function
Connector: RJ45
Line Interface:
Line Rate: 60/60 ~ 10/10Mbps (full duplex)
Rate Selection: Dip Switches with Slave following Master
Safety Extra Low Voltage (SELV) Compliant (< 60V)
Connector: BNC
LED Indicators:
POWER: Power is ON LINE: Cable Connection Status
LAN: Data Activity of LAN Port M/S: LED OFF indicating Master mode
Local Power Adaptor:
INPUT: 110/240VAC @ 50-60Hz
OUTPUT: 48VDC 65W
3
Page 4
Slave Unit:
LAN Interface:
IEEE 802.3af Compliant PSE with output voltage within 44~57 Volts
Power Auto Restart with Under Voltage Lockout (UVLO) Fault Detection
Maximum output power 15.4 Watts
Auto-Detection for 10/100 BaseT and Half/Full duplex
Fully compatible with IEEE802.3/IEEE802.3u
Automatic MDIX Function
Connector: RJ45
Line Interface:
Line Rate: 60/60 ~ 10/10Mbps (full duplex)
Rate Selection: Dip Switches with Slave following Master
Safety Extra Low Voltage (SELV) Compliant (< 60V)
Connector: BNC
LED Indicators:
POWER: Power is ON LINE: 2-wire Line Connection Status
LAN: Data Activity of LAN Port M/S: LED ON indicating Slave mode
Physical Dimension:
VX-160COAX: 120 x 90 x 28 (mm)
Operating Environment:
Humidity: 5% to 95% non-condensing
Temperature: 0 ~ 50 degree C
5. Packing Contents
Inside the package you should find:
(1) One VX-160COAXmaster unit
(2) One VX-160COAX Slave unit
(3) One 48V Power Adaptor
(4) One AC power cord
(5) One User Manual + Accessories.
Please check if the packing is damaged or any component is missing. If so, please contact your
distributor.
4
Page 5
6. LED Indicators
On the front panel of VX-160COAX, there are 4 LED indicators as the following
POWER: “Green On” indicates power is on and normal.
LAN: “Green On” indicates Ethernet LAN port is in connection.
“
Flashing” indicates Ethernet LAN data activities.
LINE: “Green On” indicates coaxial cable is in connection.
Flashing” indicates coaxial cable is in line handshaking.
“
M/S: “Green On” indicates as VX-160COAX Slave unit.
OFF” indicates VX-160COAX Master unit.
“
7. Dip Switches Settings
Pin 1 Pin 2 Pin 3 Pin 4 Line Rate (Mbps)
NA
NA
NA
NA
NA
NA
NA
NA
* The line rate settings on the master and the slave units must be the same.
OFF OFF OFF 10/10
ON OFF OFF 20/20
OFF ON OFF 30/30
ON ON OFF 40/40
OFF OFF ON 50/50
ON OFF ON 60/60
OFF ON ON 60/60
ON ON ON 60/60
If not, the real line rate will follow the master setting.
5
Page 6

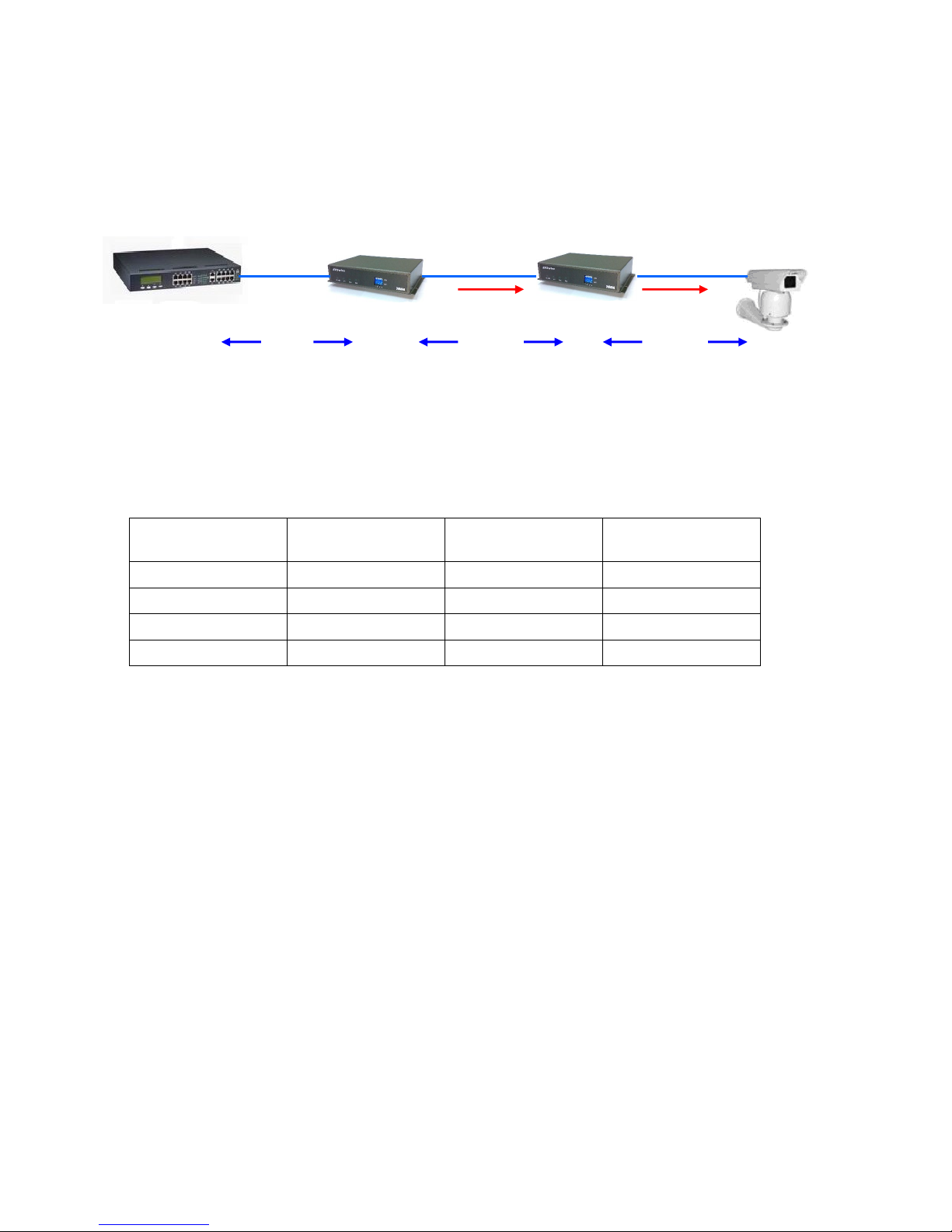

8. Data Rates vs Distances vs PoE power
LAN Switch
VX-160COAX Master
Ethernet Coaxial cable Ethernet
Local Power
A B C
VX-160COAX Slave
PSE OutputPowerPSE Power
Performance for 5V2C cable with 48V Power Adaptor
Line Rate (Mbps) Distance B (Meter) Distance C (Meter)
60/60 200 100 15.4+
50/50 300 100 15.4+
40/40 400 100 7+
20/20 500 100 4+
Max. PSE Output
Power (Watts)
6
