Page 1
.
Reference
Manual
DOC. REV. 4/9/2013
VL-EPHs-P1
SUMIT-micro Mini PCIe adapter
board for SUMIT-enabled SBCs
Page 2
WWW.VERSALOGIC.COM
12100 SW Tualatin Road
Tualatin, OR 97062-7341
(503) 747-2261
Fax (971) 224-4708
Copyright © 2013 VersaLogic Corp. All rights reserved.
Notice:
Although every effort has been made to ensure this document is error-free, VersaLogic makes no
representations or warranties with respect to this product and specifically disclaims any implied warranties
of merchantability or fitness for any particular purpose.
VersaLogic reserves the right to revise this product and associated documentation at any time without
obligation to notify anyone of such changes..
The SUMIT name and logo are trademarks of the Small Form Factor Special Interest Group.
VL-EPHs-P1 Reference Manual ii
Page 3
Product Release Notes
VersaTech KnowledgeBase
Rev 1.0 Release
Initial commercial release.
Support
The VL-EPHs-P1 support page, at http://www.versalogic.com/private/ephsp1support.asp, contains
additional information and resources for this product including:
Reference Manual (PDF format)
Links to product advisories and KnowledgeBase articles
Photograph of the circuit board
This is a private page for VL-EPHs-P1 users that can be accessed only by entering this address directly. It
cannot be reached from the VersaLogic's public website.
The VersaTech KnowledgeBase is an invaluable resource for resolving technical issues with your
VersaLogic product.
VL-EPHs-P1 Reference Manual iii
Page 4
Contents
Introduction ................................................................................................................... 1
Description .......................................................................................................................... 1
Technical Specifications ..................................................................................................... 1
RoHS Compliance .............................................................................................................. 2
About RoHS ........................................................................................................... 2
Warnings ............................................................................................................................. 2
Electrostatic Discharge .......................................................................................... 2
Handling Care ........................................................................................................ 2
Earth Ground Requirement .................................................................................... 2
Technical Support ............................................................................................................... 3
Repair Service ........................................................................................................ 3
Physical Details ............................................................................................................. 4
Dimensions and Mounting .................................................................................................. 4
Hardware Assembly ............................................................................................... 5
External Connectors ........................................................................................................... 6
VL-EPHs-P1 Connector Locations ........................................................................ 6
VL-EPHs-P1 Connector Functions and Interface Cables ...................................... 6
Interfaces and Connectors ........................................................................................... 7
SUMIT Connector .............................................................................................................. 7
PCI Express Mini Card Socket ........................................................................................... 8
LED_WWAN#, LED_WLAN#, and LED_WPAN# Signals................................ 9
VL-EPHs-P1 Reference Manual iv
Page 5
Board Size:
32 mm x 90 mm (3.54” x 1.26")
Storage Temperature:
-40° to +85°C
Operating Temperature:
-40° to +85°C
Power Requirements:
+5V 5%
Hardware Compatibility:
SUMIT
Weight:
VL-EPHs-P1E –0.035 lb (0.016 kg)
SUMIT Resources
Form Factor: SUMIT-micro
SUMIT
A
SUMIT
B
PCIe x1
1
PCIe x4
USB
1
ExpressCard
–
LPC
–
SPI / uWire
–
SMBus/ I2C
SMBus
+12V
–
+5V
+5Vsb
–
+3.3V
1 1
Description
The VL-EPHs-P1 expansion module is a “SUMIT-micro” card that provides a Mini PCIe
interface for SUMIT-enabled embedded systems. Designed for full industrial (-40° to +85°C)
temperature operation; the VL-EPHs-P1 meets MIL-STD-202G specifications for mechanical
shock and vibration for use in harsh environments.
The VL-EPHs-P1 features high reliability design and construction. VL-EPHs-P1 boards are
subjected to 100% functional testing and are backed by a limited two-year warranty. Careful
parts sourcing and US-based technical support ensure the highest possible quality, reliability,
service, and product longevity for this module.
Technical Specifications
Introduction
VL-EPHs-P1 Reference Manual 1
Specifications are subject to change without notification.
Page 6
RoHS Compliance
The VL-EPHs-P1 is RoHS compliant.
ABOUT ROHS
In 2003, the European Union issued Directive 2002/95/EC regarding the Restriction of the use of
certain Hazardous Substances (RoHS) in electrical and electronic equipment.
The RoHS directive requires producers of electrical and electronic equipment to reduce to
acceptable levels the presence of six environmentally sensitive substances: lead, mercury,
cadmium, hexavalent chromium, and the presence of polybrominated biphenyls (PBB) and
polybrominated diphenyl ethers (PBDE) flame retardants, in certain electrical and electronic
products sold in the European Union (EU) beginning July 1, 2006.
VersaLogic Corp. is committed to supporting customers with high-quality products and services
meeting the European Union’s RoHS directive.
Introduction
Warnings
ELECTROSTATIC DISCHARGE
Warning! Electrostatic discharge (ESD) can damage circuit boards, disk drives, and other
After removing the board from its protective wrapper, place the board on a
HANDLING CARE
Warning! Care must be taken when handling the board not to touch the exposed circuitry
components. The circuit board must only be handled at an ESD workstation. If an
approved station is not available, some measure of protection can be provided by
wearing a grounded antistatic wrist strap. Keep all plastic away from the board,
and do not slide the board over any surface.
grounded, static-free surface, component side up. Use an antistatic foam pad if
available.
The board should also be protected inside a closed metallic antistatic envelope
during shipment or storage.
with your fingers. Though it will not damage the circuitry, it is possible that small
amounts of oil or perspiration on the skin could have enough conductivity to cause
the contents of CMOS RAM to become corrupted through careless handling,
resulting in CMOS resetting to factory defaults.
EARTH GROUND REQUIREMENT
Warning! All mounting standoffs should be connected to earth ground (chassis ground). This
provides proper grounding for ESD and EMI purposes.
VL-EPHs-P1 Reference Manual 2
Page 7
Technical Support
VL-EPHs-P1 Support Page
http://www.versalogic.com/private/ephsp1support.asp
VersaTech KnowledgeBase
If you are unable to solve a problem after reading this manual, please visit the VL-EPHs-P1
product support web page below. The support page provides links to this manual, product
advisories, and the VersaTech KnowledgeBase.
The VersaTech KnowledgeBase contains a wealth of technical information about VersaLogic
products, along with product advisories. Click the link below to see all KnowledgeBase articles
related to the VL-EPHs-P1.
Introduction
If you have further questions, contact VersaLogic Technical Support at (503) 747-2261.
VersaLogic support engineers are also available via e-mail at Support@VersaLogic.com.
REPAIR SERVICE
If your product requires service, you must obtain a Returned Material Authorization (RMA)
number by calling (503) 747-2261. Please provide the following information:
Your name, the name of your company, your phone number, and e-mail address
The name of a technician or engineer that can be contacted if any questions arise
Quantity of items being returned
The model and serial number (barcode) of each item
A detailed description of the problem
Steps you have taken to resolve or recreate the problem
The return shipping address
Warranty Repair All parts and labor charges are covered, including return shipping
charges for UPS Ground delivery to United States addresses.
Non-warranty Repair All non-warranty repairs are subject to diagnosis and labor charges,
parts charges, and return shipping fees. Please specify the shipping
method you prefer and provide a purchase order number for invoicing
the repair.
Note: Please mark the RMA number clearly on the outside of the box before
VL-EPHs-P1 Reference Manual 3
returning.
Page 8
2 2
+
2.90
3.54
1.26
0.06
0.37
TOP VIEW
SIDE VIEW
0.68
0.25
+
Dimensions and Mounting
The VL-EPHs-P1 complies with SUMIT-micro dimensional standards. Dimensions are given
below to help with pre-production planning and layout.
Physical Details
VL-EPHs-P1 Reference Manual 4

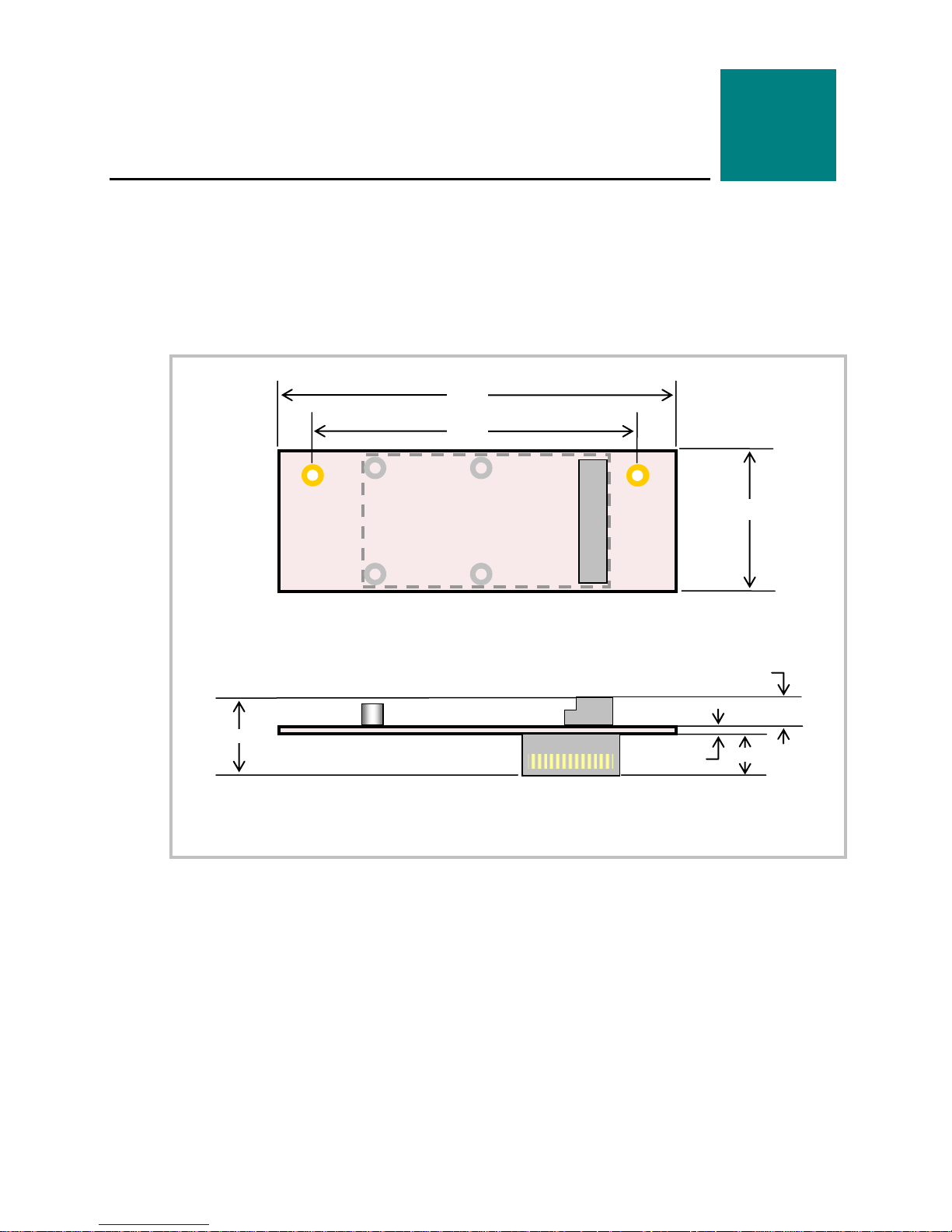

Figure 1. VL-EPHs-P1 Dimensions and Mounting Holes
(Not to scale. All dimensions in inches.)
Page 9
System Features
J2
SUMIT-A

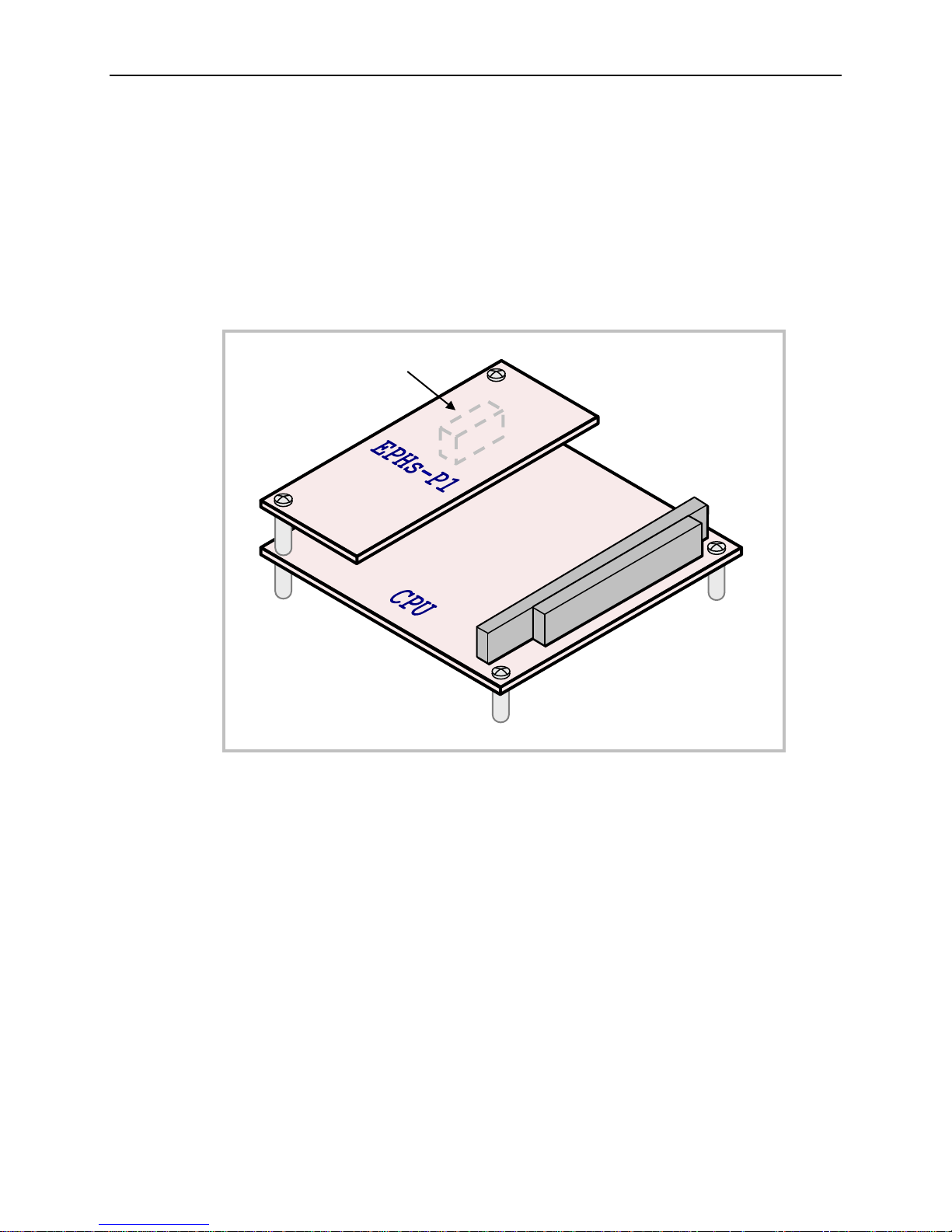

HARDWARE ASSEMBLY
The VL-EPHs-P1 uses a SUMIT-A bottom connector that attaches to the top of the stack. The
board is secured using two hardware standoffs on the corner mounting holes. These standoffs are
attached to the CPU board using pan head screws. Standoffs and screws are available as part
number VL-HDW-105 (metric thread) or VL-HDW-106 (English thread). The figure below
shows a typical installation.
VL-EPHs-P1 Reference Manual 5
Figure 2. VL-EPHs-P1 Hardware Assembly
Page 10
External Connectors
Connector
Function
Mating Connector/Device
Transition
Cable
Cable Description
J1
PCIe Mini Card
Full-height PCIe Mini Card
—
—
J2
SUMIT-A Bottom
Samtec ASP-129646-01
—
—
J2
SUMIT-A
J1
PCIe Mini Card
TOP VIEW
BOTTOM VIEW

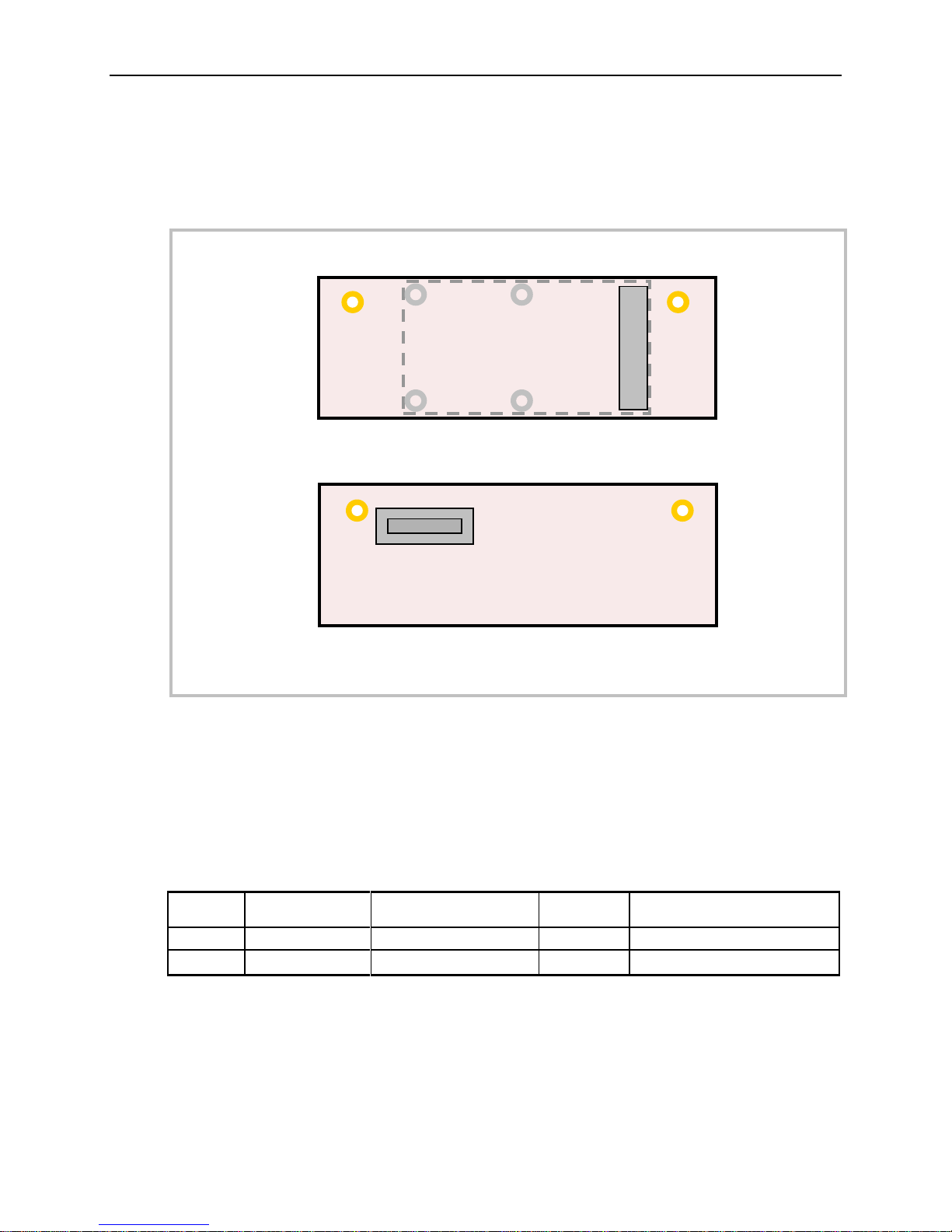

VL-EPHS-P1 CONNECTOR LOCATIONS
System Features
Figure 3. Connector Locations
VL-EPHS-P1 CONNECTOR FUNCTIONS AND INTERFACE CABLES
Table 1 provides information about the function, mating connectors, and transition cables for
VL-EPHs-P1 connectors.
Table 1: Connector Functions and Interface Cables
VL-EPHs-P1 Reference Manual 6
Page 11
Pin
Signal Name
Function
Pin
Signal Name
Function
1
NC
No connect
2 NC
No connect
3
3.3V
+3.3V power
4 SMB/I2C_DATA
SMBus data
5
3.3V
+3.3V power
6 SMB/I2C_CLK
SMBus clock
7
NC
No connect
8 NC
No connect
9
NC
No connect
10
NC
No connect
11
NC
No connect
12
NC
No connect
13
NC
No connect
14
NC
No connect
15
+5V
+5V power
16
NC
No connect
17
NC
No connect
18
NC
No connect
19
NC
No connect
20
NC
No connect
21
+5V
+5V power
22
NC
No connect
23
NC
No connect
24
NC
No connect
25
NC
No connect
26
NC
No connect
27
+5V
+5V power
28
NC
No connect
29
NC
No connect
30
NC
No connect
31
NC
No connect
32
NC
No connect
33
+5V
+5V power
34
NC
No connect
35
USB0+
USB0 data +
36
NC
No connect
37
USB0-
USB0 data –
38
NC
No connect
39
GND
Ground
40
GND
Ground
41
A_PETp0
Link A, lane 0 transmit +
42
A_PERp0
Link A, lane 0 receive +
43
A_PETn0
Link A, lane 0 transmit –
44
A_PERn0
Link A, lane 0 receive –
45
GND
Ground
46
APRSNT#/GND
Link A card present
47
PERST#
Reset
48
A_CLKp
Link A clock +
49
WAKE#
PCIe Wake
50
A_CLKn
Link A clock –
51
+5V
+5V power
52
GND
Ground
3 3
SUMIT Connector
The SUMIT-A bottom connector (J2) provides one PCI Express (PCIe) lane and +5V power to
the VL-EPHs-P1, as shown in the following table. See the SUMIT Specification for a complete
description of the SUMIT interface.
Table 2: VL-EPHs-P1 SUMIT-A Bottom Connector (J2) Pinout
Interfaces and Connectors
VL-EPHs-P1 Reference Manual 7
Page 12
PCI Express Mini Card Socket
Pin
Signal Name
Function
Pin
Signal Name
Function
1
WAKE#
Wake 2
3.3VAUX
3.3V auxiliary source
3
NC
Not connected
4 GND
Ground
5
NC
Not connected
6 1.5V
1.5V power
7
CLKREQ#
Reference clock request
8 NC
Not connected
9
GND
Ground
10
NC
Not connected
11
REFCLK-
Reference clock input –
12
NC
Not connected
13
REFCLK+
Reference clock input +
14
NC
Not connected
15
GND
Ground
16
NC
Not connected
17
NC
Not connected
18
GND
Ground
19
NC
Not connected
20
W_DISABLE#
Wireless disable
21
GND
Ground
22
PERST#
Card reset
23
PERn0
Lane 0 receive –
24
3.3VAUX
3.3V auxiliary source
25
PERp0
Lane 0 receive +
26
GND
Ground
27
GND
Ground
28
1.5V
1.5V power
29
GND
Ground
30
SMB_CLK
SMBus clock
31
PETn0
PCIe lane 0 transmit –
32
SMB_DATA
SMBus data
33
PETp0
PCIe lane 0 transmit +
34
GND
Ground
35
GND
Ground
36
USB_D-
USB data –
37
GND
Ground
38
USB_D+
USB data +
39
3.3VAUX
3.3V auxiliary source
40
GND
Ground
41
3.3VAUX
3.3V auxiliary source
42
LED_WWAN#
Wireless WAN LED
43
GND
Ground
44
LED_WLAN#
Wireless LAN LED
45
NC
Not connected
46
LED_WPAN#
Wireless PAN LED
47
NC
Not connected
48
1.5V
1.5V power
49
NC
Not connected
50
GND
Ground
51
NC
Not connected
52
3.3VAUX
3.3V auxiliary source
The PCI Express Mini Card connector at J2 accepts a full-height PCI Express Mini Card. The
interface includes one PCIe x1 lane, one USB 2.0 channel, and the SMBus interface. The socket
is compatible with 802.11a/b/g Wi-Fi network adapters that operate in both the 2.4 and 5.0 GHz
spectra, GPS radio cards that enable time/date stamps and global location applications, 3G
modems, solid-state drives (SSDs), and USB (2.0) cards.
An optional PCI Express WiFi Mini Card is available for the VL-EPHs-P1 as VersaLogic part
number VL-WD10-CBN. A WiFi antenna (VL-CBR-ANT01) and a 12" WiFi card to bulkhead
RP-SMA transition cable (VL-CBR-0201) are also available. For more information, contact
Sales@VersaLogic.com.
To secure a Mini Card to the VL-EPHs-P1 use two screws (M2 x 5mm, Philips, pan head, 4mm,
stainless) and two washers (M2, split lock, OD 4.4mm, stainless). Screw and washer sets are
available in 10-count packages as part number VL-HDW-107.
Table 3: PCIe Mini Card Pinout
Special Registers
VL-EPHs-P1 Reference Manual 8
Page 13
Special Registers
LED
Color
J2 Pin
Function
D1
Green
46
Defined by Mini Card device LED_WPAN# implementation.
D1
Orange
44
Defined by Mini Card device LED_WLAN# implementation.
D2
Green
42
Defined by Mini Card device LED_WWAN# implementation.
D2
Orange
–
Power status indicator.
LED_WWAN#, LED_WLAN#, AND LED_WPAN# SIGNALS
The LED status indicator signals are provided to enable wireless communications add-in cards to
provide status indications via the built-in LEDs at positions D1 and D2 on the VL-EPMs-E1. The
behavior of the LEDs is determined by the add-in card manufacturer. The table below shows the
routing of the D1 and D2 LEDs to the Mini Card LED status signals.
Table 4: WiFi Mini Card LED Functions
VL-EPHs-P1 Reference Manual 9
Page 14
Authorized Distribution Brand：
Website：
Welcome to visit www.ameya360.com
Contact Us：
Address：
401 Building No.5, JiuGe Business Center, Lane 2301, Yishan Rd
Minhang District, Shanghai , China
Sales：
Direct +86 (21) 6401-6692
Email amall@ameya360.com
QQ 800077892
Skype ameyasales1 ameyasales2
Customer Service：
Email service@ameya360.com
Partnership：
Tel +86 (21) 64016692-8333
Email mkt@ameya360.com
Loading...
