VersaLogic VL-EBX-18 Hardware Reference Manual

DOC. REV. 25 MAY 2016

Anaconda

Hardware
Reference
Manual

(VL-EBX-18)

DMP Vortex86DX2 SoC-based
SBC with dual Ethernet, Video,
USB, SATA, Analog inputs,
Digital I/O, Counter/Timers,
Mini PCIe, microSD, SPX, and
PC/104-Plus Interface

WWW.VERSALOGIC.COM

12100 SW Tualatin Road
Tualatin, OR 97062-7341

[phone]

Fax [phone]

Copyright © 2016 VersaLogic Corp. All rights r eser ved.

Notice:

Although every effort has been made to ensure this document is error-free, VersaLogic makes no
representations or warranties with respect to this product and specifically disclaims any implied warranties
of merchantability or fitness for any particular purpose.

VersaLogic reserves the right to revise this product and associated documentation at any time without
obligation to notify anyone of such changes.

PC/104 and the PC/104 logo are trademarks of the PC/104 Consortium.

EBX-18 Hardware Reference Manual ii

Product Release Notes

Release 1.0

16 September 2015

First production release

Release 1.1

18 September 2015

Minor formatting revisions

Table 27 and Figure 18 on page 40

Release 1.3

25 May 2016

Updated board images to show fan connector

Release 1.2 13 May 2016

Support

The EBX-18 support page, at http://www.versalogic.com/private/anacondasupport.asp,
contains additional information and resources for this product including:

 Reference Manuals (PDF format)
 Operating system information and software drivers
 Data sheets and manufacturers’ links for chips used in this product
 BIOS information and upgrades
 Utility routines and benchmark software
 VersaAPI Version 1.2.x

Added fan connector information. Refer to:

• Figure 5, page 12

• Table 2, page 13

•

This is a private page for EBX-18 users that can be accessed only be entering this address
directly. It cannot be reached from the VersaLogic homepage.

The VersaTech KnowledgeBase is an invaluable resource for resolving technical issues with
your VersaLogic product.

VersaTech KnowledgeBase

EBX-18 Hardware Reference Manual iii

Contents

Introduction ................................................................................................................... 1

Description .......................................................................................................................... 1

Technical Specifications ..................................................................................................... 2

EBX-18 Block Diagram ...................................................................................................... 3

Related Documents ............................................................................................................. 3

RoHS-Compliance .............................................................................................................. 4

About RoHS ........................................................................................................... 4

Cautions .............................................................................................................................. 4

Electrostatic Discharge .......................................................................................... 4

Lithium Battery ...................................................................................................... 4

Mounting Support .................................................................................................. 4

Earth Ground Requirement .................................................................................... 5

Technical Support ............................................................................................................... 6

Repair Service ........................................................................................................ 6

Configuration and Setup ............................................................................................... 7

Initial Configuration ........................................................................................................... 7

Basic Setup ......................................................................................................................... 7

BIOS Setup Program........................................................................................................... 9

Operating System Installation ............................................................................................. 9

ACPI Version Setting ............................................................................................ 9

Physical Details ........................................................................................................... 10

Dimensions and Mounting ................................................................................................ 10

Hardware Assembly ............................................................................................. 11

External Connectors ......................................................................................................... 12

EBX-18 Connectors ............................................................................................. 12

EBX-18 Connector Functions and Interface Cables ............................................ 13

Jumper Blocks .................................................................................................................. 14

Jumpers As-Shipped Configuration ..................................................................... 14

Jumper Summary ................................................................................................. 15

System Features .......................................................................................................... 16

Power Delivery ................................................................................................................. 16

Power Connector ................................................................................................. 16

Expansion Current Limits .................................................................................... 17

Lithium Battery ................................................................................................................. 18

Battery Saver Jumper ........................................................................................... 18

Operating The Board without a Battery .............................................................. 19

CPU ................................................................................................................................... 20

System RAM ..................................................................................................................... 20

CMOS RAM ..................................................................................................................... 20

Clearing CMOS RAM ......................................................................................... 20

BIOS Setup Defaults ......................................................................................................... 21

EBX-18 Hardware Reference Manual iv

Contents

Real-time Clock ................................................................................................................ 21

Setting the Clock.................................................................................................. 21

Interfaces and Connectors ......................................................................................... 22

Utility I/O Connectors ...................................................................................................... 22

J4 I/O Connector .................................................................................................. 23

J5 I/O Connector .................................................................................................. 24

J10 I/O Connector ................................................................................................ 25

SATA ................................................................................................................................ 25

PCIe Mini Card / mSATA ................................................................................................ 26

mSATA Activity LED ......................................................................................... 27

Booting from a PCIe Minicard ............................................................................ 28

PCIe Mini Card LEDs ......................................................................................... 29

Serial Ports ........................................................................................................................ 30

COM3/COM4 Hardware Configuration .............................................................. 30

COM3/COM4 Software Configuration ............................................................... 31

Serial Port Assignment ........................................................................................ 32

Serial Port Connectors ......................................................................................... 32

USB ................................................................................................................................... 33

BIOS Configuration ............................................................................................. 33

microSD Socket ................................................................................................................ 33

Programmable LED .......................................................................................................... 34

External Speaker ............................................................................................................... 34

Push-Button Reset ............................................................................................................ 34

Video Interface ................................................................................................................. 34

Configuration ....................................................................................................... 34

SVGA Output Connector ..................................................................................... 35

LVDS Flat Panel Display Connector ................................................................... 35

Compatible LVDS Panel Displays ...................................................................... 36

Console Redirection ............................................................................................ 37

Ethernet Interface.............................................................................................................. 38

Controller Configuration ..................................................................................... 38

Ethernet Connectors ............................................................................................ 38

On-Board Ethernet Status LEDs .......................................................................... 38

Off-Board Ethernet Status LED Connector ......................................................... 39

Fan Connector ................................................................................................................... 40

DMA Controller................................................................................................................ 41

Vortex86DX2 SoC On-chip Temperature Sensor ............................................................ 41

Watchdog Timers .............................................................................................................. 41

Industrial I/O Functions and SPI Interface ....................................................................... 41

Analog Input ..................................................................................................................... 42

External Connections ........................................................................................... 42

Initiating an Analog Conversion .......................................................................... 42

Digital I/O Interface .......................................................................................................... 43

External Connections ........................................................................................... 43

Digital I/O Port Configuration ............................................................................. 44

Interrupt Generation ............................................................................................ 44

SPX™ Expansion Bus ...................................................................................................... 45

VersaLogic SPX Expansion Modules ................................................................. 45

EBX-18 Hardware Reference Manual v

Contents

PC/104 Expansion Bus ..................................................................................................... 45

PC/104-Plus PCI Expansion Interface ................................................................. 46

System Resources and Maps ..................................................................................... 47

CBR-5009B and CBR-4004B Paddleboards ............................................................... 48

CBR-5009B Paddleboard ................................................................................................. 48

Dimensions and Mounting Holes ........................................................................ 48

CBR-5009B Connectors ...................................................................................... 49

Serial Port Connectors ......................................................................................... 50

PS/2 Keyboard and Mouse .................................................................................. 51

J4 I/O Connector .................................................................................................. 52

CBR-4004B Paddleboard ................................................................................................. 53

Using the CBR-4004B with the EBX-18 Board’s J5 Connector ......................... 53

Using the CBR-4004B with the EBX-18 Board’s J10 Connector ....................... 54

Dimensions and Mounting Holes ........................................................................ 55

Appendix A – References............................................................................................ 56

Figures

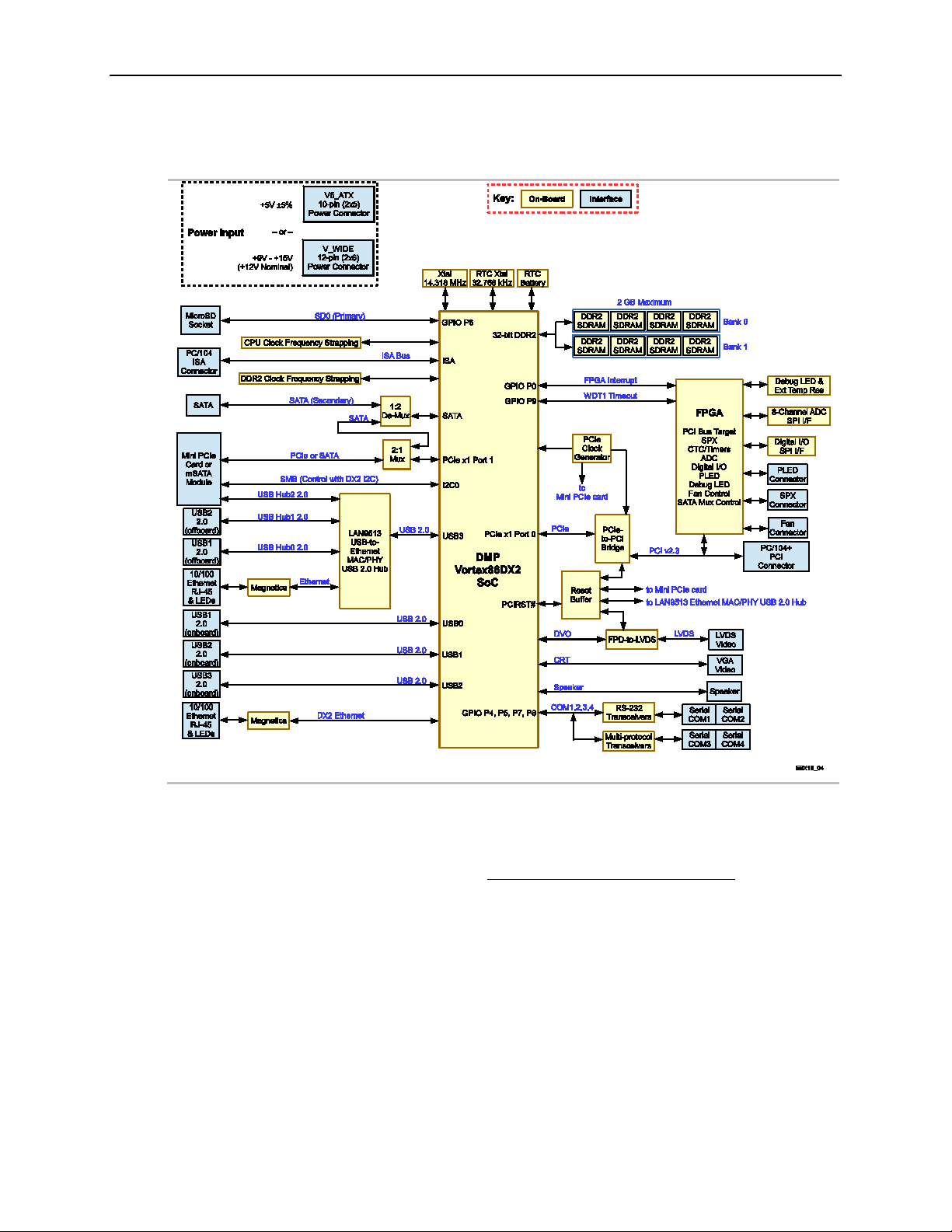

Figure 1. EBX-18 Block Diagram ..................................................................................... 3

Figure 2. Attaching the EBX-18 to Earth Ground ............................................................. 5

Figure 3. EBX-18 Dimensions and Mounting Holes ....................................................... 10

Figure 4. Standoff Locations ............................................................................................ 11

Figure 5. EBX-18 Connectors .......................................................................................... 12

Figure 6. Jumper Block Locations ................................................................................... 14

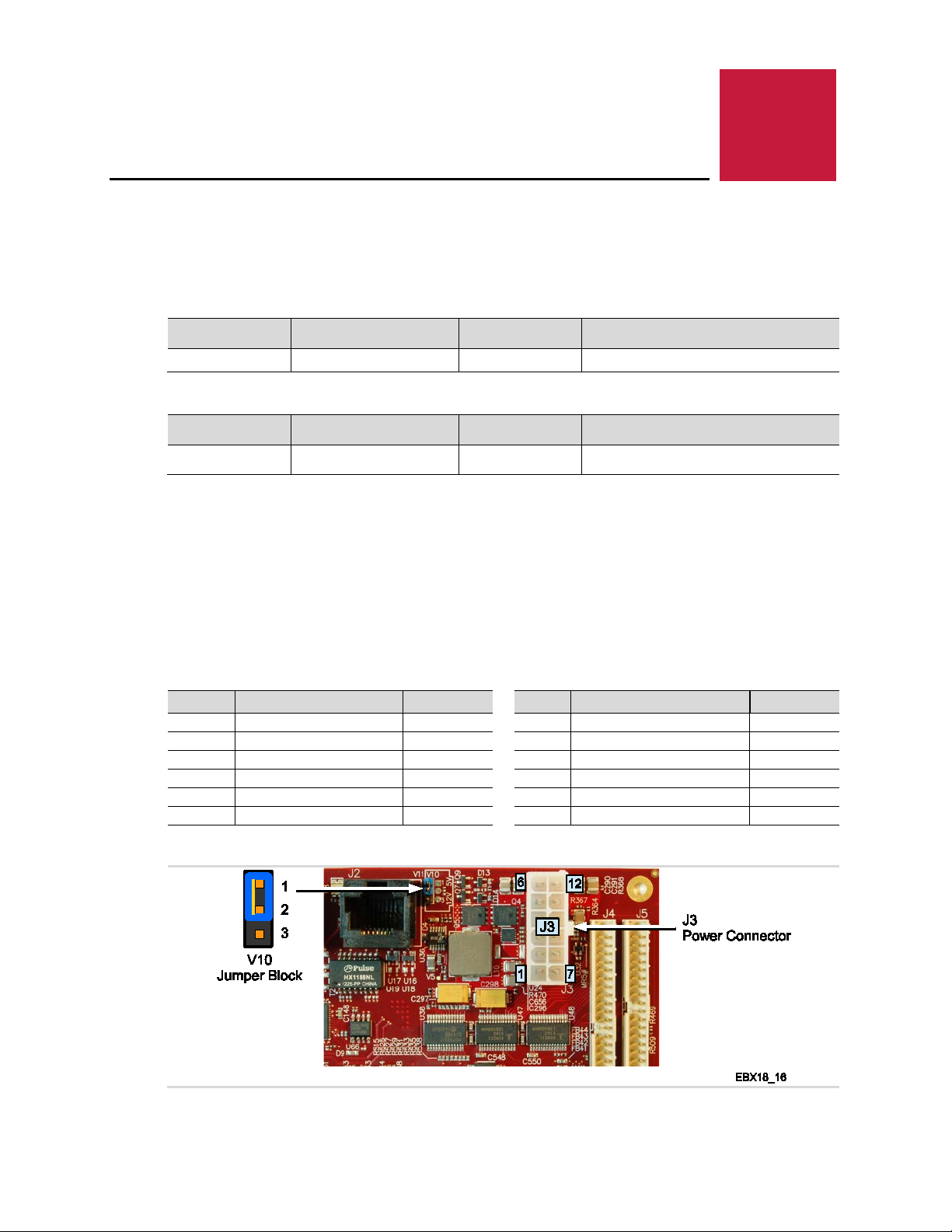

Figure 7. Location of Jumper V10 and J3 Power Connector ........................................... 16

Figure 8. Location of the V13 Battery Saver Jumper ...................................................... 18

Figure 9. Location of the V14 No Battery Mode Jumper ................................................ 19

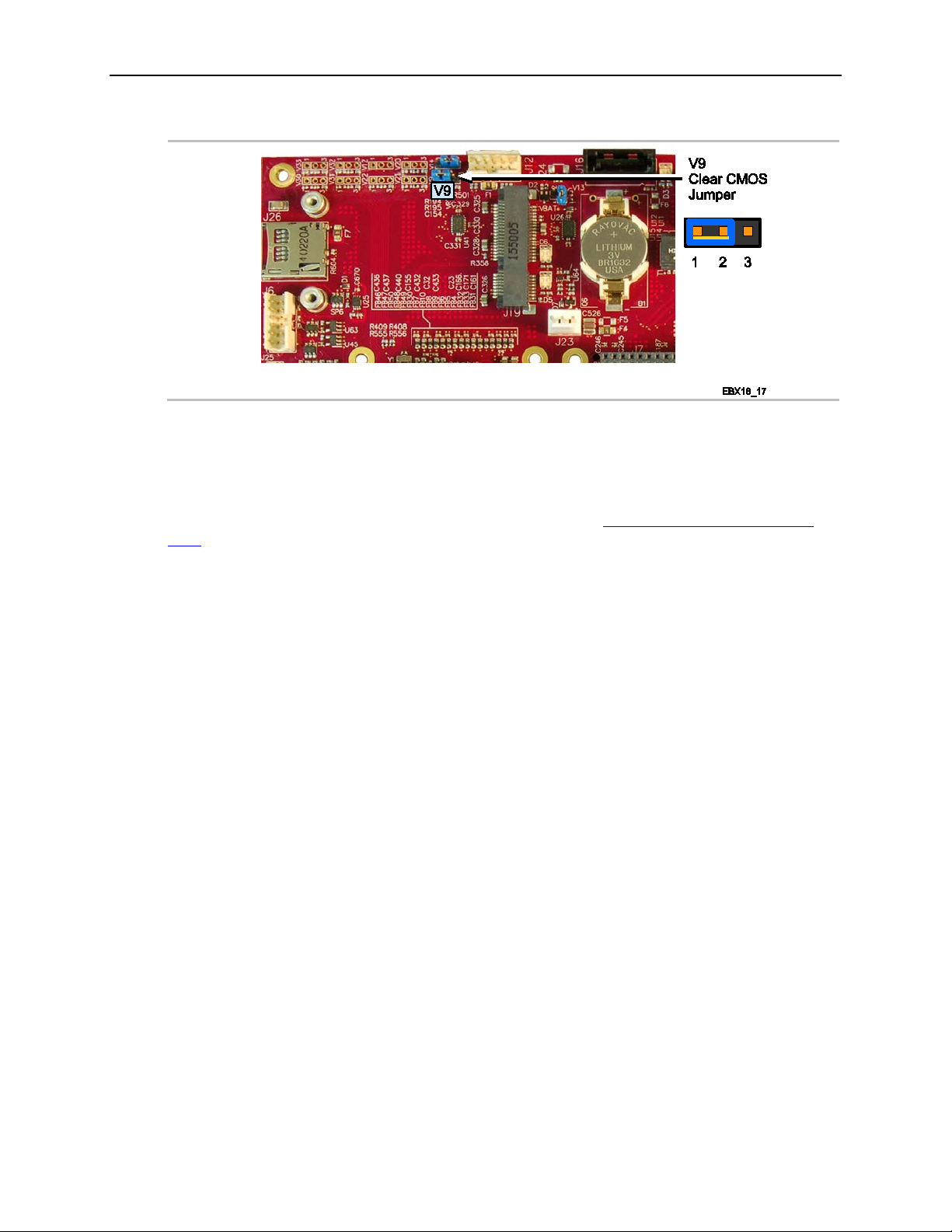

Figure 10. Location of the V9 Clear CMOS Jumper ....................................................... 21

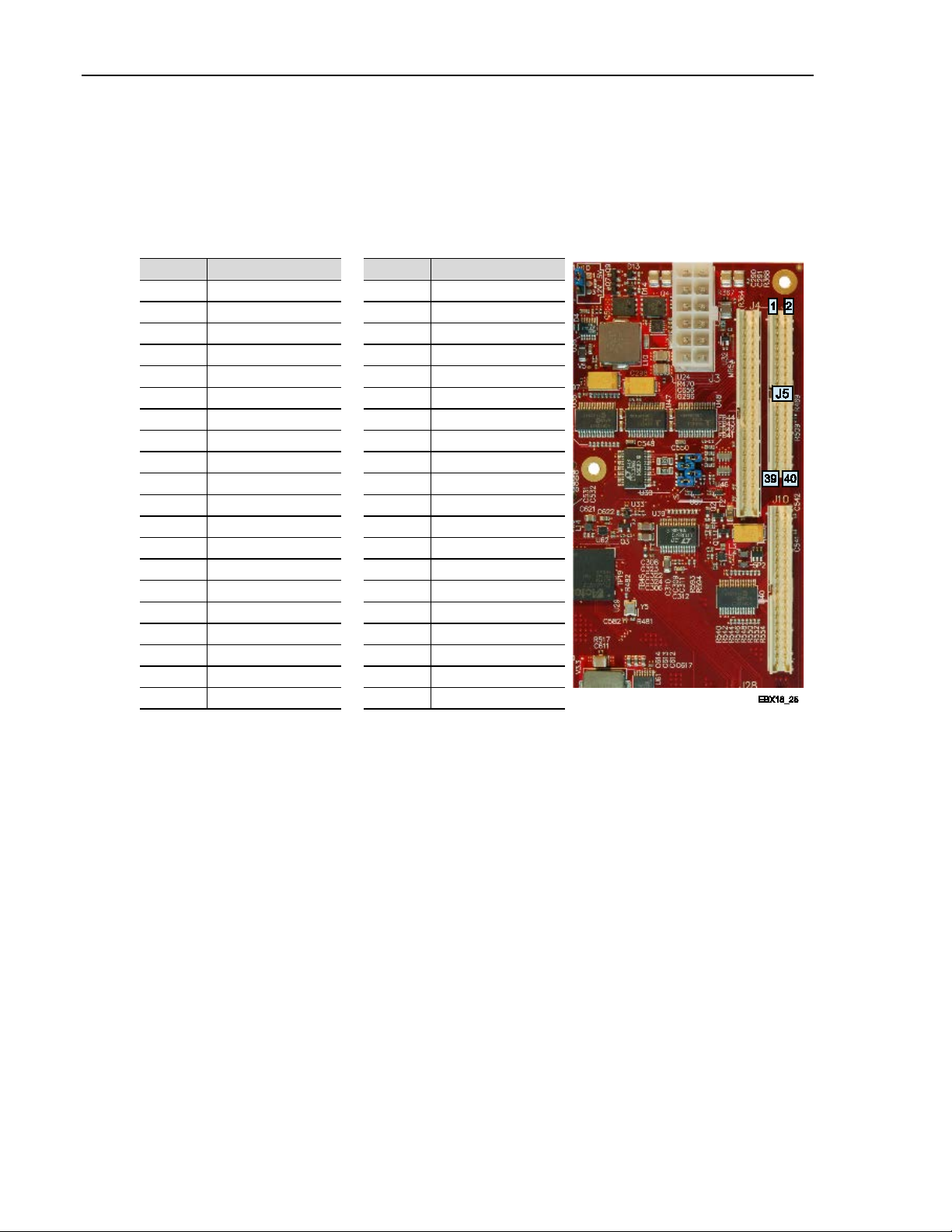

Figure 11. Location of Utility I/O Connectors J4/J5/J10 ................................................. 22

Figure 12. Location of the mSATA Activity LED ........................................................... 28

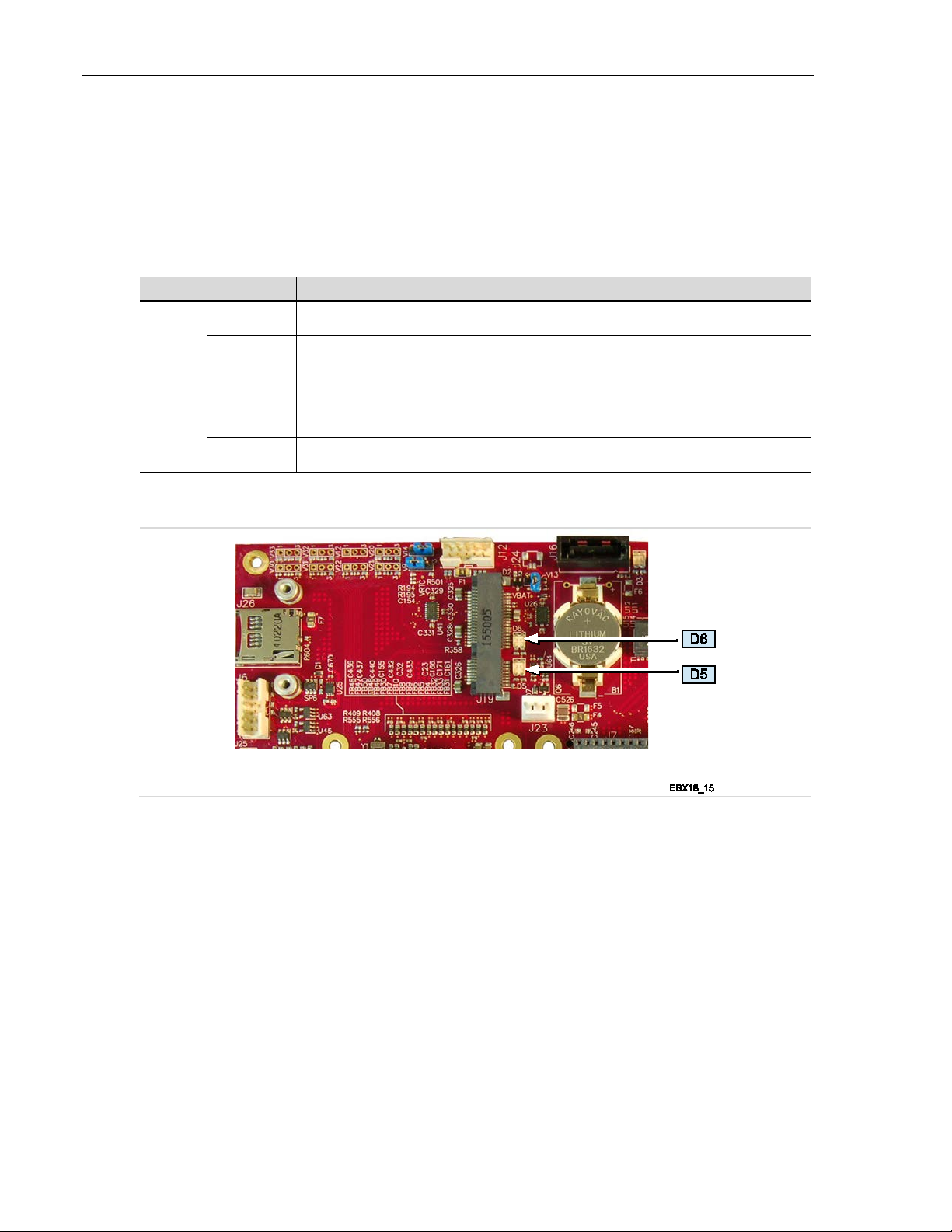

Figure 13. Location of PCIe Mini Card LEDs ................................................................. 29

Figure 14. COM3/COM4 Control and Termination Jumpers .......................................... 30

Figure 15. J6 VGA Connector Pin Configuration............................................................ 35

Figure 16. Wiring for a DB9 to DB9 RS-232 Adapter for Console Redirection ............. 37

Figure 17. Location of Ethernet Status LEDs D3 and D8 and J12 Connector ................. 39

Figure 18. Location and Pin Orientation of the J23 Fan Connector ................................ 40

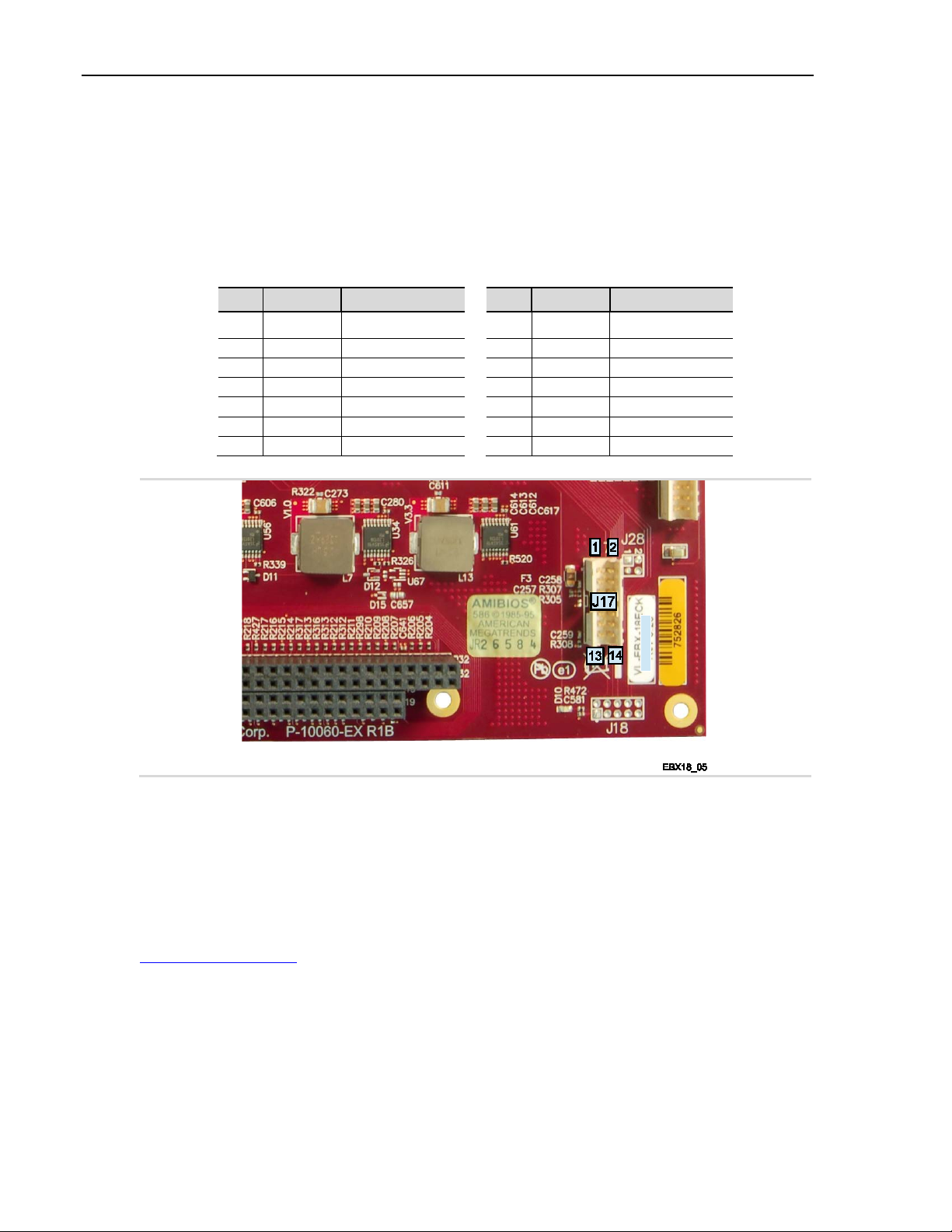

Figure 19. J17 SPX Connector Pin Configuration ........................................................... 45

Figure 20. CBR-5009B Dimensions and Mounting Holes .............................................. 48

Figure 21. CBR-5009B Connectors ................................................................................. 49

Figure 22. CBR-4004B Signals When Mated with the EBX-18’s J5 Connector ............ 53

Figure 23. CBR-4004B Signals When Mated with the EBX-18’s J10 Connector .......... 54

Figure 24. CBR-4004B Paddleboard Dimensions and Mounting Holes ......................... 55

EBX-18 Hardware Reference Manual vi

Contents

Tables

Table 1: Technical Specifications for all EBX-18 Configurations ..................................... 2

Table 2: Connector Functions and Interface Cables ......................................................... 13

Table 3: Jumper Summary ................................................................................................ 15

Table 4: J3 Power Connector ............................................................................................ 16

Table 5: Expansion Current Limits ................................................................................... 17

Table 6: Battery Saver Jumper Truth Table ...................................................................... 18

Table 7: No Battery Mode Jumper Truth Table ................................................................ 19

Table 8: Memory Configurations of EBX-18 Board Models ........................................... 20

Table 9: J4 I/O Connector Pinout and Pin Orientation ..................................................... 23

Table 10: J5 I/O Connector Pinout and Pin Orientation ................................................... 24

Table 11: J10 I/O Connector Pinout and Pin Orientation ................................................. 25

Table 12: SATA Port Pinout ............................................................................................. 26

Table 13: PCIe Mini Card / mSATA Pinout ..................................................................... 26

Table 14: Primary Boot Device Truth Table ..................................................................... 28

Table 15: PCIe Mini Card LED States .............................................................................. 29

Table 16: COM3/COM4 Control and Termination Jumpers ............................................ 30

Table 17: GPIO Port 2 Direction Register – 0x9A ........................................................... 31

Table 18: GPIO Port 2 Data Register – 0x7A ................................................................... 31

Table 19: Recommended Serial Port Settings for Vortex86DX2 BIOS ........................... 32

Table 20: COM1/COM2 Pinout – CBR-5009B Connector J3 ......................................... 32

Table 21: J6 Video Output Pinout .................................................................................... 35

Table 22: J9 LVDS Flat Panel Display Connector Pinout ................................................ 36

Table 23: Compatible LVDS Interface TFT-Technology Flat Panel Displays ................. 36

Table 24: BIOS Settings for Boot Display Devices and Corresponding Resolutions ...... 37

Table 25: On-board Ethernet Status LEDs (D3 and D8) ................................................. 38

Table 26: Off-board Ethernet Status LED Connector (J12).............................................. 39

Table 27: Fan Connector (J23) ......................................................................................... 40

Table 28: Analog Input Connector .................................................................................... 42

Table 29: Digital I/O Connections – Channels 1-16 ......................................................... 43

Table 30: Digital I/O Connections – Channels 17-32 ....................................................... 44

Table 31: SPI Expansion Bus Connections ...................................................................... 45

Table 32: PC/104 ISA I/O, IRQ, and Memory Resources ................................................ 46

Table 33: CBR-5009B Connector Functions .................................................................... 49

Table 34: J3 COM1/COM2 Pinout ................................................................................... 50

Table 35: J6 (COM3) Connector Pinout ........................................................................... 50

Table 36: J5 (COM4) Connector Pinout ........................................................................... 50

Table 37: PS/2 Mouse Connector ..................................................................................... 51

Table 38: PS/2 Keyboard Connector ................................................................................ 51

Table 39: EBX-18 J4 I/O Connector Pinout ..................................................................... 52

EBX-18 Hardware Reference Manual vii

DMP Vortex86DX2 32-bit Processor

 Mini PCIe / mSATA socket, supports Wi-Fi

1

Description

The EBX-18 is a feature-packed single board computer designed for OEM control projects
requiring fast processing, industrial I/O, with three memory density options and designed-in
reliability and longevity (product lifespan). Its features include:



with integrated video controller

 Up to 2GB soldered-on RAM, 400

MHz DDR2-800

Introduction

modems, GPS receivers, flash storage, and other
modules

 PS/2 keyboard and mouse ports

 Dual Ethernet interfaces, auto-detect

10BaseT / 100BaseTX with network
boot capability

 One microSD port
 LVDS Flat Panel Display support
 Standard VGA analog output
 PC/104-Plus expansion site
 SATA port, 1.5 Gbits/s
 Five USB 2.0 ports
 TVS devices on user I/O connections
 Four COM ports (two full serial ports,

two 4-pin multiprotocol ports with
automatic handshake)

 SoC temperature sensor
The EBX-18 is compatible with popular operating systems such as Windows and Linux.
A full complement of standard I/O ports are included on-board. Additional I/O expansion is

available through the high-speed PCI-based PC/104-Plus expansion site (which supports both
PC/104 and PC/104-Plus expansion modules), and through the Serial Peripheral Interface (SPI).

 8-channel, 12-bit analog inputs
 32-channel digital I/O
 Eight timer/counter I/Os
 SPI interface supports up to four (external) SPI

devices either of user design or any of the
SPX™ series of expansion boards, with clock
frequencies from 1-8 MHz

 Two Watchdog timers
 Vcc sensing reset circuit (all rails monitored)
 EBX-compliant 5.75” x 8.00” footprint
 Field upgradeable BIOS with OEM

enhancements

 Latching I/O connectors
 Customizing available

EBX-18 Hardware Reference Manual 1

The EBX-18 features high reliability design and construction, including latching I/O connectors.
It also features two watchdog timers, voltage sensing reset circuits and self-resetting fuse on the
+5 V supply to the keyboard, mouse, SPX, and 3.3 V supply to the external Ethernet LEDs, and
microSD port.

EBX-18 boards are subjected to 100% functional testing and are backed by a limited five-year
warranty. Careful parts sourcing and US-based technical support ensure the highest possible
quality, reliability, service and product longevity for this exceptional SBC.

Technical Specifications

temperature (Note)

• Video BIOS supports up t o 1024x768 resolut i on with 32-bi t color

limited to 1024x768 (LVDS panel maximum supported resolution)

Video BIOS support for 640x480, 800x480, 800x600, 1024x600, and 1024x768

Vcc sensing; resets when the 5V, 3.3V, 1.8V, 1.5V, 1.2V, or 1.0V power rails vary by more than
± 10% of their optimal val ues .

Channel independent input ranges: 0 to 5V, ±5V, 0 t o + 10V , and ±10V

Supports SPI and SPX devices. Supports up to four SPX modules, including low cost analog
and digital modules.

PC/104-

(PCI)

bus speed

SPX™ – full compliance

Generated

frequencies

100 MHz, 50 MHz, 33 MHz, 29.49 MHz, 25 MHz, 14.318 MHz, 8 MHz, 4 MHz, 2 MHz, 1 MHz ,

32.768 kHz

Specifications are typical at 25 °C with 5.0V supply, unless otherwise noted. Specifications are
subject to change without notice.

Table 1: Technical Specifications for all EBX-18 Configurations

Item

Board size 5.75" x 8.00" x 1.75"; EBX compliant

Storage temperature -40 °C to 85 °C

Free air operating

CPU clock 933 MHz 800 MHz

Memory clock 366 MHz 300 MHz

Memory size 512 MB 1 GB 2 GB 512 MB 1 GB 2 GB

Idle power 5.5 W 6.0 W 6.0 W 5.5 W 6.0 W 6.0 W

Typical power 5.8 W 6.5 W 6.8 W 5.8 W 6.5 W 6.3 W

Max power 6.0 W 7.0 W 7.5 W 6.0 W 7.0 W 6.5 W

Input Voltage +5 VDC ±5% or wide input: 9 to 15V (12V nominal). Jumper selectable.

EBX18-SAK EBX-18SBK EBX-18SCK EBX-18EAK EBX-18EBK EBX-18ECK

(Standard Temperature) (Extended Temperature)

Introduction

0 °C to + 60 °C -40°C to +85 °C

Analog VGA output

Digital Video output

System Reset

Ethernet interface Two auto-detect 10BaseT/100BaseT X ports with RJ 45 connectors
COM1-2 interface RS-232, 16C550 compatible, 115k baud max.
COM3-4 interface RS-232/422/485, 16C550 compati bl e, 460k baud max.

Analog input

Digital interface 32-channel, 3.3V, signali ng, 8 mA/4 mA IOL/IOH

SPI interface

Timers Three 8254-compati bl e t i mer/counters (FPGA f unctions, eight dedicated I /O lines)

BIOS AMI Vortex86DX2 BIOS

Plus

bus speed

PC/104 (ISA)

Compatibility

Weight 0.50 lb (0.22 kg)

• With VGA dri ver s upports up to 1920x1440. Synchronous display us e causes VGA to be

• LVDS video output

• Support for 18-bit or 24-bit single c hannel LV DS flat panel displays

•

• 8-channel, 12-bit, single-ended, 100 k ilo-samples-per-second (ksps)

•

33 MHz

8 MHz

• PC/104 – full compl i ance

• Embedded-PCI (PC/104-Plus) – full compli ance, 3.3V signaling

• EBX – full compliance

•

Notes: Derate -1.1°C per 305m (1,000 ft .) above 2,300m (7,500 ft.).

EBX-18 Hardware Reference Manual 2

EBX-18 Block Diagram

Introduction

Figure 1. EBX-18 Block Diagram

Related Documents

The following documents available are on the EBX-18 Product Support Web Page:
 EBX-18 Programmer’s Reference Manual – provides information on the board’s resources

(memory, I/O, and IRQs), a description of the FPGA’s registers, and programming
information for the board’s hardware interfaces.

 EBX-18 BIOS Reference Manual – provides information on accessing and configuring

settings in the BIOS Setup program. All BIOS menus, submenus, and configuration options
are described.

 VersaAPI Installation and Reference Guide – describes the shared library of API calls for

reading and controlling on-board devices on certain VersaLogic products.

EBX-18 Hardware Reference Manual 3

RoHS-Compliance



The exterior coating on some metallic antistatic bags is sufficiently conductive to cause
excessive battery drain if the bag comes in contact with the bottom-side of the EBX-18.

The EBX-18 is RoHS-compliant.

BOUT ROHS

A

In 2003, the European Union issued Directive 2002/95/EC regarding the Restriction of the use of
certain Hazardous Substances (RoHS) in electrical and electronic equipment.

The RoHS directive requires producers of electrical and electronic equipment to reduce to
acceptable levels the presence of six environmentally sensitive substances: lead, mercury,
cadmium, hexavalent chromium, and the presence of poly-brominated biphenyls (PBB) and poly­brominated diphenyl ethers (PBDE) flame retardants, in certain electrical and electronic products
sold in the European Union (EU) beginning July 1, 2006.

VersaLogic Corporation is committed to supporting customers with high-quality products and
services meeting the European Union’s RoHS directive.

Cautions

Introduction

ELECTROSTATIC DISCHARGE

Electrostatic discharge (ESD) can damage boards, disk drives and other components. The circuit
board must only be handled at an ESD workstation. If an approved station is not available, some
measure of protection can be provided by wearing a grounded antistatic wrist strap. Keep all
plastic away from the board, and do not slide the board over any surface.

After removing the board from its protective wrapper, place the board on a grounded, static-free
surface, component side up. Use an antistatic foam pad if available.

The board should also be protected inside a closed metallic anti-static envelope during shipment
or storage.

Note:

LITHIUM BATTERY

To prevent shorting, premature failure or damage to the lithium battery, do not place the board on
a conductive surface such as metal, black conductive foam or the outside surface of a metalized
ESD protective pouch. The lithium battery may explode if mistreated. Do not recharge,
disassemble, or dispose of in fire. Dispose of used batteries promptly.

OUNTING SUPPORT

M

The single board computer must be supported at all eight mounting points to prevent excessive
flexing when expansion modules are attached and removed. Flex damage caused by excessive
force on an improperly mounted circuit board is not covered under the product warranty. See
page 10 for more details.

EBX-18 Hardware Reference Manual 4

Introduction

EARTH GROUND REQUIREMENT

All mounting standoffs should be connected to earth ground (chassis ground). This provides
proper grounding for EMI purposes. Figure 2 shows the locations of the board’s mounting holes.
All eight mounting holes identified in Figure 2 must be connected to earth ground.

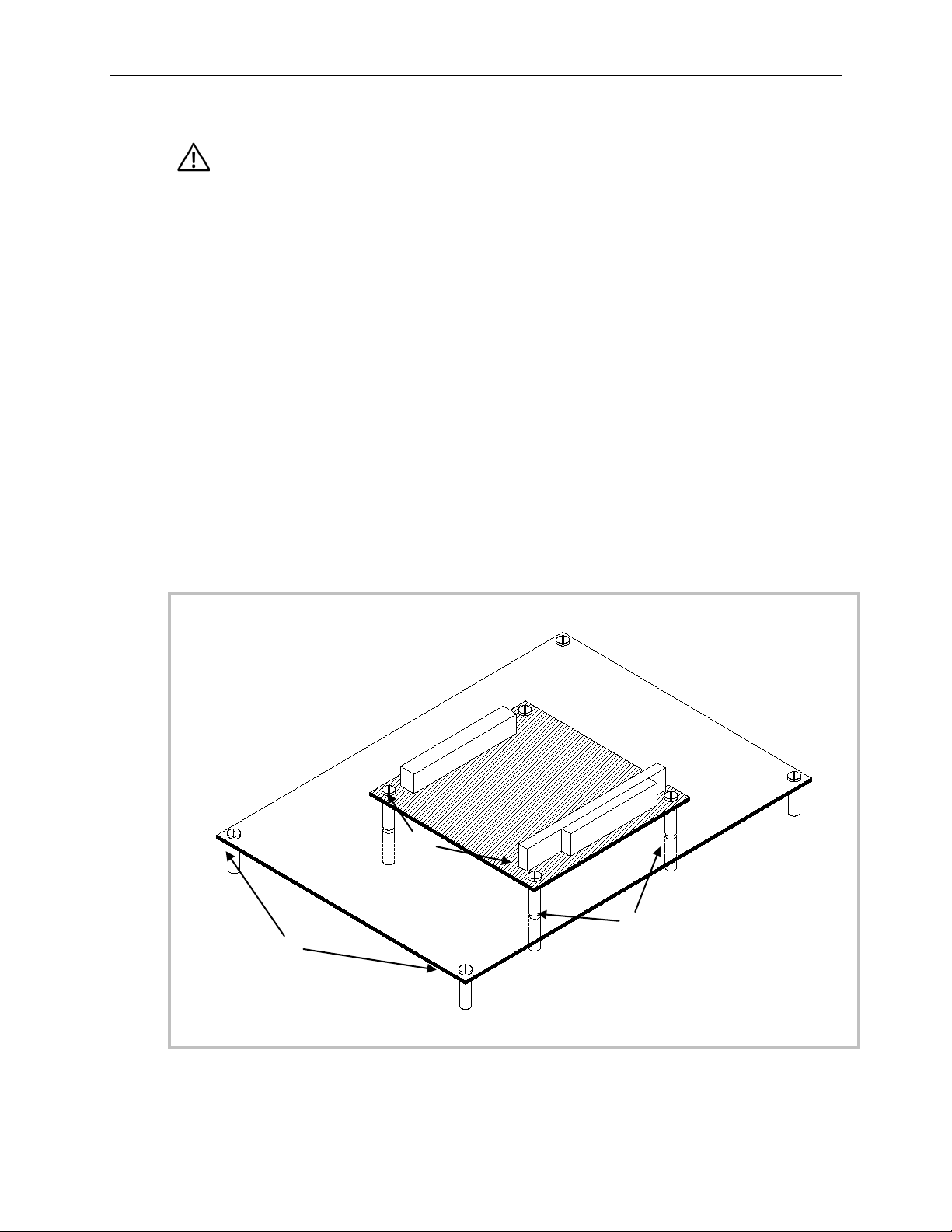

Figure 2. Attaching the EBX-18 to Earth Ground

EBX-18 Hardware Reference Manual 5

Technical Support



Note:

so can delay the processing of your return.

If you are unable to solve a problem after reading this manual, visit the EBX-18 product support
web page below. The support page provides links to component datasheets, device drivers, and
BIOS and PLD code updates.

The VersaTech KnowledgeBase contains a wealth of technical information about VersaLogic
products, along with product advisories.

Introduction

EBX-18 Support Page

VersaTech KnowledgeBase

If you have further questions, contact VersaLogic Technical Support at [phone].
VersaLogic support engineers are also available via e-mail at [e-mail].

REPAIR SERVICE

If your product requires service, you must obtain a Returned Material Authorization (RMA)
number by calling [phone].

Provide the following information:

 Your name, the name of your company, your phone number, and e-mail address
 The name of a technician or engineer that can be contacted if any questions arise
 Quantity of items being returned
 The model and serial number (barcode) of each item
 A detailed description of the problem
 Steps you have taken to resolve or recreate the problem
 The return shipping address

Warranty Repair All parts and labor charges are covered, including return shipping

charges for UPS Ground delivery to United States addresses.

Non-warranty Repair All non-warranty repairs are subject to diagnosis and labor charges,

parts charges and return shipping fees. Specify the shipping method
you prefer and provide a purchase order number for invoicing the
repair.

EBX-18 Hardware Reference Manual 6

Mark the RMA number clearly on the outside of the box before returning. Failure to do

2

Initial Configuration

The following components are recommended for a typical development system.

 EBX-18 single board computer
 ATX power supply with motherboard and disk drive connectors
 SVGA video monitor
 Keyboard with PS/2 or USB connector
 Mouse with PS/2 or USB connector
 SATA hard drive

The following VersaLogic cables and accessories are recommended.
 Video adapter cable (CBR-1201)

Configuration and Setup

 Utility I/O cable (CBR-5009A) and accompanying paddleboard (CBR-5009B)
 Power adapter cable (CBR-2022)
 VL-CBR-0702 or VL-CBR-0701 – SATA data cable
 VL-CBR-0401 – ATX to SATA power adapter

You will also need a Windows (or other OS) installation CD/DVD and corresponding drive.

Basic Setup

The following steps outline the procedure for setting up a typical development system. The
EBX-18 should be handled at an ESD workstation or while wearing a grounded antistatic wrist
strap.

Before you begin, unpack the EBX-18 and accessories. Verify that you received all the items
you ordered. Inspect the system visually for any damage that may have occurred in shipping.
Contact [e-mail] immediately if any items are damaged or missing.

Gather all the peripheral devices you plan to attach to the EBX-18 and their interface and power
cables.

It is recommended that you attach standoffs to the board now to stabilize the board and make it
easier to work with. (Refer to the section titled “Hardware Assembly” on page 11.)

1. Attach Power

EBX-18 Hardware Reference Manual 7

 Plug the power adapter cable CBR-2022 into connector J3. Attach the motherboard

connector of the ATX power supply to the adapter.

 Verify that the V10 jumper is selecting 5V (installed on pins 1 and 2). Refer to Table 3 on

page 15 and Figure 7 on page 16 for more information.

Configuration and Setup



If you intend to operate the EBX-18 under Windows XP or Windows XP Embedded, be sure to
use Service Pack 3 (SP3).

 To use the RTC Battery with the EBX-18, move the jumper on V13 from being stored on pin

1 to connecting pin 1 and pin 2. Refer to the section titled “Battery Saver Jumper” on page
18 for more information.

2. Attach Cables and Peripherals

 Plug the video adapter cable CBR-1201 into socket J6. Attach the video monitor (VGA

DB15) interface cable to the video adapter.

 If you are using a PS/2 keyboard or mouse, plug the CBR-5009A cable into socket J4. If

necessary, attach the CBR-5009B paddleboard to the cable. (The cable and board are shipped
attached.) Plug the keyboard and/or mouse into connector J4 of the paddleboard.

 If you are using a USB keyboard or mouse, plug them into any of the available USB ports

(J20, J21, or J22) of the EBX-18.

 Plug a USB CD/DVD-ROM drive into any of the available USB ports (J20, J21, or J22) of

the EBX-18. To avoid potential device delays and excessive power consumption through the
USB ports, use an external power supply for the USB CD-ROM drive.

 Plug the SATA data cable VL-CBR-0702 into the SATA connector (J16). Attach a SATA

hard drive to the other end of the cable.

 Attach the SATA power adapter cable VL-CBR-0401 to the ATX power supply and SATA

drive.

3. Review Configuration

 Before you power up the system, double check all the connections. Make sure all cables are

oriented correctly and that adequate power will be supplied to the EBX-18 and peripheral
devices.

4. Power On

 Turn on the ATX power supply and the video monitor. If the system is correctly configured,

a video signal should soon be present.

5. Change BIOS Setup program Settings

 Enter the BIOS Setup program by pressing <Delete> during the early boot cycle.
 Verify that the desired primary boot device is listed as such. Refer to Table 14 on page 28

for more information.

 Before saving the BIOS Setup program settings, insert the Windows (or other OS)

installation disk in the CD/DVD-ROM drive so it will be accessed when the system reboots.

 Press <F10> and write the new parameters to CMOS RAM. The system will reboot.

6. Install an Operating System

 Install the operating system according to the instructions provided by the operating system

manufacturer. (See Operating System Installation.)

Note:

EBX-18 Hardware Reference Manual 8

BIOS Setup Program



An operating system installed on a different type of computer is not guaranteed to work on the

each system. This restriction does not apply if you are producing multiple identical systems.



Integrator’s Note:

The Anaconda board has been tested extensively with Windows 7 and seems to operate reliably

required by the OS.

Refer to the BIOS Reference Manual (available on the EBX-18 Product Support Web Page) for
information on accessing and configuring settings in the BIOS Setup program. All BIOS menus,
submenus, and configuration options are described in the BIOS Reference Manual.

Operating System Installation

The standard PC architecture used on the EBX-18 makes the installation and use of most of the
standard x86 processor-based operating systems relatively simple. The operating systems listed
on the VersaLogic OS Compatibility Chart use the standard installation procedures provided by
the maker of the OS. Special optimized hardware drivers for a particular operating system, or a
link to the drivers, are available at the EBX-18 Product Support Web Page.

Note:

EBX-18. This is referred to as a “foreign” installation. A hard disk that was used to boot a
different computer cannot necessarily be moved to the EBX-18 and expected to boot. Even
when porting an OS image from one revision of the EBX-18 to another, performance might fail
or be impaired. For the best results, perform a fresh installation of the operating system on

Configuration and Setup

ACPI VERSION SETTING

The ACPI version will need to be configured in the BIOS Setup program as follows:

 For Windows 7, set the ACPI version to V3.0. (Windows 7 requires version 2.0 or later.)
 For Windows XP, set the ACPI version to V1.0 (Windows XP may function with version 2.0

but has not been fully tested.)

with the ACPI version set to V3.0. Other operating systems may have unique requirements for
setting the supported ACPI version. ACPI can be disabled in the BIOS Setup program if it is not

EBX-18 Hardware Reference Manual 9

3

Dimensions and Mounting

The EBX-18 complies with all EBX standards which provide for specific mounting hole and
PC/104-Plus stack locations as shown in Figure 3.

Physical Details

EBX-18 Hardware Reference Manual 10

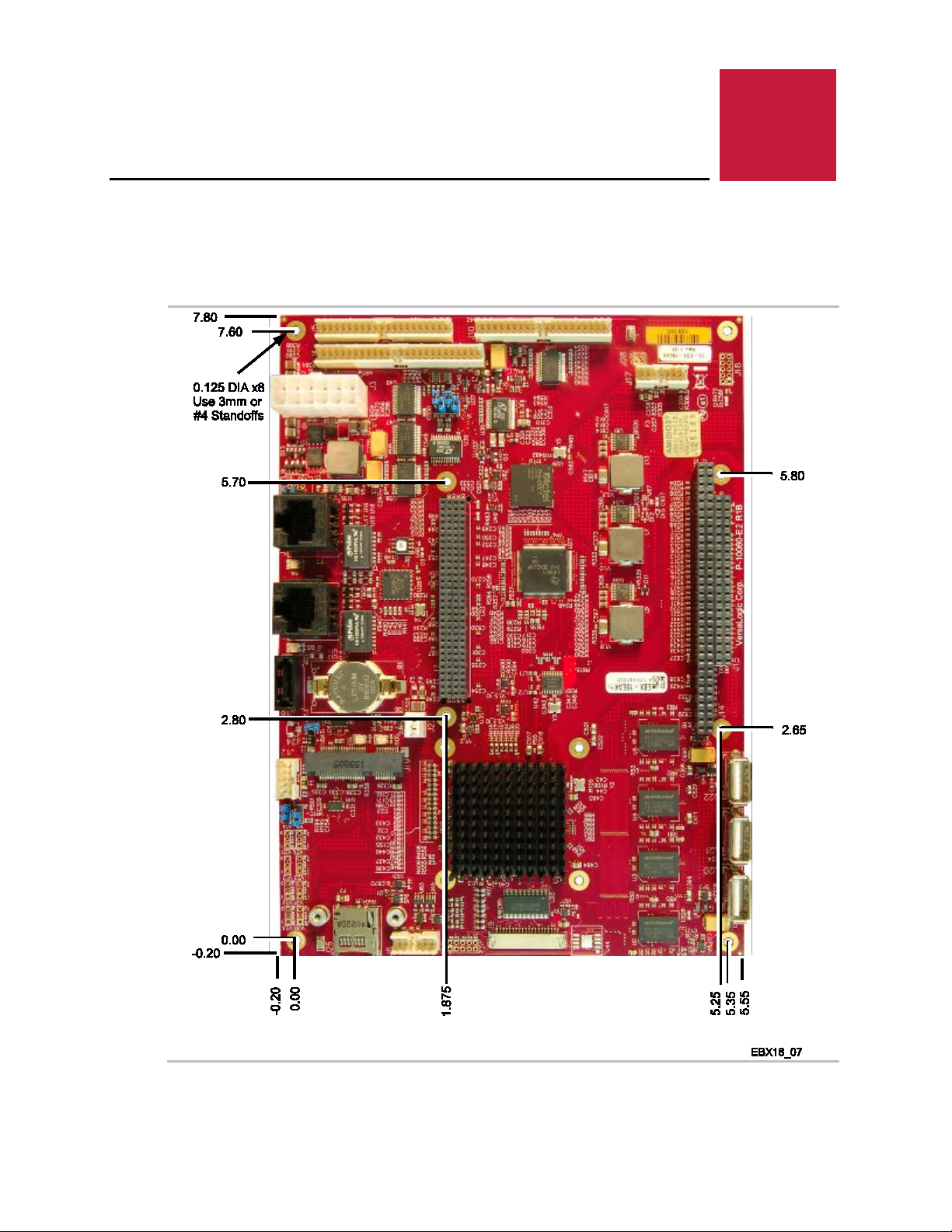

Figure 3. EBX-18 Dimensions and Mounting Holes

(Not to scale. All dimensions in inches.)

Physical Details

The EBX-18 must be support ed at all eig ht m ount ing points to prevent

not covered under the product warranty.



C

B

A

Connect the eight mounting holes to earth ground.
Refer to the section titled “

”

on page

CAUTION:

excessive flexing when expansion modules are attached and removed. Flex
damage caused by excessive force on an improperly mounted circuit boar d is

HARDWARE ASSEMBLY

The EBX-18 mounts on four hardware standoffs using the corner mounting holes (A). These
standoffs are secured to the underside of the circuit board using pan head screws.

Four additional standoffs (B) must be used under the circuit board to prevent excessive flexing
when expansion modules are mated and separated. These are secured with four male-female
standoffs (C), threaded from the top side, which also serve as mounting struts for the PC/104
stack.

The entire assembly can sit on a table top or be secured to a base plate. When bolting the unit
down, make sure to secure all eight standoffs (A and B) to the mounting surface to prevent
circuit board flexing.

An extractor tool is available (part number VL-HDW-201) to separate the PC/104 modules from
the stack.

Note: Standoffs and screws are available as part number VL-HDW-101.

Figure 4. Standoff Locations

EBX-18 Hardware Reference Manual 11

Earth Ground Requirement

5 for more information.

External Connectors

Ref.

Des.

Ref.

Des.

• Digital I/O

[CBR-4004 mating connect or]

SPX [CBR-1402 or CBR-1401
mating connector]

User I/O
[CBR-5009B mating connector]

VGA
[CBR-1201 mating connect or]

Analog inputs and Digital I/O
[CBR-4004 mating connect or]

EBX-18 CONNECTORS

Physical Details

Item

A J12

B J19 PCIe Minicard/mSATA L J17
C J23 Fan connector M J15 PC/104 (ISA)

D J16 SATA N J14 PC/104 (ISA)
E J1 Ethernet 0 O J22 USB2
F J7

G J2 Et hernet 1 Q J20 USB0

H J3 Power R J9 LVDS

I J4

J J5

EBX-18 Hardware Reference Manual 12

Description Item

External Ethernet LED
connector

PC/104-Plus (PCI)

K J10

P J21 USB1

S J6
T J26 microSD

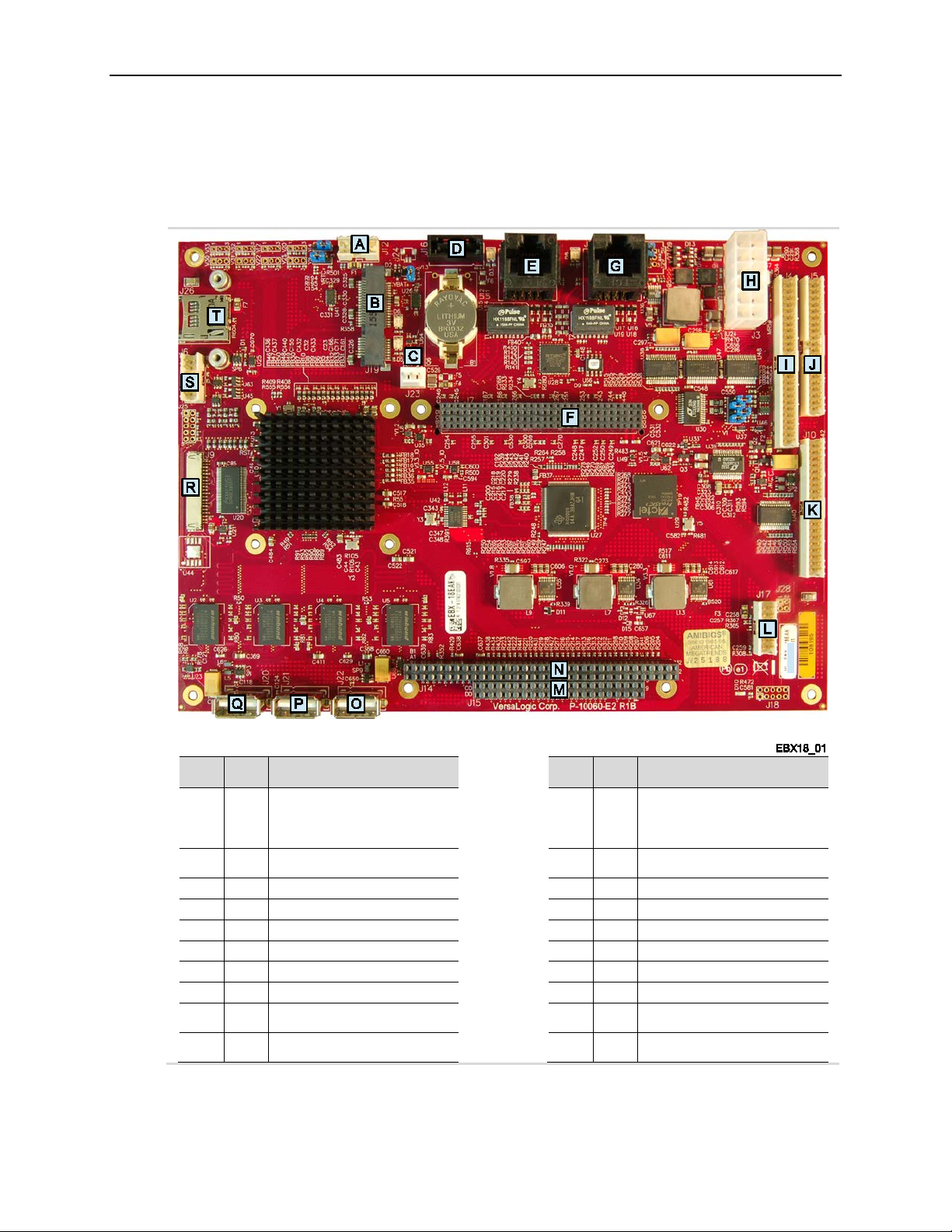

Figure 5. EBX-18 Connectors

Description

• USB3 and USB4 (Hubbed)

• 8254 Timer/Counter I/O)

Physical Details

Cable

(EBX compliant)

Molex 39-00-0059 (10 ea.)

cable

button, speaker

12” 2mm 40-pin to 40-pin
FCI 89947-712LF

15-pin HD D-Sub VGA

20” 24-bit LVDS 1mm

Connector

12” 2mm 40-pin to 40-pin
CBR-4004B paddleboard

20-inch SATA data,
power adapter

CBR-1401 or

CBR-1402

2mm 14-pin IDC, 2 or 4
SPX device cable

EBX-18 CONNECTOR FUNCTIONS AND INTERFACE CABLES

The following table notes the function of each connector, as well as mating connectors and
cables, and the page where a detailed pinout or further information is available.

Table 2: Connector Functions and Interface Cables

Connector Function Mating Connector

J1 Ethernet 0 RJ45 Crimp-on Plug — — 38
J2 Ethernet 1 RJ45 Crimp-on Plug — — 38

J3

J4

Main power input

COM 1-4, PLED,
PS/2 keyboard and
mouse, reset

Molex 39-01-2100

FCI 89361-350LF CBR-5009A

Transition

CBR-2022

Cable Description Page

6” ATX to EPIC power

18” 2mm 50-pin to 50-pin
IDC to CBR-5009B
paddleboard

16

51

J5

J6 VGA Video Output
J7

J9 LVDS Hirose DF19G-20P-1H(54)

J10

J14, J15 PC/104 AMP 1375795-2 — — —

J16 SATA Standard SATA

J17 SPX I/O FCI 89361714LF
J20 USB0 Standard USB Series A — — 33

J21 USB1 Standard USB Series A — — 33
J22 USB2 Standard USB Series A — — 33
J23 Fan c onnec tor Molex 22-01-3037 — — 40
J26 microSD — — — —

Analog I/O,
Digital I/O

PC-104-Plus

Digital I/O, USB 3,
USB4

FCI 89361-340LF CBR-4004A

FCI 89361-712LF or

AMP 1375799-1 — — —

FCI 89361-340LF CBR-4004A

CBR-1201

CBR-2015

or

CBR-2016

VL-CBR-0702;
VL-CBR-0401

IDC to screw terminal on
CBR-4004B paddleboard

1’ 12-pin 2mm IDC to

Hirose Cable
or

20” 18-bit LVDS FPD
Cable with JAE

IDC to screw terminal on

latching; ATX to SATA

24

35

35

24

—

45

EBX-18 Hardware Reference Manual 13

Jumper Blocks

JUMPERS AS-SHIPPED CONFIGURATION

Physical Details

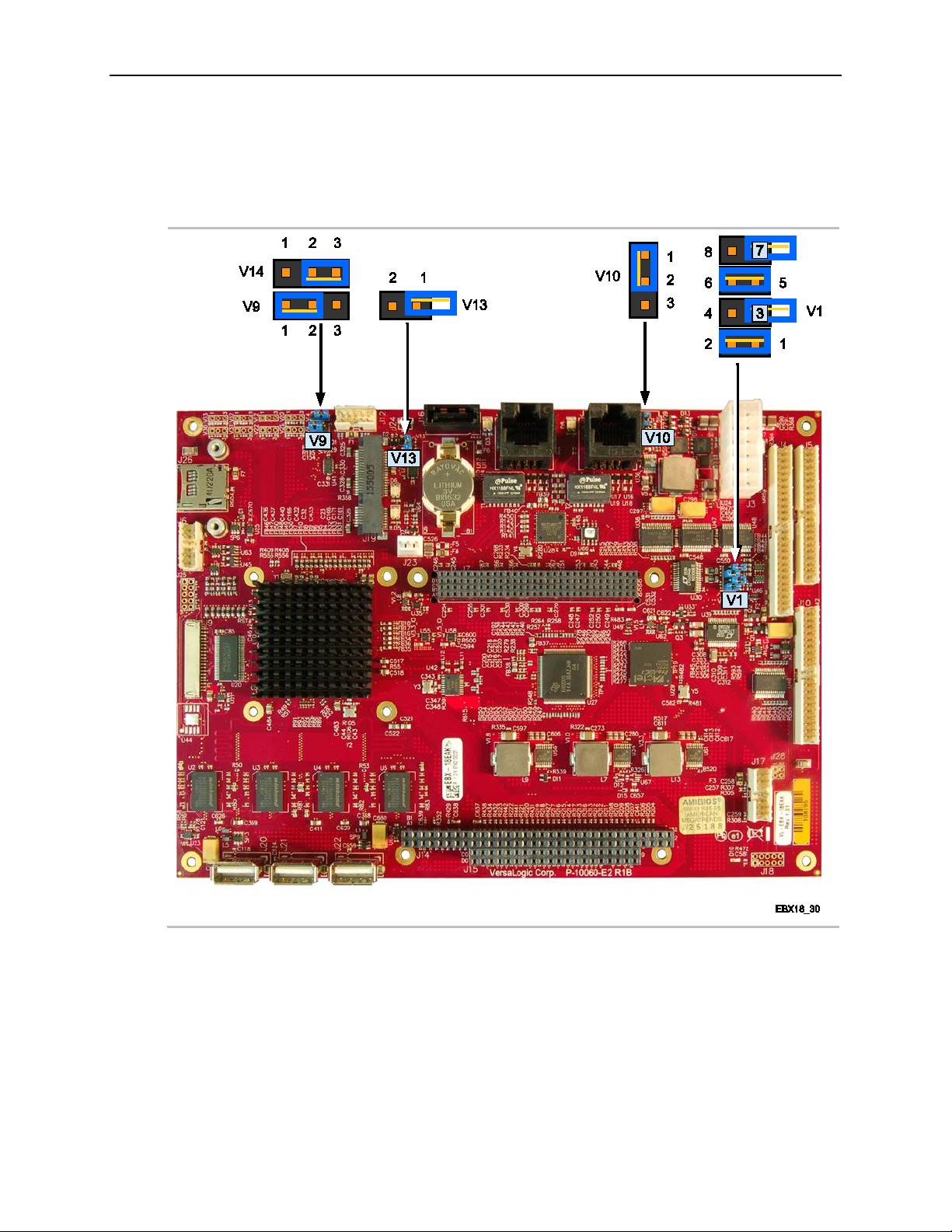

Figure 6. Jumper Block Locations

EBX-18 Hardware Reference Manual 14

Physical Details

• Out – RS-422 mode

• Out – COM3 End-point termination disabled (default)

• Out – RS-422 mode

• Out – COM4 End point termination disabled (default)

• 2-3 – Clear CMOS RAM

• 2-3 – Power connector uses V_WIDE adapter

• 1-2 – Battery is connected

• 2-3 – Battery is installed (default)

JUMPER SUMMARY

Table 3: Jumper Summary

Jumper Block Description Reference

COM3 Mode

V1 [1-2]

V1 [3-4]

V1 [5-6]

V1 [7-8]

• In – RS-232/RS-485 mode (default)

COM3 Rx End-point termination

• In – COM3 End-point termination enabled

COM4 Mode

• In – RS-232/RS-485 mode (default)

COM4 Rx End-point termination

• In – COM4 End-point termination enabled

Table 16, page 30

Table 16, page 30

Table 16, page 30

Table 16, page 30

V9

CMOS RAM Clear

• 1-2 – Normal mode (default)

Clearing CMOS RAM,
page 20

Power Input Select

V10

V13

V14

• 1-2 – Power connector uses V5_ATX adapter (default)

Battery Saver

• 1 only (or jumper is removed) (default)

No Battery Mode

• 1-2 – Battery has been removed

Power Delivery, page 16

Battery Saver Jumper,
page 18

Operating The Board
without a Battery, page 19

EBX-18 Hardware Reference Manual 15

V10 Jumper

Setting

Minimum off time for power cycling

(measured at room temperature)

V10 Jumper

Setting

Minimum off time for power cycling

(measured at room temperature)

+9V - +15V

(+12V nominal)



Integrator’s Notes:

 The V5_ATX power adapter is intended for use with ATX-compatible power supplies .



more information.

6

+V

IN

[V_WIDE]

9 – 15V

12

+V

IN

[V_WIDE]

9 – 15V

5

+3.3 V [V3P3_ATX]

±5%

11

GND

—

4

+12 V [V12_ATX]

±5%

10

-12 V [V12N_ATX]

±5%

3

GND

—

9

+5 V [V5_ATX]

±5%

2

GND

—

8

+5 V [V5_ATX]

±5%

1

PS_ON [GND]

—

7

+5VSTBY [NC]

Note: Signal names i n brackets (such as [V 5_A T X]) represent schematic signal names

4

Power Delivery

The EBX-18 board has two power delivery options, as described below.

Option 1 (Default)

Input Voltage Power Connector

+5V ±5% V5_ATX (10-pin, 2 x 5) Pin 1 to Pin 2 5 seconds

Option 2

Input Voltage Power Connector

System Features

V_WIDE (12-pin, 2 x 6) Pin 2 to Pin 3 2 seconds

The V_WIDE power option disallows use of the expansion power rails for PC/104-Plus
boards (except for the board’s +5V/GND rails). Contact VersaLogic for power adapters and

POWER CONNECTOR

Table 4: J3 Power Connector

Pin Signal Tolerance

Pin Signal Tolerance

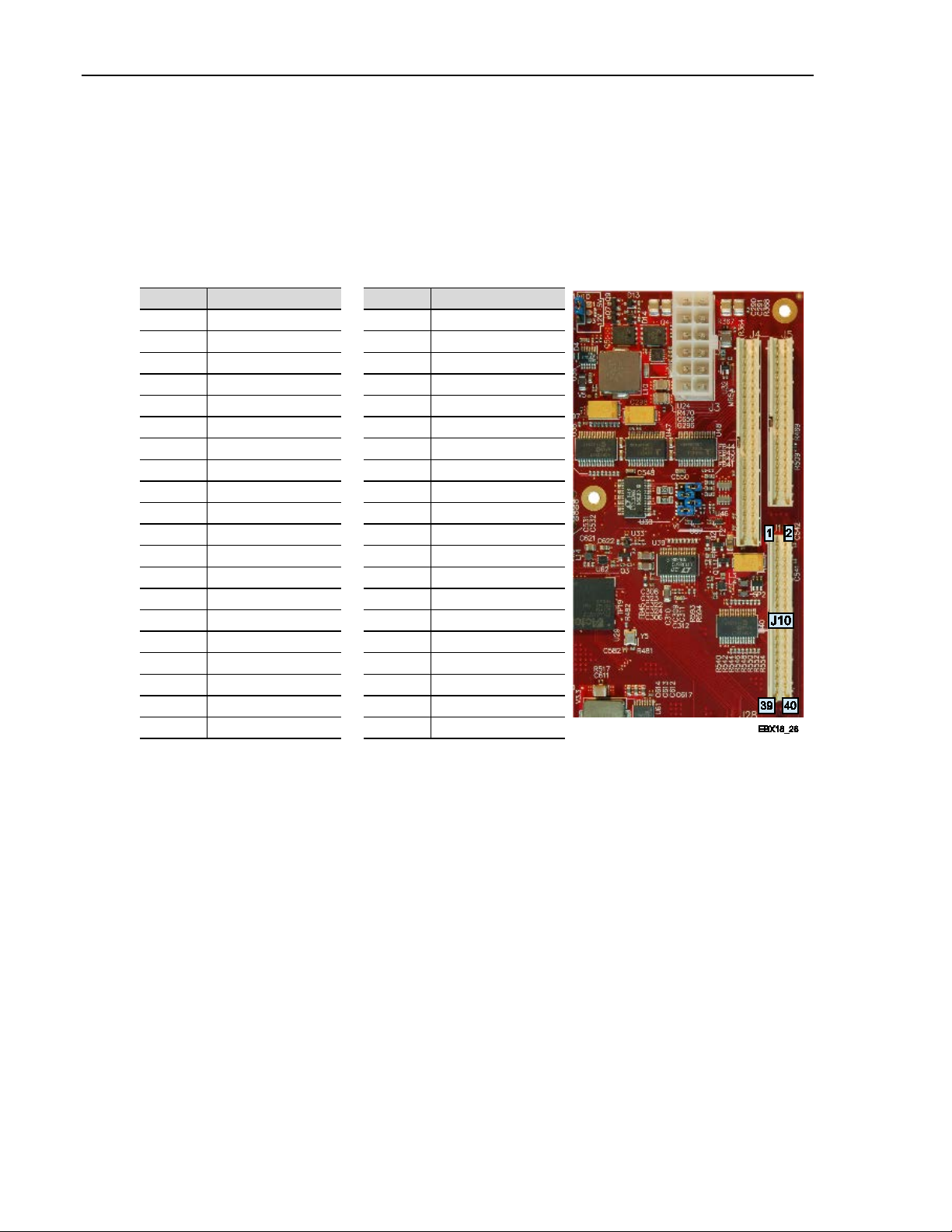

Figure 7. Location of Jumper V10 and J3 Power Connector

EBX-18 Hardware Reference Manual 16

System Features

pins and all ground pins to prevent excess voltage drop.



The +3.3VDC, +12VDC and -12VDC inputs on the main power connector are only required for
PC/104-Plus and PC/104 expansion modules that require these voltages.

Voltage

Signal Name

Maximum Expansion Current

CAUTION:

To prevent severe and possibly irreparable damage to the system, it is cr it ical
that the power connectors are wired correctly. Make sure to use bot h + 5VDC

Note:

EXPANSION CURRENT LIMITS

Table 5 lists the maximum current available for expansion for the power supply voltages.

Table 5: Expansion Current Limits

+V

(9 – 15V) V_WIDE 8 A

IN

+3.3 V V3P3_ATX 6 A

+5 V V5_ATX 8 A

+12 V V12_ATX 1 A

-12 V V12N_ATX 0.5 A

EBX-18 Hardware Reference Manual 17

Lithium Battery

To prevent shorting, premat ur e failure or damage to the Lithium bat t er y, do not

the battery in fire. Dispose of used batteries promptly.

Battery is disconnected

(not discharging)

Nominal battery voltage is 3.0V. If the voltage drops below 2.7V, contact the factory for a
replacement. The life expectancy under normal use is approximately five years.

CAUTION:

place the board on a conductive surface such as met al, black conductive foam
or the outside surface of a m etalized ESD protective pouch. The Lithium
battery may explode if mistreated. Do not recharge, disassemble, or dispose of

BATTERY SAVER JUMPER

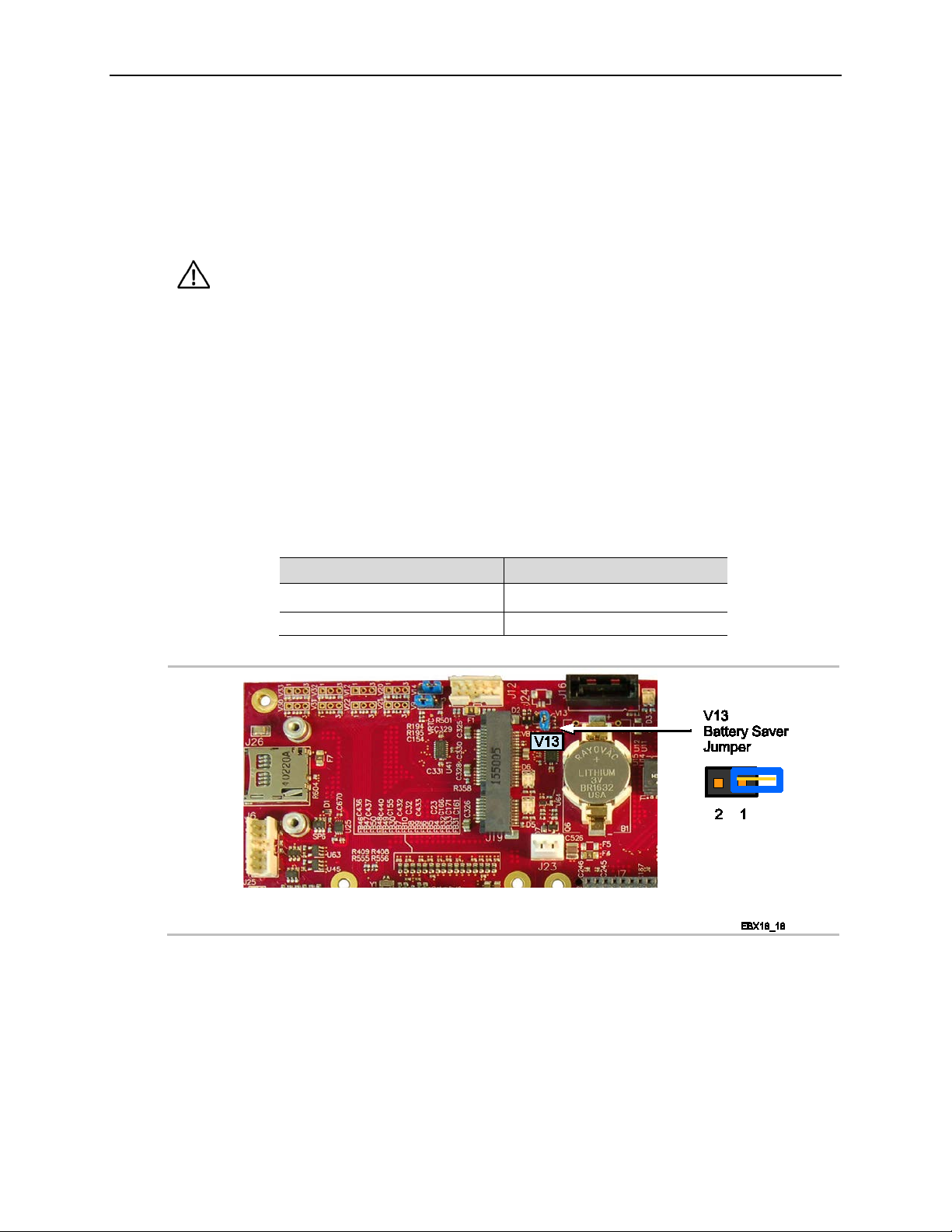

The EBX-18 includes a “Battery Saver” jumper at location V13. This jumper keeps the Lithium
battery from discharging (keeping it disconnected) before the EBX-18 board is in the customer’s
hands and ready to be used. The default configuration of the jumper is a no-connect position
(placed only on pin 1). Figure 8 shows the location of the V13 Battery Saver Jumper.

System Features

Table 6: Battery Saver Jumper Truth Table

V13 Jumper Position Condition

Pin 1 only (default)

Pin 1-2 Battery is connected

Figure 8. Location of the V13 Battery Saver Jumper

EBX-18 Hardware Reference Manual 18

System Features

OPERATING THE BOARD WITHOUT A BATTERY

The EBX-18 enables you to operate the board without a battery for applications when no battery
is required. Note that using this setting will delay the board boot after power on for
approximately 5 seconds. This is an application requirement to give the RTC crystal time to start
up.

Table 7: No Battery M ode Jum per Truth Table

V14 Jumper Position Condition

Pin 2-3 (default) Battery is installed and will be used

Pin 1-2 Battery has been removed

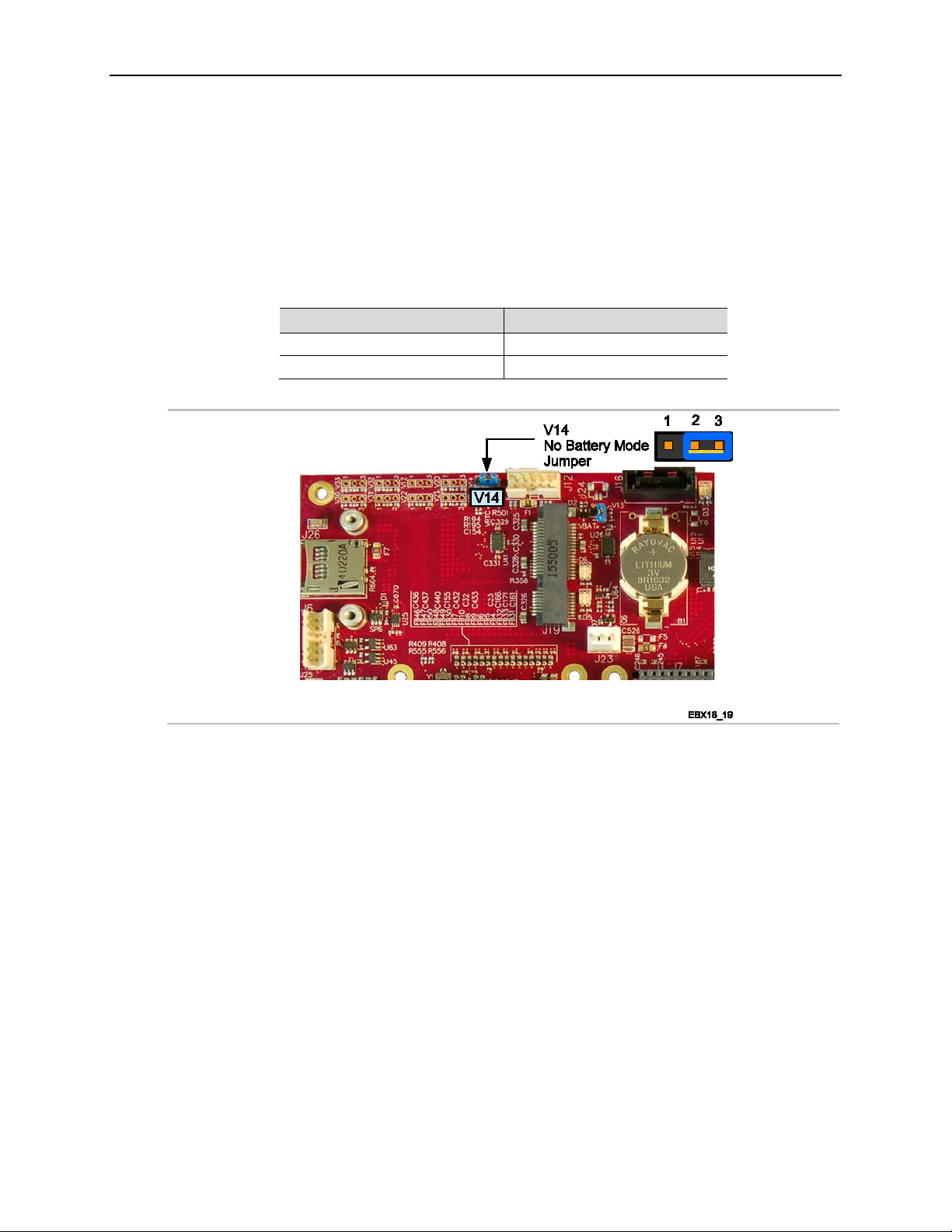

Figure 9. Location of the V14 No Battery Mode Jumper

To operate the board without the Lithium battery, perform the following steps:

1. Power down the EBX-18.

2. Remove the battery connection to the SoC RTC well. This is done by removing the

battery from its socket, or by removing the V13 jumper leaving pins 1 and 2 unconnected
if you want to keep the battery with the product. (You can store the V13 jumper in its
default position connected only to pin 1.)

3. Set the V14 jumper to pins 1-2. (Always make sure the battery is disconnected when this

jumper setting is used or it will drain the battery and delay booting of the board.)

4. Power up the EBX-18. The board takes approximately five seconds to begin the boot

sequence after the power switch is turned on when the battery is not in use. This delay is
necessary for the RTC crystal operation to stabilize before the board reset is released.

EBX-18 Hardware Reference Manual 19

CPU

DDR2 memory controller

Peripheral controllers with DMA and

The DMP Electronics Vortex86DX2 System-On-a-Chip (SoC) contains a 32-bit x86 (486DX
enhanced) microprocessor that also integrates the following:



 Embedded 2MB BIOS flash memory
 PCIe bus running at 2.5 GHz
 ISA bus interface
 I2C bus interface
 SPI bus interface
 Real Time Clock
 PS/2 keyboard and mouse interface

System RAM

System Features



interrupt timer/counter

 10/100 Ethernet MAC Controller
 GPU
 COM ports (FIFO UART)
 USB 2.0 host controller
 IDE controller (SD and SATA)
 Watchdog timers

The EBX-18 is equipped with 512 MB, 1 GB, or 2 GB of 1.8 V DDR2 memory soldered to the
board.

CMOS RAM

CLEARING CMOS RAM

To clear the contents of CMOS RAM and the Real-Time Clock:

1. Power off the EBX-18.

2. Remove the V9 jumper from its default position (connecting pins 1-2) and install it on pins

2-3.

3. Leave the jumper in place for at least four seconds.

Table 8: Memory Configurations of EBX-18 Board Models

Board Model Installed Memory Size Memo r y Clock

EBX-18SAK — Standard temperature 512 MB 366 MHz
EBX-18SBK — Standard temperature 1 GB 366 MHz
EBX-18SCK — Standard temperature 2 GB 366 MHz
EBX-18EAK — Extended temperature 512 MB 300 MHz
EBX-18EBK — Extended temperature 1 GB 300 MHz

EBX-18ECK — Extended temperature 2 GB 300 MHz

4. Move the jumper to back to its default position, connecting pins 1-2.

5. Power on the EBX-18.

EBX-18 Hardware Reference Manual 20

Figure 10. Location of the V9 Clear CMOS Jumper



Integrator’s Note:

If the BIOS Setup default settings make the system unbootable and prevent the user from
entering the BIOS Setup program, the EBX-18 needs to be serviced by the factory.

BIOS Setup Defaults

The EBX-18 permits users to modify the BIOS Setup program defaults.

System Features

Refer to the EBX-18 BIOS Reference Manual (available on the EBX-18 Product Support Web

Page) for information on accessing and configuring settings in the BIOS Setup program. All

BIOS menus, submenus, and configuration options are described in the EBX-18 BIOS Reference

Manual.

Real-time Clock

The EBX-18 features a battery-backed real-time clock/calendar. Under normal battery use
conditions, the clock maintains accurate timekeeping functions when the board is powered off.

ETTING THE CLOCK

S

The BIOS Setup program can be used to set the time/date of the real-time clock.

EBX-18 Hardware Reference Manual 21

5

Utility I/O Connectors

Several of the interfaces on the EBX-18 are grouped together and made accessible through utility
I/O connectors J4, J5, and J10. Cables and boards are available from VersaLogic that provide
discrete connectors for each of the interfaces; however, you may wish to create custom cables
that enable access to only the interfaces required by your application.

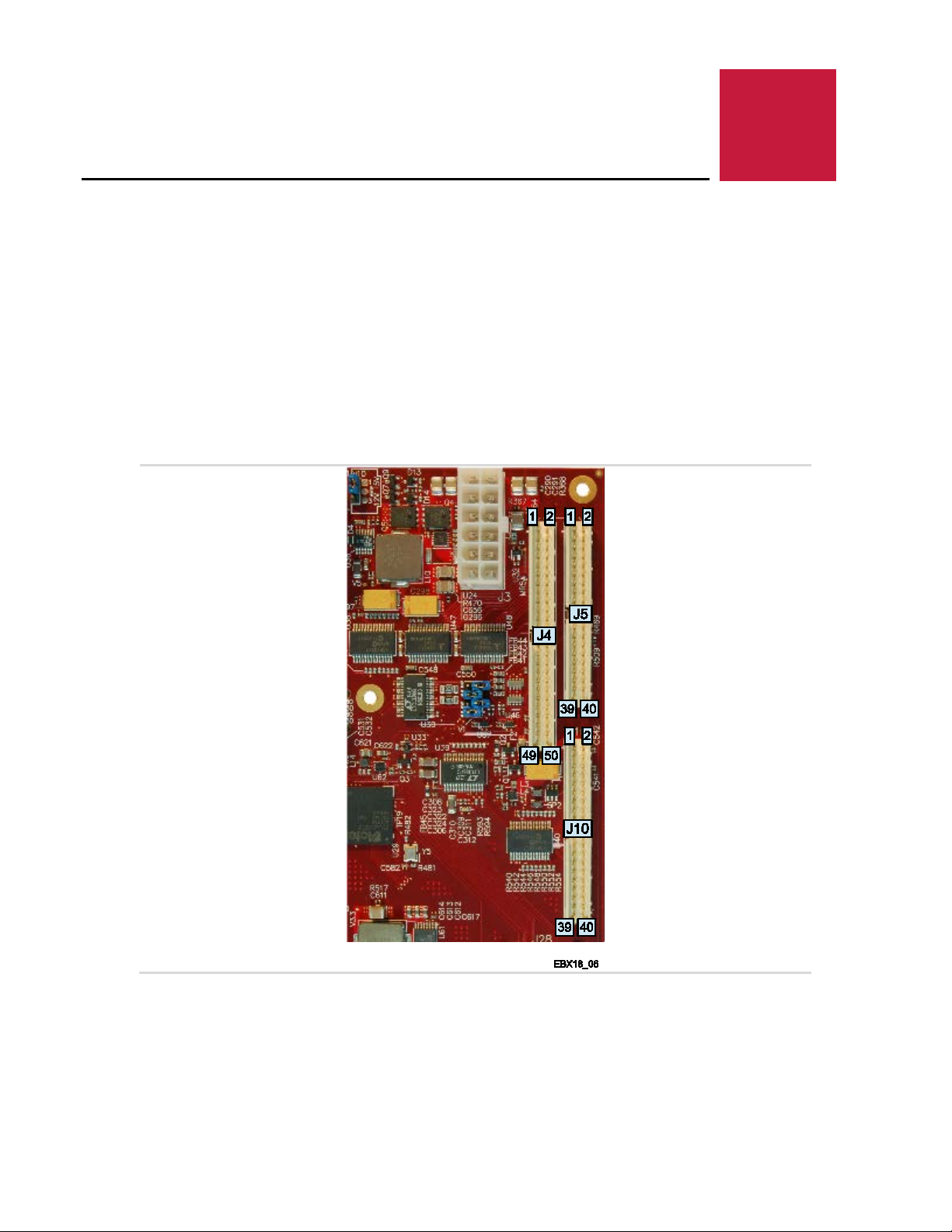

 Figure 11 shows the location of the J4, J5, and J10 connectors.
 Table 9 on page 23 provides the pinout and pin orientation for connector J4.
 Table 10 on page 24 provides the pinout and pin orientation for connector J5.
 Table 11 on page 25 provides the pinout and pin orientation for connector J10.

Interfaces and Connectors

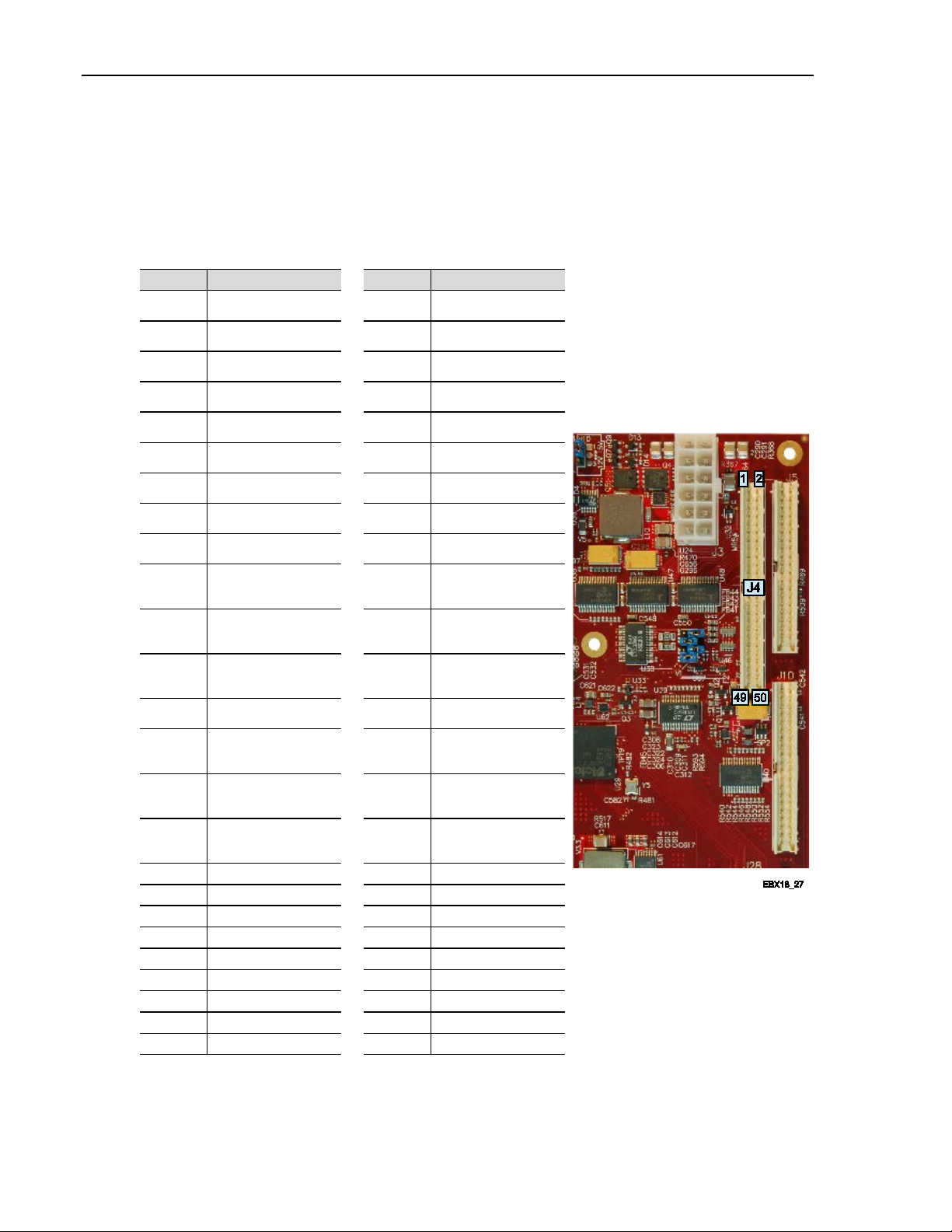

Figure 11. Location of Utility I/O Connectors J4/J5/J10

EBX-18 Hardware Reference Manual 22

Interfaces and Connectors

Pin

Signal

Pin

Signal

Data Carrier Detect

(COM1)

2 Data Set Ready

(COM1)

Receive Data

(COM1)

4 Request to Send

(COM1)

Transmit Data

(COM1)

6 Clear to Send

(COM1)

Data Terminal Ready

(COM1)

8 Ring Indicator

(COM1)

Ground

(COM1)

Data Carrier Detect

(COM2)

Data Set Ready

(COM2)

Receive Data

(COM2)

Request to Send

(COM2)

Transmit Data

(COM2)

Clear to Send

(COM2)

Data Terminal Ready

(COM2)

Ring Indicator

(COM2)

Ground

(COM2)

RTS [RS-232]/

(COM3)

TXD [RS-232]/

(COM3)

RXD [RS-232]/

(COM3)

CTS [RS-232]/

(COM3)

Ground

(COM3)

Ground

(COM4)

RTS [RS-232]/

(COM4)

TXD [RS-232]/

(COM4)

RXD [RS-232]

(COM4)

CTS [RS-232]/

(COM4)

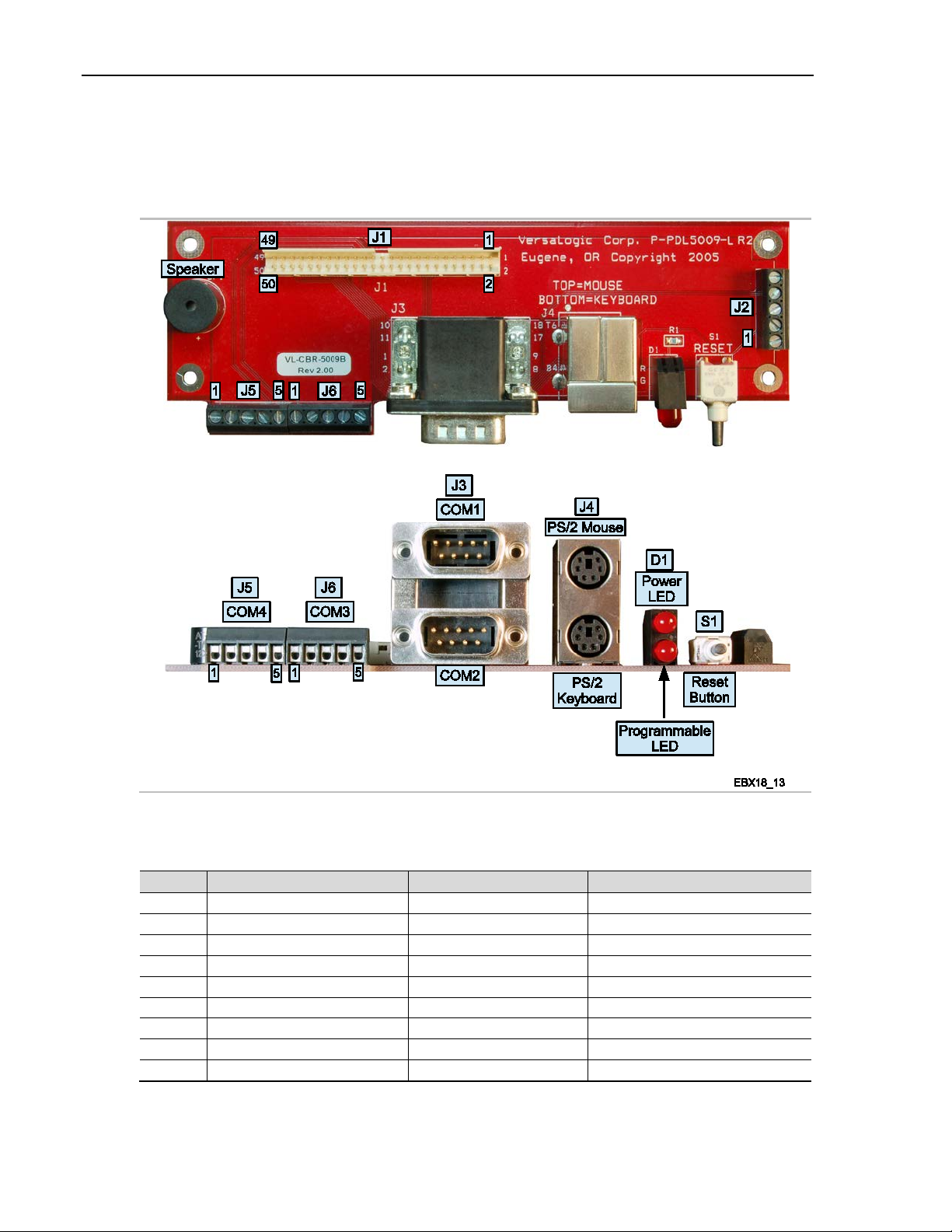

J4 I/O CONNECTOR

The 50-pin J4 I/O connector incorporates the COM ports, PS/2 keyboard and mouse, the push­button reset, and speaker interfaces. Table 9 provides the pinout and shows the pin orientation of
connector.

Table 9: J4 I/O Connector Pinout and Pin Orientation

1
3
5
7

9
11
13
15
17

19

21

23

25

27

29

31

33 +5V (P rot ected)
35 Ground
37 Pushbutton Reset
39 Ground
41 Ground
43 +5V (P rot ected)
45 Ground
47 +5V (P rot ected)
49 +5V (P rot ected)

Ground

(COM3)

TxD- [RS-422/485]

RxD- [RS-422/485]

TxD+ [RS-422/485]

Ground

(COM4)

RxD+ [RS-422/485]

10
12
14
16
18

20

22

24

26

28

30

32

34 Mouse Data
36 Mouse Clock
38 Ground
40 NC
42 NC
44 Keyboard Data
46 Keyboard Cloc k
48 Program mable LED
50 Speaker Drive

TxD+ [RS-422/485]

Ground

(COM3)

RxD+ [RS-422/485]

TxD- [RS-422/485]

/RxD- [RS-422/485]

Ground

(COM4)

EBX-18 Hardware Reference manual 23

Interfaces and Connectors

Pin

Signal

Pin

Signal

1

NC

2

NC 3 NC

4

NC 5 GND

6

NC 7 NC

8

NC 9 NC

10

GND

11

Digital I/O 1

12

Digital I/O 2

13

Digital I/O 3

14

Digital I/O 4

15

GND

16

Digital I/O 5

17

Digital I/O 6

18

Digital I/O 7

19

Digital I/O 8

20

GND

21

Digital I/O 9

22

Digital I/O 10

23

Digital I/O 11

24

Digital I/O 12

25

GND

26

Digital I/O 13

27

Digital I/O 14

28

Digital I/O 15

29

Digital I/O 16

30

GND

31

ADCH1

32

ADCH2

33

ADCH3

34

ADCH4

35

ADGND

36

ADCH5

37

ADCH6

38

ADCH7

39

ADCH8

40

ADGND

J5 I/O CONNECTOR

The 40-pin J5 I/O connector incorporates 16 digital I/O channels (1-16), and eight analog input
channels. Table 10 provides the pinout and shows the pin orientation of connector.

Table 10: J5 I/O Connector Pinout and Pin Orientation

EBX-18 Hardware Reference manual 24

Interfaces and Connectors

Pin

Signal

Pin

Signal

1

GND

2

USBP3PWR

3

USBP3+R

4

USBP3-R

5

GND

6

USBP4PWR

7

USBP4+R

8

USBP4-R

9

GND

10

GND

11

Digital I/O 17

12

Digital I/O 18

13

Digital I/O 19

14

Digital I/O 20

15

GND

16

Digital I/O 21

17

Digital I/O 22

18

Digital I/O 23

19

Digital I/O 24

20

GND

21

Digital I/O 25

22

Digital I/O 26

23

Digital I/O 27

24

Digital I/O 28

25

GND

26

Digital I/O 29

27

Digital I/O 30

28

Digital I/O 31

29

Digital I/O 32

30

GND

31

OCTC5

32

GCTC3

33

GCTC4

34

GCTC5

35

GND

36

OCTC3

37

ICTC3

38

OCTC4

39

ICTC4

40

GND

J10 I/O CONNECTOR

The 40-pin J10 I/O connector incorporates the hubbed USB3 and USB4 interfaces, 16 digital I/O
channels (17-32), and the 8254 timer I/O signals. Table 11 provides the pinout and shows the pin
orientation of connector.

Table 11: J10 I/O Connector Pinout and Pin Orientation

SATA

The EBX-18 provides a 1.5 Gbits/s SATA port (J16). Power to the SATA drive is usually
provided by the ATX power supply. Note that the standard SATA drive power connector is
different from the typical 4-pin Molex connector used on IDE drives. Most current ATX power
supplies provide SATA connectors, and many SATA drives provide both types of power
connectors. If the power supply you are using does not provide SATA connectors, adapters are
available.

EBX-18 Hardware Reference manual 25

SATA Pin Signal Name Function

1

GND

Ground

2

TX+

Transmit +

3

TX-

Transmit -

4

GND

Ground

5

RX-

Receive -

6

RX+

Receive +

7

GND

Ground

J19

Pin

PCIe Mini Card

Signal Name

PCIe Mini Card

Function

mSATA

Signal Name

mSATA

Function

1 WAKE#

Wake Reserved

Not connected

2 3.3VAUX

3.3V auxiliary source

+3.3V

3.3V source

3 NC

Not connected

Reserved

Not connected

4 GND

Ground GND

Ground

5 NC

Not connected

Reserved

Not connected

6 1.5V

1.5V power

+1.5V

1.5V power

7 NC

Not connected

Reserved

Not connected

8 NC

Not connected

Reserved

Not connected

9 GND

Ground GND

Ground

10 NC

Not connected

Reserved

Not connected

11 REFCLK-

Reference clock input –

Reserved

Not connected

12 NC

Not connected

Reserved

Not connected

13 REFCLK+

Reference clock input +

Reserved

Not connected

14 NC

Not connected

Reserved

Not connected

15 GND

Ground GND

Ground

16 NC

Not connected

Reserved

Not connected

17 NC

Not connected

Reserved

Not connected

18 GND

Ground GND

Ground

19 NC

Not connected

Reserved

Not connected

20 W_DISABLE#

Wireless disable

Reserved

Not connected

21 GND

Ground GND

Ground

22 PERST#

Card reset

Reserved

Not connected

23 PERn0

PCIe receive –

+B

Host receiver diff. pair +

PCIe Mini Card / mSATA

The socket at location J19 accepts a full-height PCI Express Mini Card or an mSATA module.
The PCIe Mini Card interface includes one PCIe x1 lane, one hubbed USB 2.0 channel, and the

SMBus interface. The socket is compatible with plug-in Wi-Fi modems, GPS receivers, Flash
data storage, and other cards for added flexibility. For more information on PCIe Mini Cards
offered by VersaLogic, contact

To secure a Mini Card or mSATA module to the on-board standoffs, use two M2.5 x 6mm pan
head Philips nylon screws. These screws are available in quantities of 10 in the VL-HDW-108
hardware kit from VersaLogic.

[e-mail].

Interfaces and Connectors

Table 12: SATA Port Pinout

Table 13: PCIe Mini Card / mSATA Pinout

EBX-18 Hardware Reference manual 26

Interfaces and Connectors

Pin

Signal Name

Function

Signal Name

Function

24 3.3VAUX

3.3V auxiliary source

+3.3V

3.3V source

25 PERp0

PCIe receive +

-B

Host receiver diff. pair –

26 GND

Ground GND

Ground

27 GND

Ground GND

Ground

28 1.5V

1.5V power

+1.5V

1.5V power

29 GND

Ground GND

Ground

30 SMB_CLK

SMBus clock

Two Wire I/F

Two wire I/F clock

31 PETn0

PCIe transmit –

-A

Host transmitter diff. pair –

32 SMB_DATA

SMBus data

Two Wire I/F

Two wire I/F data

33 PETp0

PCIe transmit +

+A

Host transmitter diff. pair +

34 GND

Ground GND

Ground

35 GND

Ground GND

Ground

36 USB_D-

USB data –

Reserved

Not connected

37 GND

Ground GND

Ground

38 USB_D+

USB data +

Reserved

Not connected

39 3.3VAUX

3.3V auxiliary source

+3.3V

3.3V source

40 GND

Ground GND

Ground

41 3.3VAUX

3.3V auxiliary source

+3.3V

3.3V source

42 LED_WWAN#

Wireless WAN LED

Reserved

Not connected

(Note 1)

(Note 2)

44 LED_WLAN#

Wireless LAN LED

Reserved

Not connected

45 NC

Not connected

Vendor

Not connected

46 LED_WPAN#

Wireless PAN LED

Reserved

Not connected

47 NC

Not connected

Vendor

Not connected

48 1.5V

1.5V power

+1.5V

1.5V power

49 Reserved

Reserved

DA/DSS

Device activity (Note 3)

50 GND

Ground GND

Ground

51 Reserved

Reserved GND

Ground (Note 4)

52 3.3VAUX

3.3V auxiliary source

+3.3V

3.3V source

Notes:

1. This pin is not grounded on the EBX-18 since it can be used to detect the presence of an mSATA module
pull-down enabled in the EBX-18 FPGA to keep the SATA channel mux from switching when J19 is empty.

2. This pin is not grounded on the EBX-18 to make it available for mS A T A module detection.

Figure 12). This LED lights with mSATA disk activity, if supported by the mSATA module.

4. Some PCIe modul es use this signal as a sec ond Mini Card wireless disable input. On the EBX-18, this signal is
used as the default indic ator for mSATA versus P CIe Mini Card detection.

J19

43

PCIe Mini Card

GND

PCIe Mini Card

mSATA detect

mSATA

GND/NC

mSATA

Ground/not connected

versus a PCIe Mini Card. Grounding this pi n i s available as an option on custom boards, but this pin already has a

3. This signal drives the bl ue LE D activity indicator at location D10 in the lower right corner of the board (refer to

MSATA ACTIVITY LED

Figure 12 shows the location (D10) of the mSATA activity blue LED. This LED indicates
activity on the mSATA interface. Not all mSATA drives provide this disk activity signal. Note
that the FPGA register bit for the DEBUG_LED needs to be cleared (set to 0) in order for this
signal to reflect the MSATA_DAS signal from the mSATA interface. Until that is done, it
reflects the status of the FPGA programming (set to 1 when the FPGA is programmed and reset
properly). Refer to the EBX-18 Programmer’s Reference Manual (available on the EBX-18

Product Support Web Page) for information on FPGA registers.

EBX-18 Hardware Reference manual 27

Interfaces and Connectors



Note:

attached to the J16 SATA connector.

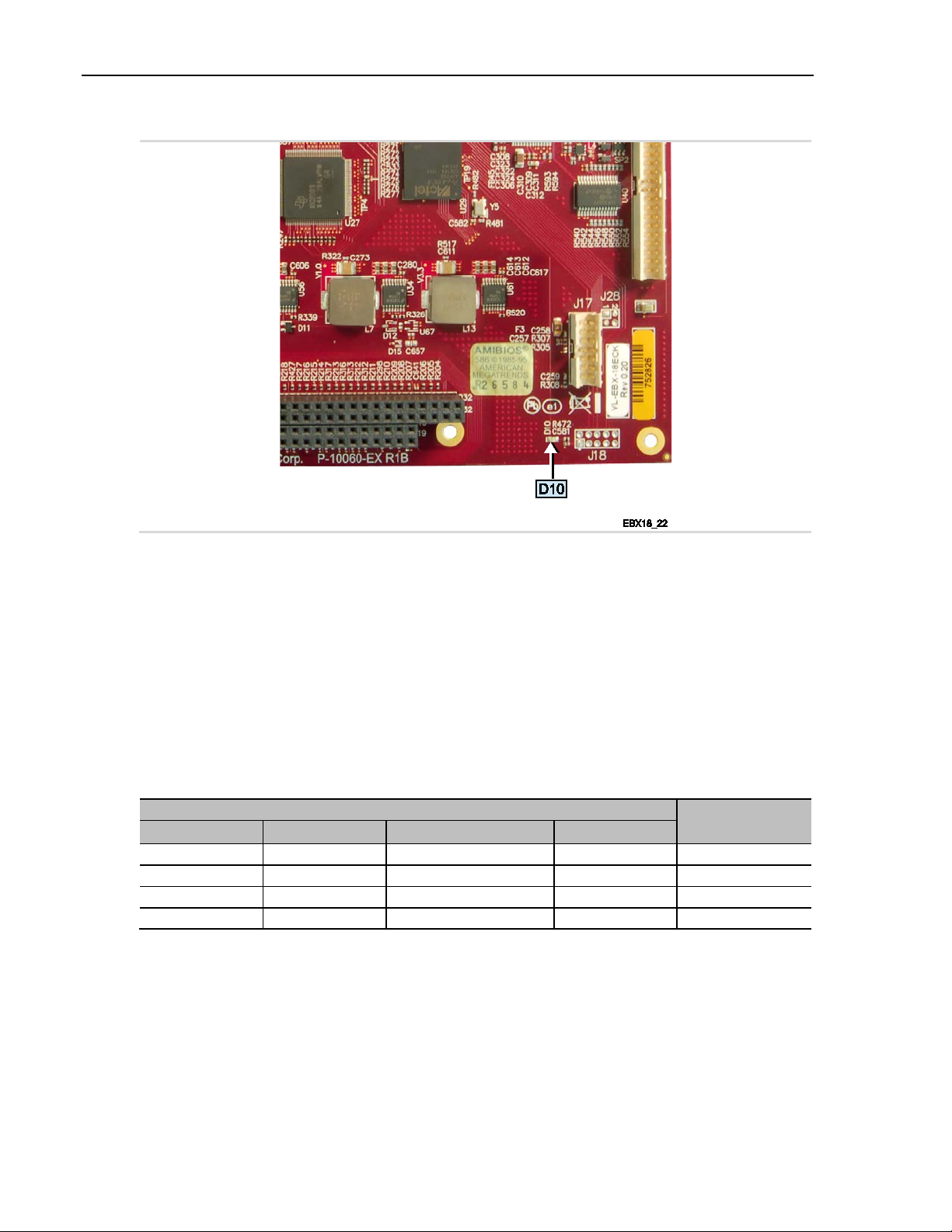

Figure 12. Location of the mSATA Activity LED

BOOTING FROM A PCIE MINICARD

The MSATA_DETECT (J19 pin 43) signal is non-functional as an option for the PCIe Minicard
mux selection. This signal has a pull-down internal to the FPGA to prevent it from floating high
(which enables it). The FPGA default is to use J19 pin 51 as the mux enable signal
(PRES_DISABLE2#) which works with all of our Minicards.

The result of this condition is that certain combinations of bootable devices may not yield
expected results. Table 14 is a matrix of acceptable boot device configurations.

Table 14: Primary Boot Device Truth Table

Installed Bootable Devices

microSD card mSATA card External SATA Drive USB Flash Drive

Yes Don’t care Don’t care Don’t care microSD card

No Yes Don’t care Don’t care mSATA card
No No Yes Don’t care External SATA drive
No No No Yes USB Flash Drive

The primary boot

device will be…

If an mSATA device is attached, the BIOS Setup program will not recognize any device

EBX-18 Hardware Reference manual 28

Interfaces and Connectors

Illuminates when the 3.3 V power to the Mini Card is on. It alerts users to not hot-

powered successfully.

Note: These LEDs will illuminate when the associated device is installed and capable of transmitting. T hei r function is
determined by the installed device.

PCIE MINI CARD LEDS

Two dual-colored PCIe Mini Card LEDs are provided on the EBX-18 at locations D5 and D6.
Table 15 lists the states of the LEDs. Figure 13 shows the location of the PCIe Mini Card LEDs.

Table 15: PCIe Mini Card LED States

LED Color Status (when lit)

Green

D6

Yellow

Green

D5

Yellow

Activity on Wi reless PAN (Note)

plug the Mini Card. Because the Vortex86DX2 processor does not support sleep
modes, the power is always on to the PCIe Mini Card socket when the board is

Activity on Wireless WAN (Note)

Activity on Wireless LAN (Note)

Figure 13. Location of PCIe Mini Card LEDs

EBX-18 Hardware Reference manual 29

Serial Ports

Jumper

Position

The EBX-18 includes four on-board 16550-based serial channels located at standard PC I/O
addresses. Each COM port can be independently enabled or disabled in BIOS Setup.

 All four COM ports by default are set to RS-232 mode
 COM1 and COM2 are RS-232 (115.2K baud) serial ports. There are no configuration

jumpers for COM1 and COM2 because they only operate in RS-232 mode. IRQ lines are
chosen in the BIOS Setup program.

 COM3 and COM4 can be operated in RS-232 or RS-422/485 mode. IRQ lines are chosen in

the BIOS Setup program.

Additional non-standard baud rates are also available through the BIOS Setup program.

Interfaces and Connectors

COM3/COM4

HARDWARE CONFIGURATION

Jumper block V1[3-4] enables the RS-422/485 termination resistor for COM3. Jumper V1[7-8]
enables the RS-422/485 termination resistor for COM4. The termination resistor should be
enabled for an RS-422 endpoint station; it should be disabled for RS-232 and RS-485 non­endpoint receivers.

Table 16: COM3/COM4 Control and Termination Jumpers

Function Jumper In Jumper Out

1-2 Use RTS#/DE for COM3 RS-232/ 485 (def aul t) RS-422
3-4 COM3 Rx End-point Termination
5-6 Use RST#/DE for COM4 RS-232/ 485 (def aul t) RS-422
7-8 COM4 Rx End-point Termination

Note: RS-485 non-endpoints do not require termination. If receivers are mid-line, remove this t ermination jumper.

RS422/485 (Note)

RS422/485 (Note)

RS-232 (default)

RS-232 (default)

Figure 14. COM3/COM4 Control and Termination Jumpers

EBX-18 Hardware Reference manual 30

Interfaces and Connectors

0 = Sets pin 7 to input m ode
1 = Sets pin 7 to output m ode

0 = Sets COM4 to RS-232 mode
1 = Sets COM4 to RS-422/485 mode

0 = Sets COM3 to RS-232 mode
1 = Sets COM3 to RS-422/485 mode

0 = Disables multi-protocol serial transceivers (COM3 and COM4 only)
1 = Enables multi-protoc ol serial transceivers (COM3 and COM4 only)

0 = Enables RS-232 transceivers (COM1 and COM2 only)
1 = Disables RS-232 transceivers (COM1 and COM2 only)

COM3/COM4 SOFTWARE CONFIGURATION

By default, COM3 and COM4 are configured for RS-232 operation. Two registers in the
Vortex86DX2 (0x9A and 0x7A) need to be programmed for COM3 and/or COM4 to operate in
RS-422 or RS-485 mode. Table 17 and Table 18 provide bit-level descriptions of these registers.

To configure COM3 and COM4 for RS-422/485 Mode

1. Write 0xFF to I/O register 0x9A (sets GPIO-P2[7:0] to outputs)

2. Write 0x0E to I/O register 0x7A (disables RS-232 mode and enables transceivers)

To reconfigure COM3 and COM4 for RS-232 Mode

1. Write 0xFF to I/O register 0x9A (sets GPIO-P2[7:0] to outputs)

2. Write 0x02 to I/O register 0x7A (enables RS-232 mode and enables transceivers)

Table 17: GPIO Port 2 Direction Register – 0x9A

Bit Description

7

0 = Sets pin 6 to input m ode

6

1 = Sets pin 6 to output m ode
0 = Sets pin 5 to input m ode

5

1 = Sets pin 5 to output mode
0 = Sets pin 4 to input m ode

4

1 = Sets pin 4 to output m ode
0 = Sets pin 3 to input m ode

3

1 = Sets pin 3 to output m ode
0 = Sets pin 2 to input m ode

2

1 = Sets pin 2 to output m ode
0 = Sets pin 1 to input m ode

1

1 = Sets pin 1 to output m ode
0 = Sets pin 0 to input m ode

0

1 = Sets pin 0 to output m ode

Table 18: GPIO Port 2 Data Register – 0x7A

Bit Description

7-4 X – Don’t care

3

2

1

0

EBX-18 Hardware Reference manual 31

Interfaces and Connectors

1

10

DCD

2

11

RXD*

3

12

TXD* 4 13

DTR 5 14

Ground

6

15

DSR

7

16

RTS 8 17

CTS 9 18

RI

SERIAL PORT ASSIGNMENT

The EBX-18 only supports the use of the Vortex86DX2 Serial Ports 1, 2, 4, and 9, so all other
serial ports are disabled and not available in the BIOS Setup Utility. Table 19 lists the
recommended settings (tested with Windows 7) for the Vortex86DX2 serial ports, along with
correlation to the board’s J4 I/O connector (shown in the rightmost column).

Table 19: Recommended Serial Port Settings for Vortex86DX2 BIOS

DX2 Serial Port # I/O Address IRQ EBX-18 COM # (Note)

1 3F8h 4 COM1
2 3E8h 3 COM3
4 2E8h 11 COM4
9 2F8h 10 COM2

Note: COM ports are numbered to match EBX-18 I/O connector COM numberi ng.

SERIAL PORT CONNECTORS

See Table 2 on page 13 for connector and cable information. The pinouts of the DB9M
connectors apply to the serial connectors on the CBR-5009B paddleboard. These connectors use
IEC 61000-4-2-rated TVS components to help protect against ESD damage.

Table 20: COM1/COM2 Pinout – CBR-5009B Connector J3

Top DB9 Connector Pin

(COM1)

Bottom DB9 Connector Pin

(COM2)

RS-232 Signal

EBX-18 Hardware Reference manual 32

USB

Interfaces and Connectors

The USB interface on the EBX-18 is OHCI (Open Host Controller Interface) and EHCI
(Enhanced Host Controller Interface) compatible, which provides a common industry
software/hardware interface. The board has five USB ports:

 Three on-board ports at locations J20, J21, and J22 using standard USB Series A sockets

(see Figure 5 on page 12)

 Two hubbed ports routed to the J10 I/O connector. Table 11 page 25 lists the USB port

signals routed to the J10 connector.

The USB interfaces at connector J10 are accessible using a CBR-4004B paddleboard or by using
a custom cable. Figure 23 on page 54 shows the connection points for accessing the USB ports
routed from J10 to a CBR-4004B paddleboard.

All five USB ports use IEC 61000-4-2-rated TVS components to help protect against ESD
damage.

BIOS

CONFIGURATION

The USB controller can be enabled or disabled in the BIOS Setup program.

microSD Socket

The EBX-18 includes a microSD socket. The VL-F41 series of microSD cards provide solid­state storage of 2 GB, 4 GB, or 8 GB. The microSD socket accommodates cards with up to 32
GB of storage capacity. No drivers are needed, as the device interface is abstracted as a standard
parallel IDE drive on the master IDE channel. Note the following when using a microSD card
with the EBX-18:

 The microSD card interface is not hot-pluggable. A microSD card will not be recognized as

part of the system if it is not plugged in before power is applied to the board or before a
push-button reset is applied. This is not a limitation of the EBX-18 board; it is a limitation
of the DX2 chip.

 When a microSD card is inserted at power-up, the default boot setting is to boot from it (it is

primary), so if you don’t press <F11> right after applying power to the board, you will not be
able to select an alternate boot option; the board will “stall” for the lack of an operating
system (OS) if there isn’t one present on the microSD card.

 The boot order can be changed in the BIOS Setup program.
 If you remove the microSD card at any time and allow the board to boot without the card

installed, the boot order setting will be cleared and you will have to set it up again the next
time you use a microSD card.

 If you remove the microSD card while the board is powered on and the OS attempts to access

a file on the “drive” (that is, the microSD card) the results are unpredictable. The best case
scenario is that the drive drops out (as it would in Windows Explorer when running
Windows 7 from a SATA drive and using the microSD as an additional hard drive).
However, if Windows does not try to access the microSD card while you have it out and you
put it back in (again, in Windows 7 at least) the system does not appear to have noticed it
was ever removed.

EBX-18 Hardware Reference manual 33

Programmable LED

Utility I/O connector J4 includes an output signal for attaching a software controlled LED.
Connect the cathode of the LED to J4, pin 48; connect the anode to +5V. An on-board resistor
limits the current to 15 mA when the circuit is turned on. A programmable LED is provided on
the CBR-5009B paddleboard. See Figure 21 on page 49 for the location of the Programmable
LED on the CBR-5009B paddleboard.

For instructions on how to switch the PLED on and off, refer to the EBX-18 Programmer’s
Reference Manual (available on the EBX-18 Product Support Web Page).

External Speaker

A miniature 8 Ω speaker can be connected between J4, pin 50 (SPKO*) and J4, pin 49
(MKPWR). A speaker is provided on the CBR-5009B paddleboard. See Figure 21 on page 49
for the location of the speaker on the CBR-5009B paddleboard.

Push-Button Reset

Connector J4 includes an input for a push-button reset switch. Shorting J4, pin 37 to ground
causes the EBX-18 to reboot.

Interfaces and Connectors

This connector uses IEC 61000-4-2-rated TVS components to help protect against ESD damage.
A reset button is provided on the CBR-5009B paddleboard. See Figure 21 on page 49 for the

location of the reset button on the CBR-5009B paddleboard.

Video Interface

An on-board video controller integrated into the Vortex86DX2 SoC provides high performance
video output for the EBX-18.

ONFIGURATION

C

The EBX-18 uses shared memory architecture. This allows the video controller to use variable
amounts of system DRAM — 8 MB, 16 MB (default), 32 MB, or 64 MB — for video RAM.
The amount of RAM used for video is set with a BIOS Setup program option.

The EBX-18 supports two types of video output: SVGA and LVDS flat panel display. A BIOS
Setup program sub-menu (Boot Display Device) selects which output is enabled through POST.
The operating system will then take over based on the Graphic Utility CRT or LCD selection. If
the Boot Display Device selected provides incorrect timing information for an attached LCD
panel and the Graphics Utility is set to LCD, you may not see video on the output.

Refer to Table 24 on page 37 for a list of BIOS settings for boot display devices and their
corresponding resolutions.

EBX-18 Hardware Reference manual 34

Interfaces and Connectors

SVGA OUTPUT CONNECTOR

An adapter cable, part number CBR-1201, is available to translate J6 into a standard 15-pin D­Sub SVGA connector. This connector uses IEC 61000-4-2-rated TVS components to help
protect against ESD damage.

Table 21: J6 Video Output Pinout

Pin

1 Ground 6 2 RED (Red video) 1
3 Ground 7 4 GREEN (Green video) 2
5 Ground 8 6 BLUE (Blue video) 3
7 Ground 5 8 HSYNC (Horizontal sync) 13
9 Ground 10 10 VSYNC (Vertical sync) 14

11 CRT_SCL (DDC data clock line) 15 12 CRT_SDA (DDC serial data line) 12

Signal

(Function)

DB15

Pin

Pin

Signal

(Function)

DB15

Pin

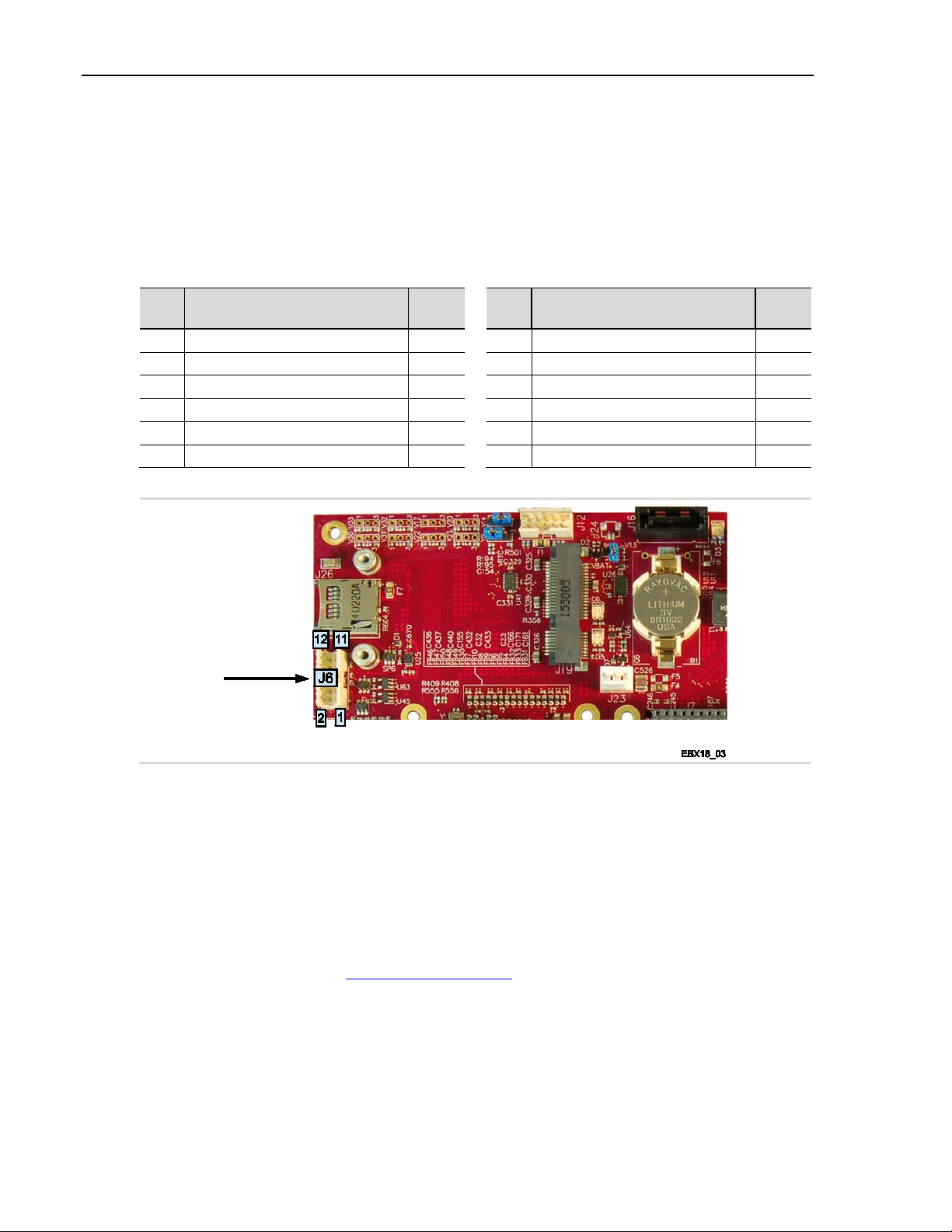

Figure 15. J6 VGA Connector Pin Configuration

LVDS FLAT PANEL DISPLAY CONNECTOR

The integrated LVDS Flat Panel Display in the EBX-18 is an ANSI/TIA/EIA-644-1995
specification-compliant interface. It can support up to 24 bits of RGB pixel data plus three bits
of timing control (HSYNC/VSYNC/DE) on the four differential data output pairs.

The BIOS Setup program provides a sub-menu (Boot Display Device) with several options for
standard LVDS Flat Panel types. If these options do not match the requirements of the panel you
are attempting to use, contact

[e-mail] for a custom video BIOS.

Figure 5 on page 12 shows the location of the LVDS connector at location J9. The 3.3 V power
provided to pins 19 and 20 of J9 is protected by a 1 Amp power switch.

EBX-18 Hardware Reference manual 35

Interfaces and Connectors

-

-

-

-

-

Manufacturer

Model Number

Resolution

Table 22: J9 LVDS Flat Panel Display Connector Pinout

Pin Signal Name Function

1 GND Ground
2 GND Ground
3 LVDSA3 Differential Data 3 (+)
4 LVDSA3#
5 GND Ground
6 LVDSCLK0 Differential Clock (+)
7 LVDSCLK0#
8 GND Ground

9 LVDSA2 Differential Data 2 (+)
10 LVDSA2#
11 GND Ground
12 LVDSA1 Differential Data 1 (+)
13 LVDSA1#
14 GND Ground
15 LVDSA0 Differential Data 0 (+)
16 LVDSA0#
17 GND Ground
18 GND Ground
19 +3.3V Protected power supply
20 +3.3V Protected power supply

Differential Data 3 (

Differential Clock (

Differential Data 2 (

Differential Data 1 (

Differential Data 0 (

)

)

)

)

)

COMPATIBLE LVDS PANEL DISPLAYS

The following flat panel displays are reported to work properly with the integrated graphics
video controller chip used on the EBX-18.

Table 23: Compatible LVDS Interface TFT-Technology Flat Panel Displays

NEC NL8048BC-19-02 800 x 400
AUO G104SN03 800 x 600
NEC NL10276BC24-13 1024 x 768

EBX-18 Hardware Reference manual 36

Interfaces and Connectors

Determined by VGA display device (when

VGA connected) or set to 800 x 600

Table 24: BIOS Settings for Boot Display Devices and Corresponding Resolutions

BIOS Setting for

Boot Display Device

VBIOS

CRT Determined by VGA display device
Panel0 640 x 480
Panel1 800 x 480
Panel2 800 x 600
Panel3 1024 x 600
Panel4 1024 x 768

Resolution

CONSOLE REDIRECTION

The EBX-18 can be operated without using the on-board video output by redirecting the console
to an available COM port. In the BIOS Setup program, the Remote Access Configuration sub­menu provides the ability to control console redirection. When console redirection is enabled,
you can access the BIOS Setup program by typing <Ctrl>-<C>.

The default settings for the redirected console are as follows:

 Serial Port Number: [COM1]
 Base Address, IRQ: [3F8h, 4]
 Serial Port Mode: [115200, 8, n, 1] (115,200 baud, 8 data bits, no parity, 1 stop bit)
 Flow control: [None]
 Terminal Type: [ANSI]

Figure 16 shows the wiring for a DB9-to-DB9 adapter for console redirection of an RS-232 serial
port.

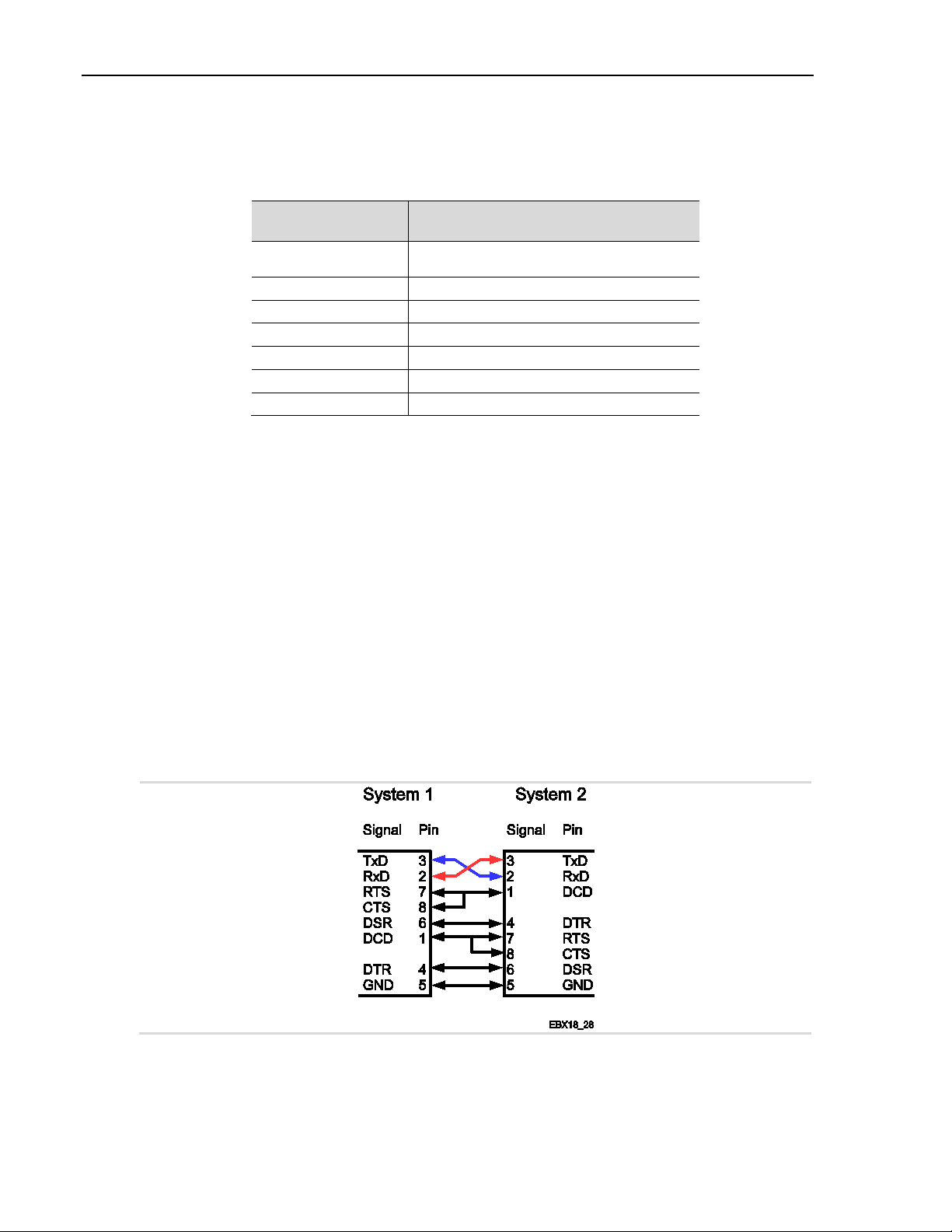

Figure 16. Wiring for a DB9 to DB9 RS-232 Adapter for Console Redirection

EBX-18 Hardware Reference manual 37

Ethernet Interface

LED Color

Function

Status

an active hub

Off – 10 Mbits/s

The EBX-18 features two auto-detect 10BaseT/100BaseTX Ethernet ports with RJ-45
connectors.

ONTROLLER CONFIGURATION

C

The Ethernet controller resident to the Vortex86DX2 SoC can be enabled or disabled in the
BIOS Setup program. That Ethernet port is located at connector J1. Refer to Figure 5 for the
location of the J1 connector.

The second Ethernet port (accessible through connector J2) is implemented through the
LAN9513 (USB-based) device. That interface can be configured through your operating system.

THERNET CONNECTORS

E

Board-mounted RJ-45 connectors J1 and J2 are provided to make connections with Category 5
Ethernet cables. These connectors use IEC 61000-4-2-rated TVS components to help protect
against ESD damage. The Ethernet controller auto-detects 10BaseT/100Base-TX connectors.

Interfaces and Connectors

N-BOARD ETHERNET STATUS LEDS

O

Each Ethernet controller has a two-colored (green and orange) LED located next to its RJ-45
connector to provide an indication of the Ethernet status, as follows:

 LED D3 provides status for Ethernet Port 0
 LED D8 provides status for Ethernet Port 1

Table 25 describes the status indications for the LEDs. Figure 17

Table 25: On-board Ethernet Status LEDs (D3 and D8)

• On – Active Ethernet cable connected (blinks with activity)

Green Link/activity

Orange Link speed

• Off – Cable not connected (no link) or cable is not connected to

• On – 100 Mbits/s

•

EBX-18 Hardware Reference manual 38

Interfaces and Connectors

OFF-BOARD ETHERNET STATUS LED CONNECTOR

Connector J12 can be used for routing Ethernet status LED signals off-board. Figure 17 shows
the location and pin orientation of the J12 connector.

Table 26: Off-board Ethernet Status LED Connector (J12)

Pin Signal Description

1 Fused 3.3V Power 2 Ethernet 0 (J1) Speed LED
3 No connect 4 Ethernet 0 (J1) Link/Activity LED
5 Fused 3.3V Power 6 Ethernet 1 (J2) Speed LED
7 Ethernet 1 (J2) Link/Activity LED 8 Ethernet 1 (J2) Duplex LED
9 Ground 10 Wireless Disable Minicard signal

Pin Signal Description

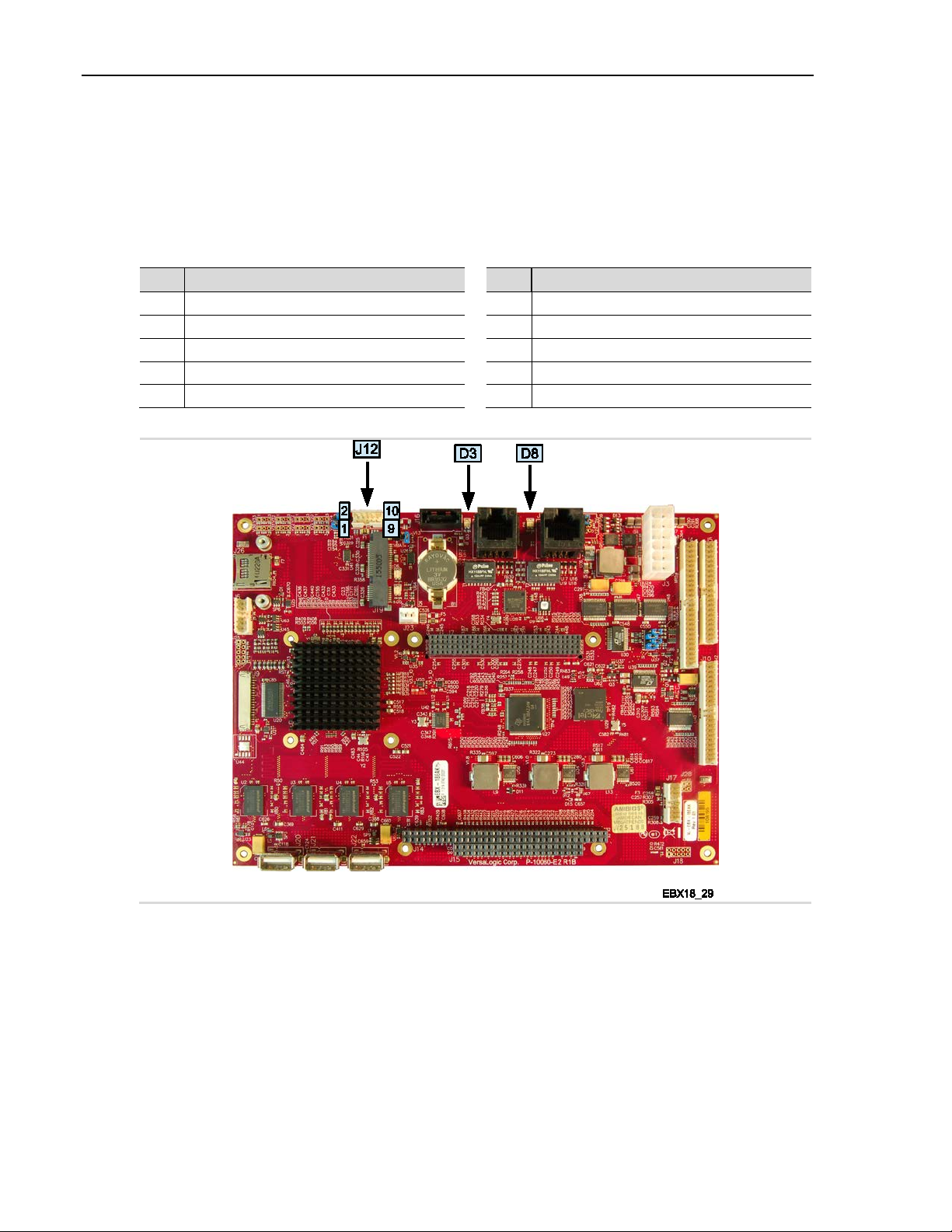

Figure 17. Location of Ethernet Status LEDs D3 and D8 and J12 Connector

EBX-18 Hardware Reference manual 39

Fan Connector

Connector J23 can be used to connect a fan to the EBX-18. Figure 18 shows the location and pin
orientation of the fan connector.

Pin Signal Name Signal Description

1
2
3

Interfaces and Connectors

Table 27: Fan Connector (J23)

FAN_VCC Power - fused from on-board +5V

FAN_RETURN GND when fan is enabled; fan i s enabled by default

FANTACH Fan tac hometer input

Figure 18. Location and Pin Orientation of the J23 Fan Connector

EBX-18 Hardware Reference manual 40

DMA Controller

The DMA circuitry incorporates the functionality of two 82C37 DMA controllers with seven
independently programmable channels. The Master DMA Controller (DMA-1) corresponds to
DMA Channels 0-3 that are hardwired to 8-bit count-by-byte transfers and the Slave DMA
Controller (DMA-2) corresponds to Channels 5-7 that are hardwired to 16-bit count-by-word
“address shifted” transfers. DMA Channel 4 is used to cascade the two controllers and will
default to cascade mode as it cannot be used for any other purpose. In addition to accepting
requests from DMA slaves, the DMA controller also responds to requests that are initiated by
software.

The Vortex86DX2 provides the timing control and data size translation for the DMA transfer
between memory (ISA or DRAM) and the ISA Bus I/O. Also, the DX2 is ISA-compatible with
24-bit addressing. For information on programming the DMA controller, contact

[e-mail].

Vortex86DX2 SoC On-chip Temperature Sensor

Contact the factory for information on reading and writing to the thermometer circuits.

Interfaces and Connectors

Watchdog Timers

The watchdog timers use the RTC frequency (32.768 kHz) for a 24-bit counter, providing a time
range from 30.5 μs to 512 seconds with a resolution of 30.5 μs. When the timer is enabled and
its count reaches the programmed value, a system reset, NMI, or IRQ may occur as selected
using the Watchdog Configuration sub-menu in the BIOS Setup program.

Industrial I/O Functions and SPI Interface

The EBX-18 employs a set of I/O registers for controlling on-board analog input, digital I/O, and
external serial peripheral interface (SPI) devices. These functions share control and data
registers located at I/O addresses whose range depends on programmed FPGA PCI BAR added to
offsets 0x00-0xFF. Refer to the EBX-18 Programmer’s Reference Manual (available on the

EBX-18 Product Support Web Page) for additional information.

EBX-18 Hardware Reference manual 41

Analog Input

EBX-18 Board J5 Pin

Signal

CBR-4004B Connector

31

ADCH1

32

ADCH2

33

ADCH3

34

ADCH4

35

ADGND

36

ADCH5

37

ADCH6

38

ADCH7

39

ADCH8

40

ADGND

The EBX-18 employs a Linear Tech LTC1857 A/D device. This device operates off a single 5V
supply to provide eight 12-bit analog inputs. The LTC1857 provides eight single-ended input
channels; or alternatively each even and odd analog channel “pair” (for example inputs 1 and 2
or 5 and 6) can be combined as differential inputs or you can also have combinations of both
single-ended and differential channels. The converter has a 100 kilo-samples-per-second (ksps)
sampling rate, with a 4 μs acquisition time and per-channel input ranges of 0 to 5V, ±5V, 0 to
+10V and ±10V.

Communications with the A/D converter are handled by the FPGA, which uses the SPX slave
selection signal for SPI device 5 to enable the A/D read strobe for the SPI interface. Refer to the
EBX-18 Programmer’s Reference Manual (available on the EBX-18 Product Support Web Page)
for information on configuring the SPX registers for Analog Input.

Refer to the Linear Technology LTC1857 A/D Converter Datasheet for programming
information.

XTERNAL CONNECTIONS

E

Interfaces and Connectors

Single-ended analog voltages are routed to the J5 Utility I/O connector. These signals are also
accessible if a CBR-4004B paddleboard is attached to the EBX-18. Refer also to Figure 22 on
page 53 to see how the analog signals can be accessed on the CBR-4004B paddleboard.

Table 28: Analog Input Connector

J8 Analog I/O

(See Figure 22 on page 53)

J9 Analog I/O

(See Figure 22 on page 53)

INITIATING AN ANALOG CONVERSION

For information on initiating an analog conversion, refer to the EBX-18 Programmer’s Reference
Manual (available on the EBX-18 Product Support Web Page).

EBX-18 Hardware Reference manual 42

Digital I/O Interface

Damage will occur if the I/O pins are connected to 5V logic.

EBX-18 Board

J5 Pin

11

Digital I/O 1

12

Digital I/O 2

13

Digital I/O 3

14

Digital I/O 4

15

GND

16

Digital I/O 5

17

Digital I/O 6

18

Digital I/O 7

19

Digital I/O 8

20

GND

21

Digital I/O 9

22

Digital I/O 10

23

Digital I/O 11

24

Digital I/O 12

25

Pushbutton reset

26

Digital I/O 13

27

Digital I/O 14

28

Digital I/O 15

29

Digital I/O 16

30

GND

The EBX-18 includes a 32-channel digital I/O interface. The digital lines are grouped as four 8­bit bi-directional ports. Data direction and output driver type are configurable by software.

Input data can be inverted through register settings. Any I/O pin(s) can generate an interrupt on
change of state. All I/O pins use 3.3V signaling. As outputs, the I/O pins can source or sink an
absolute maximum of 25 mA each.

CAUTION:

EBX-18 digital I/O ports are accessed through the FPGA SPI interface.

E

XTERNAL CONNECTIONS

Digital I/O channels 1-16 are accessed via connector J5 on the EBX-18. Table 29 lists the pinout
of these channels to a CBR-4004B paddleboard connected to J5.

Interfaces and Connectors

Digital I/O channels 17-32 are accessed via connector J10 on the EBX-18. Table 30 lists the
pinout of these channels to the CBR-4004B paddleboard connected to J10.

Table 29: Digital I/O Connections – Channels 1-16

Signal CBR-4004 Connector

J3

Digital IO

(See Figure 22 on page

53)

J4

Digital IO

(See Figure 22 on page

53)

J6

Digital IO

(See Figure 22 on page

53)

EBX-18 Hardware Reference manual 43

J7

Digital IO

(See Figure 22 on page

53)

Interfaces and Connectors

EBX-18 Board

J10 Pin

11

Digital I/O 17

12

Digital I/O 18

13

Digital I/O 19

14

Digital I/O 20

15

GND

16

Digital I/O 21

17

Digital I/O 22

18

Digital I/O 23

19

Digital I/O 24

20

GND

21

Digital I/O 25

22

Digital I/O 26

23

Digital I/O 27

24

Digital I/O 28

25

GND

26

Digital I/O 29

27

Digital I/O 30

28

Digital I/O 31

29

Digital I/O 32

30

GND

Table 30: Digital I/O Connections – Channels 17-32

Signal CB-4004 Connector

J3

Digital IO

(See Figure 23 on page

54)

J4

Digital IO

(See Figure 23 on page

54)

J6

Digital IO

(See Figure 23 on page

54)

J7

Digital IO

(See Figure 23 on page

54)

DIGITAL I/O PORT CONFIGURATION

For information on digital I/O port configuration refer to the EBX-18 Programmer’s Reference
Manual, (available on the EBX-18 Product Support Web Page).

INTERRUPT GENERATION

The EBX-18 digital I/O can be configured to issue hardware interrupts on the transition (high to
low or low to high) of any digital I/O pin. Note that this interrupt is shared among all SPI
devices on-board and externally connected to the EBX-18. Digital I/O port interrupt
configuration is achieved through I/O port register settings. Refer to the Microchip MCP23S17

datasheet for more information.

The on-board digital I/O chips must be configured for open-drain and mirrored interrupts in order
for any SPI device to use hardware interrupts.

EBX-18 Hardware Reference manual 44

SPX™ Expansion Bus

3

GND

Ground

4 MISO

Serial Data In

5

GND

Ground

6 MOSI

Serial Data Out

7

GND

Ground

8 SS0#

Chip Select 0

9

SS1#

Chip Select 1

10

SS2#

Chip Select 2

11

SS3#

Chip Select 3

12

GND

Ground

13

SINT#

Interrupt Input

14

V5_0

+5.0 V

Up to four serial peripheral expansion (SPX) devices can be attached to the EBX-18 at connector
J17 using a CBR-1401 or CBR-1402 cable. The SPX interface provides the standard SPI signals
(SCLK, MISO, and MOSI), four chip selects (SS0# - SS3#), and an interrupt input (SINT#).

Table 31: SPI Expansion Bus Connections

Pin Signal Function Pin Signal Function

1 V5_0 +5.0 V

2 SCLK Serial Clock

Interfaces and Connectors

PC/104 Expansion Bus

EBX-18 Hardware Reference manual 45

Figure 19. J17 SPX Connector Pin Configuration

VERSALOGIC SPX EXPANSION MODULES

VersaLogic offers several SPX modules that provide a variety of standard functions, such as
analog input, digital I/O, CANbus controller, and others. These are small boards (1.2” x 3.775”)
that can mount on the PC/104 and PC/104-Plus stack, using standard PC/104 stand-offs, or up to
two feet away from the base board. For more information, contact VersaLogic at

[e-mail].

The Vortex86DX2 ISA bus interface is an 8/16-bit ISA device with zero-wait-state and is
available through the Vortex86DX2 SoC’s internal ISA-to-PCI bridge. The maximum ISA clock
frequency is 33 MHz. The AT clock is programmable. The SoC generates refresh signals to the
ISA interface during the DRAM refresh cycle. (This means the ISA Refresh signal would be
modified with the DRAM refresh rate change from ~15 μs to ~3.9 μs).

Interfaces and Connectors

(Note 1)

(Note 2)

10 – 1F

B4 – BF

E0 – FF

different IRQ for COM1 to avoid resource conflicts.

Seven IRQs have been shown to work with the ISA bus expansion cards. As listed in Table 32,
they are IRQ3, IRQ4, IRQ5, IRQ6, IRQ7, IRQ10, and IRQ11. There are conflicts with all other
IRQ assignments per the Vortex86DX2 resources, and by default IRQ3, IRQ4, IRQ10 and IRQ11
are assigned to the four COM Ports. If the ISA expansion card requires more than three IRQs,
you may have to disable the COM Port using the desired IRQ, taking care to ensure each of the
required IRQs are reserved from PCI use in the BIOS Setup program (PCIPnP settings). IRQ
selection often requires checking to make sure the system does not have resource conflicts.

The EBX-18 has limited support of the PC/104 bus. Most PC/104 cards will work, but be sure to
check the requirements of your PC/104 card against the resources listed in Table 32.

Table 32: PC/104 ISA I/O, IRQ, and Memory Resources

Available ISA I/O Addresses

24 – 3F
44 – 47
4C – 5F
65
67 – 6F
76 – 77
7D – 7F
90 – 91
A2 – A6
AE – B1

Notes:

1. The I/O ranges allocated to COM ports 1-4 are available to ISA only when the on-board COM ports are
disabled in the BIOS Set up program.

2. Each of these IRQs must be reserved from the PCI PnP use in the BIOS S et up program before they can
potentially be used on the ISA bus. Because ISA IRQ sharing is not supported, m ake sure that any IRQ
channel used for an ISA device i s not used elsewhere. For example, if IS A IRQ4 is enabled, you must us e a

106 – 16F
178 – 1EF
1F8 – 375
377 – 3BF
3E0 – 3F5
3F7
400 – 47F
490 – 4CF
4D2 – 7FF
880 – CFBD00

Available ISA IRQs

IRQ3
IRQ4
IRQ5
IRQ6

IRQ7
IRQ10
IRQ11

Available ISA Memory

Addresses

A0000 – B7FFF
C8000 – DFFFF

PC/104-P

LUS PCI EXPANSION INTERFACE

The EBX-18 supports a full PCI interface for all four slots. The Vortex86DX2 SoC does not
support a PCI interface directly so an XIO2001 PCIe-to-PCI bridge device is used.

The only features not supported are:

 66 MHz mode (the EBX-18 board only supports 33 MHz)
 PSON# power control
 +5V_SB standby power

Note that the PCI connector VI/O power pins are connected to the V3P3 power supply on-board
which turns on with the PCI Bridge device, whereas the PCI connector +3.3V pins are tied to the
V3P3_ATX rail direct from the input power connector.

EBX-18 Hardware Reference manual 46

6

System Resources and Maps

Refer to the EBX-18 Programmer’s Reference Manual for the following information:

 Memory map
 IRQ map
 I/O map
 FPGA register map
 FPGA register descriptions
 Programming information for the board’s hardware interfaces.

EBX-18 Hardware Reference Manual 47

7

CBR-5009B and CBR-4004B Paddleboards

CBR-5009B Paddleboard

DIMENSIONS AND MOUNTING HOLES

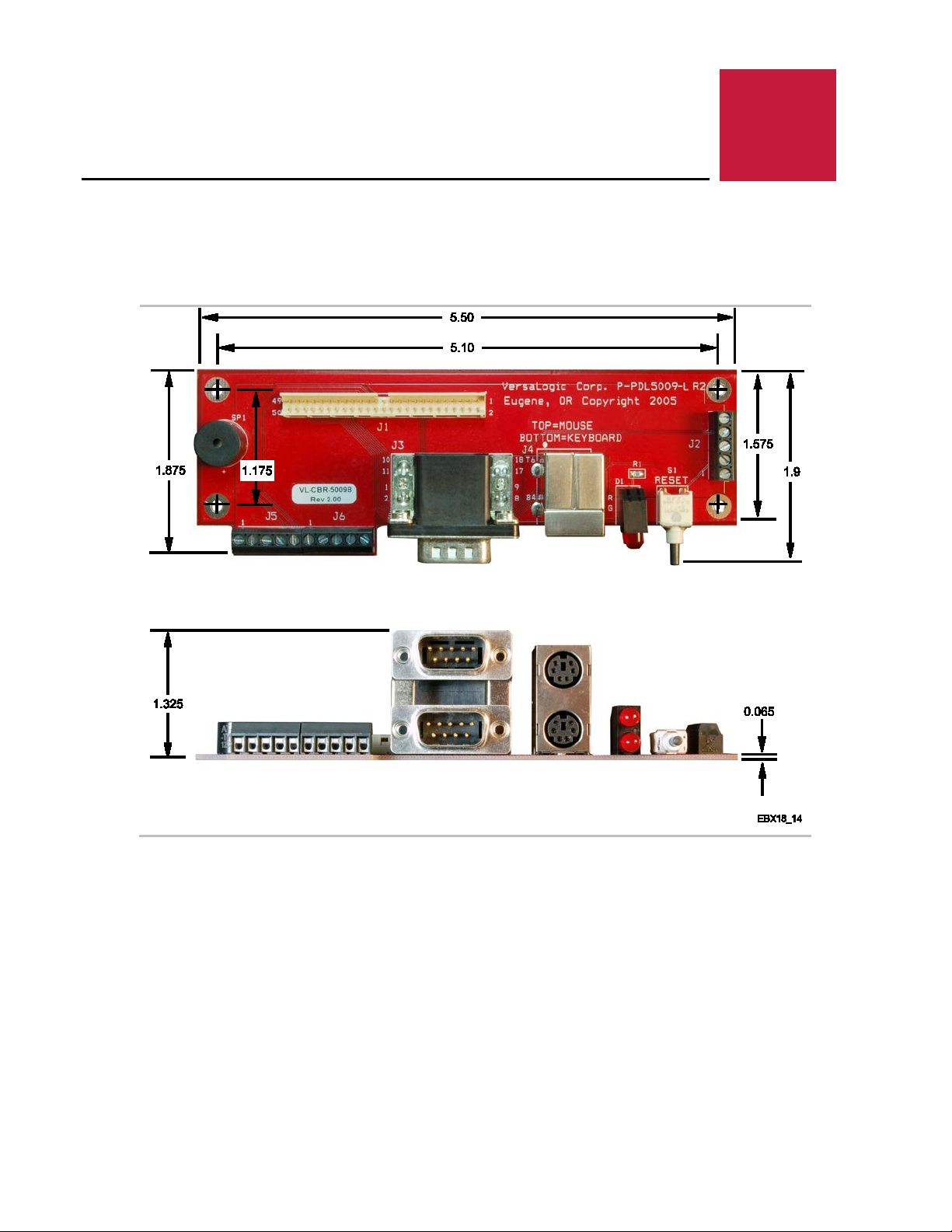

Figure 20. CBR-5009B Dimensions and Mounting Holes

EBX-18 Hardware Reference Manual 48

CBR-5009B and CBR-4004 Paddleboards

CBR-5009B CONNECTORS

Figure 21 shows the locations of the connectors on the CBR-5009B paddleboard.

Figure 21. CBR-5009B Connectors

Table 33: CBR-5009B Connector Functions

Pin Function Part Number Description

D1 Power and programmable LEDs Dialight 552-0211 LEDx2 T1 3/4 P C Mount Red/ Red

J1 High density connector FCI 98414-F06-50U 2mm, 50 pins, keyed, l at ching header
J2 (Reserved) — —
J3 COM1, CO M2 Kycon K42-E9P/P-A4N Dual stacked DB-9 male
J4 PS/2 Keyboard and Mouse K ycon KMDG-6S/6S-S4N Dual stacked PS/2 female
J5 COM4 Conta-Clip 10250.4 5-pin screw terminal
J6 COM3 Conta-Clip 10250.4 5-pin screw terminal
S1 Reset button E-Switch 800S P 9B 7M6RE Ri ght angl e momentary switch

SP1 Speaker Challenge Electronics DBX05 Miniature speaker

EBX-18 Hardware Reference manual 49

CBR-5009B and CBR-4004 Paddleboards

1

10

DCD 2 11

RXD* 3 12

TXD* 4 13

DTR 5 14

Ground 6 15

DSR 7 16

RTS 8 17

CTS 9 18

RI

Pin

Signal

SERIAL PORT CONNECTORS

Serial ports COM1 and COM2 use standard DB9 connectors. Serial ports COM3 and COM4 are
accessible through five-pin screw terminal blocks. Refer to Figure 21 for the location of pin 1 of
the COM3/COM4 ports. These connectors use IEC 61000-4-2-rated TVS components to help
protect against ESD damage.

Table 34: J3 COM1/COM2 Pinout

Top DB9 Connector Pin

(COM1)

Bottom DB9 Connector Pin

(COM2)

RS-232 Signal

Serial ports COM3 and COM4 are accessible through five-pin screw terminal blocks. Refer to
Figure 21 for the location of pin 1 of the COM3/COM4 ports.

Table 35: J6 (COM3) Connector Pinout

Pin Signal

1 GND
2 TRX3­3 TRX3+
4 TX3­5 TX3+

EBX-18 Hardware Reference manual 50

Table 36: J5 (COM4) Connector Pinout

1 GND
2 TRX4­3 TRX4+
4 TX4­5 TX4+

CBR-5009B and CBR-4004 Paddleboards

1

MSDATA

Mouse Data

2

–

No connect

3

GND

Ground

4

MKPWR

Protected +5V

5

MSCLK

Mouse Clock

6

–

No connect

1

KBDATA

Keyboard Data

2

–

No connect

3

GND

Ground

4

MKPWR

Protected +5V

5

KBCLK

Keyboard Clock

6

–

No Connect

PS/2 KEYBOARD AND MOUSE

A standard PS/2 keyboard and mouse interface is accessible through connector J4 of the
CBR-5009B paddleboard. The +5V power provided to the keyboard and mouse is protected by a
1 A fuse. This connector uses IEC 61000-4-2-rated TVS components to help protect against
ESD damage.

Table 37: PS/2 Mouse Connector

Top PS/2 Connector Signal Description

Table 38: PS/2 Keyboard Connector

Bottom PS/2

Connector

Signal Description

EBX-18 Hardware Reference manual 51

CBR-5009B and CBR-4004 Paddleboards

RS-485

2 6

Data Set Ready

26 1

Ground

Ground

3

COM1

2

Receive Data

27

COM4

5

RTS

TxD+ 4

7

Request to Send

28 4

TXD

TxD- 5 J3

3

Transmit Data

29

J5

–

Ground

Ground 6

8

Clear to Send

30 2

RXD

RxD-

7

Top DB9

4

Data Terminal Ready

31 3

CTS

RxD+ 8

9

Ring Indicator

32 –

Ground

Ground 9

5

Ground

33

Mouse

4

+5V (Protected)

10 1

Data Carrier Detect

34

J4

1

Mouse Data

11 6

Data Set Ready

35

Top 3 Ground

12

COM2

2

Receive Data

36 5

Mouse Clock

13 7

Request to Send

37

PBRESET

1

Pushbutton Reset

14

J3

3

Transmit Data

38

S1

2

Ground

15 8

Clear to Send

39

(Reserved)

1

Ground

16

Bottom DB9

4

Data Terminal Ready

40 2

Not connected

17 9

Ring Indicator

41 3

Ground

18 5

Ground

42 4

Not connected

RS-422/

RS-485

19 1

Ground

Ground

44

J4

1

Keyboard Data

20

COM3

5

RTS

TxD+

45

Bottom 3 Ground

21 4

TXD

TxD-

46 5

Keyboard Clock

22

J6

–

Ground

Ground

47

PLED

1

+5V (Protected)

23 2

RXD

RxD-

48

D1

2

Programmable LED

24 3

CTS

RxD+

49

Speaker

1

+5V (Protected)

25 –

Ground

Ground

50

SP1

2

Speaker Drive

J4 I/O CONNECTOR

The J4 50-pin I/O connector on the EBX-18 contains signals for use by the CBR-5009B
paddleboard. Table 39 shows how the pins of the EBX-18’s J4 connector map to the connectors
on the VL-CBR-5009 paddleboard.

Table 39: EBX-18 J4 I/O Connector Pinout

J4

CBR-5009B

Pin

Connector

1 1 Data Carrier Detect

Pin Signal

J4

Pin

CBR-5009B

Connector

Pin Signal

RS-232

RS-422/

RS-232

43

Keyboard

4 +5V (Protected)

EBX-18 Hardware Reference manual 52

CBR-4004B Paddleboard

The CBR-4004B paddleboard provides off-board access to signals routed to the EBX-18 board’s
J5 and J10 I/O connectors. If your system environment provides the physical space, you can
connect CBR-4004B paddleboards to both the J5 and J10 I/O connectors.

SING THE CBR-4004B WITH THE EBX-18 BOARD’S J5 CONNECTOR

U

Connect the CBR-4004B paddleboard to the EBX-18 board’s J5 I/O connector for access to the
following:

 16 channels of digital I/O
 Eight analog I/O signals

Figure 22 shows the user-accessible signals when the CBR-4004B is cabled to the EBX-18
board’s J5 connector. The CBR-4004B is a multipurpose board; the silkscreened signal labels do
not apply to this configuration.

CBR-5009B and CBR-4004 Paddleboards

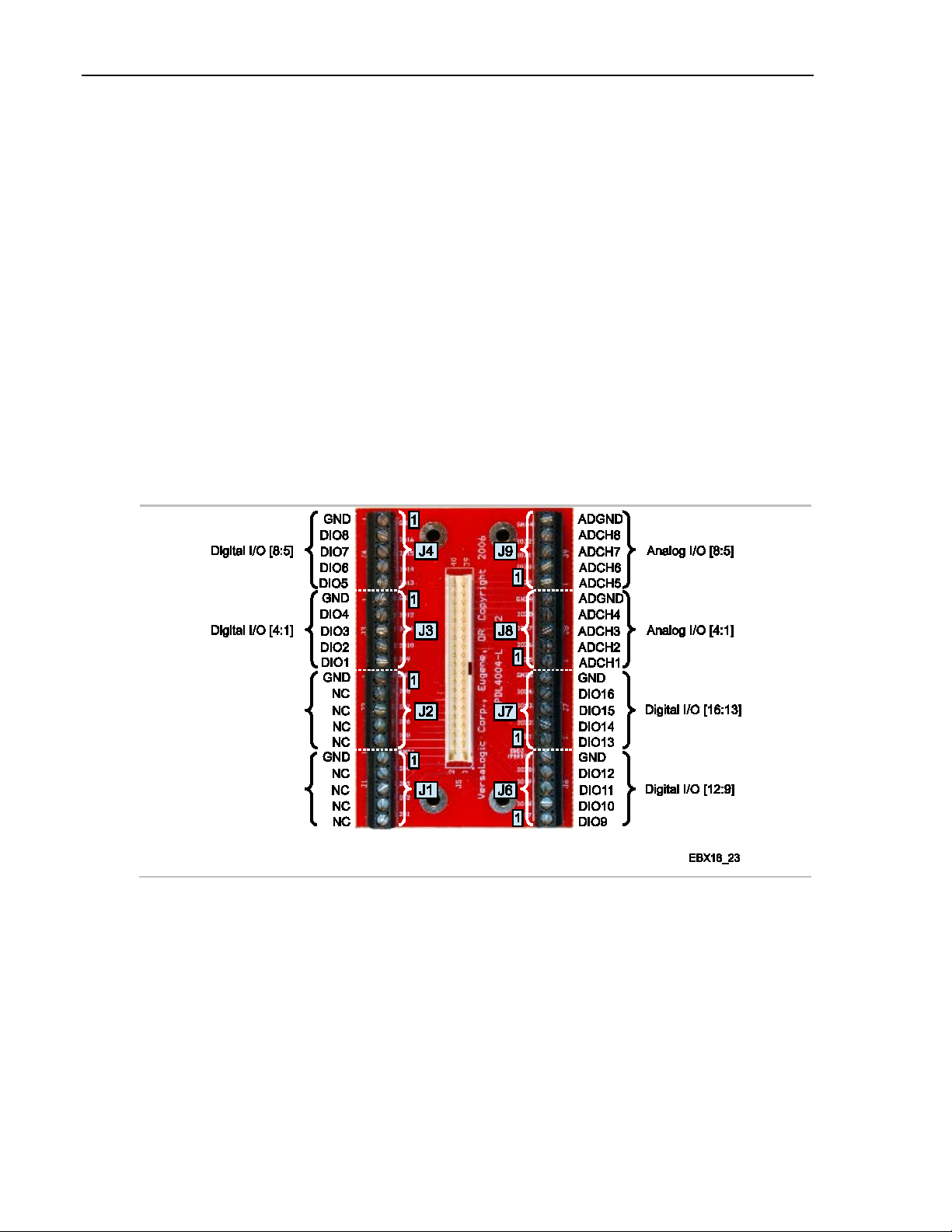

Figure 22. CBR-4004B Signals When Mated with the EBX-18’s J5 Connector

EBX-18 Hardware Reference manual 53

CBR-5009B and CBR-4004 Paddleboards



Integrator’s Note:

The EBX-18 board’s J10 connector provides signals for two USB ports. If these ports are

level.

USING THE CBR-4004B WITH THE EBX-18 BOARD’S J10 CONNECTOR

Connect the CBR-4004B paddleboard to the EBX-18 board’s J10 I/O connector for access to the
following signals:

 Two hubbed USB ports (USB3 and USB4)
 Eight 8254 timer/counter signals
 16 channels of digital I/O

Figure 23 shows the user-accessible signals when the CBR-4004B is cabled to the EBX-18
board’s J10 connector. The CBR-4004B is a multipurpose board; the silkscreened signal labels
do not apply to this configuration.

accessed directly from the J10 connector, they will be compatible with USB 2.0 devices. If the
ports are accessed through a CBR-4004B paddleboard, performance will be limited to USB 1.1

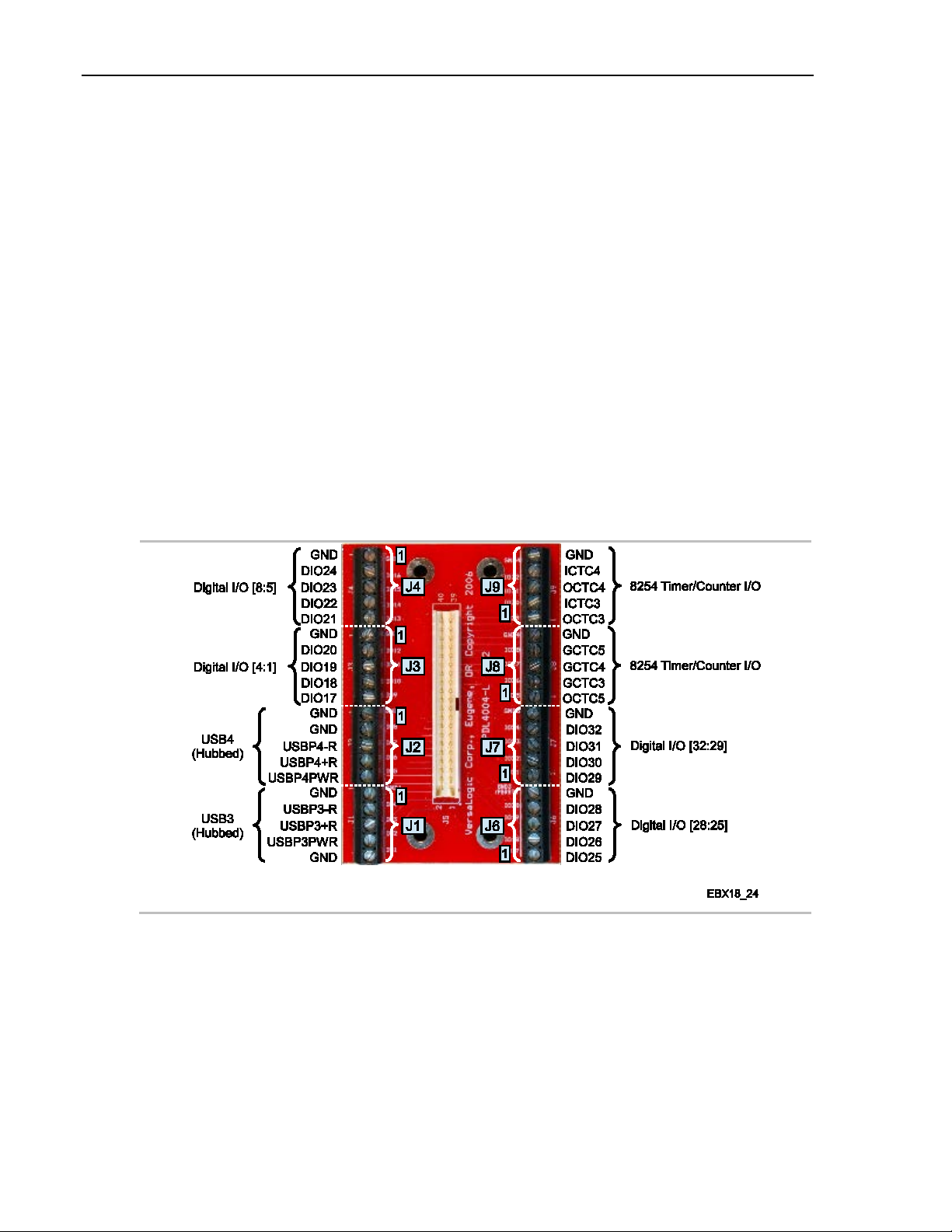

Figure 23. CBR-4004B Signals When Mated with the EBX-18’s J10 Connector

EBX-18 Hardware Reference manual 54

DIMENSIONS AND MOUNTING HOLES

CBR-5009B and CBR-4004 Paddleboards

Figure 24. CBR-4004B Paddleboard Dimensions and Mounting Holes

EBX-18 Hardware Reference manual 55

USB 2.0 Hub and 10/100

PC/104 Specification

http://www.versalogic.com/products/PC104/index.asp

 General PC

A

Appe ndix A – References

Overview of Vortex86DX2 http://www.vortex86.com/?p=16

Ethernet Controller
ILAN9513 Data sheet

PC/104-Plus Specification http://www.versalogic.com/products/PC104/index.asp

Documentation:

 The Programmer’s PC

Sourcebook

http://ww1.microchip.com/downloads/en/DeviceDoc/9513.pdf

Microsoft Press (http://www.microsoft.com/learning/books)

EBX-18 Hardware Reference Manual 56
