VersaLogic EPM-CPU-10 Reference Manual

Reference
Manual

EPM-CPU-10

Pentium III/Celeron processor
module with 10/100 Ethernet,
Video, and PC/104-Plus
interface.

EPM-CPU-10

Pentium III/Celeron processor
module with 10/100 Ethernet,
Video, and PC/104-Plus
interface

-

-

Product Release Notes

This page includes recent changes or improvements that have been made to this
product. These changes may affect its operation or physical installation in your
application. Please read the following information.

Rev 3 Release

Initial public release.

•

Rev 2 Release

Beta release only.

•

Support Page

The EPM-CPU-10 Support Page, at http://www.versalogic.com/private/jaguarsupport.asp, contains
additional information and resources for this product including:

Reference Manual (PDF format)

•

• Operating system information and software drivers

• Data sheets and manufacturers’ links for chips used in this product

BIOS information and upgrades

•

Utility routines and benchmark software

•

Note: This is a private page for EPM-CPU-10 users only. It cannot be reached through our web site. You
must enter this address directly to find the support page

.

Model EPM-CPU-10

Pentium III/Celeron processor module

with 10/100 Ethernet,

Video, and PC/104-

REFERENCE MANUAL

Doc. Rev. 07/19/2004

ERSALOGIC CORPORATION

V

WWW.VERSALOGIC.COM

Plus

interface

Notice:
Although every effort has been made to ensure this document is error-free, VersaLogic makes no

representations or warranties with respect to this product and specifically disclaims any implied
warranties of merchantability or fitness for any particular purpose.

VersaLogic reserves the right to revise this product and associated documentation at any time
without obligation to notify anyone of such changes.

PC/104 and the PC/104 logo are trademarks of the PC/104 Consortium.

3888 Stewart Road

Eugene, OR 97402

[phone]

Fax [phone]

Contents Copyright ©2004

All Rights Reserved

Table of Contents

1. Introduction .................................................................................................................1

Description .......................................................................................................................... 1

Technical Specifications..................................................................................................... 3

Technical Support...............................................................................................................4

Repair Service........................................................................................................ 4

2. Configuration / Operation...........................................................................................5

Overview............................................................................................................................. 5

Electrostatic Discharge ..........................................................................................5

Lithium Battery...................................................................................................... 5

Initial Configuration and Setup........................................................................................... 6

Recommended Components ..................................................................................6

DRAM Module......................................................................................................6

Cables / Peripheral Devices...................................................................................6

CMOS Setup / Boot Procedure for EPM-CPU-10.............................................................. 7

3. Reference.....................................................................................................................9

Physical Dimensions...........................................................................................................9

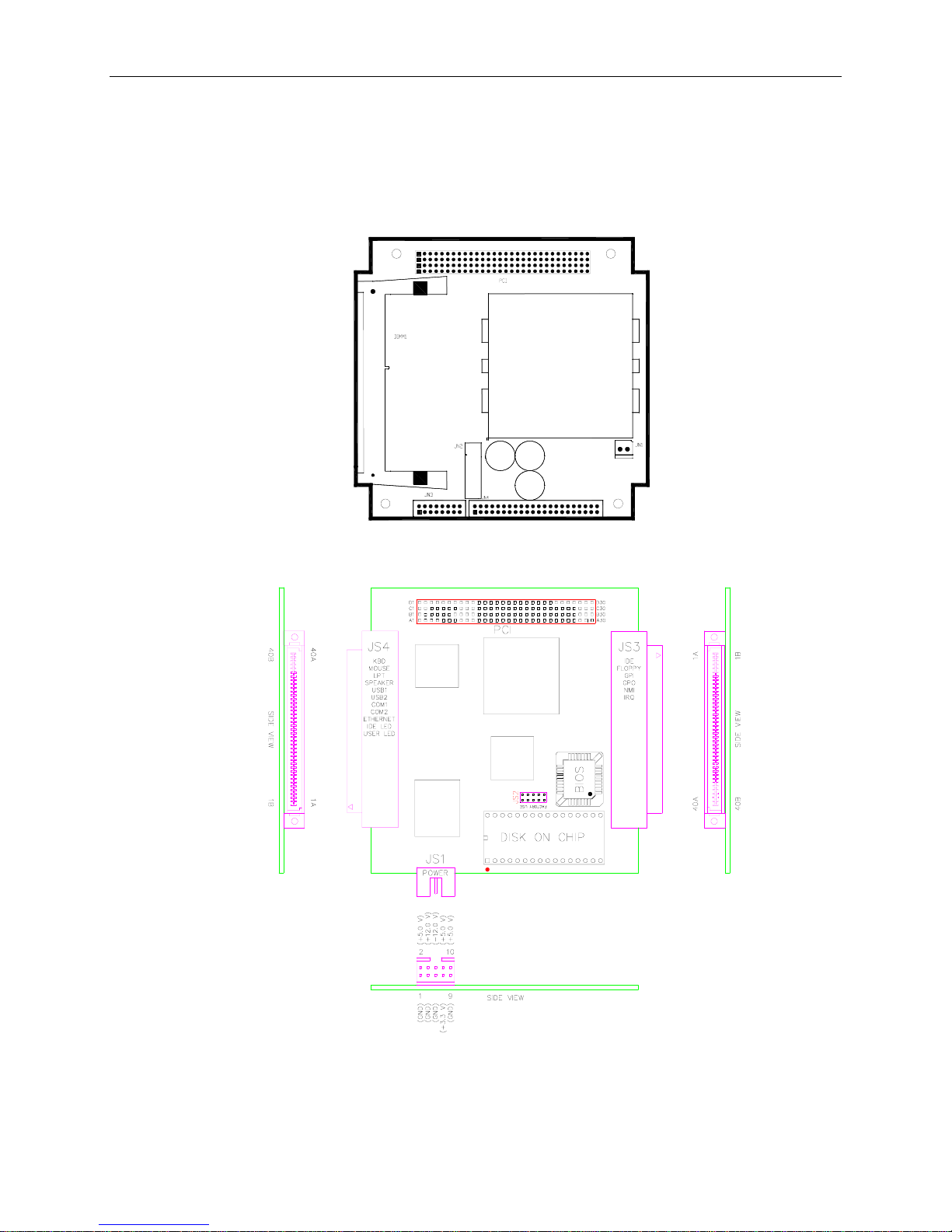

Hardware Assembly............................................................................................. 10

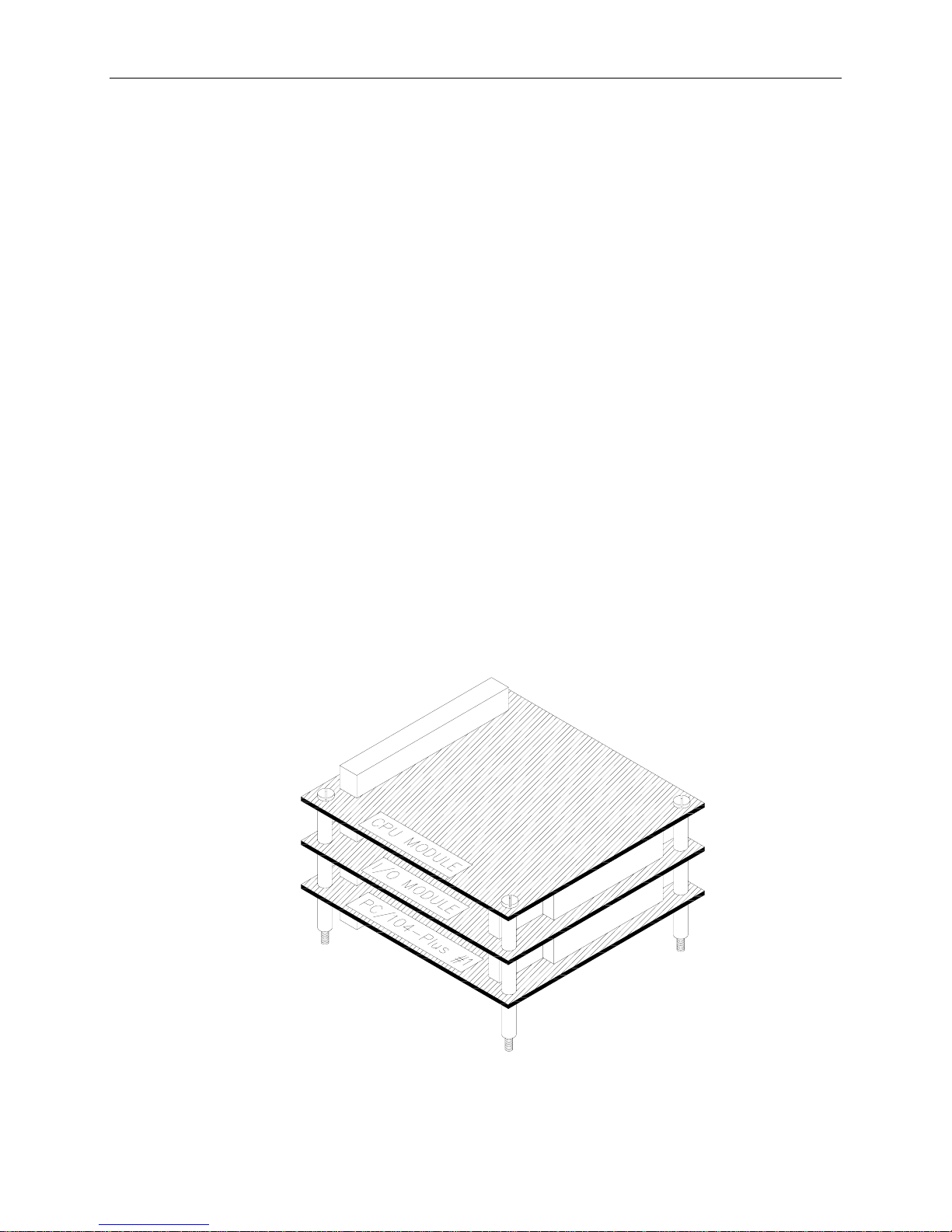

Stack Arrangement .............................................................................................. 10

External Connectors.......................................................................................................... 11

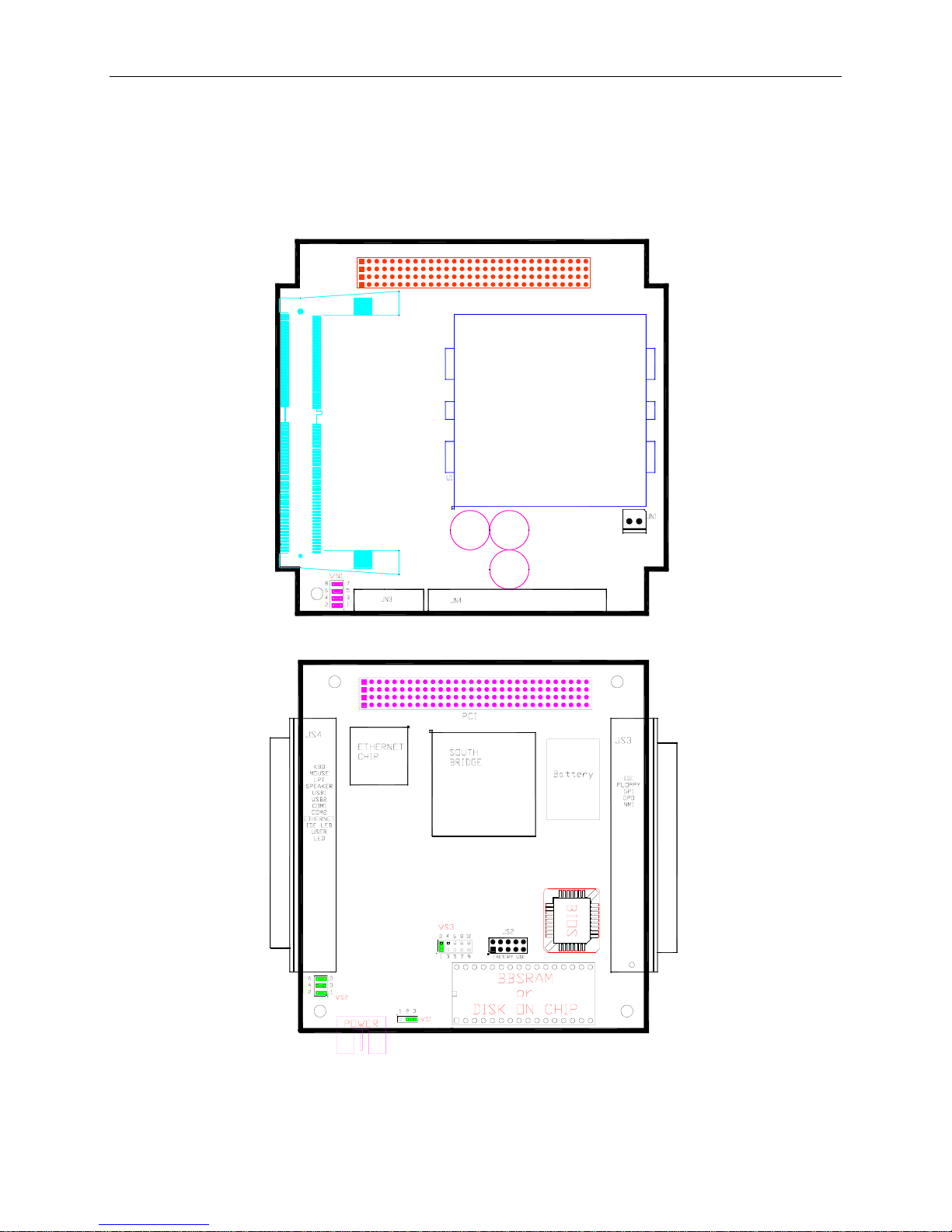

Connector Location Diagrams............................................................................. 11

Connector Functions and Interface Cables..........................................................12

High Density 80-Pin Cable (JS4).........................................................................13

High Density 80-Pin Cable (JS3).........................................................................14

Jumper Block Locations ...................................................................................................15

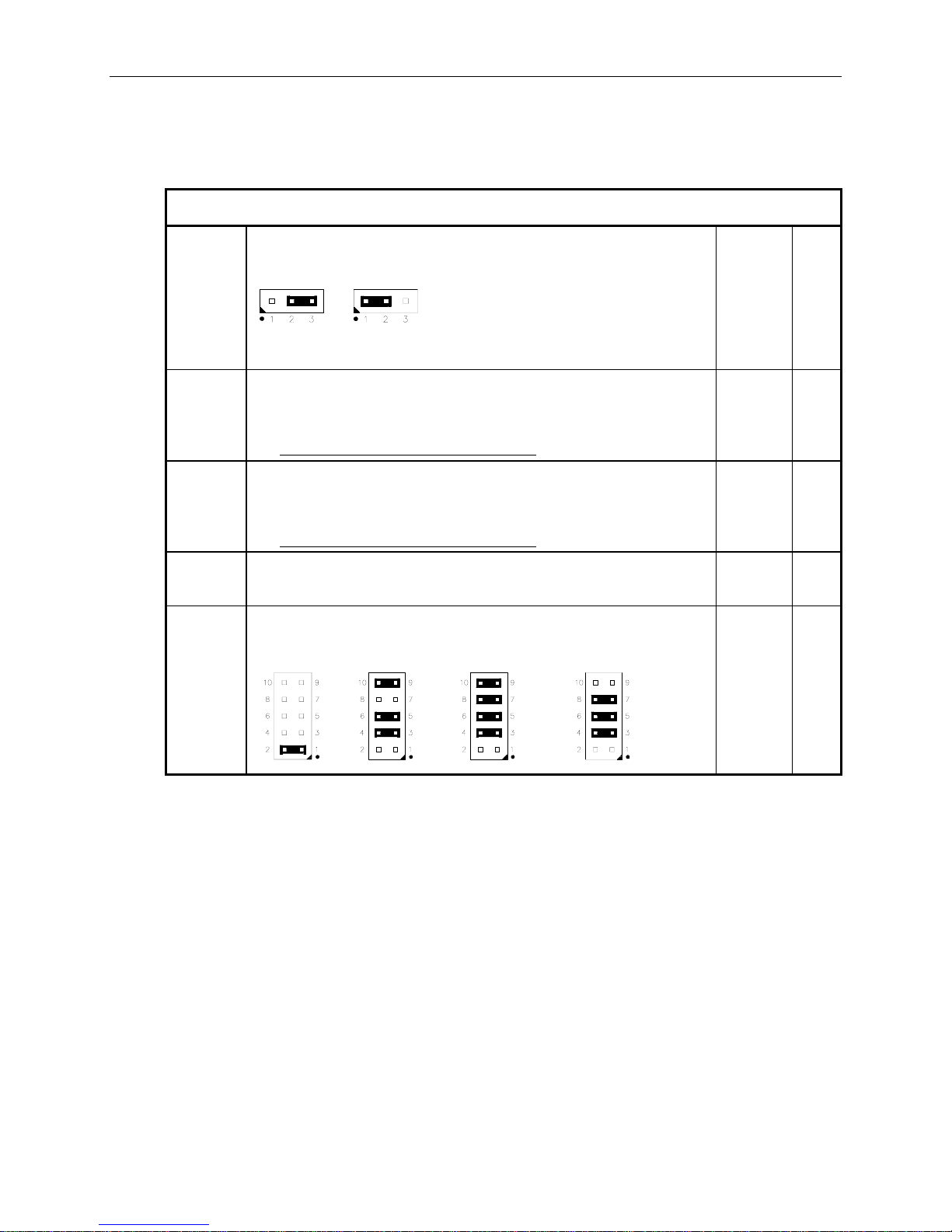

Jumper Summary................................................................................................. 16

Jumper Summary................................................................................................. 17

Power Supply....................................................................................................................18

Power Connectors................................................................................................ 18

Power Requirements............................................................................................ 19

Lithium Battery.................................................................................................... 19

CPU................................................................................................................................... 20

Processor Replacement........................................................................................ 20

Processor Side Bus Selection............................................................................... 20

Heat Sink ............................................................................................................. 20

Processor Power Management.............................................................................21

System RAM..................................................................................................................... 22

Compatible Memory Modules............................................................................. 22

CMOS RAM..................................................................................................................... 23

Clearing CMOS RAM.........................................................................................23

CMOS Setup Defaults ...................................................................................................... 23

Real Time Clock...............................................................................................................23

Setting the Clock.................................................................................................. 23

iii

Table of Contents

Disk on Chip..................................................................................................................... 24

Enable / Disable................................................................................................... 24

Compatible Devices.............................................................................................24

Installing the DOC Chip......................................................................................24

CMOS Setup........................................................................................................24

Serial Ports........................................................................................................................25

COM Port Configuration.....................................................................................25

COM2 RS-485 Mode Line Driver Control..........................................................25

Serial Port Connectors.........................................................................................26

Parallel Port.......................................................................................................................27

IDE Hard Drive / CD-ROM Interfaces............................................................................. 28

Utility Connector ..............................................................................................................29

Keyboard/Mouse Interface .................................................................................. 29

Programmable LED............................................................................................. 29

External Speaker.................................................................................................. 30

Push-Button Reset.............................................................................................................30

Floppy Drive Interface...................................................................................................... 30

Video Interface ................................................................................................................. 31

Video Resolutions................................................................................................ 31

Video Output Connector......................................................................................31

Flat Panel Display Connector ..............................................................................32

Compatible Flat Panel Displays........................................................................... 33

Flat Panel Display Selection................................................................................ 33

Flat Panel Power.................................................................................................. 33

Ethernet Interface.............................................................................................................. 34

Ethernet Connector..............................................................................................34

Ethernet Status.................................................................................................................. 34

Watchdog Timer...............................................................................................................35

Enabling the Watchdog........................................................................................ 35

Refreshing the Watchdog.....................................................................................35

CPU Temperature Monitor...............................................................................................35

USB1.1 Interface .............................................................................................................. 36

Expansion Bus ..................................................................................................................37

PC/104-Plus.........................................................................................................37

PC/104 .................................................................................................................37

I/O Configuration................................................................................................. 37

Memory and I/O Map .......................................................................................................38

Memory Map .......................................................................................................38

I/O Map................................................................................................................ 39

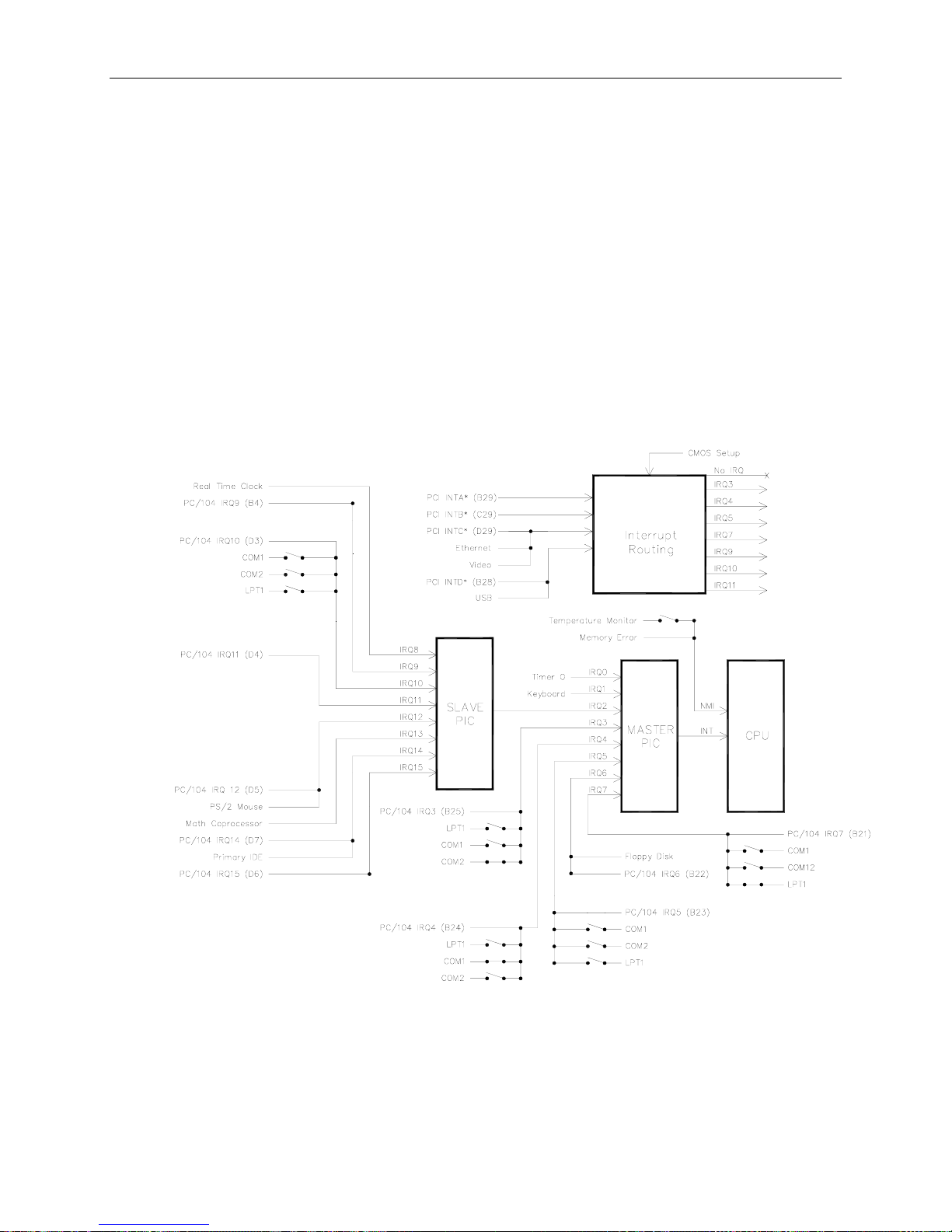

Interrupt Configuration..................................................................................................... 40

Special Control Register...................................................................................................41

Revision Indicator Register...............................................................................................42

Watchdog Timer Hold-Off Register.................................................................................43

Special Control Register (or 01E2h via CMOS setup).....................................................43

Map and Paging Control Register..................................................................................... 44

Appendix A — Other References .................................................................................45

iv

Description

The EPM-CPU-10 is a performance-oriented processor board in a compact PC/104-Plus format.
It is specifically designed for OEM control projects requiring fast processing, compact size,
flexible memory options, high reliability, and long product lifespan / availability. It's features
include:

• Socket 370 processors

• Intel Celeron 350 MHz (equivalent)

• Intel Celeron 566 MHz

• Intel Pentium III 850 MHz

• Intel 440BX chipset

• 32 to 256 MB system RAM

• 10 / 100 dual-speed Ethernet

• AGP based video

• Flat panel display support

• 32-pin DiskOnChip support

• PC/104-Plus high speed expansion

interface

• PCI based IDE controller

• Dual USB 1.1 interfaces

• 2 COM + 1 LPT port

Introduction

• Keyboard and PS/2 mouse port

• RS-232/422/485 COM port

• CPU temperature sensor

• Watchdog timer

• Vcc sensing reset circuit

• Flash BIOS with OEM enhancements

• Ethernet Remote boot capable

• Single supply (+5V) operation

• Latching I/O connectors

• Customizing available

• Fanless option

• TVS devices

• Customizable setup defaults

1

The EPM-CPU-10 is a complete computer system in a compact two board set. It may be used
alone or with expansion modules. It features a PC/104-Plus expansion interface for fast PCI­based interface to a wide variety of PC/104 and PC/104-Plus stacking modules.

It is fully compatible with popular operating systems including Windows operating systems, Vx
Works, QNX, Linux, and other Real Time Operating Systems.

On-board I/O includes 10/100 Mbit Ethernet, CRT / Flat Panel interface, IDE, USB 1.1, two
COM and one LPT port. In addition, one of the COM ports is convertible to RS-232/422/485.

Up to 256 MB of low power system RAM is supported in a high-reliability latching 144-pin
SODIMM socket. DiskOnChip Flash space is support for non-volatile program and data file
storage without the use of mechanical disk drives.

EPM-CPU-10 Reference Manual Introduction – 1

Description

The high reliability design and construction of this board also features latching I/O connectors,
watchdog timer, voltage sensing reset circuit, and self-resetting fuse on the 5V supply to the
keyboard, mouse, and USB 1.1 ports. An onboard programmable CPU temperature sensor is
included for use in difficult thermal situations. The sensor output can be used to turn on
additional fans, create local or remote warnings, or take other action through software triggers.

The EPM-CPU-10 socket 370 compliant 2-board computer will accept Intel Flip-Chip Pentium
and Intel Flip-Chip Celeron Chips. Processors speeds up to 850 MHz are available.

This exceptional processor card was designed from the ground up for OEM applications with
longevity and reliability as the focus. It is fully supported by the VersaLogic design team. Both
hardware and software (BIOS) customization are available. Please contact a VersaLogic
Applications Support Specialist to discuss these requirements. Each board is subjected to a 48­hour burn-in and 100% functional testing and backed by a limited two-year warranty.

2

– Introduction EPM-CPU-10 Reference Manual

Technical Specifications

Specifications are typical at 25°C with 5.0V supply unless otherwise noted.

Board Size:

3.95" x 3.775" PCB dimensions 4.23” x 3.775” including connectors. Two board set.

Storage Temperature:

–40° C to 85° C

Free Air Operating Temperature:

0° C to +50° C free air, no airflow (EPM-CPU-10b, c, d)
0° C to +60° C 100 FPM airflow (EPM-CPU-10b, c, d)

-40° C to +75° C free air, no airflow (EPM-CPU-10e)

-40° C to +85° C 100 FPM airflow (EPM-CPU-10e)

Power Requirements:

EPM-CPUb 350 MHz equivelant Celeron 5V ±5% @ 3.37 A (16.85 W) typ.
EPM-CPUc 566 MHz Celeron 5V ±5% @ 4.47 A (22.35 W) typ
EPM-CPUd 850 MHz Pentium III 5V ±5% @ 5.45 A (27.25 W) typ.
EPM-CPUe 350 MHz equivelant Celeron 5V ±5% @ 3.52 A (17.60 W) typ.
+3.3V or ±12V may be required by some expansion modules

System Reset:

Vcc sensing, resets below 4.37V typ. Watchdog timeout

DRAM Interface:

One 144-pin SODIMM socket, 32 to 256 MB,
SDRAM (EPM-CPU-10d PC-100 compatible or faster, EPM-CPU-10b,c,e runs at PC-66).

Flash Interface:

One 32-pin JEDEC DIP socket.
Accepts one DiskOnChip device . Height limit of 0.330”

Video Interface:

Intel/C&T 69030 chip. 4 MB VRAM. Resolutions to 1600 x 1200
Supports up to 36-bit flat panel displays.

IDE Interface:

One PCI-based IDE channel, 40-pin interface, compatble with enhanced IDE mode 4 and Ultra DMA only.
Supports up to two IDE devices (hard drives, CD-ROM, etc.)

Floppy Disk Interface:

Supports two floppy drives

Ethernet Interface:

10/100 Ethernet based on Intel 82559ER chip.

COM1 Interface:

RS-232, 16C550 compatible, 115K baud max.

COM2 Interface:

RS-232/422/485, 16C550 compatible, 460K baud max.

LPT Interface:

Bi-directional/EPP/ECP compatible

Connectors:

I/O: Two high-density 80-pin (break out to standard .1" IDC and PC connectors).
Video: 10-pin 2mm CRT connector, 44-pin 2mm FPD connector, 16-pin 2mm FPD connector.
Power: 10-pin .1"

BIOS:

General Software embedded BIOS with OEM enhancements
Field upgradable with Flash BIOS Upgrade Utility

Bus Speed:

CPU External: 66/100 MHz
PCI, PC/104-Plus: 33 MHz
PC/104: 8 MHz

Compatibility:

PC/104 – Full compliance, except board width.
Embedded-PCI (PC/104-Plus) – Full compliance, 3.3V or 5V modules

Specifications are subject to change without notice.

(with 32 MB SDRAM, keyboard, mouse, running Win95 with Ethernet)

Technical Specifications

EPM-CPU-10 Reference Manual Introduction

– 3

Technical Support

Technical Support

If you have problems that this manual can’t help you solve, first visit the EPM-CPU-10 Product
Support web page at http://www.versalogic.com/private/jaguarsupport.asp. If you have
further questions, contact VersaLogic for technical support at [phone]. You can also reach
our technical support engineers via e-mail at [e-mail].

EPM-CPU-10 Support Website

http://www.versalogic.com/private/jaguarsupport.asp

R

EPAIR SERVICE

If your product requires service, you must obtain a Returned Material Authorization (RMA)
number by calling [phone].

Please provide the following information:

• Your name, the name of your company, and your phone number

• The name of a technician or engineer who we can contact if we have questions

• Quantity of items being returned

• The model and serial number (bar code) of each item.

• A description of the problem

• Steps you have taken to resolve or repeat the problem

• The return shipping address

Warranty Repair All parts and labor charges are covered, including return shipping

charges for UPS 3rd Day Select delivery to United States addresses.

Non-warranty Repair All non-warranty repairs are subject to diagnosis and labor charges,

parts charges, and return shipping fees. We will need to know what
shipping method you prefer for return back to your facility, and we
will need to secure a purchase order number for invoicing the repair.

Note! Please mark the RMA number clearly on the outside of the box before

4 – Introduction EPM-CPU-10 Reference Manual

returning. Failure to do so can delay the processing of your return.

Overview

E

LECTROSTATIC DISCHARGE

Warning! Electrostatic discharge (ESD) can damage boards, disk drives, and other

After removing the board from its protective wrapper, place the board on a

Configuration / Operation

components. The circuit board must be only be handled at an ESD workstation. If
an approved station is not available, some measure of protection can be provided
by wearing a grounded antistatic wrist strap. Keep all plastic away from the board,
and do not slide the board over any surface.

grounded, static-free surface, component side up. Use an anti-static foam pad if
available.

The board should also be protected during shipment or storage by keeping inside a
closed metallic anti-static envelope.

2

Note! The exterior coating on some metallic anti-static bags is sufficiently conductive to

cause excessive battery drain if the bag comes in contact with the bottom side of
the EPM-CPU-10.

L

ITHIUM BATTERY

Warning! To prevent shorting, premature failure, or damage to the lithium battery, do not

place the board on a conductive surface such as metal, black conductive foam, or
the outside surface of a metalized ESD protective pouch. The lithium battery may
explode if mistreated. Do not recharge, disassemble, or dispose of in fire. Dispose
of used batteries promptly.

EPM-CPU-10 Reference Manual Configuration / Operation – 5

Initial Configuration and Setup

Initial Configuration and Setup

The following list describes the recommended components and gives an abbreviated outline for
setting up a typical development system.

R

ECOMMENDED COMPONENTS

• EPM-CPU-10 Board Set

• 144-pin SODIMM SDRAM Memory Module (PC-66 or PC-100)

• ATX Power Supply

• SVGA Video Monitor

• Keyboard with PS2 connector

• 3.5" Floppy Disk Drive

• IDE Hard Drive

• IDE CD ROM Drive (optional)

DRAM M

ODULE

• Insert DRAM module into the SODIMM socket. Latch into place.

C

ABLES

/ P

ERIPHERAL DEVICES

• Plug video adapter cable (p/n VL-CBL-1007) into socket JN2 and attach video monitor.

• Plug keyboard into socket JS4[JC].

• Plug floppy data connector JS3[JK] into floppy drive.

Note The floppy drive used to boot the system (Drive A) should be connected after the

twist in the cable (connector JS3[JK]).

• Plug hard drive data connector JS3[JH] into IDE hard drive.

• Optionally, a CD ROM can be connected to JS3[JJ].

• Plug power supply into JS1.

• Attach power supply cables to external drives.

• Jumper hard drive to operate as a master device.

6

– Configuration / Operation EPM-CPU-10 Reference Manual

CMOS Setup / Boot Procedure for EPM-CPU-10

CMOS Setup / Boot Procedure for EPM-CPU-10

• Turn power on.

• Press the DEL key the instant that video is displayed (during the memory test).

• Verify correct CMOS Setup information as shown below.

• Insert bootable floppy disk into floppy drive.

• Reset computer using push button reset.

Basic CMOS Configuration
+------------------------------------------------------------------------------+
| System Bios Setup - Basic CMOS Configuration |
| (C) 2002 General Software, Inc. All rights reserved |
+---------------------------+--------------------+-----------------------------+
| DRIVE ASSIGNMENT ORDER: | Date:>Jan 01, 1980 | Typematic Delay : 250 ms |
| Drive A: Floppy 0 | Time: 00 : 00 : 00 | Typematic Rate : 30 cps |
| Drive B: (None) | NumLock: Disabled | Seek at Boot : Floppy |
| Drive C: (None) +--------------------+ Show "Hit Del" : Enabled |
| Drive D: (None) | BOOT ORDER: | Config Box : Enabled |
| Drive E: (None) | Boot 1st: Drive A: | F1 Error Wait : Enabled |
| Drive F: (None) | Boot 2nd: (None) | Parity Checking : (Unused) |
| Drive G: (None) | Boot 3rd: (None) | Memory Test Tick : Enabled |
| Drive H: (None) | Boot 4th: (None) | Debug Breakpoint : (Unused) |
| Drive I: (None) | Boot 5th: (None) | Debug Hex Case : Upper |
| Drive J: (None) | Boot 6th: (None) | Memory Test :StdLo FastHi |
| Drive K: (None) +--------------------+-----------------+-----------+
| Boot Method: Boot Sector | ATA DRIVE GEOMETRY: Sect Hds Cyls | Memory |
+---------------------------+ Ide 0: Not installed | Base: |
| FLOPPY DRIVE TYPES: | Ide 1: Not installed | 633KB |
| Floppy 0: 1.44 MB, 3.5" | Ide 2: Unused | Ext: |
| Floppy 1: Not installed | Ide 3: Unused | 127MB |
+---------------------------+--------------------------------------+-----------+

Custom Configuration
+------------------------------------------------------------------------------+
| System BIOS Setup - Advanced Configuration |
| (C) 2002 General Software, Inc. All rights reserved |
+---------------------------------------+--------------------------------------+
| BIOS Extension : Disabled | COM1 (03F8) Enabled/IRQ : IRQ4 |
| DiskOnChip : Disabled | COM2 (02F8) Enabled/IRQ : IRQ3 |
| Parallel Port Mode : SPP | LPT1 (0378) Enabled/IRQ : IRQ7 |
| Display Type : CRT | PS/2 Mouse Enabled/IRQ : IRQ12 |
| I/O Register Base Address : 0E0h | PCI Int A : IRQ11 |
| CPU Temperture Threshold : 70°C | PCI Int B : IRQ11 |
| Splash Screen : Disabled | PCI Int C : IRQ11 |
| Processor Throttling : Varies | PCI Int D : IRQ11 |
| Throttling Percentage : Varies | Reserved : (Unused) |
+---------------------------------------+--------------------------------------+

Shadow Configuration
+------------------------------------------------------------------------------+
| System BIOS Setup - Shadow/Cache Configuration |
| (C) 2002 General Software, Inc. All rights reserved |
+---------------------------------------+--------------------------------------+
| Shadowing : Chipset | Shadow 16KB ROM at C000 : Enabled |
| Shadow 16KB ROM at C400 : Enabled | Shadow 16KB ROM at C800 : Disabled |
| Shadow 16KB ROM at CC00 : Disabled | Shadow 16KB ROM at D000 : Disabled |
| Shadow 16KB ROM at D400 : Disabled | Shadow 16KB ROM at D800 : Disabled |
| Shadow 16KB ROM at DC00 : Disabled | Shadow 16KB ROM at E000 : Disabled |
| Shadow 16KB ROM at E400 : Disabled | Shadow 16KB ROM at E800 : Disabled |
| Shadow 16KB ROM at EC00 : Disabled | Shadow 64KB ROM at F000 : Enabled |
+---------------------------------------+--------------------------------------+

Note! Due to changes and improvements in the system BIOS, the information on your

monitor may differ from that shown above. Above screen version is Version

5.1.102

EPM-CPU-10 Reference Manual Configuration / Operation

– 7

CMOS Setup / Boot Procedure for EPM-CPU-10

Creating a Bootable DOS DiskOnChip

The DiskOnChip is shipped pre-formatted, non-bootable, without any files on it. The
DiskOnChip will appear as Drive D in systems with an installed hard drive. If a hard drive is not
installed, the DOC will appear as Drive C:

1. Boot your system under DOS or Windows (if using Windows, start a DOS session)

2. Type SYS C: (or SYS D: if appropriate)

8

– Configuration / Operation EPM-CPU-10 Reference Manual

Physical Dimensions

The EPM-CPU-10 is a two board set consisting of a CPU Module (North Bridge) and an I/O
Module (South Bridge). Dimensions are given below to help with pre-production planning and
layout.

Reference

3

CPU Module (North Bridge)

Overall Height (Fan & Fanless Model)

Figure 1. Dimensions

(Not to scale. All dimensions in inches.)

I/O Module (South Bridge)

EPM-CPU-10 Reference Manual Reference – 9

Physical Dimensions

H

ARDWARE ASSEMBLY

The EPM-CPU-10 consists of two boards which are mounted together with eight 5mm x 15mm
M3 threaded hex male/female standoffs (p/n VL-HDW-101) using the corner mounting holes.
These standoffs are secured to the top circuit board using four pan head screws.

Caution Extreme care must be taken not to damage components near the corner mounting

holes when tightening standoffs with nut driver tools.

Additional PC/104-Plus or PC/104 cards can be attached to the bottom of the EPM-CPU-10
board set and secured with standoffs or 5mm nuts.

PC/104-Plus expansion modules can be secured directly to the underside of the EPM-CPU-10.
PC/104 expansion modules can be secured to the underside of the EPM-CPU-10, however, the

40-pin and 64-pin ISA feedthrough connectors may need to be extended, and longer standoffs
might need to be used to provide adequate clearance between the PCI connector and the
components on the top side of the PC/104 module.

The entire assembly can sit on a table top or it can be secured to a base plate. When bolting the
unit down, make sure to secure all four standoffs to the mounting surface to prevent circuit board
flexing. Refer to the drawing on page 9 for dimensional details.

An extractor tool is available (part number VL-HDW-201) to separate the modules from the
stack.

S

TACK ARRANGEMENT

Figure 2. PC/104-Plus Card Added to Bottom of Stack

10

– Reference EPM-CPU-10 Reference Manual

External Connectors

External Connectors

C

ONNECTOR LOCATION DIAGRAMS

Figure 3. Connector Location Diagram (CPU Module)

EPM-CPU-10 Reference Manual Reference

Figure 4. Connector Location Diagram (I/O Module)

– 11

External Connectors

C

ONNECTOR FUNCTIONS AND INTERFACE CABLES

The table below notes the function of each connector, as well as mating connectors and cables,
and the page where a detailed pinout or further information is available.

Table 1: Connector Functions and Interface Cables

Connector

JN1 Fan Power Output (+5V) Molex 22-01-3027 or

JN2 SVGA Video Output

JN3 Flat Panel Interface Adam Tech 2FCS-16-SG +

JN4 Flat Panel Interface Adam Tech 2CH-A2-44

JS1

JS2 PLD Reprogramming

JS3 IDE0, Floppy, General

JS4

Main Power Input

Port (Factory use Only)

Purpose Input, General
Purpose Output, NMI

Keyboard, Mouse, LPT1,
Speaker, USB1, USB2,
COM1, COM2, Eth e rn e t,
IDE D a ta L ED,
Programmable LED

Function

Mating

Connector

Molex 22-01-2025
2mm 10-Pin

Adam Tech 2CTA

Adam Tech 2CTA *
Berg 69176-010 (Housing) +

Berg 47715-000 (Pins)
— — — —

Robinson-Nugent
P50E-080S-TG

Robinson-Nugent
P50E-080S-TG

Transition

Cable

Provided with
fan assembly

VersaLogic
VL-CBL-1007

Custom Contact Factory

VersaLogic
VL-CBL-4401
VersaLogic

VL-CBL-1008

VersaLogic
VL-CBL-8002

VersaLogic
VL-CBL-8001

— 20

1 foot 10-pin socket to
15-pin D-sub SVGA connector

Contact Factory 32

Interface from industry standard
ATX power supply

Breakout to standard PC device
connectors

Breakout to standard PC device
connectors

Cable

Description

Page

31

18

14

13

*

This connector is a 2.00mm housing and crimp terminal , discret e wire style. Number of crimp terminals depends upon

Note:

flat panel display model being used. Insulation displacement connector (IDC) for ribbon cable not recommended due to lack of
clearance between connector JN3 and jumper header VN3.

12

– Reference EPM-CPU-10 Reference Manual

External Connectors

H

IGH DENSITY

80-P

IN CABLE

(JS4)

Cable assembly VL-CBL-8001 is used to break-out this high density connector into standard PC
I/O connectors. This chart shows the pinout for the cable assembly.

Table 2: JS4 High Density 80-Pin Connector Pinout

JS4

Pin

1A
2A JA 14 Auto feed 2B JD 6 Ground
3A 2 Data bit 1 3B 2 Channel 0 Data –
4A 15 Printer error 4B 7 Cable Shield
5A 3 Data bit 2 5B 3 Channel 0 Data +
6A 16 Reset 6B 8 Channel 1 Data +
7A 4 Data bit 3 7B 4 Cable Shield
8A 17 Select input 8B 9 Channel 1 Data –

9A 5 Data bit 4 9B 5 Ground
10A 18 Ground 10B 10 +5V (Protected)
11A
12A 19 Ground 12B JE 5 Isolated Ground
13A 7 Data bit 6 13B 6 Receive Data –
14A 20 Ground 14B 3 Receive Data +
15A 8 Data bit 7 15B 7 Isolated Ground
16A 21 Ground 16B 8 Isolated Ground
17A 9 Data bit 8 17B 2 Transmit Data –
18A 22 Ground 18B 1 Transmit Data +
19A 10 Acknowledge 19B
20A 23 Ground 20B — Ground
21A 11 Port Busy 21B
22A 24 Ground 22B JF 6 Data Set Ready
23A 12 Paper End 23B 2 Receive Data
24A 25 Ground 24B 7 Request to Send
25A 13 Select 25B 3 Transmit Data
26A
27A — Programmable LED+ 27B 4 Data Terminal Ready
28A — Programmable LED– 28B 9 Ring Indicator
29A — Speaker + 29B 5 Ground
30A — Speaker – 30B — No Connect
31A — IDE Data LED– 31B
32A — IDE Data LED+ 32B JG 6 Data Set Ready
33A
34A JB 1 Mouse Data 34B 7 Request to Send
35A 3 Ground 35B 3 Transmit Data
36A
37A
38A JC 1 Keyboard Data 38B 9 Ring Indicator
39A 3 Ground 39B 5 Ground
40A 5 Keyboard Clock 40B — No Connect

External

Connector Pin Signal

1 Strobe 1B

LPT1

MISC

MOUSE

KBD

6 Data bit 5 11B

— No Connect 26B 8 Clear to Send

4 +5V (Protected) 33B 2 Receive Data

5 Mouse Clock 36B 8 Clear to Send
4 +5V (Protected) 37B 4 Data Terminal Ready

JS4

Pin

External

Connector Pin Signal

1 +5V (Protected)

COM1

COM2

4 Isolated Ground

— Pushbutton Reset

1 Data Carrier Detect

1 Data Carrier Detect

USB CH0

ETHERNET

PBRESET

EPM-CPU-10 Reference Manual Reference

– 13

External Connectors

H

IGH DENSITY

80-P

IN CABLE

(JS3)

Cable assembly VL-CBL-8002 is used to break-out this high density connector into standard PC
I/O connectors. This chart shows the pinout for the cable assembly.

Table 3: JS3 High Density 80-Pin Connector Pinout

JS3

Pin

1A

2A JH/JJ 2 Ground 2B JK/JL 2 Load Head

3A 3 Data bit 7 3B 3 Ground

4A 4 Data bit 8 4B 4 No Connection

5A 5 Data bit 6 5B 5 Ground

6A 6 Data bit 9 6B 6 No Connection

7A 7 Data bit 5 7B 7 Ground

8A 8 Data bit 10 8B 8 Beginning Of Track

9A 9 Data bit 4 9B 9 Ground
10A 10 Data bit 11 10B 10 Motor Enable 1
11A
12A 12 Data bit 12 12B 12 Drive Select 0
13A 13 Data bit 2 13B 13 Ground
14A 14 Data bit 13 14B 14 Drive Select 1
15A 15 Data bit 1 15B 15 Ground
16A 16 Data bit 14 16B 16 Motor Enable 0
17A 17 Data bit 0 17B 17 Ground
18A 18 Data bit 15 18B 18 Direction Select
19A 19 Ground 19B 19 Ground
20A 20 No connection 20B 20 Motor Step
21A 21 No connection 21B
22A 22 Ground 22B 22 Write Data Strobe
23A 23 I/O write 23B 23 Ground
24A 24 Ground 24B 24 Write Enable
25A 25 I/O read 25B 25 Ground
26A
27A 27 I/O Channel Ready 27B 27 Ground
28A 28 No connection 28B 28 Write Protect
29A 29 No connection 29B 29 Ground
30A 30 Ground 30B 30 Read Data
31A 31 IRQ14 31B
32A 32 Drive 16-bit I/O 32B 32 Head Select
33A
34A 34 No connection 34B 34 Drive Door Open
35A 35 Address bit 0 35B
36A
37A
38A 38 Chip select 1 38B 4 General Purpose Input
39A 39 Light Emitting Diode – 39B 5 Non Maskable Interrupt
40A 40 Ground 40B 6 No connection

External

Connector Pin Signal

1 Reset 1B

IDE CH0

11 Data bit 3 11B

26 Ground 26B 26 Track 0 Indicator

33 Address bit 1 33B 33 Ground

36 Address bit 2 36B JM 2 +5V (Protected)
37 Chip select 0 37B 3 General Purpose Output

JS3

Pin

External

Connector Pin Signal

1 Ground

MISC

11 Ground

21 Ground

31 Ground

1 Ground

FLOPPY

14

– Reference EPM-CPU-10 Reference Manual

Jumper Block Locations

Note! Jumpers shown in as-shipped configuration.

Jumper Block Locations

Figure 5. Jumper Block Locations (CPU Module)

Figure 6. Jumper Block Locations (I/O Module)

EPM-CPU-10 Reference Manual Reference

– 15

Jumper Block Locations

J

UMPER SUMMARY

Jumper
Block

VN1

Description
Flat Panel Selection

VN1[7-8] VN1[5-6] VN1[3-4] VN1[1-2] Number Type

In In In In — —
In In In Out 1
In In Out In 2
In In Out Out 3
In Out In In 4
In Out In Out 5
In Out Out In 6
In Out Out Out 7
Out In In In 8
Out In In Out 9
Out In Out In 10
Out In Out Out 11
Out Out In In 12
Out Out In Out 13
Out Out Out In 14
Out Out Out Out 15

Table 4: Jumper Summary North Board

As

1024x768 Dual Scan STN Color
128x1024 TFT Color
640x480 Dual Scan STN Color
800x600 Dual Scan STN Color
640x480 Sharp TFT Color
640x480 18-bit TFT Color
1024x768 TFT Color
800x600 TFT Color
800x600 TFT Color
800x600 TFT Color
800x600 Dual Scan STN Color
800x600 Dual Scan STN Color
1024x768 TFT Color
1280x1024 Dual Scan STN Color
1024x600 Dual Scan STN Color

Shipped Page

— —

16

– Reference EPM-CPU-10 Reference Manual

Jumper Block Locations

J

UMPER SUMMARY

Jumper
Block

VS1

Description
CMOS RAM and Real Time Clock Erase

Normal
Operation Erase

Note!

jumper in position VS1[1-2] for at least 30 seconds to fully erase CMOS RAM.

VS2[1-2]

VS2[3-4]

VS2[5-6]

VS3

System BIOS Selector

In — Primary System BIOS
Out — Secondary System BIOS

Note!

See www.versalogic.com/private/jaguarsupport.asp

Video BIOS Selector

In — Primary Video BIOS
Out — Secondary Video BIOS

Note!

See www.versalogic.com/private/jaguarsupport.asp

General Purpose Jumper

In — Bit D1 in SCR register 00E2h reads as 1
Out — Bit D1 in SCR register 00E2h reads as 0

COM2 Configuration

RS-485 RS-485
RS-232 RS-422 Endpoint Station Intermediate Station

Table 5: Jumper Summary South Board

Do not operate the board with the jumper in the erase position. Leave the

The secondary System BIOS is field upgradable using the BIOS upgrade utility.

for further information.

The secondary System BIOS is field upgradable using the BIOS upgrade utility.

for further information.

As

Shipped Page

Normal 23

In —

In —

In 43

RS-232 25

EPM-CPU-10 Reference Manual Reference

– 17

Power Supply

Power Supply

P

OWER CONNECTORS

Main power is applied to the

EPM-CPU-10

through a 10-pin polarized connector. Mating connector

Berg 69176-010 (Housing) + Berg 47715-000 (Pins).
See page 11 for connector pinout and location information.

Warning! To prevent severe and possibly irreparable damage to the system, it is critical that

the power connectors be wired correctly. Make sure to use all three +5VDC pins
and all four ground pins to prevent excess voltage drop.

Table 6: Main Power Connector Pinout

JS1

Signal

Pin

Name

1 Ground Ground
2 +5VDC Power Input
3 Ground Ground
4 +12VDC Power Input
5 Ground Ground
6 –12VDC Power Input
7 +3.3VDC Power Input
8 +5VDC Power Input
9 Ground Digital Ground

10 +5VDC Power Input

Description

Note! The +3.3VDC, +12VDC, and –12VDC inputs are only required for expansion

modules that require these voltages.

18

– Reference EPM-CPU-10 Reference Manual

Power Supply

P

OWER REQUIREMENTS

The

EPM-CPU-10

only requires +5 volts (±5%) for proper operation. The voltage required for the
RS-232 ports and analog input sections are generated with an on-board DC/DC converter. A
variable low-voltage supply circuit provides power to the CPU and other on-board devices.

The exact power requirement of the

EPM-CPU-10

depends on several factors, including memory
configuration, CPU speed, peripheral connections, type and number of expansion modules, and
attached devices. For example, PS/2 keyboards typically draw their power directly from the

, and driving long RS-232 lines at high speed can increase power demand.

CPU-10

L

ITHIUM BATTERY

EPM-

Warning! To prevent shorting, premature failure, or damage to the lithium battery, do not

place the unit on a conductive surface such as metal, black conductive foam, or the
outside surface of a metalized ESD protective pouch. The lithium battery may
explode if mistreated. Do not recharge, disassemble, or dispose of in fire. Dispose
of used batteries promptly.

Normal battery voltage should be at least 3.0V. If the voltage drops below 3.0V, contact the
factory for a replacement (part number T-HB3/5). Life expectancy under normal use is
approximately 10 years.

EPM-CPU-10 Reference Manual Reference

– 19

CPU

CPU

P

ROCESSOR REPLACEMENT

Remove or replacement of CPU is not recommended, doing so may damage the CPU. These flip­chip style 370-pin CPU’s have the chip dies mounted an a thin substrate. If the substrate is flexed
too far, damage will occur to the die bonds. Such damage will not be covered under the board
warranty.

P

ROCESSOR SIDE BUS SELECTION

Pentium and Celeron CPU’s normally select their Processor Side Bus Speed.

H

EAT SINK

A heat sink and cooling fan must

be in place whenever power is applied to the CPU. The fan

connects to header JN1 for power.

Table 7: Fan Power Connector

JN1

Note! A fan is not required for the low-power C

Signal

Pin

Name Function

1 +5V Fan Power
2 GND Ground

ELERON

350 MHZ model (b version).

20

– Reference EPM-CPU-10 Reference Manual

CPU

P

ROCESSOR POWER MANAGEMENT

A form of power management called "throttling" is supported on the EPM-CPU-10. This is an
Intel 440BX chipset feature that has been augmented with an I/O control bit in the VersaLogic
Special Control Register. CMOS Setup options have been implemented to select throttling
percentages from 12.5% to 75%, and to enable or disable throttling. Throttling works by
activating the CPU Stop-Clock line every 250 microseconds to create a duty-cycle relative to the
selected throttling percentage. These throttling percentages refer to the relative time the CPU is in
a stopped mode.

If throttling is enabled with the percentage set to 75%, the CPU will run at full speed (566 MHz
for the EPM-CPU-10b, EPM-CPU-10c or EPM-CPU-10e and 850MHz for the EPM-CPU-10d)
for 62.5 microseconds (25%) and will be off for 187.5 microseconds (75%) every 250
microsecond period.

Once the throttling percentage is initialized in the CMOS Setup, it can be enabled and disabled by
writing to the “Throttle” control bit in the VersaLogic Special Control Register. See page 41. This
gives the user a very simple means to throttle back during a time of little activity, and to re­establish full power when needed.

The EPM-CPU-10b Low Power Fanless and the EPM-CPU-10e versions are 566 MHz Celerons
with throttling always enabled at a minimum of 37.5% (which gives an effective CPU speed of
350 MHz). It can be slowed down to the maximum throttling rate of 75%, but not less than

37.5%. The Throttle control bit in the VersaLogic Special Control Register can not be changed on
the EPM-CPU-10b and EPM-CPU-10e. Contact the factory for information on how to change the
throttling percentage via indexed PCI based registers in the chipset.

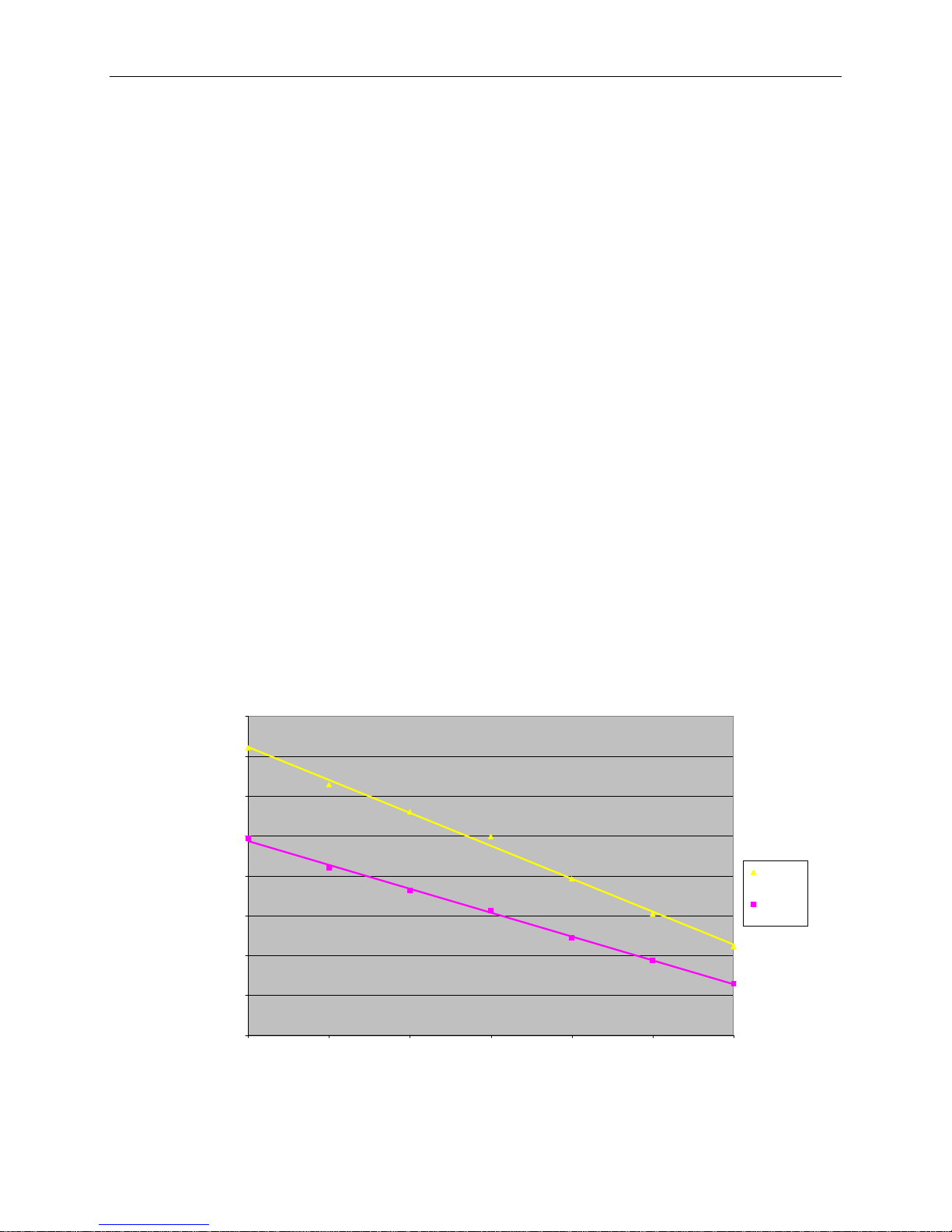

Typical Power vs Throttling

30

27.5

25

22.5

20

17.5

Typical Power (Watts)

15

12.5

10

0.0% 12.5% 25.0% 37.5% 50.0% 62.5% 75.0%

Throttling

850 MHz
Pentium III

566 MHz
Celeron

Figure 7

EPM-CPU-10 Reference Manual Reference

– 21

System RAM

System RAM

C

OMPATIBLE MEMORY MODULES

The

EPM-CPU-10

will accept one 144-pin SODIMM memory module with the following

characteristics:

• Storage Capacity 32 to 256 MB

• Voltage 3.3 Volt

• Error Detection Not supported

• Error Correction Not supported

• Type EPM-CPU -10d SDRAM PC-100 or faster

EPM-CPU-10b,c,e SDRAM PC-66 or faster

22

– Reference EPM-CPU-10 Reference Manual

CMOS RAM

CMOS RAM

C

LEARING

CMOS RAM

Jumper VS1 can be moved to position [1-2] for 30 seconds to erase the contents of the CMOS
RAM. Be sure to move the jumper back to position [2-3] for normal operation.

Note Operation with the jumper in the erase position [1-2] will cut-off all battery power

to the CMOS RAM and Real Time Clock chip. The board will operate in this
condition, however, this will force the board to use the factory default parameters
as shown on page 7. For custom programming of the Factory Default Parameters,
please contact the Customization Department at VersaLogic.

CMOS Setup Defaults

The EPM-CPU-10 features the ability for users to modify the CMOS Setup defaults. This allows
the system to boot up with user defined settings from cleared or corrupted CMOS RAM, battery
failure, or battery-less operation. All CMOS setup defaults can be changed except the time and
date.

Warning - If the CMOS Setup defaults are set in a way that makes the system unbootable and

unable for the user to enter CMOS Setup, the EPM-CPU-10 will need to be
serviced by the factory.

Real Time Clock

The

EPM-CPU-10

clock/calendar chip. Under normal battery conditions, the clock will maintain accurate
timekeeping functions during periods when the board is powered off.

S

ETTING THE CLOCK

The CMOS Setup utility (accessed by pressing the [DEL] key during a system boot) can be used
to set the time/date of the real time clock.

features a year 2000 compliant, battery-backed 146818 compatible real time

EPM-CPU-10 Reference Manual Reference

– 23

Disk on Chip

Disk on Chip

A 32-pin socket (U1 on the I/O module) will accept an M-Systems DiskOnChip (DOC) Flash
Disk for non-volatile, read/write data storage. The DOC can be configured as a boot device

E

NABLE

/ D

ISABLE

The DOC can be enabled or disabled through CMOS Setup by going into the Advanced
Configuration screen and setting "DiskOnChip” to one of the three base addresses or “Disabled”.
When enabled, the DOC will take up 8KB at the base address specified.

C

OMPATIBLE DEVICES

Any 5 Volt, low profile M-Systems series DOC device will work.

I

NSTALLING THE

DOC C

HIP

1. Align pin 1 on the DOC with pin 1 of socket U1 on the I/O module.

2. Push the DOC into the socket carefully until it is fully seated.

Warning! The DOC will be permanently damaged if installed incorrectly! When installing

the DOC, be sure to align pin-1 on the chip with pin-1 on the socket. To prevent
electrostatic damage, first touch a grounded surface to discharge any static
electricity from your body.

CMOS S

ETUP

To enable the DOC as drive C on a system without a hard disk, set the CMOS setup of drive C to
“not installed”, and reboot the computer.

Note! The DOC needs to be formatted with the System files in order for it to be a

bootable drive. Refer to the M-Systems web site (www.m-sys.com) for
documentation on the DOC 2000 and details on making it a bootable device.

24

– Reference EPM-CPU-10 Reference Manual

Serial Ports

Serial Ports

The

EPM-CPU-10

features two on-board 16550 based serial channels located at standard PC I/O

addresses. COM1 is an RS-232 (115.2K baud) serial port.
COM2 can be operated in RS-232, RS-422, or RS-485 modes. Two additional non-standard baud

rates are also available (programmable in the normal baud rate registers) of 230K and 460K baud.
Interrupt assignment for each COM port is handled in CMOS Setup, and each port can be

independently enabled or disabled.

COM P

ORT CONFIGURATION

There are no configuration jumpers for COM1 because it only operates in RS-232 mode.
Jumper VS3 is used to configure COM2 for RS-232/422/485 operation. See page 16 and 17 for

jumper configuration details.

COM2 RS-485 M

ODE LINE DRIVER CONTROL

The TxD+/TxD– differential line driver can be turned on and off by manipulating the DTR
handshaking line.

The following code example shows how to turn the line driver for COM2 on and off:

mov dx,02FCh ; Point to COM2 Modem Control register
in al,dx ; Fetch existing value
or al,01h ; Set bit D0
out dx,al ; Turn DTR on (enables line driver)

in al,dx ; Fetch existing value
and al,0FEh ; Clear bit D0
out dx,al ; Turn DTR off (disables line driver)

EPM-CPU-10 Reference Manual Reference

– 25

Serial Ports

S

ERIAL PORT CONNECTORS

See the Connector Location Diagram on pages 11 and 12 for connector and cable information.
The pinout of the DB9 connector applies to use of the VersaLogic transition cable #VL-CBL-

8001.
This connector is protected with IEC 61000-4-2 (Level 4) rated TVS components to help protect

against ESD damage.

Table 8: Connectors JF / JG — Serial Port Pinout

COM1

JS4

21B 31B DCD — — 1
22B 32B DSR — — 6
23B 33B RXD* TxD+ TxD+ 2
24B 34B RTS TxD– TxD– 7
25B 35B TXD* — — 3
26B 36B CTS Ground Ground 8
27B 37B DTR RxD– TxD/RxD– 4
28B 38B RI RxD+ TxD/RxD+ 9
29B 39B Ground Ground Ground 5
30B 40B N/C — — —

Pin

COM2

JS4

Pin

RS-232

RS-422

RS-485

JF/JG

DB9

Pin

26

– Reference EPM-CPU-10 Reference Manual

Parallel Port

Parallel Port

The

EPM-CPU-10

includes a standard bi-directional/EPP/ECP compatible LPT port which resides at
the PC standard address of 378h. The port can be enabled/disabled and interrupt assignments can
be made via the CMOS Setup screen. The pinout of the JA connector applies to use of the
VersaLogic transition cable #VL-CBL-8001.

This connector is protected with IEC 61000-4-2 (Level 4) rated TVS components to help protect
against ESD damage.

Table 9: LPT1 Parallel Port Pinout

JS4

Centronics

Pin

Signal

1A Strobe Out 1
2A Auto feed Out 14
3A Data bit 1 In/Out 2
4A Printer error In 15
5A Data bit 2 In/Out 3
6A Reset Out 16
7A Data bit 3 In/Out 4
8A Select input Out 17

9A Data bit 4 In/Out 5
10A Ground — 18
11A Data bit 5 In/Out 6
12A Ground — 19
13A Data bit 6 In/Out 7
14A Ground — 20
15A Data bit 7 In/Out 8
16A Ground — 21
17A Data bit 8 In/Out 9
18A Ground — 22
19A Acknowledge In 10
20A Ground — 23
21A Port Busy In 11
22A Ground — 24
23A Paper End In 12
24A Ground — 25
25A Select In 13

Signal
Direction

JA

Pin

EPM-CPU-10 Reference Manual Reference

– 27

IDE Hard Drive / CD-ROM Interfaces

IDE Hard Drive / CD-ROM Interfaces

One IDE interface is available to connect up to two hard disk or CD-ROM drives. Use CMOS
Setup to specify the drive parameters of the attached drives.

Warning! Cable length must be 18" or less to maintain proper signal integrity. The grounds
in this connector should not be used to carry motor current.

Table 10: EIDE Hard Drive Connector Pinout

JS3

Pin

1A HRST* Host Reset Reset signal from CPU 1
2A Ground Ground Ground 2
3A IDE7 DATA 7 Data bit 7 3
4A HD8 DATA 8 Data bit 8 4
5A HD6 DATA 6 Data bit 6 5
6A HD9 DATA 9 Data bit 9 6
7A HD5 DATA 5 Data bit 5 7
8A HD10 DATA 10 Data bit 10 8

9A HD4 DATA 4 Data bit 4 9
10A HD11 DATA 11 Data bit 11 10
11A HD3 DATA 3 Data bit 3 11
12A HD12 DATA 12 Data bit 12 12
13A HD2 DATA 2 Data bit 2 13
14A HD13 DATA 13 Data bit 13 14
15A HD1 DATA 1 Data bit 1 15
16A HD14 DATA 14 Data bit 14 16
17A HD0 DATA 0 Data bit 0 17
18A HD15 DATA 15 Data bit 15 18
19A Ground Ground Ground 19
20A NC NC No connection 20
21A NC NC No connection 21
22A Ground Ground Ground 22
23A HWR* HOST IOW* I/O write 23
24A Ground Ground Ground 24
25A HRD* HOST IOR* I/O read 25
26A Ground Ground Ground 26
27A NC NC No connection 27
28A HAEN ALE Address latch enable 28
29A NC NC No connection 29
30A Ground Ground Ground 30
31A HINT HOST IRQ14 IRQ14 31
32A XI16* HOST IOCS16* Drive register enabled 32
33A HA1 HOST ADDR1 Address bit 1 33
34A NC NC No connection 34
35A HA0 HOST ADDR0 Address bit 0 35
36A HA2 HOST ADDR2 Address bit 2 36
37A HCS0* HOST CS0* Reg. access chip select 0 37
38A HCS1* HOST CS1* Reg. access chip select 1 38
39A NC NC No connection 39
40A Ground Ground Ground 40

Signal
Name

EIDE
Signal Name Function

JH/JJ

Pin

28

– Reference EPM-CPU-10 Reference Manual

Utility Connector

Utility Connector

K

EYBOARD/MOUSE INTERFACE

A standard PS/2 keyboard and mouse interface is accessible through connector JS4. In addition,
you will find a programmable LED output, hard drive activity LED, and a speaker output as
shown in the table below. The pinout of the PS/2 connectors applies to use of the VersaLogic
transition cable #VL-CBL-8001.

This connector is protected with IEC 61000-4-2 (Level 4) rated TVS components to help protect
against ESD damage.

Table 11: Utility Connector

JS4

Pin Description

27A Programmable LED +
28A Programmable LED –
29A Speaker +
30A Speaker –
31A IDE Drive Indicator LED –
32A IDE Drive Indicator LED +

33A Protected +5V 4
34A Mouse Data 1
35A Ground 3

36A Mouse Clock 5
37A Protected +5V
38A Keyboard Data 1
39A Ground 3
40A Keyboard Clock

PS/2

Pin

(JB) Mouse
Connector

(JC) Keyboard
Connector

4

5

P

ROGRAMMABLE

LED

The high-density I/O connector JS4 includes an output signal for attaching a software controlled
LED. Connect the cathode of the LED to JS4[28A]; anode to JS4[27A]. An on-board resistor
limits the current to 15 mA when the circuit is turned on.

To turn the LED on and off, set or clear bit D7 in I/O port 0E0h (or 1E0h if selected in CMOS
Setup). When changing the register, make sure not to alter the value of the other bits.

The following code examples show how to turn on and off the LED. Refer to page 41 for further
information:

LED On LED Off

in al,E0h in al,E0h
or al,80h and al,7Fh
out E0h,al out E0,al

Note! The LED is turned on by the BIOS during system startup. This causes the light to

function as a "power on" indicator if it is not otherwise controlled by user code.

EPM-CPU-10 Reference Manual Reference

– 29

Push-Button Reset

E

XTERNAL SPEAKER

A miniature 8 ohm speaker can be connected between JS4[29A] and JS4[30A].
This connector is protected with IEC 61000-4-2 (Level 4) rated TVS components to help protect

against ESD damage.

Push-Button Reset

A normally open, momentary action push-button reset switch can be connected between
JS4[19B] and JS4[20B]. Shorting JS4[19B] to ground will cause the

This connector is protected with IEC 61000-4-2 (Level 4) rated TVS components to help protect
against ESD damage.

Floppy Drive Interface

The

EPM-CPU-10

JS3[JK] and JS3[JL]. Up to two floppy drives can be attached. CMOS Setup can be used to
enable or disable the floppy disk interface.

Note The floppy drive used to boot the system (Drive A) should be connected after the

Warning! Cable length must be 18" or less to maintain proper signal integrity. The grounds in

supports a standard 34-pin PC/AT style floppy disk interface via connector

twist in the cable, JS3[JK].

this connector should not be used to carry motor current.

Table 12: Floppy Disk Interface Connector Pinout

EPM-CPU-10

to reboot.

JS3

Signal

Pin

Name Function

2B R/LC Load Head 2
3B Ground Ground 3
4B NC No Connection 4
5B Ground Ground 5
6B NC No Connection 6
7B Ground Ground 7
8B INDX* Beginning Of Track 8

9B Ground Ground 9
10B MTR1* Motor Enable 1 10
11B Ground Ground 11
12B DRV0* Drive Select 0 12
13B Ground Ground 13
14B DRE1* Drive Select 1 14
15B Ground Ground 15
16B MTR0* Motor Enable 0 16
17B Ground Ground 17
18B DIR Direction Select 18
19B Ground Ground 19
20B STEP* Motor Step 20
21B Ground Ground 21
22B WDAT* Write Data Strobe 22
23B Ground Ground 23
24B WGAT* Write Enable 24
25B Ground Ground 25
26B TRK0* Track 0 Indicator 26
27B Ground Ground 27
28B WPRT* Write Protect 28
29B Ground Ground 29
30B RDAT* Read Data 30
31B Ground Ground 31
32B HDSL Head Select 32
33B Ground Ground 33
34B DCHG Drive Door Open 34

JK/JL

Pin

30

– Reference EPM-CPU-10 Reference Manual

Video Interface

An on-board Asiliant Technologies 69030 controller 4MB video RAM on the EPM-CPU-10
provides full SVGA video output capabilities for the

EPM-CPU-10

Video Interface

.

V

IDEO RESOLUTIONS

This table displays the

EPM-CPU-10

standard VESA SVGA modes and color depths.

Table 13: Video Resolutions

4 MB Video RAM

(EPM-CPU-10)

640 x 480, 16M colors
800 x 600, 16M colors
1024 x 768, 16M colors
1280 x 1024, 64K colors
1600 X 1200, 64K colors

V

IDEO OUTPUT CONNECTOR

See the Connector Location Diagram on page 11 for pin and connector location information. An
adapter cable, part number VL-CBL-1007 is available to translate JN2 into a standard 15-pin
D-Sub SVGA connector.

This connector is protected with IEC 61000-4-2 (Level 4) rated TVS components to help protect
against ESD damage.

Table 14: Video Output Pinout

JN2

Signal

Pin

Name Function

1 GND Ground 6
2 CRED Red Video 1
3 GND Ground 7
4 CGRN Green Video 2
5 GND Ground 8
6 CBLU Blue Video 3
7 GND Ground 5
8 CHSYNC Horizontal Sync 13
9 GND Ground 10

10 CVSYNC Vertical Sync 14

Mini DB15

Pin

EPM-CPU-10 Reference Manual Reference

– 31

Video Interface

F

LAT PANEL DISPLAY CONNECTOR

See the Connector Location Diagram on page 11 for pin and connector location information.

Table 15: Flat Panel Display Pinout

Mono

Mono

Mono

Color

Color

Color

Color

Color

Color

Color

Color

Signal

Pin

Name

JN4[1] +12V Power Supply
JN4[2] +12V Power Supply
JN4[3] GND Ground
JN4[4] GND Ground
JN4[5] +5V Power Supply
JN4[6] +5V Power Supply
JN4[7] ENAVEE Power sequencing control

JN4[8] GND Ground
JN4[9] FP0 Data Output D0 UD3 UD7 B0 B0 FB0 FB0 R1 R1 UR1 UR0 UR0
JN4[10] FP1 “ “ D1 UD2 UD6 B1 B1 FB1 FB1 B1 G1 UG1 UG0 UG0
JN4[11] FP2 “ “ D2 UD1 UD5 B2 B2 FB2 FB2 G2 B1 UB1 UB0 UB0
JN4[12] FP3 “ “ D3 UD0 UD4 B3 B3 FB3 FB3 R3 R2 UR2 UR1 LR0
JN4[13] FP4 “ “ D4 LD3 UD3 B4 B4 FB4 SB0 B3 G2 LR1 LR0 LG0
JN4[14] FP5 “ “ D5 LD2 UD2 G0 B5 FB5 SB1 G4 B2 LG1 LG0 LB0
JN4[15] FP6 “ “ D6 LD1 UD1 G1 B6 SB0 SB2 R5 R3 LB1 LB0 UR1
JN4[16] FP7 “ “ D7 LD0 UD0 G2 B7 SB1 SB3 B5 G3 LR2 LR1 UG1
JN4[17] FP8 “ “ LD7 G3 G0 SB2 FG0 B3 UG1 UB1
JN4[18] FP9 “ “ LD6 G4 G1 SB3 FG1 R4 UB1 LR1
JN4[19] FP10 “ “ LD5 G5 G2 SB4 FG2 G4 UR2 LG1
JN4[20] FP11 “ “ LD4 R0 G3 SB5 FG3 B4 UG2 LB1
JN4[21] FP12 “ “ LD3 R1 G4 FG0 SG0 R5 LG1 UR2
JN4[22] FP13 “ “ LD2 R2 G5 FG1 SG1 G5 LB1 UG2
JN4[23] FP14 “ “ LD1 R3 G6 FG2 SG2 B5 LR2 UB2
JN4[24] FP15 “ “ LD0 R4 G7 FG3 SG3 R6 LG2 LR2
JN4[25] FP16 “ “ R0 FG4 FR0 LG2
JN4[26] FP17 “ “ R1 FG5 FR1 LB2
JN4[27] FP18 “ “ R2 SG0 FR2 UR3
JN4[28] FP19 “ “ R3 SG1 FR3 UG3
JN4[29] FP20 “ “ R4 SG2 SR0 UB3
JN4[30] FP21 “ “ R5 SG3 SR1 LR3
JN4[31] FP22 “ “ R6 SG4 SR2 LG3
JN4[32] FP23 “ “ R7 SG5 SR3 LB3
JN4[33] GND Ground
JN4[34] GND Ground
JN4[35] SHFCLK Shift Clock.

JN4[36] FLM First Line Marker.
JN4[37] DE Display Enable or
JN4[38] LP Latch Pulse.
JN4[39] GND Ground

JN4[40] ENABKL Enable Backlight. Can be
JN4[41] DDCDATA Serial Data

JN4[42] DDCCLK Serial Data
JN4[43] +3V Power Supply
JN4[44] +3V Power Supply

JN3[1] +5V Power Supply
JN3[2] GND Ground
JN3[3] FP24 Data Output FR0
JN3[4] FP25 “ “ FR1
JN3[5] FP26 “ “ FR2
JN3[6] FP27 “ “ FR3
JN3[7] FP28 “ “ FR4
JN3[8] FP29 “ “ FR5
JN3[9] FP30 “ “ SR0
JN3[10] FP31 “ “ SR1
JN3[11] FP32 “ “ SR2
JN3[12] FP33 “ “ SR3
JN3[13] FP34 “ “ SR4
JN3[14] FP35 “ “ SR5
JN3[15] GND Ground
JN3[16] +5V Power Supply

Function

for LCD bias voltage

Pixel clock for flat panel data.
Flat panel equivalent of VSYNC.
M signal (ADCCLK) or BLANK#
Flat panel equivalent of HSYNC.

programmed for other functions.

SS

DD

DD

TFT

TFT

TFT

TFT HR

STN SS

STN SS

8-bit

8-bit

16-bit

9-bit

18-bit

36-bit

18-bit

12-bit

24-bit

16-bit

24-bit

8-bit

(4bP)

16-bit
(4bP)

STN DD

8-bit

(4bP)

STN DD

16-bit
(4bP)

Color

STN DD

24-bit

32

– Reference EPM-CPU-10 Reference Manual

Video Interface

C

OMPATIBLE FLAT PANEL DISPLAYS

The following list of flat panel displays are reported to work properly with the Asiliant
Technologies 69030 video controller chip used on the

EPM-CPU-10

:

• Sharp LQ057Q3DC02

• Sharp LQ084V1DG21

• Sharp LQ10D344

• Sharp LQ10D346

• Sharp LQ10D367

• Sharp LQ10D421

• Sharp LQ9D161

• Sharp LQ9D340

• Sharp LQ10D131

• Sharp LQ12S08

• Sharp LQ12S31

• Sharp LQ12S41

• Sharp LQ64D142

• Sharp LQ64D341

• Sharp LQ64D343

• Sharp LQ104V1DG11

• Sharp LM64K101

• Sharp LM64P101

• Sharp LM64P839

• Sharp LM32P10

• Sharp LM8V31

• Sharp LM64C35P

• NEC NL6448AC33-27

• NEC NL6448AC33-18

• NEC NL6448AC33-24

• LG Elec. LCA4VE02A

• LG Elec. LP104S2

• Samsung LT104V4-101

• Hitachi TX31D27VC1CAB

• Hitachi TX26D80VC1CAA

F

LAT PANEL DISPLAY SELECTION

The video BIOS shipped with the
Use jumper block VN1 to select which type of panel is used, and make sure to configure CMOS
Setup to enable flat panel support.

See page 16 for jumper configuration details.

F

LAT PANEL POWER

The flat panel connectors supply 5.0V, 3.3V, and 12V through the two FPD connectors. (Note:

3.3V and 12V must be supplied to JS1) Each of these power rails are protected by 1 AMP self­resetting fuses.

EPM-CPU-10 Reference Manual Reference

EPM-CPU-10

supports up to 15 different flat panel configurations.

– 33

Ethernet Interface

Ethernet Interface

The EPM-CPU-10 features an industry-standard 10baseT / 100baseTX Ethernet interface based
on the Intel 82559ER interface chip. While this interface is not NE2000 compatible, the 82559ER
series is widely supported. Drivers are readily available to support a variety of operating systems
such as QNX, VxWorks and other RTOS vendors.

E

THERNET CONNECTOR

Ethernet Status

LED D2 provides an onboard indication of the current condition of the board’s Ethernet
functionality.

Yellow = 10/100
Off = 10 Base T
On = 100 Base T

Green = Link/Activity
On = (solid) Link
Off = (Flickers) Blinks Activity

Table 16: RJ45 Ethernet Connector

JS4

Signal

Pin

Name Function

11B IGND Isolated Ground 4
12B IGND Isolated Ground 5
13B R– Receive Data – 6
14B R+ Receive Data + 3
15B IGND Isolated Ground 7
16B IGND Isolated Ground 8
17B T– Transmit Data – 2
18B T+ Transmit Data + 1

JE

Pin

34

– Reference EPM-CPU-10 Reference Manual

Watchdog Timer

A watchdog timer circuit is included on the EPM-CPU-10 to reset the CPU or issue a NMI if
proper software execution fails or a hardware malfunction occurs.

E

NABLING THE WATCHDOG

To enable or disable the watchdog to reset the CPU, set or clear bit D0 in I/O port 0E0h (or
1E0h). When changing the contents of the register, make sure not to alter the value of the other
bits. It is recommend to refresh the watchdog prior to enabling or disabling the watchdog.

The following code example enables the watchdog reset:

in al,E0h
or al,01h
out E0h,al

To enable or disable the watchdog to issue an NMI, set or clear bit D1 in I/O per 0E0h (or 1E0h).
When charging the contents of the register, make sure not to alter the value of the other bits. It is
recommend to refresh the watchdog prior to enabling or disabling the watchdog. Bit D2 can be
read to determine if watchdog timer has expired.

The following code example enables the watchdog NMI:

in al,E0h
or al,02h
out E0h,al

Note! The watchdog timer powers up and resets to a disabled state.

Watchdog Timer

R

EFRESHING THE WATCHDOG

If the watchdog timer is enabled, software must periodically refresh the watchdog timer at a rate
faster than the timer is set to expire (1.0 sec minimum). Outputting a 5Ah to the Watchdog Timer
Hold-Off Register at 0E1h (or 1E1h) resets the watchdog time-out period, see page 41 for
additional information.

There is no provision for selecting a different timeout period using software.
The following code example refreshes the watchdog:

mov al,5Ah
out E1h,al

CPU Temperature Monitor

A thermometer circuit is located directly under the CPU chip which constantly monitors the case
temperature of the CPU. This circuit can be used to detect over-temperature conditions which can
result from fan or heat sink failure or excessive ambient temperatures.

CMOS Setup is used to set the temperature detection threshold. A status bit in the Special Control
Register can be read to determine if the case temperature is above or below the threshold.

The system can be configured to generate a Non-Maskable Interrupt (NMI) when the temperature
exceeds the threshold.

See page 41 for additional information.

EPM-CPU-10 Reference Manual Reference

– 35

USB1.1 Interface

USB1.1 Interface

A USB 1.1 (Universal Serial Bus) connector provides a common interface to connect a wide
variety of keyboards, modems, mice, and telephony devices to the
there is no need to have separate connectors for many common PC peripherals.

EPM-CPU-10

. With USB 1.1,

The USB 1.1 interface on the

EPM-CPU-10

is UHCI (Universal Host Controller Interface)

compatible, which provides a common industry software/hardware interface.
This connector is protected with IEC 61000-4-2 (Level 4) rated TVS components to help protect

against ESD damage.

Table 17: USB 1.1 Interface Connector

JS4

Signal

Pin

Name

1B USBPWR1 +5V (Protected) 1
2B GND Ground 6
3B USBP00 Channel 0 Data – 2
4B GND1 Cable Shield 7
5B USBP01 Channel 0 Data + 3
6B USBP11 Channel 1 Data + 8
7B GND1 Cable Shield 4
8B USBP10 Channel 1 Data – 9
9B GND Ground 5

10B USBPWR1 +5V (Protected) 10

Function

JD

Pin

Warning! Connector JD is not numbered in the conventional manner as most dual-row

headers. Care must be taken to attach the USB 1.1 adapter cables as shown below
to prevent voltage reversal.

36

– Reference EPM-CPU-10 Reference Manual

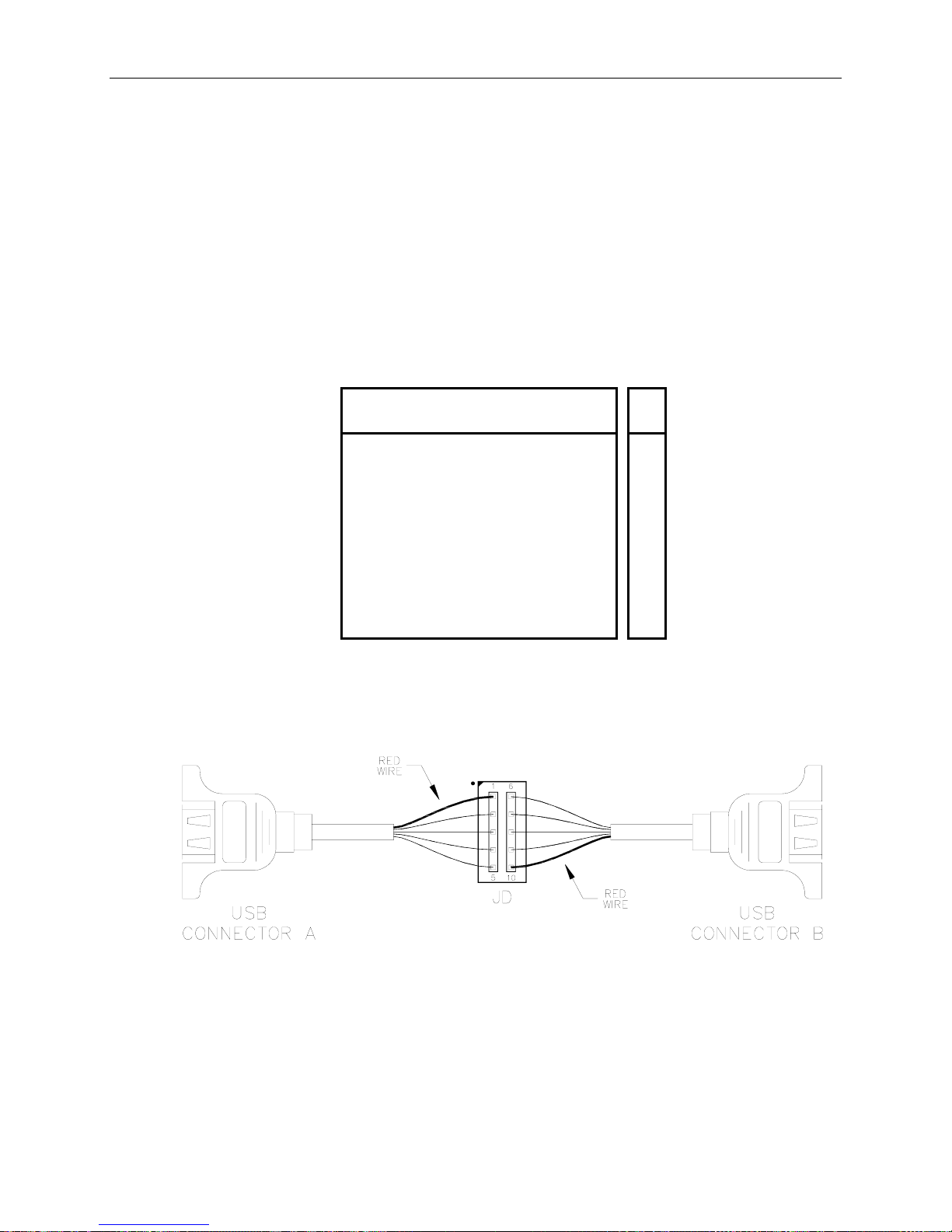

Figure 8. USB 1.1 Connector Orientation Diagram

Expansion Bus

Expansion Bus

The

EPM-CPU-10

will accept up to four PC/104 and/or four PC/104-Plus expansion modules. Both

3.3V and 5.0V modules are supported.

PC/104-P

PC/104-Plus modules can be secured directly to the underside of the

LUS

EPM-CPU-10

The first added
module (closest to CPU) is called "Slot 0", the next module is "Slot 1". Make sure to correctly
configure the "slot position" jumpers on each PC/104-Plus module appropriately.

The BIOS automatically configures the I/O ports and Memory map allocation, including
allocation of interrupts.

PC/104

PC/104 modules are stacked under the

EPM-CPU-10

(under any PC/104-Plus modules); 16-bit
modules first followed by 8-bit PC/104 modules. If necessary, a 40-pin and 64-pin ISA
feedthrough connector "extender", and long standoffs may need to be used to provide adequate
clearance between the PCI connector and the components on the top side of the PC/104 module.

I/O C

ONFIGURATION

PC/104–Plus Modules

No configuration is necessary except to jumper the expansion module for the correct slot number.

PC/104 Modules

PC/104 I/O modules should be addressed in the 100h – 3FFh address range. Care must be taken
to avoid the I/O addresses shown in the On-Board I/O Devices table on page 39. These ports are
used by on-board peripherals and video devices.

EPM-CPU-10 Reference Manual Reference

– 37

Memory and I/O Map

Memory and I/O Map

M

EMORY MAP

The lower 1 MB memory map of the

EPM-CPU-10

is arranged as shown in the following table.

Various blocks of memory space between A0000h and FFFFFh can be shadowed. CMOS setup is
used to enable or disable this feature.

Table 18: Memory Map

Start
Address

E0000h FFFFFh System BIOS, Flash Page (BIOS Ext.)
D0000h DFFFFh PC/104, and DOC
C0000h CFFFFh Video BIOS
A0000h BFFFFh Video RAM
00000h 9FFFFh System DRAM

End
Address Comment

Note! The memory region from E0000h-EFFFFh is controlled by the Map and Paging

Control Register.

38

– Reference EPM-CPU-10 Reference Manual

I/O MAP

Memory and I/O Map

The following table lists the common I/O devices in the

EPM-CPU-10

I/O map. User I/O devices
should be added in the 100h – 3FFh range, using care to avoid the devices already in the map as
shown below.

Table 19: On-Board I/O Devices

I/O Device

Special Control Register 0E0h 1E0h
Watchdog Hold-Off Register/Revision Indicator 0E1h 1E1h
Special Control Register 0E2h 1E2h
Map and Paging Control Register 0E3h 1E3h
Primary Hard Drive Controller 1F0h – 1F7h
COM2 Serial Port 2F8h – 2FFh
LPT1 Parallel Port 378h – 37Fh
SVGA Video 3B0h – 3DFh
Floppy Disk Controller 3F0h – 3F7h
COM1 Serial Port 3F8h – 3FFh

* User selectable via CMOS Setup.

Standard

I/O Addresses

Alternate *

I/O Addresses

EPM-CPU-10 Reference Manual Reference

– 39

Interrupt Configuration

Interrupt Configuration

The

EPM-CPU-10

has the standard complement of PC type interrupts. Ten non-shared interrupts are
routed to the PC/104 bus, and up to four IRQ lines are automatically allocated as needed to PCI
devices.

There are no interrupt configuration jumpers. All configuration is handled through CMOS setup.
The switches in the diagram below indicate the various CMOS Setup options. Closed switches
show factory default settings.

The temperature monitor interrupt and watchdog interrupt are enabled/disabled with the Special
Control Register.

Note If your design needs to use interrupt lines on the PC/104 bus, we recommend using

IRQ5, IRQ9, and/or IRQ10.

40

– Reference EPM-CPU-10 Reference Manual

Figure 9. Interrupt Circuit Diagram

Special Control Register

SCR (READ/WRITE) 00E0h (or 01E0h via CMOS Setup)

D7 D6 D5 D4 D3 D2 D1 D0

LED OVERTEMP GPI GPO HDOGNMI WDOGSTA WDOGNMI WDOGRST

Table 20: Special Control Register Bit Assignments

Bit Mnemonic Description

D7 LED Light Emitting Diode — Controls the programmable LED connected to

JS4[27A/28A]
LED = 0 Turns LED off.
LED = 1 Turns LED on.

D6 OVERTEMP Temperature Status — Indicates CPU case temperature.

TEMP = 0 CPU case temperature is below value set in CMOS Setup
TEMP = 1 CPU case temperature is above value set in CMOS Setup

Note!

This bit is a read-only bit.

D5 GPI General Purpose Input — Indicates the status of TTL input at JS3[38B].

GPI = 0 Logic High
GPI = 1 Logic Low

Note!

This bit is a read-only bit.

D4 GPO General Purpose Output — Controls TTL output at JS3[37B].

GPO = 0 Logic High
GPO = 1 Logic Low

D3 HDOGNMI Non-Maskable Interrupt Enable — Controls the generation of Non-Maskable

Interrupts whenever the CPU temperature sensor detects an over-temperature
condition.

HDOGNMI = 0 Disable
HDOGNMI = 1 Enable

D2 WDOGSTA WDOG STATUS — Indicates if the watchdog timer has expired.

WDOGSTA = 0 Timer has not expired.
WDOGSTA = 1 Timer has expired.

D1 WDOGNMI Watch Dog Non-Maskable Interrupt Enable — Enables the generation of a

Non-maskable interrupt when the watchdog timer expires.
WDOGNMI = 0 Disables
WDOGNMI = 1 Enables

D0 WDOGRST Watch Dog Reset Enable — Enables and disables the watchdog timer reset

circuit.
WDOGRST = 0 Disables the watchdog timer.
WDOGRST = 1 Enables the watchdog timer.

Special Control Register

EPM-CPU-10 Reference Manual Reference

– 41

Revision Indicator Register

Revision Indicator Register

REVIND (READ ONLY) 00E1h (or 01E1h via CMOS Setup)

D7 D6 D5 D4 D3 D2 D1 D0

PC4 PC3 PC2 PC1 PC0 TCO REV1 REV0

This register is used to indicate the revision level of the

EPM-CPU-10

product.

Bit Mnemonic Description

D7-D3 PC4-PC0 Product Code — These bits are hard coded to represent the product type. The

EPM-CPU-10 will always read as 00010. Other codes are reserved for future
products.

PC4 PC3 PC2 PC1 PC0 Product Code

0 0 0 1 0 EPM-CPU-10

Note!

This bits are read-only.

D2 TCO Throttling Code — This bit specifies how throttling is enabled at power-up and

reset.
0 = EPM-CPU-10c No Throttling

EPM-CPU-10d
1 = EPM-CPU-10b Throttling set at 37.5%

EPM-CPU-10e

Note!

This bit is read-only.

D1-D0 REV1-REV0 Revision Level — These bits are representative of the EPM-CPU-10 circuit

revision level.

REV1 REV0 Revision Level

0 0 Rev 3 or earlier
0 1 Rev 3.01 or later
1 0 Reserved
1 1 Reserved

Note!

This bits are read-only.

42

– Reference EPM-CPU-10 Reference Manual

Watchdog Timer Hold-Off Register

WDHOLD (WRITE ONLY) 00E1h (or 01E1h via CMOS Setup)

D7 D6 D5 D4 D3 D2 D1 D0

0 1 0 1 1 0 1 0

Watchdog Timer Hold-Off Register

A watchdog timer circuit is included on the
proper software execution fails or a hardware malfunction occurs. The watchdog timer is
enabled/disabled by writing to bit D0 of SCR

If the watchdog timer is enabled, software must periodically refresh the watchdog timer at a rate
faster than the timer is set to expire (1 second minimum). Writing a 5Ah to WDHOLD resets the
watchdog timeout period, preventing the CPU from being reset or generation of NMI for the next
1 second.

Special Control Register

SCR (READ/WRITE) 00E2h (or 01E2h via CMOS setup)

D7 D6 D5 D4 D3 D2 D1 D0

Reserved Reserved Reserved Reserved Reserved Reserved JPI Throttle

Table 21: Special Control Register Bit Assignments

Bit Mnemonic Description

D7-D2 Reserved Reserved — These bits have no function.

D1 JPI Jumper Input — Indicates the status of jumper VS2[5-6]

JPI = 0 Jumper VS2[5-6] = Out
JPI = 1 Jumper VS2[5-6] = In

Note!

This bit is a read-only bit.

D0 Throttle Throttling Enable — Enables and disables CPU throttling.

Throttling = 0 Disable
Throttling = 1 Enable

Note!

Models C & D are read write. Models B & E are set only and cleared by Reset.

EPM-CPU-10

board to reset the CPU or issue an NMI if

EPM-CPU-10 Reference Manual Reference

– 43

Map and Paging Control Register

Map and Pa ging Control Register

MPCR (READ/WRITE) 00E3H (or 01E3h via CMOS Setup)

D7 D6 D5 D4 D3 D2 D1 D0

FPGEN DOCEN1 DOCEN0 SB-SEL VB-SEL PG2 PG1 PG0

Table 22: Map and Paging Control Register Bit Assignments

Bit Mnemonic Description

D7 FPGEN FLASH Paging Enable — Enables a 64K page frame from E0000h to

EFFFFh. Used to gain access to the on-board FLASH memory.
FPGEN = 0 FLASH page frame disabled.
FPGEN = 1 FLASH page frame enabled.

D6-D5 DOCEN1-

DOCENO

D4 SB-SEL System BIOS Selection — Indicates the status of jumper VS2[1-2].

D3 VB-SEL Video BIOS Selection — Indicates the status of jumper VS2[3-4].

D2-D0 PG2-PG0 Page Select — Selects which 64K block of FLASH will be mapped into the page

DiskOnChip Enable — Enables a 8K page frame used to gain access to the
Disk on Chip.

Memory Range within
PG2 PG1 DiskOnChip

0 0 Disabled

0 1 D000:0
1 0 D800:0
1 1 DE00:0

SB-SEL = 0 Jumper out, Secondary System BIOS selected.
SB-SEL = 1 Jumper in, Primary System BIOS selected.

Note!

This is a read-only bit

VB-SEL = 0 Jumper out, Secondary System BIOS selected.
VB-SEL = 1 Jumper in, Primary System BIOS selected.

Note!

This is a read-only bit

frame at E0000h to EFFFFh

Memory Range within
PG2 PG1 PG0 FLASH

0 0 0 000000h to 00FFFFh
0 0 1 010000h to 01FFFFh
0 1 0 020000h to 02FFFFh
0 1 1 030000h to 03FFFFh
1 0 0 040000h to 04FFFFh
1 0 1 050000h to 05FFFFh
1 1 0 060000h to 06FFFFh
1 1 1 070000h to 07FFFFh

44

– Reference EPM-CPU-10 Reference Manual

Appendix A — Other References

PC Chipset Intel Corporation, (www.developer.intel.com)
440BX Chipset

Ethernet Controller Intel Corporation, (www.developer.intel.com)
Intel 82559ER

Video Controller Asiliant Technologies., (www.asiliant.com)

690X0

Disk On Chip M-Systems Inc., (www.m-sys.com)

DOC2000

PC/104 Specification PC/104 Consortium, (www.controlled.com/pc104)
PC/104 Resource Guide

PC/104-Plus Specification VersaLogic Corp., (www.versalogic.com)
PC/104 Resource Guide

CPU Chips
Celeron Intel Corporation, (www.developer.intel.com)
Pentium III

General PC Documentation Microsoft Press, mspress.microsoft.com
The Programmer’s PC Sourcebook

A

General PC Documentation www.amazon.com
The Undocumented PC

EPM-CPU-10 Reference Manual Appendix A — Other References – 45
