Reference Manual

DOC. REV. 11/30/2010

EPM-15 (Manx)

AMD LX Based SBC with Ethernet, Video, and PC/104Plus interface

Page 2

WWW.VERSALOGIC.COM

12100 SW Tualatin Road

Tualatin, OR 97062-7341

(503) 747-2261

Fax (971) 224-4708

Notice:

Although every effort has been made to ensure this document is error-free, VersaLogic makes no representations or warranties with respect to this product and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose.

VersaLogic reserves the right to revise this product and associated documentation at any time without obligation to notify anyone of such changes.

PC/104 and the PC/104 logo are trademarks of the PC/104 Consortium.

EPM-15 Reference Manual ii

Page 3

Product Release Notes

Rev 5 Release – The power connector (J9) was moved slightly to match the position of the power

connector on the VL-EPM-5 (see page 18).

Rev 4 Release – New audio codec and Ethernet chips incorporated as a result of component

obsolescence.

Rev 3 Release – Commercial release. Rev 2 Release – Beta release. Rev 1 Release – Pre-production only. No customer releases.

Support Page

The EPM-15 support page, at http://www.versalogic.com/private/manxsupport.asp, contains additional information and resources for this product including:

 Reference Manual (PDF format)  Operating system information and software drivers  Data sheets and manufacturers’ links for chips used in this product  BIOS information and upgrades  Utility routines and benchmark software

Note: This is a private page for EPM-15 users that can be accessed only be entering this address directly. It cannot be reached from the VersaLogic homepage.

EPM-15 Reference manual iii

Page 4

Contents

Introduction .....................................................................................................................1

Description .......................................................................................................................... 1

Features and Construction ..................................................................................... 1

Technical Specifications..................................................................................................... 2

EPM-15 Block Diagrams....................................................................................................3

RoHS Compliance ..............................................................................................................5

About RoHS...........................................................................................................5

Warnings.............................................................................................................................5

Electrostatic Discharge ..........................................................................................5

Lithium Battery...................................................................................................... 5

Handling Care........................................................................................................6

Technical Support...............................................................................................................7

Repair Service........................................................................................................ 7

Configuration and Setup ................................................................................................8

Initial Configuration ........................................................................................................... 8

Basic Setup ......................................................................................................................... 8

CMOS Setup.....................................................................................................................11

Operating System Installation........................................................................................... 12

Physical Details.............................................................................................................13

Dimensions .......................................................................................................................13

EPM-15 Dimensions and Mounting Holes..........................................................13

CBR-5010 Dimensions and Mounting Holes...................................................... 14

Hardware Assembly............................................................................................. 15

Stack Arrangement Example ...............................................................................15

EPM-15 External Connectors........................................................................................... 16

EPM-15 Connector Locations – Bottom..............................................................17

EPM-15 Connector Functions and Interface Cables............................................ 18

Breakout Board Connectors..............................................................................................19

CBR-5010 Connector Locations.......................................................................... 19

CBR-5010 Connector Functions and Mating Connectors...................................19

Jumper Blocks...................................................................................................................20

Jumpers As-Shipped Configuration.....................................................................20

Jumper Summary................................................................................................. 21

System Features ...........................................................................................................22

Power Supply....................................................................................................................22

Power Connectors................................................................................................22

Power Requirements............................................................................................23

Lithium Battery.................................................................................................... 23

CPU...................................................................................................................................23

System RAM.....................................................................................................................23

CMOS RAM.....................................................................................................................23

EPM-15 Reference Manual iv

Page 5

Contents

Clearing CMOS RAM.........................................................................................23

CMOS Setup Defaults ...................................................................................................... 24

Default CMOS RAM Setup Values.....................................................................24

Real Time Clock............................................................................................................... 24

Setting the Clock.................................................................................................. 24

ACPI Power Management ................................................................................................25

The S3 Sleeping State..........................................................................................25

Setup....................................................................................................................25

Entering Standby Mode....................................................................................... 25

Wakeup................................................................................................................26

Interfaces and Connectors...........................................................................................27

Serial Ports........................................................................................................................27

COM Port Configuration.....................................................................................27

COM3 and COM4 RS-485 Mode Line Driver Control.......................................27

IDE Hard Drive / CD-ROM Interfaces.............................................................................28

J8 Utility Connector..........................................................................................................29

USB Interface ......................................................................................................30

Programmable LED............................................................................................. 30

IDE LED..............................................................................................................30

Internal Speaker................................................................................................... 30

Push-Button Reset................................................................................................30

Parallel Port.......................................................................................................................31

Video Interface ................................................................................................................. 32

Configuration.......................................................................................................32

Video BIOS Selection.......................................................................................... 32

SVGA Output Connector.....................................................................................32

LVDS Flat Panel Display Connector...................................................................33

Compatible LVDS Panel Displays.......................................................................34

Console Redirection............................................................................................. 34

Ethernet Interface.............................................................................................................. 36

BIOS Configuration.............................................................................................36

Status LED...........................................................................................................36

Ethernet Connector..............................................................................................36

Audio ................................................................................................................................37

Software Configuration........................................................................................37

CPU Temperature Monitor...............................................................................................37

PC/104 Expansion Bus .....................................................................................................38

PC/104 I/O Support .............................................................................................38

PC/104 Memory Support.....................................................................................38

IRQ Support.........................................................................................................38

DMA Support ......................................................................................................38

System Resources and Maps.......................................................................................39

Memory Map ....................................................................................................................39

I/O Map............................................................................................................................. 39

Interrupt Configuration.....................................................................................................40

Special Registers ..........................................................................................................41

Special Control Register................................................................................................... 41

Revision Indicator Register...............................................................................................42

EPM-15 Reference manual v

Page 6

Contents

Jumper and Status Register...............................................................................................43

RS-485/422 Transmit/Receive Control Register ..............................................................44

Appendix A – References.............................................................................................45

Appendix B – Generated Frequencies ........................................................................46

EPM-15 Reference Manual vi

Page 7

Description

FEATURES AND CONSTRUCTION

The EPM-15 is a feature-packed single board computer (SBC) designed for OEM control projects requiring fast processing and designed-in reliability and longevity (product lifespan). Its features include:

 AMD LX microcontroller  256 MB soldered on system DDR

SDRAM

 CompactFlash site  10/100 Ethernet interface  Flat Panel Display support  PC/104 (ISA) and PC/104-Plus (PCI)

expansion

Introduction

 Parallel port  Audio  CPU temperature sensor  One RS-232 COM port and two

RS422/485 COM ports

 VCC sensing reset circuit  Field upgradeable BIOS with OEM

enhancements

 ATA-5 IDE controller  Four USB 2.0 ports for keyboard,

mouse, floppy, and other devices

 TVS devices for ESD protection

The EPM-15 is a PC/104-Plus-compliant single board computer with an AMD LX processor. The board is compatible with popular operating systems such as Windows, QNX, VxWorks and Linux.

The EPM-15 features high reliability design and construction, including friction latching I/O connectors, voltage sensing reset circuits, and self-resetting fuses on the 5V supply to the USB ports.

EPM-15 boards are subjected to 100% functional testing and are backed by a limited two-year warranty. Careful parts sourcing and US-based technical support ensure the highest possible quality, reliability, service and product longevity for this exceptional SBC.

A full complement of standard I/O ports is included on the board. Additional I/O expansion is available through the high-speed PC/104-Plus (PCI) and PC/104 (ISA) connectors. The EPM-15 is equipped with a multifunction utility cable, CBR-5010 (breakout board), that provides standard I/O interfaces, including three COM ports, four USB ports, two LEDs, and a pushbutton reset, among others.

 ACPI standby mode (suspend to RAM)  Customizing available  Low-power fanless version

EPM-15 Reference Manual 1

Page 8

Technical Specifications

Specifications are typical at 25°C with 5.0V supply unless otherwise noted.

Specifications are subject to change without notification.

Introduction

Board Size: 3.55” x 3.775” (PC/104 standard) with 0.20”

connector overhangs in designated connector areas

Storage Temperature: -40° C to 85° C Operating Temperature:

EPM-15g, S – 0° C to +60° C free air, no airflow,

standard version

EPM-15h, E – -40° C to +85° C free air,

extended temperature version

Power Requirements: (with 256 MB soldered on

system DDR SDRAM, keyboard and mouse, Running Windows XP)

5V ± 5% @ 1.0 A (5.0 W) typ. +3.3V or ± 12V may be required by some

expansion modules

System Reset:

3.3Vcc sensing, resets below 2.94V typ.

DRAM:

256 to 512 MB soldered-on DDR SDRAM

Video Interface:

Up to 1280 x 1024 (24 bits) Standard RGB analog output (VESA DDC not

supported)

LVDS output for TFT FPDs

IDE Interface:

One-channel, 44-pin, 2mm connector. Supports up to and including ATA 100. Supports two Parallel ATA IDE devices (hard drive, CD-ROM, CF, etc.)

Compact Flash:

Shares IDE channel, master or slave

Ethernet Interface:

COM1 Interface: COM3–4 Interface: LPT Interface: BIOS:

EPM-15g, h -- Intel 82551ER based 10BaseT /

100BaseTX Fast Ethernet Controller

EPM-15S, E -- Intel 82541ER based 10BaseT /

100BaseTX Ethernet Controller

RS-232, 16C550 compatible, 115 kbps max.

RS-422/485, 16C550 compatible, 460 kbps max.

Bi-directional/EPP/ECP compatible

OEM enhancements

Field-upgradeable with Flash BIOS Update Utility

Bus Speed:

PC/104-Plus (PCI): 33MHz PC/104 (ISA): 8MHz

Compatibility:

PC/104 – Partial compliance (See PC/104

expansion bus)

Embedded-PCI (PC/104-Plus) – full compliance,

3.3V signaling

Weight:

0.254 lbs (0.115 kg)

EPM-15 Reference Manual 2

Page 9

EPM-15 Block Diagrams

DDR

SDRAM

Introduction

Connector I/O Connector

Address, Data, Control

Terms

Series

SDCLKS

System

Clocking

(MK1491-09)

14.318 MHz

24.576 MHz

Audio

USB 2.0

(4 Ports)

RS-485/422

(2 Ports)

48.000 MHz

AMD

CPU

PCI, 3.3V

System Control

AMD

CS5536

I/O Companion

Analog RGB

ital RGB

FS2 JTAG

Pads

33 MHz

Series

FP LVDS

National

DS90C383A

PCI Connector

Intel

10/100M

25.000 MHz

IDE

Terms

CompactFlash

Connector

RS-232

32.768 MHz

SMSC

LPC47N217

Super I/O

PCI Arbitration

BIOS

CPLD

ISA Bridge

ACPI Disable PWR Control

ISA Connector

PWRBTN# (SOFT PWR BUTTON)

ACPI DISABLE JUMPER

Figure 1. System Block Diagram

EPM-15 Reference Manual 3

Page 10

Introduction

5.0V

TPS79912

TPS79933

LTC3412

SUSPEND TO RAM POWER

1.2V_SB @ 1 mA

3.3V_SB @ 3 mA

2.5V_SB @ 1.5A

SYSTEM POWER ON

Si233DS MOSFET

RESISTOR DIVIDER

2.5V @ 1A

CS5536 Standby

CS5536 & CPLD Standb

CS5536 Standby

DDR VTT/REF

DDR VTT/REF2

CPU VMEM

LTC3025

1.5V @ 2.3A

1.2V @ 200 mA

3.3V @ 1.4A

EN PWR

PWR CONTROL

WORK_AUX

CPU VCORE

CS5536 VCORE

CPU and CS5536 VIO

POR TO CS5536

EN PWR#

LTC3412

I809

EIRQ1_3V (EXTERNAL WAKE) PWRBTN# (SOFT PWR BUTTON)

Figure 2. Power Control Block Diagram

EPM-15 Reference Manual 4

Page 11

RoHS Compliance

The EPM-15 is RoHS-compliant.

BOUT ROHS

In 2003, the European Union issued Directive 2002/95/EC regarding the Restriction of the use of certain Hazardous Substances (RoHS) in electrical and electronic equipment.

The RoHS directive requires producers of electrical and electronic equipment to reduce to acceptable levels the presence of six environmentally sensitive substances: lead, mercury, cadmium, hexavalent chromium, and the presence of polybrominated biphenyls (PBB) and polybrominated diphenyl ethers (PBDE) flame retardants, in certain electrical and electronic products sold in the European Union (EU) beginning July 1, 2006.

VersaLogic Corporation is committed to supporting customers with high-quality products and services meeting the European Union’s RoHS directive.

Warnings

Introduction

ELECTROSTATIC DISCHARGE

Warning! Electrostatic discharge (ESD) can damage circuit boards, disk drives and other

components. The circuit board must only be handled at an ESD workstation. If an approved station is not available, some measure of protection can be provided by wearing a grounded antistatic wrist strap. Keep all plastic away from the board, and do not slide the board over any surface.

After removing the board from its protective wrapper, place the board on a

grounded, static-free surface, component side up. Use an antistatic foam pad if available.

The board should also be protected inside a closed metallic anti-static envelope

during shipment or storage.

Note: The exterior coating on some metallic antistatic bags is sufficiently conductive to

cause excessive battery drain if the bag comes in contact with the bottom-side of the EPM-15.

ITHIUM BATTERY

Warning! To prevent shorting, premature failure or damage to the lithium battery, do not

place the board on a conductive surface such as metal, black conductive foam or the outside surface of a metalized ESD protective pouch. The lithium battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire. Dispose of used batteries promptly and in an environmentally suitable manner.

EPM-15 Reference Manual 5

Page 12

Introduction

HANDLING CARE

Warning! Care must be taken when handling the board not to touch the exposed circuitry

with your fingers. Though it will not damage the circuitry, it is possible that small amounts of oil or perspiration on the skin could have enough conductivity to cause the contents of CMOS RAM to become corrupted through careless handling (such as when changing the CompactFlash module), resulting in CMOS resetting to factory defaults.

EPM-15 Reference Manual 6

Page 13

Technical Support

If you are unable to solve a problem after reading this manual please visit the EPM-15 Product Support web page shown below. If you have further questions, contact VersaLogic technical support at (541) 485-8575. VersaLogic technical support engineers are also available via e-mail at

Support@VersaLogic.com

http://www.versalogic.com/private/manxsupport.asp

EPAIR SERVICE

If your product requires service, you must obtain a Returned Material Authorization (RMA) number by calling (541) 485-8575.

Introduction

EPM-15 Support Website

Please provide the following information:

 Your name, the name of your company, your phone number, and e-mail address  The name of a technician or engineer that can be contacted if any questions arise  Quantity of items being returned  The model and serial number (barcode) of each item  A detailed description of the problem  Steps you have taken to resolve or recreate the problem  The return shipping address

Warranty Repair All parts and labor charges are covered, including return shipping

charges for UPS Ground delivery to United States addresses.

Non-warranty Repair All non-warranty repairs are subject to diagnosis and labor charges,

parts charges and return shipping fees. Please specify the shipping method you prefer and provide a purchase order number for invoicing the repair.

Note: Please mark the RMA number clearly on the outside of the box before

returning.

EPM-15 Reference Manual 7

Page 14

Initial Configuration

The following components are recommended for a typical development system.

 EPM-15 Computer  ATX Power Supply  SVGA Video Monitor  Standard I/O Utility Cable (CBR-5010)  USB Keyboard  USB Floppy Disk Drive  IDE Hard Drive (optional)  IDE CD ROM Drive (optional)

The following VersaLogic cables are recommended.

 CBR-1201 – Video adapter cable  CBR-5010 – Utility I/O cable (CBR-5009A) and breakout board (CBR-5010B)  CBR-4406 – IDE data cable  CBR-4405 – IDE adapter board, if you are using drives with 40-pin connectors  CBR-1008 – Power adapter cable

Configuration and Setup

You will also need a Windows (or other OS) installation CD.

Basic Setup

The following steps outline the procedure for setting up a typical development system. The EPM15 should be handled at an ESD workstation or while wearing a grounded antistatic wrist strap.

Before you begin, unpack the EPM-15 and accessories. Verify that you received all the items you ordered. Inspect the system visually for any damaged that may have occurred in shipping. Contact Support@VersaLogic.com immediately if any items are damaged or missing.

Gather all the peripheral devices you plan to attach to the EPM-15 and their interface and power cables.

It is recommended that you attach standoffs to the board (see Hardware Assembly) to stabilize the board and m

Figure 3 shows a typical start-up configuration (using RoHS compatible cables).

ake it easier to work with.

EPM-15 Reference Manual 8

Page 15

Analog SVGA

CBR–1201

EPM-15

“Manx”

CBR –5009A

Configuration and Setup

USB Keyboard

and USB Mouse

CBR –5010B

CBR–1008

ATX

Power Supply

Figure 3. EPM-15 Typical Start-up Configuration

CBR–4406

Power

Drives

Hard

Drive

CD-ROM

Drive

OS Installation CD-ROM

1. Attach Power

 Plug the power adapter cable CBR-1008 into socket J9. Attach the motherboard

connector of the ATX power supply to the adapter.

2. Attach Cables and Peripherals

 Plug the video adapter cable CBR-1201 into socket J1. Attach the video monitor interface

cable to the video adapter.

 Plug the breakout cable CBR-5009A into socket J8. If necessary, attach the breakout

board CBR-5010B to the cable. (The cable and board are shipped attached.)

 Plug a USB keyboard and USB floppy drive into socket J4 of the breakout board.  Plug the hard drive data cable CBR-4406 into socket J7. Attach a hard drive and CD-

ROM drive to the connectors on the cable. If the hard drive is 3.5”, use the 2mm to 0.1” adapter CBR-4405 to attach the IDE cable.

 Attach an ATX power cable to any 3.5” drive (hard drive or CD-ROM drive).  Set the hard drive jumper for master device operation and the CD-ROM drive jumper for

slave device operation.

EPM-15 Reference Manual 9

Page 16

Configuration and Setup

3. Review Configuration

 Before you power up the system, double check all the connections. Make sure all cables

are oriented correctly and that adequate power will be supplied to the EPM-15 and peripheral devices.

4. Power On

 Turn on the ATX power supply and the video monitor. If the system is correctly

configured, a video signal should be present.

5. Change CMOS Setup Settings

 Enter CMOS Setup by pressing Delete during the early boot cycle.  Select Basic Configuration and set or verify the following settings:

DRIVE ASSIGNMENT ORDER | Drive C: Ide 0/Pri Master

ATA DRV ASSIGNMENT | Ide 0: 3 = AUTOCONFIG, LBA ATA DRV ASSIGNMENT | Ide 1: 5 = IDE CDROM

BOOT ORDER | Boot 1st: CDROM BOOT ORDER | Boot 2nd: Drive C:

 Before saving the CMOS Setup settings, insert the Windows (or other OS) installation

disk in the CD-ROM drive so it will be accessed when the system reboots.

 Press ESC and select the option to save the new parameters to CMOS RAM. The system

will reboot.

6. Install Operating System

 Install the operating system according to the instructions provided by the OS

manufacturer. (See Operating System Installation.) Note: If y

ou intend to operate the EPM-15 under Windows XP or Windows XP Embedded, be sure to use Service Pack 2 (SP2) for full support of the latest CS5536 I/O hub and its USB 2.0 features.

EPM-15 Reference Manual 10

Page 17

CMOS Setup

The default CMOS Setup parameters for the EPM-15 are shown below.

Configuration and Setup

Basic CMOS Configuration

Features Configuration

Custom Configuration

EPM-15 Reference Manual 11

Page 18

Shadow Configuration

+------------------------------------------------------------------------------+ | System BIOS Setup - Shadow/Cache Configuration | | (C) 2005 General Software, Inc. All rights reserved | +---------------------------------------+--------------------------------------+ | Shadowing :>Chipset | Shadow 16KB ROM at C000 : Enabled | | Shadow 16KB ROM at C400 : Enabled | Shadow 16KB ROM at C800 : Disabled | | Shadow 16KB ROM at CC00 : Disabled | Shadow 16KB ROM at D000 : Disabled | | Shadow 16KB ROM at D400 : Disabled | Shadow 16KB ROM at D800 : Disabled | | Shadow 16KB ROM at DC00 : Enabled | Shadow 16KB ROM at E000 : Enabled | | Shadow 16KB ROM at E400 : Enabled | Shadow 16KB ROM at E800 : Enabled | | Shadow 16KB ROM at EC00 : Enabled | Shadow 64KB ROM at F000 : Enabled | +---------------------------------------+--------------------------------------+

Note: Due to changes and improvements in the system BIOS, the information on your

monitor may differ from that shown above.

Operating System Installation

The standard PC architecture used on the EPM-15 makes the installation and use of most of the standard x86 processor-based operating systems very simple. The operating systems listed on the

VersaLogic OS Compatibility Chart

maker of the OS. Special optimized hardware drivers for a particular operating system, or a link to the drivers, are available at the EPM-15 Product Support web page at

http://www.versalogic.com/private/manxsupport.asp

use the standard installation procedures provided by the

Configuration and Setup

EPM-15 Reference Manual 12

Page 19

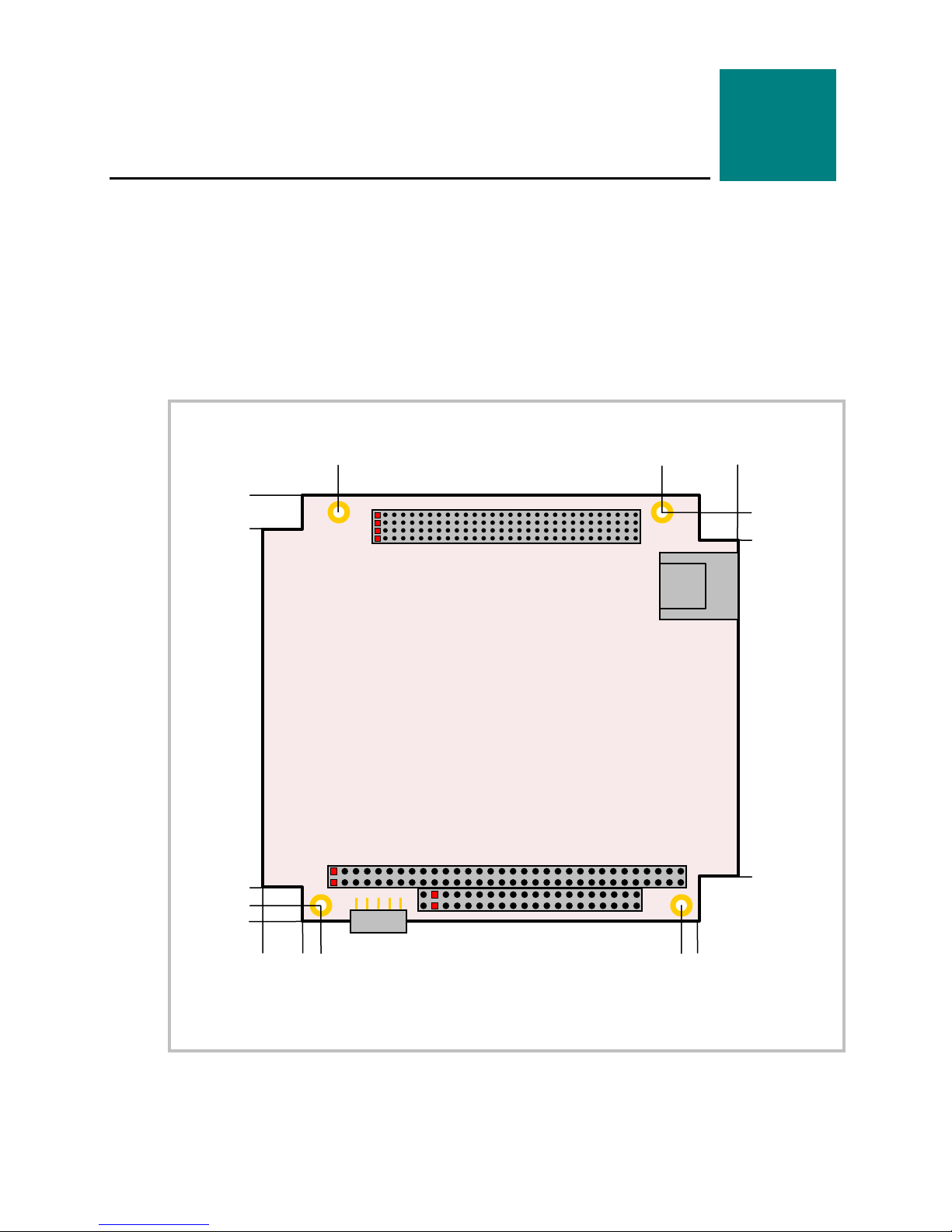

0.550

Dimensions

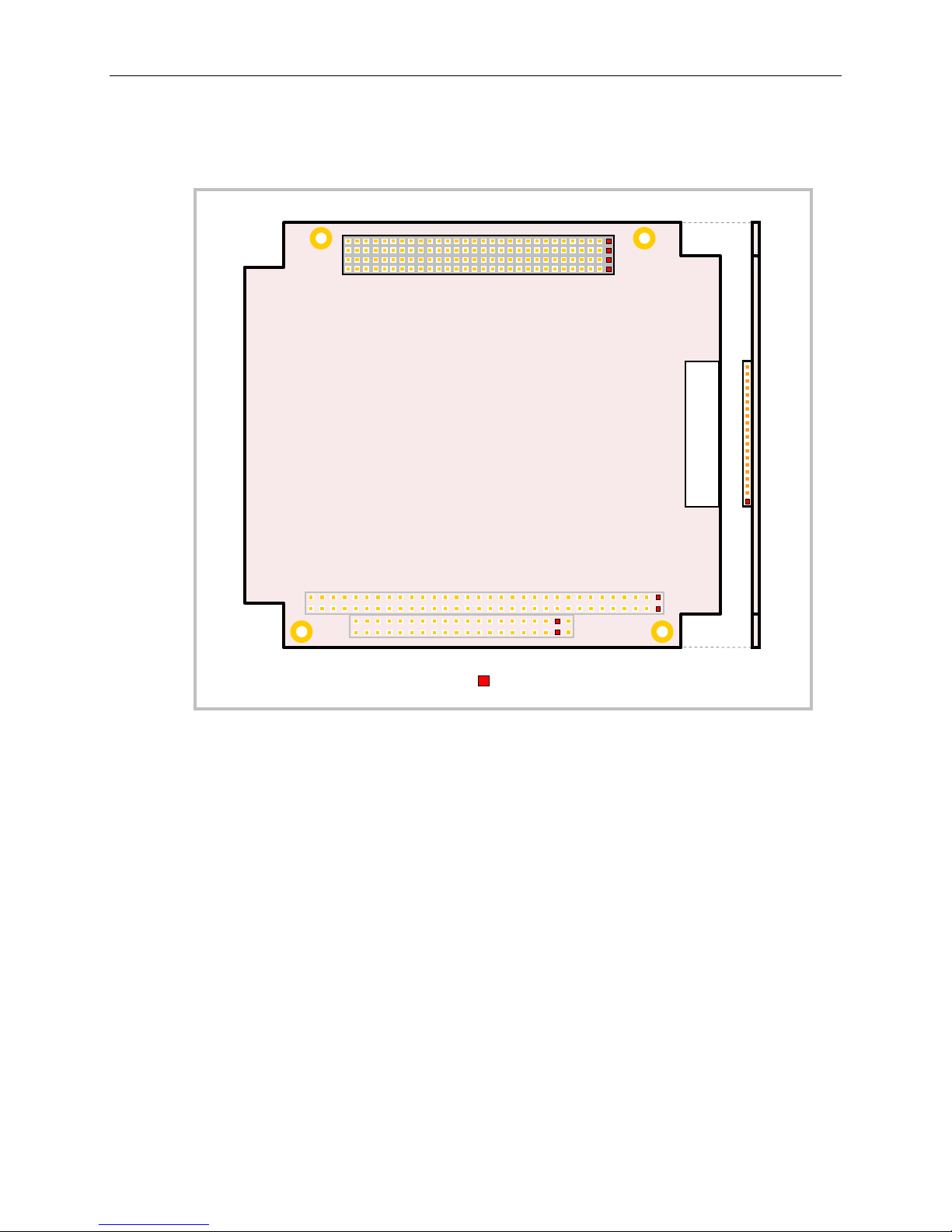

EPM-15 DIMENSIONS AND MOUNTING HOLES

The EPM-15 complies with all PC/104-Plus standards. Dimensions are given below to help with pre-production planning and layout. All dimensions are in inches. Drawings are not to scale.

3.575

3.275

0.150

Physical Details

3.050

3.700

3.375

3.175

0.100

0.000

-0.200

–

–0.200

EPM-15 Reference Manual 13

0.000

Figure 4. EPM-15 Dimensions

3.150

3.350

0.200

Page 20

Physical Details

1.875

CBR-5010

1.175

DIMENSIONS AND MOUNTING HOLES

5.50

5.10

.575

1.95

1.38

0.065

Figure 5. CBR-5010 Dimensions

EPM-15 Reference Manual 14

Page 21

Physical Details

HARDWARE ASSEMBLY

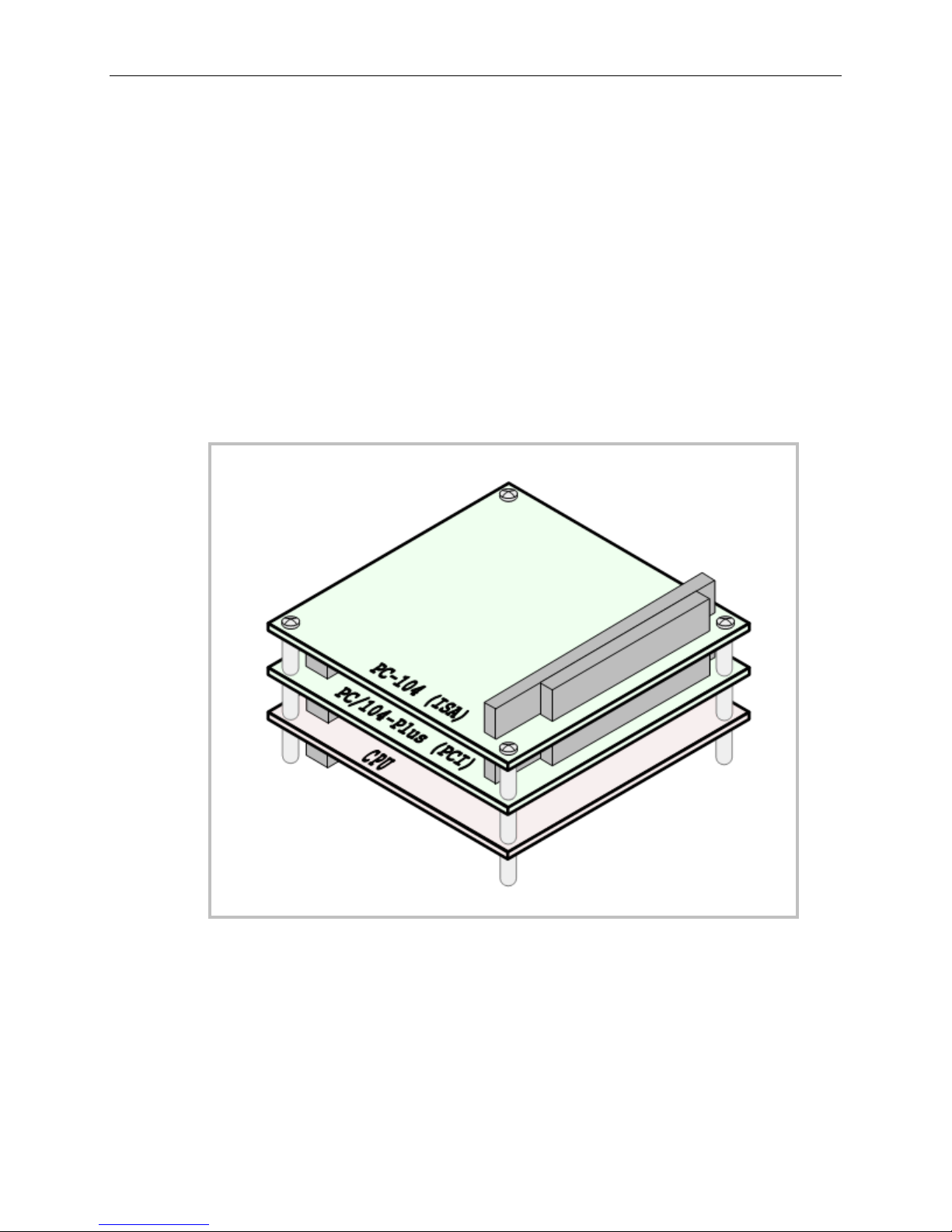

The EPM-15 uses pass-through PC/104 and PC/104-Plus connectors so that expansion modules can be added to the top or bottom of the stack. PC/104 (ISA) modules must not be positioned between the EPM-15 and any PC/104-Plus (PCI) modules on the stack.

The entire assembly can sit on a table top or be secured to a base plate. When bolting the unit down, make sure to secure all four standoffs to the mounting surface to prevent circuit board flexing. Standoffs are secured to the top circuit board using four pan head screws. See page 13 for

ensional details. Standoffs and screws are available as part number VL-HDW-101.

dim An extractor tool is available (part number VL-HDW-201) to separate the PC/104 modules from

the stack. Use caution when using the extractor tool not to damage any board components.

TACK ARRANGEMENT EXAMPLE

EPM-15 Reference Manual 15

Figure 6. Stack Arrangement Example

Page 22

EPM-15 External Connectors

D1 C1 B1 A1

J13

Audio

LPT

CompactFlash

PC/104-Plus

Battery

Video

Output

IDE

Physical Details

Ethernet

Standard I/O (COM, USB, timer inputs, reset, LED, speaker)

CPU

J10

PC/104

B1 A1

Main

Power

C0 D0

= Pin 1

Figure 7. EPM-15 Connector Locations (Top)

EPM-15 Reference Manual 16

Page 23

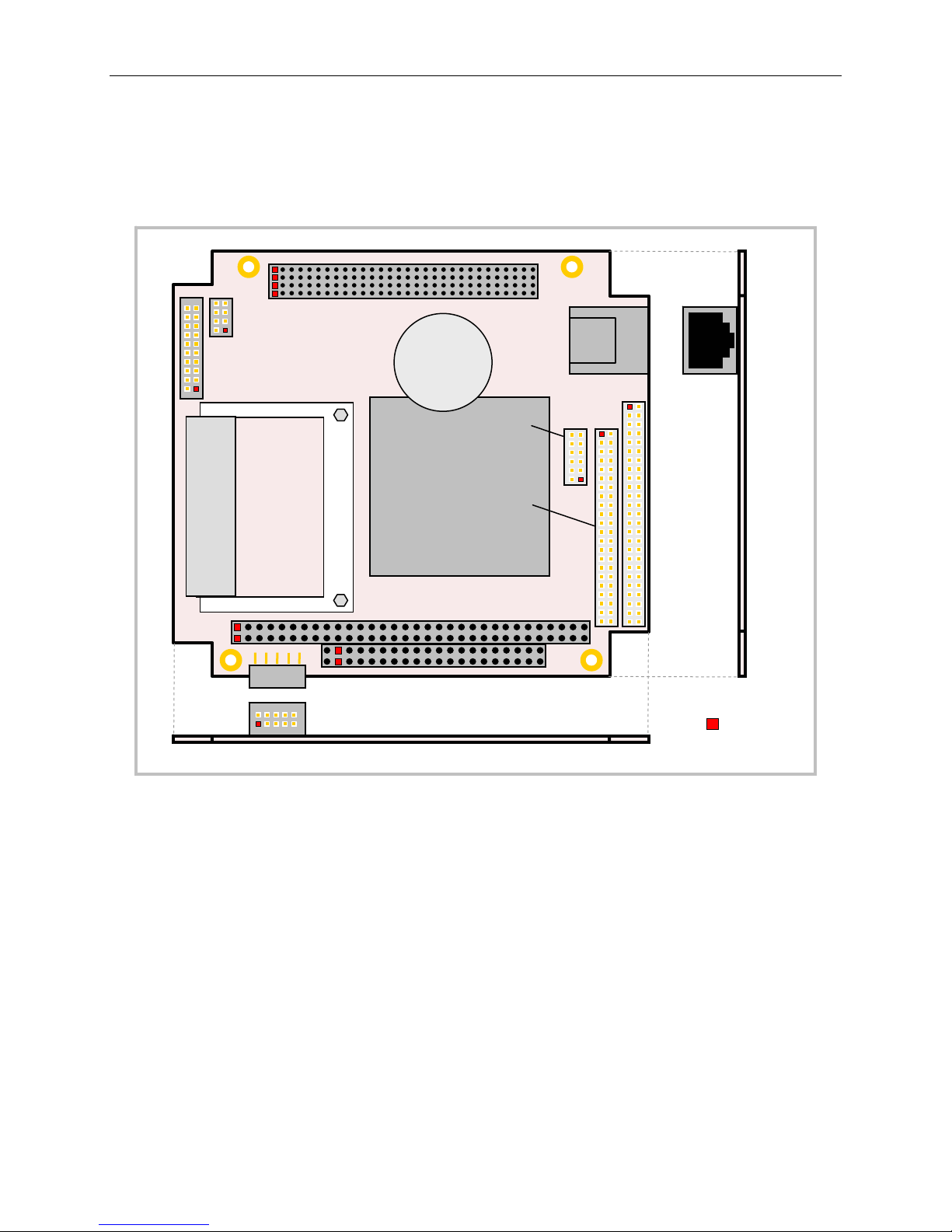

EPM-15 CONNECTOR LOCATIONS – BOTTOM

PC-104-Plus (PCI) pass-through male

D1 C1 B1 A1

Physical Details

J12

LVDS

PC-104 (ISA)

pass-through male

C0 D0

= Pin 1

Figure 8. EPM-15 Connector Locations (Bottom)

EPM-15 Reference Manual 17

Page 24

Physical Details

EPM-15 CONNECTOR FUNCTIONS AND INTERFACE CABLES

Table 1 provides information about the function, mating connectors, and transition cables for EPM-15 connectors. Page num

bers indicate where a detailed pinout or further information is

available.

Table 1: EPM-15 Connector Functions and Interface Cables

Connector Function

J1 Video Output FCI 89361-712 or

J2 PC/104-Plus (PCI) AMP 1375799-1 — — 0.450 3.139 15

J32 PLD Reprogram-

J4 J5

J6 CompactFlash Type I or Type II

J7 IDE Hard Drive

J8 COM ports, USB

J9 Main Power Input Berg 69176-010 (housing)

J10 PC/104 (ISA) AMP 1375795-2 — — 0.050 0.200 15

J112 Process JTAG

J12 LVDS Molex 51146-2000

J13 Audio FCI 89947-708LF or

ming Port Ethernet RJ-45 LPT port FCI 89947-720

Channel 1

ports, DB-9, timer inputs, push-button reset, PC speaker, LED

DBUG

Mating Connector

FCI 89947-712

— — — — — —

CompactFlash FCI 89947-144 CBR-44063 1’ 44-pin 2mm latching /

FCI 89361-350LF CBR-5009A 50-pin standard I/O

+ Berg 47715-000 (pins)

2mm — — — — —

(housing) Molex 50641-8041 (pins)

FCI 89361-708LF

Transition

Cable

CBR-1201 1’ 12-pin 2mm latching /

— — 3.100 2.637 36

CBR-2003 1’ 20-pin 2mm latching

— — 1.100 2.017 —

CBR-1008 Interface from standard

CBR-2010 or CBR-2011

CBR-0803 12" latching 8-pin 2mm

Cable Description Pin 1 Location1

15-pin HD D-Sub VGA

IDC / 25-pin F D-Sub

two 44-pin 2mm

cable to breakout board CBR-5010

ATX power supply

18-bit TFT FPD using 20-pin Hirose conn. or

18-bit TFT FPD using 20-pin JAE conn.

to two 3.5mm stereo audio

x coord. y coord.

3.047 1.937 32

-0.385 2.437 31

3.303 1.937 27

3.551 2.172 29

0.2754 -0.075 22

-0.277 1.236 33

-0.129 2.909 37

1. The PCB Origin is the mounting hole to the lower left, as shown in Figures 8.

2. Connector not shown in drawings.

3. CBR-4405 44-pin to 40-pin adapter required to connect to 3.5-inch IDE drives with 40-pin connectors.

4. The J9 pin-1 coordinates for board revision 4.xx and earlier are x = 0.205, y = -0.068. The connector was moved slightly in revision 5.00 to match the position of the VL-EPM-5 power connector.

Page

EPM-15 Reference Manual 18

Page 25

Breakout Board Connectors

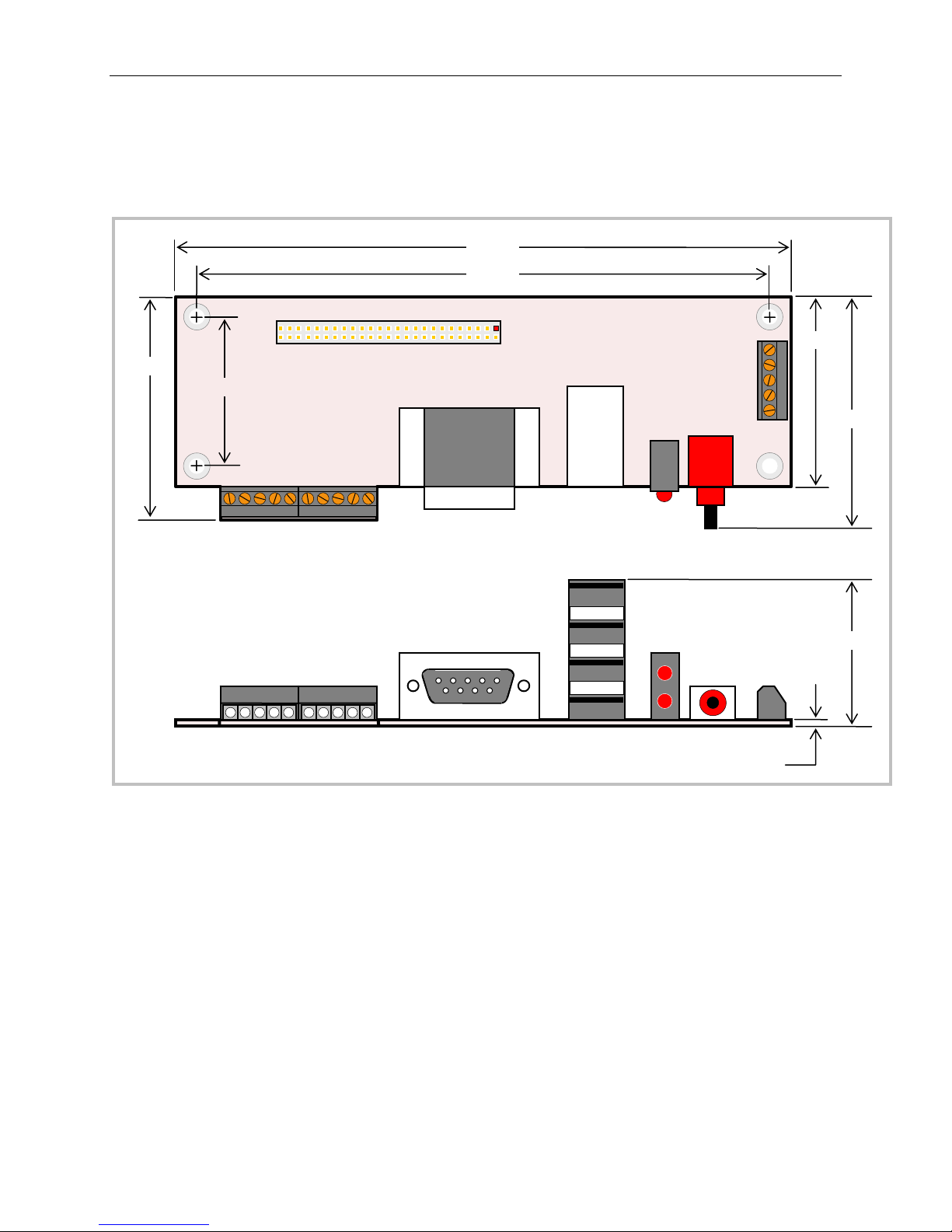

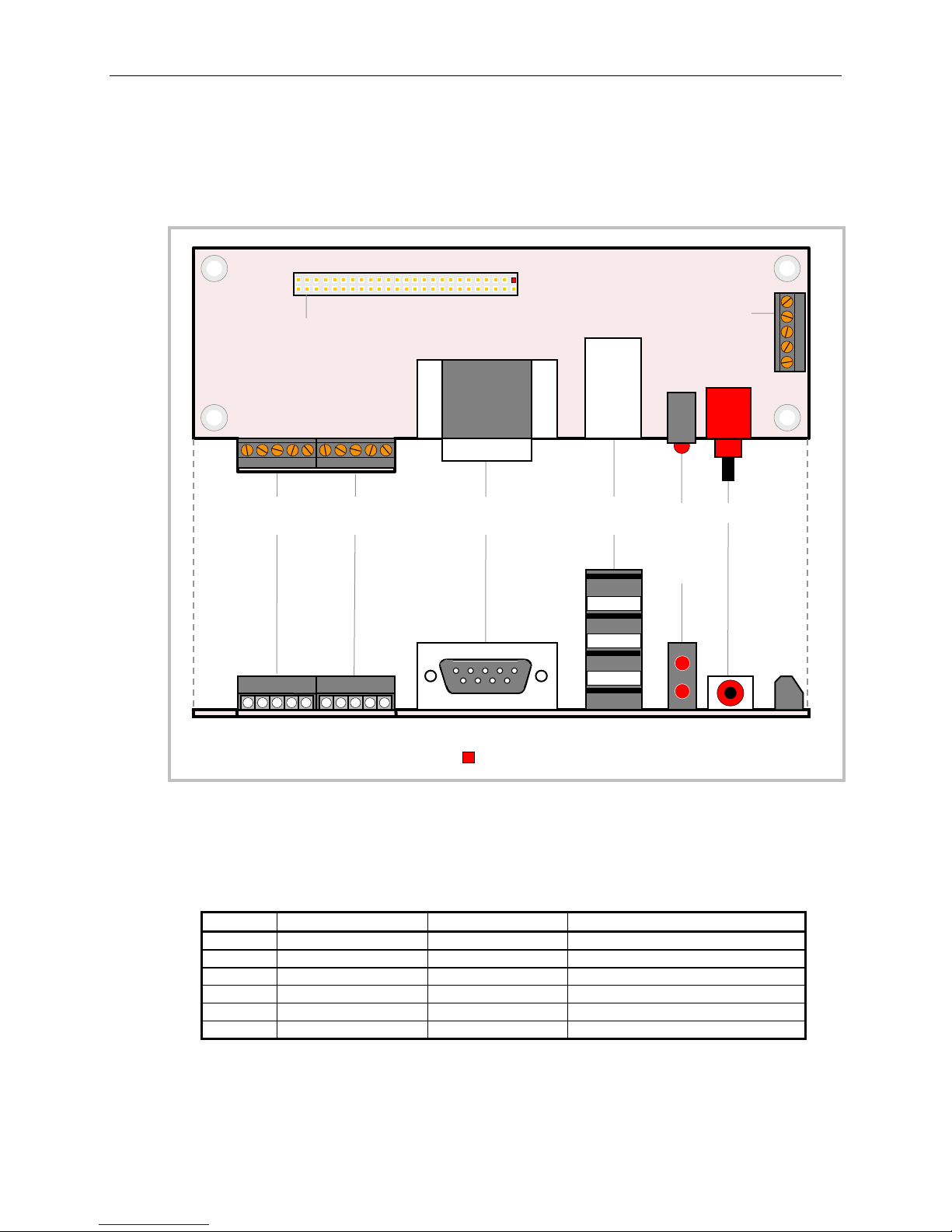

CBR-5010 CONNECTOR LOCATIONS

Paddle Board

1 1 5 5

Physical Details

ACPI Push-

button Input

COM4

COM3

COM1

USB0-3

USB0

USB1

USB2

USB3

= Pin 1

Figure 9. CBR-5010 Connector Locations

CBR-5010 CONNECTOR FUNCTIONS AND MATING CONNECTORS

Table 2: CBR-5010 Connector Functions and Interface Cables

Connector Function PCB Connector Description

J1 High Density Connector FCI 98414-F06-50ULF 2mm, 50-pin, keyed, latching header J2 ACPI Pushbutton Input Conta-Clip 10250.4 5-pin screw terminal J3 COM1 Kycon K42-E9P/P-A4N DB-9 male J4 USB 0-3 USB Type A USB Type A J5 COM4 Conta-Clip 10250.4 5-pin screw terminal J6 COM3 Conta-Clip 10250.4 5-pin screw terminal

IDE LED

(top)

PLED

(bottom)

Reset

EPM-15 Reference Manual 19

Page 26

Jumper Blocks

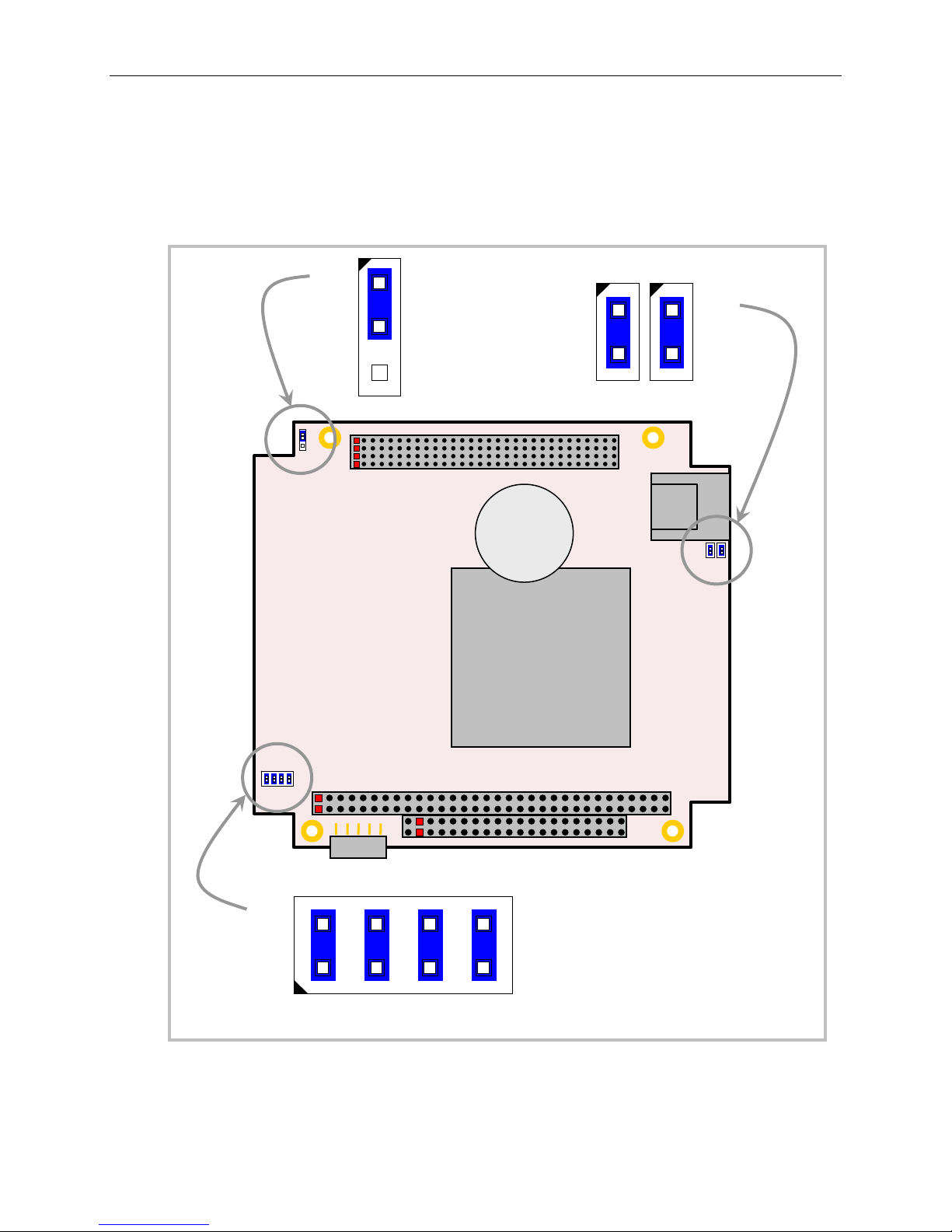

JUMPERS AS-SHIPPED CONFIGURATION

Physical Details

1 2

(or V5

1 1

)

2 2

2 4 6

1 3 5 7

* Jumper block V1 was labeled V5 on revision 3.xx and earlier boards.

EPM-15 Reference Manual 20

Figure 10. Jumper Block Locations

Page 27

JUMPER SUMMARY

Physical Details

Table 3: Jumper Summary

Jumper

Block Description

(or V5*)

V4[1-2]

V4[3-4]

V4[5-6]

V4[7-8]

COM4 RS-422/485 Termination

In – Line A and B terminated with 127 Ohms Out – No termination

Note: Places terminating resistor across COM4 RS-485 TXRX+/TXRXor RS-422 RX+/RX- differential pair.

Battery Power Jumper

[1-2] In – Standard Operation [2-3] In – Erase CMOS

Warning: Use care when handling the EPM-15 not to short the V2 pins accidentally, which may cause CMOS to revert to factory settings.

COM3 RS-422/485 Termination

In – Line A and B terminated with 127 Ohms Out – No termination

Note: Places terminating resistor across COM3 RS-485 TXRX+/TXRXor RS-422 RX+/RX- differential pair.

CompactFlash Master/Slave Selector

In – Compact Flash Master Device Out – Compact Flash Slave Device

Video BIOS Selector In – Primary Video BIOS selected

Out – Secondary Video BIOS selected Note: The secondary Video BIOS is field-upgradeable using the BIOS

upgrade utility. See the private support page for more information. System BIOS Selector

In – Runtime system BIOS selected Out – Master system BIOS selected

Note: The Runtime System BIOS is field upgradeable using the BIOS upgrade utility. See the private support page for more information.

ACPI Pushbutton Enable

In – ACPI pushbutton disabled. Out – ACPI pushbutton enabled.

Shipped Page

In 27

[1-2] In 23

In 27

In –

In 32

In –

In 25

* Jumper block V1 was labeled V5 on revision 3.xx and earlier boards.

EPM-15 Reference Manual 21

Page 28

Power Supply

POWER CONNECTORS

Main power is applied to the EPM-15 through a 10-pin polarized connector, with mating connector Berg 69176-010 (Housing) + Berg 47715-000 (Pins). See the table below for connector pinout and Figure 7 for location information.

Warning!

To prevent severe and possibly irreparable damage to the system, it is critical that the power connectors are wired correctly. Make sure to use all +5VDC pins and all ground pins to prevent excess voltage drop. Some manufacturers include a pin-1 indicator on the crimp housing that corresponds to pin-10 of the pinout shown in Figure 11.

System Features

Table 4: Main Power Connector Pinout

Signal

Name

1 GND Ground 2 +5VDC Power Input 3 GND Ground 4 +12VDC Power Input 5 GND Ground 6 -12VDC Power Input 7 +3.3VDC Power Input 8 +5VDC Power Input 9 GND Ground

10 +5VDC Power Input

Description

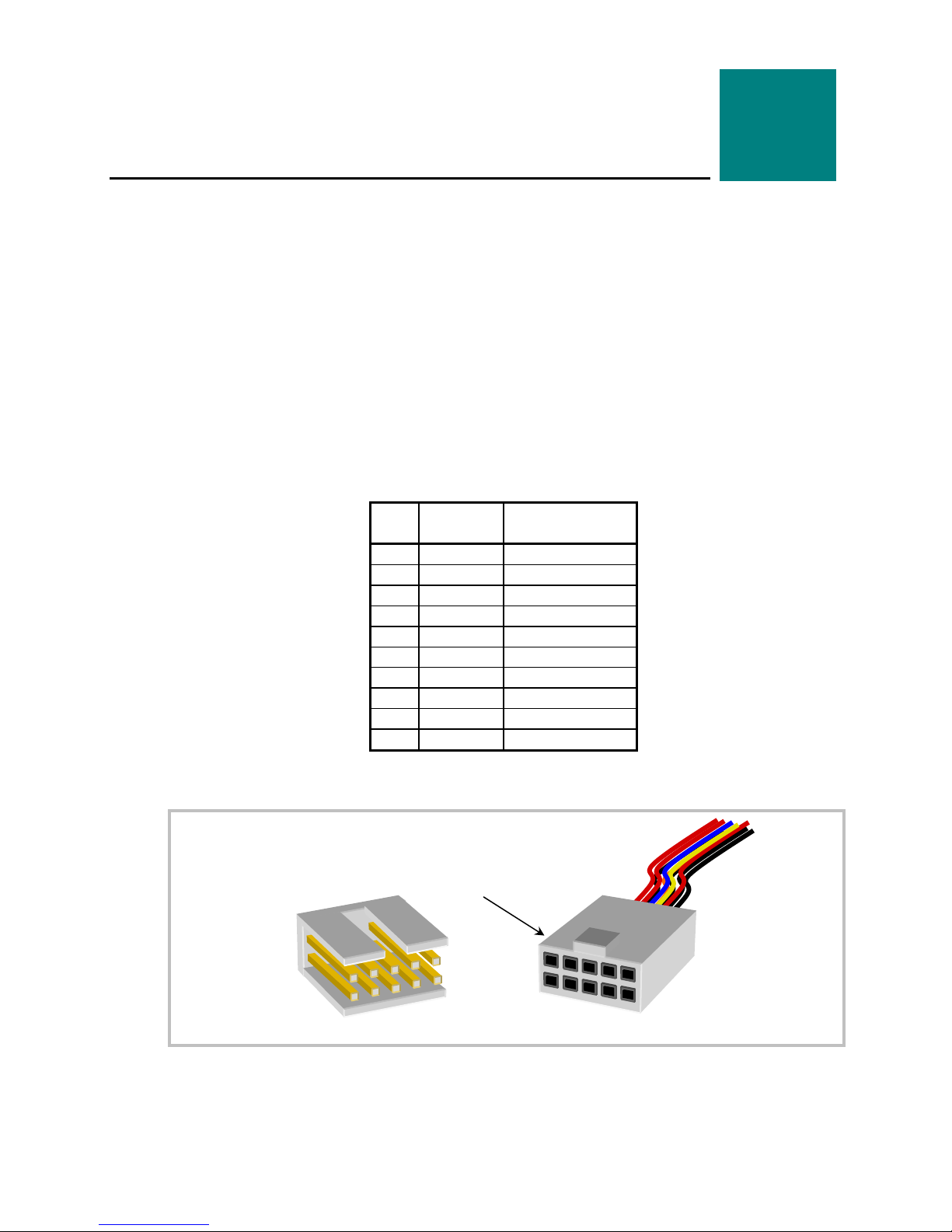

Figure 11 shows the VersaLogic standard pin numbering for this type of 10-pin power connector and the corresponding mating connector.

EPM-15 Reference Manual 22

Some manufacturers include a pin-1 indicator that corresponds to pin-10 of the power connector pinout

Figure 11. J9 and CBR-1008 Pin Numbering

CBR-1008

Page 29

System Features

Note: The +3.3VDC, +12VDC and -12VDC inputs are required only for expansion

modules that require these voltages.

OWER REQUIREMENTS

The EPM-15 requires only +5 volts (±5%) for proper operation. The voltage required for the RS-232 ports is generated with an on-board DC/DC converter. A variable low-voltage supply circuit provides power to the CPU and other on-board devices.

The exact power requirement of the EPM-15 depends on several factors, including memory configuration, CPU speed, peripheral connections, type and number of expansion modules and attached devices. For example, driving long RS-232 lines at high speed can increase power demand.

ITHIUM BATTERY

Warning! To prevent shorting, premature failure or damage to the lithium battery, do not

Normal battery voltage should be at least 3.0V. If the voltage drops below 2.7V, contact the factory for a replacement (part number T-HB3/0-1). The life expectancy under normal use is approximately 10 years.

CPU

The AMD LX microcontroller has a 32-bit, low-voltage AMD x86 microprocessor at its core. The maximum clock rate on the LX 800 is 500 MHz actual, with 800 MHz (Celeron equivalent) performance. The processor features 64 KB of L1 cache, 128 KB of L2 cache, DDR SDRAM support, and an integrated display controller. Typical power consumption is 1.6W.

System RAM

The EPM-15 has soldered-on DDR SDRAM with the following characteristics:

 Storage Capacity 256 MB  Voltage 2.6V  Type Unbuffered PC2100 (DDR266) or PC2700 (DDR333)

CMOS RAM

CLEARING CMOS RAM

You can move the V2 jumper to position [2-3] for a minimum of three seconds to erase the contents of the CMOS RAM and the Real-Time Clock. When clearing CMOS RAM: 1) Power off the EPM-15. 2) Install the jumper on V2[2-3] and leave it for four seconds. 3) Move the jumper to back to V2[1-2]. 4) Power on the EPM-15.

EPM-15 Reference Manual 23

Page 30

CMOS Setup Defaults

The EPM-15 permits users to modify CMOS Setup defaults. This allows the system to boot up with user-defined settings from cleared or corrupted CMOS RAM, battery failure or battery-less operation. All CMOS setup defaults can be changed, except the time and date. CMOS Setup defaults can be updated with the BIOS Update Utility. See the General BIOS Information page for details.

Warning! If CMOS Setup default settings make the system unbootable and prevent the user

from entering CMOS Setup, the EPM-15 needs to be serviced by the factory.

EFAULT CMOS RAM SETUP VALUES

After CMOS RAM is cleared, the system will load default CMOS RAM parameters the next time the board is powered on. The default CMOS RAM setup values will be used in order to boot the system whenever the main CMOS RAM values are blank, or when the system battery is dead or has been removed from the board.

System Features

Real Time Clock

The EPM-15 features a year 2000-compliant, battery-backed 146818-compatible real-time clock/calendar chip. Under normal battery conditions, the clock maintains accurate timekeeping functions when the board is powered off.

SETTING THE CLOCK

The CMOS Setup utility (accessed by pressing the Delete key during the early boot cycle) can be used to set the time and date of the real time clock.

EPM-15 Reference Manual 24

Page 31

ACPI Power Management

The EPM-15 supports the Advanced Configuration and Power Interface (ACPI) “S3 Sleeping State,” also known as “suspend to RAM” mode. Wakeup is accomplished by grounding pin 39 to pin 40 on connector J8 or via pushbutton (or relay attached to the pushbutton interface). Power consumption in standby mode is under 1 watt. Wakeup typically occurs in 1 to 6 seconds.

Standby mode functionality has been tested under Windows XP and Windows XP Embedded. Also see the Power Management Control Block Diagram on page 4.

HE S3 SLEEPING STATE

The ACPI Specification defines the S3 sleeping state as a low wake latency sleeping state where all system context is lost except system memory. CPU, cache, and chipset context are lost in this state. The hardware maintains memory context and restores some CPU configuration context. Control starts from the processor’s reset vector after the wake event.

Since the state of the operating system and all applications (including open documents) is sustained in main memory, the system can resume work exactly where it left off. The contents of main memory when the computer wakes from standby are the same as when it was put into standby.

System Features

ETUP

To set up the EPM-15 to use ACPI power management:

1. Verify that the CMOS Setup ACPI 1.0 setting is set to Enabled. This is the default

setting.

2. If you plan to use a pushbutton or relay for wakeup, remove the jumper from jumper

block V4[7-8]. Removing this jumper enables the ACPI pushbutton interface.

3. If you plan to use a pushbutton or relay for wakeup, attach the switch contacts to pins 3

and 4 of connector J2 on the CBR-5010 utility board. Pin 3 is ground, and pin 4 is the pushbutton input. (If you are not using CBR-5010, the pushbutton input is pin 40 of connector J8 on the EPM-15 motherboard.)

4. Install the most current drivers for all system devices. If a driver is not installed correctly,

an exclamation point will appear before the device name in Device Manager. Incorrectly installed or older drivers may prevent the system from entering standby mode.

NTERING STANDBY MODE

Standby mode can be entered through the operating system (by configuring the standby settings in Power Options Properties) or programmatically, through a function call or the execution of a shutdown utility. The Microsoft Windows utility DUMPPO.EXE can be used to set up and fine tune ACPI power states.

EPM-15 Reference Manual 25

Page 32

System Features

SetSystemPowerState Function

The “Power Management Reference” in the MSDN Library (http://msdn.microsoft.com/library/default.asp

) contains complete information on the API available for power control under Windows. The “Power Management Functions” section provides complete information on the use of the API.

The function used to set the system power state is SetSystemPowerState. This function suspends the system by shutting power down. Depending on the ForceFlag parameter, the function either suspends operation immediately or requests permission from all applications and device drivers before doing so.

BOOL SetSystemPowerState( BOOL fSuspend, BOOL fForce );

Parameters:

fSuspend

[in] If this parameter is TRUE, the system is suspended. If the parameter is FALSE, the system hibernates. This parameter is ignored in Windows Me/98/95.

fForce

[in] If this parameter is TRUE, the function broadcasts a PBT_APMSUSPEND event to each application and driver, then immediately suspends operation. If the parameter is FALSE, the function broadcasts a PBT_APMQUERYSUSPEND event to each application to request permission to suspend operation.

AKEUP

Wakeup is accomplished by grounding pin 39 to pin 40 on connector J8 or via pushbutton (or relay attached to the pushbutton interface). A pushbutton or relay can be attached to connector J2 on the CBR-5010 utility board. Pin 3 is ground, and pin 4 is the pushbutton input. This circuit on the EPM-15 motherboard has a 10k pull-up resistor.

EPM-15 Reference Manual 26

Page 33

Serial Ports

The EPM-15 features three on-board 16550-based serial channels located at standard PC I/O addresses. Connector J8 provides interfaces to the COM ports. See Table 6 for COM port signal and pinout inform

COM1 is an RS-232 (115.2K baud) serial port. COM3 and COM4 can be operated in RS-422 or RS-485 modes. Additional non-standard baud rates are also available (programmable in the normal baud registers) of up to 460K baud.

Interrupt assignment for each COM port is handled in CMOS Setup, and each port can be independently enabled or disabled.

Note: If a COM port is disabled in CMOS Setup, its I/O address space is available to the

All serial ports are protected against ESD damage. This protection exceeds the 15KV human body model.

Interfaces and Connectors

ation.

PC/104 (ISA) bus.

PORT CONFIGURATION

COM

There is no configuration jumper for COM1 because it operates only in RS-232 mode. Jumper blocks V1 (labeled V5 on 3.xx and earlier boards) and V3 are for termination of the RS-

422/485 differential pairs. See Table 3 for details on termination configuration.

COM3

The TxD+/TxD– differential line driver can be turned on and off by manipulating the RS-485/422 Transmit/Receive Control Register. Refer to page 44 for more information.

The following code exam

; set up 485/422 register in pld mov dx, 1dah ; IO port in PLD mov al, 33h ; initialize RS-422/485 line drivers to RS-422 mode out dx, al

AND COM4 RS-485 MODE LINE DRIVER CONTROL

ple shows how the BIOS initializes COM3 and COM4 to RS-422 mode:

EPM-15 Reference Manual 27

Page 34

IDE Hard Drive / CD-ROM Interfaces

The IDE interface is available to connect up to two IDE devices, such as hard disks, CD-ROM drives, or CompactFlash. Connector J7 is the primary IDE controller with a 44-pin 2 mm latching connector. Use CMOS setup to specify the drive parameters of the drive. If you use the on-board CompactFlash device, only one other IDE device can be connected to the IDE controller.

Cable length must be 18" or less to maintain proper signal integrity. This interface supplies power to 2.5" IDE drives. If you are connecting a 3.5" drive to the

interface (using the CBR-4405 44-pin to 40-pin IDE adapter), you must supply external power to the drive. The power cable attached to a 3.5" drive must be properly grounded so that motor current is not returned via the grounds in the data cable.

Table 5: J7 IDE Hard Drive Connector Pinout

Pin Signal Name Function Pin Signal Name Function

1 Reset- Reset signal from CPU 23 DIOW I/O write 2 Ground Ground 24 Ground Ground 3 DD7 Data bus bit 7 25 DIOR I/O read 4 DD8 Data bus bit 8 26 Ground Ground 5 DD6 Data bus bit 6 27 IORDY I/O ready 6 DD9 Data bus bit 9 28 CSEL Cable select 7 DD5 Data bus bit 5 29 DMACK- DMA acknowledge 8 DD10 Data bus bit 10 30 Ground Ground

9 DD4 Data bus bit 4 31 INTRQ Interrupt request 10 DD11 Data bus bit 11 32 NC No connection 11 DD3 Data bus bit 3 33 DA1 Device address bit 1 12 DD12 Data bus bit 12 34 CBLID- Cable type identifier 13 DD2 Data bus bit 2 35 DA0 Device address bit 0 14 DD13 Data bus bit 13 36 DA2 Device address bit 2 15 DD1 Data bus bit 1 37 CS0 Chip select 0 16 DD14 Data bus bit 14 38 CS1 Chip select 1 17 DD0 Data bus bit 0 39 DASP- LED 18 DD15 Data bus bit 15 40 Ground Ground 19 Ground Ground 41 Power +5.0 V 20 NC Key 42 Power +5.0 V 21 PDMARQ DMA request 43 Ground Ground 22 Ground Ground 44 NC No connection

Interfaces and Connectors

EPM-15 Reference Manual 28

Page 35

J8 Utility Connector

The J8 50-pin utility connector incorporates the COM ports, USB ports, LEDs, speaker, and the reset button. Table 6 illustrates the function of each pin and the pinout assignments to connectors on the CBR-5010 breakout board.

Note: Do not connect to these pins in RS-485 mode.

External

Connector Pin

1 2 3 2 Receive Data 29 TM3 Channel 1 Data + 4 7 Request to Send 30 TM2 Channel 1 Data 5 3 Transmit Data 31 6 8 Clear to Send 32 7 4 Data Terminal Ready 33 BM3 Channel 2 Data + 8 9 Ring Indicator 34 BM2 Channel 2 Data 9 5 Ground 35

11 12 13 1 Ground Ground 40 14 3 RxD+ 15 2 RxD– TxD/RxD– 42 16 – Ground Ground 43

17 18 19 1 Ground Ground 47 20

21 22

23 24

25 26

COM1

COM3

COM4

USB0

1 Data Carrier Detect 27 6 Data Set Ready 28

– Ground 36

5 TxD+ (note) 38 B2 Channel 3 Data 4 TxD– (note) 39

5 TxD+ (note) 45 4 TxD– (note) 46

3 RxD+ TxD/RxD+ 48 2 RxD– TxD/RxD– 49 – Ground Ground 50

T4 Ground T1 +5V (Protected)

T3 Channel 0 Data + T2 Channel 0 Data -

Table 6: J8 Utility Connector Pinout

Signal

RS-422 RS-485

TxD/RxD+ 41

RS-422 RS-485

37 B3 Channel 3 Data +

External

Connector Pin

USB1

USB2

USB3

ACPI Push-

button J2

PROG LED

IDE LED

Speaker

PBRESET

Interfaces and Connectors

Signal

TM4 Ground TM1 +5V (Protected)

BM4 Ground BM1 +5V (Protected)

B4 Ground B1 +5V (Protected)

3 Ground 4 EIRQ1 – reserved – reserved 1 +5V (Protected) 3 Programmable LED 2 +5V (Protected) 4 IDE LED – +5V (Protected)

SP1 Speaker Drive

1 Ground 2 Pushbutton Reset

EPM-15 Reference Manual 29

Page 36

Interfaces and Connectors

USB INTERFACE

Connector J8 includes interfaces for four USB ports. The USB interface on the EPM-15 is UHCI (Universal Host Controller Interface) and EHCI (Enhance Host Controller Interface) compatible, which provides a common industry software/hardware interface. There are four USB connectors on the CBR-5010 breakout board.

BIOS Configuration

The USB controller can be enabled or disabled in the CMOS setup. The USB controller uses PCI interrupt “INTD#”. The CMOS setup screen is used to select the IRQ line routed to each PCI interrupt line.

ROGRAMMABLE LED

Connector J8 includes an output signal for a software controlled LED. Connect the cathode of the LED to J8 pin 44; connect the anode to +5V. An on-board resistor limits the current to 15 mA when the circuit is turned on. A programmable LED is provided on the CBR-5010 breakout board.

To turn the LED on and off, set or clear bit D7 in I/O port 1D0h. When changing the register, make sure not to alter the value of the other bits.

The following code examples show how to turn the LED on and off. Refer to page 41 for further

ation:

inform

LED On LED Off

MOV DX,1D0H MOV DX,1D0H

IN AL,DX IN AL,DX

OR AL,80H AND AL,7FH

OUT DX,AL OUT DX,AL

Note: The LED is turned on by the BIOS during system startup. This causes the light to

function as a "power on" indicator if it is not otherwise controlled by user code. The BIOS also flashes the LED in sync with “Beep Codes” when an error occurs.

LED

IDE

Connector J8 includes an output signal for an IDE Activity LED. Connect the cathode of the LED to J8 pin 46, and connect the anode to +5V. An on-board resistor limits the current to 15 mA when the circuit is turned on. An IDE LED is provided on the CBR-5010 board.

NTERNAL SPEAKER

Connector J8 includes a speaker output signal at pin 48. The CBR-5010 breakout board provides a Piezo electric speaker.

USH-BUTTON RESET

Connector J8 includes an input for a push-button reset switch. Shorting J8 pin 50 to ground causes the EPM-15 to reboot. This connector uses IEC 61000-4-2-rated TVS components to help protect against ESD damage.

EPM-15 Reference Manual 30

Page 37

Parallel Port

The EPM-15 includes a standard bi-directional/EPP/ECP compatible LPT port which resides at the PC standard address of 378h. The port can be enabled or disabled and interrupt assignments can be made via CMOS Setup. The LPT mode is also set via CMOS Setup.

This connector uses IEC 61000-4-2-rated TVS components to help protect against ESD damage.

Interfaces and Connectors

Table 7: LPT1 Parallel Port Pinout

10 Data bit 5 In/Out 11 Data bit 6 In/Out 12 Data bit 7 In/Out 13 Data bit 8 In/Out 14 Ground – 15 Acknowledge In 16 Ground – 17 Port Busy In 18 Ground – 19 Paper End In 20 Select In

Centronics Signal

1 Strobe Out 2 Auto feed Out 3 Data bit 1 In/Out 4 Printer error In 5 Data bit 2 In/Out 6 Reset Out 7 Data bit 3 In/Out 8 Select input Out 9 Data bit 4 In/Out

Signal Direction

EPM-15 Reference Manual 31

Page 38

Video Interface

An on-board video controller integrated into the chipset provides high performance video output for the EPM-15. (The EPM-15 can also be operated without video card attached. See “Console Redirection.”)

ONFIGURATION

The EPM-15 uses a shared-memory architecture. This allows the video controller to use 16 MB of system DRAM for video RAM.

The EPM-15 supports two types of video output, SVGA and LVDS Flat Panel Display.

IDEO BIOS SELECTION

Jumper V4[3-4] can be removed to allow the system to boot off of the Secondary Video BIOS. Unlike the Primary Video BIOS, the Secondary Video BIOS can be reprogrammed in the field.

Interfaces and Connectors

SVGA

See Figure 7 for connector location information. An adapter cable, part num

OUTPUT CONNECTOR

ber CBR-1201, is

available to translate J1 into a standard 15-pin D-Sub SVGA connector. This connector uses IEC 61000-4-2-rated TVS components to help protect against ESD damage.

Table 8: Video Output Pinout

Signal

Name

1 GND Ground 6 2 CRED Red video 1 3 GND Ground 7 4 CGRN Green video 2 5 GND Ground 8 6 CBLU Blue video 3 7 GND Ground 5 8 CHSYNC Horizontal Sync 13 9 GND Ground 10 10 CVSYNC Vertical Sync 14 11 – pulled high – 12 – pulled high –

Function

Mini DB15

EPM-15 Reference Manual 32

Page 39

Interfaces and Connectors

LVDS FLAT PANEL DISPLAY CONNECTOR

The integrated LVDS Flat Panel Display in the EPM-15 is an ANSI/TIA/EIA-644-1995 specification-compliant interface. It can support up to 24 bits of RGB pixel data plus 3 bits of timing control (HSYNC/VSYNC/DE) on the 4 differential data output pairs. The LVDS clock frequency ranges from 25 MHz to 85 MHz.

The 3.3V power provided to pins 19 and 20 of J12 is protected by a 1 Amp fuse. See Figure 8 for connector location information.

Table 9: LVDS Flat Panel Display Pinout

J12

Signal Name

1 GND Ground 2 NC No Connection 3 LVDSA3 Diff. Data 3 (+) 4 LVDSA3# Diff. Data 3 (–) 5 GND Ground 6 LVFSCLK0 Differential Clock (+) 7 LVDSCLK0# Differential Clock (–) 8 GND Ground

9 LVDSA2 Diff. Data 2 (+) 10 LVDSA2# Diff. Data 2 (–) 11 GND Ground 12 LVDSA1 Diff. Data 1 (+) 13 LVDSA1# Diff. Data 1 (–) 14 GND Ground 15 LVDSA0 Diff. Data 0 (+) 16 LVDSA0# Diff. Data 0 (–) 17 GND Ground 18 GND Ground 19 +3.3V Protected Power Supply 20 +3.3V Protected Power Supply

Function

EPM-15 Reference Manual 33

Page 40

Interfaces and Connectors

COMPATIBLE LVDS PANEL DISPLAYS

The following list of flat panel displays is reported to work properly with the integrated graphics video controller chip used on the EPM-15.

Table 10: Compatible Flat Panel Displays

Manufacturer

eVision Displays xxx084S01 series 8.4” 800 x 600 18-bit LVDS TFT au Optronix B084SN01 8.4” 800 x 600 18-bit LVDS TFT eVision Displays xxx104S01 series 10.4” 800 x 600 18-bit LVDS TFT au Optronix B104SN01 10.4” 800 x 600 18-bit LVDS TFT Sharp LQ121S1LG411 12.1” 800 x 600 18-bit LVDS TFT eVision Displays* xxx141X01 series 14.1” 1024 x 768 18-bit LVDS TFT

Model Number

Panel

Size

Resolution

Interface

Panel

Technology

* Compatible with DOS or Windows Generic VGA driver, but not the GX Windows driver.

ONSOLE REDIRECTION

The EPM-15 can be operated without using the onboard video output by redirecting the console to COM1. CMOS Setup and some operating systems such as DOS can use this console for user interaction.

In the Features Configuration screen, there is an option to control console redirection. This option can be set to Auto or Redirect. When set to Auto, the console will not be redirected to COM1. When set to Redirect, the console will be directed to COM1.

Notes on console redirection:

 When console redirection is enabled, you can access CMOS Setup by typing Ctrl-C.  The decision to redirect the console is made early in BIOS execution, and cannot be

changed later.

 The redirected console uses 115200 baud, 8 data bits, 1 stop bit, no parity, and no flow

control.

 The default console redirection setting is "Auto". The defaults can be reloaded without

entering BIOS setup by discharging CMOS contents (consult the reference manual for instructions).

EPM-15 Reference Manual 34

Page 41

Interfaces and Connectors

Null Modem

The following diagram illustrates a typical DB9 to DB9 RS-232 null modem adapter.

System 1 <--> System 2 Name Pin Pin Name

-----------------------------------TX 3 <--> 2 RX RX 2 <--> 3 TX RTS 7 <--> 1 DCD CTS 8 DSR 6 <--> 4 DTR DCD 1 <--> 7 RTS

8 CTS

DTR 4 <--> 6 DSR

Pins 7 and 8 are shorted together on each connector. Unlisted pins have no connection.

EPM-15 Reference Manual 35

Page 42

Ethernet Interface

The EPM-15 features an on-board Ethernet controller. For the EPM-15g and h, the controller is the Intel 82551ER Fast Ethernet controller. For the EPM-15S and E, the controller is the Intel 82541ER controller. While these controllers are not NE2000-compatible, they are widely supported. Drivers are readily available to support a variety of operating systems. See VersaLogic website for latest OS support.

CONFIGURATION

BIOS

The Ethernet interface (J4) uses PCI interrupt “INTB#”. The CMOS setup screen is used to select the IRQ line routed to each PCI interrupt line.

TATUS LED

The EPM-15 includes an on-board, two-colored LED to provide an indication of the Ethernet status as follows:

Interfaces and Connectors

Green LED (Link)

 ON Active Ethernet cable plugged in  OFF Active cable not plugged in

or cable not plugged into active hub

Yellow LED (Activity)

 ON Activity detected on cable  OFF No Activity detected on cable

THERNET CONNECTOR

A board-mounted RJ-45 connector is provided to make connection with a Category 5 Ethernet cable. The Ethernet controller autodetects 10BaseT/100Base-TX connection speed. The interface uses IEC 61000-4-2-rated TVS components to help protect against ESD damage.

EPM-15 Reference Manual 36

Page 43

Audio

The audio interface on the EPM-15 is implemented using the Analog Devices AD1981B Audio Codec (EPM-15g, h) or the National Semiconductor LM4549B (EPM-15S, E). This interface is AC ’97 2.1 compatible. Drivers are available for most Windows-based operating systems. To obtain the most current versions, consult the EPM-15 product support page.

J13 provides the line-level stereo input and line-level stereo output connection points. The outputs will drive any standard-powered PC speaker set.

These connectors use IEC 61000-4-2-rated TVS components to help protect against ESD damage.

The audio interface uses PCI interrupt “INTB#”. CMOS Setup is used to select the IRQ line routed to INTB#.

The audio controller can be disabled within CMOS Setup.

Interfaces and Connectors

OFTWARE CONFIGURATION

Table 11: J13 Audio Connector

1 LINE_OUTR Line-Out Right 2 Ground Ground 3 LINE_OUTL Line-Out Left 4 Ground Ground 5 LINE_INR Line-In Right 6 Ground Ground 7 LINE_INL Line-In Left 8 Ground Ground

CPU Temperature Monitor

A thermometer circuit constantly monitors the die temperature of the CPU. This circuit can be used to detect over-temperature conditions, which can result from fan or heat sink failure or excessive ambient temperatures, and under-temperature conditions.

The CMOS setup is used to set the temperature detection threshold. A status bit in the Special Control Register bit D5 of I/O port 1D0h, can be read to determine if the die temperature is above or below the threshold.

Contact the factory for information on clearing the status bit or reading and writing to the thermometer circuit. See page 41 for additional information.

Signal Name

Function

EPM-15 Reference Manual 37

Page 44

PC/104 Expansion Bus

EPM-15 has limited support of the PC/104 bus. Most PC/104 cards will work, but be sure to check the requirements of your PC/104 card against the list below.

Interfaces and Connectors

PC/104

I/O SUPPORT

The following I/O ranges are supported:

 100h – 1CFh  1D3h – 1D9h  1DBh – 1DFh  200h – 377h  37Fh – 3AFh  3E0h – 3F5h  3F7h  400h – 47Fh  490h – 4CFh  4D2h – 777h  77Ch – AFFh

PC/104

MEMORY SUPPORT

Memory ranges supported:

 C8000h-DBFFFh, 8-bit transfers only  DFBF4h  DFE88h  DFE94

SUPPORT

IRQ

The following IRQs are available on the PC/104 bus:

 IRQ 3, IRQ 4, IRQ 10

Each of the three IRQs must be enabled in CMOS Setup before they can be used on the ISA bus. Because ISA IRQ sharing is not supported, make sure that any IRQ channel used for an ISA device is not used elsewhere. For example, if ISA IRQ 4 is enabled, you must use a different IRQ for COM1.

SUPPORT

DMA

The current revision of the board does not support PC/104 DMA.

EPM-15 Reference Manual 38

Page 45

Memory Map

The lower 1 MB memory map of the EPM-15 is arranged as shown in the following table. Various blocks of memory space between C0000h and FFFFFh can be shadowed. The CMOS

setup is used to enable or disable this feature.

I/O Map

System Resources and Maps

Table 12: Memory Map

Start Address

E0000h FFFFFh DC000h DFFFFh D0000h DBFFFh C0000h CFFFFh A0000h BFFFFh 00000h 9FFFFh

End Address Comment

System BIOS Reserved PC/104 Video BIOS Video RAM System RAM

The following table lists the common I/O devices in the EPM-15 I/O map. User I/O devices should be added using care to avoid the devices already in the map as shown in the following table.

Table 13: On-Board I/O Devices

I/O Device

Special Control Register 1D0h Jumper and Status Register 1D2h RS-485/422 Tx/Rx Control Register 1DAh Reserved 1E0h Primary Hard Drive Controller 1F0h – 1F7h COM4 Serial Port 2E8h – 2EFh LPT1 Parallel Port 378h – 37Fh COM3 Serial Port 3E8h – 3EFh COM1 Serial Port 3F8h – 3FFh

Note: The I/O ports occupied by on-board devices are freed up when the device is

disabled in the CMOS setup.

Standard

I/O

Addresses

EPM-15 Reference Manual 39

Page 46

Interrupt Configuration

The EPM-15 has the standard complement of PC type interrupts. Three non-shared interrupts are routed to the PC/104 bus, and up to four IRQ lines can be allocated as needed to PCI devices. There are no interrupt configuration jumpers. All configuration is handled through CMOS Setup.

z = default setting | = allowed setting

Source

Timer 0 Keyboard Slave PIC COM1 COM3 COM4 Floppy RTC Mouse Math Chip Pri. IDE LPT1 CPU Temp ISA IRQ3 ISA IRQ4 ISA IRQ10 PCI INTA# PCI INTB# PCI INTC# PCI INTD#

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

System Resources and Maps

Table 14: EPM-15 IRQ Settings

IRQ

| z | | | { | | |

| | | | | | |

| | | |

{ | |

| | | | | | | | |

| | | | | |

| | | z | | z | | z z | |

| | | |

Notes:

 If your design needs to use interrupt lines on the PC/104 bus, IRQ10 is recommended. (IRQ3 and

IRQ4 are normally used by COM ports on the main board.)

 Though the EPM-15 is not equipped with a standard keyboard (IRQ1), floppy disk (IRQ6), or

mouse (IRQ12), the BIOS infrastructure makes it appear they exist for DOS and older operating systems. Though these devices use USB interrupts, legacy IRQs are created via software.

 ACPI uses IRQ9. IRQ9 should not be assigned to other devices if ACPI is enabled.

EPM-15 Reference Manual 40

Table 15: PCI Interrupt Settings

z = default setting | = allowed setting

PCI Interrupt

Source

Ethernet Audio USB

INTA# INTB# INTC# INTD#

z z

Page 47

Special Control Register

SCR (READ/WRITE) 1D0h

D7 D6 D5 D4 D3 D2 D1 D0

PLED Reserved OVERTEMP Reserved Reserved Reserved Reserved Reserved

Table 16: Special Control Register Bit Assignments

Bit Mnemonic Description

D7 PLED Light Emitting Diode — Controls the programmable LED on connector J4

0 = T urns LED on 1 = Turns LED off

D6 Reserved Reserved — This bit has no function. D5 OVERTEMP Temperature Status — Indicates CPU temperature.

0 = CPU temperature is below value set in the CMOS setup 1 = CPU temperature is above value set in the CMOS setup

This bit is read-only.

D4-D0 Reserved Reserved — These bits have no function.

Special Registers

EPM-15 Reference Manual 41

Page 48

Revision Indicator Register

REVIND (READ ONLY) 1D1h

D7 D6 D5 D4 D3 D2 D1 D0

PC4 PC3 PC2 PC1 PC0 EXT REV1 REV0

This register is used to indicate the revision level of the EPM-15.

Table 17: Revision Indicator Register Bit Assignments

Bit Mnemonic Description

D7-D3 PC Product Code — These bits are hard-coded to represent the product type. The

EPM-15 always reads as 00011. Other codes are reserved for future products.

PC4 PC3 PC2 PC1 PC0 Product Code

0 0 0 1 1 EPM-15

These bits are read-only.

D2 EXT Extended Temperature — Indicates operating temperature range.

0 = Standard temperature range 1 = Extended temperature range

D1-D0 REV Revision Level — These bits represent the EPM-15 circuit revision level.

REV1 REV0 Revision Level

0 0 Initial product release, Rev 1, 2 and 3

These bits are read-only.

Special Registers

EPM-15 Reference Manual 42

Page 49

Jumper and Status Register

JSR (READ/WRITE) 1D2h

D7 D6 D5 D4 D3 D2 D1 D0

Reserved VB-SEL SB-SEL Reserved Reserved Reserved Reserved Reserved

Table 18: Jumper and Status Register Bit Assignments

Bit Mnemonic Description

D7 Reserved D6

D5 SB-SEL System BIOS Selection — Indicates the status of jumper.

D4-D0 Reserved Reserved — These bits have no function.

VB-SEL Video BIOS Selection — Indicates the status of jumper.

This bit has no function.

0 = Jumper out, Secondary Video BIOS selected. 1 = Jumper in, Primary Video BIOS selected.

This bit is read-only.

0 = Jumper out, Master System BIOS selected. 1 = Jumper in, Run Time System BIOS selected.

This bit is read-only.

Special Registers

EPM-15 Reference Manual 43

Page 50

RS-485/422 Transmit/Receive Control Register

RS485/422 (READ/WRITE) 1DAh

D7 D6 D5 D4 D3 D2 D1 D0

Reserved COM4TE485 COM4RE4XX COM4TE422 Reserved COM3TE485 COM3RE4XX COM3TE422

Table 19: RS-485/422 Tx/Rx Register Bit Assignments

Bit Mnemonic Description

D7 Reserved This bit has no function. D6 COM4TE485 COM4 RS-485 Transmit Enable — Controls RS-485 Tx on COM4.

0 = Disable RS-485 transmitter on COM4. 1 = Enable RS-485 transmitter on COM4.

D5 COM4RE4XX COM4 RS-485/422 Receive Enable — Controls RS-485/422 Rx on COM4.

0 = Disable RS-485/422 receiver on COM4. 1 = Enable RS-485/422 receiver on COM4.

D4 COM4TE422 COM4 RS-422 Transmit Enable — Controls RS-422 Tx on COM4.

0 = Disable RS-422 transmitter on COM4.

1 = Enable RS-422 transmitter on COM4. D3 Reserved Reserved — This bit has no function. D2 COM3TE485 COM3 RS-485 Transmit Enable — Controls RS-485 Tx on COM3.

0 = Disable RS-485 transmitter on COM3.

1 = Enable RS-485 transmitter on COM3. D1 COM3RE4XX COM3 RS-485/422 Receive Enable — Controls RS-485/422 Rx on COM3.

0 = Disable RS-485/422 receiver on COM3.

1 = Enable RS-485/422 receiver on COM3. D0 COM3TE422 COM3 RS-422 Transmit Enable — Controls RS-422 Tx on COM3.

0 = Disable RS-422 transmitter on COM3.

1 = Enable RS-422 transmitter on COM3.

Special Registers

EPM-15 Reference Manual 44

Page 51

Appendix A – References

PC Chipset Advanced Micro Devices AMD LX Chipset

Ethernet Controller Intel Corporation

Intel 82551ER Intel 82541ER

Video Controller In chipset. PC/104 Specification PC/104 Consortium

PC/104 Resource Guide PC/104-Plus Specification VersaLogic Corporation

PC/104 Resource Guide General PC Documentation Microsoft Press

The Programmer’s PC Sourcebook General PC Documentation Powell’s Books

The Undocumented PC

EPM-15 Reference Manual 45

Page 52

Appendix B – Generated Frequencies

The following frequencies on the EPM-15 board can be measured for EMI/EMC testing.

Table 20: Generated Frequencies

Component Frequencies Notes

10/100 Ethernet 25 MHz Y1 crystal, U7 82551ER chip. RTC 32.768 kHz Y2 crystal, U13A CS5536 chip. System Clock

REF Clock IOAPC Clock

PCI Clock USB 48 MHz Y4 crystal, U13B CS5536 chip. Audio 24.576 MHz Y5 crystal, U44 AD1981B chip. PCI Bus 33.3 MHz Fixed frequency. ISA Bus 8 MHz VCore Switching

Regulator Memory 111 MHz or 222

14.318 MHz

33.3 MHz

1 MHz Switching frequency.

transfers per second

Y3 crystal, U34 MK1491-09F chip.

EPM-15 Reference Manual 46

VersaLogic EPM-15, Manx Reference Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
