VersaLogic Copperhead VL-EBX-41 Reference Manual

Reference
Manual

DOC. REV. 7/25/2014

Copperhead

(VL-EBX-41)

Intel® 3rd Generation Core™
Quad or Dual Core SBC with
Ethernet, HD Graphics, ACPI

4.0, SATA, RAID, USB, eUSB,
mSATA, SUMIT, HD Audio,
Serial, Analog + Digital I/O, and
SPX

WWW.VERSALOGIC.COM

12100 SW Tualatin Road
Tualatin, OR 97062-7341

[phone]

Fax [phone]

Copyright © 2014 VersaLogic Corp. All rights reserved.

Notice:

Although every effort has been made to ensure this document is error-free, VersaLogic makes no
representations or warranties with respect to this product and specifically disclaims any implied warranties
of merchantability or fitness for any particular purpose.

VersaLogic reserves the right to revise this product and associated documentation at any time without
obligation to notify anyone of such changes.

EBX-41 Reference Manual ii

Product Release Notes

VersaTech KnowledgeBase

Rev 1.0x – Commercial Release.

Support Page

The Copperhead support page, at http://www.versalogic.com/private/copperheadsupport.asp, contains
additional information and resources for this product including:

 Reference Manual (PDF format)
 Operating system information and software drivers
 Data sheets and manufacturers’ links for chips used in this product
 Photograph of the circuit board
 BIOS information and upgrades

The VersaTech KnowledgeBase is an invaluable resource for resolving technical issues with your
VersaLogic product.

EBX-41 Reference Manual iii

Table of Contents

Introduction ..................................................................................................................... 1

Description .......................................................................................................................... 1

Technical Specifications ..................................................................................................... 2

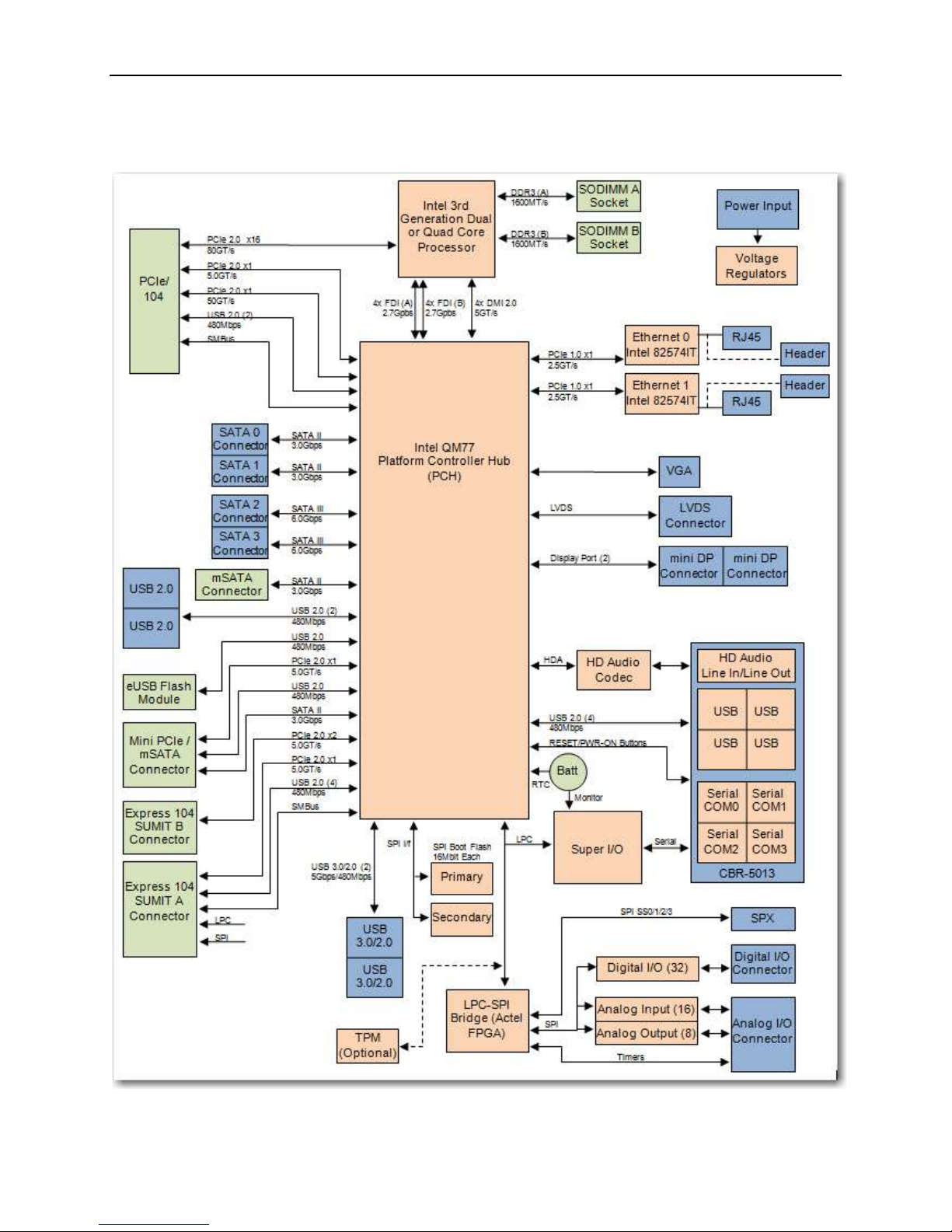

Copperhead Block Diagram ................................................................................................ 3

Thermal Considerations ...................................................................................................... 4

CPU Die Temperature ........................................................................................... 4

Model Differences ................................................................................................. 4

Warnings ............................................................................................................................. 5

Electrostatic Discharge .......................................................................................... 5

Lithium Battery ...................................................................................................... 5

Handling Care ........................................................................................................ 5

Earth Ground Requirement .................................................................................... 5

Technical Support ............................................................................................................... 6

Repair Service ........................................................................................................ 6

Configuration and Setup .................................................................................................. 7

Initial Configuration ........................................................................................................... 7

Basic Setup ......................................................................................................................... 7

CMOS Setup ....................................................................................................................... 9

Operating System Installation ............................................................................................. 9

Physical Details .............................................................................................................. 10

Dimensions and Mounting ................................................................................................ 10

Hardware Assembly ............................................................................................. 14

Standoff Locations ............................................................................................... 14

External Connectors ......................................................................................................... 15

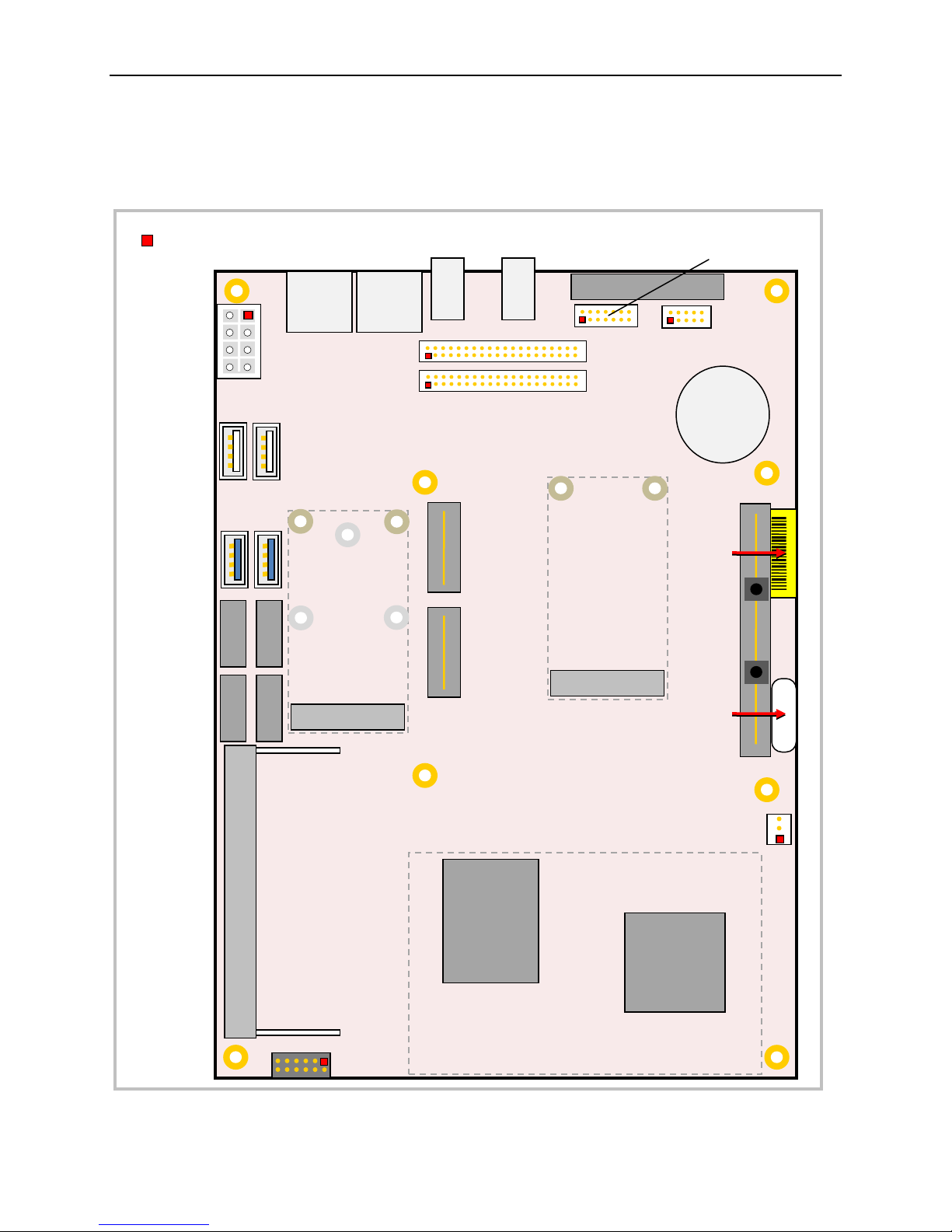

VL-EBX-41 Connector Locations – Top ............................................................ 15

VL-EBX-41 Connector Locations – Bottom ....................................................... 16

VL-EBX-41 Connector Functions and Interface Cables ..................................... 17

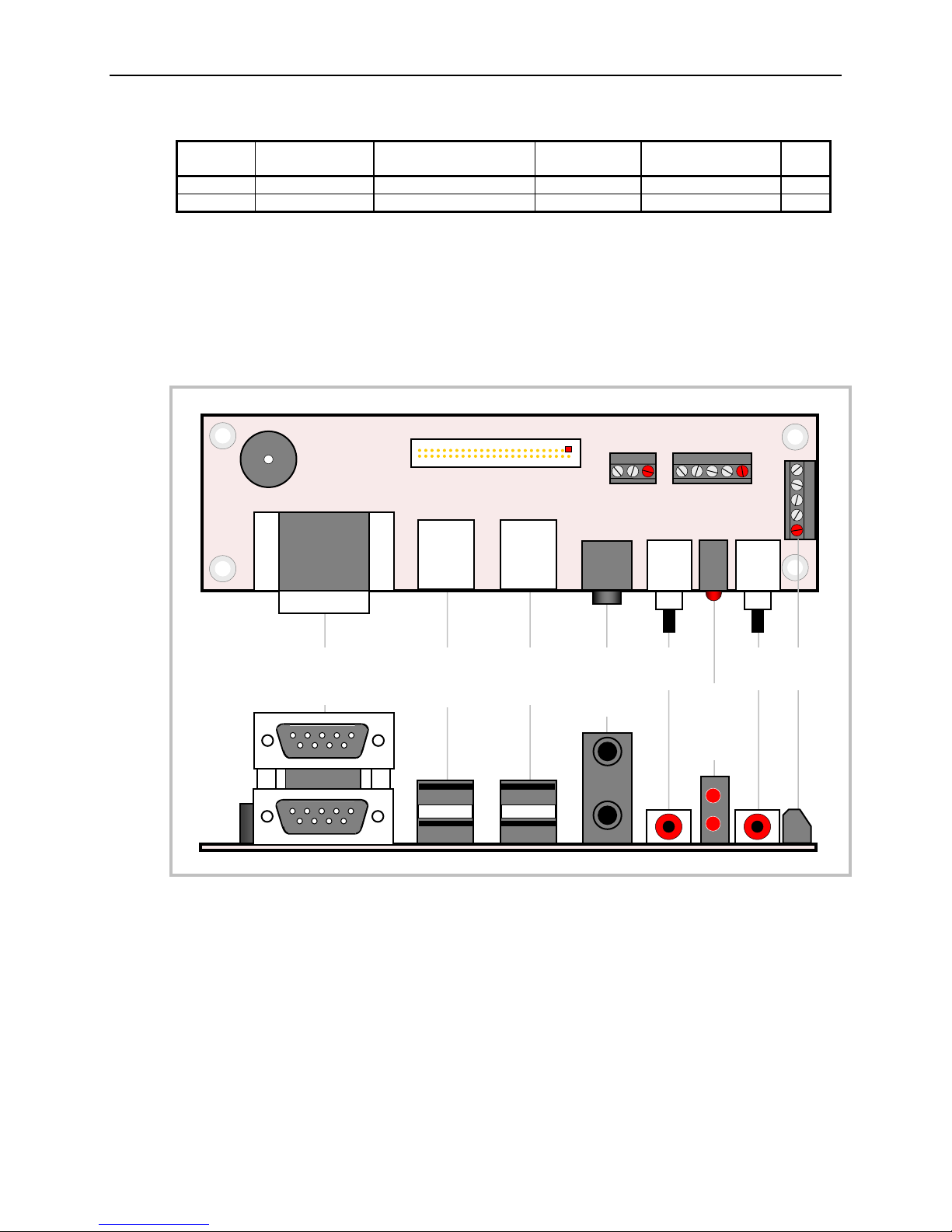

VL-CBR-5013 Connector Locations ................................................................... 18

VL-CBR-5013 Connector Functions ................................................................... 19

VL-CBR-4004 Connector Locations ................................................................... 19

Jumper Blocks .................................................................................................................. 20

Jumpers As-Shipped Configuration ..................................................................... 20

Jumper Summary ................................................................................................. 21

System Features ............................................................................................................. 22

Power Supply .................................................................................................................... 22

Power Connector ................................................................................................. 22

Power Requirements ............................................................................................ 22

Power Delivery Considerations ........................................................................... 22

Lithium Battery .................................................................................................... 23

CPU ................................................................................................................................... 23

EBX-41 Reference Manual iv

Table of Contents

System RAM ..................................................................................................................... 24

Compatible Memory Modules ............................................................................. 24

Clearing Non-volatile RAM (NVRAM) .......................................................................... 24

CMOS RAM ..................................................................................................................... 24

Clearing CMOS RAM and RTC .......................................................................... 24

Real-time Clock ................................................................................................................ 24

Setting the Clock.................................................................................................. 25

Expansion Bus .................................................................................................................. 25

PCIe/104 .............................................................................................................. 25

SUMIT ................................................................................................................. 25

Interfaces and Connectors .............................................................................................. 27

Video Interfaces ................................................................................................................ 27

VGA Connector ................................................................................................... 27

LVDS Flat Panel Display .................................................................................... 27

mini DisplayPort .................................................................................................. 28

Console Redirection ............................................................................................ 29

SATA Ports ....................................................................................................................... 30

mSATA ............................................................................................................................. 30

eUSB ................................................................................................................................. 32

Ethernet ............................................................................................................................. 32

Ethernet Connectors ............................................................................................ 32

Status LED ........................................................................................................... 33

USB ................................................................................................................................... 34

Serial Ports ........................................................................................................................ 34

COM Port Configuration ..................................................................................... 34

Serial Port Connectors ......................................................................................... 35

Analog Input ..................................................................................................................... 36

External Connections ........................................................................................... 36

Analog Input Using the SPI Interface .................................................................. 37

Analog Output .................................................................................................................. 38

Digital I/O ......................................................................................................................... 40

Digital I/O Port Configuration Using the SPI Interface ...................................... 41

Audio ................................................................................................................................ 45

Counter/Timers ................................................................................................................. 46

PCIe Mini Card / mSATA ................................................................................................ 46

PCIe Mini Card Wireless Status LEDs ................................................................ 48

User I/O Connector ........................................................................................................... 49

LEDs ................................................................................................................................. 49

Programmable LED ............................................................................................. 49

Power LED .......................................................................................................... 50

Pushbutton Reset .............................................................................................................. 50

Power Button .................................................................................................................... 50

Supported Power States ....................................................................................... 51

Speaker ............................................................................................................................. 51

SPX Expansion Bus .......................................................................................................... 52

VersaLogic SPX Expansion Modules ................................................................. 52

SPI Registers ........................................................................................................ 53

EBX-41 Reference Manual v

Table of Contents

System Maps .................................................................................................................. 57

On-board I/O Devices ....................................................................................................... 57

Special Registers ............................................................................................................ 58

PLED and Product Code Register .................................................................................... 58

PLD Revision and Type Register ..................................................................................... 59

BIOS and Jumper Status Register ..................................................................................... 60

Appendix A – References ................................................................................................ 61

Appendix B – Custom Programming .............................................................................. 62

PLD Interrupts .................................................................................................................. 62

Interrupt Control Register .................................................................................... 62

Interrupt Status Register ...................................................................................... 63

8254 Timer Control Register ............................................................................................ 64

Miscellaneous Control Register........................................................................................ 66

A/D and D/A Control/Status Register .............................................................................. 67

EBX-41 Reference Manual vi

 Intel® 3rd Generation Core™ CPU:

 Core™ i7 Quad-Core (2.3 GHz) or
 Core™ i7 Dual-Core (1.7 GHz) or
 Core™ i3 Dual-Core (1.6 GHz) or
 Celeron® Dual-Core (1.4 GHz)

 Up to 16 GB DDR3 socketed

memory, two SO-DIMMs

 Intel QM77 Platform Controller Hub
 Two Intel 82574IT-based Ethernet

interfaces, autodetect 10BaseT /
100BaseTX / 1000BaseT

 Intel HD 4000 graphics core with

GPU Turbo Boost; DirectX 11,
MPEG-2, H.264, and OGL 3.1
compliant; supports three
independent displays

 Two DisplayPort interfaces, one

VGA and one LVDS interface

 Four RS-232/422 serial ports
 Two SATA 6 Gb/s ports and two

SATA 3 Gb/s ports

 RAID 0/1/5/10 support

 Ten USB 2.0 ports and two USB 3.0 ports
 One mSATA only socket
 One PCIe Mini Card/mSATA socket
 One eUSB bootable flash interface
 Industrial I/O

 Sixteen 12-bit analog inputs
 Eight 12-bit analog outputs
 Thirty-two digital I/O lines

 Trusted Platform Module (option) for on-

board security

 SPX interface supports up to four external

SPI devices either of user design or any of
the SPX™ series of expansion boards,
with clock frequencies from 1-8 MHz

 Intel High Definition Audio (HDA)

compatible. Stereo line in and line out.

 PCIe/104 Type 1 or SUMIT expansion
 EBX standard 5.75” x 8.00” footprint
 Field-upgradeable BIOS with OEM

enhancements

 Customization available

1

Description

The Copperhead (VL-EBX-41) is a feature-packed single board computer designed for OEM
control projects requiring fast processing, industrial I/O, flexible memory options and designed­in reliability and longevity (product lifespan). Its features include:

Introduction

EBX-41 Reference Manual 1

The Copperhead is compatible with a variety of popular operating systems including Windows 7
(32- and 64-bit), XP (32-bit), WES (32- and 64-bit), Linux (32- and 64-bit), and VxWorks.

The Copperhead features high-reliability design and construction, including voltage sensing reset
circuits and self-resetting fuses on the +5V and +3.3V supplies to the user I/O connectors.

Copperhead boards are subjected to 100% functional testing and are backed by a limited two­year warranty. Careful parts sourcing and US-based technical support ensure the highest possible
quality, reliability, service and product longevity for this exceptional SBC.

The Copperhead is equipped with a multifunction utility cable (breakout board) that provides
standard I/O interfaces, including four USB ports, four serial ports, pushbutton reset,
programmable LED, audio, and speaker. Additional I/O expansion is available through the
stackable SUMIT and ISA connectors, PCIe Mini Card socket, and SPX expansion interface.

Technical Specifications

Board Size:

EBX standard: 5.75” x 8” (146 mm x 203 mm)

Storage Temperature:

-40°C to 85°C

Operating Temperature:

Standard temp. models: 0°C to +60°C
Industrial temp. models: -40°C to +85°C

Power Requirements: (at +25°C and +12V running

Windows 7 with 4 GB RAM, LVDS display, SATA, GbE,
COM, and USB keyboard/mouse.)

VL-EBXs-41SAK, EAF, VL-EBXe-41EHF: 7.6W

idle, 20.7W typical, 33.7W max.

VL-EBXe-41SJF, EJP: 16.2W idle, 37.2W

typical, 58.1W max.

VL-EBXe-41ELF, SLK: 8.8W idle, 14.4W typical,

20.0W max.

VL-EBXe-41SMK, EMF: 9.8W idle, 13.3W

typical, 16.9W max.
+3.3V might be required by some expansion
modules; +5V is needed when current above 4A
is required for expansion modules

System Reset and Hardware Monitors:

All voltage rails monitored. Watchdog timer with
programmable timeout. Push-button sleep,
reset, and power.

DRAM:

Two SO-DIMM sockets, up to 16 GB DDR3 with
up to 1600 MT/s

Video Interface:

Intel HD Graphics 4000 core
Analog output for VGA

Up to 2048x1536 at 75 MHz
LVDS output for TFT FPDs

18 bits RGB plus 3 bits timing control or

24 bits RGB plus 4 bits timing control
Two mini DisplayPort interfaces, one VGA, one

LVDS

SATA Interface:

Two SATA 6 Gb/s ports
Two SATA 3 Gb/s ports

Flash Interface:

One 2 mm eUSB bootable device interface
One mSATA socket
One PCIe Mini Card / mSATA socket

Ethernet Interface:

Two Intel 82574IT based 10BaseT / 100BaseTX
/ 1000BaseT Ethernet Controllers

Analog Input:

16-channel, 12-bit, single-ended, 100 Ksps,
channel independent input range: bipolar ±5,
±10, or unipolar 0 to +5V or 0 to +10V

Analog Output:

8-channel, 12-bit, single-ended, 100 Ksps, 0 to

4.096V

Serial Interface: (COM Ports)

Four RS-232/422 ports, 16C550 compatible, 921
Kbps max., 4-wire RS-232

USB:

Ten USB 2.0 host ports
Two USB 3.0 host ports

Audio:

Intel HD Audio, IDT 92HD75 HD audio CODEC
Stereo Line In and Stereo Line Out

SPX:

Supports four external SPI chips of user design
or any SPX series expansion board

BIOS:

American Megatrends (AMI) Aptio UEFI
Technology with OEM enhancements.
Field upgradeable with BIOS update utility

Bus Speed:

CPU: Intel i7 Dual-Core: 1.7 GHz, i7 Quad-Core:

2.3 GHz, i3 Dual-Core: 1.6 GHz, or Celeron

Dual-Core: 1.4 GHz
DDR3: 1333 or 1600 MT/s
USB 2.0: 480 Mbps
USB 3.0: 5 Gbps
LPC: 33.33 MHz
PCIe/104: 100 MHz
SPX: 8 MHz max.

Bus Compatibility:

PCIe/104
SUMIT

Weight: (no memory installed)

VL-EBXs-41SAK – 0.861 lbs (0.390 kg)
VL-EBXs-41EAF – 1.238 lbs (0.561 kg)
VL-EBXe-41SJF – 1.268 lbs (0.575 kg)
Other models TBD

SUMIT Resources

Form Factor: EBX

SUMIT

A

SUMIT

B

PCIe x1

1

2

PCIe x4

–

USB

4

ExpressCard

–

LPC



SPI / uWire

SPI

SMBus/ I2C

SMBus

+12V



+5V





+5Vsb





+3.3V





Introduction

EBX-41 Reference Manual 2

Specifications are typical at +25°C with +12V supply unless otherwise noted. Specifications are
subject to change without notification.

Copperhead Block Diagram

Introduction

EBX-41 Reference Manual 3

Figure 1. VL-EBX-41 Block Diagram

Thermal Considerations

Thermal Solution

Temp. Range

Airflow

Heat plate

0°C to +60°C

Zero airflow

-40°C to +85°C

125 Linear Feet per Minute

(0.5 Linear Meters per Second)

Heat sink (fanless)

0°C to +60°C

125 Linear Feet per Minute

(0.5 Linear Meters per Second)

Fan + heat sink

-40°C to +85°C

125 Linear Feet per Minute

(0.5 Linear Meters per Second)

CPU DIE TEMPERATURE

The CPU die temperature is affected by numerous conditions, such as CPU utilization, CPU
speed, ambient air temperature, air flow, thermal effects of adjacent circuit boards, external heat
sources, and many others.

The CPU is protected from over-temperature conditions by several mechanisms, including
Minimum Frequency Mode (MFM), coreclock modulation, and THERMTRIP#.

See the 3rd Generation Intel® Embedded Mobile Processor Datasheet, Vol. 1 for complete
information on CPU thermal considerations.

As a failsafe, if the CPU die temperature climbs above +105°C, the CPU will turn itself off to
prevent damage to the chip. Note that Intel does not warrant their CPUs in the event of this
occurrence.

MODEL DIFFERENCES

VersaLogic offers both commercial and industrial temperature models of the VL-EBX-41. The
basic operating temperature specification for Copperhead models is shown below.

Introduction

For heat plate only models, the customer-provided thermal solution must keep the heat plate
below 90°C, measured top dead center of the heat plate. For example, for an 85°C ambient
temperature, the thermal solution needs to:

 Dissipate 45W with a 5°C delta between ambient and the heat plate
 Thermal resistance = 0.11°C / W for the 45W unit

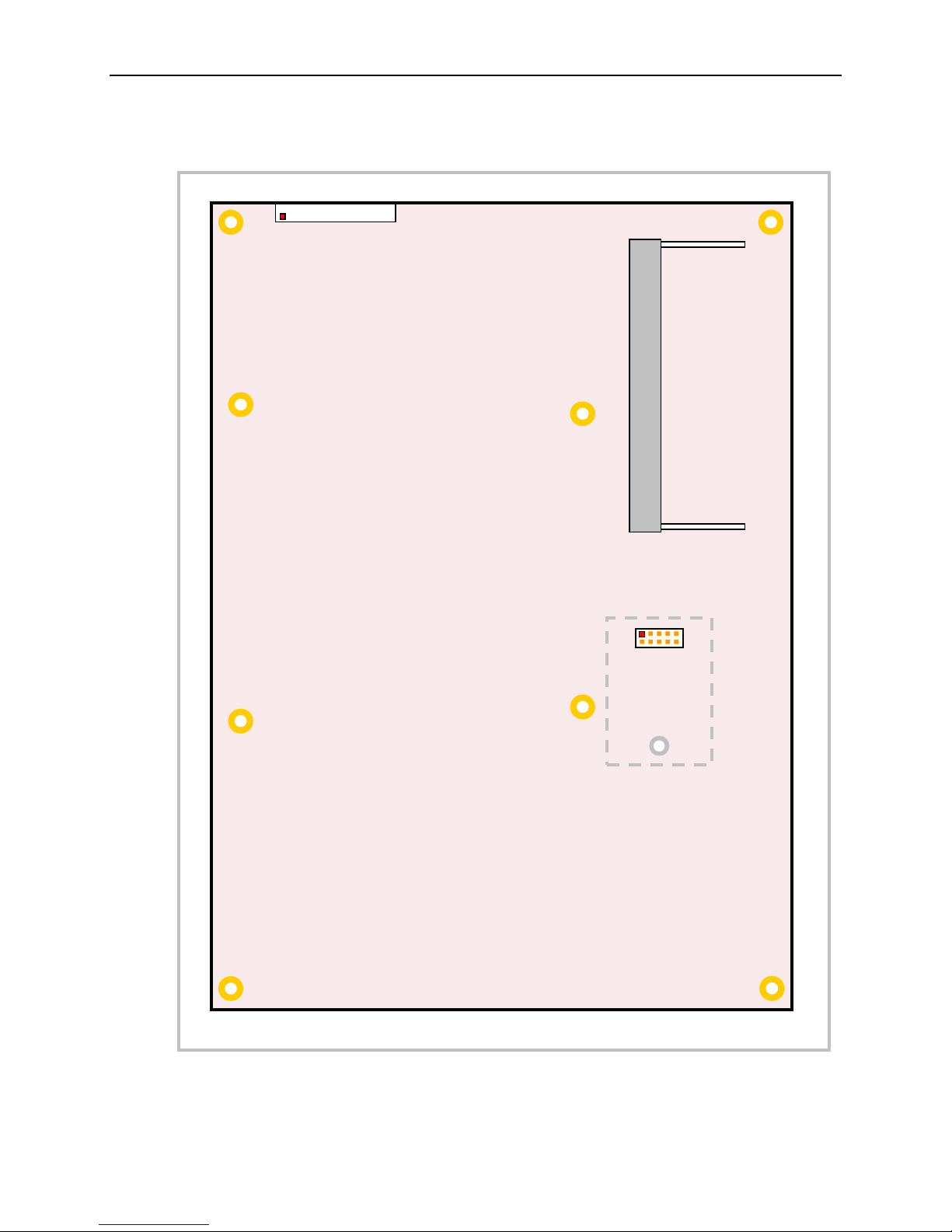

See Figure 6 for heat plate dimensions and mounting holes.

EBX-41 Reference Manual 4

Warnings

ELECTROSTATIC DISCHARGE

Warning! Electrostatic discharge (ESD) can damage circuit boards, disk drives and other

After removing the board from its protective wrapper, place the board on a

Note The exterior coating on some metallic antistatic bags is sufficiently conductive to

Introduction

components. The circuit board must only be handled at an ESD workstation. If an
approved station is not available, some measure of protection can be provided by
wearing a grounded antistatic wrist strap. Keep all plastic away from the board and
do not slide the board over any surface.

grounded, static-free surface, component side up. Use an antistatic foam pad if
available.

The board should also be protected inside a closed metallic anti-static envelope

during shipment or storage.

cause excessive battery drain if the bag comes in contact with the bottom-side of
the VL-EBX-41.

LITHIUM BATTERY

Warning! To prevent shorting, premature failure or damage to the lithium battery, do not

place the board on a conductive surface such as metal, black conductive foam or
the outside surface of a metalized ESD protective pouch. The lithium battery may
explode if mistreated. Do not recharge, disassemble or dispose of in fire. Dispose
of used batteries promptly and in an environmentally suitable manner.

HANDLING CARE

Warning! Care must be taken when handling the board not to touch the exposed circuitry

with your fingers. Though it will not damage the circuitry, it is possible that small
amounts of oil or perspiration on the skin could have enough conductivity to cause
the contents of BIOS RAM to become corrupted through careless handling,
resulting in BIOS resetting to factory defaults.

EARTH GROUND REQUIREMENT

Warning! All mounting holes (eight on EBX and EPIC boards, four on PC/104 boards)

should be connected to earth ground (chassis ground). This provides proper
grounding for ESD and EMI purposes. In portable applications, the mounting holes
should be connected to the ground reference of the system power supply.

EBX-41 Reference Manual 5

Technical Support

Copperhead Support Page

VersaTech KnowledgeBase

If you are unable to solve a problem after reading this manual, please visit the Copperhead
Product Support web page below. The support page provides links to component datasheets,
device drivers, and BIOS and PLD code updates.

The VersaTech KnowledgeBase contains a wealth of technical information about VersaLogic
products, along with product advisories. Click the link below to see all KnowledgeBase articles
related to the VL-EBX-41.

Introduction

If you have further questions, contact VersaLogic Technical Support at [phone].
VersaLogic support engineers are also available via e-mail at [e-mail].

REPAIR SERVICE

If your product requires service, you must obtain a Returned Material Authorization (RMA)
number by calling [phone].

Please provide the following information:

 Your name, the name of your company, your phone number, and e-mail address
 The name of a technician or engineer that can be contacted if any questions arise
 Quantity of items being returned
 The model and serial number (barcode) of each item (see Figure 8 for location)
 A detailed description of the problem
 Steps you have taken to resolve or recreate the problem
 The return shipping address

Warranty Repair All parts and labor charges are covered, including return shipping

charges for UPS Ground delivery to United States addresses.

Non-warranty Repair All approved non-warranty repairs are subject to diagnosis and labor

charges, parts charges and return shipping fees. Please specify the
shipping method you prefer and provide a purchase order number for
invoicing the repair.

Note: Please mark the RMA number clearly on the outside of the box before

EBX-41 Reference Manual 6

returning.

2

Initial Configuration

The following components are recommended for a typical development system.

 VL-EBX-41 computer
 VL-PS-ATX12-300A – ATX power supply
 VGA or LVDS display
 USB keyboard
 USB mouse
 VL-HDS35-xxx – SATA hard drive
 USB CD-ROM drive
 VL-MM9-xxxx – DDR3 SO-DIMM module

The following VersaLogic cables are recommended.

 VL-CBR-1201 – VGA adapter cable, or
 VL-CBR-2010, 2011, or 2012 – LVDS cable
 VL-CBR-0701 – SATA data cable
 VL-CBR-0401 – ATX to SATA power cable
 VL-CBR-0808 – Main power cable

Configuration and Setup

You will also need an operating system installation CD.

Basic Setup

The following steps outline the procedure for setting up a typical development system. The VL­EBX-41 should be handled at an ESD workstation or while wearing a grounded antistatic wrist
strap.

Before you begin, unpack the VL-EBX-41 and accessories. Verify that you received all the items
you ordered. Inspect the system visually for any damage that may have occurred in shipping.
Contact [e-mail] immediately if any items are damaged or missing.

Gather all the peripheral devices you plan to attach to the VL-EBX-41 and their interface and
power cables.

It is recommended that you attach standoffs to the board (see Hardware Assembly) to stabilize
the board and make it easier to work with.

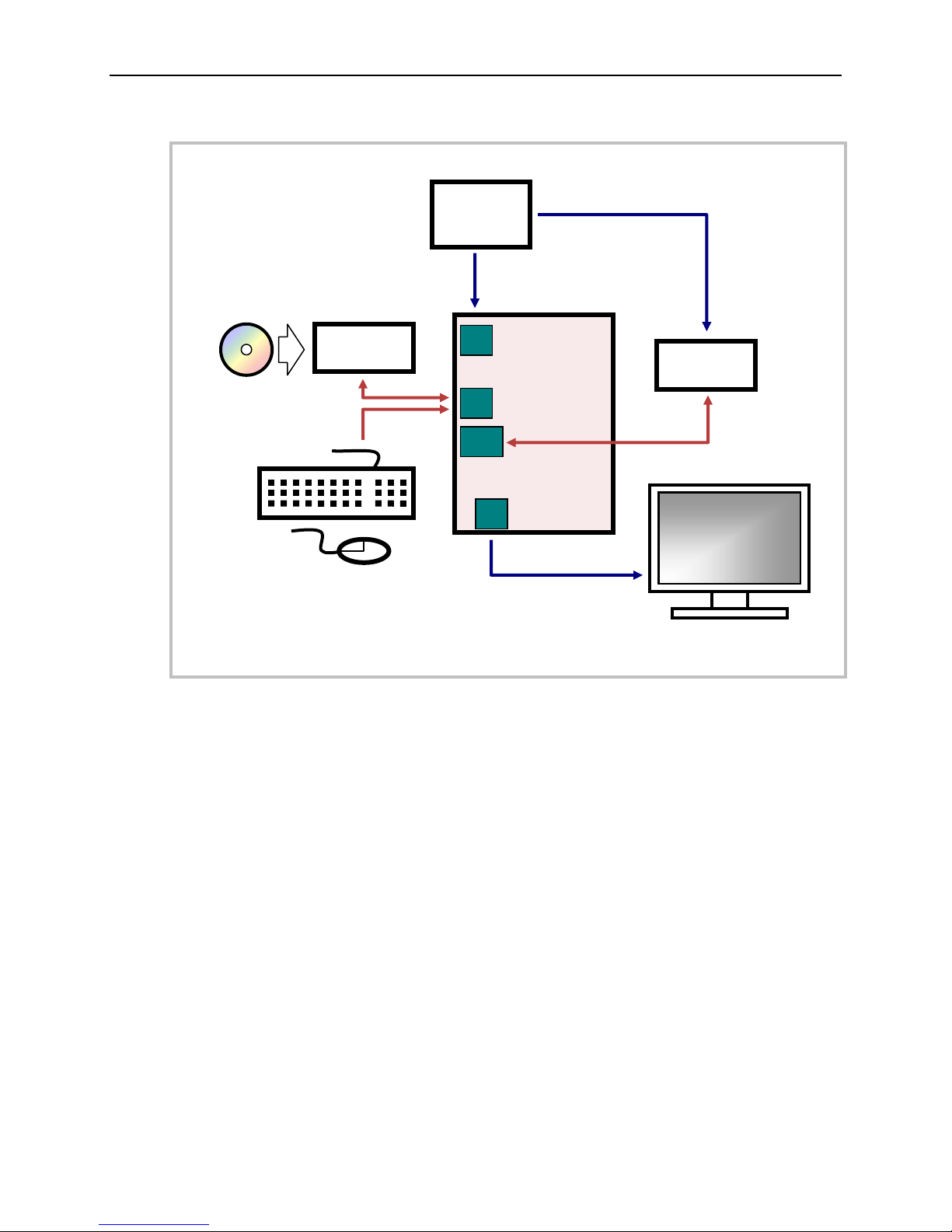

Figure 2 shows a typical start-up configuration.

EBX-41 Reference Manual 7

Configuration and Setup

OS Installation

CD-ROM

J18

VL-EBX-41

Copperhead

USB Keyboard

and Mouse

ATX

Power Supply

SATA

Hard Drive

CD-ROM

Drive

VL-CBR-1201

(or connect LVDS to
connector J32 on
bottom side of board
using VL-CBR-201x)

VL-CBR-0702

USB

USB

VL-CBR-0808
VL-CBR-0401

VGA

USB

J1

SATA

VL-PS-ATX12-300A

Figure 2. Typical Start-up Configuration

1. Install Memory

 Insert DDR3 DRAM module(s) into SO-DIMM sockets J2 and J33 and latch them into

place.

2. Attach Cables and Peripherals

 Plug the either the VGA adapter cable VL-CBR-1201 into socket J1 or the LVDS

adapter cable VL-CBR-201x into socket J32 (on the bottom of the board). Attach the
adapter cable to the display.

 Plug the USB CD-ROM drive, keyboard, and mouse into on-board USB ports (J12, J13,

J15, or J16).

 Plug the SATA data cable VL-CBR-0701 into a SATA socket (J3, J5, J7, or J9) and

attach the SATA hard drive to the cable.

 Attach the ATX SATA power cable (VL-CBR-0401) to the ATX power supply and to

the SATA hard drive.

EBX-41 Reference Manual 8

Configuration and Setup

3. Attach Power

 Plug the power adapter cable VL-CBR-0808 into connector J18.

 Attach the 24-pin motherboard connector of the ATX power supply to the

adapter.

 Attach the 4-pin 12V CPU connector of the ATX power supply to the adapter.

There will be 4 unused housing receptacles on the VL-CBR-0808, and keying
will prevent incorrect insertion.

Warning! Do not use the six-pin (2x3) auxiliary power connector intended for PCI Express

video cards.

4. Review Configuration

 Before you power up the system, double check all the connections. Make sure all cables

are oriented correctly and that adequate power will be supplied to the VL-EBX-41 and
peripheral devices.

5. Power On

 Turn on the ATX power supply and the display. If the system is correctly configured, a

video signal should be present.

6. Select a Boot Drive

 During startup, press the B key to display the boot menu. Insert the OS installation CD in

the CD-ROM drive, and select to boot from the CD-ROM drive.

7. Install Operating System

 Install the operating system according to the instructions provided by the OS

manufacturer. (See Operating System Installation.)

Note If you intend to operate the VL-EBX-41 under Windows XP or Windows XP

Embedded, be sure to use Service Pack 3 (SP3) and all updates for full support of
the latest hardware features.

CMOS Setup

See VersaLogic KnowledgeBase article VT1717 - Copperhead (VL-EBX-41 BIOS Setup

Reference for complete information on CMOS Setup parameters.

Operating System Installation

The standard PC architecture used on the VL-EBX-41 makes the installation and use of most of
the standard x86 processor-based operating systems very simple. The operating systems listed on
the VersaLogic OS Compatibility Chart use the standard installation procedures provided by the
maker of the OS. Special optimized hardware drivers for a particular operating system, or a link
to the drivers, are available at the VL-EBX-41 Product Support web page at

http://www.versalogic.com/private/Copperheadsupport.asp.

EBX-41 Reference Manual 9

3

-0.20

0.00

–0.20

1.87

5

0.00

5.80

2.65

5.25

5.35

5.55

7.80

7.60

5.70

2.80

0.125 DIA x8
Use 3 mm or #4
standoffs

Dimensions and Mounting

The VL-EBX-41 complies with all EBX standards which provide for specific mounting hole and
PCIe/104 stack locations as shown in the diagram below.

Physical Details

EBX-41 Reference Manual 10

Figure 3. VL-EBX-41 Dimensions and Mounting Holes

(Not to scale. All dimensions in inches.)

Physical Details

1.95

1.57

5.50

5.10

1.17

1.24

0.065

Caution The VL-EBX-41 must be supported at all eight mounting points to prevent

excessive flexing when expansion modules are mated and de-mated. Flex damage
caused by excessive force on an improperly mounted circuit board is not covered
under the product warranty.

Figure 4. VL-CBR-5013 Dimensions and Mounting Holes

(Not to scale. All dimensions in inches.)

EBX-41 Reference Manual 11

Physical Details

J1 J2 J3 J4

J6 J7 J8 J9

J5

+ + +

+

2.38

2.87

0.25

0.25

0.40

1.95

0.70

0.63

0.62

0.06

Figure 5. VL-CBR-4004 Dimensions and Mounting Holes

(Not to scale. All dimensions in inches.)

EBX-41 Reference Manual 12

Physical Details

3.20

3.20

44.48

56.00

89.00

PEM TSOS-M25-600
4X

2.0mm

Drill 2X

M2.5 x 0.45mm

2X

30.00

11.00

8.00

33.00

Figure 6. Heat Plate Dimensions and Mounting Holes

(Not to scale. All dimensions in millimeters.)

EBX-41 Reference Manual 13

Physical Details

A

B

C

HARDWARE ASSEMBLY

The VL-EBX-41 mounts on four hardware standoffs using the corner mounting holes (A). These
standoffs are secured to the underside of the circuit board using pan head screws.

Four additional standoffs (B) must be used under the circuit board to prevent excessive flexing
when expansion modules are mated and separated. These are secured with four male-female
standoffs (C), threaded from the top side, which also serve as mounting struts for the expansion
stack.

The entire assembly can sit on a table top or be secured to a base plate. When bolting the unit
down, make sure to secure all eight standoffs (A and B) to the mounting surface to prevent
circuit board flexing.

An extractor tool is available (part number VL-HDW-203) to separate expansion modules from
the stack.

Note Standoffs and screws are available as part number VL-HDW-105 (metric M3

thread) or VL-HDW-106 (English thread).

Note Where possible, all eight mounting standoffs should be connected to earth ground

(chassis ground). This provides proper grounding for ESD and EMI protection.

STANDOFF LOCATIONS

EBX-41 Reference Manual 14

Figure 7. Standoff Locations

External Connectors

CPU

PCH

J18

Power

J24

Ethernet 1

J25

Ethernet 0

J1 - SVGA

J2
DDR3
SO-DIMM B

J4

CPU Fan

J5 - SATA 3

J9 -SATA 2
J3 - SATA 0
J7 - SATA 1

J5

J9

J3

J7

J6

PCIe/104

J8

PCIe Mini

Card /

mSATA

J11

mSATA

J10
SUMIT B

J14
SUMIT A

J12 - USB 1

J13 -USB 0

J15 - USB 3

J16 -USB 2

J19 - Analog I/O, Timers

J21 - DIO

J22 - Ethernet LED

J28 - SPX

J29 - User I/O

J26 - DisplayPort C
J27 - DisplayPort D

J26

J27

J15

J16

J12

J13

Heat Plate – Heatsink – Fan

= Pin 1

798375

Mod e l

XXXXX

Serial
Number

Model
Number

VL-EBX-41 CONNECTOR LOCATIONS – TOP

Physical Details

EBX-41 Reference Manual 15

Figure 8. VL-EBX-41 Connector Locations - Top

VL-EBX-41 CONNECTOR LOCATIONS – BOTTOM

J33
DDR3
SO-DIMM A

J36

2 mm eUSB

Flash Port

J32

LVDS

Physical Details

EBX-41 Reference Manual 16

Figure 9. VL-EBX-41 Connector Locations - Bottom

Physical Details

Connector1

Function

Mating Connector

Transition

Cable

Cable Description

Page

J1

VGA Video Output

FCI 89361-712LF or

FCI 89947-712LF

VL-CBR-1201

12" 12-pin 2 mm IDC

to 15-pin HD D-Sub

VGA

27

J2

DDR3 SO-DIMM B

(DDR3 RAM)

— — 24

J3

SATA 0 (6 GB/s)

Standard SATA

VL-CBR-0702;

VL-CBR-0401

20" SATA data,

latching; ATX to SATA

power adapter

30

J4

CPU Fan

— — Fan power cable with

3-pin connector

—

J5

SATA 3 (3 GB/s)

Standard SATA

VL-CBR-0702;

VL-CBR-0401

20" SATA data,

latching; ATX to SATA

power adapter

30

J6

PCIe/104

— — —

25

J7

SATA 1 (6 GB/s)

Standard SATA

VL-CBR-0702;

VL-CBR-0401

20" SATA data,

latching; ATX to SATA

power adapter

30

J8

PCIe Mini Card /

mSATA

— — —

46

J9

SATA 2 (3 GB/s)

Standard SATA

VL-CBR-0702;

VL-CBR-0401

20" SATA data,

latching; ATX to SATA

power adapter

30

J10

SUMIT B Top

Samtec ASP-129646-01

— — 25

J11

mSATA

— — —

30

J12

USB1 3.0

Standard USB Type A

— — 34

J13

USB0 3.0

Standard USB Type A

— — 34

J14

SUMIT A Top

Samtec ASP-129646-01

— — 25

J15

USB3 2.0

Standard USB Type A

—

—

34

J16

USB2 2.0

Standard USB Type A

— — 34

J18

Main Power Input

Molex 39-01-2080

Molex 39-00-0181 (8 ea.)

VL-CBR-0808

12” ATX12 power

cable to Copperhead

22

J19

Analog I/O, Timers

FCI 89361-340LF

VL-CBR-4004A

12” 2 mm 40-pin to 40-

pin IDC to

VL-CBR-4004 board

36, 38,

46

J21

Digital I/O 1-32

FCI 89361-340LF

VL-CBR-4004A

12” 2 mm 40-pin to 40-

pin IDC to

VL-CBR-4004 board

40

J22

Ethernet LED

—

— — 33

J24

Gigabit Ethernet 1

RJ45

— — 32

J25

Gigabit Ethernet 0

RJ45

— — 32

J26

mini DisplayPort C

— — —

28

J27

mini DisplayPort D

— — —

28

J28

SPX

FCI 89361714LF

VL-CBR-1401;

VL-CBR-1402

2 mm 14-pin IDC, 2 or

4 SPX device cable

52

J29

COM ports, USB,

PLED, power LED,

push-button reset,

power button,

audio jacks, PC

speaker

Oupiin 1204-50G00B2A

VL-CBR-5013A

18" 1.27 mm IDC 50-

pin to 50-pin

49

J32

LVDS

20-pin, PanelMate 1.25mm

VL-CBR-2010;

VL-CBR-2011;

VL-CBR-2012

(24-bit)

18-bit TFT FPD using

20-pin Hirose

18-bit TFT FPD using

20-pin JAE

27

VL-EBX-41 CONNECTOR FUNCTIONS AND INTERFACE CABLES

The following table notes the function of each connector, as well as mating connectors and
cables, and the page where a detailed pinout or further information is available.

Table 1: Connector Functions and Interface Cables

EBX-41 Reference Manual 17

Physical Details

Connector1

Function

Mating Connector

Transition

Cable

Cable Description

Page

J33

DDR3 SO-DIMM A

(DDR3 RAM)

— — 24

J36

eUSB Flash Drive

2 mm eUSB flash module

— — 32

J7

USB1 (Top)

USB2

(Bottom)

J3

Audio

In (Top)

Out (Bottom)

S1

Power

D1

Programmable

LED (Top)

Power LED

(Bottom)

S2

Reset

J1

USB3 (Top)

USB4

(Bottom)

J2

COM0 (Top)

COM1

(Bottom)

J6

COM3

SP1

Speaker

J4

Paddleboard Adapter

J5

COM2

J8

Ext. Pushbutton

Controls

1 1 1

1

1. Connectors are not installed at locations J20, J23, J30 and J31 (alternate latching Ethernet). Connectors J17, J34, and
J35 are for factory use only.

2. The PCB origin is the mounting hole to the lower left as shown in Figure 3 (lower right when viewing bottom side of board).

3. Connectors J32, J34, and J35 are on the bottom of the board.

VL-CBR-5013 CONNECTOR LOCATIONS

EBX-41 Reference Manual 18

Figure 10. VL-CBR-5013 Connectors

VL-CBR-5013 CONNECTOR FUNCTIONS

Connector

Function

PCB Connector

Description

J1

USB3, USB4

USB Type A

USB Host

J2

COM0, COM1

Kycon K42-E9P/P-A4N

Dual DB-9 male

J3

Audio In/Out

3.5 mm dual audio jack

–

J4

High Density Connector

FCI 98414-F06-50ULF

2 mm, 50-pin, keyed header

J5

COM2

Conta-Clip 10250.4

5-pin screw terminal

J6

COM3

Conta-Clip 10250.4

5-pin screw terminal

J7

USB1, USB2

USB Type A

USB Host

J8

External Reset and Power Buttons

Conta-Clip 10250.4

3-pin screw terminal

D1

PLED (Top), Power LED (Bottom)

LED – S1

Power Button

Pushbutton

–

S2

Reset Button

Pushbutton

–

SP1

Speaker

Piezo speaker

–

2 1 40

39

J1 J2 J3 J4

J6 J7 J8 J9

5 1 5 1 5 1 5 1

1 5 1 5 1 5 1 5

= Pin 1

J5

Table 2: VL-CBR-5013 Connector Functions

Physical Details

VL-CBR-4004 CONNECTOR LOCATIONS

The VL-CBR-4004 can be attached to connector J19 (analog I/O, timers) and connector J21
(digital I/O).

EBX-41 Reference Manual 19

Figure 11. VL-CBR-4004 Connectors

Jumper Blocks

V1

V7

V2

V3

V4

V6

1 3 5 7

2 4 6 8

1

1

3
1

2

2

4
2

1
2
3

2 1

JUMPERS AS-SHIPPED CONFIGURATION

Physical Details

Figure 12. Jumper Block Locations

EBX-41 Reference Manual 20

JUMPER SUMMARY

Jumper

Block

Description

As

Shipped

Page

V1[1-2]

Clear Non-Volatile RAM (NVRAM)

In – Clear NVRAM
Out – Normal operation

Note: Whenever NVRAM cleared it is good practice to clear CMOS
RAM (using Jumper V3) at the same time.

Out

24

V2[1-2]

COM0 RS-422 Rx Termination

In – 120 Ohm terminated
Out – COM1 not terminated

In

34

V2[3-4]

COM1 RS-422 Rx Termination

In – 120 Ohm terminated
Out – COM2 not terminated

In

34

V2[5-6]

COM2 RS-422 Rx Termination

In – 120 Ohm terminated
Out – COM3 not terminated

In

34

V2[7-8]

COM3 RS-422 Rx Termination

In – 120 Ohm terminated
Out – COM4 not terminated

In

34

V3

CMOS RAM and Real-time Clock Erase

[1-2] In – Normal
[2-3] In – Erase CMOS RAM and real-time clock

Note: Whenever CMOS RAM is cleared it is good practice to clear
NVRAM (using jumper V1[1-2]) at the same time.

[1-2] In

24

V4

BIOS Force Recovery

In – Enable
Out – Disable

Out

—

V5

Jumper block not installed

—

—

V6[1-2]

System BIOS Selector

In – Primary system BIOS selected
Out – Secondary system BIOS selected

The Primary system BIOS is field upgradeable using the BIOS upgrade
utility. See http://www.versalogic.com/private/Copperheadsupport.asp
for more information.

In

60

V6[3-4]

General Purpose Input

In – Causes the GPI_JMP bit in the BIOS and Jumper Status Register

(BIOSJSR) at I/O port CA2h to read as ‘1’

Out – Causes the GPI_JMP bit in the BIOS and Jumper Status Register

(BIOSJSR) at I/O port CA2h to read as ‘0’

In

60

V7[1-2]

MM# Jumper

In – Test BIOS
Out – Normal operation

Out

—

Physical Details

Table 3: Jumper Summary

EBX-41 Reference Manual 21

J18
Pin

Signal
Name

Description

1

GND

Ground

2

GND

Ground

3

+12VDC

Power Input

4

+3.3VDC

Power Input

5

9-15V

Power Input

6

9-15V

Power Input

7

GND

Ground

8

+5VDC

Power Input

4

Power Supply

POWER CONNECTOR

Main power is applied to the Copperhead through an 8-pin polarized connector at location J18.

Warning! To prevent severe and possibly irreparable damage to the system, it is critical that

the power connectors are wired correctly. Make sure to use all pins to prevent
excess voltage drop.

System Features

Table 4: Main Power Connector Pinout

POWER REQUIREMENTS

The Copperhead requires an input voltage of 9-15V for proper operation. Power to the PCIe/104
and SUMIT expansion slots (+12V, +5V

see note

, and +3.3V) is not provided by voltage regulators
on the Copperhead circuit board. These voltages, if needed, must be provided externally by the
user. The Copperhead circuit board passes the voltages from connector J18 to the expansion
slots.

Note: Up to 4A @ 5V is provided from an on-board supply. If additional amperage is

needed (8.4A max) , an external supply must be used.

The exact power requirement of the VL-EBX-41 depends on several factors, including memory
configuration, CPU speed, peripheral connections, type and number of expansion modules and
attached devices.

POWER DELIVERY CONSIDERATIONS

Using the VersaLogic approved power supply (VL-PS-ATX12-300A) and power cable (VL­CBR-0808) will ensure high quality power delivery to the board. Customers who design their
own power delivery methods should take into consideration the guidelines below to ensure good
power connections.

EBX-41 Reference Manual 22

System Features

Also, the specifications for typical operating current do not include any off-board power usage
that may be fed through the VL-EBX-41 power connector. Expansion boards and USB devices
plugged into the board will source additional power through the VL-EBX- 41 power connector.

 Do not use wire smaller than 18 AWG. Use high quality UL 1007 compliant stranded

wire.

 The length of the wire should not exceed 18".
 Avoid using any additional connectors in the power delivery system.
 The power and ground leads should be twisted together, or as close together as possible

to reduce lead inductance.

 A separate conductor must be used for each of the power pins.
 All power input pins and all ground pins must be independently connected between the

power source and the power connector.

 Use a high quality power supply that can supply a stable voltage while reacting to widely

varying current draws.

CPU

LITHIUM BATTERY

Warning! To prevent shorting, premature failure or damage to the lithium battery, do not

place the board on a conductive surface such as metal, black conductive foam or
the outside surface of a metalized ESD protective pouch. The lithium battery may
explode if mistreated. Do not recharge, disassemble or dispose of in fire. Dispose
of used batteries promptly.

Normal battery voltage should be at least 3.0V. If the voltage drops below 3.0V, contact the
factory for a replacement (part number HB3/0-1). The life expectancy under normal use is
approximately 10 years.

Note: The Copperhead can operate normally with low battery voltage (or no battery installed),
however the date/time will not be maintained when the power is turned off.

The Copperhead features 3rd Generation Intel® Core™ Embedded Mobile Processors (code
named Ivy Bridge), including the i7, i3 and Celeron. The Intel® Core™ processor family are a
64-bit, multi-core processors built on 22-nanometer process technology. They include a memory
controller, a point-to-point Direct Media Interface (DMI) for PCH connectivity, and two Flexible
Display Interface (FDI) channels to support legacy display in the PCH. For more CPU
information see the Copperhead support page.

EBX-41 Reference Manual 23

System RAM

COMPATIBLE MEMORY MODULES

The Copperhead accepts two 204-pin SO-DIMM memory modules with the following
characteristics:

 Size Up to 16 GB total or 8 GB per module,

supports 1333 and 1600 MT/s

 Voltage 1.35V
 Type DDR3 (VersaLogic VL-MM9 Series modules)

Clearing Non-volatile RAM (NVRAM)

You can clear NVRAM and reset the BIOS settings to factory defaults by following the
instructions below.

1. Power off the Copperhead.

2. Install a jumper on V1[1-2].

3. Power on the Copperhead and wait 10 seconds or more.

4. Power off the Copperhead.

5. Remove the jumper from V1[1-2]. The board will not boot if you do not remove this

jumper.

6. Power on the Copperhead.

System Features

Note: Whenever NVRAM cleared, it is good practice to clear CMOS RAM (using Jumper V3) at
the same time.

CMOS RAM

CLEARING CMOS RAM AND RTC

A jumper may be installed into V3[2-3] to erase the contents of the CMOS RAM and the Real­Time Clock. When clearing CMOS RAM:

1. Power off the Copperhead.

2. Remove the jumper from V3[1-2], install it on V3[2-3] and leave it for four seconds.

3. Move the jumper back to V3[1-2].

4. Power on the Copperhead.

Note: Whenever CMOS RAM is cleared, it is good practice to clear NVRAM (using jumper
V1[1-2]) at the same time.

Real-time Clock

The Copperhead features a battery-backed 146818-compatible real-time clock/calendar chip.
Under normal battery conditions, the clock maintains accurate timekeeping functions when the
board is powered off.

EBX-41 Reference Manual 24

SETTING THE CLOCK

J14

Pin Signal Name

Function

J14

Pin Signal Name

Function

1

+5VSB

+5V power

2 +12V

+12V power

3

3.3V

+3.3V power

4 SMB/I2C_DATA

SMBus data

5

3.3V

+3.3V power

6 SMB/I2C_CLK

SMBus clock

7

NC

Not connected

8 SMB/I2C_ALERT#

SMBus interrupt line in

9

NC

Not connected

10

SPI/uWire_DO

SPI data out from master

11

NC

Not connected

12

SPI/uWire_DI

SPI data in to master

13

NC

Not connected

14

SPI/uWire_CLK

SPI clock

15

+5V

+5V power

16

SPI/uWire_CS0#

SPI chip select 0

17

USB3+

USB3 data +

18

SPI/uWire_CS1#

SPI chip select 1

19

USB3-

USB3 data –

20

NC

Not connected

21

+5V

+5V power

22

NC

Not connected

23

USB2+

USB2 data +

24

LPC_AD0

LPC line 0

25

USB2-

USB2 data –

26

LPC_AD1

LPC line 1

27

+5V

+5V power

28

LPC_AD2

LPC line 2

29

USB1+

USB1 data +

30

LPC_AD3

LPC line 3

31

USB1-

USB1 data –

32

LPC_FRAME#

LPC frame

33

+5V

+5V power

34

SERIRQ#

Serial IRQ legacy

35

USB0+

USB0 data +

36

NC

Not connected

37

USB0-

USB0 data –

38

CLK_33MHz

33 MHz clock out

39

GND

Ground

40

GND

Ground

41

A_PETp0

Link A, lane 0 transmit +

42

A_PERp0

Link A, lane 0 receive +

43

A_PETn0

Link A, lane 0 transmit –

44

A_PERn0

Link A, lane 0 receive –

45

GND

Ground

46

APRSNT#/GND

Link A card present

47

PERST#

Reset

48

A_CLKp

Link A clock +

49

WAKE#

Wake on event signal

50

A_CLKn

Link A clock –

51

+5V

+5V power

52

GND

Ground

CMOS Setup (accessed by pressing the Delete key during a system boot) can be used to set the
time/date of the real-time clock.

Expansion Bus

PCIE/104

The PCIe/104 bus (connector J6) provides a PCIe x16 lane and two x1 lanes for add-on card
expansion. It supports both PCIe Gen1 and Gen2. Gen1 has a data rate of 2.5 GT/s and a
bandwidth of 250 MB/s. Gen2 has a data rate of 5.0 GT/s and a bandwidth of 500 MB/s. See the

PCI/104-Express & PCIe/104 Express Specification for signal details.

SUMIT

The SUMIT A Top and SUMIT B Top connectors (J14 and J10, respectively) provide a subset of
the PCI Express functionality, as shown in Table 5 and Table 6. See the SUMIT Specification for
a complete description of the SUMIT interface.

System Features

Table 5: SUMIT A Top Connector Pinout

EBX-41 Reference Manual 25

System Features

J10

Pin Signal Name

Function

J10

Pin Signal Name

Function

1

GND

Ground

2 GND

Ground

3

B_PETp0

Link B, lane 0 transmit +

4 B_PERp0

Link B, lane 0 receive +

5

B_PETn0

Link B, lane 0 transmit –

6 B_PERn0

Link B, lane 0 receive –

7

GND

Ground

8 BPRSNT#/GND

Link B present

9

C_CLKp

Link C clock +

10

B_CLKp

Link B clock +

11

C_CLKn

Link C clock –

12

B_CLKn

Link B clock –

13

CPRSNT#/GND

Link C present

14

GND

Ground

15

C_PETp0

PCIe link C, lane 0 transmit +

16

C_PERp0

PCIe link C, lane 0 receive +

17

C_PETn0

PCIe link C, lane 0 transmit –

18

C_PERn0

PCIe link C, lane 0 receive –

19

GND

Ground

20

GND

Ground

21

C_PETp1

PCIe link C, lane 1 transmit +

22

C_PRTp1

PCIe link C, lane 1 transmit +

23

C_PETn1

PCIe link C, lane 1 transmit –

24

C_PERn1

PCIe link C, lane 1 transmit –

25

GND

Ground

26

GND

Ground

27

NC

Not connected

28

NC

Not connected

29

NC

Not connected

30

NC

Not connected

31

GND

Ground

32

GND

Ground

33

NC

Not connected

34

NC

Not connected

35

NC

Not connected

36

NC

Not connected

37

GND

Ground

38

GND

Ground

39

PERST#

Reset

40

NC

Not connected

41

NC

Not connected

42

NC

Not connected

43

+5V

+5V power

44

NC

Not connected

45

+5V

+5V power

46

3.3V

+3.3V power

47

+5V

+5V power

48

3.3V

+3.3V power

49

+5V

+5V power

50

3.3V

+3.3V power

51

+5V

+5V power

52

+5VSB

+5V power

Table 6: SUMIT B Top Connector Pinout

EBX-41 Reference Manual 26

J1

Pin

Signal
Name

Function

Mini DB15

Pin

1

GND

Ground 6

2

RED

Red Video

1 3

GND

Ground 7

4

GREEN

Green Video

2 5

GND

Ground 8

6

BLUE

Blue Video

3 7

GND

Ground 5

8

HSYNC

Horizontal Sync

13

9

GND

Ground 10

10

VSYNC

Vertical Sync

14

11

SCL

DDC Serial Data Line Clock

11

12

SDA

DDC Serial Data Line

12

5

Video Interfaces

Standard video outputs on the Copperhead include LVDS for flat panel displays, dual

DisplayPort™ outputs, and an analog VGA output. All outputs support multiple display modes

including Extended Desktop and Clone. The integrated Intel HD4000 Graphics Processing Unit
(GPU) provides hardware-accelerated MPEG-4/H.264 and MPEG-2 video encoding and
decoding. The GPU supports graphics Turbo Boost and up to three simultaneous displays.

The VL- EBX-41 can also be operated without video attached. See “Console Redirection.”

VGA CONNECTOR

An adapter cable, part number VL-CBR-1201, is available to translate VGA connector J1 into a
standard 15-pin D-Sub SVGA connector. The VGA port supports resolutions up to 2048x1536 at
75Hz. This connector is protected against ESD damage.

Interfaces and Connectors

When the Copperhead is booted, the BIOS tests for a video monitor attached to the VGA port. If
a monitor is not detected during this test, the VGA signals are disabled.

Table 7: VGA Video Output Pinout

LVDS FLAT PANEL DISPLAY

The integrated LVDS Flat Panel Display in the Copperhead is an ANSI/TIA/EIA-644-1995
specification-compliant interface. It can support up to 24 bits of RGB pixel data plus 4 bits of
timing control (HSYNC/VSYNC/DE) on the 4 differential data output pairs. The LVDS clock
frequency ranges from 25 MHz to 112 MHz.

CMOS Setup provides several options for standard LVDS flat panel types. If these options do not
match the requirements of the panel you are attempting to use, contact [e-mail]
for a custom video BIOS.

EBX-41 Reference Manual 27

Interfaces and Connectors

J32
Pin

Signal
Name

Function

1

GND

Ground

2

NC

Not Connected

3

LVDSA3

Diff. Data 3 (+)

4

LVDSA3#

Diff. Data 3 (-)

5

GND

Ground

6

LVDSCLK0

Differential Clock (+)

7

LVDSCLK0#

Differential Clock (-)

8

GND

Ground

9

LVDSA2

Diff. Data 2 (+)

10

LVDSA2#

Diff. Data 2 (-)

11

GND

Ground

12

LVDSA1

Diff. Data 1 (+)

13

LVDSA1#

Diff. Data 1 (-)

14

GND

Ground

15

LVDSA0

Diff. Data 0 (+)

16

LVDSA0#

Diff. Data 0 (-)

17

GND

Ground

18

GND

Ground

19

+3.3V

+3.3V (Protected)

20

+3.3V

+3.3V (Protected)

Table 8: LVDS Flat Panel Display Pinout

The +3.3V power provided to pins 19 and 20 of J32 is protected by a software-controllable
power switch (1 Amp max.). This switch is controlled by the L_VDD_EN signal from the LVDS
interface controller in the Intel® 7 Series Platform Controller Hub (PCH). See the Intel GM45

Datasheet for detailed information.

MINI DISPLAYPORT

Two DisplayPorts are provided using two 20-pin mini DisplayPort connectors at locations J26
and J27. DisplayPort consists of three interfaces; main Link, Auxiliary channel, and Hot Plug
Detect. The main Link transfers high speed isochronous video and audio data. The Auxiliary
channel is used for link management and device control. The EDID is read over this interface.
The Hot Plug Detect signal alerts the PCH when a device is connected.

EBX-41 Reference Manual 28

Interfaces and Connectors

J26, J27

Pin

Signal Name

J26,

J27 Pin

Signal Name

1

GND

2

HOT PLUG DETECT

3

ML_LANE0_P

4

CONFIG 1

5

ML_LANE0_N

6

CONFIG 2

7

GND

8

GND

9

ML_LANE1_P

10

ML_LANE3_P

11

ML_LANE1_N

12

ML_LANE3_N

13

GND

14

GND

15

ML_LANE2_P

16

AUX_CH_P

17

ML_LANE2_N

18

AUX_CH_N

19

RTN

20

DP_POWER

Table 9: mini DisplayPort Connector Pinout

CONSOLE REDIRECTION

The Copperhead can be operated without using the on-board video output by redirecting the
console to a serial communications port. CMOS Setup and some operating systems such as DOS
can use this console for user interaction.

Console redirection settings are configured on the Serial Port Console Redirection submenu of
the Advanced tab. It is disabled by default. When enabled, the console will be available both at
the serial port and using the standard keyboard/video console. The video console may resize and
slow down to accommodate the slower serial console connection. By default, the serial console
uses 115200 baud, 8 data bits, 1 stop bit, no parity, and no flow control.

Null Modem

The following figure illustrates a typical DB9 to DB9 RS-232 null modem adapter.

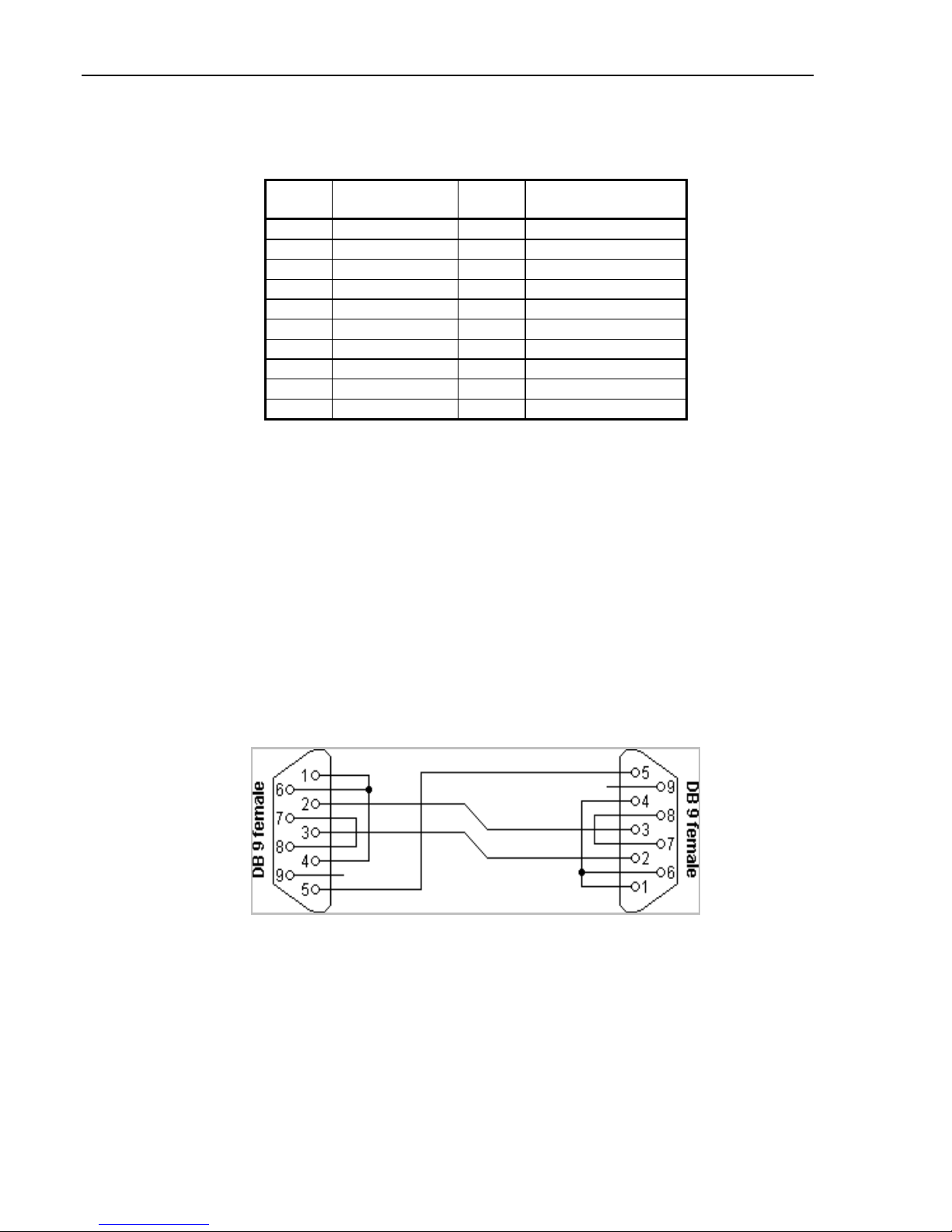

Figure 13. Null Modem with Loop-back Handshaking

Pins 1, 4, and 6 are shorted together on each connector.

EBX-41 Reference Manual 29

SATA Ports

SATA

Pin

Signal Name

Function

1

GND

Ground

2

TX+

Transmit +

3

TX-

Transmit -

4

GND

Ground

5

RX-

Receive -

6

RX+

Receive +

7

GND

Ground

J11

Pin Signal Name

Function

1

Reserved

Not connected

2

+3.3V

3.3V source

3

Reserved

Not connected

4

GND

Ground

5

Reserved

Not connected

6

+1.5V

1.5V power

7

Reserved

Not connected

8

Reserved

Not connected

9

GND

Ground

10

Reserved

Not connected

11

Reserved

Not connected

12

Reserved

Not connected

13

Reserved

Not connected

14

Reserved

Not connected

15

GND

Ground

16

Reserved

Not connected

17

Reserved

Not connected

18

GND

Ground

19

Reserved

Not connected

20

Reserved

Not connected

The Copperhead provides two 6 GB/s SATA ports (J3 and J7) and two 3 GB/s ports (J5 and J9).
All SATA connectors are standard 7-pin straight SATA friction latching connectors. The housing
for the 6GB/s connectors is blue in color, and for the 3GB/s connectors it is the standard black.

Power to SATA drives is supplied by the ATX power supply. Note that the standard SATA drive
power connector is different than the common 4-pin Molex connector used on IDE drives. Most
current ATX power supplies provide SATA connectors, and many SATA drives provide both
types of power connectors. If the power supply you are using does not provide SATA connectors,
adapters are available.

Interfaces and Connectors

Table 10: SATA Port Pinout

mSATA

The Copperhead provides one mSATA only slot at connector J11.

EBX-41 Reference Manual 30

Interfaces and Connectors

J11

Pin Signal Name

Function

21

GND

Ground

22

Reserved

Not connected

23

+B

Host receiver diff. pair +

24

+3.3V

3.3V source

25

-B

Host receiver diff. pair –

26

GND

Ground

27

GND

Ground

28

+1.5V

1.5V power

29

GND

Ground

30

Two Wire I/F

Two wire I/F clock

31

-A

Host transmitter diff. pair –

32

Two Wire I/F

Two wire I/F data

33

+A

Host transmitter diff. pair +

34

GND

Ground

35

GND

Ground

36

Reserved

Not connected

37

GND

Ground

38

Reserved

Not connected

39

+3.3V

3.3V source

40

GND

Ground

41

+3.3V

3.3V source

42

Reserved

Not connected

43

GND/NC

Ground/Not connected 3

44

Reserved

Not connected

45

Vendor

Not connected

46

Reserved

Not connected

47

Vendor

Not connected

48

+1.5V

1.5V power

49

DA/DSS

Device activity 4

50

GND

Ground

51

GND

Ground 5

52

+3.3V

3.3V source

EBX-41 Reference Manual 31

eUSB

J36
Pin

Signal
Name

Function

1

+5V

+5V Power Supply

2

NC

Not connected

3

D-

Data –

4

NC

Not connected

5

D+

Data +

6

NC

Not connected

7

GND

Ground

8

NC

Not connected

9

Key

Physical key

10

LED

SSD LED

The Copperhead includes a 2 mm eUSB port at connector J36 on the bottom of the board. (Note
that connector J36 does not accept 2.54 mm modules.) The VersaLogic VL-F15 Series of eUSB
SSD modules are available in sizes of 2 GB or 4 GB. Contact VersaLogic Sales to order. eUSB
modules are secured to the on-board standoff using M2.5 x 6mm pan head Philips nylon screws.
These screws are available in quantities of 10 in the VL-HDW-108 hardware kit from
VersaLogic.

Interfaces and Connectors

Table 11: eUSB Port Locations

The blue LED at location D9 lights with activity on the eUSB port, if supported by the eUSB
module.

Ethernet

The Copperhead features two on-board Intel 82574IT Gigabit Ethernet controllers. The
controllers provide a standard IEEE 802.3 Ethernet interface for 1000Base-T, 100Base-TX, and
10Base-T applications. RJ45 connectors are located at locations J25 (Ethernet 0) and J24
(Ethernet 1). While these controllers are not NE2000-compatible, they are widely supported.
Drivers are readily available to support a variety of operating systems. These interfaces are
protected against ESD damage.

ETHERNET CONNECTORS

Two board-mounted RJ45 connectors are provided to make connection with Category 5 or 6
Ethernet cables. The 82574IT Ethernet controller auto-negotiates connection speed. These
interfaces use IEC 61000-4-2-rated TVS components to help protect against ESD damage.

The RJ45 connectors have two built-in LEDs to provide an indication of the Ethernet status as
shown in the following table.

EBX-41 Reference Manual 32

Interfaces and Connectors

LED

State

Description

Green/Orange
(Link Speed)

Orange

1 Gbps speed

Green

100 Mbps speed

Off

10 Mbps speed or cable not
connected

Yellow (Activity)
On

Cable connected (intermittent with
activity)

Off

Cable not connected

J22
Pin

Signal
Name

Function

1

+3.3V

Protected Power Supply

2

YEL0

Yellow LED - Ethernet 0

3

ORN0

Orange LED - Ethernet 0

4

GRN0

Green LED - Ethernet 0

5

+3.3V

Protected Power Supply

6

YEL1

Yellow LED - Ethernet 1

7

ORN1

Orange LED - Ethernet 1

8

GRN1

Green LED - Ethernet 1

9

GND

Ground

10

W_DISABLE#

PCIe Mini Card Disable

Table 12: RJ45 Connector Status LEDs

STATUS LED

Connector J22 provides an additional on-board Ethernet status LED interface. The +3.3V power
supplied to this connector is protected by a 1 Amp fuse.

Table 13: Ethernet Status LED Pinout

W_Disable# Signal

The W_DISABLE# is for use with optional wireless PCIe Mini Cards. The signal allows you to

disable a wireless card’s radio operation in order to meet public safety regulations or when

otherwise desired. The W_DISABLE# signal is an active low signal that when driven low
(shorted to ground) disables radio operation on the PCIe Mini Card wireless device. When the
W_DISABLE# is not asserted, or in a high impedance state, the radio may transmit if not
disabled by other means such as software.

EBX-41 Reference Manual 33

USB

USB Port

Device

0

On-board Type A Connector

1

On-board Type A Connector

2

On-board USB3 Type A Connector

3

On-board USB3 Type A Connector

4

CRB-5013 paddle board Type A Connector

5

CRB-5013 paddle board Type A Connector

6

CRB-5013 paddle board Type A Connector

7

CRB-5013 paddle board Type A Connector

8

SUMIT

9

SUMIT

10

SUMIT / PCIe/104

11

SUMIT / PCIe/104

12

eUSB Module

13

PCIe Mini Card / mSATA

Interfaces and Connectors

The VL-EBX-41 includes ten USB 2.0 ports and two USB 3.0 ports. There are eight USB ports
with standard USB Type A connectors, located on the baseboard and paddleboard. The eUSB,
SUMIT, PCIe/104, and PCIe Mini Card/mSATA connectors all provide USB ports, as shown in
the USB Port Map table below. These connectors are protected against ESD damage.

The USB interface on the Copperhead is UHCI (Universal Host Controller Interface) and EHCI
(Enhance Host Controller Interface) compatible, which provides a common industry
software/hardware interface.

Table 14: USB Port Map

Serial Ports

The Copperhead features four on-board 16550-based serial communications channels located at
standard PC I/O addresses. All serial ports can be operated in RS-232 4-wire or RS-422 mode.
IRQ lines are chosen in BIOS setup. Each COM port can be independently enabled, disabled, or
assigned a different I/O base address in BIOS setup.

COM PORT CONFIGURATION

Use the BIOS setup screens to select between RS-232 and RS-422 operating modes.
Jumper block V2 is used to configure serial ports for RS-422 operation. See “Jumper Summary”

for details. The 120-ohm termination resistor should be enabled for RS-422 endpoint stations. It
should be disabled for RS-232 intermediate stations.

EBX-41 Reference Manual 34

Interfaces and Connectors

COM0

COM1

Top DB9

J2 Pin

Bottom DB9

J2 Pin

RS-232

RS-422

1 1 — — 2 2 RXD*

RxD- 3 3

TXD*

TxD- 4 4 — — 5 5

Ground

Ground

6 6 — — 7 7 RTS

TxD+ 8 8

CTS

RxD+ 9 9 — —

COM2

COM3

J5 Pin

J6 Pin

RS-232

RS-422

1 1 Ground

Ground

2 2 RXD

RxD- 3 3

CTS

RxD+

4 4 TXD

TxD- 5 5

RTS

TxD+

SERIAL PORT CONNECTORS

The pinouts of the DB9M connectors apply to the serial connectors on the VersaLogic breakout
board VL-CBR-5013.

These connectors use IEC 61000-4-2-rated TVS components to help protect against ESD
damage.

Table 15: COM0-1 Pinout – VL-CBR-5013 Connector J2

Table 16: COM2-3 Pinout – VL-CBR-5013 Connectors J5-6

EBX-41 Reference Manual 35

Analog Input

J19
Pin Signal

VL-CBR-4004

Connector

VL-CBR-4004
Pin (Silkscreen)

1

Analog Input 1

J1

5 (IO1)

2

Analog Input 2

Analog Input

4 (IO2)

3

Analog Input 3

3 (IO3)

4

Analog Input 4

2 (IO4)

5

Ground

1 (GND1)

6

Analog Input 5

J2

5 (IO5)

7

Analog Input 6

Analog Input

4 (IO6)

8

Analog Input 7

3 (IO7)

9

Analog Input 8

2 (IO8)

10

Ground

1 (GND1)

11

Analog Input 9

J3

5 (IO9)

12

Analog Input 10

Analog Input

4 (IO10)

13

Analog Input 11

(Custom*)

3 (IO11)

14

Analog Input 12

2 (IO12)

15

Ground

1 (GND2)

16

Analog Input 13

J4

5 (IO13)

17

Analog Input 14

Analog Input

4 (IO14)

18

Analog Input 15

(Custom*)

3 (IO15)

19

Analog Input 16

2 (IO16)

20

Ground

1 (GND2)

The Copperhead uses two multi-range, 12-bit Linear Technology LTC1857 A/D converters, each
with eight single-ended input signals (even and odd analog channels, for example inputs 1 and 2,
can also be combined as differential inputs). The converter has a 100 kilo-sample-per-second
(Ksps) sampling rate, with a 4 µs acquisition time, with per-channel input ranges of 0 to +5V,
±5V, 0 to +10V and ±10V.

The Copperhead A/D converter is controlled using the SPI registers. The A/D converter for
channels 1-8 is accessed by setting SPI slave select 5 (writing 5h to the SS field in
SPICONTROL). The A/D converter for channels 9-16 is accessed by first setting the

ADIOMODE control bit to a ‘1’ in the Miscellaneous Control Register MISCCON and then

setting SPI slave select 3 (writing 3h to the SS field in SPICONTROL). The A/D converter for
channels 1-8 can be accessed for either setting of ADIOMODE.

See "SPI Registers" for a complete description of the registers.
See the Linear Technology LTC1857 A/D Converter Datasheet for programming information.

Warning! Application of analog voltages greater than +25V or less than -25V can damage

Interfaces and Connectors

the converter.

EXTERNAL CONNECTIONS

Single-ended analog voltages are applied to connector J19 as shown in the following table.
Standard VL-EBX-41 models include eight analog input channels.

Table 17: Analog Input Pinout

* Contact [e-mail] for information on custom

orders.

EBX-41 Reference Manual 36

Interfaces and Connectors

ANALOG INPUT USING THE SPI INTERFACE

See "SPI Registers" for a description of the SPI interface and registers.

Initiating an Analog Conversion Using the SPI Interface

The following procedure can be used to initiate an analog conversion using the SPI interface

1. Set ADIOMODE = 1 for the A/D converter for channels 9-16. The A/D converter for

channels 1-8 can be accessed for either setting of ADIOMODE.

2. For the A/D converter for channels 1-8 write 15h to the SPICONTROL register (I/O

address CA8h) or write 13h for the A/D converter for channels 9-16. This value
configures the SPI port to select the on-board A/D converter, 16-bit frame length, low
SCLK idle state, rising edge SCLK edge, and automatic slave select.

3. Write 10h to the SPISTATUS register (I/O address CA9h) – This value selects 2 MHz

SCLK speed, hardware IRQ disable, and left-shift data. A 2 MHz clock is used to avoid
having to insert a delay after the SPI cycle to wait for the end of the 4 µs A/D signal
acquisition interval. If a 4 MHz SPI clock is used then there must be a delay of 1.5 µs
after the SPI cycle ends before starting an A/D conversion; if an 8 MHz SPI clock is
used then there must be a delay of 2.75 µs after the end of the SPI cycle.

4. Write any value to SPIDATA2 (I/O address CACh) – This data will be ignored by the

A/D converter.

5. Write bit 0 of the analog input channel number to Bit 6, bits 2-1 of the analog input

channel number to bits 5-4, and a 2-bit input range code to bits 3-2 of SPIDATA3 (I/O
address CADh) – Any write operation to this register triggers an SPI transaction. The 2­bit input-range codes are 0 (±5V), 1 (±10V), 2 (0 to +5V) or 3 (0 to +10V). Bit 7 must
be set to a ‘1’ for a single-ended channel (fyi - each A/D can be configured for either 8
single-ended inputs or 4 differential inputs). For example, if converting the 4th A/D
channel (channel number 3) with a 0 to +5V range then SPIDATA3 is set to D8h

6. Poll the SPI BUSY bit in the SPISTATUS register until the conversion is completed.

7. For the A/D converter for channels 1-8 write a ‘1’ to ADCONVST0 Bit 0 of the FPGA

ADC, DAC control/status register (I/O address CAFh) to start a conversion. For the A/D
converter for channels 9-16 write a ‘1’ to the ADCONVST1 bit 1.For the A/D converter
for channels 1-8 poll the ADCBUSY0 Bit 2 of the FPGA ADC/DAC control/status

register (I/O address CAFh) until this bit is a ‘0’ (not busy) to indicate a conversion is

completed (a conversion takes a maximum of 5 µs). For the A/D converter for channels
9-16 poll the ADCBUSY1 Bit 3.Read the conversion data from SPIDATA2 (upper 8 bits
of the 12-bit conversion) and SPIDATA3 (lower 4 bits of the 12-bit conversion are in the
upper 4 bits of this byte). The data read is from the previous conversion not the one for
the SPI values written in Steps 1–5. Another conversion cycle is required to retrieve that
data. Typically a number of channels are sampled at one time so this conversion delay is
not significant.

Anytime an SPI command is written to the A/D device a conversion must be issued for that
command. Another command will not be accepted until a conversion is performed.

EBX-41 Reference Manual 37

Analog Output

J19 Pin

Signal

VL-CBR-4004

Connector

VL-CBR-4004
Pin (Silkscreen)

21

Analog Output 1

J6

1 (IO17)

22

Analog Output 2

Analog Output

2 (IO18)

23

Analog Output 3

3 (IO19)

24

Analog Output 4

4 (IO20)

25

Ground

5 (GND3/PBRST#)

26

Analog Output 5

J7

1 (IO21)

27

Analog Output 6

Analog Output

2 (IO22)

28

Analog Output 7

(Custom*)

3 (IO23)

29

Analog Output 8

4 (IO24)

30

Ground

5 (GND3)

The Copperhead uses two 12-bit Linear Technology LTC2634 D/A converters, each with four
(4) single-ended output signals. The converter has 5 µs per-channel update rate with a 0 to

4.096V output voltage range.
The Copperhead D/A converter is controlled using the SPI registers. The D/A converter for

channels 1-4 is accessed by setting SPI slave select 7 (writing 7h to the SS field in
SPICONTROL). The D/A converter for channels 5-8 is accessed by first setting the
ADIOMODE control bit to a ‘1’ in the Miscellaneous Control Register MISCCON and then
setting SPI slave select 4 (writing 4h to the SS field in SPICONTROL). The D/A converter for
channels 1-4 can be accessed for either setting of ADIOMODE. See "SPI Registers" for a
description of the SPI interface and registers.

See the Linear Technology LTC2634 D/A Converter Datasheet for programming information.

Interfaces and Connectors

Table 18: Analog Output Pinout

* Contact [e-mail] for information on custom

orders.

Analog Output Using the SPI Interface

The following procedure can be used to set an analog output using the SPI interface.

1. Set ADIOMODE = 1 for the D/A converter for channels 5-8. The D/A converter for

channels 1-4 can be accessed for either setting of ADIOMODE.

2. For the D/A converter for channels 1-4 write 27h to the SPICONTROL register (I/O

address CA8h) or write 24h for the D/A converter for channels 5-8 – This value
configures the SPI port to select the D/A converter, 24-bit frame length, low SCLK idle
state, rising edge SCLK edge, and automatic slave select.

3. Write 30h to the SPISTATUS register (I/O address CA9h) – This value selects 8 MHz

SCLK speed, hardware IRQ disable, and left-shift data.

4. Write the LS 4-bits of the 12-bit output value into the MS 4-bits of SPIDATA1 (I/O

address CABh). For example, if writing a 12-bit value of 123h the value of 30h is written
to SPIDATA1.

5. Write the MS 8-bits of the 12-bit output value to SPIDATA2 (I/O address CACh). For

example, if writing a 12-bit value of 123h the value of 12h is written to SPIDATA2.

EBX-41 Reference Manual 38

Interfaces and Connectors

6. Write the analog output channel number (0 to 3) to Bits 3-0 and the write-and-update-

channel command 3h to Bits 7-4 of SPIDATA3 (I/O address CADh) – Any write
operation to this register triggers an SPI transaction. For example, if writing to the third
DAC channel (channel number 2) the value written to SPIDATA3 is 32h.

7. Poll the SPI BUSY bit in the SPISTATUS register until the conversion is completed.

8. The D/A output will be stable in no more than 5 µs.

EBX-41 Reference Manual 39

Digital I/O

J21
Pin Signal

VL-CBR-4004

Connector

VL-CBR-4004

Pin (Silkscreen)

1

Digital I/O 1

J1

5 (IO1)

2

Digital I/O 2

4 (IO2)

3

Digital I/O 3

3 (IO3)

4

Digital I/O 4

2 (IO4)

5

Ground

1 (GND1)

6

Digital I/O 5

J2

5 (IO5)

7

Digital I/O 6

4 (IO6)

8

Digital I/O 7

3 (IO7)

9

Digital I/O 8

2 (IO8)

10

Ground

1 (GND1)

11

Digital I/O 9

J3

5 (IO9)

12

Digital I/O 10

4 (IO10)

13

Digital I/O 11

3 (IO11)

14

Digital I/O 12

2 (IO12)

15

Ground

1 (GND2)

16

Digital I/O 13

J4

5 (IO13)

17

Digital I/O 14

4 (IO14)

18

Digital I/O 15

3 (IO15)

19

Digital I/O 16

2 (IO16)

20

Ground

1 (GND2)

21

Digital I/O 17

J6

1 (IO17)

22

Digital I/O 18

2 (IO18)

23

Digital I/O 19

3 (IO19)

24

Digital I/O 20

4 (IO20)

25

Ground

5 (GND3/PBRST#)

26

Digital I/O 21

J7

1 (IO21)

27

Digital I/O 22

2 (IO22)

28

Digital I/O 23

3 (IO23)

29

Digital I/O 24

4 (IO24)

30

Ground

5 (GND3)

31

Digital I/O 25

J8

1 (IO25)

32

Digital I/O 26

2 (IO26)

33

Digital I/O 27

3 (IO27)

34

Digital I/O 28

4 (I028)

35

Ground

5 (GND4)

36

Digital I/O 29

J9

1 (IO29)

37

Digital I/O 30

2 (IO30)

38

Digital I/O 31

3 (IO31)

39

Digital I/O 32

4 (IO32)

40

Ground

5 (GND4)

The 40-pin I/O connector (J21) incorporates 32 digital I/O lines. Table 19 shows the function of
each pin. The digital I/O lines are controlled using the SPI registers. See "SPI Registers" for a
complete description of the registers.

The digital lines are grouped into two banks of 16-bit bi-directional ports. The direction of each
8-bit port is controlled by software. The digital I/O lines power up in the input mode. The 24 mA
source/sink drive and short protected outputs are an excellent choice for industrial LVTTL
interfacing. All I/O pins use +3.3V signaling.

Interfaces and Connectors

Warning! Damage may occur if the I/O pins are connected to +5V logic.

Table 19: J21 I/O Connector Pinout

EBX-41 Reference Manual 40

Interfaces and Connectors

DIGITAL I/O PORT CONFIGURATION USING THE SPI INTERFACE

Digital I/O channels 0-31 are accessed via SPI slave select 6 (writing 6h to the SS field in
SPICONTROL). Each pair of I/O ports is configured by a set of paged I/O registers accessible
through SPI. These registers control settings such as signal direction, input polarity, and interrupt
source.

Digital I/O Initialization Using the SPI Interface

There are two Microchip MCP23S17 digital I/O devices used. Digital I/O channels 0-15 map to
device #0 (address “000”) and channels 15-31 to device #1 (address “001”). Please refer to the

Microchip MCP23S17 datasheet for more information about the MCP23S17. Before accessing

the digital I/O devices a ‘1’ must be written to the control bit HAEN in the IOCON register
(write a 8h to this register) in the MCP23S17 devices. This write is done to device address “000”

which will actually write this HAEN bit to both devices. Once this HAEN bit is set then both
devices can be independently accessed. This must be done anytime these parts are reset. Example
code is shown below (this assumes the FPGA base address is the default setting CA0h).

MOV DX, CA8h

MOV AL, 26h ;SPICONTROL: SPI Mode 00, 24bit, auto, SPI 6
OUT DX, AL
MOV DX, CA9h
MOV AL, 30h ;SPISTATUS: 8MHz, no IRQ, left-shift
OUT DX, AL
MOV DX, CABh
MOV AL, 08h ;SPIDATA1: Set HAEN Bit to a ‘1’
OUT DX, AL
MOV DX, CACh
MOV AL, 0Ah ;SPIDATA2: MCP23S17 IOCON addr 0x0A
OUT DX, AL
MOV DX, CADh
MOV AL, 40h ;SPIDATA3: MCP23S17 write to device “000”
OUT DX, AL

BUSY: MOV DX, CA9h

IN AL, DX ;Get SPI status
AND AL, 01h ;Isolate the BUSY bit
JNZ BUSY ;Loop back if SPI transaction is not complete

Digital I/O Interrupt Generation Using the SPI Interface

Digital I/O can be configured to issue hardware interrupts on the transition (high to low or low to
high) of any digital I/O pin. IRQ assignment is made in SPI control register SPISTATUS. This
IRQ is shared among all SPI devices connected to the VL-EBX-41 (the ADC and DAC devices
on the SPI interface do not have interrupts). Digital I/O chip interrupt configuration is achieved
through I/O port register settings. Please refer to the Microchip MCP23S17 datasheet for more
information.

The on-board digital I/O chips must be configured for open-drain and mirrored interrupts in order
for any SPI device to use hardware interrupts. The following code example illustrates how to do
this for device #0 on channels 0-15. Normally, the BIOS initializes the on-board digital I/O chips
at boot time.

MOV DX, CA8h

MOV AL, 26h ;SPICONTROL: SPI Mode 00, 24bit, auto SPI 6
OUT DX, AL

EBX-41 Reference Manual 41

Interfaces and Connectors

MOV DX, CA9h
MOV AL, 30h ;SPISTATUS: 8MHz, no IRQ, left-shift
OUT DX, AL
MOV DX, CABh
MOV AL, 44h ;SPIDATA1: Mirror & Open-Drain interrupts
OUT DX, AL
MOV DX, CACh
MOV AL, 0Ah ;SPIDATA2: MCP23S17 address 0x0A
OUT DX, AL
MOV DX, CADh
MOV AL, 40h ;SPIDATA3: MCP23S17 write command
OUT DX, AL

BUSY: MOV DX, CA9h

IN AL, DX ;Get SPI status
AND AL, 01h ;Isolate the BUSY bit
JNZ BUSY ;Loop back if SPI transaction is not complete

MOV DX, CA8h

MOV AL, 27h ;SPICONTROL: SPI Mode 00, 24bit, auto SPI 6
OUT DX, AL
MOV DX, CA9h
MOV AL, 30h ;SPISTATUS: 8MHz, no IRQ, left-shift
OUT DX, AL
MOV DX, CABh
MOV AL, 44h ;SPIDATA1: Mirror & Open-Drain interrupts
OUT DX, AL
MOV DX, CACh
MOV AL, 0Ah ;SPIDATA2: MCP23S17 address 0x0A
OUT DX, AL
MOV DX, CADh
MOV AL, 40h ;SPIDATA3: MCP23S17 write command
OUT DX, AL

Writing to a Digital I/O Port Using the SPI Interface

The following code example initiates a write of 55h to Digital I/O port bits DIO15-DIO8.

;Write 44h to configure MCP23S17 register IOCON

MOV DX, CA8h
MOV AL, 26h ;SPICONTROL: SPI Mode 00, 24bit, SPI 6
OUT DX, AL
MOV DX, CA9h
MOV AL, 30h ;SPISTATUS: 8MHz, no IRQ, left-shift
OUT DX, AL
MOV DX, CABh
MOV AL, 44h ;SPIDATA1: mirror and open-drain interrupts
OUT DX, AL
MOV DX, CACh
MOV AL, 0Ah ;SPIDATA2: MCP23S17 IOCON register address 0Ah
OUT DX, AL
MOV DX, CADh
MOV AL, 40h ;SPIDATA3: MCP23S17 write command
OUT DX, AL
CALL BUSY ;Poll busy flag to wait for SPI transaction

;Configure MCP23S17 register IODIRA for outputs

MOV DX, CABh

EBX-41 Reference Manual 42

Interfaces and Connectors

MOV AL, 00h ;SPIDATA1: 00h for outputs
OUT DX, AL
MOV DX, CACh
MOV AL, 00h ;SPIDATA2: MCP23S17 register address 00h
OUT DX, AL
MOV DX, CADh
MOV AL, 40h ;SPIDATA3: MCP23S17 write command
OUT DX, AL
CALL BUSY ;Poll busy flag to wait for SPI transaction

;Write 55h to MCP23S17 register GPIOA

MOV DX, CABh
MOV AL, 55h ;SPIDATA1: data to write
OUT DX, AL
MOV DX, CACh
MOV AL, 14h ;SPIDATA2: MCP23S17 register address 14h
OUT DX, AL
MOV DX, CADh
MOV AL, 40h ;SPIDATA3: MCP23S17 write command
OUT DX, AL
CALL BUSY ;Poll busy flag to wait for SPI transaction

BUSY: MOV DX, CA9h
IN AL, DX ;Get SPISTATUS
AND AL, 01h ;Isolate the BUSY flag
JNZ BUSY ;Loop if SPI transaction not complete

Reading a Digital I/O Port Using the SPI Interface

The following code example reads the DIO15-DIO8 input lines.

'REGISTER ASSIGNMENT
'--------------------­CONST SPICONTROL1 = &HCA8
CONST SPICONTROL2 = &HCA9
CONST SPISTATUS = &HCA9
CONST SPIDATA1 = &HCAB
CONST SPIDATA2 = &HCAC
CONST SPIDATA3 = &HCAD

'INITIALIZE SPI CONTROLLER
'================================

'SPICONTROL1 Register
'--------------------------­'D7 CPOL = 0 SPI Clock Polarity (SCLK idles low)
'D6 CPHA = 0 SPI Clock Phase (Data read on rising edge)
'D5 SPILEN1 = 1 SPI Frame Length (24-Bit)
'D4 SPILEN0 = 0 " " " "
'D3 MAN_SS = 0 SPI Slave Select Mode (Automatic)
'D2 SS2 = 1 SPI Slave Select (On-Board DIO 0-15)
'D1 SS1 = 1 " " " " "
'D0 SS0 = 0 " " " " "
OUT SPICONTROL1, &H26

'SPICONTROL2 Register
'--------------------------­'D7 IRQSEL1 = 0 IRQ Select (IRQ3)
'D6 IRQSEL0 = 0 " " "
'D5 SPICLK1 = 1 SPI SCLK Frequency (8.333 MHz)
'D4 SPICLK0 = 1 " " " "
'D3 HW_IRQ_EN = 0 Hardware IRQ Enable (Disabled)

EBX-41 Reference Manual 43

Interfaces and Connectors

'D2 LSBIT_1ST = 0 SPI Shift Direction (Left Shifted)
'D1 0 = 0 This bit has no function
'D0 0 = 0 This bit has no function
OUT SPICONTROL2, &H30

'INITIALIZE MCP23S17
'===================

'MCP23S17 IOCON Register
'----------------------­'D7 BANK = 0 Registers in same bank (addresses are sequential)
'D6 MIRROR = 1 The INT pins are internally connected
'D5 SEQOP = 0 Sequential op disabled. Addr ptr does not increment.
'D4 DISSLW = 0 Slew rate control for SDA output (enabled)
'D3 HAEN = 0 Hardware address enable (addr pins disabled)
'D2 ODR = 1 INT pin is open-drain
'D1 INTPOL = 0 Polarity of INT output pin (ignored when ODR=1)
'D0 0 = 0 This bit has no function
OUT SPIDATA1, &H44

'MCP23S17 IOCON Register Address
'------------------------------­OUT SPIDATA2, &HA

'MCP23S17 SPI Control Byte (Write)
'--------------------------------­'D7 SLAVEFA3 = 0 Slave Address (Fixed Portion)
'D6 SLAVEFA2 = 1 " " " "
'D5 SLAVEFA1 = 0 " " " "
'D4 SLAVEFA0 = 0 " " " "
'D3 SLAVEHA2 = 0 Slave Address Bits (Hardware Address Bits)
'D2 SLAVEHA1 = 0 " " " "
'D1 SLAVEHA0 = 0 " " " "
'D0 READWRITE = 0 Read/Write Bit = Write
OUT SPIDATA3, &H40

WHILE (INP(SPISTATUS) AND &H1) = &H1: WEND

'INITIALIZE DIRECTION OF DIO LINES D15-D8 AS INPUTS
'==================================================

'Direction = All Inputs
OUT SPIDATA1, &HFF

'MCP23S17 IODIRA Register Address
OUT SPIDATA2, &H0

'MCP23S17 SPI Control Byte (Write)
OUT SPIDATA3, &H40

WHILE (INP(SPISTATUS) AND &H1) = &H1: WEND

'Repeat until ESC key is pressed
WHILE INKEY$ <> CHR$(27)

'READ DIO INPUT DATA FROM MCP23S17
'---------------------------------

'MCP23S17 GPIOA Register Address
OUT SPIDATA2, &H12

'MCP23S17 SPI Control Byte (Read)
OUT SPIDATA3, &H41

EBX-41 Reference Manual 44

Audio

J3

Pin

Signal
Name

Function

1

LINE_INL

Line-In Left

2

LINE_INR

Line-In Right

3

HDA_GND

HDA Ground

4

LINE_OUTL

Line-Out Left

5

LINE_OUTR

Line-Out Right

6

HDA_GND

HDA Ground

The audio interface on the Copperhead is implemented using an Integrated Device Technology,
Inc. 92HD87 Audio Codec. This interface is Intel High Definition Audio compatible. Drivers are
available for most Windows-based and Linux operating systems. To obtain the most current
versions, consult the Copperhead product support page.

The J29 main I/O connector provides the line-level stereo input and line-level stereo output
connection points. The outputs will drive most amplified PC speaker sets.

The following table shows the pinout of the audio connector J3 on the VL-CBR-5013 breakout
board.

Interfaces and Connectors

WHILE (INP(SPISTATUS) AND &H1) = &H1: WEND

'DIO Input Data
PRINT HEX$(INP(SPIDATA1))

WEND

SYSTEM

Table 20: VL-CBR-5013 J3 Audio Connector Pinout

Note: In Windows, the rear line-in audio input is configured by default as a microphone

input. To configure it for audio input, disable the microphone boost to eliminate
audio distortion.

EBX-41 Reference Manual 45

Counter/Timers

J19

Pin

Signal
Direction*

Signal
Name

Function

VL-CBR-4004

Connector

VL-CBR-4004
Pin (Silkscreen)

31

Output

OCTC3

Timer 3 Counter Output

J8

1 (IO25)

32

Input

GCTC3

Timer 3 Gate Input

2 (IO26)

33

Input

ICTC3

Timer 3 Clock Input

3 (IO27)

34

Output

OCTC4

Timer 4 Counter Output

4 (I028)

36

Input

GCTC4

Timer 4 Gate Input

J9

1 (IO29)

37

Input

ICTC4

Timer 4 Clock Input

2 (IO30)

38

Output

OCTC5

Timer 5 Counter Output

3 (IO31)

39

Input

GCTC5

Timer 5 Gate Input

4 (IO32)

Register

Read/Write

Address

Name

IRQCTRL

R/W

CA3h

Interrupt Control Register

IRQSTAT

R-Status/Write-Clear

CA4h

Interrupt Status Register

TMCNTRL

R/W

CA5h

Timer Control Register

TIMBASEMS

R/W

CA6h

Timer Base MS Address Register

TIMBASELS

R/W

CA7h

Timer Base LS Address Register

The Copperhead includes three uncommitted 8254 type counter/timer channels for general
program use. External control signals for the three channels are available on connector J19.

* Relative to Copperhead

Interfaces and Connectors

Table 21: J22 Counter Timer Pinout

The Custom Programming appendix discusses how to use and configure these timers using the
following registers.

PCIe Mini Card / mSATA

The socket at location J8 accepts a full-height PCI Express Mini Card or an mSATA module.
The PCIe Mini Card interface includes one PCIe x1 lane, one USB 2.0 channel, and the SMBus

interface. The socket is compatible with plug-in Wi-Fi modems, GPS receivers, flash data
storage, and other cards for added flexibility. An Intel WiFi Link 5300 PCI Express Mini Card
(VL-WD10-CBN) is available from VersaLogic. A WiFi antenna (VL-CBR-ANT01) and a 12"
WiFi card to bulkhead RP-SMA transition cable (VL-CBR-0201) are also available. For more
information, contact [e-mail].

The VL-MPEs-F1E series of mSATA modules provide flash storage of 4 GB, 16 GB, or 32 GB.
To secure a Mini Card or mSATA module to the on-board standoffs, use two M2.5 x 6mm pan

head Philips nylon screws. These screws are available in quantities of 10 in the VL-HDW-108
hardware kit from VersaLogic.

EBX-41 Reference Manual 46

Table 22: PCIe Mini Card / mSATA Pinout

J8

Pin

PCIe Mini Card
Signal Name

PCIe Mini Card
Function

mSATA
Signal Name

mSATA
Function

1 WAKE#

Wake

Reserved

Not connected

2 3.3VAUX

3.3V auxiliary source

+3.3V

3.3V source

3 NC

Not connected

Reserved

Not connected

4 GND

Ground

GND

Ground

5 NC

Not connected

Reserved

Not connected

6 1.5V

1.5V power

+1.5V

1.5V power

7 CLKREQ#

Reference clock request

Reserved

Not connected

8 NC

Not connected

Reserved

Not connected

9 GND

Ground

GND

Ground

10 NC

Not connected

Reserved

Not connected

11 REFCLK-

Reference clock input –

Reserved

Not connected

12 NC

Not connected

Reserved

Not connected

13 REFCLK+

Reference clock input +

Reserved

Not connected

14 NC

Not connected

Reserved

Not connected

15 GND

Ground

GND

Ground

16 NC

Not connected

Reserved

Not connected

17 NC

Not connected

Reserved

Not connected

18 GND

Ground

GND

Ground

19 NC

Not connected

Reserved

Not connected

20 W_DISABLE#

Wireless disable 1

Reserved

Not connected

21 GND

Ground

GND

Ground

22 PERST#

Card reset

Reserved

Not connected

23 PERn0

PCIe receive –

+B

Host receiver diff. pair +

24 3.3VAUX

3.3V auxiliary source

+3.3V

3.3V source

25 PERp0

PCIe receive +

-B

Host receiver diff. pair –

26 GND

Ground

GND

Ground

27 GND

Ground

GND

Ground

28 1.5V

1.5V power

+1.5V

1.5V power

29 GND

Ground

GND

Ground

30 SMB_CLK

SMBus clock

Two Wire I/F

Two wire I/F clock

31 PETn0

PCIe transmit –

-A

Host transmitter diff. pair –

32 SMB_DATA

SMBus data

Two Wire I/F

Two wire I/F data

33 PETp0

PCIe transmit +

+A

Host transmitter diff. pair +

34 GND

Ground

GND

Ground

35 GND

Ground

GND

Ground

36 USB_D-

USB data –

Reserved

Not connected

37 GND

Ground

GND

Ground

38 USB_D+

USB data +

Reserved

Not connected

39 3.3VAUX

3.3V auxiliary source

+3.3V

3.3V source

40 GND

Ground

GND

Ground

41 3.3VAUX

3.3V auxiliary source

+3.3V

3.3V source

42 LED_WWAN#

Wireless WAN LED

Reserved

Not connected

43 GND

mSATA Detect 2

GND/NC

Ground/Not connected 3

44 LED_WLAN#

Wireless LAN LED

Reserved

Not connected

45 NC

Not connected

Vendor

Not connected

46 LED_WPAN#

Wireless PAN LED

Reserved

Not connected

Interfaces and Connectors

EBX-41 Reference Manual 47

Interfaces and Connectors

J8

Pin

PCIe Mini Card
Signal Name

PCIe Mini Card
Function

mSATA
Signal Name

mSATA
Function

47 NC

Not connected

Vendor

Not connected

48 1.5V

1.5V power

+1.5V

1.5V power

49 Reserved

Reserved

DA/DSS

Device activity 4

50 GND

Ground

GND

Ground

51 Reserved

Reserved

GND

Ground 5

52 3.3VAUX

3.3V auxiliary source

+3.3V

3.3V source

Notes:

1. This signal can be driven by GPIO24 from the ICH8M or as a custom option from Pin 10 on the
Ethernet LED connector at location J28.

2. This pin is not grounded on the Copperhead since it can be used to detect the presence of an
mSATA module versus a PCIe Mini Card. Grounding this pin is available as an option on custom
boards.

3. This pin is not grounded on the Copperhead to make it available for mSATA module detection.

4. This signal drives the blue LED activity indicator at location D11 (upper right corner of the board
as shown in Figure 6). This LED lights with mSATA disk activity, if supported by the mSATA
module.

5. Some PCIe modules use this signal as a second Mini Card wireless disable input. On the
Copperhead, this signal is available for use for mSATA versus PCIe Mini Card detection. There
is an option on the VersaLogic Features BIOS setup screen for setting the mSATA detection
method.

PCIE MINI CARD WIRELESS STATUS LEDS

Three wireless status LEDs are provided on the Copperhead at locations D10 and D8:

 D10 Yellow – Wireless WAN
 D8 Green – Wireless LAN
 D8 Yellow – Wireless PAN

These LEDs light when the associated device is installed and capable of transmitting.

EBX-41 Reference Manual 48

User I/O Connector

J29

Pin

CBR-5013

Connector

Signal

J29

Pin

CBR-5013

Connector

Signal

RS-232

RS-422

25

USB 4

USB4-5 +5.0V

1

COM0

Ground

Ground

26 Data +

2

J2

RXD

RxD- 27 Data - 3 Top DB9

CTS

RxD+ 28

USB 5

USB4-5 +5.0V

4 Ground

Ground

29 Data + 5

TXD

TxD- 30 Data - 6

RTS

TxD+ 31

USB 6

USB6-7 +5.0V

7

COM1

Ground

Ground

32 Data +

8

J2

RXD

RxD- 33 Data -

9

Bottom DB9

CTS

RxD+ 34

USB 7

USB6-7 +5.0V

10 Ground

Ground

35 Data +

11 TXD

TxD- 36 Data -

12 RTS

TxD+ 37 +5.0V (Protected)

13

COM2

Ground

Ground

38

D1

Programmable LED

14

J5

RXD

RxD- 39

SP1

Speaker

15 CTS

RxD+ 40

S2, J8 Pin 1

Pushbutton Reset

16 Ground

Ground

41

S1, J8 Pin 3

Power Button

17 TXD

TxD- 42 Ground

18 RTS

TxD+ 43

Audio In

Audio In Left

19

COM3

Ground

Ground

44

J3 Top

HDA ground (isolated)

20

J6

RXD

RxD- 45 Audio In Right

21 CTS

RxD+ 46 HDA ground (isolated)

22 Ground

Ground

47

Audio Out

Audio Out Left

23 TXD

TxD- 48

J3 Bottom

HDA ground (isolated)

24 RTS

TxD+ 49 Audio Out Right

50 HDA ground (isolated)

The 50-pin user I/O connector (J29) incorporates the COM ports, four USB ports, programmable
LED, power LED, pushbutton reset, power button, audio line in/out, and speaker interfaces. The
table below illustrates the function of each pin.

Interfaces and Connectors

Table 23: User I/O Connector Pinout

LEDs

PROGRAMMABLE LED

Connector J29 includes an output signal for a programmable LED. Connect the cathode of the
LED to J29 pin 38; connect the anode to +5V. A 332Ω on-board resistor limits the current to 15
mA. A programmable LED is provided on the VL-CBR-5013 breakout board. The programmable
LED is the top LED at position D1.

EBX-41 Reference Manual 49

Interfaces and Connectors

To turn the LED on and off, set or clear bit D7 in I/O port CA0h. When changing the register,
make sure not to alter the value of the other bits.

The following code examples show how to turn the LED on and off.

LED On LED Off

MOV DX,CA0H MOV DX,CA0H
IN AL,DX IN AL,DX
OR AL,80H AND AL,7FH
OUT DX,AL OUT DX,AL

POWER LED

The power LED on the VL-CBR-5013 indicates that the paddle board is being powered by the
5V supply (though it does not indicate that all S0 power supplies are good). The LED is lit only
on when the board is in the S0 power state. If the board enters a Sleep or Hibernate mode, the
LED will not be lit.

There is also an on-board green "Power-OK" LED (at location D10). This will illuminate when
all power rails are good, and indicates that the board is in the S0 power state. If any power rail is
not good, the LED will not illuminate. It also goes out when the board enters a sleep or hibernate
power mode.

Pushbutton Reset

Connector J29 includes an input for a pushbutton reset switch. Shorting J29 pin 40 to ground
causes the Copperhead to reboot.

The input can be connected to ground using the normally open contacts of a pushbutton switch or
a relay, or with a switching transistor (open-collector or open-drain) capable of sinking 1 mA.
The input must be driven to a voltage between 0V and 500mV to be recognized by the
Copperhead. Do not add an external pull-up resistor to this signal.

This connector uses IEC 61000-4-2-rated TVS components to help protect against ESD damage.
A reset button is provided on the VL-CBR-5013 breakout board. Terminal block J8 on the

breakout board also provides a reset signal on pin 1 and ground on pin 2.

Power Button

Connector J19 includes an input for a power button. Shorting J19 pin 41 to ground causes the
board to enter an S5 power state (similar to the Windows Shutdown state). Shorting it again will
return the board to the S0 power state and reboot the board. The button can be configured in
Windows to enter an S3 power state (Sleep, Standby, or Suspend-to-RAM), an S4 power state
(Hibernate or Suspend-to-Disk), or an S5 power state (Shutdown or Soft-Off).

This connector uses IEC 61000-4-2-rated TVS components to help protect against ESD damage.
A power button is provided on the VL-CBR-5013 breakout board. Terminal block J8 also

provides a power button signal on pin 3 and ground on pin 2.
In configurations where a power button is not connected to the board, if the system is put into an

S5 state, power can be restored by turning off the power supply and turning it back on. This
behavior is set by default by the BIOS. The behavior can be changed using the Restore AC
Power Loss parameter on the Chipset > South Bridge menu of the BIOS setup screens.

EBX-41 Reference Manual 50

Interfaces and Connectors

SUPPORTED POWER STATES

The Copperhead supports the following power states:

 S0 (G0): Working.
 S1 (G1-S1): All processor caches are flushed, and the CPUs stop executing instructions.

Power to the CPUs and RAM is maintained. Devices that do not indicate they must
remain on may be powered down.

 S3 (G1-S3): Commonly referred to as Standby, Sleep, or Suspend-to-RAM. RAM

remains powered.

 S4 (G1-S4): Hibernation or Suspend-to-Disk. All content of main memory is saved to

non-volatile memory, such as a hard drive, and is powered down.

 S5 (G2): Soft Off. Almost the same as G3 Mechanical Off, except that the power supply

still provides power, at a minimum, to the power button to allow return to S0. A full
reboot is required. No previous content is retained. Other components may remain
powered so the computer can "wake" on input from the keyboard, clock, modem, LAN,
or USB device.

 G3: Mechanical off (ATX supply switch turned off).

Speaker

Connector J29 includes a speaker output signal at pin 39. The VL-CBR-5013 breakout board
provides a Piezo electric speaker.

EBX-41 Reference Manual 51

SPX Expansion Bus

J28
Pin

Signal
Name

Function

1

V5_0

+5V (Protected)

2

SCLK

Serial Clock

3

GND

Ground

4

MISO

Serial Data In

5

GND

Ground

6

MOSI

Serial Data Out

7

GND

Ground

8

SS0#

Chip Select 0

9

SS1#

Chip Select 1

10

SS2#

Chip Select 2

11

SS3#

Chip Select 3

12

GND

Ground

13

SINT#

Interrupt Input

14

V5_0

+5V (Protected)

Up to four serial peripheral expansion (SPX) devices can be attached to the Copperhead at
connector J28 using the VL-CBR-1401 or VL-CBR-1402 cable. The SPX interface provides the
standard serial peripheral interface (SPI) signals: SCLK, MISO, and MOSI, as well as four chip
selects, SS0# to SS3#, and an interrupt input, SINT#.

The +5V power provided to pins 1 and 14 of J28 is protected by a 1 Amp resettable fuse.

Interfaces and Connectors

Table 24: SPX Expansion Bus Pinout

SPI is, in its simplest form, a three wire serial bus. One signal is a Clock, driven only by the
permanent Master device on-board. The others are Data In and Data Out with respect to the
Master. The SPX implementation adds additional features, such as chip selects and an interrupt
input to the Master. The Master device initiates all SPI transactions. A slave device responds
when its Chip Select is asserted and it receives Clock pulses from the Master.

The SPI clock rate can be software configured to operate at speeds between 1 MHz and 8 MHz.
Please note that since this clock is divided from a 33 MHz PCI clock, the actual generated
frequencies are not discrete integer MHz frequencies. All four common SPI modes are supported
through the use of clock polarity and clock idle state controls.

VERSALOGIC SPX EXPANSION MODULES

VersaLogic offers a number of SPX modules that provide a variety of standard functions, such as
analog input, digital I/O, CANbus controller, and others. These are small boards (1.2” x 3.78”)
that can mount on the PC/104 stack, using standard standoffs, or up to two feet away from the
baseboard. For more information, contact VersaLogic at [e-mail].

EBX-41 Reference Manual 52

Interfaces and Connectors

D7

D6

D5

D4

D3

D2

D1

D0

CPOL

CPHA

SPILEN1

SPILEN0

MAN_SS

SS2

SS1

SS0

Bit

Mnemonic

Description

D7

CPOL

SPI Clock Polarity – Sets the SCLK idle state.
0 = SCLK idles low
1 = SCLK idles high

D6

CPHA

SPI Clock Phase – Sets the SCLK edge on which valid data will be read.
0 = Data read on rising edge
1 = Data read on falling edge

D5-D4

SPILEN(1:0)

SPI Frame Length – Sets the SPI frame length. This selection works in
manual and auto slave select modes.

SPILEN1 SPILEN0 Frame Length
0 0 8-bit

0 1 16-bit
1 0 24-bit
1 1 32-bit

D3

MAN_SS

SPI Manual Slave Select Mode – This bit determines whether the slave
select lines are controlled through the user software or are automatically
controlled by a write operation to SPIDATA3 (CADh). If MAN_SS = 0, then the
slave select operates automatically; if MAN_SS = 1, then the slave select line
is controlled manually through SPICONTROL bits SS2, SS1, and SS0.

0 = Automatic, default
1 = Manual

SPI REGISTERS

A set of control and data registers are available for SPI transactions. The following tables
describe the SPI control registers (SPICONTROL and SPISTATUS) and data registers
(SPIDATA3-0).

SPICONTROL (READ/WRITE) CA8h

Table 25: SPI Control Register 1 Bit Assignments

EBX-41 Reference Manual 53

Interfaces and Connectors

Bit

Mnemonic

Description

D2-D0

SS(2:0)

SPI Slave Select – These bits select which slave select will be asserted. The
SSx# pin on the baseboard will be directly controlled by these bits when
MAN_SS = 1. There are two sets of definitions which depend on the state of
the ADIOMODE bit in the Miscellaneous Control Register (MISCCON).

ADIOMODE = 0 (default mode)
SS2 SS1 SS0 Slave Select

0 0 0 None, port disabled
0 0 1 SPX Slave Select 0, J28 pin-8
0 1 0 SPX Slave Select 1, J28 pin-9
0 1 1 SPX Slave Select 2, J28 pin-10
1 0 0 SPX Slave Select 3, J28 pin-11
1 0 1 A/D Converter Channels 1-8 (on-board U34)
1 1 0 Digital I/O Channels 1-32 (on-board U22,U51)
1 1 1 D/A Converter Channels 1-4 (on-board U26)

ADIOMODE = 1
SS2 SS1 SS0 Slave Select

0 0 0 Same as for ADIOMODE = 0
0 0 1 SUMIT SPI I/F Chip Select 0, J14 pin-16
0 1 0 SUMIT SPI I/F Chip Select 1, J14 pin-18
0 1 1 A/D Converter Channels 9-16 (on-board U56)
1 0 0 D/A Converter Channels 5-8 (on-board U31)
1 0 1 Same as for ADIOMODE = 0
1 1 0 Same as for ADIOMODE = 0
1 1 1 Same as for ADIOMODE = 0

EBX-41 Reference Manual 54

Interfaces and Connectors

D7

D6

D5

D4

D3

D2

D1

D0

IRQSEL1

IRQSEL0

SPICLK1

SPICLK0

HW_IRQ_EN

LSBIT_1ST

HW_INT

BUSY

Bit

Mnemonic

Description

D7-D6

IRQSEL(1:0)

IRQ Select – These bits select which IRQ will be asserted when a hardware
interrupt from a connected SPI device occurs. The HW_IRQ_EN bit must be
set to enable SPI IRQ functionality.

IRQSEL1 IRQSEL0 IRQ
0 0 IRQ3

0 1 IRQ4
1 0 IRQ5
1 1 IRQ10

D5-D4

SPICLK(1:0)

SPI SCLK Frequency – These bits set the SPI clock frequency.
SPICLK1 SPICLK0 Frequency

0 0 1.042 MHz
0 1 2.083 MHz
1 0 4.167 MHz
1 1 8.333 MHz

D3

HW_IRQ_EN

Hardware IRQ Enable – Enables or disables the use of the selected IRQ
(IRQSEL) by an SPI device.
0 = SPI IRQ disabled, default
1 = SPI IRQ enabled

Note: The selected IRQ is shared with PC/104 ISA bus devices. CMOS
settings must be configured for the desired ISA IRQ.

D2

LSBIT_1ST

SPI Shift Direction – Controls the SPI shift direction of the SPIDATA
registers. The direction can be shifted toward the least significant bit or the
most significant bit.

0 = SPIDATA data is left-shifted (MSbit first), default
1 = SPIDATA data is right-shifted (LSbit first)

D1

HW_INT

SPI Device Interrupt State – This bit is a status flag that indicates when the
hardware SPX signal SINT# is asserted.

0 = Hardware interrupt on SINT# is deasserted
1 = Interrupt is present on SINT#

This bit is read-only and is cleared when the SPI device’s interrupt is cleared.

D0

BUSY

SPI Busy Flag – This bit is a status flag that indicates when an SPI
transaction is underway.

0 = SPI bus idle
1 = SCLK is clocking data in and out of the SPIDATA registers

This bit is read-only.

SPISTATUS (READ/WRITE) CA9h

Table 26: SPI Control Register 2 Bit assignments

EBX-41 Reference Manual 55

Interfaces and Connectors

D7

D6

D5

D4

D3

D2

D1

D0

MSbit

LSbit

D7

D6

D5

D4

D3

D2

D1

D0

MSbit

LSbit

D7

D6

D5

D4

D3

D2

D1

D0

MSbit

LSbit

D7

D6

D5

D4

D3

D2

D1

D0

MSbit

LSbit

SPIDATA0 (READ/WRITE) CAAh

SPIDATA1 (READ/WRITE) CABh

SPIDATA2 (READ/WRITE) CACh

SPIDATA3 (READ/WRITE) CADh

SPIDATA3 contains the most significant byte (MSB) of the SPI data word. A write to this
register will initiate the SPI clock and, if the MAN_SS bit = 0, will also assert a slave select to
begin an SPI bus transaction. Increasing frame sizes from 8-bit uses the lowest address for the
least significant byte of the SPI data word; for example, the LSB of a 24-bit frame would be
SPIDATA1. Data is sent according to the LSBIT_1ST setting. When LSBIT_1ST = 0, the MSbit
of SPIDATA3 is sent first, and received data will be shifted into the LSbit of the selected frame
size set in the SPILEN field. When LSBIT_1ST = 1, the LSbit of the selected frame size is sent
first, and the received data will be shifted into the MSbit of SPIDATA3.

Data returning from the SPI target will normally have its most significant data in the SPIDATA3
register. An exception will occur when LSBIT_1ST = 1 to indicate a right-shift transaction. In
this case the most significant byte of an 8-bit transaction will be located in SPIDATA0, a 16-bit
transaction’s most significant byte will be located in SPIDATA1, and a 24-bit transaction’s most
significant byte will be located in SPIDATA2.

EBX-41 Reference Manual 56

I/O Device

Standard

I/O Addresses

Reserved

C80h-C9Bh

PLD Internal 8254 Timers

C9Ch-C9Fh

PLED and Product ID Register

CA0h

Revision Indicator Register

CA1h

BIOS and Jumper Status Register

CA2h

Interrupt Control Register

CA3h

Interrupt Status Register

CA4h

8254 Timer Control/Status Register

CA5h

Reserved

CA6h-CA7h

SPX Control Register

CA8h

SPX Status Register

CA9h

SPX Data Register 0

CAAh

SPX Data Register 1

CABh

SPX Data Register 2

CACh

SPX Data Register 3

CADh

Miscellaneous Control Register

CAEh

A/D, D/A Control/Status Register

CAFh

Super I/O Runtime Registers

C00h-C80h

COM0 Serial Port Default

3F8h– 3FFh

COM1 Serial Port Default

2F8h– 2FFh

6

6

On-board I/O Devices

System Maps

Table 27: On-board I/O Devices

EBX-41 Reference Manual 57

D7

D6

D5

D4

D3

D2

D1

D0

PLED

PC6

PC5

PC4

PC3

PC2

PC1

PC0

Bit

Mnemonic

Description

D7

PLED

Light Emitting Diode — Controls the programmable LED on connector J29.
0 = Turns LED off
1 = Turns LED on

D6-D0

PC(6:0)

Product Code — These bits are hard-coded to represent the product type. The VL-
EBX-41 is uniquely identified by the code 0000101.

PC6 PC5 PC4 PC3 PC2 PC1 PC0 Product Code
0 0 0 1 1 0 0 VL-EBX-41

These bits are read-only.

7

Special Registers

PLED and Product Code Register

PLEDPC (Read/Write) CA0h

Table 28: PLEDPC Register Bit Assignments

EBX-41 Reference Manual 58

PLD Revision and Type Register

D7

D6

D5

D4

D3

D2

D1

D0

PLD4

PLD3

PLD2

PLD1

PLD0

TEMP

CUSTOM

BETA

Bit

Mnemonic

Description

D7-D3

PLD(4:0)

PLD Code Revision Level — These bits are hard-coded and represent the PLD
code revision.

PLD4 PLD3 PLD2 PLD1 PLD0 Revision

0 0 0 1 0 Rev. 1.00A

These bits are read-only.

D2

TEMP

Temperature Rating — This bit indicates whether the VL-EBX -41 is rated for
standard or industrial temperature operation.

0 = Standard temperature operation
1 = Industrial temperature operation
This bit is read-only.

D1

CUSTOM

PLD Class — This bit indicates whether the PLD code is standard or customized.
0 = Standard PLD code
1 = Custom PLD code
This bit is read-only.

D0

BETA

Production Level — This bit indicates if the PLD code is at the beta or production
level.

0 = Production level PLD
1 = Beta level PLD
This bit is read-only.

REVTYP (Read-only) CA1h

This register is used to indicate the PLD revision level and model of the Copperhead.

Table 29: Revision and Type Register Bit Assignments

Special Registers

EBX-41 Reference Manual 59

BIOS and Jumper Status Register

D7

D6

D5

D4

D3

D2

D1

D0

BIOS_JMP

BIOS_OR

BIOS_SEL

Reserved

Reserved

Reserved

Reserved

GPI_JMP

Bit

Mnemonic

Description

D7

BIOS_JMP

System BIOS Selector Jumper Status — Indicates the status of the system
BIOS selector jumper at V6[1 -2].

0 = Jumper installed – Primary system BIOS selected
1 = No jumper installed – Secondary system BIOS selected
This bit is read-only.

D6

BIOS_OR

BIOS Jumper Override — Overrides the system BIOS selector jumper and
selects the BIOS with BIOS_SEL.

0 = No BIOS override

1 = BIOS override

D5

BIOS_SEL

BIOS Select — Selects the system BIOS when BIOS_OR is set.
0 = Primary BIOS selected
1 = Secondary BIOS selected

D4-D1

Reserved

These bits are reserved. Only write 0 to these bits and ignore all read values.

D0

GPI_JMP

General Purpose Jumper Status – Indicates the status of the general purpose
jumper at V6[3-4].

BIOSJSR (Read/Write) CA2h

Table 30: Special Control Register Bit Assignments

Special Registers

EBX-41 Reference Manual 60

CPU

Intel 3rd Generation Intel® Core™
Quad or Dual-Core Processor

Mobile 3rd Generation Intel®

Core™ Processor Family

Datasheet Vol. 1, Vol. 2, Update

Chipset

Intel QM77 Platform Controller Hub

Mobile Intel® QM77 Express
Chipset (Intel® BD82QM77
PCH)

Ethernet Controller

Intel 82574IT Ethernet Controller

Intel 8257IT Datasheet

PCIe/104 Interface

PCI/104-Express & PCIe/104
Express Specification

SUMIT Interface

SUMIT Specification

A

Appendix A – References

EBX-41 Reference Manual 61

D7

D6

D5

D4

D3

D2

D1

D0

IRQEN

IRQSEL2

IRQSEL1

IRQSEL0

reserved

IMSK_TC5

IMSK_TC4

IMSK_TC3

Bit

Mnemonic

Description

D7

IRQEN

IRQ Enable — Enables or disables an interrupt.
0 = Disable interrupt
1 = Enable interrupt

D6-D5

IRQSEL(2:0)

Specifies the interrupt mapping (this setting is ignored when IRQEN = 0 …

interrupts are disabled):
"000" IRQ3 (default)
"001" IRQ4
"010" IRQ5
"011" IRQ10
"100" IRQ6
"101" IRQ7
"110" IRQ9
"111" IRQ11

D4

Reserved

These bits are reserved. Only write 0 to these bits and ignore all read values.

D2

IMASK_TC5

Mask for the 8254 Timer #5 output (terminal count) Interrupt.
0 = Disable interrupt
1 = Enable interrupt

D1

IMASK_TC4

Mask for the 8254 Timer #4 output (terminal count) Interrupt.
0 = Disable interrupt
1 = Enable interrupt

D0

IMASK_TC3

Mask for the 8254 Timer #3 output (terminal count) Interrupt.
0 = Disable interrupt
1 = Enable interrupt

B B

Appendix B – Custom Programming

PLD Interrupts

The PLD can generate interrupts for the internal 8254 timers and the external SPI interrupt
(which includes the DIO device interrupt). The SPI interrupt settings are discussed in the section
on “SPX Expansion Bus.” This section covers the interrupt settings for the 8254 timers.

INTERRUPT CONTROL REGISTER

This register enables interrupts.

IRQCTRL (Read/Write) CA3h

Table 31: Interrupt Control Register Bit Assignments

Note: IRQ3, IRQ4, IRQ5, IRQ10 are also defined for the SPX interface interrupts. If one of these interrupts

EBX-41 Reference Manual 62

is selected for the SPX interface and also enabled here for the timer interrupts, then the interrupt sources
are combined (i.e., logically OR’d).

INTERRUPT STATUS REGISTER

D7

D6

D5

D4

D3

D2

D1

D0

Reserved

Reserved

Reserved

Reserved

Reserved

ISTAT_TC5

ISTAT_TC4

ISTAT_TC3

Bit

Mnemonic

Description

D7-D3

Reserved

These bits are reserved. Only write 0 to these bits and ignore all read values.

D2

ISTAT _TC5

Status for the 8254 Timer #5 output (terminal count) Interrupt when read.
0 = Timer output (terminal count) has not transitioned from 0 to a 1 level
1 = Timer output (terminal count) has transitioned from a 0 to a 1 level
This bit is read-status and a write-1-to-clear.

D1

ISTAT _TC4

Status for the 8254 Timer #4 output (terminal count) Interrupt when read.
0 = Timer output (terminal count) has not transitioned from 0 to a 1 level
1 = Timer output (terminal count) has transitioned from a 0 to a 1 level
This bit is read-status and a write-1-to-clear.

D0

ISTAT _TC3

Status for the 8254 Timer #3 output (terminal count) Interrupt when read.
0 = Timer output (terminal count) has not transitioned from 0 to a 1 level
1 = Timer output (terminal count) has transitioned from a 0 to a 1 level
This bit is read-status and a write-1-to-clear.

This register is used for reading the status of interrupts generated by the PLD.

IRQSTAT (Read-Status/Write-Clear) CA4h

Table 32: Interrupt Status Register Bit Assignments

Special Registers

The interrupt status register is valid whether the interrupt mask is set or not for the interrupt (that
is, it can be used for polled status). An interrupt status is acknowledged (cleared to a 0) by
writing a ‘1’ to the status bit.

The PLD implements an 8254 timer (consisting of three individual timers). The outputs of these
timers can generate interrupts when they transition from a 0 level to a 1 level (edge sensitive).

EBX-41 Reference Manual 63

8254 Timer Control Register

D7

D6

D5

D4

D3

D2

D1

D0

TIM5GATE

TIM4GATE

TIM3GATE

TM4MODE

TM4SEL

TM3SEL

Reserved

Reserved

Bit

Mnemonic

Description

D7

TIM5GATE

Sets the level on the Gate input for the 8254 Timer #5.
0 = GCTC5 Gate is disabled (set to a logic 0)
1 = GCTC5 Gate is enabled (set to a logic 1)

D6

TIM4GATE

Sets the level on the Gate input for the 8254 Timer #4.
0 = GCTC4 Gate is disabled (set to a logic 0)
1 = GCTC4 Gate is enabled (set to a logic 1)

D5

TIM3GATE

Sets the level on the Gate input for the 8254 Timer #3.
0 = GCTC3 Gate is disabled (set to a logic 0)
1 = GCTC3 Gate is enabled (set to a logic 1)

D4

TM4MODE

Configure how the 8254 Timer #4 and #5 are used.
0 – Timer #4 is cascaded with Timer #5 for a 32-bit timer
1 – Timer #4 operates in normal 16-bit mode

D3

TM4SEL

Configure the clock source for 8254 Timer #4.
0 – Timer #4 input clock is 4.167 MHz internal clock (PCI clock divided by 8)
1 – Timer #4 input clock is from User I/O connector Input ICTC4

D2

TM3SEL

Configure the clock source for 8254 Timer #3.
0 – Timer #3 input clock is 4.167 MHz internal clock (PCI clock divided by 8)
1 – Timer #3 input clock is from User I/O connector Input ICTC3

D1-D0

Reserved

These bits are reserved. Only write 0 to these bits and ignore all read values.

This register is used to set modes related to the inputs on the 8254 Timers.

TIMCNTRL (Read/Write) CA5h

Table 33: 8254 Timer Control Register Bit Assignments

Special Registers

An 8254 timer is implemented in the PLD. It contains three independent 16-bit timers. It is fully
software compatible with the Intel 8254, except that only binary counting modes are
implemented (the BCD control bit is implemented but ignored). See the Intel 82C54

Programmable Interval Timer Datasheet for register definitions and programming information.

There is an option to cascade two of the timers together in a 32-bit mode. The timers are
identified as Timer 3, 4, and 5. When Timers 4 and 5 are cascaded, Timer 4 is the LS 16-bits and
Timer 5 is the MS 16-bits. In this 32-bit cascade mode the timer output of Timer 4 feeds the
clock input of Timer 5. In this mode Timer 4 would normally be set so that it generates a clock
after counting the full 16-bit range, but there is no requirement to do this.

EBX-41 Reference Manual 64

Special Registers

The 32-bit cascade mode is set in TM4MODE in the Timer Control Register. There are also
internal or external clock selections for the timers in this register using the external clocks ICTC3
and ICTC4 signals on the connector at J19. The internal clock is the PCI clock divided by 8
(33.33 MHz / 8 = 4.167 MHz). ICTC3 can only be used with Timer 3. ICTC4 can only be used
with Timer 4. The clock for Timer 5 is always the internal clock except in the 32-bit cascade
mode when the output from Timer 4 is the clock for Timer 5.

The timer outputs can generate interrupts. When a timer output transitions from a 0 to a 1 then an
interrupt status bit is set and can generate an interrupt. This bit sticks until cleared.

By default there are two external timer input clocks (ICTC3, ICTC4) and two timer outputs
(OCTC3, OCTC4) on connector J19. To use all three of the 16-bit timers, timers 4 and 5 are
configured in 32-bit mode by default. Custom options are available that can expand the external
controls to allow for three clock inputs and four, timer outputs as well as three timer gate inputs
for all three 16-bit timers by using some of the digital I/O signal pins on J19.

EBX-41 Reference Manual 65

Miscellaneous Control Register

D7

D6

D5

D4

D3

D2

D1

D0

Reserved

MUXSEL2

MUXSEL1

MUXSEL0

Reserved

Reserved

Reserved

ADIOMODE

Bit

Mnemonic

Description

D7

Reserved

These bits are reserved. Only write 0 to these bits and ignore all read values.

D6-D4

MUXSEL(2:0)

mSATA/PCIe Minicard Mux Controls (these are typically only configured in
the BIOS setup):

“000” Use only J8 Pin 43. This is based on a newer mSATA module
detection method recommended by Intel due to conflicts with J8 Pin 51.
Reliable for all PCIe Minicards but some mSATA modules do not ground this

so using setting “010” is recommended.
“001” Use only J8 Pin 51. This is only reliable for mSATA modules which

drive this signal High and is not recommended.
“010” Use either J8 Pin 43 or J8 Pin 51 to detect mSATA modules. This

works on the majority of modules and is the recommended setting. Note:
This is the BIOS default setting.

“011” Force the multiplexer to always be used as a PCIe Minicard.
“100” Force the multiplexer to always be used as an mSATA module.
“101” Undefined
“110” Undefined
“111” Undefined

D3-D1

Reserved

These bits are reserved. Only write 0 to this bit and ignore read values.

D0

ADIOMODE

Selects how the 3 bits in the SS field of the SPICONTROL register are
decoded (see decodings in the SPICONTROL register documentation):

0 Use standard decodes (primarily used if accessing more than 2 SPX
Expansion interface devices or on products with 8 analog inputs and 4
analog outputs or on products that do not use the SUMIT SPI interfaces).
This is the power-on-reset default setting.

1 Use alternate decodes (primarily used on products with 16 analog inputs
and 8 analog outputs or for accessing the SUMIT SPI interfaces).

This register is used to configure the control of the mSATA/PCIe Minicard slot multiplexer and
for controlling the SPI access.

MISCCON (Read/Write) CAEh

Table 34: mSATA/PCIe Mux Control Register Bit Assignments

Special Registers

EBX-41 Reference Manual 66

A/D and D/A Control/Status Register

D7

D6

D5

D4

D3

D2

D1

D0

Reserved

Reserved

DACLDA1

DACLDA0

ADCBUSY1

ADCBUSY0

ADCONVST1

ADCONVST0

Bit

Mnemonic

Description

D7-D6

Reserved

These bits are reserved. Only write 0 to these bits and ignore all read values.

D5

DACLDA1

This is a write-only (pulsed) bit. When a ‘1’ is written it will strobe the LDAC signal
on the LTC2634 D/A Converter for channels 4-8. Writing a ‘0’ is ignored. LDAC is
only used to update all 4 channels in one operation.

D4

DACLDA0

This is a write-only (pulsed) bit. When a ‘1’ is written it will strobe the LDAC signal
on the LTC2634 D/A Converter for channels 1-4. Writing a ‘0’ is ignored. LDAC is
only used to update all 4 channels in one operation.

D3

ADCBUSY1

This read-only status bit returns the conversion status for the LTC1857 A/D for
channels 9-16

0 – A/D is idle.
1 – A/D is busy doing a conversion.

D2

ADCBUSY0

This read-only status bit returns the conversion status for the LTC1857 A/D for
channels 1-8

0 – A/D is idle.
1 – A/D is busy doing a conversion.

D1

ADCONVST1

This is a write-only (pulsed) bit. When a ‘1’ is written it will start a conversion on
the LTC1857 A/D converter for channels 9-16. Writing a ‘0’ is ignored.

D0

ADCONVST0

This is a write-only (pulsed) bit. When a ‘1’ is written it will start a conversion on
the LTC1857 A/D converter for channels 1-8. Writing a ‘0’ is ignored.

This register is used to control A/D and D/A conversion.

ADCONSTAT (Read/Write) CAFh

Table 35: A/D, D/A Control/Status Register Bit Assignments

Special Registers

EBX-41 Reference Manual 67
