Versalite OLD series Setup Manual
00P5L7080LSEA4 1
Versatile H.264 DVR
Setup Guide
Package Content
Inspect the packaging carton. Make sure the Versatile H.264 DVR is properly delivered. Remove all
items from the box and make sure the box contains the following items.
Versatile H.264 DVR SATA Cable
Power
Adaptor
Power Cord
User’s
Manual

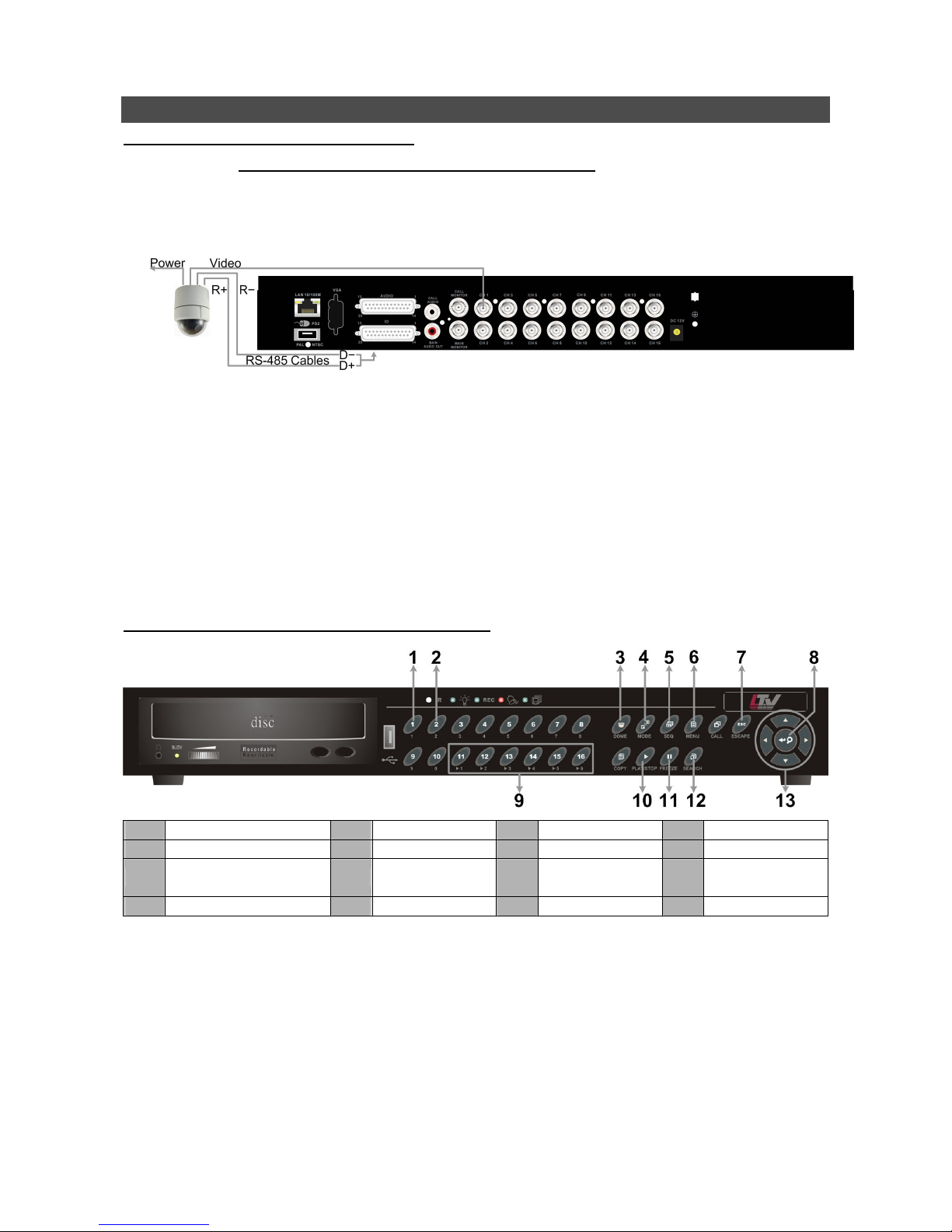

Front Panel
1 Channels
1. In Live and Playback modes, press any key to view the corresponding
video in full-screen.
2. In input interface, 1~10 can be used for direct input of numbers 0~9.
3. In Dome Camera Control mode, 1 is for entering the Set/ Go preset
menu; 2 is for hiding or displaying the hint screen; 11~16 is for quick
access of preset points 1~6.
2 Power LED
It lights up when power source is connected.
3 Record LED
It blinks when videos are being recorded.
4 Alarm LED
It lights up when an alarm is triggered.
5 Network LED
It lights up when network is connected. In addition, it blinks when data is
being transmitted via the network.
6 DOME
Press this key to enter Dome Camera Control mode.
7 MODE
Press this key to view in full-screen or multiple window modes.
8 SEQ
Press this key to start automatic sequence display of cameras.
9 MENU
Press this key to enter the OSD setup menu.
10 CALL
Press this key to control call monitor.
11 ESC
Press this key to cancel or exit from certain control mode.
12 ENTER
1. In OSD menu or selection interface, press these key to make the
selection or save settings.
2. In live full-screen viewing mode, press this key to view a 2× zoom
image; press it again to return.
13 USB 2.0 Port
The USB 2.0 port allows users to connect an external USB device to the
unit, such as a USB ThumbDrive or a USB mouse.
14 COPY
This key is used for marking time in quick video export function.
2
15 PLAY/STOP
Press once to start the playback of recorded video. Press again to exit.
16 FREEZE
Press this key to freeze the current viewing screen.
17 SEARCH
Press this key to search recorded video by date/time or event.
18 Direction Keys
1. In Zoom mode, these keys function as normal direction keys.
2. In the OSD setup menu, the direction keys are used to move the
cursor to previous or next fields. To change the value in the selected
field, press UP / DOWN keys.
Rear Panel
1
LAN 10/100M
(RJ-45)
The DVR is capable of networking. Once the unit is connected to the
LAN network, users can remotely access the DVR through the remote
software on a PC.
2
Main Monitor-
VGA(optional)
The DVR can connect to a monitor via an optional VGA connector.
3
Audio In
Audio In connectors are for the DVR to connect audio source devices.
For 4CH models, 4 RCA Audio In connectors will be provided; whereas
for 8CH and 16CH models, a D-Sub Audio In connector is provided.
4
Call Monitor
Audio Out
Call Monitor Audio Out RCA connectors are provided for the DVR to
connect audio output devices (e.g. amplified speakers). (8CH &16CH
models only)
5
Call Monitor
(BNC)
The call monitor is used to display full screen video of all installed
cameras in sequence. The BNC Call Monitor connector allows users to
connect the DVR with an optional call monitor. (8CH &16CH models
only)
6
Video In
(BNC)
A group of BNC connectors is provided for video input streams from
installed cameras.
7
USB Port
This USB port allows users to connect a PS/2 mouse via a converter.
8
Alarm I/O &
RS-485
The DVR provides alarm I/O and RS485 ports that offer users the
flexibility required to connect the DVR to other devices.
9
Main Monitor
Audio Out
Main Monitor Audio Out RCA connectors are provided for the DVR to
connect audio output devices (e.g. amplified speakers).
10
Main MonitorBNC
The DVR can connect to a monitor via a BNC connector.
11
Power Jack
The DVR has a free voltage DC power connection jack. Please connect
the power supply adapter shipped with the unit.
3
Pin Definition of Alarm I/O & RS-485, and Audio In
Alarm I/O & RS-485:
4CH models:
Pin Definition Pin Definition Pin Definition Pin Definition
1 Alarm Out Open 5 Alarm In 1 9 Alarm Out Close 13 GND
2 Alarm Out COM 6 Alarm In 2 10 GND 14 GND
3 RS485 D+ 7 Alarm In 3 11 GND 15 GND
4 RS485 D− 8 Alarm In 4 12 GND
8CH & 16CH models:
Pin Definition Pin Definition Pin Definition
1 Alarm Out Open 10 Alarm In 5 19 Alarm In 10 (16CH)
2 Alarm Out COM 11 Alarm In 6 20 Alarm In 11 (16CH)
3 RS485 D+ 12 Alarm In 7 21 Alarm In 12 (16CH)
4 RS485 D− 13 Alarm In 8 22 Alarm In 13 (16CH)
5 Reserved 14 Alarm Out Close 23 Alarm In 14 (16CH)
6 Alarm In 1 15 Reserved 24 Alarm In 15 (16CH)
7 Alarm In 2 16 Reserved 25 Alarm In 16 (16CH)
8 Alarm In 3 17 Reserved
9 Alarm In 4 18 Alarm In 9 (16CH)
Audio In:
Pin Definition Pin Definition Pin Definition Pin Definition
1 Audio 1 8 Audio 15 (16CH) 15 Audio 4 22 GND
2 Audio 3 9 GND 16 Audio 6 23 GND
3 Audio 5 10 GND 17 Audio 8 24 GND
4 Audio 7 11 GND 18 Audio 10 (16CH) 25 Reserved
5 Audio 9 (16CH) 12 GND 19 Audio 12 (16CH)
6 Audio 11 (16CH) 13 Reserved 20 Audio 14 (16CH)
7 Audio 13 (16CH) 14 Audio 2 21 Audio 16 (16CH)
Power On the DVR
Please follow the proper power on procedures to avoid damaging the DVR.
• Connect all necessary components, e.g. monitor and cameras, before power on the DVR.
• Check the type of power source before connecting the power adaptor to the DVR. The
acceptable power input is between AC110V ~ AC240V.
Select Viewing Mode:
• Press MODE repeatedly to select the wanted display mode. The available viewing modes are
full-screen, 2×2, 3×3, and 4×4 split-window.
• Press FREEZE to pause the current viewing image.
• Refer to the following for a brief description of some icons that will be shown on the monitor.
Icon Description Position Icon Description Position
►
Playback Mode Lower-left corner
Key Locked Center-bottom
N Not Logged-in Upper-right corner 1~8 User’s Authority Level Upper-right corner
