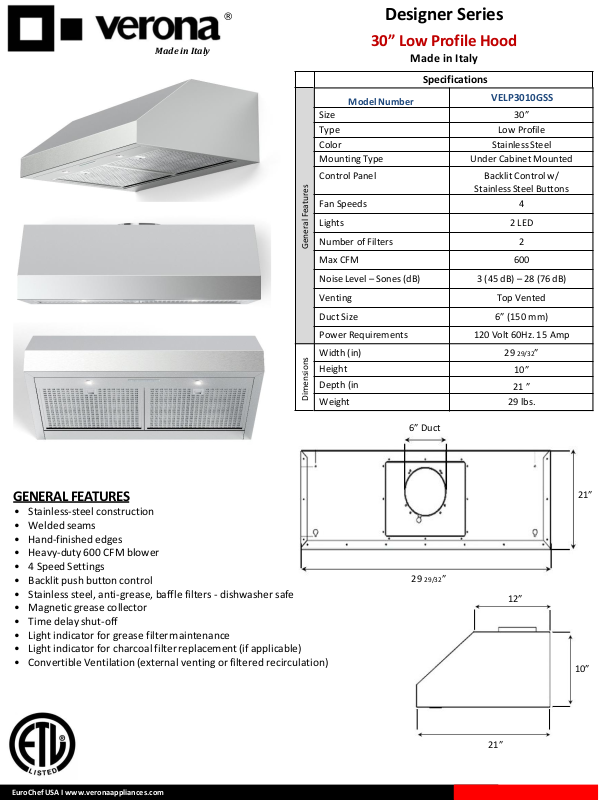

EuroChef USA I www.veronaappliances.com
Made in Italy
Designer Series
30” Low Profile Hood
Made in Italy
GENERAL FEATURES
• Stainless-steel construction
• Welded seams
• Hand-finishededges
• Heavy-duty 600 CFM blower
• 4 Speed Settings
• Backlit push button control
• Stainless steel, anti-grease, baffle filters - dishwasher safe
• Magnetic grease collector
• Time delay shut-off
• Light indicator for grease filtermaintenance
• Light indicator for charcoal filterreplacement (if applicable)
• ConvertibleVentilation(external venting orfiltered recirculation)
Specifications
General
Features
Model Number
VELP3010GSS
Size
30”
Type
Low Profile
Color
Stainless Steel
Mounting Type
Under Cabinet Mounted
Control
Panel
Backlit Control w/
Stainless Steel Buttons
Fan
Speeds 4
Lights
2 LED
Number of Filters
2
Max
CFM 600
Noise
Level – Sones (dB) 3 (45 dB) – 28 (76 dB)
Venting
Top Vented
Duct Size
6” (150 mm)
Power
Requirements 120 Volt 60Hz. 15 Amp
Dimensions
Width
(in)
29 29/32”
Height
10”
Depth
(in
21 ”
Weight
29 lbs.
6” Duct
29 29/32”
21”
10”
21”
12”
