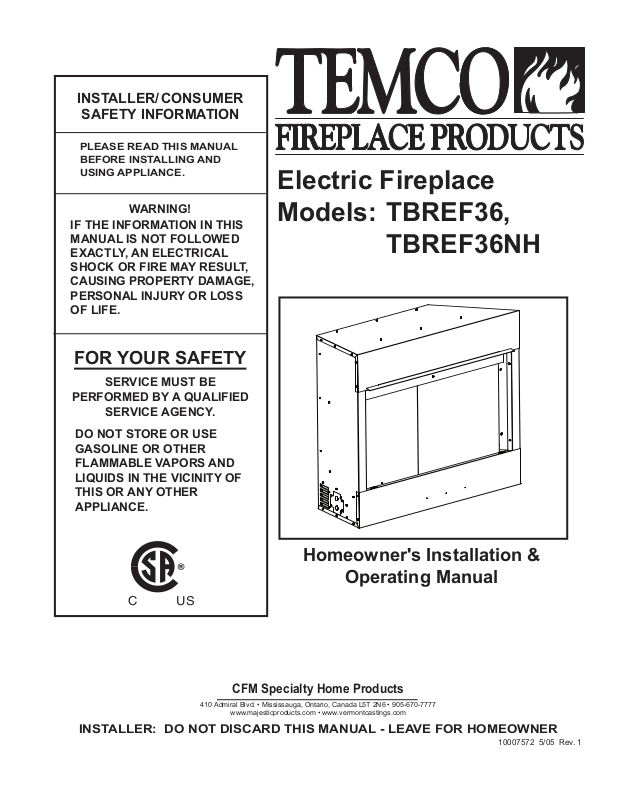

Vermont Casting TBREF36NH, TBREF36 User Manual

INSTALLER/CONSUMER SAFETY INFORMATION

PLEASE READ THIS MANUAL BEFORE INSTALLING AND USING APPLIANCE.

WARNING!

IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, AN ELECTRICAL SHOCK OR FIRE MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

FOR YOUR SAFETY

SERVICE MUST BE

PERFORMED BY A QUALIFIED

SERVICE AGENCY.

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.

CUS

Electric Fireplace

Models: TBREF36,

TBREF36NH

Homeowner's Installation &

Operating Manual

CFM Specialty Home Products

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777 www.majesticproducts.com • www.vermontcastings.com

INSTALLER: DO NOT DISCARD THIS MANUAL - LEAVE FOR HOMEOWNER

10007572 5/05 Rev. 1

TBREF Electric Fireplace

Table of Contents

Please read the Installation & Operating Instructions before using this appliance.

Thank you, and Congratulations on your purchase of a CFM Specialty Home Products Electric Fireplace.

IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in possible electric shock, fire hazard, and/or injury, and will void the warranty.

Installation Instructions
General Information.....................................................................................................	3
Wiring ..........................................................................................................................	3
Electrical Connection...................................................................................................	3
Fireplace Dimensions..................................................................................................	4
Electrical Specifications...............................................................................................	4
Mantels........................................................................................................................	5
Framing .......................................................................................................................	5
Finishing ......................................................................................................................	6
Locating your Electric Fireplace ..................................................................................	6
Clearance to Combustibles .........................................................................................	6
Hearth..........................................................................................................................	6
Cabinet Installations ....................................................................................................	6
Main Power Wall Switch Wiring...................................................................................	6
120 Volt Wall Switch Wiring Installation.......................................................................	6
240 Volt Wall Switch Wiring Installation.......................................................................	7
120/240 Volt Wall-Mounted Thermostat Wiring ..........................................................	7
Installation Cautions ....................................................................................................	7
120 Volt Unit Installation..............................................................................................	8
120 Volt (NH) Unit Installation .....................................................................................	8
240 Volt Unit Installation..............................................................................................	8
Resetting the Temperature Cutout Switch...................................................................	8
Screen Kit Installation ................................................................................................	9
Service Instructions
Maintenance of Motor..................................................................................................	9
Replacing Light Bulbs..................................................................................................	9
Cleaning Trim ..............................................................................................................	9

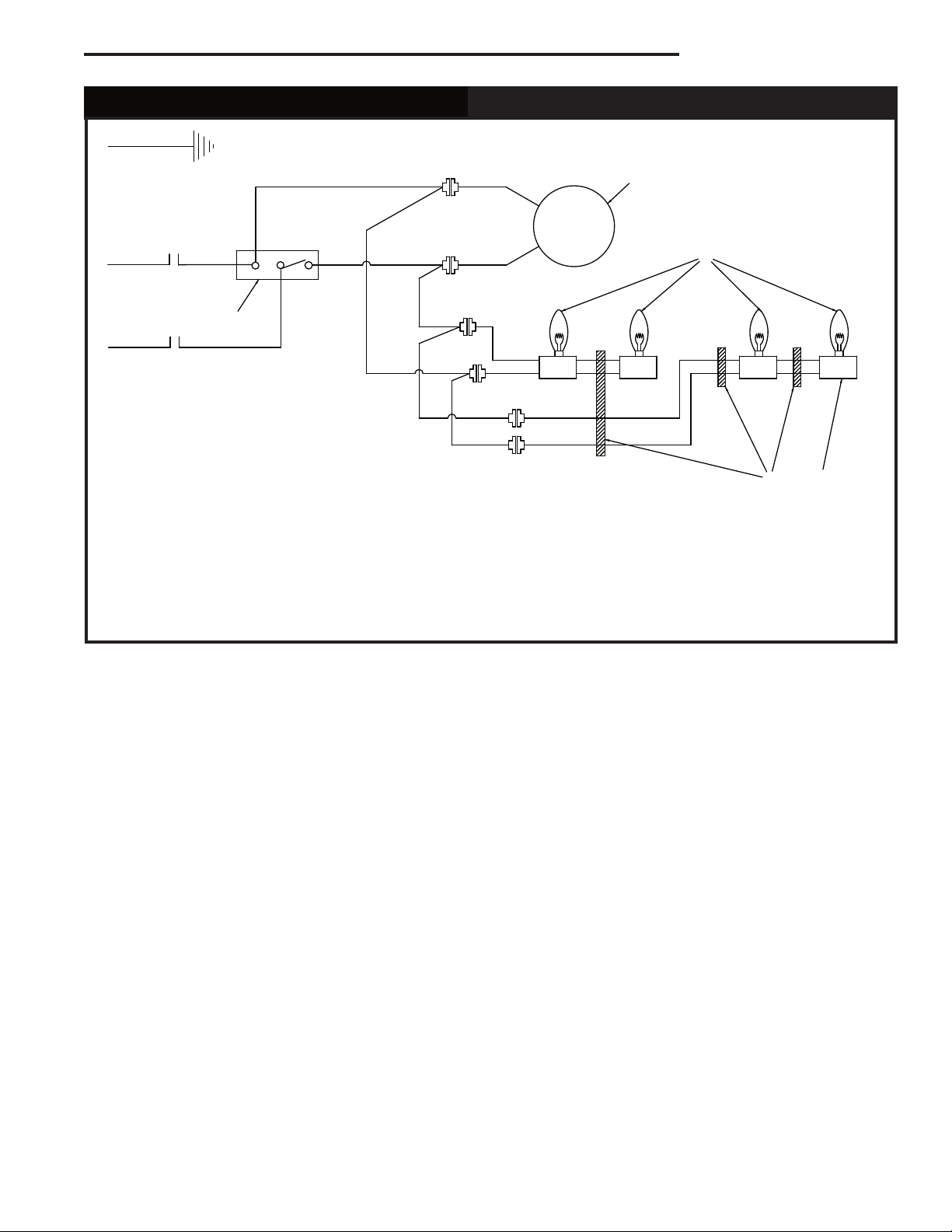

Electrical Diagram with Heater and Intregral Remote Control...................................	10
Electrical Diagram without Heat and Integral Remote Control ...................................	11
Operating Instructions
On/Off Switch ............................................................................................................	12
Heater Control ...........................................................................................................	12
Replacement Parts ..............................................................................................................	13
Accessories .......................................................................................................................	14
Warranty ...............................................................................................................................	15

2

10007572

TBREF Electric Fireplace

Installation Instructions

General Information

1.Read all instructions before using this appliance.

2.This appliance is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this appliance. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least

3 feet (1 m) from the front of this appliance.

CAUTION: Extreme caution is necessary when any heater is used by or near children or invalids, and whenever the heater is left operating and unattended.

3.Do not operate any heater if the appliance malfunctions, or if it has been dropped or damaged in any manner.

4.Any repairs to this fireplace should be carried out by a qualified service person.

5.Under no circumstances should this fireplace be modified. Parts having to be removed for servicing must be replaced prior to operating this fireplace again.

6.Do not use outdoors.

7.This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate this appliance where it may fall into a bathtub or other water container.

8.This appliance, when installed, must be electrically grounded in accordance with local codes, or, in the absence of local codes, with the current CSA C22.1 Canadian Electrical Code; for U.S.A. installations, follow local codes and the National Electrical Code, ANSI/NFPA NO. 70.

9.Do not insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock or fire, or damage the appliance.

10.To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use on soft surfaces (e.g., beds) where openings may become blocked.

11.This appliance has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint or flammable liquids are used or stored. This fireplace should not be used as a drying rack for clothing, nor should Christmas stockings or decorations be hung in the area of it.

12.Use this appliance only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.

13.Do not burn wood or other materials in this fireplace.

14.Do not strike the fireplace glass.

15.Always use a certified electrician for installation.

16.Disconnect all power coming to fireplace at main service panel before performing any cleaning or maintenance.

17.Do not install this fireplace on carpet or vinyl floors, as discoloration may occur.

18.SAVE THESE INSTRUCTIONS.

Wiring

Ensure the power conversion/switch (if equipped) is in the proper position for re-

quired supply voltage prior to connecting the unit to power supply.

Do not use this fireplace if any part of it has been under water. Immediately call a qualified service technician to inspect the fireplace and replace any part of the elec-

trical system that has been under water.

A qualified electrician must perform any electrical wiring of this appliance. This wir-

ing must be done in accordance with local codes, and/or in Canada, with the current CSA C22.1 Canadian Electrical code; for

U.S.A. installation, National Electrical Code

ANSI/NFPA No. 70.

NOTES: The unit is shipped from the factory configured for 120 Volt operation.

Ensure the power conversion switch is in the proper position for the required supply voltage.

All wiring must be completed prior to installing the unit.

Electrical Connection

1.Loosen the screws securing junction box cover.

2.Remove knockouts in the box cover to use a cable clamp.

3.Place the unit in position in the opening. Level it with shims if necessary, and attach the unit to the frame using the nailing flanges provided.

4.The unit is factory wired for 120 Volt power supply.

If 208/240 Volt operation is required, flip the switch located on junction box and reconfigure the wiring as covered on page 7. Wires L1, L2, N, and G are located inside the junction box.

5.Wire a dedicated, properly fused, 20 Amp rated circuit for appropriate voltage (120 or 208/240).

6.Place all connectors inside junction box and replace the cover to ensure connections are tight.

10007572

3

TBREF Electric Fireplace

Fireplace Dimensions

				Rough
	M			Opening
				Depth
	1/2" (13mm)
				L	G
			(16mm)
M	O
		5/8"			Rough
		N			Opening
					Height
					J
					B
			3 "
		(95mm)
			2 "		7 "
					(192mm)
			(60mm)

Fig. 1 Fireplace specifications and framing dimensions.

H

5/8" (16mm) Recessed Nailing Flange

K Rough Opening Width

	E
C	F D
	E

A

Ref. TBREF36/TBREF36NH

A40" (1016mm)

B	36"	(914mm)
C	36"	(914mm)
D	21"	(533mm)
E	7¹⁄ "	(191mm)

F19³⁄ " (502mm)

G	14"	(356mm)
H	27¹⁄ "	(698mm)

Framing Dimensions

J36¹⁄ " (927mm)

K

41"

(1041mm)

L14" (356mm)

M37¹⁄ " (953mm)

N54" 1372mm)

O27" (686mm)

Electrical Specifications

Voltage:	120 Volt	120	Volt (NH)	240 Volt
Total Amps:	13 Amps	2 Amps		12.9 Amps
Total Watts:	1550 Watts	240	Watts	3100 Watts
Heater Rating:	1455 Watts	N/A		2855 Watts

4

10007572

Mantels

The height that a combustible mantel is fitted above the

fireplace is dependent on the depth of the mantel. This also applies to the distance between the mantel leg (if

fitted) and the fireplace.

For correct mounting height and width, refer to Figure 2a and 2b.

The distances and reference points are not affected by the fitting of a bay window front trim kit.

Noncombustible mantels and legs may be installed at any height and width around the appliance.

When using paint or lacquer to finish the mantel, such paint or lacquer must be heat-resistant to prevent discoloration.

Mantel Clearances

V

W

X

Y

Z Wall

A B C D E

Top of Combustion Chamber

CFM146b

Ref.	Mantel Shelf	Ref.	Mantel from Top
	Depth		of Comb. Chamber
V	14" (356mm)	A	25" (635mm)
W	12" (305mm)	B	23" (584mm)
X	10" (254mm)	C	21" (533mm)
Y	8" (203mm)	D	19" (483mm)
Z	1¹⁄ " (38mm)	E	15" (381mm)

Fig. 2a Combustible mantel minimum installation.

TBREF Electric Fireplace

Black	J I H	G
Surround
Face	Mantel Leg	F

CFM164a

Side of Combustion	MLK
Chamber	N
	O

			CFM170
Ref.	Mantel	Ref.	Mantel Leg from Side
	Leg Depth		of Comb. Opening
F	14" (356mm)	K	14" (356mm)
G	12" (305mm)	L	12" (305mm)
H	10" (254mm)	M	10" (254mm)
I	8" (203mm)	N	8" (203mm)
J	1¹⁄ " (38mm)	O	1¹⁄ " (38mm)
Fig. 2b	Combustible mantel leg minimum installation.

Framing

1.Choose fireplace location.

2.Place fireplace into position.

3.Frame in the fireplace with a header across the top.

It is important to allow for finished face when setting the depth of the frame.

Four (4) nailing flanges are supplied with the fireplace

(found on the fireplace hearth). To level the box and secure it firmly in place, remove the nailing flanges from the hearth and install at the sides of the fireplace as shown in Figure 3.

10007572

5

TBREF Electric Fireplace

Nail side-nailing flange

FP549

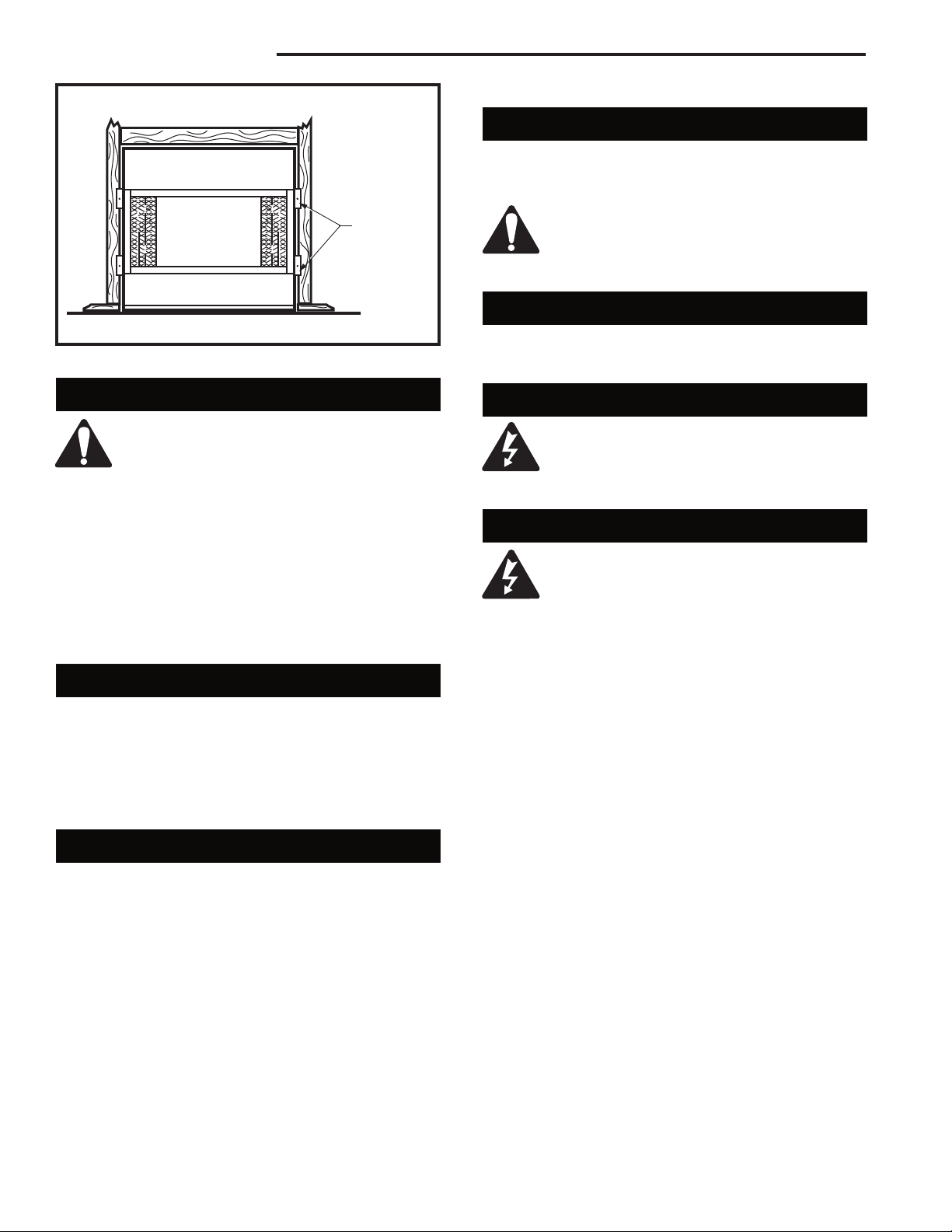

Fig. 3 Adjustable drywall strip (nailing flange).

Finishing

CAUTION: All joints between the finished wall and the appliance surround (top and sides) may be sealed only with noncom-

bustible material. Only noncombustible material can be applied as facing to

the appliance surround (the black painted face).

When finishing the appliance, never obstruct or modify the air inlet/outlet grilles in any manner.

NOTE:Finish the wall with the material of

your choice. Refer to Figures 2a and 2b for specific clearances when installing a combustible mantel or other combustible projection.

Locating your Electric Fireplace

Your new fireplace may be installed into an existing masonry or zero-clearance fireplace. It may also be installed using a prefabricated cabinet available from your dealer, or be built into a wall.

When choosing a location for your new fireplace, ensure that the general instructions are followed. Also, for best effect, install the fireplace out of direct sunlight.

	Clearance to Combustibles
Sides	......................................................... 0" (0 mm)
Floor..........................................................	0" (0 mm)
Top ...........................................................	0" (0 mm)

Hearth

A hearth is not mandatory; however, for aesthetic purposes, we recommend use of a noncombustible hearth that does not obstruct the air openings.

Cold Climate Installation: To conform to applicable insulation codes, it is mandatory the outer walls be insulated when installing this unit against a non-insulated exterior wall or chase.

Cabinet Installations

Cabinets are available from your dealer which allow fast, convenient installation of your fireplace against existing walls.

Main Power Wall Switch Wiring

To reduce the risk of fire, electrical shock, and personal injury, before attempting maintenance or service, disconnect all power to the fireplace

at the main service panel.

120 Volt Wall Switch Wiring Installation

A qualified electrician must perform any electrical wiring of this appliance. For Canadian installations, wiring must be done

in accordance with local codes, and/or the current CSA C22.1 Canadian Electrical Code. For U.S.A. installations, wiring must be done in accordance with the National Electrical Code ANSI/NFPA No. 70.

NOTE: For 120 Volt installations, use a single-pole, single-throw, 20 Amp-rated wall switch.

Wiring of the wall switch must be completed prior to installing the unit.

Connect the wall-mounted switch to the fireplace by running grounded 2-conductor wire (Min.14 AWG) to the switch from the junction box on the side of the unit.

1.Locate the voltage selection switch under the logset on the left front corner of the unit.

2.Ensure the switch is in the 120 Volt position.

3.Loosen the screws securing the junction box cover, and remove the cover.

4.Remove knockouts in the box cover to use a cable clamp.

5.Pull out two (2) wires: black and white.

6.Connect the hot wire (black) from the wall switch to the L1 (black) wire on the unit, and the other wire from the wall switch to the L1 (black) wire on the power supply.

7.Connect the white wire from the unit to the neutral

(white) wire on the power supply.

6

10007572

8.Connect the ground wire from the wall switch to the wire grouping from the power supply and the ground stud in the junction box.

9.Make sure the red wire (L2) in the junction box has a closed end splice or a wire nut properly applied.

10.Ensure all connections are tight. Insert all wiring inside the junction box and secure the cover.

240 Volt Wall Switch Wiring Installation

A qualified electrician must perform any electrical wiring of this appliance. For

Canadian installation, wiring must be done in accordance with local codes, and/or the current CSA C22.1 Canadian Electrical Code. For U.S.A. installation, wiring must be done in accordance with the National Electrical Code ANSI/NFPA No. 70.

NOTE: For 240 Volt installations, use a doublepole, single-throw, 20 Amp, 240V rated wall switch.

Wiring of the wall switch must be completed prior to installing the unit.

Connect the wall-mounted switch to the fireplace by running grounded 3-conductor wire (MIN. 14 AWG) to the switch from the junction box on the side of the unit.

1.Locate the voltage selection switch under the logset on the left front corner of the unit.

2.Move the switch from the 120 Volt to the 240 Volt position.

3.Loosen the screws securing the junction box cover, and remove the cover.

4.Remove knockouts in the box cover to use a cable clamp.

5.Pull out three (3) wires: black, red, and white.

6.Connect one (1) wire (black) from the wall switch to the L1 (black) wire on the unit, and the other wire from the wall switch to the L1 (black) wire on the power supply.

7.Connect one (1) of the wires from the wall switch to the L2 (red) wire on the unit, and the other wire from the wall switch to the L2 (red) wire on the power supply.

8.Connect the white wire from the unit to the neutral (white) wire on the power supply.

9.Connect the ground wire from the wall switch to the wire grouping from the power supply and ground stud in the junction box.

10.Ensure all connections are tight. Insert all wiring inside the junction box and secure the cover.

TBREF Electric Fireplace

120/240 Volt Wall-Mounted

Thermostat Wiring

Before attempting maintenance or ser- vice—to reduce risk of fire, electrical

shock and personal injury—disconnect all power to the fireplace at the main service panel.

NOTE: Wiring of the wall thermostat must be completed prior to the installation of the unit.

Use a single pole thermostat rated for 120/240 Volt operation.

When installing the wall thermostat, make sure to turn the heater control inside fireplace all the way clockwise to the highest set point temperature.

Connect the wall-mounted thermostat to the fireplace by running a grounded 2-conductor wire (min. 14 AWG) to the thermostat from the junction box on the side of the unit.

1.Loosen the screws securing the junction box cover and remove the cover.

2.Remove knockouts in the box cover to use a cable clamp.

3.Pull out the two (2) brown wires with the closed end splice at the end.

4.Cut off the closed end splice, separate the two wires, and strip approximately 5/8" (15mm).

5.Connect one (1) wire from the thermostat to one (1) of the brown wires; connect the other wire from the thermostat to the other brown wire.

6.Connect the ground wire from the wall thermostat to the power supply wire group and the ground stud in the junction box.

7.Ensure all connections are tight. Insert all wiring into the junction box and secure the cover.

Installation Cautions

Make sure the power is turned OFF before proceeding.

If repairing or replacing any electrical component or wiring, the original wire routing, color coding and securing locations must be followed.

Any electrical repairs or rwiring of thisunit should be carried out by a licensed electrician in accordance with natioinal and local codes.

10007572

7

TBREF Electric Fireplace

120 Volt Unit Installation

1.Locate the switch under the logset on the left front corner of the unit.

2.Check the voltage selection switch position to ensure it is in the 120 Volt position.

3.Loosen the screws securing the junction box cover and remove the cover.

4.Remove knockouts in the box cover to use the cable clamp.

5.Pull out two (2) wires: black and white.

6.Connect the black wire from the unit to the L1 (black) from the power supply. Connect the white wire from the unit to the neutral (white) from the power supply.

NOTE: Wiring must be connected to a 20 Amp dedicated circuit breaker or fuse in the electrical panel of the dwelling.

7.Connect the ground wire from the power supply to ground stud in the junction box.

8.Make sure the red wire (L2) in the junction box has a closed end splice or a wire nut properly applied.

9.When the unit has been configured for the appropriate power supply voltage, ensure all connections are tight. Insert all wiring inside the junction box and secure the cover.

10.Turn the power to the unit on at the breaker/fuse panel. Place the unit into operation and check to make sure the whole system is operating properly.

120 Volt (NH) Unit Installation

1.Loosen the screws securing the junction box cover and remove the cover.

2.Remove knockouts in the box cover to use the cable clamp.

3.Pull out two (2) wires: black and white.

4.Connect the black wire from the unit to the L1 (black) from the power supply. Connect the white wire form the unit to the neutral (white) form the power supply.

5.Connect the ground wire from the power supply to the ground stud in the junction box.

6.Ensure all connections are tight. Insert all wiring inside the junction box and secure the cover.

7.Turn the power to the unit on at the breaker/fuse panel. Place the unit into operation and check to make sure the system is operating properly.

240 Volt Unit Installation

1.Locate the voltage selection switch under the logset on the left front corner of the unit.

2.Check the switch position to ensure it is in the

240 Volt position.

3.Loosen the screws securing the junction box cover and remove the cover.

4.Remove knockouts in the box cover to use the cable clamp.

5.Pull out three (3) wires: black, red, and white.

6.The unit is shipped from factory with a closed end splice on the red wire. Cut off this splice and strip approximately 5/8" (15mm) wire sheathing.

7.Connect the black wire from the unit to the L1 (black) from the power supply. Connect the red wire from the unit to the L2 (red) from the power supply. Connect the white wire from the unit to the neutral (white) from the power supply.

NOTE: Wiring must be connected to a 20 Amp dedicated circuit breaker or fuse in the electrical panel of the dwelling.

8.Connect the ground wire from the power supply to ground stud in the junction box.

9.When the unit has been configured for the appropriate power supply voltage, ensure all connections are tight. Insert all wiring inside the junction box and secure the cover.

10.Turn the power to the unit on at the breaker/fuse panel. Place the unit into operation and check to make sure the whole system is operating properly.

Resetting the

Temperature Cutout Switch

To reduce the risk of fire, electrical shock, and personal injury, before attempting maintenance or service, disconnect all power to the fireplace at the main service panel.

NOTE:The heater on this fireplace is protected with a safety limit device to prevent overheating. Should the heater overheat, an automatic cutout turns the heater OFF; it will not come back ON without being manually reset.

The safety limit device is located in a cutout at the right front top corner by the cover fan/heater. To reset the switch, insert a small flat screwdriver into this cutout and push the reset button on the safety limit device.

Safety Limit Device

Cover Fan/

Heater

Small Flat Screwdriver

FP1452

Fig. 4 Reset the switch with a small flat screwdriver.

8

10007572

TBREF Electric Fireplace

Screen Kit Installation

1. Remove the plastic bag from each screen.

(Clip)

2. Remove the four (4) metal clips, two (2) for each side of the fireplace opening.

3. Slide screen panels against sides of the fireplace opening.

4.Align each metal clip with the hole it was removed from, while at the same time, hooking the clip through the last wire of the screen. Snap clips into

place. (Fig. 5)

5. Pull screens back and forth to ensure they work	FP1041
freely.	Clip installation.
Fig. 5

Service Instructions

To reduce the risk of fire, electrical shock or personal injury, disconnect all power coming to the fireplace at the main service panel before attempting any maintenance or cleaning.

Maintenance of Motor

The motors used on the fan and the drum assemblies are prelubricated for extended bearing life, and require no further lubrication. However, periodic cleaning/vacuuming of the fan/heater is recommended.

Replacing Light Bulbs

This fireplace uses four (4) clear, 120 Volt, 60 Watt, E-12 socket base (small base, chandelier candle-type) light bulbs. These lights are located under the ember bed of the unit.

Do not exceed 60 Watts per bulb. Use of higher-rated bulbs may result in fire, causing property damage, personal injury, or loss of life.

NOTE: For the sake of convenience, you may wish to consider replacing all the light bulbs if one of them burns out.

1.Turn OFF the power to the unit at the main service panel.

2.If the fireplace has been operating, allow it to cool.

3.Open glass (if applicable); open steel curtain.

4.Remove the four (4) screws securing the ember bed in position. Two (2) screws are located on either side of the ember bed near the front and rear.

5.Examine the bulbs to determine which one(s) need to be replaced (if you are not going to replace all).

7.Install new light bulb(s) by screwing in while holding the socket.

8.Reinstall the ember bed, log set, glass door, and steel curtain.

Cleaning Trim

Clean the trim using a soft cloth you have slightly dampened with lemon oil; then buff with a clean soft cloth.

NOTE:You can obtain lemon oil at super-markets and hardware stores. Do not use commercially made brass polish or household cleaners, as these products will damage the trim.

10007572

9

TBREF Electric Fireplace

Electrical Wiring Diagram with Heater and Integral Remote Control

G

L1

4 BLACK

12
	2b	1b
16	2	1
13	2a	1a
L2	25 RED
N	23 WHITE

1 WHITE

REAR

11 RED

FRONT

1

2 WHITE

22 WHITE

16 BLACK

13 RED

16 BLACK

4

BLACK12

15

5

FAN/HEATER

15 BLACK

MOTOR

2

T'S

1

2

3

14 BROWN

6 RED

3

4

5

6

14 BROWN

COIL

21 WHITE

24 WHITE

BLACK4

19 WHITE

3

7

BLACK5

9

FLAME

9 BLACK

MOTOR

WHITE20

10 BLACK

8 BLACK

18 WHITE BLACK

3 BLACK

7 BLACK WHITE

BLACK

BLACK

BLACK

RED

WHITE

17

17 WHITE

WHITE

11

10

IN OUT IN OUT

N

N

L

L

	Component Identification
1.	Heater Element	9.	Light Bulb
2.	Limit Control, 175/20 DIF	10.	Light Socket w/Wiring Assembly
3.	Relay Switching, 120V, 50/60Hz	11.	Cable Tie Nylon 6"-1¹⁄" Black
4.	Fan/Heater Motor	12.	Bushing Snap, Split 1"
5.	Thermostat	13.	Closed End Splice 2/18 Ga. Wire
6.	Switch, Rocker	14.	CFM Wire Req'd BREF36
7.	Switch	15.	Sensor, 230°F Manual Reset
8.	Flame Motor	16.	Closed End Splice 3/4" 18GA Wire
		17.	Receiver

FP1541

Fig. 6 Wiring diagram for models with heat.

10

10007572

TBREF Electric Fireplace

Electrical Wiring Diagram without Heater and Integral Remote Control

G

				7 WHITE		2
						MOTOR
						FLAME
N	8 WHITE	3	2	1 4 BLACK		3
	O			I
	1			3 BLACK
L1	1 BLACK				BLACK
				6 WHITE
					WHITE
					2 BLACK	BLACK
					5 WHITE	WHITE

5 4

CFM Component Identification

1.Switch

2.Flame Motor

3.Light Bulb

4.Light Socket w/Wiring Assembly

5.Cable Tie Nylon 6" - 1¹⁄" Black

6.CFM Wire req'd

FP1540

Fig. 7 Wiring diagram for models without heat.

10007572

11

TBREF Electric Fireplace

Operating Instructions

The control compartment is located inside the fireplace behind the steel curtain near the left front corner. To access the controls, simply slide the steel curtain open.

1. ON/OFF Switch

The ON/OFF switch is for supplying power to light effects of the fireplace. This switch is normally illuminated to indicate that there is electrical power to the unit.

2. Heater Control

The heater control acts to turn the heater ON and OFF, as well as setting the comfort level in the room.

Turn the knob clockwise from the "OFF" position to place the heater into operation. The further the knob is rotated clockwise, the higher the set point temperature.

Turn the knob counterclockwise to lower the set point temperature. Turn it all the way counterclockwise to turn the heater function OFF.

Control Panel

1. ON/OFF Switch

2. Heater Control

FP1451

Fig. 8 Control panel.

NOTE: The device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1.This device may not cause harmful interference, and

2.This device must accept any interference received, including interference that my cause undesired operation.

12

10007572

TBREF Electric Fireplace

TBREF36, TBREF36NH 1

2

3

4

7 5

6

8

	9
	15
13	11

14
16	12

	20
		17

CFM Specialty Home Products reserves the right to make changes in design, materials, specifications, prices and discontinue colors and products at any time, without notice.

TBREF36, TBREF36NH Electric Fireplace

10007572

13

TBREF Electric Fireplace

TBREF36, TBREF36NH Electric Fireplace (continued)

Ref.	Description	TBREF36	TBREF36NH
1.	Log Set Complete	10007423	10007423
2.	Heater Element	10004584	--
3.	Motor, AC, w/Terminals	10004262	10004262
4.	Rocker Switch (Illuminated)	10001393	10001393
5.	Thermostat - Heater Control	10002987	--
6.	Fan w/Bracket Assembly	10004695	--
7.	Sensor, 230°F Manual Reset	10004720	--
8.	Knob - Heater Controls	10001639	--
9.	Plate Control Assembly	10007443	10007608
10.	Screen Tinted Plastic (not shown)	10007430	10007430
11.	Ember Lava Rock	10007461	10007461
12.	Flame Generator Assembly	10003350	10003350
13.	Support Plate	10007434	10007434
14.	Plate Log Support Assembly	10007447	10007447
15.	Socket Light Bulb Lower Assembly	10006453	10006453
16.	Limit Control, 175/20 DIF	10001172	--
17.	Transmitter	10008487	--
18.	Receiver	10008487	--
19.	CFM Wire Req'd (not shown)	10006382	10007639
20.	Screen Assembly	7554338	7554338
21.	Screen Rod	10007433	10007433
22.	One Piece Screen Pull (2 per Fireplace)	7554239	7554239
23.	Cable Clip (4 per Fireplace)	7512135	7512135

NOTE: Items 17 and 18 (Transmitter and Receiver) must be replaced as a set.

Accessories

The following accessories for these appliances are available from your local CFM Specialty Home Products distributor.

NOTE: Each accessory comes with a separate installation instruction for mounting to the particular appliance. Be sure to read each instruction thoroughly before installing.

See your CFM Specialty Home Products distributor or dealer for other finishing options, such as marble and mantels that are available in a wide selection of styles.

Accessory	Description	Model Number
Thermostat	Wall Thermostat, electric fireplace	EBWT
Power Cord		10003095
Refractory Kit	Refractory panels give the appliance
	a realistic brick look	BREF36RK
Bi-fold Glass Doors	Glass doors enhance the viewing area	Brushed Brass - 36GDKBB
	of the fire	Black - 36GDKBK
		Polished Brass - 36GDKDP
		Pewter - 36GDKS

14

10007572

1 YEAR WARRANTY

For TEMCO FIREPLACE PRODUCTS Electric Fireplaces

BASIC WARRANTY:

CFM Specialty Home Products (hereinafter referred to collectively as the "Company") warrants that your new Majestic Fireplaces® fireplace is free from manufacturing and material defects for a period of one year from date of installation, subject to the following conditions and limitations.

1.This electric fireplace must be installed and operated at all times in accordance with the Installation and Operating instructions furnished with the product. Any alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.

2.This warranty is non-transferrable, and is made to the original owner, provided that the purchase was made through an authorized supplier of the Company.

3.This warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship, provided that such part(s) have been subjected to normal conditions of use and service, after said defect is confirmed by the Company's inspection.

4.This warranty does not cover the lightbulb(s) included with the fireplace.

5.The Company may, at its discretion, fully discharge all obligations with respect to this warranty by refunding the wholesale price of the defective part(s).

6.Any installation, labour, construction, transportation, or other related costs/expenses arising from defective part(s), repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the Company assume responsibility for same. Further, the Company will not be responsible for any incidental, indirect, or consequential damages, except as provided by law.

7.All other warranties - expressed or implied - with respect to the product, its components and accessories, or any obligations/liabilities on the part of the Company are hereby expressly excluded.

8.The Company neither assumes, nor authorizes any third party to assume, on its behalf, any other liabilities with respect to the sale of this Majestic Fireplaces product.

9.The warranties as outlined within this document do not apply to non CFM Specialty Home Products accessories used in conjunction with the installation of this product.

This warranty is void if:

a)The fireplace has been operated in atmospheres contaminated by chlorine, fluorine or other damaging chemicals.

b)The fireplace is subjected to prolonged periods of dampness or condensation.

c)Any alteration, willful abuse, accident, or misuse of the product.

GLASS DOORS & BRASS PLATED PARTS . . .

Glass doors are not warranted for breakage due to misuse or accident.

Brass parts should be cleaned with lemon oil only. Brass cleaners cannot be used. Mortar mix and masonry cleaners may corrode the brass finish. The Company will not be responsible for, nor will it warrant any brass parts which are damaged by external chemicals.

IF WARRANTY SERVICE IS NEEDED . . .

1)Contact your supplier. Make sure you have your warranty, your sales receipt, and the model/serial number of your CFM Specialty Home Products product.

2)DO NOT ATTEMPT TO DO ANY SERVICE WORK YOURSELF.

GARANTIE DE BASE:

CFM Specialty Home Products (aux présentes nommée la "Société") garantit votre nouveau foyer électrique Majestic Fireplaces® contre tous défauts de fabrication et de matières premières pour une période d'un an à compter de la date d'installation, sujet aux conditions et limitations suivantes.

1.Le foyer electrique doit être installé par un entrepreneur de service autorisé et compétent. Il doit être installé et utilisé en tout temps selon les instructions d'installation et de fonctionnement fournies avec le produit. Toute altération, abus volontaire, accident ou mauvais usage du produit annulera cette garantie.

2.Cette garantie n'est pas transférable et est offerte à l'acheteur au détail d'origine, à condition que l'achat soit effectué par l'entremise d'un détaillant autorisé de la Société.

3.Cette garantie est limitée à la réparation ou au remplacement de(des) pièce(s) trouvée(s) défectueuse(s) en matières premières ou main-d'oeuvre, à condition que lesdites pièces aient été sujettes aux conditions normales d'usage et de service, après que ledit défaut a été confirmé par une inspection par la Société.

4.Cette Garantie ne couvre pas les ampoules inclus dans le foyer électrique.

5.La Société peut, à sa discrétion, se décharger entièrement de toutes obligations se rapportant à cette garantie en remboursant le prix de gros de la(des) pièce(s) défectueuse(s).

6.Tous les frais/dépenses d'installation, de main-d'oeuvre, de construction, de transport ou autres causés par une (des) pièce(s) défectueuse(s), une réparation, un remplacement ou autre, ne seront pas couverts sous cette garantie, et la Société n'assume aucune responsabilité pour ceux-ci. De plus, la Société ne pourra être tenue responsable pour tous dommages fortuits ou indirects sauf la ou prévu par la loi.

7.Toutes autres garanties, exprimées ou sous-entendues, en ce qui a trait au produit, ses composants et accessiores, ou toutes obligations/responsabilités de la part de la Société sont aux présentes expressment excluses.

8.La Société n'assume et n'autorise personne à assumer, en son nom, toutes responsabilités en ce qui a trait à la vente de ce produit Majestic Fireplaces.

9.Les garanties, telles que décrites dans ce document, ne s'appliquent accessoires non CFM Specialty Home Products utilisés conjointement pour l'installation de ce produit.

10.Cette garantie est nulle si:

a)Le foyer a été utilisé dans une atmosphère contaminée par du chlore, du fluor ou tous autres produits chimiques.

b)Le foyer est assujetti à de longues périodes d'humidité ou de condensation.

c)Toute altération, abus volontaire, accident ou mauvais usage du produit annulera cette garantie.

PORTES EN VERRE & PIECES PLAQUEES LAITON . . .

Les portes en verre ne sont pas garanties contre le bris causé par un mauvais usage ou un accident.

Les pièces en laiton devraient être nettoyées qu'avec de l'essence de citron. Les nettoyeurs de laiton ne peuvent pas être utilisés. La Société ne sera pas responsable pour, et ne garantit pas les pièces en laiton qui sont endommagées par de refoulement.

SI UN SERVICE SOUS GARANTIE EST REQUIS . . .

1)Communiquez avec votre détaillant. Assurez-vous que vous avez votre garantie, votre reçu de caisse ainsi que le numéro de modèle/série de votre produit CFM Specialty Home Products.

2)NE TENTEZ PAS D'EFFECTUER DES REPARATIONS VOUSMEME.

10007572

15

CFM Specialty Home Products

410 Admiral Blvd. • Mississauga, Ontario, Canada L5T 2N6 • 905-670-7777 www.temcofireplaces.com
