Vermason 223001 Installation, Operation And Maintenance Manual

CALIBRATION TEST UNIT FOR PERSONNEL
GROUNDING TESTERS

Installation, Operation and Maintenance

UNIT C, 4TH DIMENSION, FOURTH AVENUE, LETCHWORTH, HERTS, SG6 2TD UK

Phone: [phone], Fax: [phone] • e-mail: [e-mail], Internet: Vermason.co.uk

TB-7578 August 2010 Page 1 of 2 © 2010 Vermason.

Operation

The Vermason 223001 Calibration
Test Unit is designed to simplify
the process of calibrating wrist
strap and footwear testers. The
calibration unit allows the user to
quickly and easily verify whether
a tester is operating within
specifications. This product can
be used as one of the tools to
fulfill the EN 61340-5-1 clause

5.2.3 “Compliance Verification
Plan”. “Compliance verification
records shall be established and
maintained to provide evidence
of conformity to the technical
requirements. The test equipment
selected shall be capable of
making the measurements
defined in the Compliance
Verification Plan.”

The Vermason 223001 Calibration
Test Unit is a passive device,
and requires no power source.
The calibration test unit is
manufactured to check the test
ranges for both wrist strap and
person/footwear systems per EN
61340-5-1 Table 2 Personnel
Grounding of less than 3.5 x 10E7
ohms upper limit and detecting

the presence of current limiting
resistance of 5 x 10E5 ohms.
The 223001 is supplied calibrated
to NIST traceable standards.

The Vermason 223001 Calibration
Test Unit is an important tool for
optimization of an ESD control
program. A leading corporation
estimates a $95 to 1 return on
every dollar invested in ESD
control. However, the ESD
protective products utilized must
be working, so it is essential that
testers are in calibration when
used to verify the parameters of
wrist straps and ESD footwear.
The Vermason 223001 Calibration
Test Unit easily pays for itself.
Instead of returning testers
to Vermason, a Calibration
House, or even your Metrology
Department, testers can be
calibrated where located in the
factory being out-of-service only a
couple minutes. There is no need
to have an extra replacement
Tester. We recommend a
minimum of annual calibration.

Monitoring and control
instruments are out of the
scope of RoHS (Restriction of
Hazardous Substances).

To use the calibration
unit:

1. Fit the two cords into the
sockets on the calibration unit. Fit
the other end of one lead into the
socket on the top of the unit.

2. Turn the selector dial to the
required test setting (usually fail
high or low).

3. Press the end of the remaining
lead onto the operating plate of
the unit.

TECHNICAL BULLETIN TB-7578

Made in Britain

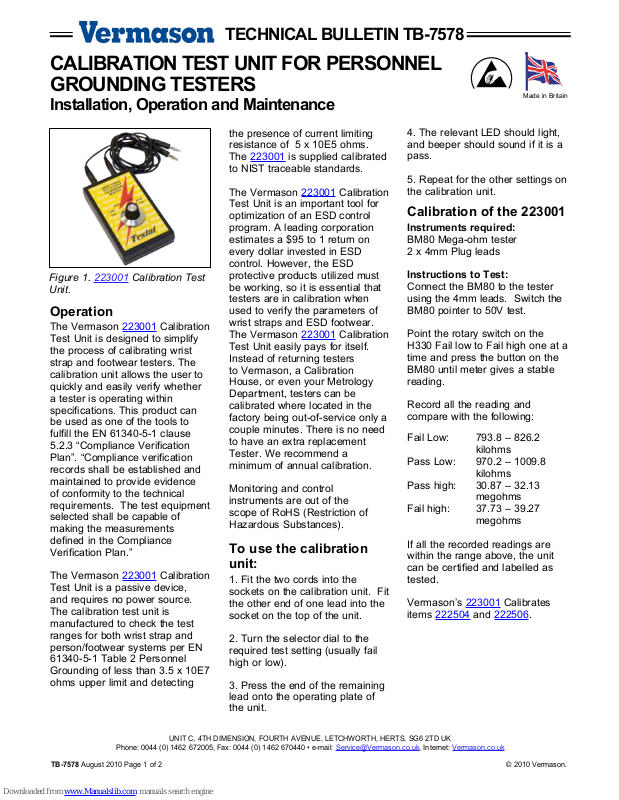

Figure 1. 223001 Calibration Test
Unit.

4. The relevant LED should light,
and beeper should sound if it is a
pass.

5. Repeat for the other settings on
the calibration unit.

Calibration of the 223001

Instruments required:

BM80 Mega-ohm tester
2 x 4mm Plug leads

Instructions to Test:

Connect the BM80 to the tester
using the 4mm leads. Switch the
BM80 pointer to 50V test.

Point the rotary switch on the
H330 Fail low to Fail high one at a
time and press the button on the
BM80 until meter gives a stable
reading.

Record all the reading and
compare with the following:

Fail Low: 793.8 – 826.2
kilohms
Pass Low: 970.2 – 1009.8
kilohms
Pass high: 30.87 – 32.13
megohms
Fail high: 37.73 – 39.27
megohms

If all the recorded readings are
within the range above, the unit
can be certified and labelled as
tested.

Vermason’s 223001 Calibrates
items 222504 and 222506.

Limited Warranty

Vermason expressly warrants that for a period of one (1) year from the date of purchase, Vermason
Calibration Test Units for Personnel Testers

will be free of defects in material (parts) and workmanship
(labour). Within the warranty period, a unit will be tested, repaired or replaced at Vermason’s option, free
of charge. Call Customer Service at

0044 (0) 1462 672005

for a Return Material Authorisation (RMA)
and for proper shipping instructions and address. Any unit under warranty should be shipped prepaid to
the Vermason factory. You should include a copy of your original packing slip, invoice, or other proof of
purchase date. Warranty repairs will take approximately two weeks.

If your unit is out of warranty, Vermason will quote repair charges necessary to bring your unit to factory
standards. Call Customer Service at

0044 (0) 1462 672005

for a Return Material Authorisation (RMA) and

proper shipping instructions and address.

Warranty Exclusions

THE FOREGOING EXPRESS WARRANTY IS MADE IN LIEU OF ALL OTHER PRODUCT WARRANTIES,
EXPRESSED AND IMPLIED, INCLUDING MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE WHICH ARE SPECIFICALLY DISCLAIMED. The express warranty will not apply to defects or
damage due to accidents, neglect, misuse, alterations, operator error, or failure to properly maintain, clean
or repair products.

Limit of liability

In no event will Vermason or any seller be responsible or liable for any injury, loss or damage, direct
or consequential, arising out of the use of or the inability to use the product. Before using, users shall
determine the suitability of the product for their intended use, and users assume all risk and liability
whatsoever in connection therewith.
