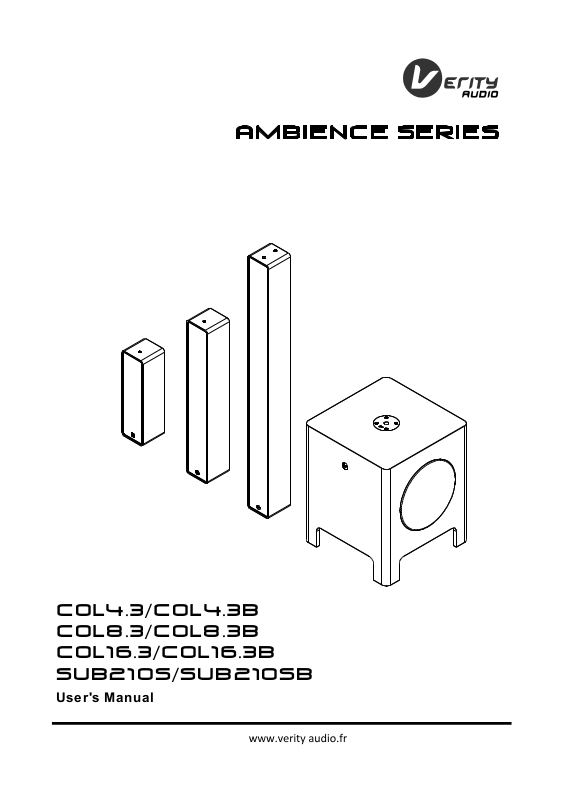

Verity Audio COL4.3, COL4.3B, COL8.3, Ambience Series, COL16.3 User Manual
...
C O L 4 3 C O L 4 3 B
C O L 8 3 C O L 8 3 B
C O L 1 6 3 C O L 1 6 3 B
S U B 2 1 0 S S U B 2 1 0 S B
Us
er's M anua l
. / .
. / .
. / .
/
NTRO DUCT ION
I
Th
e AMBIENCE loudspeakers series feature a unique design with a
high quality finishing and a superior sound performance.
AMBIENCE is the ideal series to provide an exquisite and powerful
sound to a wide range of movable and fixed installation applications
such as on fashion shops or retail stores, luxurious KTVs, high-end
bars and clubs, auditoriums, theaters or even home cinemas.
The AMBIENCE series includes three loudspeaker models, the
COL4.3/COL4.3B, COL8.3/COL8.3B and COL16.3COL16.3B
columns an d the SU B210S/SUB210SB subwoofer. B means black
（
l
The COL4.3, COL8.3 and 16.3 columns are composed of four, eight
and sixteen 3” full range neodymium drivers respectively. One of the
major benefits of the COL speakers is the narrow vertical angle of its
sound beam. This feature is very helpful to reduce undesired ceiling
reflections and have a better distribution of the sound pressure.
Additionally, the vertical aperture angle of its sound beam can be
adjusted to precisely focus it onthe audience. The COL speakers
provide a crystal clear and free of distortion mid and high
frequencies particularly appropriate for vocals sound reproduction.
The SUB210S is composed of two 10” drivers and comes in a small
cabinet form factor. It features asymmetrical position of the drivers
and reflex ports placed on the bottom side of the cabinet. This
innovative design cancels any cabinet vibration and
distortion,translating to an exceptionally clean, deep, natural and
punchy bass.
All AMBIENCE loudspeaker cabinets are made of 18mm MDF to
improve its sound performance by making its structure very rigid
）oudspeaker
SPECIFICATIONS
2 1 COL4 3/COL4 3B. . . .
Ac
oustics
Powe r: 120W AES, 240W Program, 480W Peak
Im pe da nc e: 8Ω
Sensitivity: 101d B 1W/1m half space
Max. S PL @1m: 122dB Continuous, 125dB Progra m, 1 28 dB
Freq ue ncy re sponse: 170Hz-13 .5kH z (-6dB)
Ho rizo ntal d irec ti vity: 120º ± 30 º 800Hz-5kHz, 60º ±10º 6kHz-16kHz
Ver ti cal di rectiv it y: 20º ±5º 2.5kHz-8kHz, 40º ±25º 1kHz-13.5kHz
Sp ea ke r co mp onents
4 x 3" Full Range European Neodymium driver
Connectors
1x E uroblock ( Ph oe nix connector) 42Arated with locking screws
Ca bine t
CN C ma de 12m m MDF, smooth non
glossy white painting
Peak
Mo un ti ng
Fl ying: •2 M6 in sertion po ints on top and
re ar f or eye bolts
Wall: • 4 M5 insertion points on rear face
for swivel-tilting wall/pole bracket
bottom for "U" bracket
Pole: •2 M 4 insertion points on bottom
face for pole adaptor
Size/Package S ize:
W400xH119xD114/W500xH170xD175
Ne t Weight/Gross Weight
3kg/3. 8kg
2 M6 i ns er ti on point s on top and
2 2 COL8 3/COL8 3B. . . .
Ac ou stic s
Powe r: 240W AE S, 480W Program, 960W
Im pe da nc e Ω
Sensitivity: 103dB 1W/ 1m h al f sp ace
Max. S PL @1m: 127d B Co nt in uo us , 130dB Program,
133d B
Freq ue ncy re sponse: 10º se tting: 1 80 Hz-1 6k Hz ( -6dB)
20º se tting: 1 80 Hz -1 3k Hz (-6dB)
Ho rizo ntal d irec ti vity: 120º ± 30 º 800Hz-5kHz, 50º ±15º 6kHz-
Ver ti cal di rectiv it y: 10º setti ng: 10º ±5º 2kHz-16kHz
Sp ea ke r co mp onents
8 x 3" Full Range European Neodymium driver
Connectors
1x E uroblock ( Ph oe nix connector) 42A
rated wi th l oc king screw s
Peak
: 4
Peak
20º se tting: 2 0º ±5º 1.3kHz-
16kHz
16kHz
Ca bine t
CN C ma de 12m m MDF, smooth non
glossy white painting
Mo un ti ng
Fl ying: •2 M6 in sertion po ints on top and
re ar f or eye bolts
Wall: •4 M5 insertion points on rear face
for swivel-tilting wall/pole bracket
bottom for "U" bracket
Pole: •2 M 4 insertion points on bottom face
for pole adaptor
Size/Package S ize:
W720xH119xD114/W810xH170xD175
2 M6 i ns er ti on point s on top and
2.
3. COL16.3/COL16.3B
Ac ou stic s
Powe r: 480W AE S, 960W Program, 1920W Peak
Im pe da nc e: 4
Sensitivity: 104dB 1W/ 1m h al f sp ace
Max. S PL @1m: 131d B Co nt in uo us , 134dB Program, 137dB Peak
Freq ue ncy re sponse: 15º se tting: 180H z- 13kH z (-6d B)
Ho rizo ntal d irec ti vity: 120º ±30º 800Hz-5kHz, 50º ±15º 6kHz-16kHz
Ver ti cal di rectiv it y: 15º sett in g: 15º -0+10º 600Hz-9kHz
Sp ea ke r co mp onents
16 x 3 " Full Range European Neodymium driver
Connectors
1x E uroblock ( Ph oe nix connector) 42A
rated wi th l oc king screw s.
Ca bine t
CN C ma de 12m m MDF, smooth non glossy
wh it e pa inting
Mo un ti ng
Fl ying: •2 M6 insertion points on top and
re ar for e ye bolts
Wall: •1 0M 6 inse rt io n points on rear face
Wall Bracket
fo r
•2 M6 in sertion poin ts on top and
bott om f or " U" brack et (
applic ation
Ω
30º se tting: 180H z- 14kH z (-6d B)
30º se tting: 30º ±5 º 400Hz-14kHz
Horizontal
)
Size/Package S ize:
W1400xH119xD114/W1490xH210xD200
Ne t Weight/Gross Weight
10.4 kg/1 2. 2k g
