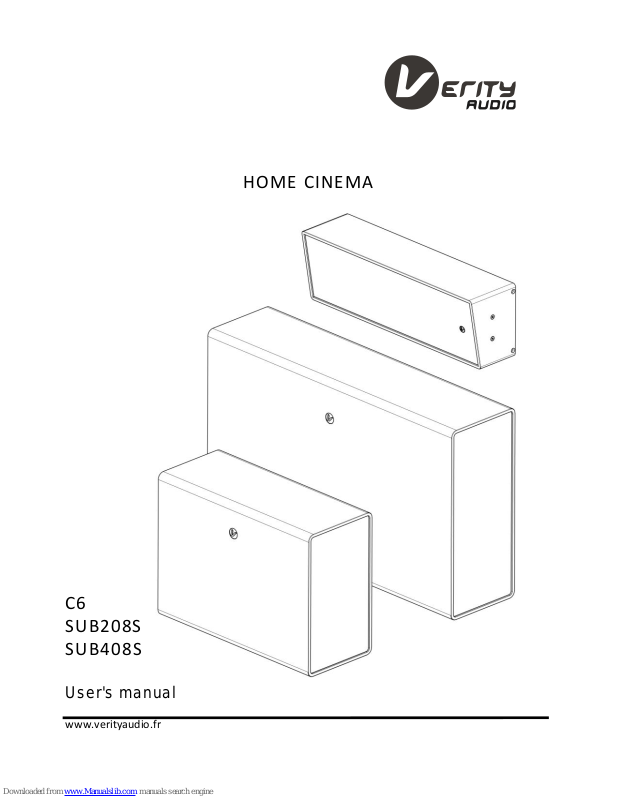

Verity Audio C6, SUB408S, SUB208S User Manual

HOME CINEMA

C6
SUB208S
SUB408S

User's manual

www.verityaudio.fr

CLOSER TO MUSIC

1. INTRODUCTION

The C6, SUB208S and SUB408S Home Cinema loudspeakers
feature a unique design with a high-quality finishing and a
superior sound performance. The high SPL capability, sound
quality and flexible installation make them ideal for any home
cinema configuration and size.

The C6 loudspeaker has been specifically designed for home
theater use. The stylized design, the high quality non-glossy
lacquer finishing, the high SPL and a superb sound quality
allow it to be used on all the functions: Left, Center, Right,
Surround and Ceiling.
The baffle is tilt 10º and permit a flat mounting on the wall or
ceiling while focusing the sound to the listening area. It can
be placed horizontal, vertical or on the ceiling with the same
bracket. For a better integration in the room decoration, the
loudspeaker distance to the wall is only 1 cm and the bracket
is almost invisible. It can be used as well with a pole.
The C6 cabinet is made of 9mm MDF with double thickness
baffle and use an accurate designed bass reflex system for
an extended bass frequency response with a coaxial 6.5”

woofer and 1” compression dr i v er f or clear and powerful

sound reproduction free of phase problems.
The SUB208S and SUB408S are composed of two and four 8”

drivers respectively and use an innovative symmetrical
configuration of the drivers and ports that allow a flat design
and a practically vibration free cabinet. The main benefits of
the symmetrical flat design are to avoid the comb filtering
produced by the rear wall sound reflections, and the absence
of vibration of the cabinet panels due to action-reaction
movements, allowing the SUB208S and SUB408S deliver the
most clear, balanced and undistorted sound. The flat design
(only 240mm deep) allow the SUB208S to be mounted on a
wall. The vibration free cabinet avoid the problems of sound
transmission to other rooms by the building structure.
The heavy braced cabinets are made of 15 and 18mm MDF
respectively, with double thickness baffle to improve its
sound performance by making its structure very rigid and
avoiding undesired cabinet vibrations.

2. SPECIFICATIONS

2.1. C6
Acoustics

Power: 150W AES, 300W Program, 600W Peak
Impedance: 8Ω
Sensitivity: 92dB SPL 1W/1m half space (1)
Max. SPL @1m: 114dB Continuous, 117dB Program, 120dB Peak
Frequency response: 65Hz-15kHz (-6dB), 60Hz-18kHz (-10dB) (2)
Beam aperture -3dB: 100º ±30º 600Hz-3.5kHz, 60º ±30º 3.5kHz-14kHz
Beam aperture -6dB: 120º ±30º 600Hz-3.5kHz, 90º ±30º 3.5kHz-20kHz
Maximum listener distance: 8m (3)
Recommended amplifier: 300W / 8 Ω
Recommended Xover freq.: 70Hz

Speaker components

1 x Coaxial 6.5” woofer 1” comp. driver

Mounting

Wall / Ceiling: 4 x M6 Screws
on left and right faces for vertical or
horizontal mounting by hidden bracket

Pole: 4 M6 insertion points on
left and right faces for pole adaptor

Size / Package Size:

W654xH214xD168 /
W750xH311xD277

Cabinet

CNC made 9mm MDF,
smooth non-glossy white or
black painting

Connectors

2 x Push terminals for input
and stack output

Net Weight / Gross Weight

9kg / 14kg

1- Measured half space at 2m scaled to 1m full space
2- Measured half space at 4m, curve smoothed 1/3 oct

3- In accordance with dolby® SPL requirements

2.2. SUB208S
Acoustics

Power: 700W AES, 1400W Program, 2800 W Peak
Impedance: 8Ω
Sensitivity: 92dB 1W/1m half space (1)
Max. SPL @1m: 120.5dB Cont., 123.5dB Program, 126.5dB Peak
Frequency response: 48Hz-1.1kHz (-6dB), 40Hz-1.5kHz (-10dB) (2)
Directivity: Omnidirectional in the usable range
Recommended amplifier: 1400W / 8 Ω
Recommended HP filter: 35Hz - 12dB/oct - Butterworth

Speaker components

2 x 8" European Ferrite driver

Mounting

On floor
On Wall: 8 M8 insertion points on rear
face for wall bracket

Size / Package Size:

W580xH420xD240 /
W673xH517xD337

Cabinet

CNC made 15mm MDF,
smooth non-glossy white or
black painting

Connectors

1x Euroblock 42A rated with
locking screws

Net Weight / Gross Weight

21kg / 26kg

1- Measured half space at 4m scaled to 1m

2- Measured half space at 4m, curve smoothed 1/3 oct
