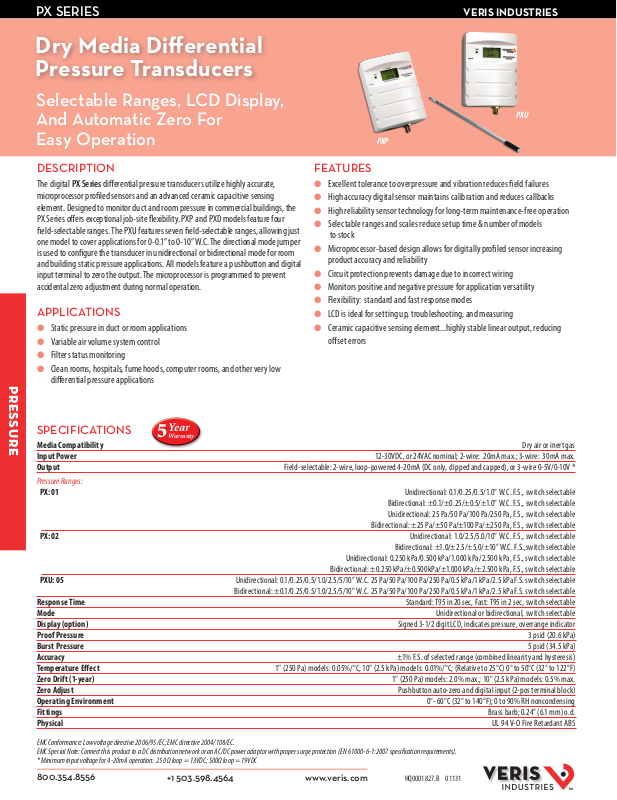

Veris PX Datasheet

PX SERIES

Dry Media Diﬀerential Pressure Transducers

Selectable Ranges, LCD Display, And Automatic Zero For

VERIS INDUSTRIES

PXU

Easy Operation

DESCRIPTION

The digital PX Series dierential pressure transducers utilize highly accurate, microprocessor proled sensors and an advanced ceramic capacitive sensing element. Designed to monitor duct and room pressure in commercial buildings, the

PX Series oers exceptional job-site exibility. PXP and PXD models feature four eld-selectable ranges. The PXU features seven eld-selectable ranges, allowing just one model to cover applications for 0-0.1” to 0-10” W.C. The directional mode jumper is used to congure the transducer in unidirectional or bidirectional mode for room and building static pressure applications. All models feature a pushbutton and digital input terminal to zero the output. The microprocessor is programmed to prevent accidental zero adjustment during normal operation.

APPLICATIONS

● Static pressure in duct or room applications

● Variable air volume system control

● Filter status monitoring

● Clean rooms, hospitals, fume hoods, computer rooms, and other very low

PRESSURE

dierential pressure applications

SPECIFICATIONS

Media Compatibility Dry air or inert gas Input Power 12-30VDC, or 24VAC nominal; 2-wire: 20 mA max.; 3-wire: 30mA max. Output Field-sele ctable: 2-wire, loop-powered 4-20mA (DC only, clipp ed and capped), or 3-wire 0-5V/0-10V *

Pressure Ranges:

PX: 01 Unidirec tional: 0.1/0.25/0.5/1.0” W.C. F.S., switch selectable Bidirectional: ±0.1/±0.25/±0.5/±1.0” W.C. F.S., switch selec table Unidirectional: 25 Pa/50 Pa/100 Pa/250 Pa, F.S., switch selectable Bidirectional: ±25 Pa/±50 Pa/±100 Pa/±250 Pa, F.S., switch select able PX: 02 Unidirec tional: 1.0/2.5/5.0/10” W.C. F.S., switch selec table Bidirectional: ±1.0/±2.5/±5.0/±10” W.C. F.S.,switch selectable Unidirectional: 0.250 kPa/0.500 kPa/1.000 kPa/2.500 kPa, F.S., switch selectable Bidirectional: ±0.250 kPa/±0.500 kPa/±1.000 kPa/±2.500 kPa, F.S., switch selectable PXU: 05 Unidirec tional: 0.1/0.25/0.5/1.0/2.5/5/10” W.C. 25 Pa/50 Pa/100 Pa/2 50 Pa/0.5 kPa/1 kPa/2.5 kPa F.S. switch selectable Bidirectional: ±0.1/0.25/0.5/1.0/2.5/5/10” W.C. 25 Pa/50 Pa/100 Pa/250 Pa/0.5 kPa/1 kPa/2.5 kPa F.S. switch selectable Response Time Standard: T95 in 20 sec , Fast: T95 in 2 sec, switch selec table Mode Unidirectional or bidirectional, switch selectable Display (option) Signed 3-1/2 digit LCD, indicates pressure, overrange indicator Proof Pressure 3 psid (20.6 kPa) Burst Pressure 5 psid (34.5 kPa) Accurac y ±1% F.S. of selec ted range (combined linearit y and hysteresis) Temperature Eect 1" (250 Pa) models: 0.05%/°C; 10" (2.5 kPa) models: 0.01%/°C; (Relative to 25°C) 0° to 50°C (32° to 122°F) Zer o Drif t (1-yea r) 1" (250 Pa) models: 2.0% max.; 10" (2.5 kPa) models: 0.5% max. Zero Adjust Pushbutton auto-zero and digital input (2-pos terminal bloc k) Operating Environment 0°- 60°C (32° to 140°F); 0 to 90% RH noncondensing Fittings Brass barb; 0.24” (6.1 mm) o.d. Physical UL 94 V-O Fire Retardant ABS

Year

Warranty

FEATURES

● Excellent tolerance to overpressure and vibration reduces eld failures

● High accuracy digital sensor maintains calibration and reduces callbacks

● High reliability sensor technology for long-term maintenance-free operation

● Selectable ranges and scales reduce setup time & number of models

to stock

● Microprocessor-based design allows for digitally proled sensor increasing

product accuracy and reliability

● Circuit protection prevents damage due to incorrect wiring

● Monitors positive and negative pressure for application versatility

● Flexibility: standard and fast response modes

● LCD is ideal for setting up, troubleshooting, and measuring

● Ceramic capacitive sensing element...highly stable linear output, reducing

oset errors

PXP

EMC Conformance: Low voltage directive 2006/95/EC; EMC directive 2004/108/EC. EMC Special Note: Connect this product to a DC distribution network or an AC/DC power adaptor with proper surge protection (EN 61000-6-1:2007 specication requirements). * Minimum input voltage for 4-20mA operation: 250 Ω loop = 13VDC; 500Ω loop = 19VDC

800.354.8556

+1 503.598.4564

www.veris.com

HQ0001827.B 01131

800.354.8556

+1 503.598.4564

APPLICATION/WIRING DIAGRAMS

3-w ire, 0-5V/0-10V

ZERO

1.000

ZERO

POWER (4-20mA)

OUT (0-10v)

COM

OUTPUT

Digital

Output

DIGITAL CONTROL

V IN

1.2"

2.3"

(58 mm)

POWER SOURCE

24VAC/DC

DIMENSIONAL DRAWINGS

(30 mm)

www.veris.com

2-wire, 4-20mA

ZERO

1.000

WARNING:

RESPONSE

FAST/STD

JP8

UNITS

IN W.C./PA

JP7

Volt

JP5

JP4

MODE

BI/UNI

VO LT

5V/10V

3.3"

(84 mm)

Do not apply power to output terminal! Permanent damage will result.

Digital

Output

DIGITAL CONTROL

Return

2.2"

(55 mm)

V+

ZERO

POWER (4-20mA)

OUT (0-10v)

COM

OUTPUT

PX01 PX02 PX05

Rotary Switch Position

Inches W.C.

Pascal

Inches W.C.

0 0.1 25 1 250 0.1 25

1 0.25 50 1 250 0.25 50

2 0.5 100 1 250 0.5 10 0

3 1 250 1 250 1 250

4 1 250 2.5 0. 5kPa 2.5 0.5kPa

5 1 250 5 1kPa 5 1kPa

6 1 2 50 10 2.5kPa 10 2.5kPa

7 1 2 50 10 2.5kPa 10 2.5kPa

RESPONSE

FAST/STD

JP8

UNITS

IN W.C./PA

JP7

Volt

Pascal

JP5

JP4

MODE

BI/UNI

VO LT

5V/10V

Inches W.C.

Pascal

pressure

2.9"

(74 mm)

3.7"

(94 mm)

ORDERING INFORMATION

Enclosure

Local Display

D = Duct P = Panel

PX D L X 01 S

L = LCD Display X = No Display

Examp le:

NIST

N = NIST X = None

Range

01 = 0-1"wc/0-250Pa 02 = 0-10"wc/0-2.500kPa

ACCESSORIES

Room and duct static pickup tubes (AA05, AA06, AA07) Pitot tube kits (AA18, AA19, AA20), wall p late remote pickup (AA56) Replacement covers (AA62, AA63)

Z103591-0A

Response

= Selectable

Dierential Pressure

Transmitter

4.5"

(114 mm)

PXU

Local Display

L = LCD Display X = No Display

(202 mm)

Note: Probe is available on the PXD and PXU models. Probe is not factory-installed on the PXU models.

NIST

N = NIST

Range

= 0-10”wc/0-2.500kPa

Response

= Selectable

X = None

Examp le:

PXU L N 05 S

AA18AA06AA05
