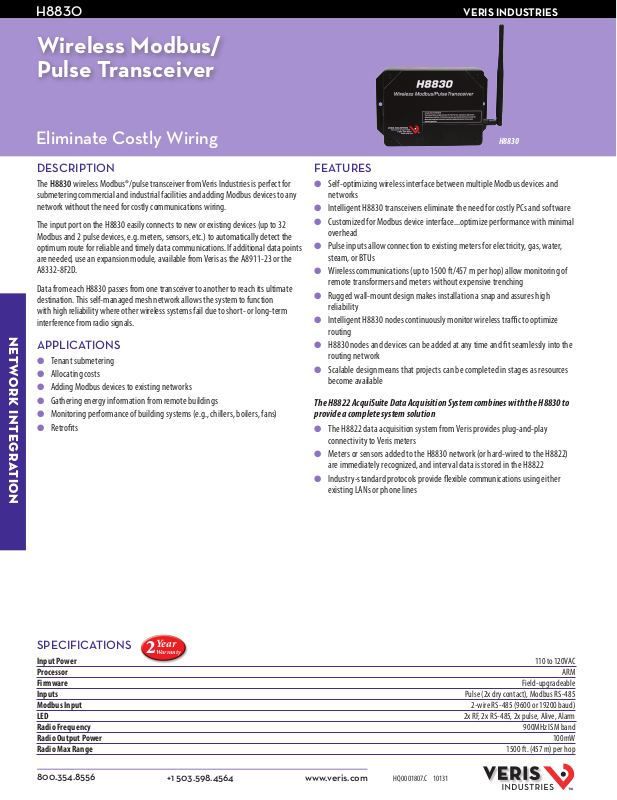

Veris H8830 Datasheet
H8830
Wireless Modbus/
Pulse Transceiver
VERIS INDUSTRIES
Eliminate Costly Wiring
DESCRIPTION
The H8830 wireless Modbus®/pulse transceiver from Veris Industries is perfect for
submetering commercial and industrial facilities and adding Modbus devices to any
network without the need for costly communications wiring.
The input port on the H8830 easily connects to new or existing devices (up to 32
Modbus and 2 pulse devices, e.g. meters, sensors, etc.) to automatically detect the
optimum route for reliable and timely data communications. If additional data points
are needed, use an expansion module, available from Veris as the A8911-23 or the
A8332-8F2D.
Data from each H8830 passes from one transceiver to another to reach its ultimate
destination. This self-managed mesh network allows the system to function
with high reliability where other wireless systems fail due to short- or long-term
interference from radio signals.
network integration
APPLICATIONS
● Tenant submetering
● Allocating costs
● Adding Modbus devices to existing networks
● Gathering energy information from remote buildings
● Monitoring performance of building systems (e.g., chillers, boilers, fans)
● Retrots
H8830
FEATURES
● Self-optimizing wireless interface between multiple Modbus devices and
networks
● Intelligent H8830 transceivers eliminate the need for costly PCs and software
● Customized for Modbus device interface...optimize performance with minimal
overhead
● Pulse inputs allow connection to existing meters for electricity, gas, water,
steam, or BTUs
● Wireless communications (up to 1500 ft/457 m per hop) allow monitoring of
remote transformers and meters without expensive trenching
● Rugged wall-mount design makes installation a snap and assures high
reliability
● Intelligent H8830 nodes continuously monitor wireless trac to optimize
routing
● H8830 nodes and devices can be added at any time and t seamlessly into the
routing network
● Scalable design means that projects can be completed in stages as resources
become available
The H8822 AcquiSuite Data Acquisition System combines with the H8830 to
provide a complete system solution
● The H8822 data acquisition system from Veris provides plug-and-play
connectivity to Veris meters
● Meters or sensors added to the H8830 network (or hard-wired to the H8 822)
are immediately recognized, and interval data is stored in the H8822
● Industry-standard protocols provide exible communications using either
existing LANs or phone lines
SPECIFICATIONS
Input Power 110 to 120VAC
Processor ARM
Firmware Field-upgradeable
Inputs Pulse (2x dry contact), Modbus RS-485
Modbus Input 2-wire RS-4 85 (9600 or 19200 baud)
LED 2x RF, 2x RS-485, 2x pulse, Alive, Alarm
Radio Frequency 900MHz ISM band
Radio Output Power 100mW
Radio Max Range 1500 ft. (457 m) per hop
