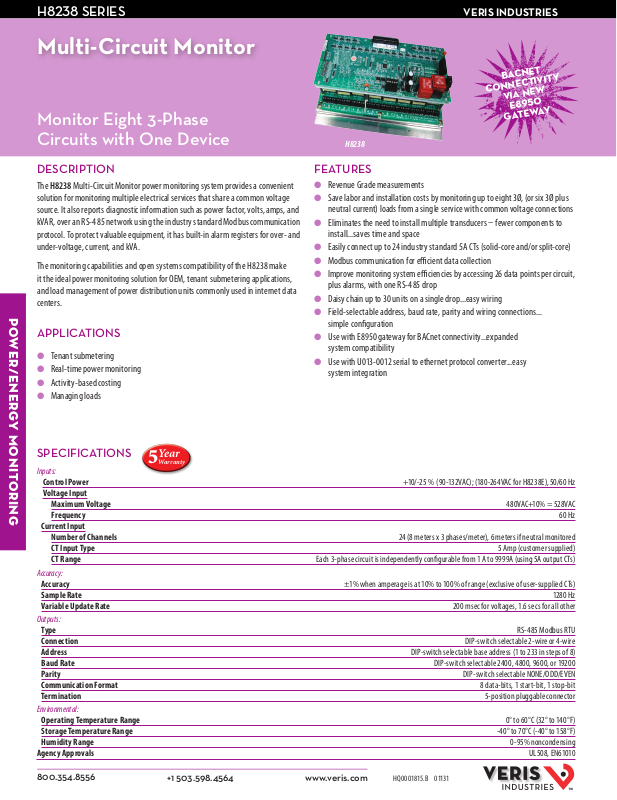

Veris H8238 Datasheet

H8238 SERIES

Multi-Circuit Monitor

Monitor Eight 3-Phase

VERIS INDUSTRIES

BACne t

connectivity

via new

E8950

Gat e way

Circuits with One Device

DESCRIPTION

The H8238 Multi-Circuit Monitor power monitoring system provides a convenient solution for monitoring multiple electrical services that share a common voltage source. It also reports diagnostic information such as power factor, volts, amps, and kVAR, over an RS-485 network using the industry standard Modbus communication protocol. To protect valuable equipment, it has built-in alarm registers for over- and under-voltage, current, and kVA.

The monitoring capabilities and open systems compatibility of the H8238 make it the ideal power monitoring solution for OEM, tenant submetering applications, and load management of power distribution units commonly used in internet data centers.

power/energy monitoring

APPLICATIONS

● Tenant submetering

● Real-time power monitoring

● Activity-based costing

● Managing loads

H8238

FEATURES

● Revenue Grade measurements

● Save labor and installation costs by monitoring up to eight 3Ø, (or six 3Ø plus

neutral current) loads from a single service with common voltage connections

● Eliminates the need to install multiple transducers – fewer components to

install...saves time and space

● Easily connect up to 24 industry standard 5A CTs (solid-core and/or split-core)

● Modbus communication for ecient data collection

● Improve monitoring system eciencies by accessing 26 data points per circuit,

plus alarms, with one RS-485 drop

● Daisy chain up to 30 units on a single drop...easy wiring

● Field-selectable address, baud rate, parity and wiring connections...

simple conguration

● Use with E8950 gateway for BACnet connectivity...expanded

system compatibility

● Use with U013-0012 serial to ethernet protocol converter...easy

system integration

SPECIFICATIONS

Inputs:

Control Power +10/-25 % (90-132VAC); (180-264VAC for H8238E), 50/60 Hz Voltage Input Maximum Voltage 48 0VAC+10% = 528VAC Frequency 60 Hz Current Input Number of Channels 24 (8 meters x 3 phases/meter), 6 meters if neutral monitored CT Input Type 5 Amp (customer supplied) CT Range Each 3-phase circuit is independently congurable from 1 A to 999 9A (using 5A output CTs)

Accuracy:

Accurac y ±1% when amperage is at 10% to 100% of range (exclusive of user-supplied CTs) Sample Rate 1280 Hz Variable Update Rate 200 msec for voltages, 1.6 sec s for all other

Outputs:

Typ e RS-485 Modbus RTU Connection DIP-switch selectable 2-wire or 4-wire Address DIP-switch selectable base address (1 to 233 in steps of 8) Baud Rate DIP-switch selectable 2400, 4800, 9600, or 19200 Parity DIP-switch selectable NONE/ODD/EVEN Communication Format 8 data-bit s, 1 start-bit, 1 stop-bit Termination 5-position pluggable connector

Environmental:

Operating Temperature Range 0° to 60°C (32° to 140°F) Storage Temperature Range -40° to 70°C (-4 0° to 158°F) Humidity Range 0-95% noncondensing Agency Approvals UL508, E N61010

Year

Warranty

800.354.8556

+1 503.598.4564

www.veris.com

HQ00 01815.B 01131

800.354.8556

HOT

A B C

120V HOT

+1 503.598.4564

www.veris.com

APPLICATION/WIRING EXAMPLES

3-Phase 4-Wire Installation

1-Phase 3-Wire Installation

DIMENSIONAL DRAWING

Top View

Side View

main circuit board

mounting bracket

WIDTH:

A = 5.3” (135mm) board B = 8.9” (226mm) mounting bracket base

LENGTH:

C = 6.0” (153mm) D =12.8” (325mm)

HEIGHT:

E = 2.9” (74mm) F = 4.0” (101mm)

A B

1-Phase 2-Wire Installation

DATAOUTPUTS

kWh Energy Consumption kW Real Power kVAR Reactive Power kVA Apparent Power Power Factor Total Voltage, L-L, avg. of 3 phases Voltage, L-N, avg. of 3 phases Current, averag e of 3 phases kW Real Power, phase A kW Real Power, phase B kW Real Power, phase C Power Factor, phase A Power Factor, phase B Power Factor, phase C Line to Line Voltage, phase A-B Line to Line Voltage, phase B-C Line to Line Voltage, phase A-C Line to Neutral Voltage, phase A-N Line to Neutral Voltage, phase B-N Line to Neutral Voltage, phase C-N Current, phas e A Current, phas e B Current, phas e C kW Average kW Minimum Frequency (measured from phase A)

Modbus® Alarms:

Over Voltage Under Voltage Over Current Under Current Over kVA Under kVA Phase Loss A Phase Loss B Phase Loss C

power/energy monitoring

ORDERING INFORMATION

MODEL DESCRIPTION

H8238 Multi-Circuit Monitor, 90-130VAC supply voltage

H8238E Multi-Circuit Monitor, 240VAC supply voltage

*For 240VAC supply voltage version, order H8238E

HQ00 01815.B 01131

H8238 Series transducers are sold as open devices. Observe handling precautions for static sensitive devices to avoid damage to the circuitry which would not be covered under the factory warranty.

ACCESSORIES

AL, BL, CL 5AAC Solid-Core Current Transformers H681x-5A Split-Core Current Transformers Modbus-to-BACnet Converter (E8950) Modbus TCP Gateway (U013- 0012)

H681x-5A

AL BL

E8950U013-0012
