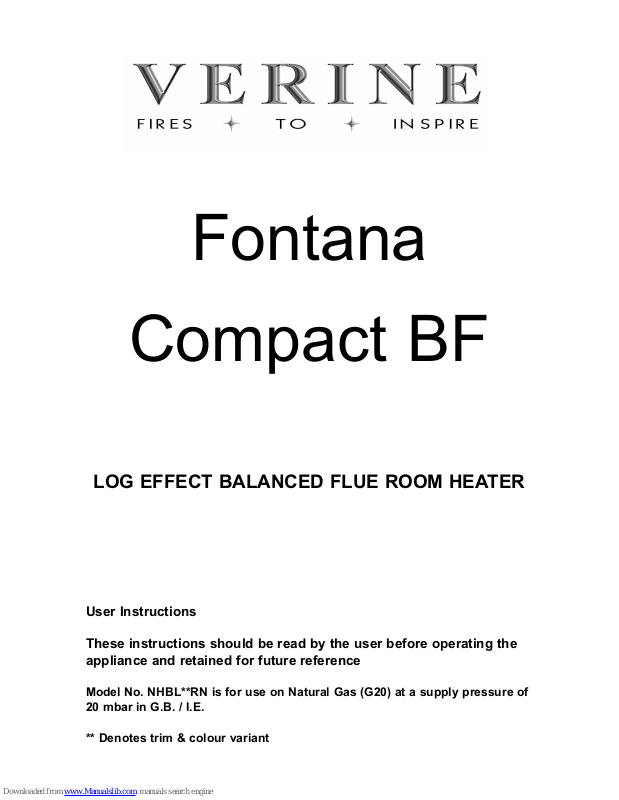

Fontana
Compact BF
LOG EFFECT BALANCED FLUE ROOM HEATER
User Instructions
These instructions should be read by the user before operating the
appliance and retained for future reference
Model No. NHBL**RN is for use on Natural Gas (G20) at a supply pressure of
20 mbar in G.B. / I.E.
** Denotes trim & colour variant
INSTALLATION INFORMATION
CONDITIONS OF INSTALLATION
It is the law that all gas appliances are installed only by a competent (e.g. GAS
SAFE Registered) Installer, in accordance with the installation instructions and the
Gas Safety (Installation and Use) Regulations 1998 as amended. Failure to install
appliances correctly could lead to prosecution. It is in your own interest and that
of safety to comply with the law.
The fire may be fitted below a combustible shelf provided that the shelf is at least
200mm above the top of the appliance and the depth of the shelf does not exceed
150mm.
The fire may be installed below combustible shelves, which exceed 150mm deep
providing that the clearance above the fire is increased by 15mm for each 25mm
of additional overhang in excess of 150mm.
If this appliance is fitted directly on to a wall without the use of a fireplace or surround, soft wall coverings such as wallpaper, blown vinyl etc. could be affected by
the heat and may discolour or scorch. This should be considered when installing
or decorating.
The Model number of this appliance is NHBL**RN and it is manufactured by :-
** Denotes trim & colour variant
BFM Europe Ltd.
Trentham Lakes
Stoke-on-Trent
Staffordshire
ST4 4TJ
2
ABOUT YOUR NEW FONTANA COMPACT BF ROOM HEATER
The Verine Fontana Compact log effect balanced flue room heater incorporates a
unique and highly developed fuel bed which gives the realism of a loose log layout
combined with realistic flames and glow. The use of durable hard ceramic material
in the construction of the fuelbed components ensures long and trouble free
operation.
When first using the new fire a slight smell may be noticed. This is due to small
deposits of oil on the firebox, but will soon disappear
Please take the time to fully read these instructions as you will then be able to
obtain the most effective and safe operation of your fire.
DO NOT UNDER ANY CIRCUMSTANCES ATTEMPT TO USE THIS APPLIANCE
IF THE GLASS PANEL IS BROKEN OR HAS BEEN REMOVED.
IMPORTANT SAFETY INFORMATION
WARNING : This appliance has a hot surface and as with all heating
appliances a fireguard should be used for the protection of children, the
elderly and infirm. Fireguards should conform to B.S. 8423 : 2002
(Fireguards for use with gas heating appliances).
Servicing should be carried out annually by a competent person such as a
GAS SAFE registered engineer. It is a condition of Verine Fires guarantee
schemes that this is carried out by a competent person i.e
a GAS SAFE registered Engineer in accordance with these servicing notes
The service should include visually checking the appliance, flue terminal and
fireplace and inspection of the flue pipe seals, replacing as necessary.
The condition of the ceramic log set should be checked and if necessary the
whole unit should be replaced with a genuine replacement set.
After any servicing work a gas tightness check must always be carried out.
Any debris or deposits should be removed from the log set from time to time. This
may be carried out by referring to the cleaning section as described later in this
book.
Only the fuelbed components as supplied must be used and complete and
genuine replacements must be used.
Always keep furniture and combustible materials well clear of the fire and never
dry clothing or items either on or near to the fire. Never use aerosols or
flammable cleaning products near to the fire when it is in use.
3
The fuel bed remains hot for a considerable period after use and sufficient
time should be allowed for the fire to cool before cleaning etc.
The fire must only be operated with the fascia as supplied, in position.
OPERATING THE FIRE
This appliance is designed so the pilot burner runs constantly, and the remote
control handset is used to operate the main burner only. The remote control can
not
be used to light the pilot burner. The pilot burner control and main gas valve
are located behind the trim, to remove the trim, see page 13 for details.
The control valve features two control knobs, the left hand one to light the pilot,
and the right hand one to adjust the heat input to the appliance from high (5.5kW)
to low (3.0kW). Fig. 1 below shows the control valve.
Fig. 1
Lighting the Pilot
To light the pilot, press the knob in and turn it anticlockwise. (It may be necessary to hold the control knob
in for a few seconds to purge air from the pipe). Once gas is available at the pilot, by turning the control
knob further anticlockwise the piezo igniter will cause a spark at the pilot to light the pilot burner. Once the
pilot burner is lit, hold the control knob depressed for approximately 10 seconds to hold the flame
supervision device in. Let the control knob go and the pilot should remain lit, if the pilot goes out repeat
the lighting sequence. Turn the control knob to the large flame position, this will allow gas to the main
burner section of the control valve.
Extinguishing the Pilot
The pilot flame can be extinguished by turning the left hand control knob clockwise to the position marked
This product is designed to have the pilot burner running continuously, therefore giving full operational
control via the remote handset when the pilot burner is running continuously.
Lighting the Main Burner (Manually)
The right hand control knob will be in the off position, denoted by
No gas can enter the main burner until this control knob is turned anticlockwise. When this knob is turned
anti-clockwise, the main burner will light. The heat input can then be adjusted to any level between
maximum heat input (5.5kW) and minimum heat input (3.0kW).
4
Pilot Control Main Burner
Knob Knob
Lighting the Main Burner (via the Remote Handset)
With the pilot burner established it is possible to light the main burner and adjust
the gas rate between high and low with the remote control handset.
Press the “up” button to light the main burner and adjust the heat input
to the maximum setting. (5.5kW heat input). Press the “down” button to reduce
the heat input to the minimum setting (3.0kW heat input). See Fig. 2 below. If you
press and hold the “down” button it will reduce the heat input to the minimum
(3.0kW heat input) setting, if you keep the button depressed it will turn the main
burner off.at this point a clicking noise will be heard from the motor.
Fig. 2
If the remote does not work, first check the LED in the top left hand corner is
illuminating when the button is pressed. If it does not illuminate, change the
battery in the handset.
NOTE :
The remote control does not light the pilot, it only lights
the main burner when the pilot flame is established and regulates
the heat input between high and low. If the remote is lost or
broken, the fire can still be operated manually, see previous page
for details.
IMPORTANT
: IF THE BURNER IS EXTINGUISHED FOR ANY REASON YOU
MUST ENSURE THAT YOU WAIT A FULL FIVE MINUTES BEFORE
ATTEMPTING TO RE-LIGHT THE FIRE.
5
“Up” button to
increase heat input
“Down” button to
decrease heat input
or turn off main
burner
NOTE : THIS APPLIANCE IS DESIGNED TO WORK SAFELY AND
EFFECTIVELY DURING ADVERSE WEATHER CONDITIONS. HOWEVER,
DURING SUCH TIMES FLAME DISTURBANCE MAY BE NOTICED. THIS IS
NORMAL AND DOES NOT EFFECT OR IMPAIR THE SAFETY OF THE
APPLIANCE.
CLEANING
WARNING : Before attempting any cleaning operation ensure that the fire has
been allowed to fully cool.
CLEANING THE TRIM AND PAINTED METAL PARTS
The extruded aluminimum trim that is supplied for use with this product must be
gently cleaned with a damp cloth only. Abrasive cleaners, chemical cleaning
agents or any type of polish must never be used as damage to the paint may
result.
CLEANING THE FUEL BED
We do not recommend cleaning the fuelbed other than at annual service intervals.
If carbon or soot accumulates on the logs, this should be removed by carefully
brushing the fuelbed using a soft brush. For instructions on how to remove the
glass panel please see page 7. The log set is made from a form of refractory
ceramic fibre and should be handled carefully to avoid generating dust, as
this may be harmful if inhaled. As with some fibrous materials, handling
fibrous materials without gloves could cause skin irritation.
The fuelbed should never be washed or exposed to any cleaning agents or
water.
Any damaged parts must be replaced by contacting your dealer, whose details
may be found on the BFM Europe website, address on the rear page. The log
set must only be replaced with a genuine replacement and the fire must never be
run with a different log set fitted.
The log set must be carefully reassembled as stated in pages 8-12.
6
CLEANING THE GLASS PANEL
To clean the glass panel, first ensure that the fire is cool, please note that the
glass panel will remain hot for a considerable period when the fire has been
switched off.
To remove the glass panel, follow the instructions below for removal and
re-fitting. The glass panel should be cleaned gently with a soft damp cloth and
glass cleaner.
DO NOT UNDER ANY CIRCUMSTANCES ATTEMPT TO CLEAN THE GLASS
PANEL WHEN THE APPLIANCE IS RUNNING.
Fig. 3
Fig. 4
7
Glass Frame Assembly
locates over lip on top
of combustion chamber
lid, and drops onto
flange as shown. To
remove, unclip base
hinge clips as shown in
Fig. 4 and lift clear.
shows correct final
position of glass frame.
REMOVAL & RE-FITTING OF THE FUEL-BED LOGSET
a) The gravel material should then be first layed around the base of the
combustion chamber as shown below in Fig. 5, leaving the rear
section as shown to allow the fitting of Log “A”
Fig. 5
b) Place the largest Log “A” centrally onto the fuel-bed support behind the
burner flame strip. Ensure that the fuel-bed Log “A” is located centrally
in the firebox, and that the front edge is parallel with the rear face of the
burner flame strip as shown below in Fig. 6.
Fig. 6
IMPORTANT NOTE
HAVING FITTED THE GRAVEL MATERIAL IN THE BASE OF THE COMBUSTION CHAMBER,
ENSURE THAT NONE OF IT IS ON THE BURNER FLAME STRIP OR IN THE PILOT ASSEMBLY. IF
MATERIAL IS OBSERVED VISUALLY ON THESE COMPONENTS, REMOVE IT BEFORE
CONTINUING.
8
Fuel-bed
Log “A” to be
fitted behind
burner flame
strip
A
c) Fit Log “B” into position on right hand side of the fuel-bed base log
“A”as shown below in Fig. 7, using the groove in Log “A” as a guide for
placement, and locate the in slot the fork of the log into the upturn in the
base plate.
Fig. 7
d) Fit Log “C” into position on left hand side of the fuel-bed base log “A”as
shown below in Fig. 8, using the groove in Log “A” as a guide for
placement, and locate the slot in the log into the upturn in the
base plate.
Fig. 8
9
B
C
Slot in log to locate
in the base plate
upturn
Slot in log to locate
i
n the base plate
u
pturn
d) Fit Log “D” into position on left hand side of the fuel-bed base log “A”as
shown below in Fig. 9, using the groove in Log “A” as a guide for
placement, and locate the slot in the log into the upturn in the
base plate.
Fig. 9
e) Fit Log “E” into position at centre of the fuel-bed base log “A”as
shown below in Fig. 10, using the groove in the centre of Log “A” as a
guide for placement.
Fig. 10
IMPORTANT NOTE
HAVING FITTED THE GRAVEL MATERIAL IN THE BASE OF THE COMBUSTION CHAMBER,
ENSURE THAT NONE OF IT IS ON THE BURNER FLAME STRIP OR IN THE PILOT ASSEMBLY. IF
MATERIAL IS OBSERVED VISUALLY ON THESE COMPONENTS, REMOVE IT BEFORE
CONTINUING.
10
D
Slot in log to locate
in the base plate
u
pturn
E
Slot in log to locate
in the base plate
upturn
Warning : Use only the logs supplied with the fire. When replacing the
logs remove the old logs and discard them. Fit a complete set of logs of the
correct type. Do not fit additional logs or any logs other than a genuine
replacement set.
To ensure that the release of fibres from these R.C.F (Refractory Ceramic Fibre) articles is kept to a
minimum, during installation and servicing we recommend that you use a HEPA filtered vacuum to
r
emove any dust accumulated in and around the appliance before and after working on the
appliance. When replacing these articles we recommend that the replaced items are not broken
up, but are sealed within a heavy duty polythene bag, clearly labelled as “RCF waste”. RCF waste
is classed as a “stable”, non reactive hazardous waste and may be disposed of at a landfill
licensed to accept such waste Protective clothing is not required when handling these articles,
but we do recommend you follow the normal hygiene rules of not smoking, eating or drinking in
the work area, and always wash your hands before eating or drinking.
This appliance does not contain any component manufactured from
asbestos or asbestos related products.
11
REMOVAL AND RE-FITTING OF THE “FONTANA COMPACT” FASCIA
TO THE PRODUCT.
a) The trim is supplied in 3 pieces, the rear panel, the front panel and the
stainless steel trim insert. Fix the rear panel to the wall with via the 4
screw holes with screws / rawlplugs. NOTE : The flange of the rear
panel must locate onto the base of the fire. If the stainless steel insert is
required (this is optional to fit) then push it into the front panel at this
stage.
Fig. 11
b) Fit the front panel and optional stainless steel insert (if required) onto
the product by hooking the retaining lugs into the slots on the
combustion chamber as shown above in Fig. 11
12
Retaining lugs on
rear face of trim hook
into the slots on the
combustion chamber
Front Panel
Rear Panel
Stainless Steel
Trim Insert
USER REPLACEABLE PARTS
The only user replaceable parts on this fire are the fuelbed / coal form, and the
handset / ultrasonic receiver batteries, which may be replaced as described below.
Replacement of any other parts must be carried out by a competent person such
as a GAS SAFE registered gas installer.
The part numbers of the user replaceable parts are as follows, these are available
from specialist spares stockists whose details can be found on our web site,
www.bfm-europe.com, in the ‘stockist’ section.
Log Set (Complete) B-105650 Bag of Loose Gravel B-105660
Log Form “A” B-105670 Log Form “B” B-105680
Log Form “C” B-105690 Log Form “D” B-105700
Log Form “E” B-105710
REPLACING THE BATTERIES IN THE HANDSET
a) Remove the old 9V battery by removing the cover on the
back of the handset.
b) Refit new battery and replace cover.
REPLACING THE BATTERIES IN THE RECEIVER
a) Remove the trim, locate the controls unit at LHS, slide the control unit
forwards and remove the cover by sliding the cover off.
b) Refit new 4 off AA batteries and replace cover, refit unit & replace trim.
Due to our policy of continual improvement and development the exact
accuracy of descriptions and illustrations cannot be guaranteed
Part No. B-134640
Issue 1
BFM Europe Ltd.
Trentham Lakes
Stoke-on-Trent
Staffordshire
ST4 4TJ
www.bfm-europe.com
Telephone - General Enquiries : (01782) 339000
Telephone - Service : (0844) 7700169
Loading...
