IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Thank you for purchasing the Heritage™ Natural Spectrum
Please read the following safety information before using. To reduce the risk of
fi re, electrical shock, or injury to persons:
• Do NOT dismantle.
• Do NOT alter power cord.
• Turn off/unplug and allow to cool before replacing bulb or cleaning.
• For indoor use only.
• The lamp is an electrical device. DO NOT USE NEAR WATER
®
Deluxe Floor Lamp.
GENERAL PRECAUTIONS
• Before plugging in the lamp, check to make sure the voltage corresponds
with the main voltage of your location (120 volts).
• Do not use the lamp outside or in wet locations such as bathrooms. It is
intended for indoor, dry use only.
• Not for use with light dimmers, timers, motion detectors or extension cords.
• This product may cause interference with radios, cordless telephones,
or devices that use a wireless remote control, such as televisions. If
interference occurs, move the product away from the device, plug the
product or device into a different outlet, or move the lamp out of the line of
sight of the remote control receiver.
• The light bulb may become loose during transit. To reinstall the light bulb,
see the bulb installation instructions on page 8.
• Do NOT use lubricating agent in assembly; please see troubleshooting
section if you are having diffi culty assembling your lamp.
• Unplug from electrical outlet for extended periods of non-use or during
lightning storms to ensure protection of the electronics.
3
Main Parts & Controls
GETTING STARTED
A. Optix® Glare Control Filter
B. Switch
C. Lamp Head Swivel Knob
D. Lamp Arm
E. Height Adjusting Collar
F. Upper Shaft
Close-up of Lamp Head
G. Lower Shaft
H. Lamp Base
I. Power Cord
J. Power Supply (Ballast)
K. Bulb
A
B
K
C
D
E
F
A
Attention!
Lift your lamp by the vertical shaft, NOT the lamp arm.
B
G
I
J
4
H
ASSEMBLY INSTRUCTIONS
Please Read Operating Instructions
Carefully Before Using the Heritage™
Full Spectrum Floor Lamp:

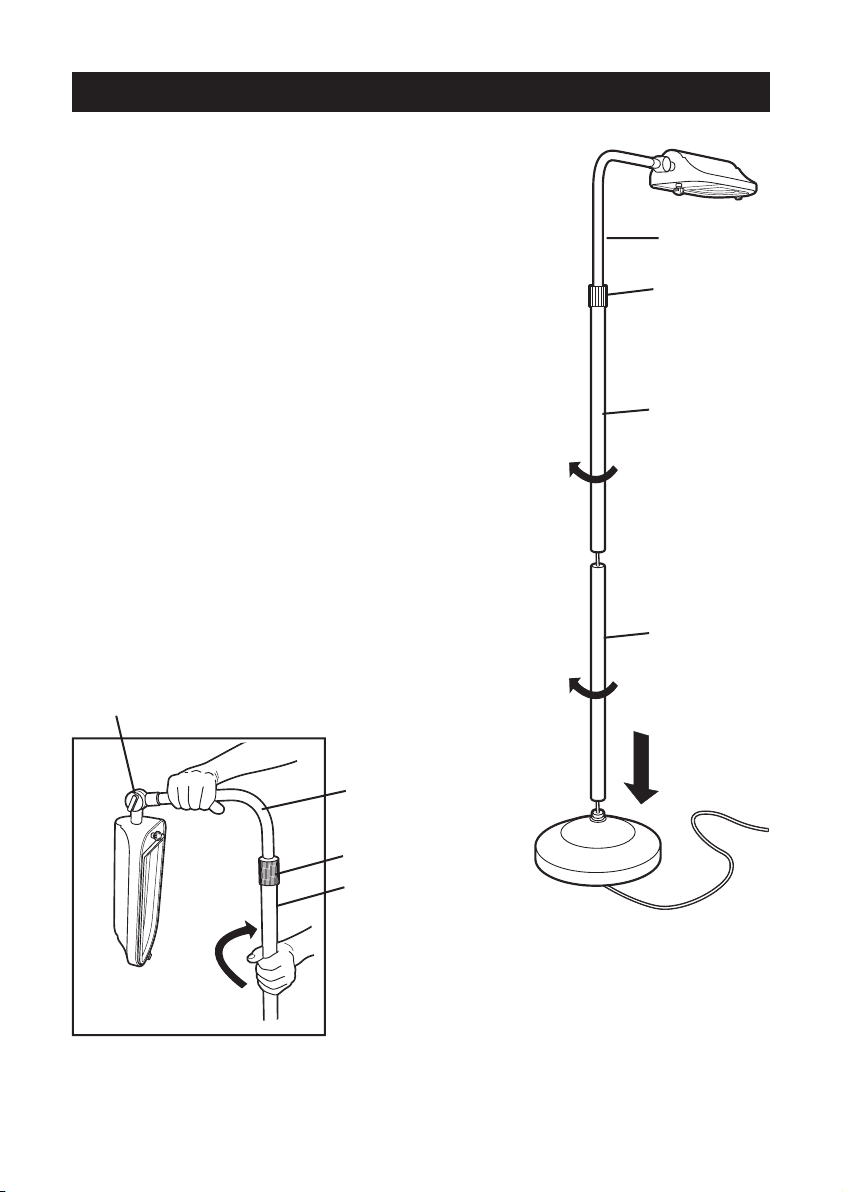

1. Set lamp base on the fl oor and insert the
lower lamp shaft (G) onto the base and
screw clockwise to tighten. (Fig.1)
2. Pull the slack of the electrical cord
through the lamp base. (I)
3. Loosen the height adjusting collar (E) to
free lamp arm. (D)
4. With one hand holding the lamp arm (D),
screw the upper shaft (F) onto the lower
shaft. (G) (See Assembly Detail Below)
5. Tighten height adjusting collar to secure
lamp arm.
6. To lift lamp head, loosen swivel knob (C),
adjust head to desired angle. Tighten
swivel knob.
C
D
D
E
F
G
Assembly Detail
E
F
Fig. 1
5
ASSEMBLY INSTRUCTIONS cont.
7. Attaching the Optix
®
glare control
fi lter:
• Remove glare control fi lter from
protective plastic bag. Take care
to hold fi lter by the edges only.
• Insert tabs on bottom of fi lter
into opening. (Fig. 2)
• Press into place using
thumb tab.
Do not touch or press
Note: Do not
touch material
on the fi lter material itself.
8. Attach the ballast to the power
cord. Use care to align the 4-pin
plug properly. DO NOT FORCE
– the 4-pin plug was designed to
fi t in only one orientation. (Fig. 3)
9. Plug ballast into a standard 120V 50/60Hz
outlet. Turn lamp on. The green LED indicator
on center of the ballast should be illuminated.
(Fig. 4) If the LED indicator does not illuminate,
please refer to the troubleshooting section of
this manual. (See page 9)
Fig. 2
Fig. 3
10. If bulb does not illuminate instantly, please
refer to the troubleshooting section of this
manual.
11. Adjust lamp brightness to the desired level
(low-medium-high).
WARNING: Do not block vents on ballast. Vents
are necessary for proper function of the ballast;
blocking them may cause overheating of the
ballast and increase risk of fi re.
6
Vents
Fig. 4
ADJUSTING THE HERITAGE™ FLOOR LAMP
The Heritage™ Floor Lamp
adjusts several ways:
1. To adjust lamp height – hold upper
shaft (F) with one hand, loosen height
adjusting collar. Raise or lower lamp
arm (D) to desired height. Tighten
collar. (Fig. 5)
Note: Do not stand on cord or otherwise
restrict its movement while raising or
lowering the height of the lamp.
2. To rotate the lamp head right or
left, loosen height adjusting collar,
swing lamp arm to desired position.
Tighten collar. Lamp arm rotates a
full 360º. (Fig. 6)
3. To adjust lamp head angle up
or down – loosen swivel knob
counterclockwise, place head at
desired angle, tighten swivel knob to
secure. (Fig. 6)
D
Height
adjusting
collar
F
Fig.5
Fig. 6
Swivel
Knob
4. To tilt lamp head toward you or
away from you – simply move
head to desired position. (Fig. 8)
Fig. 7
Fig. 8
7
BULB REPLACEMENT INSTRUCTIONS
Removal
C
D
1. Unplug lamp from power source.
2. To access the bulb, remove Optix
®
glare control fi lter by depressing the
thumb tab and lifting it out.

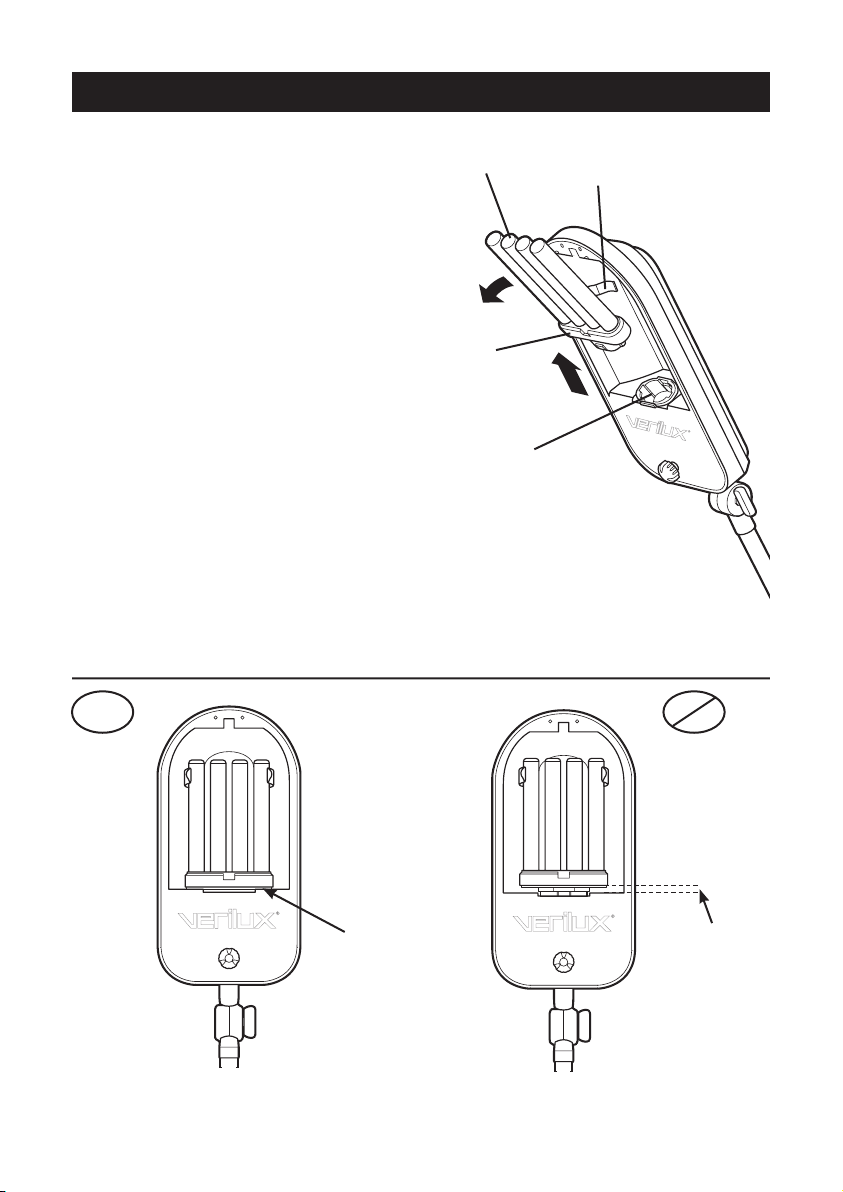

3. Firmly hold bulb base (B) and pull
bulb (C) from the socket (A) in an
outward motion. (Fig. 9)
B
Installation
1. Unplug lamp from power source.
A
2. Firmly hold base (B) and push bulb
(C) into the socket (A).
Fig. 9
3. Be sure bulb is fi rmly seated in the
socket (see below) and snapped
into the metal bulb clip (D). (Fig. 10)
4. Replace Optix® glare control fi lter.
YES NO
Fig. 10
No
gap
large gap
Correctly seated bulb Incorrectly seated bulb
8
Notice
TROUBLESHOOTING
Your Verilux® desk lamp uses advanced micro-electronics to power
the revolutionary Trucolite™ bulb. These electronics are housed in a
specially designed ballast located at the power plug. The LED indicator
light on the ballast allows you to troubleshoot any problems with the
lamp’s function. When replacing your Verilux
in the power cord properly. The 4-pin plug was designed to fi t in only
one orientation (See Assembly Instructions on page 5).
• Make sure all power connectors, cords, and plugs are inserted fully
and securely.
• Be sure the bulb is securely seated into the socket. (See page 8).
• Unplug the lamp for a few minutes (this allows the electronics in the
ballast to reset).
• Make sure there is power to the wall outlet or try another outlet.
®
ballast, take care to plug
WARNING: Do not block vents on ballast. Vents are necessary for
proper function of the ballast; blocking them may cause overheating of
the ballast and increase risk of fi re.
9
CARE & CLEANING
Your lamp is made from high quality materials that will last for many
years with minimum care. You may want to periodically clean the lamp,
using a mild non-abrasive cleaner and soft cloth. When cleaning, make
sure you have turned off and unplugged the unit, and allowed suffi cient
time for the unit to cool. All liquid should be properly wiped away and
dried prior to restoring power.
DO NOT USE SOLVENTS OR CLEANERS CONTAINING
ABRASIVES, OR AMMONIA BASED CLEANERS
Note: Do not use any cleaning agents, including window cleaner, on
the Optix
®
glare control fi lter. If needed, dust with a clean, dry cloth.
