Natural Spectrum
®
ShopLight™
VC01HH1
INSTRUCTION
MANUAL
SAVE THESE INSTRUCTIONS
Thank you for purchasing the
Verilux®Natural Spectrum®ShopLight™
.
PLEASE READ THE FOLLOWING SAFETY INFORMATION BEFORE USING.
To reduce the risk of fire, electrical shock, or injury to persons:
• Do NOT dismantle.
• Do NOT alter power cord.
• Turn off/unplug and allow to cool before replacing bulb or cleaning.
• For indoor use only.
•
This portable lamp has a polarized plug (one blade is wider than the
other). As a safety feature, this plug will fit in a polarized outlet only
one way. If the plug does not fit fully in the outlet, reverse the plug.
If it still does not fit, contact a qualified electrician. Never use with an
extension cord or adapter unless plug can be fully inserted. Do not
attempt to defeat this safety feature.
•
The Verilux®Natural Spectrum®ShopLight™ is an electrical device.
DO NOT USE NEAR WATER
Important Safety Instructions
•
Before plugging in the Natural Spectrum®ShopLight™, check to make
sure the voltage corresponds with the main voltage of your location (120 volts).
•
Do not use the Natural Spectrum®ShopLight™ outside or in wet locations
such as bathrooms. It is intended for indoor, dry use only.
•
Not for use with light dimmers, timers, motion detectors or extension cords.
•
This product may cause interference with radios, cordless telephones, or
devices that use a wireless remote control, such as televisions. If interference
occurs, move the product away from the device, plug the product or device
into a different outlet, or move the lamp out of the line of sight of the remote
control receiver. This lamp complies with part 18 of FCC.
•
The light bulb may become loose during transit. To reinstall the light bulb,
see the bulb installation instructions on page 5.
• Do NOT use lubricating agent in assembly; please see troubleshooting
section or call Customer Service if you are having difficulty assembling
your lamp (1-888-544-4865).
• Unplug from electrical outlet for extended periods of non-use or during
lightning storms to ensure protection of the electronics.
General Precautions
2
3
Main Parts & Controls
A. Lamp Head
B. Clamp Assembly
C. Clamp Screw
D. Tightening Knob
E. Power Cord
E
F
B
A
C
D
Close-up of Lamp Head
H
I
G
Parts Diagram
F. Polarized Plug
G. Metal Wire Guard
H. Bulb
I. On/Off Switch
Fig. 1
Fig. 2
Fig. 3
4
Assembly Instructions
READ INSTRUCTIONS CAREFULLY BEFORE SET-UP
1. Remove lamp from box and packaging. Note: Please save original
packaging for repacking should you need to return the product.
2. There are three mounting options:
Wall Mount: Using #6 screws (not included) secure the clamp to
the wall and then insert the pin into the hole of the clamp. (Fig. 1)
Horizontal & Vertical Surface Mount: Remove clamp and turn
the clamp screw counterclockwise until it is open slightly wider
than the work surface to which you are attaching it. Clamp fits
surfaces up to 1.75" thick. Surface must be a minimum of 1.5"
deep for clamp to hold securely. (Figs. 2 & 3)
3. Slide the clamp onto work surface, and turn plastic clamp screw
clockwise to tighten securely.
4. Place lamp shaft into clamp assembly and turn tightening knob
clockwise to secure.
5. Adjust upper and lower goosenecks as needed to illuminate work
surface.
6. Plug lamp into outlet and turn on; if bulb does not illuminate
instantly, please refer to the troubleshooting section of this manual.
Care & Cleaning
Your Natural Spectrum®ShopLight™ is made from high quality materials
that will last for many years with a minimum of care. You may want to
periodically clean the lamp, using a mild non-abrasive cleaner and soft
cloth. When cleaning, make sure you have turned off and unplugged
the unit, and allowed sufficient time for the unit to cool.
DO NOT USE SOLVENTS OR CLEANERS CONTAINING
ABRASIVES, OR AMMONIA BASED CLEANERS
All moisture should be properly wiped away and dried prior to
restoring power.
5
Correctly seated bulb Incorrectly seated bulb
Bulb Removal or Installation
Removal
1. Unplug lamp from power source.
2. Remove metal wire guard by depressing
the tab and lifting it out. (See Fig. 1)
3. Firmly hold bulb base (B) and pull
bulb (C) from the socket (A) in
an outward motion. (See Fig. 2)
Installation
1. Unplug lamp from power source.
2. Firmly hold base (B) and push bulb (C) into the socket (A).
(See Fig. 2 )
3. Be sure bulb is firmly seated in the socket (See Fig. 3 below)
and snapped into the metal bulb clip (D).
4. Replace wire guard.
• Insert metal pegs at bottom of the
wire guard into openings near the
bulb socket
• Snap tab into place as shown
(Fig. 1)
B
C
A
D
Notice
large
gap
No
gap
Fig. 1
Fig. 2
Fig. 3

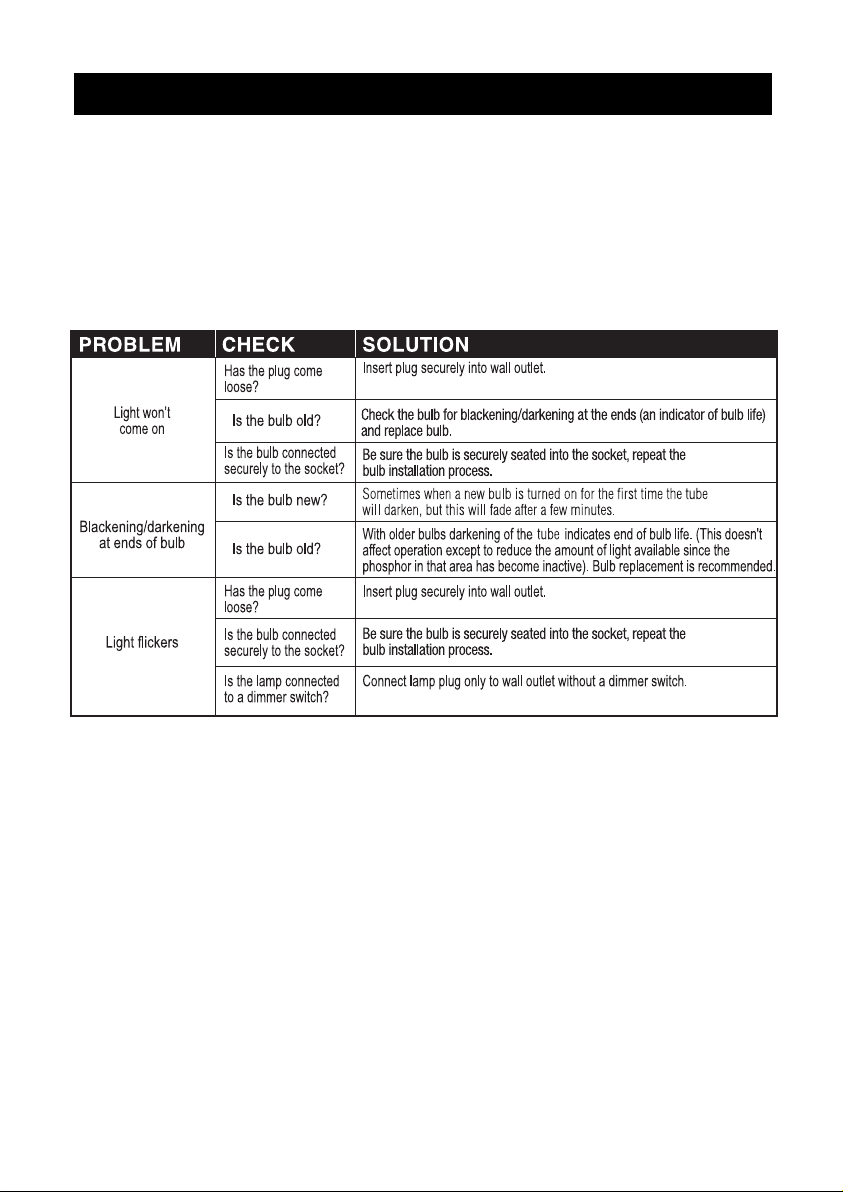

Troubleshooting
• Make sure all power connectors, cords, and plugs are inserted fully
and securely.
• Be sure the bulb is securely seated into the socket. (See page 5)
• Make sure there is power to the wall outlet or try another outlet.
Before Requesting Service on Your Verilux®Natural Spectrum
®
ShopLight™, Please Read the Following:
6
