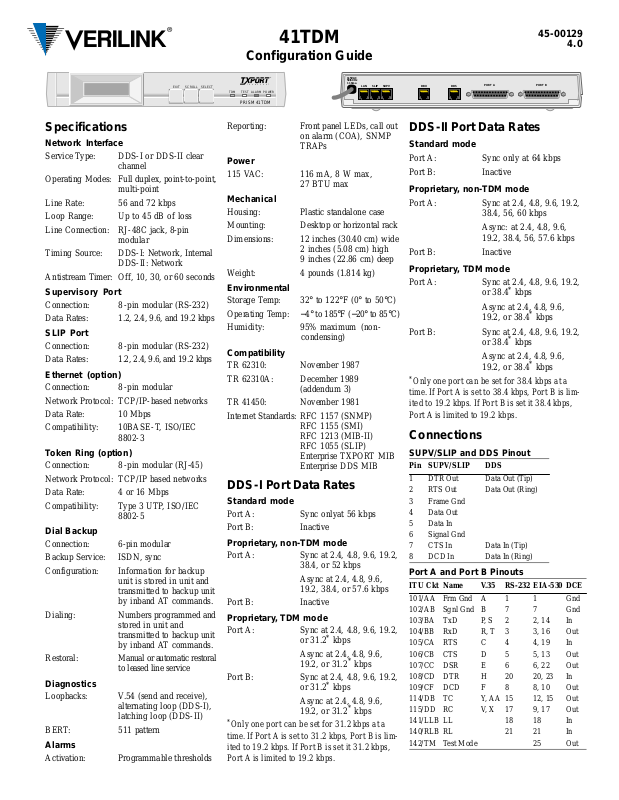

Verilux 41TDM User Manual

41TDM
Configuration Guide
45-00129
4.0
SCROLLEXIT SELECT
Specifications
Network Interface
Servic e Type: DDS- I or DDS -II cl ear
channel
Operatin g Modes: Full duple x, point -t o-poi nt ,
multi-point Line Rate: 56 and 72 kbps Loo p Rang e: Up to 45 dB o f los s Line Connection: RJ-48C jack, 8-pin
modular Timing Source: DDS-I: Network, Internal
DDS-II: Network Antistream Timer: Off, 10, 30, or 60 seconds
Supervisory Port
Connection: 8 - pin modular (RS-232) Data R ate s: 1.2, 2.4, 9.6, and 19.2 kbps
SLIP Port
Connection: 8 - pin modular (RS-232) Data Rat es: 1.2, 2.4, 9.6, and 19.2 kbps
Ethernet (option)
Connection: 8 - pin modular Network Protocol: TCP / IP-based networks Data Rate: 10 Mbps Comp atibil ity: 10BASE -T, ISO/I EC
8802-3
Token Ring (option)
Connection: 8 - pin modular (RJ-45) Network Protocol: TCP / IP based networks Data Rate: 4 or 16 Mbps Comp atibil ity: Type 3 UTP, ISO/IEC
8802-5
Dial Backup
Connection: 6-pin modular Backup Service: ISDN, sync Configuration: Information for backup
unit is stored in unit and
transmitted to backup unit
by inband AT commands. Dialing: Numbers prog rammed and
stored in unit and
transmitted to backup unit
by inband AT commands. Restoral: Manual or automatic restoral
to leased line service
Diagnostics
Loopbacks: V.54 (send and receive),
alternating loop (DDS-I),
latching loop (DDS-II) BERT: 511 pattern
Alarms
Activation: Programmable thresholds
TRANSPORT
TDM TEST ALARM POWER
PRISM 41TDM
®
115VAC 50/60Hz
116ma
LAN SLIP SUPV DDSDBU
Reporting: Front panel LEDs, call out
on alarm (COA), SNMP TRAPs
Power
115 VAC: 116 mA, 8 W max,
27 BTU max
Mechanical
Housing: Plastic standalone case Mounting: Desktop or horizontal rack Dimensions: 12 inches (30.40 cm) wide
2 inches (5.08 cm) high 9 inches (22.86 cm) deep
Weight: 4 pounds (1.814 kg)
Environmental
Storage Temp: 32° to 122°F (0° to 50°C) Operating Temp: −4° to 185°F (−20° to 85°C) Humidity: 95% maximum (non -
condensing)
Compatibility
TR 62310: November 1987 TR 62310A: December 1989
(addendum 3) TR 41450: November 1981 Internet Standards: RFC 1157 (SNMP)
RFC 1155 (SMI)
RFC 1213 (MIB-II)
RFC 1055 (SLIP)
Enterprise TXPORT MIB
Enterprise DDS MIB
DDS-I Port Data Rates
Standard mode
Port A: Sync onlyat 56 kbps Port B : Inactive
Proprietary, non-TDM mode
Port A: Sync at 2.4, 4.8, 9.6, 19.2,
Port B : Inactive
Proprietary, TDM mode
Port A: Sync at 2.4, 4.8, 9.6, 19.2,
Port B: Sync at 2.4, 4.8, 9.6, 19.2,
*
Only one port can be set for 31 .2 kbps at a time. If Port A i s set to 31.2 kbps, Port B is lim­ited to 19.2 kbps. If Port B is set it 31.2 kbps, Port A is limited to 19.2 kbps.
38.4, or 52 kbps Async at 2.4, 4.8, 9.6,
19.2, 38.4, or 57.6 kbps
*
or 31.2
kbps
Async at 2.4, 4.8, 9.6,
19.2, or 31.2
or 31.2 Async at 2.4, 4.8, 9.6,
19.2, or 31.2
*
kbps
*
kbps
*
kbps
PORT A PORT B
DDS-II Port Data Rates
Standard mode
Port A: Sync only at 64 kbps Port B: Inac tive
Proprietary, non-TDM mode
Port A: Sync at 2.4, 4.8, 9.6, 19.2,
38.4, 56, 60 kbps Async: at 2.4, 4.8, 9.6,
19.2, 38.4, 56, 57.6 kbps
Port B: Inac tive
Proprietary, TDM mode
Port A: Sync at 2.4, 4.8, 9.6, 19.2,
Port B: Sync at 2.4, 4.8, 9.6, 19.2,
*
Only one port can be set for 38.4 kbps at a
*
or 38.4
kbps
Async at 2.4, 4.8, 9.6,
19.2, or 38.4
or 38.4 Async at 2.4, 4.8, 9.6,
19.2, or 38.4
*
kbps
*
kbps
*
kbps
time. If Port A i s set to 38.4 kbps, Port B is lim­ited to 19.2 kbps. If Port B is set it 38.4 kbp s, Port A is limited to 19.2 kbps.
Connections
SUPV/SLIP and DDS Pinout
Pin SUPV/ SLIP DDS
1 DTR Out Data Out (Tip) 2 RTS Out Data Out (Ring) 3Frame Gnd 4 Data Out 5 Data In 6 Signal Gnd 7 CTS In Data In (Tip) 8 DCD In Data In (Ring)
Port A and Por t B Pinouts
ITU Ckt Name V.35 RS-232 EIA-530 DCE
101/AA Frm Gnd A 1 1 Gnd 102/AB Sgnl Gnd B 7 7 Gnd 103/BA TxD P, S 2 2, 14 In 104/BB RxD R, T 3 3, 16 Out 105/CA RTS C 4 4, 19 In 106/CB CTS D 5 5, 13 O ut 107/CC DSR E 6 6, 22 Out 108/CD DTR H 20 20, 23 In 109/CF DCD F 8 8, 10 Out 114/DB TC Y, AA 15 12, 15 Out 115/DD RC V, X 17 9, 17 Out 141/LLB LL 18 18 In 140/RLB RL 21 21 In 142/TM Tes t Mode 25 Out
41TDM Menu tr ee
Main Menu Network Configuration Mode: DDS-I, TXP-I, TXP-II, DDS-II
Rate: 56 K and 56 K Timing: Network and Internal Circuit Assura nce: Off and On Antistreaming Timer: ---, 10 seconds, 30 seconds, 60 seconds Alarm Thresholds: FDL, OOS, OOF, LOS, ART
DTE Configuration Mode: TDM and STD
Port A Format: Sync and Async Port B Rate: 2.4, 4.8, 9.6, 19.2, 31.2, 38.4, 52, 56, 57.6, 60, 64 kbp s
Interface: RS-232, V.35, EIA-530 DSR: Forc e T and Test>Off DCD: Forc e T, Far RTS, Idle>Off RTS: Force On a nd Normal RTS/CTS Delay: Normal and Long DTR Alarm: Dis and En V54 Loop: Dis an d En LL Detect: Dis and En RL Detect: Dis and En
SNMP Configuration Unit IP Addr*
Router IP Addr* Subnet Mask* Fltr 1–6 Addr* SETs: Ena b le and D is ab le Read Community* Write Community* Sys Contact* Sys Name* Sys Location* Reset LAN: No and Yes
Diagnost ics Loop Mode: Uni and Bi
BERT Function BERT: On and Off
Reset: No and Yes SynLos (display only) ErrSec (display only) BitErr (display only) Time: HH:MM:SS (display only) Sync No Test ( display only)
In Sync (display only) Local Loop: Off and On Far V.54 Loop: Off and On V.54 Loop: Off and On DTE-A Loop: Of f and On DTE-B Loop Of f and On
* An underscore appears
under the c haracter to be entered or modified.
Configuration
EXIT
Press this button on the last char­acter to en ter the value and return to the previous screen.
SCROLL
Press this button to increment the characters (a–z, A–Z, 0–9, spe­cial characters).
SELECT
Press this button to accept the cur­rent value and move the cursor right.
Indicators
TDM
This amber indicator is O n w h en the unit is configured for TDM (Time Division Multiplexer) mode.
TEST
This amber indicator is O n w h en the unit transmits loop code, un­loop code, the 511 BERT pattern, or when the un it is placed in a loo p mode such as li ne, data, V.54, etc.
ALARM
This red indicator is On when the unit is in an a ctive alarm condition.
POWER
This green indicator is On when power is applied to the unit.
Utilities Save Config ur a tio n : N o an d Yes
SUPV: 1.2 K, 2.4 K, 9.6 K, 19.2 K SLIP: 1. 2 K , 2. 4 K , 9.6 K, 19. 2 K IP Port: SLIP Date: MM/DD/YY Time: HH:MM:SS Contrast: 0–1 5
Status Displays Status: FDL, LOS, OOS, OOF, Idle, Test
A: RS, CS, CD, TR, SR B:
