Verilink 5330 User Manual

WANsuite® 5330 Reference Manual

May 2002 34-00302.F

Copyright Notice Copyright © 2002 Verilink Corporation. All rights reserved. No part of this publication may be

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Verilink.

Manual Reorder # 34 -00302.F May 2002

Trademarks Verilink

and WANsuite® are registered trademarks of the Verilink Corporation. FrameStart™

and Servi ceAware™ are trademarks of the Verilink Corporation . All other brand and product names used herein are trademarks or registered trademarks of their

respective manufacturers.

Documentation Disclaimer

This document does not create any express or implied warranty about Verilink or about its products or services. Verilink’s sole warranty is contained in its product warranty. The end-user documentation is shipped with Verilink’s products and constitutes the sole specifications referred to in the pro duc t war ran ty. Ve rili nk ha s ma de re aso nab le effor ts to ver ify th at th e info rmat io n contained herein is accurate, but Verilink assumes no responsibility for its use or for any infringement of patents or other rights of third parties that may result. The customer is solely responsible for verifying the suitability of Verilink’s products for its use. Specifications are subject to change without no tice.

Warranty Verilink's produ ct warranty is included at the back of this document. FCC Requirements Changes or modifications to this unit not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This d evice compl ies w ith Part 15 o f the FCC r ules. Oper ation is su bject to the foll owing two conditions:

1 This device may not cause harmful interference.

2 This device must accept any interference received, including interference that may cause

undesired operation.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. O peratio n of this equipme nt in a re sidentia l area is likely to c ause har mful in terferen ce. The user wil l be required to correct the interference at his own expense.

This equipment complies with Part 68 of the FCC Rules. On the rear or bottom of this unit is a label that contains the FCC registration number and other information. If requested, provide this information to the tel ephone compa ny.

1 All direct connections to DDS lines must be made using standard plugs and jacks (compliant

with Part 68).

2 If the unit appears to be malfunctioning, it should be disconnected from the DDS lines until

the source of trouble is determined to be your equipment or the telephone line. If your equipment needs repair, it should not be reconnected until it is repaired.

ii WANsuite 5330

3 The unit has been designed to prevent harm to the DDS network. If the telephone company

finds that the equipment is exceeding tolerable parameters, it can temporarily disconnect service. In this case, the telephone company will give you advance notice, if possible.

4 Under FCC rules, no customer is authorized to repair this equipment, regardless of warranty

status.

5 If the telephone company alters its equipment in a manner that will affect the use of this

device, it must give you advance warning so that you can have the opportunity for uninterrupted service. You will be advised of your right to file a complaint with the FCC.

6 In the event of equipment malfunction, all repairs should be performed by our company or an

authorized agent. It is the responsibility of users requiring service to report the need for service to our company or to one of our authorized agents.

Canadian Emissions Requirements

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

WARNING: For the DC powered units only, end users should use existing battery sources or

a CSA certified power supply.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques (de la class A) prescrites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada.

Safety P recauti ons When handling this equipment, follow these basic safety precautions to reduce the risk of elec-

tric shock and injury:

• Follow all wa rnings and instructions marked on the product and in the manual.

• Unplug the hardware from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a slightly dam p cloth for cleaning.

• Do not place this product on an unstable cart, stand, or table. It may fall, causing serious damage to the product.

• Slots in the unit are provided for ventilation to protect it from overheating. These openings must not be bl ocked or covered. Never place this product near a radiator or heat register.

• This product should be operated only from the type of power source indicated on the marking label and manual. If you are unsure of the type of power supply you are using, consult your dealer or lo ca l po w e r company.

• Do not allow anything to rest on the power cord. Do not locate this product where the cord interferes with the free movem e nt of people.

• Do not overlo ad w all outlets and extension cords, as this can result in fire or electric shock.

• Never push objects of any kind into the unit. They may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill liquid of any kind on this equipment.

• Unplug the equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged or frayed.

• If liquid has been spilled into the product.

• If the product has been exposed to rain or water.

• If the product has been dropped or if the housing has been damaged.

FCC Requirements iii

iv WANsuite 5330

Preface

About th i s Ma n u al ....... .. ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... .......................... xi

Manual Organization ...................................................................................................................... xi

Typographic Conventions .............................................................................................................xii

Customer Service and Technical Support ........... .......... ........... ...................... ......................................xii

Support from Your Network Supplier ........................................................................................... xii

Support from Verilink ........ ........... ........... ...................... .............................. ........... ...................... xii

Telephone ............................................................................................................................... xii

E-mail .................................................................................................................................... xiii

Intern et ..... ......... ....... ......... ......... ......... ....... ......... ......... ......... ....... ......... ......... ......... ............... xiii

Returning a Unit to Verilink ............................................................................................................... xiii

Chapter 1 About the WANsuite 5330

Introduction ......................................................................................................................................... 1-1

Features of the WANsuite 5330 ................ .............................. ........... ...................... .......................... 1-2

Performance ................................................................................................................................. 1-2

SNMP Management ....... .. ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... ...... 1-2

Intelligent WAN Access Architecture ......................................................................................... 1-3

Optional Advanced Network Management .................................................................................. 1-3

About FrameStart Technology ........................................................................................................... 1-3

WANsuite 5330 Overview and Advantages ............ ...................... ................... ...................... ........... .1-4

Features Summary .............................................................................................................................. 1-4

Front Panel .......................................................................................................................................... 1-5

Rear Panel Connections ...................................................................................................................... 1-7

Supervisory Port ........................................................................................................................... 1-7

10/100 Ethernet .................................... ...................... ........... .............................. ........... ..............1-7

Ethernet LED Indicators ........................................................................................................1-7

Serial Interface ............................................................................................................................. 1-8

Network Interface ......................................................................................................................... 1-8

Power Connection ....................................................................................................................... 1-8

Power Failure ......................................................................................................................... 1-9

Chapter 2 Installation

Unpacking and Inspection .................................................................................................................. 2-1

Supplied Materials ........ ......................................... ...................... .............................. .. ....................... 2-1

Installation Wizard .............................................................................................................................. 2-2

Chapter 3 Web Server Interface

Web Server Access .. ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ...................... 3-1

Layout of Interface Screens ......................................................................................................... 3-1

Unit Screen ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ........................ 3-2

Interfaces ........... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ........................... 3-5

Network Screen ............................................................................................................................ 3-5

Error Status and Alarm Thresholds Table ............................................................................. 3-6

Reset Timer 3-7

Serial Screen ................................................................................................................................. 3-7

Current Pin Status ................................................................................................................ 3-10

DTR Alarm Control and Status Table ................................................................................. 3-10

10/100 Ethernet (IP Servic e Details) Screen ............ ........... ........... .............................. ..............3-10

Supervisory Screen ..................................................................................................................... 3-12

Current Pin Status ................................................................................................................ 3-12

DTR Alarm Control and Status Table ................................................................................. 3-13

Services Screen ................................................................................................................................. 3-13

Adding a Ser v i ce . .. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 3-13

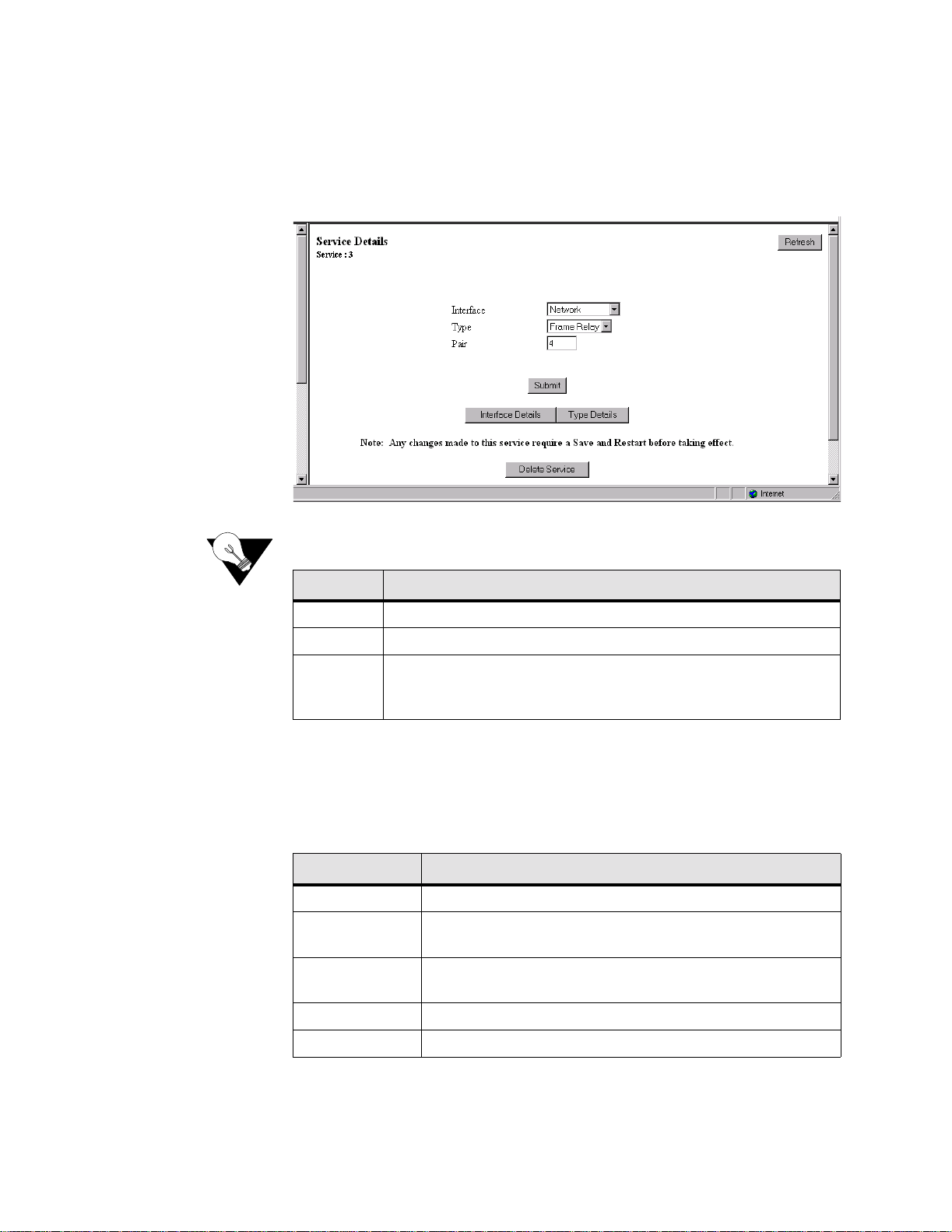

Service Detai ls Screen ........... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 3-14

Interface Deta i l s But t o n ............. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. .........3-15

Type Details Button ............................................................................................................. 3-15

Delet e Se r v ice Button ................ .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. .........3-15

TDM Sc r eens ........ .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 3-15

Channel Tabl e D et a i ls S creen .... ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 3-15

Frame Relay Service Details Screen .......................................................................................... 3-16

Status and A larms Tab l e .......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 3-19

Transmit: 3-20 Receive: 3-20 Throughput (bits/sec): 3-21

PPP Service Details Screen ........................................................................................................3-21

Param e t ers T o N eg o t i a t e .... ... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. .. 3-23

PPP Sta t i sti c s .... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ........... 3-24

Transmit 3-24 Receive 3-25 Throughput (bits/sec) 3-25

PAP Table ............................................................................................................................ 3-25

CHAP Table ........................................................................................................................3-26

IP Serv i ce s Scr e e n ............ ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 3-27

Applic ations ........ ....... ......... ......... ......... ....... ......... ......... ......... ...... ......... ......... ......... ......................... 3-28

Endpoint Table Screen ............................................................................................................... 3-28

Endpoint Details Screen ...................................................................................................... 3-28

Endpoint Service Details Screen ......................................................................................... 3-31

DLCI Details Screen ............................................................................................................3-31

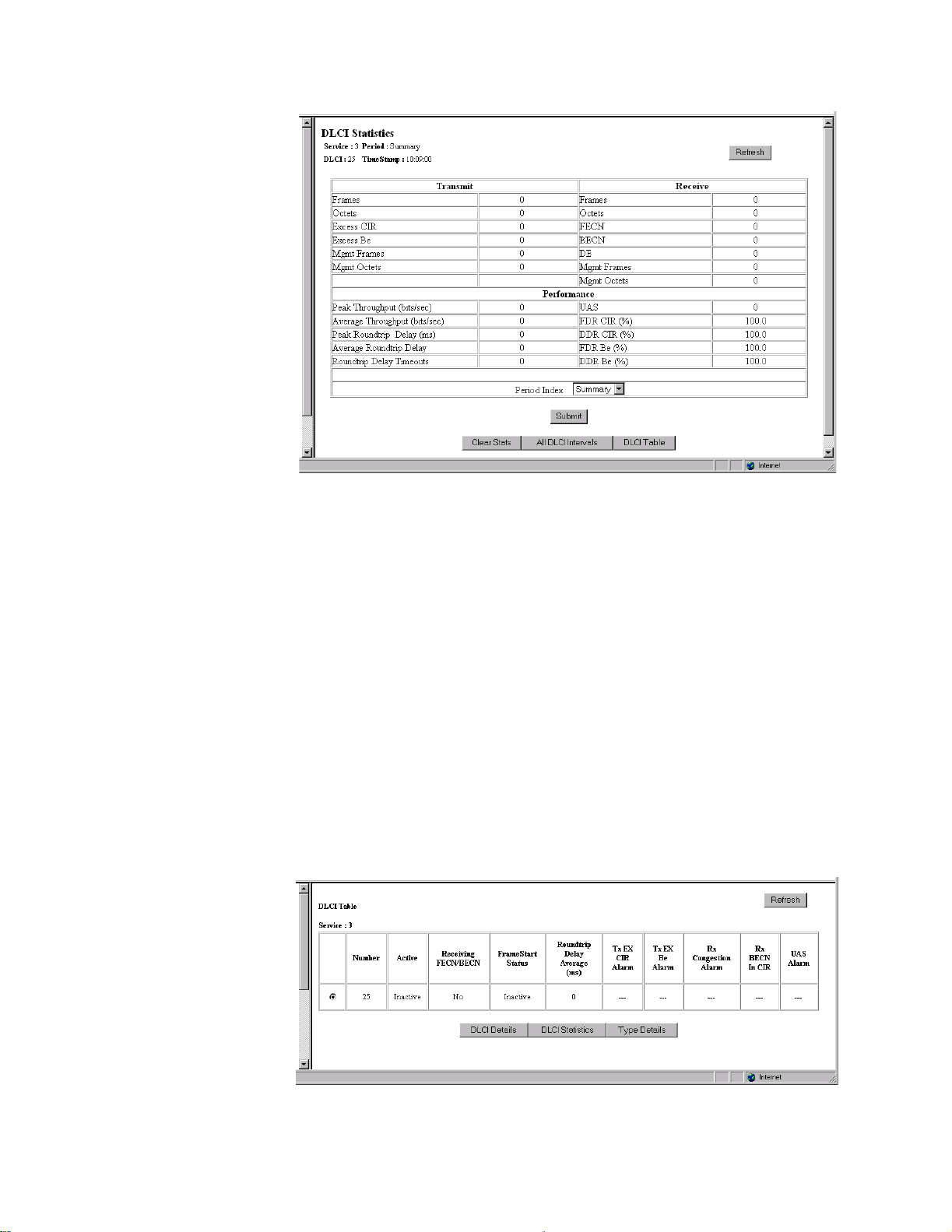

DLCI Status Table 3-33 DLCI Statistics Screen 3-34 DLCI Table Screen 3-35

Service Aware Screen ................................................................................................................ 3-36

Rule Configuration Screen (Rule Details) ...........................................................................3-37

vi WANsuite 5330

Traffic Meter Statistics Screen ............................................................................................ 3-38

SNMP D et a i l s Scr een . .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 3-39

Diagnostics Screen ........ ...................... .......... ........... ...................... ............................................ 3-40

Test Details Screen .............................................................................................................. 3-41

BERT Table 3-42 Loop Table 3-43

Trap L og S c r een ...... ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 3-43

Top N Details (Top Talkers) Screen .......................................................................................... 3-44

Utilities ............................................................................................................................................. 3-45

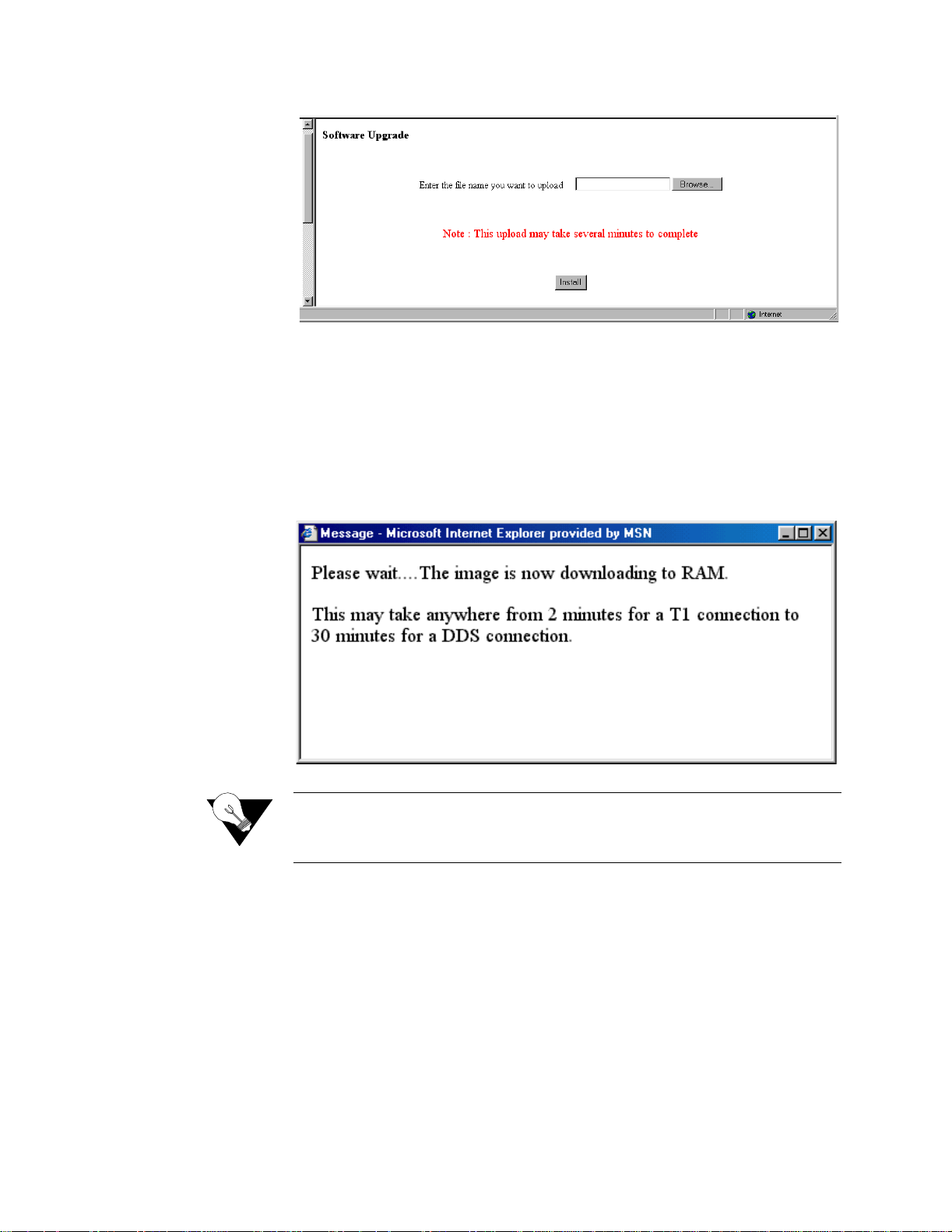

Software Upgrade ....................................................................................................................... 3-45

Save/U pload ............................................................................................................................... 3-47

Password ....................................................................................................................................3-47

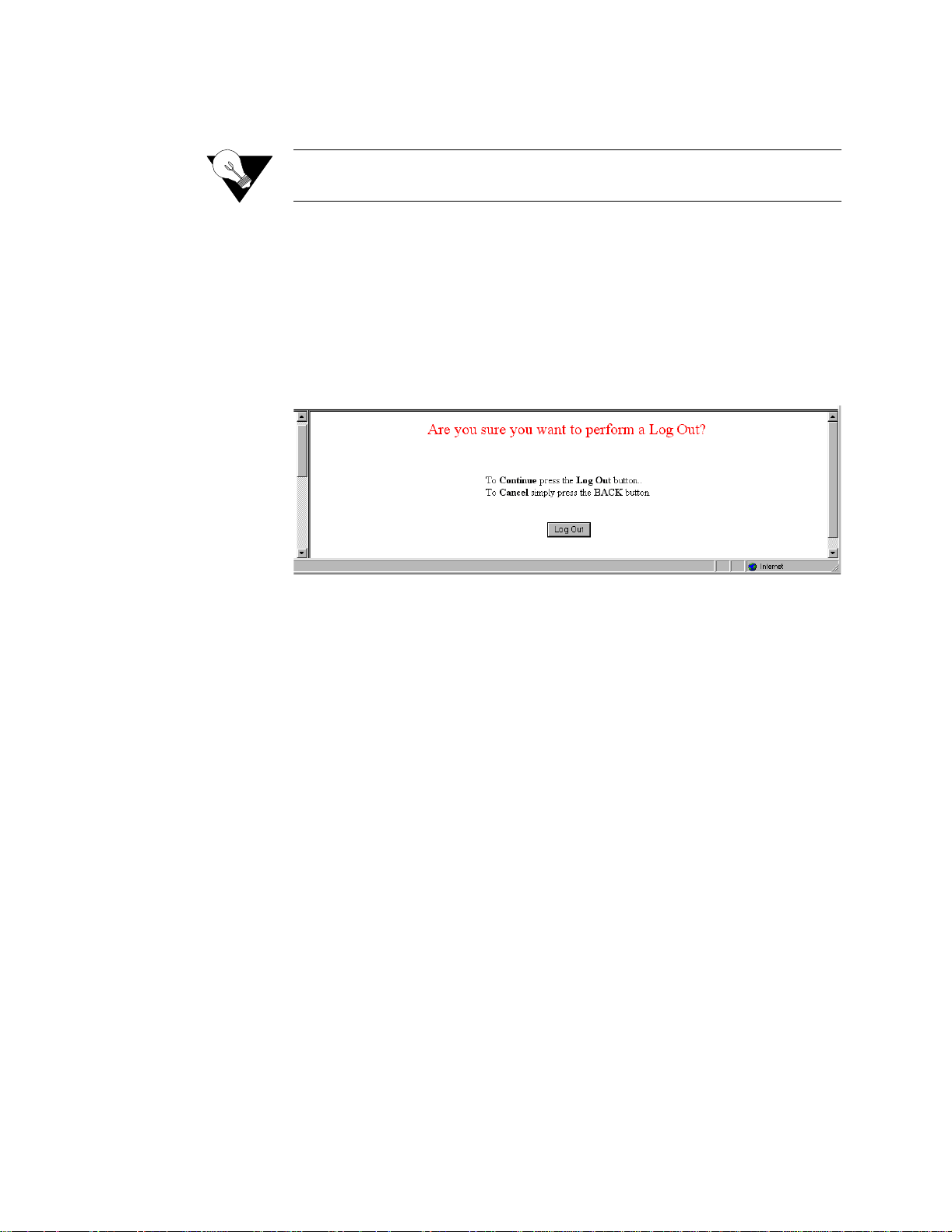

Log Out ...................................................................................................................................... 3-48

In-ban d Management ..... ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. .......3-48

Use of Connected Local Router ........................................................................................... 3-48

Chapter 4 VT100 Interface

Introduction ......................................................................................................................................... 4-1

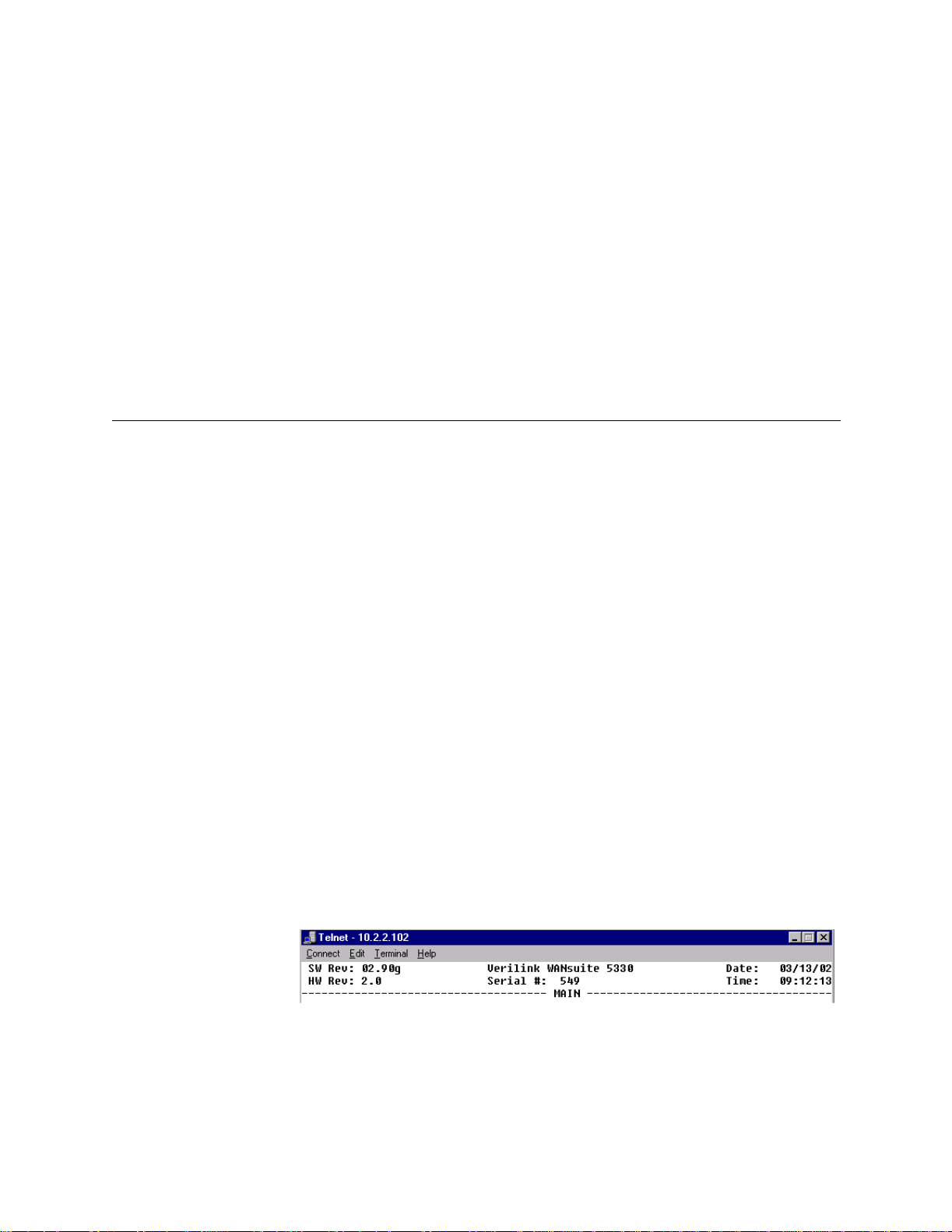

Accessing the VT100 Interface ..................................... .............................. ........... .....................4-1

Screen Co mpone n ts ...... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... 4-1

Cursor Co n t ro l s .......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... ............. 4-2

Field Types ...................................................................................................................................4-2

Menu Structure ............................................................................................................................. 4-3

System Screen ..................................................................................................................................... 4-3

New Pas s w o rd ................ .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. .................. 4-5

Mainte n ance Re se t .................. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... ........... 4-5

Save and Restart ........................................................................................................................... 4-6

Interfaces Scr e en ........ .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .................... 4-6

Network Screen ............................................................................................................................ 4-6

Error Status and Alarm Thresholds Table ............................................................................. 4-7

Reset Timer 4-8

Serial Screen ................................................................................................................................. 4-8

Current Pin Status ................................................................................................................ 4-11

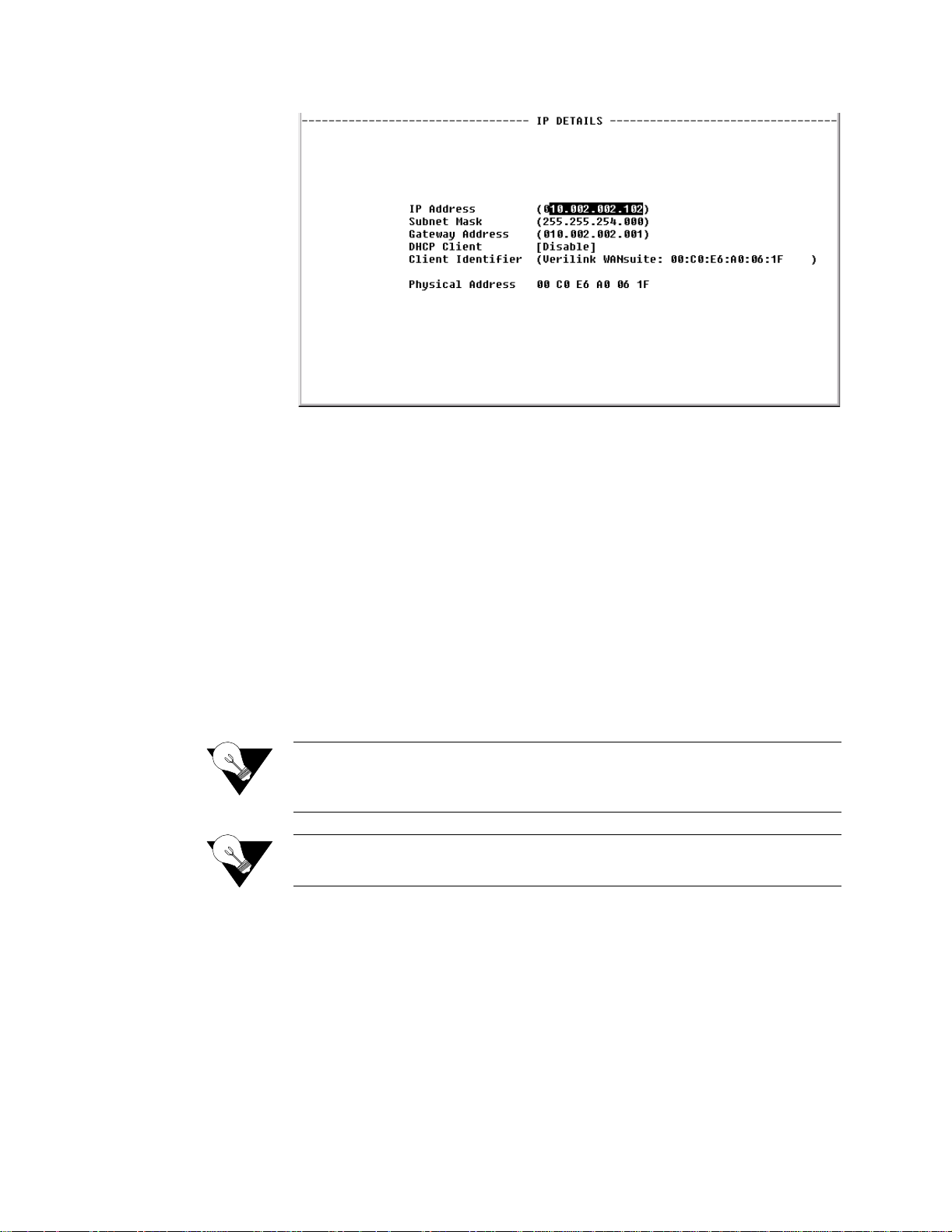

Ethernet (IP Details) Screen ....................................................................................................... 4-11

Supervisory Config Screen ........................................................................................................4-12

Current Pin Status ................................................................................................................ 4-14

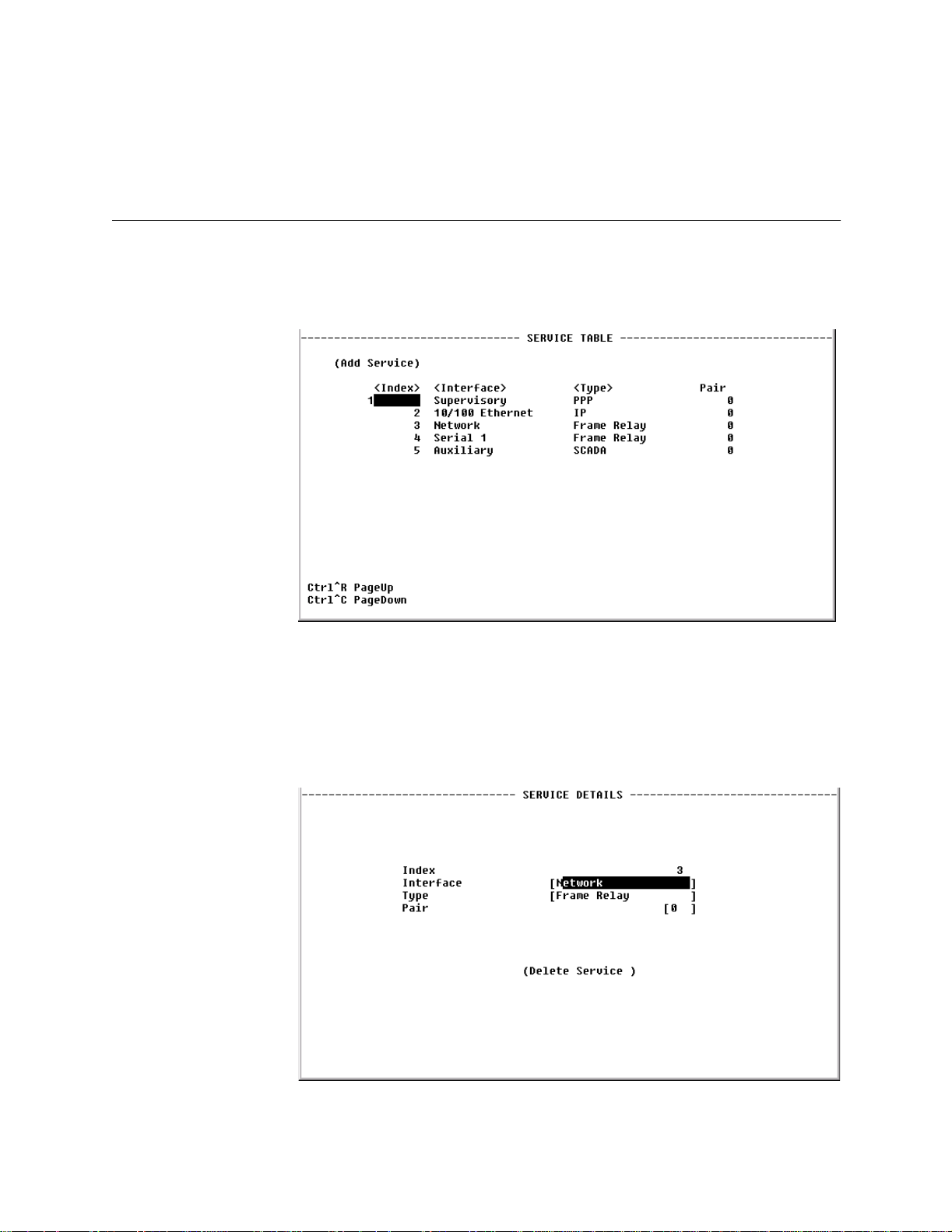

Service Table Screen ........................................................................................................................4-14

Frame Relay Service Details Screen .......................................................................................... 4-15

Transmit 4-20 Receive 4-21 Throughput (bits/sec) 4-21

PPP Service Details Screen ........................................................................................................4-21

Param e t ers T o N eg o t i a t e .... ... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. .. 4-23

PPP Sta t i sti c s .... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ........... 4-24

PAP Table ............................................................................................................................ 4-24

CHAP Table ........................................................................................................................4-25

IP Serv i ce D et ai l s Screen ...... .. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 4-26

vii

Applic ations ........ ....... ......... ......... ......... ....... ......... ......... ......... ...... ......... ......... ......... ......................... 4-26

Endpoint Table Screen ............................................................................................................... 4-26

Endpoint Details Screen ...................................................................................................... 4-27

Endpoint Service Details Screen ......................................................................................... 4-29

DLCI Details Screen ............................................................................................................4-29

DLCI Status Table 4-31 DLCI Statistics Screen 4-32

DLCI Table Screen ..............................................................................................................4-34

Service Aware Screen ................................................................................................................ 4-34

Rule Co n fi g Sc reen .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 4-35

Traffic Meter Statistics Screen ............................................................................................ 4-36

SNMP D et a i l s Scr een . .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 4-37

Diagnostics Screen ........ ...................... .......... ........... ...................... ............................................ 4-38

Test Details Screen .............................................................................................................. 4-39

BERT Table 4-40 Loop Table 4-41

Trap L og S c r een ...... ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 4-41

Top Talkers Screen .................................................................................................................... 4-42

Appendix A Specifications

Network Interface .............................................................................................................................. A-1

Serial Interface ................................................................................................................................... A-1

Management Interfaces ...................................................................................................................... A-1

10/100 Ethernet .................................... ...................... ........... .............................. ........... ............. A-1

Supervisory Port .......................................................................................................................... A-1

Diagnostics ........................................................................................................................................ A-2

Alarms ................................................................................................................................................ A-2

Power ................................................................................................................................................. A-2

Mecha nic al . ..... .... .. ..... .... ..... .. ..... .... ..... .. .... ..... .... ... .... ..... .... .. ..... .... ..... .. ..... .... ..... .. .... ..... ..................... A-2

Enviro n m e n t al ....... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ..................... A-2

Frame Relay Statistics Collected in 96 15-minute Intervals ............................................................. A-2

Industry Listings ................................................................................................................................ A-3

Standa rds ............. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ....................... A-3

Ordering Information .........................................................................................................................A-4

Optional Equipment ...........................................................................................................................A-4

Connector Pin Assignments ............................................................................................................... A-5

Serial Interface Pin Assignments, DTE Mode (Packet Use Only) ............................................. A-5

Serial Interface Pin Assignments, DCE Mode ........................................................................... A-6

Ethernet Interface Pin Assignments ............................................................................................ A-6

Network Interface Pin Assignments ............................................................................................ A-7

Supervisory Port Pin Assignments .............................................................................................. A-7

viii WANsuite 5330

Appendix B SNMP Agent

Introduction .........................................................................................................................................B-1

SNMP Co n f i g u rat i o n P aramete rs .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ...........B-1

SNMP MIBs ......... ... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ....................B-1

SNMP T ra p Co n fi g u r at i o n ... .. ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ...............B-2

Generic MIB Loading Instructions .....................................................................................................B-2

x WANsuite 5330

About this Manual

HAPTER

REFACE

This reference guide for the Verilink WANsuite 5330 intelligent integrated access dev ice (I and cabling. It is not a users guide containing step-by-step procedures. Rather, this manual is designed to be used as a reference regarding commands, interface ports, configuration parameters, and other specific information about the WANsuite 5330.

Manual Organization

The chapters and appendices in this manual are arranged for quick reference when you need it. You do not have to read previous chapters to understand the subsequent chapters. Appendices are designed to complement the main chapters.

• Chapter 1, "About the WANsuite 5330" – This chapter describes product

features and capabilities.

• Chapter 2, "Installation" – This chapter describes unit port connections and

powering informatio n.

• Chapter 3, "Web Server Interface" – This chapter describes the menu screens

and configuration para meters accessed through the Web server interface.

• Chapter 4, "VT100 Interface" − This chapter descr ibes the menu screens and

configuration parameters accessed through the VT100 interface.

AD) describes unit features and specifications, configuration,

• Appendix A, "Specifications" – This appendix defines the specifications for

the WANsuite 5330. In addition, this se ction provides ordering inform ation and all the connector pin assignments for the interfaces on the back of the WANsuite 5330 units.

• Appendix B “SNMP Agent” – This appendix defines which Management

Information Base (MIB) fil es are supported by the WANsuite 5330 SNMP agent. In addition, instr uctions are provided for loadi ng these MIB files into most SNMP management stations.

Preface xi

Typog raphic Conv e ntions

The following table lists the conventions used throughout this guide.

Convention Description

A Notice calls attentions to important features or instructions.

A Caution alerts you to s erious risk of data loss or other results that may caus e you or the unit trouble if the warning is not heeded.

A Warning alerts you t o the risk of serious da ma ge to the u nit or injury and possible death to the end user.

Customer Service and Technical Support

Verilink provides easy access to customer support information through a variety of servi ces. This section descri bes these services.

Support from Your Network Supplier

If assistance is required, contact your network supplier. Many suppliers are authorized Verilink service partners who are qualified to provide a variety of services, including network planning, installation, hardware maintenance, application training, and support services. When you contact your network supplier for assistance, have the following information ready:

• Diagnostic error messages

• A list of system hardware and software, including revision levels

• Details about recent configuration changes, if applicable

Support from Verilink

If you are unable to receive support from your network supplier or want to contact us directly, Verilink offers worldwide customer support by telephone, e-mail, and through Verilink’s Internet Web site.

Telephone

Customer support is available by telephone 24 hours a day, 7 days a week. To speak directly with a Verilink customer service representative, you may dial one of the following numbers:

• Sales and Marketing:800-VERILINK (837-4546)

xii WANsuite 5330

• Technical Support: 800-285-2755 (toll-free)

256-327-2255 (local)

E-mail

You can request sales and marketing information or pose a technical support question about your Verilink product by contacting us at the e-mail addresses provided below. Verilink will respond to e-mailed requests for support during regular business hours (8–5 CST, Monday–Friday).

•Sales and Marketing: info@verilink.com

•Technical Support: support@verilink.com

Internet

Visit Verilink’s Web site to access the latest Verilink product information, technical publications, news releases, contact information, and more:

If this reference manual is revised to reflect code changes or other updates, the most recent version will be posted to the Verilink Web site.

Returning a Unit to Verilink

If for any reason you must return your Verilink product, it must be returned with the shipping prepaid, and pack aged to t he best commerci al stand ard for electronic equipment. Verilink will pay shipping charges for delivery on return. You are responsible for mode and cost of shipment to Verilink.

http://www.verilink.com

You must have a Return Material Authorization (RMA) number marked on the shipping package. Products sent to Verilink without RMA numbers will be returned to the sender unopened, at the sender’s expense.

A product sent directly to Verilink for repair must first be assigned an RMA number. You may obtain an RMA number by calling Customer Service at 800-926-0085, extension 2282 or 2232.

When calling Verilink for an RMA, please have the following information available:

• Model number and serial numb er for eac h unit

• Reason for return and symptoms of problem

• Purchase order number to cover charges for out-of-warranty items

• Name and ph one number of per son we ca n contac t i f we have qu est ions abo ut

the unit(s)

The address for you to use when returning a unit to Verilink will be provided when the RMA is issued. The standard delivery method for return shipments is Standard Ground for domestic returns and International Economy for international returns (unless otherwise specified).

Preface xiii

xiv WANsuite 5330

Introduction

C HAPTER

HAPTER

BOUT THE

The telecommunications network service market is rapidly changing, where network monitoring, control, and higher performance in packet processing are not only expected, but demanded, at competitive price points. WAN access architecture − a high ly flexible and po werful arch itecture that ca n meet th e needs of many different customers in many different applications. Because it is so flexible, WANsuite products will continually evolve, offering our customers cutting-edge features at competitive prices.

WAN

SUITE

5330

Verilink’s WANsuite 5330 is a feature-rich, intelligent integrated access device (I based services − including high-speed Internet access − at price points expected of single-function devices.

The WANsuite 5330 is built on Verilink's innovative, next-generation WAN access arch itecture. This unit is a single network port, service aware DDS DSU/CSU with a serial port software-configurable for RS-232, EIA-530, or V.35 electrical connections, an asynchronous Supervisory port that supports PPP and tty, a 10/100Base-T Ethernet interface, five status LEDs, and two input control keys. Capable of accommodating a wide range of network configurations, the WANsuite 5330 effectively combines voice, data, and network traffic over a single transmission facility and works with nonproprietary network management solutions.

The WANsuite 5330 gives service providers and enterprise customers the capability to m onitor end -to-end network perfor mance (with support of up to 256 virtual circuits) as well as the capability to verify Service Level Agreements (SLAs); isolate performance problems to the LAN, local loop, or frame relay network; determine appropriate bandwidth need; and monitor network trends to aid in future capacity planning.

All of WANsuite 5330’s installation, performance configuration, traffic monitoring, alarm reporting, and diagnostic capabilities can be configured through the unit’s embedded We b server interface (WANsight™) using Microsoft locally through the Ethernet port or the Supervisory port, or remotely through

AD) for managing multiple applications and mixed-mode packet-

Internet Explorer™ 5.x. The Web ser ver in terf ace ca n be a ccesse d

About the WANsuite 5330 1-1

the Network port. Especially advantageous is WANsuite’s advanced monitorin g and co ntrol cap abilit y that gives network administrators the

ability to plan future capacity requirements. To extend the WANsuite 5330’s functionality even further, Verilink offers an element management software system for reporting and real-time diagnostics.

The unit’s built-in ServiceAware™ technology allows network managers to maximize available WAN bandwidth and verify SLAs. This management platform lets the end user see network activity (performance) and problems (diagnostics) on any permanent virtual circuit (PVC), access line, or physical circuit.

Verilink’s FrameStart™ technology is standard with the WANsuite 5330 and benefits the initial installation of frame relay circuits by eliminating the requiremen t for a frame rel ay test se t. Fram eStart ens ures that DDS circ uit status, signal quality, loopback code detection, access link condition, and the various Layer 2 frame relay investigation and reporting features are available and accura te.

Features of the WANsuite 5330

Performance

Historically, WAN access devices have tended to perform well as singlefunction devices such as CSU/DSUs, but have not been optimized to address higher level traffic issues such as service levels and integration. Verilink's architectur e and W eb-base d user int erface wo rk togeth er to ad dress all ac cess issues as services and applications, rather than as circuits and protocols, for exceptional WAN management performance.

To further leverage its Web browser interface, Verilink's new architecture also allows firmware to be upgraded via the Web from a standard browser, with password control, if desired.

SNMP Management

With integrated SNMP in-band management, enterprise managers can now manage Verilink WANsuite units and their integral CSU/DSUs as a single unit. With only one LAN segment in the network, all Verilink WANsuite platforms can be managed by SNMP. With self-learning functionality, these platforms learn their frame rel ay environmen t and eliminate the need for remote, trained personnel. By downloading all configuration parameters from the central site, no interaction is required at remote sites to establish connectivity. WANs can be constructed using frame relay or leased-line services. Verilink’s WANsuite 5330 allows any port to be configured for any of its available service technologies through simple software configuration. Network managers can now fine tune the enterprise network for the lowest cost and highest performance.

1-2 WANsuite 5330

Intelligent WAN Access Architecture

Verilink's next-gen eration WAN access architect ure is built around a PowerPC™ processor with 50 MIPs of processing power and 16 Mbytes of onboard memory, and works with nonproprietary network management solutions via SNMP. An embedded Web server supplies a simple-to-use interface for configuration and statistics collection, with a service table for mapping services to ports, an endpoint table for configuring and monitoring service endpoints, and a user table for traffic monitoring and control.

Optional Advanced Network Managemen t

As an option for the WANsuite 5330, Verilink offers a network management system based on RedPoint's NetVoyant™ software, which was designed to provide IT professionals with the information required to make informed, enterprise-wide capacity planning and investment decisions. NetVoyant is an NT-based element managem ent sys tem that includes a n ODB C-compl iant database, CORBA IDLs for customization and flexibility, real-time diagnostics, and extensive reporting and trending application support. The solution employs an open-system, multi-vendor support approach for network management, monitoring, and the collection of statistics from any SNMPbased networking device including Verilink equipment already in the field.

WANsuite extends the functionality of NetVoyant’s software by incorporating customized configuration modules. This advanced network management system is offered as an option for the WANsuite 5330. Please contact Verilink for availability and pricing information.

About FrameStart Technology

The WANsuite 5330’s FrameStart technology ensures that frame relay service is operational prior to installation and connection to other equipment. FrameStart’s integral frame relay circuit installation and diagnostic tools help reduce equipment and installation costs, simplify configuration setup, and alleviate frame relay connection uncertainties − all in one unit.

WANsuite 5330 supports both FrameStart Install mode and FrameStart Monitor mode as well as Layer 2 statistics gathering and diagnostic capabilities that maximize network availability and manage the growth of the network.

FrameSta rt Ins tall e nables step-by-step validation of network operations and requires no data terminal equipment such as routers or FRADs. If a DTE device is connected, operation is halted to perform installation diagnostics. With FrameStart Install, you have the power to perform advanced tests including the following:

• Local Manageme nt Interface (LM I) Sourcing

• End-to-end Integrity

• PVC D ela y Te stin g

About the WANsuite 5330 1-3

• Network Receive Level

FrameSta rt Monito r com plements F rameSt art Instal l to moni tor real-t ime network conditions nonintrusively when connected to real-world applications. FrameStart Monitor diagnostics maintain and manage the activity of the frame relay network from the host FrameStart unit. FrameStart Monitor also performs the following functions:

• LMI Monitoring

• LMI Auto-Sourcing

• SOS Mode

• New Circuit Installation

WANsuite 5330 Overview and Advantages

Verilink’s WANsuite 5330 is an innovative, highly intelligent, software-based WAN access device optimized for frame relay access. The WANsuite 5330 provides network managers with all the tools necessary to monitor and troubleshoot voice, data, and network transmission systems. In addition, the WANsuite 5330 delivers valuable tools for the following:

• Proactively measuring and reporting performance

• Verifying S LAs

• Managing network resources to ensure optimum performance

• Analyzing trends to aid in network planning

• Managing Web browser and/or in-band/out-of-band SNMP

WANsuite 5330 advantages include the following:

• Controls rec urring fra me rela y access co sts − WANsuite products quickly

pay for themselves by allowing enterprises and service providers to optimize the use of valuable bandwidth.

• Ensures a higher level of service − WANsuite 5330 acts as an expert frame

relay Service Level advisor for service providers and users.

• Introduces new value-added offerings − WANsuite 5330 is a stepping stone

to a new series of access serv ices.

• Lowers facility costs − WANsuite 5330's easy installation and

configuration cut down on maintenance and sparing costs.

Features Summary

• A powerful core arc hitectur e:

1-4 WANsuite 5330

• 10/100Base-T Ethernet port

• Asynchronous supervisory port that supports PPP or VT100 screens

• Single serial port software-configurable for RS-232, EIA-530, or V.35

• Powe rPC™ pl atform w ith 16 Mb ytes RA M

• DDS I and DDS II

• A suite of performance monitoring tools:

• Monitoring capability for up to 256 virtual circuits (Data Link

Connection Identifiers, or DLCIs)

• DDS performance monitoring, including complete diagnostic

capabilities and test modes

• SLA monitoring and management

• Committed Information Rate (CIR) enforcement per DLCI

• Programmable alarm thresholds

• WANsight − An innovative Web-based user interface:

• Embedded HTTP server for remote configuration and real-time

reporting via Web browser

• Decreased installation and configuration time for service employees

• Simplified troubleshooting and fault isolation of network problems

• Optimal management of both TDM and frame-based services

• Frame Relay Aware:

Front Panel

• Supports leased-line and frame relay services

• Layer 2 end-to-end visibility and control

• Embe dded frame relay test set

• Layer 3 support for visibility beyond the Network layer (up to 25

protocols)

• “Top Talker” reports—find out who’s generating the most IP traffic on

your LAN

The WANsuite 5330 (Figure 1.1) has two user-activated input control buttons, and five LED status indicators.

Figure 1.1

Front Panel of the WANsuite 5330

About the WANsuite 5330 1-5

The WANsuite 5330 front panel LED status indicators are described in the table below.

Indicator Description

MODE

NET

SERIAL

ALARM

POWER

Normally, the MODE indicator lights green. This indicator lights amber w hile config uration is being set by

the front panel buttons or when the configur ation is changed by SNMP or through the W eb ser ver interf ace. T he indica tor will remain amber until the changed configuration is saved; it will revert to green when the ne w config ura tion has bee n s aved.

The NET indicator is off (not illuminated) when the port has not been configured.

The indicator lights red if the DDS link is down or when a connection has not yet been es tablis hed.

The indicator lights green when the DDS link is operational and the configured protoc ol is establis hed.

The indicator lights ambe r if the DD S link is operatio nal but at least one configured fram e re lay serv ice is dow n.

The SERIAL indicator is off (not illuminated) when the port has not been configured .

This indicator lights green when DTR is active and the configured protocol is establishe d.

The indicator lights red when DTR is not active and the configured protocol is not e stablished.

The indicator lights ambe r when D T R is not active or the configured protocol is not e stablished.

The ALARM indicator is off (not illuminated) when no alarm conditions exist.

The indicator lights ambe r to indicate an OOF alarm. (Other alarms may also be active.)

The indicator lights red for all other alarm conditions. The POWER indicator lights green when power is applied to

the unit. The indicator lights ambe r in test m odes (Port looped or BERT

active).

1-6 WANsuite 5330

The user-activated input control buttons on the WANsuite 5330 are described in the following table.

Button Description

RESET CONFIG

*The CONFIG button must be held until the MODE LED lights amber and remains illuminated for the

default config ur at io n to tak e effect.

The RESET button prov ides a hardware reset to the unit. The CONFIG button sets the unit back to its factory default

configuration for Packet Mode operation; this is the same as a maintenance reset. To initiate this fun ction, you m ust pre ss and hold

CONFIG button during a power-up sequence. *

the

Rear Panel Connections

The rear panel of the WANsuite 5330 has five connectors − POWER,

SUPERVISO RY PORT, 10/100 ETHERNET, SERIAL INTERFACE, and NET −

as shown in Figure 1.2 below.

Supervis or y Port

Figure 1.2

The SUPERVISORY PORT is a DB-9 female DCE connector configured for 8 bits, no parity, and 1 stop bit. Bit rates are configured through the Web server or VT100 interface. The Supervisory port speed can be set to 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200 bps. The initial default rate of the Supervisory port is 19.2 kbps.

On power-up, the Supervisory port sends out diagnostic messages at the bit rate of 115.2 kbps until the supervisory service acquires the Supervisory port, after which the port speed is changed to the setting in the Supervisory interface s creen.

WANsuite 5330 Rear Panel

NOTICE: For information on pinout assignments for this connector, refer to

Supervisory Port Pin Assignments on page A-7. See Ordering Information on page A-4 for information on cables for this connector.

10/100 Ethernet

The WANsuite 5330 provides one 10/100 ETHERNET interface for SNMP and Web browser access. This interface is an eight-pin modular jack that complies with standard twisted-pair, 10/100Base-T requirements. The 10/100Base-T cable is supplied by the end user. Refer to Ethernet Interface Pin Assignments on page A-6 for pin assignments and cable descriptions.

Ethernet LED Indicators

There are two unlabeled indicator LEDs on either side of the 10/100 Ethernet jack. The LED on the left side of the jack pulses amber to indicate data activity (either transmit or receive). The LED on the right side of the jack lights green to indicate that the link layer is operational.

About the WANsuite 5330 1-7

Serial Interface

Network Int er face

The SERIAL interface located on the rear of the WANsuite 5330 is a multiprotocol interface presented physically as a DB-25 connection. The protocols supported by this interface are RS-232, EIA-530, and V.35.

Cables that adap t the DB-25 interface to the 34-pin V.35 interfa ce are available. These cables are optional equipment and their part numbers are listed under Optional Equipment on page A-4. DB-25 to DB-25 cables are also available if your installation needs require them. See Ordering Information on page A-4 for details. Pin assignments for the Serial interface are listed in Appendix A, Specifications.

CAUTION: FCC rules require that interconnecting cables carrying high-speed

data be shielded appropriately to minimize radio frequency interference.

Labeled on the rear panel of the WANsuite 5330 as NET, the Network interface connection is a standard RJ-48C, eight- pin modular jack that contains an automatic line build out (ALBO) allowing the unit to be located a substantial distance away from the telco network interface with a receive signal level to −49 dB. The Network LBO level cannot be set by the user. To view the pinout assignments for this interface, refer to Network Interface Pin Assignments on page A-7.

CAUTION: In accordance with FCC Rules, Part 68.218(b), you must notify the

Power Connection

The POWER port is an eight-pin circular mini-DIN connector that connects the autoranging 100–240 VAC external power supply to the unit. The WANsuite 5330 is intended to be used with a UL Listed/CSA Certified Class 2 power supply with a minimum output rating of 4.0 A at +5 VDC. The unit has no power switch.

telephone company prior to disconnecting this product.

1-8 WANsuite 5330

Figure 1.3

WANsuite 5330 Power Supply Unit

When power is applied to the unit, the front panel indicators flash for approximately 10 to 15 seconds as the unit initializes. The green

POWER

LED on the front panel will remain illuminated as long as the unit receives power. This LED turns amber when the unit is in test mode.

CAUTION: Always plug the external power supply into a grounded power outlet.

NOTICE: Per UL 1950 and CSA 950 Clause 1.7.2, if the power supply cord is

intended to serve as a disconnect device, an easily accessible socket must be installed near the equipment.

Power Failure

If the indicator does not illuminate, check the power connections and the primary AC circuit breaker.

The WANsuite 5330 provides non-volatile memory retention of the unit configuration in case of a power failure. This feature allows the unit to automatically restore normal service following a power loss and allows the unit to retain pre-existing time and date information.

About the WANsuite 5330 1-9

1-10 WANsuite 5330

This chapter describes the contents of your WANsuite 5330 shipment and provides information on connecting and installing the unit.

The WANsuite 5330 uses an “Installation Wizard” to help you automatically install the unit quickly and accurately. Procedures for using this Installation Wizard are also describe d in this c hapter.

Unpacking and Inspection

C HAPTER

HAPTER

NSTALLATION

The WANsuite 5330 is shipped in cardboard cartons with foam inserts for shock and vibration protection. When your shipment arrives, inspect the shipping container and contents, and compare all items with those on the packing list.

If the contents of the shipment are incomplete or if there is mechanical damage or defect, notify Verilink Customer Service (page xii). If the shipping container or cushioning material is damaged, notify both the carrier and Verilink immediately and make a notation on the delivery receipt that the container was damaged. (If possible, obtain the signature and name of the person making delivery.) Retain the packaging material until the contents of the shipment have been checked for completeness and the unit has been checked b oth mech anically and elect rically.

Supp lied Mater ials

The WANsuite 5330 ships with the following standard items:

• WANsuite 5330 unit

• External powe r supply and power cord

• DDS network cable

• Serial (Super visory) cable

• Verilink documentation CD

Installation 2-1

For specific applications, see Optional Equipment on page A-4 for additional cables and adapters. Contact Verilink Technical Support (page xii) for further assistance.

Installation Wizard

One of the ways to configure and monitor the WANsuite 5330 is through the We b Browser interface. To gain access to this interface, the unit must be configured with an IP Address. Verilink provides a DOS-based program – the Verilink Configuration Wizard – to aid in this initial configuration.

NOTICE: If you did not receive the CD-ROM disk with your unit, you may

To configure the IP Address using the Verilink Configuration Wizard, perform the following steps:

1 Using the supplied cable, connect the unit’s DB-9 Supervisory port to a

COM port on your PC. (Take note of which COM port is connected.)

2 Insert the Verilink CD-ROM disc (provided with the WANsuite 5330) into

your PC’s CD-ROM drive.

access the Verilink Configuration Wizard on the Verilink Web site, www.verilink.com.

3 Use Windows “Explore” to view the contents of the CD and select the

folder labeled “Utilities.” In this folder will be a file named this executable fil e is the Verilink Configuration Wizard appli cation. Double-click on this file to launch the program. After the program is fully launched, you will see the following screen:

ipwiz.exe;

4 Using the Tab key to move fr om field t o fie ld, move the cursor to the “COM

Port” field. Using the Spacebar, toggle between the available options until the correct COM port is sho wn (COM1, COM2, COM3, or COM4). Be s ure to choose the same COM port as the port to which you connected the unit.

2-2 WANsuite 5330

5 By default, the “Baud Rate” field wil l display 115200 (bits per second) . For

the purpose of this installa tion, do not change the displayed baud rate from its default. Proceed directly to the next step.

6 Using the Tab key again, move the cursor to the “IP Address” field and

enter the appropria te IP Address for the unit (xxx.xxx.xxx.xxx). If neces sary , repeat this process for the “Subnet Mask” and “Gateway Address” fields.

7 Next, move the cursor to the “Write To Unit” field and press the Enter key.

The program will prompt you to reset the unit.

8 To reset the unit, cycle the unit’s power (i.e., disconnect the power supply

cable from the unit and then reconnect it). The Configuration Wizard will then automatically download the configuration information to the unit.

9 Note the status messages displayed at the bottom of the Configuration

Wizard screen. When the download is complete, your PC will beep and the status message bar will displa y “Finished.”

10 Finally, move the cursor to the “Exit” prompt and press Enter. The

Configuration Wizard pr ogram will close.

Installation 2-3

2-4 WANsuite 5330

C HAPTER

HAPTER

ERVER INTERFACE

The WANsuite 5330 has an innovative, embedded Web-based user interface (WANsight) for remote configuration and real-time reporting via Microsoft Internet Explorer 5.0 or higher. Access to the Web server interface and how the interface is used to configure the WANsuite 5330 unit are described in detail below.

NOTICE: Verilink recommends the use of Microsoft’s Internet Explorer 5.0 or

higher because if you use other Internet browsers to access the Web server interface , some screen elemen ts will not disp lay as describe d in this manual.

Configuration through the VT100 interface is covered in Chapter 4.

Web Server Access

You can access the Web Server interface through any IP connection to the WANsuite 5330. This connection can be directly through the 10/100 Ethernet port, PPP over the Serial or Supervisory port, or in-band via encapsulated IP traffic on the Fram e Relay circuit.

NOTICE: Any changes to the unit’s configuration MUST be followed by a

“Submit” (if there is a “Submit” key on the menu) and a “Save and Restart.”

To access the Web server interface, type the unit’s IP address in the browser’s Address (or Location) field and press the “Enter” key.

Layout of Interface Screens

When you first access the Web server interface, your browser will display a screen that is divided into three frames. The upper frame forms a border across the top of the screen; it identifies the Verilink unit in service and

Web Server Interface 3-1

Unit Screen

displays the hardware and software revision and serial numbers under which the unit is operating.

The area beneath the upper frame is divided into two side-by-side frames. The frame on the left side of t his area d epicts a hierarch ical “tree” structure used to navigate through the various interface screens. Each “branch” on the tree guides you to more specific upper-level information about the unit and its configuration. Note that the Applications and Utilities branches do not link to an actual displayed page − these branches are simply used to provide structure for navigation. The frame on the right side of the screen will display all the configuration screens. The Unit screen represents the top of the navigation tree. The screen captures throughout this chapter show only the configuration portion of the scre en, exce pt in the case of th e Unit s creen, w hich sho ws all three frames. The Unit screen represents the top of the navigation tree.

The first screen displayed by the unit’s Web server interface is the Unit screen (Figure 3.1). It lets you view and set specific information about the unit in service.

Figure 3.1

Web Server Interface, Unit Screen

The Unit screen displays the following fields:

3-2 WANsuite 5330

Field Function

Object ID Display-only field used to point an SNMP agent to this ID. Up Time Displays the amount of time the unit has been up and running. Contact Stores the name of a point-of-contact for system failure.

Field Function

Name Read/write field that holds the unit’s name. Location Read/write field that holds the unit's locati on. FrameStart ID Read/write field that holds the unit's ID that uniquely identifies the

unit and is used in the FrameStart applications.

Blank Fields Read/write fields for user-specific labels and values. Information

resides in non-vola tile memory.

Time Read/write field that holds the unit's internal time setting in

standard 24-hour HH:MM:SS format.

Date Read/write field that holds the unit's internal date setting in

standard MM/DD/YY format.

Web Server Interface 3-3

The Unit screen provides the following user-activated buttons:

Button Function

Submit Sets any values that have been changed. The top “Submit”

button sets any unit parameters changed in the upper section of the screen, and the lower “Submit” button sets the r eal-time

clock. Maintenance Reset Resets unit to its defaul t TDM or Packet configurati on. Save and Restart S aves the current configuration and resta rts the unit. Refresh Refreshes data on the current page.

Maintenance Reset

Use this button to access a screen where you can perform a Maintenance Reset (Figure 3.2). When you click on the arrow in the pull-down menu box on the screen, you will have the option to perform a TDM, Packet, or Packet 4 reset. When you select one of these options, all previous configurations will be lost and the unit will be set back to the specified factory default.

Figure 3.2

Maintenance Reset Screen

NOTICE: Performing a “Maintenance Reset” or a “Save and Restart” will

terminate communications with the unit. A “Refresh” should be performed after approximately 10 seconds to restore communications.

Save and Restart

3-4 WANsuite 5330

Use this button to save the current configuration settings and then restart the unit. Clicking the “Save and Restart” button on the Unit screen will display a confirmation screen as shown in Figure 3.3 below. Click the “Save and Restart” button on the confirmation screen to confirm the action.

Interfaces

Network Screen

Figure 3.3

The WANsuite 5330 has the following interfaces: Network, Serial, 10/100 Ethernet, and Supervisory. Each of the interfaces and their associated screens/ menus are described below.

The Network screen (Figure 3.4) lets you view and make changes to the Network interface’s configuration as described below. In addition, this screen provides a table that displays the current status and alarm values for the Network interface.

Save and Restart Confirmation Screen

Mode

Timing

Figure 3.4

Selects the network service type.

Values DDS I 56K, DDS II CC-64K Default: DDS I 56K

Sets the timing source to synchronize the unit’s internal timing generators. Choices are as foll ows:

Internal – The unit’s internal frequency standard is used for all timing.

Network Screen

Web Server Interface 3-5

Network – Timing is derived from the network recovered clock. (Most applications use this selection.)

Values: Network, Int ernal Default: Network

NOTICE: Internal timing is valid only in 56K mode.

Error Status and Alarm Thresholds Table

The unit can be programmed to generate an alarm condition based on a specific level of performance degradation. The Network screen presents a table that provides current error status, alarm condition, error count, and alarm threshold information.

Acceptable alarm thresholds are set for periods of 1−5, 10, 20, or 30 seconds (900 seconds) and sampled every second. The types of error conditions listed in the following paragraphs can be preset to a value selected from the available enumeration list of thresholds (displayed as a pull-down menu). Setting a threshold field to “None” disables the alarm for that condition. To effectivel y disable alarm rep orting, s et all field s to “N one.”

The 15-minute time frame is a time window based on the accumulated counts over the previous 15 one-minute intervals. In all cases, if the number of actual network errored seconds in the previous 15 minutes reaches the preset threshold for the specified error type, an alarm condition is declared.

LOS

OOF

OOS

The four columns o f the s tatus tab le are as follows:

• Status Displays the current status of the network port.

• Alarm Displays the alarm value of the network port. The unit

declares an alarm as soon as the count exceeds the established threshold.

• Count D isplays th e numb er of eve nts or occu rrence s of this

condition that have been detected.

• Threshold This forced-choi ce fiel d can be set to a des ired th resho ld for a

specific error condition. Available threshold choices are None, 1, 2, 3, 4, 5, 10, 20, and 30.

The table provides error sta tus and alarm thre shold in formation f or the following error pa rameters:

Sets the Loss of Signal threshold. A LOS is a 1-second period in which the DDS received signal is interrupted. The default value is None.

Sets the Out of Frame threshold. An OOF is a 1-second period in which a frame sync loss occurred. The default value is None.

Sets the Out of Service threshold. An OOS is a 1-second period during which the Out of Service code is received. The default is None.

BPV

3-6 WANsuite 5330

Sets the Bipolar Violation Errored threshold. A BPV is a 1-second period in which at least one bipolar violation occurred. The default is None.

Serial Screen

Reset Timer

The status table also provides a means for establishing the Reset Timer threshold. This read/write field is used to establish the contiguous number of seconds that an alarm parameter must be clear before the alarm is reset. Applicable values range from 000 through 900. A value of “000” means the alarm will never be reset. The default value is 30.

The Network screen provides the following user-activated buttons:

Button Function

Submit Sets any values that have been changed. Clea r Al ar ms Reset s th e al ar m conditi o ns and count s to zer o . Network Services Displays the Services screen for the Network interface. Refresh Refreshes data on the current page.

The Serial screen (Figure 3.5) lets you view and make configuration changes to the unit’s Serial interface as described below. To make changes to any Serial port parameter, simply set the parameter to the desired selection and press the “Submit” button.

Type

Figure 3.5

Serial Screen

Selects the t ype of i nterfa ce (ba sed on its elect rical signal ch aract eristi cs) us ed by the equipment connected to the Serial port.

Values: V.35, RS-232, EIA-530 Default: V.35

NOTICE: V.35 requires the use of an optional cable. Refer to "Optional

Equipment" on page A-4 for ordering information.

Web Server Interface 3-7

Mode

By default, the Serial port serves as a DCE port in both Packet and nonPacket m odes. How ever, t he Serial p ort can s erve as a DTE po rt whe n the unit is in Packet mode.

If the Serial port connects to a DTE device (such as a FRAD or a router), the Mode parameter must be set to “DCE.” If this port connects to a DCE device (such as a DSU/CSU), this parameter must be set to “DTE” (valid only for Packet m ode, not T DM).

Values: DCE, DTE Default: DCE

NOTICE: DTE mode requires the use of an optional DTE cable. Refer to Optional

Equipment on page A-4 for ordering information.

Packet Rate

Character Size

Format

Tx Clock

If the port is running in Packet mode, the Rate must be configured to the desired port speed (in bits per second). When the port is in TDM mode, the packet rate will be either 56 or 64 kbps depending on the Network “mode.”

Values: 1200, 2400, 4800, 9600, 19200, 38400, 56000, 57600, 64000,

115200

Default: 56000

Selects the number of bits required to make up one asynchronous character.

Values: Five, Six, Seven, Eight Default: Eight

Selects the port’s operating mode.

Values: Sync, Async Default: Sync

Selects the clock the unit uses to sample the data transmitted from the DTE. When se t to “ In tern al, ” th e da ta i s sa mple d d irec tly wi th th e t rans mit data clock that is also supplied to the DTE as Transmit Clock. The “External” option uses the external clock from the DTE.

Values: Internal, E xternal Default: Internal

Parity

Stop Bit

3-8 WANsuite 5330

NOTICE: The “External” option is valid only in Packet mode.

Sets the parity bit if the port is asynchronous.

Values: None, Odd, Even Default: None

Selects the number of bits required to end the character.

Values: 1, 2 Default: 1

The Local Loopback parameter can be set to “Enable” or “Disable.” Selecting “Enable” allows the unit to go into Local Loop when the LL pin on the Serial

port goes high. The unit exits the loop when the LL pin goes low. If you select “Disable,” the unit ignores the LL pin on the Serial port.

Values: Disable, Enable Default: Disable

V.54

CTS

DSR

DCD

Selecting “Enable” allows the unit to respond to in-band V.54 loop codes. If you select “Disable,” the unit ignores these codes.

Values: Disable, Enable Default: Disable

The Clear T o Send p arameter can be set to “Forced Tr ue,” “For ced Fal se,” or “Internal.” If this parameter is set to “Internal,” the CTS control lead follows the RTS control lead from the DTE after a delay of a duration established by the RTS/CTS Delay parameter (see RTS/CTS Delay on page 3-9).

Values: Forced True, Forced False, Internal Default: Forc ed True

Data Set Ready can be set to “Forced True,” “Forced False,” or “Internal.” The “Internal” option sets DSR “On” if the port is enabled and “Off” if the port is disabled.

Values: Forced True, Forced False, Internal Default: Forc ed True

The Data Carrier D etect p arameter ca n be se t to “Forc ed True ,” “Forced False,” or “Intern al.” If se t to “Intern al,” DC D is “O n” when network carrier is being received from the remote end, and is “Off” when network carrier is not being recei ved from the far end.

Values: Forced True, Forced False, Internal Default: Forc ed True

RTS

RTS/CTS Delay

Flow Control

The Request To Send parameter determines the source from which the unit reads the RTS signal status. If set to “Normal,” the unit gets RTS from the DTE on the Serial interface. If set to “Forced True,” RTS is always perceived as “On.”

Values: Normal, Forced True Default: Normal

The Request To Send/Clear To Send parameter determines how long the unit waits before it changes the level of CTS to match RTS when the CTS parameter is set to “Internal.”

Values: Normal (~30 ms delay), Long (~100 ms delay) Default: Normal

Selects the type of flow control to be used if the port is asynchronous.

Values: None, Xon/Xoff, RTS/CTS Default: None

Web Server Interface 3-9

Current Pin Status

The Current Pin Status, which shows the state of the RS-232 pins, is also displayed o n the Seri al int erf ace screen.

DTR Alarm Control and Status Table

In addition to the configurable fields, the Serial screen displays a table near the bottom of the screen that lets you set the Data Terminal Ready (DTR) Alarm Control parameters and view the current DTR Alarm Status.

Choices for DTR Alarm Control are “Enable” and “Disable”; the default setting is “Disable.” Setting DTR Alarm Control to “Enable” allows the unit to go into alarm on a loss of DTR. The DTR Status field indicates the current state of th e DTR alarm.

The Serial screen provides the following user-activated buttons:

Button Function

Submit Sets any values that have been changed. Serial Services Displays the Services screen for the Serial interface. Refresh Refresh es data on th e current page.

To make changes to a Serial port parameter, simply set the parameter to the desired selection and press the “Submit” button.

10/100 Ethernet (IP Service Details) Screen

The 10/100 Ethernet (IP Service Details) screen (Figure 3.6) lets you configure the IP parameters listed below.

Figure 3.6

10/100 Ethernet (IP Service Details) Screen

3-10 WANsuite 5330

Unit IP Address

A unique network address assigned to this unit.

Subnet Mask

Gateway IP Address

DHCP Client

Client Identifier

Physical Add ress

Defines the network portion of the unit’s IP address.

IP address of the default gateway (router) on the LAN side of the unit.

If DHCP Client is enabled at power-up, the unit will request its IP, Mask, and Gateway addresses from a DHCP server located on the LAN side of the unit, and the unit will use these addresses. If the DHCP request is unsuccessful, the unit will use the configured addresses shown on this screen.

NOTICE: Always verify that a DHCP server is available on the network before

enabling DHCP Client. If, on power-up, a DHCP server is not found, a 60-second timeout will occur.

Displays a unique identifier for a specific IP address.

Displays unique MAC address.

NOTICE: If you manually change the IP address, you must “Save and Restart.”

(See Save and Restart on page 3-4.) The first thre e address parameters above can also be configured using the Installation Wizard on page 2-2.

To view details about the current condition of IP, ICMP (In and Out), TCP, and UDP parameters, click the “Ethernet Stats” button at the bottom of the screen. The Ethernet Statistics screen (Figure 3.7) contains no user-selectable fields or options; it is simply a representation of the applicable MIB II parameters.

Figure 3.7

Ethernet Statistics Screen

A “Refresh” button is available to update the displayed information.

Web Server Interface 3-11

Supervis ory Screen

The Supervisory screen (Figure 3.8) lets you view and change the Supervisory port speed. The Supervisory port only supports asynchronous character formats.

Speed

Figure 3.8

A “Refresh” button is provided on this screen to update the displayed information. Click on the “Supervisory Services” button at the bottom of the screen to view service information for the Supervisory interface.

Changes the Supervisory port speed (in bits per second).

Values: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Default: 19200

Supervisor y Screen

Character Size

Diagnostic Messages

Parity

Stop Bit

Selects the number of bits required to make up one asynchronous character.

Values: Five, Six, Seven, Eight Default: Eight

Enables the Supervisory port to send out diagnostic messages upon power-up.

Values: Enable, Disable Default: Enable

Sets the parity bit if the port is asynchronous.

Values: None, Odd, Even Default: None

Selects the number of bits required to end the character.

Values: 1, 2 Default: 1

Current Pin Status

The Current Pin Status, which shows the state of the RS-232 pins, is also displayed on the Supervisory interface screen.

3-12 WANsuite 5330

DTR Alarm Control and Status Table

In addition to the configurable fields, the Supervisory screen displays a table that lets you set the Data Terminal Ready (DTR) Alarm Control parameters and view the curre nt DTR Alarm Status .

Services Screen

The Services screen (Figure 3.9) provides a view of the unit’s defined services (indexed by number) and displays the Interface, Type, and Pair paramete rs for each service.

Adding a Service

Figure 3.9

The table in the cen ter of th e scree n displays the avai lable serv ices list ed by index number. To view more detailed information about a service, click on the index number associated with the desired service on the above screen and then click on one of the user-activated “Details” buttons on the Service Details screen as described below. A “Refresh” button is also provided on the Services s creen.

Services Screen

To add a service, begin by clicking the “Add Service” button on the Services screen. A new service listed by the next incremental index number will appear on screen. The Interface for the newly added service will be “Unassigned.” To assign an interface for the new service, click on its index number, which will take you to the Service Details screen described below.

NOTICE: Any changes to settings in the Service Table require a “Save and

Restart” for them to take effect.

Web Server Interface 3-13

Service Details Screen

Clicking on an index number under the “Service Index” column on the Services sc reen will displ ay a Servic e Details scre en (Figure 3.1 0) such as the one shown below. (In this example, the selected service type is Frame Relay.)

Figure 3.10

Service Details Scree n

The Service Details screen lets you change the following parameters for each Any chang es mad e to a se rvice requ ire a “ Save and R estart” to take ef fect.

Parameter Options

Interface Supervisory, Network, Serial, 10/100 Ethernet, Virtual* Type TDM, PPP, Frame Relay, IP, tty, SCADA Pair User-assigned integer field that specifies where to route the traffic from

this servic e. If the servic e is te rm inate d by the uni t, set thi s value to “0” (zero).

* PPP is the only service that may be attached to the Virtual interface. You would choose the

Virtual in terface for PPP if you elected to ru n PPP over Frame Relay. When you attach PPP to the Virtual interf ace, you must supply an endpoin t over which to send PPP encapsul ated data, and that endpoint must be for a Frame Relay DLCI.

In addition, the Service Details screen provides the following user-activated buttons:

Button Function

Submit S ets any values that have been changed. Interface Details Opens the Details screen for t he Interfa ce of the cu rrently sele cted

service.

Type Details Opens the Details screen for the Type of the currently s elected

service. Delete Service Opens the Verify Delete Service screen. Refresh Refreshes data on the current page.

3-14 WANsuite 5330

Interface Details Button

Clicking the “Interface Details” button on the Service Details screen lets you view inte rface param eters for the se lected ser vice. Th is same screen is displayed if you click on an interface under the “Interface” column on the Services s creen.

Type Details Button

Clicking the “Type Details” button on the Service Details screen lets you view (an d, in some cases, c hange) interface p aramete rs for the specified service. The details displayed depend on the type of service currently in effect for the s elected se rvice. Yo u will se e this sam e screen if you click on a specific service (such as PPP) under the “Type” column on the Services screen. Typ e Detai ls screen s for the various services are presen ted below .

Delete Service Button

Click the “Delet e Service” button to remove the currently conf igured service identified by the Service Details screen. Deleting the selected service will remove a ll reference s to thi s servic e. These re ferences may inc lude fra me relay, DLCI, endpoint, and Service Aware configurations.

TDM Screens

After clic king the “Delete Service” button, you will b e present ed with a confirmation screen (Figure 3.11). Click the “Confirm Delete Service” button to confirm the removal of the selected service. To cancel, simply invoke your browser’s “Back” function.

Figure 3.11

Confirm Delete Service Screen

Channel Table Details Screen

If you se lect a TD M servi ce from t he “Type ” colum n on the S ervice s screen, the unit will display a Channel Table Details screen. However, this screen will display the message, “There are no configurable parameters for this TDM Service” as shown in Figure 3.12.

Web Server Interface 3-15

Figure 3.12

Channel Table Details Screen

Frame Relay Service Details Screen

Click on “Frame Relay” under the “Type” column on the Services screen to access th e Frame Relay Ser vice De tails screen (Figu re 3.13), which let s you access the configuration parameters described in the paragraphs below.

Interface Type

Figure 3.13

Frame Relay Service Deta ils Screen

If this service is conn ected to a Frame Relay net work, the Interface Type should be set to “UNI” as it is the user side of a User-to-Network interface. If it is connected to a FRAD/Router, the Interface Type should be set to “NI” as it is the network side of a User-to-Network interface. If it is connected to an equipment set for Network-to-Network interface, the Interface Type should be set to “NNI.”

Values: UNI, NI, NNI Default: UNI if interface is Network, NI if interface is Serial

Link Management

3-16 WANsuite 5330

This parameter should be set to the link management used by the equipment connected to it. If set to “Auto,” the unit will learn the link management type and display it on the status portion of this screen.

Once it discovers the link management type, the unit should be set to the discovered value so that subsequent unit or network re-initialization will be faster.

Values: Auto, ANSI, CCITT, LMI, None Default: ANSI

Max Frame Size

If Auto Diagnostic is set to “Yes,” the unit will discard received frames that are larger than the maximum frame size. If Auto Diagnostic is set to “No,” these large received frames will be sent, but will be counted in the Rx Invalid statistics.

Values: 64–4096 Default: 2500

Indicates the number of “keep alive” status inquiries that are sent between full status requests.

Values: 5–255 Default: 5 if i nterface is Netw ork (UNI ), 6 if in terface is Serial ( NI).

Specifies the total number of link reliability errors and protocol errors that can occur during the sliding event monitor count defined by N3. If this count is exceeded, the port is decla red inactiv e.

Values: 1–255 Default: 3

Represents a Monitored Events Count. For a network, a monitored event is the receipt of a status inquiry message or the expiration of the polling verification timer T2. For a FRAD, a monitored event is the transmission of a status inquiry message. This parameter defines the size of the sliding window used by the unit to determine whether a channel or user device is active.

Values: 5–255 Default: 4

RFC1315 Trap

Default CIR (bps)

Specifies the number of seconds the unit waits between issuing status inquiry messages.

Values: 5–30 Default: 10

When this parameter is set to “Enable,” the unit will send the standard RFC1315 frame relay DTE circuit state change trap every time a DLCI changes state, provided at least one destination IP address for trap is configured in the SNMP configuration.

Values: Disable, Enable Default: Disable

This is the Committed Information Rate (in bits per second) provided by your frame relay service provider. The unit will apply this value to each DLCI learned from the network side to gather statistics and to perform CIR enforcem ent, if req uired. If a DLCI i s configu red with a CIR different from the default, the DLCI configuration will be used instead.

Values: 0–64 k Default: 0

Web Server Interface 3-17

Default Excess Burst

Rate (bps)

This is the Excess Burst Rate (in bits per second) provided by your frame relay service provider. The unit will apply this value to each DLCI learned from the network side to gather statistics and to perform CIR enforcement, if required. If a DLCI is configured with a different Excess Burst from the default, the DLCI configuration will be used instead.

Values: 0–64 k Default: 0

Enforce CIR and Be

Management DLCI

Management Auto IP

DLCI

FrameStart Auto

Diagnostic

If this parameter is set to “Yes,” the unit will enforce Committed Information Rate and E xcess Burst.

Values: No, Yes Default: No

NOTICE: The Auto Diagnostic parameter must be set to “Yes” to enforce CIR and

Be.

If there is a DLCI entered (and submitted) in this field, it will be the only DLCI that looks for in-band management packets. If a value of “0” (zero) is entered in this field, all DLCIs will look for management packets.

If this parameter is set to “Yes,” the unit will monitor the specified DLCI for 5 pings over 5 seconds, after which the unit uses the destination address as its management IP address.

When this parameter is set to “Yes,” the unit will always source LMI on both sides of the frame relay connection. The unit will dynamically learn the type of link management used on each side of the connection (Network or Serial).

When set to “No,” the unit will forward each LMI message to its service pair. If one side of the pair goes down, the other side will stop receiving LMI.

FrameStart Auto

Discovery

Round T rip Delay Size

3-18 WANsuite 5330

FrameStart Auto Diagnostic mode should be left set to “Yes” unless the frame relay connection has more that 128 DLCIs, or if there is a very high traffic rate on a constant basis.

Values: No, Yes Default: Yes

When this parameter is set to “Yes,” the unit will send FrameStart discovery and delay frames to each DLCI it learns as soon as the DLCIs are set active. This is required to calculate round trip delay as well as discovery of remote WANsuite/FrameStart units. This parameter should be set to “Yes” only on network services that have a WANsuite/FrameStart unit at the far end of the frame relay connection. Also if set to “Yes,” the unit will gather SLA parameters such as frame and data delivery ratio as defined in the Frame Relay Forum Implementation, FRF.13. Those gathered statistics are then displayed on the DLCI Statistics screen as shown on page 3-35.

Values: No, Yes Default: No

Specifies the frame size (in bytes) of packets making the round trip.

Round T rip Delay Rate

Specifies the rate (in seconds) at which Round Trip Delay packets are sent.

Status and Alarms Table

The table displayed at the bottom of the Frame Relay Service Details screen reports on the status and condition of LMI parameters and on Receive/ Transmit alarms and thresholds. Alarm threshold levels may be changed by entering a new threshold value in the appropriate field of the table and clicking the “Submit” button. Table fields are described below.

Active

LMI T ype

FrameStart Status

Rx Invalid Thr eshold

Rx Invalid Alarm

Tx Threshold

Tx Alarm

Rx Threshold

Rx Alarm

Read-only field shows whethe r or not (Yes or No) an alarm is act ive.

Read-only status indicates ANSI, CCITT, LMI rev. 1, or Unknown.

Read-only status indicates Sourcing, Monitoring, or 0. Number of invalid frames received during a 15-minute interval after which an

invalid alarm will be triggered. Default of “0” disables this alarm. Status of t his alar m indicat es OK o r Alarme d. Number of bits per second sent during a 15-minute interval after which a Tx

alarm will be triggered. Default of 0 disables this alarm. Status of t his alar m indicat es OK o r Alarme d. Number of bits per second sent during a 15-minute interval after which an Rx

alarm will be triggered. Default of 0 disables this alarm. Status of t his alar m indicat es OK o r Alarme d.

The Frame Relay Service Details screen provides the following user-activated buttons:

Button Function

Submit S ets any values that have been changed. Frame Relay Stat isti cs Opens the Frame Rela y S tat ist ics scre en fo r the curre nt F ra me

Relay serv ice.

DLCI Table Opens the DLCI Table screen, which displays all the DLCIs

on the current service. Refer to DLCI Table Screen on

page 3-35 for more information. Clear Alarms Clears all Frame Relay alarms. Refresh Refreshes data on the current page.

NOTICE: When a “Submit” is executed, the Frame Relay link will be re-

initialized with the new parameters, causing a brief interruption in data transfer.

Web Server Interface 3-19

Clicking the “Frame Relay Statistics” button brings up a table (Figure 3.14) that reports on the status and condition of LMI parameters and on Receive/ Transmit alarms and thresholds. You may change alarm threshold levels by entering a new threshold value in the appropriate field on the Frame Relay Service Details screen and clicking the “Submit” button.

Figure 3.14

Transmit:

Frame Relay Port Statistics Screen

Frames

Octets

Mgmt Frames

Mgmt Octets

Stat Inquiries

Stat Responses

Frames

Octets

Mgmt Frames

Mgmt Octets

FECN

BECN

Number of frames transmitted by the port. Number of octets transmitted by the port. Number of management frames transmitted by the port. Number of management octets transmitted by the port. Number of octets transmitted in frame relay LMI status inquiries. Number of octets transmitted in frame relay LMI status responses.

Receive:

3-20 WANsuite 5330

Invalids

Number of invalid frames received.

Stat Inquiries

Stat Responses

Invalid LMIs

Peak

A verage

Period Index

Number of octets received in frame relay LMI status inquiries. Number of octets received in frame relay LMI status responses. Number of invalid Local Management Interface frames received.

Throughput (bits /sec):

Peak bandwidth (in bps) as measured over a 10-second period. Average bandwidth (in bps) used by the port. Selects the interval (Current, Summary, or 1-96) to be viewed on the Frame

Relay Port Statisti cs screen . The Frame Relay Port Statistics screen provides the following user-activated

buttons:

Button Function

Submit Sets any values that have been changed. All Frame Relay

Intervals Type Details Returns you to the Frame Rela y Service Details screen. Clear Stats Clears all Frame Relay statis tics.

Opens the Frame Relay Statistics screen that shows all statistics for all parameters.

Refresh Refresh es data on th e current page.

PPP Service Details Screen

Click on “ PPP” u nder the “ Type” column on the Ser vices scre en to vi ew the PPP Service Details screen (Figure 3.15). This menu gives you access to the configuration parameters described in the paragraphs listed below.

Web Server Interface 3-21

Figure 3.15

PPP Service Details Screen

ACCM

MRU (Maximum

Receive Units)

Port IP Address

Peer IP Address

Virtual PPP over

Auth Challenge

Interval

The Asynchronous Control Character Map (ACCM) configuration option provides a method to negotiate the use of control character transparency on asynchronous links.

Values: 0–4294967295

Default: 4294967295

This configuration option may be set to inform the peer that the implementation can receive larger packets, or to request that the peer send smaller packets.

Values: 128–4096

Default: 1500

The IP address of the port. For unnumbered PPP link, set to 0.0.0.0 and set IP Address Negotiation to “No.”

Default: 192.168.1.2

Enter the IP address of the peer that will negotiate authentication protocols.

Default: 192.168.1.3

Endpoint name over which to send PPP encapsulated data (i.e., PPP over Frame Relay). Valid only when the PPP interface is Virtual.

The time interval (in seconds) between CHAP challenges. A value of “0” (zero) disables the periodic authentication challenge.

Values: 0—3600

Default: 0 (disabled)

3-22 WANsuite 5330

Allow PAP

Allows the peer to negotiate for PAP.

Values: No, Yes

Default: No

Allow CHAP

PAP Username

PAP Password

CHAP Username

CHAP Secret

Allows the peer to negotiate for CHAP.

Values: No, Yes

Default: No

This field is used to log on to the peer. Type the appropriate PAP Username in this field.

Values: User establis hed

Default: Username

This field is used to enter the password necessary to log on to the peer under a given PAP Username.

Values: User establis hed

Default: None

This field is used (along with the CHAP Secret) to challenge the peer. Type the appropriate CHAP Hostname in this field.

Values: User establis hed

Default: Hostname

This fiel d is used to enter th e Secret (i.e., pa ssword) necessa ry to cha llenge the peer.

Values: (user established)

Default: Secret

Initiate Negotiation

Determines whether the port actively sends negotiation requests to the peer site or passively waits for negotiation requests.

Values: Yes, No

Default: Yes

Parameters To Negotiate

The table displayed near the bottom of the PPP Service Details screen shows which parameters are set to be negotiated. You can specify which parameters should be nego tiated by clicking on the pull-d own menu next to each parameter and selecting the desired option. The table below describes the parameters that can be negotiated.

Parameter Description

Protocol Header Compression

IPCP (IP Control Protocol) Compression

MRU (Maximum Rece iv e U n it s )

Compresses PPP protocol headers. Default = Yes

Compresses TCP headers using Van Jacobsen compression. Default = Yes

Info rm s th e p ee r th at the imp le m e n tation can re cei v e larger packet s , or to r eq u es t th at th e p ee r send small er pa ck e ts. Default = Yes

Web Server Interface 3-23

Parameter Description

HDLC Address Compression

IP Address Dynamically negotiates for IP addresses ; otherwise, it is

ACCM Negotiates the use of control character tr anspare n cy on

Magic Number Unique numbers useful for detecting loopbacks.

PAP (Password Authentication Protocol)

CHAP (ChallengeHandshake Authentication Protocol)

Negotiates the co mpression of high-level data link control (HDLC) addresses. Default = Yes

assumed both sides know each other’s IP addresses. Default = Yes

asynchronous links. Default = Yes

Default = Yes An authentication scheme used by PPP servers to validate the

identity of the originator of the connection. Default = No

An authentication scheme used by PPP servers to validate the identity of the originato r of the connection upon connection or any time later. Default = No

PPP Statistics

Clicking the “PPP Statistic s” button brings up a table (Figure 3.16) that reports on traffic.

Frames

Octets

Figure 3.16

PPP Statist ic s Screen

Transmit

Number of frames transmitted by the port. Number of octets transmitted by the port.

3-24 WANsuite 5330

Mgmt Frames

Number of management frames transmitted by the port.

Mgmt Octets

Frames

Octets

Mgmt Frames

Mgmt Octets

Invalids

Peak

A verage

Period Index

Number of management octets transmitted by the port.

Receive

Throughput (bits /sec)

Peak bandwidth (in bps) as measured over a 10-second period. Average bandwidth (in bps) used by the port. Selects the interval (Current, Summary, or 1-96) to be viewed on the PPP

Statistics s creen.

The PPP Statistics screen provides the following user-activated buttons:

Button Function

Submit Sets any values that have been changed. All PPP Intervals Opens the PPP Statistics screen that shows all statistics for all

parameters. Type Details Returns you to the PPP Service Det ails screen. Clear Stats Clears all PPP statistics. Refresh R efreshes data on the current page.

PAP Table

At the bottom of the PPP Services Details screen are two buttons that display tables for PAP and CHAP details. The PAP Table (Figure 3.17) displays the Usernames and Passwords for 10 entries.

Web Server Interface 3-25

Figure 3.17

PAP Table S cre en

Select an Index number and click the “PAP Details” button at the bottom of this screen to bring up a PAP Details screen (Figure 3.18) in which you can view, change, or delete the Username and Password for that particular PAP Index.

Figure 3.18

PAP Details Screen

To change the User name an d Passw ord for a selected PAP In dex, ente r the new information in the appropriate fields and click the “Submit” button.

To delete the Username and Password for a selected PAP Index, delete the character string displayed in both fields (leaving them blank) and click the “Submit” button.

The “Type Details” button returns you to the PPP Type Details screen.

CHAP Table

From the P PP Serv ice Deta ils screen, click th e “CHAP Table” but ton to view a table (Figure 3.19) of the CHAP Username and Secret information for each of 10 entries.

3-26 WANsuite 5330

Figure 3.19

CHAP Table Screen

Select an Index number and click on the “CHAP Details” button at the bottom of this screen to bring up a screen in which you can change the Username and Secret fo r that par ticular CH AP Inde x.

Figure 3.20

To change t he Usern ame a nd Secre t for a s elected CHA P Index, enter t he new information in the appropriate fields and click the “Submit” button.

IP Services Screen

The IP Servi ces Screen and Ether net Statisti cs screens ar e described i n Figur e

3.6 on page 3-10 and in Figure 3.7 on page 3-11, respectively.

CHAP Details Screen

Web Server Interface 3-27

Applications

The Applications screens describe configuration tables and statistics for Layer 3 and above that do not map to a specific service or interface.

Endpoint Table Screen

The Endpoint Table (Figure 3.21) describes all endpoints terminating in the unit; user-activated buttons are provided to view the Endpoint Details, Endpoint Service Details, and Endpoint DLCI Details screens. The unit will automatically learn all DLCIs from the network side and relay that information on the serial side with default values.

NOTICE: The Endpoint Table and its corresponding DLCIs will be saved in the

NOTICE: Endpoint names of the form PPP-Sn are reserved by the system. These

configuration database only after at least one endpoint parameter has been changed and submitted in the Endpoint Details screen (page 3-28).

system-generated endpoints cannot be modified.

Figure 3.21

For most applications, you will not have to modify the Endpoint Table and DLCI Table. Modification is necessary, however, to configure remote in-band management (see In Band management on page 3-32).

Endpoint Table Screen

Endpoint Details Screen

The Endpoint Details screen (Figure 3.22) gives you access to the configuration parameters described in the following paragraphs.

3-28 WANsuite 5330

Figure 3.22

Endpoint Details Screen

Name

Service

DLCI

When the unit learns a new DLCI, it creates an endpoint entry and a DLCI entry if they are not already configured. The endpoint’s Name will automatically be assigned as “Dynamic”; however, this name can (and most likely should) be changed to reflect a remote location name. Submitting a changed Name parameter will cause the endpoint entry and its corresponding DLCI entry to be saved in the configuration database.

Value: A string of up to 11 characters Default: None

CAUTION: When configuring endpoints, the name you assign each endpoint in

the Name parameter field must be unique within the unit.

The Servi ce Index n umber (from th e Service Table) on which this DLC I was found or configured.

Values: Displays t he curre ntly act ive Servic es (by ind ex num ber) or th e

Service(s) on which the DLCI was discovered.

Default: 0

The DLCI number.

Values: 16–1023 Default: 0

Forward Endpoint

By default, each DLCI is switched to its pair service in the Service Table using the same DLCI number. If this endpoint has to be switched to a different DLCI or a different service, the endpoint index of the destination must be configured here.

For most applications, you will not need to set this parameter.

Values: 0–256 Default: 0

Web Server Interface 3-29

Backup Endpoint

If this DLCI has an alternative endpoint to switch to in case this DLCI becomes inactive, the endpoint index of this alternative endpoint would be configured here.

For most applications, you will not need to set this parameter.

Values: 0–256 Default: 0

SLP Reference

Endpoint

Remote IP Address

This is the reference endpoint index to use for SLA parameters. As most applications have the same SLAs for all DLCIs, they need to be configured in only one DLCI entry. All SLA parameters can then be copied from the endpoint index of this configured DLCI. If no SLP reference endpoint is configured and the DLCI SLA parameters are not configured, the values in the Frame Relay Service Details will be used (default CIR, Be, enforcement).

For most applications, you will not need to set this parameter.

Values: 0–256 Default: 0

If this WANsuite 5330 unit is to be used to manage a remote WANsuite 5330 unit, the IP address of the remote WANsuite 5330 unit must be configured here. This DLCI can be used for management only, or for management and actual data.

If this para meter is set, a P C connect ed to the LAN i nterface of this WANsuite 5330 can reach a remote WANsuite 5330 through this DLCI. The remote IP address must be part of a different IP network from the local WANsuite 5330, and the local WANsuite 5330's IP address must be configured into the PC. This way, local and remote WANsuite 5330s can be reached regardless of the availability of the routers connected at the back of the WANsuite 5330s.

Values: IP address Default: 0.0.0.0

Remote IP Mask

Type

New DLCI

3-30 WANsuite 5330

If the Remote IP Address is set, the Remote IP Mask must also be set.

Values: IP address Default: 0.0.0.0

If data received from this DLCI has to be switched to its corresponding destination port, the type must be set to “Switched.” The type should be set to “Local” for any DLCI used for management purposes only.

Values: Switched, Local Default: Switched

This field is used to create a new DLCI if it is not already configured. To create a n ew DLCI, enter a valid DL CI num ber in the field an d click the “Submit” button. The new DLCI number will be reflected in the DLCI field of the Endpoint Details screen.

The Endpoint Details screen provides the following user-activated buttons:

Button Function

Submit Sets any values that have been changed. Service Details Opens the Service details screen showing the selected service's

settings. DLC I D et ails Disp l ay s details of th e select ed D LCI. Delete Endpoint Deletes the currently displayed endpoint. Refresh Refreshes data on the current page.

Endpoint Service Details Screen

Clicking on the “Endpoint Service Details” button at the bottom of the Endpoint Table screen displays the typical Service Details screen. Refer to Service Details Screen on page 3-14 for a complete description of this type of screen.

DLCI Details Screen

The DLCI Details screen (Figure 3.23) lets you access the configuration parameters described in the paragraphs below. To bring up this screen, click the “Endpoint DLCI Details” button on the Endpoint Table screen, or the “DLCI Details” button on the Endpoint Details screen.

Figure 3.23

DLCI Details Screen

The unit uses the first three configuration parameters (Protocol Encapsulation, Proprietary Traffic Type, and Proprietary Offset) displayed on this screen to

Web Server Interface 3-31

gather statistics. For in-band management, “RFC 1490” must be the encapsulation method.

Protocol Encapsulation

Propriet ary Traffic

Type

Proprie tary Offse t

CIR (bps)

Be (bps)

Type of encapsulation used by the FRAD/Router connected to the unit.

Values: RFC 1490, Proprietary Default: RFC 1490

When Protocol Encapsulation is set for “Proprietary,” the Proprietary Traffic Type parameter defines which protocol is encapsulated.

Values: IP, IPX, Ethertype, None Default: None

When Protocol Encapsulation is set for “Proprietary,” the Proprietary Offset parameter defines the number of octets after the frame relay header where the proprietary traffic type starts.

Values: 0–64 k Default: 0

If a Committed Information Rate is configured here, its value will be used instead of the default CIR of the frame relay service.

Values: 0–64 k Default: 0

If an Excess Burst rate is configured here, its value will be used instead of the default B e of the fr ame re lay service .

Values: 0–64 k Default: 0

Bc (bps)

Monitor Receive for

SLA

Discard Eligible Flag

In Band management

If CIR enforcement is configured to “Yes,” the unit will throttle the Committed Burst down to this value when frames are received with the BECN bit set.

Values: 0–64 k Default: 0

Normally, Service Level Ag reement s (SLAs) are moni tored on ly for d ata offered to the frame relay network. If this parameter is set to “Yes,” the unit will also m onitor CIR and Be for frames r eceived.

Values: Yes, No Default: No

If this parameter is set to “Yes” and CIR enforcement is also set to “Yes,” the unit will set the Discard Eligible (DE) bit for frames sent over CIR.

Values: Yes, No Default: No

If the unit is to be used as a gateway to reach a remote WANsuite 5330 through this DLCI, this parameter should be set to “Yes,” and the remote IP address and Mask should be configured in the corresponding endpoint.

Values: Yes, No Default: No

3-32 WANsuite 5330

FrameStart Delay

If this parameter is set to “Enable,” the unit will send FrameStart discovery and delay frames on this DLCI, and will report the state of the remote Verilink FSx unit. It will also send SOS frames when the FRAD/router connected to this unit goes inactive.

Values: Enable, Disable Default: Enable if Auto Discovery is set to “Yes”; Disable otherwise

FrameStart Status

Remote DLCI

Remote Unit

Round T rip Delay Size

If th e rem o te u n it is a V er ili n k FS x product and FrameStart Auto Discovery is enabled, the FrameStart Status field will show the status of the remote unit. The statu s is “Acti ve” if bo th the l ocal and remote DL CIs ar e active an d the remote unit answers to the discovery frames sent by this unit. The status is “SOS” if the remote unit is active but the FRAD/Router connected to it is inactive. The status is “Inactive” in all other cases.

Values: Active, Inacti ve, SOS Default: Inactive

If the rem ote unit is a Ve rilink FSx product, and FrameStart Auto Discovery is enabled, this displays the DLCI number used on the remote end of this DLCI.

Values: 16−1023 Default: 0

If the rem ote unit is a Ve rilink FSx product, and FrameStart Auto Discovery is enabled, this parameter gives the first three digits of the unit ID configured on the remote end of this DLCI.

Values: 000−999 Default: 000

Specifies the frame size (in bytes) of packets making the round trip. If the Round Trip Delay Size is not configured, the Frame Relay Details values will be used.

Round T rip Delay Rate

Status

Receiving FE CN/

BECN

Specifies the rate (in seconds) at which Round Trip Delay packets are sent. If the Round Trip Delay Rate is not configured, the Frame Relay Details values will be used.

DLCI Status Table

The bottom portion of the screen shows a table detailing the actual sta tus of and alarm threshold information for the selected DLCI as follows:

If this DLCI is up, the status will be “Active”; otherwise, the status will be “Inactive.”

Values: Active, Inactive Default: Inactive

When a frame is received with a congestion bit set, this parameter is set to “Yes.” It is set back to “No” when a frame is received without a congestion bit set.

Values: Yes, No Default: No

Web Server Interface 3-33

CIR Threshold

Sets the Tx over CIR alarm threshold. This threshold is the number of bits per second in excess of CIR during a 15-minute interval. Setting this field to “0” (zero) disables the alarm.

CIR Alarm

Bits Over Be Threshold

Bits Over Be Alarm

Congestion Threshold

Congestion Alarm

BECN in CIR Alarm

UAS Threshold

UAS Alarm

Reports if the Tx over CIR threshold has been exceeded. Sets the Tx over Be alarm threshold. This threshold is the number of bits per

second in excess of CIR + Be during a 15-minute interval. Setting this field to “0” (zero ) disables the ala rm.

Reports if the Tx over Be threshold has been exceeded. Sets the Rx Congestion alarm threshold. This threshold is the number of

frames received with BECN/FECN. Setting this field to “0” (zero) disables the alarm.

Reports if the Rx Congestion threshold has been exceeded. Reports if Backward Explicit Congestion Notification has been received

within CIR. Sets the Unavailable Seconds alarm threshold. This threshold occurs after the

DLCI is unavailable for a specified number of seconds. Setting this field to “0” (zero ) disables the ala rm.

Reports if the UAS threshold has been exce eded.

The Endpoint DLCI Details screen provides the following user-activated buttons:

Button Function

Submit Sets and activates any DLCI parameters values that have been

changed. Clea r Al ar ms Cle ar s al l D LC I ala r ms . DLCI Statistics Displays a table of the statistics for this DLCI . DLCI Table Disp lay s a table of all DL CIs on a specif ic f rame r el ay serv ice , with

their state and alarm conditions.

DLCI Statistics Screen

Clicking the “DLCI Statistics” button on the DLCI Details screen will display a summary (Figure 3.24) of the Transmit, Receive, and Performance statistics for the s elected D LCI for a specific period.

3-34 WANsuite 5330

Figure 3.24

DLCI Statistic s Screen

There are ni nety-six 15-minute buckets available fo r DLCI st atistics (sam pled every second). If the unit is powered on at 01:00 PM, the first interval will be completed at 01:15 PM; subsequent intervals would be completed at xx:30, xx:45, xx:00 and xx:15. Interval 1 is always the latest (most recent) interval, and interval 96 will always be the oldest.

The first t able of t he DLCI S tatistics screen s hows a summary t hat incl udes all 96 buckets. You can choose to see the statistics for any given bucket by selecting the desired Period Index from the pull-down menu and clicking the “Submit” button. Alternatively, you can display all intervals at once by clicking the “All DLCI Intervals” button beneath the table. The MIB (ipadv2.mib) describes each availab le statistic.

DLCI Table Screen

Clicking the “DLCI Table” button on the DLCI Details screen will display a table of all DLCIs on a specific frame relay service along with their state and alarm co nditions.

Figure 3.25

DLCI Table Screen

Web Server Interface 3-35

NOTICE: The DLCI Table and DLCI Details screens are available from both the

Service Aware Screen

The Service Aware function recognizes IP traffic and counts the number of frames and bytes passed for a specific service based on filters by DLCI, by IP Address, and by IP Port. Each row of the Service Aware table represents a specific set of filter parameters known as a “rule.” Each rule is established through the Rule Config screen, which is accessed by clicking the “Rule Details” button at the bottom of the Service Aware screen.

The Service Aware screen (Figure 3.26) provides a table showing these filtered packet counts for up to 10 rules. This table indicates which Service Aware filters are enabled or disabled, and shows the specific DLCI, IP Address, and IP Port by which the IP traffic is filtered. In addition, this table shows the Tx Alarm Thresho ld and the curr ent Tx Al arm stat us (if en abled) for each rule.

It is also possible to filter PPP services, in which case all information related to DLCIs is ignored.

Endpoint Table and the Frame Relay Service Details screens.

Figure 3.26

Service Aware Screen

3-36 WANsuite 5330

NOTICE: If you change the Service parameter, you must click on “Submit” to see

the appropriate DLCIs.

The Service Aware screen provides the user-activated buttons described in the table below.

Button Function

Rule Details Displays the Rule Configuration screen. Traffic Meter Stats Displays the Traffic Meter Statistics screen. Clear Alarms Clears all Service Aware alarms. Refresh Refreshes data on the curr en t page.

Rule Configuration Screen (Rule Details)

Use the Rule Config screen (Figure 3.27) to establish Service Aware parameters. To establish a rule, you must select the desired rule configuration options and provide the appropriate filter information where required. Then press the “ Submit” button at the bot tom of t he screen.

Service

Figure 3.27

Rule Config Screen

The paragraphs below describe the rule configuration parameters and their options:

Selects the service to which the rule applies from a pull-down list of applicable DLCIs.

DLCI

Filter By DLCI

NOTICE: If you change the Service parameter, you must click on “Submit” to see

the appropriate DLCIs.

Selects the DLCI to which the rule applies. Select from a pull-down list of applicable DLCIs.

Enables or disables filtering of the IP traffic by the DLCI specified in the DLCI pull-down list.

Web Server Interface 3-37

NOTICE: To use this filter, you must specify both the Service and DLCI

parameters in the rule configuration.

IP Address

IP Mask

Filter By IP Address

IP Port

Enter or select from...

Filter By IP Port

Tx Alarm Threshold

Tx Alarm

Establishes the IP address by which the rule will filter IP traffic (if enabled). Represents a range of IP addresses defined so that only machines with IP

addresses within the range defined by the mask are allowed to access an Internet service. To mask a portion of the IP address, replace it with the wild card character “0” (zero). (For example, 192.44.0.0 represents every computer on the Internet with an IP address beginning with 192.44.)

Enables or disables filtering of the IP traffic by the IP address specified in the IP Address or IP Ma sk field.

Establishes the IP port by which the rule will filter IP traffic (if enabled). You may enter the port value directly into this field or select a port ID from the drop-down list to the right of the field (see next paragraph).

Provides a drop-down list of well-known port IDs for TCP and UDP. To enter a port ID, select an option from the list and click the “Enter” button. The selected port ID value will then be reflected in the IP Port field.

Enables or disables filtering of the IP traffic by the IP port specified in the IP Port field.

Specifies the threshold in octets for the Transmit Alarm on this rule. Shows th e current T ransmi t Alarm s tatus.

IP Port List

Traffic Meter Statistics Screen

The Traffic Meter Statistics screen displays the number of frames and octets sent over a DLCI that have been counted in accordance with the Service Aware “rule” that has been established for a Service. As such, it is frame relay specific (i.e., DLCIs only occur in frame relay links). In addition, this screen provides data rate performance information for the period of time you specify in the Period Index field (see below).

3-38 WANsuite 5330

Figure 3.28

The Traffi c Meter S tatisti cs screen re ports on the fol lowing Tra nsmit, Receive, and Performance parameters:

Traffic Met er Statistics Screen

• Tx Frames

• Tx Octets

• Rx Frames

• Rx Octets

• Rate Peak – the peak data rate for the viewed period (see below)

• Rate Average – the average data rate for the viewed period (see below)

The Period Index field is used to define the period of time for which the Traffic Meter statistics will be reported. It represents the 24-hour, 15-minute buckets index. Select a period and then click the “Submit” button to display the traffi c m3eter statistics for that per iod. Th e user-s electable options are as follows:

Summary

Current

Interval 1, Interval 2,

..., Interval 96

Represents the past 24 hours; reports the additive number of frames/octets, the highest peak encountered for 24 hours, and the average for 24 hours.

Reports on the current 15-minute interval. Reports on Inte rvals 1−96 that correspond to the periods completed 15

minutes ago, 30 minutes ago, ..., 24 hours ago.

SNMP Details Screen

This screen lets you configure the SNMP parameters described in the paragraphs below.

Web Server Interface 3-39

Figure 3.29

SNMP Details Screen

Read Community

Accepts a character string identifying the group authorized to perform read operations. The default setting is “Public.”

Write Community

Accepts a character string identifying the group authorized to perform write operations. The default setting is “Private.”

Trap Community

Accepts a character string that is included in SNMP traps generated by the unit. The default setting is “Public.”

Trap IP Address

Accepts the IP address of a network device where alarm reporting traps are to be sent.

The unit detects and reports DDS network alarms and provides several options for reporting them, one of which is SNMP traps. When a network alarm occurs, the unit sends a trap message to as many as eight destinations on your network. The unit will report each alarm by transmitting an SNMP “trap” to each non-zero Trap IP address.

Diagnostics Screen

This screen shows an upper-level view of all the interfaces so you can see if any port is under test, and if so, view the results. Diagnostic parameters may be changed on the Test Details screen (Figure 3.31). The parameters on the Diagnostics screen are described in the paragraphs below.

3-40 WANsuite 5330

Figure 3.30

Diagnostics Screen

Description

Loop Type

Setting

Pattern

Length

State

Elapsed Time

ES (Err ored Seconds)

% EFS

Describes the type of interface selected for testing. Describes the type of loop test (if any) performed on the selected interface. Displays the bandwidth on which you wish to perform the BERT. Specifies the pattern to be transmitted during a BERT for the selected port. Displays the length of time for which the BERT should run for the selected

interface. Displays t he curre nt BERT state for the select ed inter face. Displays the time elapsed since a BERT began or, if completed, the total test

time. Displays the total number of bit errors detected since the BERT began or

since erro r statistics were la st clear ed. Displays the number of asynchronous errored seconds that have been detected

since the B ERT b egan or since erro r statistics were last clear ed. This parameter includes bit error seconds and sync loss seconds.

Displays what percent of the total BERT time ran error free. This ratio is derived from the number of error-free seconds divided by the number of seconds accumulated in Elapsed Time.

Test Details Screen

The Test Details screen (Figure 3.31) lets you set some test parameters and view other read-only parameters. This screen is also used to initiate a BERT or Loop Test. The Network Interface Test Details screen, shown in Figure

3.31, and the Serial Interface Test Details screen contain the same BERT Table parameters, which are described below. However, their Loop Tables at the bottom of the screen contain different options, which are also described below.

Web Server Interface 3-41

Figure 3.31

Test Details Screen

BERT Table

The BERT table lets you set the test parameters described below.

Setting

BERT Pattern

Test Duration

Pattern Sync

Elapsed Time

Displays the bandwidth on which you wish to perform the BERT. The available values for this parameter depend on which interface is selected, so for the network interface would be Net.

Specifies the pattern to be transmitted during a test for the selected port.

Values: Marks, QRSS, 511, 2047, ITU 2

, Spaces

Default: 511

NOTICE: The 2

pattern is the ITU (European) version, not the ANSI version.

Specifies the length of time for which the test should run for the selected port.

Values: 15 minutes, 30 minutes, 1 hour, 24 hour, Continuous Default: 15 minutes

The BERT Table screen also displays the following read-only parameters: Displays the state of pattern sync during a test. If no test is in progress, “No

Test” is displayed. If a test is active, but the receiver is not in pattern sync, “No Sync” is displayed. If the receiver is in pattern sync, “In Sync” is displayed.

Displays the time elapsed since a timed test began or, if completed, the total test time.

Bit Errors

Errored Seconds

3-42 WANsuite 5330

Displays the total number of bit errors detected since the test began or since error statistics were cleared.

Displays the number of asynchronous errored seconds detected since the test began or since erro r statistics were last clear ed.

% EFS (Error-Free

Seconds)

Displays the percentage of time the test ran error-free. This ratio is derived from the n umber of error-fr ee seconds divided by the number of seconds accumulat ed in Elap sed Tim e.

Loop Table

The Loop table lets you specify the type of Loop test to be performed. The types of t ests avail able dep end on t he current ly selected interface .

Network Interface Test Details Screen:

Values: No Test (Loop Down), DSU, CSU Default: No Test (Loop Down)

Serial Interface Test Details Screen:

Values: No Test (Loop Down), Port Loop, V.54 Loop, Far V.54 Loop Default: No Test (Loop Down)

The Test Details screen provides the user-activated buttons listed in the table below.

Button Function

Start Starts the spe cified BERT. Stop Stops the currently running BERT.

Trap Log Screen

Error Inject Injects a bit error. Reset Errors Resets the current error count. Submit Sets the type of Loop test. Refresh R efreshes data on the current page.

The Trap Log scre en (Figur e 3.32) s hows a c ollection of all t he traps th at have been generated. A trap is a mechanism that permits a device to send an alarm for certain network events to an SNMP management station; in other words, traps are notifications of triggered alarms.

The table shown in this screen lists each trap by its Index number, and displays the type of error captured by the trap (Trap Number), the date and time that the trap was stored (Time Stamp), its description, and its value.

Click the “Refresh” button at the top of the screen to display the latest trap information in the table. To remove all trap information stored in memory, click the “ Delete Al l Traps” button.

Web Server Interface 3-43

Figure 3.32

Trap Log Screen

Top N Details (Top Talkers) Screen

Clicking on the Top Talkers link in the navigation tree displays the Top N Details screen (Figure 3.33), which is used to set parameters for and initiate the generation of a list of IP addresses ranked in terms of the number of frames and octets they have transmitted during a specified reporting period. (The “N” in “Top N Details” represents the variable number of Top Talkers that will be reported.) This report allows MIS managers to determine who is generating the most traffic on a WAN based on IP addresses.

Duration

Time Remaining

Figure 3.33

Top N Details (Top Talker s) Screen

To generate a Top Talkers report, enter the duration parameters and desired report size in the appropriate fields and then click the “Submit” button.

Establishes the amount of time (in seconds) for which the Top Talkers report will capture IP traffic; typically this value is 900 seconds (15 minutes).

As soon you initiate generation of a report by pressing the “Submit” button, the Duration value is copied over to the Time Remaining field. Click on the “Refresh” button to see how much time remains before the report is completed.

3-44 WANsuite 5330

As soon as the specified Duration for the report has elapsed, the screen will refresh itself and will display the resulting report-specific information in the outlined box at the bottom of the screen. This report comprises the elements defined in the following paragraphs.

Requested Report Size

Establishes how many IP addresses will be reported as the “Top Talkers.”

NOTICE: While you may request any number, the unit is internally limited to a

maximum report size of 20.

Start Time

System Up Time

Utilities

Report #

Size

A unique number that identifies the generated report. This number is generated automatically and is incremented sequentially for each report. This number can also be used by management stations for automatic polling (via the ipadv2.mib).

Displays the actual number of IP addresses identified as Top Talkers in the generated report. The maximum report size is 20.

Displays the time at which the Top Talkers report was initiated (based on System U p Time).

Displays the amount of time the unit has been operational since it was turned on or last reset.

The Top Talkers table reports in descending order the IP addresses that have generated the most traffic during the requested report’s duration. For each IP address listed, the report displays the number of Rx frames, Rx octets, Tx frames, and Tx octets that have been passed across it. In addition, the Timestam p field in dicates th e time a t which a packet w as exam ined for the specified IP address.

Software Upgrade

The options available beneath the Utilities branch of the navigation tree serve as utilities for upgrading the software in your WANsuite 5330, managing access with passwords, and logging off the system.

Use this screen (Figure 3.34) to upgrade the software in your WANsuite 5330 unit. The revision level for the software your unit is currently using will be displayed in the top frame of the Web server interface. After installing a software upgrade, the new revision level will be displayed in this frame.

NOTICE: During the last 2 minutes of the upgrade process, the unit’s memory will

be reprogrammed; the unit will be inoperable during this time.

CAUTION: Do not allow power to be removed from the unit while its memory is

being reprogrammed.

Web Server Interface 3-45

Figure 3.34

Software Upgrade Screen

To upgrade the unit’s software, perform the following steps:

1 Click the “SW Upgrade” link on the navigation tree. 2 Click the “Browse” button to find and select the upgrade file (xxx.hex)

provided by Verilink. After selecting the appropriat e file, the filename and its path will appear in the fiel d next to the “Bro wse” button. (Alternatively, you may type the filename and its location directly into this field.)

3 Once the upgrade file has been specified, click the “Install” button. The

message window shown below will appear.

3-46 WANsuite 5330

NOTICE: Make sure you allow sufficient time for the download to occur.

Cancelling the download before it has fully executed will result in the new software NOT being installed into the unit.

4 After the image is in RAM, the message window will disappear and a

countdown screen (Figure 3.35) will be displayed. When the countdown reaches 0, the Unit screen shown in will be displayed and will contain the new code

Save/Upload

Figure 3.35

Countdown Screen.

The Save/Upload screen () lets you save a new configuration or upload a former configuration.

Password

Figure 3.36

Save/Upload Screen

The Password screen (Figure 3.37) is used to modify the password that restricts ac cess to t he Web s erver in terface.

Acceptable characters for use in a password are digits 0–9 and letters A–Z and a–z, for a total of 62 distinct characters.

Figure 3.37

Password Screen

To change the password, you must enter it once in the New Password field and then re-enter the same password in the Confirm Password field. After

Web Server Interface 3-47

Log Out

entering the new password in both these fields, click the “Change Password” button to update and establish the new password.

NOTICE: Remember that passwords are case-sensitive. When logging on,

password must be entered exactly as it was programmed.

The Log Out screen (Figure 3.38) is used to log the current user off of the Web server. The Log Out function is only available after user password protection has been set. You will be automatically logged out of the system one hour after you logged on using a password to gain access. After this, you will be required to enter the password to gain write access.

Figure 3.38

In-ban d Man a gement

There are two ways to implement remote in-band management of a WANsuite 5330 unit. The first is to use the local router to route management frames (Web browser or SNMP) between the local LAN and the remote unit. The second is to use the local WANsuite 5330 unit as an independent gateway.

Use of Connected Local Router

If you choose this method, no configuration is required in the WANsuite 5330s. Local Router A will route Web/SNMP frames from the PC to the remote WANsuite 5330s. The remote WANsuite 5330 IP address must be set within the same network as the remote routers B and C LAN network.

Log Out Screen

3-48 WANsuite 5330

Figure 3.39

Frame Relay Networ k

Router

WANSUITE

FSM

5330

WANSUITE

FSM

5330

WANSUITE

5330

FSM

Router

If the remote units are required to have an IP address in different Networks from those of the remote routers, a static route will have to be configured in the local router (Router A) for each remote WANsuite 5330 to manage. If Router A becomes unavailable, there is no way to reach the remote WANsuite 5330s.

Web Server Interface 3-49

3-50 WANsuite 5330

Introduction

This chapter describes the menus and options associated with the WANsuite 5330’s VT100 interface. The screens displayed throughout this chapter were accessed through a TELNET session.

Accessing the VT100 Interface

HAPTER

VT100 I

C HAPTER

NTERFACE

You can access the VT100 interface locally via the Supervisory port or remotely through a TELNET session. To access the VT 100 screens locally, verify the Supervisory type is “tty” and the Supervisory port speed matches the terminal emulation program that’s being used. (Port speeds supported include the following: 1200, 2400, 4800, 9600, 19200, 38400, 57600, and 115200 bps.) You can access the VT100 interface remotely by opening a TELNET session, entering the unit’s IP address, and connecting to the unit.

Screen Components

The VT100 terminal screens have several components common to all screens (see Figure 4.1 below). These components include the device type (Verilink WANsuite 5330), which is centered on the screen, the software and hardware revision numbers (upper left), the date and time (upper right), the menu title (“Main” in the figure below), and the serial number under which the unit is operating.

Figure 4.1

VT100 Terminal Screen Components

VT100 Interface 4-1

Cursor Controls

The VT100 interface uses a blinking cursor to select various menus and then to select sub-menus and/or fields within those menus. You can navigate using this cursor in different ways, depending on the program you use. Most programs allow use of the “Tab” key and the “Shift+Tab” keys. Others allow use of the arrow keys.

NOTICE: If you are not able to use your arrow keys, access the pull-down

menu under “Terminal,” click on “Preferences,” and be sure the “VT100 Arrows” box is checked.

For keyboards that don’t have these standard keys or have only some of them, an alternative set of cursor control commands is provided. Perform each command by pressing a letter key while holding down the “Ctrl” key. You may use the alternative commands (listed in the table below) and keyboard commands interchangeably at your discretion.

Keyboard Com mand Alternate Command

Left Arrow Ctrl+ S Right Arrow Ctrl+D

Fie ld Types

Up Arrow Ctrl+E Down Arr o w C trl+X Backspace Ctrl+H Delete Ctrl+Z

You can navigate further within a menu as described below.

Each menu screen is composed of fields. The two basic field types are userselectable (most of these are in brackets or parentheses) and display-only (no brackets or parentheses). If you can move the highlighted cursor to a field, that field is user-selectable; all other fields are display-only. User-selectable fields are those in which you can make changes or execute commands. To save changed parameters, in most cases you will “Esc” out of the current menu after changing the parameters. In some cases, you will press the “Enter” key to save new parameters.

Fields enclosed in brackets [ ] offer a list of selections from which to choose. The selections may be made by pressing your Spacebar to “toggle” between choices. Each tim e the Spacebar is press ed, a new item appears. When the item you wish to choose is displayed, press the “Esc” key to save it.

4-2 WANsuite 5330

Fields enclosed in parentheses ( ) are manipulated by one of the following two methods. The first is to press the “Enter” key to simply execute the function. The most common type of field in parentheses accepts typed input

Menu Structure

in the form of letters and/or numbers. Typing characters when the field is highlighted causes t he curre nt entry to be rep laced by the new characters . To edit an existing entry rather than replace it, press the right arrow key to move the cursor to the point that needs editing. You may insert characters or delete them. Typed data must always be inserted rather than typed over. If the field is full, you must first delete at least one character before you can add another.

NOTICE: The VT100 screens are automatically refreshed every 5 seconds.

However, you may also press Ctrl+U to refresh data on any screen.

The Main Menu screen (shown in Figure 4.2) lists the functional useraccessible menus. To activate a specific menu, tab to it (or use your arrow keys) and press “Enter.” To exit this or any subsequent menu, press the “Esc” key. If you exit the Main menu, the terminal interface program terminates. This is a valid way to end a session. When you exit any menu other than the Main menu, you will be returned to the previous screen.

Figure 4.2

VT100 Main Menu Screen

CAUTION: If you do not enter a keystroke for 10 minutes, the terminal interface

logs off automatically.

System S cree n

The first option on the Main menu screen is the System screen (Figure 4.3). This screen lets you view and set specific information about the unit in service.

VT100 Interface 4-3

Figure 4.3

VT100 System Screen

The System screen displays the fields shown in the table below.

Field Description

Contact Read/write field used to store the name of a point-of-conta ct for

system failure. Name Read/write field that holds the unit’s name . Location Read/write field that holds the uni t's location. FrameStart ID Read/write field that holds the unit's ID that uniquely identifies the

unit and is used in the Fram eStart applicat ions. Blank Fields Read/write fields for us er-specific labels and values. Inf orm ation

resides in non-vola ti le memory. Time Read/write field that holds the unit's internal time setting in

standard 24-hour HH:MM:SS format. Date Read/write field that holds the unit’s internal time setting in

standard MM:DD:YY format. New Password Lets you modify you r pass wo rd by typing in a new password.

Acceptable charact ers for us e in a password are digits 0–9 and

letters A–Z and a–z, for a total of 62 dis tinct character s.

NOTICE: Remember that passwords are case-sensitive and are limited to

no more than 10 characters. When logging on, password must be entered exactly as it was programmed.

The System screen displays the user- selectabl e prompt s listed in the ta ble below.

Prompt Function

4-4 WANsuite 5330

Maintenance Resets Brings up a screen where you can reset unit to its default TDM,

Packet, or Packet 4 configura ti on.

Save and Restart Saves the current configuration and restarts .

New Password

Select “Ne w Passwo rd” to modify your pas sword. A cceptable charact ers for use in a password are digits 0–9 and letters A–Z and a–z, for a total of 62 distinct ch aracters.

Maintenance Reset

Select this prompt to access a screen (Figure 4.4) where you can reset your unit to factory defaults.

Figure 4.4

Using the space bar, you may toggle through the options to select the desired maintenance reset (Default TDM Configuration, Default Packet Configuration, or Default Packet 4 Configuration). After you select an option, the unit will display a confirmation screen (Figure 4.4) where you may choose either to proceed with the maintenance reset or not.

Figure 4.5

Maintenance Reset Screen

Confirmation Screen

VT100 Interface 4-5

NOTICE: Performing a “Maintenance Reset” or a “Save and Restart” will

Save and Restart

Selecting “Save and Restart” will display a confirmation menu similar to the Maintenance Reset menu. Select “yes” to save the current configuration settings and then restart the unit.

Interfaces Screen

The Inter faces scre en displa ys a lis t of all th e unit’s av ailable in terface s as shown in Figure 4.6.

terminate communications with the unit. Refresh (by pressing “Ctrl+U”) after approximately 10 seconds to restore communications.

Network Screen

Figure 4.6

From this screen, you may choose from the following: Network, Serial, Ethernet, or Supervisory. Each of these interfaces is described below.

The Network screen (Figure 4.7) lets you view and make changes to the Network interface's configuration as described below. In addition, this screen provides a table that displays the alarm values for the Network interface.

Interfaces Screen

4-6 WANsuite 5330

Figure 4.7

Network Screen

Mode

Timing

Selects the network service type.

Values DDS I 56K, DDS II CC-64K Default: DDS I 56K

Sets the timing source to synchronize the unit’s internal timing generators. Choices are as foll ows:

Internal – The unit’s internal frequency standard is used for all timing. Network – Timing is derived from the network recovered clock. (Most

applications use this selection.)

Values: Network, Int ernal Default: Network

NOTICE: Internal timing is valid only in 56K mode.

Error Status and Alarm Thresholds Table

Acceptable alarm thresholds are set for periods of 1−5, 10, 20, or 30 seconds (900 seconds) sampled every second. The types of error conditions listed in the following paragraphs can be preset to a value selected from the available enumeration list of thresholds (displayed as a pull-down menu). Setting a threshold field to “None” disables the alarm for that condition. To effectively disable alarm reporting, set all fields to “None.”

VT100 Interface 4-7

The four columns o f the s tatus tab le are as follows:

• Status Displays the current status of the network port.

• Alarm Displays the alarm value of the network port. The unit

declares an alarm as soon as the count exceeds the established threshold.

• Count D isplays th e numb er of eve nts or occu rrence s of this

condition that have been detected.

• Threshold This forced-choi ce fiel d can be set to a des ired th resho ld for a

specific error condition. Available threshold choices are None, 1, 2, 3, 4, 5, 10, 20, and 30.

The table provides error sta tus and alarm thre shold in formation f or the following error pa rameters:

LOS

OOF

OOS

BPV

Serial Scr een

Sets the Loss of Signal seconds threshold. A LOS is a 1-second period in which the DDS received signal is interrupted. The default value is None.

Sets the Out of Frame seconds threshold. An OOF is a 1-second period in which a frame sync loss occurred. The default value is None.

Sets the Out of Service seconds threshold. An OOS is a 1-second period during which the Out of Service code is received. The default is None.

Sets the Bipolar Violation Errored seconds threshold. A BPV is a 1-second period in which at least one bipolar violation occurred. The default is None.

Reset Timer

The Network screen also provides a “Clear Alarms” prompt, which resets the alarm conditions and counts to zero.

4-8 WANsuite 5330

The Serial screen (Figure 4.8) lets you view and make changes to the unit’s Serial interface configuration as described in the paragraphs below. To make changes to any Serial parameter, simply set the parameter to the desired selection and press the “Esc” key.

Figure 4.8

Serial Screen

Type

Mode

This param eter sel ects the ty pe of i nterface ( based on i ts elec trical signa l character istics) used by the equipmen t conne cted to th e Serial po rt.

Values: V.35, RS-232, EIA-530 Default: V.35

NOTICE: V.35 requires the use of an optional cable. Refer to Appendix A,

"Specifications‚" for ordering information.

By default, the Serial port serves as a DCE port in both Packet and nonPacket m odes. How ever, t he Serial p ort can s erve as a DTE po rt whe n the unit is in Packet mode.

Values: DCE, DTE Default: DCE

NOTICE: DTE mode requires the use of an optional DTE cable. Refer to

Appendix A, "Specifications‚" for ordering information.

Packet Rate

Tx Clock

Values: (bps) 1200, 2400, 9600, 14400, 19200, 28800, 38400, 56000,

64000

Default: 56000 bps

Selects the clock the unit uses to sample the data transmitted from the DTE. When se t to “ In tern al, ” th e da ta i s sa mple d d irec tly wi th th e t rans mit data

VT100 Interface 4-9

clock that is also supplied to the DTE as Transmit Clock. The “External” option uses the external clock from the DTE.

Values: Internal, E xternal Default: Internal

NOTICE: The “External” option is valid only in Packet mode.

The Local Loopback parameter can be set to “Enable” or “Disable.” Selecting “Enable” allows the unit to go into Local Loop when the LL pin on the Serial port goes high. The unit exits the loop when the LL pin goes low. If you select “Disable,” the unit ignores the LL pin on the Serial port.

Values: Disable, Enable Default: Disable

NOTICE: For more information on pin assignments, refer toNetwork Interface Pin

Assignments shown on page A-7.

V54

CTS

DSR

DCD

Selecting “Enable” allows the unit to respond to in-band V.54 loop codes. If you select “Disable,” the unit ignores these codes.

Values: Disable, Enable Default: Disable

Values: Forced True, Forced False, Internal Default: Forc ed True

Data Set Ready can be set to “Forced True,” “Forced False,” or “Internal.” The “Internal” option sets DSR “On” if the port is enabled and “Off” if the port is disabled.

Values: Forced True, Forced False, Internal Default: Forc ed True

RTS

4-10 WANsuite 5330

Values: Normal, Forced True Default: Normal

RTS/CTS Delay

The Request To Send/Clear To Send parameter determines how long the unit waits before it changes the level of CTS to match RTS when the CTS parameter is set to “Internal.”

Values: Normal (~30 ms delay), Long (~100 ms delay) Default: Normal

DTR Alarm Cont ro l

DTR Alarm Status

Format

Flow Control

Character Size

Parity

Stop Bit

Lets you set DTR Alarm Control parameters.

Values: Enable, Disable Default: Disable

Lets you view the current DTR Alarm status. Selects the port’s operating mode.

Values: Sync, Async Default: Sync

Selects the type of flow control to be used if the port is asynchronous.

Values: None, Xon/Xoff, RTS/CTS Default: None

Selects the number of bits to make up one asynchronous character.

Values: Five, Six, Seven, Eight Default: Eight

Selects the setting for the parity bit if the port is asynchronous.

Values: None, Odd, Even Default: None

Selects the number of bits to end the character.

Values: 1, 2 Default: 1

Current Pin Status

The Current Pin Status, which shows the state of the RS-232 pins, is also displayed on the Serial screen.

Ethernet (IP Details) Scr een

The 10/100 Ethernet (IP Service Details) screen (Figure 4.9) lets you configure the IP parameters listed below.

VT100 Interface 4-11

Figure 4.9

IP Details Screen

Unit IP Address

Subnet Mask

Gateway IP Address

DHCP Client

Client Identifier

Physical Add ress

A unique network address assigned to this unit.

Defines the network portion of the unit’s IP address.

IP address of the default gateway (router) on the LAN side of the unit.

Displays a unique identifier for a specific IP address.

Displays unique MAC address.

NOTICE: Always verify that a DHCP server is available on the network before

enabling DHCP Client. If, on power-up, a DHCP server is not found, a 60-second timeout will occur.

NOTICE: If you manually change the IP address, you must “Save and Restart.”

(See "Save and Restart" on page 4-6.)

Supervisory Config Screen

The Supervisory Config screen (Figure 4.10) displays the current speed of the Supervisory port interface and other parameters as described below.

4-12 WANsuite 5330

Figure 4.10

Supervisory Config Screen

The Supervisory screen lets you view and change the Supervisory port speed used by PPP and VT100. The Supervisory port only supports asynchronous character formats.

Speed

Character Size

Parity

Stop Bit

DTR Alarm Cont ro l

DTR Alarm Status

Changes the Supervisory port speed (in bits per second).

Values: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Default: 19200

Selects the number of bits required to make up one asynchronous character.

Values: Five, Six, Seven, Eight Default: Eight

Selects the parity bit if the port is asynchronous.

Values: None, Odd, Even Default: None

Selects the number of bits required to end the character.

Values: 1, 2 Default: 1

Setting DTR Alarm Control to “Enable” allows the unit to go into alarm on a loss of DTR.

Values: Disable, Enable Default: Disable

Indicates t he curre nt state o f the DTR alarm .

Diagnostic Msgs

Enables the Supervisory port to send out diagnostic messages upon power-up.

Values: Enable, Disable Default: Enable

VT100 Interface 4-13

Current Pin Status

The Current Pin Status, which shows the state of the RS-232 pins, is displayed at the bottom of the Supervisory Config sc reen.

Service Table Scree n

The Service Table screen (Figure 4.11) provides a view of the unit’s defined services and displays the Interface, Type, and Pair parameters for each service.

Figure 4.11

The Servi ce Table s creen displays t he availa ble services listed b y Inde x number. The Service Table lets you navigate to a Service Details (Figure

4.12) screen from the <Index> column, to an Interface Details screen from the <Interface> column, or t o a Type Detail s screen from t he <Type> co lumn. To add a service, select the “Add Service” prompt at the top of the screen.

Service Table Screen

4-14 WANsuite 5330

Figure 4.12

Service Details Scree n

From the Service D etails s creen, yo u can acc ess and c hange t he param eters listed below. The new parameters are saved when you press the “Esc” key and return to the previous screen.

Interface

Type

Pair

Delete Service

Selecting one of the interfaces will bring up a screen where you can view interface parameters. These screens are the same ones displayed when you select a sub-menu from the Interfaces menu described earlier on page 4-6.

NOTICE: One of the Interface options is “Virtual.” PPP is the only service that may

be attached to the Virtual interface. You would choose the Virtual interface for PPP if you elected to run PPP over Frame Relay. When you attach PPP to the Virtual interface, you must supply an endpoint over which to send PPP encapsulated data, and that endpoint must be for a Frame Relay DLCI.

Selecting one of the services listed under the “Type” column will bring up a screen where you can view (and, in some cases, change) parameters for each type of service. The details displayed depend on the type of service currently in effect. These screens are shown and described below according to each type of service.

User-assigned inte ger field that specifies where to route the traffic from this service. If the service is terminated by the unit, set this value to “0” (zero).

Select “De lete Serv ice” to remove the curren tly conf igured serv ice id entified by the Service Details screen. Deleting the selected service will remove all references to this service. T hese refe rences m ay inclu de frame re lay, DLC I, endpoint, and Service Aware configurations.

After selecting “Delete Service,” you will be presented with a confirmation screen similar to the one shown in Figure 4.4. Select “Yes” to confirm removal of the sel ected service.

Frame Relay Service Details Screen

Access the Frame Relay Service Details screen (Figure 4.13) by selecting “Frame Relay” under the <Type> column on the Service Table screen.

VT100 Interface 4-15

Figure 4.13

Frame Relay Service Deta ils Screen

The Fram e Relay Service D etails scr een dis plays Se rvice, Pa ir, and Interface details across the top of the screen. Fields shown at the top of the Frame Relay Service Details screen are listed below.

Field Description

Interface Type

Link Management

Active Read-only status (No, Yes) LMI Type Read-only status FrameStart Status Read-only status Round Trip Delay (bytes) Specifies the frame size of packets making the

round-trip.

Round Trip Rate (sec) Specifies the rate (in seconds) at which Round Trip

Delay pa ck et s ar e sent.

Screen parameters that can be viewed and/or changed are listed below. To save new parameters, press the “Esc” key .

Values: UNI, NI, NNI Default: UNI if interface is Network, NI if interface is Serial

4-16 WANsuite 5330

Once it discovers the link management type, the unit should be set to the discovered value so that subsequent unit or network re-initialization will be faster.

Values: Auto, CCITT, ANSI, LMI, None Default: ANSI

Max Frame Size

Values: 64–4096 Default: 2500

Indicates the number of “keep alive” status inquiries that are sent between full status requests.

Values: 5–255 Default: 5 if i nterface is Netw ork (UNI ), 6 if in terface is Serial ( NI).

Values: 1–255 Default: 3

Values: 5–255 Default: 4

RFC1315 Trap

Default CIR (bps)

Specifies the number of seconds the unit waits between issuing status inquiry messages.

Values: 5–30 Default: 10

Values: Disable, Enable Default: Disable

Values: 0–64 k Default: 0

VT100 Interface 4-17

Default Be Rate (bps)

Values: 0–64 k Default: 0

Enforce CIR and Be

Management DLCI

Management Auto IP

DLCI

FrameStart Auto

Diagnostic

If this parameter is set to “Yes,” the unit will enforce Committed Information Rate and E xcess Burst.

Values: No, Yes Default: No

NOTICE: The Auto Diagnostic parameter must be set to “Yes” to enforce CIR and

Be.

If this parameter is set to “Yes,” the unit will monitor the specified DLCI for 5 pings over 5 seconds, after which the unit uses the destination address as its management IP address.

When set to “No,” the unit will forward each LMI message to its service pair. If one side of the pair goes down, the other side will stop receiving LMI.

FrameStart Auto

Discovery

RFC1315 Trap

4-18 WANsuite 5330

FrameStart Auto Diagnostic mode should be left set to “Yes” unless the frame relay connection has more that 128 DLCIs, or if there is a very high traffic rate on a constant basis.

Values: No, Yes Default: Yes

When this parameter is set to “Yes,” the unit will send FrameStart discovery and delay frames to each DLCI it learns as soon as the DLCI are set active. This is required to calculate round trip delay as well as discovery of remote WANsuite/FrameStart units. This parameter should be set to “Yes” only on network services that have a WANsuite/FrameStart unit at the far end of the frame relay connection.

Values: No, Yes Default: No

When this parameter is set to “Enable,” the unit will send the standard RFC1315 frame relay DTE circuit state change trap every time a DLCI

changes state, provided at least one destination IP address for trap is configured in the SNMP configuration.

Values: Disable, Enable Default: Disable

Tx Threshold

Tx Alarm

Rx Threshold

Rx Alarm

Rx Invalid Thr eshold

Rx Invalid Alarm

Number of bits per second sent during a 15-minute interval after which a Tx alarm will be triggered. Default of 0 disables this alarm.

Values: 0–4294967295 Default: 0

Status of t his alar m (OK, Alarmed ).

Number of bits per second sent during a 15-minute interval after which an Rx alarm will be triggered. Default of 0 disables this alarm.

Values: 0–4294967295 Default: 0

Status of t his alar m (OK, Alarmed ).

Number of invalid frames received during a 15-minute interval, after which an Rx invalid alarm will be triggered. Default of 0 disables this alarm.

Values: 0–4294967295 Default: 0

Status of t his alar m (OK, Alarmed ). User pro mpts at th e bottom of the F rame Rel ay Ser vices Detai ls screen are

described in the table below.

Prompt Function

Frame Re lay

Statistics

DLCI Table Ope ns the DLCI Table screen, which displays all the DLCIs on

Clear Statistics Clears all Frame Relay stat istics. Clear Alarms Clears all Frame Relay alarms. Pair Type Details Opens another Frame Relay Se r vice Details screen that r everses

Opens the Frame Relay Statistics screen for the curre nt fra me relay service.

the current service. Refer to for more information.

the service and the pair so that you can view both sides of th e pair.

"DLCI Table Screen" on page 4-34

Select the “Frame Relay Statistics” prompt to bring up a table that reports on the status and condition of LMI parameters and on Receive/Transmit alarms and thresholds (see Figure 4.14). Alarm threshold levels may be changed by entering a new threshold value in the appropriate field on the Frame Relay Service De tails sc reen and pressing the “Esc ” key.

VT100 Interface 4-19

Figure 4.14

Frame Relay Statistics Screen

To view the Port Statistics (Figure 4.15) for a specific interval, select that interval from the Frame Relay Statistics <Period> column.

Frames

Octets

Mgmt Frames

Figure 4.15

Frame Relay Port Statistics Screen

Transmit

Number of frames transmitted by the port. Number of octets transmitted by the port. Number of management frames transmitted by the port.

Mgmt Octets

Stat Inquiries

Stat Responses

4-20 WANsuite 5330

Number of management octets transmitted by the port. Number of octets transmitted in frame relay LMI status inquiries. Number of octets transmitted in frame relay LMI status responses.

Receive

Frames

Octets

Mgmt Frames

Mgmt Octets

FECN

BECN

Invalids

Stat Inquiries

Stat Responses

Invalid LMIs

Peak

A verage

Period Index

Number of frames received by the port. Number of octets received by the port. Number of management frames received by the port. Number of management octets received by the port. Number of Forward Explicit Congestion Notification frames received. Number of Backward Explicit Congestion Notification frames received. Number of invalid frames received. Number of octets received in frame relay LMI status inquiries. Number of octets received in frame relay LMI status responses. Number of invalid Local Management Interface frames received.

Throughput (bits /sec)

Peak bandwidth (in bps) as measured over a 10-second period. Average bandwidth (in bps) used by the port. Selects the interval (Current, Summary, or 1-96) to be viewed on the Frame

Relay Port Statisti cs screen .

PPP Service Details Screen

The PPP Service Details screen () gives you access to configuration parameters that can be viewed/changed as described in the following paragraphs. To save new parameters, press the “Esc” key.

PPP Service Details Screen

VT100 Interface 4-21

ACCM

The Asynchronous Control Character Map (ACCM) configuration option provides a method to negotiate the use of control character transparency on asynchronous links.

Values: 0–4294967295 Default: 4294967295

MRU

Port IP Address

Peer IP Address

Virtual PPP Ov er

Auth Challenge

Interval

Allow PAP

This configuration option may be set to inform the peer that the implementation can receive larger packets, or to request that the peer send smaller packets.

Values: 128–4096 Default: 1500

The IP address of the port. For unnumbered PPP link, set to 0.0.0.0 and set IP Address Negotiation to “No.”

Default: 192.168.1.2

Enter the IP address of the peer that will negotiate authentication protocols.

Default: 192.168.1.3

Endpoint name over which to send PPP encapsulated data (i.e., PPP over Frame Relay). Valid only when the PPP interface is Virtual.

The time interval (in seconds) between CHAP challenges. A value of “0” (zero) disables the periodic authentication challenge.

Values: 0−3600 Default: 0 (disabled)

Allows the peer to negotiate for PAP.

Values: No, Yes Default: No

Allow CHAP

PAP Username

PAP Password

CHAP Username

4-22 WANsuite 5330

Allows the peer to negotiate for CHAP.

Values: No, Yes Default: No

This field is used to log on to the peer. Type the appropriate PAP Username in this field.

Values: User establis hed Default: Username

This field is used to enter the password necessary to log on to the peer under a given PAP Username.

Values: User establis hed Default: None

This field is used (along with the CHAP Secret) to challenge the peer. Type the appropriate CHAP Hostname in this field.
