Verilink 5130 User Manual

WANsuite® 5160/51 30 Reference Manual

August 2002 34-00298.M

Copyright Notice Copyright © 2002 Verilink Corporation. All rights reserved. No part of this publication may be

reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of Verilink.

Manual Reorder # 34-00298.M August 2002

Trademarks Verilink

and WANsuite® are registered trademarks of the Verilink Corporation. FrameStart™,

WANsight™, and ServiceAware™ are tradem arks of the Verilink Corporation. All other brand and product names used herein are trademarks or registered trademarks of their

respective manufacturers.

Documentation Disclaimer

This document does not create any express or implied warranty about Verilink or about its products or services. Verilink’s sole warranty is contained in its product warranty. The end-user documentation is shipped with Verilink’s products and constitutes the sole specifications referred to in the pro duc t war ran ty. Ve rili nk ha s ma de re aso nab le effor ts to ver ify th at th e info rmat io n contained herein is accurate, but Verilink assumes no responsibility for its use or for any infringement of patents or other rights of third parties that may result. The customer is solely responsible for verifying the suitability of Verilink’s products for its use. Specifications are subject to change without no tice.

Warranty Verilink's produ ct warranty is included at the back of this document. FCC Requirements This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. O per atio n of t his e qui pme nt in a r es ide ntia l are a is li kely to ca use ha rm ful in ter fere nce in which case the user is required to correct the interference at his own expense. This device must also a ccept any interference received, includi ng interference t hat may ca use undesired operation.

WARNING: For use only with a certified Class 2 power supply. See Power Source in

Appendix A, Specifications.

WARNING: Changes or modifications to this unit not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

1 All direct connections to the network lines must be made using standard plugs and jacks

2 If the unit appears to be malfunctioning, it should be disconnected from the network lines

ii WANsuite 5160/5130

This equipment complies with Part 68 of the FCC Rules. On the rear or bottom of the unit is a label that contains the FCC registration number and other information. If requested, provide this information to the tel ephone compa ny.

(compliant with Part 68). The table below presents a list of applicable registration jack USOCs, facility interface codes (FICs), and service order codes (SOCs). These are required when ordering service from the telco.

Port ID REN/SOC FIC USOC

1.544 Mbps SF

1.544 Mbps SF, B8ZS

1.544 Mbps ANSI ESF

1.544 Mbps ANSI ESF, B8ZS

until the source of trouble is determined to be your equipment or the telephone line. If your equipment needs repair, it should not be reconnected until it is repaired.

6.0F 04DU9-BN

RJ-48C jack 04DU9-DN 04DU9-1KN 04DU9 -1SN

3 The unit has been designed to prevent harm to the network. If the telephone company finds

that the equipment is exceeding tolerable parameters, it can temporarily disconnect service. In this case, the telephone company will give you advance notice, if possible.

4 No cust omer is author ized to repair this eq uipmen t, rega rdles s of wa rranty statu s. 5 If the telephone company alters its equipment in a manner that will affect the use of this

device, it must give you warning so that you have the opportunity for uninterrupted service. You will be advised of your right to file a complaint with the FCC.

6 If the equipment malfunctions, all repairs should be performed by our company or an

authorized agent. It is the responsibility of users requiring service to report the need for service to our company or to one of our authorized agents.

Canadian Emissions Requirements

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques (de la class A) prescrites dans le Règlement sur le brouillage radioélectrique edicté par le ministère des Communications du Canada.

Safety P recauti ons When handling this equipment, follow these basic safety precautions to reduce the risk of elec-

tric shock and injury:

• Follow all warnings and instructions marked on the product and in the manual.

• Unplug the hardware from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a slightly damp cloth for cleaning.

• Do not place this product on an unstable cart, stand, or table. It may fall, causing seri ous damage to the product.

• Slots in the unit are provided for ventilation to protect it from overheating. These openings must not be blocked or covered. Never place this product near a radiator or heat register.

• This product should be operated only from the type of power source indicated on the marking label and manual. If you are unsure of the type of power supply you are using, consult your dealer or local power company.

• Do not allow anything to rest on the power cord. Do not locate this product where the cord interferes with the free movement of people.

• Do not overload wall outlets and extension cords, as this can result in fire or electric shock.

• Never push objects of any kind into the unit. They may touch dangerous voltage points or short out parts that could result in fire or electric shock. Never spill liquid of any kind on this equipment.

• Unplug the equipment from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged or frayed.

• If liquid has been spilled into the product.

• If the product has been exposed to rain or water.

• If the product has been dropped or if the housing has been damaged.

iii

iv WANsuite 5160/5130

Preface

About th i s Ma n u al ....... .. ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... .......................... xi

Manual Organization ...................................................................................................................... xi

Typographic Conventions .............................................................................................................xii

Customer Service and Technical Support ........... .......... ........... ...................... ......................................xii

Support from Your Network Supplier ........................................................................................... xii

Support from Verilink ........ ........... ........... ...................... .............................. ........... ...................... xii

Telephone .............................................................................................................................. xiii

E-mail .................................................................................................................................... xiii

Intern et ..... ......... ....... ......... ......... ......... ....... ......... ......... ......... ....... ......... ......... ......... ............... xiii

Returning a Unit to Verilink ............................................................................................................... xiii

Chapter 1 About the WANsuite 5160/5130

Introduction ......................................................................................................................................... 1-1

Features of the WANsuite 5160/513 0 ................... ...................... ........... .......... ........... ........... ............ 1-3

Performance ................................................................................................................................. 1-3

SNMP Management ....... .. ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... ...... 1-3

Intelligent WAN Access Architecture ......................................................................................... 1-3

Optional Advanced Network Management .................................................................................. 1-4

About FrameStart Technology ........................................................................................................... 1-4

WANsuite 5160/5130 Overview and Advantage s ....... .......... ........... ........... ........... ............................1-5

Features Summary .............................................................................................................................. 1-5

Front Panel .......................................................................................................................................... 1-7

Rear Panel Connections .................................................................................................................... 1-10

Supervisory Port ......................................................................................................................... 1-10

10/100 Ethernet .................................... ...................... ........... .............................. ........... ............ 1-11

Ethernet LED Indicators ...................................................................................................... 1-11

Serial Interface(s) ....................................................................................................................... 1-11

Network Interfaces ..................................................................................................................... 1-12

Power Connection ...................................................................................................................... 1-12

Power Failure ....................................................................................................................... 1-13

Chapter 2 Installation

Unpacking and Inspection .................................................................................................................. 2-1

Supplied Materials ........ ......................................... ...................... .............................. .. ....................... 2-1

Installation Wizard .............................................................................................................................. 2-2

Chapter 3 Web Server Interface

Web Server Access .. ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ...................... 3-1

Layout of Interface Screens ......................................................................................................... 3-2

Unit Screen ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ........................ 3-2

Interfaces ........... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ........................... 3-5

Network Screens .......................................................................................................................... 3-5

Error Status and Alarm Thresholds Table ............................................................................. 3-8

Serial Screens ............................................................................................................................. 3-11

Current Pin Status ................................................................................................................ 3-15

DTR Alarm Control and Status Table ................................................................................. 3-15

10/100 Ethernet Screen (IP Service Details) ............ ........... ........... .............................. ..............3-15

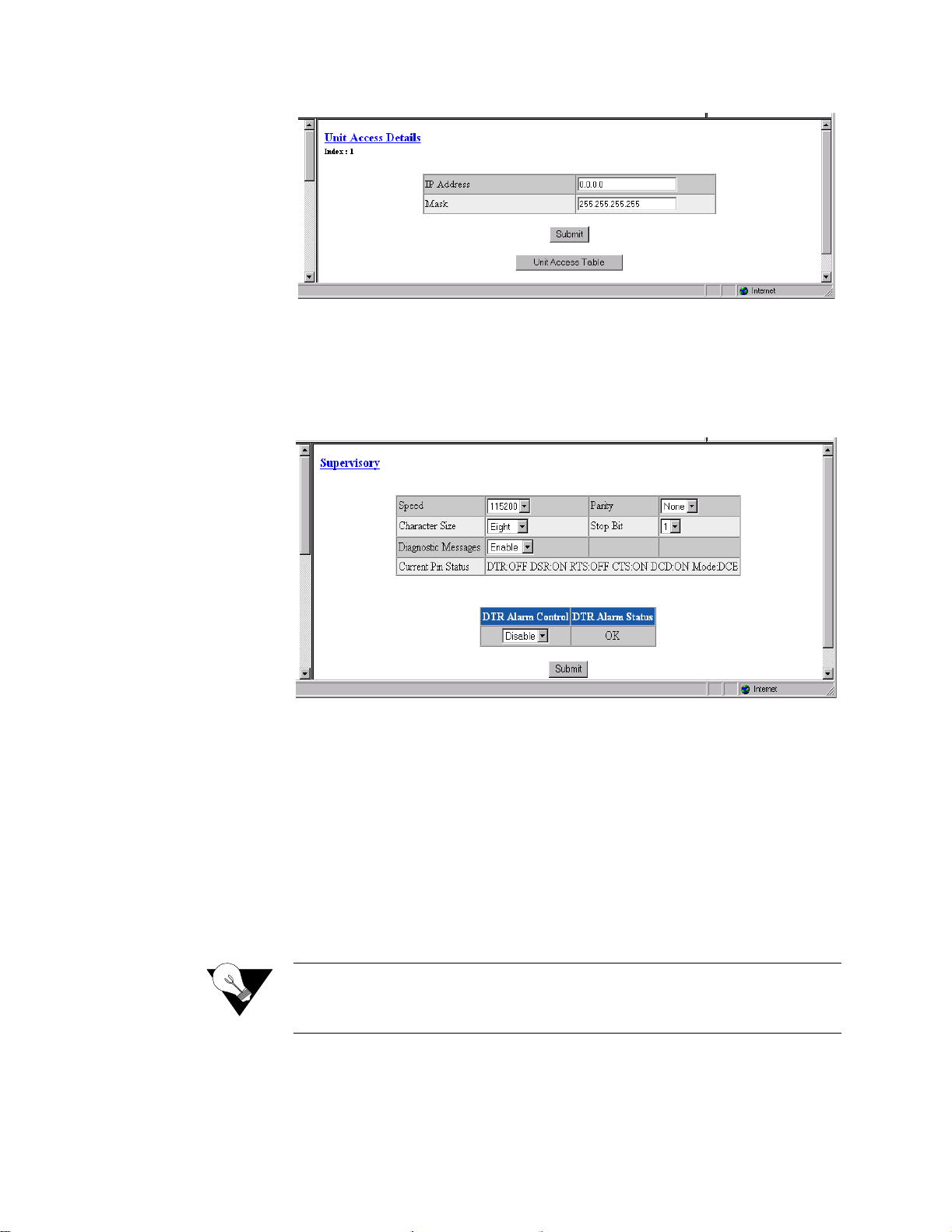

Supervisory Screen ..................................................................................................................... 3-18

Current Pin Status ................................................................................................................ 3-19

DTR Alarm Control and Status Table ................................................................................. 3-19

Services Screen ................................................................................................................................. 3-19

Data L ine Monito r Co n fi g u r at i on T ab l e ........ .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 3 -2 0

Adding a Ser v i ce . .. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 3-21

Service Detai ls Screen ........... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 3-22

Interface Deta i l s But t o n ............. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. .........3-23

Type Details Button ............................................................................................................. 3-23

Delet e Se r v ice Button ................ .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. .........3-23

DS0 Monitor Details Screen (5160 Only) ....... ........... ...................... .............................. ........... .3-24

DS0 Sta t u s and A la r m T ab l e ................ ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 3-25

Frame Relay Service Details Screen .......................................................................................... 3-27

Status and A larms Tab l e .......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 3-31

Frame Relay Port Statistics Screen ......................................................................................3-32

SCADA Details Screen ..................... .............................. ........... ........... ........... ........... ............... 3-34

PPP Service Details Screen ........................................................................................................3-36

Param e t ers T o N eg o t i a t e .... ... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. .. 3-38

PPP Sta t i sti c s .... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ........... 3-38

PAP Table ............................................................................................................................ 3-40

CHAP Table ........................................................................................................................3-41

IP Serv i ce D et ai l s Screen ...... .. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 3-41

Applic ations ........ ....... ......... ......... ......... ....... ......... ......... ......... ...... ......... ......... ......... ......................... 3-42

Endpoint Table Screen ............................................................................................................... 3-42

Endpoint Details Screen ...................................................................................................... 3-42

Endpoint Service Details Screen ......................................................................................... 3-45

DLCI Details Screen ............................................................................................................3-45

Service Aware Screen ................................................................................................................ 3-50

Rule De t ai l s Screen ...... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. .. 3-51

Traffic Meter Statistics Screen ............................................................................................ 3-53

SNMP D et a i l s Scr een . .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 3-54

Diagnostics Screen ........ ...................... .......... ........... ...................... ............................................ 3-55

Test Details Screens ............................................................................................................. 3-55

Trap L og S c r een ...... ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 3-59

Top Talkers ................................................................................................................................ 3-60

IP Gateway Details Screen ......................................................................................................... 3-61

RIP Parameters .................................................................................................................... 3-62

vi WANsuite 5160/5130

OSPF Pa r a m e t er s . ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 3-62

Circuit Table Screen ............................................................................................................ 3-63

Static Routes Screen ............................................................................................................ 3-65

Static ARP Table Screen ..................................................................................................... 3-68

Trusted Neighbor Table Scre en .................................... ........... ........... .......... ........... ........... .3-70

Area Table Screen ...............................................................................................................3-71

Virtual Link Ta b l e Sc r e en ....... .. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 3-73

TCP Server ................................................................................................................................. 3-74

TCP Server Details Screen .................................................................................................. 3-74

Netwo r k Add r e s s T ra n s l at i on (N A T ) ........ .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 3-76

NAT Details Screen .............................................................................................................3-77

Dynamic Host Configuration Protocol (DHCP) ........................................................................ 3-82

DHCP Server Details Screen ...............................................................................................3-83

Bridge ........... ........... ......... ............ ........... ........... ......... ........... ............ ........... ......... .................... 3-87

Simple Mail Transfer Protocol (SMTP) ..................................................................................... 3-91

Encryption .. ............. .............. .................... .............. .................... ............. ..................................3-91

Utilities ............................................................................................................................................. 3-92

Upload/Save ............................................................................................................................... 3-92

Password ....................................................................................................................................3-93

Log Out ...................................................................................................................................... 3-94

In-ban d Management ..... ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. .......3-94

Use of Connected Local Router ........................................................................................... 3-94

Use of Local WANsuite 5160/5130 as a Gateway ..............................................................3-95

Chapter 4 VT100 Interface

Introduction ......................................................................................................................................... 4-1

Acces si n g th e V T 1 0 0 In t er f a ce . ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... 4-1

Screen Co mpone n ts ...... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... 4-1

Cursor Co n t ro l s .......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... ............. 4-2

Field Types ...................................................................................................................................4-2

Menu Structure ............................................................................................................................. 4-3

System Screen ..................................................................................................................................... 4-4

Mainte n ance Re se t .................. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... ........... 4-5

Save and Restart ........................................................................................................................... 4-6

Interfaces Scr e en ........ .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .................... 4-6

Network Screens .......................................................................................................................... 4-7

Error Status and Alarm Thresholds Table ...........................................................................4-10

Performance Screens ........................................................................................................... 4-11

Serial Screens ............................................................................................................................. 4-13

10/100 Ethernet (IP Details) Screen ...........................................................................................4-17

Supervisory Configuration Screen ............................................................................................. 4-1 8

Service Table Screen ........................................................................................................................4-20

Data L ine Monito r Co n fi g u r at i on T ab l e ........ .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 4 -2 0

Service Detai ls Screen ............... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. .........4-23

DS0 Monitor Details Screen (5160 Only) ....... ........... ...................... .............................. ........... .4-24

DS0 Sta t u s and A la r m T ab l e ................ ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 4-24

Frame Relay Service Details Screen .......................................................................................... 4-26

vii

Frame Relay Statistics Screen .............................................................................................4-31

PPP Service Details Screen ........................................................................................................4-33

Param e t ers to N eg o t iate .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 4-34

PPP Sta t i sti c s .... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ........... 4-35

PAP Table ............................................................................................................................ 4-36

CHAP Table and Details Screens ........................................................................................ 4-37

SCADA Service Details Screen .......... .............................. ........... ........... .. ................... ........... ... 4-38

IP Serv i ce D et ai l s Screen ...... .. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ....... 4-40

Applic ations ........ ....... ......... ......... ......... ....... ......... ......... ......... ...... ......... ......... ......... ......................... 4-40

Endpoint Table Screen ............................................................................................................... 4-40

Endpoint Details Screen ...................................................................................................... 4-41

Endpoint Service Details Screen ......................................................................................... 4-44

DLCI Details Screen ............................................................................................................4-44

DLCI Table Screen ..............................................................................................................4-48

Service Aware Screen ................................................................................................................ 4-49

Rule Co n fi g u ra t i o n Scr een . ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... .... 4- 5 0

Traffic Meter Statistics Screen ............................................................................................ 4-51

SNMP D et a i l s Scr een . .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 4-52

Diagnostics Screen ........ ...................... .......... ........... ...................... ............................................ 4-53

Test Details Screens ............................................................................................................. 4-53

Trap L og S c r een ...... ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 4-57

Top Talkers Screen .................................................................................................................... 4-57

IP Gatew ay Scree n ........... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ............. 4-58

RIP Parameters .................................................................................................................... 4-59

OSPF Pa r a m e t er s . ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 4-59

Circuit Table Screen ............................................................................................................ 4-60

Static Route Table Screen .................................................................................................... 4-62

Static ARP Table Screen ..................................................................................................... 4-65

Trusted Neighbors Screen ...................... ...................... ........... .............................. ........... ... 4-66

Area Table Screen ...............................................................................................................4-67

Virtual Link Ta b l e Sc r e en ....... .. .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... 4-69

TCP Server ................................................................................................................................. 4-71

TCP Server Screen ...............................................................................................................4-71

Netwo r k Add r e s s T ra n s l at i on (N A T ) ........ .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 4-73

NAT Details Screen .............................................................................................................4-74

Dynamic Host Configuration Protocol (DHCP) ........................................................................ 4-80

DHCP Server Details Screen ...............................................................................................4-81

Bridge ........... ........... ......... ............ ........... ........... ......... ........... ............ ........... ......... .................... 4-84

Simple Mail Transfer Protocol (SMTP) ..................................................................................... 4-88

Encryption .. ............. .............. .................... .............. .................... ............. ..................................4-89

Chapter 5 Front Panel LCD Interface

Introduction ......................................................................................................................................... 5-1

Description of Front Panel ...........................................................................................................5-1

LCD Fro n t Pan e l O p er at i o n .... ... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ............. 5-3

Password ...................................................................................................................................... 5-3

Interface Conventions .................................................................................................................. 5-4

Menu Title ............................................................................................................................. 5-4

viii WANsuite 5160/5130

Menu Element ........................................................................................................................ 5-4

Information E l ement .............. .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. .... 5-5

Cursor .................................................................................................................................... 5-5

Main M e n u ... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... ...................... 5-5

Alarms Menu ................................................................................................................................ 5-5

Network 1 and Network 2 (5160) or Network (5130) Alarm Status Menu ......................... .5-6

DTR Al ar m ... ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. .. .......5-8

Reset T i mer ............ .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... 5-8

Reset A l ar m s ........ .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ...........5-8

Performance Menu ....................................................................................................................... 5-8

Mainte n ance Me n u ..... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ............. 5-9

Network Maintenance Menu .................................................................................................5-9

Serial Maintenance Menu .................................................................................................... 5-11

Configuration Menu ................................................................................................................... 5-12

TCP/I P C o n fi g u ra t i o n M en u ... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. 5-12

Network 1 (5160) or Network (5130) Configur ation Menu ...................... ........... .......... .....5-13

Network 2 Configuration Menu (5160 Only) ........... ........... ...................... ........... .......... .....5-15

Serial 1 and Serial 2 (5160) or Serial (5130) Configuration Menus ................ ........... ........5-17

Supervisory Configuration Menu ........................................................................................ 5-21

Utiliti es Menu .... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. .................. 5-22

Mainte n ance Re se t ............ .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. .......5-22

Set Pass w o rd . .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ....... 5-22

LCD E/D .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ........... 5-23

Log Out Menu ............................................................................................................................ 5-23

Appendix A Specifications

Netwo r k 1 (o r N et w o r k ) In terface ... ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. . ....... A-1

Network 2 Interface (5160 Only) ...................................................................................................... A-1

Serial Interface(s) ............................................................................................................................... A-2

IP Gatew ay ...... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ............................ A-2

10/100 Ethernet (IP Gateway or Manage ment) .............. ........... .............................. ........... ..A-2

Management Interfaces ...................................................................................................................... A-2

10/100 Ethernet (Managemen t or IP Gateway) .............. ........... .............................. ........... ..A-2

Supervisory Port ................................................................................................................... A-2

Diagnostics ........................................................................................................................................ A-2

Alarms ................................................................................................................................................ A-3

Power ................................................................................................................................................. A-3

Mecha nic al . ..... .... .. ..... .... ..... .. ..... .... ..... .. .... ..... .... ... .... ..... .... .. ..... .... ..... .. ..... .... ..... .. .... ..... ..................... A-3

Enviro n m e n t al ....... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ..................... A-3

Frame Relay Statistics Collected in 96 15-minute Intervals ............................................................. A-5

PPP Statistics Collected in 96 15-minute Intervals ........................................................................... A-5

Industry Listings ................................................................................................................................ A-5

Ordering Information .........................................................................................................................A-6

Optional Equipment ...........................................................................................................................A-6

Connector Pin Assignments ............................................................................................................... A-7

Serial Interface Pin Assignments, DTE Mode (Packet Use Only) ............................................. A-7

Serial Interface Pin Assignments, DCE Mode ........................................................................... A-9

Ethernet Connection Pin Assignments ........................................................................................ A-9

Network 1 (5160) or Network (5130) Inter fac e Pin Assignments ..................... ....................... A-10

Network 2 (5160 Only) Interface Pi n Assignments ............ ........... ........... .............................. ..A-10

Supervisory Port Pin Assignments ............................................................................................ A-10

Appendix B SNMP Agent

Introduction .........................................................................................................................................B-1

SNMP Co n f i g u rat i o n P aramete rs .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ...........B-1

SNMP MIBs ......... ... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ....................B-1

SNMP T ra p Co n fi g u r at i o n ... .. ... ......... .. ......... .. ......... .. ......... ... ......... .. ......... .. ......... .. ......... ... ...............B-2

Generic MIB Loading Instructions ...................................................................................................B-10

x WANsuite 5160/5130

About this Manual

HAPTER

REFACE

This reference guide for the Verilink WANsuite 5160/5130 intelligent integrated access de vice (I configuration, and cabling. It is not a users guide containing step-by-step procedures. This manual is designed to be used as a reference regarding commands, interface ports, configuration parameters, and other information specific to your 5160/5130 unit.

Much of the information in this manual applies to the WANsuite 5160 and the WANsuite 5130 units. The screen captures throughout the manual are, for the most part, 5160 screens; however, where differences are significant, those differences are not ed. W hen this man ual refers to the unit, you should assume the information applies to both units.

Manual Organization

The chapters and appendices in this manual are arranged for quick reference when you need it. You do not have to read previous chapters to understand the subsequent chapters. Appendices are designed to complement the main chapters.

• Chapter 1, "About the WANsuite 5160/5130" – This chapter describes

product features and capabilities.

• Chapter 2, "Installation" – This chapter describes unit port conne ctions and

powering informatio n.

AD) describes unit features and specifications,

• Chapter 3, "Web Server Interf ace" – This chapter describes the menu screens

and configuration para meters accessed through the Web server interface.

• Chapter 4, "VT100 Interface" − This chapter describes the menu screens and

configuration parameters accessed through the VT100 interface.

• Chapter 5, "Fro nt Pan el LCD Inte rfa ce"– This cha pter des cribes the metho ds

and options for configuri ng and controlling the unit through the front pa nel LCD interface.

• Appendix A, "Specifications" – This appendix defines the specifications for

the WANsuite 5160/5130. In addition, this section provides ordering

Preface xi

information and all the connector pin assignments for the interfaces on the back of the WANsuite 5160/5130.

• Appendix B, "SNMP Agent" − This appen dix defines which Management

Information Base (MIB) fil es are supported by the WANsuite 5160/5130 SNMP agent. In addition, instructions are provided for loading these MIB files into most SNMP management stations.

Typog raphic Conv e ntions

The following table lists the conventions used throughout this guide.

Convention Description

A Notice calls attentions to important features or instructions.

A Caution alerts you to s erious risk of data loss or other results that may caus e you or the unit trouble if the warning is not heeded.

A Warning alerts you t o the risk of serious da ma ge to the u nit or injury and possible death to the end user.

Customer Service and Technical Support

Verilink provides easy access to customer support information through a variety of servi ces. This section descri bes these services.

Support from Your Network Supplier

If assistance is required, contact your network supplier. Many suppliers are authorized Verilink service partners who are qualified to provide a variety of services, including network planning, installation, hardware maintenance, application training, and support services. When you contact your network supplier for assistance, have the following information ready:

• Diagnostic error messages

• A list of system hardware and softwar e, including revision levels

• Details about recent con fi guration changes, if applicable

Support from Verilink

If you are unable to receive support from your network supplier or want to contact us directly, Verilink offers worldwide customer support by telephone, e-mail, and through Verilink’s Internet Web site.

xii WANsuite 5160/5130

Telephone

Customer support is available by telephone 24 hours a day, 7 days a week. To speak directly with a Verilink customer service representative, you may dial one of the following numbers:

•Sales and Marketing: 800-VERILINK (837-4546)

•Technical Support: 800-285-2755 (toll-fre e)

256-327-2255 (local)

E-mail

You can request sales and marketing information or pose a technical support question about your Verilink product by contacting us at the e-mail addresses provided below. Verilink will respond to e-mailed requests for support during regular business hours (8–5 CST, Monday–Friday).

•Sales and Marketing: info@verilink.com

•Technical Support: suppor t@verilink.com

Internet

Visit Verilink’s Web site to access the latest Verilink product information, technical publications, news releases, contact information, and more:

If this reference manual is revised to reflect code changes or other updates, the most recent version will be posted to the Verilink Web site.

Returning a Unit to Verilink

If for any reason you must return your Verilink product, it must be returned with the shipping prepaid, and pack aged to t he best commerci al stand ard for electronic equipment. Verilink will pay shipping charges for delivery on return. You are responsible for mode and cost of shipment to Verilink.

You must have a Return Material Authorization (RMA) number marked on the shipping package. To obtain an RMA number, call Customer Service at 800-926-0085, extension 2282 or 2232. Products sent to Verilink without RMA numbers will be returned to the sender unopened, at the sender’s expense.

A product sent directly to Verilink for repair must first be assigned an RMA number. You may obtain an RMA number by calling Customer Service at 800-926-0085, extension 2282 or 2232.

When calling Verilink for an RMA, please have the following information available:

http://www.verilink.com

• Model number and serial number for each unit

• Reason for return and symptoms of problem

Preface xiii

• Purchase order number to cover charges for out-of-warranty items

• Name and phone number of per son we can conta ct i f we have quest ions about

the unit(s)

The address for you to use when returning a unit to Verilink will be provided when the RMA is issued. The standard delivery method for return shipments is Standard Ground for domestic returns and International Economy for international returns (unless otherwise specified).

xiv WANsuite 5160/5130

Introduction

C HAPTER

HAPTER

BOUT THE

The telecommunications network service market is rapidly changing, where network monitoring, control, and higher performance in packet processing are not only expected, but demanded, at competitive price points. Verilink’s WANsuite family is based on our innovative, next-generation WAN access architecture − a high ly flexible and po werful arch itecture that ca n meet th e needs of many different customers in many different applications. Because it is so flexible, WANsuite products will continually evolve, offering our customers cutting-edge features at competitive prices.

WAN

SUITE

5160/5130

The WANsuite 5160 is a service-aware T1/FT1 CSU/DSU with two Network ports (both of which operate in long-haul and short-haul mode); two Serial ports software-configurable for RS-232, EIA-530, or V.35 electrical connections; an asynchronous Supervisory port; a 10/100Base-T Ethernet interface; four status LEDs; an LCD front panel; and three input control keys. The WANsuite 5130 has one Serial port and does not have a Network 2 port. Except for these two differences, the 5130 has the same features as the 5160. Capable of accommodating a wide range of network configurations, the WANsuite 5160 and 5130 effectively combine voice, data, and network traffic over a single transmission facility and work with industry-standard network management solutions.

All of WANsuite 5160/5130’s installation, performance configuration, traffic monitoring, alarm reporting, and diagnostic capabilities can be configured through the units’ embedded We b server interface (WANsight™) using Microsoft® Internet Explorer™ . The W eb ser ver interfa ce can be accessed locally through the Ethernet port or the Supervisory port, or remotely through the Network port. Especially advantageous is WANsuite’s advanced monitorin g and co ntrol cap abilit y that gives network administrators the ability to plan future capacity requirements. To extend the WANsuite 5160/5130’s functionality even further, Verilink offers an element management software system for reporting and real-time diagnostics.

About the WANsuite 5160/5130 1-1

The unit’s built-in ServiceAware™ technology lets network managers maximize available WAN bandwidth and verify SLAs. This management platform lets the end user see network activity (performance) and problems (diagnostics) on any permanent virtual circuit (PVC), access line or physical circuit.

Verilink’s FrameStart™ technology is standard with the WANsuite 5160/5130 and benefits the initial installation of frame relay circuits by eliminating the requirement for a frame relay test set. FrameStart ensures that T1 circuit status, signal quality, loopback code detection, access link condition, and the various Layer 2 frame relay investigation and reporting features ar e availabl e and ac curate.

Another feature of the WANsuite product line, IP Gateway enables IP packet rout ing throughout a LAN/WAN network architecture using static routing configurations or dynamic routing protocols (Routing Information Protocol − RIP 1 and RIP 2 − or Open Shortest Path First − OSPF).

RIP 1 and RIP 2 allow routers to exchange routing information. WANsuite then uses this information exchange to build routing tables for IP Packet routes. After building the routing tables, WANsuite periodically broadcasts the contents to neighboring routers so that your network can choose the most efficient rou tes available.

OSPF uses link-state routing algorithms to calculate routes based on the number of routers, transmission speeds, delays, and route costs. Using the OSPF protocol, WANsuite works with other routers in your telecommunications fabric to dynamically change routing “on the fly” to make use of the most efficient and cost-effective transit across your network.

Because IP Gateway enables WANsuite to route IP traffic either statically or dynamically across your LAN/WAN architecture, your need for costly routers is substantially reduced. WANsuite is a one-stop solution that can help you meet the requirements of your many different applications.

DHCP uses a server-clie nt architecture to assign IP addresses to PCs and workstations on the LAN. The DHCP server dynamically assigns these IP

addresses, which can be either temporary or permanent, to each PC or workstation (DHCP client). These IP addresses are "housed" on the DHCP server.

NAT e nables an enterprise to set up two sets of IP addresses − one set fo r internal network use (or LAN traffic) and one set for external use (or Internet traffic). This can provide a layer of security f or a company by eliminating

outside access to internal IP addresses from the In ternet. Bridging separate LANs together is another option for the IP traffic. Using

the IEEE Standard 802.1D Transparent Bridging specification, the WANsuite 5160/5130 can simplify your network architecture by allowing you to bridge separate LANs across a WAN so they operate as a single LAN.

The WANsuite 5160/5130 gives service providers and enterprise customers the capability to monito r end-to -end n etwork p erforma nce (with support for up to 256 virtual circuits) as well as the capability to verify Service Level Agreements (SLAs); isolate performance problems to the LAN, local loop, or

1-2 WANsuite 5160/5130

frame relay network; determine appropriate bandwidth needs; and monitor network trends to aid in future capacity planning.

TCP Server, a feature of the WANsuite product line, provides connectivity to multiple endpoints by associating a TCP port with each endpoint while

reducing the number of physical connections at the central site to one 10/100Base-T Ethernet port.

Features of the WANsuite 5160/5130

Performance

Historically, WAN access devices have tended to perform well as single-function devices such as CSUs/DSUs, but have not been optimized to address higher level traffic issues such as service levels and integration. Verilink's architecture and Web-based user interface work together to address all access issues as services and ap plications , rather th an as circ uits and protocols, for exceptional WAN management performance.

To further leverage its Web browser interface, Verilink's new architecture also allows firmware to be upgraded via the Web from a standard browser, with password control, if desired.

SNMP Management

With integrated SNMP in-band management, enterprise managers can now manage Verilink WANsuite units and their integral CSUs/DSUs as a single unit. With only one LAN segment in the network, all Verilink WANsuite platforms can be managed by SNMP. With self-learning functionality, these platforms learn their frame rel ay environmen t and eliminate the need for remote, trained personnel. By downloading all configuration parameters from the central site, no interaction is required at remote sites to establish connectivity. WANs can be constructed using frame relay or leased-line services. Verilink’s WAN suite 5160/5130 allows any port to be configured for any of its available service technologies through simple software configuration. Network managers can now fine tune the enterprise network for the lowest cost and highest performance.

Intelligent WAN Access Architecture

Verilink's next-gen eration WAN access architect ure is built around a PowerPC™ processor, and works with non-proprietary network management solutions via SNMP. An embedded Web server supplies a simple-to-use interface for configuration and statistics collection, with a service table for mapping services to ports, an endpoint table for configuring and monitoring service endpoints, and a user table for traffic monitoring and control.

About the WANsuite 5160/5130 1-3

Optional Advanced Network Management

As an option for the WANsuite 5160/5130, Verilink offers a network management system based on RedPoint's NetVoyant™ software, which was designed to provide IT professionals with the information required to make informed, enterprise-wide capacity-planning and investment decisions. NetVoyan t is an NT -based element m anageme nt syst em that i ncludes an ODBC-compliant database, CORBA IDLs for customization and flexibility, real-time diagnostics, and extensive reporting and trending application support. The solution employs an open-system, multi-vendor support approach for network management, monitoring, and the collection of statistics from any SNMP-based networking device, including Verilink equipment already in the field.

WANsuite extends the functionality of NetVoyant’s software by incorporating customized configuration modules. This advanced network management system is offered as an option for the WANsuite 5160/5130. Please contact Verilink for availability and pricing information.

About FrameStart Technology

The WANsuite 5160/5130’s FrameStart technology ensures that frame relay service is operational prior to installation and connection to other equipment. FrameStart’s integral frame relay circuit installation and diagnostic tools help reduce equipment and installation costs, simplify configuration setup, and alleviate frame relay connection uncertainties − all in one unit.

The WANsuite 5160/5130 supports both FrameStart Install and FrameStart Monitor modes as well as Layer 2 statistics gathering and diagnostic capabilities that maximize network availability and manage the growth of the network.

FrameSta rt Ins tall enables step-by-step validation of network operations and requires no data terminal equipment such as routers or FRADs. If a DTE device is connected, operation is halted to perform installation diagnostics. With FrameStart Install, you have the power to perform advanced tests, including the following:

• Local Management Interfac e (LMI) Sourcing

• End-to-end Integri ty

• PVC Delay Testing

• Network Receive Level

FrameSta rt Monito r com plements F rameSt art Instal l to moni tor real-t ime network conditions nonintrusively when connected to real-world applications. FrameStart Monitor diagnostics maintain and manage the activity of the frame relay network from the host FrameStart unit. FrameStart Monitor also performs the following:

• LMI Monitoring

• LMI Auto-Sourcing

1-4 WANsuite 5160/5130

• SOS Mode

• New Circuit Installation

WANsuite 5160/5130 Overview and Advantages

Verilink’s WANsuite 5160 and 5130 are innovative, highly intelligent, software- based WAN acces s device s optimiz ed for fra me relay access. T he WANsuite 5160/5130 provides network managers with the tools necessary to monitor and troubleshoot voice, data, and network transmission systems. The ability to use the WANsuite 5160/5130 as an IP Gateway greatly increases its flexibility while reducing the customer’s networking costs. In addition, the WANsuite 5160/5130 delivers valuable tools for the following:

• Measuring and reporting performance

• Verifying Service Level Agreements (SLAs)

• Managing network resources to ensure optimum performance

• Analyzing trends to aid in network planning

• Managing Web browser and/or in-band/out-of-band SNMP

WANsuite 5160/5130 advantages include the following:

• Offers two Network ports, two Serial ports (one each on the WANsuite

5130), an asynchronous Supervisory port, and an Ethernet port − the WANsuite 5160/5130 is extremely flexible and adapts to numerous network applications.

• Ensures a higher level of service − WANsuite 5160/5 130 acts as an expert

frame relay Service Level advisor for service providers and users.

• Lowers facility costs − WANsuite 5160/5130's easy installation and

configuration cut down on maintenance and sparing costs.

• Reduces the need for costly route rs with its IP Gateway feature − WANsuite

handles all your networki ng needs.

Features Summary

• A Powerfu l Core A rch i tec ture:

• 10/100Base-T Ethernet por t for Management or IP Gateway

• Single T1 Network port on the 5130 and two on the 5160 configurabl e in

either long-haul or short- haul modes

• Single Serial port on the 5130 and dual Seria l ports on the 5160

software-configurable for RS-232, EIA-530, or V.35

• Supervisory port for loc al management via VT100

• IP Gateway:

• Frame Relay or PPP

• 10/100Base-T Ethernet port

About the WANsuite 5160/5130 1-5

• Static routes

• Static Address Resolution Protocol (ARP)

• Dynamic routing protocol s, inc luding RIP 1, RIP 2, and OSPF

• Un-numbered Network

• Address Management: NAT and DHCP

• Programmable alarm thresholds

• Transparent Bridging

• Configurable Serial (Data) Port:

• Supports V.35, EIA-530, and RS-232

• Security Featur es

• IP Host Access List

• Multilevel password acc ess

• NAT

• Supervisory Control and Data Acquisition (SCADA):

• Diagnostics

• Data Monitor function shows all traffic activity on a given RTU port of

a remote site, as if a data scope were physically connected between the WANsuite unit and the RTU.

• RTU loopback lets you set a remote unit’s RTU port in loopback mode

so that any data sent towards the RTU from the central site will be echoed back towards the central site. Verifies data integrity to the RTU port.

• TCP Server allows multiple conne ctions to TCP clients.

• Asynchronous multicasting lets the WANsuite 5160/5130 transmit

identical data to multiple endpoints.

• SCADA traffic priority puts SCADA traf fic in a specific queue over a

frame relay l ink and puts all othe r traffic (Ether net, In-Band Management, Serial Fram e Relay ) i n a normal priority queu e.

• Blowfish encryption on a per-DLCI basis with configurable encryption

key lengths up to 448 bits. This feature offers secure connections to data-sensitive SCADA sites.

• A Suite of Performance Monitoring Tools:

• Monitoring capability for up to 256 virtual circuits (Data Link Connection

Identifiers, or DLCIs)

• T1/FT1 performance monitoring, including complete diagnostic

capabilitie s and test modes and auto-learned DS0s.

• SLA monitoring and management

• Committed Information Rate (CIR) enf orcement per DLCI

• Programmable alarm thresholds

1-6 WANsuite 5160/5130

• E-mail notificat ion of alarm status for immediate notific ation of potential

network problems

• Management Interfaces:

• WANsight − an innovative, embedded Web-based user interface for

remote configuration and real-time reporting via Web browser (Verilink recommends Microsoft Internet Explorer 5.0 or higher) that decreases installation and configuration time for service employees, simplifies troubleshooting and fault isolation of network problems, and optimizes management of both TDM and frame-based services

• VT100 or TELNET

• Local Supervisory port

• Ethernet port for management or IP routing

• LCD

• Frame Relay Aware:

• Supports leased-l ine and frame relay services

• Layer 2 end-to-end visibility and control

• Embedded frame relay test set

• Layer 3 support for visibil ity beyond the Network layer (up to 25

protocols)

Front Panel

• “Top Talker” reports − lets you find out who’s genera ting the most IP

traffic on your LAN

The front panel of the WANsuite 5160 (Figure 1.1) provides three user-activated input control buttons, four LED status indicators, and a 2-line, 16-character LCD that provides access to unit configuration, diagnostics, and utilities.

Figure 1.1

Front Panel of WANsu ite 5160

About the WANsuite 5160/5130 1-7

The front panel LED status indicators are defined in the table below:

Indicator Description

NET

#1 SERIAL and #2 SERIAL

This indicator is off (not illuminated) when the port has not been configured.

The indicator lights green when the T1 link is up and all configured protocol services are established.

The indicator lights red if the T1 l ink is down and the configure d protocol is not established.

The indicator lights amber configured protocol is not established.

DTR Alarm Enabled:

This indicator is off (not illuminated) when the port has not been configured.

The indic ator light s green when D TR is ac ti ve an d the co nfig ured protocol is established.

The indicator lights red when DTR is not active and the configured protocol is not established.

The indicator lights amber when DTR is not active or the configured protocol is not established.

DTR Alarm Disabled:

This indicator is off (not illuminated) when the port has not been configured.

The indicator lights green when the configured protocol is established.

The indicator lights red when the configured protoc ol is not established.

if the T1 link is up and at lea st one

POWER

This indicator lights green when power is applie d to the unit. The indicator lights amber in test modes (Port looped or BERT

active).

The front panel of the WANsuite 5130 (Figure 1.2) also provides three user-activated input control buttons, four LED status indicators (although different from the 5160), and a 2-line, 16-character liquid crystal display (LCD) panel that provides access to unit configuration, diagnostics and utilities.

Figure 1.2

WANsuite 5130 Front Panel

1-8 WANsuite 5160/5130

The WANsuite 5130’s front panel LED status indicators are defined in the table below:

Indicator Description

NET

SERIAL

This indicator is off (not illuminated) when the port has not been configured.

The indicator lights green when the T1 link is up and all configured protocol services are established.

The indicator lights red if the T1 l ink is down and the configure d protocol is not established.

The indicator lights amber

if the T1 link is up and at lea st one

configured protocol is not established.

DTR Alarm Enabled:

This indicator is off (not illuminated) when the port has not been configured.

The indic ator light s green when D TR is ac ti ve an d the co nfig ured protocol is established.

The indicator lights red when DTR is not active and the configured protocol is not established.

The indicator lights amber when DTR is not active or the configured protocol is not established.

DTR Alarm Disabled:

This indicator is off (not illuminated) when the port has not been configured.

The indicator lights green when the configured protocol is established.

The indicator lights red when the configured protoc ol is not established.

ALARM

This indicator lights red if an alarm condition exists The indicator lights amber if a “y ellow” ala rm condition exists.

POWER

This indicator lights green when power is applie d to the unit. The indicator lights amber in test modes (Port looped or BERT

active).

The user-activated input control buttons used to access and set configuration and control options from the LCD menus are the same on both the 5160 and 5130, and are defined in the table below:

Button Description

EXIT

The EXIT button lets you exit a menu option which then places the unit in the next higher level in the menu hiera r chy. If you are editing an option and press the saving any change s . If you are in the main menu, pressing

EXIT button, you will exit that screen without

EXIT logs off

the unit.

About the WANsuite 5160/5130 1-9

Button Description

SCROLL

SELECT

The SCROLL button lets you review the available options for a given level in the menu hie r archy or to scroll through possible sett ings for a parameter. You can also use the values, where applicable, by scrol ling incrementally through digits 0–9 or letters A–Z and a–z.

The SELECT button lets you select the currently displayed option or value f o r a g i ven field, and is also used to enter an “edit” mode fo r parameters that require user-specified input. Additionally, you can use the

SELECT button to confirm certain actions or settings.

Rear Panel Connections

The rear panel of the WANsuite 5160 has seven connectors − POWER,

SUPERVISO RY PORT, 10/100 ETHERNET, SERIAL INTERFACE #1, SERIAL INTERF ACE #2

more specific information regarding dimensions and optional equipment, refer to Appendix A, Specifications.

Figure 1.3

, NET #2 , and NET # 1 − as shown in Figure 1.3 below. For

WANsuite 5160 Rear Panel

SCROLL button to set alphanumerical

Supervisory Port

The rear panel of the WANsuite 5130 has five connectors − POWER,

SUPERVISO RY PORT, 10/100 ETHERNET, SERIAL INTERFACE, and NET −

as shown in Figure 1.4 below.

Figure 1.4

WANsuite 5130 Rear Panel

The following paragraphs describe the 5160/5130 connectors.

The SUPERVIS OR Y P ORT on the 5160/5130 is a DB-9 female DCE connector configured for 8 bits, no parity, and 1 stop bit. Bit rates are configured through the Web server (see Supervisory Screen on page 3-18) or VT100 interface (Supervisory Configuration Screen on page 4-18). The Supervisory port speed can be set to 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps. The initial default rate of the Supervisory port is 19200 bps.

1-10 WANsuite 5160/5130

10/100 Ethernet

NOTICE: For information on pinout assignments for this connector, refer to

Supervisory Port Pin Assignments on page A-10. See Ordering Information on page A-6 for information on cables for this connector.

The Supervisory port performs several different functions. It serves as the VT100 interface port, providing VT100 screens. It also supports asynchronous PPP, providing access to the Web Server interface. In addition, the Supervisory port is an asynchronous data port. Data is encapsulated in frame relay packets and then transmitted through the Network port.

On power-up, the Supervisory port sends out diagnostic messages at the bit rate of 115.2 kbps until the Supervisory service acquires the Supervisory port. These diagnostic messages can disrupt the connected device; however, you can configure the unit to disable their transmission.

NOTICE: A null modem (crossover) cable is required to connect a modem to the

Supervisory port.

The WANsuite 5160/5130 provides one 10/100 ETHERNET in terf ace . Th is interface is an eight-pin modular jack that complies with standard twisted-pair, 10/100Base-T requirements. The 10/100Base-T cable is supplied by the end user. Refer to Ethernet Connection Pin Assignments on page A-9 for pin assignments and cable descriptions.

Ethernet LED Indicators

There are two unlabeled indicator LEDs on either side of the

10/100 ETHERNET jack. The LED on the left side of the jack pulses amber to

indicate da ta activ ity (eith er trans mit or re ceive). The L ED on th e righ t side of the jack lights green to indicate that the link layer is operational.

Serial Interface(s)

The two SERIAL interfaces on the 5160 and the single SERIAL interfa ce on the 5130 located on the rear of the units are multi-protocol interfaces presented physically as DB-25 connections. The protocols supported by these interfaces are RS-232, EIA-530, and V.35.

Optional cables that adapt the DB-25 interface to the 34-pin V.35 interface are available. These cables are listed under Optional Equipment on page A- 6. DB-25–to –DB-25 cables are al so available if your instal lation needs require them. See Ordering Information on page A-6 for details. Pin assignments for the Serial interface are als o listed in Appendi x A, Specifications.

About the WANsuite 5160/5130 1-11

CAUTION: FCC rules require that interconnecting cables carrying high-speed

Network Interfaces

Labeled on the rear panel of the WANsuite 5160 as NET #1 and N ET #2, and on the 5130 as NET, these interfaces’ connections are standard RJ-48C, eight-pi n modu lar j acks t hat con tain an au tomati c line b uil d out ( ALBO) . The ALBO allows the unit to be located a substantial distance away from the telco network interface with a receive signal level to −27 dB. These interfaces operate in either long-haul or short-haul mode. To view the pinout assignmen ts f or thes e i nterfa ces, re fer to Network 1 (5160) or Network (5130)

Interface Pin Assignments and Network 2 (5160 Only) Interface Pin Assignments on page A-10.

The Netwo rk inter face transm it LBO level s hould be set as ins tructed i n the Line Build-out parameters section on page 3-7. Maximum suggested cable lengths for the connection from the unit to the network are listed in the table below. Calculations are based on a cable temperature of 70 °F, 0.083 µF/mile capacitance, a 27-dB loss, and a 100-Ω, non-loaded, twisted-pair cable.

data be shielded appropriately in order to minimize radio frequency interference.

Cable Type

26-gauge PIC 6.8 4,400 24-gauge PIC 5.4 5,500 22-gauge PIC 4.2 7,100 19-gauge PIC 3.0 10,000

(PIC - Plastic Insulated Cable)

CAUTION: In accordance with FCC Rules, Part 68.218(b), you must notify the

Power Connection

The POWER port is an eight-pin circular mini-DIN connector that connects either an autoranging 100–240 VAC (shown in Figure 1.5 below) or an autoranging 18−150 VDC external power supply (connection shown in Figure

1.6 below) to the unit. The WANsuite 5160/5130 must be used with the UL Listed/CSA Certified Class 2 power supply provided with the unit or ordered separately from Verilink. The unit has no power switch.

Loss per 10 00 ft

(dB)

telephone company prior to disconnecting this product.

Max Cable L ength

(ft)

1-12 WANsuite 5160/5130

Figure 1.5

WANsuite 5160/5130 AC Power Supply Unit

GND

+5V

GND

3 +5V

Shield Ground

+5V

GND

Figure 1.6

Connection for VDC Power Supply

When power is applied to the unit, the front panel indicators flash for approximately 10 to 15 seconds as the unit initializes. The green POWER LED on the front panel will remain illuminated as long as the unit receives power. This LED turns amber when the unit is in test mode.

CAUTION: Always plug the external power supply into a grounded power outlet.

NOTICE: Power supp ly c onta cts I n 1 an d In 2 are po lar ity inse nsitiv e.

NOTICE: Per UL 1950 and CSA 950 Clause 1.7.2, if the power supply cord is

intended to serve as a disconnect device, an easily accessible socket must be installed near the equipment.

Power Failure

If the indicator does not illuminate, check the power connections and the primary AC circuit breaker.

About the WANsuite 5160/5130 1-13

The WANsuite 5160/5130 provides non-volatile memory retention of the unit configuration in case of a power failure. This feature allows the unit to automatically restore normal service and retain pre-existing time and date information following a power loss.

1-14 WANsuite 5160/5130

This chapter describes the contents of your WANsuite 5160/5130 shipment and provides information on connecting and installing the unit.

The WANsuite 5160 and 5130 use an “Installation Wizard” to help you automatically install the unit quickly and accurately. Procedures for using this Installation Wizard are also described in this chapter.

Unpacking and Inspection

C HAPTER

HAPTER

NSTALLATION

The WANsuite 5160/5130 is shipped in cardboard cartons with foam inserts for shock and vibration protection. When your shipment arrives, inspect the shipping container and contents and compare all items with those on the packing list.

If the contents of the shipment are incomplete or if there is mechanical damage or defect, notify Verilink Customer Service (see page xii). If the shipping container or cushioning material is damaged, notify the carrier and Verilink immediately and make a notation on the delivery receipt that the container was damaged. (If possible, obtain the signature and name of the person making delivery.) Retain the packaging material until the contents of the shipment have been checked for completeness and the unit has been checked b oth mech anically and elect rically.

Supplied Materials

The WANsuite 5160/5130 shipment includes the following standard items:

• WANsuite 5160 unit or WANsuite 5130 unit

• External power supply and power cord

• T1 network cable

• Serial (Supervis ory) cable

• Verilink Documentation CD

Installation 2-1

For specific applications, see Optional Equipment on page A-6 for additional cables and adapters. Contact Verilink Technical Support for further assistance and specific part numbers.

Installation Wizard

One of the ways to configure and monitor the WANsuite 5160/5130 is through the Web Browser interface. To gain access to this interface, the unit must be configured with an IP Address. Verilink provides a DOS-based program – the Verilink Configuration Wizard – to aid in this initial configuration.

To configure the IP Address using the Verilink Configuration Wizard, use the CD-ROM disk included with this product and follow the steps listed below.

NOTICE: You may also access the Verilink Configuration Wizard on

1 Using the supplied cable, connect the unit’s DB-9 Supervisory port to a

COM port on your PC. (Take note of which COM port is connected.)

Verilink’s We b site: www. verilink.com.

2 Insert the Verilink CD-ROM disc into your PC’s CD-ROM drive. 3 Use Windows “Explore” to view the contents of the CD and select the

folder labeled “Utilities.” In this folder will be a file named this executable fil e is the Verilink Configuration Wizard appli cation. Double-click on this file to launch the program. After the program is fully launched, you will see the following screen:

ipwiz.exe;

4 Using the Tab key to move fr om field t o fie ld, move the cursor to the “COM

Port” field. Using the Spacebar, toggle between the available options until the correct COM port is sho wn (COM1, COM2, COM3, or COM4). Be s ure to choose the same COM port as the port to which you connected the unit.

5 By default, the “Baud Rate” field wil l display 115200 (bits per second) . For

2-2 WANsuite 5160/5130

the purpose of this installa tion, do not change the displayed baud rate from its default. Proceed directly to the next step.

6 Using the Tab key again, move the cursor to the “IP Address” field and

enter the appropria te IP Address for the unit (xxx.xxx.xxx.xxx). If neces sary , repeat this process for the “Subnet Mask” and “Gateway Address” fields.

7 Next, move the cursor to the “Write To Unit” field and press the Enter key.

The program will prompt you to reset the unit.

8 To reset the unit, cycle the unit’s power (i.e., disconnect the power supply

cable from the unit and then reconnect it). The Configuration Wizard will then automatically download the configuration information to the unit.

9 Take notice of the status messages displayed at the bottom of the

Configuration Wizard sc reen. When the download is complet e, your PC will beep and the status message bar will display “Finished.”

10 Finally, move the cursor to the “Exit” prompt and press Enter. The

Configuration Wizard pr ogram will close.

Installation 2-3

2-4 WANsuite 5160/5130

C HAPTER

HAPTER

ERVER INTERFACE

The WANsuite 5160/5130 has an innovative, embedded Web-based user interface (WANsight) for remote configuration and real-time reporting via Microsoft Internet Explorer 5.0 or higher. Access to the Web server interface and how the interface is used to configure the WANsuite 5160/5130 unit are described in detail below.

NOTICE: Verilink recommends the use of Microsoft’s Internet Explorer 5.0 or

higher because if you use other Internet browsers to access the Web server interface , some screen elemen ts will not disp lay as describe d in this manual.

NOTICE: The material presented in this chapter follows the order listed in the

Configuration through the VT100 interface is covered in Chapter 4, and configuration through the front panel is covered in Chapter 5.

Web Server Access

You can access the Web Server interface by connecting to its IP address. This connection can be directly through the 10/100 Ethernet port, in-band via PPP over any port, or in-band via encapsulated IP traffic on the Frame Relay circuit.

NOTICE: Any changes to the unit’s configuration MUST be followed by a

navigation bar on t he left side of the Web Server interface screen. However, because the parameters you specify in the Service Table attach proto cols to inter faces , you m ust c onfig ure t he Serv ice Table first. (See S ervic es Scr een on page 3-19.) You will not be able to allocate channels (see Channel Table Details Screen on page 3-26) until the Service Table has been configured.

“Submit” if there is a “Submit” button on the menu. If you change the Service Table, you must perform a “Save and Restart.”

Web Server Interface 3-1

To access the Web Server interface, type th e unit’s IP address in the browser’s Address (or Location) field and press the “Enter” key.

Layout of Interface Screens

When you first access the Web Server interface, your browser will display a screen that is divided into three frames. The upper frame forms a border across the top of the screen; it identifies the Verilink unit in service and displays the hardware and software revision and serial numbers under which the unit is operating. The far right corner of the upper frame displays whether or not a “Save an d Restar t” is nece ssary when param eters are change d on the currently displayed screen.

The area beneath the upper frame is divided into two side-by-side frames. The frame on the left side of t his area d epicts a hierarch ical “tree” structure used to navigate through the various interface screens. Each “branch” on the tree guides you to more specific upper-level information about the unit and its configuration. Note that the Interfaces, Applications, and Utilities branches do not link to a page − these branches simply provide structure for navigation. The frame on the right side of the screen will display the actual configuration or display screen. The screen captures throughout this chapter show only the configurat ion/displa y portion of the s creen, ex cept in th e case of the Uni t screen, which shows all three frames. The Unit screen represents the top of the navigation tree.

Unit Screen

The Unit screen shown in Figure 3.1 is the first screen displayed by your unit’s Web Server interface. The Unit screen for the WANsuite 5130 is very similar to the 5160, with the exception being that the 5130 has one Network and one Serial interface listed in the navigation pane on the left-hand side of the screen. The Unit screen lets you view and set specific information about the u ni t in s erv ice.

3-2 WANsuite 5160/5130

Figure 3.1

Unit Screen

The Unit screen displays the following fields:

Field Function

Object ID Display-only field used to point an SNMP agent to this ID. Up Time Displays the amount of time the unit has been up and running. Contact Stores the name of a point-of-contact for system failure. Name Read/write field that holds the unit’s name. Location Read/writ e field that holds the unit's location. FrameStart ID Read/write field that holds the unit' s ID that uniquely identi fies

the unit and is used in the FrameStart appli cations.

LCD Interface Lets the u se r enable or disable the LCD interface buttons of the

unit.

User Definable Fields

Read/write fields for user-speci fic labels and values. Information resides in non-volatile memory.

Time Read/write field that holds the unit's internal time setting in

standard 24-hour HH:MM:SS format.

Date Read/write field that holds the unit's internal date setting in

standard MM/DD/YY format.

Web Server Interface 3-3

The Unit screen provides the following user-activated buttons:

Button Function

Submit Sets any values that have been changed. Use th e top “Submit”

button to se t any unit parameters changed in the uppe r section of the screen, and the lower “Submit” button to set the r eal-time clock.

Maintenance Reset Brings up a screen where you can reset unit to its default TDM

or Packet, Packet 2, Packet 3, or Packet 4 configuration.

Save and Restart Saves the c urrent configurat ion and restarts the unit.

Maintenance Reset

Use this button to access a screen where you can perform a Maintenance Reset (Figure 3.2). When you click on the arrow in the pull-down menu box on the screen, you will have the option to perform a TDM, Packet, Packet 2, Packet 3, or Packet 4 reset. When you select one of these options, all previous configurations will be lost and the unit will be set back to the specified factory default.

Figure 3.2

Maintenance Reset Screen

NOTICE: Performing a “Maintenance Reset” or a “Save and Restart” will

terminate communications with the unit.

Save and Restart

Use this button to save the current configuration settings and then proceed with a restart. Clicking the “Save and Restart” button on the Unit screen will display a confirmation screen as shown in Figure 3.3 below. Click the “Save and Restart” button on the confirmation screen to confirm the action.

3-4 WANsuite 5160/5130

Interfaces

Network Screens

Figure 3.3

The WANsuite 5160 has the following interfaces: Network 1, Network 2, Serial 1, Serial 2, 10/100 Ethernet, and Supervisory. The WANsuite 5130 has one Network and one Serial interface, but in other respects has the same interfaces with the same parameters as the WANsuite 5160. Each of the interfaces and their associ ated screen s/menus a re des cribed be low.

The WANsuite 5160 Network (Figure 3.4) screens let you view and make changes to the Network interfaces’ configuration as described below. In addition, the screens provide a table that displays the alarm values for the Network interfaces. All Network ports operate in either long-haul or shorthaul mode. On the WANsuite 5160, the Network 1 and 2 screens are the same except that at the top of the Network 2 screen (shown in Figure 3.5), there is an additional parameter, “Function,” that’s described, along with the other screen para meters, below.

Save and Restart Screen

Web Server Interface 3-5

Figure 3.4

Network 1 Scree n

Function (Network 2

Only)

Figure 3.5

Network 2 Screen (T op Portion Only)

In the “Slaved” function, Network 2 is slaved and can only be mapped to Network 1. In the Network function, Network 2 functions as an independent network, but can only be mapped to Serial 2.

Values: Slaved, Network Default: Slaved

NOTICE: The “Function” parameter fundamentally affects the operation of the

unit. Even though this parameter is found only on the Network 2 screen, its setting affects both Network ports and the Service table.

Mode

Selects the network service type.

Values: Long Haul, Short Haul Default: Long Haul

3-6 WANsuite 5160/5130

Line Build-Out (Long

Haul)

Sets the transmit Line Build Out (LBO) for the Long-Haul network interface.

Values: 0, −7.5, −15.0, −22.5 dB Default: 0 dB

DSX Level (Short

Haul)

Framing

Coding

Timing

Specifies the DTE DSX-1 interface output level.

Values: 0−110, 111−220, 221−330, 331−440, 441−550, 551−660, >661 ft Default: 0−110 ft

Selects the framing for the network side of the DSU/CSU.

Values ESF, D4 Default: ESF

Sets the network side line coding.

Values: AMI, B8ZS Default: B8ZS

Sets the timing source to synchronize the unit’s internal timing generators. In all cases, slips are controlled to occur on frame boundaries at the Network ports when timing synchronization is lost. The options are as follows:

Network 1 (5160)

“Function” parameter (on the Network 2 screen) in “Slaved” mode − Internal, Network 1, Network 2, Serial 1, Serial 2

“Function” parameter (on the Network 2 screen) in Network mode − Internal, Network 1, Serial 1

Zero Suppression

PRM Enable

Network 2 (5160)

“Function” parameter in “Slaved” mode − timing parameter is ignored in Slave mode

“Function” parameter in Network mode− Internal, Network 2, Serial 2 Network (5130) − Int ernal, Ne twork, S erial

Definitions of the timing sources are as follows: Internal – The unit’s internal frequency standard (T1 1.544 Mbps ± 50 bps)

is used for all timing. Network 1, Network 2, Network – Timing is derived from the Network port

recovered cl ock. Serial 1, Serial 2, Serial – Timing is derived from the Serial port recovered

clock.

Determines whether ones density insertion is activated after 15 zeros. This parameter is ignored if the Coding parameter is set to “B8ZS.”

Values: Disable, Enable Default: Disable

Lets you establish which performance messaging standard will be employed to initiate Performance Report Message (PRM) functions. Setting this field to

Web Server Interface 3-7

“Enable” instructs the unit to use ANSI T1.403, which sends a PRM once every second. Setting this field to “Disable” instructs the unit to use AT&T TR54016, which provides performance reporting on request only.

Values: Disable, Enable Default: Disable

Learn DS 0s on Boot

Learned D S0 Rate

Determines if the unit will attempt to discover active DS0s (after power-up, Save and Restart). Active DS0s will then be assigned to the first associated network service.

Values: Disable, Enable Default: Disable

Specifies the rate at which each disc overed DS 0 wil l be set.

Values: As 56K/64K Default: As 64K

NOTICE: The unit will search for active DS0s for a maximum of 7 seconds if

learning “As 64k” and for 30 seconds if learning “As 56K.”

Error Status and Alarm Thresholds Table

The unit can be programmed to generate an alarm condition based on a specific level of performance degradation. The Network screens present a table that provides current error status and alarm threshold information.

Acceptable alarm thresholds are set for periods 15 minutes (900 seconds) and sampled every second. The error types listed in the following paragraphs can be preset to a value between 0 and 900 seconds. Setting a field to “0” (zero) disables the alarm on that statistic. To effectively disable alarm reporting, set all fields to “0” (ze ro).

The 15-minute time frame is not based on the TR 54016 or T1.403 interval boundaries, but is a time window based on the accumulated counts over the previous fifteen 1-minute intervals. In all cases, if the number of actual network errored seconds in the previous 15 minutes reaches the preset threshold for the specified error type, an alarm condition is declared.

The four columns o f the s tatus tab le are as follows:

• Status Displays the current status of the network port.

• Alarm Displays the alarm value of the network port. The unit

• Count Displays t he numb er of eve nts or o ccurrence s of this statistic

• Threshold A read/write field that can be set to a desirable threshold.

The table provides error sta tus and alarm thre shold in formation f or the following error pa rameters:

3-8 WANsuite 5160/5130

declares an alarm as soon as the count exceeds the threshold set.

that have been detected.

Sets the Errored Seconds (ES) threshold. An ES is a 1-second period in which at least one logic error occurred. The default value is 45 seconds.

SES

LOSS

UAS

CSS

BPVS

OOFS

AISS

Sets the Severely Errored Seconds (SES) threshold. An SES is a 1-second period in which at least 320 CRC errors or one Out -of-Frame (OOF) error occurred. The default value is 5 seconds.

Sets the Loss of Signal Seconds (LOSS) threshold. A LOSS is a 1-second period in which the T1 received signal is interrupted. The default value is 5 seconds.

Sets the Unavailable Seconds (UAS) threshold. A UAS is a 1-second period in which consecutive severely errored seconds cause an unavailable state. The default is 0 (zero) seconds (Disabled).

Sets the Controlled Slip Seconds (CSS) threshold. The default is 0 (zero) seconds (Disabled).

Sets the Bipolar Violation Errored Seconds (BPVS) threshold. A BPVS is a 1second period in which at least one bipolar violation occurred. The default is 0 (zero) seconds (Disabled).

Sets the Out of Frame Seconds (OOFS) threshold. An OOFS is a 1-second period in which a frame sync loss occurred. The default value is 5 seconds.

Sets the Alarm Indication Signal Seconds (AISS) threshold. An AIS is a 1second period when unframed all ones are received. The default is 0 (zero) seconds (Disabled).

RAS

Reset Timer

Sets the Remote Alarm Seconds (RAS) threshold. A RAS is generated by the terminal equipment when an improper signal is received from the facility (or upon receipt of unframed all ones). The default is 0 (zero) seconds (Disabled).

Sets the Reset Timer threshold. This field is the contiguous number of seconds that an alarm parameter must be clear before the alarm is reset. Applicable values range from 000 through 900. A value of “000” means the alarm will never be reset.

The Network screens provide the user-activated buttons described in the table below.

Button Function

Submit Sets any values that have been changed. Clea r Al ar ms Reset s th e al ar m conditi o ns and count s to zer o . Learn DS0s Now Learn s whic h DS 0s are active and assigns them to the first

associated network service. Learned DS0s are based on the idle pattern specified in the Channel Table (se e below).

Web Server Interface 3-9

Button Function

Perfor mance Displays a Performance/Summary screen that shows a current

count of the number of error events that have occurred over the past 24 hours and the past 30 days.

Channels Displays the Channel Table Details Screen on page 3-26,

showing each channe l by index number. Each chann el’ s rate and service (by number) are displayed and can be changed through user input.

CAUTION: Performance data will be lost upon power cycle or after performing a

Maintenance Reset or a Save and Restart.

Figure 3.6

Network Perfor mance/Summary Screen

In addition to the error parameters found in the Error Status and Alarm Thresholds Table on page 3-8, the following error parameters are included on

the Network Performance/Summary table:

BES

A Bursty Error Second (BES) is a 1-second period during which at least more than one but fewer tha n 320 CRC6 errors occu rred.

LOFC

The Loss of Frame Count (LOFC) represents the number of time a loss of frame is declared. A loss of frame is declared after 2.5 seconds of continuous loss of signal or OOF.

CRCES

A Cyclic Redundancy Check Errored Second (CRCES) is a method of confirming the integrity of received data.

Beneath the Perf ormance/Sum mary table are tw o buttons: “Perform ance 24 Hour” and “Performance 30 Day.” Clicking either of these buttons will display a detailed summary of the error events that have occurred during each

3-10 WANsuite 5160/5130

15-minute interval of the past 24 hours (Figure 3.7) or during each interval (day) of the past 30 days (Figure 3.8).

Figure 3.7

Figure 3.8

Network Perfor mance 24 Hour Screen

Network Perfor mance 30 Day Screen

Serial Screens

The Serial 1 and Serial 2 screens on the WANsuite 5160 or Serial screen on the WANsuite 5130 let you view and make changes to the unit’s Serial interface configuration as described below. The parameters on all Serial screens are the same except for the Invert Clock parameter, which is found only on the Serial 2 screen; therefore, the WANsuite 5160 Serial 2 screen (Figure 3.9) is the only one shown below.

Web Server Interface 3-11

Figure 3.9

Serial 2 Screen

Type

Mode

This param eter sel ects the ty pe of i nterface ( based on i ts elec trical signa l character istics) used by the equipmen t conne cted to th e Serial po rt.

Values: V.35, RS-232, EIA-530 Default: V.35

NOTICE: V.35 requires the use of an optional cable. Refer to Optional Equipment

on page A-6 for ordering information.

By default, the Serial port serves as a DCE port in both Packet and TDM modes. However, the Serial port can serve as a DTE port when the unit is in Packet m ode.

If the Serial port connects to a DTE device (such as a FRAD or a router), the Mode parameter must be set to “DCE.” If this port connects to a DCE device (such as a DSU/CSU), this parameter must be set to “DTE” (valid only for Packet m ode, not T DM).

Values: DCE, DTE Default: DCE

NOTICE: DTE mode requires the use of an optional DTE cable. Refer to

Appendix A for ordering information.

Packet Rate

If the port is running in Packet mode, the Rate must be configured to the desired port speed (in bits per second). In TDM mode, the port speed rate will be set by configuring the next four parameters (Start Channel, Number of Channels, Bundling, and Channel Rate).

Values: Nx56K or Nx64K where N = 1-32 Default: 1536 kbps

3-12 WANsuite 5160/5130

Bundling

Selects whether the DTE channel assignment is made as a “Contiguous” group or as “Alternate” channels. Selecting “Alternate” ensures ones density. Because the unit allows individual channels to be configured for a service, a value of “Arbitrary” will be returne d for this parame ter if the current channel allocation is not contiguous or Alternate. The “Arbitrary” value can only be supplied by the unit − it cannot be set by the user.

Values: Contiguous, Alternate, Arbitrary Default: Contiguous

NOTICE: Because “Alternate” Bundling assigns every other channel, only half

the channels are available.

Start Channel

Number of Channels

Channel Rate

Invert Clock

Selects the starting channel in the 24-channel DS1 bit stream. Starting with the specified channel, the unit automatically assigns the channels that follow.

Values: 1 through 24 Default: 1

Specifies the number of channels to be assigned to the DTE.

Values: 0 through 24 Default: 24 Channel Rate

The unit can operate at any data rate that is a multiple of 56 or 64 kbps. If “Νx64K” is selected, the ones density requirements of the T1 network line must be ensured . If “Νx56K” is selected, ones density for the selected DS0 channel is maintained.

Values: Nx56K, Nx64K Default: Nx64K

NOTICE: Start Channel, Number of Channels, and Channel Rate cannot be

changed if Bundling is not also changed from “Arbitrary.”

In DTE Packet mode, this parameter changes the clock edge of the transmitted data. The Invert Clock parameter is only available for use in DTE mode, and DTE mode is only available for the Serial 2 port. Consequently, this configuration option only works for the Serial 2 port, and should remain disabled when configuring services for the Serial 1 port.

Values: Disable, Enable Default: Disable

Character Size

Tx Clock

Selects the number of bits required to make up one asynchronous character.

Values: Five, Six, Seven, Eight Default: Eight

Selects the clock the unit uses to sample the data transmitted from the DTE. When se t to “ In tern al, ” th e da ta i s sa mple d d irec tly wi th th e t rans mit data

Web Server Interface 3-13

clock that is also supplied to the DTE as Transmit Clock. The “External” option uses the external clock from the DTE.

Values: Internal, External Default: Internal

NOTICE: The “External” option is valid only in Packet mode.

Format

Parity

Stop Bit

V.54

Selects the port’s operating mode.

Values: Sync, Async Default: Sync

Sets the parity bit if the port is asynchronous.

Values: None, Odd, Even Default: None

Selects the number of bits required to end the character.

Values: 1, 2 Default: 1

The Local Loopback parameter can be set to “Enable” or “Disable.” Selecting “Enable” allows the unit to go into Local Loop when the LL pin on the Serial 1 port goes high. The unit exits the loop when the LL pin goes low. If you select “Disable,” the unit ignores the LL pin on the Serial port.

Values: Disable, Enable Default: Disable

Selecting “Enable” allows the unit to respond to in-band V.54 loop codes. If you select “Disable,” the unit ignores these codes.

Values: Disable, Enable Default: Disable

CTS

The Clear T o Send p arameter can be set to “Forced Tr ue,” “For ced Fal se,” or “Internal.” If this parameter is set to “Internal,” the CTS control lead follows the RTS control lead from the DTE after a delay of a duration established by the RTS/CTS Delay parameter.

Values: Forced True, Forced False, Internal Default: Fo rced Tru e

DSR

Data Set Ready can be set to “Forced True,” “Forced False,” or “Internal.” The “Internal” option sets DSR “On” if the port is enabled and “Off” if the port is disabled.

Values: Forced True, Forced False, Internal Default: Fo rced Tru e

DCD

The Data Carrier D etect p arameter ca n be se t to “Forc ed True ,” “Forced False,” or “Intern al.” If se t to “Intern al,” DC D is “O n” when network carrier

3-14 WANsuite 5160/5130

is being received from the remote end, and is “Off” when network carrier is not being recei ved from the far end.

Values: Forced True, Forced False, Internal Default: Fo rced Tru e

RTS

RTS/CTS Delay

Flow Control

The Request To Send parameter determines the source from which the unit reads the RTS signal status. If set to “Normal,” the unit gets RTS from the DTE on the Serial interface. If set to “Forced True,” RTS is always perceived as “On.”

Values: Normal, Forced True Default: Normal

The Request To Send/Clear To Send parameter determines how long the unit waits before it changes the level of CTS to match RTS when the CTS parameter is set to “Internal.”

Values: Normal (~30 ms delay), Long (~100 ms delay) Default: Normal

Selects the type of flow control to be used if the port is asynchronous.

Values: None, Xon/Xoff, RTS/CTS Default: None

Current Pin Status

The Current Pin Status, which shows the state of the RS-232 pins, is also displayed on the Serial interface screens.

DTR Alarm Control and Status Table

In addition to the configurable fields, the Serial screen displays a table that lets you set the Data Terminal Ready (DTR) Alarm Control parameters and view the c urrent DT R Alarm Statu s.

Choices for DTR Alarm Control are “Enable” and “Disable”; the default setting is “Disable.” Setting DTR Alarm Control to “Enable” allows the unit to go into alarm on a loss of DTR, which occurs when the Serial port detects that the D TR s ignal is low . Th e DTR Stat us fi eld indi cates the cu rrent state o f the DTR alarm.

To make changes to any Serial port parameter, simply set the parameter to the desired selection and click the “Submit” button at the bottom of the screen.

10/100 Ethernet Screen (IP Service Details)

The 10/100 Ethernet (IP Service Details) screen (Figure 3.10) lets you configure the IP parameters described below.

Web Server Interface 3-15

Figure 3.10

10/100 Ethernet (IP Service Details) Screen

Unit IP Address

Subnet Mask

Gateway IP Address

DHCP Client

Client Identifier

Ethernet

Physical Add ress

A unique network address assigned to this unit.

Defines the network portion of the unit’s IP address.

IP address of the default gateway (router) on the LAN side of the unit.

If DHCP Client is enabled at power-up, the unit will request its IP, Mask, and Gateway addresses from a DHCP server located on the LAN side of the unit, and the unit will use these addresses. If the DHCP request is unsuccessful, the unit will use the configured addresses shown on this screen.

NOTICE: Always verify that a DHCP server is available on the network before

enabling DHCP Client. If, on power-up, a DHCP server is not found, a 60-second timeout will occur.

Displays a unique identifier for a specific IP address.

Enables or disables a remote unit’s Ethernet port.

Displays unique MAC address.

NOTICE: If you manually change the IP address, you must “Save and Restart.”

(See Save and Restart on page 3-4.) The first thre e address parameters above can also be configured using the Installation Wizard on page 2-2.

To view details about the current condition of IP, ICMP (In and Out), TCP, and UDP parameters, click the “Ethernet Stats” button at the bottom of the screen. The Ethernet Statistics screen (Figure 3.11) contains no user-selectable fields or options; it is simply a representation of the applicable MIB II parameters.

3-16 WANsuite 5160/5130

Figure 3.11

Ethernet Statistics Screen

Click on the Unit Access Table button on the Ethernet (IP Details) screen to view the Unit Access Table (Figure 3.12), which specifies up to 10 different IP networks that may access the unit’s parameters. If no IP networks are supplied, any host may access the unit. Select any Index number on the table to view the Unit Access Details (Figure 3.13) that correspond with that Index number.

Figure 3.12

Unit Access Table

Web Server Interface 3-17

Figure 3.13

Supervis ory Screen

The Supervisory screen (Figure 3.14) displays the current speed of the Supervisory port interface and other parameters as described below.

Unit Access Details

Speed

Character Size

Figure 3.14

Supervisor y Screen

Changes the Supervisory port speed (in bits per second).

Values: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Default: 19200

Selects the number of bits required to make up one asynchronous character.

Values: Five, Six, Seven, Eight Default: Eight

Diagnostic Messages

Enables the Supervisory port to send out diagnostic messages upon power-up.

Values: Enable, Disable Default: Enable

NOTICE: When in SCADA mode, these diagnostic messages disrupt the connected

3-18 WANsuite 5160/5130

device. Therefore, if using the SCADA mode, set this value to “Disable.”.

NOTICE: Diagnostic Messages must be set to “Enable” for the Verilink

Configuration Wizard to work.

Parity

Stop Bit

Sets the parity bit.

Values: None, Odd, Even Default: None

Selects the number of bits required to end the character.

Values: 1, 2 Default: 1

Current Pin Status

The Current Pin Status, which shows the state of the RS-232 pins, is also displayed on the Supervisory interface screen.

DTR Alarm Control and Status Table

In addition to the configurable fields, the Supervisory screen displays a table that lets you set the Data Terminal Ready (DTR) Alarm Control parameters and view the curre nt DTR Alarm Status .

Services Screen

The Services screen (Figure 3.15) displays the unit’s defined services and the Interface, Type, Pair, and Status parameters for each service.

Figure 3.15

The Status for a particular service will display as one of the following:

Services Screen

Web Server Interface 3-19

• Dead − The service is not functional because required resource s are not

available.

• Changed − The service parameter was changed and a Save and Restart is

required for the service to function.

• Down − The service is not able to pass data because the physical layer is

down.

• Physical Up − The service is not able to pass data because it has not

completed any required negotiations.

• Up − The service is ready to pass data.

• Idle − The service has nothing to do.

The table in the cen ter of th e scree n displays the avai lable serv ices list ed by index number. To view more detailed information about a service, click on the index number associated with the desired service on the Services screen and then click on one of the user-activated “Details” buttons on the Service Details screen as described on page 3-22.

Data Line Monitor Configuration Table

Click on the Data Line Monitor Config Table butt on at the top of the Service screen to view a screen that displays SCADA port information (Figure 3.16).

Mode

Buffer Management

Service

Enable

Figure 3.16

The two m odes ava ilable are “Analy ze” and “Live.” T he Live mode l ets you capture data and create a usable text file of the captured data. In Analyze mode, the packet switch will return the data via the Data Line Monitor Packet Table (see Figure 3.17) whereas in the Live mode the Data Line Monitor Packet Tab le will a ppear empty for SNMP calls.

Displays whether displayed data is set to “Wrap” or “Stop on Full.”

Indicates which service is being monitored.

Displays whether capture is Enabled or Disabled.

Data Line Monitor Config Table

Tx/Rx Filter

Pattern Filter

Pattern

3-20 WANsuite 5160/5130

Displays the direction of the captured data.

Displays the Enable/Disable status of the Packet Filter.

Displays which specific pattern is being searched for.

Pattern Mask

Displays the bits the unit is looking for.

Pattern Offset

Displays the offset in the packet that matches the pattern. If the offset is set to 255, the f ilter will s earch the packe t for the pa ttern.

Click on t he “Data Line M onitor P acket Tab le” butto n at the b ottom of the screen to view the table that displays the captured data. The screen shows about 10 lines of active data, and if a line is selected, the screen will display further decoded data below.

Figure 3.17

Data Line Monitor Packet Table

Adding a Service

The Data Line Monitor Details screen (Figure 3.18) is displayed by clicking the appropriate Services link on the Data Line Monitor Config Table screen. You use this screen to define the parameters listed above.

Figure 3.18

Data Line Monitor Details Screen

To add a service, begin by clicking the “Add Service” button on the Services screen. A new service listed by the next incremental index number will appear

Web Server Interface 3-21

on screen. The Interface for the newly added service will be “Unassigned.” To assign an interface for the new service, click on its index number, which will take you to the Service Details screen described below.

NOTICE: Any changes to settings in the Service Table require a “Save and

Service Details Screen

Clicking on an index number under the “Service Index” column on the Services screen will display a Service Details screen such as the one shown below (Figure 3.19). (In this example, the selected service type is Frame Relay.)

Restart” for them to take effect.

Figure 3.19

Service Details Scree n

The Service Details screen lets you change for each service the parameters listed below.

Parameter Options

Interface Unassigned, Supervisory, Network 1 or Network 2 (5160), Network

(5130), Serial 1 or Serial 2 (5160), Serial (5130), 10/100 Ethernet,

Virtual* Type TDM, PPP, Frame Relay, IP, tty, SCADA Pair User -a s s ig n ed integ e r f ie ld th at s pe cifies w he r e to ro u t e th e tr affic

* PPP is the only service that may be attached to the Virtual interface. You would choose the

Virtual in terface for PPP if you elected to ru n PPP over Frame Relay. When you attach PPP to the Virtual interf ace, you must supply an endpoin t over which to send PPP encapsul ated data, and that endpoint must be for a Frame Relay DLCI.

3-22 WANsuite 5160/5130

from this Service. If the Service is terminated by the unit, set this

value to “0 ” ( zero).

In addition, the Service Details screen provides the following user-activated buttons:

Button Function

Submit Sets any values that have been changed. Interface Details Opens the Details s creen for t he Inte rface of the cu rrently selected

service.

Type Details Opens the Details screen for the Type of the current ly s elected

service.

Delete Service Opens the Verify Delete Service screen.

Interface Details Button

Clicking the “Interface Details” button on the Service Details screen lets you view inte rface param eters for the se lected ser vice. Yo u will also see th e interface parameters for the selected service if you click on the interface under the “Inte rface” col umn on t he Serv ices screen .

Type Details Button

Clicking the “Type Details” button on the Service Details screen lets you view (an d, in some cases, c hange) interface p aramete rs for the specified service. The details displayed depend on the type of service currently in effect for the s elected se rvice. Yo u will se e this sam e screen if you click on t he service under the “Type” column on the Services screen. Type Details screens for the various serv ices are presented be low.

Delete Service Button

Click the “Delet e Service” button to remove the currently conf igured service identified by the Service Details screen. Deleting the selected service will remove a ll reference s to thi s servic e. These re ferences may inc lude fra me relay, DLCI, endpoint, and Service Aware configurations.

After clic king the “Delete Service” button, you will b e present ed with a confirmation screen (Figure 3.20). Click the “Confirm Delete Service” button to confirm the removal of the selected service. To cancel, simply invoke your browser’s “Back” function.

Web Server Interface 3-23

Figure 3.20

Confirm Delete Service Screen

DS0 Monitor Details Screen (5160 Only)

To access the DS0 Monitor Details Screen (Figure 3.21), click on “TDM” in the Type column on the Service Details screen. This screen lets you configure what are considered high and low DS0 utilization parameters, and will report alarms if the monitored statistics rise above or fall below those specified settings. This helps determine customer load patterns so that channel bandwidth can be reallocated as necessary.

Number of DS0s

Alarm Reset Timer

(sec)

Figure 3.21

DS0 Monitor Details Sc re en

Number o f active D S0s (0 −24) assigned on a per-service basis. Number of seconds that an alarm condition must not be present before an

alarm is re set. Ze ro (0) indi cates the Alarm R eset Tim er is dis abled.

Values: 0−900 Default: 30

High Utilization %

Lets you configure as a percent what is considered high utilization.

Values: 1−100 Default: 100

3-24 WANsuite 5160/5130

High Threshold (sec)

Lets you configure a high-utilization threshold (in seconds), above which an alarm will report.

Values: 0−900 Default: 0 (Disabled)

End of Day Low

Utilization %

Lets you configure as a percent what is considered low utilization at the end of the day. If the utilization is below this level when the day ends, an alarm reports.

Values: 0−100 Default: 0 (Disabled)

DS0 Status and Alarm Table

Each second, the TDM services will count the number of active DS0s and update their statistics. This table also gives the status of the alarms (OK, Alarmed) related to DS0s.

The user-activated buttons listed below are at the bottom of the DS0 Monitor Details screen.

Button Function

Submit Sets any values that have been changed. Clear Alarms Clears all utilization alarms. Channels Displays the Channel Table de tails (Figure 3.22) for the

Network, Network 1, or Network 2 service

DS0 24 Hour History Displays DS0 monitor history in 15-min buckets for the past

24 hours (Figure 3.23).

DS0 30 Day History Displays DS0 mon itor his tor y in 24-hr buck ets for t he past 30

days (Figure 3.24).

Web Server Interface 3-25

Figure 3.22

Channel Table Details Screen

The Channel Table Details screen lets you establish the Rate, Service, and Idle Patt ern param eters fo r any avai lable cha nnel. The screen paramete rs are described below.

Rate

Service

Idle Pattern

The unit can operate at any data rate that is a multiple of 56 or 64 kbps.

Values: 56K, 64K Default: 64K

Specifies the service to which this channel is allocated. Refer to the Service Table to s ee how t he current servic es are co nfigured.

Selects the DS0 idle pattern sent by the unit and lets the unit determine if the DS0 idle pattern has been sent by the other end.

Values: 0−FF (He x) Default: 7F

Figure 3.23

DS0 Monitor 24 Hour History Screen

3-26 WANsuite 5160/5130

Figure 3.24

DS0 Monitor 30 Day History Screen

The DS0 Monitor 24 Hour History and 30 Day History screens show the following statistics for the specified period.

Period

Timestamp

Period for which the DS0 monitor history is displayed. System-up-time value during which the utilization historical period was

completed.

% Utilization of DS0(s)

Percent of DS0s utilized (−1, 0−100) over the period. A −1 indicates an invalid value or unavailable data.

High Utilization (sec)

Number of seconds (0−900) greater than or equal to the high utilization paramete r specified for the period i n the utili zation alar m tab le.

A “Clear History” button is also included on the 24 Hour and 30 Day History screens.

Frame Relay Service Details Screen

Click on “Frame Relay” under the “Type” column on the Services screen to access th e Frame Relay Ser vice De tails screen (Figu re 3.25). This screen lets you access the configuration parameters described in the paragraphs below.

Web Server Interface 3-27

Figure 3.25

Frame Relay Service Deta ils Screen

Interface Type

Link Management

Max Frame Size

If this service is conn ected to a Frame Relay net work, the Interface Type should be set to “UNI” as it is the user side of a User-to-Network interface. If it is connected to a FRAD/Router, the Interface Type should be set to “NI” as it is the network side of a User-to-Network interface. If it is connected to an equipment set for Network-to-Network interface, the Interface Type should be set to “NNI.”

Values: UNI, NI, NNI Default: UNI if interface is Network, NI if interface is Serial

This parameter should be set to the link management used by the equipment connected to it. If set to “Auto,” the unit will learn the link management type and display it on the status portion of this screen.

Once it discovers the link management type, the unit should be set to the discovered value so that subsequent unit or network re-initialization will be faster.

Values: Auto, ANSI, CCITT, LMI, None Default: ANSI

If Auto Diagnostic is set to “Yes,” the unit will discard received frames that are larger than the maximum frame size. If Auto Diagnostic is set to “No,” these large received frames will be sent, but will be counted in the Rx Invalid statistics.

Values: 64–4096 Default: 2500

3-28 WANsuite 5160/5130

This counter indicates the number of “keep alive” status inquiries that are sent between full status requests.

Values: 5–255 Default: 5 if interfa ce is N etwork (U NI), 6 i f interfa ce is Serial (NI).

The N2 counter specifies the total number of link reliability errors and protocol errors that can occur during the sliding event monitor count defined by N3. If this count is exceeded, the port is declared inactive.

Values: 1–255 Default: 3

This counter represents a Monitored Events Count. For a network, a monitored event is the receipt of a status inquiry message or the expiration of the polling verification timer T2. For a FRAD, a monitored event is the transmission of a status enquiry message. This parameter defines the size of the sliding window used by the unit to determine whether a channel or user device is active.

Values: 5–255 Default: 4

This parameter specifies the number of seconds the unit waits between issuing status inquiry messages.

Values: 5–30 Default: 10

RFC1315 Trap

Normal Tx Queue Size

When this parameter is set to “Enable,” the unit will send the standard RFC1315 frame relay DTE circuit state change trap every time a DLCI changes state, provided at least one destination IP address for trap is configured in the SNMP configuration.

Values: Disable, Enable Default: Disable

Each Frame Relay service has two distinct transmit queues: one for normalpriority traffic and one for high-priority traffic. At this time, only SCADA and TCP Server traffic are considered high-priority and are placed in the highpriority queue. All other types of traffic are placed in the normal-priority queue.

This parameter defines how many normal priority frames can be put in front of a high-priority frame. The sofware always checks for high-priority frames before placing normal-priority frames in the transmit queue. However, once the frames are in the hardware transmit queue, their order of transmission cannot be changed.

If SCADA and/or TCP Server are not up, set this parameter to 28 (the default). If SCADA and/or TCP Server are up, set this parameter according to the SCADA host system’s ability to support higher latency. For example, if a SCADA host system has a timeout of 500 ms when polling remote devices through a DDS Fr ame Rel ay servic e, the No rmal Tx Q ueue S ize param eter should be set to 2. This would allow two 1500-byte IP frames to be sent

Web Server Interface 3-29

between SCADA frames without reaching the 500-ms limit. If the SCADA host application has a timeout lower than 500 ms, this parameter should be set to 1. This then ensures a minimum latency for SCADA applications. However, it will slow IP traffic since only one IP frame at a time can be placed in the hardw are transmit queu e.

Default CIR (bps)

Default Be Rate (bps)

Enforce CIR and Be

This is the Committed Information Rate (in bits per second) provided by your frame relay service provider. The unit will apply this value to each DLCI learned from the network side to gather statistics and to perform CIR enforcem ent, if req uired. If a DLCI i s configu red with a CIR different from the default, the DLCI configuration will be used instead.

Values: 0–1536000 Default: 0

This is the Excess Burst Rate (in bits per second) provided by your frame relay service provider. The unit will apply this value to each DLCI learned from the network side to gather statistics and to perform CIR enforcement, if required. If a DLCI is configured with a different Excess Burst from the default, the DLCI configuration will be used instead.

Values: 0–1536000 Default: 0

If this parameter is set to “Yes,” the unit will enforce Committed Information Rate and E xcess Burst.

Values: No, Yes Default: No

NOTICE: The Auto Diagnostic parameter must be set to “Yes” to enforce CIR and

Be.

Management DLCI

If there is a DLCI entered (and submitted) in this field, it will be the only DLCI that looks for in-band management packets. If a value of “0” (zero) is entered in this field, all DLCIs will look for management packets.

Management Auto IP

DLCI

If this parameter is set to “Yes,” the unit will monitor the specified management DLCI for 5 pings over 5 seconds, after which the unit uses the destination address as its management IP address.

FrameStart Auto

Diagnostic

When this parameter is set to “Yes,” the unit will always source LMI on both sides of the frame relay connection. The unit will dynamically learn the type of link management used on each side of the connection (Network and Serial).

When set to “No,” the unit will monitor LMI between the Serial and the Network port. If one side of the connection goes down, it will source LMI until the connection goes back up, and will automatically go back to Monitor mode once both sides are up. In Monitor mode, the unit will switch all frames received between the network and the serial port regardless of the number of DLCIs o r frame si ze.

3-30 WANsuite 5160/5130

FrameStart Auto Diagnostic mode should be left set to “Yes” unless the frame relay connection has more that 128 DLCIs, or if there is a very high traffic rate on a constant basis.

Values: No, Yes Default: Yes

NOTICE: If either side of the Frame Relay connection goes down, you will be

unable to remotely access any connected units.

FrameStart Auto

Discovery

Round T rip Delay Size

(bytes)

Round T rip Delay Rate

(secs)

When this parameter is set to “Yes,” the unit will send FrameStart discovery and delay frames to each DLCI it learns as soon as the DLCIs are set active. This is required to calculate round trip delay as well as to discover remote WANsuite 5160/5130/FST/FSD units. This parameter should be set to “Yes” only on network services that have a WANsuite 5160/5130/FST/FSD at the far end of the frame relay connection. Also if set to “Yes,” the unit will gather SLA parameters such as frame and data delivery ratio as defined in the Frame Relay Forum Implementation, FRF.13. Those gathered statistics are then displayed on the DLCI Statistics screen as shown on page 3-49.

Values: No, Yes Default: No

Specifies the frame size (in bytes) of packets making the round-trip.

Specifies the rate (in seconds) at which Round Trip Delay packets are sent.

Status and Alarms Table

The table displayed at the bottom of the Frame Relay Service Details screen reports on the status and condition of LMI parameters and on Receive/ Transmit alarms and thresholds. Alarm threshold levels may be changed by entering a new threshold value in the appropriate field of the table and clicking the “Submit” button. Table fields are described below.

Active

LMI T ype

FrameStart Status

Rx Invalid Thr eshold

Rx Invalid Alarm

Tx Threshold

Read-only field shows whethe r or not (Yes or No) an alarm is act ive.

Read-only status indicates ANSI, CCITT, LMI rev. 1, or Unknown.

Read-only status indicates Sourcing, Monitoring, or 0.

Number of invalid frames received during a 15-minute interval after which an invalid alarm will be triggered. Default of “0” disables this alarm.

Status of t his alar m indicat es OK o r Alarme d.

Number of bits per second sent during a 15-minute interval after which a Tx alarm will be triggered. Default of 0 disables this alarm.

Web Server Interface 3-31

Tx Alarm

Status of t his alar m indicat es OK o r Alarme d.

Rx Threshold

Rx Alarm

Number of bits per second sent during a 15-minute interval after which an Rx alarm will be triggered. Default of 0 disables this alarm.

Status of t his alar m indicat es OK o r Alarme d.

The Frame Relay Details screen provides the following user-activated buttons:

Button Function

Submit S ets any values that have been changed. Frame Relay Statistics Opens the Frame Relay Port Statisti cs screen for the curre n t

Frame Relay service.

DLCI Table Opens the DLCI Table screen, which displays all the DLCIs

on the current service. Refer to DLCI Table Screen on page 3-50 for more information.

Clear Alarms Clears all Frame Relay alarms.

NOTICE: When a “Submit” command is executed, the Frame Relay link will be

re-initialized with the new parameters, causing a brief interruption in data transfer.

Frame Relay Port Statistics Screen

Clicking the “Frame Relay Statistics” button brings up a table (Figure 3.26) that reports on the status and condition of LMI parameters and on Receive/ Transmit alarms and thresholds. Alarm threshold levels may be changed by entering a new threshold value in the appropriate field on the Frame Relay Service Details screen and clicking the “Submit” button.

3-32 WANsuite 5160/5130

Figure 3.26

Frame Relay Port Statistics Screen

Frames

Octets

Mgmt Frames

Mgmt Octets

Stat Inquiries

Stat Responses

Frames

Octets

Mgmt Frames

Mgmt Octets

FECN

BECN

Transmit

Number of frames transmitted by the port. Number of octets transmitted by the port. Number of management frames transmitted by the port. Number of management octets transmitted by the port. Number of octets transmitted in frame relay LMI status inquiries. Number of octets transmitted in frame relay LMI status responses.

Receive

Number of frames received by the port. Number of octets received by the port. Number of management frames received by the port. Number of management octets received by the port. Number of Forward Explicit Congestion Notification frames received. Number of Backward Explicit Congestion Notification frames received.

Invalids

Stat Inquiries

Number of invalid frames received. Number of octets received in frame relay LMI status inquiries.

Web Server Interface 3-33

Stat Responses

Number of octets received in frame relay LMI status responses.

Invalid LMIs

Number of invalid Local Management Interface frames received.

Throughput (bits /sec)

Peak

A verage

Period Index

Peak bandwidth (in bps) as measured over a 10-second period. Average bandwidth (in bps) used by the port. Selects the interval (Current, Summary, or 1-96) to be viewed on the Frame

Relay Port Statisti cs screen . The Frame Relay Port Statistics screen provides the following user-activated

buttons:

Button Function

Submit Sets any val ues that have been changed. All Frame Relay

Intervals Type Details Returns you to the Frame Relay Servi ce Details screen. Clear Stats Clears all Frame Relay sta ti s t ic s.

SCADA Details Screen

Opens the Frame Rela y Statisti cs screen that shows all statistics for all parameters.

NOTICE: SCADA traffic has a higher priority than other types of traffic flowing

through the unit. Refer to Normal Tx Queue Size on page 3-29 for more details.

Click on “SCADA” under the “Type” column on the Services screen to view the SCADA Details screen (Figure 3.27). This menu gives you access to the configuration parameters described in the paragraphs below.

Figure 3.27

SCADA Details Screen

3-34 WANsuite 5160/5130

Message Size

Maximum number of characters to buffer before sending a frame.

Values: 0−1024

Default: 256

Idle Character Delay

Input Terminator

Data Direction

SCADA Loopback

Maximum number of idle character time to wait before sending a frame.

Values: 0−65535

Default: 10

Decimal v alue of t he charac ter that t erminates a mess age befo re sending a frame.

Values: 0−255

Default: 0

Data direction that the port will support. If set to “Input,” the port will only accept incoming data and will not transmit data. If set to “Output,” the port will ignore any incoming data. If set to “Both,” the port will process all data.

Values: Input, Output, Both

Default: Both

Determines if and where SCADA will loopback received data.

Values: None, Loopback to Network, Loopback to Port

Default: None

The table below these parameters displays the SCADA statistics.

The SCADA Details screen provides the following user-activated buttons:

Button Function

Submit Sets any values that have been changed. SCADA Device List Displays a table tha t sh ows the mapping between

SCADA devices and endpoints (Figure 3.28).

Clear SCADA Statistics Clears all SCADA statisti cs.

Figure 3.28

SCADA Device List Screen

Select the appropriate numbered link under the “Device column to access the SCADA Device Details screen(Figure 3.29) where you can map SCADA devices to endpoints.

Web Server Interface 3-35

Figure 3.29

SCADA Device Details Screen

PPP Service Details Screen

Click on “ PPP” u nder the “ Type” column on the Ser vices scre en to vi ew the PPP Service Details screen (Figure 3.30). This menu gives you access to the configuration parameters described in the paragraphs below.

ACCM

Figure 3.30

PPP Service Details Screen

The Asynchronous Control Character Map (ACCM) configuration option provides a method to negotiate the use of control character transparency on asynchronous links.

Values: 0–FFFFF FFF ( Hex)

Default: FFFFFFFF

3-36 WANsuite 5160/5130

MRU

The Maximum Receive Units configuration option may be set to inform the peer that the implementation can receive larger packets, or to request that the peer send smaller p ackets.

Values: 128–4096

Default: 1500

Port IP Address

Peer IP Address

Virtual PPP over

Auth Challenge

Interval

Initiate Negotiation

Allow PAP

The IP Address of the port. For unnumbered PPP link, set to 0.0.0.0 and set IP Address Negotiation to “No.”

Default: 192.168.1.2

The IP address of the peer that will negotiate authentication protocols.

Default: 192.168.1.3

Endpoint name over which to send PPP encapsulated data (i.e., PPP over Frame Relay). Valid only when the PPP interface is Virtual.

The time interval (in seconds) between CHAP challenges. A value of “0” (zero) disables the periodic authentication challenge.

Values: 0−3600

Default: 0 (disabled)

Determines whether the port actively negotiates with the peer site or passively waits for negotiation requests.

Values: Yes, No

Default: Yes

Lets the peer to negotiate for PAP.

Values: No, Yes

Default: No

Allow CHAP

PAP Username

PAP Password

CHAP Username

Lets the peer to negotiate for CHAP.

Values: No, Yes

Default: No

This field is used to log on to the peer. Type the appropriate PAP Username in this field.

Values: User estab lished

Default: Username

Enter the password necessary to log on to the peer under a given PAP Username.

Values: User estab lished

Default: None

Type the appropriate CHAP Hostname in this field.

Values: User estab lished

Default: Hostname

Web Server Interface 3-37

CHAP Secret

Enter the S ecret (i. e., passw ord) neces sary to challeng e the peer .

Values: User estab lished

Default: Secret

Parameters To Negotiate

The table displayed near the bottom of the PPP Service Details screen shows which parameters are set to be negotiated. You can specify which parameters should be nego tiated by clicking on the pull-d own menu next to each parameter and selecting the desired option. Parameters that can be negotiated are described below.

Parameter Description

Protocol Header Compression

IPCP (IP Control Protocol) Compression

MRU (Maximum Rece iv e U n it s )

HDLC Address Compression

IP Address Dynamically negotiates for IP addresses; otherwise, it is

ACCM Negotiates the use of control character tr anspare n cy on

Magic Number Unique numbers useful for detecting loopbacks.

PAP (Password Authentication Protocol)

Compresses PPP protocol headers. Default = Yes

Compresses TCP headers using Van Jacobsen compression. Default = Yes

Info rm s th e p ee r th at the imp le m e n tation can re cei v e larger packet s , or to r eq u es t th at th e p ee r send small er pa ck e ts. Default = Yes

Provides a method to negotiate the compression of high-level data link control (HDLC) addresses. Default = Yes

assumed both sides know each other’s IP addresses. Default = Yes

asynchronous links. Default = Yes

Default = Yes An authentication scheme used by PPP servers to validate the

identity of the originator of the connection. Default = No

CHAP (ChallengeHandshake Authentication Protocol)

PPP Statistics

Clicking the “PPP Statistic s” button brings up a table (Figure 3.26) that reports on traffic.

3-38 WANsuite 5160/5130

An authentication scheme used by PPP servers to validate the identity of the originator of the connec tion upon connection or any time later. Default = No

Figure 3.31

Transmit

PPP Statist ic s Screen

Frames

Octets

Mgmt Frames

Mgmt Octets

Frames

Octets

Mgmt Frames

Mgmt Octets

Invalids

Peak

A verage

Number of frames transmitted by the port. Number of octets transmitted by the port. Number of management frames transmitted by the port. Number of management octets transmitted by the port.

Receive

Throughput (bits /sec)

Peak bandwidth (in bps) as measured over a 10-second period. Average bandwidth (in bps) used by the port.

Period Index

Selects the interval (Current, Summary, or 1-96) to be viewed on the PPP Statistics s creen.

Web Server Interface 3-39

The PPP Statistics screen provides the following user-activated buttons:

Button Function

Submit Sets any val ues that have been changed. All PPP Intervals Opens the PPP Stats screen that shows all statistics for all parame-

ters. Type Details Returns you to the PPP Service Details screen. Clear Stats Clears all PPP statistics.

PAP Table

At the bottom of the PPP Services Details screen are two buttons that display tables for PAP and CHAP details. The PAP Table (Figure 3.32) displays the Usernames and Passwords for 10 entries.

Figure 3.32

PAP Table S cre en

Select an Index number and click the “PAP Details” button at the bottom of this screen to bring up a PAP Details screen (Figure 3.33) in which you can view, change, or delete the Username and Password for that particular PAP Index.

Figure 3.33

PAP Details Screen

To change the Username and Password for a selected PAP Index (PAP: 1 in the example above), enter the new information in the appropriate fields and click the “Submit” button.

3-40 WANsuite 5160/5130

To delete the Username and Password for a selected PAP Index, delete the character string displayed in both fields (leaving them blank) and click the “Submit” button.

The “Type Details” button returns you to the PPP Type Details screen.

CHAP Table

From the P PP Serv ice Deta ils screen, click th e “CHAP Table” but ton to view a table (Figure 3.34) of the CHAP Username and Secret information for each of 10 entries.

Figure 3.34

CHAP Table Screen

Select an Index number and click the “CHAP Details” button at the bottom of this screen to bring up a screen in which you can change the Username and Secret fo r that par ticular CH AP Inde x.

Figure 3.35

CHAP Details Screen

To change t he Usern ame a nd Secre t for a s elected CHA P Index, enter t he new information in the appropriate fields and click the “Submit” button.

The “Type Details” button returns you to the PPP Type Details screen.

IP Service Details Screen

The IP S ervice Det ails scre en and Et hernet St ats scr eens are de scribed e arlier in this chapter on in page 3-16 and page 3-17, respectively.

Web Server Interface 3-41

Applications

The Applications screens describe configuration tables and statistics for Layer 3 and above that do not map to a specific service or interface.

Endpoint Table Screen

The Endpoint Table (Figure 3.36) describes all endpoints terminating in the unit; links are provided to view the Endpoint Details, Endpoint Service Details, and Endpoint DLCI Details screens. The unit will automatically learn all DLCIs from the Network side and relay that information on the Serial side with default values.

The Endpoint Table and its corresponding DLCIs will be saved in the configuration database only after at least one endpoint parameter has been changed and submitted in the Endpoint Details screen (page 3-42).

NOTICE: The Endpoint Table and its corresponding DLCIs will be saved in the

configuration database only after at least one endpoint parameter has been changed and submitted in the Endpoint Details Screen on page 3-43. When in IP Gateway, if you decide to use a “discovered” endpoint, you must rename it. A discovered endpoint cannot be used elsewhere (i.e., IP Gateway) until it has been renamed. Also, it will not be saved in the configuration database.

NOTICE: Endpoint names of the form PPP-Sn and SCADA-Sn are reserved by the

system. These system-generated endpoints cannot be modified.

Figure 3.36

For most applications, you will not have to modify the Endpoint Table and DLCI Table. Modification is necessary, however, to configure remote in-band management. (See In Band Management on page 3-46.)

Endpoint Table Screen

Endpoint Details Screen

The Endpoint Details screen (Figure 3.37), which you access by clicking on an Index number on the Endpoint Table, lets you access the configuration parameters described in the paragraphs below.

3-42 WANsuite 5160/5130

Figure 3.37

Endpoint Details Screen

Name

Service

DLCI

When the unit learns a new DLCI, it creates an endpoint entry and a DLCI entry if they are not already configured. The endpoint’s Name will automatically be assigned as “Dynamic”; however, this name can (and most likely should) be changed to reflect a remote location name. Submitting a changed Name parameter will cause the endpoint entry and its corresponding DLCI entry to be saved in the configuration database.

Value: A string of up to 11 characters Default: None

CAUTION: When configuring endpoints, the name you assign each endpoint in

the Name parameter field must be unique within the unit.

The Servi ce Index n umber (from th e Service Table) on which this DLC I was found or configured.

Values: Displays the curre ntly ac tive Serv ices (by in dex num ber) or t he

Service(s) on which the DLCI was discovered.

Default: 0

The DLCI number.

Values: 16–1023 Default: 0

Forward Endpoint

By default, each DLCI is switched to its pair service in the Service Table using the same DLCI number. If this endpoint has to be switched to a different DLCI or a different service, the endpoint index of the destination must be configured here.

For most applications, you will not need to set this parameter.

Values: 0–256 Default: 0

Web Server Interface 3-43

Backup Endpoint

If this DLCI has an alternative endpoint to switch to in case this DLCI becomes inactive, you would configure the endpoint index of this alternative endpoint here.

For most applications, you will not need to set this parameter.

Values: 0–256 Default: 0

SLP Reference

Endpoint

Remote IP Address

This is the reference endpoint index to use for the SLA parameters. As most applications have the same SLAs for all DLCIs, they need to be configured in only one DLCI entry. All SLA parameters can then be copied from the endpoint index of this configured DLCI. If no SLP reference endpoint is configured and the DLCI SLA parameters are not configured, the values in the Frame Relay Service Details will be used (default CIR, Be, enforcement).

For most applications, you will not need to set this parameter.

Values: 0–256 Default: 0

If this WANsuite 5160/5130 unit is to be used to manage a remote WANsuite 5160/5130 unit, the IP address of the remote WANsuite 5160/5130 unit must be configured here. This DLCI can be used for management only, or for management and actual data.

If this para meter is set, a P C connect ed to the LAN i nterface of this WANsuite 5160/5130 can reach a remote WANsuite 5160/5130 through this DLCI. The remote IP address must be part of an IP network that is different from the local WANsuite 5160/5130, and the local WANsuite 5160/5130's IP address must be configured into the PC. This way, local and remote WANsuite 5160/5130s can be reached regardless of the availability of the routers connected at the back of the WANsuite 5160/5130s.

Values: IP address Default: 0.0.0.0

Remote IP Mask

If the Remote IP Address is set, the Remote IP Mask must also be set.

Values: IP address Default: 0.0.0.0

Type

If data received from this DLCI has to be switched to its corresponding destination port, the type must be set to “Switched.” The type should be set to “Local” for any DLCI that is used for management purposes only.

Values: Switched, Local Default: Switched

New DLCI

This field is used to create a new DLCI if it is not already configured. To create a n ew DLCI, enter a valid DL CI num ber in the field an d click the “Submit” button. The new DLCI number will be reflected in the DLCI field of the Endpoint Details screen.

3-44 WANsuite 5160/5130

The Endpoint Details screen provides the following user-activated buttons:

Button Function

Submit Sets any values that have been changed. Service Details Opens the Service details screen showing the selected service's

settings. DLC I D et ails Disp l ay s details of th e select ed D LCI. Delete Endpoint Deletes the currently displayed endpoint.

Endpoint Service Details Screen

Clicking on the “Service Details” button at the bottom of the Endpoint Table scree n d ispl ays the typ ica l Se rvi ce D eta ils s cr een. Re fer to Service Details Screen on page 3-22 for a complete description of this type of screen.

DLCI Details Screen

The DLCI Details screen (Figure 3.38) lets you access the configuration parameters described in the paragraphs below. To bring up this screen, click on a specific DLCI under the “DLCI” column on the Endpoint Table screen, or on the “DLCI Details” button on the Endpoint Details screen.

Figure 3.38

DLCI Details Screen

The unit uses the first three configuration parameters (Protocol Encapsulation, Proprietary Traffic Type, and Proprietary Offset) to gather statistics. For inband management, “RFC 1490” must be the encapsulation method.

Protocol Encapsulation

Type of encapsulation used by the FRAD/Router connected to the unit.

Values: RFC 1490, Proprietary Default: RFC 1490

Web Server Interface 3-45

Propriet ary Traffic

Type

When Protocol Encapsulation is set for “Proprietary,” the Proprietary Traffic Type parameter defines which protocol is encapsulated.

Values: IP, IPX, Ethertype, None Default: None

Proprie tary Offse t

CIR (bps)

Be (bps)

Bc (bps)

When Protocol Encapsulation is set for “Proprietary,” the Proprietary Offset parameter defines the number of octets after the frame relay header where the proprietary traffic type starts.

Values: 0–64 Default: 0

If a Committed Information Rate is configured here, its value will be used instead o f the defau lt CIR of the F rame Relay servi ce.

Values: 0–1536000 Default: 0

If an Excess Burst Rate is configured here, its value will be used instead of the default excess burst of the Frame Relay service.

Values: 0–1536000 Default: 0

If CIR enforcement is configured to “Yes,” the unit will throttle the committed burst down to this value when frames are received with the BECN bit set.

Values: 0–1536000 Default: 0

Discard Eligible Flag

In Band Management

FrameStart Delay

FrameStart Status

If this parameter is set to “Yes” and CIR enforcement is also set to “Yes,” the unit will set the Discard Eligible (DE) bit for frames sent over CIR.

Values: Yes, No Default: No

If the unit is to be used as a gateway to reach a remote WANsuite 5160/5130 through this DLCI, this parameter should be set to “Yes,” and the remote IP address and Mask should be configured in the corresponding endpoint.

Values: Yes, No Default: No

If this parameter is set to “Enable,” the unit will send FrameStart discovery and delay frames on this DLCI, and will report the state of the remote Verilink unit with FrameStart technology. It will also send SOS frames when the FRAD/router connected to this unit goes inactive.

Values: Enable, Disable Default: Enable if Auto Discovery is set to “Yes”; Disable otherwise

If the remote unit is a Verilink unit with FrameStart technology and FrameStart Auto Discovery is enabled, the FrameStart Status field will show the status of the remote unit. The status is “Active” if both the local and remote DL CIs are a ctive an d the rem ote uni t answers to the discovery frames

3-46 WANsuite 5160/5130

sent by this unit. The status is “SOS” if the remote unit is active but the FRAD/Ro uter con nected to i t is in active. T he status is “Inactiv e” in al l other cases.

Values: Active, Inact ive, SOS Default: Inactive

Remote DLCI

Remote Unit

Remote Unit IP

Address

Round T rip Delay Size

(bytes)

Round T rip Delay Rate

(secs)

If the remote unit is a Verilink unit with FrameStart technology, and FrameStart Auto Discovery is enabled, this displays the DLCI number used on the remote end of this DLCI.

Values: 16−1023 Default: 0

If the remote unit is a Verilink unit with FrameStart technology, and FrameStart Auto Discovery is enabled, this parameter gives the first three digits of the unit ID configured on the remote end of this DLCI.

Values: 000−999 Default: 000

Displays the IP address of the remote Verilink unit with FrameStart technology if FrameStart Auto Discovery is enabled.

Specifies the frame size (in bytes) of packets making the round-trip. If the Round Trip Delay Size is not configured, the Frame Relay Details values will be used.

Specifies the rate (in seconds) at which Round Trip Delay packets are sent. If the Round Trip Delay Rate is not configured, the Frame Relay Details values will be used.

Status

Receiving FE CN/

BECN

CIR Threshold

DLCI Status Table

The bottom portion of the screen displays a table detailing the actual status of DLCI and alarm threshold information as follows:

If this DLCI is up, the status will be “Active”; otherwise, the status will be “Inactive.”

Values: Active, Inactive Default: Inactive

When a frame is received with congestion bit set, this parameter is set to “Yes.” It is set back to “No” when a frame is received without congestion bit set.

Values: Yes, No Default: No

Sets the Tx over CIR alarm threshold. This threshold is the number of bits per second in excess of CIR during a 15-minute interval. Setting this field to “0” (zero) disables the alarm.

Web Server Interface 3-47

CIR Alarm

Reports if the Tx over CIR threshold has been exceeded.

Bits Over Be Threshold

Bits Over Be Alarm

Congestion Threshold

Congestion Alarm

BECN in CIR

UAS Threshold

UAS Alarm

Sets the Tx over Be alarm threshold. This threshold is the number of bits per second in excess of CIR + Be during a 15-minute interval. Setting this field to “0” (zero ) disables the ala rm.

Reports if the Tx over Be threshold has been exceeded.

Sets the Rx Congestion alarm threshold. This threshold is the number of frames received with BECN/FECN. Setting this field to “0” (zero) disables the alarm.

Reports if the Rx Congestion threshold has been exceeded.

Reports if Backward Explicit Congestion Notification (BECN) has been received within CIR.

Sets the Unavailable Seconds (UAS) alarm threshold. This threshold occurs after the DLCI is unavailable for a specified number of seconds. Setting this field to “0 ” (zero) d isables t he alarm .

Reports if the UAS threshold has been exce eded.

The DLCI Details screen provides the user-activated buttons defined below.

Button Function

Submit Sets and activat es newly defined DLCI parameters. Clea r Al ar ms Clears al l DL C I ala r ms . DLCI Statistics Displays a table of the statistics for this DLCI. DLCI Table Di sp lay s a table of al l DLCIs on a specif i c fram e rel ay serv ice , with

their state and alarm conditions.

DLCI Statistics Screen

Clicking the “DLCI Statistics” button on the DLCI Details screen will display a summary (Figure 3.39) of the Transmit, Receive, and Performance statistics for the s elected D LCI for a specific period.

3-48 WANsuite 5160/5130

Figure 3.39

DLCI Statistic s Screen

There are ninety-six 15-minute buckets (sampled every second) available for DLCI statistics. If the unit is powered on at 01:00 PM, the first interval will be completed at 01:15 PM; subsequent intervals would be completed at xx:30, xx:45, xx:00 and xx:15. Interval 1 is always the latest (most recent) interval, and interval 96 will always be the oldest.

The DLC I Statisti cs screen i n the pr eceding fi gure sh ows a sum mary t hat includes all 96 buckets. You can choose to see the statistics for any given bucket by selecting the desired Period Index from the pull-down menu and clicking the “Submit” button. Alternatively, you can display all intervals at once by clicking the “All DLCI Intervals” button beneath the table. The MIB (ipadv2.mib) describes each avai lable stat istic. “F DR” on t he screen a bove refers to Frame Delivery Ratio, which is the ration of successful frame receptions to attempted frame transmissions. “DDR” refers to Data Delivery Ratio or the ratio o f succes sful payl oad bytes received to atte mpted pa yload bytes transmitted. “DE,” or Discard Eligible, refers to the data that is first eligible to be discarded when network congestion occurs.

DLCI Table Screen

Clicking the “DLCI Table” button on the DLCI Details screen will display a table of all DLCIs (Figure 3.40) on a specific frame relay service along with their stat e and alarm condit ions.

Web Server Interface 3-49

Figure 3.40

NOTICE: The DLCI Table and DLCI Details screens are available from both the

Service Aware Screen

The Service Aware function recognizes IP traffic and counts the number of frames and bytes passed for a specific service based on filters by DLCI, by IP Address, and by IP Port. Each row of the Service Aware table represents a specific set of filter parameters known as a “rule.” Each rule is established through the Rule Details screen, which is accessed by clicking on theappropriate numbered link under the “Index column on the Service Aware screen.

DLCI Table Screen

Endpoint Table and the Frame Relay Service Details screens.

The Service Aware screen (Figure 3.41) provides a table showing these filtered packet counts for up to 10 rules. This table indicates which Service Aware filters are enabled or disabled, and shows the specific DLCI, IP Address, and IP Port by which the IP traffic is filtered. In addition, this table shows the Tx Alarm Thresho ld and the curr ent Tx Al arm stat us (if en abled) for each rule.

It is also possible to filter PPP services, in which case all information related to DLCIs is ignored.

3-50 WANsuite 5160/5130

Figure 3.41

Service Aware Screen

NOTICE: If you change the Service parameter, you must click on “Submit” to see

the appropriate DLCIs.

The Servi ce Awar e screen p rovides a “Clear Alarms ” user-acti vated but ton at the bottom of the screen.

Rule Details Screen

Use the Rule Details screen (Figure 3.42) to establish Service Aware parameters. To access the screen, click on the appropriate number under the “Index” column on the Service Aware screen. To establish a rule, you must select the desired rule configuration options and provide the appropriate filter information where required. Then press the “Submit” button at the bottom of the screen.

Web Server Interface 3-51

Figure 3.42

Rule Details Screen

The paragraphs below describe the Rule Details screen parameters and their options.

Service

DLCI

Filter By DLCI

IP Address

IP Mask

Selects the service to which the rule applies. Select from a pull-down list of available s ervices.

NOTICE: If you change the Service parameter, you must click on “Submit” to see

the appropriate DLCIs.

Selects the DLCI to which the rule applies from a pull-down list of applicable DLCIs.

Enables or disables filtering of the IP traffic by the DLCI specified in the DLCI pull-down list.

NOTICE: To use this filter, you must specify both the Service and DLCI

parameters in the rule configuration.

Establishes the IP address by which the rule will filter IP traffic (if enabled).

Represents a range of IP addresses defined so that only machines with IP addresses within the range defined by the mask are allowed to access an Internet service. To mask a portion of the IP address, replace it with the wild card character “0” (zero). (For example, 192.44.0.0 represents every computer on the Internet with an IP address beginning with 192.44.)

Filter By IP Address

Enables or disables filtering of the IP traffic by the IP address specified in the IP Address or IP Ma sk field.

IP Port

3-52 WANsuite 5160/5130

Establishes the IP port by which the rule will filter IP traffic (if enabled).

Filter By IP Port

Enables or disables filtering of the IP traffic by the IP port specified in the IP Port field.

Tx Alarm Threshold

Tx Alarm

IP Port List

Specifies the threshold in octets for the Transmit Alarm on this rule.

Shows th e current T ransmi t Alarm s tatus. Provides a drop-down list of well-known port IDs for TCP and UDP. To enter

a port ID, select an option from the list and click the “Enter” button. The selected port ID value will then be reflected in the IP Port field.

Traffic Meter Statistics Screen

The Traffi c Meter S tatisti cs screen (F igure 3. 43) displ ays a su mmary of the number of frames and octets sent over a DLCI that have been counted in accordance with the Servi ce Aware “rule” es tablished for a Se rvice. As such, it is Frame Relay specific (i.e., DLCIs only occur in Frame Relay links). In addition, this screen provides data rate performance information for the period of time specified in the Period Index field (see below). To access this screen, click on the appropriate link under the “Statistics” column on the Service Aware scre en.

Figure 3.43

Traffic Met er Statistics Screen

The Traffi c Meter S tatisti cs screen re ports on the fol lowing par ameters:

• Tx Frames

• Tx Octets

• Rx Frames

• Rx Octets

• Rate Peak – the peak data rate for the viewed period (see below)

• Rate Average – the average data rate for the viewed period (see below)

Web Server Interface 3-53

The Period Index field is used to define the period of time for which the Traffic Meter statistics will be reported. It represents the 24-hour, 15-minute buckets index. Selecting a period and then clicking the “Submit” button will display the Traffic Meter Statistics for that period. Clicking on the “All Traffic Meter Intervals” at the bottom of the screen displays the Traffic Meter Statistics for all intervals as defined below.

Summary

Represents the past 24 hours; reports the additive number of frames/octets, the highest peak encountered for 24 hours, and the average for 24 hours.

Current

Interval 1, Interval 2,

..., Interval 96

Reports on the current 15-minute interval. Reports on intervals 1-96 that correspond to the periods completed 15 minutes

ago, 30 minutes ago, ..., 24 hours ago.

SNMP Details Screen

The unit detects and reports T1 network alarms and provides several options for reporting them, one of which is SNMP traps. When a network alarm occurs, the unit sends a trap message to as many as eight destinations on your network. The unit will report each alarm by transmitting an SNMP “trap” to each non-zero Trap IP address. The SNMP Details screen (Figure 3.44) lets you configure the SNMP parameters described in the paragraphs below.

Figure 3.44

SNMP Details Screen

Read Community

Accepts a character string identifying the group authorized to perform read operations. The default setting is “Public.”

Write Community

Accepts a character string identifying the group authorized to perform write operations. The default setting is “Private.”

Trap Community

Accepts a character string, which is included in SNMP traps generated by the unit. The default setting is “Public.”

Trap IP Address

Accepts the IP address of a network device where alarm reporting traps are to be sent.

3-54 WANsuite 5160/5130

Diagnostics Screen

The Diagnostics screen (Figure 3.45) provides a table for viewing the current settings for the test and maintenance functions performed on the available interfaces . This scr een show s an uppe r-level vi ew of a ll the int erfaces s o you can see if any port is under test, and, if so, view the results. You may change Diagnostic parameters on the Test Details screen, which is accessed by clicking on the appropriate link on the Diagnostics screen. The properties of the Diagnostics table are described in the paragraphs below.

Description

Loop Type

Setting

Pattern

Length

State

Figure 3.45

Describes the type of interface selected for testing.

Describes the type of loop test (if any) performed on the selected interface.

Displays the bandwidth on which you wish to perform the BERT.

Specifies the pattern to be transmitted during a BERT for the selected port.

Displays the length of time for which the BERT should run for the selected interface.

Displays t he curre nt BERT state for the select ed inter face.

Diagnostics Screen

Elapsed Time

% EFS

Displays the time elapsed since a BERT began or, if completed, the total test time.

Displays the total number of bit errors detected since the BERT began or since erro r statistics were la st clear ed.

Displays the number of asynchronous errored seconds detected since the BERT beg an or si nce error statistic s were las t cleared . This parameter includes bit error seconds and sync loss seconds.

Displays what percent of the total BERT time ran error free. This ratio is derived from the number of error-free seconds divided by the number of seconds accumulated in Elapsed Time.

Test Details Screens

The Test Details screens let you set some test parameters and view other readonly parameters. This screen is also used to initiate a BERT or Loop Test.

Web Server Interface 3-55

The Network Interface Test Details screen is shown in Figure 3.46, and its parameters are described below the figure. The Serial Interface Test Details screen is shown in Figure 3.47, followed by a description of its parameters.

Figure 3.46

Network Interface Test Details Screen

BERT Table on Network Interface Test Details Screen

The BERT table provided on the Test Details screen lets you set the test paramete rs listed be low.

Setting

Service

Channel Rate

BERT Pattern

Displays the bandwidth on which you wish to perform the BERT. The available values for this parameter depend on which interface is selected.

Values: Idle Channels, Channel 1...24, Net, Use Service Default: Net

Selects the channels with a service to BERT. (Refer to Figure 3.15 on page 3-19.)

Sets the bit rate to BERT for each selected channel. If “Νx64K” is selected, the ones density requirements of the T1 network line must be ensured. If “Νx56K” is selected, ones density for the selected DS0 channel is maintained.

Values: Nx56K, Nx64K Default: Nx64K

Specifies the pattern to be transmitted during a test for the selected port.

Values: Marks, QRSS, 511, 2047, 2

, Spaces

Default: QRSS

NOTICE: The 2

pattern is the ITU (European) version, not the ANSI version.

3-56 WANsuite 5160/5130

Test Duration

Specifies the length of time for which the test should run for the selected port.

Values: 15 minutes, 30 minutes, 1 hour, 24 hours, Continuous Default: 15 minutes

You can also view the following read-only parameters from this screen:

Pattern Sync

Elapsed Time

Bit Errors

Errored Seconds

%EFS

Displays the state of pattern sync during a test. If no test is in progress, “No Test” is displayed. If a test is active, but the receiver is not in pattern sync, “No Sync” is displayed. If the receiver is in pattern sync, “In Sync” is displayed.

Displays the time elapsed since a timed test began or, if completed, the total test time.

Displays the total number of bit errors detected since the test began or since error statistics were cleared.

Displays the number of asynchronous errored seconds that have been detected since the t est bega n or since error s tatistics w ere last cl eared.

Displays the percentage of time the test ran error-free. This ratio is derived from the number of error free seconds divided by the number of seconds accumulat ed in Elap sed Tim e.

Loop Table on Network Interface Test Details Screen

The types of tests available for you to choose from depend on the currently selected in terface. For th e Ne twork in terface, the L oop tab le pr ovided n ear t he bottom of the Test Details screen lets you specify the type of Loop test to be performed.Loopback diagrams are shown in Appendix A, Figure A.1.

Values: No Test (Loop Down), payload loopback (PLB), line loopback

(LLB), maintenance loopback (MLB), Far PLB, Far LLB

Default: No Test (Loop Down)

Web Server Interface 3-57

Figure 3.47

Serial Interf ace Test Details Scree n

BERT Table on Serial Interface Test Details Screen

The BERT table lets you set the test parameters listed below.

Setting

BERT Pattern

Test Duration

Pattern Sync

Displays the bandwidth on which you wish to perform the BERT. The available values for this parameter depend on which interface is selected.

Values: Net, DTE Default: Net

Specifies the pattern to be transmitted during a test for the selected port.

Values: Marks, QRSS, 511, 2047, 2

, Spaces

Default: QRSS

NOTICE: The 2

pattern is the ITU (European) version, not the ANSI version.

Specifies the length of time for which the test should run for the selected port.

Values: 15 min, 30 min, 1 hour, 24 hours, Continuous Default: 15 min

You can also view the following read-only parameters from this screen: Displays the state of pattern sync during a test. If no test is in progress, “No

Test” is displayed. If a test is active, but the receiver is not in pattern sync, “No Sync” is displayed. If the receiver is in pattern sync, “In Sync” is displayed.

Elapsed Time

Displays the time elapsed since a timed test began or, if completed, the total test time.

Bit Errors

Displays the total number of bit errors detected since the test began or since error statistics were cleared.

3-58 WANsuite 5160/5130

Errored Seconds

Displays the number of asynchronous errored seconds that have been detected since the t est bega n or since error s tatistics w ere last cl eared.

% EFS

Displays the percentage of time the test ran error-free. This ratio is derived from the number of error free seconds divided by the number of seconds accumulat ed in Elap sed Tim e.

Loop Table on Serial Interface Test Details Screen

The Loop table provided near the bottom of the Test Details screen lets you specify the type of Loop test to be performed. The types of tests available for you to choose from depend on the currently selected interface. Loopback diagrams are shown in Appendix A, Figure A.1.

Values: No Test, Port Loop, V.54 Loop, Far V.54 Loop Default: No Test (Loop Down)

The Test D etails sc reens pr ovide the followin g user-act ivated bu ttons:

Button Function

Start Starts the specified BERT. Stop Stops the currently running BERT. Error Inject Injects a bit error. Reset Errors Resets the current error count.

Trap Log Screen

Loop Submit Sets the type of Loop test.

The Trap Log scre en (Figur e 3.48) s hows a c ollection of all t he traps th at have been generated. A trap is a mechanism that permits a device to send an alarm for certain network events to an SNMP management station; in other words, traps are notifications of triggered alarms.

The table shown in this screen lists each trap by its Index number, and displays the type of error captured by the trap (Trap Number), the date and time the trap was stored (Time Stamp), its description, and its value.

To remove all trap information store d in memory, click the “Delet e All Traps” button.

Web Server Interface 3-59

Top Talkers

Figure 3.48

Trap Log Screen

Clicking on the Top Talkers link in the navigation tree displays a screen (Figure 3.49) where you can set parameters for and initiate the generation of a list of IP addresses ranked in terms of the number of frames and octets they have transmitted during a specified reporting period. This report allows MIS managers to determine who is generating the most traffic on a WAN based on IP addresses.

Duration

Time Remaining

Figure 3.49

Top Talkers Screen

To generate a Top Talkers report, enter the desired report size in the appropriate field and then click the “Submit” button.

Establishes the amount of time (in seconds) for which the Top Talkers report will capture IP traffic; typically this value is 900 seconds (15 minutes).

Establishes the amount of time (in seconds) for which the Top Talkers report will capture IP traffic; typically this value is 900 (15 minutes). As soon as you initiate generation of the report by pressing the “Submit” button, the Time Remaining value is copied over to the Duration field.

Requested Report Size

Establishes how many IP addresses will be reported as the “Top Talkers.”

NOTICE: While you may request any number, the unit is internally limited to a

3-60 WANsuite 5160/5130

maximum report size of 20.

As soon as the specified Duration for the report has elapsed, the screen will refresh itself and the resulting report-specific information will be displayed in the outlined box at the bottom of the screen. This report comprises elements as defined in the following paragraphs.

Report #

Size

Start Time

System Up Time

Displays a unique number used to identify the generated report. This number is generated automatically, is incremented sequentially for each report, and can be used by management stations for automatic polling (via the ipadv2.mib).

Displays the actual number of Top Talkers generated by the report. The maximum report size is 20.

Displays the time at which the Top Talkers report was initiated (based on System U p Time).

Displays the amount of time the unit has been operational since it was turned on or last reset.

The Top Talkers table reports in descending order the IP addresses that have generated the most traffic during the requested report’s duration. For each IP address listed, the report displays the number of Rx frames, Rx octets, Tx frames, and Tx octets that have been passed across it. In addition, the Timestam p field in dicates th e time a t which a packet w as exam ined for the specified IP address.

IP Gateway Details Screen

The IP Gateway is a feature of the WANsuite 5160/5130 that allows routing of IP packets from one network to another using static routes configuration and/or dynamic routing. The IP Gateway uses Routing Information Protocol (RIP) 1 or RIP 2 or Open Shortest Path First (OSPF) routing.

RIP 1 and RIP 2 are protocols that allow exchange of routing information between two routers. With that information exchange, a router can build its own routing tables that later can be used for “routing” IP packets.

OSPF is a shortest path first (SPF) or link-state protocol. OSPF is also an internal gateway protocol (IGP) that distributes routing information between routers in a single autonomous system (AS). OSPF chooses the least cost path as the be st path.

While RIP is ideal for small- to medium-sized networks, OSPF is more suitable for complex networks with a large number of routers. OSPF provides equal cost multipath routing where packets to a single destination can be sent via more than one interface simultaneously.

The IP Gateway also supports unnumbered networks. An unnumbered network is a point-to-point connection without an assigned IP address This feature reduces the number of IP addresses required.

Web Server Interface 3-61

Figure 3.50

IP Gateway Details Screen

RIP Parameters

RIP Enable

RIP Trust Neighbors

RIP Inter val

RIP Domain

OSPF Enable

OSPF Router ID

Globally enables RIP 1, RIP 2, or No RIP.

Values: Disable, Enable RIP1, Enable RIP2 Default: Enable RIP2

Globally enables the trusted neighbors feature. If there is a list of trusted neighbors in an IP Gateway, only RIP packets coming from those trusted neighbors will be used to build the internal routing table.

Values: Enable, Disable Default: Enable

Interval for RIP packet to be sent. Default is 30 seconds.

Value representing the RIP domain. Default is 0.

OSPF Parameters

Globally enables OSPF.

Values: Disable, Enable Default: Disable

This 32-bit number assigned to each router running the OSPF protocol uniquely identifies the router within an Autonomous System. Each router requires a unique router ID. Default is the LAN IP address of the unit.

3-62 WANsuite 5160/5130

The IP Ga teway scr een pr ovides the followin g user-act ivated b uttons:

Button Function RIP Parameters

Static Route Table Displays static routes and dynamic routes inform ation. Static ARP Table Displays static ARP information. Trusted Neighbors Displays truste d neighbors informat ion.

OSPF Para meters

Area Table Displays area information.

Virtual Link Table Displays virtual link information. Submit Submits to the unit information specific to IP Gateway. Circuit Table Lets you access to circuit-related information/operation.

Circuit Table Screen

Access this menu by clicking on the “Circuit Table” button at the bottom of the IP Gateway Details screen. The Circuit Table shows the configured circu it. To configure a new circuit, click on "Add New."

Figure 3.51

Circuit Table Screen

Circuit Details Screen

Access this menu by accessing the appropriate numbered link under the “Index” column on the Circuit Table screen.

Web Server Interface 3-63

Figure 3.52

Circuit Details Screen

Endpoint

IP Address

IP Mask

Max Transmit Unit

Cost

RIP Status

Multicast Status

Endpoint name. By de fault, the first circuit is always the LAN c ircuit. All other circuits are associated with Endpoint names as defined in the Endpoint Table shown in Figure 3.36 on page 3-42.

IP Address of the circuit.

IP mask of the circuit.

Maximum transmit unit this circuit will send at any one time.

Represents the relative time of treatment of an IP packet. This value is used when there are mu ltiple rout es to th e same d estination . When t wo or more routes ar e available, the one with the lowest circuit co st is sel ected. A f rame relay circuit should have a higher value than a LAN circuit.

Indicates whether or not RIP is enabled on this circuit.

Values: Enable, Disable

Default: Enable

Indicates whether or not Multicast is enabled on this circuit.

Values: Enable, Disable

Default: Enable

OSPF Status

Indicates w hether o r not OS PF is en abled on this circ uit.

Values: Enable, Disable

Default: Disable

3-64 WANsuite 5160/5130

OSPF Area

Represent s the area that thi s circuit i s part o f.

OSPF LSA Timer

OSPF LSU Delay

OSPF Router Priority

OSPF Hello Interval

Determines how often the Link State Acknowledgment (LSA) packet is sent.

Values: 1−3600

Default: 1

The estimated number of seconds it takes to transmit a Link State Update (LSU) packet over this circuit interface.

Values: 1−3600

Default: 1

This 8-bit unsigned integer ranges from 1 to 255 and assigns priority to one of two routers attached to the same network; without an assigned priority, both routers attempt to become the designated router.

Values: 1−255

Default: 1

The time in seconds between the Hello packets that a router sends on a circuit. This value is also advertised in the router’s Hello packets and must be identical for all routers on the same network. The smaller the Hello Interval, the sooner topological changes are detected (but then more traffic is created).

Values: 1−65535

Default: 1

OSPF D ead Interval

OSPF Auth Key

The number of seconds during which a router’s “Hellos” have not been received before its neighbors declare the router down. The value must be the same as the value on the network.

Values: 1−65535

Default: 40

When configured, this parameter allows an authentication procedure to be executed on the OSPF header. If the 64-bit (8 character) password does not correspond, the packet is thrown away.

Values: 64 bits ( 8 charact ers)

Default: 8 spaces (no authen tication)

The Circuit Details screen provides the following user-activated buttons:

Button Function

Submit Sets any val ues that have been changed. Circuit Table Returns you to the previous screen.

Static Routes Screen

Under some circumstances, it may not be necessary for a router to learn a route using ordinary means such as RIP or OSPF. It is possible under these circumstances for you to add a route to the route table of a router.

Web Server Interface 3-65

The Static Route Table is always associated with a circuit. Access this screen by selecting the Static Route Table from the RIP Parameters Table on the IP Gateway Details screen.

Endpoint

Target IP Address

Target IP Mask

Next Hop

Cost

Route Status

Figure 3.53

Static Route Tab le Screen

Endpoint name ( or interface) thr ough which to send the IP packet to r each the Target IP Addr ess.

Represents the target network that you want this router to reach.

Mask of the target network.

IP address of the next device in the route.

Cost of using that route.

Indicates whether a route is enabled or disabled.

The Static Routes Table screen provides the following user-activated buttons:

Button Function

Dynamic Route Table Displays all known routes. Add New Adds a new static route.

Route Details Screen

Access this menu by clicking on the appropriate number under the “Index” column on the Static Ro u te T ab le sc reen.

3-66 WANsuite 5160/5130

Figure 3.54

Route Details Sc reen

Endpoint

Target IP Address

Target IP Mask

Next Hop IP Address

Cost

Route Status

Endpoint name ( or interface) thr ough which to send the IP packet to r each the Target IP Addr ess.

Represents the target network that you want this router to reach.

Values: 0.0.0.0−255.255.255.255

Default: 0.0.0.0

Mask of the Target IP or network.

Values: 0.0.0.0−255.255.255.255

Default: 0.0.0.0

NOTICE: Setting the Target IP Address and the Target IP Mask to 0.0.0.0 defines

THE default route for this unit.

IP address of the next device in the route.

Cost of using that route.

Values: 0−65535

Default: 1

Indicates whether or not the current route is enabled.

Values: Enable, Disable

Default: Enable

The Route Details screen provides the following user-activated buttons:

Button Function

Submit Sets any values that have been changed. Static Route Table Returns you to the prev ious screen. Delete Route Deletes the route curren tly displayed.

Web Server Interface 3-67

Dynamic Route Table Screen

Access this menu by selecting “Static Route Table” from the RIP Parameters table on the IP Gateway menu and then selecting Dynamic Route Table. This table shows all known dynamic and static routes. Please note that not all parameters are necessarily defined, depending on whether or not the routes were learned dynamically. Primarily, the most useful information is included in "Destination," "Interface Index," and "Mask" columns.

Destination

Interface Inde x

Next Hop

Mask

Figure 3.55

Dynamic Route Table Screen

Network to be reached.

Internal TC P/IP st ack interf ace numb er.

IP address used to reach the destination network.

Mask of the destination network.

Static ARP Table Screen

Address Resolution Protocol, or ARP, is used by the router to dynamically associate a high-level IP address with a low-level physical hardware address. ARP packets are only sent across a single physical network.

There are some cases when an IP-compatible device does not support ARP or ARP is deliberately disabled (for security). In these cases, instead of using ARP to dynamically update the router internal MAC <-> IP Address Table, you can use this menu to force an entry into that table. This entry never times out.

NOTICE: At least one circuit must be defined to create a Static ARP Table entry

Access this menu by selecting “Static ARP Table” from the RIP Parameters screen on the I P Gateway menu. The ARP Table is useful when a Host does not respond to an ARP request.

3-68 WANsuite 5160/5130

because an ARP entry is always associated with a circuit.
