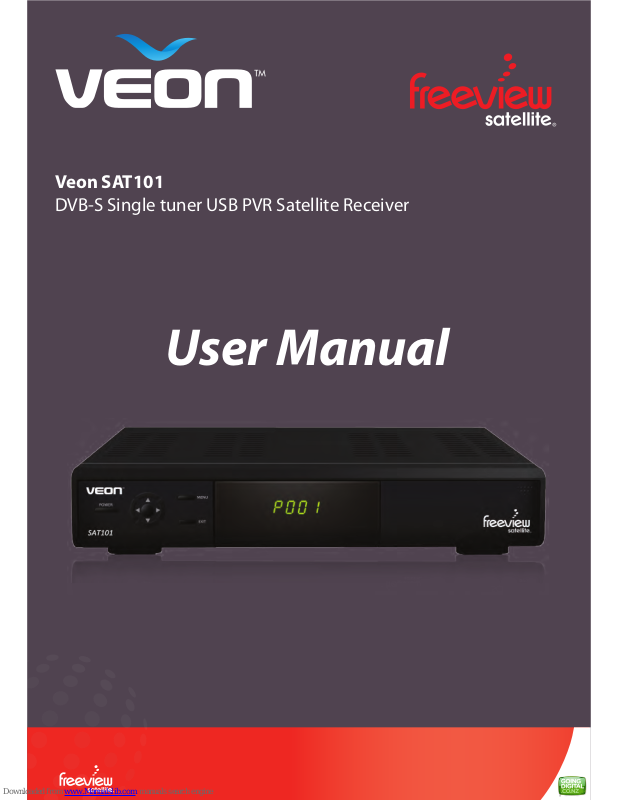

Veon SAT101 User Manual
User Manual
Veon SAT101
DVB-S Single tuner USB PVR Satellite Receiver
2
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water. 6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers)
which produce heat.
9. Do not expose this appliance to dripping or splashing water
and no object lled with liquids (such as a vase) should be
placed on this appliance.
10. Do not interfere with the safety aspects of the plug. If the
provided plug does not t into your outlet, consult an electrician
for replacement.
11. Protect the power cord from being walked on or pinched, particularly
at plugs and the point where they exit from the apparatus.
12. Only use attac
hments/accessories specied by the manufacturer.
13. Unplug this apparatus during lightning storms or when unused for
long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as if the power-supply cord or plug has been damaged, liquid has
been spilled, objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally,
or has been dropped.
Safety Information
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS PLUG WITH AN
EXTENSION LEAD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY
INSERTED TO PREVENT BLADE EXPOSURE.
The lightning flash with arrow-head symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within a triangle is
intended to alert the user to the presence
of important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
AV Cable
USB Factory
upgrade +HDD
connection
SAT IN
LOOP OUT
3
POWER Off/On
Switch
YPbPr YPbPr output
(for connection to a non HD TV)
HDMI
R,L and CVBS
AV output
(for connection to a non HD TV)
Your Remote Control
Connecting your satBox
Getting Started
Main Menu
User Settings
- Favourite View
- Organizer
- User Preference
Installation
- Tuning Wizard
- Blind Scan
- Satellite Scan
- System Setting
- Country Setup
- Factory Default
- S/W uprade via OTA
System Conguration
- Wakeup Timer
- Version
ESG
Media Manager
- Thumbnail Browser
- Recorded Book List
- Media Information
Recording
Recordings Library
Bookmarking
Editing Recordings
Firmware Upgrade
Frequently Asked Questions
Troubleshooting
Check your signal levels
Technical Specications
Warranty
Page
5
6
7
8
9
9
10
11
12
13
14
14
14
15
15
16
17
18
18
19,20
21
22
23
24
25
26
26
27
28
4
EXIT
INFO
TV/RADIO Switches between
TV and Radio.
CH +/-
V +/-
TXT Brings up Teletext.
EPG Electronic Programme
Guide, open programme
guide window.
Menu
Pause Pause playback.
Record Record a programme.
Stop
LIB
Beginning/End
Stops playback
Library, Displays
recorded programmes list.
Fast Forward/Rewind
playback.
5
SUBT Displays subtitles
whe available.
PLAY Plays your recordings.
TIMER Displays the wakeup timer.
JUMP Enter a time to jump to
PR
-
Brings up the Program
Recall list
Holding the INFO
button for 3 sec
displays the
Version page.
Holding the Library
button for 3 sec
displays the record
booking list.
Connect the cable that comes from your Satellite dish to the LNB IN socket in the back of your
set top box. If you have If you have an HDMI cable connect this between the HDMI port on
your satBox and one of the HDMI inputs on your HDTV. If you do not have an HDMI cable or
an HDTV connect the AV cable that came with your SAT101 between the yellow red and white
sockets on back of your set top box and an AV input on your TV.
6
Connecting your Veon Satellite Receiver
Connecting to a HD Ready TV
Other Connections
HDMI Cable (576i Output)
Please make sure you don’t have a USB device plugged in while going through the setup process.
Once you are setup you can then plug your device in.
Switch your TV on and select the correct video input.
7
The Country setup install screen
should appear on your TV*. Set the
Region closest to you (this is only to
receive ads for your area on TV1) and
press OK.
An auto scan will now start, please
do not push any buttons until it has
nished. Once it has nished if the
signal from your dish is good TV1 will
appear and you can start using your
Veon receiver.
* If the Country Setup screen does not appear go to the Menu select Installation then Factory Default. The default
pin/password is 0000.
Open the battery cover of the remote control and put two
AAA size batteries so the ‘+’ and ‘-’ marks on the batteries
match the ‘+’ and ‘-’ marks inside the remote control.
Replace the battery cover.
Switch the Veon receiver on and wait for it to boot up.
(10-15 seconds)
Main Menu:
All other settings and tuning menus are selected from this main menu.
This menu is the gateway for all other menus.
You can invoke the main menu by pressing the MENU button.
This main menu contains several options:
User Settings
Installation
System Conguration
ESG
Media Manager
You can toggle between the options by using UP/DOWN or LEFT/RIGHT arrow keys in the center of the remote
To enter a sub menu from the main menu press the OK button.
Main Menu
8
Organizer:
To enter this menu you will be prompted for your password (Default is 0000)
In this menu you will have the options to Lock, Skip or Delete your channels from the list.
Lock: Allows you to lock a selected channel. Once a channel is set to Lock you will need to enter
your password to view the channel.
Skip: Means when browsing with P+/- the selected channel will be skipped over, but is still able to be
accessed by pressing the channel number button.
Delete: Deletes a channel o the list.
Note: Due to freeview standards channels cannot be moved around.
Favourite View:
To enter this menu you will be prompted for your password (Default is 0000)
This menu allows you to view your favourite channel list and allows you to classify channels
and group them together to be viewed through favourites later. These groups can then be accessed via
the FAV button on your remote. Use the number keys on your remote according to the numbers on the
right hand side of the screen to add or remove channels from your favoute group.
Main Menu - User Settings - Favourite View/Organizer
9
