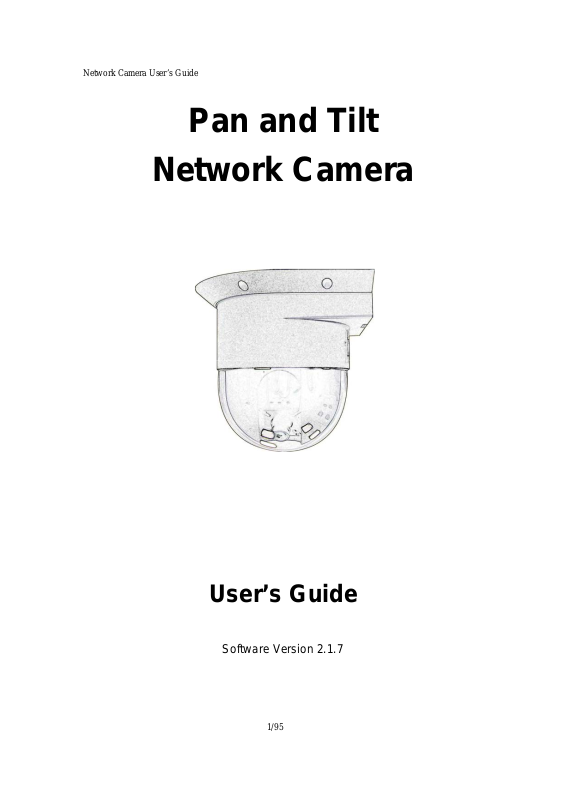

Page 1
Network Camera User’s Guide
Pan and Tilt
Network Camera
User’s Guide
Software Version 2.1.7
1/95
Page 2
Network Camera User’s Guide
PT IP Cam / IR IP Cam / Video Server Series
© 2004~2005.
Owner's Record
The model and serial numbers are located at the bottom. Record these numbers in the spaces provided
below. Refer to these numbers whenever you call upon your dealer regarding this product.
Model No. ______________ Serial No. ____________________
To prevent fire or shock hazard, do not expose the unit to rain or
moisture.
For AC Adaptor to avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
For customers in the U.S.A.
This equipment has been tested and found to comply with the limits for a digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interfer ence will not occur
in a particular installation. If this equipment does cause harmful interference to radi o or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the followin g measur es :
– Reorient or relocate the receiving antenna.
– Increase the separation be tween the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could vo id
your authority to operate this equipment.
The shielded interface cable recommended in this manual must be used with t h is equipment in
order to comply with the limits for a digital device pursuant to Part 15 of FCC Rules.
2/95
Page 3
Network Camera User’s Guide
Declaration of Conformity
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTICE TO USERS
© 2004~2005. All rights reserved. This manual or the software described herein, in whole or in part,
may not be reproduced, translated or reduced to any machine readable form without prior written
approval.
WE PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE OR
OTHER INFORMATION CONTAINED HEREI N AND HEREBY EXPRESSLY DISCLAIMS
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE OR SUCH
OTHER INFORMATION. IN NO EVENT SHALL WE BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR
OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUA L, THE
SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN OR THE US E THEREOF.
We reserves the right to make any modification to this manual or the information contained herein at
any time without notice. The software described herein may also be govern ed by the terms of a
separate user license agreement.
3/95
Page 4
Network Camera User’s Guide
Table of Contents
Overview ............................................................................................................................. 6
Package Contents................................................................................................................ 8
Connections....................................................................................................................... 11
Hardware Installation....................................................................................................... 13
Logging in to Homepage................................................................................................... 15
Before Operation.......................................................................................................15
Access the Network Camera from the Internet Explorer for the first time............... 19
Logging in as an ordinary User.................................................................................21
Logging in as an Administrator.................................................................................21
Operating the Network Camera........................................................................................ 22
Control Panel ............................................................................................................23
Advanced Function Area......................... ... ...............................................................25
Basic Setting .....................................................................................................25
System .......................................................................................... 26
Camera.......................................................................................... 28
Network........................................................................................ 31
User...............................................................................................37
IP Filter......................................................................................... 38
FTP Client......................... ............................................................41
SMTP............................................................................................ 43
Image Memory ............................................................................. 45
Alarm 1..................................................... .................................. ..47
Alarm 2..................................................... .................................. ..48
4/95
Page 5
Network Camera User’s Guide
Schedule .......................................................................................49
Motion Detection........................................................... ............... 50
Time Setting ................................................................................. 51
Popup............................................................................................ 53
Firmware upgrade:........................................................................ 54
Factory Default.............................................................................57
Reboot........................................................................................... 58
Trigger............................................................................................................... 59
Capture.............................................................................................................. 60
RightMouseButton of ActiveX Control.............................................................................. 61
View Menu................................................................................................................ 62
“Image Recording…-> Save as JPEG” .................................................................... 68
“Save Current Picture As …” ................................................................. .................. 74
Appendix A: Restore Factory Default Settings .................................................................76
Appendix B: Alarm I/O Connector ...................................................................................77
Appendix C: Troubleshooting & Frequently Asked Questions ......................................... 80
Appendix C: Troubleshooting & Frequently Asked Questions ......................................... 80
Appendix D: PING IP Address ......................................................................................... 85
Appendix E: Bandwidth Estimation.................................................................................. 86
Appendix F: Specifications ...............................................................................................87
Appendix G: Time Zone Table........................................................................................... 89
Appendix H: DDNS Application.......................................................................................91
5/95
Page 6
Network Camera User’s Guide
Overview
This user’s guide explains how to operate the Network Camera from a computer.
Basically, the user’s guide is written to be read on the computer display. However, users
might consider printing it out to access easily and read it before you operate the Netw ork
Camera.
Introduction
This Network Camera is an inexpensive fully scalable surv eillance technology. Because
the Network Cameras can be plugged in to your existing computer network infrastructure,
you will potentially save thousands of dollars on unnecessary cabling.
The Network Camera is accessible via the LAN or Internet connection. Connect your
Network Camera directly to a computer network or DSL modem, and with a standard
Web browser you get instant, on demand video streams. Within minutes you can set up
the Network Camera to capture a video sequence to a PC. Live video image can be
uploaded to a website for the world to see or made available only to selec t users on the
network.
Features:
z High quality 1/3” CCD sensor
z Composite video output
z Motorized and wide-range pan and tilt operation
z 16 Preset Points
z JPEG video compression
z Built-in internal microphone
z Remote-Control via Inter net Explorer
z Support statistic and dynamic IP address
z DDNS and PPPoE
z CF memory card interface (for CF card enabled version only)
z Multi-channel control software for surveillance application
z On-line firmware upgrade
6/95
Page 7
Network Camera User’s Guide
Application:
z Remote monitoring
z Surveillance
Minimum System Requirement
z Microsoft Internet Explorer 5.0 or later
z VGA Monitor resolution 1024 x 768
z Pentium 4 1.3GHz or above
z Memory Size: 256MB or above
z Windows ME, 2000, XP, or 2003
7/95
Page 8
Network Camera User’s Guide
Package Contents
User can find the following items in the package:
1. PT Network Camera x 1
2. Power adapter x 1
3. Power cord x 1
4. Decoration ring x 1
5. Screw x 4
6. Terminator for Alarm I/O x 1
7. Installation software and manual CD x 1
8. Quick Start Guide x 1
Item Descriptions
1. This unit is the main element of
the system.
2. Switching Power Adapter
dedicates 12V DC electric power
output to Network Camera.
8/95
Page 9
Network Camera User’s Guide
3. Power Cord provides connection
between AC Power Adapter and
Power Outlet for electricity.
4. Decorate the mounting parts.
Provide four screw holes to fix
Network Camera.
5. Screws are used to fix Network
Camera.
6. Alarm I/O connector is used to
provide an easy fixing interface for
the wire connection from alarm
devices and sensor devices to
Network Camera.
7. User’s Manual provides
important information and
instructions for operating the
Network Camera.
9/95
Page 10
Network Camera User’s Guide
8. Quick Start Guide provides
important information and
instructions for installing this device.
If any of the above items are missing, please contact your dealer immediately.
Note: Using a power supply with a different voltage than the one included with the
Network Camera will cause damage and void the warranty for this product.
10/95
Page 11
Network Camera User’s Guide
Connections
DC Power and Video Output Cable
The DC power input and video output cab le are located on the Ne twork Camera’s back
panel. The input power is 12VDC. Note that supply the power to the Network Camera
with standard power adapter included in package. Otherwise, the improper power
adapter may damage the unit and result in danger.
The Network Camera also provides composite video output. User can use BNC video
cable to connect the Network Camera with a TV monitor or VCR.
LAN Socket
Beside the DC power and video output cable, the LAN socket is an RJ-45 connector for
connections to 10Base-T Ethernet or 100Base-TX Fast E thernet cabling. This Ethernet
port built NWay protocol can detect or nego tiate the transmission speed of the network
automatically. Please use Category 5 “straight through” cable to connect the Network
Camera to a 100Mbps Fast Ethernet network switch or hub.
11/95
Page 12
Network Camera User’s Guide
Alarm I/O Connector
The Network Camera provides a terminal block with 8 pins of connectors located on the
center of the back panel. There are 3 pins for two alarm inputs and 5 pins are for alarm
output. The I/O connectors are physical interface to sense and/or activate alarm signals
to a variety of external sensors or alarms. Please refer to the Appendix B in this man ual
for more information.
CF Card Socket
The CF card socket is located on the right side of the back panel of the Network Camera.
User can plug a CF memory card into this socket to store the alarm or scheduled images.
This is very useful to keep the evidence of alarms or scheduled images for reference.
Factory Default Reset
This button is hidden in the pinhole above the Alarm I/O connector. Please refer to the
Appendix A in this manual for more information.
Microphone
The Network Camera’s has built-in an internal microphone. This microphone is also
hidden in the pinhole above the Alarm I/O connector.
Status and 10/100M Ethernet LEDs
LED stands for Light-Emitting Diode. The Status and Etherne t LEDs are located on the
right side of the back panel of the Network Camera. The Status LED will turn orange
while system is booting up successfully.
Ethernet LED is used to indicate the status of Network connection. While not any
connection to the Network Camera, the LED will be off and flash orange while some one
access this Network Camera.
12/95
Page 13
Network Camera User’s Guide
Hardware Installation
1. Fix the Network Camera to Cei li ng
Use 4 screws to fix the Network Camera onto the ceiling as below. You can also
put the Network Camera on the table directly.
2. Plug an Ethernet cable into Network Camera
Connect an Ethernet cable to the LAN socket located on the Network Camera’s back
panel and attach it to the network.
13/95
Page 14
Network Camera User’s Guide
3. Connect the external power supply to Network Camera
Connect the external power supply to the DC power connector attached on the
extension cable from the Network Camera. Note: Use the power adapter, 12VDC,
included in the package and connect the other end to wall outlet for AC power.
Once you have installed the Network Camera well, the status LED will turn orange. It
means the system is booting up successfully. Furthermore, if you have a proper network
connection, and access to the Network Camera, the 10/100M LAN LED will flash orange
14/95
Page 15
Network Camera User’s Guide
Logging in to Homepage
Before Operation
Install the IP Address of Network Camera
When you installed your Network camera on your LAN environment, you may execute
IPFINDER.EXE to discover Network camera’s IP address.
IPCam Finder program (IPFINDER.EXE) is used to scan the Installed Network Camera,
setting the Network Camera Name, IP address settings and so on.
Using your mouse to select any one of the Network Cameras within your LAN
environment, you can find out its IP address and other IP parameters as follows:
15/95
Page 16
Network Camera User’s Guide
1. Edit the Name of this Network Camera. Note that use “_” or “-“ to replace
“space” character to separate the name string. For example, “PT_IP” or
“PT -I P” will be right. However “PT IP” will not work here.
2. Might be needed to update the IP address of this Network Camera.
( Power recycling might be necessary)
3. Might be needed to update the Gateway Address. ( Power recycling might
be necessary)
4. Might be needed to update the Network Mask (255.255.255.0). ( Power
recycling might be necessary)
5. Might be needed to modify the port number 1 of HTTP access. ( Power
recycling might be necessary)
6. Might be needed to modify the port number 2 of HTTP access. ( Power
recycling might be necessary)
7. ‘Submit’ it.
Click “submit”, the IP information of this Network Camera will be updated after
seconds
Install the Network Camera with an ADSL Router
If the Network Camera was installed on the LAN with an A DSL router, then the Network
Camera can get a dynamic IP address from the DHCP server. However, if the Network
Camera wants to be access from the WAN, its IP address needs to be s etup as fixed IP,
also the Virtual Server function of ADSL router needs to be setup as follows:
1. Setup the Network Camera as Fixed IP, such as 192.168.0.49.
2. Enter the administrator page of ADSL router. (Use zonet ASDL router as an
example).
3. Enter the Virtual Server Page.
a. Setup the mapping of HTTP Port (80) to 192.168.0.49.
b. Restart the ADSL router.
Then the Network Camera can be access from WAN by the ADSL WAN IP Address.
16/95
Page 17
Network Camera User’s Guide
First time uses the Network Camera
The Network Camera web page communicates with the Network Camera using an
ActiveX control. The ActiveX control must be do wnloaded from the N etwork C amera and
installed on your PC. Your Internet Explorer security settings must allow for the web
page to work correctly. To use the Network Camera, user must setup his IE browser as
follows:
From your IE browse Î ”Tools” Î ”Internet Options…” Î ”Security” ΔCustom
Level…”, please setup your “Settings” as follow.
Set the first 3 items
• Download the signed ActiveX controls
• Download the unsigned ActiveX controls
• Initialize and script the ActiveX controls not masked as safe
To Prompt
17/95
Page 18
Network Camera User’s Guide
By now, you have finished your entire PC configuration for Network Camera.
18/95
Page 19
Network Camera User’s Guide
Access the Network Camera from the
Internet Explorer for the first time
1. Start the web browser on the computer and type the IP address of the Network
Camera you want to monitor as below:
The Login Window of the Network Camera is displayed:
2. Type in your login name and password under “USERNAME” and “PASSWORD”
textbox.
For the first time use (default value), input the
User Name: admin
Password:
19/95
Page 20
Network Camera User’s Guide
That’s, type in “admin” on the “USERNAME” as a default name and leave PASSWORD
textbox blank. Click “OK” button to start the main menu.
Now, you login to the Network Camera as a full-authorized administrator. You can
enter “Setting” to change the password and setup “Administrator” or “User” authority.
Please refer to “Setting” Î “User” and “IP Filter”.
3. The IE Web Page will display the “Security Warning” window, select “Yes” to install
and run the ActiveX control into your PC.
4. Display the image. After the ActiveX control was installed and ran, the first image will
be displayed.
20/95
Page 21
Network Camera User’s Guide
Logging in as an ordinary User
For ordinary user usage, “Setting”, “Trigger”, and “Capture” will be not av ailable. On the
right side of the screen, there are lots of controls and function buttons. If “Remote
camera control” is turned off by the administrator, then those control and function
buttons will not be available as well.
For the rest of this user guide, it is assumed that the “Remote camera control” will be
turned on for normal operation.
Logging in as an Administrator
If you log in the Network Ca mera as the Administrator, you can perform all the settings
provided within the software. The Administrator may be logged in at any time, regardless
of the number of the users being accessed.
21/95
Page 22
Network Camera User’s Guide
Operating the Network Camera
Start-up screen will be as follow no matter an ordinary users or an administrator.
Viewing Area: Images from the Network Camera
22/95
Page 23
Network Camera User’s Guide
Control Panel
Control Panel Area: Network Camera Manipulation and image quality control
Item Button Meaning
1 Camera
direction
2 Camera
speed
3 Preset /
Recall mode
23/95
Control camera up/down/left/right and home position
Adjust camera speed up / down
Preset: Set up camera to fixed locations before operation
Recall: Drive camera position to preset location
Page 24
Network Camera User’s Guide
During preset mode, click the number and a dialogue box for
the inquiry of location name input will appear.
4 Preset /
Recall camera
locations
Preset or Recall camera 1~16 location(s)
Ex. If you press 5, then the camera will move to preset location
5.
5 Camera tour
on / off
Turn on or off the camera tour. Camera tour is compris ed by
series of preset locations.
6 Auto pan on /
off
Turn on or off the auto pan of camera. While auto pan is on, the
camera will swing the camera from leftmost to rightmost tour
and then from rightmost to leftmost cyclically.
7 Video
resolution
Adjust Video resolution
Network Camera provides 4 resolutions:
640x480, 352x288, 320x240, 176x144
For NTSC camera: 320x240 is suitable
For PAL camera: 352x288 and 176x144 are suitable
However, all resolution are available for NTSC and PAL camera
8 Video
Adjust video brightness of camera
brightness
adjustment
9 Frame rate
adjustment
Adjust video frame rate via scrolling the listed numbers: 1, 5,
10, 15, 20, 25, 30
10 Audio On/Off Turn on/off audio output function. Note: This function is not
available in Network Camera.
11 Video quality
adjustment
Adjust video quality.
Clarity: Video is better but frame rate may be slower
Fluency: Video is not as good as Clarity but frame rate may be
higher
Default: System default value
24/95
Page 25
Network Camera User’s Guide
Advanced Function Area
Advanced function area: only available for administrator. It has contained three
categories.
Setting System Configuration
Trigger Send out current message or setup activities
Capture Capture current screen and save to HDD or other media
Setting menu consists of the Basic menu and the Application menu. The Basic menu is
used for basic settings of the Network Camera, and the Application menu is used for
setting various applications according to individ ual. Click on each menu name to display
its setting page.
Basic Setting
For the setting, you will see there are divided into two categories – Basic Setting and
Application.
Basic Setting
Symbol Item Action
System Define Frame Rate, Turn on/off “Remote camera control”, and
view system log file.
Camera Adjust camera parameters and set camera tour
Network Configure Network setting such as DHCP On/Off, DDNS and
PPPoE
User Setup user name, password and login privilege
IP Filter Setup legal IP address of user login (This function should be
used with function “User” respectively)
25/95
Page 26
Network Camera User’s Guide
System: Define Frame Rate and Turn on/off “Remote camera control”
System ID:
It’s a unique number for each Network Camera for identification.
Camera Name:
You can enter the name of this unit here. It’s very useful to identify the specific device
from multiple units. Note that use “_” or “-“ to replace “space” character to separate the
name string. For example, “PT_IP” or “PT-IP” will be ok and “PT IP” will not work here.
Default frame rate:
You can set up frame rate here or via right-side control panel.
For example, set the frame rate to 5 FPS, then the image will be updated for 5 frames
per second, the time interval can be checked by the time displayed on the image.
Remote camera control:
Turn on “Remote camera control”: users will be able to use righ t-side control panel vice
versa.
Log:
26/95
Page 27
Network Camera User’s Guide
User can check the log information of the Network Camera, including the Main Info,
Appended Info, Operator IP, Operator MAC, and Time.
Select the “View” button to check the log file.
27/95
Page 28
Network Camera User’s Guide
Camera: Adjust Camera parameters
Camera PT:
User can control the direction of Pan and Tilt as wish.
Reverse Pan: Check this option to reverse pan direction.
Reverse Tilt: Check this option to reverse tilt direction.
Image Size:
Network Camera provides 4 resolutions:
• 176x144
• 320x240
• 352x288
• 640x480
Image Quality:
The Network Camera provide 3 quality setting,
Clarity: Video is better but frame rate may be slower
Fluency: Video is not as good as Clarity but frame rate may be higher
28/95
Page 29
Network Camera User’s Guide
Default: System default value.
Note: The value on the list box display the current setting of the current image, when
you make a new selection, the value on the list box will be changed until you save the
new setting.
Image, Mirror, Focus Mode, White Balance Mode, Exposure Mode:
These functions are available for PTZ Network Camera and Video Server only. It’s not
functional for this model.
Saturation, Sharpness, Contrast, Hue:
To control the camera parameters, key in these values respectively.
Audio:
PCM and ADPCM could be selected as compression method of audio. Normally,
ADPCM could generate smaller size of audio data rate.
Camera Tour:
Tour Name: The group name of the sequence of camera tour
Dwelling Time: The time period between every tour point.
Sequence: 16 points can be assigned. The tour point will also show the location name if
you had entered the location name while preset the camera.
Enable: Which sequence group should be activated.
To use the camera tour function, user must preset some camera positions first. The
maximum number of preset points is16.
In the Camera Tour page, choose the one tour name from A to E. Fill the dw elling time
and tour sequence by preset points, and then save thes e setting. Yo u can repeat above
procedure to set more camera tours.
29/95
Page 30
Network Camera User’s Guide
Now, you could choose one of the camera tours and click “SAVE” button to enable it.
Reset to Default:
Restore the values of these pages to factory default value.
30/95
Page 31
Network Camera User’s Guide
Network: Configure Network setting such as DHCP On/Off, DDNS and
PPPoE
DHCP:
DHCP: Stands for Dynamic Host Configuration Protocol.
“DHCP ON” is default network setting of the N etwork Camera, when a Ne twork Camera
is joined into the LAN, it will issue the DHCP packets to request an IP address that is
dynamically assigned by the DHCP server. If it can not get a DHCP address on a limited
tries, the Network Camera will assigned a default IP address as the default IP address.
31/95
Page 32
Network Camera User’s Guide
IP address, Subnet mask, Default gateway, Primary DNS, Secondary DNS:
If you turn DHCP OFF, then you need to enter those network parameters by yourself.
Note: User need to reboot the Network Camera to make this setting to take effect.
HTTP Port 1:
Users could assign the port number o f http protocol, and the WAN users should follow
the port number to login. If the http port1 is n ot assigned as 80, u sers have to add the
port number in back of IP address. For example: http://211.223.36.58:12000
. If the http
port1 is assigned as 80, users do not have to add the port number in the back of IP
address.
HTTP Port 2:
The function is the same as http port 1. It’s the second choice of the port number.
Current implementation supports 2 HTTP port se tting, the Http port 1 set to 80, the Http
port 2 is not defined. The user can access the IPCam by
http://xx.xx.xx.xx/
http://xx.xx.xx.xx:xxxx/
, or
to access the IPCam.
Suggest keeping the Http port 1 as 80 to make sure the IPCam can be accessed by the
default HTTP port setting access on the LAN. http://xx.xx.xx.xx/
If multiple IPCams are installed on the LAN, also required to be accessed from the WAN,
then the Http port 2 can be changed as the virtual server port mapping to support
multiple IPCams.
Note: If you just want to reboot system w ithout change anything. You could click S AVE
button directly, then system will reboot again without any setting changed.
IP Finder:
User can use IPCam Finder software program to find Network Cameras on the LAN.
User also can set related parameters of Network Camera by IPCam Finder. However if
administrator does not allow related parameters to be modified by IPCam Finder, then
disable this option.
DDNS:
DDNS: Stands for Dynamic Domain Name Server
The Network Camera supports DDNS. DDNS allows the Network Camera to use an
easier way to remember naming format rather than an IP address. The name of the
domain is like the name of a person, and the IP address is like his phone number. On
the Internet we have IP numbers for each host (computer, server, router, and so on),
32/95
Page 33
Network Camera User’s Guide
and we replace these IP numbers to eas y remember names, which are organized into
the domain name. As to ADSL environment, most of the users will use dynamic IP
addresses. If users want to set up a web or a FTP server, then the Dynamic Domain
Name Server is necessary. For more DDNS configuration, please consult your local
dealer.
Your Internet Service Provider (ISP) provides you at least one IP address whic h you us e
to connect to the Internet. The address you get ma y be static, meaning it never changes,
or dynamic, meaning it’s likely to change periodically. Just how often it changes,
depends on your ISP. A dynamic IP address complica tes remote access since you may
not know what your current WAN IP address is when you want to access your network
over the Internet. The solution to the dynamic IP address problem comes in the form of a
dynamic DNS service.
The Internet uses DNS servers to lookup domain names and translates them into IP
addresses. Domain names, such as www.veo.com, are jus t easy to remember aliases
for IP addresses. A dynamic DNS service is unique because it provides a means of
updating your IP address so that your listing will remain current when your IP address
changes. There are several excellent DDNS services available on the Internet and best
of all they’re free to use. Two such services you can use are www.no-ip.com and
www.DynDNS.org. You’ll need to register with the service and set up the domain name
of your choice to begin using it. Please refer to the home page of the service for detailed
instructions.
A DDNS service works by uploading your WAN IP address to its servers periodically.
Your gateway-router may support DDNS directly, in which case you can enter your
DDNS account information into your router and it will update the DDNS servers
automatically when your IP address changes. Please consult your router’s
documentation for more information. If your router does not support DDNS, you can run
a small client utility on any PC on your network which will perform the updating. The
client utility is usually provided for free by the service.
33/95
Page 34
Network Camera User’s Guide
PPPoE:
PPPoE: Stands for Point to Point Protocol over Ethernet
A standard builds on Ethernet and Point-to-Point network protocol. It allows a local PC
with xDSL or cable connects with broadband network. Also this local PC gets a dynamic
IP address. For more PPPoE and Internet configuration, please consult your local dealer
or ISP.
34/95
Page 35
Network Camera User’s Guide
The Network Camera can directly connect to the ADSL, however, it should be setup on
LAN environment to setup the PPPoE information, and then connect to the ADSL
modem. Power on again, then the Network Camera will dial on to the ISP connect to the
WAN through the ADSL modem.
The procedures are
• Connect to the LAN by DHCP or Fixed IP
• Access the Network Camera, enter Setting Î Network.
• Check the radio button of “PPPoE Setting”.
• If the ADSL Modem and Network Camera were connected on a hub, after the
Network Camera information were inputted, and then you can press “Dial” to do
35/95
Page 36
Network Camera User’s Guide
the PPPoE dial.
• Input the “User” and “Password” fields by the account an d password provided by
the ISP.
• If the check box of “Send Mail after dialed” was checked, then the “MailServer“ and
“User on the MailServer” field need to be filled.
• If the mail server needs authentication, th en the check box of “ Password” needs to
be checked, and password information need to inputted.
• Also the “Sender email”, “Receiver email” needs to be inputted.
• The “Subject” field can be modified too.
• Select “Save” to save the setting.
If the PPPoE option “Send mail after dialed”, then when PPPoE dialed up to ISP, a mail
that contains the Dialup IP Address/ Netmask/ Gateway address/ DNS Server address
will be mailed to preset e-Mail address.
36/95
Page 37
Network Camera User’s Guide
User: Setup user name, password and login privilege
Disable Authentication: If user checks this option, Network Camera or Video Server
will not check username and password any more while user log into the system.
User only can input or modify the password of “Administrator”. The username of
“Administrator” is fixed as “admin”
You can set up to 10 differen t usernames and passwords. Although there are 10 sets
only, you may have one group of people use one username and password to login.
Every one set of username and password can be acted as an Administrator or just a
normal user.
Select “Save” to save the setting.
37/95
Page 38
Network Camera User’s Guide
IP Filter: Setup user login right (This function should be used with function
“User” respectively).
You can enter 10 different user’s IP address which are allowing en ter or disregarding by
the Network Camera.
You should configure “User” before “IP Filter”. Each “User” username and password
matches with one “IP Filter” user.
Select “Save” to save the setting.
38/95
Page 39
Network Camera User’s Guide
Function Notification
The page of user setting is very closely related to the IP filter settings. While the
administrators are setting these two pages, they should notice that login
authorities are not only based on the login names bu t also the range of IP addresses.
Administrators could reject login users according to both login n ames and IP addre sses.
We setup several examples to explain the logical relations betwe en log in names an d the
IP policy. The users login in the name of ”admin” have the most power. System will
always accept no matter how IP filter setting was set.
-1-.
(User page) Login name 1= 12345, Password=12345, Access Authority=whatever
(IP filter page) Default Policy=Allow, login name1 comes from 192.168.0.A to B=Allow
That is, when the remote users login in the name of 12345 and come from the IP
addresses 192.168.0.A to 192.168.0.B, login will be successful. If these users did not
come from the IP addresses A to B, login access will be rejected.
-2-.
(User page) Login name 1= 12345, Password=12345, Access Authority=whatever
(IP filter page) Default Policy=Allow, login name1 comes from 192.168.0.A to B=Deny
That is, when the remote users login in the name of 12345 and come from the IP
addresses 192.168.0.A to 192.168.0.B, login will be denied. If these users did not
come from the IP addresses A to B, login access will be successfu l.
-3-.
(User page) Login name 1= 12345, Password=12345, Access Authority=whatever
(IP filter page) Default Policy=Deny, login name1 comes from 192.168.0.A to B=Allow
That is, when the remote users login in the name of 12345 and come from the IP
addresses 192.168.0.A to 192.168.0.B, login will be successful. If these users did not
come from the IP addresses A to B, login access will be rejected.
-4-.
(User page) Login name 1= 12345, Password=12345, Access Authority=whatever
(IP filter page) Default Policy=Allow, login name1 comes from 192.168.0.A to B=Allow
That is, login of all the login names will be rejected except the login name “admin”.
39/95
Page 40
Network Camera User’s Guide
Application Setting
Application
Symbol Item Action
FTP Client Setup the Network Camera as a client site and configure
Server site in order to upload images to server
SMTP Setup Mail configuration
Memory
Alarm 1 Setup Alarm Output 1 action via manual or event
Alarm 2 Setup Alarm Output 2 action via manual or event
Setup CF memory card setting or view the pictures stored in
CF memory card (Note: for CF memory card enabled version
only)
Schedule Set the schedule to enable motion detection
Motion
Setup motion detection area and sensor sensitivity
Detection
Time
Setup the Network Camera time configuration
Setting
Popup Setup event message while motion or sensors has been
activated
Firmware
Firmware upgrade
Upgrade
Factory
Recall the Network Camera factory default setting
Default
Reboot Reboot this device
40/95
Page 41
Network Camera User’s Guide
FTP Client: Setup the Network Camera as a client site and configure
Server site in order to upload images to server
When alarm was enabled, user can send the captured images to the pre-set FTP server.
Entering server name and your login username and password, you will be able to upload
those previous captured image to the FTP server. You ca n also send data to the server
according to different situation such as by event or by period.
FTP server name:
Type the FTP server name to upload still images, or the IP address of the FTP server.
User name:
Type the user name for the FTP server.
Password:
Type the password for the FTP server.
Remote path:
41/95
Page 42
Network Camera User’s Guide
Type the path to the destination.
Image file name:
Type the basic file name you want to assign to the images when sending to the FTP
server.
Suffix:
Select the suffix to add to the file name.
- None:
No suffix is added. The basic file name is assigned to the image to be
sent to the FTP server.
- Date/Time:
The date/time suffix is added to the file name. The date/time suffix consists of
lower two-digits of year (2 digits), month (2 digits), date (2 digits), hour (2 digits),
minute (2 digits), second (2 digits) and consecutive number (2 digits), thus
14-digit number is added to the file name.
- Sequence number:
A consecutive number is added to the basic file name. A number of up to 10
digits between 0000000000 to 4294967295 is added to the file name.
Sequence No. clear:
Reset the sequence number to 0000000000.
Mode:
Send a captured image via three di fferent s i tuation s – v ia e ven t such as mo tion de tected
or sensor1/2 activated or send it periodically or off.
Select “SAVE” to save the setting.
42/95
Page 43
Network Camera User’s Guide
SMTP: Setup Mail configur ation
When alarm was enabled, user can setup the mail to s end the captured images to the
pre-set mail address.
You may setup SMTP mail parameters for future event-message receiving such as
motion detected or sensor activated.
SMTP server name:
Type the SMTP server name up to 64 characters, or the IP address of the SMTP server.
User name:
Type the user name for the SMTP server.
Password:
Type the password for the SMTP server.
43/95
Page 44
Network Camera User’s Guide
Sender’s e-mail address:
Type the sender’s E-mail address.
Receiver’s e-mail address:
Type the receiver’s e-mail address. This address is used for reply mail. Note: you can
key in multiple receiver’s email address at the time.
Subject:
Type the subject/title of the E-mail up to 64 characters.
Mode:
Send a captured image via three di fferent s i tuation s – v ia e ven t such as mo tion de tected
or sensor1/2 activated or send it periodically or off.
Select “SAVE” to save the setting.
44/95
Page 45
Network Camera User’s Guide
Image Memory: Setup CF memory card setting or view the pict u r es
stored in CF memory card
Note1: This function is for CF memory card enabled version only. If this option is not
listed on setting menu, it means this Network Camera does not support C F memory card
function.
Note2: Currently, only SAM-DISK®’s CF memory card is approved for this device. We
could not guarantee compatible issue for other CF memory card.
User can store the picture into CF memory card locally by this func tion. It’s very useful to
keep image as evidence even though without remote surveillance and remote recording.
Image Memory:
Choose enable button will activate the CF memory card recording function or choose
disable button will stop this function.
Note: Because this device does not support plug and play function yet. Therefore, while
you want to plug a CF memory card into slot, please make sure power off the device first,
45/95
Page 46
Network Camera User’s Guide
then plug this CF memory card securely. When you want to remove this CF memory
card from device, make sure click the disable button first, power off this device, and then
remove this CF memory card. Otherwise, this CF memory card may be damaged and all
image files are lost.
File Name:
The recording filename can be based on either date/time or sequence number.
Overwrite:
While the attached CF memory card is full, either stop recording or overwrite the oldest
file.
Capacity Warning:
While the attached CF memory card is full, this device can send a email for warning.
Mode:
Send a captured image via three di fferent s i tuation s – v ia e ven t such as mo tion de tected
or sensor1/2 activated or send it periodically or off.
Free Space:
Show the available space of the attached CF memory card.
Memory Content:
This function can view or delete the image files stored in the CF memory card.
Select “SAVE” to save the setting.
46/95
Page 47
Network Camera User’s Guide
Alarm 1: Setup Alarm Output 1 action
Duration:
Set up the alarm duration. “0” means the alarm working always.
Mode:
You can issue an alarm output action by manual or event such as motion detected or
sensor1/2 activated.
Select “SAVE” to save the setting.
47/95
Page 48
Network Camera User’s Guide
Alarm 2: Setup Alarm Output 2 action
Duration:
Set up the alarm duration. “0” means the alarm working always.
Mode:
You can issue an alarm output action by manual or event such as motion detected or
sensor1/2 activated.
Select “SAVE” to save the setting.
48/95
Page 49
Network Camera User’s Guide
Schedule: Setup event schedule
The schedule setting is used to set the time schedule for events. The event may be “Star
Motion Detection” or others. There are 6 schedules to be programmable.
Select “SAVE” to save the setting.
49/95
Page 50
Network Camera User’s Guide
Motion Detection: Setup motion detection area and sensor sensitivity
The motion detection is implemented by a patented software algorithm, it runs on the
Network Camera, due to a larger processing power of motion detection, the overall
performance of Network Camera will be degraded; the frame rate may be reduced.
You can enable or disable motion detection. If your enable motion detection, you can
also setup detection sensitivity from one of three sensitivity levels.
By dragging mouse position on the image, you can see a red-box area which is the
motion detection area according to your sensitivity.
50/95
Page 51
Network Camera User’s Guide
T ime Setting: Setup the Network Camera time configuration
You can setup the Network Camera time or make it synchronized with PC or remote
server. Also, you may select your time zone in order to synchronize time locally.
Synchronize the time with PC’s time:
This is the default time adjust mode, the check box of “Synchronize with PC’s time”
would be checked by default.
Press “SAVE” button to do the time synchronization with PC time.
After the “SAVE” button was set, the Network Camera time will be synchronized as PC’s
time. From the setting, the Server’s time is the same as PC’s time.
Change the time manually:
The following steps can change the time manually
1. Select the check box of “User Input”
2. Change the date according to the “yyyy/mm/dd” format.
3. Change the time according to the “hh:mm:ss” by 24 hours format.
4. Select the new time zone setting.
5. Select the “Adjust” button to adjust the time.
The time was changed by checking the “Server: “ time field.
51/95
Page 52
Network Camera User’s Guide
Get Time from a NTP server:
Select “NTP” Button
Key in the NTP server’s IP address.
Press “SAVE” to activate it.
After the Network Camera gets the time from NTP server, it will update the
Network Camera’s time field.
52/95
Page 53
Network Camera User’s Guide
Popup: Setup event message while motion or sensors has been activated
When any one of alarms enabled, and one of them de tected, then a message window
will be displayed on the screen.
You can have output message in case of ev ents activated such as sensors or motion
detection to warn user.
53/95
Page 54
Network Camera User’s Guide
Firmware upgrade:
The Network Camera supports firmware upgrades (the software that controls the
operation in the Network Camera). We would supply the latest firmware version for
upgrade. Please contact your dealer for the latest version.
Download the latest firmware file from our website. Unzip this firmware file to binary file
and store it into your PC. The file name should be RZ.BIN or similar for the Network
Camera. Then follow the steps as bellows carefully:
1. Close all other application programs which are not necessary for firmware update.
2. Disable Motion Detection function.
3. Disable Camera Tour function.
4. Set the video resolution to 176 x 144 or smaller.
5. Set the frame rate to 1 fps.
6. Select “Firmware update”
7. The Firmware Upgrade menu will appear:
8. Select the Firmware binary file. (It must be make sure that the Firmware only apply to
54/95
Page 55
Network Camera User’s Guide
Network Camera, once update, it will be burned into FLASH ROM of system.)
9. Once the firmware file was selected, select “Upload”.
10. Press the “here” button to begin to upgrade firmware.
11. Press the “OK” button to continue.
55/95
Page 56
Network Camera User’s Guide
The upgrade progress status information will be displayed on the screen.
Warning: The download firmware procedure can not be interrupted. If the
power and/or network connection are broken during the download procedure, it
might possibly cause serious damage to the Network Camera. Su ggest that do not
upgrade firmware via Wireless LAN due to high error rate possibly .
Please be aware that you should not turn off the power during updatin g the fir mware and
wait for finish message.
Once the upgrading process completed, the Network Camera will reboot the system
automatically.
Note: please wait for 20 seconds, and then you can connect to Network Camera again.
56/95
Page 57
Network Camera User’s Guide
Factory Default: Recall the Network Camera factory default setting
The “Factory Default” button will restore to the factory default configuration, all
information changed and saved on the flash will be lost, and restored to the factory
default setting.
You will be prompt before restore to factory default setting.
Select “OK” to continue, or “Cancel” to abort it.
57/95
Page 58
Network Camera User’s Guide
Reboot: Reboot the Network Camera by hardware reset
The “Reboot” button will reboot the Network Camera. It’s useful while the Network
Camera got problem.
You will be prompt before restore to factory default setting.
Select “OK” to continue, or “Cancel” to abort it.
58/95
Page 59
Network Camera User’s Guide
Trigger
You can send an image or output a trigger to control the alarm output, using Trigger section
on the main page.
Action Meaning
FTP Upload a captured image to server
Mail Mail captured image to specific mail address
Alarm 1 Enable Alarm output 1
Alarm 2 Enable Alarm output 2
Clear Alarm 1 Clear both alarm output 1 status
Clear Alarm 2 Clear both alarm output 2 status
Noted:
This function is available for logging-in as an administrator only.
59/95
Page 60
Network Camera User’s Guide
Capture
You can capture current image and save it to storage media. The image is saved in the
JPEG format.
Noted:
This function is available for logging-in as an administrator only.
60/95
Page 61
Network Camera User’s Guide
RightMouseButton of ActiveX
Control
On the view of video, the plu g-in Ac tiveX con trol support a lo t of functions b y clicking the
right mouse button. This feature only supports on the ActiveX control within Microsfoft®
Internet Explorer.
On the ActiveX control, right click the RightMouseButton, then a menu pop-up. This
menu provides feature that are unique to the ActiveX control. These functions include
• “View”,
• “Splits”,
• “Rotate”,
• “Quality”,
• “Resolution”,
• “Image Recording…”,
• “Save Current Picture As …”
…
61/95
Page 62
Network Camera User’s Guide
View Menu
“Resizable”
Make the image is resizable, but “Actual size di sable”, the “Splits” is supported on
this mode.
“Actual size “
Make the image show as the actual size, the “Splits” function does not work on this
mode.
“StatusBar”
A status bar display on the button of the image.
“View”
It makes the image resizable.
After the “Resizable” was selected, the border of the image changed to resizable border.
62/95
Page 63
Network Camera User’s Guide
After the “Actual size” was selected, the image will displayed as the actual size, in this
example, the image displays as a 640 x 480 pixels.
After the “Statusbar” was selected, a status bar will be displayed on the bottom of the
image. It displays
63/95
Page 64
Network Camera User’s Guide
• Status
Open/Close camera status
• Resolution
704x576, 640x480, 320x240, 352x288, 176x144, 160x120 (PAL)
640x480, 320x240, 352x288, 176x144, 160x120 (NTSC)
• Quality
Highest, High, Medium, Low, Lowest
• Split
1x1, 2x2, 3x3, 4x4
• Rotate
- Normal: “Rotate 0”, th e defau state.
- Rotate: “Rotate 180”, rotate the image by 180 degree; used on the
camera was up side down mounted.
- Flip Vertical : Flip the image vertically.
- Flip Horizontal : Flip the image horizontally.
• Frame Rate
• URL
64/95
Page 65
Network Camera User’s Guide
“Split”
This function is used to support 4CH Video Server. Therefore, it’s not so useful in
Speed Dome Network Camera.
65/95
Page 66
Network Camera User’s Guide
“Rotate”
After the “Rotate 180” was selected, the image will be overturned from 0 to the
angle 180.
66/95
Page 67
Network Camera User’s Guide
After the “Flip Vertical” was selected, the image will be overturned vertically.
After “Flip Horizontal” was selected, the image will be overtu rned horizontally.
“Resolution”
If Network Camera type is NTSC, it will have 5 choices of resolution: 640x480, 352x288,
320x240, 176x144, and 160x120. While users control the PAL type of the Network
Camera, they could have 6 choices of resolution: 704x576, 640x 480, 352 x288, 320x240,
176x144, and 160x120.
The control method is the same as control panel’s “Quality”.
67/95
Page 68
Network Camera User’s Guide
“Quality”
Highest (The same as “Clarity” on control panel )
High
Medium (The same as “Default” on control panel )
Low
Lowest (The same as “Fluency” on control panel )
The control method is the same as control panel’s “Quality”.
“Image Recording…-> Save as JPEG”
Select “Image Recording…”
The “Image Recording” pop-up window displays, select
“Save as JPEG”
Input the “Download Number” for the number of images desire to be saving, or
“Download No Limit” to save the images continuous, until the “Stop Image Recording” is
selected.
Select “SaveAs” , the pop-up window to select the save path and file name prefix, select
“Save” to continue.
Select “Start” to do the images download and save as JPEG files into the local PC.
68/95
Page 69
Network Camera User’s Guide
During the download and save as JPEG files process, the yellow mark will be displa yed
on the right-down position to indicate the saving as JPEG files operation.
Before the “Download Number” of images is reached, or “Download No Limit”, select
“Stop Image Recording” to stop the image recording process.
69/95
Page 70
Network Camera User’s Guide
After “Stop Image Recording”, list the files, these files are named as
“Image Recording…-> Save as AVI”
1. Select “Image Recording…”
2. The “Image Recording” pop-up window displays, select
3. “Save as AVI”
4. Input the ”Avi Frame” and “Max Jpeg Num” on each AVI file, until the “Stop Image
Recording” is selected. “Avi Frame” is the frame rate setting of the recorded AVI
file.
5. For each AVI file, the maximum saved images in each file are specified in “Max
Jpeg Num”, once the saves image on each AVI file are reached by this number,
then a new AVI file will created to save the following images, until the “Stop
Image Recording” is selected.
6. Select “SaveAs”, the pop-up window to select the save path and file name prefix,
select “Save” to continue.
70/95
Page 71
Network Camera User’s Guide
Select “Start” to start the AVI files recording.
During the AVI file recording, a red icon displays on right-down position of the image to
indicate the AVI saving process.
71/95
Page 72
Network Camera User’s Guide
Press the “Stop Image Recording” to stop the save as AVI process.
After the “Stop Image Recording”, list the file on the selected saved directory, the file
were saved by the filename_prefix_date_time.avi.
72/95
Page 73
Network Camera User’s Guide
The AVI files can be display by the standard Windows Media Player, but it needs the
DixectX 9.0 or higher version to be installed.
73/95
Page 74
Network Camera User’s Guide
“Save Current Picture As …”
Use the “Save Current Picture As …” to save the current display image into the local PC.
Input the saved “File name”, select “Save”
If you like to retrieve the saved image, select the file to display the saved image
by using any one of graph editing tools.
74/95
Page 75
Network Camera User’s Guide
75/95
Page 76
Network Camera User’s Guide
Appendix A: Restore Factory
Default Settings
There is a button hidden in the pinhole above the Alarm I/O connector. It is used to
restore the factory default settings. Sometimes restarting the Network Camera will make
the system back to a normal state. If the system still got problems after reset, user can
restore the factory default settings and install it again.
Restore the Network Camera:
1. Power off the Network Camera.
2. Insert the paper clip or other tool and press and hold the button down
continuously.
3. Power on the Network Camera again.
4. Wait at least 8 seconds and release the tool. Then the Network Camera has
been restored to default settings.
5.
Note: Restoring the factory default setting will lose the all previous settings forev er. U ser
needs to run the IP Finder program to search the Network Camera and configure it to let
the Network Camera work properly again.
76/95
Page 77
Network Camera User’s Guide
Appendix B: Alarm I/O Connector
Interfacing to the External I/O
Some features of the Network Camera can be activated by an external sensor that
senses physical changes in the area Network Camera is monitoring. These changes c a n
include intrusion detection or certain physical change in the monitored area. For
examples, the external sensor can be a door switch or an infrared motion detector.
These devices are customer provided, and are available from dealers who carry
surveillance and security products. Electrically, they must be able to provide a
momentary contact closure.
This Network Camera provides a general I/O terminal block with two digital inputs and
two outputs for device control. Pin 7 and 8 can be connected to an external sensor 1. Pin
7 and 6 can be connected to an external sensor 2. Both of the inputs, the voltage will be
monitored from the initial state ‘LOW’. The rela y switch of pin 3, 4 and 5 can be used to
turn on or off the external devic e 1. The relay switch of pin 1 and pin 2 can be used to
turn on or off the external device 2. External Inputs/Outputs are working independently.
Pin Function
1 Alarm Output #2 (NO)
2 Alarm Output #2 (COM). Max 24VDC, 1A
3 Alarm Output #1 (NO)
4 Alarm Output #1 (COM)
5 Alarm Output #1 (NC). Ma x 24VDC, 1A
6 Alarm Input #2 (A). Max 24VDC, 12mA
7 Alarm Input #1/2 (K).
77/95
Page 78
Network Camera User’s Guide
8 Alarm Input #1 (A). Max 24VDC, 12mA.
Explanation of External I/O Circuit Diagram Example
CAUTION!
• THE LOW VOAGE/CURRENT CIRCUITS AND HIGH VOAGE/ CURRENT CIRCUITS
ARE IN THE NETWORK CAMERA CIRCUIT. THE QUALIFIED ELECTRICIAN
SHOULD DO THE WIRING NOT BY YOURSELF. INCORRECT WIRING COULD
DAMAGE NETWORK CAMERA. YOU COULD RECEIVE THE FATAL ELECTRIC
SHOCK.
• THE EXTERNAL I/O IS NOT CAPABLE OF CONNECTING DIRECTLY TO DEVICES
THAT REQUIRE LARGE AMOUNTS OF CURRENT. IN SOME CASES, A CUSTOM
INTERFACE CIRCUIT (CUSTOMER PROVIDED) MAY HAVE TO BE USED. SERIOUS
DAMAGE TO NETWORK CAMERA MAY RESU IF A DEVICE IS CONNECTED TO
THE EXTERNAL I/O THAT EXCEEDS ITS ELECTRICAL CAPABILITY.
78/95
Page 79
Network Camera User’s Guide
79/95
Page 80
Network Camera User’s Guide
Appendix C: Troubleshooting &
Frequently Asked Questions
Question Answer or Resolution
Features
The video and audio
codec is adopted in the
Network Camera.
The maximum number
of users access Network
Camera simultaneously.
The Network Camera
can be used outdoors or
not.
Status LED does not
light up.
The network cabling is
required for the Network
Camera.
The Network Camera
will be installed and work
if a firewall exists on the
network.
The username and
password for the first
time or after factory
default reset
Forgot the username
and password
The Network Camera utilizes JPEG compression to providing
high quality images. JPEG is a standard for image
compression and can be applied to various web browsers
without the need to install extra software.
The audio codec is ADPCM compression.
The maximum number of users is depend on the total
bandwidth accessed to Network Camera from clients. The
data throughout of Network Camera is around 5~6Mbps.
Therefore, the maximum number of connected clients is
varying by settings of resolution and frame rate. Obviously,
the performance of the each connected client will slow down
when many users are logged on.
The Network Camera is not weatherproof. It needs to be
equipped with a weatherproof case for outdoors using.
However, equipped with a weatherproof case will disable the
audio function of Network Camera.
Install Network Camera
• Check and confirm that the standard AC adaptor, included
in packaged, is used. Secure the power connector and re
power it on again.
• If the problem is not solved, the Network Camera might be
faulty. Contact your dealer for further help.
The Network Camera uses Category 5 UTP cable allowing 10
and/or 100 Base-T networking.
If a firewall exists on the network, port 80 is open for ordinary
data communication. The Network Camera uses port
80(default) only. This port (or the port you specify from the
Configuration screen if you change the default port) needs to
be opened on the firewall.
Username = admin and leave password blank.
Note that it’s all case sensitivity.
Follow the steps below.
1. Restore the factory default setting by press pressing and
holding down more than 8 seconds when power on
80/95
Page 81
Network Camera User’s Guide
Forgot the IP address of
the Network Camera.
IP Finder program
cannot find Network
Camera.
Internet Explorer does
not seem to work well
with the Network
Camera
Network Camera.
2. Reconfigure the Network Camera.
Check IP address of Network Camera by using the IP Finder
program.
• Re power the Network Camera if cannot find the unit within
1 minutes.
• Do not connect Network Camera over a router. IP Finder
program cannot detect Network Camera.
• If IP address is not assigned to the PC which running IP
Finder program, then IP Finder program cannot find Network
Camera. Make sure that IP address is assigned to the PC
properly.
• Antivirus software on the PC might interfere with the setup
program. Disable the firewall of the antivirus software during
setting up Network Camera.
Make sure that your Internet Explorer is version 5.0 or later. If
you are experiencing problems, try upgrading to the latest
version of Microsoft’s Internet Explorer from the Microsoft
webpage at: http://www.microsoft.com/windows/ie.
IP Finder program fails
to save the network
parameters.
Cannot access the login
page and other web
pages of Network
Camera from Internet
Explorer
• Don’t leave any space in the name field. Use underline, “_”,
or dash, “-“ to replace the space, “ “.
• Network may have trouble. Confirm the parameters and
connections of the Network Camera.
Access Network Camera
• Maybe the IP Address of the Network Camera is already
being used by another device or computer. To confirm this
possible problem, disconnect the Network Camera from the
network first, and then run the PING utility to check it out.
• Maybe due to the network cable. Try correcting your
network cable and configuration. Test the network interface
by connecting a local computer to the Network Camera via a
crossover cable.
• Make sure the Internet connection and setting is ok.
• Make sure enter the IP address of Internet Explorer is
correct. If Network Camera has a dynamic address, it may
have changed since you last checked it.
• Network congestion may prevent the web page appearing
quickly. Wait for a while.
The IP address and Subnet Mask of the PC and Network
Camera must be in the same class of the private IP address
on the LAN.
• Make sure the http port used by the Network Camera,
default=80, is forward to the Network Camera’s private IP
address.
• The port number assigned in your Network Camera might
not be available via Internet. Check your ISP for available
port.
• The proxy server may prevent you from connecting directly
81/95
Page 82
Network Camera User’s Guide
to Network Camera, set up not to use the proxy server.
• Confirm that Default Gateway address is correct.
• The router needs Port Forwarding feature. Refer to your
router's manual for details.
• Packet Filtering of the router may prohibit access from an
external network. Refer to your router's manual for details.
• Access Network Camera from the Internet with the global IP
address of the router and port number of Network Camera.
• Some routers reject the global IP address to access
Network Camera on the same LAN. Access with the private
IP address and correct port number of Network Camera.
• When you use DDNS, you need to set Default Gateway and
DNS server address.
• If it’s not working after above procedure, reset Network
Camera to default setting and installed it again.
• If the problem is not solved, the Network Camera might be
faulty. Contact your dealer for further help.
Image or video does not
appear in the main page.
• The first time the PC connects to Network Camera, a
pop-up Security Warning windo w will appear to download
ActiveX Controls. When using Windows NT, Windows 2000
or Windows XP, log on with an appropriate account that is
authorized to install applications.
• Network congestion may prevent the Image screen from
appearing quickly. You may choose lower resolution to
reduce the required bandwidth.
Check the Network
Camera’s ActiveX is
installed on your
computer
Go to C:\Windows\Downloaded Program Files and check to
see if there is an entry for the file “WebWatch Class”. The
status column should show “Installed”. If the file is not listed,
make sure your Security Settings in Internet Explorer are
configured properly and then try reloading the Network
Camera’s home page. Most likely, the Network Camera
ActiveX control did not download and install correctly. Check
your Internet Explorer security settings and then close and
restart Internet Explorer. Try to browse and log in again.
Internet Explorer
displays the following
message: “Your current
Setup the IE security settings or configure the individual
settings to allow downloading and scripting of unsigned
ActiveX controls.
security settings prohibit
downloading ActiveX
controls”.
The Network Camera
work locally but not
externally.
• Might be caused from the firewall protection. Check the
Internet firewall wi th y our syst em or network administrato r.
The firewall may need to have some settings changed in
order for the Network Camera to be accessible outside your
LAN.
• Make sure that the Network Camera isn’t conflicting with
any other web server running on your LAN.
• Check the configuration of the router settings allow the
Network Camera to be accessed outside your local LAN.
The unreadable Use the operating system of the selected language. Set the
82/95
Page 83
Network Camera User’s Guide
characters are
displayed.
Frame rate is slower
than the setting.
Blank screen or very
slow video when audio is
enabled.
Image Transfer on
e-mail or FTP does not
work.
Pan/Tilt, Zoom and
Focus do not work.
(including Click to
Center and Preset
Positioning)
Pan/Tilt, Zoom and
Focus do not work
smoothly.
Encoding or the Character Set of the selected language on
the Internet Explorer.
• The traffic of the network and the object of the image affect
the frame rate. The network congestion causes frame rate
slower than the setting.
• When more than one client were viewing, the frame rate
becomes slower.
• Ethernet switching hub can smooth the frame rate especially
in viewing on the Multi-Camera screen.
• Your connection to the Network Camera does not have
enough bandwidth to support a higher frame rate for the
streamed image size. Try reducing the video streaming size
to 176x144 or 320x240 and/or disabling audio.
• Audio will consume 32 to 64 kbps. Disable audio to improve
video. Your Internet connection may not have enough
bandwidth to support streaming audio from the Network
Camera.
• Default Gateway and DNS server address should be set up
correctly.
• If FTP does not work properly, ask your ISP or network
administrator about the transferring mode of FTP server.
• Click [Refresh] on the Internet Explorer when the
communication stops with the Network Camera. The image
will refresh.
• Other clients may be oper a ting Pan/Tilt.
• Pan/Tilt operation has reached the end of corner.
• The Pan/Tilt operation may be locked by turning off Remote
Camera Control.
There may be a slight delay when you are using the Pan/Tilt
feature in conjunction with streaming audio and video. If you
find that there is a significant delay while panning or tilting the
camera, try disabling the audio streaming and/or reducing the
video streaming size.
Video Quality of Network Camera
The focus on the
Network Camera is bad.
• The lens is dirty or dust is attached. Fingerprints, dust, stain,
etc. on the lens can degrade the performance of the
Automatic Focusing feature (for PTZ model). Clean the lens
with lens cleaner. Or adjust the camera focus manually (for
PT model)
• Manual focusing may be set. Press appropriate one of the
Focus buttons at the operation panel (for PTZ model).
• Blurred images may have been registered when registering
or modifying the preset button or home position button. Adjust
the focus in manual focusing again, or press the Auto Focus
button (for PTZ model).
• The image may be out of focus, if the object is too near, or
depending on the zoom position. Move the object off Network
Camera, or adjust the zoom position (for PTZ model).
• Some objects are difficult to focus on by Auto Focus button.
Press the Auto Focus button and put it into operation again.
83/95
Page 84
Network Camera User’s Guide
When the objects are still out of focus, adjust the focus using
manual focusing, or change the objects using Pan/Tilt
operation or Zooming features (for PTZ model).
The color of the image is
poor or strange.
• Adjust White Balance (for PTZ model).
• To insure the images you are viewing are the best they can
be, set the Display property setting (color quality) to 16bit at
least and 24 bit or higher if possible within your computer.
•The configuration on the Network Camera image display is
incorrect. You need to adjust the image related parameters
such as brightness, contrast, hue and saturation properly.
Image flickers. • Wrong power line frequency makes images flicker. Make
sure the NTSC or PAL format of your Network Camera.
• If the object is dark, the image will flicker. Make the
condition around the Network Camera brighter.
Noisy images occur.
The video images might be noisy if the Network Camera is
located in a very low light environment. Make the condition
around the Network Camera brighter.
Miscellaneous
How to Reboot the
Network Camera
If you just want to reboot system without change anything. Go
to Network page and click SAVE button directly, then system
will reboot again.
Can not play the
recorded AVI file
Have installed Microsoft®’s DirectX 9.0 or later and use the
Windows Media Player 9 or later to play the AVI filed
recorded by the ActiveX.
84/95
Page 85
Network Camera User’s Guide
Appendix D: PING IP Address
The PING (stands for Packet Internet Groper) command is used to detect whether a
specific IP address is accessible by sending a packet to the specific address and waiting
for a reply. It’s also a very useful tool to confirm Network Camera installed or if the IP
address conflicts with any other devices over the network.
If you want to make sure the IP address of Network Camera, utilize the PING command
as follows:
z Start a DOS window.
z Type ping x.x.x.x, where x.x.x.x is the IP address of the Network Camera.
The replies, as illustrated below, will provide an explanation to the problem.
If you want to detect any other devices con flicts with the IP address of Network Camera,
also can utilize the PING command but you must disconnect the Netw ork Camera from
the network first .
85/95
Page 86
Network Camera User’s Guide
Appendix E: Bandwidth Estimation
The frame rate of video transmitted from the Network Camera depends on connection
bandwidth between client and server and quality setting of server. Here is a guideline to
help you roughly estimate the bandwidth requirements form your Network Camera.
Image bandwidth is approximately equal to the a verage frame rate in frames per second
multiplied by the average frame data size in kilobits. Frame data size, or the number of
bits comprising a single video frame varies a great deal from depending on scene
complexity, lighting conditions, camera noise, etc. The table show n below is reference
figures. Actual results generated by the Network Camera may be varying.
Image Resolution Average range of Data Sizes
176 x 144 (QCIF) 20 – 40k bit
320 x 240 (QVGA) 56– 92k bit
352 x 288 (CIF) 64 – 112k bit
640 x 480 (VGA) 160 – 320k bit
For example, streaming 2 fps of 320 x 240 video requires 112 to 184 kbps (kilobits per
second). Therefore, with a 128K upload connection; you will typically see 3 to 6 frames
per second with 176 x 144 resolution and 1 to 2 frames per second with 320 x 240
resolution without audio stream.
Note: Audio streaming also takes bandwidth around 32 kbps to 64kbps.
Most ADSL/Cable modem upload speeds may not even reach up to 128
kbps. Thus, you may not be able to receiv e any video while streaming audio
on a 128 kbps or lower connection. Even thou gh the upload speed is more
than 128kbps, for optimal video performance, disabling a udio streaming will
get better video performance.
86/95
Page 87
Network Camera User’s Guide
Appendix F: Specifications
Model PT Network Camera
Control Interface
Preset Number
Horizontal rotation range
Vertical rotation range
O.P Temperature
Operating Humidity
Power Supply
Power Consumption
Alarm Input/Output
Dimension
Camera Module
Image Pick-up Device Sharp 1/3“ interline transfer CCD sensor
Effective Picture El emen t s
Horizontal Resolution
NTSC:768*494 (H*V), PAL: 752*582 (H*V)
Internet Explorer
16
0° to 325°
0° to 90°
5°C to 45°C (40°F to 113°F)
10% ~ 80%
12V DC ± 10%
6W max.
2xIn / 2xOut
120*116.5 (DXH)
380 TV lines
Sensitivity 0.2 Lux @ F=2.0
S/N Ratio
Gamma Characteristics
Auto Iris Control
Auto Gain Control Built in
Auto White Balance
Synchronous System
Video Output
BNC Video Out
IP Module
Codec
87/95
Color Temperature: 2500°K ~ 9500°K.
More than 48 dB
0.45
Video-Drive Iris Control
Internal, Negative sync.
1Vp-p / 75 Ohm
Yes
JPEG, 3 levels
Page 88
Network Camera User’s Guide
Resolution
Frame Rate
Audio Streaming
Compatibility
LAN I/F
Notification
RAM
Flash
Image Storing Memory
Operating System
Type Of IP Address Needed
Extensible Port
Firmware Upgrade
Security
Viewer
704*576, 640*480, 352*288, 320*240, 176*144, 162*120
Up to 30fps for all resolutions
Yes
Windows ME, 2000, XP, 2003
10/100M
Email, FTP
64Mb SDRAM
16Mb NOR Flash Memory
By CF Card
uCLinux
Statistic or Dynamic
CF Memory Card
Ethernet
2 Levels, Administrator or user
Microsoft® Internet Explorer 5.0 or later
IP Filtering
Networking Protocol
Communicatio n Pr ot oc o l
Yes
TCP/IP, HTTP, SMTP, FTP, NTP, DNS, DDNS, ARP and
DHCP
PPPoE
88/95
Page 89
Network Camera User’s Guide
Appendix G: Time Zone Table
GMT stands for Greenwich Mean Time which is the global time that all time zones are
measured from.
89/95
Page 90
Network Camera User’s Guide
90/95
Page 91
Network Camera User’s Guide
Appendix H: DDNS Application
1. Preface
If you have a Cable modem, xDSL, ISDN or Dialup, this is a g reat way to host your own Web
Server, FTP Server, Mail Server, Network Camera or other TCP/IP Service. Get your own
domain like www.yourname.com*, www.yourname.com.tw* etc. (Note:This domain must be
registered with Internic via registration authorities such as Network Solutions, DirectNIC,
Register.com etc). Your domain name's dynamic IP address is automatically tracked by a
DDNS server.
Host your own Web Serv er, FTP Server, Mail Server, Network Camera and much much
more no matter what your computer's IP address may be and even if you have dialup , DSL or
cable modem internet connection where your computer's IP address changes all the time!!
DDNS service supports all top level domain names including but not limited
to .com, .net, .org, .to, .uk etc.
2. Ethernet Network Environment
Normally, DDNS services is only necessary for the users that could only obtain dynamic IP addresses.
As to the users that could obtain the static valid IP address, they do not usually have to apply the
DDNS service. Before we decide if DDNS is necessary for the users, we have to check what kind of
Ethernet network environment we have to install our Network Camera or IP ca mera on.
(1) Environment of Fixed Valid IP Network
If users could obtain valid IP addresses, they could save the effort to apply DDNS service.
Because the IP address in this environment is fixed, users could input the IP address or domain
name of demo site directly in the IE browser.
(2) Environment of Dynamic IP Network
If users is under a environment of dynamic IP network (Dial-up ADSL), they have to apply a
domain name in advance. Then apply DDNS service. Finally setup the necessary information
of DDNS and PPPoE of the Network Camera or IP camera in order to let the outside administrator
be able to access through internet.
91/95
Page 92
Network Camera User’s Guide
3. Application Steps—DDNS & Domain Name
(1). Visit the following web site : http://www.dyndns.org/ (Pink No.1)
(2). Click “Account” (Pink No. 2)
(3). After the columns show up at the left side, click “Create Account”.
Fill the application agreement and necessary information.
(4).
a. Input Name
b. E-mail input and confirmation
c. Password input and confirmation
d. Submit all the input information and finish creating a account
92/95
Page 93
Network Camera User’s Guide
(5). Check your e-mail mailbox. There will be an e-mail with a title “Your DynDNS.org Account
Information “. Click the hyperlink address to confirm the DDNS service that you just applied.
Then DDNS you applied activated.
93/95
Page 94
Network Camera User’s Guide
(6). Enter the web page http://www.dyndns.org/
just applied to login administration interface of DDNS service.
(7). If the correct username and password are input, you can see the following picture at the top-right
of the login page.
(8). Click the “Services”.
(9). Click the “ Dynamic DNS ” and then click the “Add a host”.
again. I nput your username and password that you
94/95
Page 95
Network Camera User’s Guide
(10). We could create a domain name without any charge at this step. First, we input the host name.
(Pink No.1) Then we pick a domain that is easy to remember. (Pink No.2) Finally, click the “Add
Host” to submit the domain name information. (Pink No.3)
4. Setup the DDNS and PPPoE
At last, users have to enter the web page of Network Camera or IP camera and setup the
necessary information of DDNS and PPPoE after the application of DDNS service. Please
check the user manual to access the DDNS and PPPoE pages. After saving the modification,
restart the device. The external users could browse the Network Camera or IP camera by the
input of their domain name.
95/95
Loading...
