Veo Infra-Red User Manual

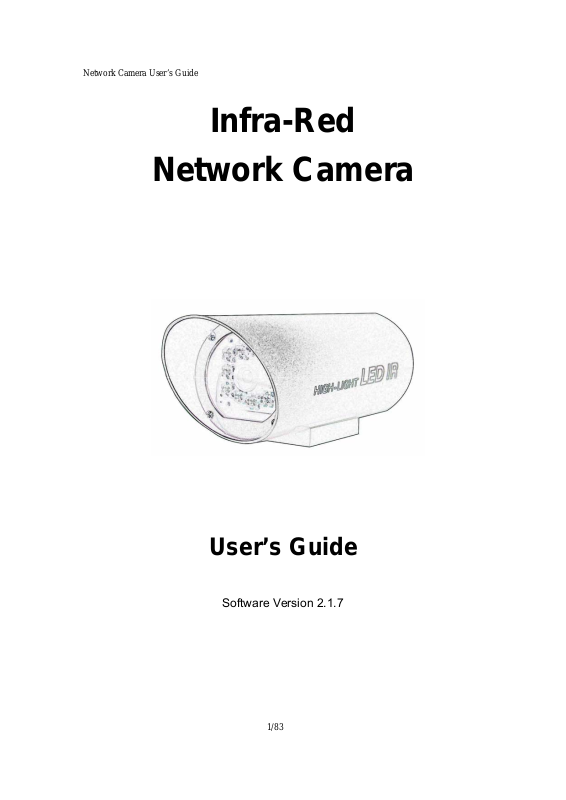

Network Camera User’s Guide
Network Camera
Infra-Red
User’s Guide
Software Version 2.1.7
1/83
Network Camera User’s Guide
PT IP Cam / IR IP Cam / Video Server Series
© 2005.
Owner's Record
The model and serial numbers are located at the bottom. Record these numbers in the spaces provided
below. Refer to these numbers whenever you call upon your dealer regarding this product.
Model No. ______________ Serial No. ____________________
To prevent fire or shock hazard, do not expose the unit to rain or
moisture.
For AC Adaptor to avoid electrical shock, do not open the cabinet. Refer
servicing to qualified personnel only.
For customers in the U.S.A.
This equipment has been tested and found to comply with the limits for a digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radi o or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the followin g measur es :
– Reorient or relocate the receiving antenna.
– Increase the separation be tween the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV technician for help.
You are cautioned that any changes or modifications not expressly approved in this manual could vo id
your authority to operate this equipment.
The shielded interface cable recommended in this manual must be used with t h is equipment in
order to comply with the limits for a digital device pursuant to Part 15 of FCC Rules.
2/83
Network Camera User’s Guide
Declaration of Conformity
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTICE TO USERS
© 2005. All rights reserved. This manual or the software described herein, in whole or in part, may not
be reproduced, translated or reduced to any machine readable form without prior written approval.
WE PROVIDES NO WARRANTY WITH REGARD TO THIS MANUAL, THE SOFTWARE OR
OTHER INFORMATION CONTAINED HEREI N AND HEREBY EXPRESSLY DISCLAIMS
ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY
PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFTWARE OR SUCH
OTHER INFORMATION. IN NO EVENT SHALL WE BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR
OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUA L, THE
SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN OR THE USE THEREOF.
We reserves the right to make any modification to this manual or the information contained herein at
any time without notice. The software described herein may also be govern ed by the terms of a
separate user license agreement.
3/83
Network Camera User’s Guide
Table of Contents
Overview ............................................................................................................................. 6
Package Contents................................................................................................................ 8
Connections.........................................................................................................................9
Hardware Installation....................................................................................................... 11
Logging in to Homepage................................................................................................... 12
Before Operation.......................................................................................................12
Access the Network Camera from the Internet Explorer for the first time............... 16
Logging in as an ordinary User.................................................................................18
Logging in as an Administrator.................................................................................18
Operating the Network Camera........................................................................................ 19
Control Panel ............................................................................................................20
Advanced Function Area......................... ................................... ... ............................22
Basic Setting .....................................................................................................22
System .......................................................................................... 23
Camera.......................................................................................... 25
Network........................................................................................ 27
User...............................................................................................33
IP Filter......................................................................................... 34
FTP Client......................... .................................. ... .......................37
SMTP............................................................................................ 39
Schedule .......................................................................................41
Motion Detection........................................................... ............... 42
Time Setting ................................................................................. 43
4/83
Network Camera User’s Guide
Popup............................................................................................ 45
Firmware upgrade:........................................................................ 46
Factory Default.............................................................................49
Reboot........................................................................................... 50
Trigger...............................................................................................................51
Capture.............................................................................................................. 52
RightMouseButton of ActiveX Control..............................................................................53
View Menu................................................................................................................54
“Image Recording…-> Save as JPEG” .................................................................... 60
“Save Current Picture As …” .................... ... .. ...................................... .................... 66
Appendix A: Troubleshooting & Frequently Asked Questions.......................................... 68
Appendix A: Troubleshooting & Frequently Asked Questions.......................................... 68
Appendix B: PING IP Address.......................................................................................... 73
Appendix C: Bandwidth Estimation..................................................................................74
Appendix D: Specifications ...............................................................................................75
Appendix E: Time Zone Table ...........................................................................................77
Appendix F: DDNS Application........................................................................................ 79
5/83
Network Camera User’s Guide
Overview
This user’s guide explains how to operate the Infra-Red (IR) Network Camera from a
computer. Basically, the user’s guide is written to be read on the computer display.
However, users might consider printing it out to access easily and read it before you
operate the Network Camera.
Introduction
This IR Network Camera is an inexpensive fully scalable surveillance technology.
Because the Network Cameras can be plugged in to your existing computer network
infrastructure, you will potentially save thousands of dollars on unnecessary cabling. By
using IR technology, this Network Camera is not only working on day but also on night.
The IR Network Camera is accessible via the LAN or Internet connection. Connect your
Network Camera directly to a computer network or DSL modem, and with a standard
Web browser you get instant, on demand video streams. Within minutes you can set up
the Network Camera to capture a video sequence to a PC. Live video image can be
uploaded to a website for the world to see or made available only to select users on the
network.
Features:
z High quality 1/3” Sony CCD sensor
z Composite video output
z High-Light LED offers greater image quality and longer life span
z 30M/50M IR distance
z JPEG video compression
z Remote-Control via Inter net Explorer
z Support statistic and dynamic IP address
z DDNS and PPPoE
z Multi-channel control software for surveillance application
z On-line firmware upgrade
6/83
Network Camera User’s Guide
Application:
z Remote monitoring
z Surveillance
Minimum System Requirement
z Microsoft Internet Explorer 5.0 or later
z VGA Monitor resolution 1024 x 768
z Pentium 4 1.3GHz or above
z Memory Size: 256MB or above
z Windows ME, 2000, XP, or 2003
7/83
Network Camera User’s Guide
Package Contents
User can find the following items in the package:
z Infra-Red IP Camera x 1
z Wall mount x 1
z RS-485 terminal x 1
z Installation software and manual CD x 1
z Quick installation guide
If any of the above items are missing, please contact your dealer immediately.
8/83
Network Camera User’s Guide
Connections
Rear Panel Connections:
1. RS-485: To connect to an indoor/outdoor Pan/Tilt scanner unit.
Definition of the RS-485:
Orange: DBlue: D+
2. LAN port: To connect to PC or Hub.
The LAN socket is an RJ-45 connector for connections to 10Base-T Ethernet or
100Base-TX Fast Ethernet cabling. This Ethernet port built NWay protocol can detect or
negotiate the transmission speed of the network automatically. Please use Category 5
“straight through” cable to connect the Network Camera to a 100Mbps Fast Ethernet
network switch or hub.
9/83
Network Camera User’s Guide
3. AC power cord & Local Video out (BNC port)
The AC power input and video output cable are located on the Network Camera’s back
panel. The input power is 85~260VAC..
The Network Camera also provides composite video output. User can use BNC video
cable to connect the Network Camera with a TV monitor or VCR.
10/83
Network Camera User’s Guide
Hardware Installation
1. Fix IR camera to desired location with wall mount fixture
2. Plug-in Network Cable into Ethernet port
Connect an Ethernet cable to the LAN socket located on the Network Camera’s back
panel and attach it to the network.
3. Connect RS485 two wires to RS485 D+ and D- ( if you need to control PT
scanner)
4. Plug-in Power cable into power socket
5. Connect Video BNC connector to a local TV (for checking camera viewing
angle)
6. Done
Once you have installed the Network Camera well, the status LED will turn on. It means
the system is booting up successfully. Furthermore, if you have a proper network
connection, and access to the Network Camera, the 10/100M LAN LED will flash
11/83
Network Camera User’s Guide
Logging in to Homepage
Before Operation
Install the IP Address of Network Camera
When you installed your Network camera on your LAN environment, you may execute
IPFINDER.EXE to discover Network camera’s IP address.
IPCam Finder program (IPFINDER.EXE) is used to scan the Installed Network Camera,
setting the Network Camera Name, IP address settings and so on.
Using your mouse to select any one of the Network Cameras within your LAN
12/83
Network Camera User’s Guide
environment, you can find out its IP address and other IP parameters as follows:
1. Edit the Name of this Network Camera. Note that use “_” or “-“ to replace
“space” character to separate the name string. For example, “Dome_IP”
or “Dome-IP” will be right. However “Dome IP” will not work here.
2. Might be needed to update the IP address of this Network Camera.
( Power recycling i might be necessary)
3. Might be needed to update the Gateway Address. ( Power recycling might
be necessary)
4. Might be needed to update the Network Mask (255.255.255.0). ( Power
recycling might be necessary)
5. Might be needed to modify the port number 1 of HTTP access. ( Power
recycling might be necessary)
6. Might be needed to modify the port number 2 of HTTP access. ( Power
recycling might be necessary)
7. ‘Submit’ it.
Click “submit”, the IP information of this Network Camera will be updated after
seconds
Install the Network Camera with an ADSL Router
If the Network Camera was installed on the LAN with an ADSL router, then the Network
Camera can get a dynamic IP address from the DHCP server. However, if the Network
Camera wants to be access from the WAN, its IP address needs to be setup as fixed IP,
also the Virtual Server function of ADSL router needs to be setup as follows:
1. Setup the Network Camera as Fixed IP, such as 192.168.0.49.
2. Enter the administrator page of ADSL router. (Use zonet ASDL router as an
example).
3. Enter the Virtual Server Page.
a. Setup the mapping of HTTP Port (80) to 192.168.0.49.
b. Restart the ADSL router.
Then the Network Camera can be access from WAN by the ADSL WAN IP Address.
13/83
Network Camera User’s Guide
First time uses the Network Camera
The Network Camera web page communicates with the Network Camera using an
ActiveX control. The ActiveX control must be downloaded from the Network Camera and
installed on your PC. Your Internet Explorer security settings must allow for the web
page to work correctly. To use the Network Camera, user must setup his IE browser as
follows:
From your IE browse Î ”Tools” Î ”Internet Options…” Î ”Security” ΔCustom
Level…”, please setup your “Settings” as follow.
Set the first 3 items
• Download the signed ActiveX controls
• Download the unsigned ActiveX controls
• Initialize and script the ActiveX controls not masked as safe
To Prompt
14/83
Network Camera User’s Guide
By now, you have finished your entire PC configuration for Network Camera.
15/83
Network Camera User’s Guide
Access the Network Camera from the
Internet Explorer for the first time
1. Start the web browser on the computer and type the IP address of the Network
Camera you want to monitor as below:
The Login Window of the Network Camera is displayed:
2. Type in your login name and password under “USERNAME” and “PASSWORD”
textbox.
For the first time use (default value), input the
User Name : admin
Password:
16/83
Network Camera User’s Guide
That’s, type in “admin” on the “USERNAME” as a default name and leave PASSWORD
textbox blank. Click “OK” button to start the main menu.
Now, you login to the Network Camera as a full-authorized administrator. You can
enter “Setting” to change the password and setup “Administrator” or “User” authority.
Please refer to “Setting” Î “User” and “IP Filter”.
3. The IE Web Page will display the “Security Warning” window, select “Yes” to install
and run the ActiveX control into your PC.
4. Display the image. After the ActiveX control was installed and ran, the first image will
be displayed.
17/83
Network Camera User’s Guide
Logging in as an ordinary User
For ordinary user usage, “Setting”, “Trigger”, and “Capture” will be not available. On the
right side of the screen, there are lots of controls and function buttons. If “Remote
camera control” is turned off by the administrator, then those control and function
buttons will not be available as well.
For the rest of this user guide, it is assumed that the “Remote camera control” will be
turned on for normal operation.
Logging in as an Administrator
If you log in the Network Camera as the Administrator, you can perform all the settings
provided within the software. The Administrator may be logged in at any time, regardless
of the number of the users being accessed.
18/83
Network Camera User’s Guide
Operating the Network Camera
Start-up screen will be as follow no matter an ordinary users or an administrator.
Viewing Area: Images from the Network Camera
19/83
Network Camera User’s Guide
Control Panel
Control Panel Area: Network Camera Manipulation and image quality control
Item Button Meaning
1 Camera
direction
2 Camera
speed
20/83
Control camera up/down/left/right and home position
Note: It’s useful if IR Network Camera is carried by a P/T
scanner. Otherwise, this function is not available.
Adjust camera speed up / down
Note: It’s useful if IR Network Camera is carried by a P/T
scanner. Otherwise, this function is not available.
Network Camera User’s Guide
3 Preset /
Recall mode
Preset: Set up camera to fixed locations before operation
Recall: Drive camera position to preset location
During preset mode, click the number and a dialogue box for
the inquiry of location name input will appear.
Note: It’s useful if IR Network Camera is carried by a P/T
scanner. Otherwise, this function is not available.
4 Preset /
Recall camera
locations
Preset or Recall camera 1~16 location(s)
Ex. If you press 5, then the camera will move to preset location
5.
Note: It’s useful if IR Network Camera is carried by a P/T
scanner. Otherwise, this function is not available.
5 Camera tour
on / off
Turn on or off the camera tour. Camera tour is comprised by
series of preset locations.
Note: It’s useful if IR Network Camera is carried by a P/T
scanner. Otherwise, this function is not available.
6 Auto pan on /
off
Turn on or off the auto pan of camera. While auto pan is on, the
camera will swing the camera from leftmost to rightmost tour
and then from rightmost to leftmost cyclically.
Note: It’s useful if IR Network Camera is carried by a P/T
scanner. Otherwise, this function is not available.
7 Video
resolution
Adjust Video resolution
Network Camera provides 4 resolutions:
640x480, 352x288, 320x240, 176x144
For NTSC camera: 320x240 is suitable
For PAL camera: 352x288 and 176x144 are suitable
However, all resolution are available for NTSC and PAL camera
8 Video
Adjust video brightness of camera
brightness
adjustment
9 Frame rate
adjustment
Adjust video frame rate via scrolling the listed numbers: 1, 5,
10, 15, 20, 25, 30
10 Audio On/Off Turn on/off audio output function. Note: This function is not
available in Network Camera.
11 Video quality
adjustment
Adjust video quality.
Clarity: Video is better but frame rate may be slower
Fluency: Video is not as good as Clarity but frame rate may be
higher
Default: System default value
21/83
Network Camera User’s Guide
Advanced Function Area
Advanced function area: only available for administrator. It has contained three
categories.
Setting System Configuration
Trigger Send out current message or setup activities
Capture Capture current screen and save to HDD or other media
Setting menu consists of the Basic menu and the Application menu. The Basic menu is
used for basic settings of the Network Camera, and the Application menu is used for
setting various applications according to individual. Click on each menu name to display
its setting page.
Basic Setting
For the setting, you will see there are divided into two categories – Basic Setting and
Application.
Basic Setting
Symbol Item Action
System Define Frame Rate, Turn on/off “Remote camera control”, and
view system log file.
Camera Adjust camera parameters and set camera tour
Network Configure Network setting such as DHCP On/Off, DDNS and
PPPoE
User Setup user name, password and login privilege
IP Filter Setup legal IP address of user login (This function should be
used with function “User” respectively)
22/83
Network Camera User’s Guide
System: Define Frame Rate and Turn on/off “Remote camera control”
System ID:
It’s a unique number for each Network Camera for identification.
Camera Name:
You can enter the name of this unit here. It’s very useful to identify the specific device
from multiple units. Note that use “_” or “-“ to replace “space” character to separate the
name string. For example, “IR_IP” or “IR-IP” will be ok and “IR IP” will not work here.
Default frame rate:
You can set up frame rate here or via right-side control panel.
For example, set the frame rate to 5 FPS, then the image will be updated for 5 frames
per second, the time interval can be checked by the time displayed on the image.
Remote camera control:
Turn on “Remote camera control”: users will be able to use right-side control panel vice
versa.
Log:
User can check the log information of the Network Camera, including the Main Info,
Appended Info, Operator IP, Operator MAC, and Time.
23/83
Network Camera User’s Guide
Select the “View” button to check the log file.
24/83
Network Camera User’s Guide
Camera: Adjust Camera parameters
PTZ Type:
The Video Server can connect to P/T or P/T/Z camera and control those devices thru
RS485 bus. There are a lot of cameras supported and will add more models in future.
25/83
Loading...
